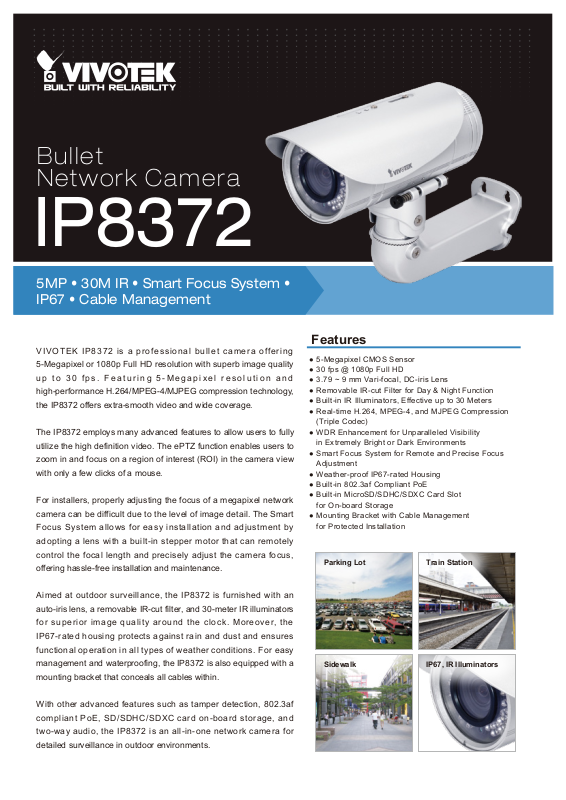

Vivotek IP8372 Specsheet
Bullet
Network Camera
IP8372
5MP • 30M IR • Smart Focus System •
IP67 • Cable Management
VIVOTEK IP8372 is a professional bullet camera offering
5-Megapixel or 1080p Full HD resolution with superb image quality
up to 30 fps. Featuring 5-Megapixel resolution and
high-performance H.264/MPEG-4/MJPEG compression technology,
the IP8372 offers extra-smooth video and wide coverage.
The IP8372 employs many advanced features to allow users to fully
utilize the high definition video. The ePTZ function enables users to
zoom in and focus on a region of interest (ROI) in the camera view
with only a few clicks of a mouse.
For installers, properly adjusting the focus of a megapixel network
camera can be difficult due to the level of image detail. The Smart
Focus System allows for easy installation and adjustment by
adopting a lens with a built-in stepper motor that can remotely
control the focal length and precisely adjust the camera focus,
offering hassle-free installation and maintenance.
Features
● 5-Megapixel CMOS Sensor
● 30 fps @ 1080p Full HD
● 3.79 ~ 9 mm Vari-focal, DC-iris Lens
● Removable IR-cut Filter for Day & Night Function
● Built-in IR Illuminators, Effective up to 30 Meters
● Real-time H.264, MPEG-4, and MJPEG Compression
(Triple Codec)
● WDR Enhancement for Unparalleled Visibility
in Extremely Bright or Dark Environments
● Smart Focus System for Remote and Precise Focus
Adjustment
● Weather-proof IP67-rated Housing
● Built-in 802.3af Compliant PoE
● Built-in MicroSD/SDHC/SDXC Card Slot
for On-board Storage
● Mounting Bracket with Cable Management
for Protected Installation
Parking Lot
Train Station
Aimed at outdoor surveillance, the IP8372 is furnished with an
auto-iris lens, a removable IR-cut filter, and 30-meter IR illuminators
for superior image quality around the clock. Moreover, the
IP67-rated housing protects against rain and dust and ensures
functional operation in all types of weather conditions. For easy
management and waterproofing, the IP8372 is also equipped with a
mounting bracket that conceals all cables within.
With other advanced features such as tamper detection, 802.3af
compliant PoE, SD/SDHC/SDXC card on-board storage, and
two-way audio, the IP8372 is an all-in-one network camera for
detailed surveillance in outdoor environments.
Sidewalk
IP67, IR Illuminators
Technical Specifications
System Information
CPU
Flash
RAM
Camera Features
Image Sensor
Maximum Resolution
Lens Type
Focal Length
Aperture
Auto-iris
Field of View
Shutter Time
WDR Technology
Day/Night
Minimum Illumination
Pan/tilt/zoom
Functionalities
IR Illuminators
On-board Storage
Video
Compression
Maximum Frame Rate
Maximum Streams
S/N Ratio
Dynamic Range
Video Streaming
Image Settings
Audio
Audio Capability
Compression
Interface
Network
Users
Protocols
Interface
ONVIF
Intelligent Video
Video Motion Detection
Multimedia SoC (System-on-Chip)
128 MB
256 MB
1/2.5" Progressive CMOS
2560x1920
Vari-focal
f = 3.79 ~ 9 mm
F1.8 (wide), F3.4 (tele)
DC-iris
35.45° ~ 73° (horizontal)
26.69° ~ 54.77° (vertical)
43.99° ~ 90.91° (diagonal)
1/5 sec. to 1/32,000 sec.
WDR Enhanced
Removable IR-cut filter for day & night function
0.03 Lux @ F1.8, 50 IRE (Color)
0.001 Lux @ F1.8, 50 IRE (B/W)
ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in)
Built-in IR illuminators, effective up to 30 meters
IR LED*24, High Power IR LED*2
MicroSD/SDHC/SDXC card slot
H.264, MJPEG & MPEG-4
H.264:
10 fps at 2560x1920
30 fps at 1920x1080
MPEG-4:
10 fps at 1920x1536
25 fps at 1920x1080
MJPEG:
13 fps at 2560x1920
30 fps at 1920x1080
3 simultaneous streams
Above 61 dB
57 dB
Adjustable resolution, quality and bitrate
Configurable video cropping for bandwidth saving
Adjustable image size, quality and bit rate
Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation,
sharpness, white balance, exposure control, gain,
backlight compensation, privacy masks
Scheduled profile settings
Audio input/output (full duplex)
GSM-AMR, AAC, G.711
External microphone input
External line output
Live viewing for up to 10 clients
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP,
RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP,
DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
10Base-T/100 BaseTX Ethernet (RJ-45)
Ver. 1.02
Triple-window video motion detection
Alarm and Event
Alarm Triggers
Alarm Events
General
Smart Focus System
Connectors
LED Indicator
Power Input
Power Consumption
Dimensions
Weight
Casing
Safety Certifications
Operating Temperature
Warranty
System Requirements
Operating System
Web Browser
Other Players
Included Accessories
CD
Others
Dimensions
Ø85 mm
Video motion detection, manual trigger, digital input,
periodical trigger, system boot, recording notification,
camera tampering detection
Event notification using digital output, HTTP, SMTP,
FTP and NAS server
File upload via HTTP, SMTP, FTP and NAS server
Remote focal & focus control
RJ-45 cable connector for Network/PoE connection
Audio input
Audio output
AC 24V power input
DC 12V power inout
Digital input*2
Digital output*1
System power and status indicator
24V AC12V DC
IEEE 802.3af PoE Class 3
Max. 9.8 W (DC 12V)
Max. 11.6 W (AC 24V)
Max 11.8 W (PoE)
Ø: 85 mm x 205 mm
Net: 1750 g
Weather-proof IP67-rated housing
CE, LVD, FCC Class A, VCCI, C-Tick, UL
Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
24 months
Microsoft Windows 7/Vista/XP/2000
Mozilla Firefox 7~10 (Streaming only)
Internet Explorer 7.x or 8.x
VLC: 1.1.11 or above
Quicktime: 7 or above
User's manual, quick installation guide, Installation
Wizard 2, ST7501 32-channel recording software
Quick installation guide, warranty card, sun shield, wall
mount bracket, waterproof connector for RJ45
Ethernet enclosure, alignment sticker / desiccant bag,
waterproof connector
234 mm
205 mm
90 mm
256 mm
120 mm
204 mm
Compatible Accessories
Mounting Kits
AM-311
Pole Mount Adaptor
Distributed by:
AM-411
Corner Mount Adaptor
Power Adapter
AA-221
DC 12V Power Adapter
All specications are subject to change without notice. Copyright © 2013 VIVOTEK INC. All rights reserved.
VIVOTEK INC.
6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
|T: +886-2-82455282|F: +886-2-82455532| E: sales@vivotek.com
VIVOTEK USA, INC.
2050 Ringwood Avenue, San Jose, CA 95131
|T: 408-773-8686|F: 408-773-8298| E: salesusa@vivotek.com
PoE Kits
POE-IJ-1748NDN
PoE injector, 802.3af compliant
