Vivotek IP8371E User Manual
Bullet
IP8371(E)
Network Camera
User’s Manual
3MP • 1080p 60fps • 30M IR • Smart Stream
Smart Focus • IP67 • Smart IR •
SNV
Rev.: 1.3
Rev. 1.1
VIVOTEK
Table of Contents
Overview
Revision History ...................................................................................................................................... 4
Read Before Use ..................................................................................................................................... 5
Package Contents ................................................................................................................................... 5
Symbols and Statements in this Document ............................................................................................. 5
Physical Description ................................................................................................................................ 6
Installation
Hardware Installation ............................................................................................................................... 9
Network Deployment ............................................................................................................................. 13
Software Installation .............................................................................................................................. 16
Ready to Use ......................................................................................................................................... 17
Accessing the Network Camera
Using Web Browsers ............................................................................................................................. 19
Using RTSP Players .............................................................................................................................. 21
Using 3GPP-compatible Mobile Devices ............................................................................................... 22
Using VIVOTEK Recording Software .................................................................................................... 23

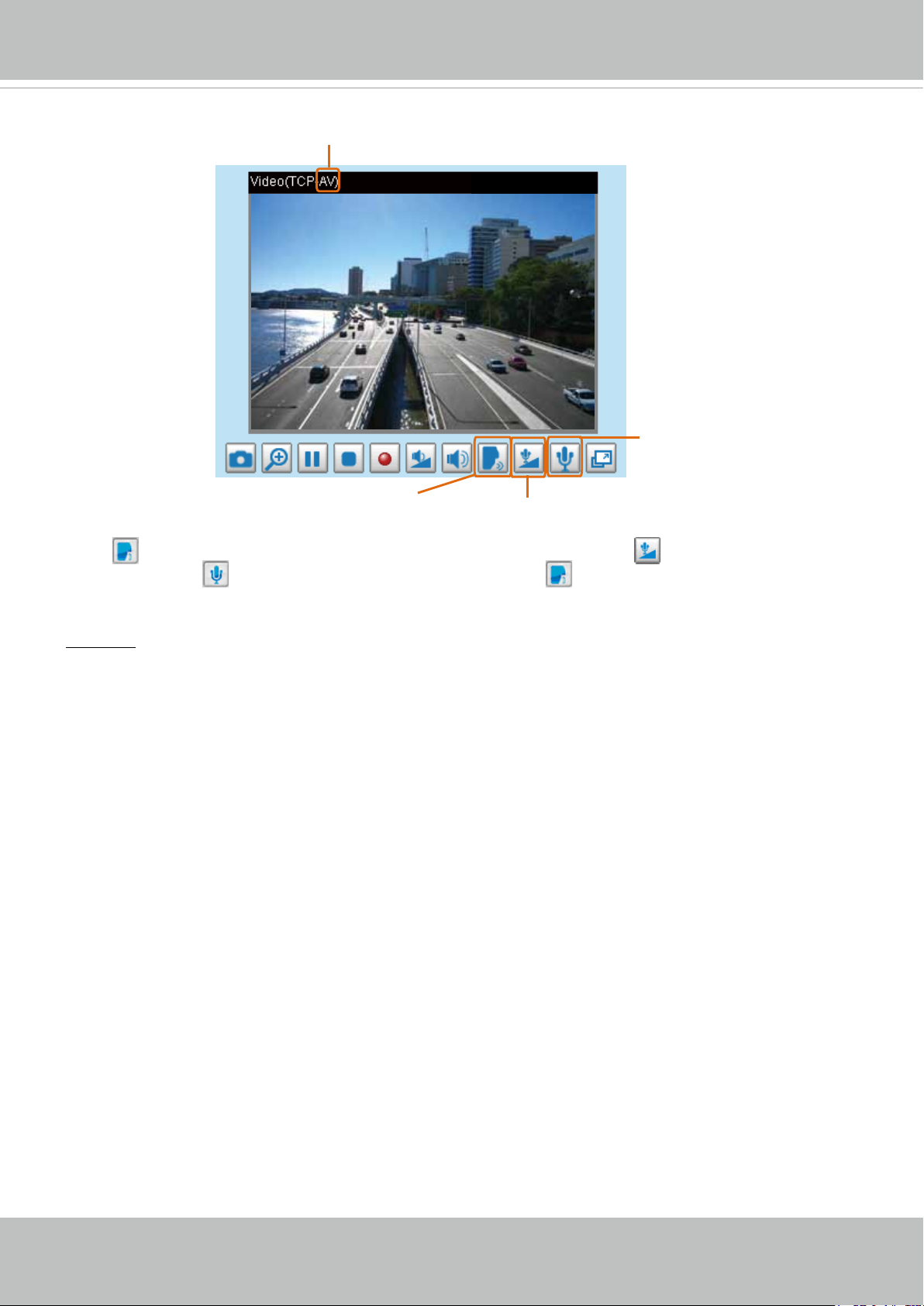

Main Page

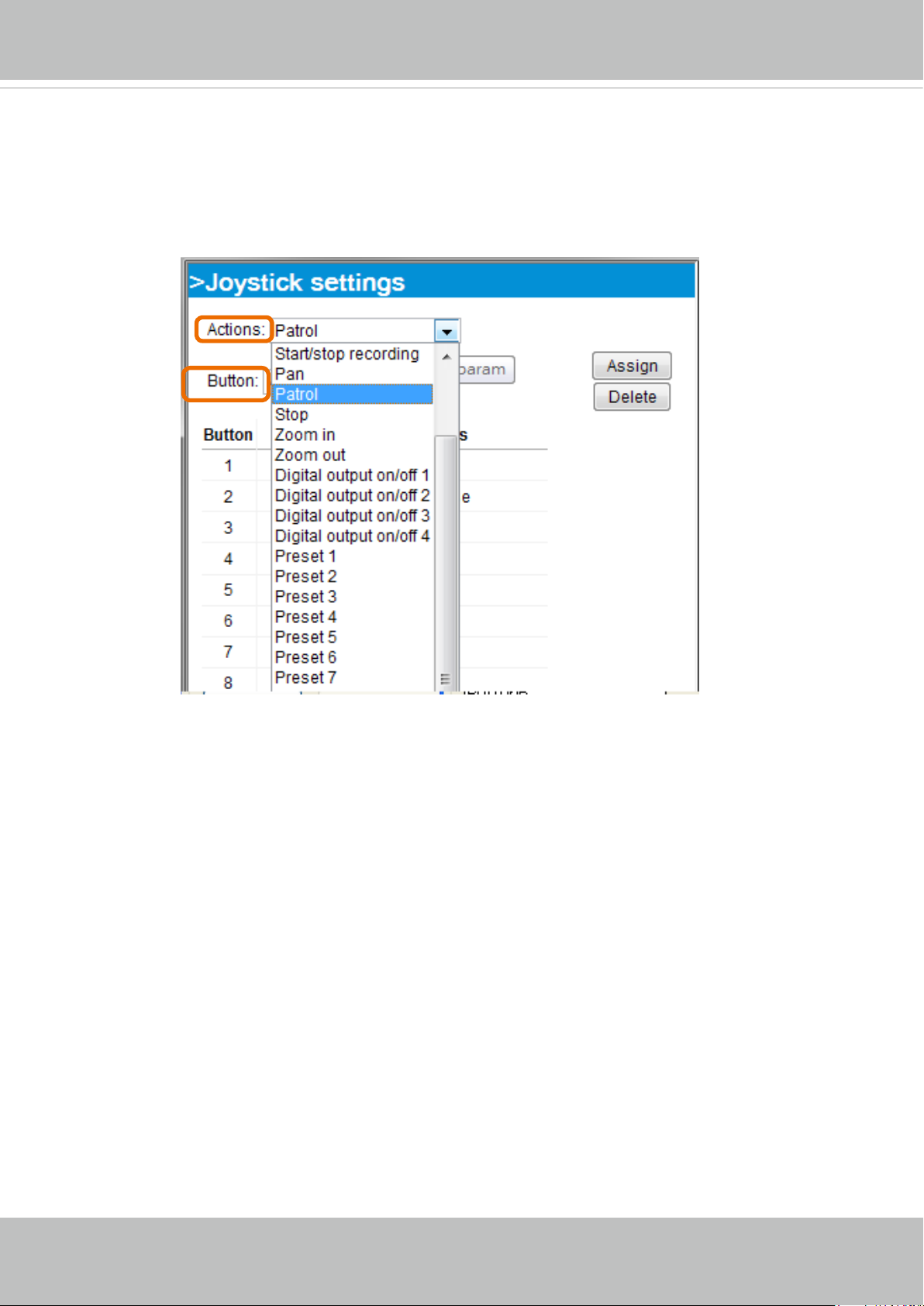

Client Settings
Conguration

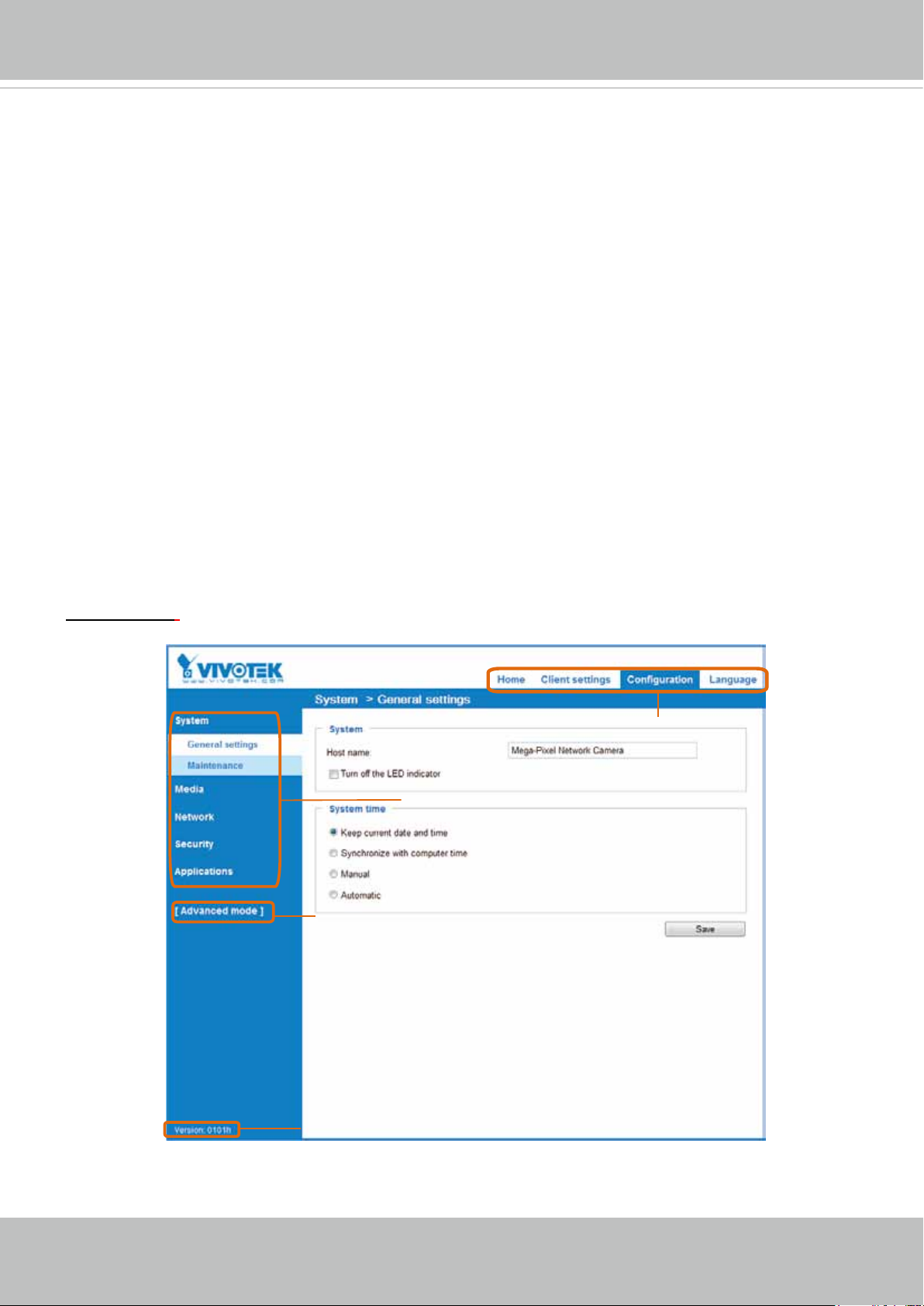

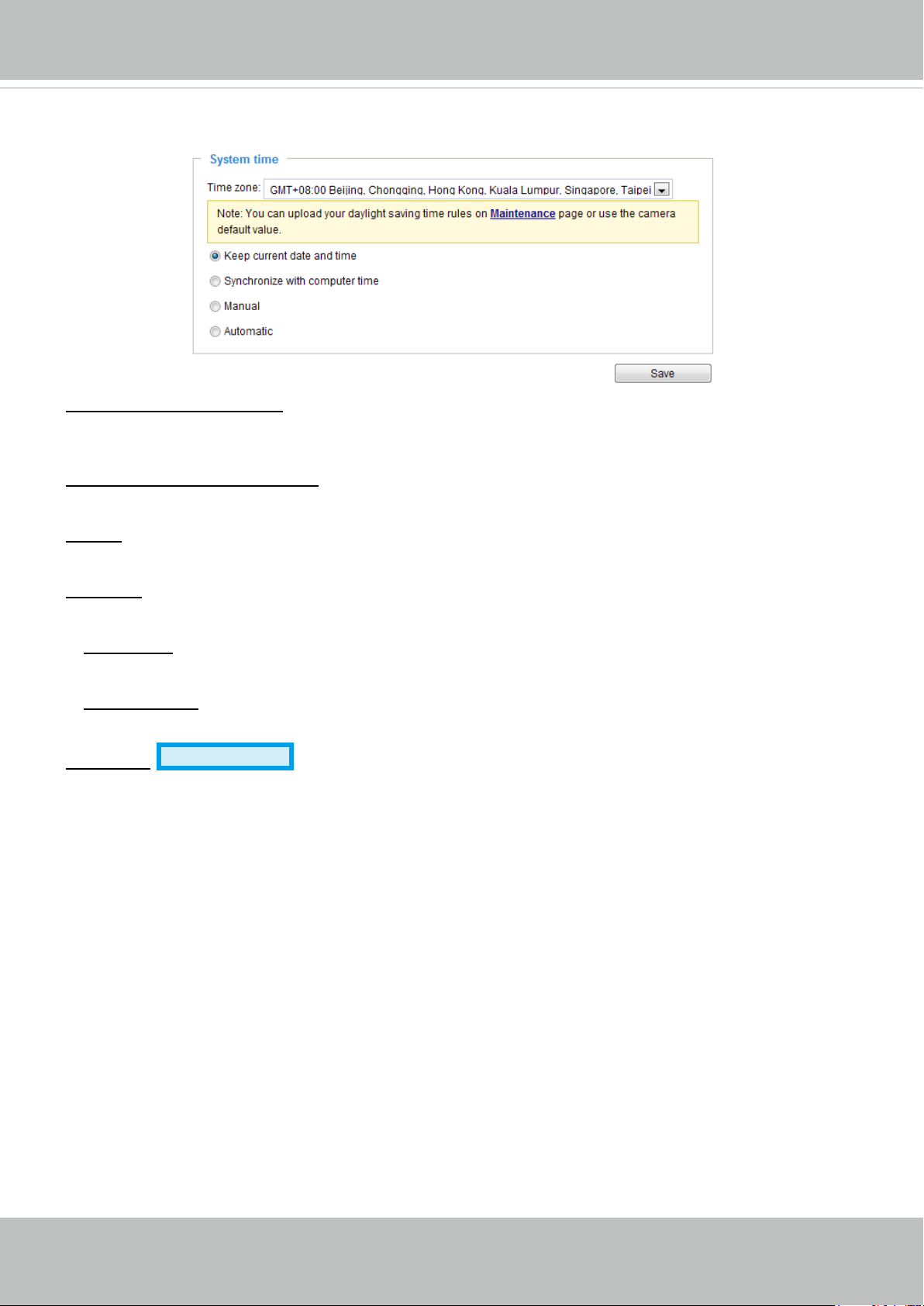

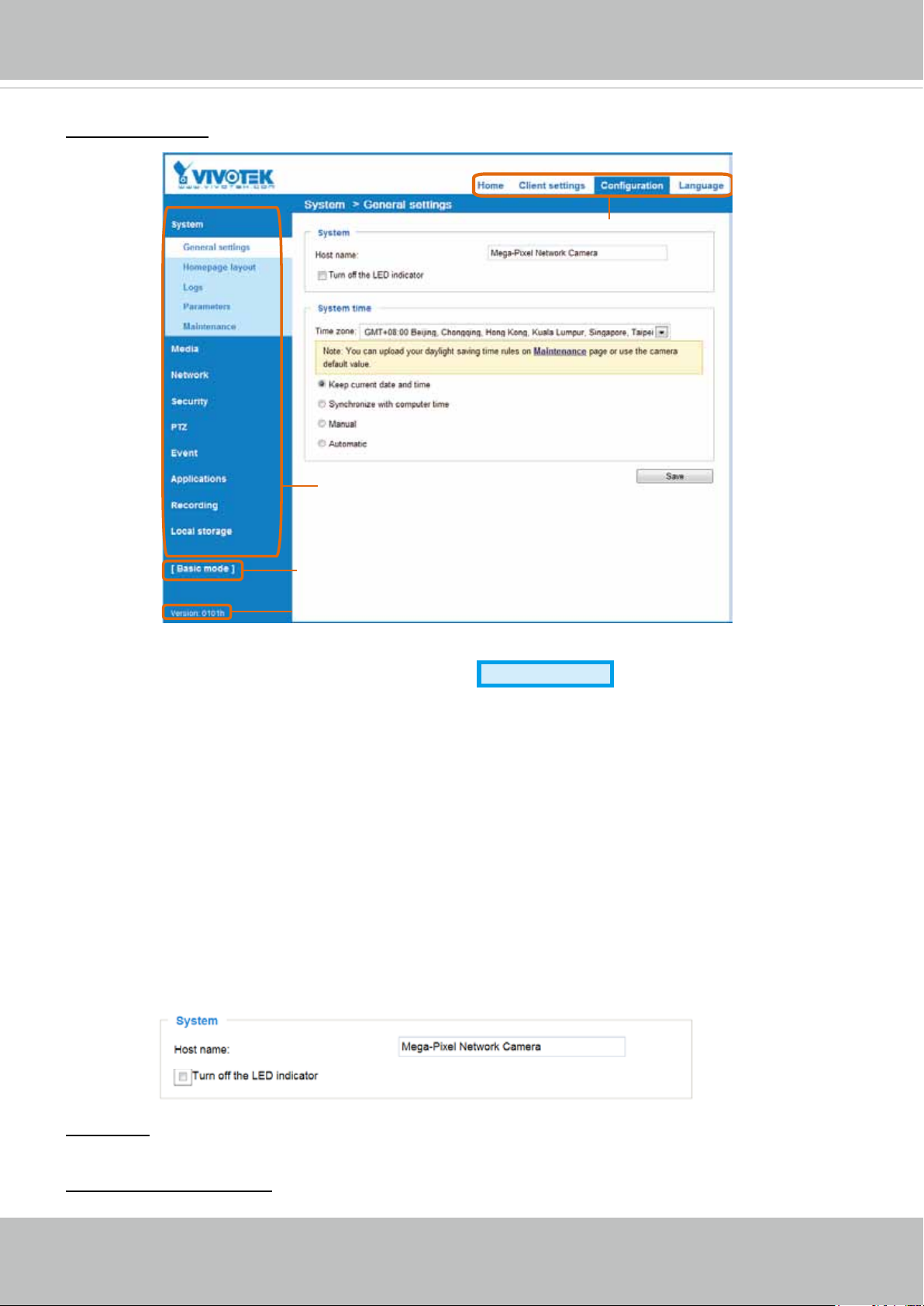

System > General settings .................................................................................................................... 35

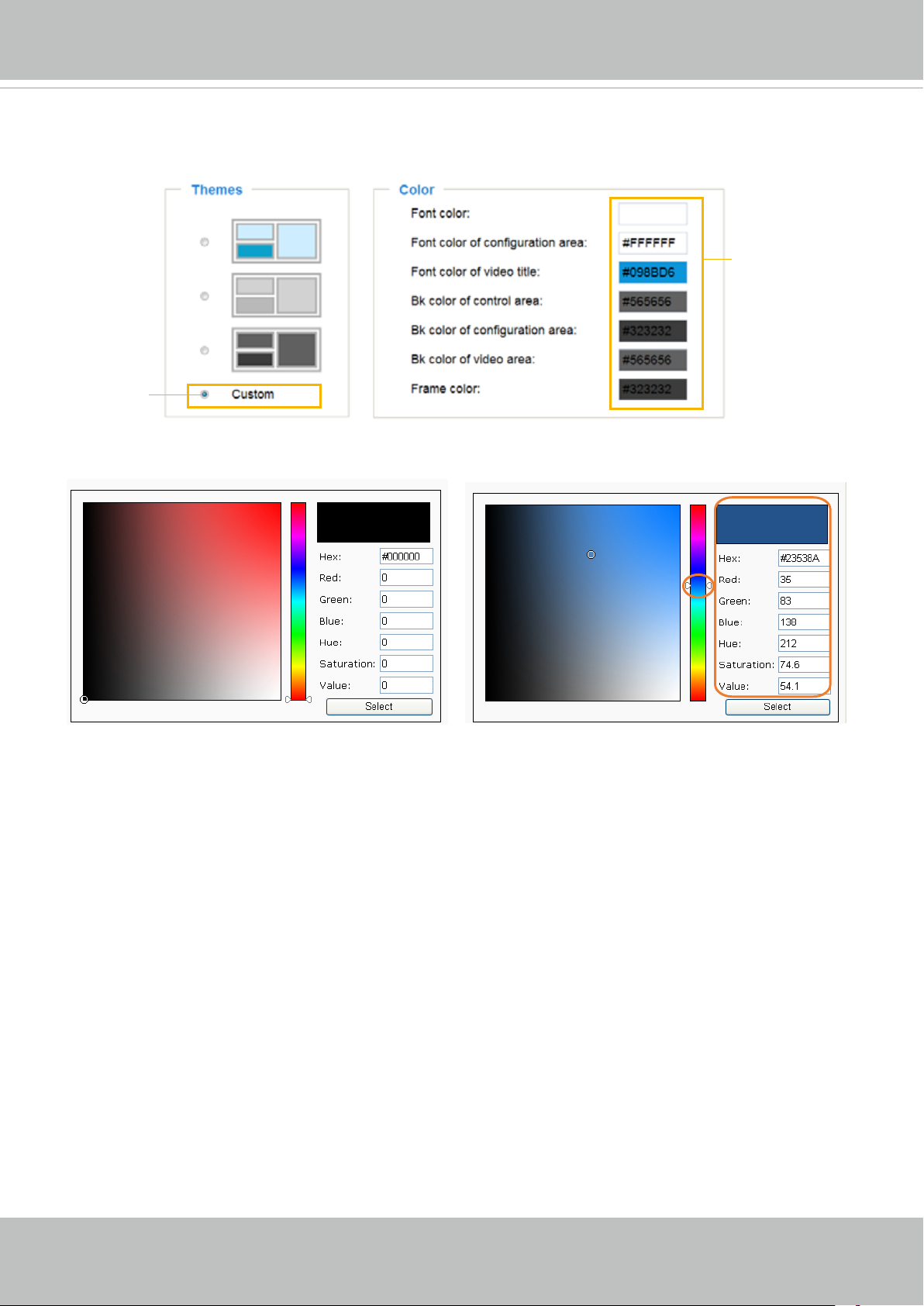

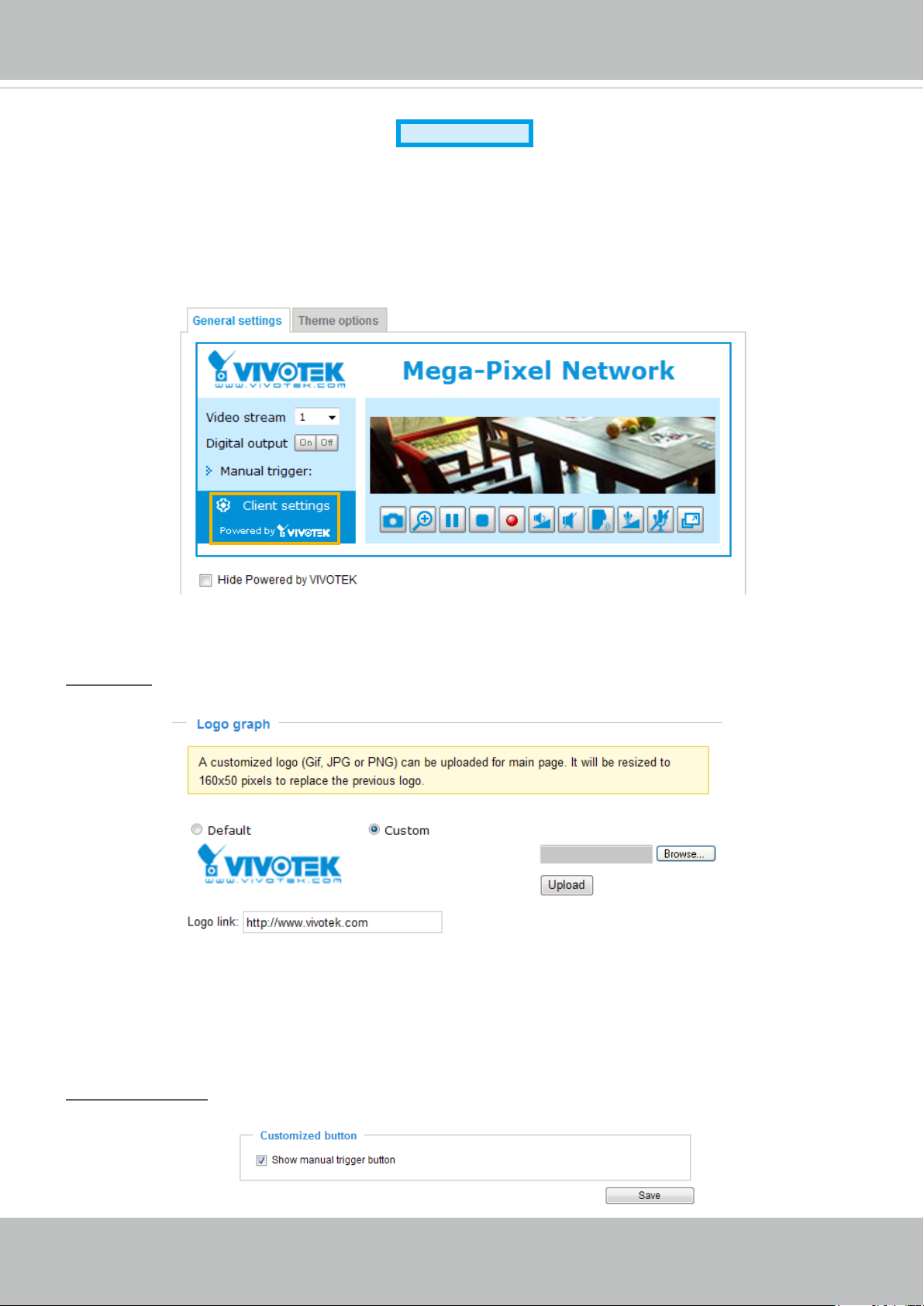

System > Homepage layout ................................................................................................................. 37

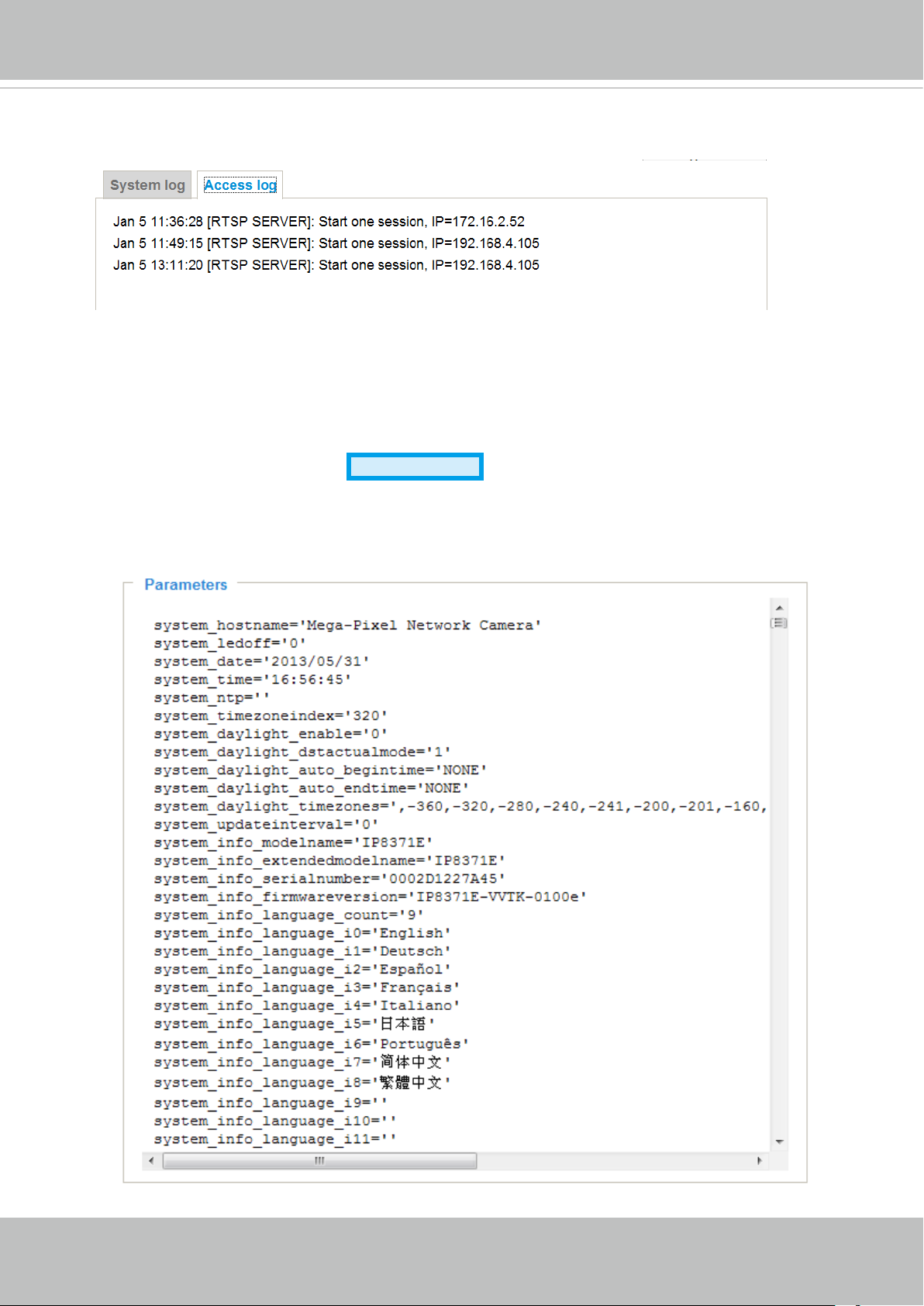

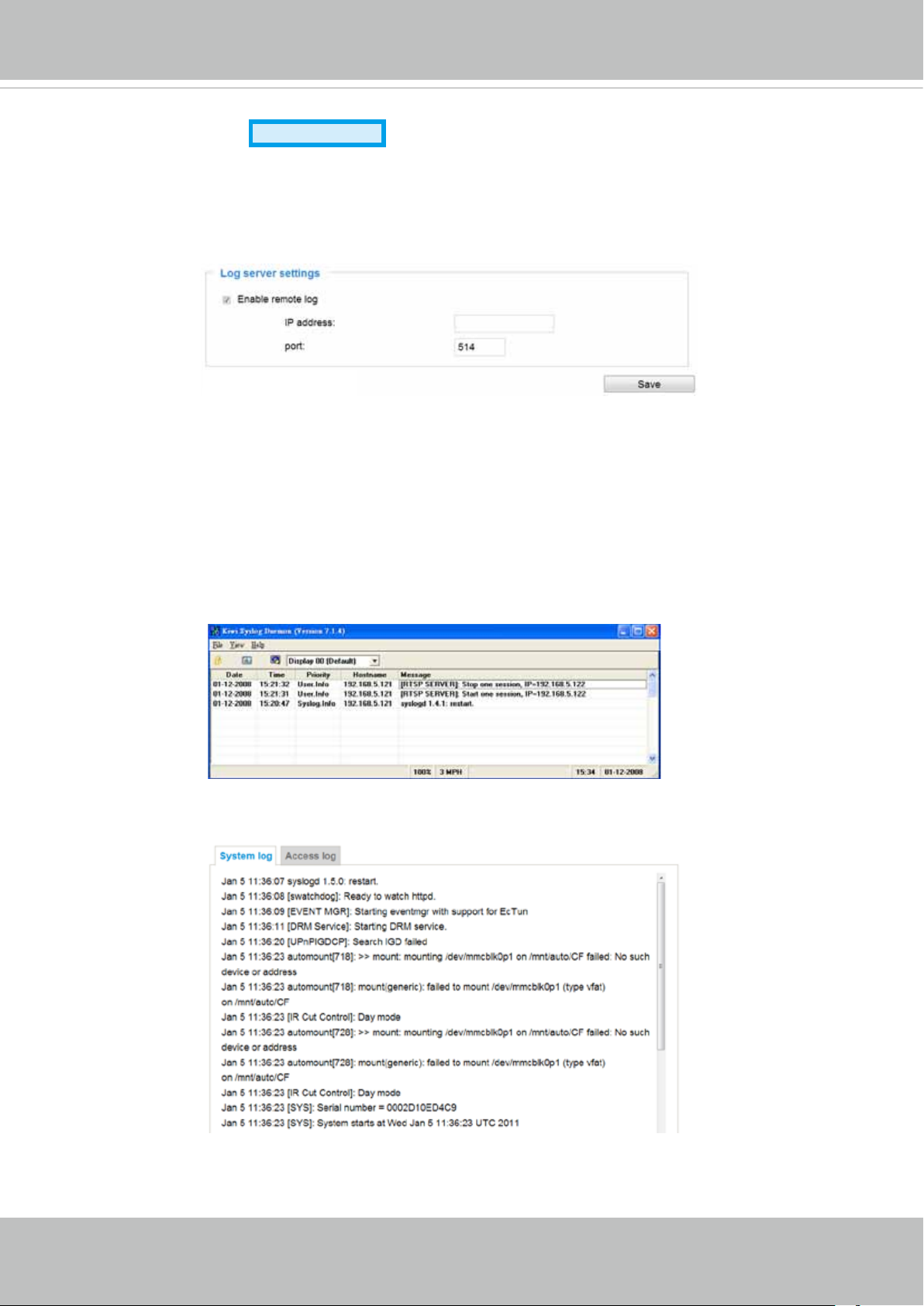

System > Logs ...................................................................................................................................... 40
System > Parameters ........................................................................................................................... 41

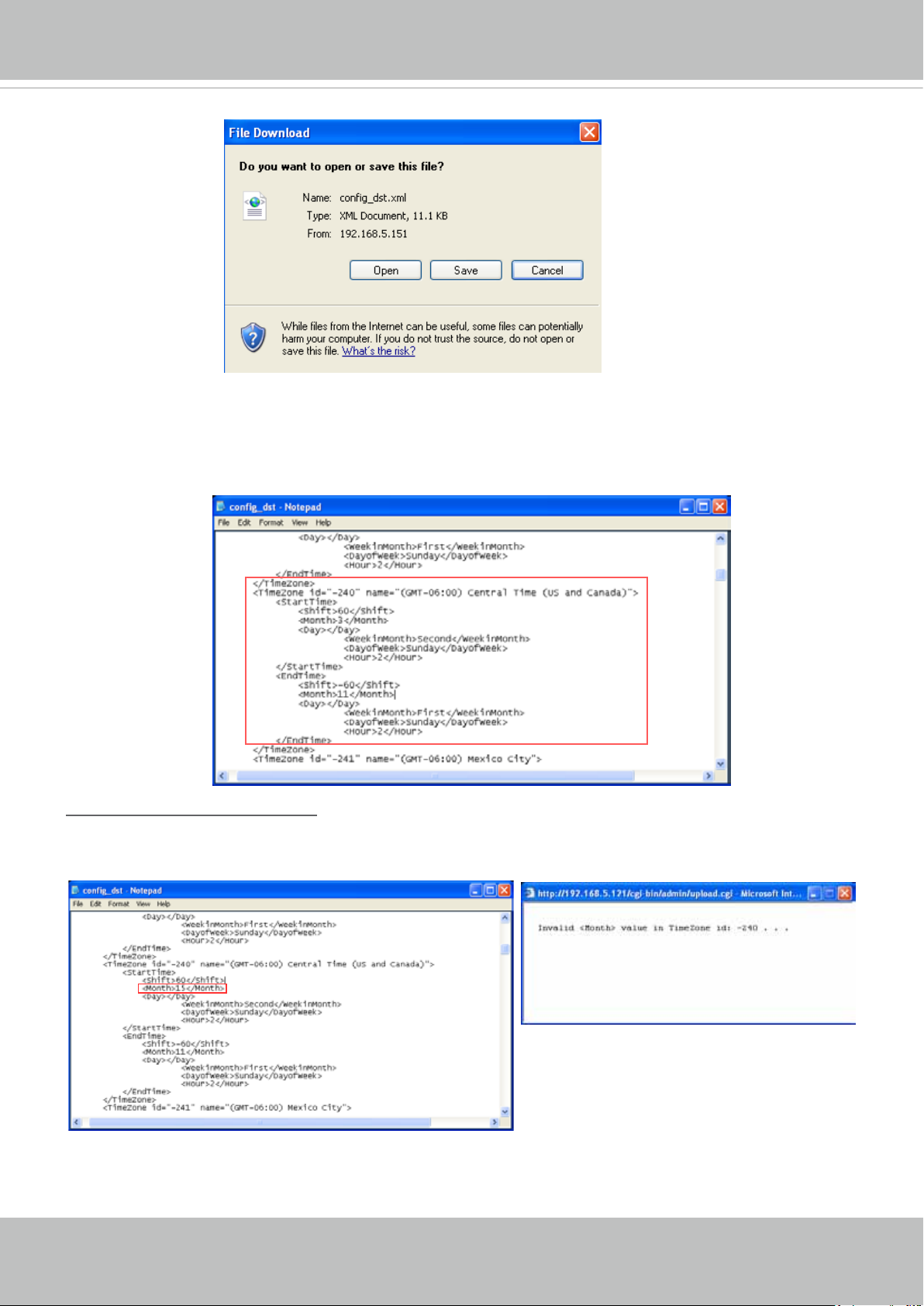

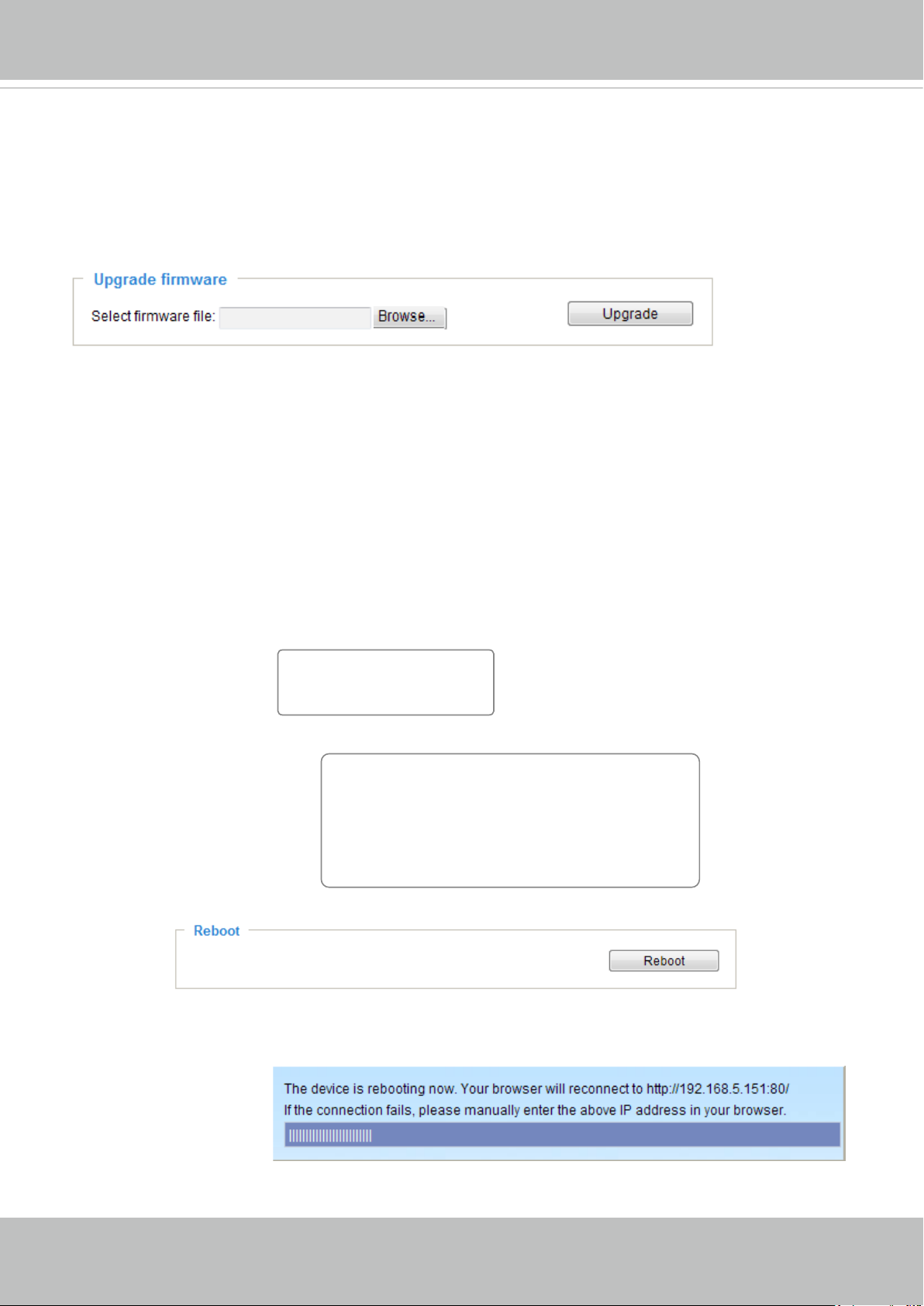

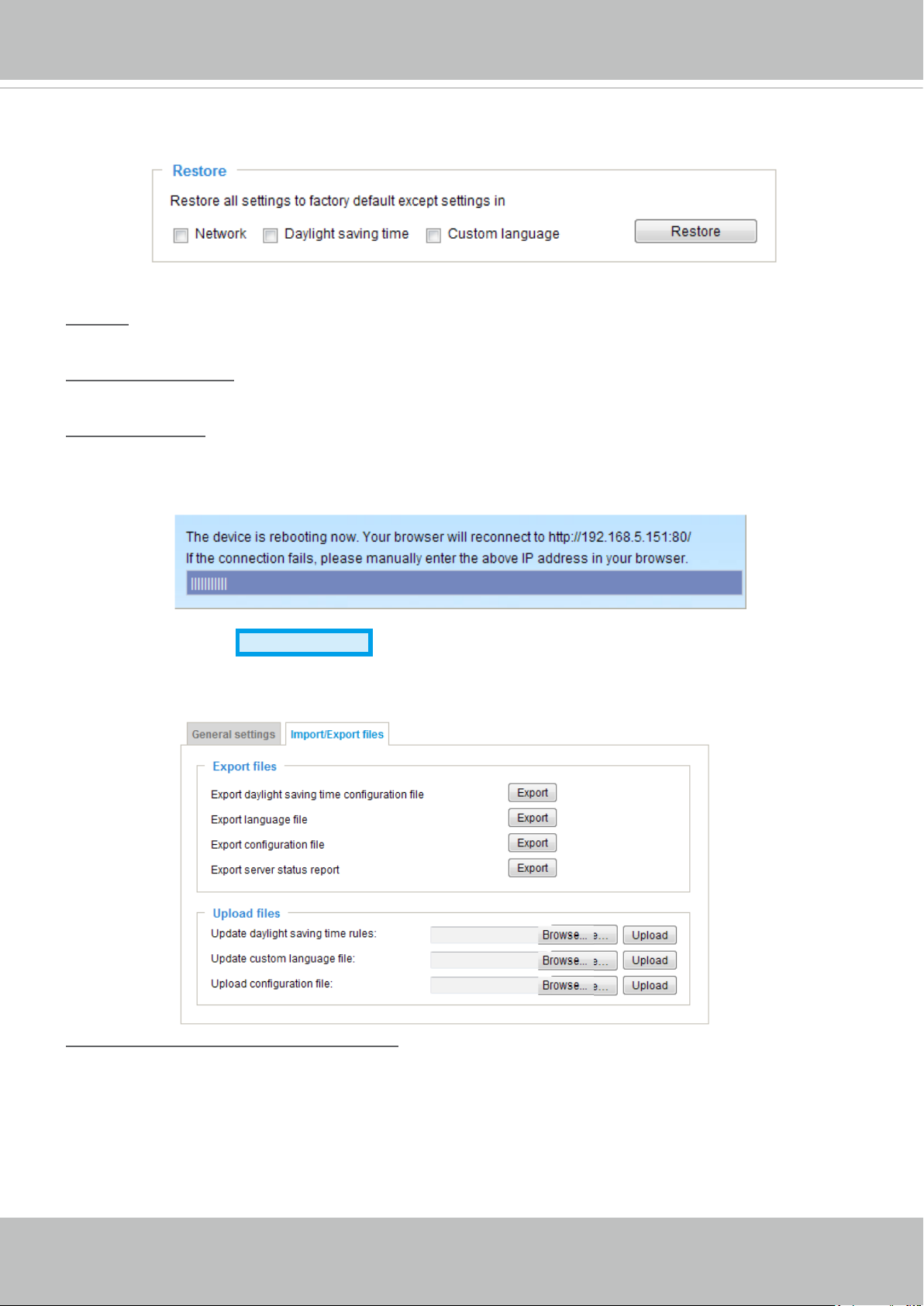

System > Maintenance .......................................................................................................................... 42

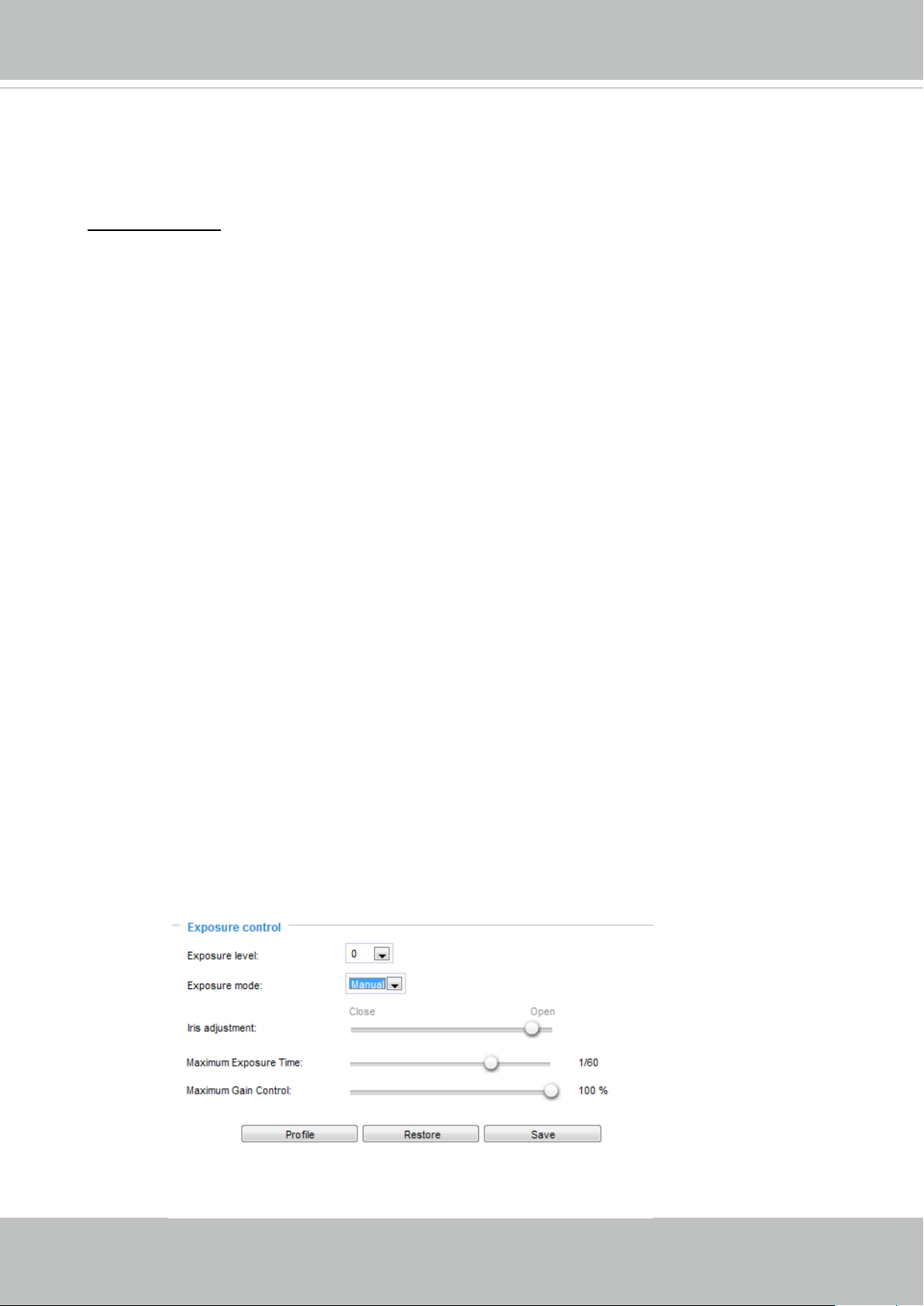

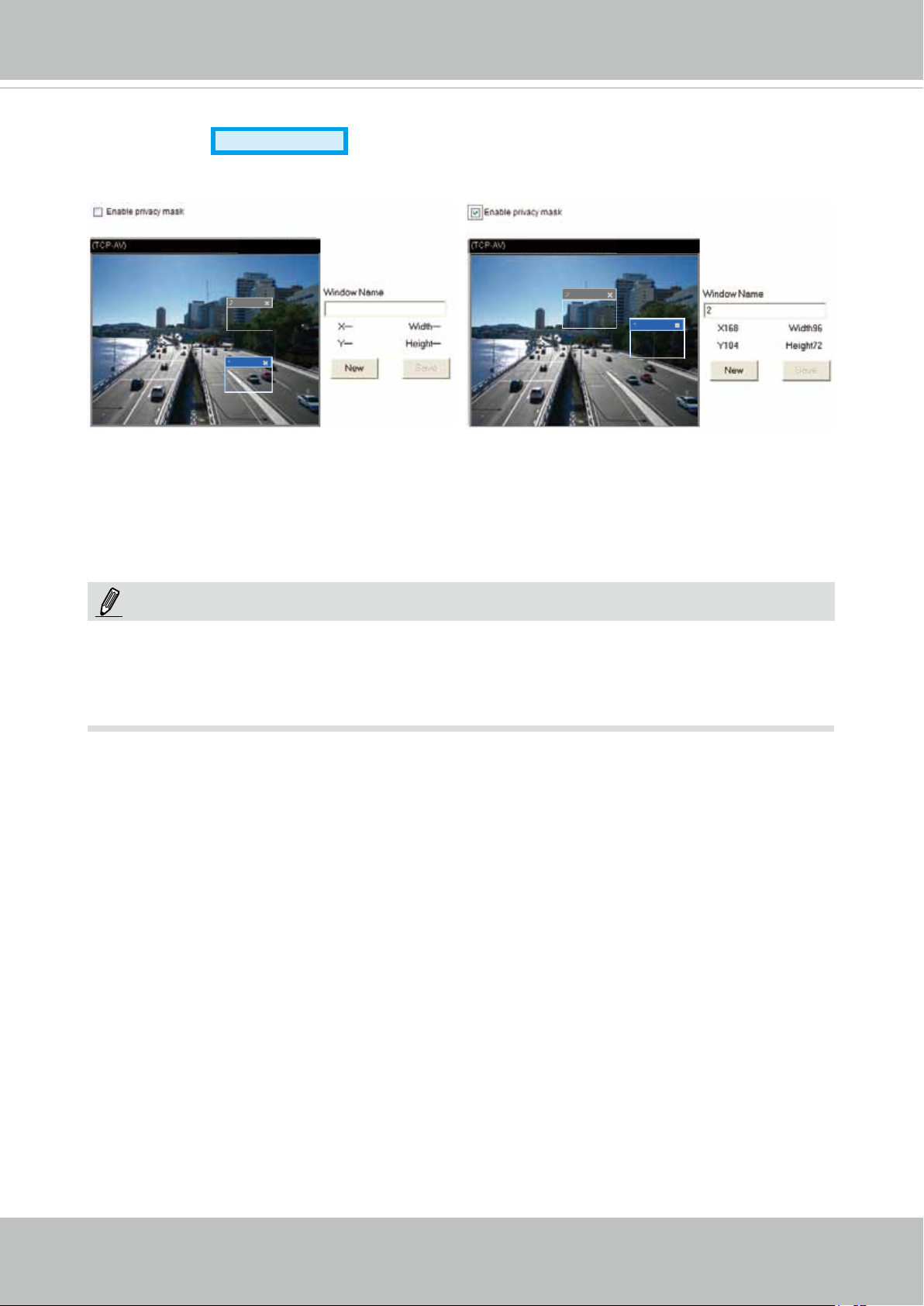

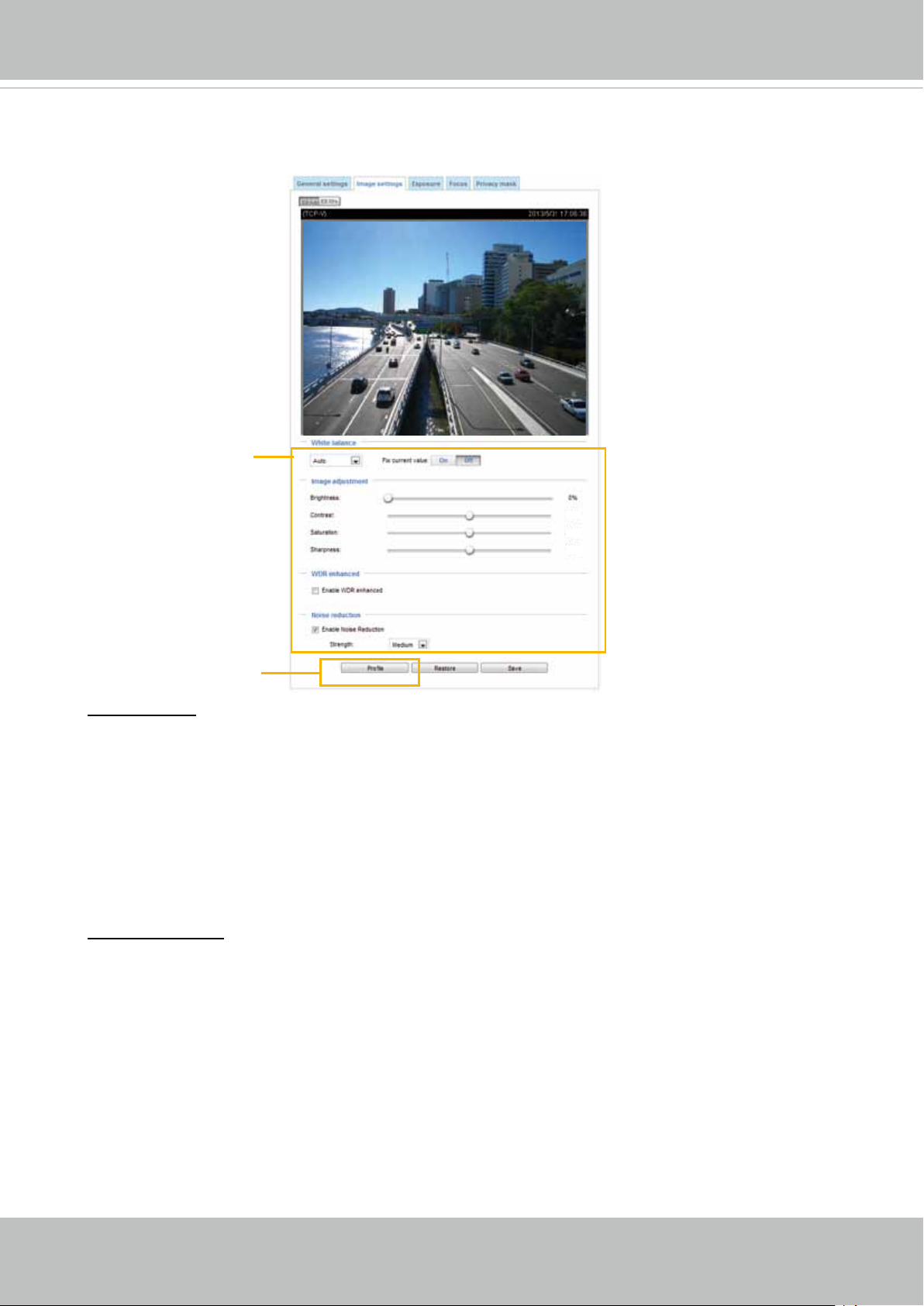

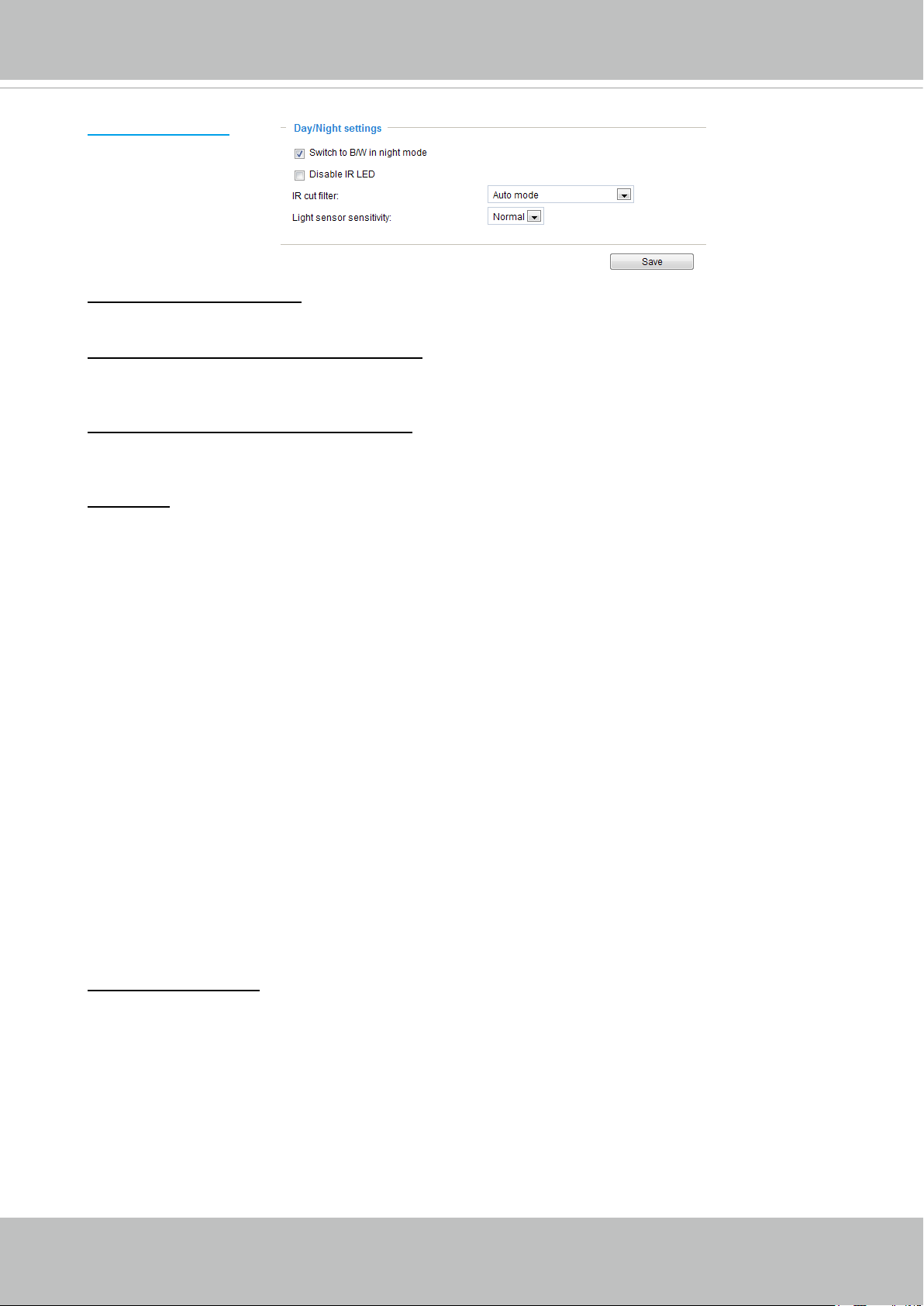

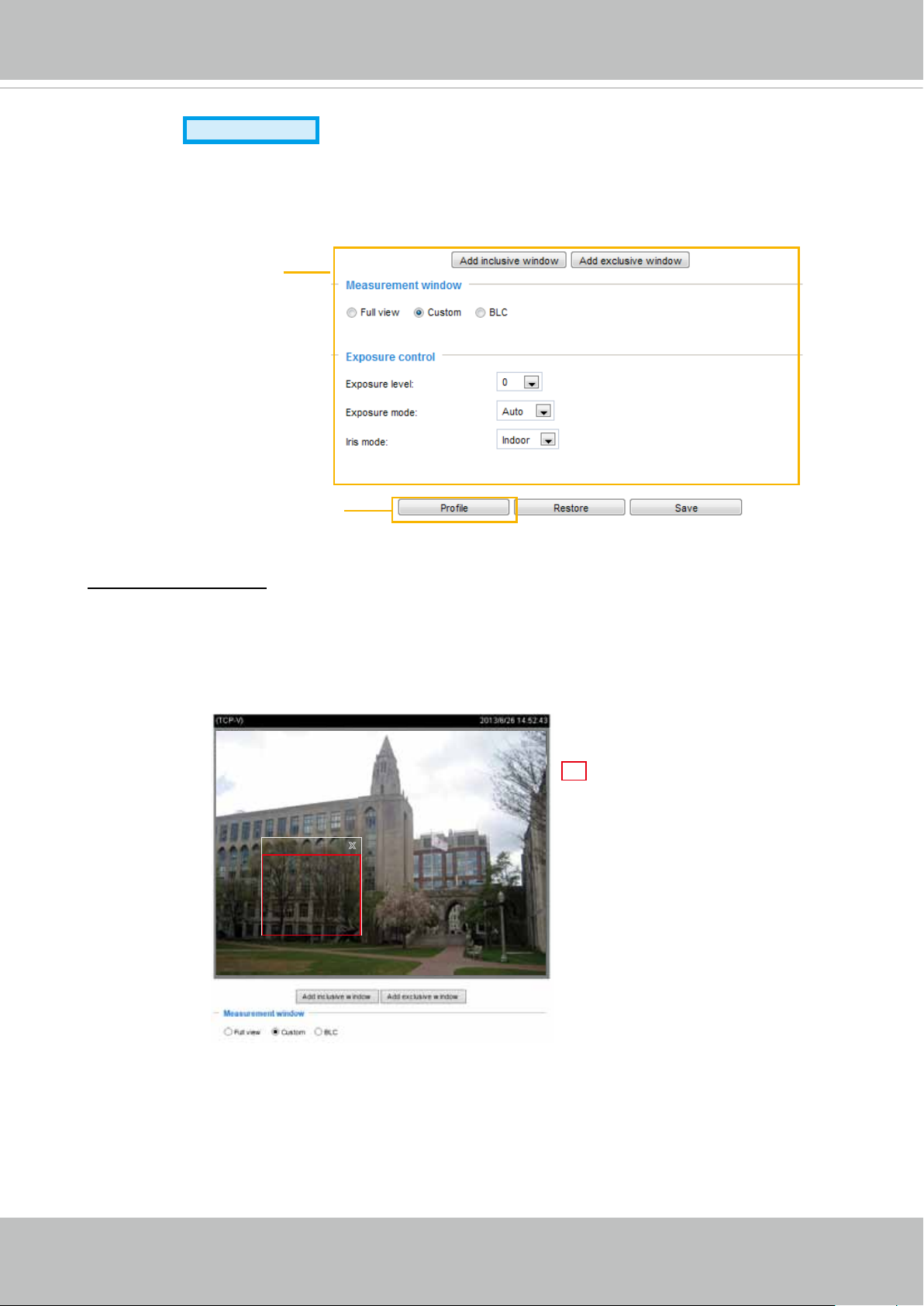

Media > Image .................................................................................................................................... 46

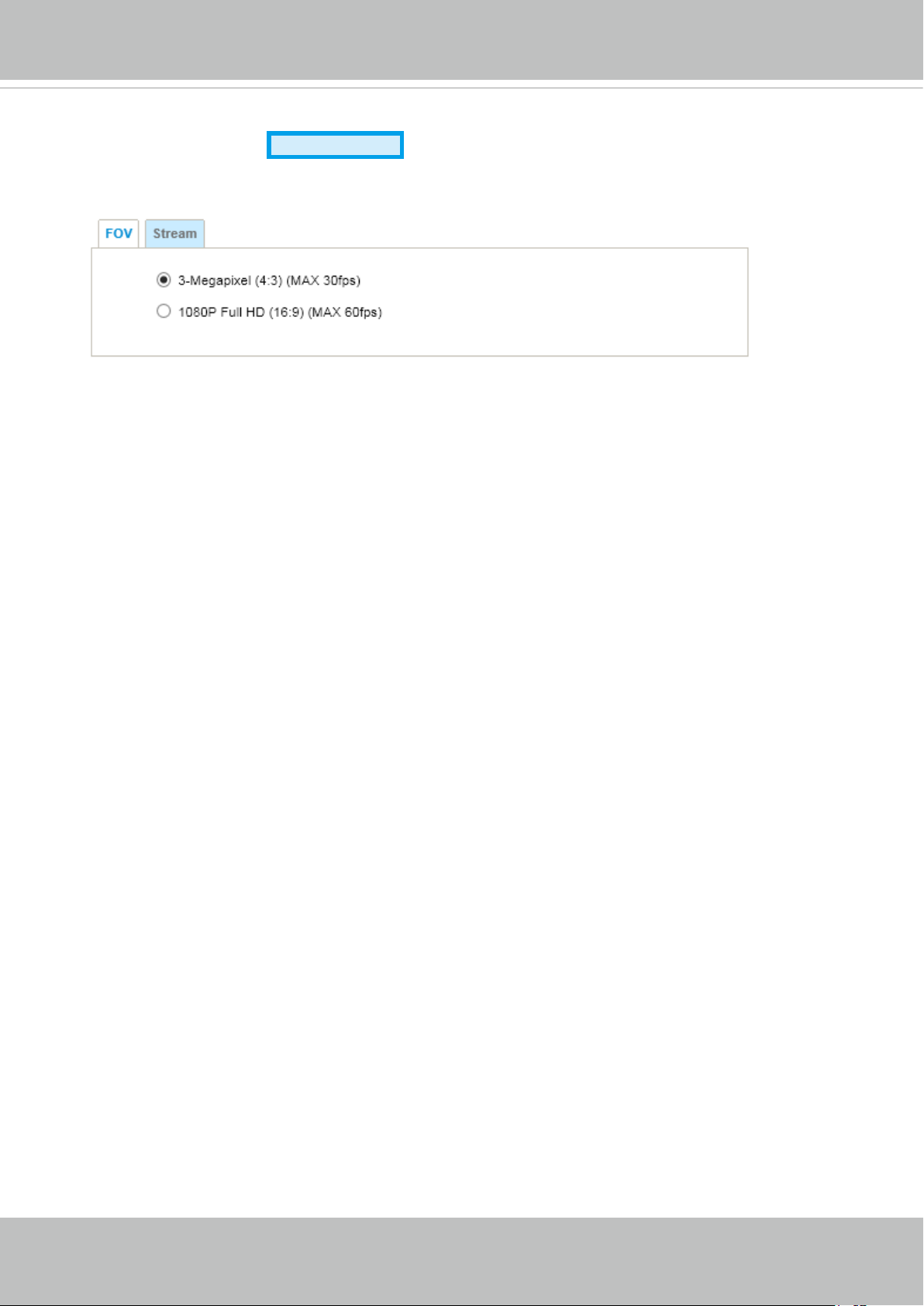

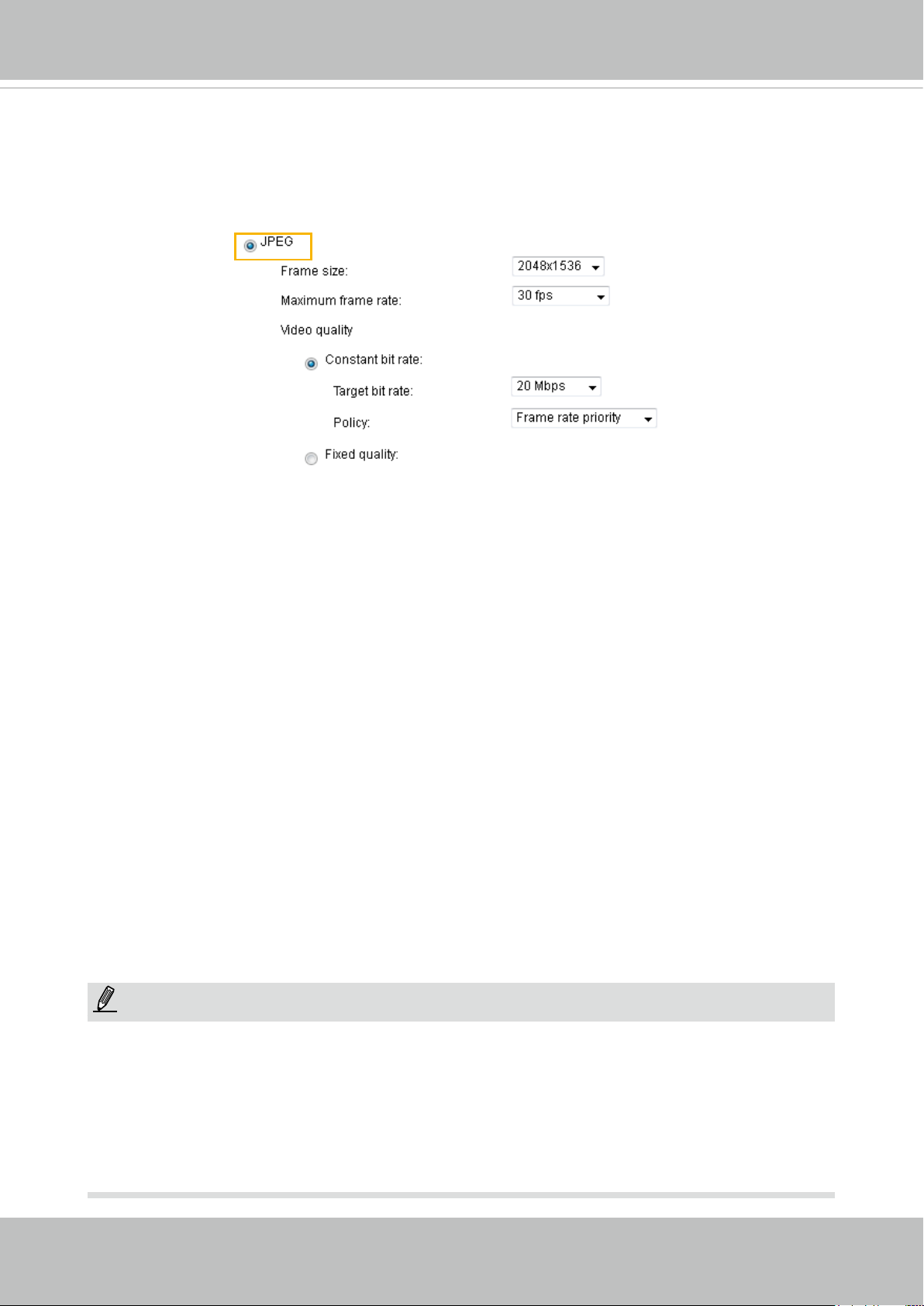

Media > Video ....................................................................................................................................... 55
Media > Audio........................................................................................................................................ 63

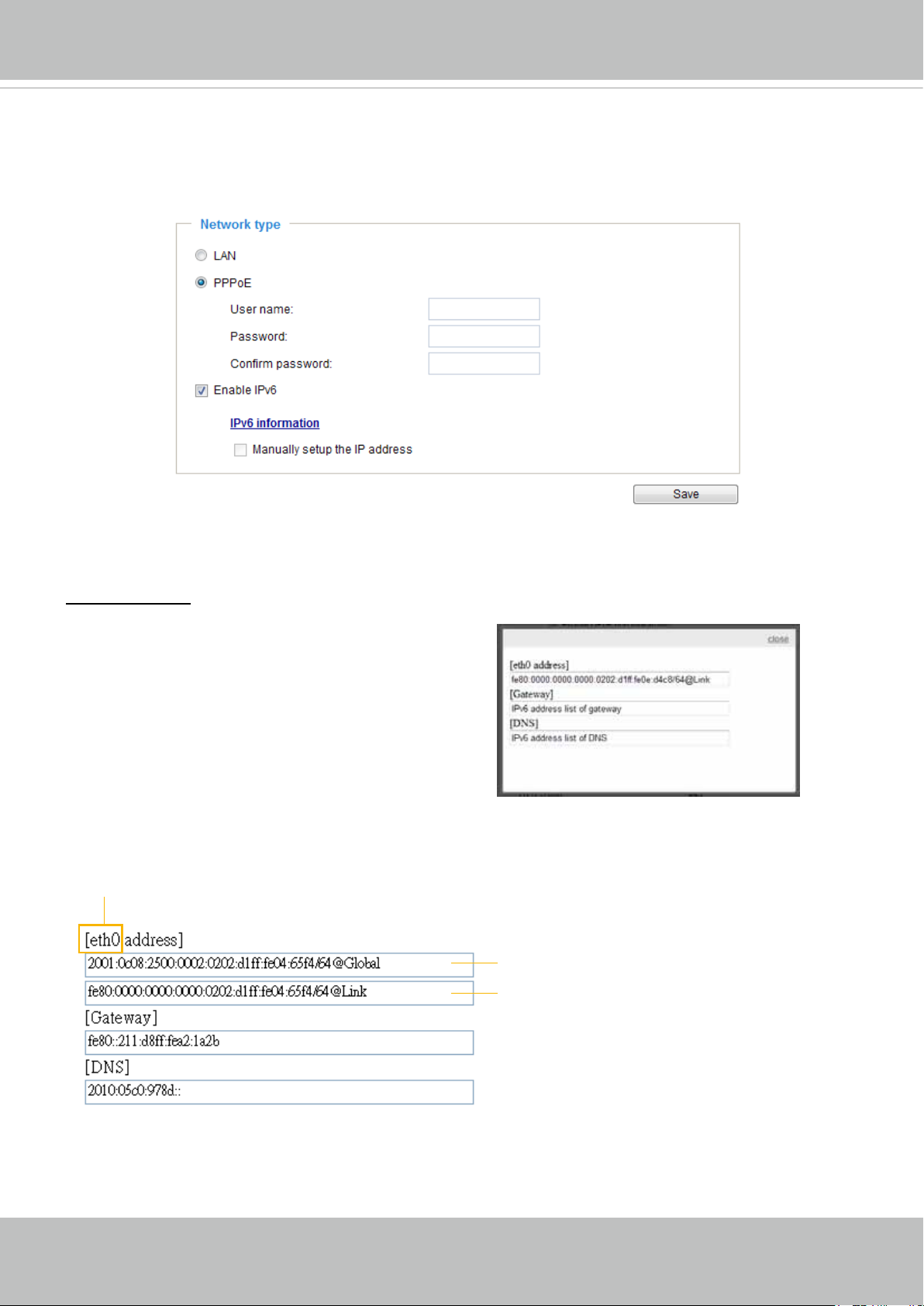

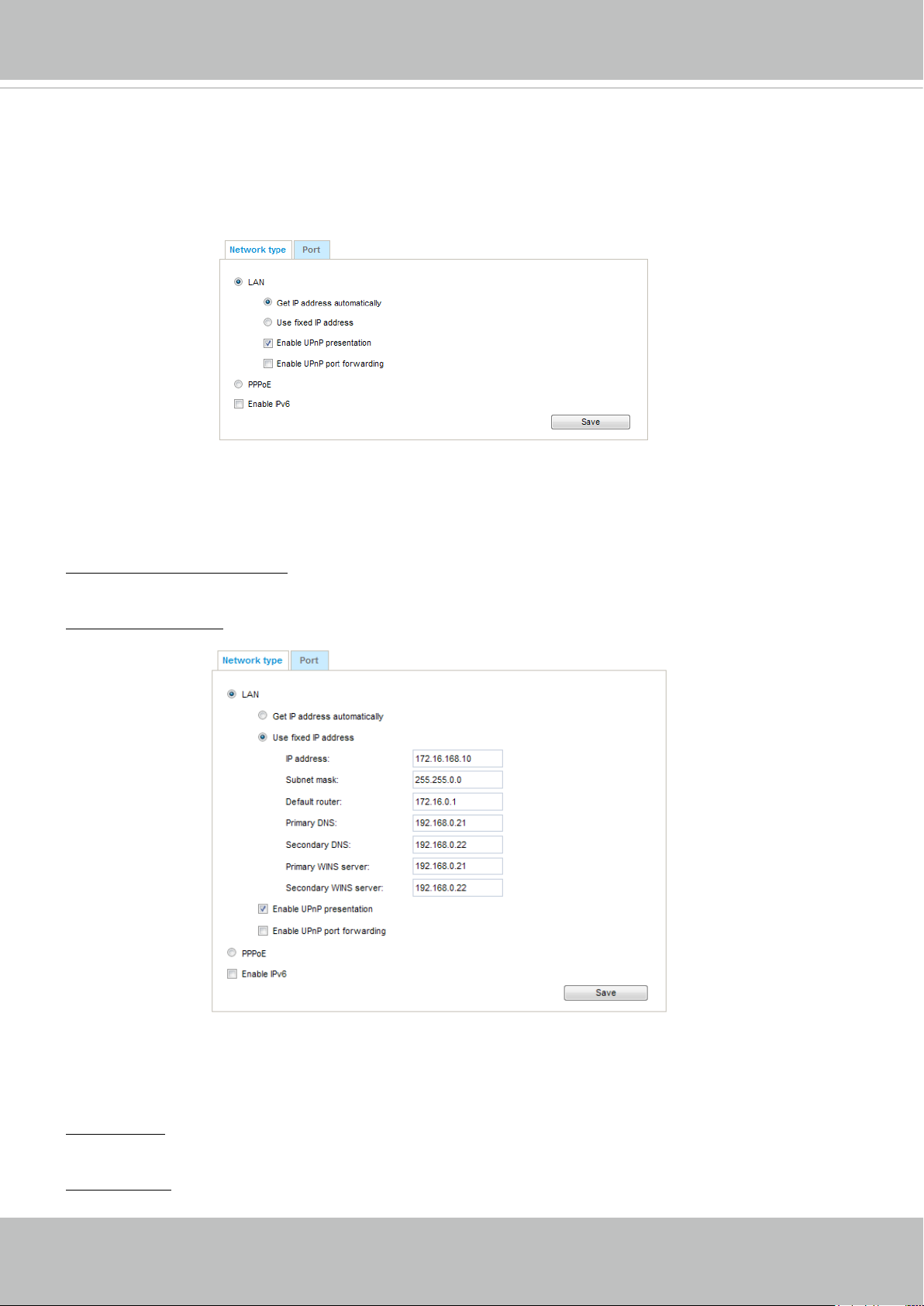

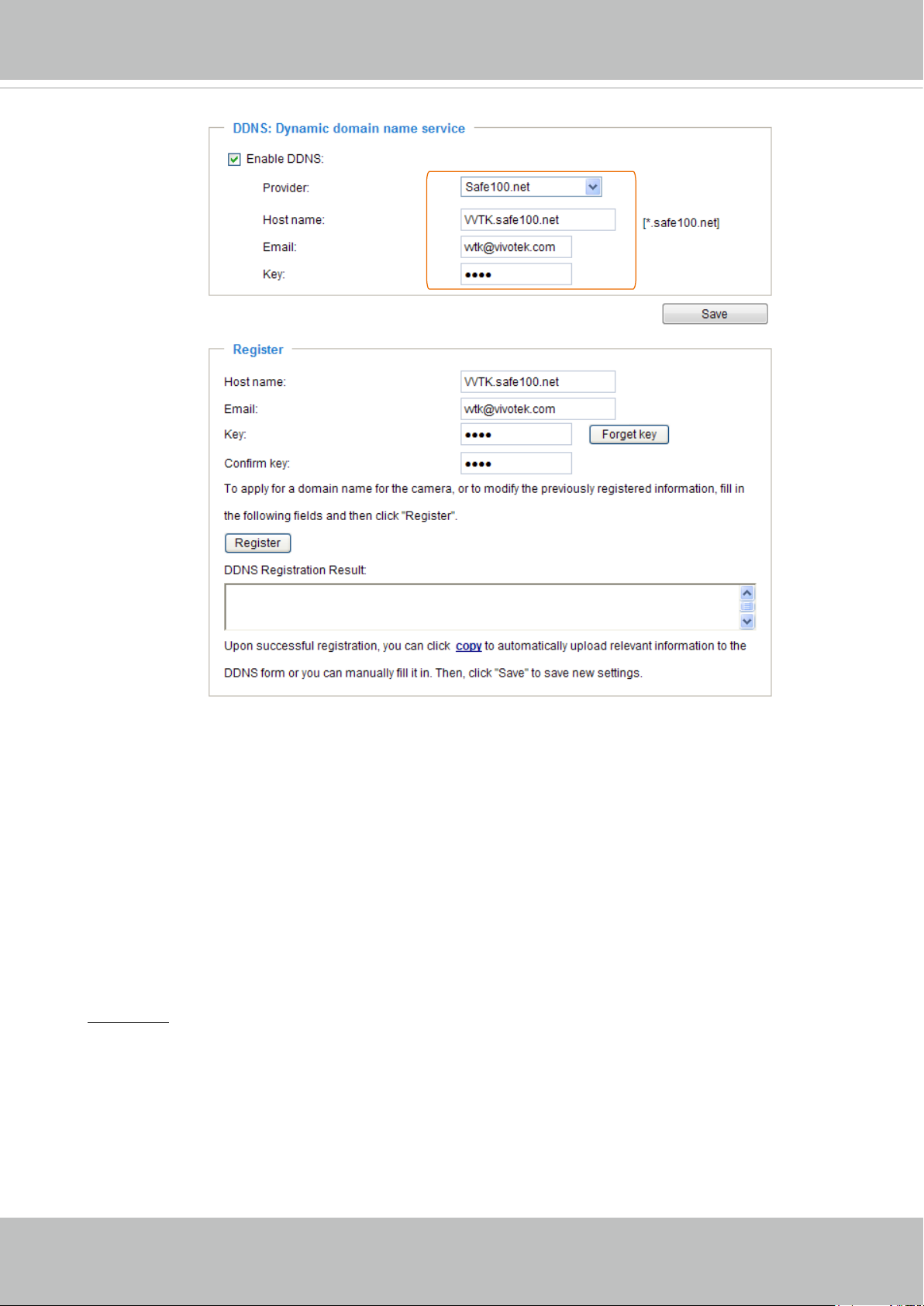

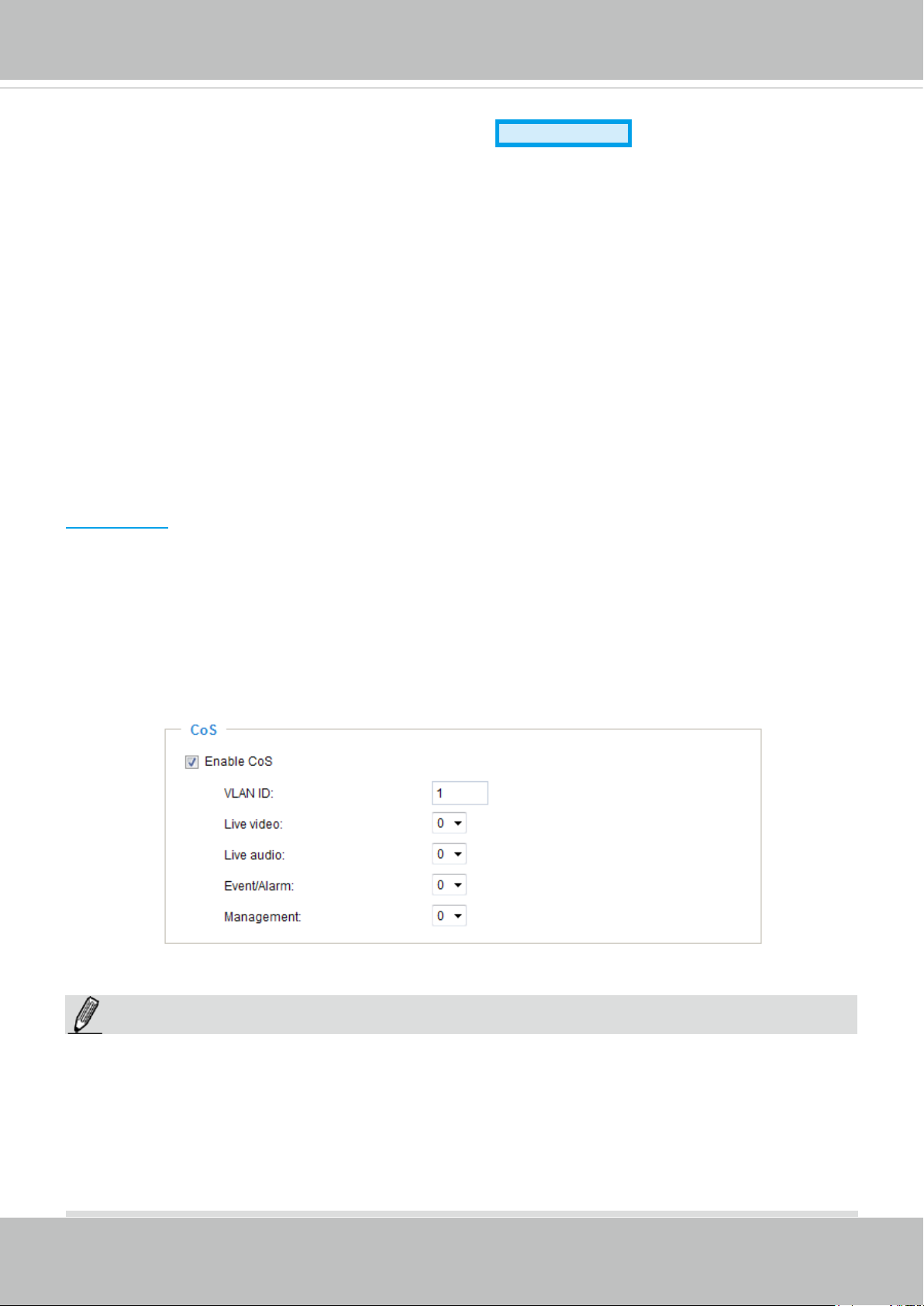

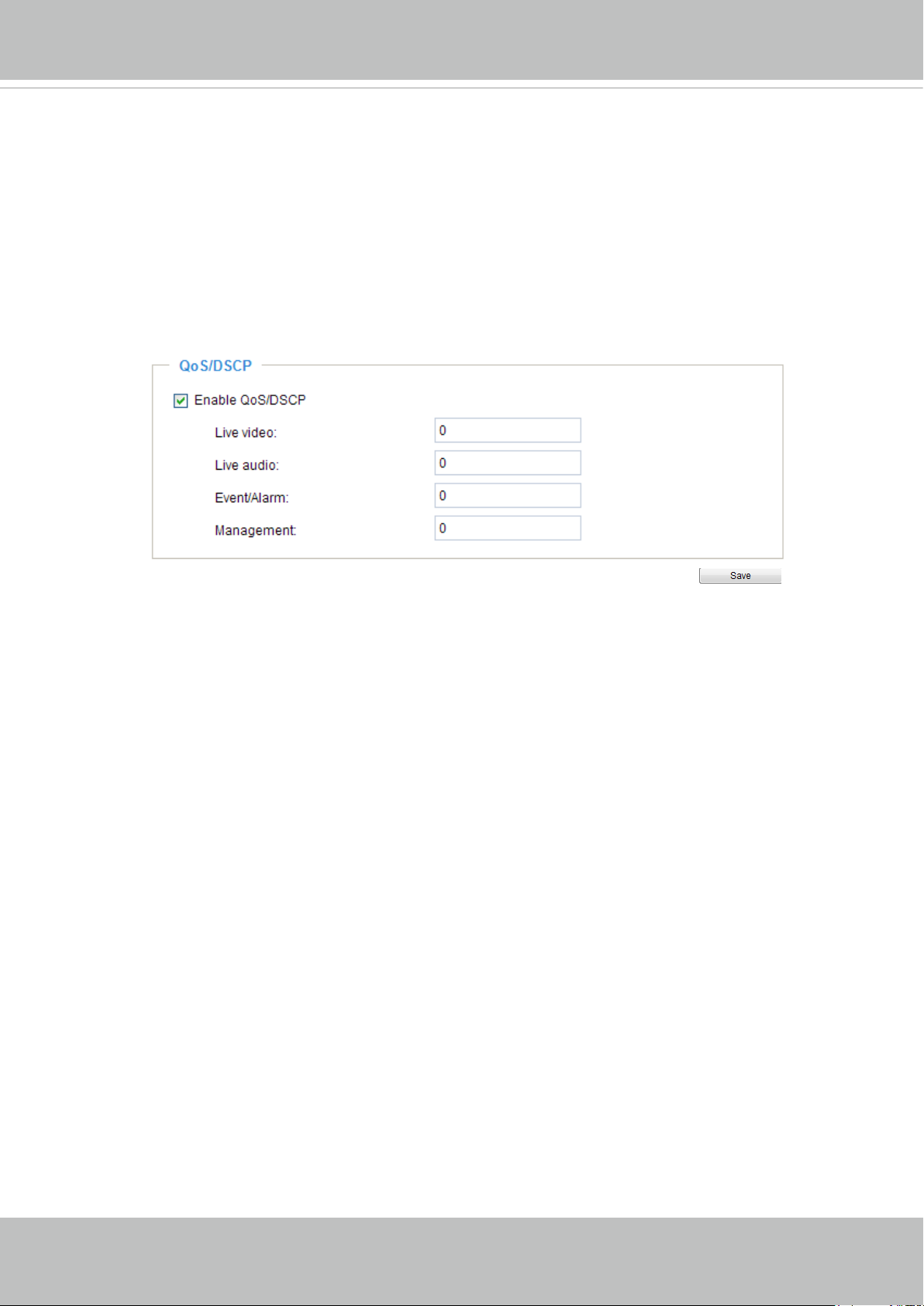

Network > General settings ................................................................................................................... 64

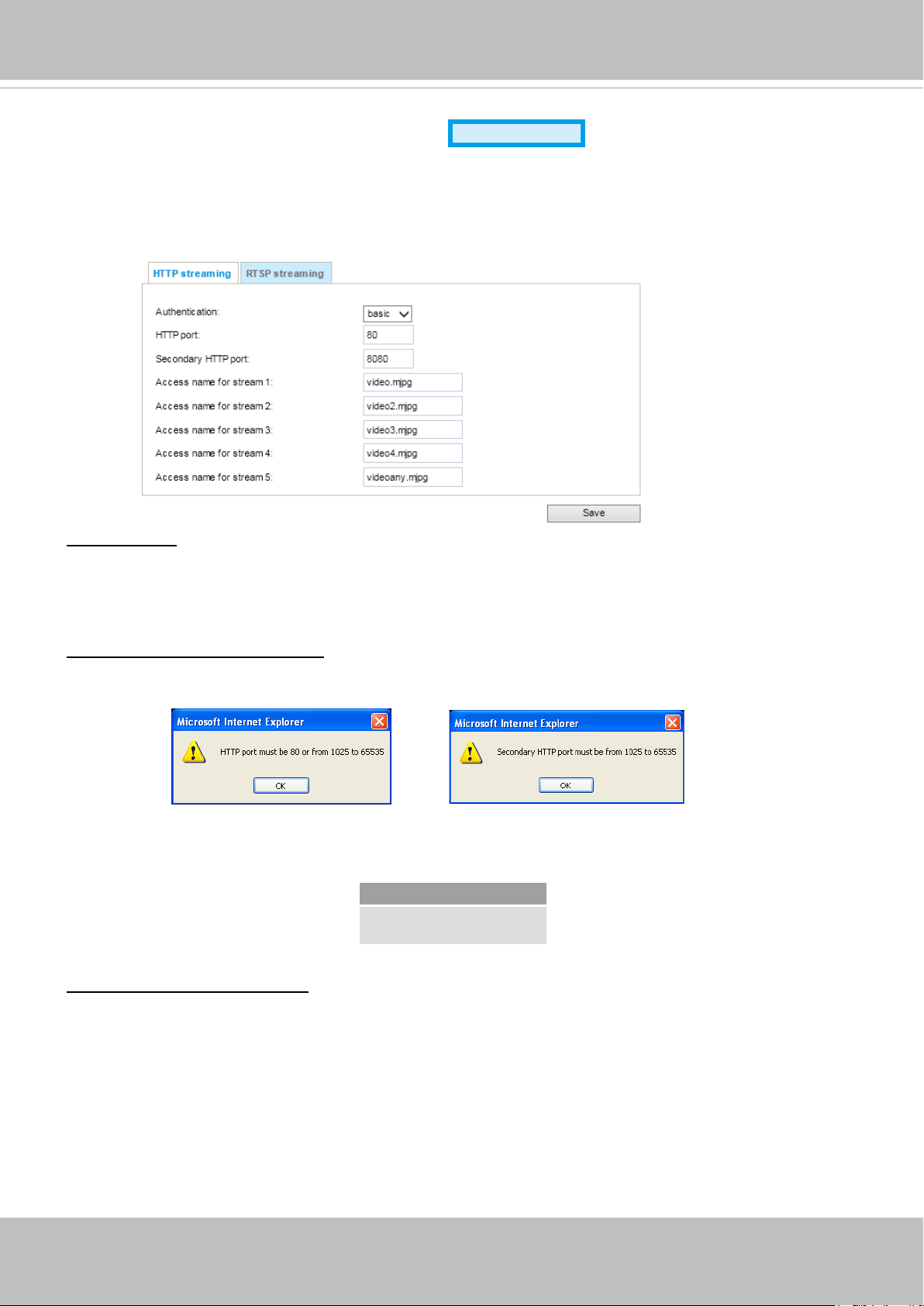

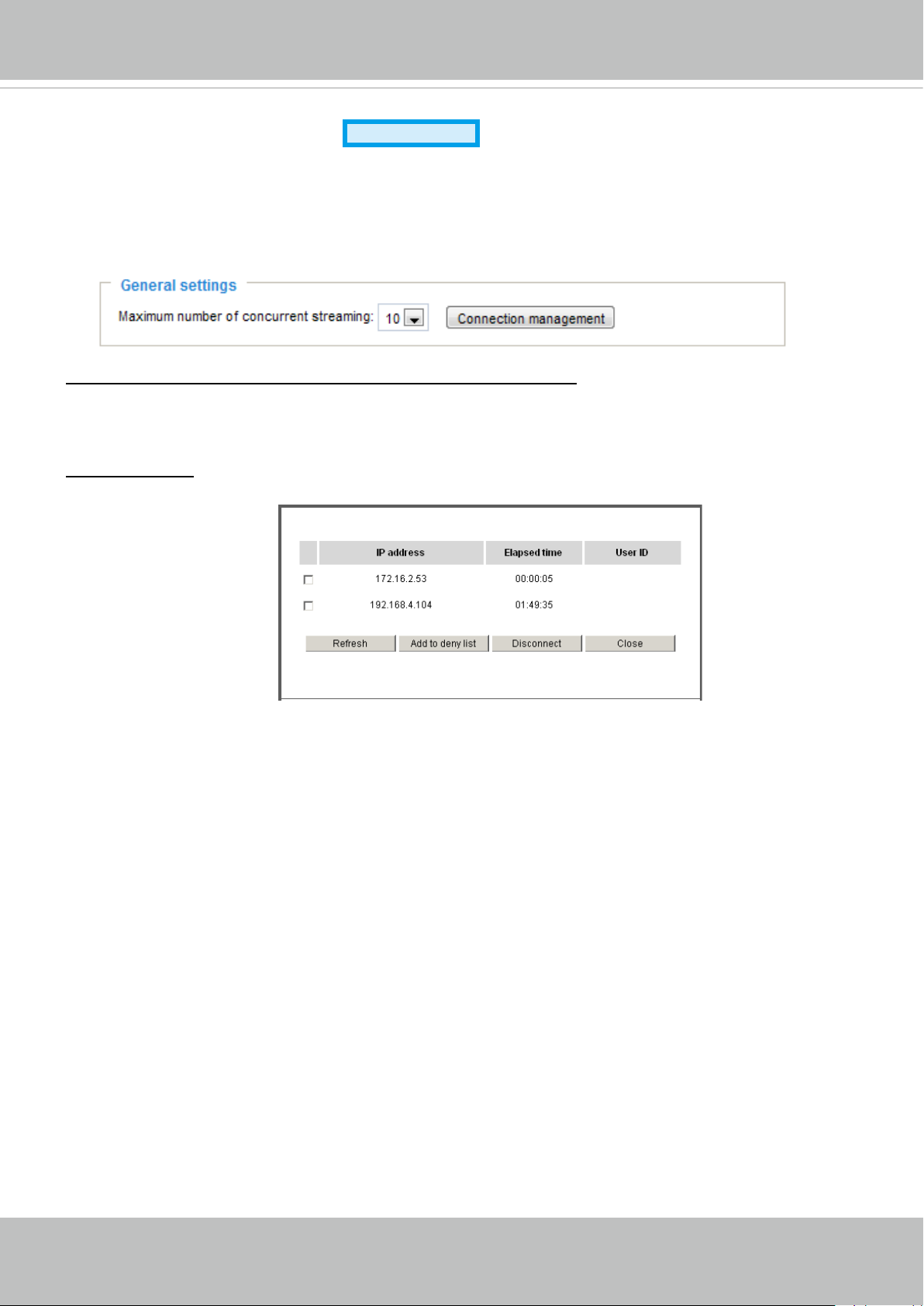

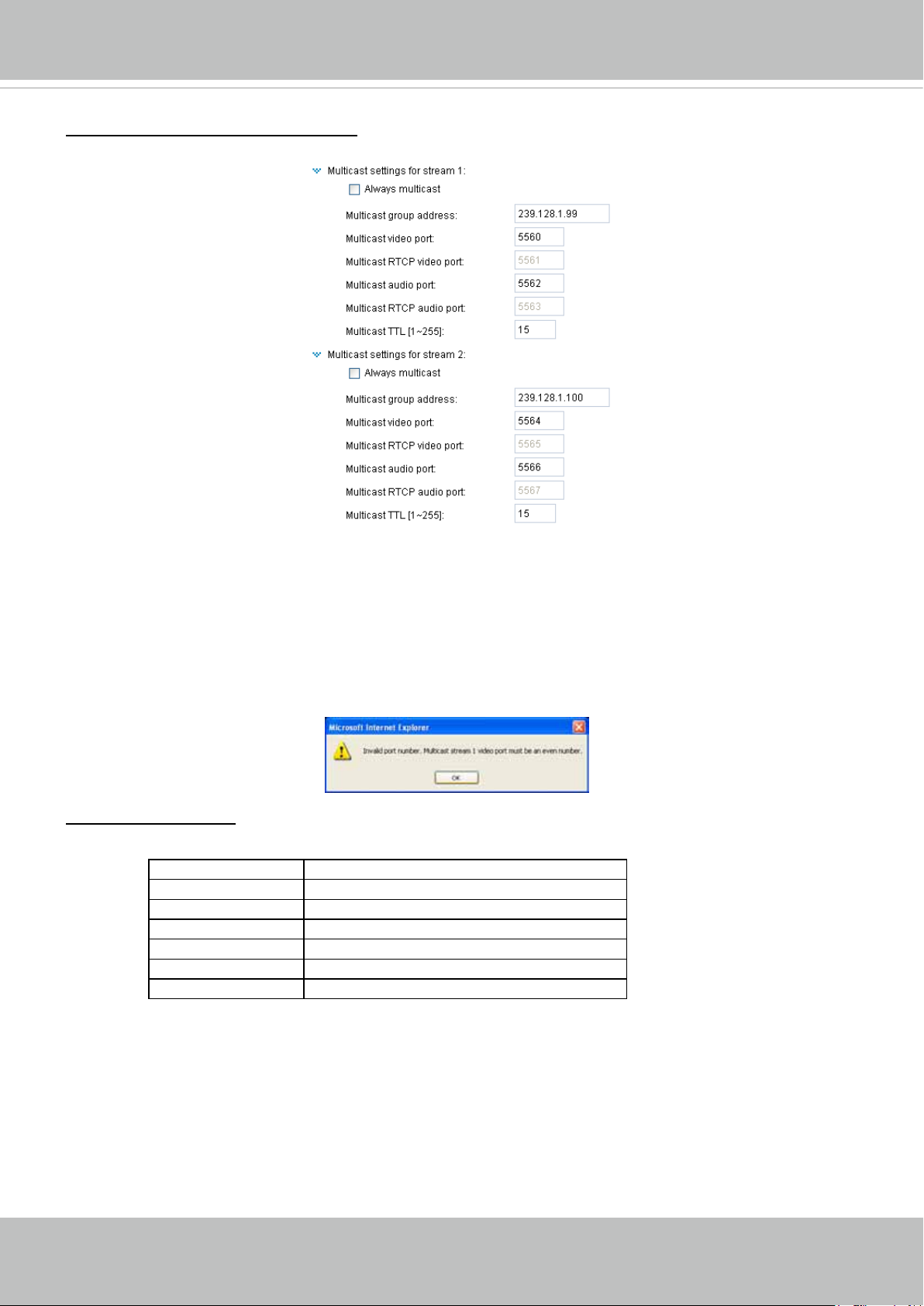

Network > Streaming protocols ........................................................................................................... 72

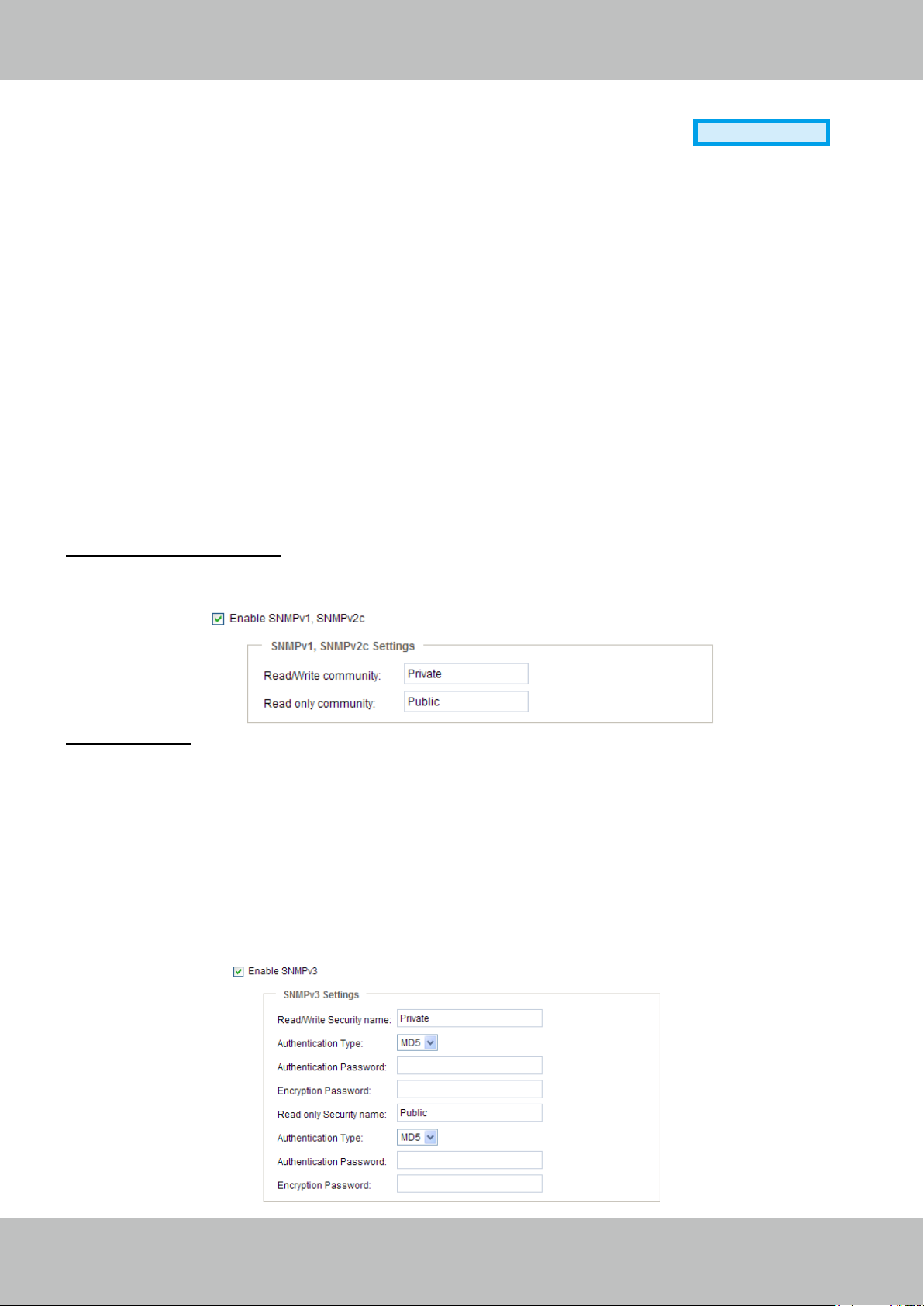

Network > SNMP (Simple Network Management Protocol) .................................................................. 81

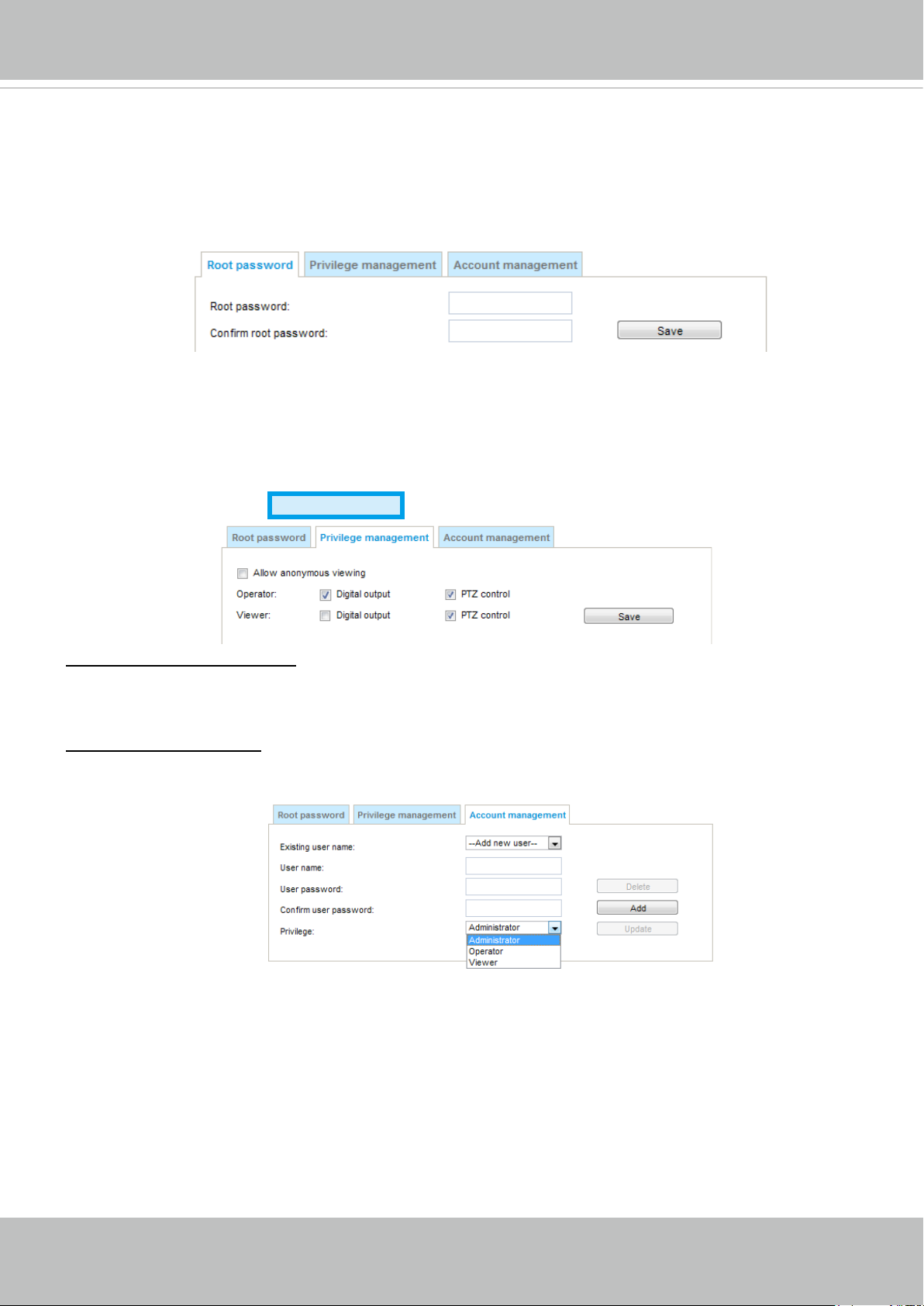

Security > User Account ........................................................................................................................ 82

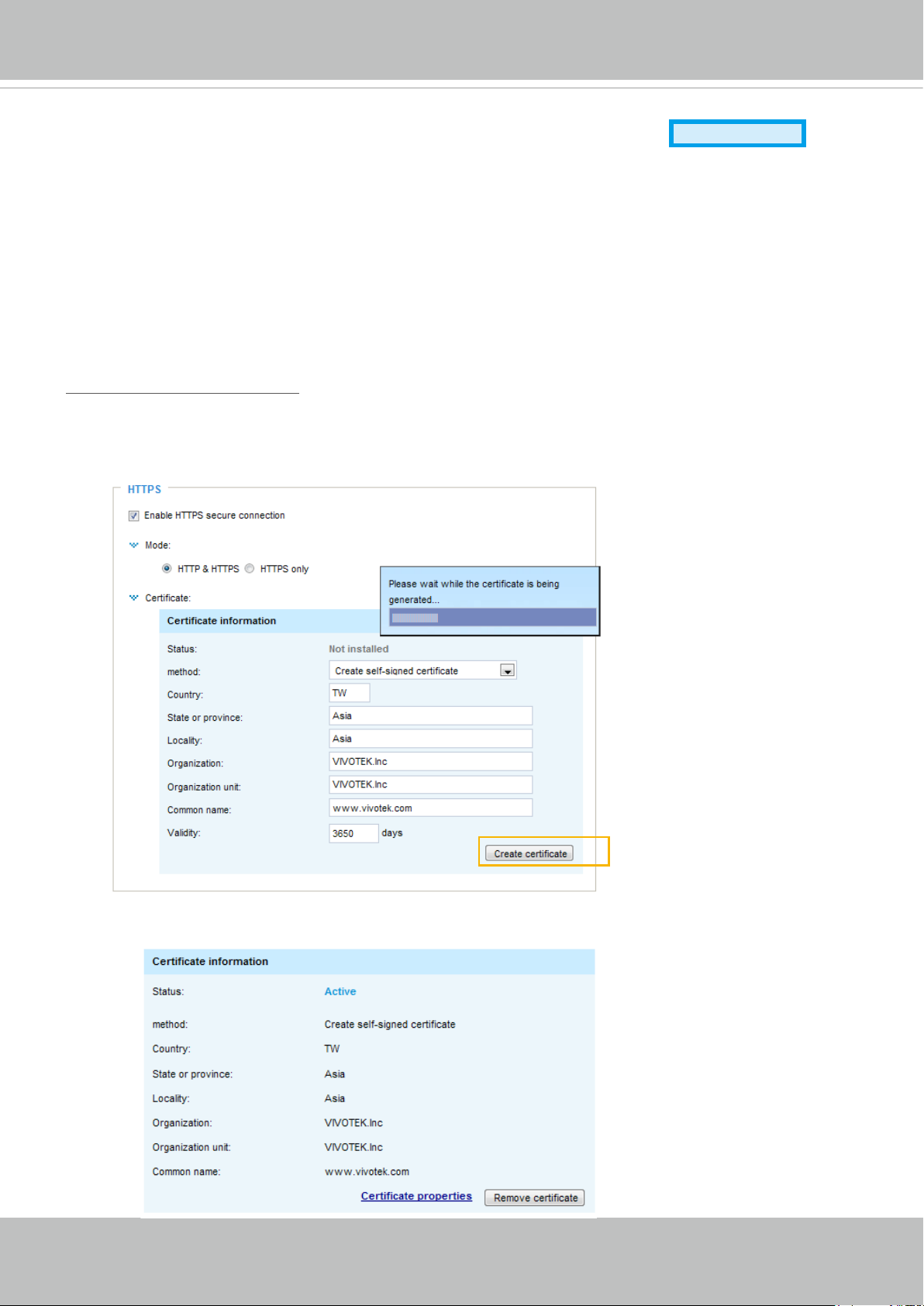

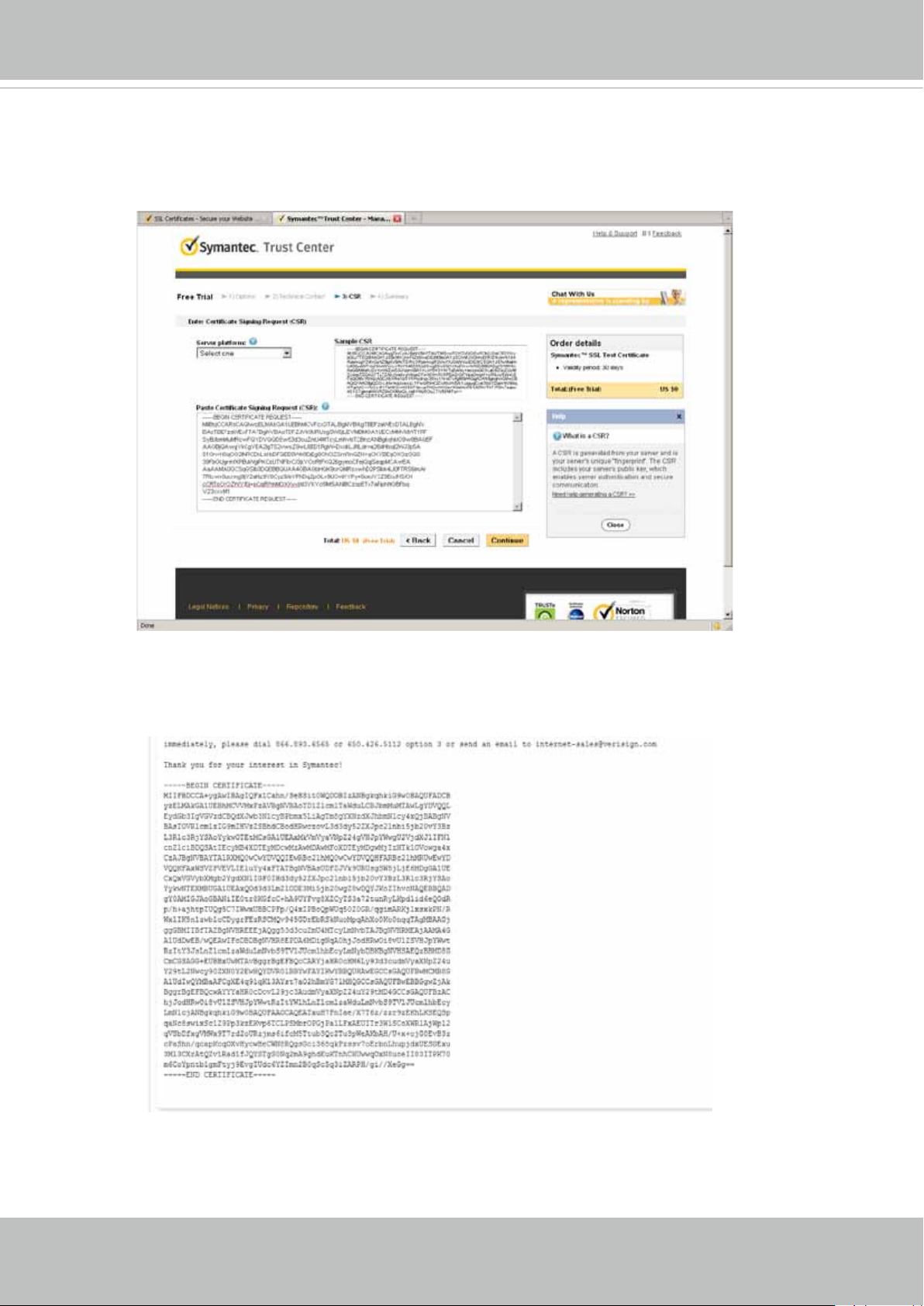

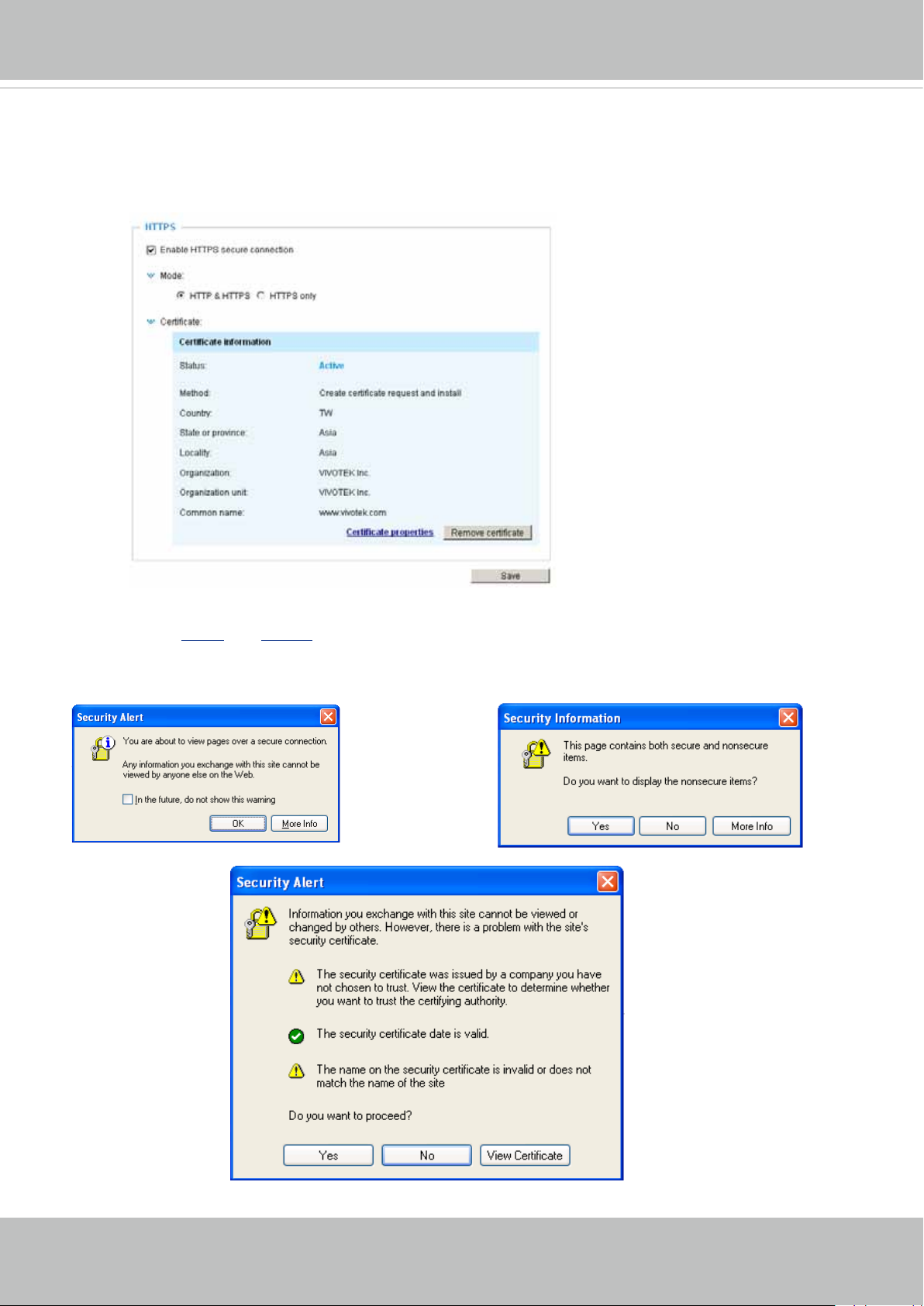

Security > HTTPS (Hypertext Transfer Protocol over SSL) ........................................................83

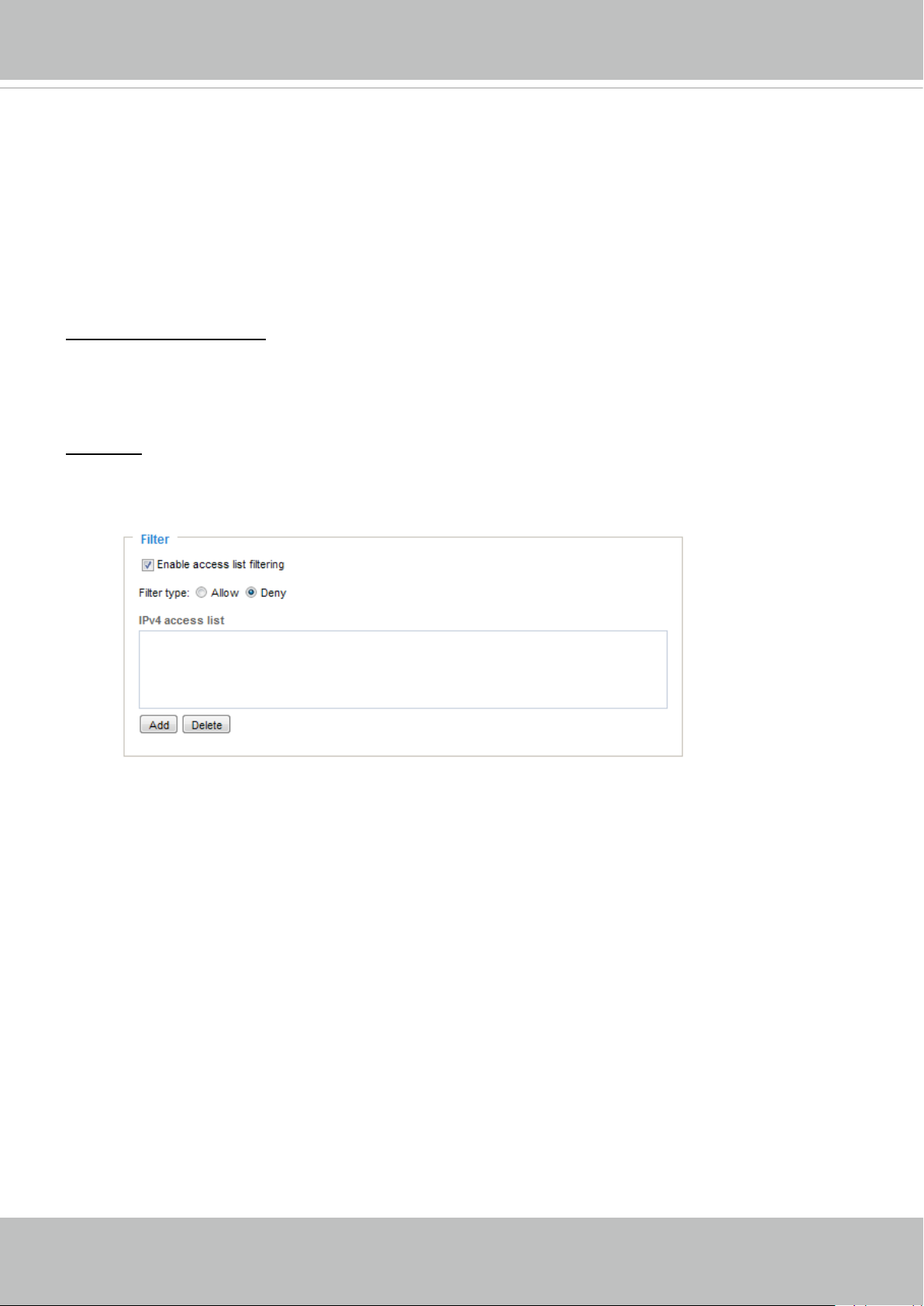

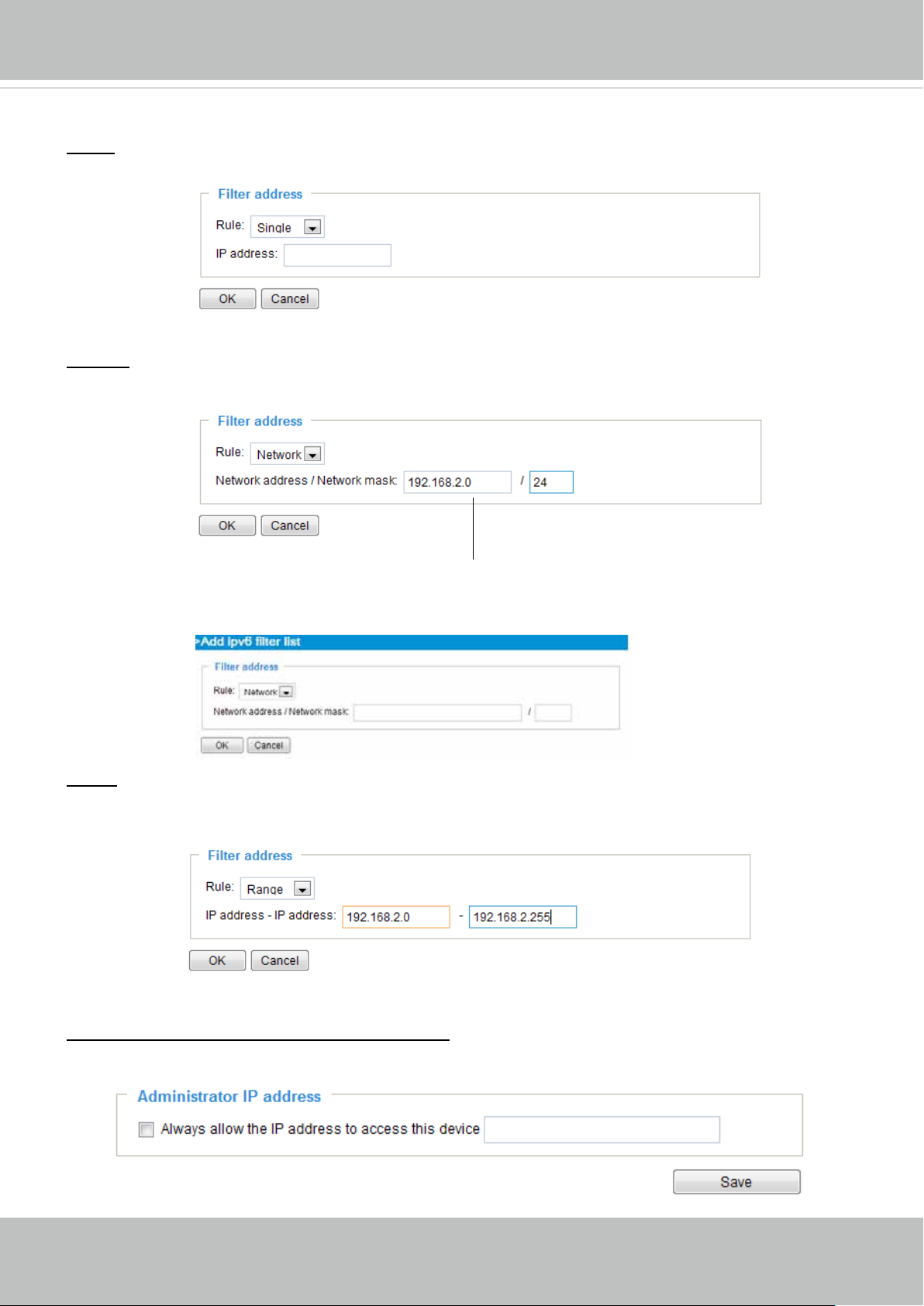

Security > Access List ......................................................................................................................... 90

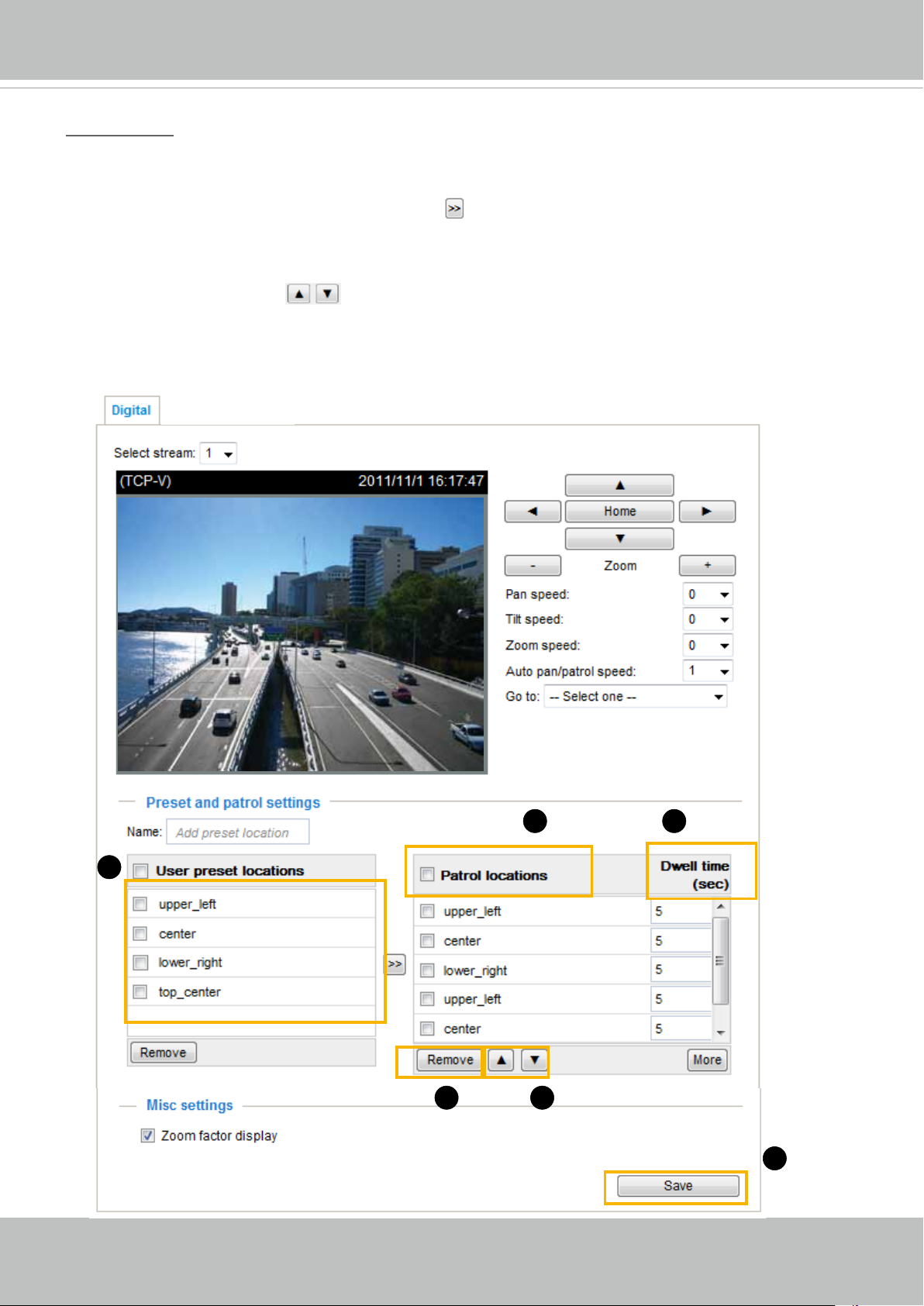

PTZ > PTZ settings ............................................................................................................................... 95

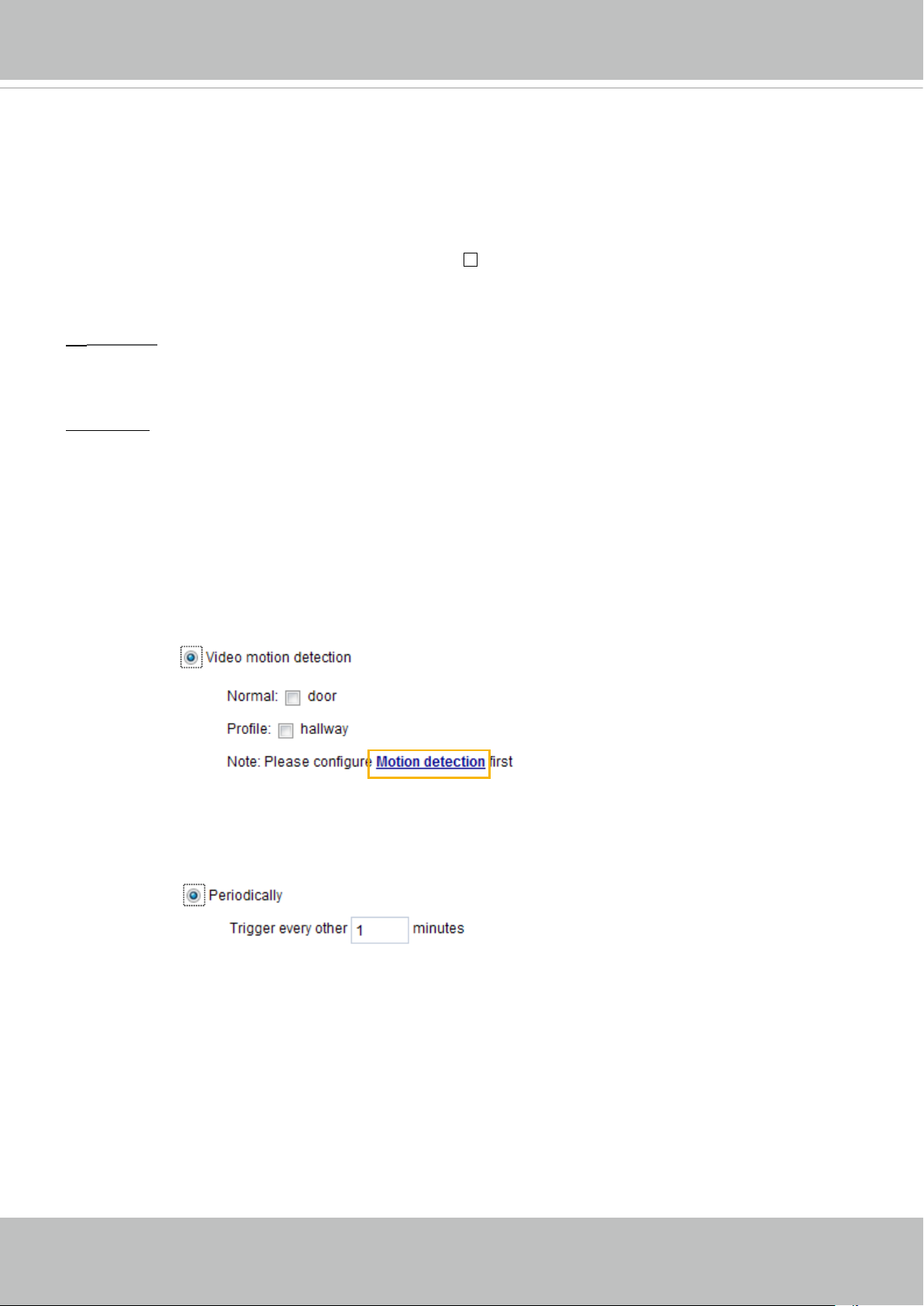

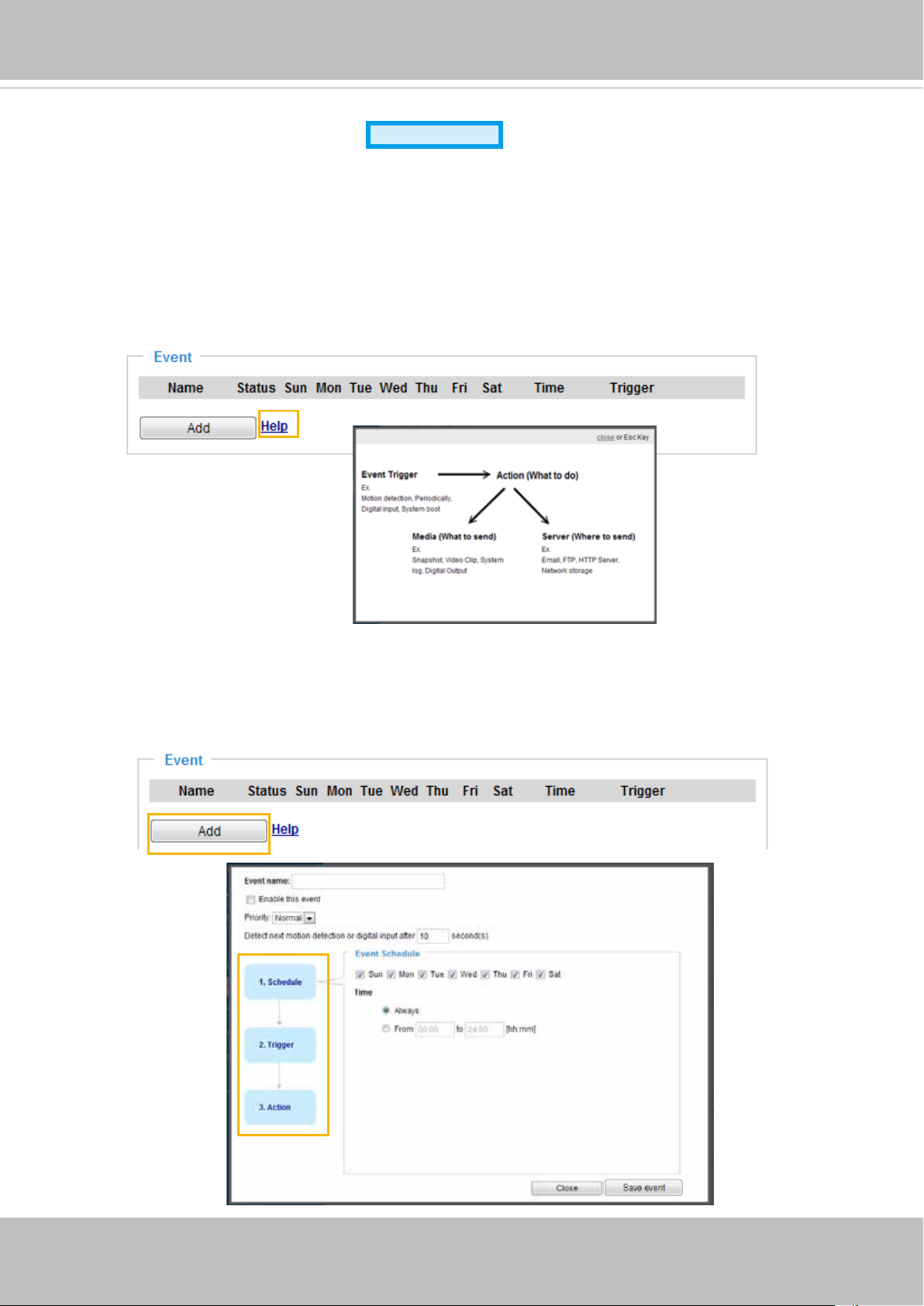

Event > Event settings........................................................................................................................... 98
Applications > Motion detection............................................................................................................111
Applications > DI and DO .................................................................................................................... 114

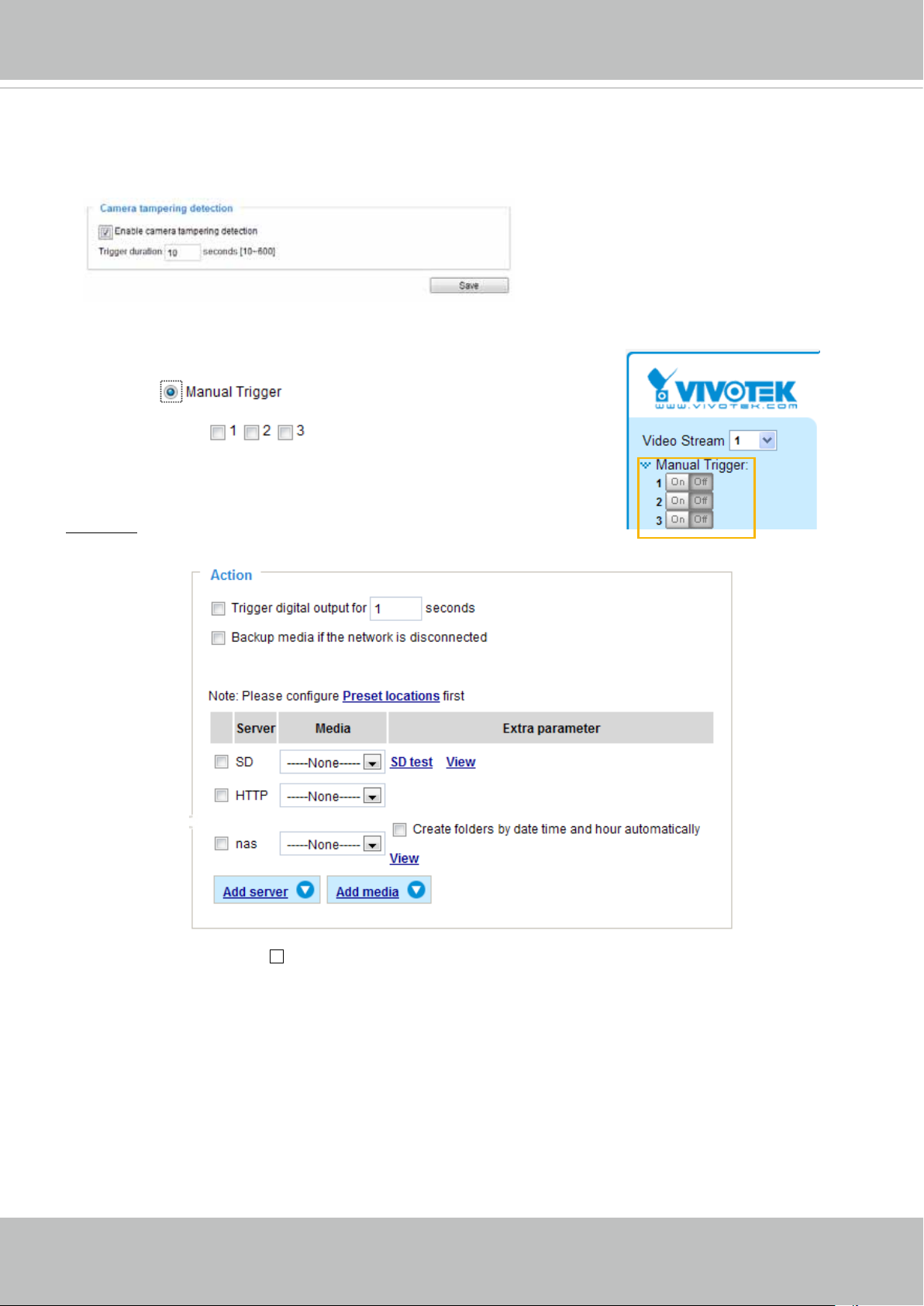

Applications > Tampering detection .................................................................................................... 114
Recording > Recording settings ......................................................................................................... 11 5
Local storage > SD card management ................................................................................................ 120
Local storage > Content management ................................................................................................ 121
Appendix
URL Commands for the Network Camera ........................................................................................... 124
Technical Specications ......................................................................................................................200
.....................................................................................................................................................
...................................................................................................................................................
............................................................................................................
.................................................................................................................................................
..........................................................................................................................................
............................................................................................................................................
................................................................................................................................................
4
9
19
24
29
34
124
2 - User's Manual
VIVOTEK
Technology License Notice .......................................................................................................................201
Electromagnetic Compatibility (EMC) .......................................................................................................202
User's Manual - 3
VIVOTEK
Overview
VIVOTEK IP8371 or IP8371E is a professional outdoor bullet network camera offering 30 fps @
3-Megapixel or 60 fps @ 1080p resolution with superb image quality.
Featuring 3D Noise Reduction Technology, it enables the IP8371 or IP8371E to capture clear,
polished video under low-light conditions, which also helps to reduce bandwidth from sensor
noise.
The IP8371 or IP8371E also features Smart Stream Technology, which can be used to optimize
resolution on a desired object or area to maximize bandwidth usage.
The IP8371 or IP8371E comes with a P-iris lens, which controls the iris with extreme precision
with its built-in stepper motor. By using software controls, the lens maintains the iris opening
at an optimal level at all times, resulting in superior sharpness and depth of field as well as
image quality. For installers, properly adjusting the focus of a megapixel network camera can
be difcult due to the image detail. Thus, VIVOTEK has introduced the Smart Focus System to
make installation and adjustment easier by allowing for remote focus and zoom adjustment.
The IP67-rated housing is designed to help the camera body withstand rain and dust and
ensures operation under a multitude of harsh weather conditions. Additionally, the wide
temperature range further enhances the IP8371E’s performance and reliability in extremely cold
and warm weather.
Revision History
■ Rev. 1.0: Initial release
■ Rev. 1.1: Added the information for the IP8371, which comes without the heater.
■ Rev. 1.2: Added a note about the maximum load on DO output.
■ Rev. 1.3: Corrected DO pin description.
4 - User's Manual
VIVOTEK
i
Read Before Use
The use of surveillance devices may be prohibited by law in your country. The Network Camera
is not only a high-performance web-ready camera but can also be part of a exible surveillance
system. It is the user’s responsibility to ensure that the operation of such devices is legal before
installing this unit for its intended use.
It is important to first verify that all contents received are complete according to the Package
Contents listed below. Take note of the warnings in the Quick Installation Guide before the Network
Camera is installed; then carefully read and follow the instructions in the Installation chapter to
avoid damage due to faulty assembly and installation. This also ensures the product is used
properly as intended.
The Network Camera is a network device and its use should be straightforward for those who
have basic networking knowledge. It is designed for various applications including video sharing,
general security/surveillance, etc. The Configuration chapter suggests ways to best utilize the
Network Camera and ensure proper operations. For creative and professional developers, the URL
Commands of the Network Camera section serves as a helpful reference to customizing existing
homepages or integrating with the current web server.
Package Contents
■ IP8371 or IP8371E with an RJ45 Cable
■
Sun Shield / Wrench / RJ45 Female-Female Coupler / Double-sided Tape / Screws
■ Wall Mount Bracket
■ CS-mount Lens
■
Waterproof Connector for RJ45 Ethernet Enclosure
■ Waterproof Connector (for backup use)
■ Alignment Sticker / Desiccant Bag
■ Warranty Card
■ Quick Installation Guide
■ Software CD
Symbols and Statements in this Document
INFORMATION: provides important messages or advices that might help prevent
inconvenient or problem situations.
NOTE: Notices provide guidance or advices that are related to the functional integrity of
the machine.
Tips: Tips are useful information that helps enhance or facilitae an installation, function,
or process.
WARNING! or IMPORTANT!: These statements indicate situations that can be
dangerous or hazardous to the machine or you.
Electrical Hazard: This statement appears when high voltage electrical hazards might
occur to an operator.
User's Manual - 5
VIVOTEK
Physical Description
Lens
IR LEDs
Zoom out
Zoom in
Light Sensor
Auto Focus
Reset Button
Red LED
Green LED
Status LED
NTSC-PAL switch
NTSC
PAL
SD/SDHC/SDXC Card Slot
General I/O Terminal Block
The LED indicates the status of the Network Camera.
Item LED status Description
Green and Red lit for once, and then turn steady red Power on and system booting
1
Red LED off Power off
2 Steady Red and Green blinking every 1 sec. Network normal (heartbeat)
Steady Red and Green LED is off Network failed
Red blinking every 0.15 sec., and Green LED blinking
3
every 1 sec.
Red blinking every 0.15 sec. and Green LED blinking
4
every 0.15 sec.
6 - User's Manual
Upgrading firmware
Restoring default
DI/DO Diagram
DI-
DO+
VIVOTEK
VDC
BJT transistor
DI+
DO-
DO+
DI-
DI+
Switch
NO NC
Switch
Relay
VDC
External
power source
AC
Source
External
device
AC
BJT transistor
DO-
NO NC
Relay
Source
External
device
1. The DO+ pin provides 12V output voltage, and the max. load is 50mA.
2. The max. voltage for DO- pins is 80VDC (External power).
In order to control AC devices, the above diagram can be taken in consideration. The diagram
uses a relay to control the ON/OFF condition of the AC device.
3. An external relay can be triggered by using DO+ or by an external power source, depending
on the type of relay you use.
4. In case of using an individual relay (instead of using a relay module), for protection against
voltage or current spikes, a transient voltage suppression diode must be connected in parallel
with the inductive load.
User's Manual - 7
VIVOTEK
Hardware Reset
Reset Button
The reset button is used to reset the system or restore the factory default settings. Sometimes
resetting the system can return the camera to normal operation. If the system problems remain
after reset, restore the factory settings and install again.
Reset: Press and release the recessed reset button. Wait for the Network Camera to reboot.
Restore: Press and hold the recessed reset button until the status LED rapidly blinks. Note that
all settings will be restored to factory default. Upon successful restore, the status LED will blink
green and red during normal operation.
SD/SDHC/SDXC Card Capacity
This network camera is compliant with SD/SDHC/SDXC 16GB / 8GB / 32GB /64GB and other
preceding standard SD cards.
8 - User's Manual
VIVOTEK
Installation
Hardware Installation
1. Attach the alignment sticker to the wall. Drill four holes into the wall. Then hammer the
supplied plastic anchors into the holes and secure the plate with supplied screws.
2. Fix the intersection bracket to the side of the Network Camera with two screws.
3. Feed the RJ45 cable through the front opening of the wall mount bracket. (If you want to
use external devices such as sensors and alarms, please refer to the assembling steps
on the next page.)
4. Push the spring mortise and hook the bracket onto the groove of the wall mount bracket.
5. Secure the two screws on the other side of the wall mount bracket.
6. Hang the wall mount bracket to the mounting plate.
7. Fix the wall mount bracket with the supplied screw.
8. Adjust the angle of the wall mount bracket to aim at the shooting area.
1
2
5
4
3
6
8
7
User's Manual - 9
VIVOTEK
Waterproof Connector
Components of the Waterproof Connector
Screw Nut (A)
Pin Denitions
Seal (B)
Seals (C)
IMPORTANT:
If you should need to open the front
cover, make sure you tighten it up later
so that the camera can be waterproof.
Housing (D)
Sealing Nut (E)
Open the rear cover by rotating to the
alignment mark, and pull the cover off the
canister.
Pin Denitions
1 AC 24V IN
2 AC 24V IN
3 DC12V+ IN
4 DC12V- IN
5 DI6 DI+
7 DO8 DO+
9 RS485_N
10 RS485_P
11 EXT_MIC
12 Audio Out
15
Pin number
1
13 Audio GND
14 TV Out
15 GND
NOTE:
In addition to PoE (Power over Ethernet), you can also supply power to the camera using
pins #1~#4 from the terminal block, either using DC 12V or AC24V.
10 - User's Manual
VIVOTEK
9-2
Assembling Steps
1. Disassemble the components of the waterproof connector into part (A) ~ (E) as shown
above.
2. Open the rear cover of the Network Camera.
3. Remove the rubber stopper from the bottom of the Network Camera and secure the
screw nut (A) tightly.
4. You may choose to use AC24V or DC12V inputs as power source, please feed the
power lines through the wall mount bracket and the waterproof connector (E --> D -->
B --> A) as illustrated below. Pass power lines through the rubber seal (B) and then
connect the power lines to the terminal block.
5. If you have external devices such as sensors and alarms, feed the cables through the
wall mount bracket and the waterproof connector (E --> D --> B --> A) as the illustration
shown below. Then refer to the pin denition to connect them to the general I/O terminal
block. Note: The recommended cable gauge is 2.0 ~ 2.8 mm.
6. Push the seal (B) into the housing (D).
7. Insert the seals (C) into the empty holes on the seal (B) to avoid moisture.
8. Secure the sealing nut (E) tightly.
5
(A)
3
(B)
(D)
4
(E)
4
9. Open the aluminum foil vacuum bag
and take out the desiccant bag. Attach
the desiccant bag to the inner side of the
rear cover, to under the insulation pad,
and then tighten the rear cover. (Please
replace the desiccant bag with a new one
whenever you open the rear cover.)
(E)
7
6
(B)
(D)
8
9-1
9-2
(C)
User's Manual - 11
VIVOTEK
Cabling Assembly: RJ45 Cable Connector
RJ45 Cable Dimension (unit: mm)
Assembling Steps
Prepare an Ethernet
1
cable and strip part of the
sheath.
Recommended cable gauge:
O. D. 5.5~7
Insert the stripped Ether-
4
net cable through the sealing nut and the housing.
Insert the housing into
2
the screw nut.
Clamp the cable
5
with an RJ45 plug.
(C)
Components of the Waterproof
Connector
Sealing Nut (A)
Seal (B)
Screw Nut (C)
Housing (D)
Insert the seal into the
3
housing.
(D)
(B)
Push the RJ45 plug into
6
the housing, then secure
the sealing nut tightly.
Gasket (E)
(A)
7
Attach the gasket to the
front of the housing.
(E)
Connect the Ethernet cable to the RJ45 cable and secure
8
the connectors tightly.
12 - User's Manual
VIVOTEK
Network Deployment
Setting up the Network Camera over the Internet
This section explains how to congure the Network Camera to an Internet connection.
1. If you have external devices such as sensors and alarms, connect them to the general I/O
terminal block.
2. Connect the camera to a switch via Ethernet cable.
3. Connect either the DC 12V or AC 24V power wires from the Network Camera to a power
outlet.
3
2
POWER
COLLISION
1
2
Ethernet Switch
LINK
RECEIVE
PARTITION
3
4
5
There are several ways to set up the Network Camera over the Internet. The rst way is to set
up the Network Camera behind a router. The second way is to utilize a static IP. The third way is
using PPPoE.
User's Manual - 13
VIVOTEK
Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below.
1. Connect your Network Camera behind a router, the Internet environment is illustrated below.
Regarding how to obtain your IP address, please refer to Software Installation on page 16 for
details.
IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
Internet
Cable or DSL Modem
WAN (Wide Area Network )
Router IP address : from ISP
LINK
POWER
COLLISION
RECEIVE
1
2
PARTITION
3
4
5
LAN (Local Area Network)
Router IP address : 192.168.0.1
2. In this case, if the Local Area Network (LAN) IP address of your Network Camera is
192.168.0.3, please forward the following ports for the Network Camera on the router.
■ HTTP port: default is 80
■ RTSP port: default is 554
■ RTP port for audio: default is 5558
■ RTCP port for audio: default is 5559
■ RTP port for video: default is 5556
■ RTCP port for video: default is 5557
If you have changed the port numbers on the Network page, please open the ports accordingly
on your router. For information on how to forward ports on the router, please refer to your
router’s documentation.
3. Find out the public IP address of your router provided by your ISP (Internet Service Provider).
Use the public IP and the secondary HTTP port to access the Network Camera from the
Internet. Please refer to Network Type on page 64 for details.
Internet connection with static IP
Choose this connection type if you are required to use a static IP for the Network Camera.
Please refer to LAN settings on page 64 for details.
Internet connection via PPPoE (Point-to-Point over Ethernet)
Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to
PPPoE on page 65 for details.
14 - User's Manual
VIVOTEK
Set up the Network Camera through Power over Ethernet (PoE)
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data via a single
Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled
switch via Ethernet cable.
power + data transmission
POWER
COLLISION
LINK
RECEIVE
1
2
PARTITION
3
4
5
PoE Switch
When using a non-PoE switch
If your switch/router does not support PoE, use a PoE power injector (optional) to connect
between the Network Camera and a non-PoE switch.
PoE Power Injector
(optional)
Non-PoE Switch
POWER
COLLISION
LINK
RECEIVE
1
2
PARTITION
3
4
5
User's Manual - 15
VIVOTEK
Software Installation
Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up
your Network Camera on the LAN.
IW
1. Install IW2 under the Software Utility directory from the software CD.
Double click the IW2 shortcut on your desktop to launch the program.
2. The program will conduct an analysis of your network environment.
After your network environment is analyzed, please click Next to continue the program.
2
Installation
Wizard 2
3. The program will search for all VIVOTEK network devices on the same LAN.
4. After a brief search, the installer window will prompt. Click on the MAC and model name
that matches the one printed on the product label. You can then double-click on the address to
open a management session with the Network Camera.
Network Camera
Model No: IP8371E
MAC:0002D1730202
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Pat. 6,930,709
R o HS
Made in Taiwan
00-02-D1-73-02-02 192.168.5.151 IP8371E
0002D1730202
16 - User's Manual
VIVOTEK
Ready to Use
1. A browser session with the Network Camera should prompt as shown below
2. You should be able to see live video from your camera. You may also install the 32-channel
recording software from the software CD in a deployment consisting of multiple cameras. For
its installation details, please refer to its related documents.
2012/08/11 10:19:19
User's Manual - 17
VIVOTEK
NOTE:
If you want to use the supplied sun shield for outdoor environments, please follow the
steps below to install:
1. Tighten the supplied two hex couplers.
2. Attach the supplied sun shield to the Network Camera and slide it to the desired position.
3. Fix the sun shield with the supplied two screws.
1
3
2
Accessories
VIVOTEK also provides other accessories for versatile applications as the following
illustrations. Please visit VIVOTEK's ofcial website for more purchase information.
Corner Mount Bracket
Pole Mount Bracket
18 - User's Manual
VIVOTEK
Accessing the Network Camera
This chapter explains how to access the Network Camera through web browsers, RTSP players,
3GPP-compatible mobile devices, and VIVOTEK recording software.
Using Web Browsers
Use Installation Wizard 2 (IW2) to access to the Network Cameras on the LAN.
If your network environment is not a LAN, follow these steps to access the Netwotk Camera:
1. Launch your web browser (e.g., Microsoft
2. Enter the IP address of the Network Camera in the address eld. Press Enter.
3. The live video will be displayed in your web browser.
4. If it is the rst time installing the VIVOTEK network camera, an information bar will pop up as
shown below. Follow the instructions to install the required plug-in on your computer.
®
Internet Explorer or Mozilla Firefox).
NOTE:
NOTE
► For Mozilla Firefox users, your browser will use Quick Time to stream the live video. If you do
not have Quick Time on your computer, please download it rst, then launch the web browser.
► By default, the Network Camera is not password-protected. To prevent unauthorized access,
User's Manual - 19
VIVOTEK
it is highly recommended to set a password for the Network Camera.
For more information about how to enable password protection, please refer to Security on
page 82.
► If you see a dialog box indicating that your security settings prohibit running ActiveX
®
Controls, please enable the ActiveX
Controls for your browser.
1. Choose Tools > Internet Options > Security > Custom Level.
®
2. Look for Download signed ActiveX
®
controls; select Enable or Prompt. Click OK.
3. Refresh your web browser, then install the ActiveX
complete installation.
®
control. Follow the instructions to
20 - User's Manual
VIVOTEK
Using RTSP Players
To view the MPEG-4 streaming media using RTSP players, you can use one of the following
players that support RTSP streaming.
Quick Time Player
VLC media player
VLC media player
1. Launch the RTSP player.
mpegable Player
2. Choose File > Open URL. A URL dialog box will pop up.
3. The address format is rtsp://<ip address>:<rtsp port>/<RTSP streaming access name for
pvPlayer
stream1 or stream2>
As most ISPs and players only allow RTSP streaming through port number 554, please set the
RTSP port to 554. For more information, please refer to RTSP Streaming on page 73.
For example:
rtsp://192.168.5.151:554/live.sdp
4. The live video will be displayed in your player.
For more information on how to configure the RTSP access name, please refer to RTSP
Streaming on page 73 for details.
Video 16:38:01 2011/06/25
User's Manual - 21
VIVOTEK
Using 3GPP-compatible Mobile Devices
To view the streaming media through 3GPP-compatible mobile devices, make sure the Network
Camera can be accessed over the Internet. For more information on how to set up the Network
Camera over the Internet, please refer to Setup the Network Camera over the Internet on page
13.
To utilize this feature, please check the following settings on your Network Camera:
1. Because most players on 3GPP mobile phones do not support RTSP authentication, make
sure the authentication mode of RTSP streaming is set to disable.
For more information, please refer to RTSP Streaming on page 73.
2. As the the bandwidth on 3G networks is limited, you will not be able to use a large video size.
Please set the video and audio streaming parameters as listed below.
For more information, please refer to Stream settings on page 91.
Video Mode MPEG-4
Frame size 176 x 144
Maximum frame rate 5 fps
Intra frame period 1S
Video quality (Constant bit rate) 40kbps
Audio type (GSM-AMR) 12.2kbps
3. As most ISPs and players only allow RTSP streaming through port number 554, please set
the RTSP port to 554. For more information, please refer to RTSP Streaming on page 73.
4. Launch the player on the 3GPP-compatible mobile devices (ex. Real Player).
5. Type the following URL commands into the player.
The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming
access name for stream 3>.
For example:
rtsp://192.168.5.151:554/live.sdp
22 - User's Manual
VIVOTEK
Using VIVOTEK Recording Software
The product software CD also contains recording software, allowing simultaneous monitoring
and video recording for multiple Network Cameras. Please install the recording software; then
launch the program to add the Network Camera to the Channel list. For detailed information
about how to use the recording software, please refer to the user’s manual of the software or
download it from http://www.vivotek.com.
User's Manual - 23
VIVOTEK
VIVOTEK INC.
Logo
Camera Control
Area
Configuration
Area
Host Name
Resize Buttons
Hide Button
Live View Window
Main Page
This chapter explains the layout of the main page. It is composed of the following sections:
VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live
Video Window.
VIVOTEK INC. Logo
Click this logo to visit the VIVOTEK website.
Host Name
The host name can be customized to t your needs. For more information, please refer to System on page 35.
Camera Control Area
Video Stream: This Network Camera supports multiple streams (streams 1 ~ 4) simultaneously. You can
select either one for live viewing. For more information about multiple streams, please refer to page 91
for detailed information.
Manual Trigger: Click to enable/disable an event trigger manually. Please configure an event setting
on Application page before enable this function. A total of 3 event settings can be congured. For more
information about event setting, please refer to page 98. If you want to hide this item on the homepage,

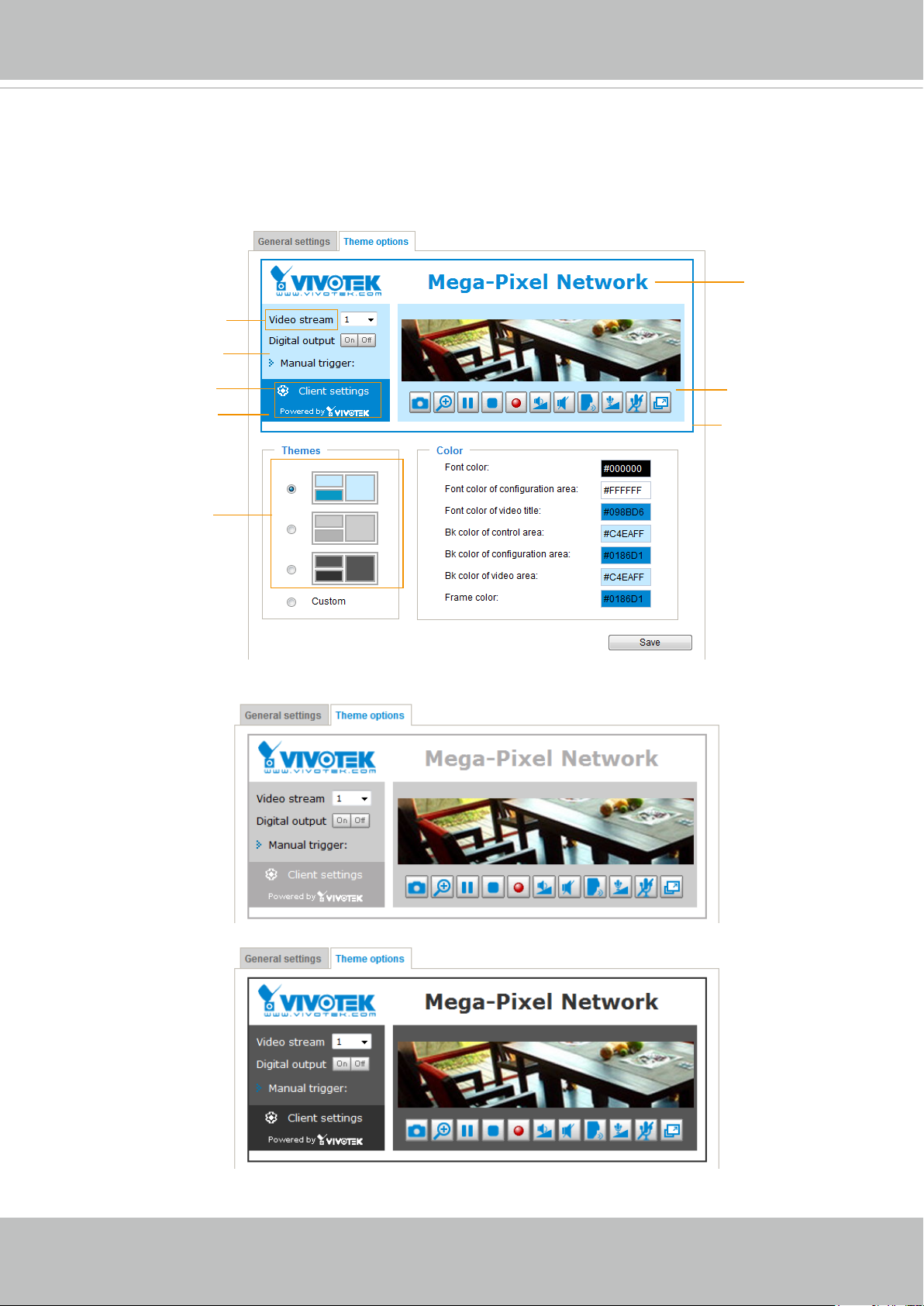

please go to the System > Homepage Layout > General settings > Customized button to deselect
“show manual trigger button”.
Digital Output: Click to turn the digital output device on or off.
24 - User's Manual
VIVOTEK

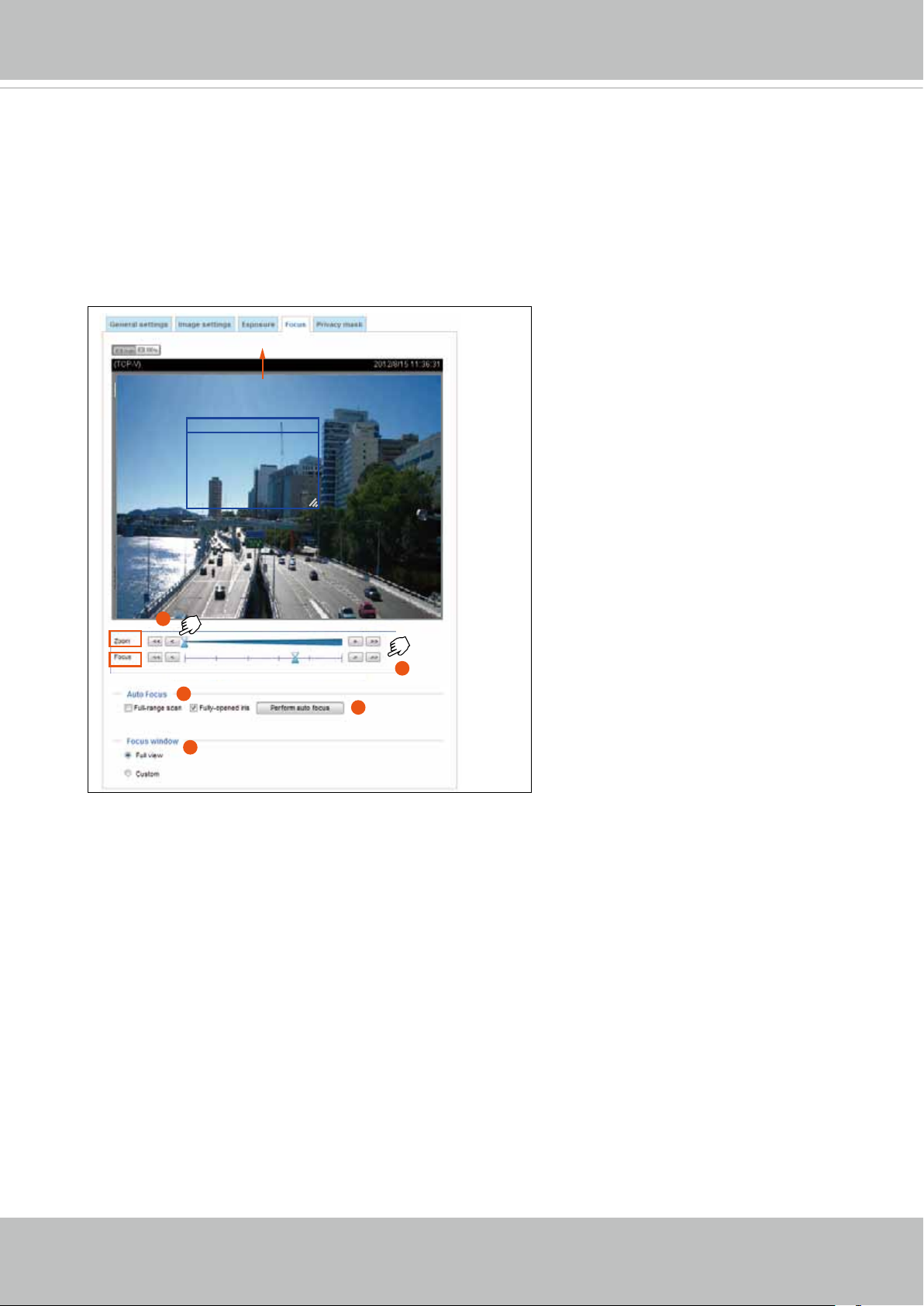

Auto Focus
There are two options for you to ne-tune the camera focus.
Auto Focus Button
Press the button, and the camera rmware will automatically perform an auto-sensing process on its
vari-focal lens to look for the best focus. The process takes about a minute to complete. This function
applies when you see the image is out of focus when the surrounding lighting condition is changed
drastically for some reasons. You can press the button for longer than 1 second to perform a full-range
scan. Forcing a re-focusing may improve the image quality.

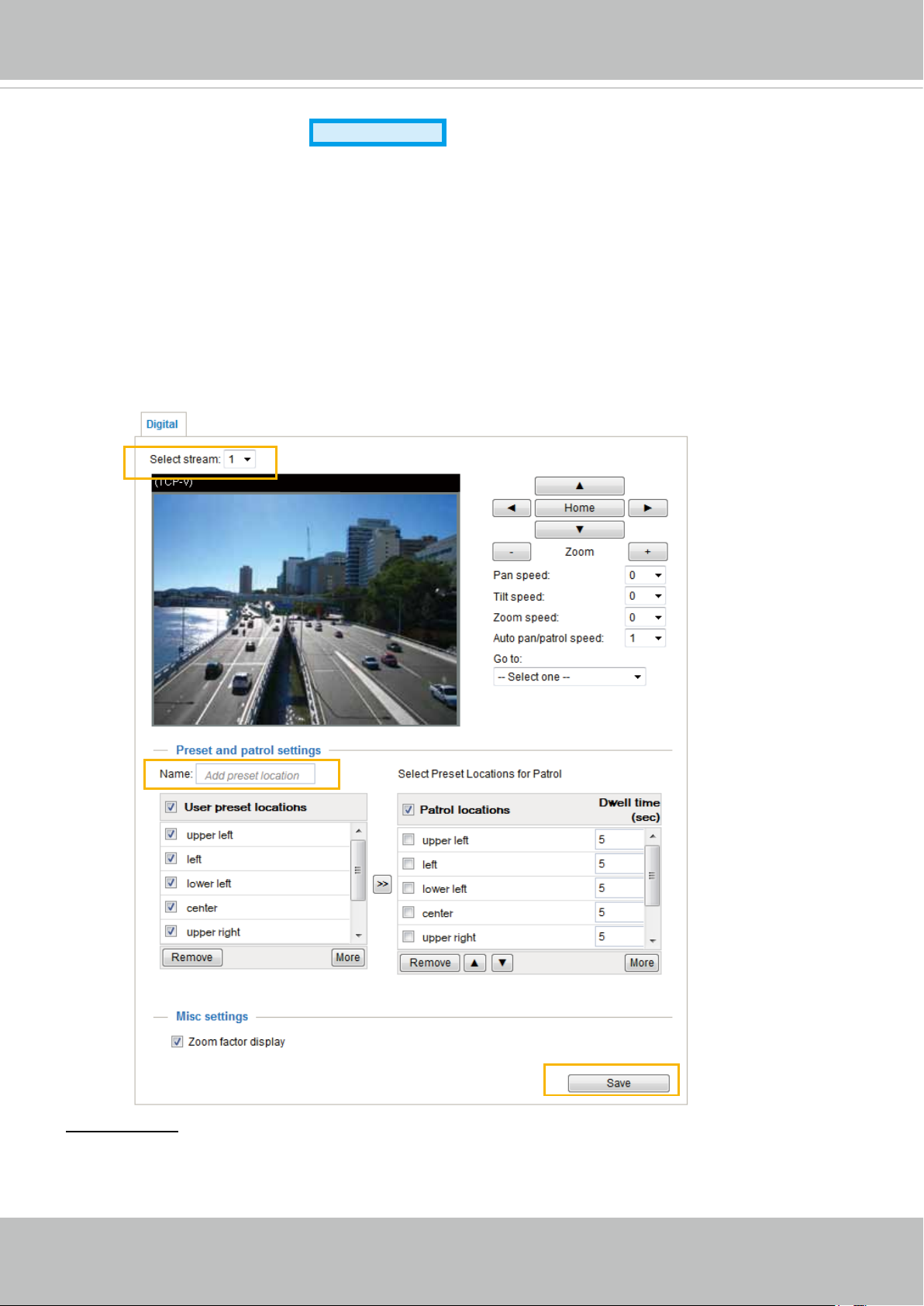

PTZ Panel: This Network Camera supports “digital PTZ“ (e-PTZ). Please refer to PTZ settiings on page
95 for detailed information.
Global View: Click on this item to display the Global View window. The Global View window contains a
full view image (the largest frame size of the captured video) and a oating frame (the viewing region of
the current video stream). The oating frame allows users to control the e-PTZ function (Electronic Pan/
Tilt/Zoom). For more information about e-PTZ operation, please refer to E-PTZ Operation on page 95.

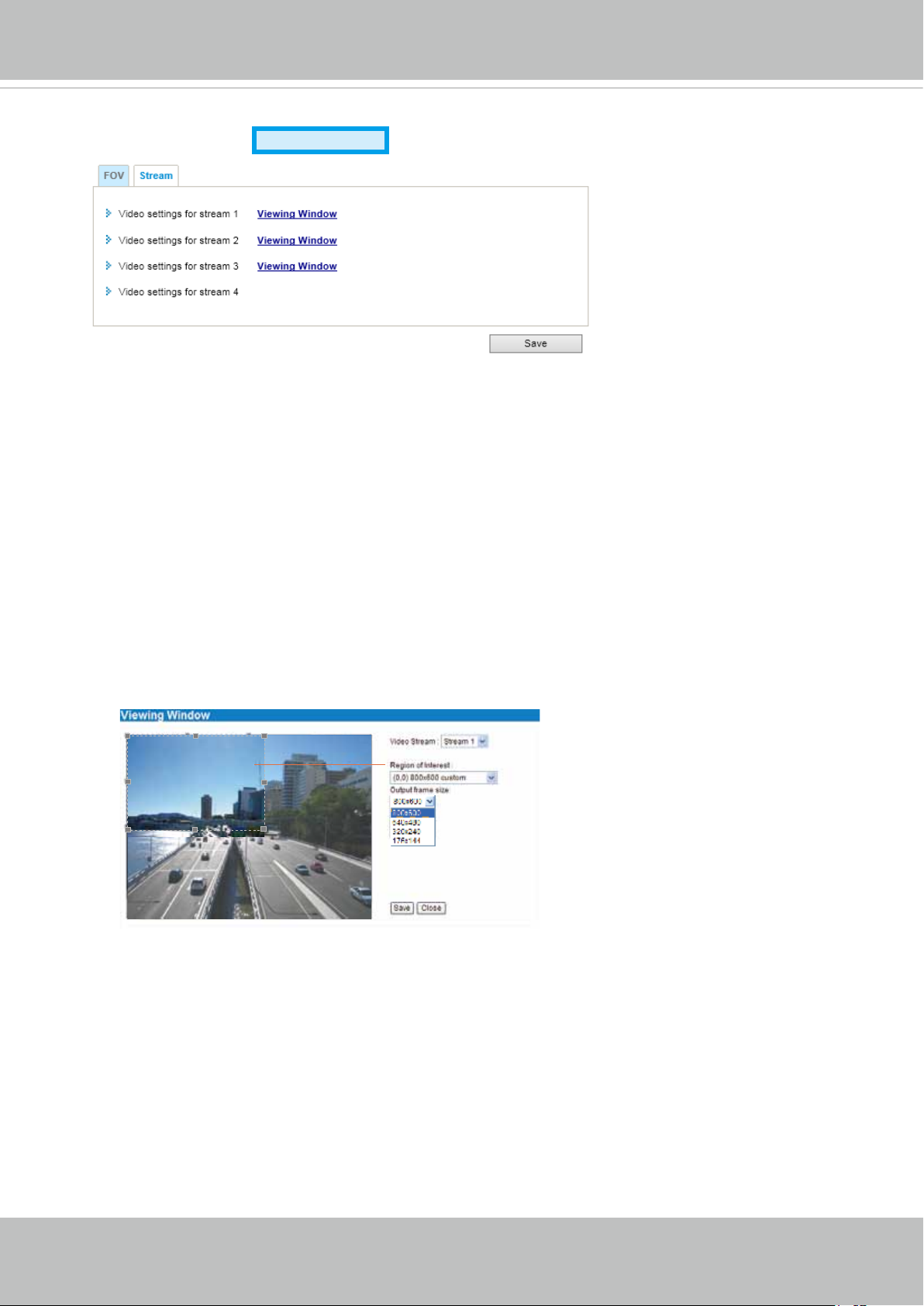

For more information about how to set up the viewing region of the current video stream, please refer to
page 91.
The viewing region of
the current video
stream
The largest frame size
NOTE:
1. For a megapixel camera, it is recommended to use monitors of the 24" size or larger, and
are capable of 1600x1200 or better resolutions.
2. Below are the defaults for Audio settings:
For cameras with built-in microphone: Not Muted.
For cameras without built-in microphone: Muted.

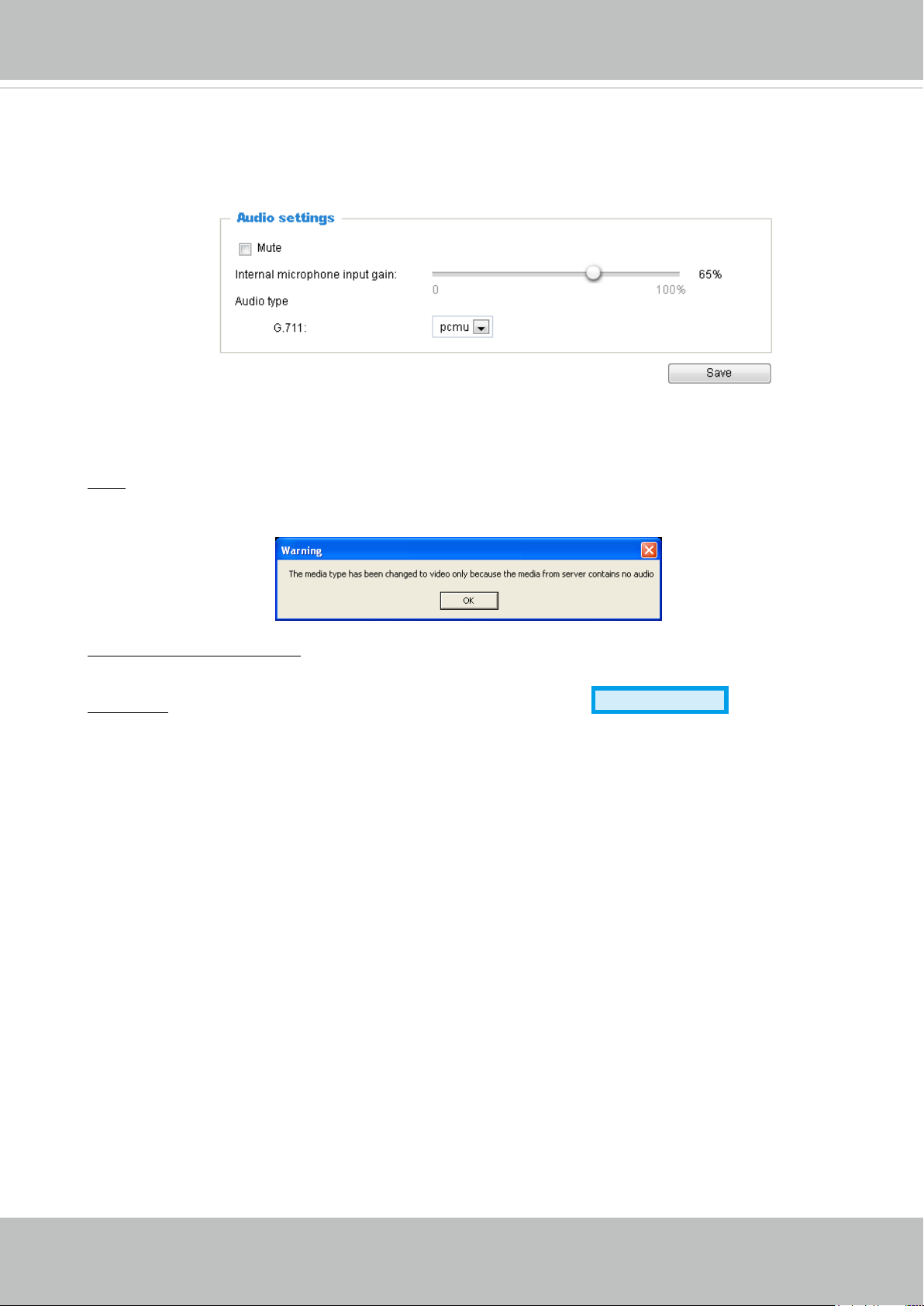

To receive audio into from external microphone, you may need to enable the audio input
from Media > Audio. Refer to page 63 for more information.
User's Manual - 25
VIVOTEK
Conguration Area
Client Settings: Click this button to access the client setting page. For more information, please refer to
Client Settings on page 29.
Conguration: Click this button to access the conguration page of the Network Camera. It is suggested
that a password be applied to the Network Camera so that only the administrator can configure the
Network Camera. For more information, please refer to Conguration on page 34.
Language: Click this button to choose a language for the user interface. Language options are available
in: English, Deutsch, Español, Français, Italiano,
日本語
, Português,
簡体中文
, and
繁體中文
. Please
note that you can also change a language on the Conguration page; please refer to page 34.
Hide Button
You can click the hide button to hide the control panel or display the control panel.
Resize Buttons
:
Click the Auto button, the video cell will resize automatically to t the monitor.
Click 100% is to display the original homepage size.
Click 50% is to resize the homepage to 50% of its original size.
Click 25% is to resize the homepage to 25% of its original size.
Live Video Window
■ The following window is displayed when the video mode is set to H.264 / MPEG-4:
H.264 / MPEG-4 Protocol and Media Options
Video Title
Title and Time
Zoom Indicator
Video (TPC-AV)
Video 17:08:56 2013/04/25
x4.0
2013/04/25 17:08:56
Time
Video and Audio Control Buttons

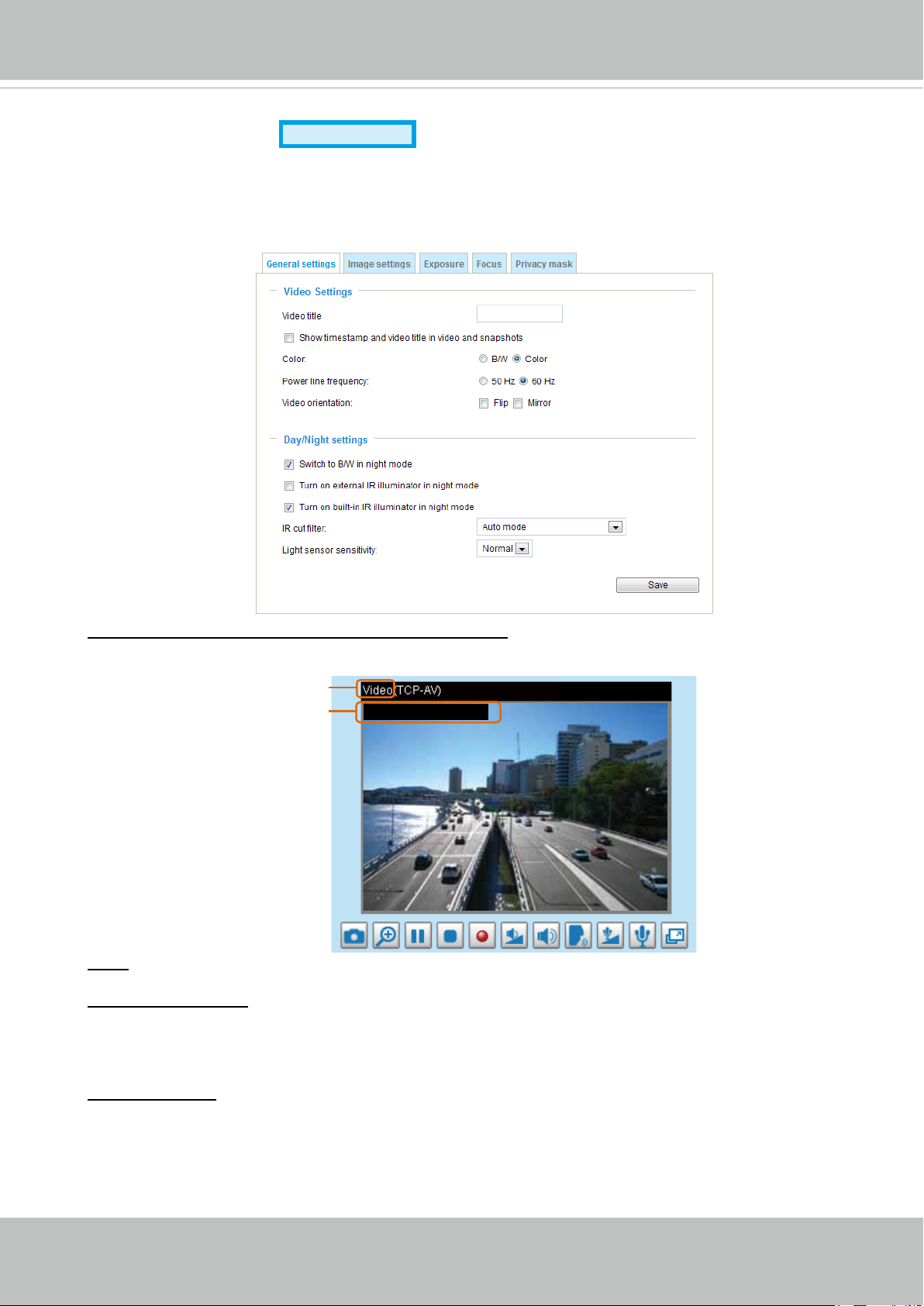

Video Title: The video title can be congured. For more information, please refer to Video Settings on
page 26.
H.264 / MPEG-4 Protocol and Media Options: The transmission protocol and media options for H.264 /
MPEG-4 video streaming. For further conguration, please refer to Client Settings on page 29.
Time: Display the current time. For further conguration, please refer to Media > Image > Genral settings
on page 82.
Title and Time: The video title and time can be stamped on the streaming video. For further conguration,
please refer to Media > Image > General settings on page 82.
26 - User's Manual
VIVOTEK
Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera
conguration, some buttons may not be available.
Snapshot: Click this button to capture and save still images. The captured images will be displayed
in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP
(*.bmp) format.
Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation
screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To
move to a different area you want to magnify, drag the navigation screen.
Pause: Pause the transmission of the streaming media. The button becomes the Resume button
after clicking the Pause button.
Stop: Stop the transmission of the streaming media. Click the Resume button to continue
transmission.
Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.
Press the
Stop MP4 Recording button to end recording. When you exit the web browser, video
recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving
Options on page 30 for details.
Volume: When the Mute function is not activated, move the slider bar to adjust the volume on the
local computer.
Mute: Turn off the volume on the local computer. The button becomes the Audio On button after
clicking the Mute button.
Talk: Click this button to talk to people around the Network Camera. Audio will project from
the external speaker connected to the Network Camera. Click this button
again to end talking
transmission.
Mic Volume: When the Mute function is not activated, move the slider bar to adjust the
microphone volume on the local computer.
Mute: Turn off the Mic volume on the local computer. The button becomes the Mic On button
after clicking the Mute button.
Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal
mode.
User's Manual - 27
VIVOTEK
■ The following window is displayed when the video mode is set to MJPEG:
Video Title
Title and Time
Video (HTTP-V)
Video 17:08:56 2013/04/25
2013/04/25 17:08:56
Time
Video Control Buttons
Video Title: The video title can be congured. For more information, please refer to Media > Image on
page 82.
Time: Display the current time. For more information, please refer to Media > Image on page 82.
Title and Time: Video title and time can be stamped on the streaming video. For more information, please
refer to Media > Image on page 82
.
Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera
conguration, some buttons may not be available.
Snapshot: Click this button to capture and save still images. The captured images will be displayed
in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP
(*.bmp) format.
Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation
screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To
move to a different area you want to magnify, drag the navigation screen.
Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.
Press the
Stop MP4 Recording button to end recording. When you exit the web browser, video
recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving
Options on page 30 for details.
Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal
mode.
28 - User's Manual
VIVOTEK
Client Settings
This chapter explains how to select the stream transmission mode and saving options on the
local computer. When completed with the settings on this page, click Save on the page bottom
to enable the settings.
H.264 / MPEG-4 Media Options
H.264/MPEG-4 Media Options
Select to stream video or audio data or both. This is enabled only when the video mode is set to H.264 or
MPEG-4.
H.264 / MPEG-4 Protocol Options
H.264/MPEG-4 Protocol Options
Depending on your network environment, there are four transmission modes of H.264 or MPEG-4
streaming:
UDP unicast: This protocol allows for more real-time audio and video streams. However, network
packets may be lost due to network burst trafc and images may be broken. Activate UDP connection
when occasions require time-sensitive responses and the video quality is less important. Note that each
unicast client connecting to the server takes up additional bandwidth and the Network Camera allows up
to ten simultaneous accesses.
UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients
requesting streaming media. This helps to reduce the network transmission load of the Network Camera
while serving multiple clients at the same time. Note that to utilize this feature, the Network Camera must
be configured to enable multicast streaming at the same time. For more information, please refer to

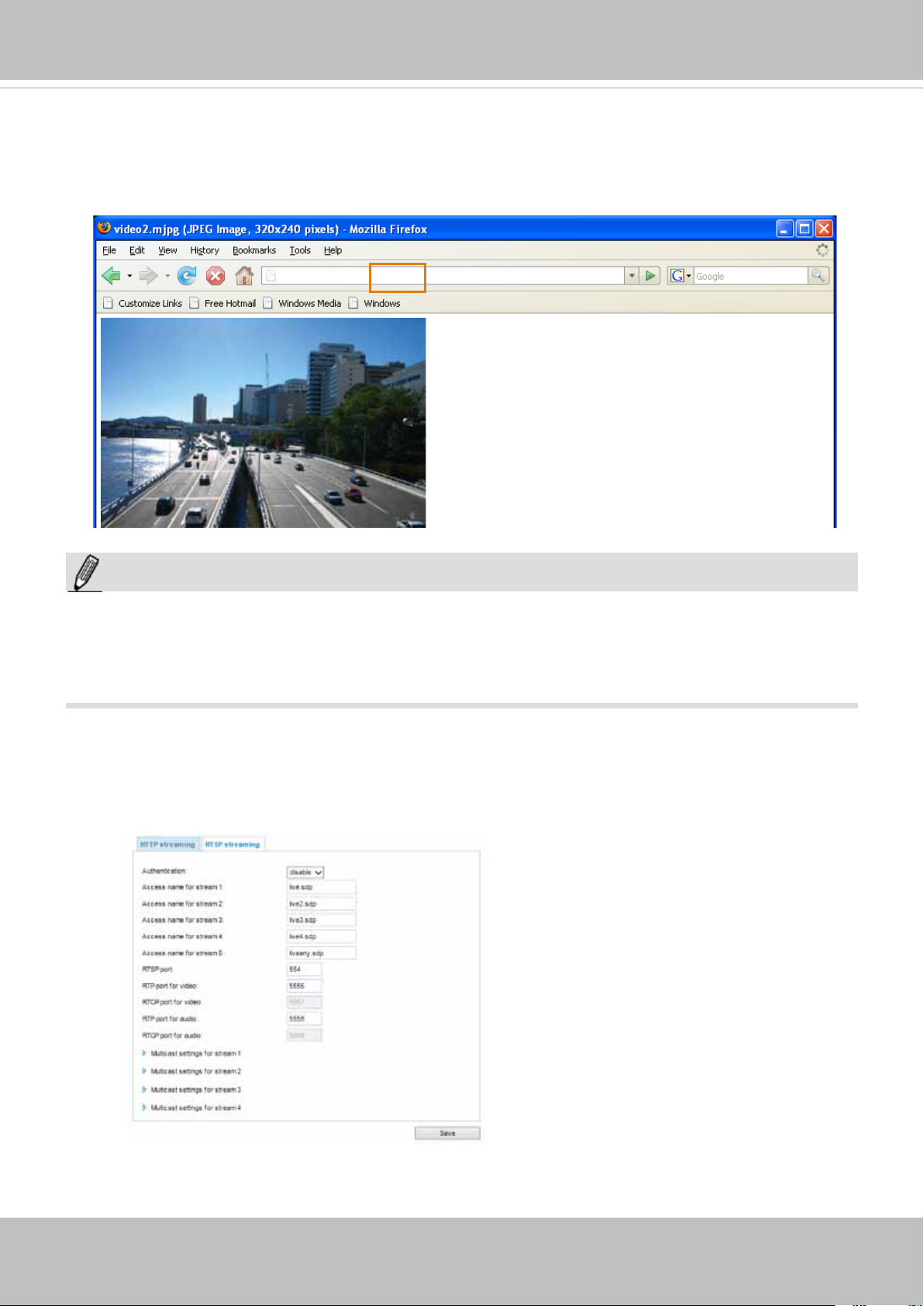

RTSP Streaming on page 73.
TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video
quality. The downside of this protocol is that its real-time effect is not as good as that of the UDP protocol.
HTTP: This protocol allows the same quality as TCP protocol without needing to open specic ports for
streaming under some network environments. Users inside a firewall can utilize this protocol to allow
streaming data through.
User's Manual - 29
VIVOTEK
Two way audio
Select one of the checkboxes to determine if the audio transmission in and out of the camera is
performed in half- or full-duplex mode.
MP4 Saving Options
Users can record live video as they are watching it by clicking Start MP4 Recording on the main
page. Here, you can specify the storage destination and le name.
Folder: Specify a storage destination for the recorded video les.
File name prex: Enter the text that will be appended to the front of the video le name.
Add date and time sufx to the le name: Select this option to append the date and time to the end of the
le name.
CLIP_20110628-180853
File name prefix
Date and time suffix
The format is: YYYYMMDD_HHMMSS
Local Streaming Buffer Time
In a busy network, fluctuations in available bandwidth can occur. Video streaming may lag and may
not proceed very smoothly. If you enable this option, video streams from the camera will be temporarily
stored on the computer’s cache memory for a configurable period of time (seconds or milliseconds)
before being played on a web session. This will help you see the streaming more smoothly. If you enter
3000 Millisecond, the streaming will delay for 3 seconds.
30 - User's Manual
Loading...
