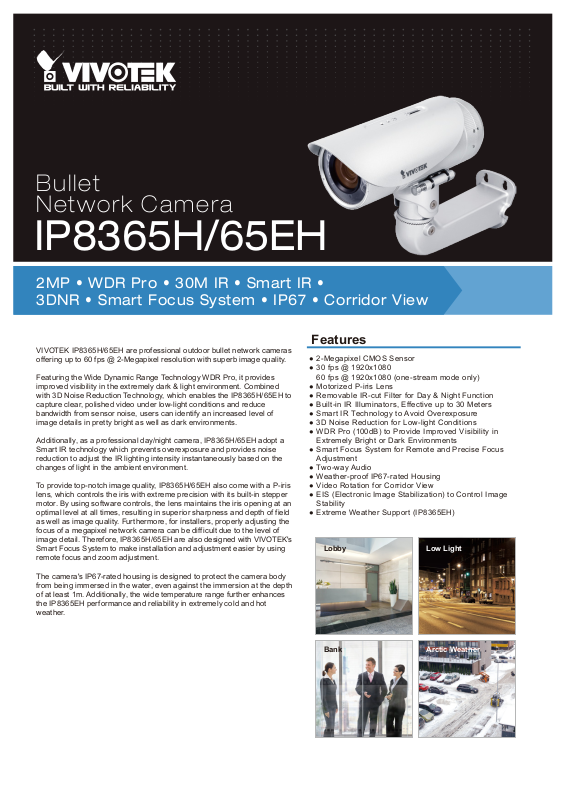

Vivotek IP8365H Specsheet

Bullet
Network Camera

IP8365H/65EH

2MP • WDR Pro • 30M IR • Smart IR •
3DNR • Smart Focus System • IP67 • Corridor View

VIVOTEK IP8365H/65EH are professional outdoor bullet network cameras
offering up to 60 fps @ 2-Megapixel resolution with superb image quality.

Featuring the Wide Dynamic Range Technology WDR Pro, it provides
improved visibility in the extremely dark & light environment. Combined
with 3D Noise Reduction Technology, which enables the IP8365H/65EH to
capture clear, polished video under low-light conditions and reduce
bandwidth from sensor noise, users can identify an increased level of
image details in pretty bright as well as dark environments.

Additionally, as a professional day/night camera, IP8365H/65EH adopt a
Smart IR technology which prevents overexposure and provides noise
reduction to adjust the IR lighting intensity instantaneously based on the
changes of light in the ambient environment.

To provide top-notch image quality, IP8365H/65EH also come with a P-iris
lens, which controls the iris with extreme precision with its built-in stepper
motor. By using software controls, the lens maintains the iris opening at an
optimal level at all times, resulting in superior sharpness and depth of field
as well as image quality. Furthermore, for installers, properly adjusting the
focus of a megapixel network camera can be difficult due to the level of
image detail. Therefore, IP8365H/65EH are also designed with VIVOTEK's
Smart Focus System to make installation and adjustment easier by using
remote focus and zoom adjustment.

The camera's IP67-rated housing is designed to protect the camera body
from being immersed in the water, even against the immersion at the depth
of at least 1m. Additionally, the wide temperature range fur ther enhances
the IP8365EH performance and reliability in extremely cold and hot
weather.

Features

● 2-Megapixel CMOS Sensor

● 30 fps @ 1920x1080

60 fps @ 1920x1080 (one-stream mode only)

● Motorized P-iris Lens

● Removable IR-cut Filter for Day & Night Function

● Built-in IR Illuminators, Effective up to 30 Meters

● Smart IR Technology to Avoid Overexposure

● 3D Noise Reduction for Low-light Conditions

● WDR Pro (100dB) to Provide Improved Visibility in

Extremely Bright or Dark Environments

● Smart Focus System for Remote and Precise Focus
Adjustment

● Two-way Audio

● Weather-proof IP67-rated Housing

● Video Rotation for Corridor View

● EIS (Electronic Image Stabilization) to Control Image

Stability

● Extreme Weather Support (IP8365EH)

Lobby Low Light

Bank Arctic Weather

Technical Specifications

Model

System Information

CPU
Flash
RAM

Camera Features

Image Sensor
Maximum Resolution
Lens Type
Focal Length
Aperture
Auto-iris
Field of View

Shutter Time
WDR Technology
Day/Night

Minimum Illumination

Pan/tilt/zoom
Functionalities
IR Illuminators

On-board Storage

Video

Compression
Maximum Frame Rate

Maximum Streams
S/N Ratio
Dynamic Range
Video Streaming
Image Settings

Audio

Audio Capability
Compression
Interface

Network

Users
Protocols

Interface

ONVIF

Intelligent Video

Video Motion Detection

IP8365H/65EH

Multimedia SoC (System-on-Chip)
256 MB
384 MB

1/2.8" Progressive CMOS
1920x1080 (2MP)
Vari-focal, Remote Focus
f = 3 ~ 9 mm
F1.2 ~ F2.3
P-Iris
39° ~ 89° (Horizontal)
22° ~ 49° (Vertical)
44° ~ 103° (Diagonal)
1/5 sec. to 1/10,000 sec.
WDR Pro
Removable IR-cut filter for day & night function
Smart IR Technology to avoid overexposure

0.11 Lux @ F1.2 (Color)

0.001 Lux @ F1.2 (B/W)
0 Lux (IR ON)
ePTZ:
48x digital zoom (4x on IE plug-in,12x built in)
Built-in IR illuminators, effective up to 30 meters
IR LED*4, with Smart IR Technology
SD/SDHC/SDXC card slot

H.264, MJPEG
30 fps @ 1920x1080
60 fps @ 1920x1080 (one-stream mode only)
In both compression modes
2 simultaneous streams
62dB
100dB
Adjustable resolution, quality and bitrate
Time stamp, text overlay, flip & mirror
configurable brightness, contrast, saturation, sharpness,
white balance, exposure control, gain, backlight
compensation, privacy masks, scheduled profile
settings, 3D noise reduction, EIS, video rotation

Two-way audio (full duplex)
AAC, G.711, G.726
External microphone input
Audio output

Live viewing for up to 10 clients
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP,
RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP,
DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP,
ICMP
10Base-T/100BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard Cat. 5e &
Cat. 6 cables which are compliant with the 3P/ETL
standard.
Supported, specification available at www.onvif.org

Triple-window video motion detection

Alarm and Event

Alarm Triggers

Alarm Events

General

Smart Focus System
Connectors

LED Indicator
Power Input

Power Consumption

Dimensions
Weight

Casing
Safety Certifications
Operating Temperature

Warranty

System Requirements

Operating System
Web Browser

Other Players

Included Accessories

CD

Others

Dimensions

97 mm 221 mm

91 mm

Video motion detection, manual trigger, digital input,
periodical trigger, system boot, recording notification,
camera tampering detection
Event notification using digital output, HTTP, SMTP,
FTP and NAS server
File upload via HTTP, SMTP, FTP and NAS server

Remote focus
RJ-45 for Network/PoE connection
Audio input/output
TV output
AC 24V power input
DC 12V power input
Digital input*1
Digital output*1
System power and status indicator
DC12V/AC24V
IEEE 802.3af PoE
IP8365H:
DC Max. 11 W
AC Max. 24.4 W
PoE Max. 11 W
IP8365EH:
DC Max. 30 W (Heater on), 8 W (Heater off)
AC Max. 30 W (Heater on), 8.8 W (Heater off)
PoE Max. 11 W (Heater off)
Ø: 91mm x 221mm
Body only
Net: 1,314g (IP8365EH), 1,270g (IP8365H)
With stand and sunshield
Net: 1,911g (IP8365EH), 1,867g (IP8365H)
Weather-proof IP67-rated housing
CE, LVD, FCC Class A, VCCI, C-Tick, UL
IP8365H:
Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)
Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
IP8365EH:
Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
( PoE: -10°C ~ 50°C )
Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
36 months

Microsoft Windows 8/7/Vista/XP/2000
Mozilla Firefox 7~10 (streaming only)
Internet Explorer 7/8/9/10/11
VLC: 1.1.11 or above
Quicktime: 7 or above

User's manual, quick installation guide, Installation
Wizard 2, ST7501 32-channel recording software
Quick installation guide, warranty card, sun shield, wall
mount bracket, waterproof RJ45 Ethernet enclosure,
alignment sticker, desiccant bag, waterproof connector

296 mm

221 mm

Compatible Accessories

Mounting Kits

AM-311

Pole Mount Adaptor

Distributed by:

AM-411

Corner Mount Adaptor

VIVOTEK IN C. VIVOTEK USA

6F, No.192, Lien-Cheng Rd., Chung-Ho,
New Taipei Ci ty, 235, Taiwan, R.O.C.
T: [phone] F: [phone]
E: sales@vivote k.com

AM-711

Junction Box

All specications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved.

2050 Ringwood Avenue,
San Jose, CA 95131
T: 408-773-8686 F: 408-773-8298
E: [e-mail]

VIVOTEK Europ e

Randstad 22-133, 1316BW Almere,
The Netherlands
E: [e-mail]

Ver 1.9
