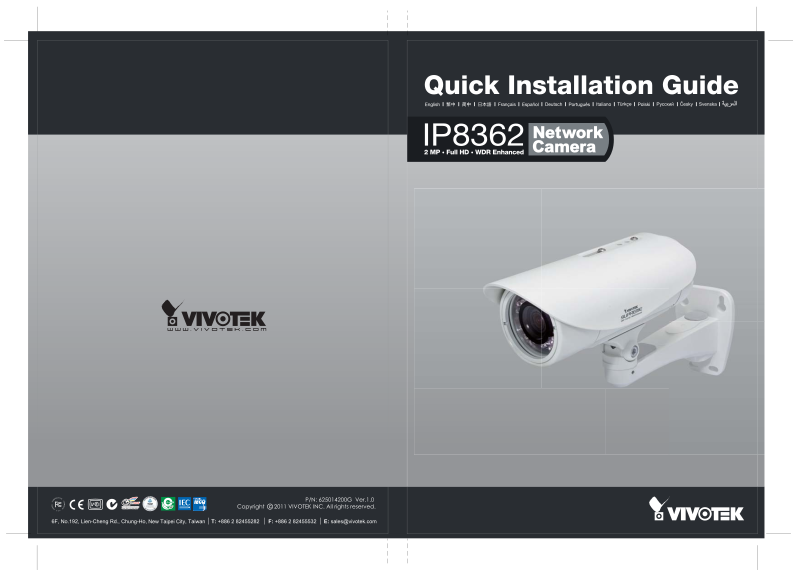

Vivotek IP8362 Installation

Warning Before Installation

English

Power off the Network Camera as
soon as smoke or unusual odors are
detected.

Contact your distributor in the
event of occurrence.

Do not place the Network Camera on
unsteady surfaces.

Do not insert sharp or tiny objects
into the Network Camera.

Refer to your user's manual for the
operating temperature.

Do not touch the Network Camera
during a lightning storm.

Do not drop the Network Camera.

EN-1

1

Package Contents

IP8362

Sun Shield
Wrench / RJ45 Female/Female Coupler / Double-sided Tape / Screws

Power Adapter

Waterproof Connector (for backup
use)

Alignment Sticker

Wall Mount Bracket

Moisture Absorber

Quick Installation Guide /
Warranty Card

Software CD

EN-2

2

Physical Description

English

Light Sensor

IR LED

Reset Button

SD/SDHC Card Slot

When inserting an SD/SDHC card,
note the orientation of the contacts.

Lens

Focus Controller

Zoom Controller

General I/O
Terminal Block

General I/O Terminal Block

+ AC 24V +

- AC 24V -

Ethernet 10/100
RJ45 Plug

EN-3

Power Cord Socket
