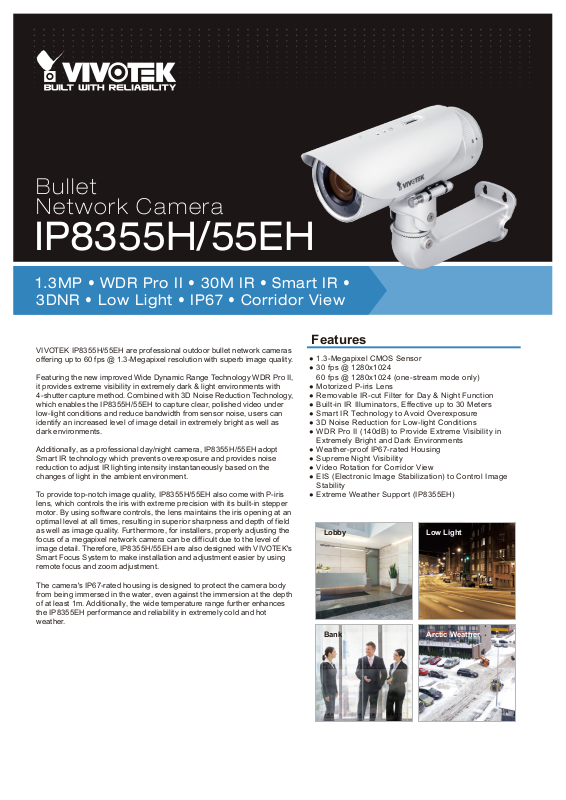

Vivotek IP8355H Specsheet

Bullet
Network Camera

IP8355H/55EH

1.3MP • WDR Pro II • 30M IR • Smart IR •
3DNR • Low Light • IP67 • Corridor View

VIVOTEK IP8355H/55EH are professional outdoor bullet network cameras
offering up to 60 fps @ 1.3-Megapixel resolution with superb image quality.

Featuring the new improved Wide Dynamic Range Technology WDR Pro II,
it provides extreme visibility in extremely dark & light environments with
4-shutter capture method. Combined with 3D Noise Reduction Technology,
which enables the IP8355H/55EH to capture clear, polished video under
low-light conditions and reduce bandwidth from sensor noise, users can
identify an increased level of image detail in extremely bright as well as
dark environments.

Additionally, as a professional day/night camera, IP8355H/55EH adopt
Smart IR technology which prevents overexposure and provides noise
reduction to adjust IR lighting intensity instantaneously based on the
changes of light in the ambient environment.

To provide top-notch image quality, IP8355H/55EH also come with P-iris
lens, which controls the iris with extreme precision with its built-in stepper
motor. By using software controls, the lens maintains the iris opening at an
optimal level at all times, resulting in superior sharpness and depth of field
as well as image quality. Furthermore, for installers, properly adjusting the
focus of a megapixel network camera can be difficult due to the level of
image detail. Therefore, IP8355H/55EH are also designed with VIVOTEK's
Smart Focus System to make installation and adjustment easier by using
remote focus and zoom adjustment.

The camera's IP67-rated housing is designed to protect the camera body
from being immersed in the water, even against the immersion at the depth
of at least 1m. Additionally, the wide temperature range fur ther enhances
the IP8355EH per formance and reliability in extremely cold and hot
weather.

Features

● 1.3-Megapixel CMOS Sensor

● 30 fps @ 1280x1024

60 fps @ 1280x1024 (one-stream mode only)

● Motorized P-iris Lens

● Removable IR-cut Filter for Day & Night Function

● Built-in IR Illuminators, Effective up to 30 Meters

● Smart IR Technology to Avoid Overexposure

● 3D Noise Reduction for Low-light Conditions

● WDR Pro II (140dB) to Provide Extreme Visibility in

Extremely Bright and Dark Environments

● Weather-proof IP67-rated Housing

● Supreme Night Visibility

● Video Rotation for Corridor View

● EIS (Electronic Image Stabilization) to Control Image

Stability

● Extreme Weather Support (IP8355EH)

Lobby Low Light

Bank Arctic Weather

Technical Specifications

Model

System Information

CPU

Flash

RAM

Camera Features

Image Sensor

Maximum Resolution

Lens Type

Focal Length

Aperture

Auto-iris

Field of View

Shutter Time

WDR Technology

Day/Night

Minimum Illumination

Pan/tilt/zoom Functionalities

IR Illuminators

On-board Storage

Video

Compression

Maximum Frame Rate

Maximum Streams

S/N Ratio

Dynamic Range

Video Streaming

Image Settings

Audio

Audio Capability

Compression

Interface

Network

Users

Protocols

Interface

ONVIF

IP8355H/55EH

Multimedia SoC (System-on-Chip)

256 MB

384 MB

1/3" Progressive CMOS

1280x1024 (1.3MP)

Vari-focal, Remote Focus

f = 3 ~ 9 mm

F1.2 ~ F2.3

P-iris

34° ~ 80° (Horizontal)

27° ~ 62° (Vertical)

44° ~ 101° (Diagonal)

1/5 sec. to 1/10,000 sec.

WDR Pro II

Removable IR-cut filter for day & night function

Smart IR Technology to avoid overexposure

0.04 Lux @ F1.2 (Color)

0.001 Lux @ F1.2 (B/W)

ePTZ:

48x digital zoom (4x on IE plug-in,12x built in)

Built-in IR illuminators, effective up to 30 meters

IR LED*4, with Smart IR Technology

SD/SDHC/SDXC card slot

H.264, MJPEG

30 fps @ 1280x1024

60 fps @ 1280x1024 (one-stream mode only)

In both compression modes

2 simultaneous streams

64dB

140dB

Adjustable resolution, quality and bitrate

Time stamp, text overlay, flip & mirror

configurable brightness, contrast, saturation, sharpness, white

balance, exposure control, gain, backlight compensation, privacy

masks, scheduled profile settings

3D noise reduction, EIS, video rotation

Two-way audio (full duplex)

AAC, G.711, G.726

External microphone input

Audio output

Live viewing for up to 10 clients

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP,

IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS,

QoS, SNMP, 802.1X, UDP, ICMP

10 Base-T/100 BaseTX Ethernet (RJ-45)

*It is highly recommended to use standard CAT5e & CAT6

cables which are compliant with the 3P/ETL standard.

Supported, specification available at www.onvif.org

Intelligent Video

Video Motion Detection

Alarm and Event

Alarm Triggers

Alarm Events

General

Smart Focus System
Connectors

LED Indicator
Power Input

Power Consumption

Dimensions
Weight

Casing
Safety Certifications
Operating Temperature

Warranty

System Requirements

Operating System
Web Browser

Other Players

Included Accessories

CD

Others

Dimensions

91 mm

Triple-window video motion detection

Video motion detection, manual trigger, digital input, periodical
trigger, system boot, recording notification, camera tampering
detection
Event notification using digital output, HTTP, SMTP, FTP and
NAS server
File upload via HTTP, SMTP, FTP and NAS server

Remote focus
RJ-45 for Network/PoE connection
Audio input/output
TV output
AC 24V power input
DC 12V power input
Digital input*1
Digital output*1
System power and status indicator
DC12V/AC24V
IEEE 802.3af PoE
IP8355H:
DC Max. 11 W
AC Max. 24.4 W
PoE Max. 11 W
IP8355EH:
DC Max. 30 W (Heater on), 8 W (Heater off)
AC Max. 30 W (Heater on), 8.8 W (Heater off)
PoE Max. 11 W (Heater off)
Ø: 91 mm x 221 mm
Body only
Net: 1,314g (IP8355EH), 1,270g (IP8355H)
With stand and sunshield
Net: 1,911g (IP8355EH), 1,867g (IP8355H)
Weather-proof IP67-rated housing
CE, LVD, FCC Class A, VCCI, C-Tick, UL
IP8355H:
Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)
Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
IP8355EH:
Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
( PoE: -10°C ~ 50°C )
Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
36 months

Microsoft Windows 8/7/Vista/XP/2000
Mozilla Firefox 7~10 (streaming only)
Internet Explorer 7/8/9/10/11
VLC: 1.1.11 or above
Quicktime: 7 or above

User's manual, quick installation guide, Installation Wizard 2,
ST7501 32-channel recording software
Quick installation guide, warranty card, sun shield, wall mount
bracket, waterproof RJ45 Ethernet enclosure, alignment sticker,
desiccant bag, waterproof connector

97 mm 221 mm

296 mm

221 mm

Compatible Accessories

Mounting Kits

AM-311

Pole Mount Adaptor

Distributed by:

AM-411

Corner Mount Adaptor

VIVOTEK IN C. VIVOTEK USA

6F, No.192, Lien-Cheng Rd., Chung-Ho,
New Taipei Ci ty, 235, Taiwan, R.O.C.
T: [phone] F: [phone]
E: sales@vivote k.com

AM-711

Junction Box

All specications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved.

2050 Ringwood Avenue,
San Jose, CA 95131
T: 408-773-8686 F: 408-773-8298
E: [e-mail]

VIVOTEK Europ e

Randstad 22-133, 1316BW Alme re,
The Netherlands
E: [e-mail]

Ver 2.0
