Overview

VIVOTEK’s IP8335H network bullet camera features an HD WDR CMOS sensor for use in challenging lighting conditions� The resulting WDR Pro feature enables the camera to capture both the dark and bright parts of an image with double shutters, enabling two frames to be combined to generate a highly realistic image representative of the original scene, providing video quality close to the capabilities of the human eye� The P-iris lens controls the iris with extreme precision with its built-in stepper motor, maintaining the opening at an optimal level at

all times, resulting in superior image clarity and depth of eld as well as image quality. As such,

the IP8335H is suitable for high contrast environments such as lobby entrances, parking lots, ATMs, loading areas, and much more�

The day and night functionality and the IP67-rated weatherproof housing of the IP8335H allows users to easily build a cost-effective IP surveillance system without additional accessories� Incorporating an IR-cut filter that can be removed automatically at night and built-in IR illuminators with coverage for up to 20 meters, the IP8335H is an outstanding choice for a 24hour surveillance solution�

4 - User's Manual

VIVOTEK

i

Read Before Use

The use of surveillance devices may be prohibited by law in your country� The Network Camera is not

only a high-performance web-ready camera but can also be part of a exible surveillance system. It is

the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use�

It is important to rst verify that all contents received are complete according to the Package Contents

listed below� Take note of the warnings in the Quick Installation Guide before the Network Camera is installed; then carefully read and follow the instructions in the Installation chapter to avoid damage due to faulty assembly and installation� This also ensures the product is used properly as intended�

The Network Camera is a network device and its use should be straightforward for those who have basic networking knowledge� It is designed for various applications including video sharing, general security/ surveillance, etc� The Configuration chapter suggests ways to best utilize the Network Camera and

ensure proper operations. For creative and professional developers, the URL Commands of the Network

Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server�

Package Contents

■ IP8335H - the Network Camera

■ Alignment Sticker

■ Sun Shield, Wrench, RJ45 Female/Female

Coupler, Double-sided Tape, Screws

■ Power Adapter

■ Wall Mount Bracket & Mounting Plate

■ Waterproof Connector (for backup use)

■ Moisture Absorber

■ Quick Installation Guide / Warranty Card

■ Software CD

Symbols and Statements in this Document

INFORMATION: provides important messages or advices that might help prevent inconvenient

or problem situations�

NOTE: Notices provide guidance or advices that are related to the functional integrity of the

machine�

Tips: Tips are useful information that helps enhance or facilitae an installation, function, or

process�

WARNING! or IMPORTANT!: These statements indicate situations that can be dangerous or

hazardous to the machine or you�

Electrical Hazard: This statement appears when high voltage electrical hazards might occur

to an operator�

User's Manual - 5

VIVOTEK

Physical Description

Light Sensor

IR LEDs

Reset Button

Lens

Focus Controller

Zoom Controller

General I/O Terminal Block

Micro SD/SDHC

Card Slot

6 - User's Manual

Gb Ethernet

RJ45 Plug

Power Cord Socket

Alternate AC Power Source

+ AC 24V +

- AC 24V -

VIVOTEK

Hardware Installation

1� Attach the alignment sticker to the wall� Drill three holes into the wall� Then hammer the

supplied plastic anchors into the holes and secure the plate with supplied screws�

2. Feed the cables through the front opening of the wall mount bracket. (If you want to use

external devices such as sensors and alarms, please refer to the assembling steps on the next page�)

3� Hang the wall mount bracket on the plate�

4. Fix the Network Camera on the wall mount bracket with two screws on both sides.

5� Secure the wall mount bracket with the supplied screws� 6� Adjust the angle of the wall mount bracket to aim at the shooting area�

1

2

3

4

6

5

4

5

6

The supplied L-type hex key wrenches are exclusively designed

IMPORTANT!

to match each screw� In case you will need to adjust the lens later, do not discard the wrenches�

User's Manual - 7

VIVOTEK

Rubber (A)

Waterproof Connector

Components of the Waterproof Connector

Screw Nut (B)

Seal (C)

Seals (D)

Housing (E)

Sealing Nut (F)

IO Block Pin Denitions

The terminal block is accessible when the rear cover is opened�

87654321

Micro SD Socket

PCB

Ethernet

Power

J3

1 Digital Input 1: DI1 2 Digital Input: - (Ground) 3 RS485 + 4 RS485 5 AUDIO_GND 6 AUDIO_IN: Ext_MIC_IN 7 AUDIO_GND 8 AUDIO_OUT

J3

J7

87654321

J7

1 N/C 2 N/C 3 DO- * 4 DO+ ** 5 Digital Input: - (Ground) 6 Digital Input 3: DI3 7 Digital Input: - (Ground) 8 Digital Input 2: DI2

* Vmax.: 40V DC, Imax.: 400mA. ** Power output, 12V DC: max. load is 50mA.

8 - User's Manual

VIVOTEK

Assembling Steps

1. Disassemble the components of the waterproof connector into part (A) ~ (F) as shown above.

2� Remove the rubber stopper from the bottom of the Network Camera and secure the rubber (A)

and screw nut (B) tightly� 3� Open the back cover of the Network Camera� 4� If you have external devices such as sensors and alarms, feed the cables through the

waterproof connector (F --> E --> C --> A+B) as the illustration shown below. Then refer to

the pin denition to connect them to the general I/O terminal block. Note: The recommended

cable gauge is 2�0 ~ 2�8 mm� 5� Push the seal (C) into the housing (E)� 6� Insert the seals (D) into the empty holes on the seal (C) to avoid moisture�

7. Secure the sealing nut (F) tightly.

8� Tighten the back cover� 9� Remove rubber (G) and feed the cables through the wall mount bracket�

2

3

(A)+(B)

(C)

6

(D)

(E)

(F)

7

8

(C)

5

(E)

(F)

4

(G)

(F)

9

User's Manual - 9

VIVOTEK

DI/DO Diagram

Please refer to the following illustration for the connection method�

12V

PIN 1

Power+12V

PIN 2

Digital output

+12V

PIN 3

Digital input

PIN 4

Ground

Hardware Reset

Reset Button

The reset button is used to reset the system or restore the factory default settings� Sometimes resetting the system can return the camera to normal operation� If the system problems remain after reset, press the reset button longer to restore the factory settings and install again�

Reset: Press and release the recessed reset button with a straightened paper clip� Wait for the Network Camera to reboot�

Restore: Press and hold the recessed reset button for at least several seconds to restore� Note that all settings will be restored to factory defaults�

SD/SDHC Card Capacity

This network camera is compliant with Micro SD/SDHC 32GB and other preceding standard SD cards�

10 - User's Manual

VIVOTEK

Network Deployment

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a single

Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled

switch via Ethernet cable�

RJ45 Female/

Female Coupler

POWER

COLLISION

LINK

RECEIVE

1

2

PARTITION

3

4

5

PoE Switch

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch�

PoE Power

Injector

(Optional)

POWER

COLLISION

LINK

RECEIVE

1

2

PARTITION

3

4

5

Non-PoE Switch

User's Manual - 11

VIVOTEK

IP address : 192.168.0.3 Subnet mask : 255.255.255.0 Default router : 192.168.0.1

IP address : 192.168.0.2 Subnet mask : 255.255.255.0 Default router : 192.168.0.1

LAN (Local Area Network) Router IP address : 192.168.0.1

WAN (Wide Area Network ) Router IP address : from ISP

Cable or DSL Modem

POWER

COLLISION

LINK

RECEIVE

PARTITION

1

2

3

4

5

Internet

Network Deployment

Setting up the Network Camera over the Internet

There are several ways to set up the Network Camera over the Internet� The rst way is to set up the Network Camera behind a router� The second way is to utilize a static IP� The third way is to use PPPoE�

Internet connection via a router

Before enabling the access to the Network Camera over the Internet, make sure you have a router and follow the steps below�

1� Connect your Network Camera behind a router, the Internet environment is illustrated below�

Regarding how to obtain your IP address, please refer to Software Installation on page 14 for

details�

2� In this case, if the Local Area Network (LAN) IP address of your Network Camera is 192�168�0�3, please forward the following ports for the Network Camera on the router�

■ Secondary HTTP port

■ RTSP port

■ RTP port for audio

■ RTCP port for audio

■ RTP port for video

■ RTCP port for video

If you have changed the port numbers on the Network page, please open the ports

accordingly on your router. For information on how to forward ports on the router, please refer

to your router’s user’s manual�

3. Find out the public IP address of your router provided by your ISP (Internet Service Provider).

Use the public IP and the secondary HTTP port to access the Network Camera from the Internet� Please refer to Network Type on page 53 for details�

12 - User's Manual

VIVOTEK

Internet connection with static IP

Choose this connection type if you are required to use a static IP for the Network Camera�

Please refer to LAN conguration on page 53 for details.

Internet connection via PPPoE (Point-to-Point over Ethernet)

Choose this connection type if you are connected to the Internet via a DSL Line� Please refer to PPPoE on page 54 for details�

User's Manual - 13

VIVOTEK

Software Installation

Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up your Network Camera on the LAN�

IW

1� Install IW2 under the Software Utility directory from the software CD� Double click the IW2 shortcut on your desktop to launch the program�

2� The program will conduct an analysis of your network environment� After your network environment is analyzed, please click Next to continue the program�

2

Installation

Wizard 2

3� The program will search for all VIVOTEK network devices on the same LAN�

4� After a brief search, the main installer window will pop up� Double-click on the MAC address

that matches the one printed on the camera label or the S/N number on the package box label

to open a browser management session with the Network Camera�

IP8335H

0002D1083236

00-02-D1-07-25-8A 192.168.5.151 IP8335H

0002D107258A

14 - User's Manual

VIVOTEK

T

W

∞

N

Ready to Use

1� A browser session with the Network Camera should prompt as shown below�

2� You should be able to see live video from your camera� You may also install the 32-channel

recording software from the software CD in a deployment consisting of multiple cameras. For

its installation details, please refer to its related documents�

3� Unscrew the zoom controller to adjust the zoom

factor� Upon completion, tighten the zoom

controller� 4� Unscrew the focus controller to adjust the focus

range� Upon completion, tighten the focus

controller�

4

3

User's Manual - 15

VIVOTEK

5� Tighten the lens cover� 6� Replace the moisture absorber with a new one if you open the back cover during the

installation procedure�

6

IMPORTANT!

5

Please tear down the aluminum foil vacuum bag and take out the moisture absorber, and then replace it with the absorber in kit using a double-sided tape�

NOTE:

If you want to use the supplied sun shield for outdoor environments, please follow the steps below to install:

1� Tighten the supplied two screws� 2� Attach the supplied sun shield to the Network Camera and slide it to the desired position�

3. Fix the sun shield with the supplied two screws.

1

2

3

16 - User's Manual

VIVOTEK

Accessing the Network Camera

This chapter explains how to access the Network Camera through web browsers, RTSP players, 3GPP-compatible mobile devices, and VIVOTEK recording software�

Using Web Browsers

Use Installation Wizard 2 (IW2) to access the Network Cameras on the LAN� If your network environment is not a LAN, follow these steps to access the Network Camera: 1� Launch your web browser (ex� Microsoft

2. Enter the IP address of the Network Camera in the address eld. Press Enter� 3� The live video will be displayed in your web browser�

4. If it is the rst time installing the VIVOTEK network camera, an information bar will prompt as

shown below. Follow the instructions to install the required plug-in on your computer.

®

Internet Explorer or Mozilla Firefox).

NOTE:

For Mozilla Firefox or Netscape users, your browser will use Quick Time to stream live video� If you do not have Quick Time on your computer, please download Quick Time from Apple Inc's website, and then launch your web browser�

User's Manual - 17

VIVOTEK

NOTE:

1� By default, your Network Camera is not password-protected� To prevent unauthorized

access, it is highly recommended to congure a password for your camera later.

For more

information about how to enable password protection, please refer to Security on page 42

2� If you see a dialogue box indicating that your security settings prohibit running ActiveX

Controls®, please enable ActiveX Controls for your browser�

To enable the ActiveX® Controls for your browser:

1� Choose Tools > Internet Options > Security > Custom Level�

�

2� Look for Download signed ActiveX® controls; select Enable or Prompt� Click OK�

3� Refresh your web browser, then install the ActiveX

complete installation�

®

control. Follow the instructions to

18 - User's Manual

IMPORTANT!

Currently the Network Camera utilizes 32-bit ActiveX plugin� You CAN NOT open a

•

management/view session with the camera using a 64-bit IE browser� If you encounter this problem, try execute the Iexplore�exe program from C:\

•

Windows\SysWOW64� A 32-bit version of IE browser will be installed� On Windows 7, the 32-bit explorer browser can be accessed from here:

•

C:\Program Files (x86)\Internet Explorer\iexplore.exe

VIVOTEK

User's Manual - 19

VIVOTEK

Using RTSP Players

To view the H�264/MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming�

Quick Time Player

Real Player

1� Launch the RTSP player�

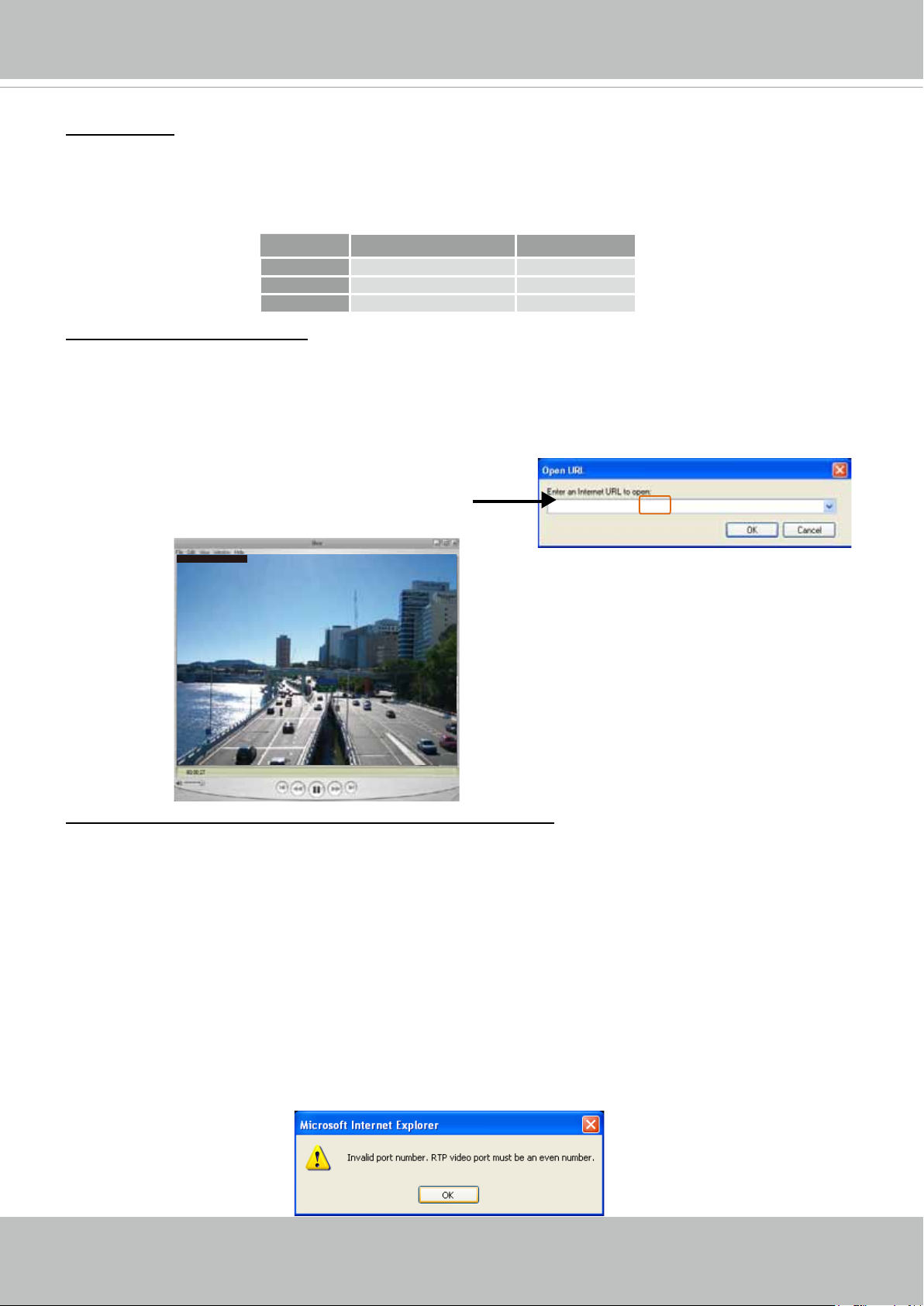

2. Choose File > Open URL. A URL dialog box will prompt.

3� The address format is rtsp://<ip address>:<rtsp port>/<RTSP streaming access name for

stream1 or stream2>

As most ISPs and players only allow RTSP streaming through port number 554, please set the

RTSP port to 554. For more information, please refer to RTSP Streaming on page 62. For example:

rtsp://192.168.5.151:554/live.sdp

4. The live video will be displayed in your player. For more information on how to congure the

RTSP access name, please refer to RTSP Streaming on page 62 for details�

Video 16:38:01 2011/03/25

20 - User's Manual

VIVOTEK

Using 3GPP-compatible Mobile Devices

To view the streaming media through 3GPP-compatible mobile devices, make sure the Network

Camera can be accessed over the Internet. For more information on how to set up the Network

Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 12�

To utilize this feature, please check the following settings on your Network Camera:

1� Because most players on 3GPP mobile phones do not support RTSP authentication, make

sure the authentication mode of RTSP streaming is set to disable�

For more information, please refer to RTSP Streaming on page 62.

2� As the bandwidth on 3G networks is limited, you will not be able to use a large video size�

Please set the video and audio streaming parameters as listed below�

For more information, please refer to Stream settings on page 79.

Video Mode MPEG-4 Frame size 176 x 144 Maximum frame rate 5 fps Intra frame period 1S Video quality (Constant bit rate) 40kbps Audio type (GSM-AMR) 12.2kbps

3� As most ISPs and players only allow RTSP streaming through port number 554, please set

the RTSP port to 554. For more information, please refer to RTSP Streaming on page 62.

4� Launch the player on the 3GPP-compatible mobile devices (e�g�, Real Player)�

5. Type the following URL commands in the URL eld.

The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming

access name for stream 3>�

For example:

rtsp://192.168.5.151:554/live.sdp

User's Manual - 21

VIVOTEK

Using VIVOTEK Recording Software

The product software CD also contains recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras� Please install the recording software; then

launch the program to add the Network Camera to the Channel list. For detailed information

about how to use the recording software, please refer to the user’s manual of the software or download it from http://www�vivotek�com�

22 - User's Manual

VIVOTEK

Main Page

This chapter explains the screen elements on the main page� It is composed of the following

sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Conguration Area, and Live

Video Window�

VIVOTEK INC. Logo

Camera Control Area

Live View Window

Configuration Area

VIVOTEK INC. Logo

Resize Buttons

Hide Button

Host Name

Click this logo to visit the VIVOTEK website�

Host Name

The host name can be customized to t your needs. For more information, please refer to System on page 31.

Camera Control Area

Video Stream: This Network Camera supports multiple streams (stream 1 and 2) simultaneously� You

can select either one for live viewing. For more information about multiple streams, please refer to page

79 for detailed information�

Manual Trigger: Click to enable/disable an event trigger manually� Please configure an event setting

before enabling this function. A total of 3 or 4 event settings can be congured. For more information

about event setting, please refer to page 92� If you want to hide this item on the homepage, please go to the System > Homepage Layout > General settings > Customized button to deselect “show manual trigger button”�

Digital Output: Click to turn the digital output device on or off�

User's Manual - 23

VIVOTEK

T

W

∞

N

The color bar fluctuates according to current focus value. The color bar reaches the optimal value.

Focus Assist Button:

Follow the steps below to manually ne-tune the camera’s focus.

1. Manually adjust the zoom controller of the camera lens to x the camera’s view angle.

2. Click on the “On” button of the Focus Assist function on the homepage session with the camera to

start the focus assist function� The Live View window will automatically enter the full screen mode�

Stream is being adjusted

Zoom

Focus

3

4

3. The oating indicator will appear at the bottom of the screen showing the calculated focus information.

While you manually adjust the camera’s focus, the numeric readings and the on-screen color bar should fluctuate and you should find the best results when the focus value is stated as the “BEST

FOCUS.”

FOCUS VALUE

98/107

BEST FOCUS

107/107

4� When done, tighten the zoom and focus controller bars, and then press the ESC key to leave the full-

screen mode�

5� Turn off the focus assist function by clicking the “Off” button�

IMPORTANT!

Before using the Focus Assist function, the camera should have been stably installed and the

camera's shooting direction and view angle must be secured for a stable view� If the view is

altered, you should ne-tune the camera's zoom and focus again by turning off and restarting

the function�

You may also refer to VIVOTEK’s website for an application note on the use of this function: http://www�

vivotek.com/support/appnote.php?appcon=29&appcatagory=rmware.

24 - User's Manual

VIVOTEK

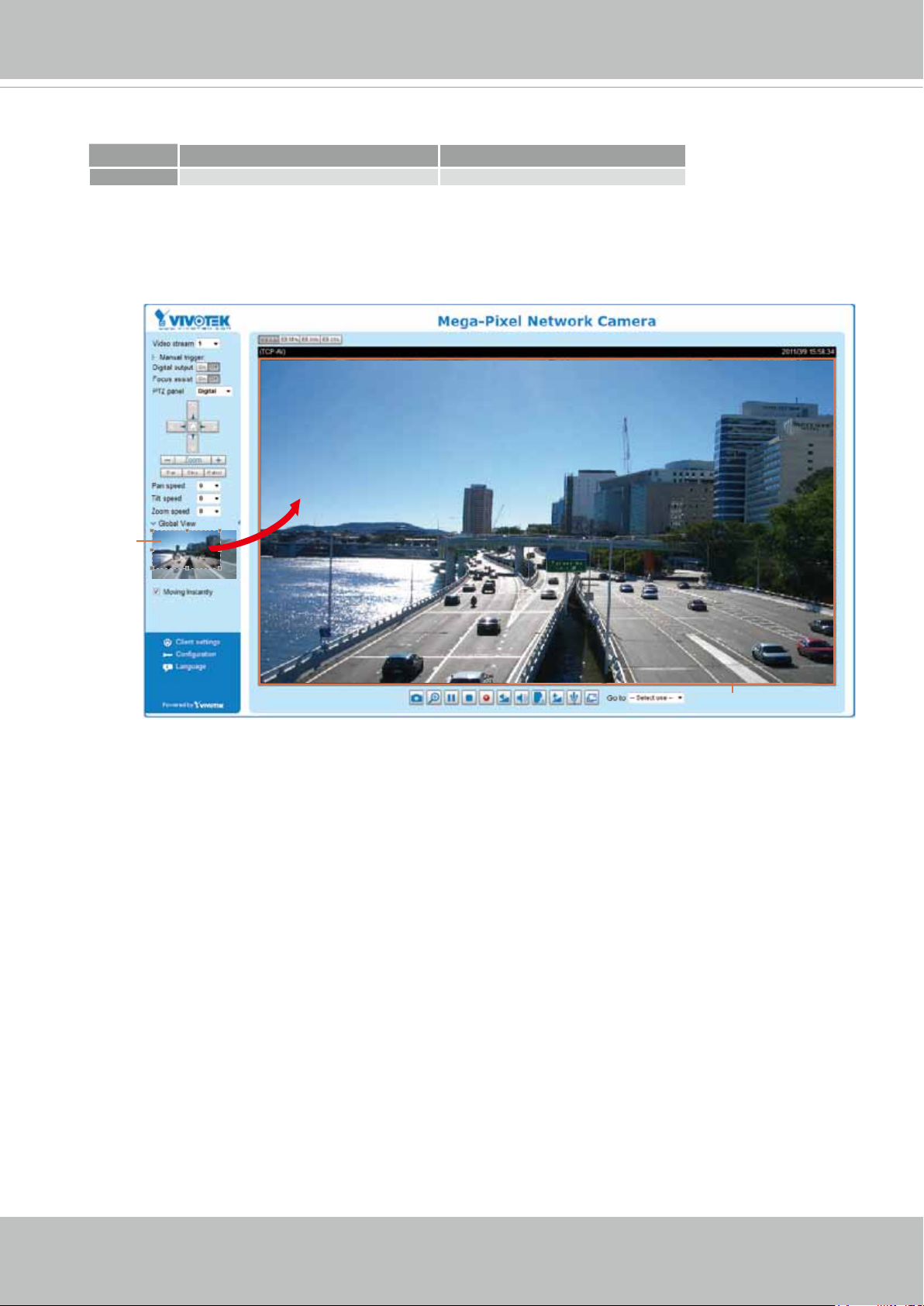

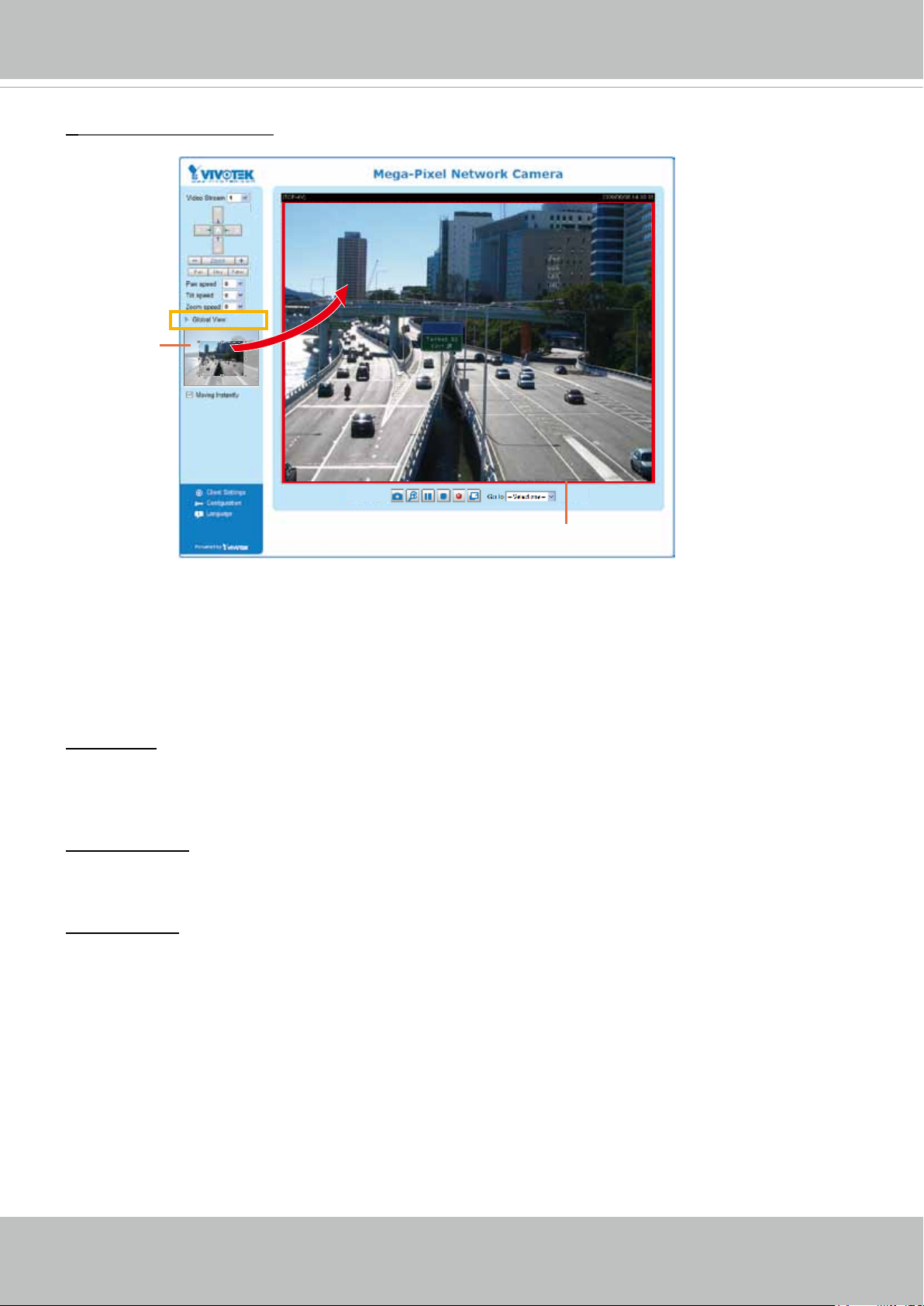

Global View: Click on this item to display the Global View window� The Global View window contains a full view image (the largest frame size of the captured

The viewing region of the current video stream

video) and a oating frame (the viewing region of the current video stream). The oating frame allows users

to control the e-PTZ function (Electronic Pan/Tilt/

The largest frame size

Zoom). For more information about e-PTZ operation, please refer to E-PTZ Operation on page 84. For more

information about how to set up the viewing region of the current video stream, please refer to page 79�

To move the current view window, place your cursor on it and let the cursor change to the all-direction arrow�

Conguration Area

all-direction arrow

Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 28�

Conguration: Click this button to access more of the conguration options provided with the Network

Camera� It is suggested that a password is applied to the Network Camera so that only the administrator

can configure the Network Camera. For more information, please refer to the description for the Conguration menus on page 30.

Language: Click this button to choose a language for the user interface� Language options are available

in: English, Deutsch, Español, Français, Italiano,

日本語

, Português,

簡体中文

, and

繁體中文

� You can

also change a language on the Conguration page; please refer to page 30.

Hide Button

You can click the hide button to hide the control panel or display the control panel�

Resize Buttons

:

Click the Auto button, the video cell will resize automatically to t the monitor.

Click 100% is to display the original home page size� Click 50% is to resize the home page to 50% of its original size� Click 25% is to resize the home page to 25% of its original size�

Live Video Window

■ The following window is displayed when the video mode is set to H�264 / MPEG-4:

H.264/MPEG-4 Protocol and Media Options

Video Title

Title and Time

Video (TPC-AV)

Video 17:08:56 2011/03/10

2011/03/10 17:08:56

Time

Video and Audio Control Buttons

Video Title: The video title can be congured. For more information, please refer to Video settings on page 71�

User's Manual - 25

VIVOTEK

H�264 / MPEG-4 Protocol and Media Options: The transmission protocol and media options for H�264 /

MPEG-4 video streaming. For further conguration, please refer to Client Settings on page 28.

Time: Display the current time. For further configuration, please refer to Media > Image > General settings on page 71�

Title and Time: The video title and time can be stamped on the streaming video. For further conguration, please refer to Media > Image > General settings on page 71�

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera

conguration, some buttons may not be available.

Snapshot: Click this button to capture and save still images� The captured images will be displayed

in a pop-up window� Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*�bmp) format�

Digital Zoom: Click and deselect “Disable digital zoom” to enable the zoom operation� The navigation

screen indicates the part of the image being magnied. To control the zoom level, drag the slide bar. To

move to a different area you want to magnify, drag the navigation screen�

Pause: Pause the transmission of the streaming media� The button becomes the Resume button

after clicking the Pause button�

Stop: Stop the transmission of the streaming media� Click the Resume button to continue

transmission�

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer�

Press the

Stop MP4 Recording button to end recording� When you exit the web browser, video

recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving Options on page 29 for details�

Volume: When the Mute function is not activated, move the slider bar to adjust the volume on the

local computer�

Mute: Turn off the volume on the local computer� The button becomes the Audio On button after

clicking the Mute button�

Talk: Click this button to talk to people around the Network Camera� Audio will project from

the external speaker connected to the Network Camera� Click this button

again to end talking

transmission�

Mic Volume: When the Mute function is not activated, move the slider bar to adjust the

microphone volume on the local computer�

Mute: Turn off the Mic volume on the local computer� The button becomes the Mic On button

after clicking the Mute button�

Full Screen: Click this button to switch to full screen mode� Press the “Esc” key to switch back to normal

mode�

26 - User's Manual

■ The following window is displayed when the video mode is set to MJPEG:

VIVOTEK

Video Title

Title and Time

Video (HTTP-V)

Video 17:08:56 2011/03/10

2011/03/10 17:08:56

Time

Video Control Buttons

Video Title: The video title can be congured. For more information, please refer to Media > Image on page 71�

Time: Display the current time. For more information, please refer to Media > Image on page 71.

Title and Time: Video title and time can be stamped on the streaming video. For more information, please refer to Media > Image on page 71

�

Video Control Buttons: Depending on the camera model and your current conguration, some buttons may not be available�

Snapshot: Click this button to capture and save still images� The captured images will be displayed

in a pop-up window� Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*�bmp) format�

Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation� The navigation

screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To

move to a different area you want to magnify, drag the navigation screen�

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer�

Press the

Stop MP4 Recording button to end recording� When you exit the web browser, video

recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving Options on page 29 for details�

Full Screen: Click this button to switch to full screen mode� Press the “Esc” key to switch back to normal

mode�

User's Manual - 27

VIVOTEK

Client Settings

This chapter explains how to select the stream transmission mode and saving options on the local computer� When completed with the settings on this page, click Save on the page bottom to enable the settings�

H.264 / MPEG-4 Media Options

H.264/MPEG-4 Media Options

Select to stream video or audio data or both� This is enabled only when the video mode is set to H�264 or MPEG-4�

H.264 / MPEG-4 Protocol Options

H.264/MPEG-4 Protocol Options

Depending on your network environment, there are four options with the transmission protocols with H�264 or MPEG-4 streaming:

UDP unicast: This protocol allows for more real-time audio and video streams� However, network

packets may be lost due to network burst trafc and images may be broken. Activate UDP connection

when occasions require time-sensitive responses and the video quality is less important� Note that each unicast client connecting to the server takes up additional bandwidth and the Network Camera allows up to ten simultaneous accesses�

UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients requesting streaming media� This helps to reduce the network transmission load of the Network Camera while serving multiple clients at the same time� Note that to utilize this feature, the Network Camera must

be configured to enable multicast streaming at the same time. For more information, please refer to

RTSP Streaming on page 62�

TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video quality� The downside of this protocol is that its real-time effect is not as good as that of using the UDP protocol�

HTTP: This protocol allows the same quality as TCP protocol without needing to open specic ports for

streaming under some network environments. Users behind a rewall can utilize this protocol to allow

camera’s streaming data to pass through�

28 - User's Manual

VIVOTEK

MP4 Saving Options

Users can record live video as they are watching it by clicking Start MP4 Recording on the main

page. Here, you can specify the storage destination and le name.

Folder: Specify a storage destination for the recorded video les.

File name prex: Enter the text that will be appended to the front of the video le name.

Add date and time sufx to the le name: Select this option to append the date and time to the end of the le name.

CLIP_20110328-180853

File name preﬁx

Date and time sufﬁx

The format is: YYYYMMDD_HHMMSS

Local Streaming Buffer Time

Due to unsteady bandwidth flow, live streaming may lag and not be very smoothly� If you enable this option, the live streaming will be stored on the camera’s buffer area for a few seconds before being played on the live viewing window� This helps produce a smooth live streaming� If you enter a value of 3000 milliseconds, the streaming will delay for 3 seconds�

User's Manual - 29

VIVOTEK

Conguration

Click Configuration on the main page to enter the camera setting pages� Note that only

Administrators can access the conguration page.

VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with minimal effort� To simplify the setting procedure, two types of user interfaces are available: Advanced Mode for professional users and Basic Mode for entry-level users� Some advanced functions (PTZ/ Event/ Recording/ Local storage) are not displayed in Basic Mode�

If you want to set up advanced functions, please click on [Advanced Mode] at the bottom of the

conguration list to switch to Advanced Mode.

In order to simplify the user interface, detailed information will be hidden unless you click on the

function item. When you click on the rst sub-item, the detailed information for the rst sub-item

will be displayed; when you click on the second sub-item, the detailed information for the second

sub-item will be displayed and that of the rst sub-item will be hidden.

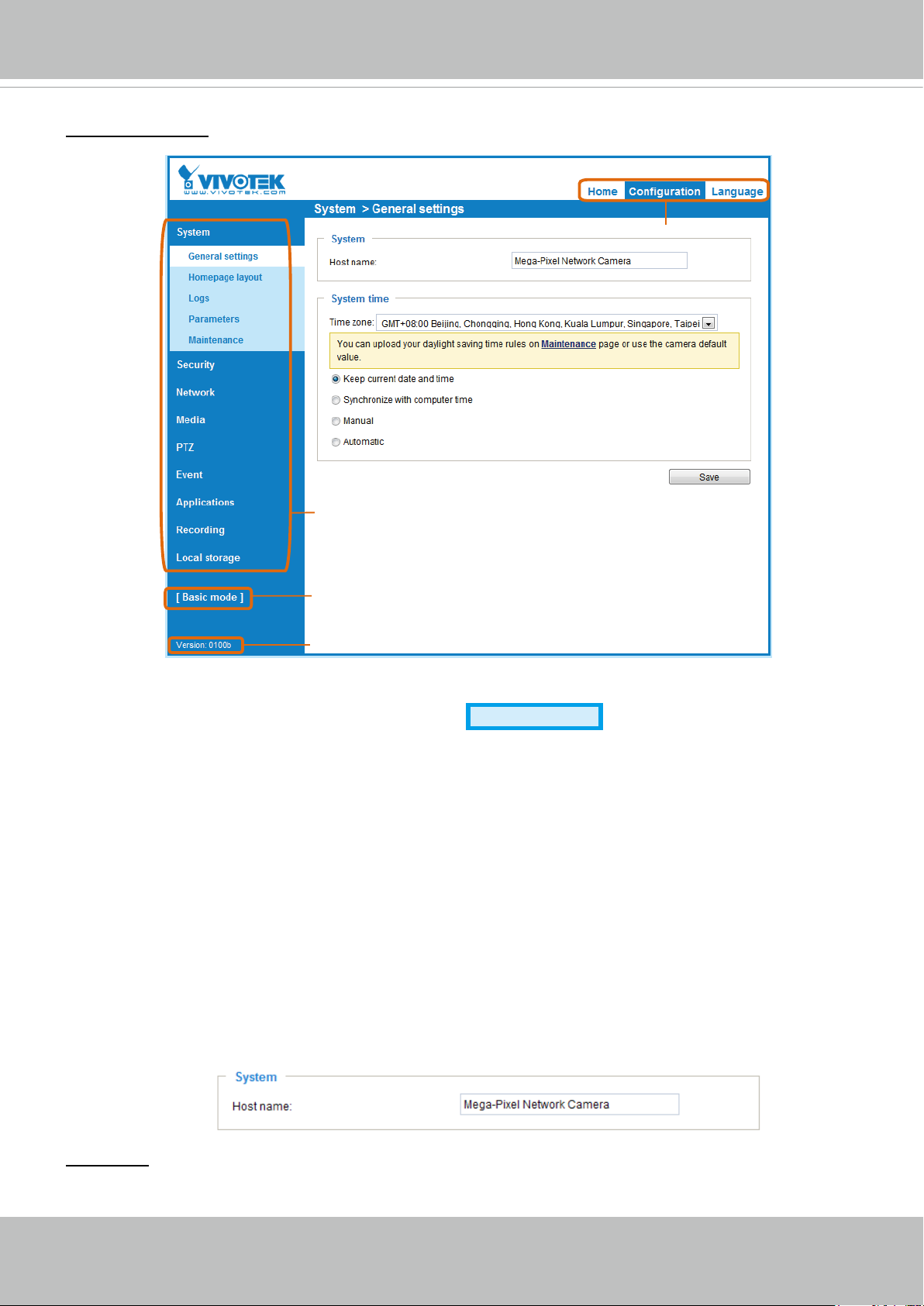

The following is the interface of the Basic Mode and the Advanced Mode:

Basic Mode

Navigation Area

Configuration List

Click to switch to Advanced Mode

30 - User's Manual

Firmware Version

Advanced Mode

VIVOTEK

Navigation Area

Configuration List

Click to switch to Basic Mode

Firmware Version

Each function on the conguration list will be explained in the following sections. Those functions that are

displayed only in Advanced Mode are marked with

Advanced Mode

� If you want to set up advanced

functions, please click on [Advanced Mode] at the bottom of the conguration list.

The Navigation Area provides access to all different views from the Home page (for live viewing), Conguration page, and multi-language selection�

System > General settings

This section explains how to congure the basic settings for the Network Camera, such as the

host name and system time� It is composed of the following two columns: System and System Time�

System

Host name: Enter a desired name for the Network Camera� The name will be displayed at the top center of the main page�

User's Manual - 31

VIVOTEK

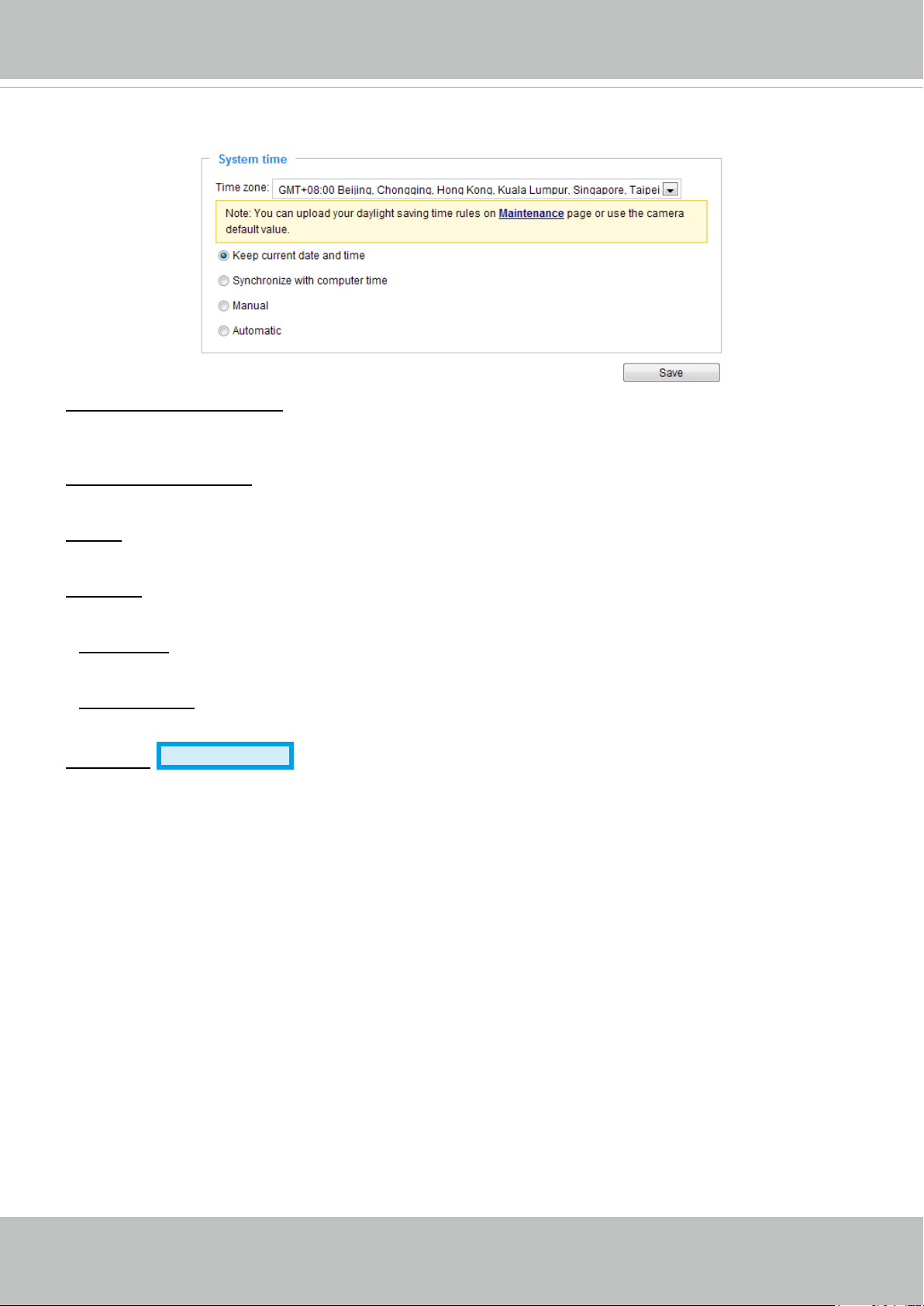

System time

Keep current date and time: Select this option to preserve the current date and time of the Network Camera� The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off�

Sync with computer time: Select this option to synchronize the date and time of the Network Camera with the local computer� The read-only date and time of the PC is displayed as updated�

Manual: The administrator can enter the date and time manually� Note that the date and time format are [yyyy/mm/dd] and [hh:mm:ss]�

Automatic: The Network Time Protocol is a protocol which synchronizes computer clocks by periodically querying an NTP Server�

NTP server: Assign the IP address or domain name of the time-server� Leaving the text box blank connects the Network Camera to the default time servers�

Update interval: Select to update the time using the NTP server on an hourly, daily, weekly, or monthly basis�

Time zone

Advanced Mode

: Select the appropriate time zone from the list� If you want to upload

Daylight Savings Time rules, please refer to System > Maintenance > Import/ Export les on page 39 for details�

When nished with the settings on this page, click Save at the bottom of the page to enable the settings�

32 - User's Manual

VIVOTEK

System > Homepage layout

Advanced Mode

This section explains how to set up your own customized homepage layout�

General settings

This column shows the settings of your hompage layout� You can manually select the background and font colors in Theme Options (the second tab on this page)� The settings will be displayed automatically

in this Preview eld. The following shows the homepage using the default settings:

■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage�

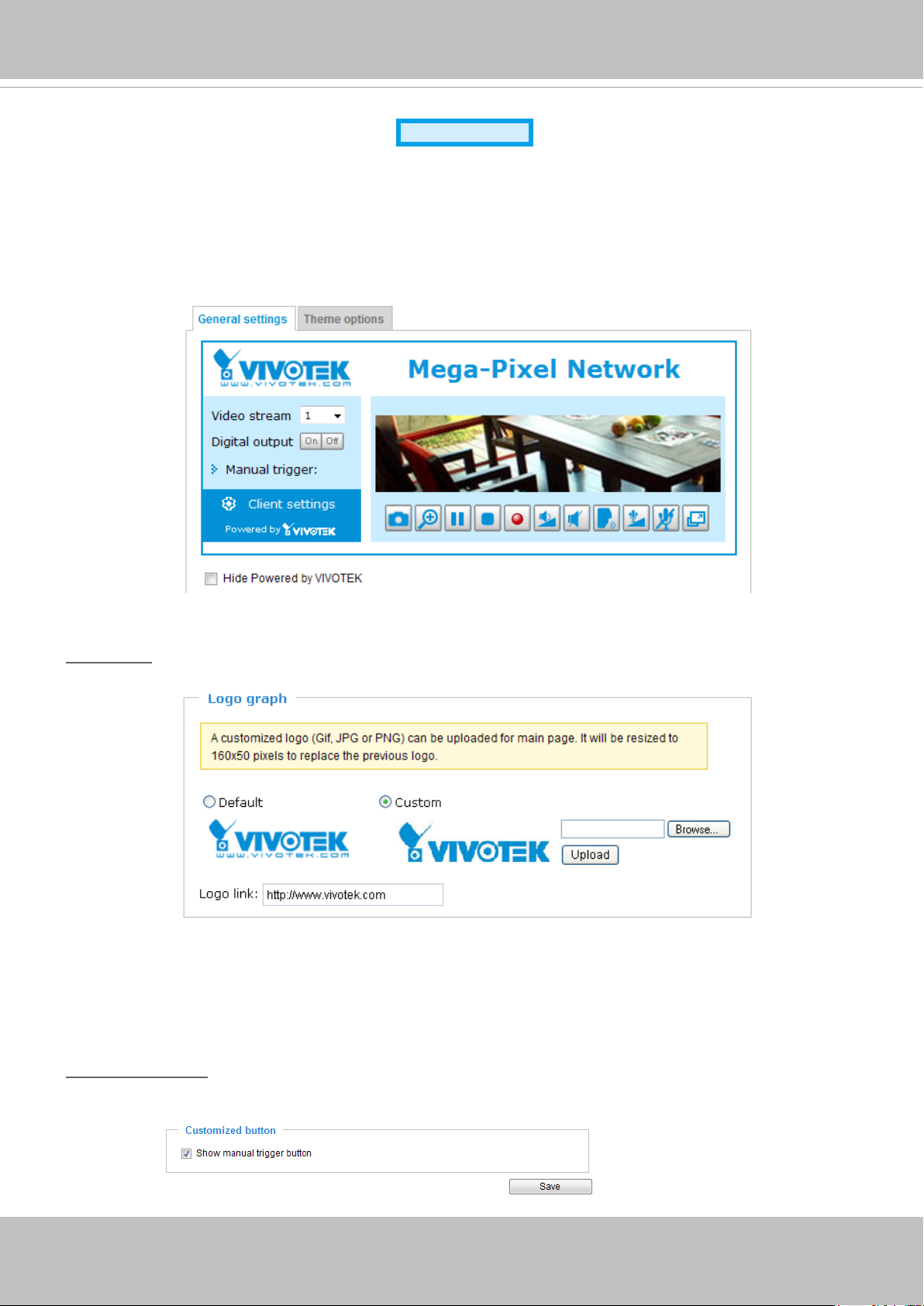

Logo graph Here you can change the logo at the top of your homepage�

Follow the steps below to upload a new logo: 1� Click Custom and the Browse eld will appear.

2. Select a logo from your les.

3� Click Upload to replace the existing logo with a new one� 4� Enter a website link if necessary� 5� Click Save to enable the settings�

Customized button If you want to hide manual trigger buttons on the homepage, please uncheck this item� This item is checked by default�

User's Manual - 33

VIVOTEK

Font Color of the

Background Color of

Theme Options

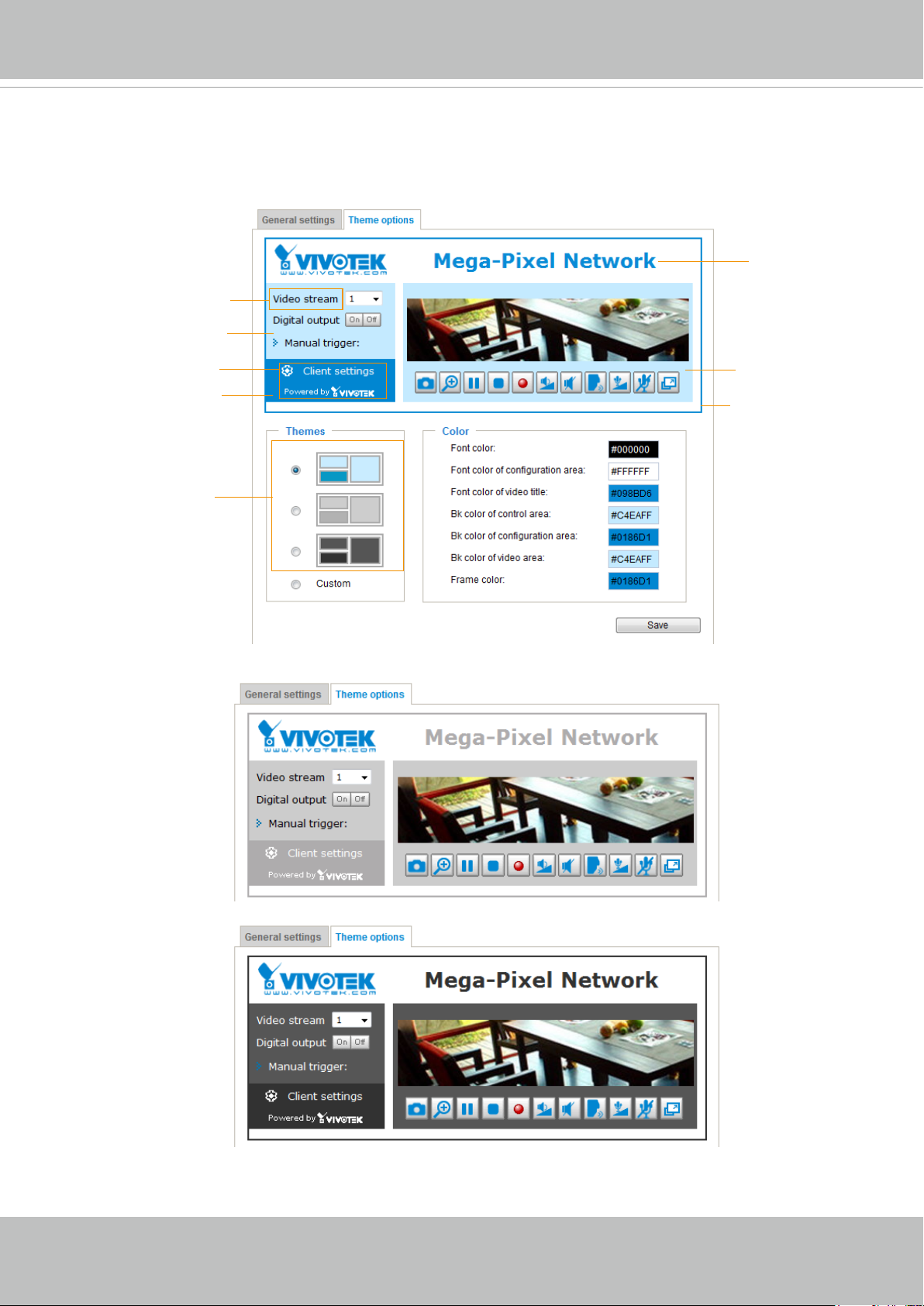

Here you can change the color of your homepage layout� There are three types of preset patterns for you to choose from� The new layout will simultaneously appear in the Preview led. Click Save to enable the settings�

Video Title

Font Color

Background Color of the

Control Area

Font Color of the Configuration Area

Background Color of the Configuration Area

Preset patterns

the Video Area

Frame Color

34 - User's Manual

■ Follow the steps below to set up a custom homepage:

1� Click Custom on the left column� 2� Click to select a color on on the right column�

Custom Pattern

3� The palette window will pop up as shown below�

VIVOTEK

Color Selector

2

1

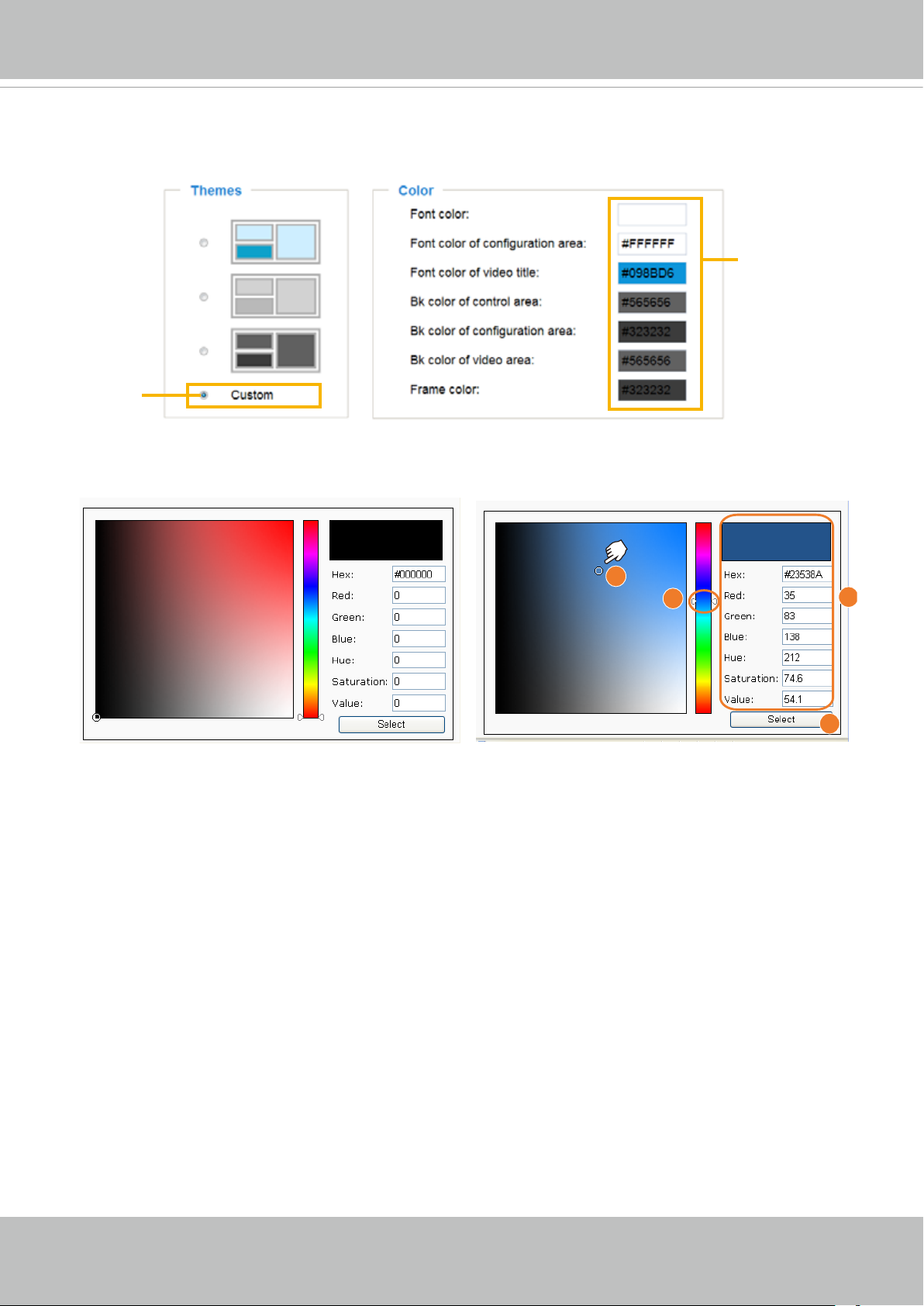

4� Drag the slider bar and click on the left square to select a desired color�

5. The selected color will be displayed in the corresponding elds and in the Preview column� 6� Click Save to enable the settings�

3

4

User's Manual - 35

VIVOTEK

System > Logs

Advanced Mode

This section explains how to congure the Network Camera to backup system log to a remote

server�

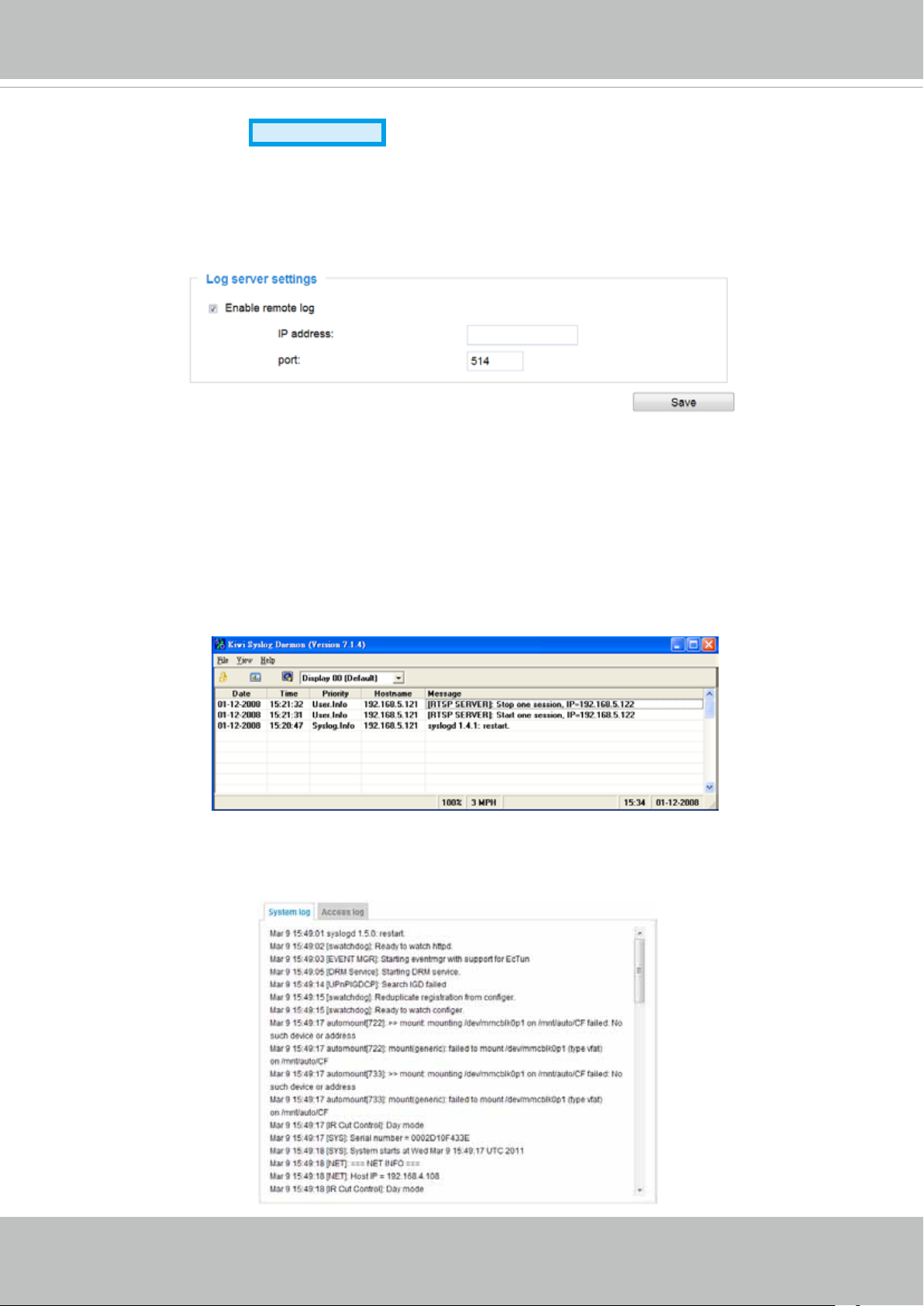

Log server settings

Follow the steps below to set up the remote log:

1� Select Enable remote log� 2� In the IP address text box, enter the IP address of the remote server� 2� In the port text box, enter the port number of the remote server� 3� When completed, click Save to enable the setting�

You can congure the Network Camera to send the system log le to a remote server as a log backup.

Before utilizing this feature, it is suggested that the user install a log-recording tool to receive system log messages from the Network Camera� An example is Kiwi Syslog Daemon� Visit http://www�kiwisyslog�

com/kiwi-syslog-daemon-overview/�

System log

This column displays the system log in chronological order� The system log is stored in the Network Camera’s buffer and dated events will be overwritten when the number of events reaches a limit�

36 - User's Manual

VIVOTEK

Access log

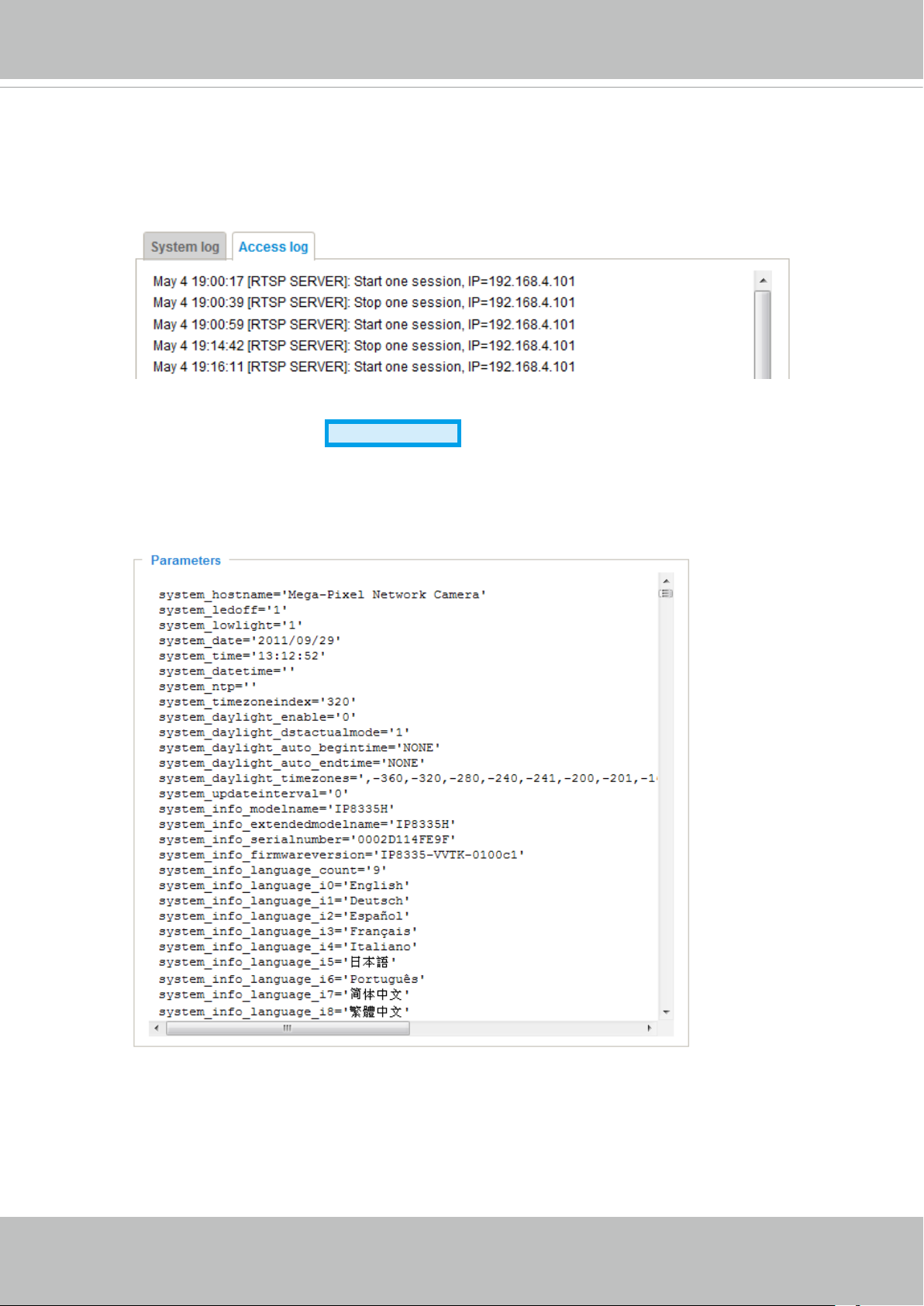

Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order� The access log is stored in the Network Camera’s buffer and older events will be overwritten when the number of events reaches a limit�

System > Parameters

Advanced Mode

The View Parameters page lists the entire system’s parameters in an alphabetical order� If you need technical assistance, use a text-editor program to copy and save the parameters listed on

this page. Send the parameter text le to VIVOTEK’s technical support.

User's Manual - 37

VIVOTEK

System > Maintenance

This chapter explains how to restore the Network Camera to factory default, upgrade rmware

version, etc�

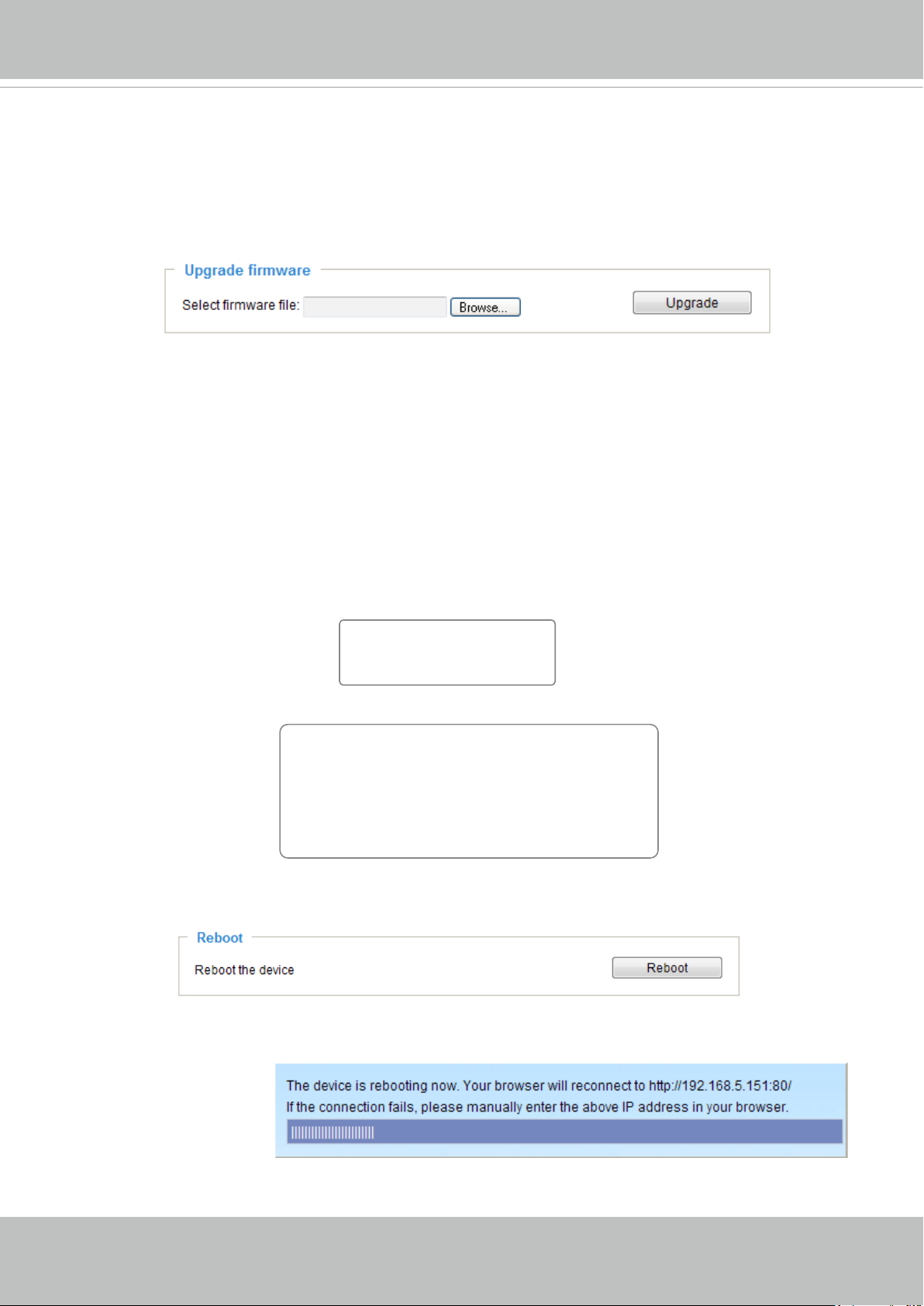

General settings > Upgrade rmware

This feature allows you to upgrade the firmware of your Network Camera� It takes a few minutes to complete the process�

Note: Do not power off the Network Camera during the upgrade!

Follow the steps below to upgrade the rmware:

1. Download the latest rmware le from the VIVOTEK website. The le is in .pkg le format.

2� Click Browse… and specify the rmware le. 3� Click Upgrade� The Network Camera starts to upgrade and will reboot automatically when the upgrade

completes�

If the upgrade is successful, you will see “Reboot system now!! This connection will close”� After that, reaccess the Network Camera�

The following message is displayed when the upgrade has succeeded�

Reboot system now!! This connection will close.

The following message is displayed when you have selected an incorrect rmware le.

Starting firmware upgrade... Do not power down the server during the upgrade. The server will restart automatically after the upgrade is completed. This will take about 1 - 5 minutes. Wrong PKG file format Unpack fail

General settings > Reboot

This feature allows you to reboot the Network Camera, which takes about one minute to complete� When completed, the live video page will be displayed in your browser� The following message will be displayed during the reboot process�

If the connection fails after rebooting, manually enter the IP address of the Network Camera in the

address eld to resume the connection.

38 - User's Manual

VIVOTEK

General settings > Restore

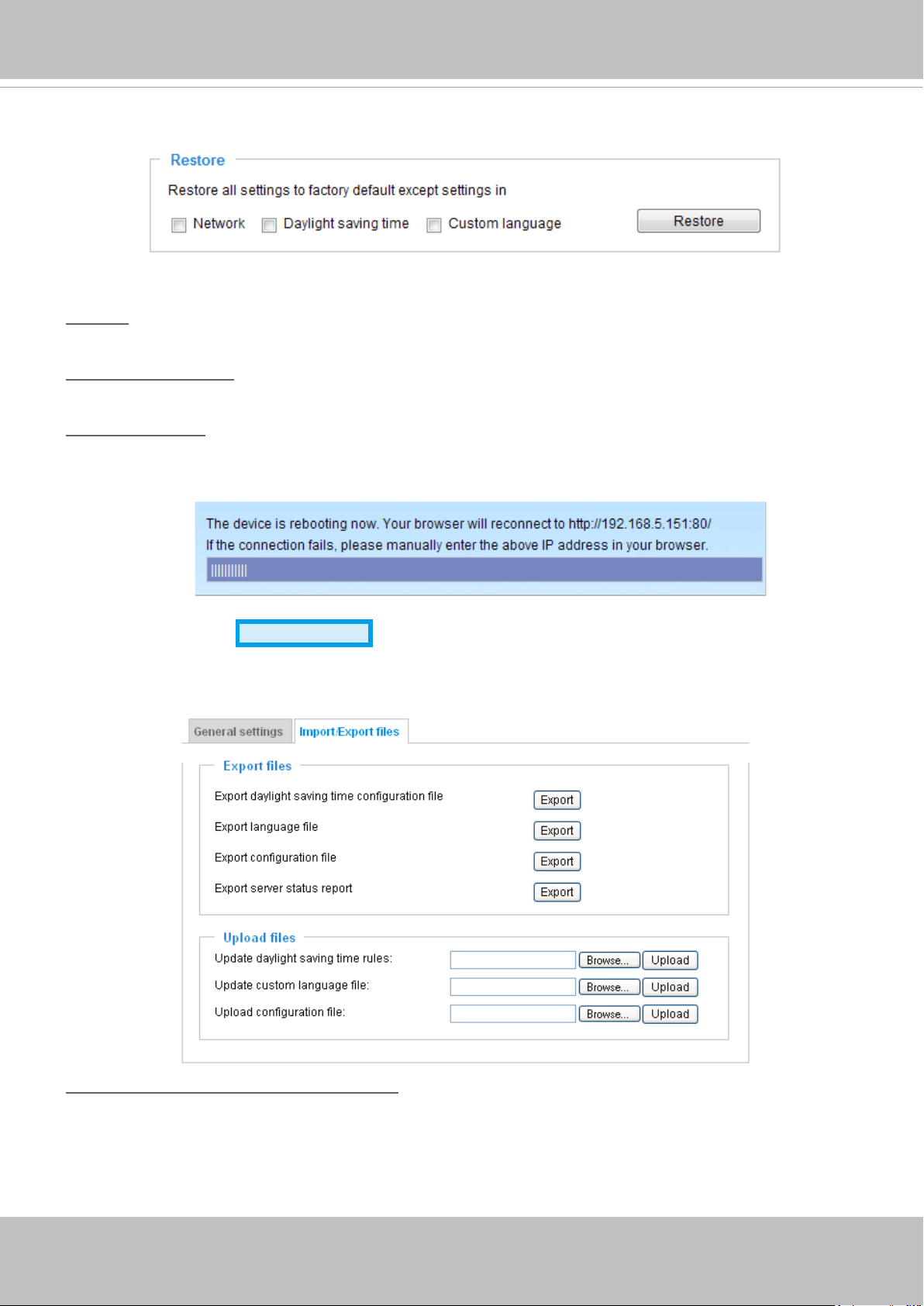

This feature allows you to restore the Network Camera to factory default settings�

Network: Select this option to retain the Network Type settings (please refer to Network Type on page

53)�

Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to

Import/Export les below on this page).

Custom Language: Select this option to retain the Custom Language settings�

If none of the options is selected, all settings will be restored to factory default� The following message is displayed during the restoring process�

Import/Export les

Advanced Mode

This feature allows you to Export / Update daylight saving time rules, custom language file, and

conguration le.

Export daylight saving time conguration le: Click to set the start and end time of DST�

Follow the steps below to export:

1. In the Export les column, click Export to export the daylight saving time conguration le from the

Network Camera�

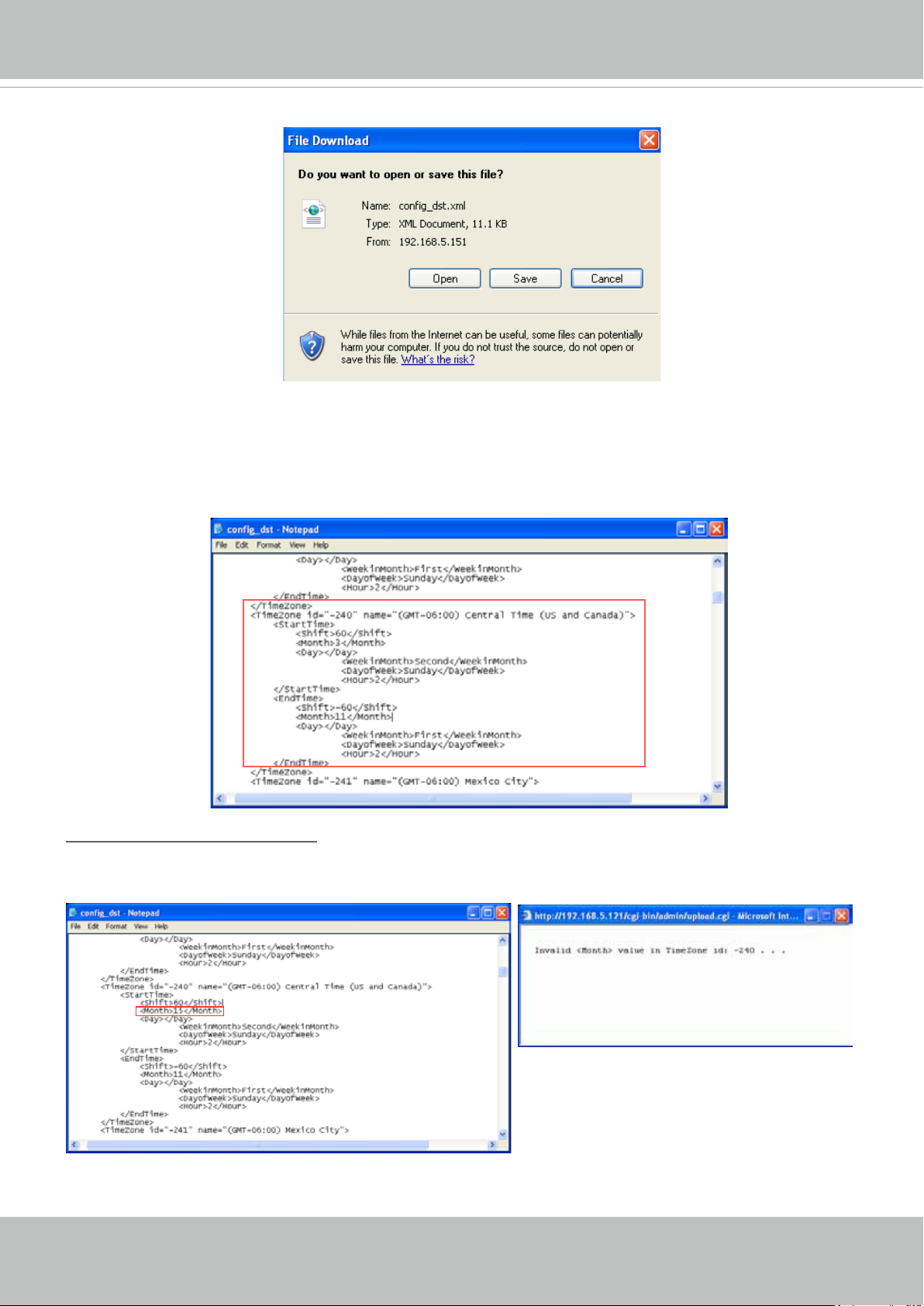

2. A le download dialog will pop up as shown below. Click Open to review the XML le or click Save to

store the le for editing.

User's Manual - 39

VIVOTEK

3. Open the le with Microsoft® Notepad and locate your time zone; set the start and end time of DST�

When completed, save the le.

In the example below, DST begins each year at 2:00 a�m� on the second Sunday in March and ends at

2:00 a.m. on the rst Sunday in November.

Update daylight saving time rules: Click Browse… and specify the XML le to update.

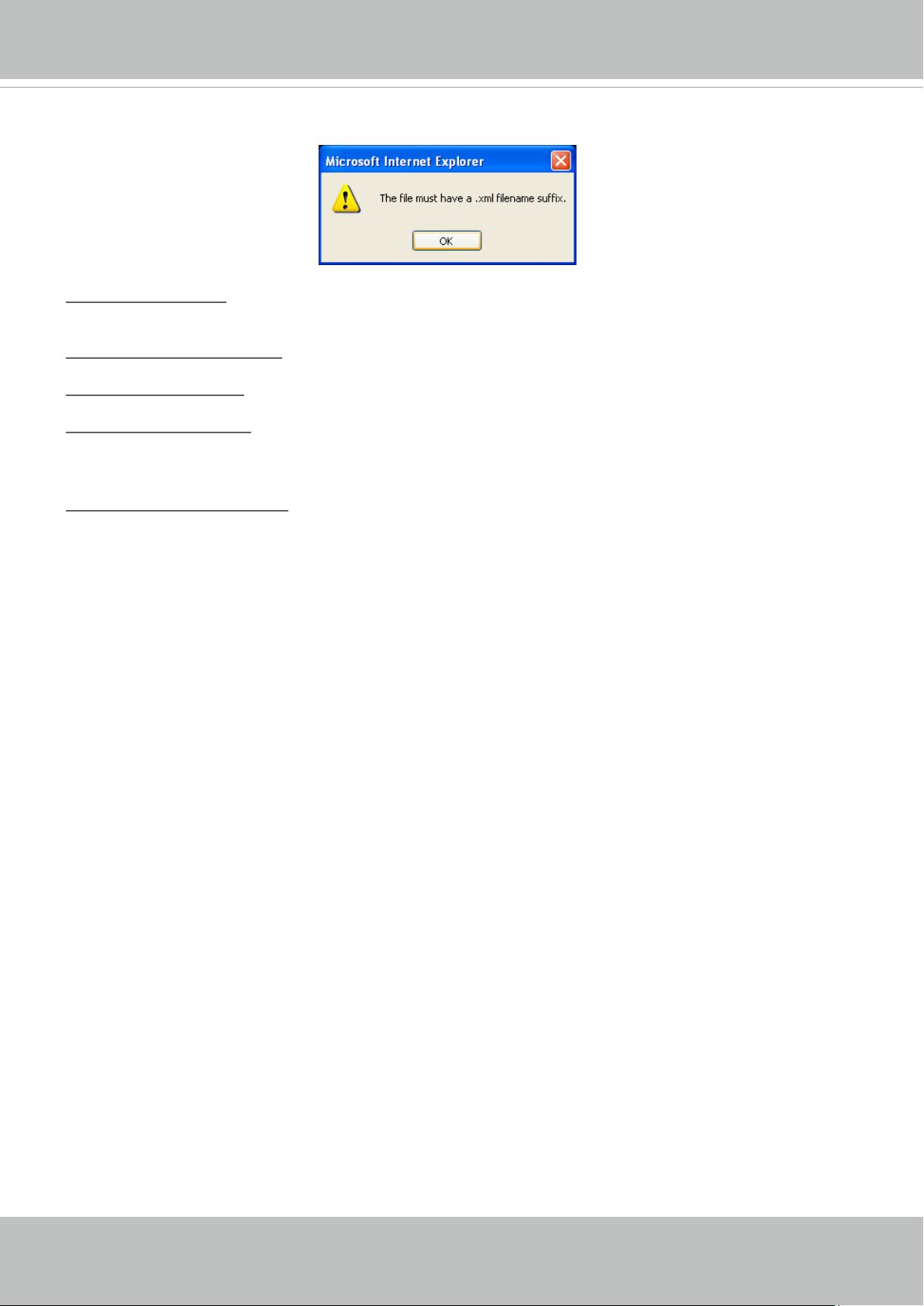

If incorrect date and time are assigned, you will see the following warning message when uploading the

le to the Network Camera.

40 - User's Manual

VIVOTEK

The following message is displayed when attempting to upload an incorrect le format.

Export language file: Click to export language strings� VIVOTEK provides nine languages: English,

Deutsch, Español, Français, Italiano,

日本語,

Português,

簡体中文

, and

繁體中文

�

Update custom language le: Click Browse… and specify your own custom language le to upload.

Export conguration le: Click to export all parameters for the device and user-dened scripts.

Update conguration le: Click Browse… to update a conguration le. Please note that the model and rmware version of the device should be the same as the conguration le. If you have set up a xed IP or other special settings for your device, it is not suggested to update a conguration le.

Export server status report: Click to export the current server status report, such as time, logs,

parameters, process status, memory status, le system status, network status, kernel message..., and so

on�

User's Manual - 41

VIVOTEK

Security > User Account

This section explains how to enable password protection and create multiple accounts�

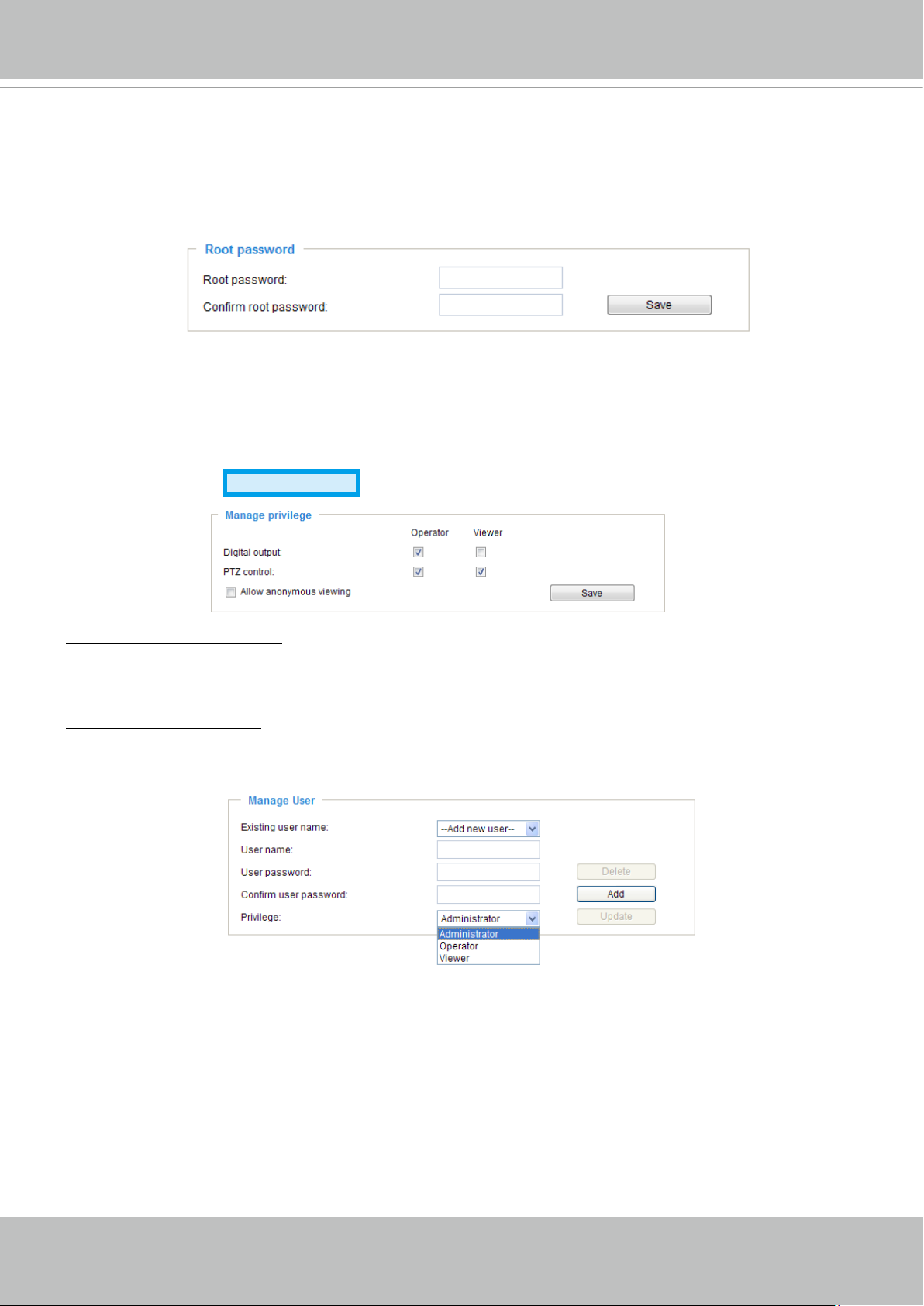

Root Password

The administrator account name is “root”, which is permanent and can not be deleted� If you want to add

more accounts in the Manage User column, please apply the password for the “root” account rst.

1� Type the password identically in both text boxes, then click Save to enable password protection� 2� A window will prompt for authentication; type the correct user’s name and password in their respective

elds to access the Network Camera.

Manage Privilege

Digital Output & PTZ control: You can modify the management privilege as operators or viewers� Select or de-select the checkboxes, and then click Save to enable the settings� If you give Viewers the privilege, Operators will also have the ability to control the Network Camera through the main page� (Please refer

to Conguration on page 30).

Allow anonymous viewing: If you select this item, any client can access the live stream without entering a User ID and Password�

Advanced Mode

Manage User

Administrators can create up to 20 user accounts� 1� Input the new user’s name and password� 2� Select the privilege level for the new user account� Click Add to enable the setting�

Access rights are sorted by user privilege (Administrator, Operator, and Viewer)� Only administrators can

access the Conguration page. Though operators cannot access the Conguration page, they can use the URL Commands to get and set the value of parameters. For more information, please refer to URL

Commands of the Network Camera on page 117� Viewers access only the main page for live viewing�

Here you also can change a user’s access rights or delete user accounts� 1� Select an existing account to modify� 2� Make necessary changes and click Update or Delete to enable the setting�

42 - User's Manual

VIVOTEK

Security > HTTPS (Hypertext Transfer Protocol over SSL)

Advanced Mode

This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer)� It helps protect streaming data transmission over the Internet on higher security level�

Create and Install Certicate Method

Before using HTTPS for communication with the Network Camera, a Certicate must be created rst. There are three ways to create and install a certicate:

Create self-signed certificate automatically

1. Select the rst option.

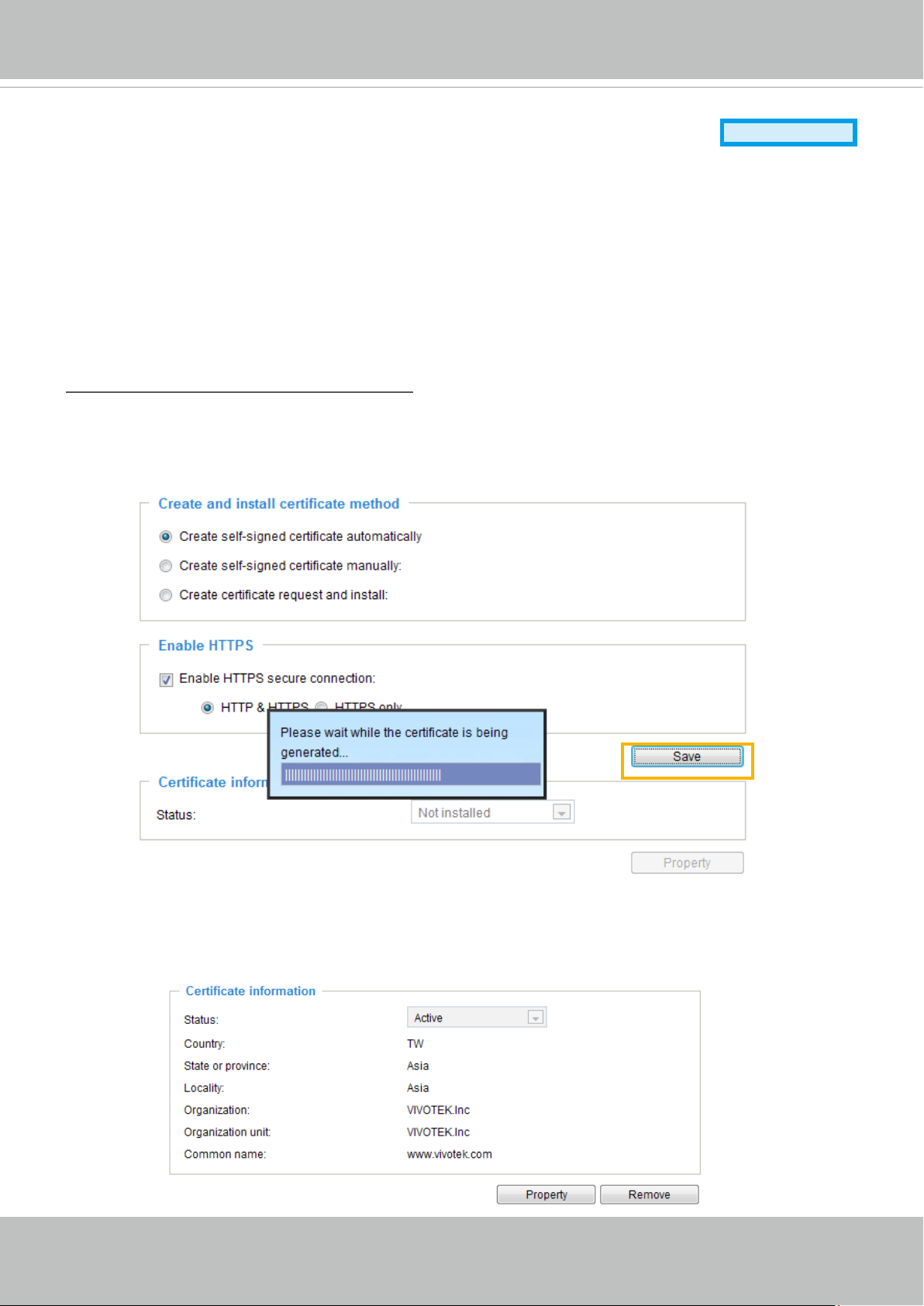

2� Check Enable HTTPS secure connection, then select a connection option: “HTTP & HTTPS” or

“HTTPS only”� 3� Click Save to generate a certicate.

4. The Certicate Information will automatically be displayed in the third column as shown below. You can

click Property to view detailed information about the certicate.

User's Manual - 43

VIVOTEK

https://

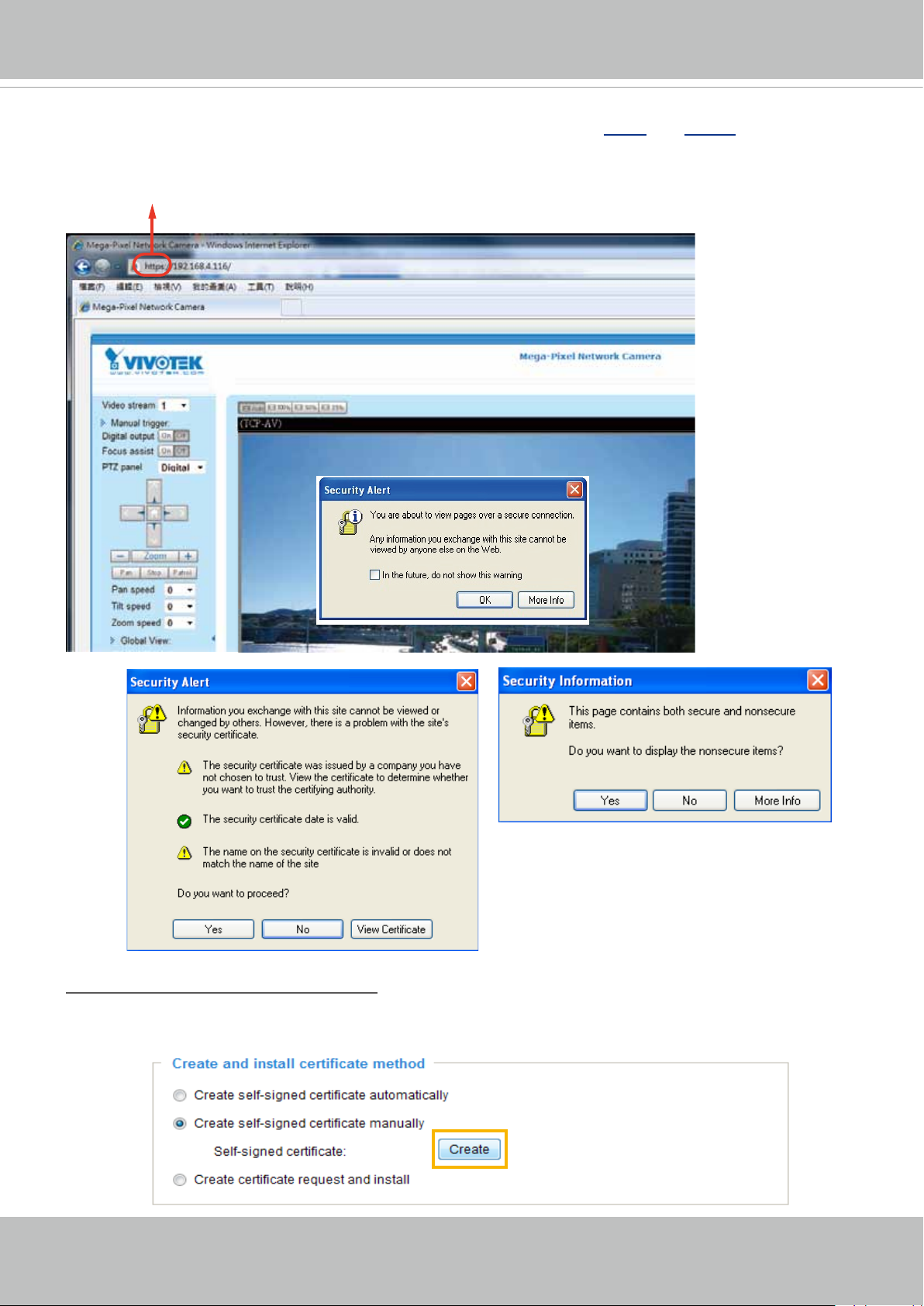

5� Click Home to return to the main page� Change the address from “http://” to “https://“ in the address

bar and press Enter on your keyboard� Some Security Alert dialogs will prompt� Click OK or Yes to enable HTTPS�

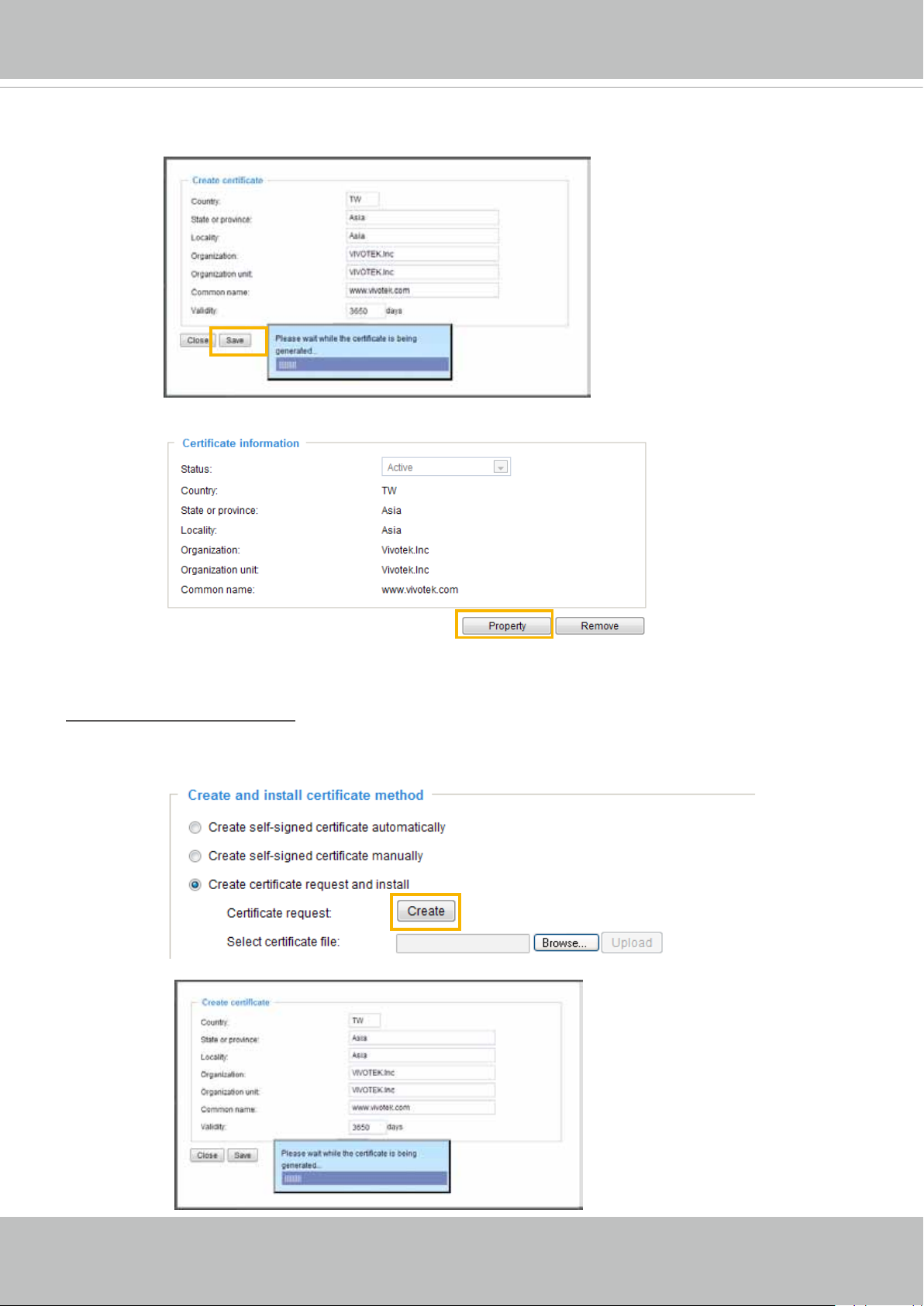

Create self-signed certificate manually

1� Select the second option� 2� Click Create to open the Create Certicate page.

44 - User's Manual

VIVOTEK

3� The following information will show up in a pop-up window after clicking Create� Then click Save to

generate the certicate.

4. The Certicate Information will automatically be displayed in the third column as shown below. You

can click Property to see detailed information about the certicate.

5� Check Enable HTTPS secure connection, then select a connection option: “HTTP & HTTPS” or

“HTTPS only”� Click Save to enable the settings�

Create certificate and install : Select this option if you want to create a certicate from a certicate

authority�

1� Select the third option� 2� Click Create to open the Create Certicate page, then click Save to generate the certicate.

User's Manual - 45

VIVOTEK

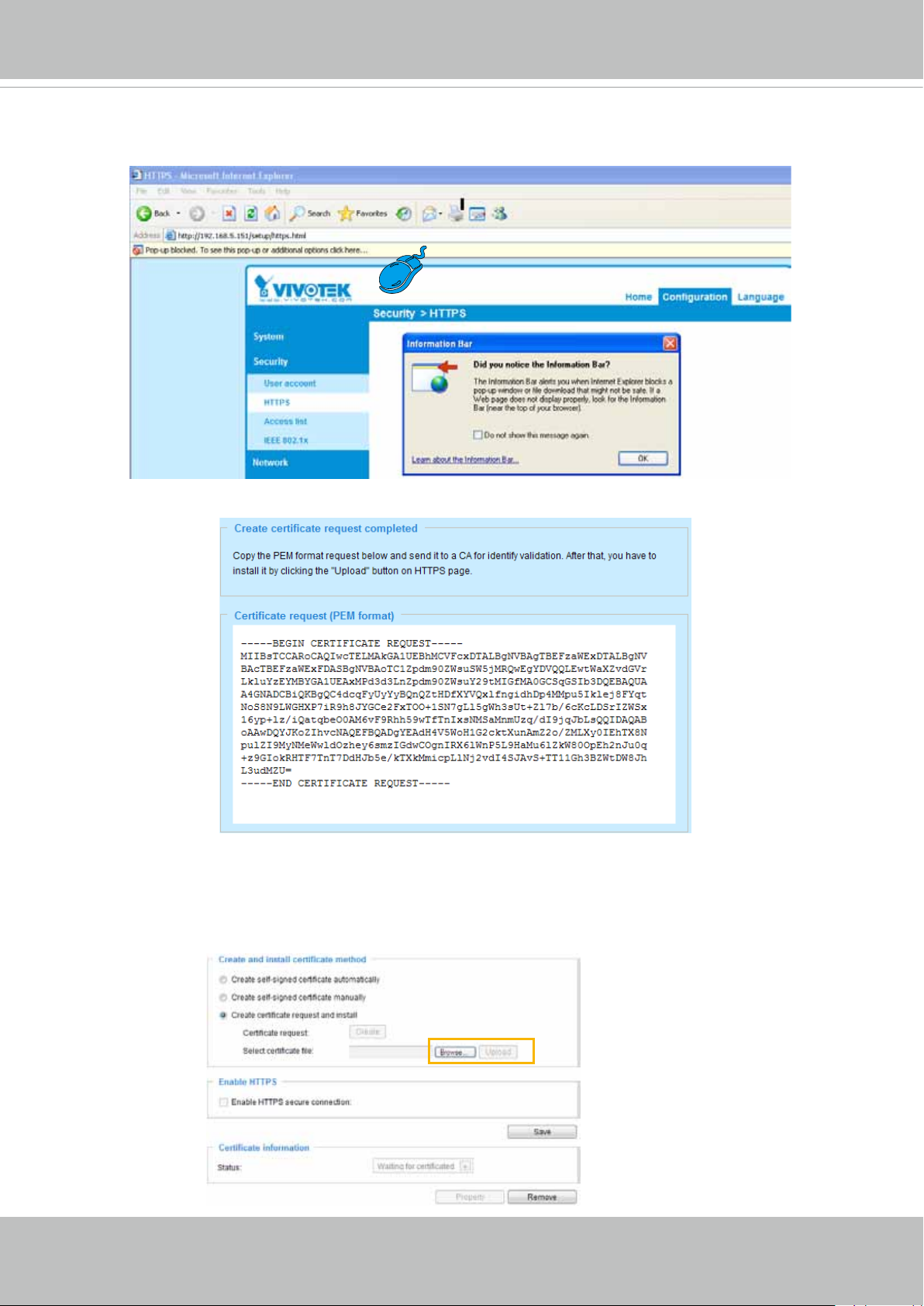

3� If you see the following Information bar, click OK and click on the Information bar at the top of the page

to allow pop-ups�

4. The pop-up window shows an example of a certicate request.

5� Look for a trusted certificate authority that issues digital certificates� Enroll the Network Camera�

Wait for the certicate authority to issue an SSL certicate; click Browse... to search for the issued certicate, then click Upload in the column�

6� Check Enable HTTPS secure connection, then select a connection option: “HTTP & HTTPS” or

“HTTPS only”� Click Save to enable the settings�

46 - User's Manual

VIVOTEK

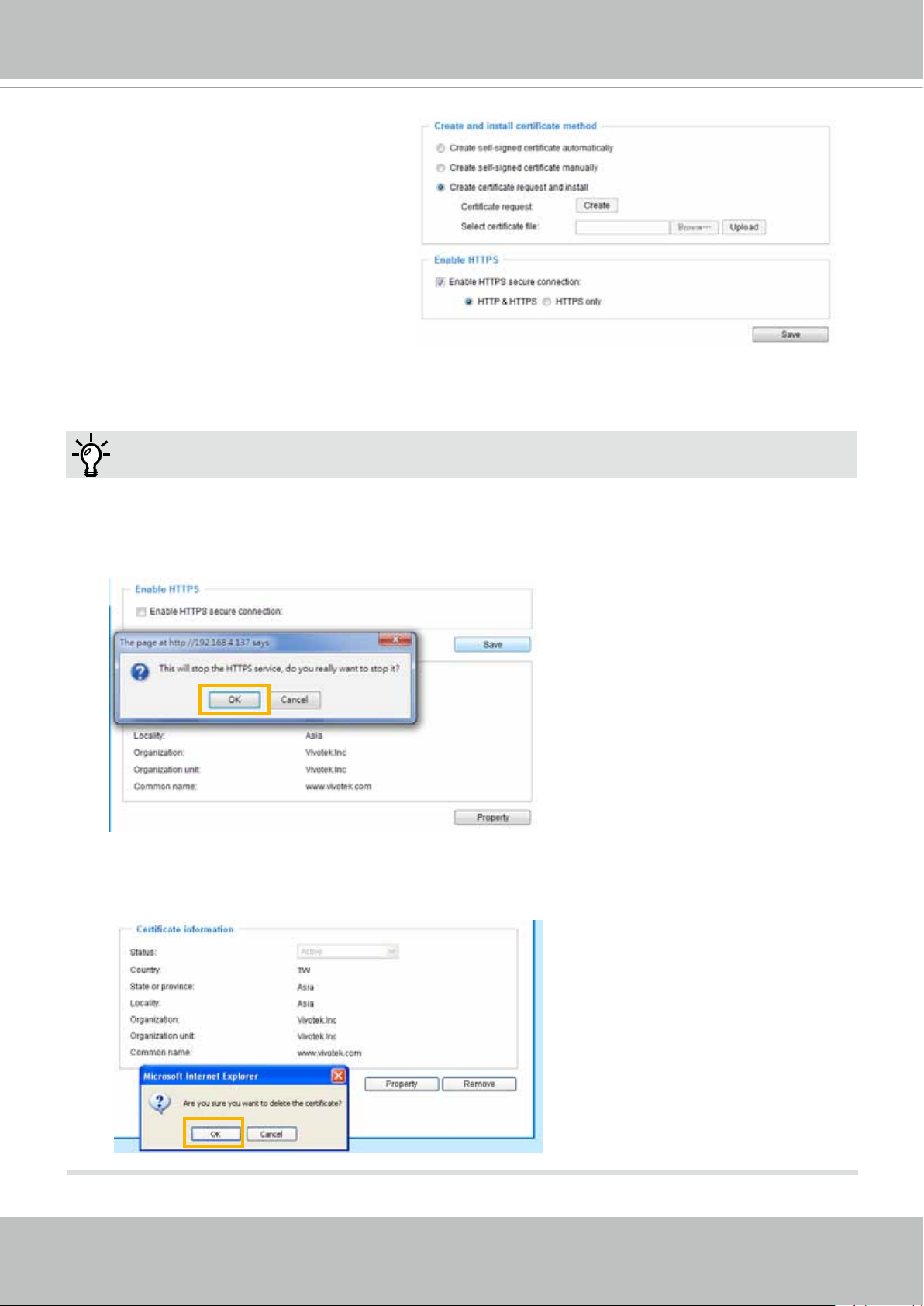

Click this checkbox to enable HTTPS communication, and then select a

connection option from below: "HTTP &

HTTPS" or "HTTPS only�"

Note that a certificate must have been created and installed before you can click on the "save" button for the conguration to take effect�

Tips:

► 1. How do I cancel the HTTPS settings?

1-1� Uncheck Enable HTTPS secure connection in the second column and click Save; a warning

dialog will pop up�

1-2� Click OK to disable HTTPS�

1-3� The webpage will redirect to a non-HTTPS page automatically�

► 2. If you want to create and install other certicates, please remove the existing one.

User's Manual - 47

VIVOTEK

Security > Access List

Advanced Mode

This section explains how to control access permission by verifying the client PC’s IP address�

General Settings

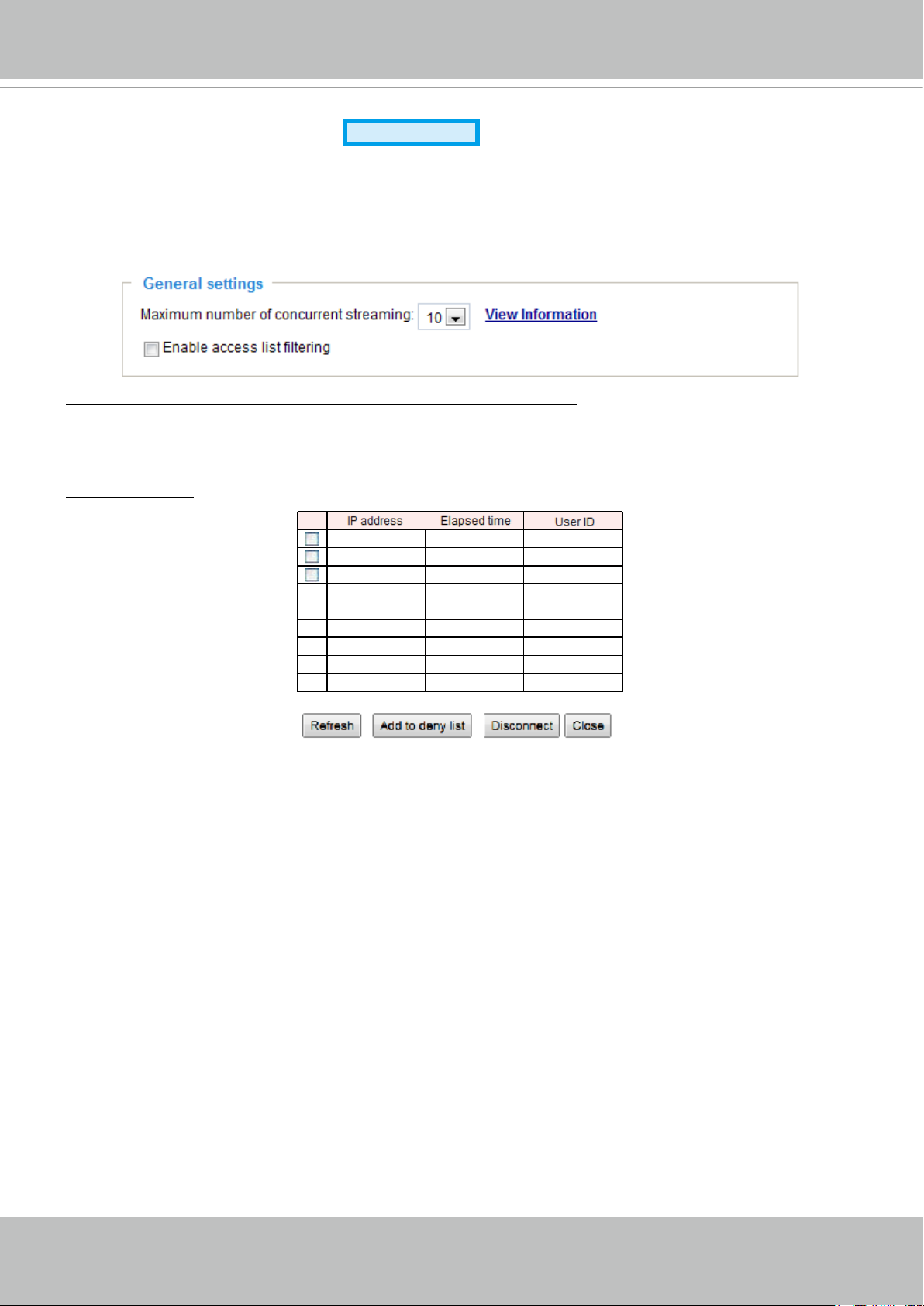

Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including stream 1 and stream 2)� The default value is 10� If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explorer or Quick Time Player)�

View Information: Click this button to display the connection status window showing a list of the current

connections. For example:

IP address

192.168.1.147

61.22.15.3

192.168.3.25

Elapsed time

12:20:34

00:10:09

45:00:34

User ID

root

anonymous

greg

Add to Deny List DisconnectRefresh

■ IP address: Current connections to the Network Camera.

■ Elapsed time: How much time the client has been at the web page.

■ User ID: If the administrator has set a password for the web page, the clients have to enter a user

name and password to access the live video� The user name will be displayed in the User ID column�

If the administrator allows clients to link to the web page without a user name and password, the User

ID column will be empty�

There are some situations which allow clients access to the live video without a user name and

password:

1. The administrator did not congure a root password. For more information about how to set up a

root password and manage user accounts, please refer to Security > User account on page 42�

2. The administrator has congured a root password, but set RTSP Authentication to “disable“. For

more information about RTSP Authentication, please refer to RTSP Streaming on page 62�

3. The administrator has set up a root password, but allows anonymous viewing. For more information

about Allow Anonymous Viewing, please refer to page 42�

■ Refresh: Click this button to refresh all current connections.

■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List

to deny access� Please note that those checked connections will only be disconnected temporarily

and will automatically try to re-link again (IE Explorer or Quick Time Player)� If you want to enable the

denied list, please select Enable access list ltering and click Save in the rst column.

48 - User's Manual

VIVOTEK

■ Disconnect: If you want to break off the current connections, please select them and click this

button� Please note that those checked connections will only be disconnected temporarily and will

automatically try to re-link again (IE Explorer or Quick Time Player)�

Enable access list ltering: Check this item and click Save if you want to enable the access list ltering function�

Filter

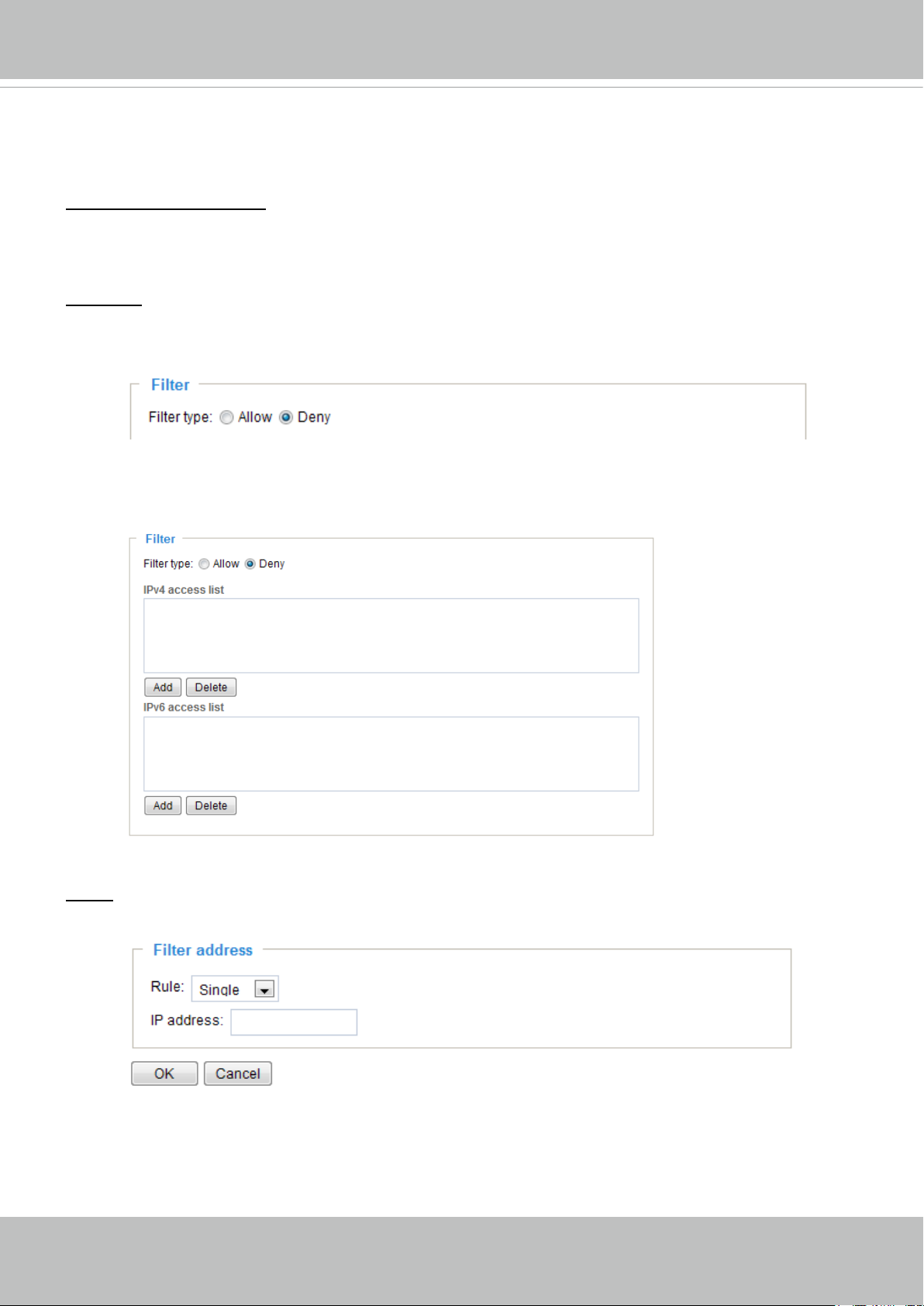

Filter type: Select Allow or Deny as the lter type. If you choose Allow Type, only those clients whose IP addresses are on the Access List below can access the Network Camera, and the others cannot access� On the contrary, if you choose Deny Type, those clients whose IP addresses are on the Access List below will not be allowed to access the Network Camera, and the others can access�

Then you can Add a rule to the following Access List� Please note that the IPv6 access list column

will not be displayed unless you enable IPv6 on the Network page. For more information about IPv6 Settings, please refer to Network > Enable IPv6 on page 57 for detailed information�

There are three types of rules: Single: This rule allows the user to add an IP address to the Allowed/Denied list�

For example:

User's Manual - 49

VIVOTEK

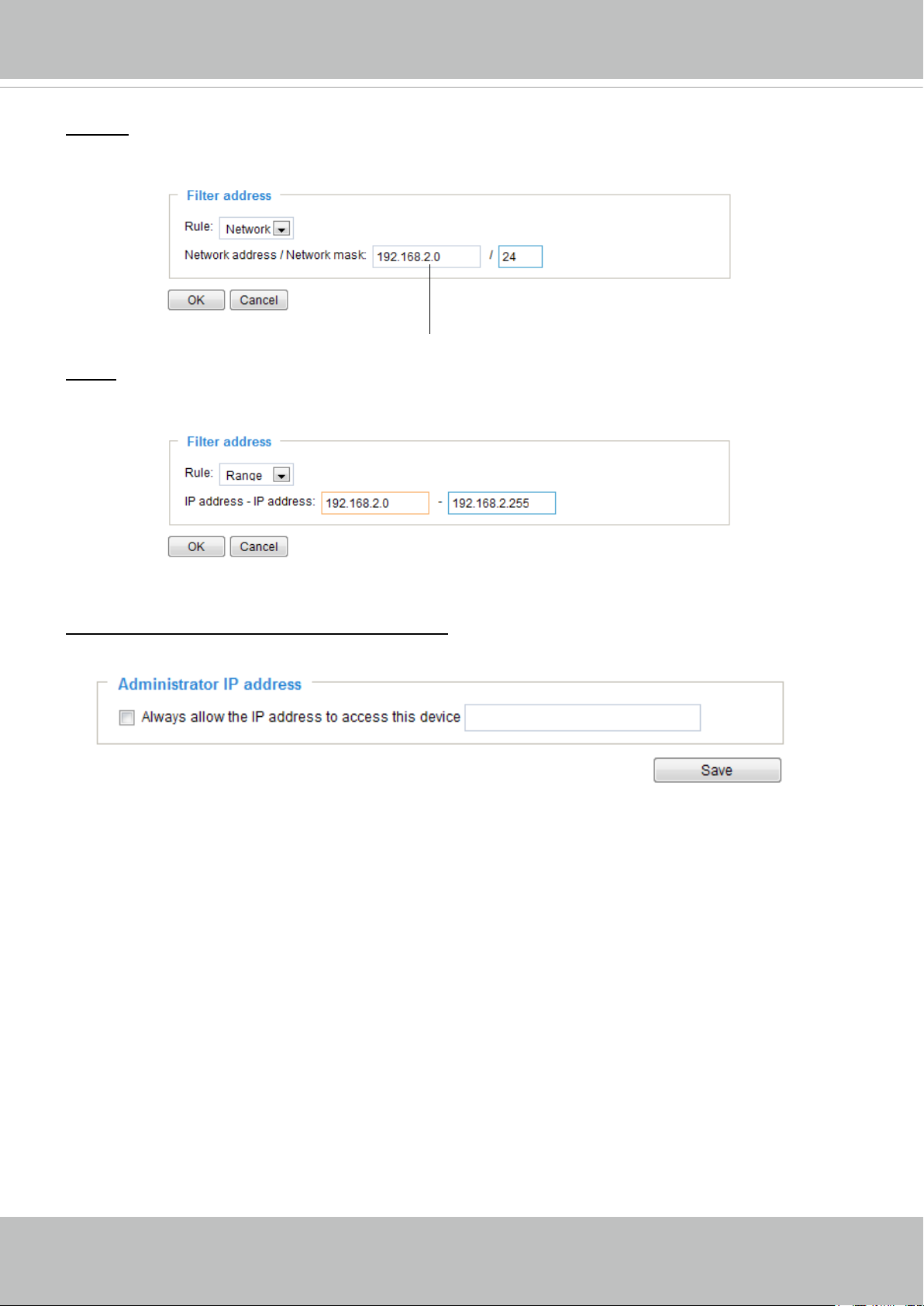

Network: This rule allows the user to assign a network address and corresponding subnet mask to the

Allow/Deny List. The routing prex is written in the CIDR notation format. For example:

accesses from IP address 192�168�2�x will be bolcked�

Range: This rule allows the user to assign a range of IP addresses to the Allow/Deny List� Note: This rule only applies to IPv4 addresses�

For example:

Administrator IP address

Always allow the IP address to access this device: You can check this item and add the Administrator’s

IP address in this eld to make sure the Administrator can always connect to the device.

50 - User's Manual

VIVOTEK

Security > IEEE 802.1X

Advanced Mode

Enable this function if your network environment uses IEEE 802�1X, which is a port-based network access control� The network devices, intermediary switch/access point/hub, and RADIUS server must support and enable 802�1x settings�

The 802�1X standard is designed to enhance the security of local area networks, which provides

authentication to network devices (clients) attached to a network port (wired or wireless). If all certicates between client and server are veried, a point-to-point connection will be enabled; if authentication fails,

access on that port will be prohibited� 802�1X utilizes an existing protocol, the Extensible Authentication Protocol (EAP), to facilitate communication�

The components of a protected network with 802�1x authentication:

■

Supplicant

(Network Camera)

Supplicant: A client end user (camera), which requests authentication�

1�

Authenticator (an access point or a switch): A “go between” which restricts unauthorized end users

2�

Authenticator

(Network Switch)

Authentication Server

(RADIUS Server)

from communicating with the authentication server�

Authentication server (usually a RADIUS server): Checks the client certicate and decides whether to

3�

accept the end user’s access request�

VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP-PEAP

■

and EAP-TLS�

Please follow the steps below to enable 802�1X settings: 1� Before connecting the Network Camera to the protected network with 802�1X, please apply a digital

certicate from a Certicate Authority (e.g., your network administrator) which can be validated by a

RADIUS server� 2� Connect the Network Camera to a PC or notebook outside of the protected LAN� Open the

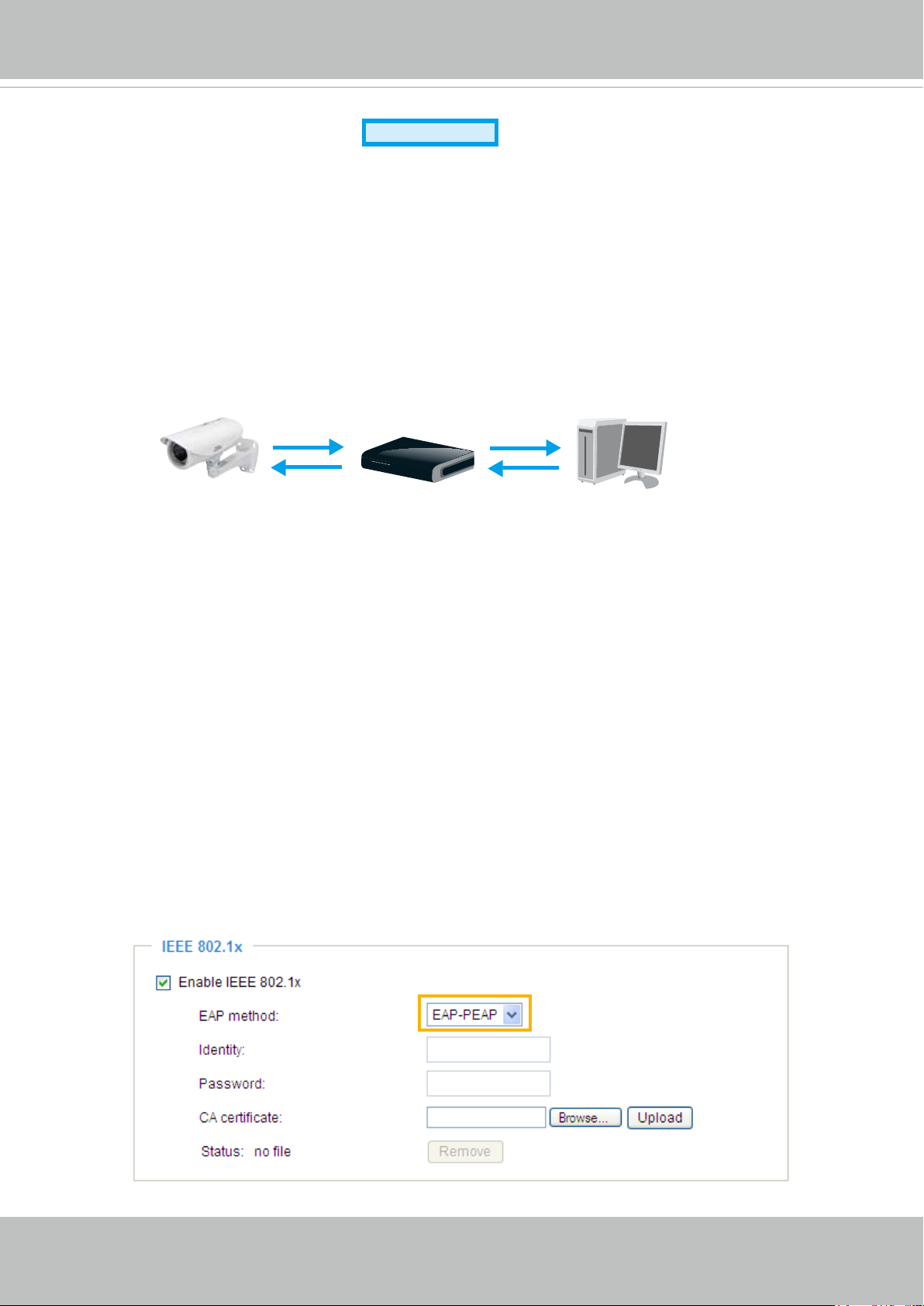

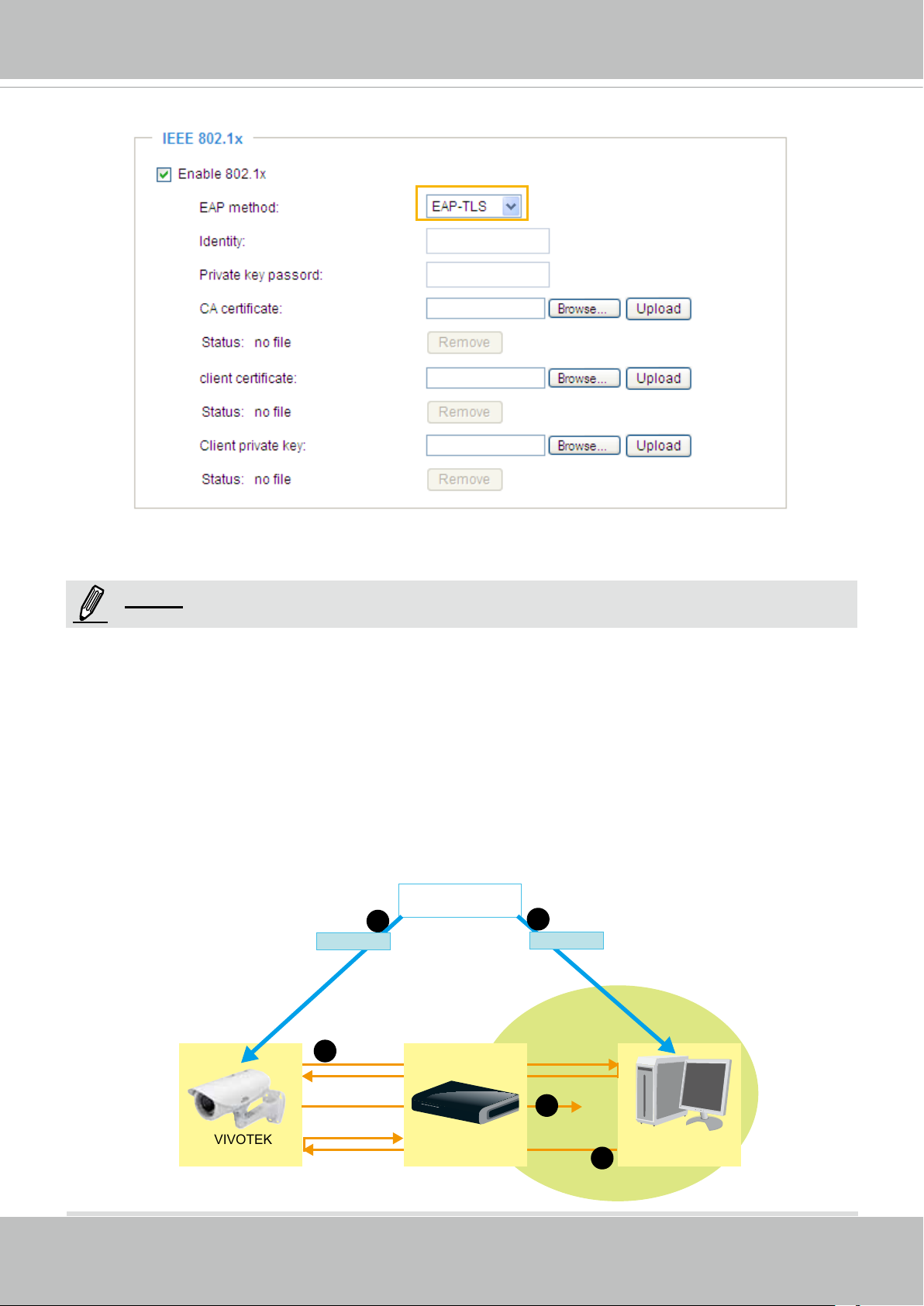

conguration page of the Network Camera as shown below. Select EAP-PEAP or EAP-TLS as the

EAP method� In the following blanks, enter your ID and password issued by the CA, then upload

related certicate(s).

User's Manual - 51

VIVOTEK

3� When all settings are complete, move the Network Camera to the protected LAN by connecting it to an

802�1x enabled switch� The devices will then start the authentication automatically�

NOTE:

► The authentication process for 802.1x:

1. The Certicate Authority (CA) provides the required signed certicates to the Network Camera (the

supplicant) and the RADIUS Server (the authentication server)� 2� A Network Camera requests access to the protected LAN using 802�1X via a switch (the authenticator)�

The client offers its identity and client certicate, which is then forwarded by the switch to the RADIUS

Server, which uses an algorithm to authenticate the Network Camera and returns an acceptance or rejection back to the switch�

3. The switch also forwards the RADIUS Server’s certicate to the Network Camera.

4� Assuming all certificates are validated, the switch then changes the Network Camera’s state to

authorized and is allowed access to the protected network via a pre-congured port.

Certificate Authority

1

(CA)

Certificate

1

Certificate

52 - User's Manual

VIVOTEK

Network Camera

2

4

Network Switch

Protected LAN

RADIUS Server

3

VIVOTEK

Network > General settings

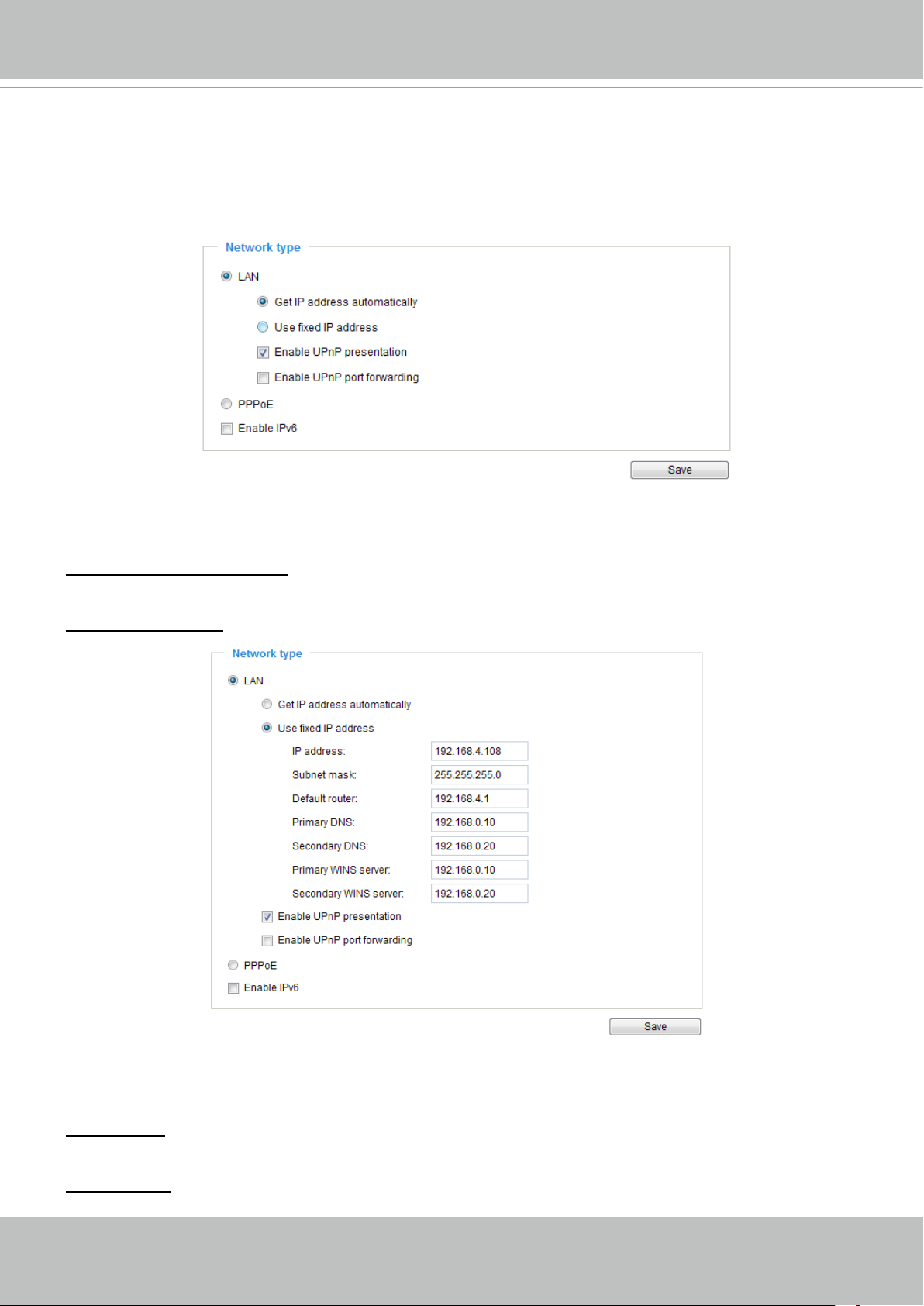

This section explains how to congure a wired network connection for the Network Camera.

Network Type

LAN

Select this option when the Network Camera is deployed on a local area network (LAN) and is intended to be accessed by local computers� The default setting for the Network Type is LAN� Remember to click Save when you complete the Network setting�

Get IP address automatically: Select this option to obtain an available dynamic IP address assigned by the DHCP server each time the camera is connected to the LAN�

Use xed IP address: Select this option to manually assign a static IP address to the Network Camera�

1� You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN� Please refer to Software Installation on page 14 for details� 2� Enter the Static IP, Subnet mask, Default router, and Primary DNS provided by your ISP�

Subnet mask: This is used to determine if the destination is in the same subnet� The default value is “255�255�255�0”�

Default router: This is the gateway used to forward frames to destinations in a different subnet� Invalid router setting will fail the transmission to destinations in different subnets�

User's Manual - 53

VIVOTEK

Primary DNS: The primary domain name server that translates hostnames into IP addresses�

Secondary DNS: Secondary domain name server that backups the Primary DNS�

Primary WINS server: The primary WINS server that maintains the database of computer name and IP address�

Secondary WINS server: The secondary WINS server that maintains the database of computer name and IP address�

TM

Enable UPnP presentation: Select this option to enable UPnP

presentation for your Network Camera so that whenever a Network Camera is presented to the LAN, shortcuts of connected Network Cameras will be listed in My Network Places� You can click the shortcut to link to the web browser� Currently,

TM

UPnP UPnP

is supported by Windows XP or later� Note that to utilize this feature, please make sure the

TM

component is installed on your computer�

Mega-pixel Network Camera (192.168.5.151)

Enable UPnP port forwarding: To access the Network Camera from the Internet, select this option to allow the Network Camera to open ports on the router automatically so that video streams can be sent out from a LAN� To utilize of this feature, make sure that your router supports UPnP

TM

and it is activated�

PPPoE (Point-to-point over Ethernet)

Select this option to congure your Network Camera to make it accessible from anywhere as long as

there is an Internet connection� Note that to utilize this feature, it requires an account provided by your ISP�

Follow the steps below to acquire your Network Camera’s public IP address.

1� Set up the Network Camera on the LAN�

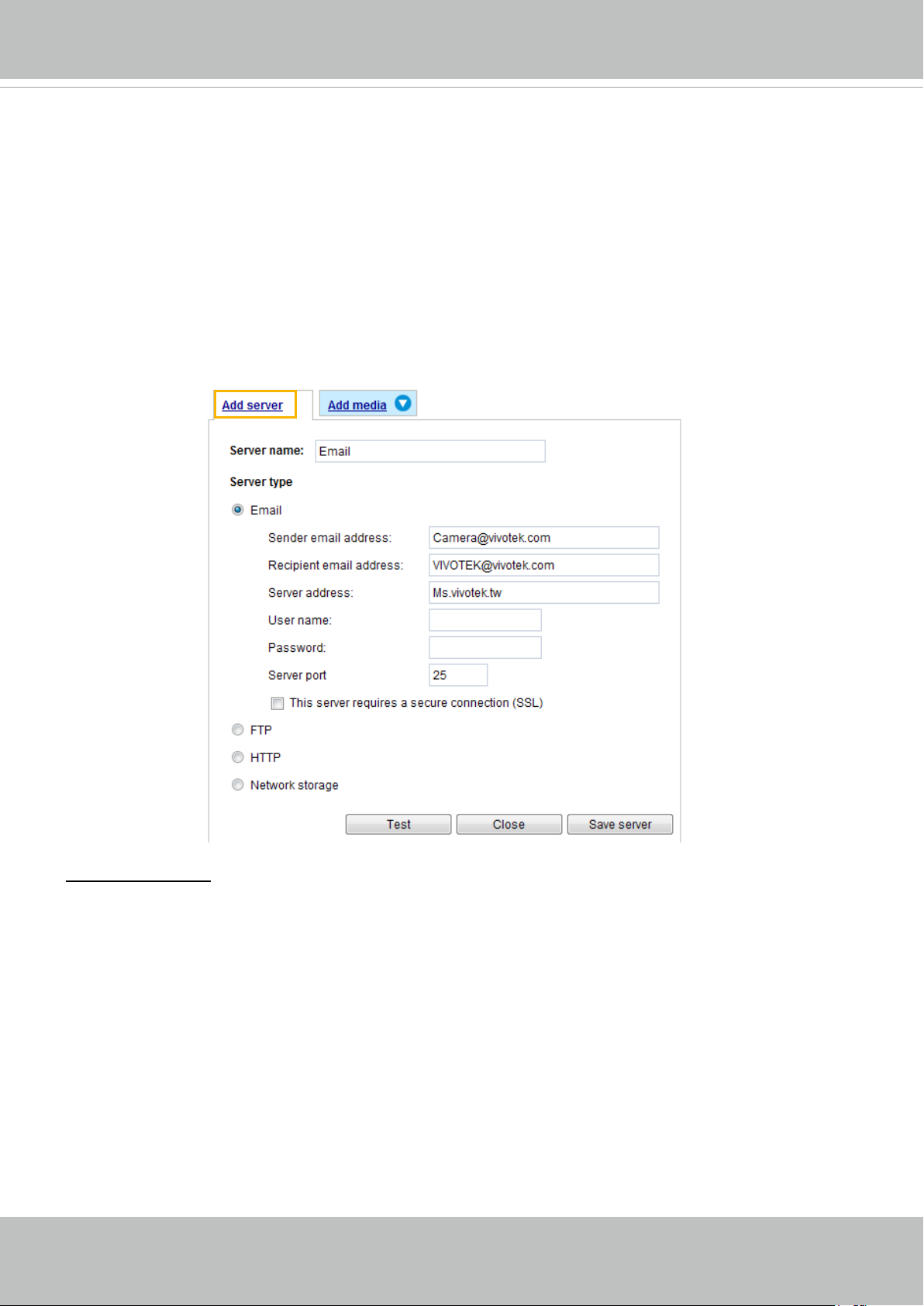

2. Go to Conguration > Event > Event settings > Add server (please refer to Add server on page 95) to

add a new email or FTP server.

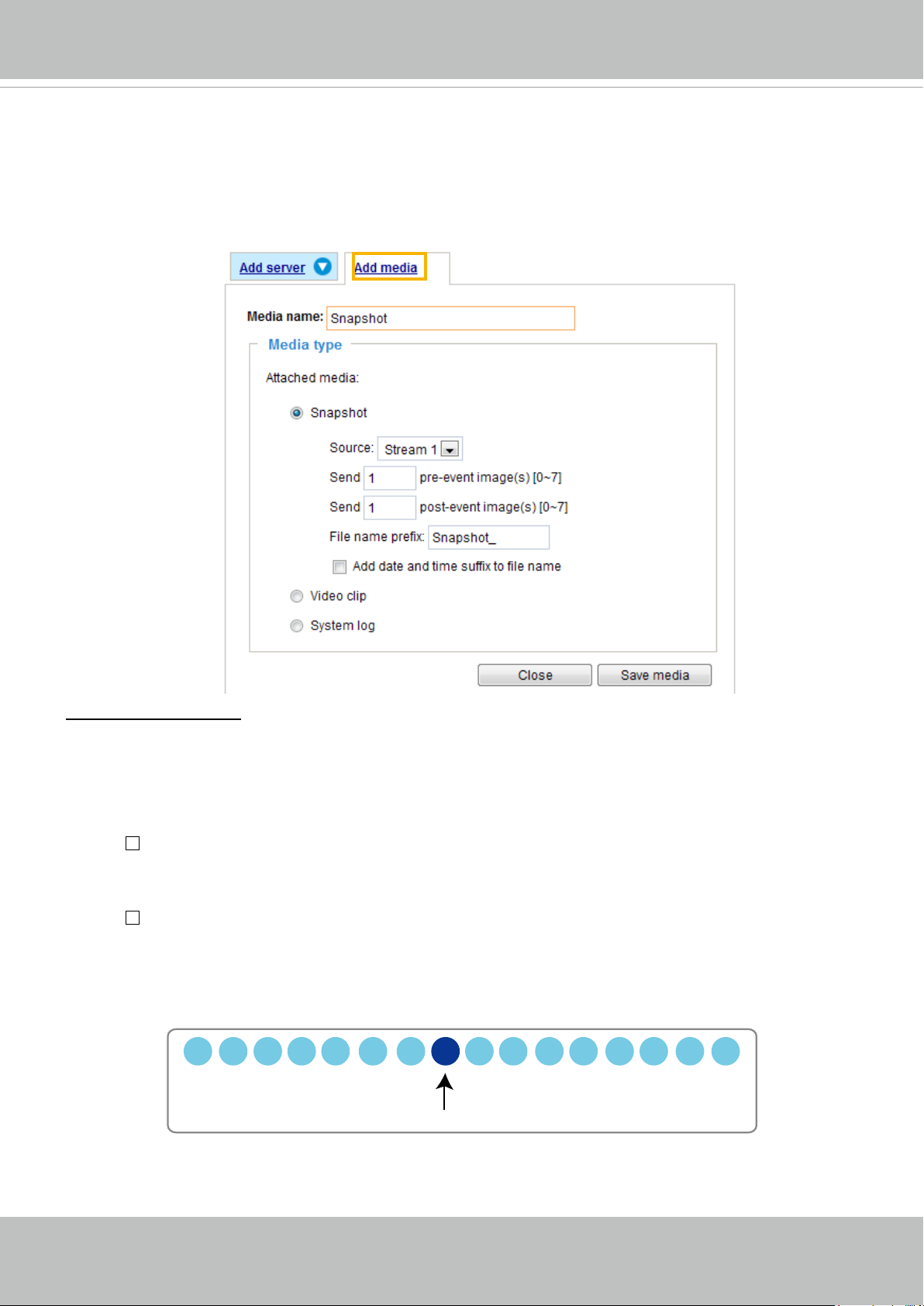

3. Go to Conguration > Event > Event settings > Add media (please refer to Add media on page 99). Select System log so that you will receive the system log in TXT le format which contains the Network Camera’s public IP address in your email or on the FTP server.

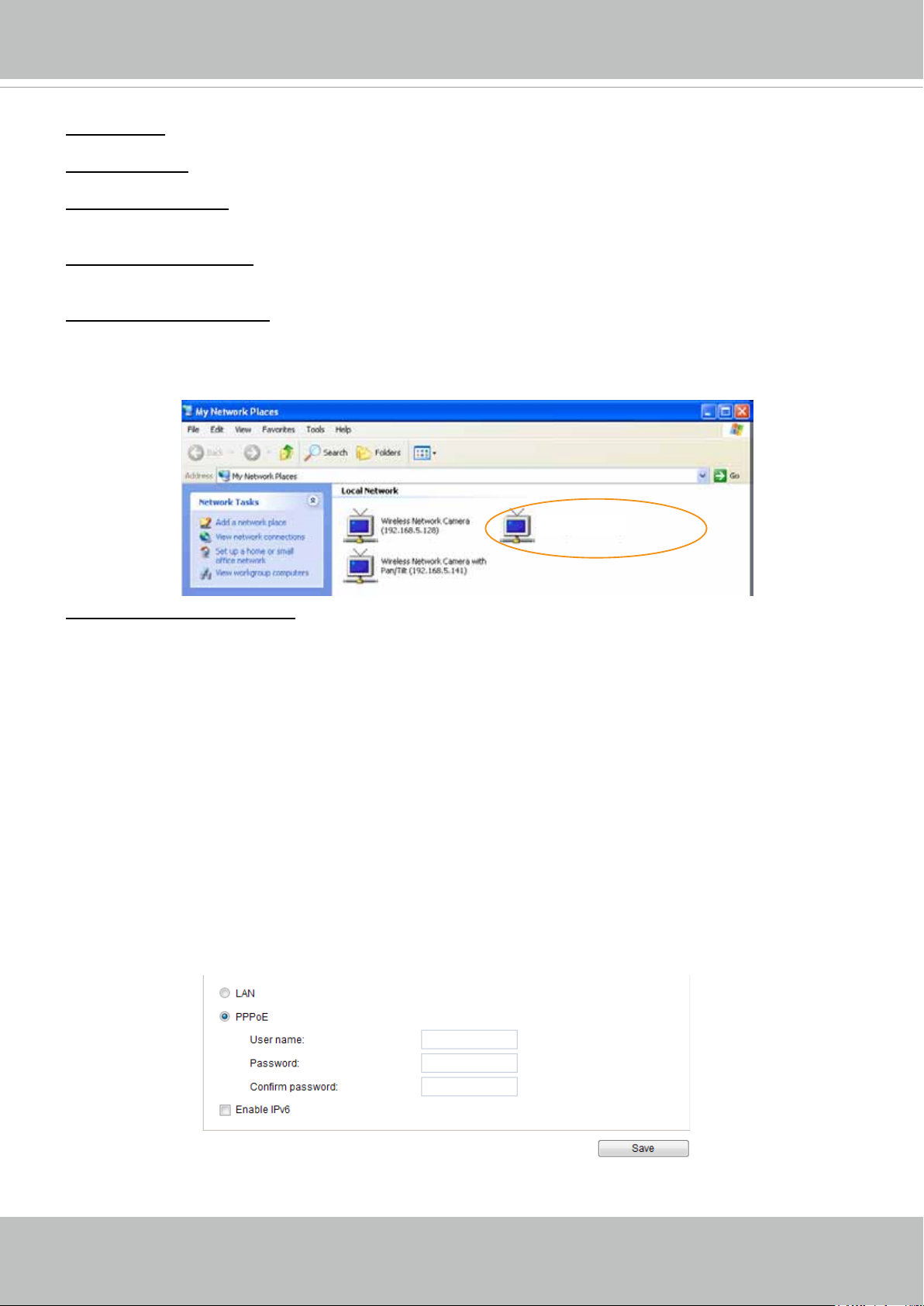

4. Go to Conguration > Network > General settings > Network type. Select PPPoE and enter the user

name and password provided by your ISP� Click Save to enable the setting�

5� The Network Camera will reboot� 6� Disconnect the power to the Network Camera; remove it from the LAN environment�

54 - User's Manual

VIVOTEK

NOTE:

► If the default ports are already used by other devices connected to the same router, the Network

Camera will select other ports for the Network Camera�

TM

► If UPnP

is not supported by your router, you will see the following message:

Error: Router does not support UPnP port forwarding.

TM

► Below are steps to enable the UPnP

Note that you must log on to the computer as a system administrator to install the UPnP

user interface on your computer:

TM

components�

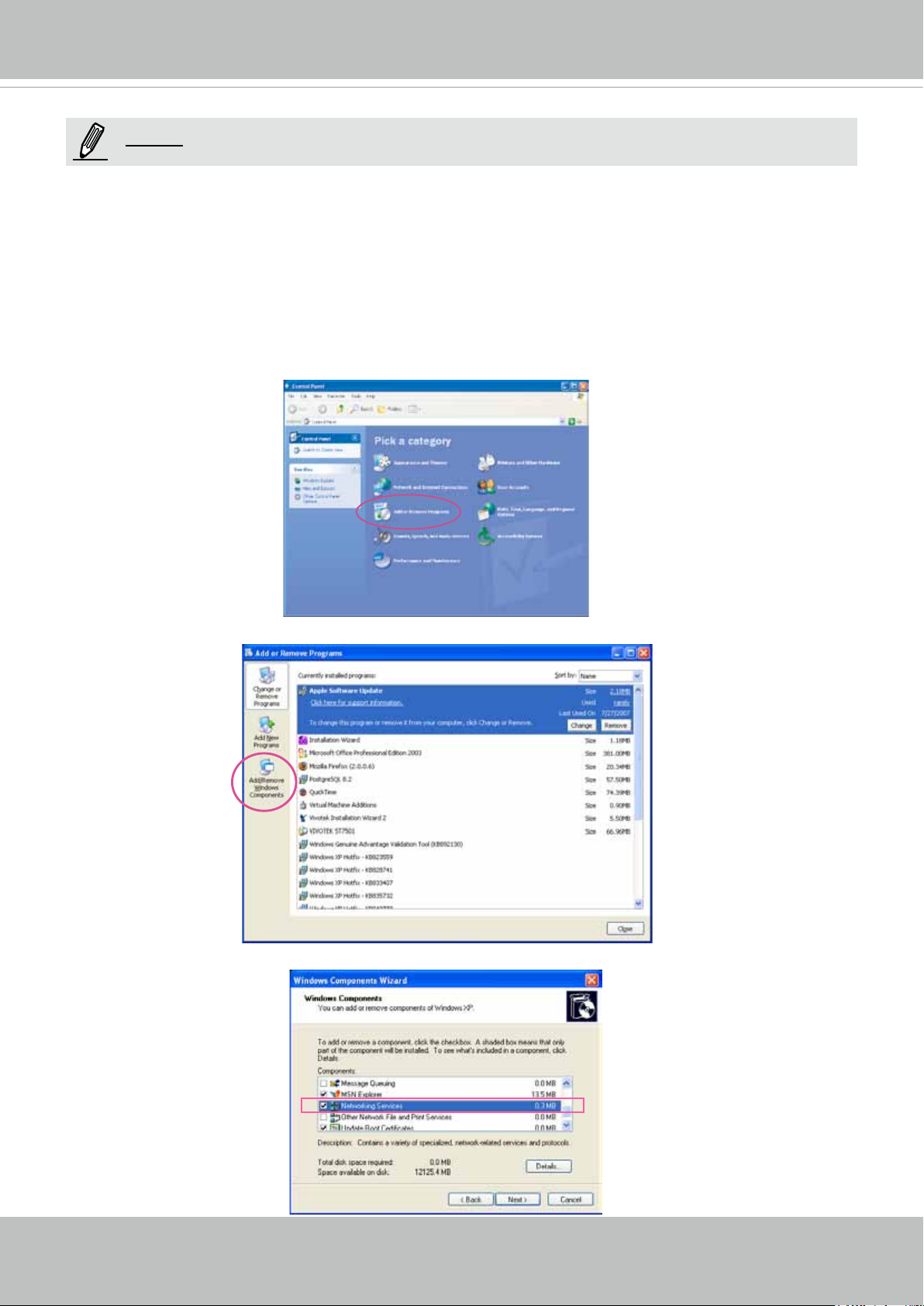

1� Go to Start, click Control Panel, then click Add or Remove Programs�

2� In the Add or Remove Programs dialog box, click Add/Remove Windows Components�

3�

In the Windows Components Wizard dialog box, select Networking Services and click Details�

User's Manual - 55

VIVOTEK

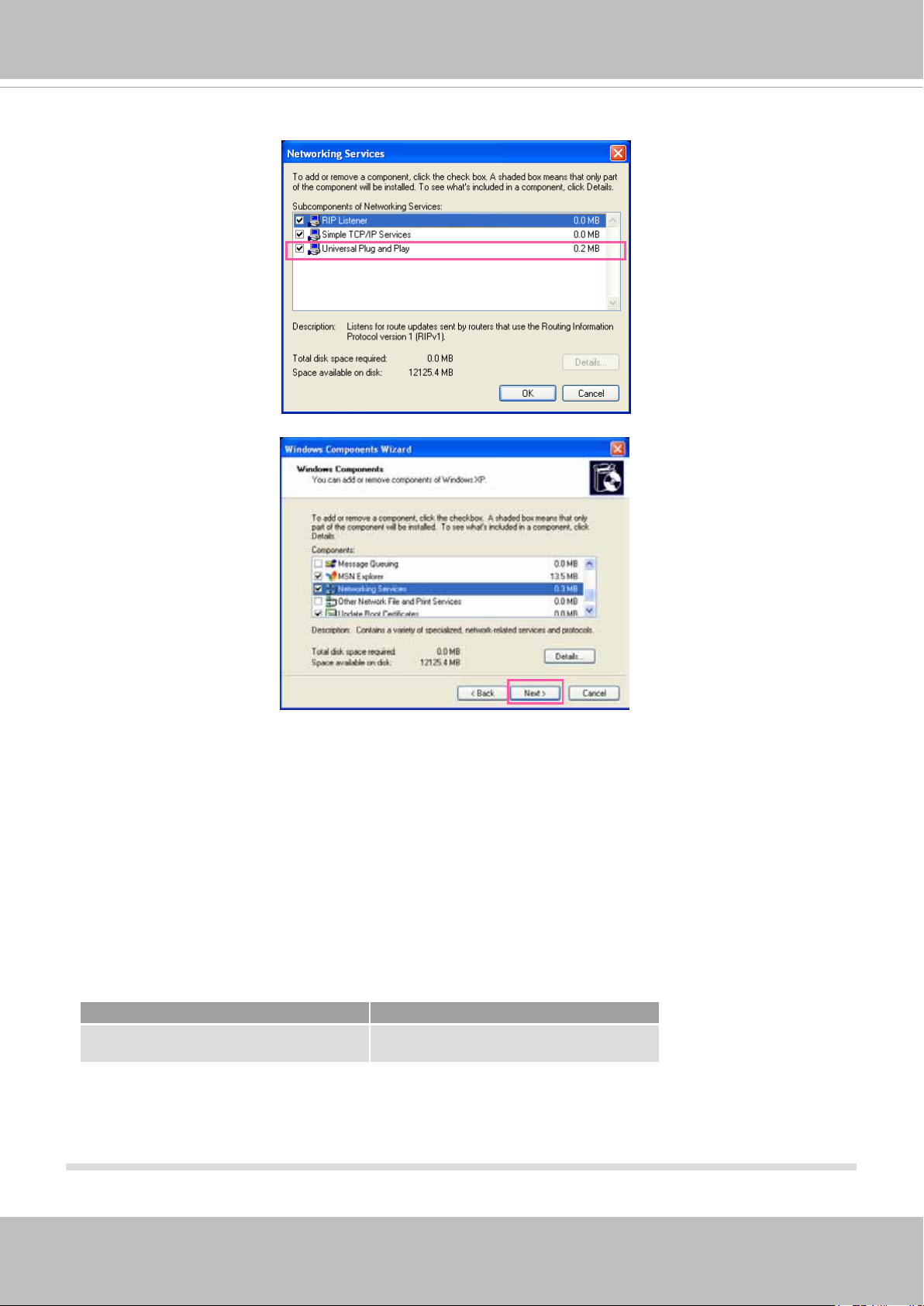

4� In the Networking Services dialog box, select Universal Plug and Play and click OK�

5� Click Next in the following window�

TM

6� Click Finish� UPnP

► How does UPnP

UPnP

TM

networking technology provides automatic IP conguration and dynamic discovery of devices

TM

is enabled�

work?

added to a network. Services and capabilities offered by networked devices, such as printing and le sharing, are available among each other without the need for cumbersome network conguration. In

the case of Network Cameras, you will see Network Camera shortcuts under My Network Places�

► Enabling UPnP port forwarding allows the Network Camera to open a secondary HTTP port on the

router-not HTTP port-meaning that you have to add the secondary HTTP port number to the Network

Camera’s public address in order to access the Network Camera from the Internet. For example,

when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for the Network Camera’s IP address�

From the Internet In LAN

http://203.67.124.123:8080 http://192.168.4.160 or

http://192.168.4.160:8080

► If the PPPoE settings are incorrectly configured or the Internet access is not working, restore the

Network Camera to factory default; please refer to Restore on page 39 for details� After the Network Camera is reset to factory default, it will be accessible on the LAN�

56 - User's Manual

VIVOTEK

Enable IPv6

Select this option and click Save to enable IPv6 settings� Please note that this only works if your network environment and hardware equipment support IPv6� The browser should be Microsoft

®

Internet Explorer 6.5, Mozilla Firefox 3.0 or above.

When IPv6 is enabled, by default, the network camera will listen to router advertisements and be assigned with a link-local IPv6 address accordingly�

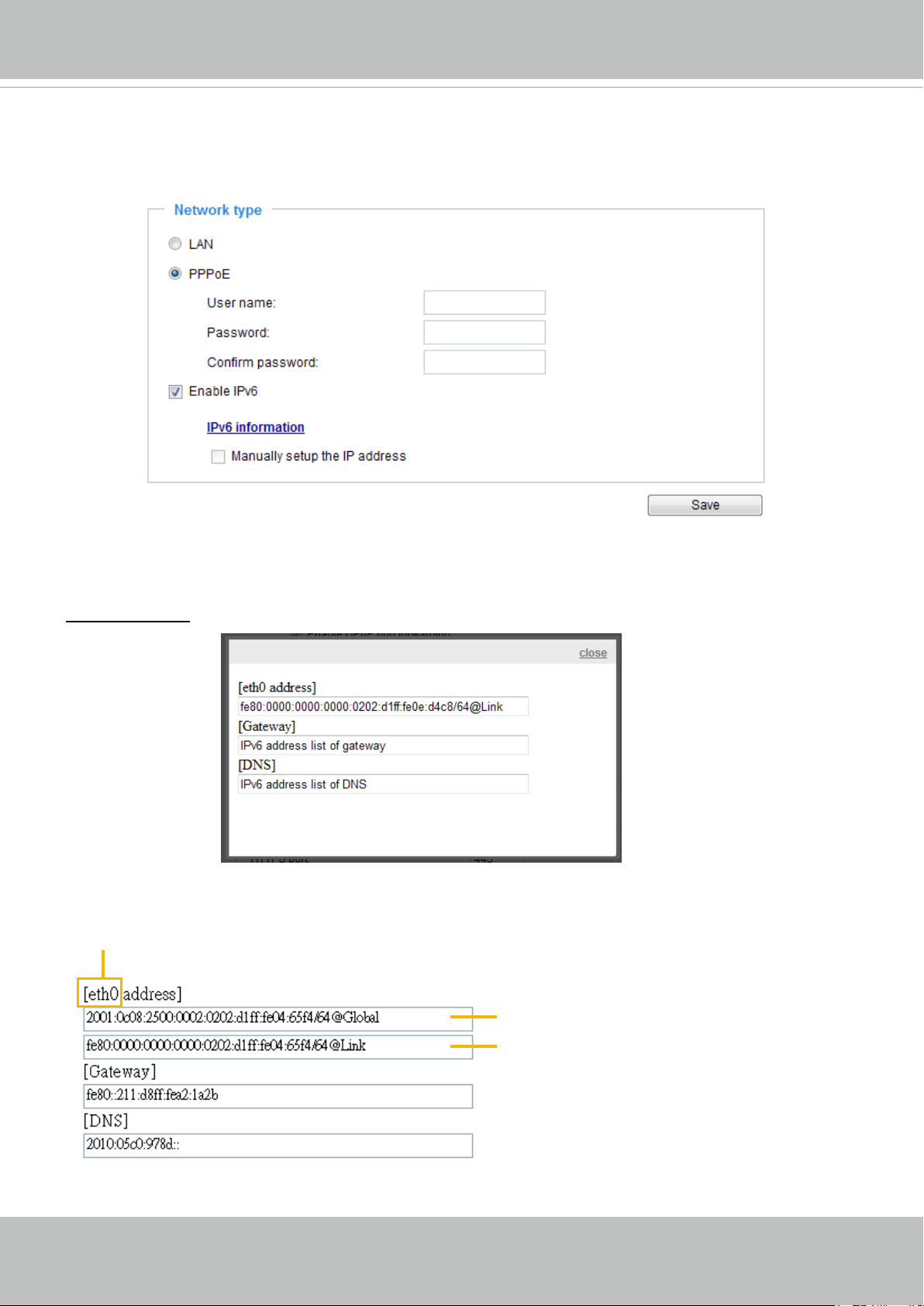

IPv6 Information: Click this button to obtain the IPv6 information as shown below�

If your IPv6 settings are successful, the IPv6 address list will be listed in the pop-up window� The IPv6 address will be displayed as follows:

Refers to Ethernet

Link-global IPv6 address/network mask

Link-local IPv6 address/network mask

User's Manual - 57

VIVOTEK

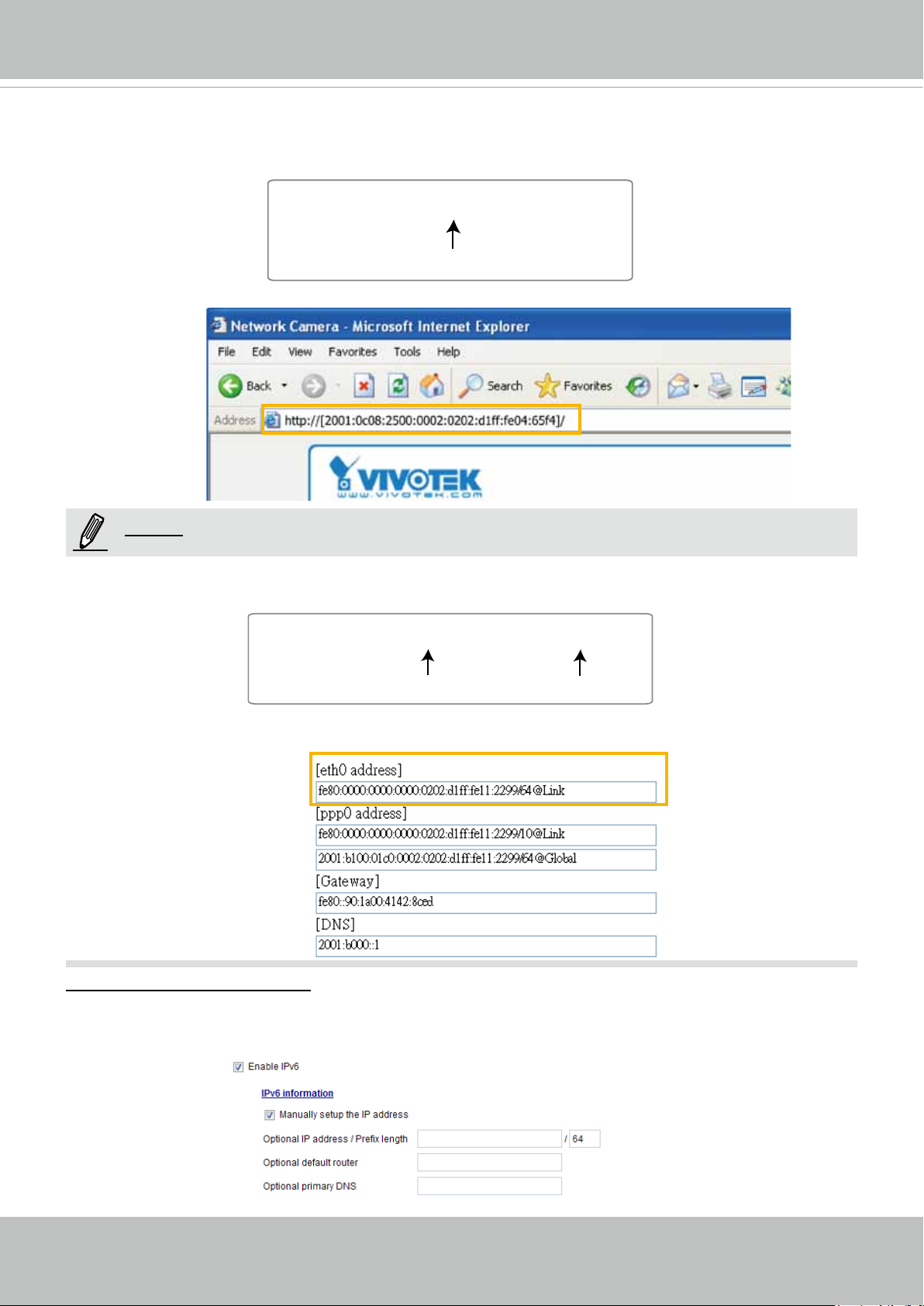

Please follow the steps below to link to an IPv6 address: 1� Open your web browser� 2� Enter the link-global or link-local IPv6 address in the address bar of your web browser� 3� The format should be:

http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/

IPv6 address

4� Press Enter on the keyboard or click Refresh button to refresh the webpage�

For example:

NOTE:

► If you have a Secondary HTTP port (the default value is 8080), you can also link to the webpage in

the following address format: (Please refer to HTTP streaming on page 61 for detailed information�)

http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/:8080

IPv6 address

Secondary HTTP port

► If you choose PPPoE as the Network Type, the [PPP0 address] will be displayed in the IPv6

information column as shown below�

Manually setup the IP address: Select this option to manually set up IPv6 settings if your network environment does not have DHCPv6 server and router advertisements-enabled routers� If you check this item, the following blanks will be displayed for you to enter the corresponding information:

58 - User's Manual

VIVOTEK

Port

HTTPS port: By default, the HTTPS port is set to 443� It can also be assigned to another port number between 1025 and 65535�

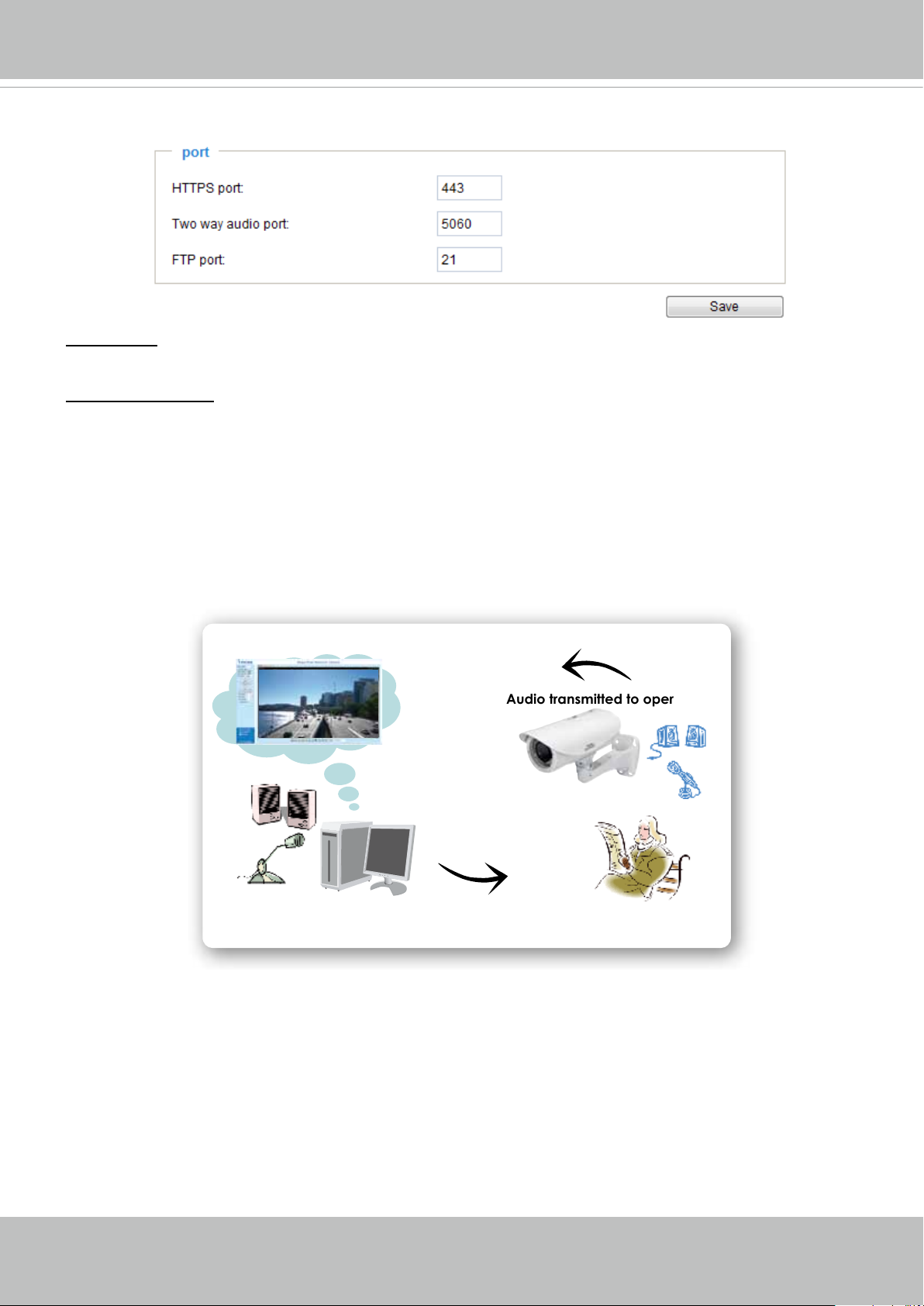

Two way audio port: By default, the two way audio port is set to 5060� It can also be assigned to another port number between 1025 and 65535�

The Network Camera supports two way audio communication so that operators can transmit and receive audio simultaneously� By using the Network Camera’s built-in or external microphone and an external speaker, you can communicate with people around the Network Camera�

Note that as JPEG only transmits a series of JPEG images to the client, to enable the two-way audio

function, make sure the video mode is set to “MPEG-4” on the Media > Video > Stream settings page and the media option is set to “Media > Video > Stream settings” on the Client Settings page� Please refer to Client Settings on page 28 and Stream settings on page 79�

Audio transmitted to operators

America

Audio transmitted from operators

Taiwan

User's Manual - 59

VIVOTEK

Audio is being transmitted to the Network Camera

Video (TCP-AV)

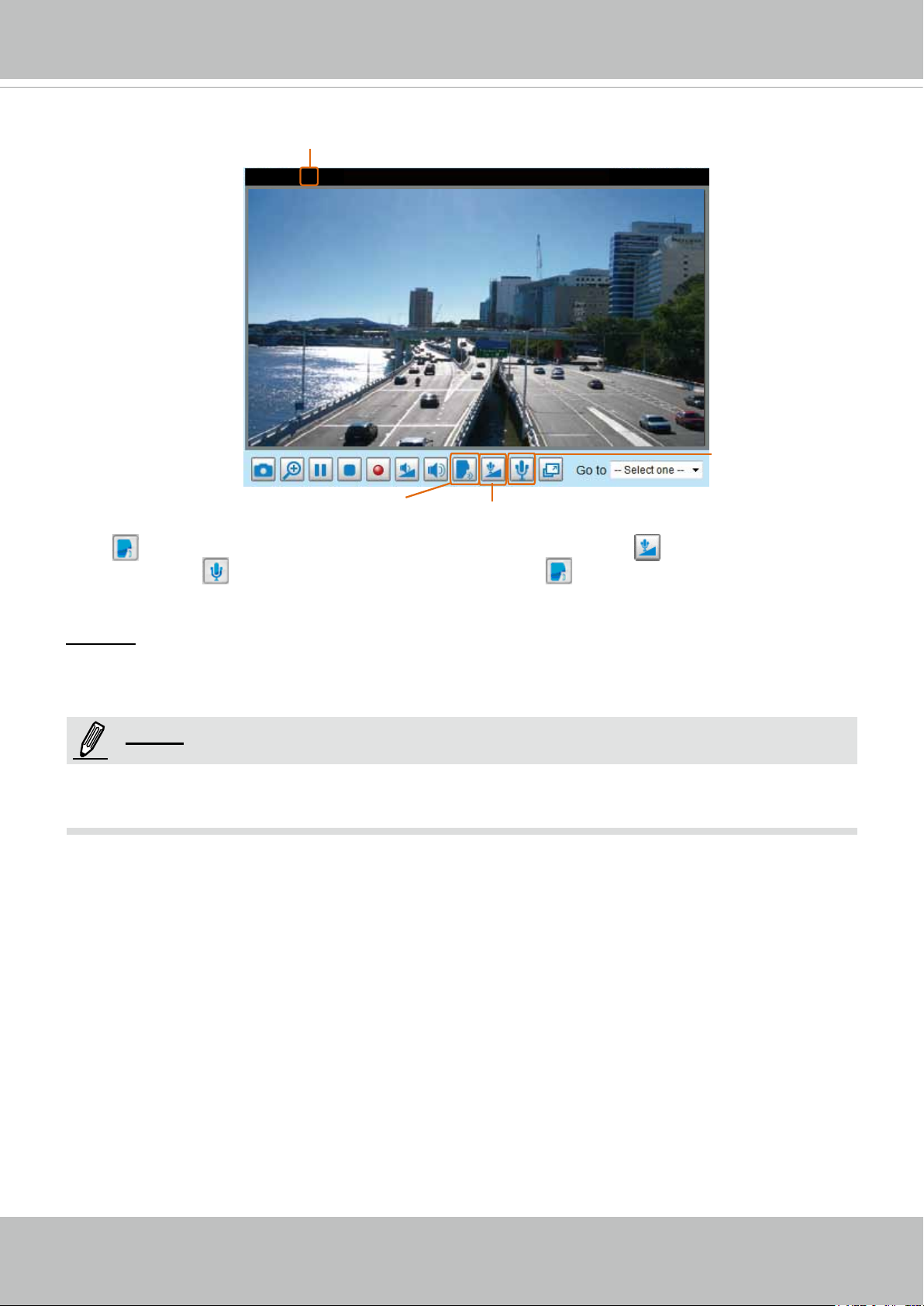

Talk Button

Mic Volume

2011/03/09 17:08:56

Mute

Click to enable audio transmission to the Network Camera; click to adjust the volume of microphone; click

to turn off the audio� To stop talking, click again�

FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the rmware via FTP server. By default, the FTP port is set to 21. It also

can be assigned to another port number between 1025 and 65535�

NOTE:

The camera's default Audio setting could be "disabled�" To enable Audio transmission, please move to

Conguration > Media > Audio.

60 - User's Manual

VIVOTEK

Network > Streaming protocols

Advanced Mode

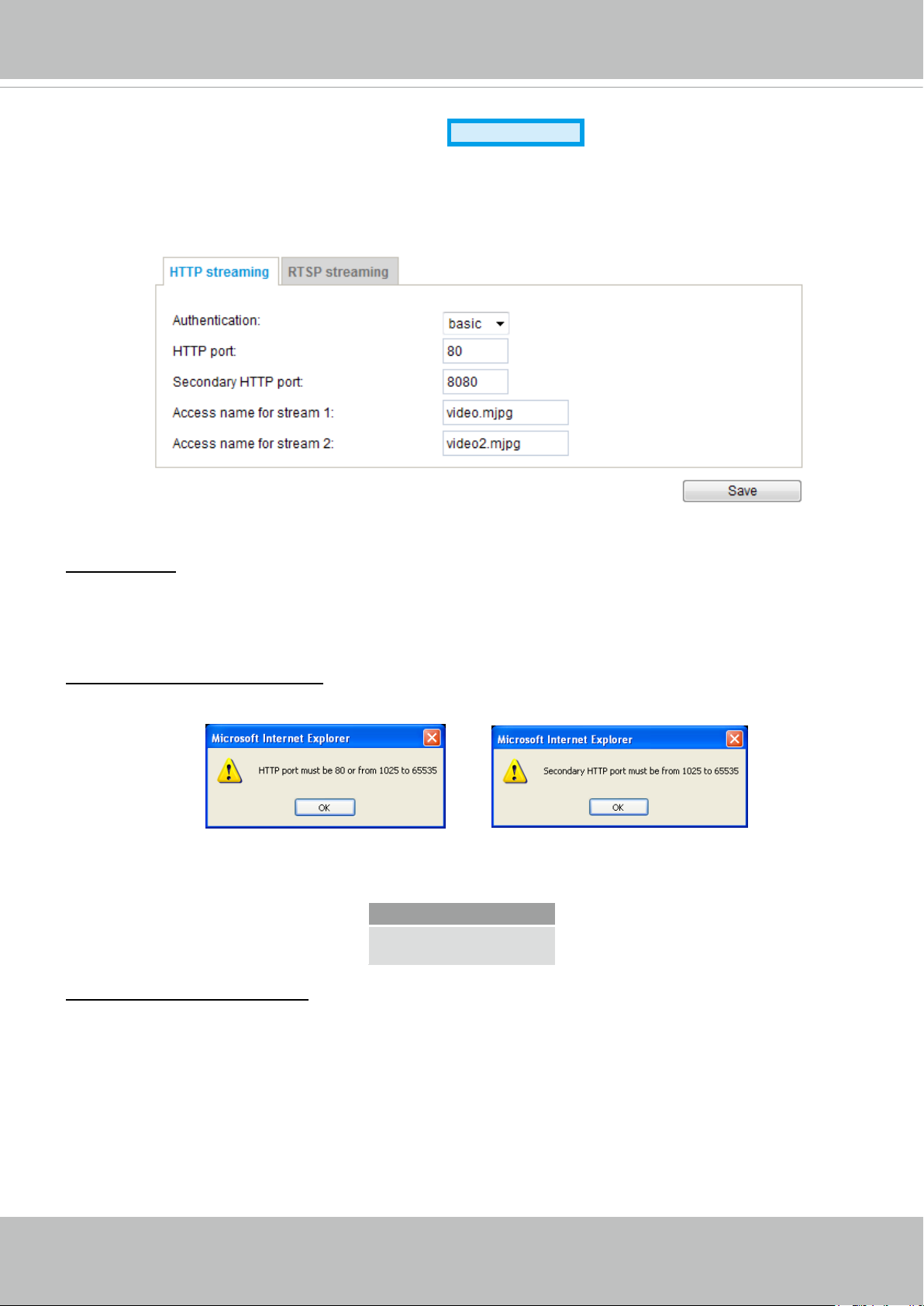

HTTP streaming

To utilize HTTP authentication, make sure that your have set a password for the Network Camera rst;

please refer to Security > User account on page 42 for details�

Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest� If basic authentication is selected, the password is sent in plain text format and there can be potential risks of being intercepted� If digest authentication is selected, user credentials are encrypted using MD5 algorithm and thus provide better protection against unauthorized accesses�

HTTP port / Secondary HTTP port: By default, the HTTP port is set to 80 and the secondary HTTP port is set to 8080� They can also be assigned to another port number between 1025 and 65535� If the ports are incorrectly assigned, the following warning messages will be displayed:

To access the Network Camera on the LAN, both the HTTP port and secondary HTTP port can be used

to access the Network Camera. For example, when the HTTP port is set to 80 and the secondary HTTP

port is set to 8080, refer to the list below for the Network Camera’s IP address�

On the LAN

http://192.168.4.160 or http://192.168.4.160:8080

Access name for stream 1 & 2: This Network camera supports multiple streams simultaneously� The access name is used to differentiate the streaming source� Users can click Media > Video > Stream

settings to set up the video quality of linked streams. For more information about how to set up the video

quality, please refer to Stream settings on page 79�

When using Mozilla Firefox or Netscape to access the Network Camera and the video mode is set to

JPEG, users will receive video comprised of continuous JPEG images. This technology, known as “server push”, allows the Network Camera to feed live pictures to Mozilla Firefox and Netscape.

User's Manual - 61

VIVOTEK

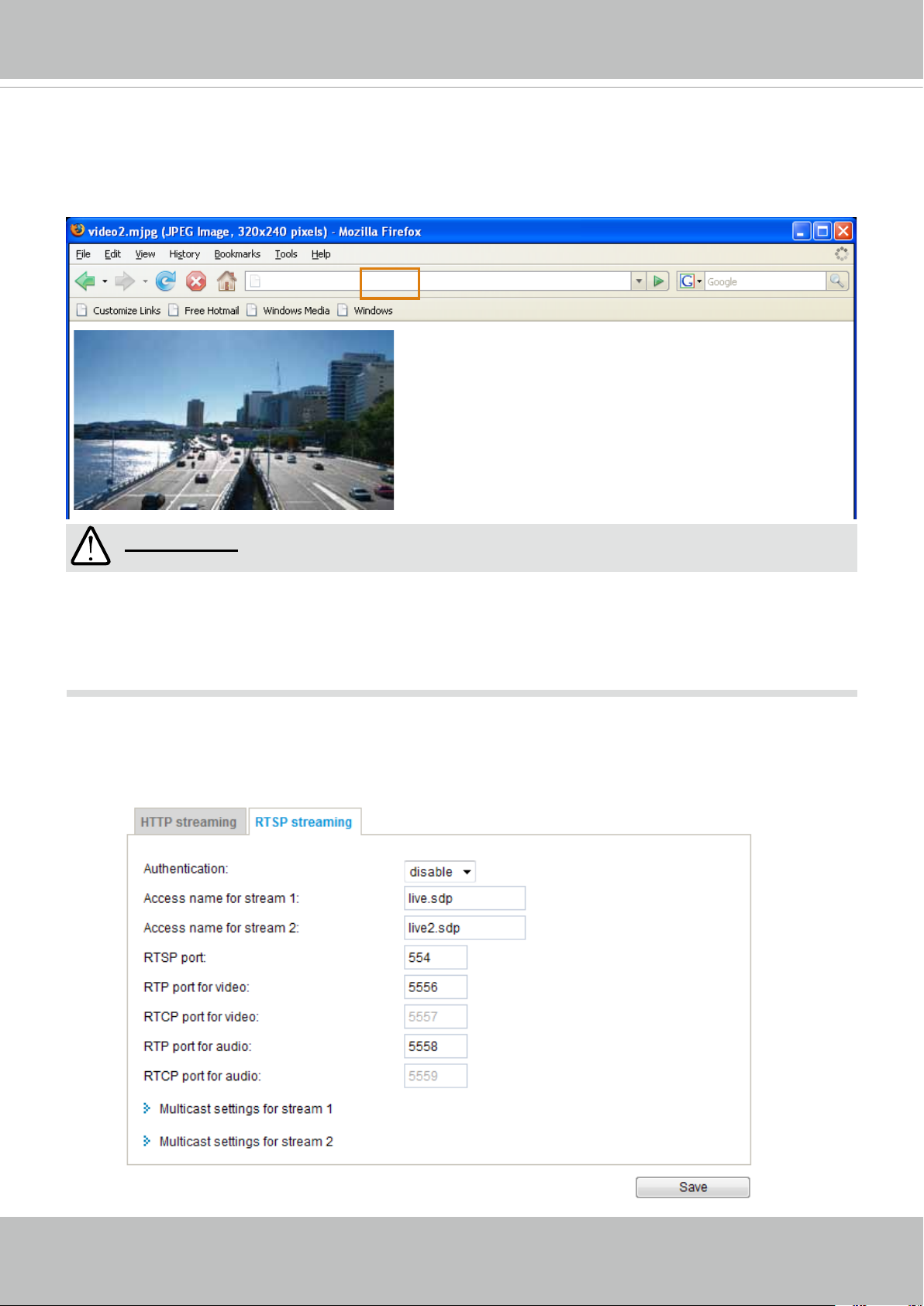

URL command -- http://<ip address>:<http port>/<access name for stream 1 ~ 2>

For example, when the Access name for stream 2 is set to video2�mjpg:

1. Launch Mozilla Firefox or Netscape.

2� Type the above URL command in the address bar� Press Enter�

3. The JPEG images will be displayed in your web browser.

http://192.168.5.151/video2.mjpg

IMPORTANT:

► Microsoft® Internet Explorer does not support server push technology; therefore, using http://<ip

address>:<http port>/<access name for stream 1 or 2> will fail to access the Network Camera�

► Users can only use URL commands to request the stream 5. For more information about URL

commands, please refer to page 117�

RTSP Streaming

To utilize RTSP streaming authentication, make sure that you have set a password for the Network

Camera rst; please refer to Security > User account on page 42 for details.

62 - User's Manual

VIVOTEK

Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest� If basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted� If digest authentication is selected, user credentials are encrypted using MD5 algorithm, thus providing better protection against unauthorized access� The availability of the RTSP streaming for the three authentication modes is listed in the following table:

Quick Time player Real Player

Disable O O Basic O O Digest O X

Access name for stream 1 ~ 2: This Network camera supports multiple streams simultaneously� The access name is used to differentiate the streaming source� If you want to use an RTSP player to access the Network Camera, you have to set the video mode of the corresponding stream to H�264 / MPEG-4 and use the following RTSP URL command to request transmission of the streaming data�

rtsp://<ip address>:<rtsp port>/<access name for stream 1 or 2>

For example, when the access name for stream 1 is set to live�sdp:

1� Launch an RTSP player�

2. Choose File > Open URL. A URL dialog box will prompt.

3. Type the above URL command in the address eld.

rtsp://192.168.5.151:554/live.sdp

4� The live video will be displayed in your player as shown below�

Video 16:38:01 2011/03/25

RTSP port /RTP port for video, audio/ RTCP port for video, audio

■ RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the port

number is set to 554�

■ The RTP (Real-time Transport Protocol) is used to deliver video and audio data to the clients. By

default, the RTP port for video is set to 5556 and the RTP port for audio is set to 5558�

■ The RTCP (Real-time Transport Control Protocol) allows the Network Camera to transmit the data by

monitoring the Internet trafc volume. By default, the RTCP port for video is set to 5557 and the RTCP

port for audio is set to 5559�

The ports can be changed to values between 1025 and 65535� The RTP port must be an even number and the RTCP port is the RTP port number plus one, and thus is always an odd number� When the RTP port changes, the RTCP port will change accordingly�

If the RTP ports are incorrectly assigned, the following warning message will be displayed:

User's Manual - 63

VIVOTEK

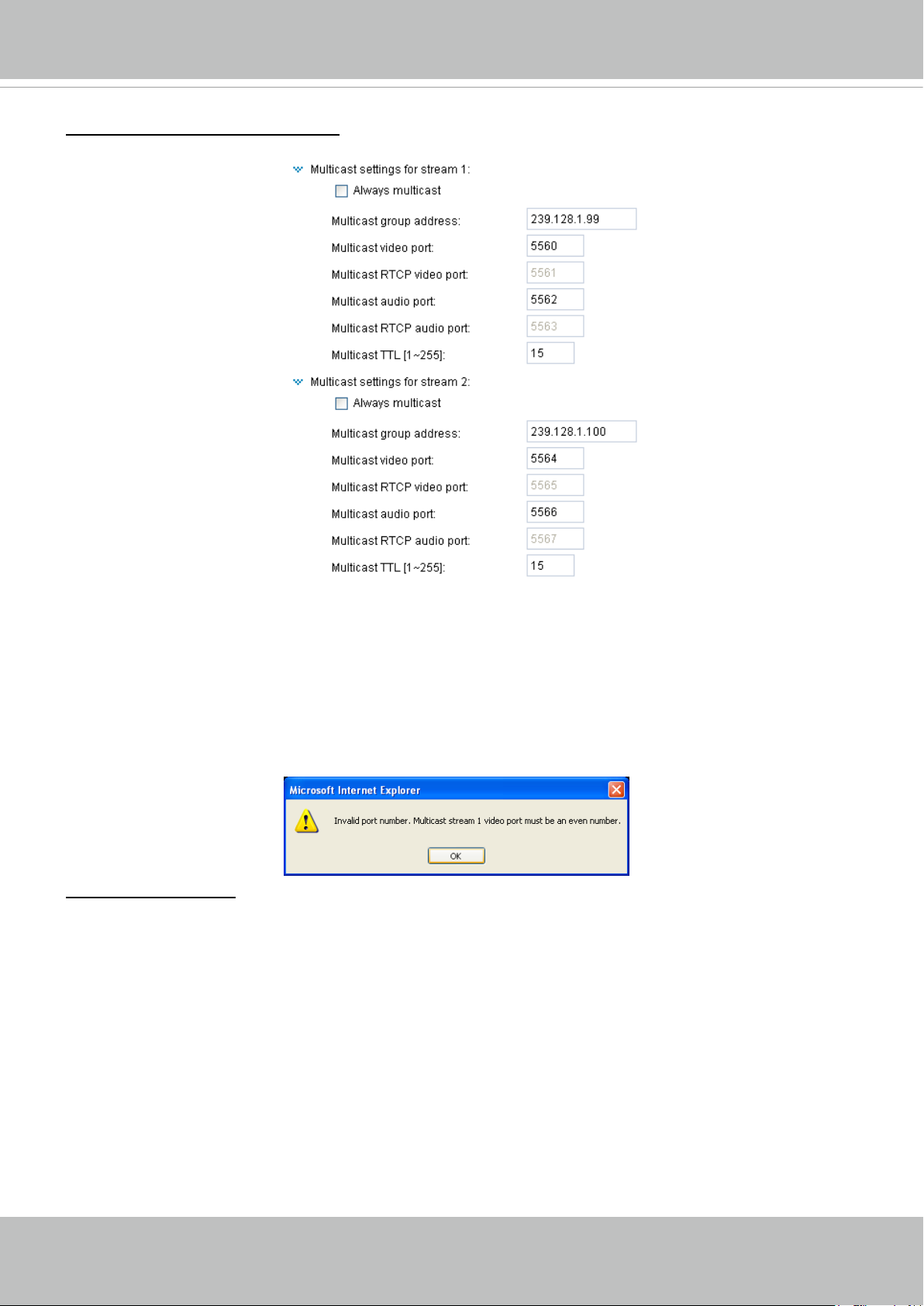

Multicast settings for stream 1 ~ 2: Click the items to display the detailed configuration information� Select the Always multicast option to enable multicast for stream 1 ~ 2�

Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address� Therefore, enabling multicast can effectively save Internet bandwidth�

The ports can be changed to values between 1025 and 65535� The multicast RTP port must be an even number and the multicast RTCP port number is the multicast RTP port number plus one, and thus is always odd� When the multicast RTP port changes, the multicast RTCP port will change accordingly�

If the multicast RTP video ports are incorrectly assigned, the following warning message will be displayed:

Multicast TTL [1~255]: The multicast TTL (Time To Live) is the value that tells the router the range a packet can be forwarded�

64 - User's Manual

VIVOTEK

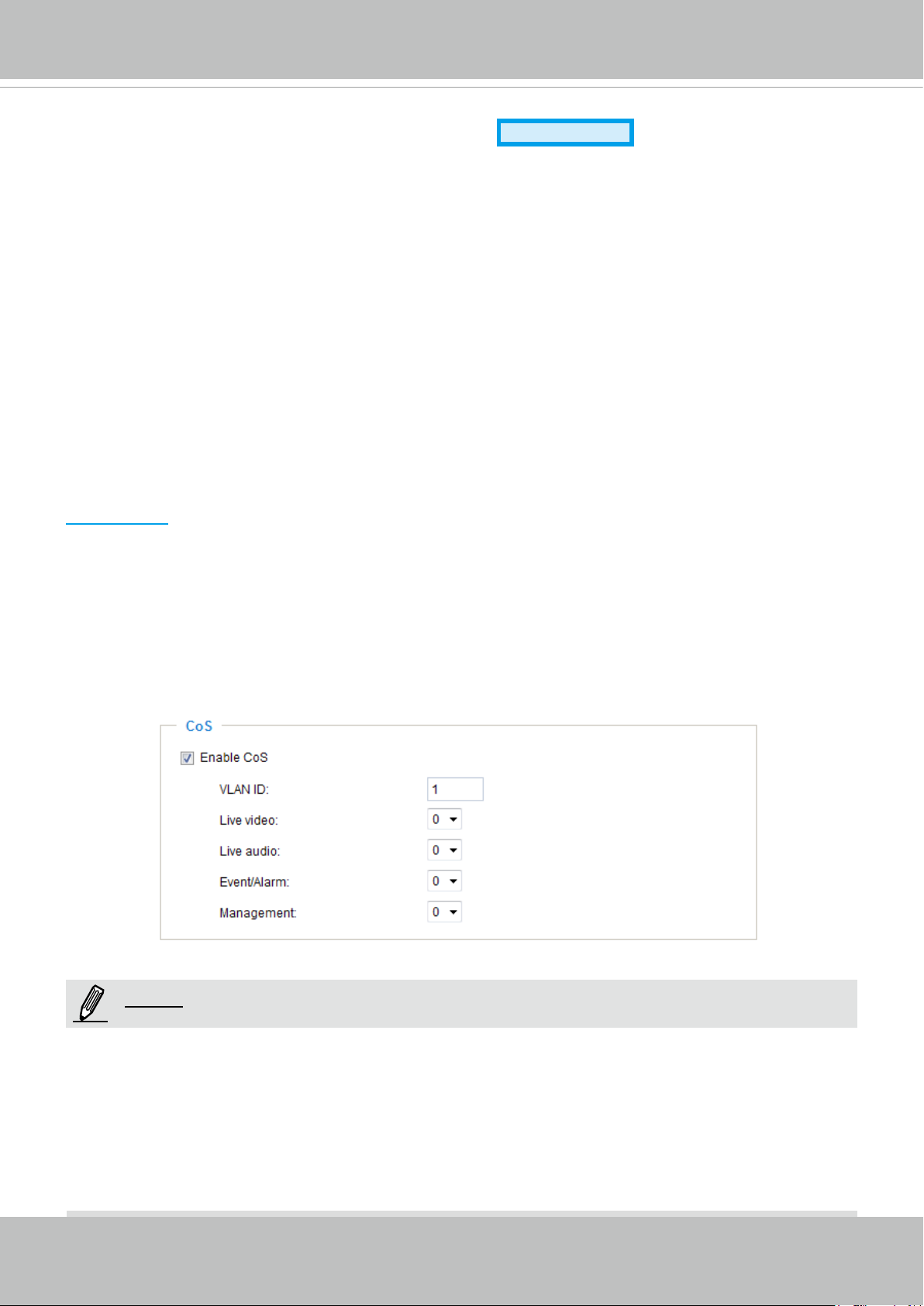

Network > QoS (Quality of Service)

Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network� Quality of service guarantees are important if the network capacity

is insufcient, especially for real-time streaming multimedia applications. Quality can be dened as, for

instance, a maintained level of bit rate, low latency, no packet dropping, etc�

The following are the main benets of a QoS-aware network:

The ability to prioritize trafc and guarantee a certain level of performance to the data ow.

■

The ability to control the amount of bandwidth each application may use, and thus provide higher

■

reliability and stability on the network�

Advanced Mode

Requirements for QoS

To utilize QoS in a network environment, the following requirements must be met:

All network switches and routers in the network must include support for QoS�

■

The network video devices used in the network must be QoS-enabled�

■

QoS models

CoS (the VLAN 802�1p model)

IEEE 802�1p defines a QoS model at OSI Layer 2 (Data Link Layer), which is called CoS, Class of Service� It adds a 3-bit value to the VLAN MAC header, which indicates the frame priority level from 0 (lowest) to 7 (highest)� The priority is set up on the network switches, which then use different queuing disciplines to forward the packets�

Below is the setting column for CoS� Enter the VLAN ID of your switch (0~4095) and choose the priority for each application (0~7)�

If you assign Video the highest priority level, your network switch will handle video packets rst.

NOTE:

► A VLAN Switch (802.1p) is required. Web browsing may fail if the CoS setting is incorrect.

► Class of Service technologies do not guarantee a level of service in terms of bandwidth and delivery

time; they offer a “best-effort.” Users can think of CoS as “coarsely-grained” trafc control and QoS as “nely-grained” trafc control.

► Although CoS is simple to manage, it lacks scalability and does not offer end-to-end guarantees since

it is based on L2 protocol�

User's Manual - 65

VIVOTEK

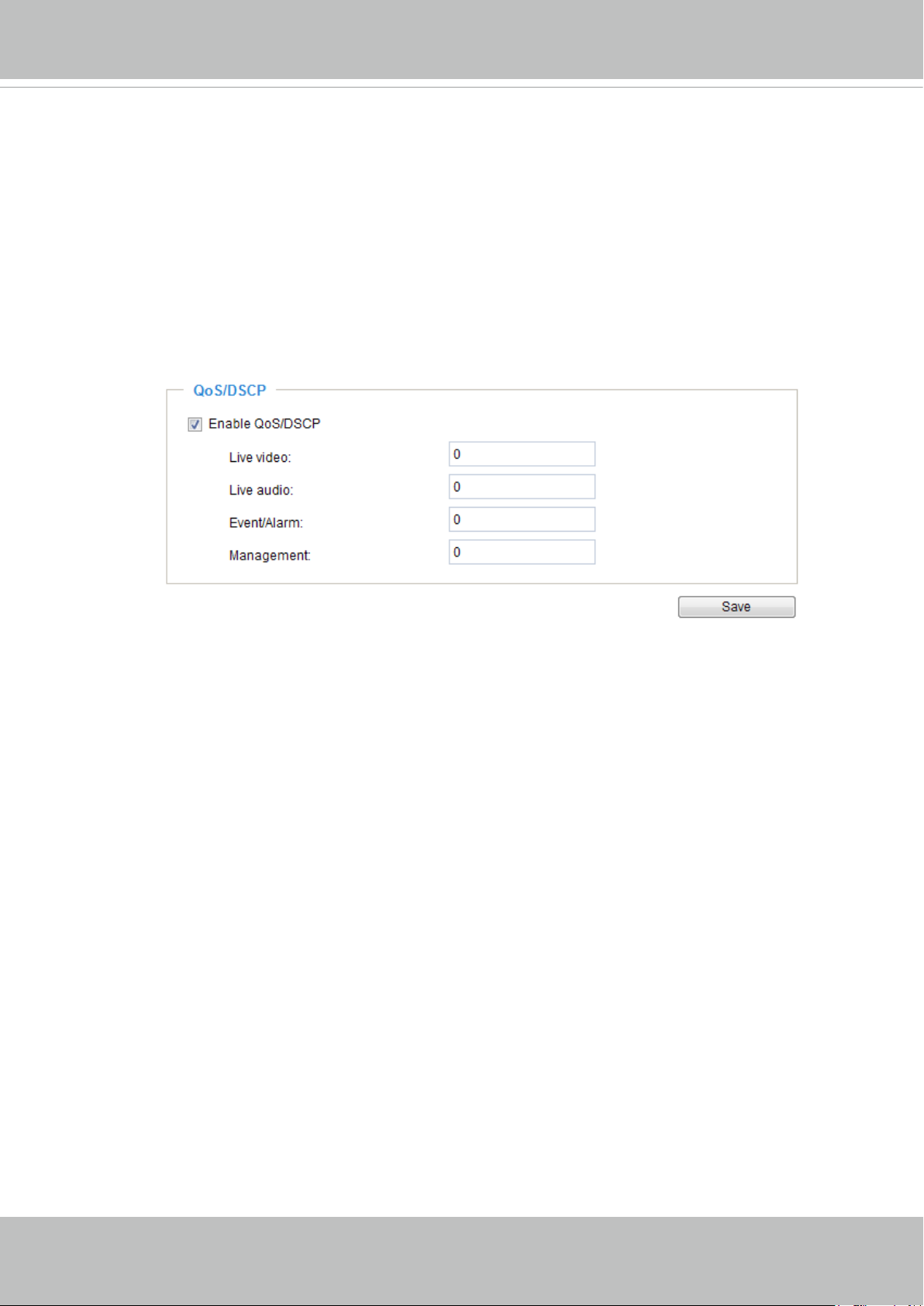

QoS/DSCP (the DiffServ model)

DSCP-ECN defines QoS at Layer 3 (Network Layer)� The Differentiated Services (DiffServ) model is

based on packet marking and router queuing disciplines. The marking is done by adding a eld to the

IP header, called the DSCP (Differentiated Services Codepoint)� This is a 6-bit field that provides 64 different class IDs� It gives an indication of how a given packet is to be forwarded, known as the Per Hop Behavior (PHB)� The PHB describes a particular service level in terms of bandwidth, queueing theory, and dropping (discarding the packet) decisions� Routers at each network node classify packets according to their DSCP value and give them a particular forwarding treatment; for example, how much bandwidth to reserve for it�

Below are the setting options of DSCP (DiffServ Codepoint)� Specify the DSCP value for each application (0~63)�

66 - User's Manual

VIVOTEK

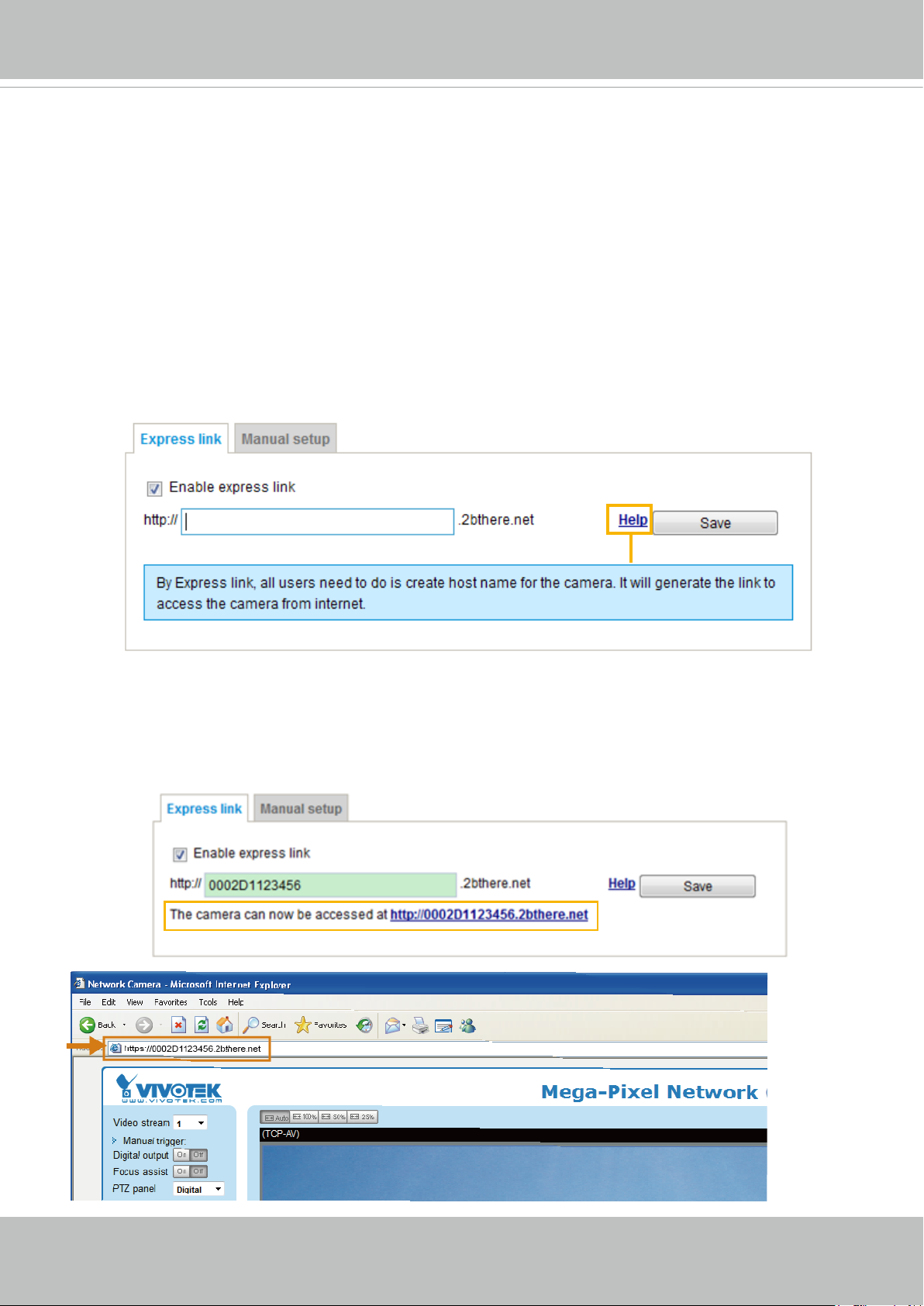

Network > DDNS

This section explains how to configure the dynamic domain name service for the Network Camera� DDNS is a service that allows your Network Camera, especially when assigned with a

dynamic IP address, to have a xed host and domain name.

Express link

Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device� One URL can only be mapped to one MAC address� This service will examine whether a host name is valid and automatically open a port on your router� Unlike DDNS, which requires a user to manually check out details about UPnP port forwarding, the Express Link is more convenient and easy to set up�

Please follow the steps below to enable Express Link: 1� Make sure that your router supports UPnP port forwarding and it is activated, or you may see the

following warning message: Express link is not supported under current network environment�

2� Check Enable express link� 3� Enter a host name for the network device and click Save� If the host name has been used by another

device, a warning message will show up� If the host name is valid, it will show a message as shown below�

User's Manual - 67

VIVOTEK

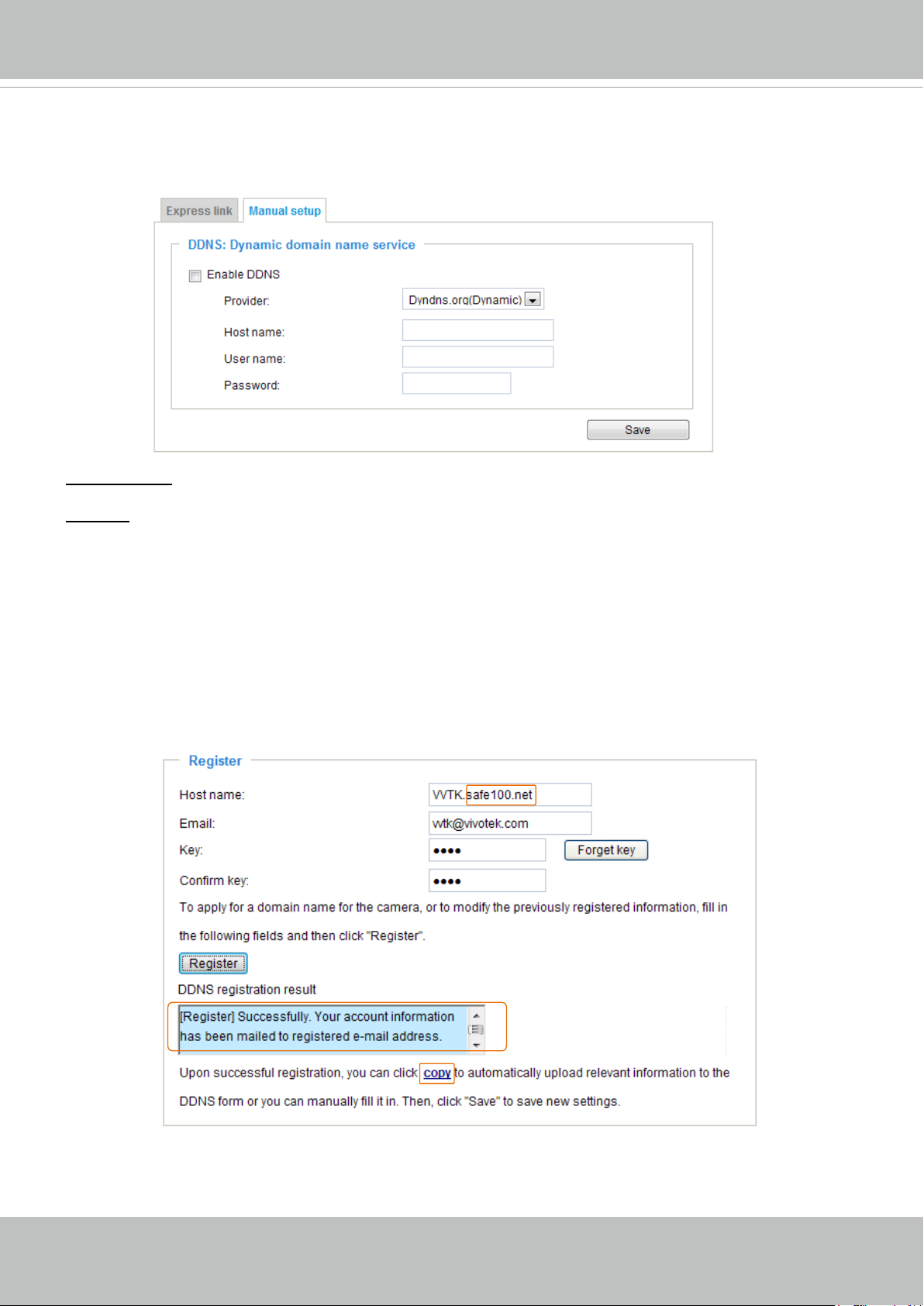

Manual setup

DDNS: Dynamic domain name service

Enable DDNS: Select this option to enable the DDNS setting�

Provider: Select a DDNS provider from the provider drop-down list� VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers� It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the Internet� Additionally, we offer other DDNS providers, such as Dyndns�org(Dynamic), Dyndns�org(Custom), TZO� com, DHS�org, CustomSafe100, dyn-interfree�it�

Note that before utilizing this function, please apply for a dynamic domain account rst.

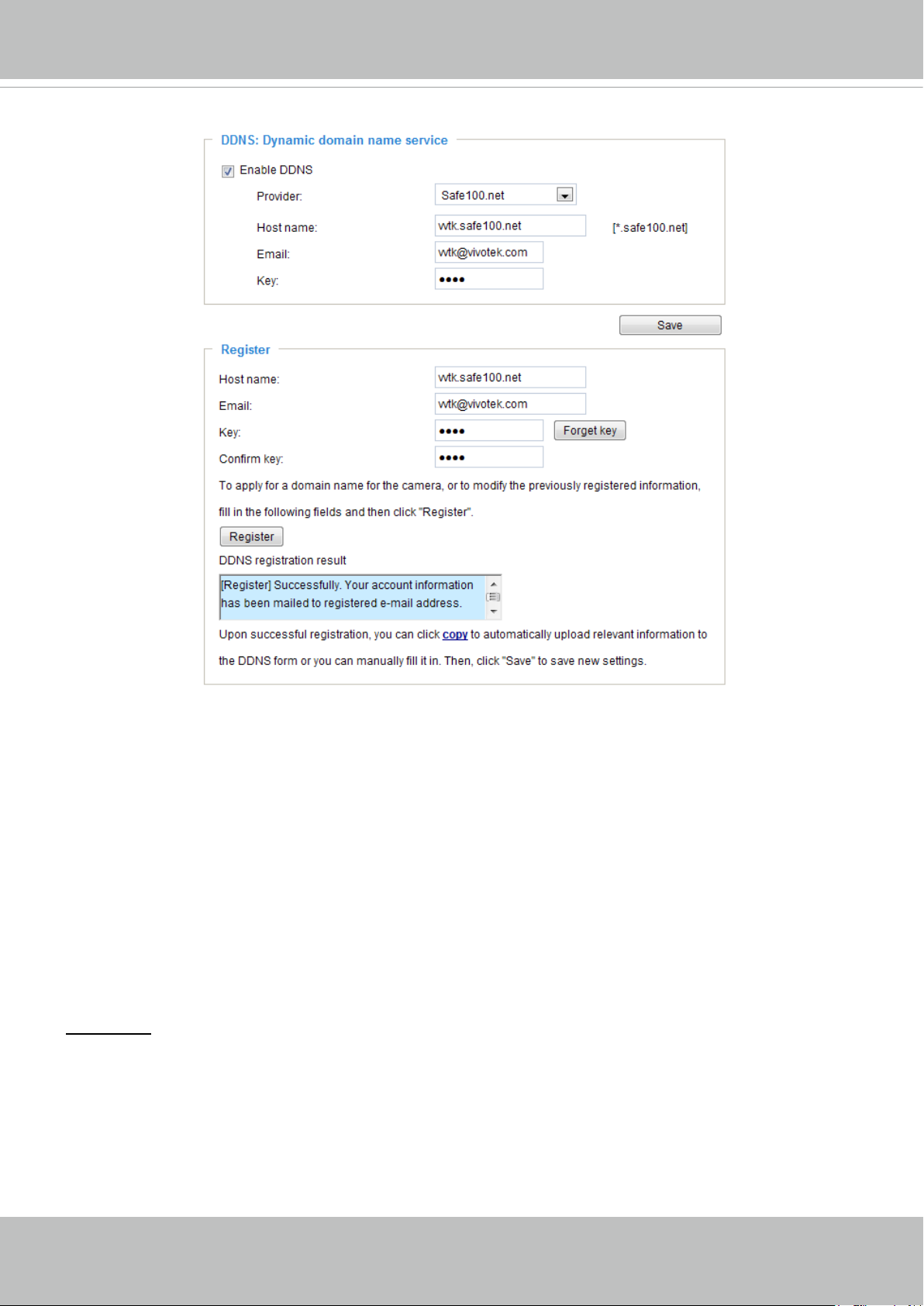

■ Safe100�net

1� In the DDNS column, select Safe100.net from the drop-down list� Click I accept after reviewing the

terms of the Service Agreement�

2. In the Register column, ll in the Host name (xxxx.safe100.net), Email, Key, and Conrm Key, and

click Register� After a host name has been successfully created, a success message will be displayed in the DDNS Registration Result column�

3� Click Copy and all the registered information will automatically be uploaded to the corresponding elds

in the DDNS column at the top of the page as seen in the following screen�

68 - User's Manual

VIVOTEK

4� Select Enable DDNS and click Save to enable the setting�

■ CustomSafe100

VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators� You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services�

1� In the DDNS column, select CustomSafe100 from the drop-down list�

2. In the Register column, ll in the Host name, Email, Key, and Conrm Key; then click Register� After a

host name has been successfully created, you will see a success message in the DDNS Registration Result column�

3� Click Copy and all for the registered information will be uploaded to the corresponding elds in the

DDNS column�

4� Select Enable DDNS and click Save to enable the setting�

Forget key: Click this button if you have forgotten the key to Safe100�net or CustomSafe100� Your account information will be sent to your email address�

Refer to the following links to apply for a dynamic domain account when selecting other DDNS providers:

■ Dyndns�org(Dynamic) / Dyndns�org(Custom): visit http://www�dyndns�com/

■ TZO�com: visit http://www�tzo�com/

■ DHS�org: visit http://www�dhs�org/

■ dyn-interfree�it: visit http://dyn-interfree�it/

User's Manual - 69

VIVOTEK

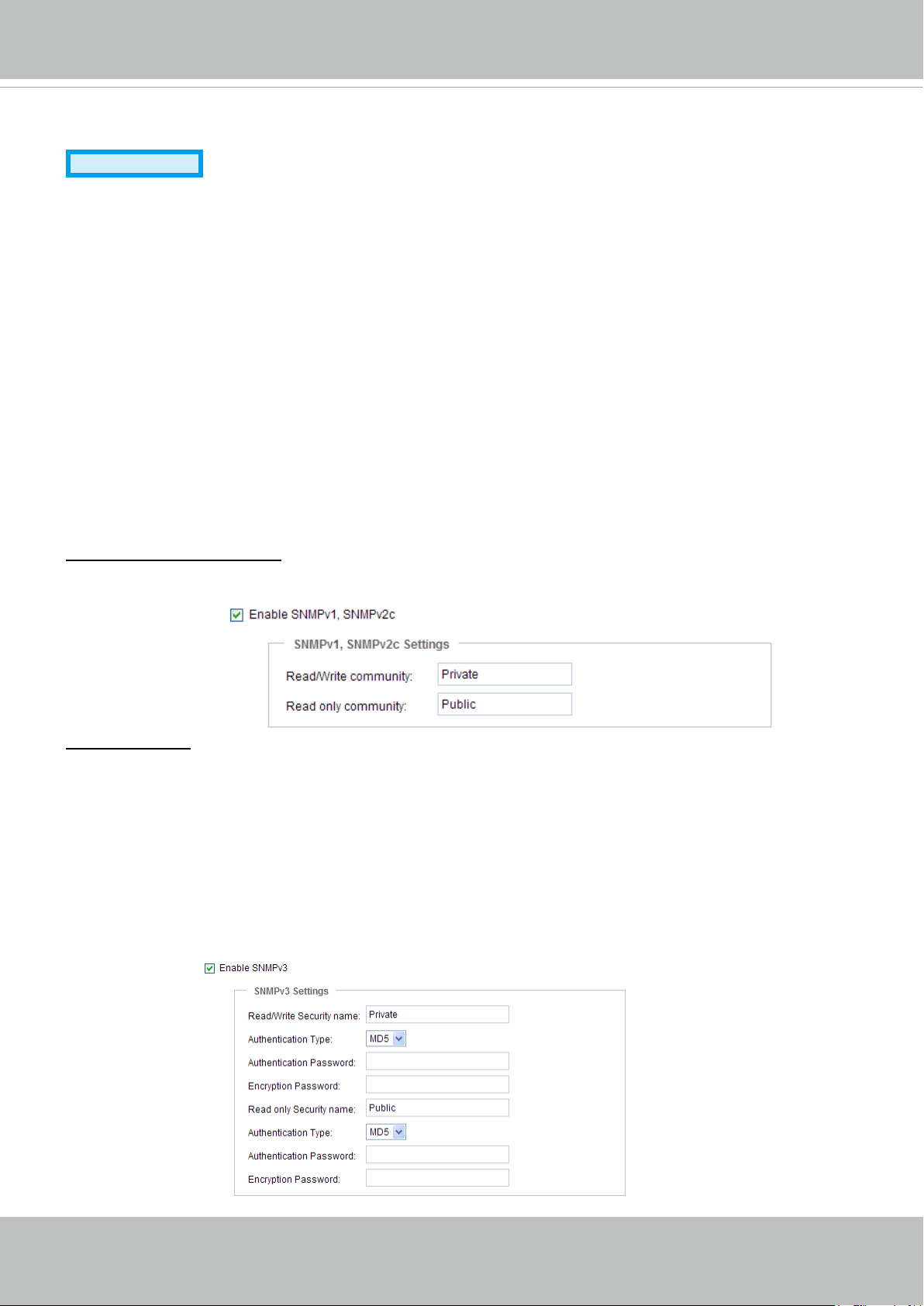

Network > SNMP (Simple Network Management Protocol)

Advanced Mode

This section explains how to use the SNMP on the network camera� The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices� It helps network administrators to remotely

manage network devices and nd, solve network problems with ease.

■ The SNMP consists of the following three key components:

1� Manager: Network-management station (NMS), a server which executes applications that monitor and

control managed devices�

2� Agent: A network-management software module on a managed device which transfers the status of

managed devices to the NMS�

3. Managed device: A network node on a managed network. For example: routers, switches, bridges,

hubs, computer hosts, printers, IP telephones, network cameras, web server, and database�

4� The default SNMP port is 161�

Before conguring SNMP settings on the this page, please enable your NMS rst.

SNMP Conguration

Enable SNMPv1, SNMPv2c Select this option and enter the names of Read/Write community and Read Only community according to

your NMS settings�

Enable SNMPv3 This option contains cryptographic security, a higher security level, which allows you to set the Authentication password and the Encryption password�

■ Security name: According to your NMS settings, choose Read/Write or Read Only and enter the

community name�

■ Authentication type: Select MD5 or SHA as the authentication method.

■ Authentication password: Enter the password for authentication (at least 8 characters).

■ Encryption password: Enter a password for encryption (at least 8 characters).

70 - User's Manual

VIVOTEK

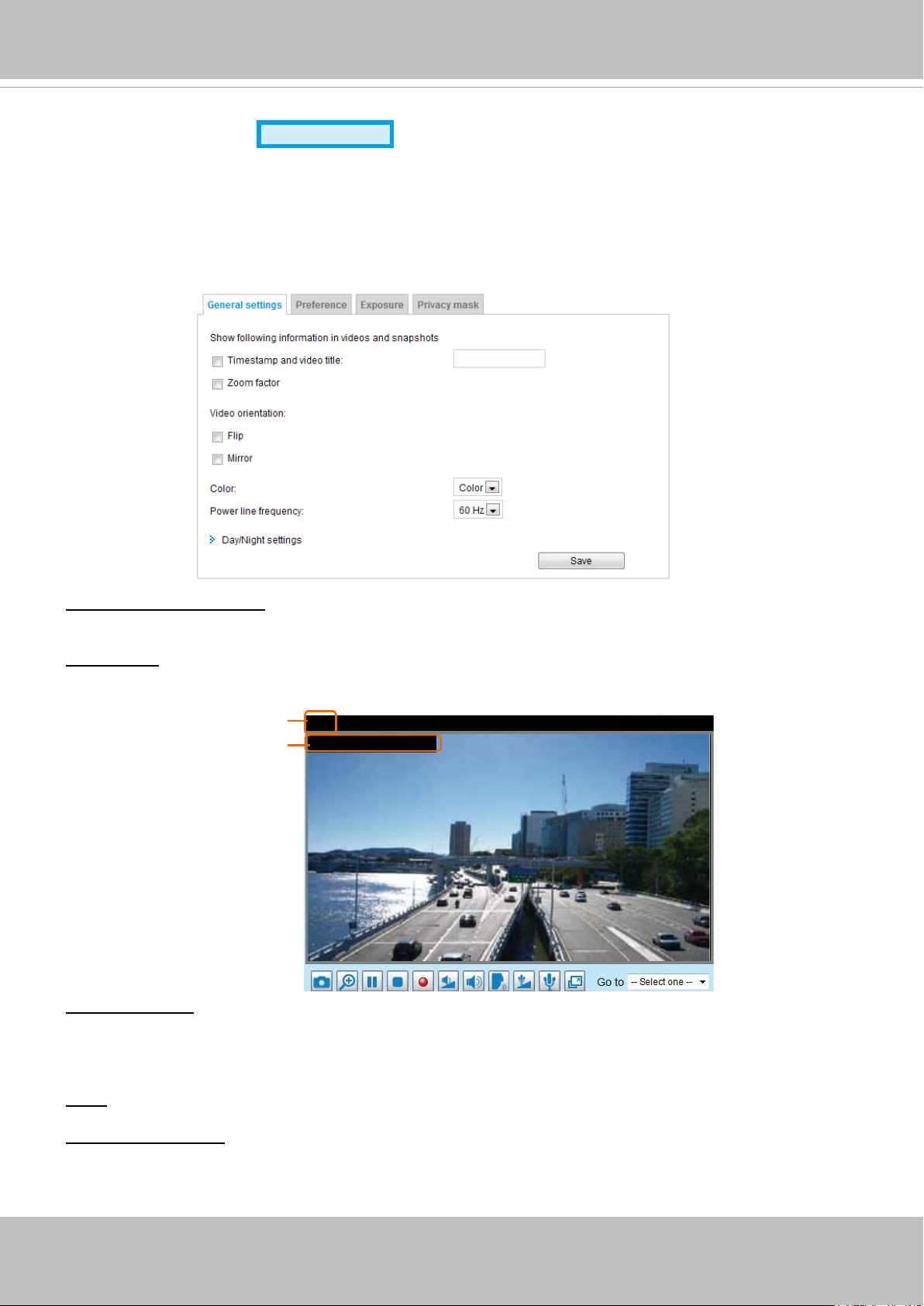

Media > Image

Advanced Mode



This section explains how to configure the image settings of the Network Camera� It is composed of the following four columns: General settings, Preference, Exposure, and Privacy mask�

General settings

Timestamp and video title: Enter a name that will be displayed on the title bar of the live video as the picture shown below� The manually written title will be displayed with every video live view�

Zoom factor: If you check this item, the zoom indicator will be displayed on the Home page when you zoom in/out the live viewing window as the picture shown below� You may zoom in/out the image by scrolling the mouse inside the live viewing window�

Video Title

Title and Time

Video (TPC-AV)

Video 2011/03/13 17:08:56

Video orientation: Flip--vertically reect the display of the live video; Mirror--horizontally reect the display of the live video� Select both options if the Network Camera is installed upside-down (e�g�, on the ceiling)

to correct the image orientation. Please note that the e-PTZ preset locations will be cleared after ip/

mirror�

Color: Select to display color or black/white video streams�

Power line frequency: Set the power line frequency consistent with local utility settings to eliminate image flickering associated with fluorescent lights� Note that after the power line frequency is changed, you must disconnect and reconnect the power cord of the Network Camera in order for the new setting to take effect�

User's Manual - 71

VIVOTEK

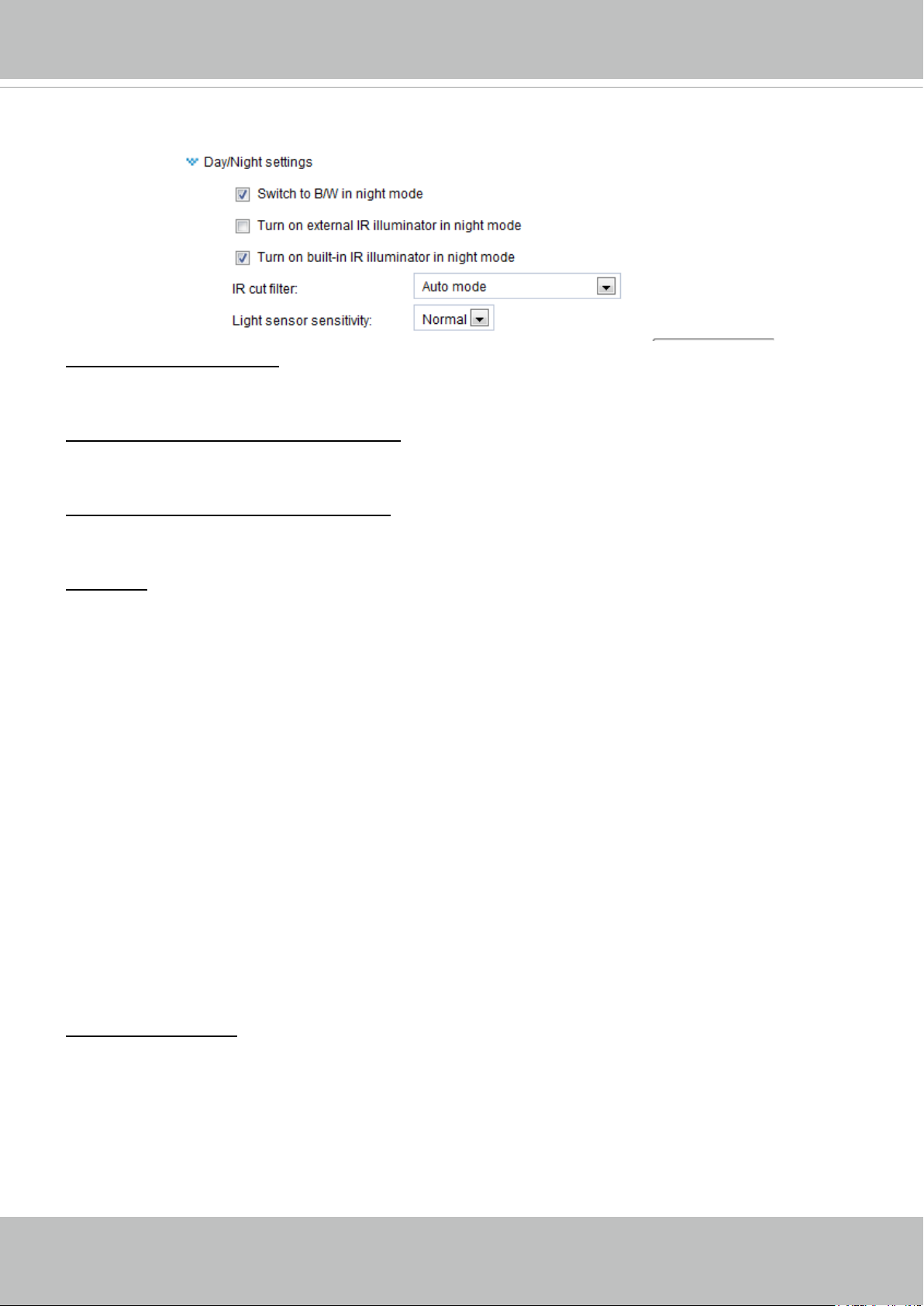

Day/Night Settings

Switch to B/W in night mode

Select this checkbox to enable the Network Camera to automatically switch to Black & White display

during the night mode�

Turn on external IR illuminator in night mode If you install external IR illuminator along with your camera with digital input signals, you can turn on the external illuminators when the camera enters the night mode�

Turn on built-in IR illuminator in night mode Select this checkbox for the camera to turn on the embedded IR illuminators when the camera enters the night mode�

IR cut lter With a removable IR-cut lter, this Network Camera can automatically remove the lter to let Infrared light

pass into the sensor during low light conditions�

■ Auto mode

The Network Camera automatically removes the lter by judging the level of ambient light.

■ Day mode

In day mode, the Network Camera switches on the IR cut lter at all times to block infrared light from

reaching the sensor so that the colors will not be distorted�

■ Night mode

In night mode, the Network Camera switches off the IR cut lter at all times for the sensor to accept

infrared light, turn on the IR illuminators, and thus helping to improve low light sensitivity�

■ Synchronize with digital input 1, digital input 2, and digital input 3.

The Network Camera automatically removes the IR cut lter when a digital input is triggered, such as

the external IR lights�

■ Schedule mode

The Network Camera switches between day mode and night mode based on a specied schedule.

Enter the start and end time for day mode� Note that the time format is [hh:mm] and is expressed in 24-hour clock time� By default, the start and end time of day mode are set to 07:00 and 18:00�

Light sensor sensitivity Select Low, Normal, or High sensitivity for the light sensor�

72 - User's Manual

VIVOTEK

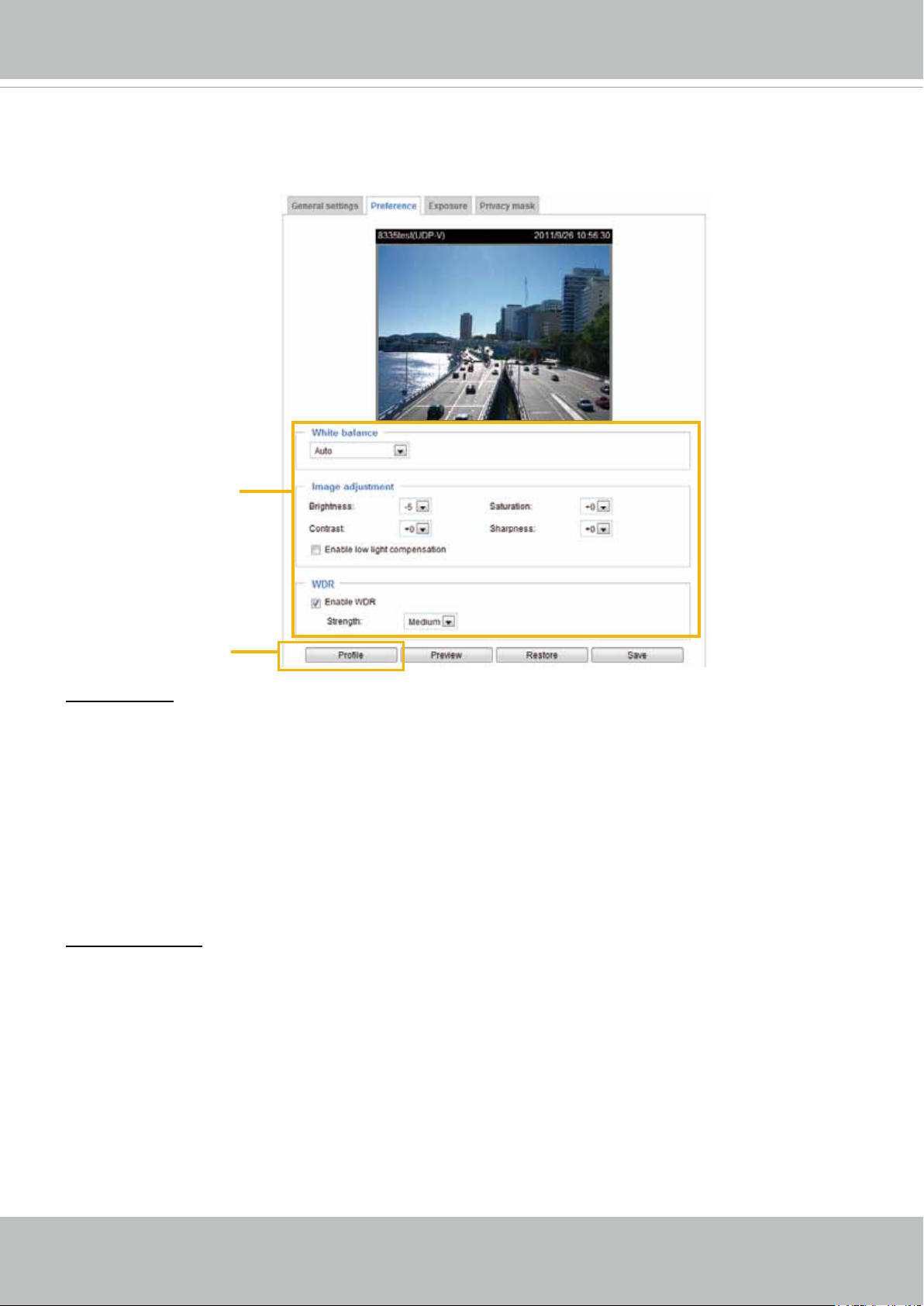

Preference

On this page, you can tune the Image adjustment parameters. You can congure two sets of preferred

settings: one for normal situations, the other for special situations, such as day/night/schedule mode�

Sensor Setting 1:

For normal situations

Sensor Setting 2:

For special situations

White balance: Adjust the value for the best color temperature�

■ Auto

The Network Camera automatically adjusts the color temperature of the light in response to different light sources� The white balance setting defaults to Auto and it works well in most situations�

■ Keep current value Follow the steps below to manually set the white balance to compensate for the ambient lighting

conditions�

1� Set the White balance to Auto and click Save� 2� Place a sheet of white paper in front of the lens, then allow the Network Camera to adjust the color

temperature automatically�

3. Select Keep Current Value to conrm the setting while the white balance is being measured.

4� Click Save to enable the new setting�

Image Adjustment

■ Brightness: Adjust the image brightness level, which ranges from -5 to +5.

■ Saturation: Adjust the image saturation level, which ranges from -5 to +5. You can also select

Customize and manually enter a value�

■ Contrast: Adjust the image contrast level, which ranges from -5 to +5. Please note that this function will

be disabled if you enable WRD enhancement in the column below�

■ Sharpness:

Adjust the image sharpness level, which ranges from -3 to +3�

You can also select

Customize and manually enter a value�

■ Enable low light compensation: Select this option in low light mode, and the values of sharpness and

brightness will change automatically with the noise reduction function�

User's Manual - 73

VIVOTEK

WDR (Wide Dynamic Range):

This function allows users to identify more image details in an environment with dark objects posed against an extremely bright background� You may enable the function by the Enable WDR checkbox� You may then adjust the strength of WDR implementation (low, medium, high) to acquire the best image quality�

You can click Preview to fine-tune the image, or click Restore to recall the original settings without incorporating the changes� When completed with the settings on this page, click Save to enable the setting�

If you want to congure another sensor setting for day/night/schedule mode, please click Prole to open the Prole Settings page as shown below.

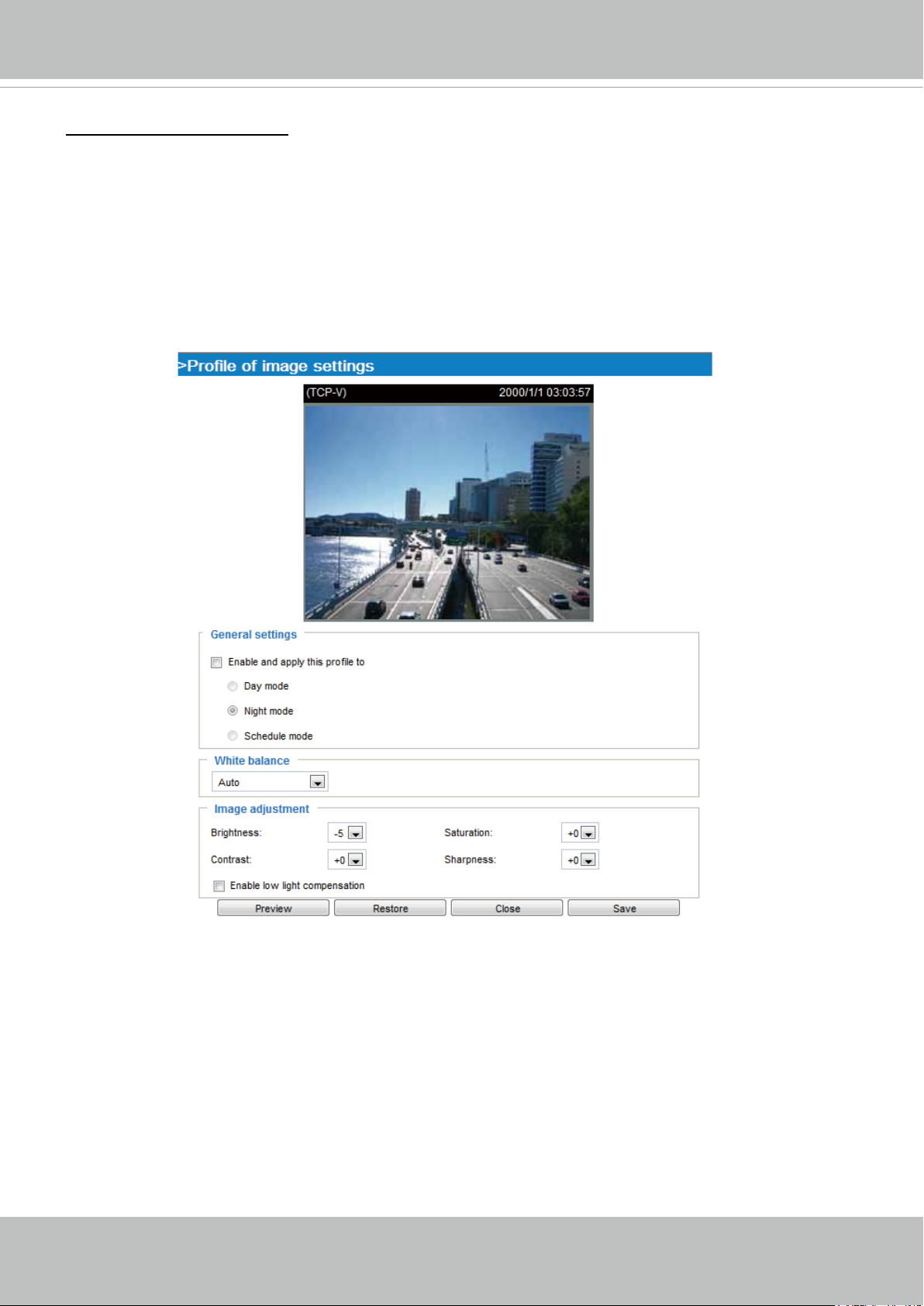

Please follow the steps below to setup a prole:

1� Check Enable and apply this prole� 2� Select the applied mode: Day mode, Night mode, or Schedule mode� Please manually enter a range of

time if you choose Schedule mode�

3� Configure the settings in the following columns� Please refer to the previous page for detailed

information�

4� Click Save to enable the settings and click Close to exit the page�

74 - User's Manual

VIVOTEK

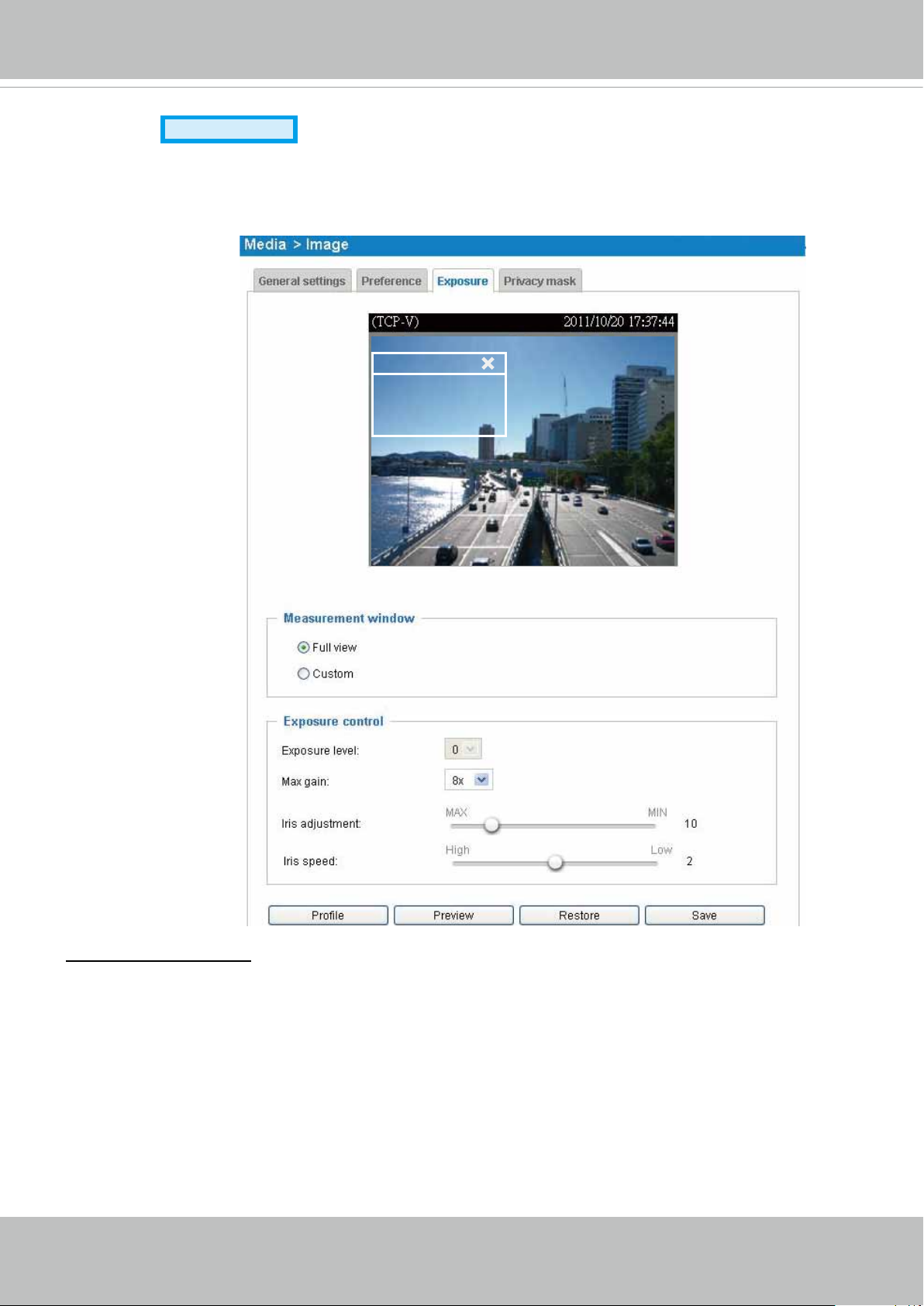

Exposure

Advanced Mode

On this page, you can set the Exposure measurement window, Exposure level, Exposure mode,

Exposure time, Gain control, and P-Iris settings. You can congure two sets of Exposure settings: one for

normal situations, the other for special situations, such as day/night/schedule mode�

Window

Measurement Window: This function allows users to set measurement window(s) for low light compesation�

■ Full view: Calculate the full range of view and offer appropriate

light compensation�

■ Custom: This option allows you to manually add one customized window as the inclusive light

measurement area�

The custom exposure window refers to the “weighted window“ where the camera rmware utilizes the

weighted averages method to come up with an optimal value�

User's Manual - 75

VIVOTEK

Window

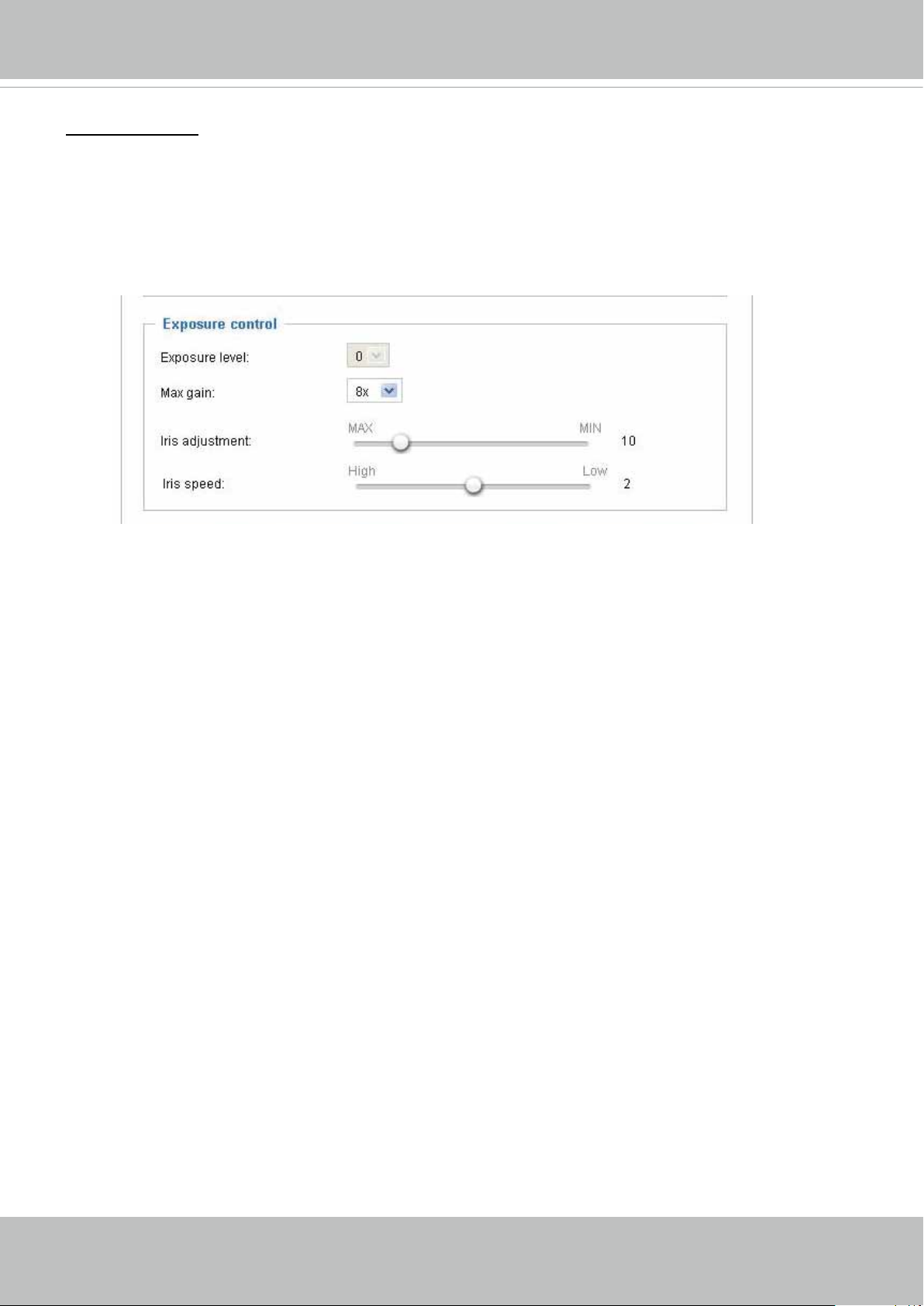

Exposure control:

■

Exposure level: You can manually set the Exposure level, which ranges from 0 to 8 (dark to bright)�

Note that if WDR function is enabled, the Exposure level menu will be disabled!

Higher exposure rate improves image quality, but may come with the trade-off of motion blurs�

■

Max gain: Select the reasonable signal gain value exerted by the automated P-iris mechanism to

maintain a good imaging quality. Note that the gain control, depth of eld (related to the size of iris

opening), lighting conditions, and picture performance are closely related�

■

Iris Adjustment: The camera comes with a P-iris lens, which controls the iris opening with extreme

precision by its built-in stepping motor� Via software controls, the lens maintains the iris opening at an

optimal level at all times, resulting in superior sharpness and depth of eld as well as image quality.

You can manually tune the value of iris opening (aperture size), which can range from 1 to 100 (long

depth of eld).

• The smallest number, 1, means the iris is open as wide as possible (largest amount of light

received with shortest depth of eld)�

• The largest number, 100, means the iris is narrowed down as much as possible (smallest amount

of light received with longest depth of eld)�

Once set, the iris will stay at current position as long as the lighting condition allows� When external

lighting conditions exceed an acceptable range, the P-iris mechanism adjusts itself�

■ Iris speed:

The Iris speed slide bar is for adjusting the opening or closing speed of the iris from 1

(High) to 3 (Low) steps� You can also adjust the Gain control and Exposure level according to the

ambient light�

You can click Preview to fine-tune the image, or click Restore to recall the original settings without incorporating the changes� When completed with the settings on this page, click Save to enable the settings�

76 - User's Manual

VIVOTEK

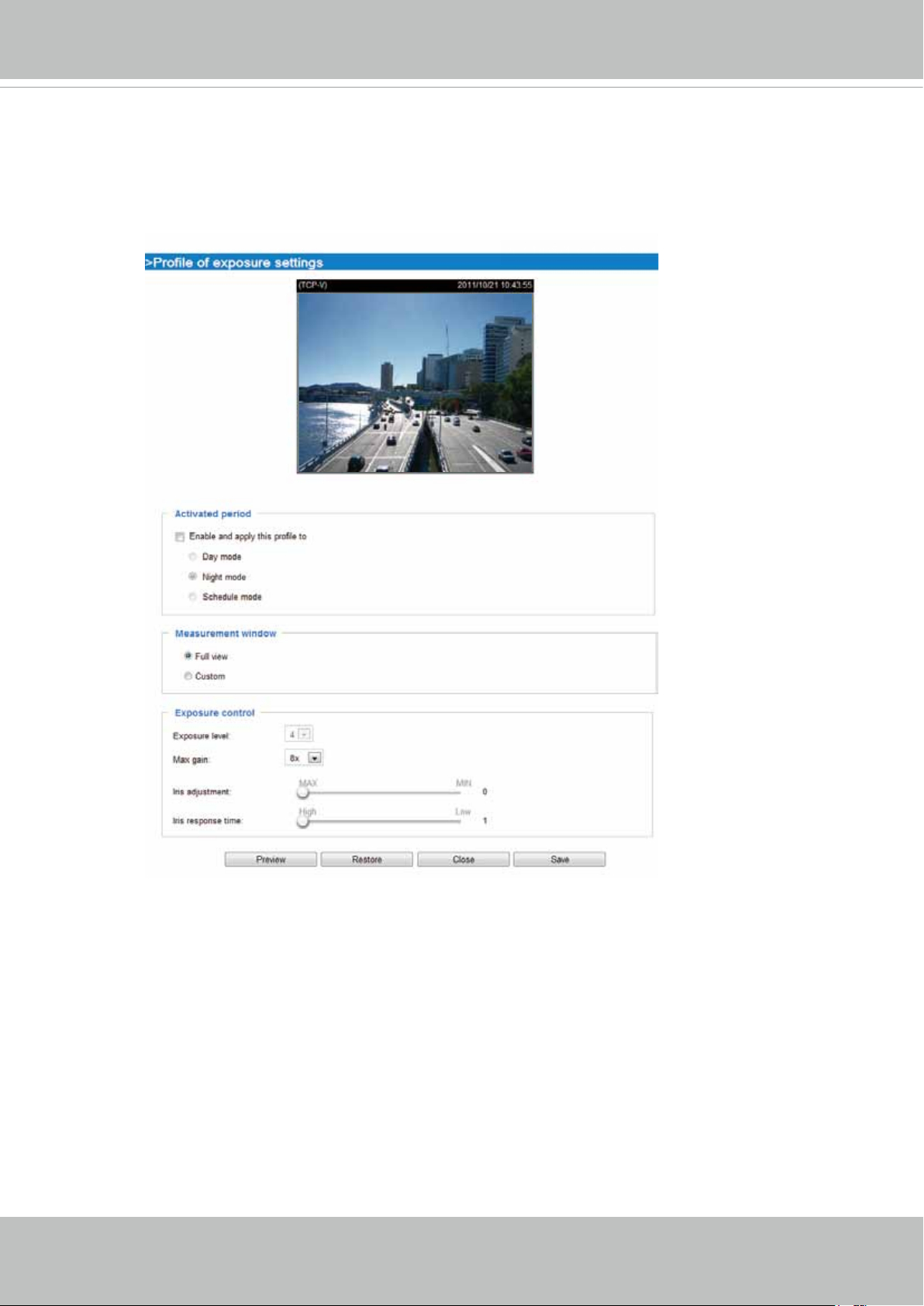

You can click Preview to fine-tune the image, or click Restore to recall the original settings without incorporating the changes� When completed with the settings on this page, click Save to enable the settings�

If you want to congure another sensor setting for day/night/schedule mode, please click Prole to open the Prole settings page as shown below.

2011/03/13 17:08:56

Please follow the steps below to setup a prole:

1� Check Enable and apply this prole� 2� Select one of the applicable modes: Day mode, Night mode, or Schedule mode� Please manually

enter a range of time through which you want the Schedule mode to apply�

3. Congure Exposure control settings in the folowing columns� Please refer to the previous page for

detailed information�

4� Click Save to enable the setting and click Close to exit the page�

User's Manual - 77

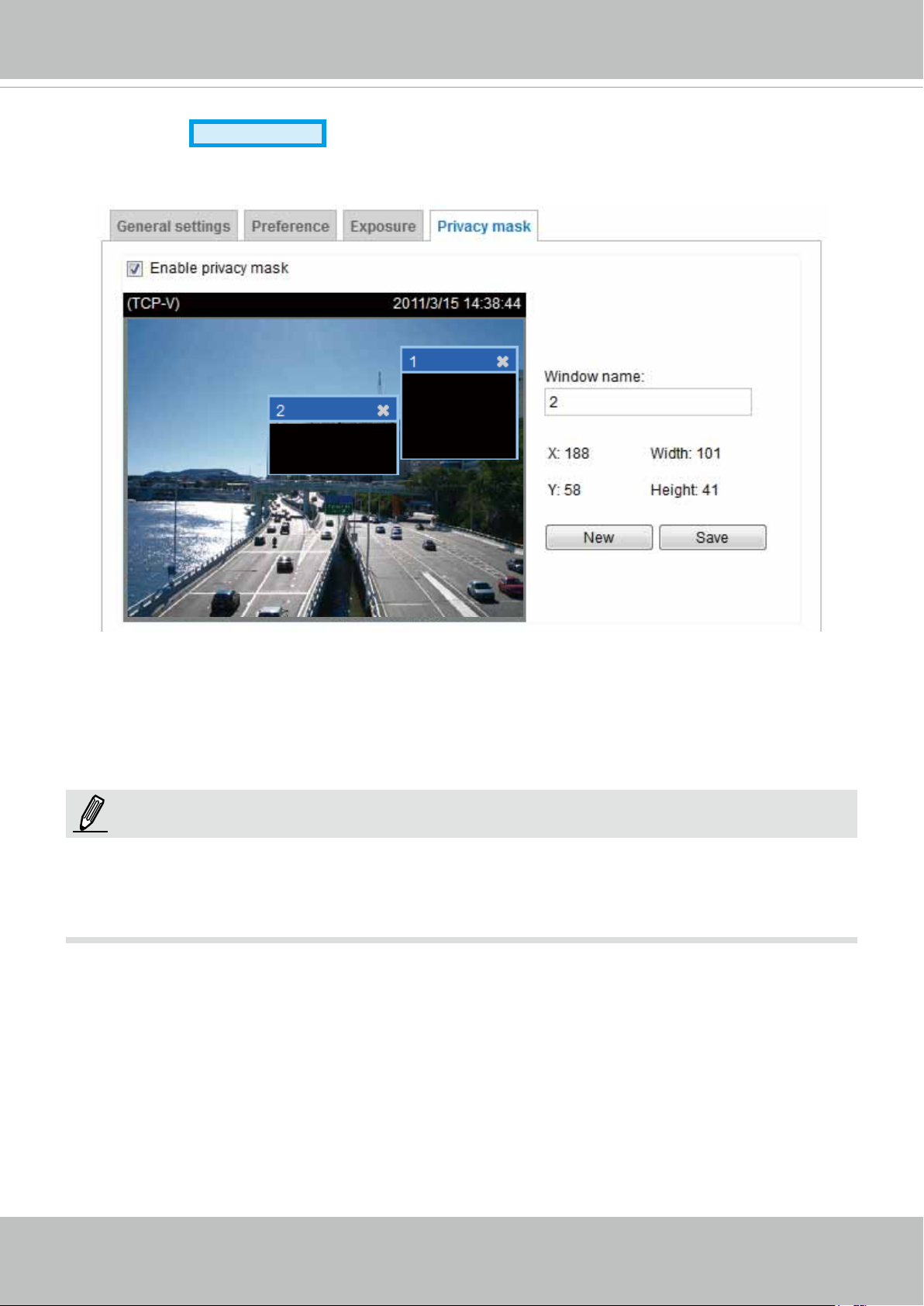

Privacy mask

Click Privacy Mask to open the settings page� On this page, you can block out certain sensitive zones to address privacy concerns�

Advanced Mode

■ To congure privacy mask windows, follow the steps below: 1� Click New to add a new window� 2� Move your mouse cursor to size and drag-drop the window, which is recommended to be at least twice

the size of the object (height and width) you want to cover�

3� Enter a Window Name and click Save to enable the setting� 4� Check Enable privacy mask to enable this function�

NOTE:

►

Up to 5 privacy mask windows can be congured on the same screen.

► If you want to delete a congured

mask

window, click on the ‘X’ button at the upper right corner of the

window�

VIVOTEK

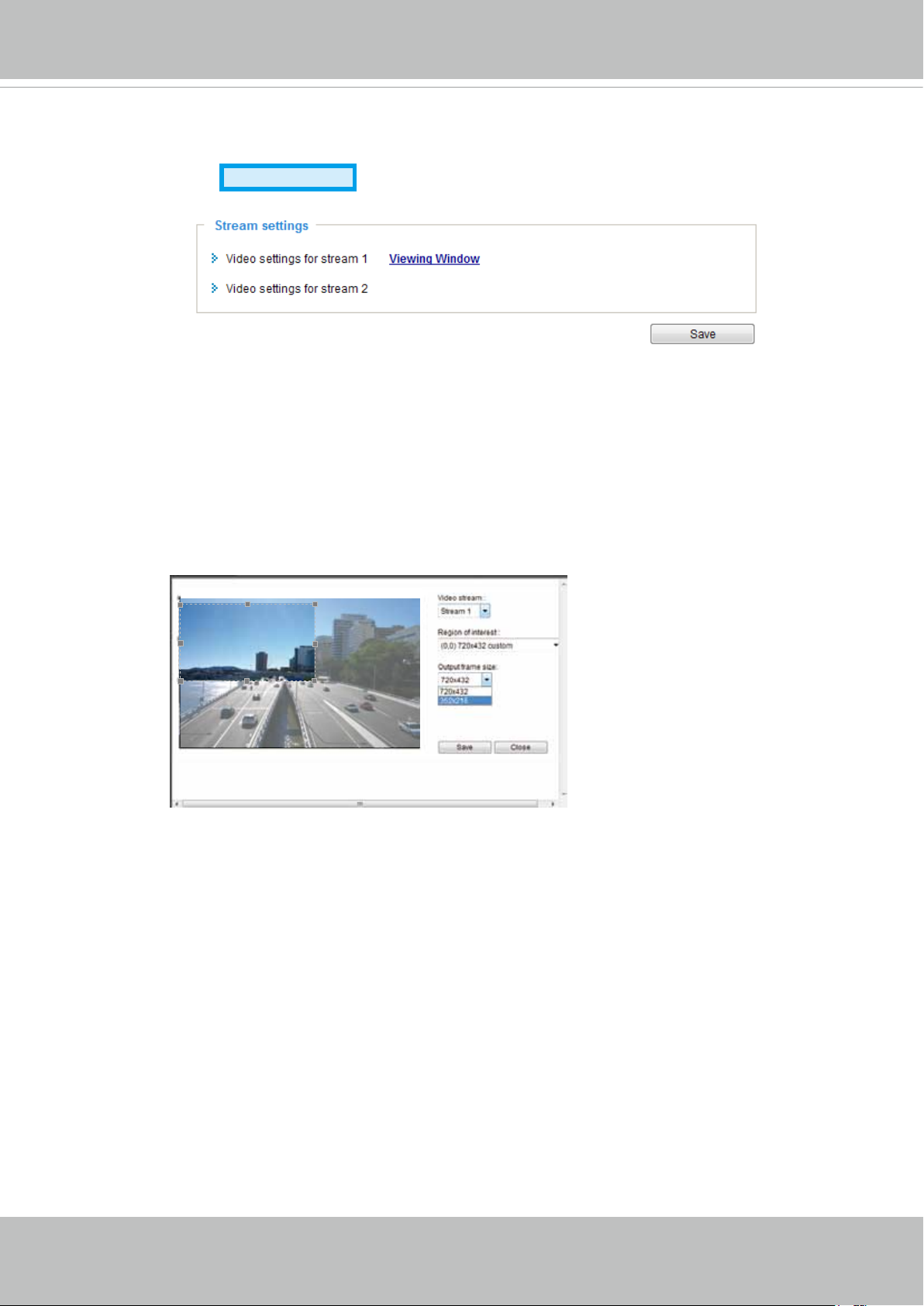

Media > Video

Advanced Mode

Stream settings

This Network Camera supports multiple streams with frame size ranging from 176 x 144 to 1280 x 1024�

The denition of multiple streams:

■ Stream 1: Users can dene the "Region of interest" (viewing region) and the "Output frame size" via

the Viewing Window�

■ Stream 2: Users can dene the "Frame size" (viewing region) and the "Maximum Frame Rate" (no. of

consecutive frames per second), and video quality by expanding the Video settings menu�

For stream #1, click Viewing Window to open the viewing region settings page� On this page, you can set the Region of Interest and the Output Frame Size for streams #1.

Please follow the steps below to set up those settings for an individual stream:

1. Select a stream to congure its viewing region.

2� Select a Region of Interest from the drop-down list. The oating frame, the same as the one in the

Gloabl View window on the home page, will resize accordingly� To set up a customized viewing region,

you can also resize and re-position the oating frame to a desired position with your mouse.

3� Choose a proper Output Frame Size from the drop-down list according to the size of monitored

device�

User's Manual - 79

VIVOTEK

■ The sizes of tunable Output frame size in the Viewing Window are shown below:

Region of Interest Output frame size

Stream 1 1280 X 800 ~ 176 x 144 (Selectable) 1280 X 800 ~ 176 x 144 (Selectable)

When completed with the settings in the Viewing Window, click Save to enable the settings and click

Close to exit the window� The selected Output Frame Size will immediately be applied to the Frame size of each video stream. Then you can go back to the home page to test the e-PTZ function. For more

information about the e-PTZ function, please refer to page 84�

Region of Interest (Viewing Region)

Output Frame Size (Size of the Live View Window)

80 - User's Manual

VIVOTEK

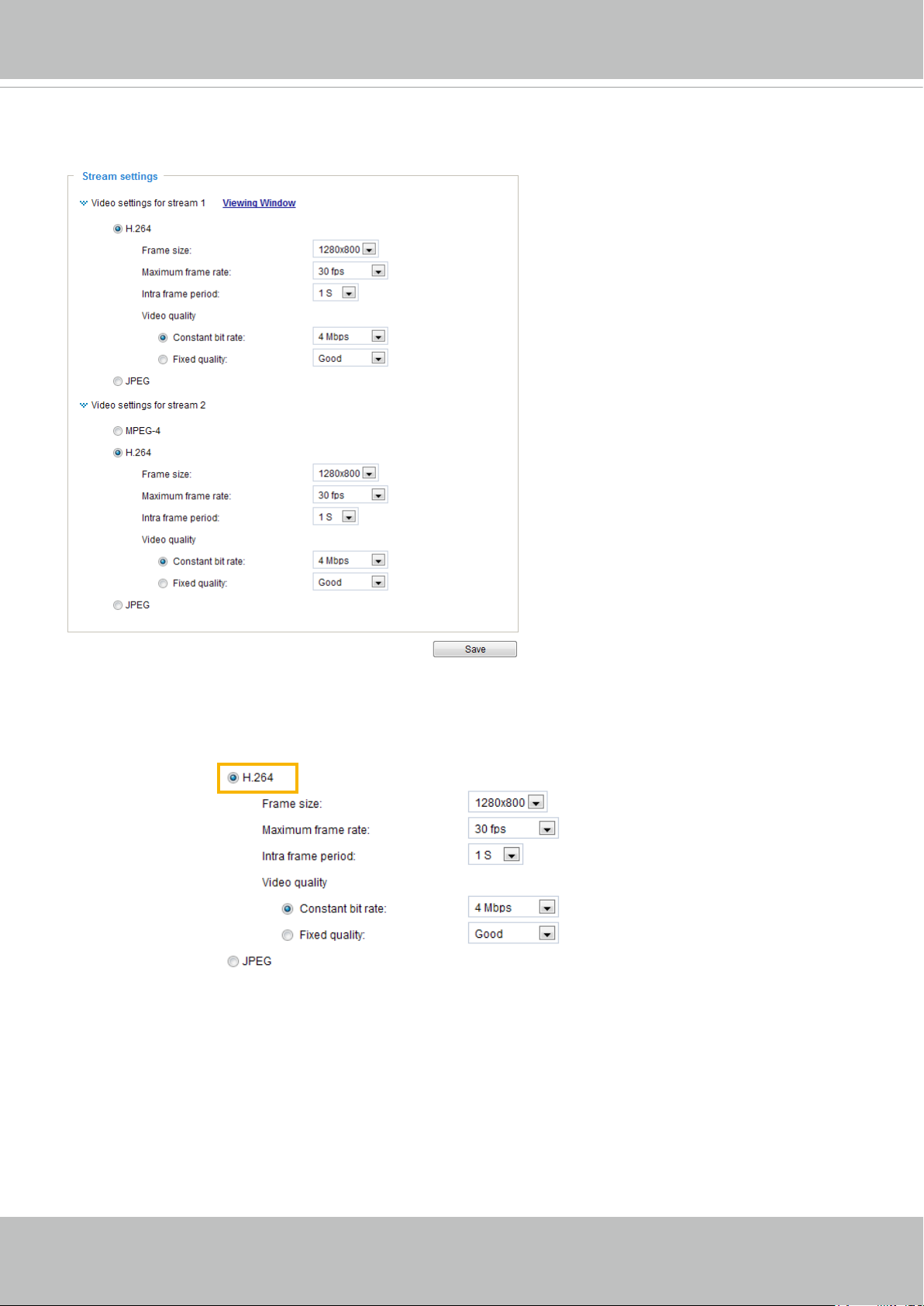

Click the stream item to display the detailed information� The maximum frame size will follow your settings in the above Viewing Window sections (streams #1).

This Network Camera provides real-time H.264, MPEG-4 and MJPEG compression standards (Triple

Codec) for real-time viewing� If H.264 / MPEG-4 mode is selected, the video is streamed via RTSP protocol� There are four parameters for you to adjust the video performance:

■ Frame size

You can set up different video resolution for different viewing devices. For example, set a smaller

frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web browsers� Note that a larger frame size takes up more bandwidth�

■ Maximum frame rate

NOTE that for streams featuring the 1280x800 frame size, the maximum frame rate is either 30 or 25fps depending on how you configure the power line frequency (NTSC: 60Hz or PAL: 50Hz)� The

maximum frame rate for JPEG and lower frame sizes (720P and under) is 30fps in NTSC and 25fps in

PAL�

This limits the maximum refresh frame rate per second� Set the frame rate higher for smoother video quality�

User's Manual - 81

VIVOTEK

If the Power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, and 25fps� If the power line frequency is set to 60Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and 30fps� You can also select Customize and manually enter a value� The frame rate will decrease if you select a higher resolution�

■ Intra frame period

Determine how often to plant an I frame� The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption� Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds�

■ Video quality

A complex scene generally produces a larger le size, meaning that higher bandwidth will be needed

for data transmission� Therefore, if Constant bit rate is selected, the bandwidth utilization is xed at a selected level, resulting in mutable video quality performance� The bit rates are selectable at the following rates: 20Kbps, 30Kbps, 40Kbps, 50Kbps, 64Kbps, 128Kbps, 256Kbps, 512Kbps, 768Kbps, 1Mbps, 2Mbps, 3Mbps, 4Mbps, 6Mbps, 8Mbps, 10Mbps, 12Mbps, 14Mbps, and 16Mbps� You can also select Customize and manually enter a value�

On the other hand, if Fixed quality is selected, all frames are transmitted with the same quality; bandwidth utilization is therefore unpredictable� The video quality can be adjusted to the following settings: Medium, Standard, Good, Detailed, and Excellent� You can also select Customize and manually enter a value�

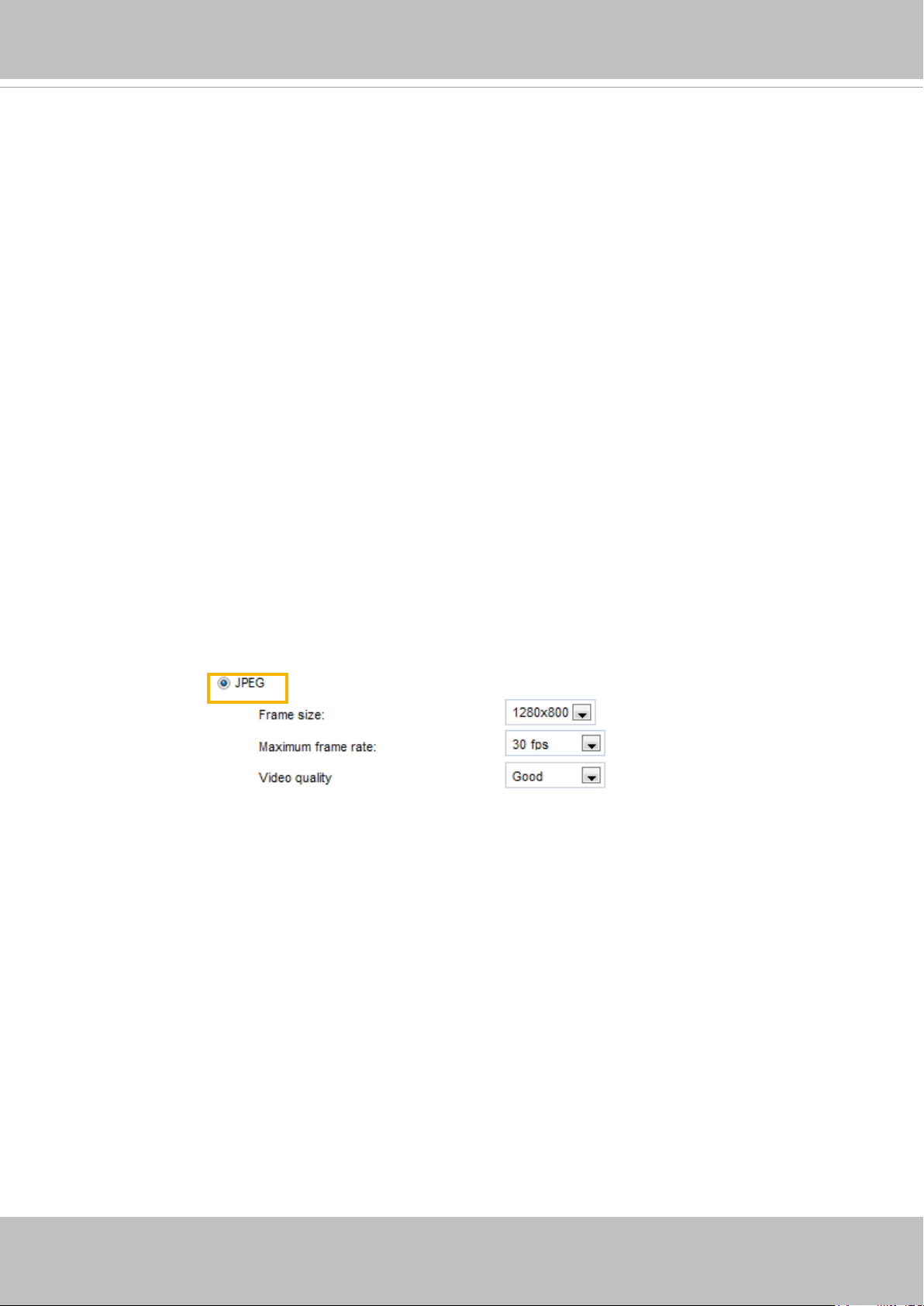

If JPEG mode is selected, the Network Camera continuously sends JPEG images to the client, producing

a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same

image quality, which in turn comes at the expense of variable bandwidth usage� Because the media

contents are a combination of JPEG images, no audio data is transmitted to the client. There are three parameters provided in MJPEG mode to control the video performance:

■ Frame size

You can set up different video resolution for different viewing devices. For example, set a smaller

frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web browsers� Note that a larger frame size takes up more bandwidth�

■ Maximum frame rate

This limits the maximum refresh frame rate per second� Set the frame rate higher for smoother video quality� If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, and 25fps� If the power line frequency is set to 60Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and 30fps� You can also select Customize and manually enter a value� The frame rate will decrease if you select a higher resolution�

■ Video quality

The video quality can be adjusted to the following settings: Medium, Standard, Good, Detailed, and Excellent� You can also select Customize and manually enter a value�

82 - User's Manual

VIVOTEK

NOTE:

►

Video quality and xed quality refers to the compression rate, so a lower Custom value will produce

higher quality�

►

Converting high-quality video may significantly increase the CPU loading, and you may encounter streaming disconnection or video loss while capturing a complicated scene� In the event of occurance, we suggest you customize a lower video resolution or reduce the frame rate to obtain smooth video�

Media > Audio

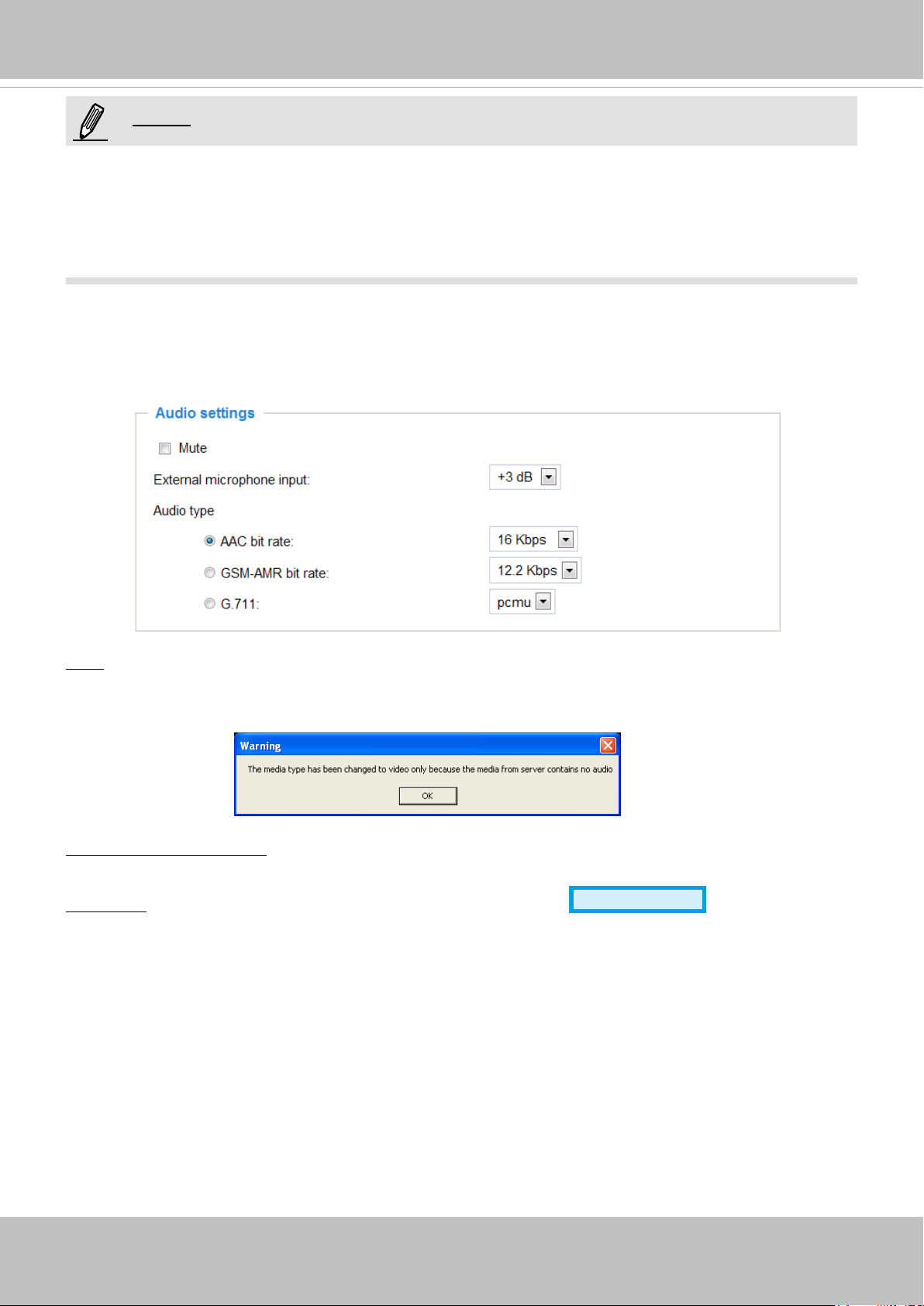

Audio Settings

Mute: Select this option to disable audio transmission from the Network Camera to all clients� Note that if mute mode is turned on, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page� In that case, the following message is displayed:

External microphone input: Select the gain of the external audio input according to ambient conditions� Adjust the gain from +33 db (most sensitive) down to -12 db (least sensitive)�

Audio type: Select audio codec AAC or GSM-AMR and the bit rate

■ AAC provides good sound quality at the cost of higher bandwidth consumption. The bit rates are

selectable from: 16Kbps, 32Kbps, 48Kbps, 64Kbps, 96Kbps, and 128Kbps�

■ GSM-ARM is designed to optimize speech quality and requires less bandwidth. The bit rates are

selectable from: 4�75Kbps, 5�15Kbps, 5�90Kbps, 6�7Kbps, 7�4Kbps, 7�95Kbps, 10�2Kbps, and 12�2Kbps�

■ G.711 also provides good sound quality and requires about 64Kbps. Select pcmu (μ-Law) or pcma

(A-Law) mode�

Advanced Mode

�

When completed with the settings on this page, click Save to enable the settings�

User's Manual - 83

VIVOTEK

PTZ > PTZ settings

Advanced Mode

This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation� This panel

provides the access to two conguration choices: Digital and mechanical PTZ. The e-PTZ works

only when a streaming view is not showing the full of the camera’s largest frame size. For example, when showing a 640x400 frame out of the 1280x800 full frame�

Digital: Control the e-PTZ operation� It allows users to quickly move the focus to a pre-

congured target area for close-up viewing without physically zooming the camera.

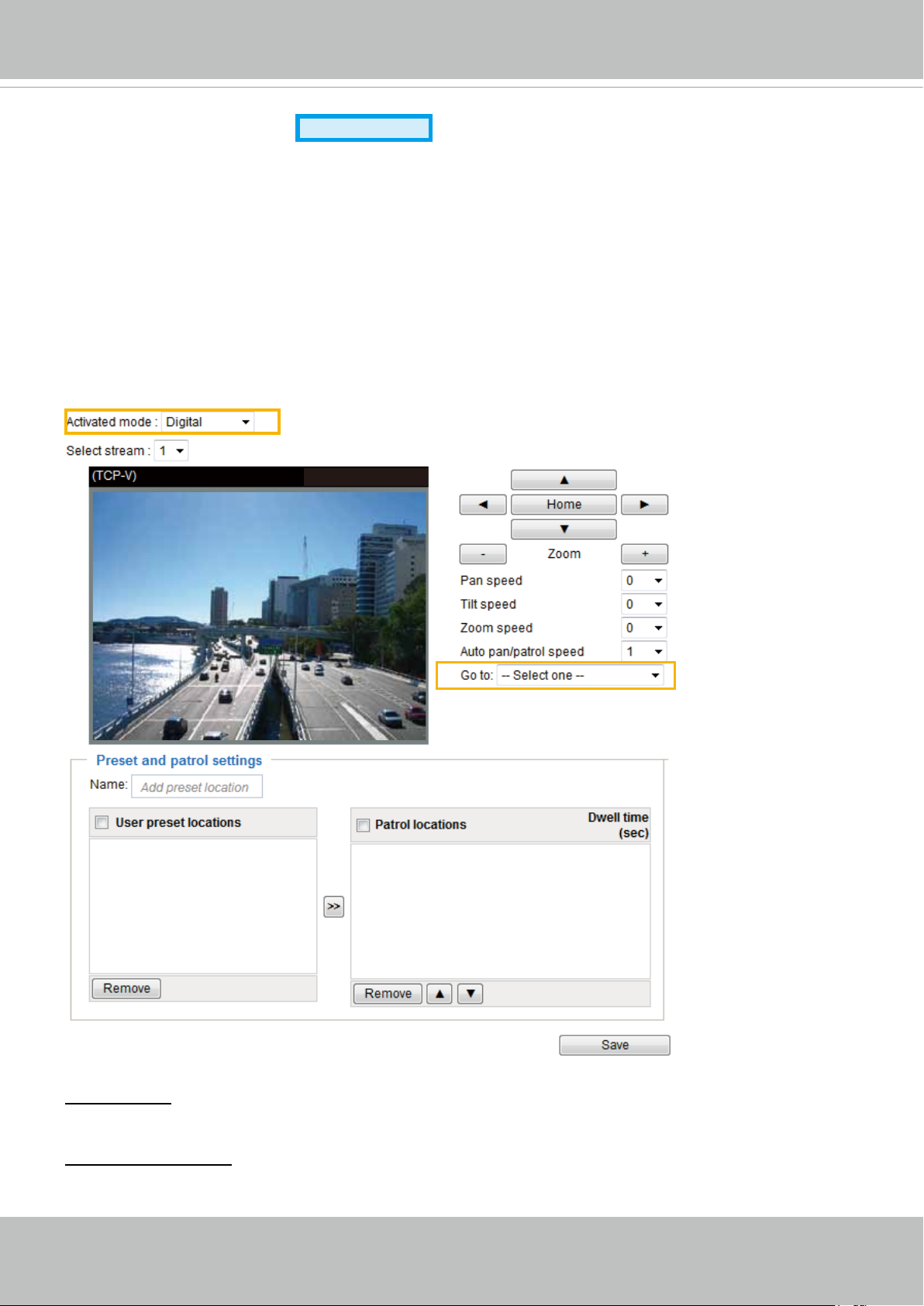

Digital PTZ Operation (E-PTZ Operation)

If you select “Digital“, the e-PTZ control settings section will be displayed as shown below:

2010/12/10 17:08:56

Select stream: You can only apply e-PTZ control on stream #1. Refer to the following page for details about how to set up preset and patrol settings�

Auto pan/patrol speed: Select the speed from 1~5 (slow/fast) to set up the Auto pan/patrol speed control� When completed with the settings of e-PTZ, click Save to enable the settings on this page�

84 - User's Manual

Home page in E-PTZ Mode

Region of Interest (Viewing Region)

VIVOTEK

Output Frame Size (Size of the Live View Window)

■ The e-Preset Positions will also be displayed on the home page� Select one from the drop-down list, and the Network Camera will move to the selected e-preset position�

■ If you have set up different e-preset positions for stream #1, you can select one of the video streams to display its separate e-preset positions�

Global View

In addition to using the e-PTZ control panel, you can also use the mouse to drag or resize the oating

frame to pan/tilt/zoom the viewing region� The live view window will also move to the viewing region accordingly�

Moving Instantly If you check this item, the live view window will switch to the new viewing region instantly after you move

the oating frame.

Click on Image The e-PTZ function also supports “Click on Image“� When you click on any point of the Global View Window or Live View Window, the viewing region will also move to that point�

User's Manual - 85

VIVOTEK

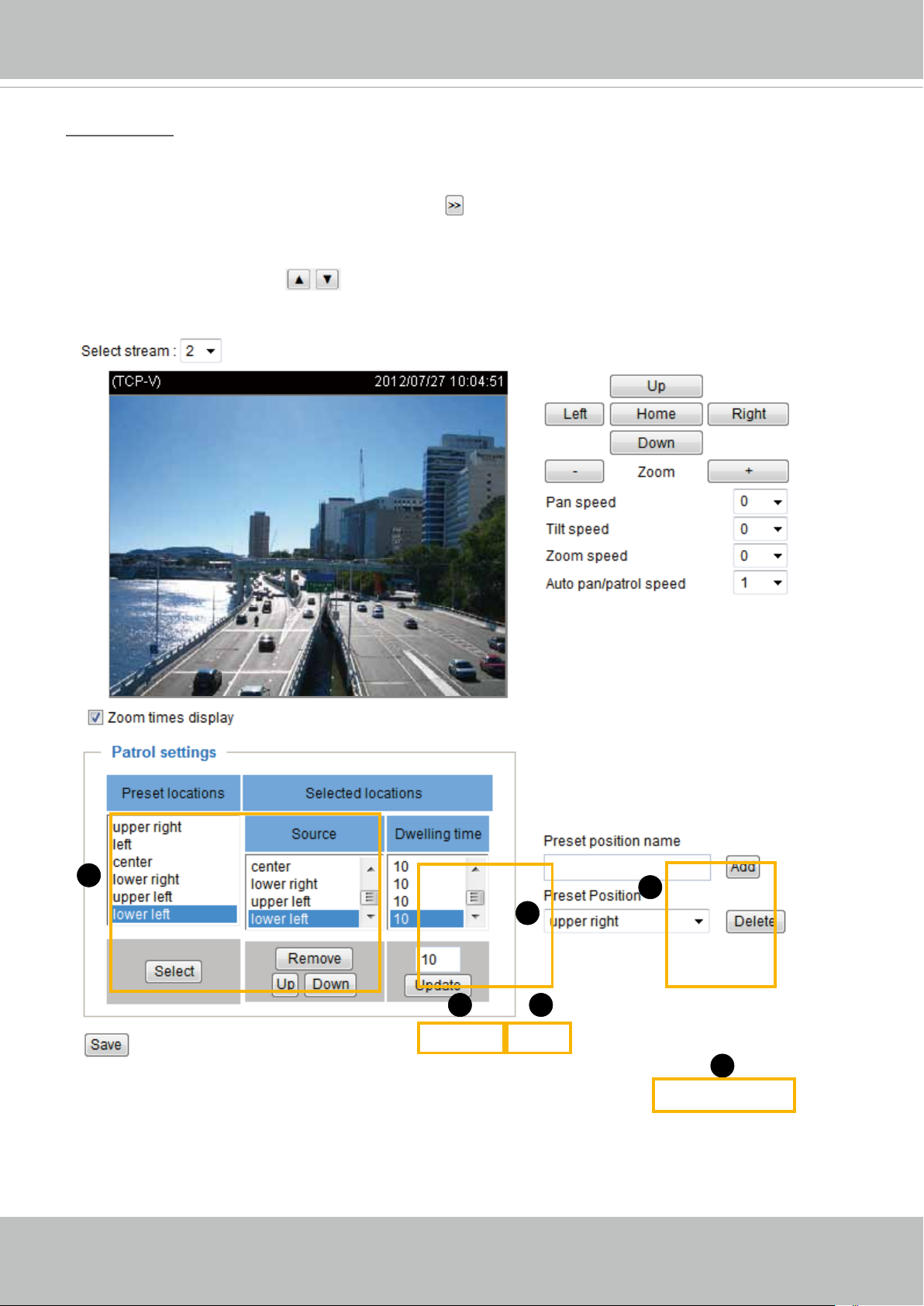

Patrol settings

You can select some preset positions for the Network Camera to patrol� Please follow the steps below to set up a patrol schedule: 1� Select the preset locations on the list, and click

�

2� The selected preset locations will be displayed on the Patrol locations list� 3� Set the Dwelling time for the streaming view to stay at the preset location during auto patrol� 4� If you want to delete a preset location from the Patrol locations list, select it and click Remove� 5� Select a location and click

to rearrange the patrol order�

6� Select patrol locations you want to save in the list and click Save to enable the patrol settings�

7. To perform a pre-congured patrol, return to homepage and click on the Patrol button�

2011/03/10 17:08:56

x2.0

1

86 - User's Manual

3

2

54

6

VIVOTEK

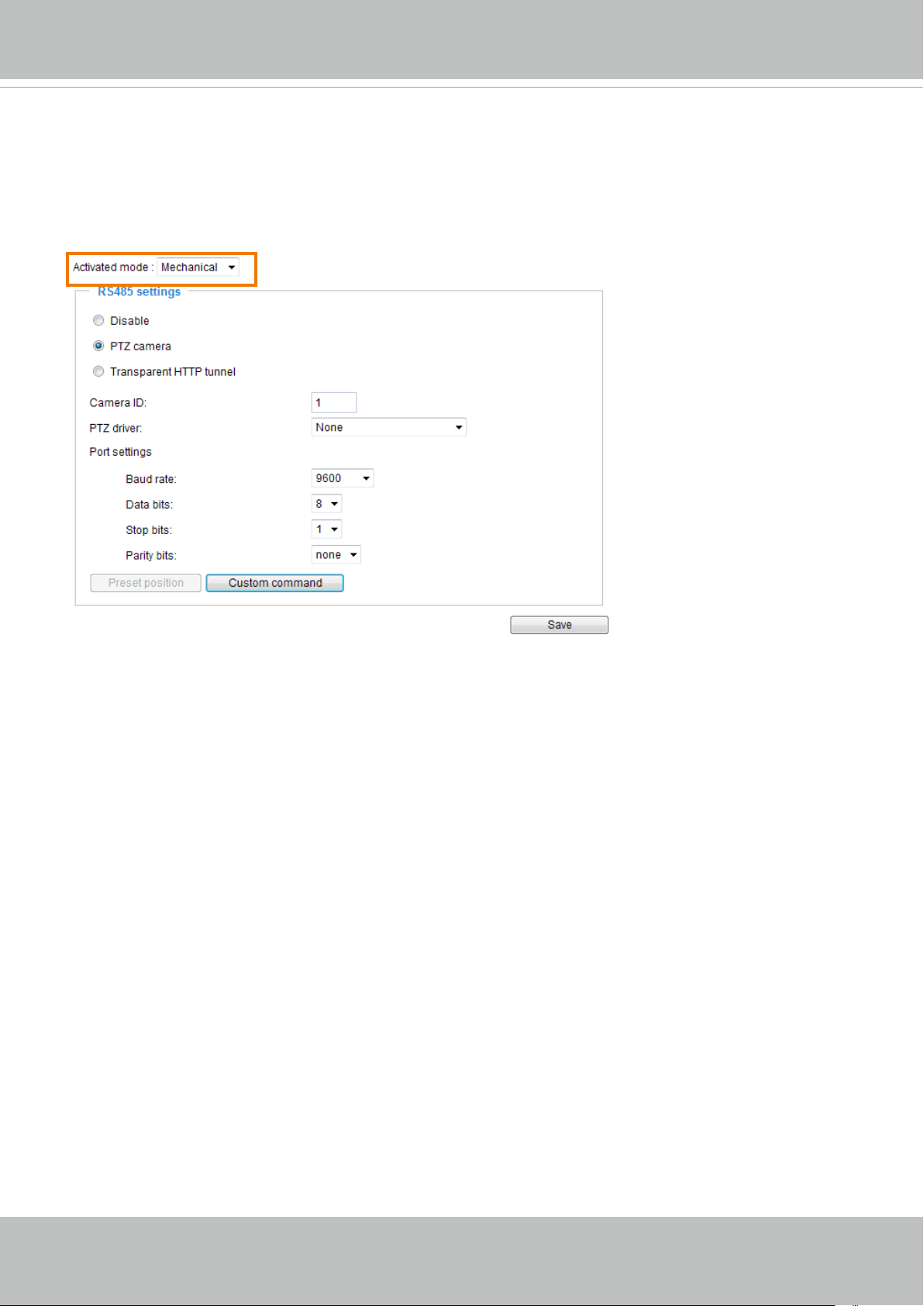

Mechanical PTZ Operation (When camera is mounted on an external pan/tilt scanner)

If you have your camera mounted and connected to an external pan/tilt head via the RS485

control lines, your can congure the Activated mode as “Mechanical.” You may then set identical

configuration both on your camera and the pan/tilt scanner� Refer to the terminal block pin

denitions on page 8 for RS485 connections.

Select the PTZ camera checkbox to open PTZ-related settings� The most widely used RS485 protocol is Pelco-D� The camera translates IP-based PTZ commands into RS485 commands and sends them to an external pan/tilt scanner that then converts them to motor movements� Doing so, the camera can pan or tilt to the desired view area�

As there are many pan/tilt heads or scanners on the market, you should test the conguration

with RS485 control connections when deploying the camera�

VIVOTEK provides ve PTZ drivers including, DynaDome/SmartDOME, Lilin PIH-7x00, Pelco

D, Pelco P, and Samsung scc643 protocols� If none of these is supported by your PTZ scanner, please select Custom camera (scanner)� Please refer to the documentation of your PTZ scanner to determine the Camera ID, PTZ driver, and port settings� The camera ID is required if you connect multiple cameras on an RS485 data bus� After you enable the settings by clicking on the Save button, the Mechanical PTZ panel will be available on the home page�

User's Manual - 87

VIVOTEK

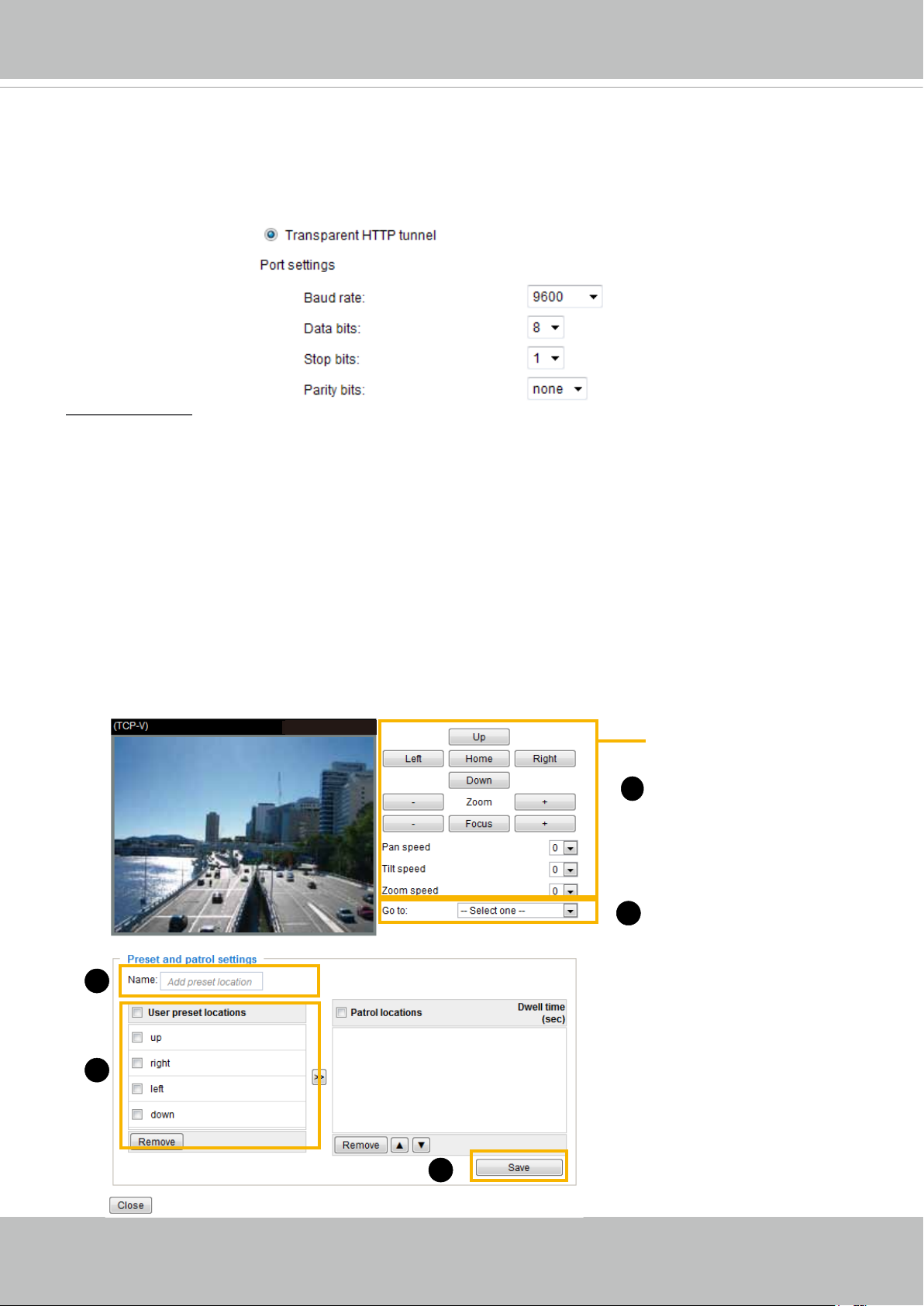

■ Transparent HTTP Tunnel: HTTP tunnel is useful when exerting commands over the Internet.

Response time can be significantly reduced� You can use UART commands to build a Transparent HTTP Tunnel� The UART commands will be sent through HTTP tunnel established between the RS-

485 device and the linked camera. For detailed application notes, please refer to URL Commands on page 118 or http://www.vivotek.com/downloadles/faq/videoserver/UART_HTTP_Tunnel.pdf.

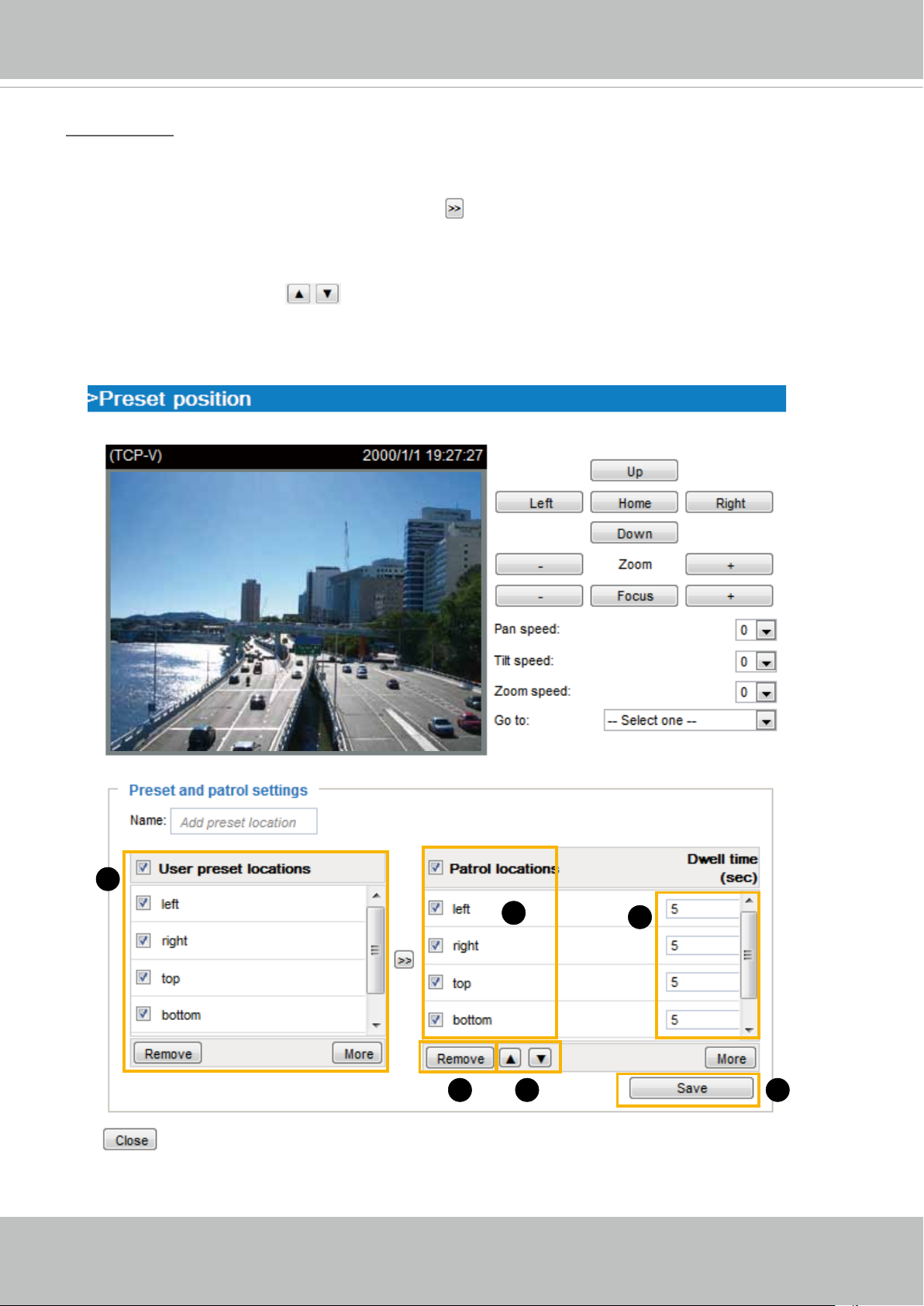

Preset positions If you select DynaDome/SmartDOME, Lilin PIH-7x00, or Pelco D, Pelco P protocol, or Samsung scc643

protocol as the PTZ driver and click the Save button, the Preset Position button will be enabled� Click Preset Position to open the settings page� (The Preset Position button is available when a driver is selected)� You can also select preset positions for the camera to patrol� A total of 20 preset positions can

be congured.

Please follow the steps below to preset a position: 1� Adjust the shooting area to the desired position using the PTZ buttons on the upper right of the

window� The default Home position is set as the center position�

2� Enter a name for the preset position, which is up to forty characters in length� Click Add to enable the

settings� The preset positions will be displayed under the User preset locations panel�

3� To add additional preset positions, please repeat steps 1~2� 4� Select multiple preset positions each by a click on its checkbox and click Save to enable the settings� 5� The positions saved will appear in the Go to drop down list on the Home page� 6� To remove a preset position from the list, select it and click Remove�

2011/03/13 17:08:56

2011/03/10 17:08:56

Functions are the same

as the Control Panel on the home page

1

5

2

6

88 - User's Manual

4

VIVOTEK

Patrol settings

You can select some preset positions for the Network Camera to patrol� Please follow the steps below to set up a patrol schedule:

1� Select the preset locations on the list, and click 2� The selected preset locations will be displayed on the Patrol locations list�

3� Set the Dwelling time for the preset location during auto patrol� 4� If you want to delete a preset location from the Patrol locations list, select it and click Remove�

5� Select a location and click 6� Select patrol locations you want to save in the list and click Save to enable the patrol settings�

7� To implement the patrol schedule, please go to homepage and click on Patrol button� Please refer to

the next page�

to rearrange the patrol order�

2011/03/10 17:08:56

�

1

x2.1

2

3

654

User's Manual - 89

VIVOTEK

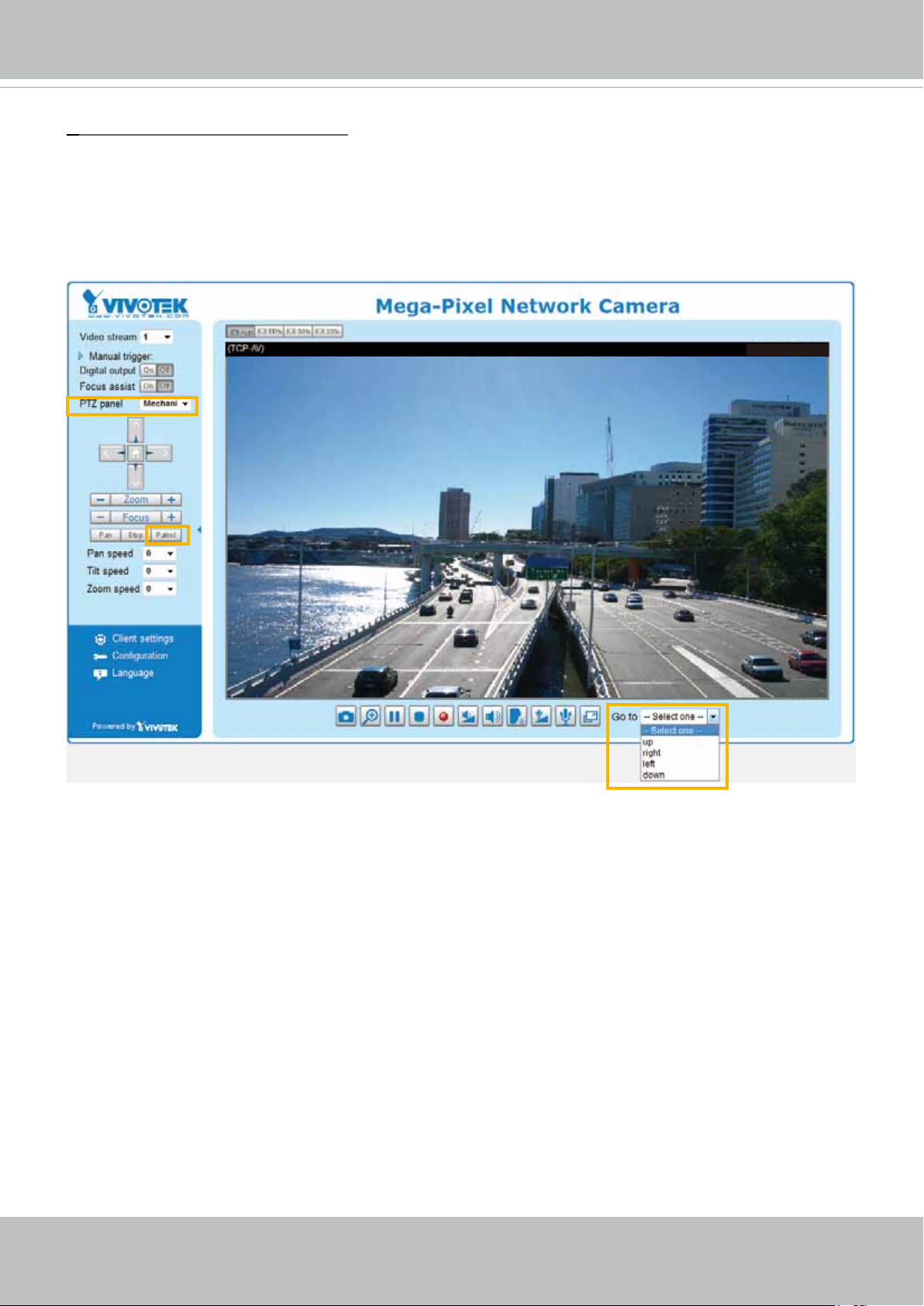

Home page in Mechanical PTZ Mode

The Preset positions will also be displayed on the home page� Select one from the Go to drop-down list, and the Network Camera will move to the selected preset position�

Patrol button: Click this button, then the Network Camera will patrol among the selected preset positions continuously�

2010/12/10 17:08:56

90 - User's Manual

VIVOTEK

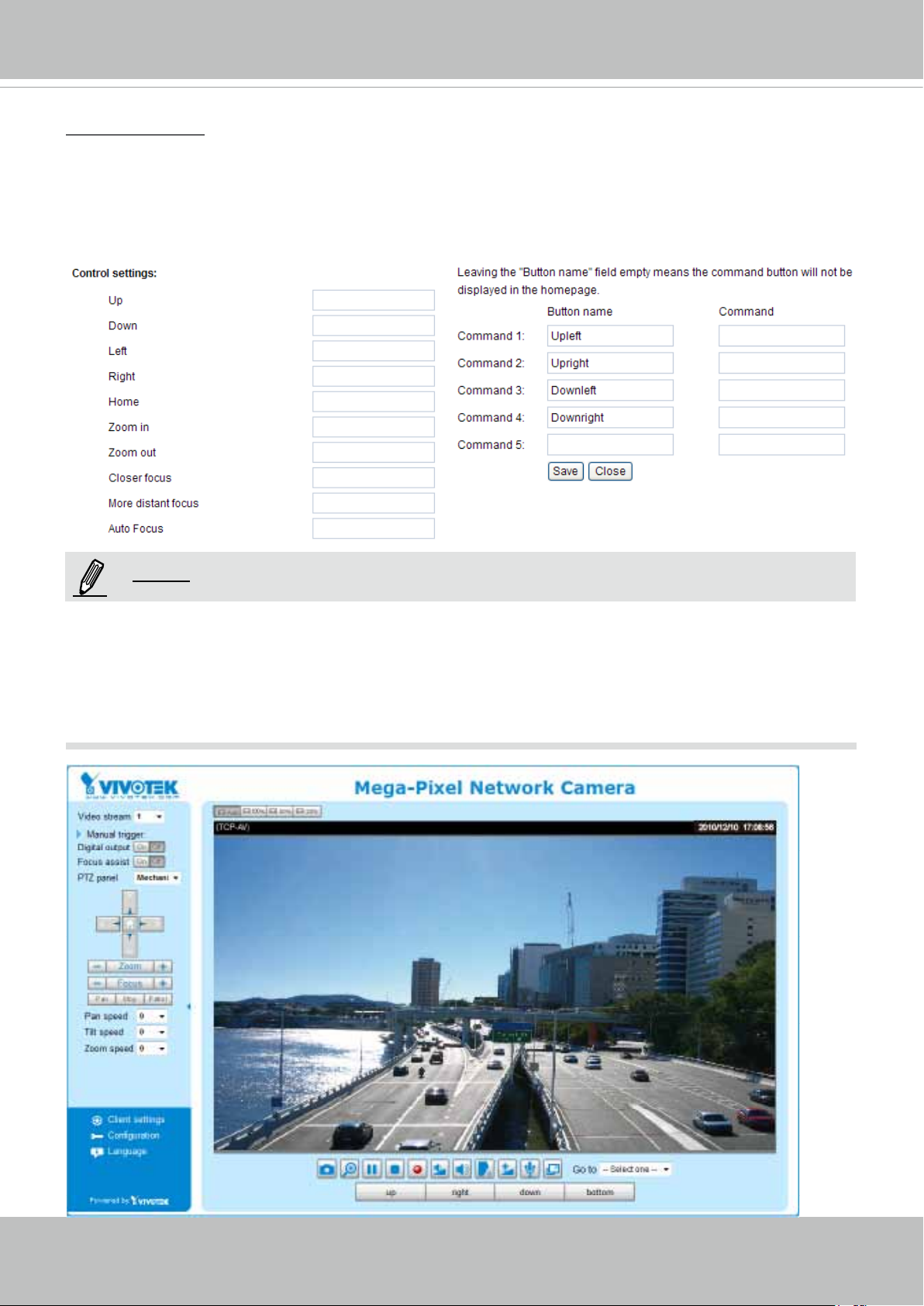

Custom command

If Custom Camera (pan/tilt head or scanner) is selected as the PTZ driver, the Preset Position and PTZ Control Panel on the main page will be disabled� You will need to configure command buttons to control the PTZ scanner� Click Custom Command to open the Custom Command page to set the commands in the Control Settings session� Please refer to your PTZ scanner user's manual to enter the

commands in the following elds. Click Save to enable the settings and click Close to exit the page�

NOTE:

►If you select DynaDome/SmartDOME, Lilin PIH-7x00, or Pelco D protocol as the PTZ driver, the

Control Settings column will not be displayed�

►For all PTZ drivers, a total of ve additional command buttons can be congured.

►The command buttons will be displayed on the main page:

User's Manual - 91

VIVOTEK

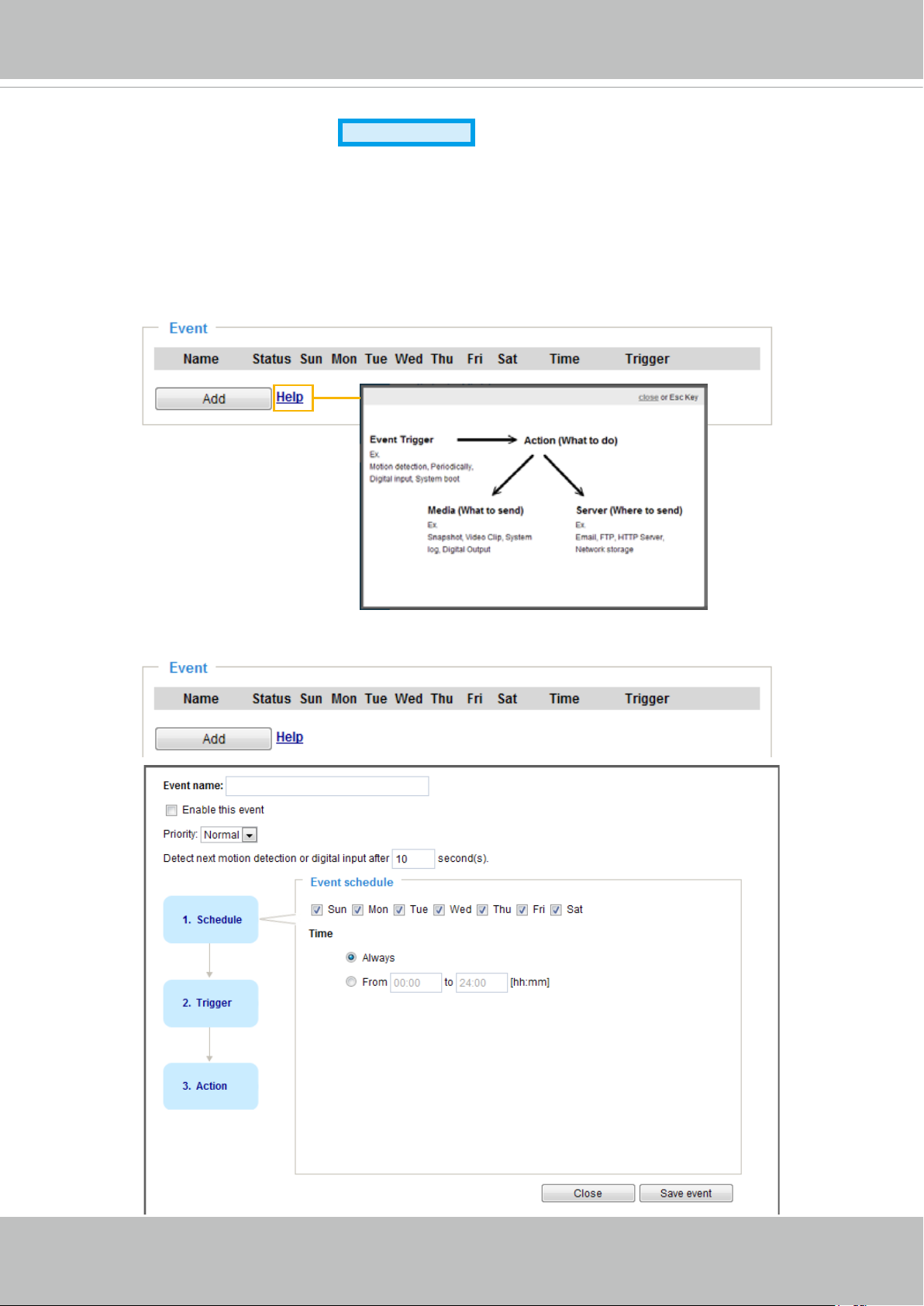

Event > Event settings

Advanced Mode

This section explains how to congure the Network Camera to respond to particular situations

(event)� A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications. Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices� When an event is triggered, you can specify what type of action that will be performed�

Event

An event is an action initiated by a user-dened trigger source. In the Event column, click Add to open the event settings window�

92 - User's Manual

VIVOTEK

■ Event name: Enter a name for the event setting�

■ Enable this event: Select this option to enable the event setting�

■ Priority: Select the relative importance of this event (High, Normal, or Low)� Events with a higher priority setting will be executed rst.

■ Detect next event after

seconds: Enter the duration in seconds to pause motion detection after a

motion is detected�

Follow the steps 1~3 to arrange the three elements each by a mouse click on its blue text -- Schedule, Trigger, and Action to set an event. A total of 3 event congurations can be congured.

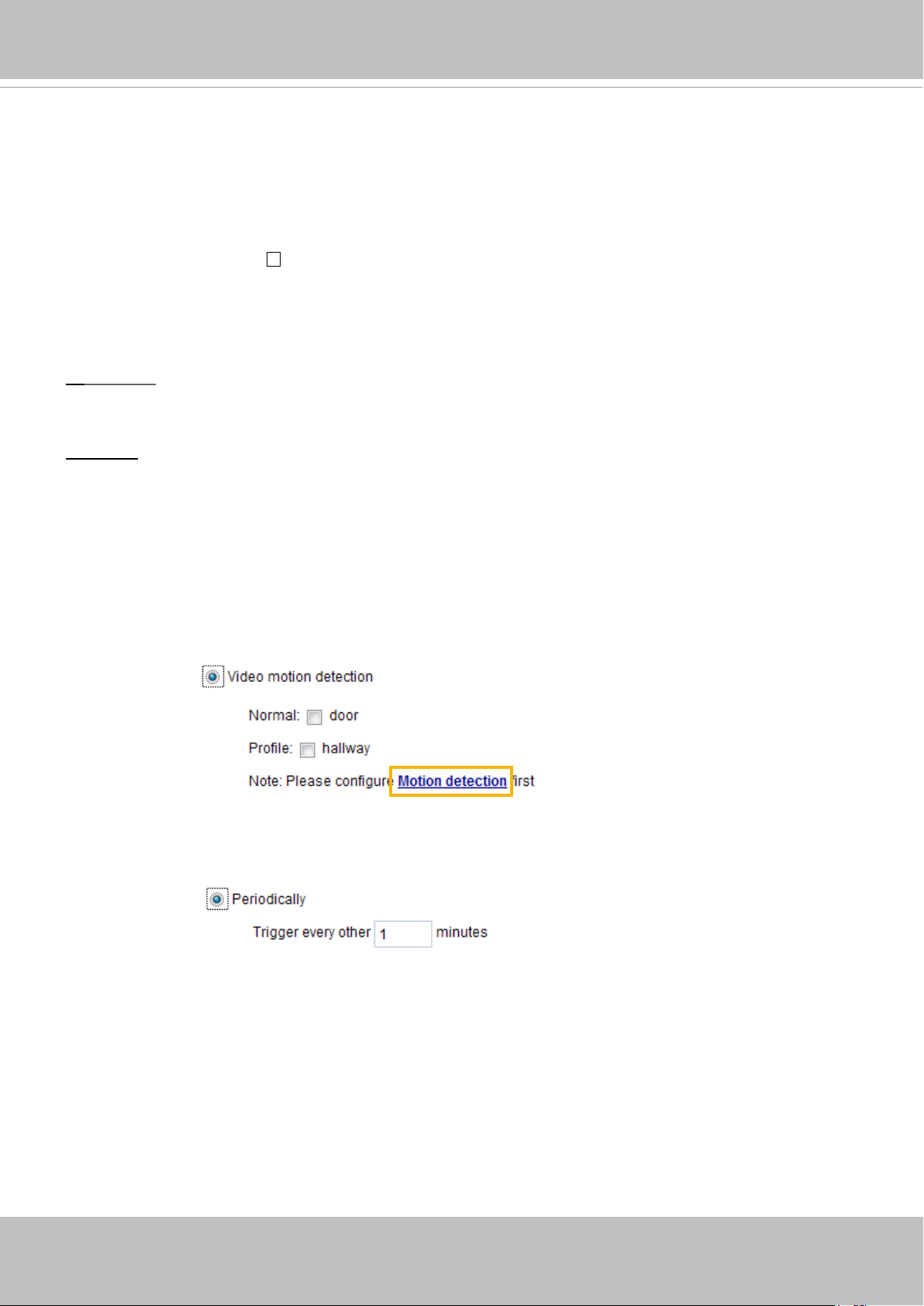

1� Schedule Specify the period for the event to apply� Please select the days of the week and the time in a day (in a 24-hr time format) to specify when will the event-triggering conditions take effect�

2� Trigger This is the cause or stimulus which denes what will trigger the event. The trigger source can be congured to use the Network Camera’s built-in motion detection mechanism or external digital inputs�

There are several choices of trigger sources as shown on next page�

Select each item to display its

related options�

■ Video motion detection

This option makes use of the built-in motion detection mechanism as a trigger source� To enable this

function, you need to congure a Motion Detection Window rst. For more information, please refer to

Motion Detection on page 105 for details�

■ Periodically This option allows the Network Camera to trigger periodically for every other dened minute. Up to 999

minutes are allowed�

■ Digital input

This option allows the Network Camera to use an external digital input device or sensor as a trigger source� Depending on your application, there are many choices with digital input devices on the market which help detect changes in temperature, vibration, sound, light, etc�

■ System boot

This option triggers the Network Camera when the power to the Network Camera is disconnected�

■ Recording notify

This option allows the Network Camera to trigger when the recording disk is full or when recording starts to overwrite older data�

User's Manual - 93

VIVOTEK

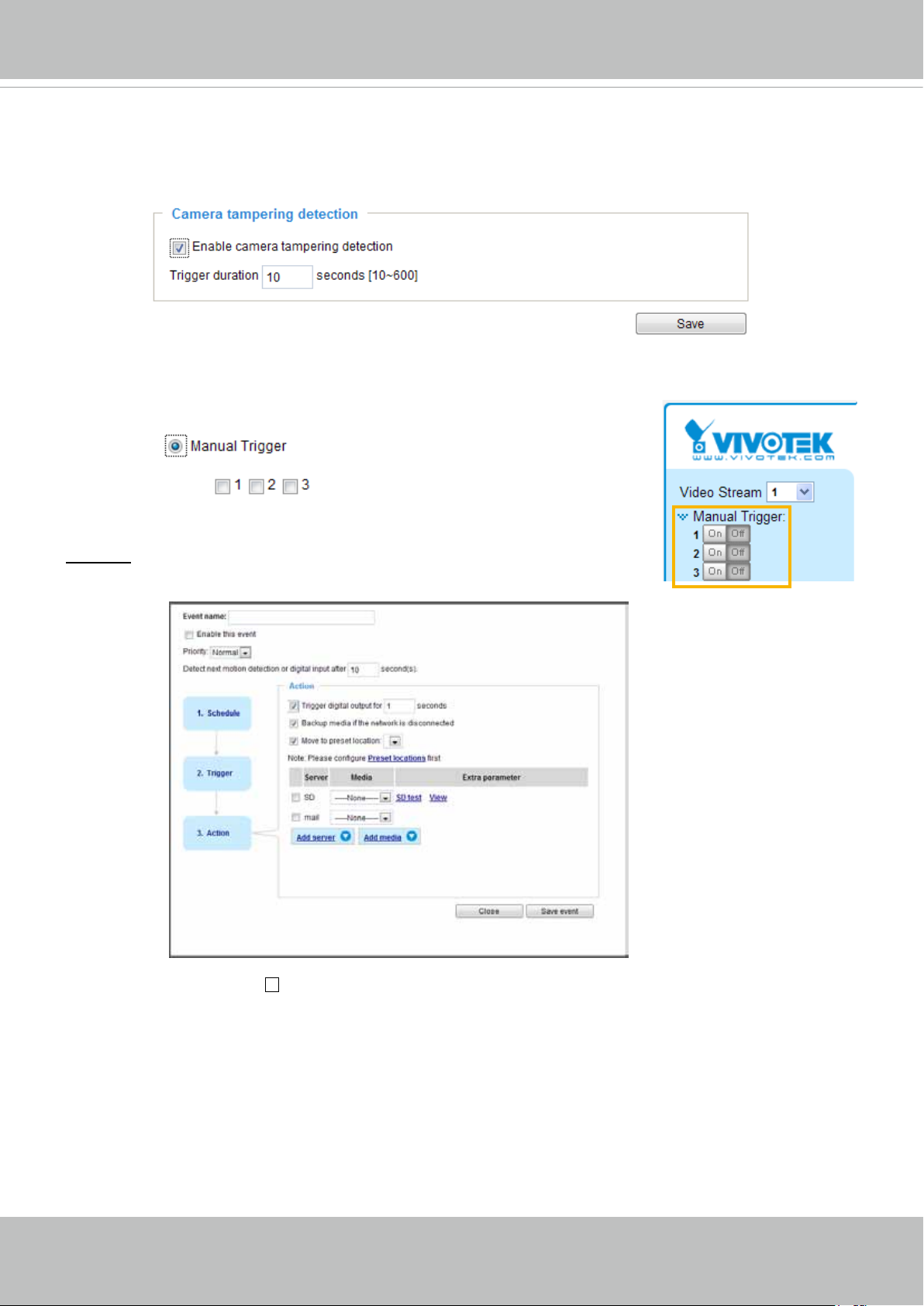

■ Camera tampering detection

This option allows the Network Camera to trigger when the camera detects that it is being tampered with� To enable this function, you need to congure the Tampering Detection option rst. Please refer to page 108 for detailed information�

■ Manual Trigger

This option allows user to enable event triggers manually by clicking the on/off button on the

homepage. Please congure 1 to 3 events before using this function.

3� Action

Dene the actions to be performed by the Network Camera when a trigger

is activated�

■ Trigger digital output for

seconds Select this option to turn on the external digital output device when a trigger is activated� Specify the length of the trigger interval in the text box�

■ Backup media if the network is disconnected Select this option to backup media les to the onboard SD card if the network is disconnected. Please note that this function will only apply after you congure a recording media that is connected over the network connection (e.g., NAS, email, or an HTTP server). For more information about how to set up

networked storage, please refer to page 111�

■ Move to preset location:

If you have configured preset locations and with the ability to move the camera view to a preset location (e�g�, by PTZ scanner), your can order the camera view to move to it on the occurrence of an

94 - User's Manual

VIVOTEK

event�

To congure an event with video recording or snapshots, it is necessary to congure/provide servers and storage media settings so that the Network Camera will know where to send the media les to when a

trigger is activated�

Add server

Click Add server to unfold the server setting window. You can specify where the notication messages are sent when a trigger is activated. A total of 5 server settings can be congured.

There are four choices of server types available: Email, FTP, HTTP, and Network storage. to display the detailed conguration options. You can congure either one or all of them.

Select the item

Server type - Email

Select to send the media les via email when a trigger is activated.

■ Server name: Enter a name for the server setting.

■ Sender email address: Enter a valid email address as the sender address.

■ Recipient email address: Enter a valid email address as the recipient address.

■ Server address: Enter the domain name or IP address of the email server.

■ User name: Enter the user name of the email account if necessary.

■ Password: Enter the password of the email account if necessary.

■ Server port: The default mail server port is set to 25. You can also manually set another port.

If your SMTP server requires a secure connection (SSL), check This server requires a secure connection (SSL).

User's Manual - 95

VIVOTEK

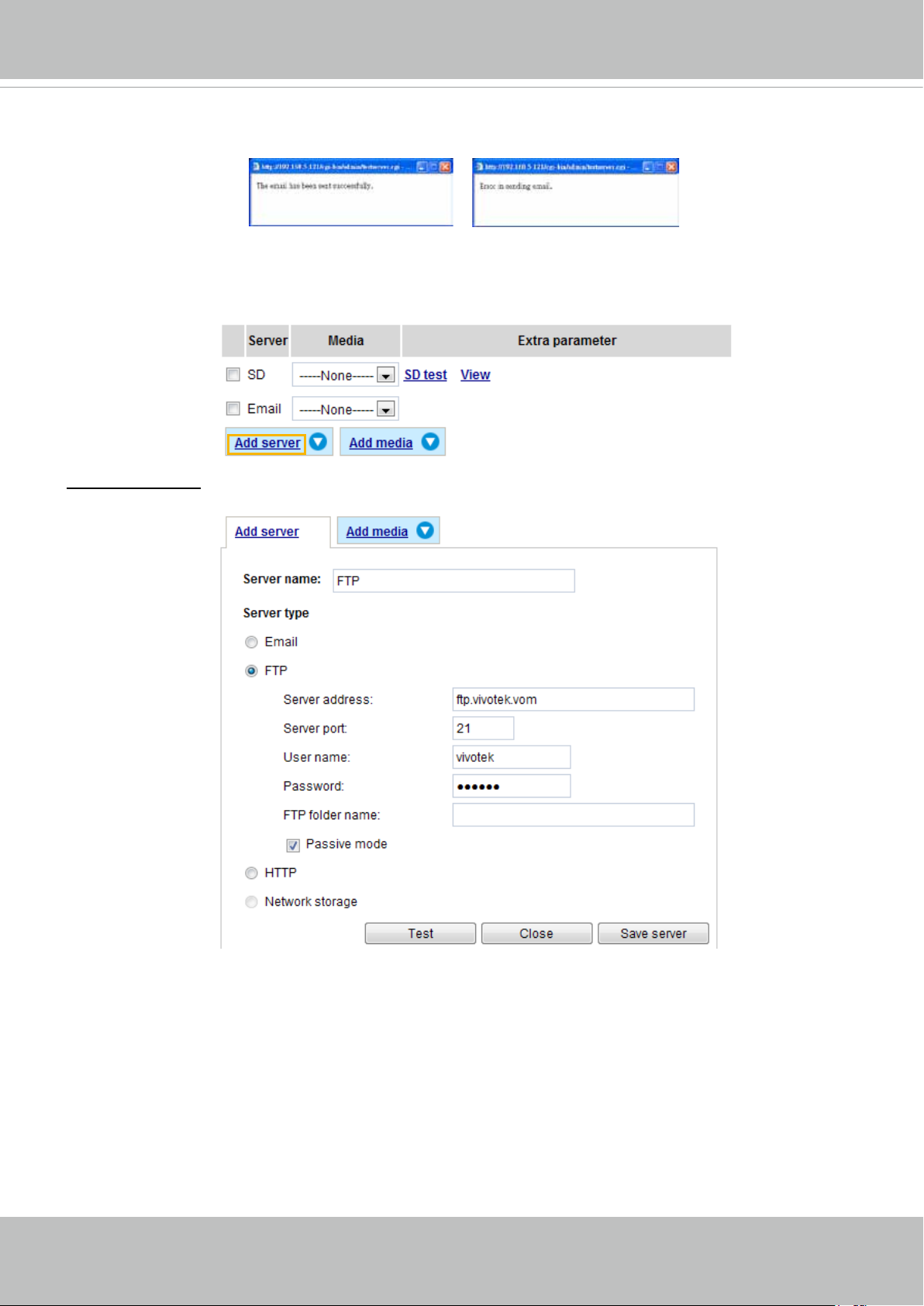

To verify if the email settings are correctly congured, click Test� The result will be shown in a pop-up window� If successful, you will also receive an email indicating the result�

Click Save server to enable the settings, then click Close to exit the Add server page�

After you set up the rst event server, a new item for event server will automatically appear on the Server

list� If you wish to add more server options, click Add server�

Server type - FTP Select to send the media les to an FTP server when a trigger is activated.

■ Server name: Enter a name for the server setting.

■ Server address: Enter the domain name or IP address of an FTP server.

■ Server port: By default, the FTP server port is set to 21. It can also be assigned to another port number

between 1025 and 65535�

■ User name: Enter the login name of the FTP account.

■ Password: Enter the password of the FTP account.

■ FTP folder name Enter the folder where the media le will be placed. If the folder name does not exist, the Network Camera will create one on the FTP server.

96 - User's Manual

VIVOTEK

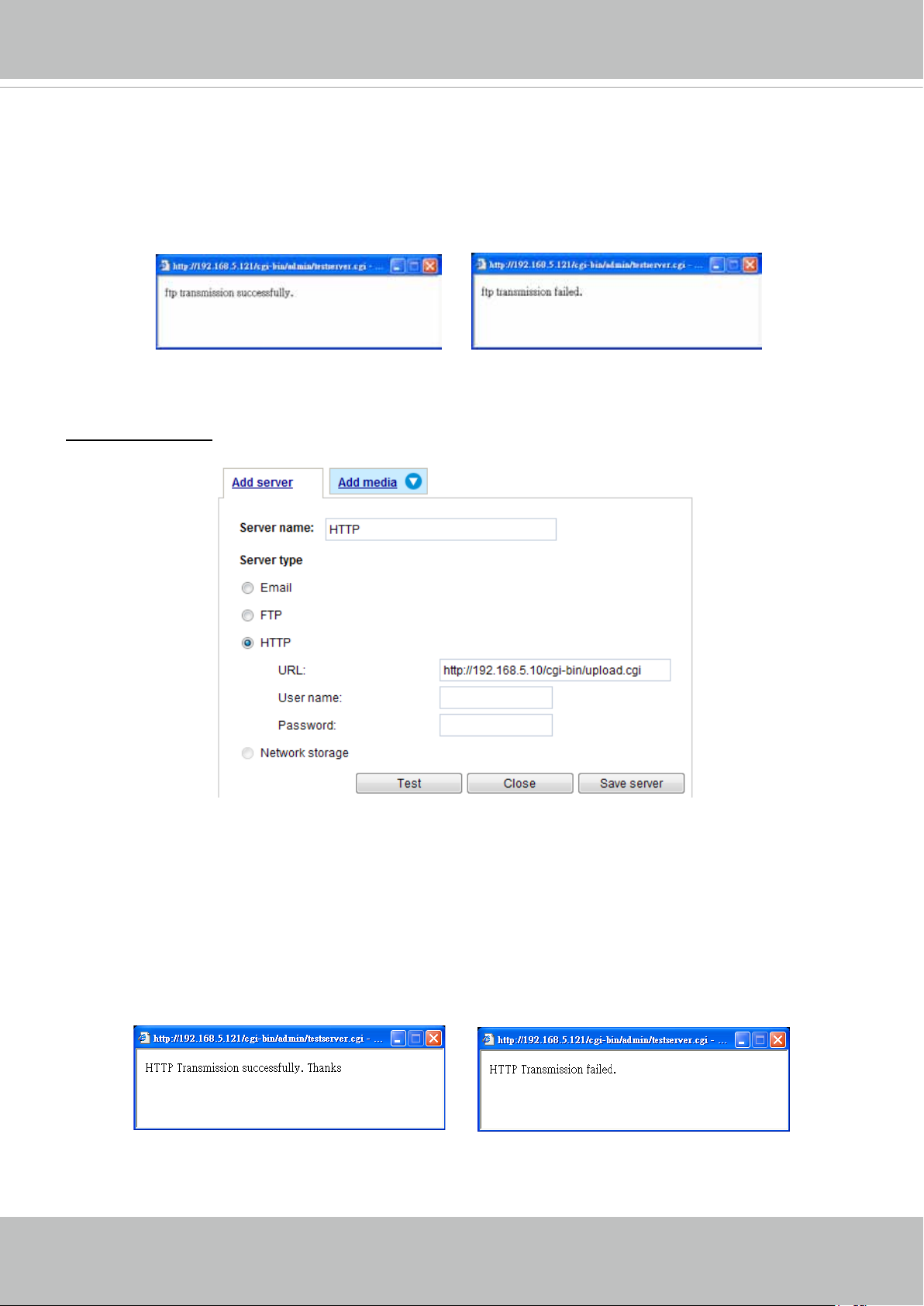

■ Passive mode Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the rewall.

To verify if the FTP settings are correctly congured, click Test� The result will be shown in a pop-up window as shown below. If successful, you will also receive a test.txt le on the FTP server.

Click Save server to enable the settings, then click Close to exit the Add server page�

Server type - HTTP

Select to send the media les to an HTTP server when a trigger is activated.

■ Server name: Enter a name for the server setting.

■ URL: Enter the URL of the HTTP server.

■ User name: Enter the user name if necessary.

■ Password: Enter the password if necessary.

To verify if the HTTP settings are correctly congured, click Test� The result will be shown in a pop-up window as below. If successful, you will receive a test.txt le on the HTTP server.

Click Save server to enable the settings and click Close to exit the Add server page�

User's Manual - 97

VIVOTEK

Network storage: Select to send the media les to a network storage location when a trigger is activated� Please refer to

NAS server on page 111 for details�

Click Save server to enable the settings, then click Close to exit the Add server page�

■ SD Test: Click to test your SD card. The system will display a message indicating success or failure. If

you want to use your SD card for local storage, please format it before use� Please refer to page 114 for detailed information�

98 - User's Manual

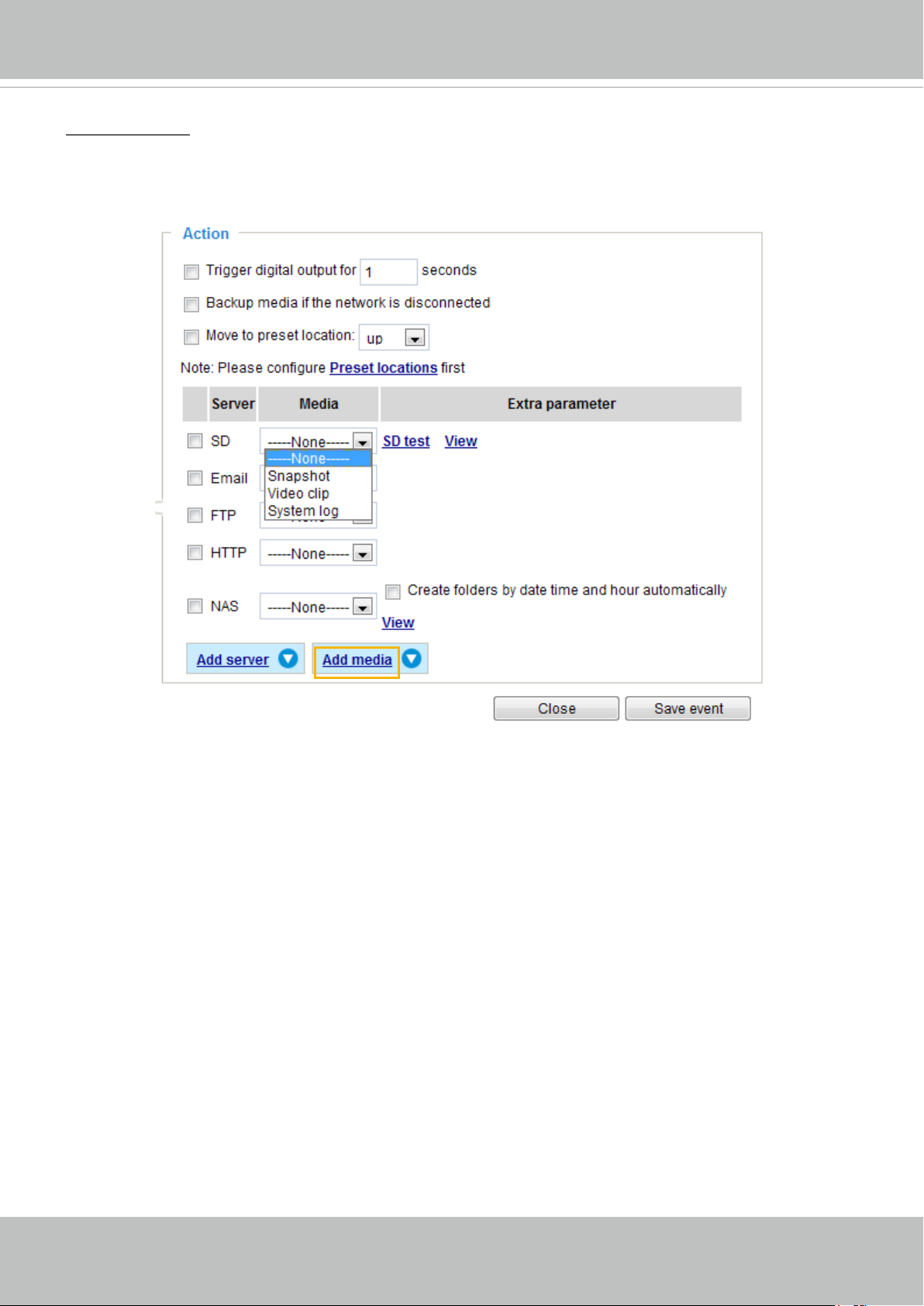

Add media

VIVOTEK

Click

Add media

to open the media setting window� You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be congured. There are three choices of media types available: Snapshot, Video Clip, and System log�

Select the item to display the detailed

conguration options. You can congure either one or all of them.

Media type - Snapshot Select to send snapshots when a trigger is activated�

■ Media name: Enter a name for the media setting.

■ Source: Select to take snapshots from streams 1 ~ 4.

■ Send

pre-event images The Network Camera has a buffer area; it temporarily holds data up to a certain limit� Enter a number to decide how many images to capture before a trigger is activated� Up to 7 images can be generated�

■ Send

post-event images Enter a number to decide how many images to capture after a trigger is activated� Up to 7 images can be generated�

For example, if both the Send pre-event images and Send post-event images are set to 7, a total of 15

images are generated after a trigger is activated�

1 pic. 2 pic. 3 pic. 4 pic. 5 pic. 6 pic. 7 pic. 8 pic. 9 pic.

Trigger Activation

10 pic. 11 pic. 10 pic. 12 pic. 13 pic. 14 pic. 15 pic.

■ File name prex Enter the text that will be appended to the front of the le name.

User's Manual - 99

VIVOTEK

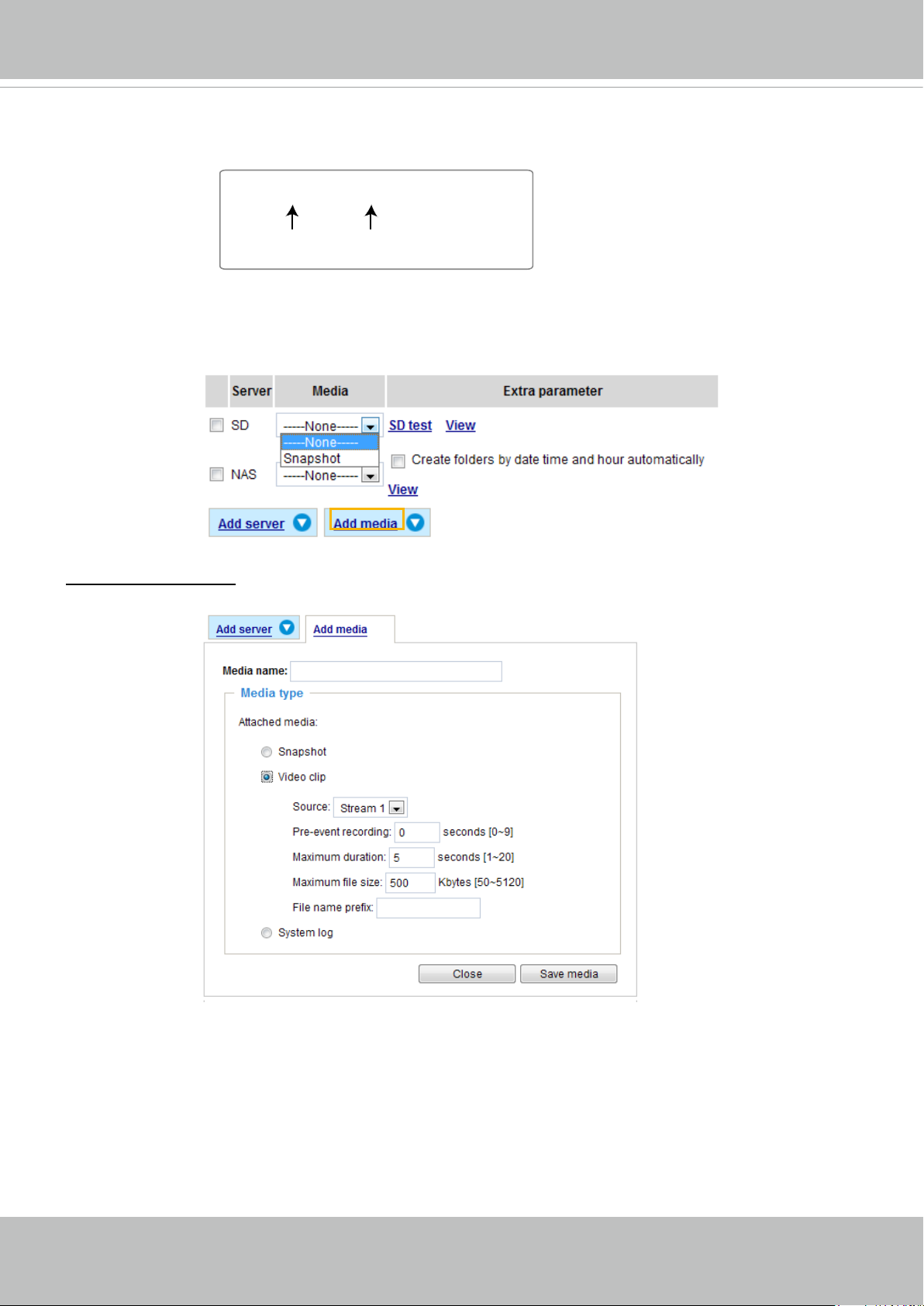

■ Add date and time sufx to the le name Select this option to add a date/time sufx to the le name.

For example:

Snapshot_20110320_100341

File name preﬁx

Date and time sufﬁx

The format is: YYYYMMDD_HHMMSS

Click Save media to enable the settings, then click Close to exit the Add media page�

After you set up the rst media server, a new column for media server will automatically display on the

Media list� If you wish to add more media options, click Add media�

Media type -

Video clip

Select to send video clips when a trigger is activated�

■ Media name: Enter a name for the media setting.

■ Source: Select the source of video clip.

■ Pre-event recording

The Network Camera has a buffer area; it temporarily holds data up to a certain limit� Enter a number to decide the duration of recording before a trigger is activated� Up to 9 seconds of video can be recorded�

100 - User's Manual
