Overview

VIVOTEK IP8152 features a brand new box camera design concept from VIVOTEK, with a

compact size and a multitude of features. The small size makes it an easy to t into different

types of enclosures with different lens options, with the ability to fit a CS-mount lens making

it a exible solution for all types of surveillance. The Supreme Night Visibility features results in excellent video quality in low light environments; pairing with the built-in IR-cut lter further

increase the range of visibility at night by allowing the use of IR illuminators� With all of these features and more, the camera is especially suitable for city surveillance, retail stores, government, industrial applications or hotel security�

The IP8152 supports the industry-standard H�264 compression technology, drastically reducing

le sizes and conserving valuable network bandwidth. Together with the ST7501 multi-lingual

32-channel recording software, users can set up an easy-to-use IP surveillance system with ease�

Revision History

■ Rev. 1.0: Initial release

■ Rev. 1.1: Added description for the T-bracket for mounting into an enclosure.

4 - User's Manual

VIVOTEK

i

Read Before Use

The use of surveillance devices may be prohibited by law in your country� The Network Camera

is not only a high-performance web-ready camera but can also be part of a exible surveillance

system� It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use�

It is important to first verify that all contents received are complete according to the Package Contents listed below� Take note of the warnings in the Quick Installation Guide before the Network Camera is installed; then carefully read and follow the instructions in the Installation chapter to avoid damage due to faulty assembly and installation� This also ensures the product is used properly as intended�

The Network Camera is a network device and its use should be straightforward for those who have basic networking knowledge� It is designed for various applications including video sharing, general security/surveillance, etc� The Configuration chapter suggests ways to best utilize the Network Camera and ensure proper operations� For creative and professional developers, the URL Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server�

Package Contents

■ IP8152

■ Screws / Plastic Anchors

■ CS-mount Lens

■ Camera Stand

■ Software CD

■ Warranty Card

■ Quick Installation Guide

■ L-type Hex Key Wrench

■ T-shape mount bracket

Symbols and Statements in this Document

INFORMATION: provides important messages or advices that might help prevent

inconvenient or problem situations�

NOTE: Notices provide guidance or advices that are related to the functional integrity of

the machine�

Tips: Tips are useful information that helps enhance or facilitae an installation, function,

or process�

WARNING: or IMPORTANT: These statements indicate situations that can be dangerous

or hazardous to the machine or you�

Electrical Hazard: This statement appears when high voltage electrical hazards might

occur to an operator�

User's Manual - 5

VIVOTEK

Physical Description

Front Panel

Status LED

Lens

Mount ring adjustment

MicroSD/ SDHC/SDXC Card Slot

Item LED status Description

LED Denitions

1 Steady Red Powered and system booting, or network failed 2 Green LED blinks every 1 sec� Connected to network 3 Green and RED blink consecutively every

0�15 sec� 4 Steady Red Network failed 5 Orange blinks every 0�15 sec� Restoring defaults

Upgrading rmware

Rear Panel

Iris Control Cable Socket

1 2 3 4 5 6 7

RS485_N

GND

DI

RS485_P

AUDIO_OUT

GND_AUDIO

MIC_IN

Mounting Hole

Ethernet 10/100 RJ45

Socket

6 - User's Manual

General I/O Terminal Block

Recessed Reset Button

Lens

Focus Controller

Zoom Controller

Mounting the Lens to the Camera

VIVOTEK

1� Mount the lens by turning it clockwise onto the camera mount until it stops� 2� Connect the iris control cable to the socket� Connect the iris control cable before

power-on. Otherwise, you will not be able to access the exposure-related settings.

1

2

User's Manual - 7

VIVOTEK

0002D10766AD

IP8152

Mounting the Camera to Stand

1� Use the holes on the camera stand to mark drill holes on the wall� Drill holes on your

preferred location� 2� Hammer in the included plastic anchors� 3� Install the camera stand to wall or ceiling

by driving screws through it�

4� Attach the camera to stand by turning the

stand and the fastening rings�

IMPORTANT:

Record the MAC address before installing the camera�

8 - User's Manual

Digital Input Diagram

Please refer to the following illustration for the connection method�

Max. voltage: 40V

3.3V

DI+

Digital input

DI-

DI-: Ground

VIVOTEK

Connect a digital input device to the input pins of the camera� From the Applications > Digital Input page, you can let camera report the current signal status as High or Low, Open or Ground-

ed, to determine the signal’s Normal status during operation�

User's Manual - 9

VIVOTEK

Hardware Reset

Reset Button

The reset button is used to reset the system or restore the factory default settings� Sometimes resetting the system can return the camera to normal operation� If the system problems remain after reset, restore the factory settings and install again�

Reset: Press and release the reset button. Wait for the Network Camera to reboot.

Restore: Press and hold the recessed reset button until the status LED rapidly blinks. Note that all settings will be restored to factory default� Upon successful restore, the status LED will blink green and red during normal operation�

Micro SD/SDHC/SDXC Card Capacity

This network camera is compliant with Micro SD/SDHC/SDXC of 8, 16, 32GB, or 64GB capacity SD cards�

10 - User's Manual

Network Deployment

Power over Ethernet (PoE)

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable� Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable�

VIVOTEK

PoE Switch

POWER

COLLISION

1

LINK

RECEIVE

2

PARTITION

3

4

5

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch�

PoE Power Injector

(optional)

POWER

COLLISION

LINK

RECEIVE

1

2

PARTITION

3

4

5

Non-PoE Switch

User's Manual - 11

VIVOTEK

Internet connection via a router

Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below�

1� Connect your Network Camera behind a router, the Internet environment is illustrated below�

Regarding how to obtain your IP address, please refer to Software Installation on page 14 for details�

IP address : 192.168.0.3 Subnet mask : 255.255.255.0 Default router : 192.168.0.1

IP address : 192.168.0.2 Subnet mask : 255.255.255.0 Default router : 192.168.0.1

Internet

Cable or DSL Modem

WAN (Wide Area Network ) Router IP address : from ISP

LINK

POWER

COLLISION

RECEIVE

1

2

PARTITION

3

4

5

LAN (Local Area Network) Router IP address : 192.168.0.1

2� In this case, if the Local Area Network (LAN) IP address of your Network Camera is 192�168�0�3, please forward the following ports for the Network Camera on the router�

■ HTTP port: default is 80; secondary HTTP port is 8080

■ RTSP port: default is 554

■ RTP port for audio: default is 5558

■ RTCP port for audio: default is 5559

■ RTP port for video: default is 5556

■ RTCP port for video: default is 5557

If you have changed the port numbers on the Network page, please open the ports accordingly on your router� For information on how to forward ports on the router, please refer to your router’s user’s manual�

3� Find out the public IP address of your router provided by your ISP (Internet Service Provider)� Use the public IP and the secondary HTTP port to access the Network Camera from the Internet� Please refer to Network Type on page 59 for details�

For example, your router and IP settings may look like this:

Device IP Address: internal

port

IP Address: External Port (Mapped port on the

router) Public IP of router 122�146�57�120 LAN IP of router 192�168�2�1 Camera 1 192.168.2.10:80 122.146.57.120:8000 Camera 2 192.168.2.11:80 122.146.57.120:8001 ��

12 - User's Manual

VIVOTEK

Congure the router, virtual server or rewall, so that the router can forward any data coming into a precongured port number to a network camera on the private network, and

allow data from the camera to be transmitted to the outside of the network over the same path�

From Forward to

122.146.57.120:8000 192.168.2.10:80

122.146.57.120:8001 192.168.2.11:80

��

When properly congured, you can access a camera behind the router using the HTTP request as follows: http://122.146.57.120:8000

If you change the port numbers on the Network conguration page, please open the ports

accordingly on your router� For example, you can open a management session with your

router to congure access through the router to the camera within your local network. Please consult your network administrator for router conguration if you have troubles with the conguration.

For more information with network conguration options (such as that of streaming ports), please refer to Conguration > Network Settings. VIVOTEK also provides the automatic

port forwarding feature as an NAT traversal function with the precondition that your router must support the UPnP port forwarding feature�

Internet connection with static IP

Choose this connection type if you are required to use a static IP for the Network Camera�

Please refer to LAN setting on page 59 for details�

Internet connection via PPPoE (Point-to-Point over Ethernet)

Choose this connection type if you are connected to the Internet via a DSL Line� Please refer to PPPoE on page 60 for details�

User's Manual - 13

VIVOTEK

Software Installation

Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up your Network Camera on the LAN�

IW

1� Install IW2 under the Software Utility directory from the software CD� Double-click the IW2 shortcut on your desktop to launch the program�

2� The program will conduct an analysis of your network environment� After your network environment is analyzed, please click Next to continue the program�

2

Installation

Wizard 2

3� The program will search for all VIVOTEK network devices on the same LAN�

4� After a brief search, the installer window will prompt� Click on the MAC and model name that matches the one printed on the product label� You can then double-click on the address to

open a management session with the Network Camera�

IP8152

0002D10766AD

00-02-D1-73-02-02 192.168.5.151 IP8152

0002D1730202

14 - User's Manual

VIVOTEK

Ready to Use

1� A browser session with the Network Camera should prompt as shown below� 2� You should be able to see live video from your camera� You may also install the 32-channel

recording software from the software CD in a deployment consisting of multiple cameras� For its installation details, please refer to its related documents�

3� Unscrew the zoom controller to adjust the zoom factor� Upon completion, tighten the zoom

controller�

4� Unscrew the focus controller to adjust the focus range� Upon completion, tighten the focus

controller�

3

T

∞

4

W

N

User's Manual - 15

VIVOTEK

NOTE:

If you prefer other lens for your IP8152, please notice the specications below.

1. If you select a different lens, the distance between the ange of the lens and the IR cut lter on the camera should be smaller than 7.5mm. If the lens protrudes too much from

the bottom of the lens module, it may hit the IR Cut Filter, or result in out of focus when adjusting the focus controller�

2� A vari-focal lens may protrude from the bottom of screw mount when tuning the focus

puller�

IR Cut Filter

Lens protrudes from the screw mount

Screw mount

mm

3� Use the included hex wrench to make adjustments to CS-mount ring only when you

experience compatibility issue with lens focal length�

16 - User's Manual

VIVOTEK

Installed into Housing

1� Attach the bracket to the back of the camera by resting the foam pads on the top and to

the back of the camera� Secure the bracket by driving a hex socket screw�

The camera can be installed into VIVOTEK's housings, such as the AE-211/-232/-233/-234/-235 series�

2� Attach the T-bracket and the camera to the camera bracket� Place the camera lens in

the front as close as possible to the enclosure's tempered glass window� Secure the installation by tightening the hex socket screw on top�

User's Manual - 17

VIVOTEK

Accessing the Network Camera

This chapter explains how to access the Network Camera through web browsers, RTSP players, 3GPP-compatible mobile devices, and VIVOTEK recording software�

Using Web Browsers

Use Installation Wizard 2 (IW2) to access the Network Cameras on LAN�

If your network environment is not a LAN, follow these steps to access the Netwotk Camera:

1� Launch your web browser (e�g�, Microsoft

2. Enter the IP address of the Network Camera in the address eld. Press Enter� 3� The live video will be displayed in your web browser�

4. If it is the rst time installing the VIVOTEK network camera, an information bar will pop up as

shown below� Follow the instructions to install the required plug-in on your computer�

®

Internet Explorer or Mozilla Firefox)�

NOTE

NOTE:

► For Mozilla Firefox users, your browser will use Apple’s Quick Time to stream the live video.

If you don’t have Quick Time on your computer, please download it rst, then launch the web

browser�

18 - User's Manual

VIVOTEK

► By default, the Network Camera is not password-protected. To prevent unauthorized access,

it is highly recommended to set a password for the Network Camera� For more information about how to enable password protection, please refer to Security on page 78�

► If you see a dialog box indicating that your security settings prohibit running ActiveX

®

Controls, please enable the ActiveX

Controls for your browser�

®

1� Choose Tools > Internet Options > Security > Custom Level�

2� Look for Download signed ActiveX

®

controls; select Enable or Prompt� Click OK�

3� Refresh your web browser, then install the ActiveX

complete installation�

®

control� Follow the instructions to

User's Manual - 19

VIVOTEK

IMPORTANT:

Currently the Network Camera utilizes 32-bit ActiveX plugin� You CAN NOT open a

•

management/view session with the camera using a 64-bit IE browser�

If you encounter this problem, try execute the Iexplore.exe program from C:\

•

Windows\SysWOW64. A 32-bit version of IE browser will be installed. On Windows 7, the 32-bit explorer browser can be accessed from here:

•

C:\Program Files (x86)\Internet Explorer\iexplore.exe

Tips

• The onscreen Java control can malfunction under the following situations:

A PC connects to different cameras that are using the same IP address (or the same

camera running different rmware versions). Removing your browser cookies will solve

this problem�

20 - User's Manual

VIVOTEK

Using RTSP Players

To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming�

Quick Time Player

VLC

VLC media player 1� Launch the RTSP player you prefer�

mpegable Player

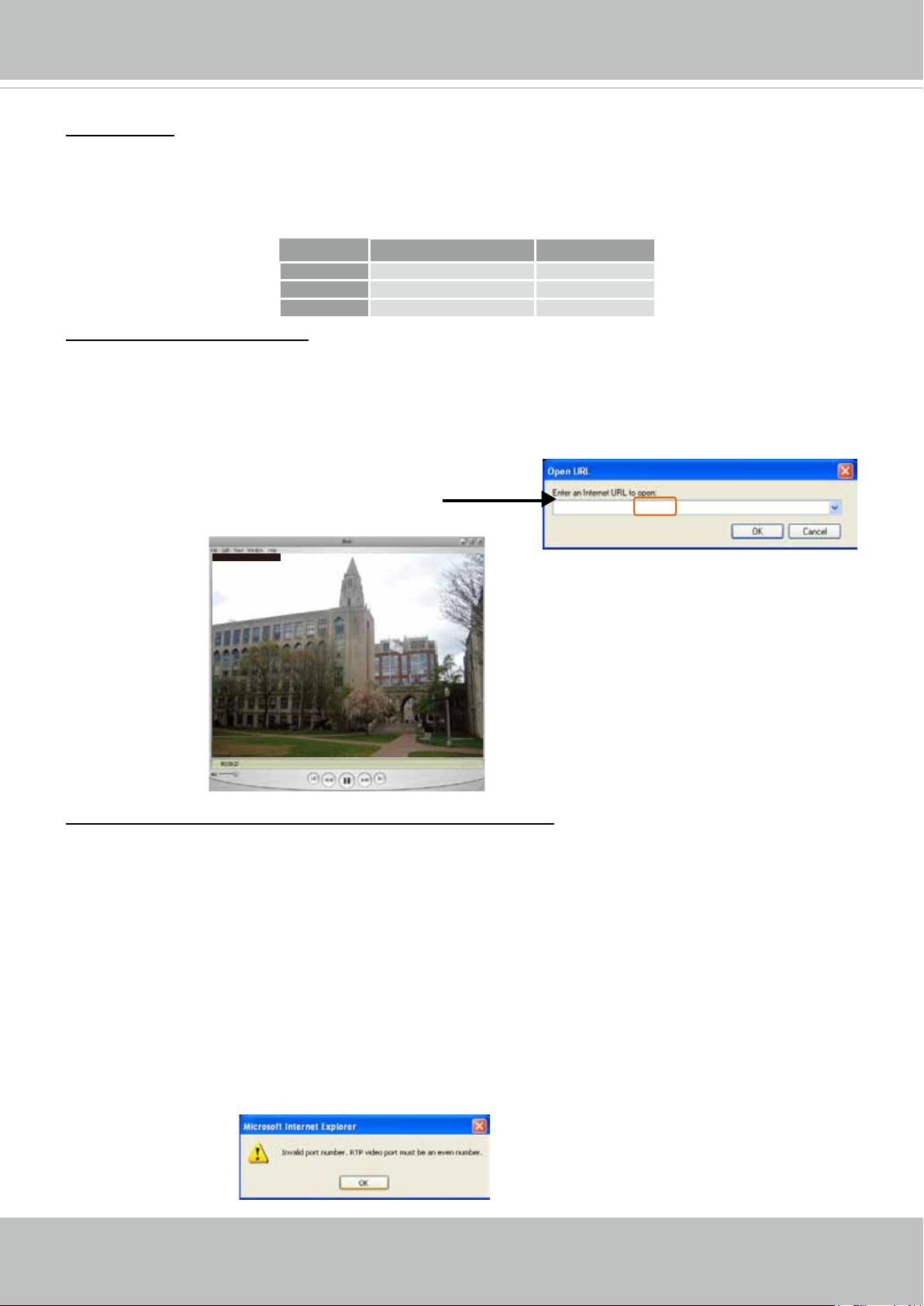

2� Choose File > Open URL� A URL dialog box will prompt�

3. The address format is: rtsp://<ip_address>:<rtsp_port>/<RTSP streaming access name for a

pvPlayer

specic video stream>

VIVOTEK’s network cameras support simultaneous playback of 2 to 5 video streams� The

streaming access names for these streams are:

Stream 1 – live�sdp, Stream 2 – live2�sdp, Stream 3 – live3�sdp, Stream 4 – live4�sdp�

As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554� For more information, please refer to RTSP Streaming on page 69�

For example:

rtsp://192.168.5.151:554/live.sdp

4� The live video will be displayed in your player�

For more information on how to configure the RTSP access name, please refer to RTSP Streaming on page 69 for details�

Video 16:38:01 2012/01/25

User's Manual - 21

VIVOTEK

Using 3GPP-compatible Mobile Devices

To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet� For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 12�

To utilize this feature, please check the following settings on your Network Camera:

1� Because most players on 3GPP mobile phones do not support RTSP authentication, make

sure the authentication mode of RTSP streaming is set to disable�

For more information, please refer to RTSP Streaming on page 69�

2� As the the bandwidth on 3G networks is limited, you will not be able to use a large video size�

Please set the video and audio streaming parameters as listed below�

For more information, please refer to Stream settings on page 52�

Video Mode MPEG-4 Frame size 176 x 144 Maximum frame rate 5 fps Intra frame period 1S Video quality (Constant bit rate) 40kbps Audio type (GSM-AMR) 12.2kbps

3� As most ISPs and players only allow RTSP streaming through port number 554, please set

the RTSP port to 554� For more information, please refer to RTSP Streaming on page 69�

4� Launch the player on the 3GPP-compatible mobile devices (e�g�, Real Player)�

5� Type the following URL commands into the player�

The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming

access name for stream # with small frame size and frame rate>�

For example:

You can configure Stream #2 into the suggested stream settings as listed above for live viewing on a mobile device�

22 - User's Manual

VIVOTEK

Using VIVOTEK Recording Software

The product software CD also contains an ST7501 recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras� Please install the recording software; then launch the program to add the Network Camera to the Channel list� For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www.vivotek.com�

User's Manual - 23

VIVOTEK

Main Page

This chapter explains the layout of the main page. It is composed of the following sections:

VIVOTEK INC� Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window�

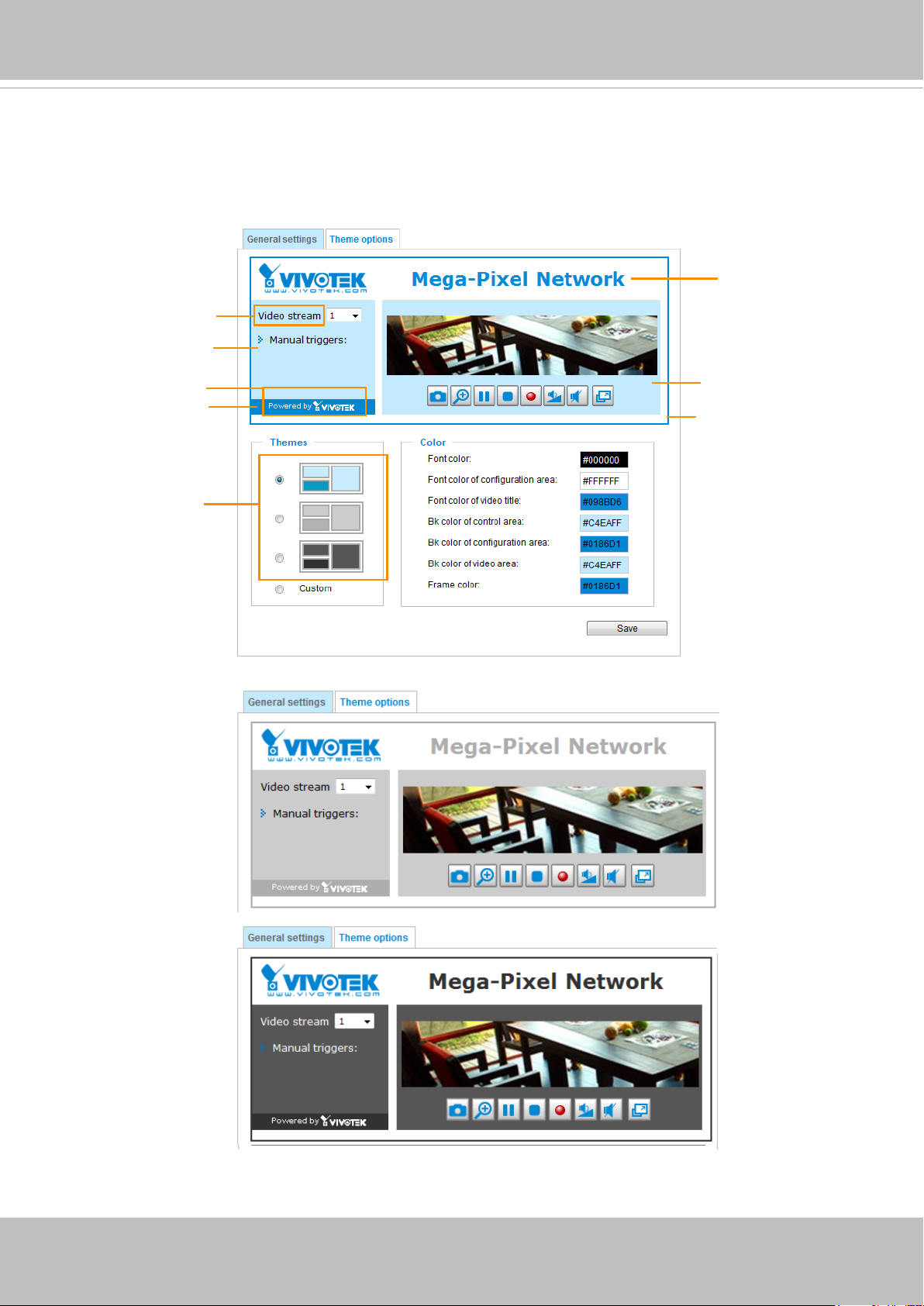

VIVOTEK INC. Logo

Camera Control Area

Hide Button

Resize Buttons

Host Name

Configuration Area

Live View Window

VIVOTEK INC. Logo

Click this logo to visit the VIVOTEK website�

Host Name

The host name can be customized to t your needs. For more information, please refer to System on page 33.

Camera Control Area

Video Stream: This Network Camera supports multiple streams (stream 1 ~ 2) simultaneously. You can select either one for live viewing� For more information about multiple streams, please refer to page 81 for detailed information�

Manual Trigger: Click to enable/disable an event trigger manually. Please configure an event setting

on Application page before enable this function. A total of 3 event settings can be congured. For more

information about event setting, please refer to page 94� If you want to hide this item on the homepage, please go to Conguration> System > Homepage Layout > General settings > Customized button to deselect “show manual trigger button”�

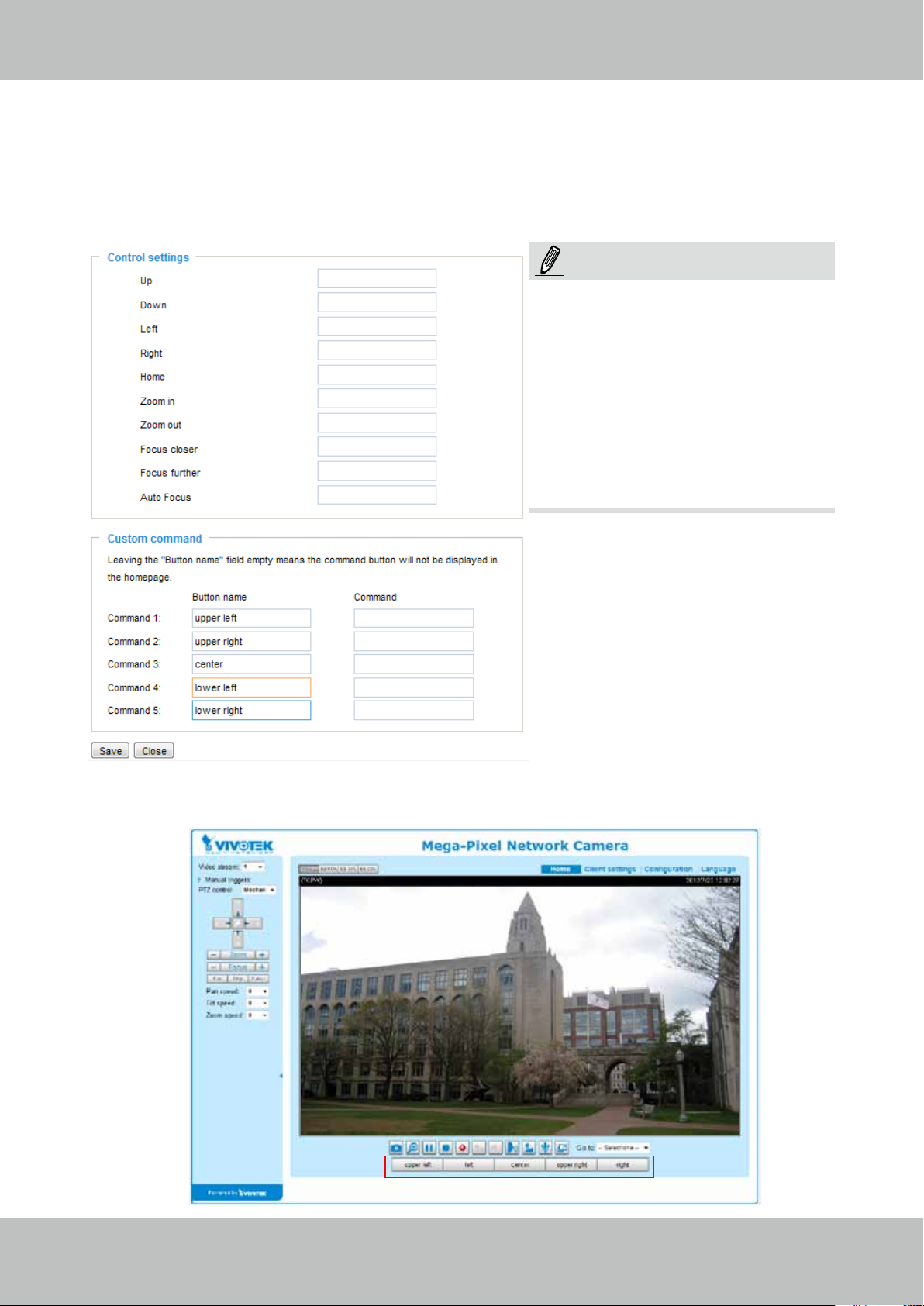

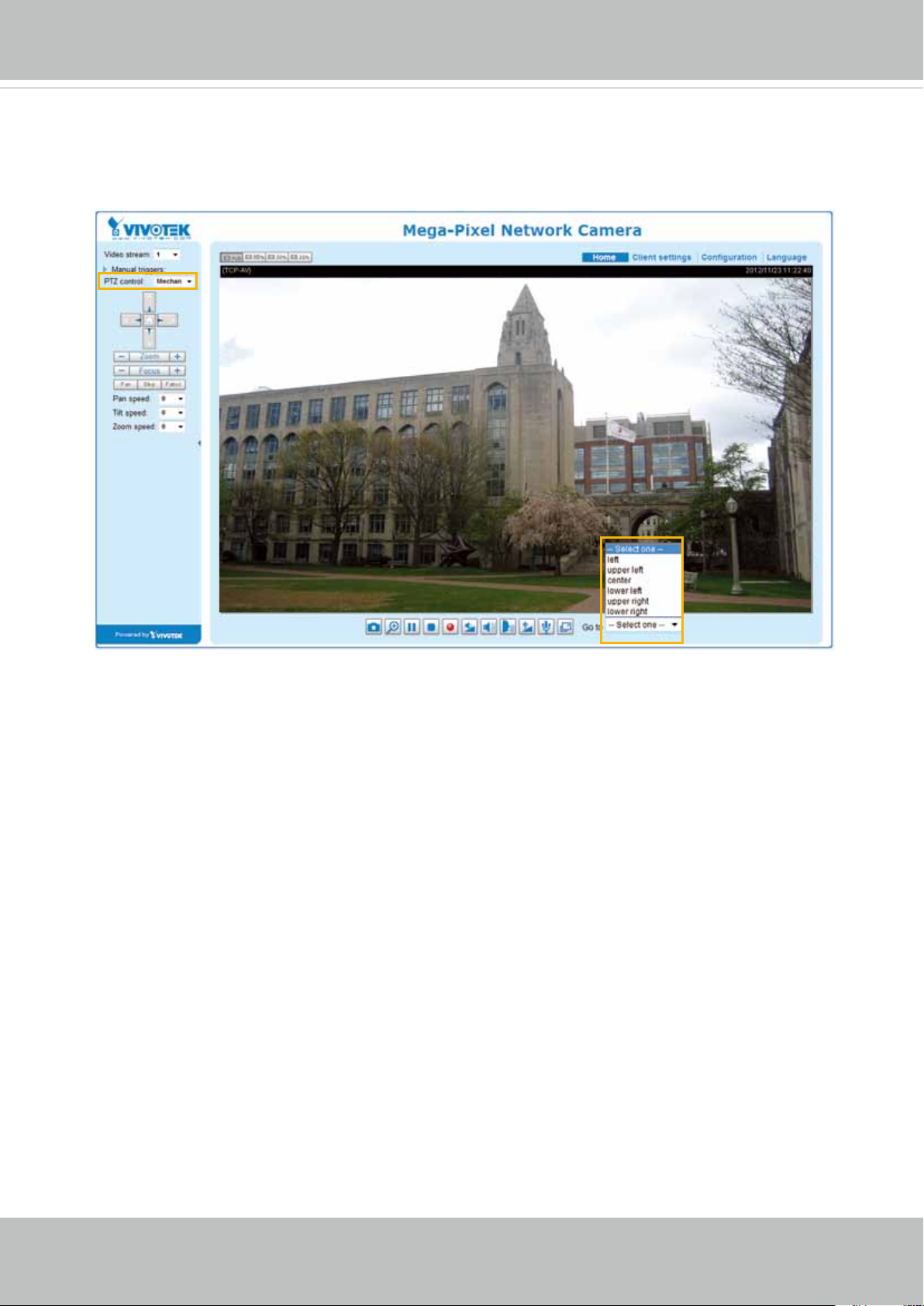

PTZ Control: If your camera is mounter on a PTZ scanner, you may select the “Mechanical” option. If

not, you can select the Digital PTZ control option. If you set up a smaller led of view from within a large

video frame, you can use the digital PTZ to move to other view areas in the video frame�

24 - User's Manual

VIVOTEK

Conguration Area

Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 28�

Conguration: Click this button to access the conguration page of the Network Camera. It is suggested

that a password be applied to the Network Camera so that only the administrator can configure the

Network Camera. For more information, please refer to Conguration on page 32.

Language: Click this button to choose a language for the user interface. Language options are available in: English, Deutsch, Español, Français, Italiano,

日本語

, Português,

簡体中文

, and

繁體中文

� Please

note that you can also change a language on the Conguration page; please refer to page 32.

Hide Button

You can click the hide button to hide the control panel or display the control panel�

Resize Buttons

:

Click the Auto button, the video cell will resize automatically to t the monitor.

Click 100% is to display the original homepage size� Click 50% is to resize the homepage to 50% of its original size� Click 25% is to resize the homepage to 25% of its original size�

Live Video Window

■ The following window is displayed when the video mode is set to H.264 / MPEG-4:

H.264 / MPEG-4 Protocol and Media Options

Video Title

Title and Time

Zoom Indicator

Video (TPC-AV)

Video 17:08:56 2012/06/25

x4.0

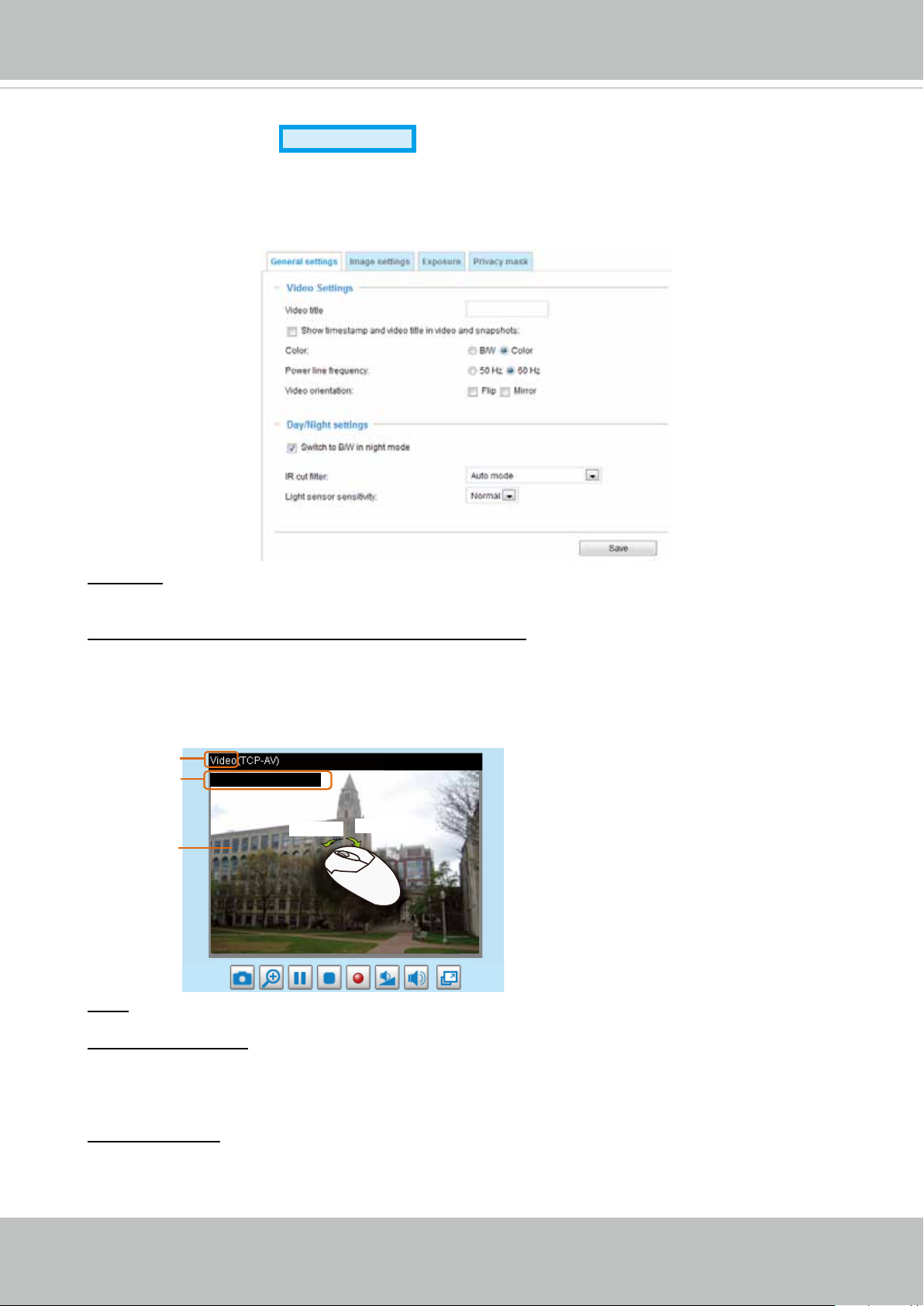

Video Title: The video title can be congured. For more information, please refer to Video Settings on page 52�

H�264 / MPEG-4 Protocol and Media Options: The transmission protocol and media options for H.264 /

MPEG-4 video streaming. For further conguration, please refer to Client Settings on page 28.

2012/06/25 17:08:56

Time

Video and Audio Control Buttons

Time: Display the current time. For further conguration, please refer to Media > Image > Genral settings on page 45�

Title and Time: The video title and time can be stamped on the streaming video. For further conguration, please refer to Media > Image > General settings on page 45�

User's Manual - 25

VIVOTEK

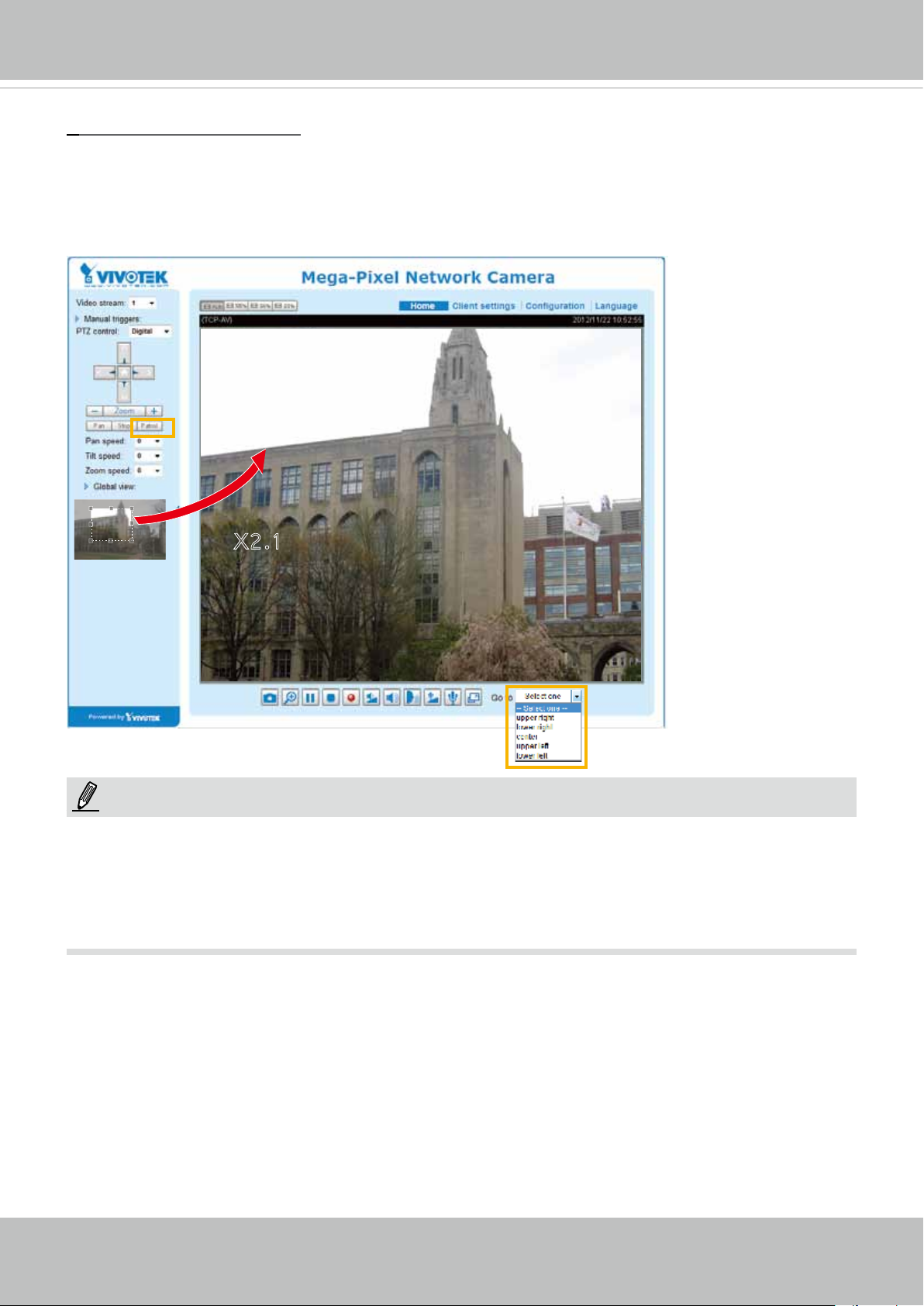

Global View: Click on this item to display the Global View window� The Global View window contains a full view image (the largest frame size of the captured video) and a oating frame (the viewing region of

the current video stream). The oating frame allows users to control the e-PTZ function (Electronic Pan/

Tilt/Zoom)� For more information about e-PTZ operation, please refer to E-PTZ Operation on page 91� For more information about how to set up the viewing region of the current video stream, please refer to page 91�

The viewing region of the current video stream

The largest frame size

PTZ Panel: This Network Camera supports both “digital“ (e-PTZ) pan/tilt/zoom control. Please refer to PTZ settiings on page 91 for detailed information�

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera

conguration, some buttons may not be available.

Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window� Right-click the image and choose Save Picture As to save it in JPEG (*�jpg) or BMP (*�bmp) format�

Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation

screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To

move to a different area you want to magnify, drag the navigation screen�

Pause: Pause the transmission of the streaming media. The button becomes the Resume button after clicking the Pause button�

Stop: Stop the transmission of the streaming media. Click the Resume button to continue transmission�

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer. Press the

Stop MP4 Recording button to end recording� When you exit the web browser, video

recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving Options on page 29 for details�

Volume: When the Mute function is not activated, move the slider bar to adjust the volume on the local computer�

Mute: Turn off the volume on the local computer� The button becomes the Audio On button after clicking the Mute button�

Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal

mode�

26 - User's Manual

VIVOTEK

■ The following window is displayed when the video mode is set to MJPEG:

Video Title

Title and Time

Video (HTTP-V)

Video 17:08:56 2012/06/25

Video Title: The video title can be congured. For more information, please refer to Media > Image on page 45�

Time: Display the current time. For more information, please refer to Media > Image on page 45.

2012/06/25 17:08:56

Time

Video Control Buttons

Title and Time: Video title and time can be stamped on the streaming video. For more information, please refer to Media > Image on page 45

�

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera

conguration, some buttons may not be available.

Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window� Right-click the image and choose Save Picture As to save it in JPEG (*�jpg) or BMP (*�bmp) format�

Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation

screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To

move to a different area you want to magnify, drag the navigation screen�

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer. Press the

Stop MP4 Recording button to end recording� When you exit the web browser, video

recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving Options on page 29 for details�

Full Screen: Click this button to switch to full screen mode� Press the “Esc” key to switch back to normal

mode�

Go to

If you congured and chose to display a smaller

region of interest from out of a maximum image

frame, you can congure different areas within the

frame as preset points, and use this menu to move

to a location�

User's Manual - 27

VIVOTEK

Client Settings

This chapter explains how to select the stream transmission mode and saving options on the local computer� When completed with the settings on this page, click Save on the page bottom to enable the settings�

H.264 / MPEG-4 Media Options

H.264/MPEG-4 Media Options

Select to stream video or audio data or both� This is enabled only when the video mode is set to H�264 or MPEG-4�

H.264 / MPEG-4 Protocol Options

H.264/MPEG-4 Protocol Options

Depending on your network environment, there are four transmission modes of H�264 or MPEG-4

streaming:

UDP unicast: This protocol allows for more real-time audio and video streams. However, network packets may be lost due to network burst trafc and images may be broken. Activate UDP connection

when occasions require time-sensitive responses and the video quality is less important� Note that each unicast client connecting to the server takes up additional bandwidth and the Network Camera allows up to ten simultaneous accesses�

UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients requesting streaming media� This helps to reduce the network transmission load of the Network Camera while serving multiple clients at the same time� Note that to utilize this feature, the Network Camera must be configured to enable multicast streaming at the same time� For more information, please refer to RTSP Streaming on page 69�

TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video quality� The downside of this protocol is that its real-time effect is not as good as that of the UDP protocol�

HTTP: This protocol allows the same quality as TCP protocol without needing to open specic ports for streaming under some network environments� Users inside a firewall can utilize this protocol to allow streaming data through�

28 - User's Manual

VIVOTEK

MP4 Saving Options

Users can record live video as they are watching it by clicking Start MP4 Recording on the main

page. Here you can specify the storage destination and le name.

Folder: Specify a storage destination for the recorded video les.

File name prex: Enter the text that will be appended to the front of the video le name.

Add date and time sufx to the le name: Select this option to append the date and time to the end of the le name.

CLIP_20110628-180853

File name preﬁx

Date and time sufﬁx

The format is: YYYYMMDD_HHMMSS

Local Streaming Buffer Time

Due to the unsteady bandwidth ow, the live streaming may lag and not be very smoothly. If you enable

this option, the live streaming will be stored on the cache memory of the PC having a web session with the camera for a few seconds before being played on the live viewing window� This helps you see the streaming more smoothly� If you enter 3000 Millisecond, the streaming will delay for 3 seconds�

User's Manual - 29

VIVOTEK

Joystick settings

Enable Joystick

Connect a joystick to a USB port on your management computer� Supported by the plug-in (Microsoft’s DirectX), once the plug-in for the web console is loaded, it will automatically detect if there is any joystick on the computer� The joystick should work properly without installing any other driver or software�

Then you can begin to configure the joystick settings of connected devices� Please follow the instructions below to enable joystick settings�

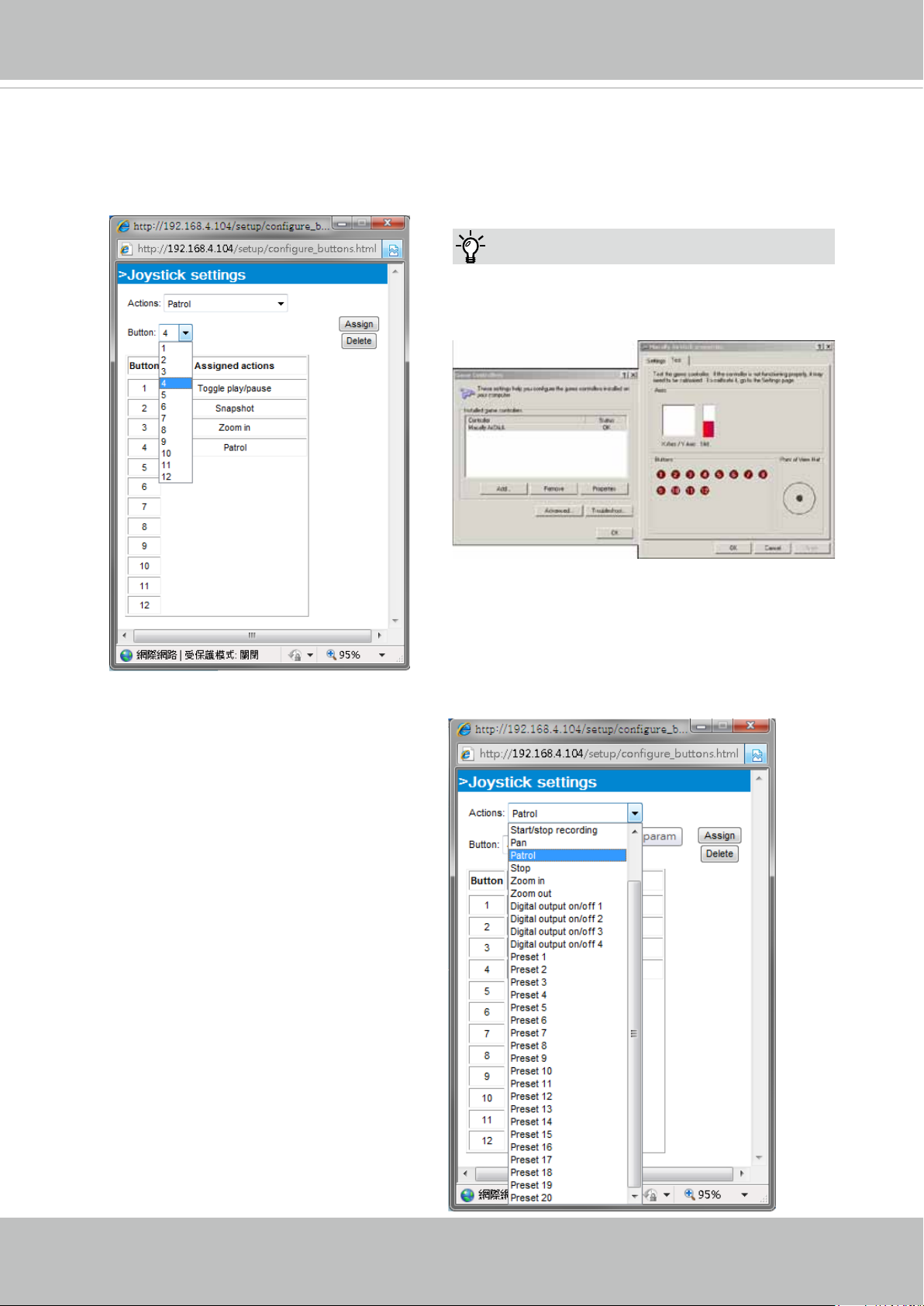

1� Select a detected joystick, if there are multiple, from the Selected joystick menu� If your joystick

is not detected, if may be defective�

2� Click Calibrate or Congure buttons to congure the joystick-related settings.

NOTE:

• If you want to assign Preset actions to your joystick, the preset locations should be congured in advance in the Conguration > PTZ page.

• If your joystick is not working properly, it may need to be calibrated� Click the Calibrate button

to open the Game Controllers window located in Microsoft Windows control panel and follow the instructions for trouble shooting�

• The joystick will appear in the Game Controllers list in the Windows Control panel� If you want to check out for your devices, go to the following page: Start -> Control Panel -> Game Controllers.

30 - User's Manual

VIVOTEK

Buttons Conguration

Click the Congure Buttons button, a window will prompt as shown below� Please follow the steps

below to congure your joystick buttons:

1� Select a button number from the Button # pull-down menu�

Tips

If you are not sure of the locations of each button, use the Properties window in the Game Controllers utility�

2� Select a corresponding action, such as Patrol or Preset#�

3�

Click the Assign button to assign an action to the button� You can delete an association by selecting a button number, and then click the Delete button�

Repeat the process until you are done with the configuration of all preferred actions�

The buttons you dene should appear on

the button list accordingly�

4� Please remember to c

lick the Save button on the Client settings page to preserve your settings�

User's Manual - 31

VIVOTEK

Conguration

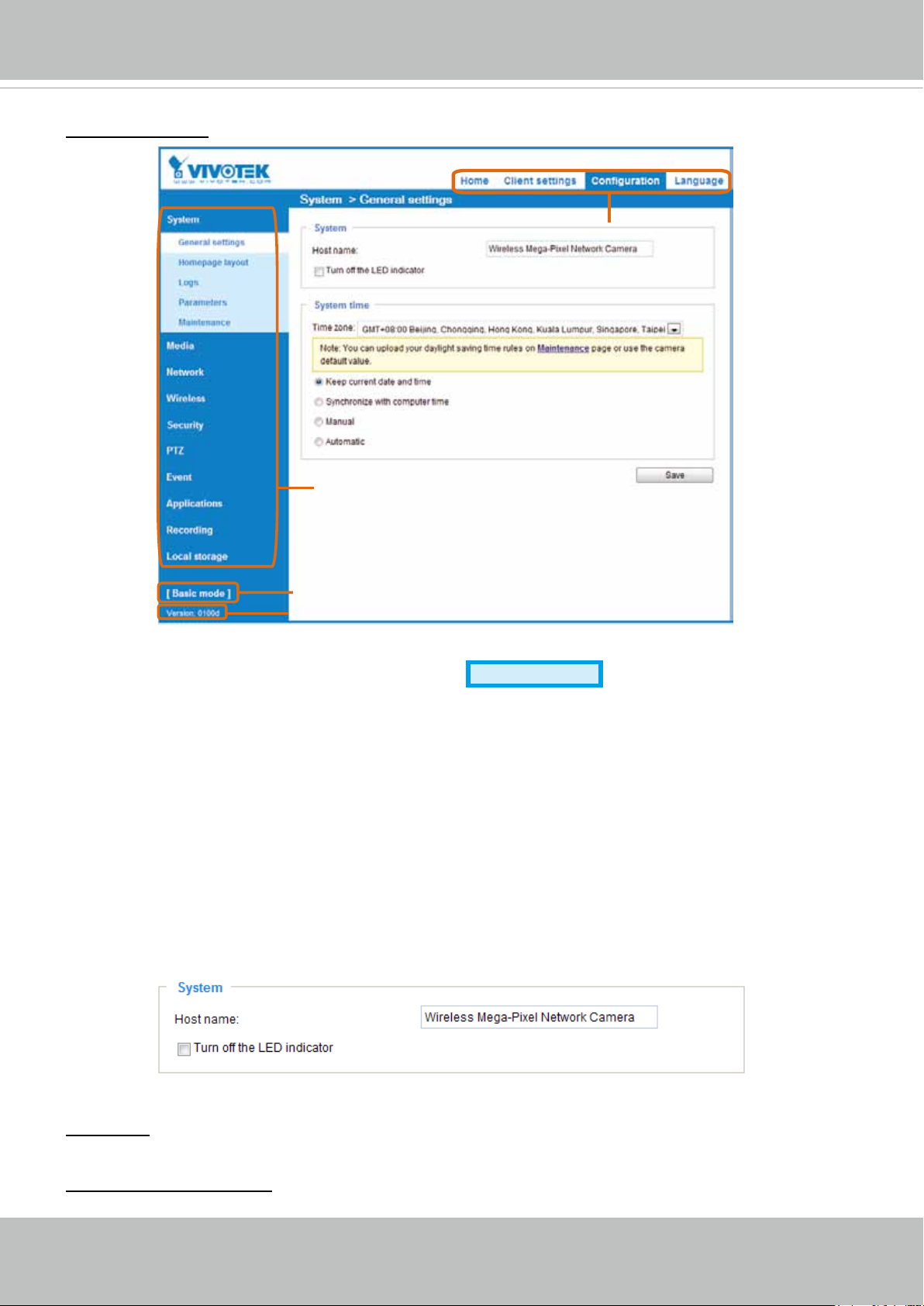

Click Configuration on the main page to enter the camera setting pages� Note that only

Administrators can access the conguration page.

VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with

minimal effort. To simplify the setting procedure, two types of user interfaces are available:

Advanced Mode for professional users and Basic Mode for entry-level users� Some advanced functions (PTZ/ Event/ Recording/ Local storage) are not displayed in Basic Mode�

If you want to set up advanced functions, please click [Advanced Mode] on the bottom of the

conguration list to quickly switch to Advanced Mode.

In order to simplify the user interface, the detailed information will be hidden unless you click to

unfold a functional item. When you click on the rst sub-item, the detailed information for the rst

sub-item will be displayed; when you click on the second sub-item, the detailed information for

the second sub-item will be displayed and that of the rst sub-item will be hidden.

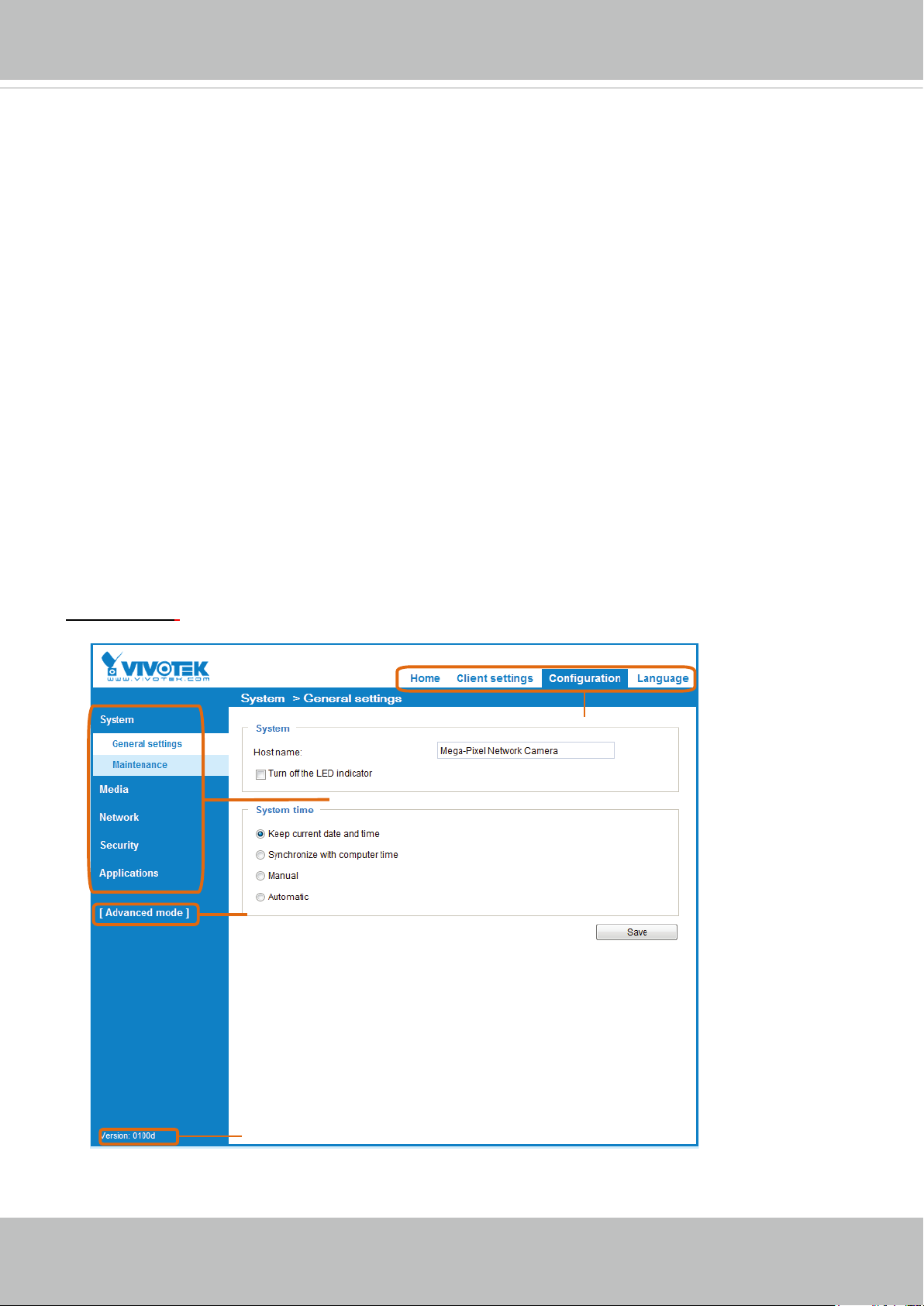

The following is the interface of the Basic Mode and the Advanced Mode:

Basic Mode

Navigation Area

Configuration List

Click to switch to Advanced Mode

32 - User's Manual

Firmware Version

Advanced Mode

VIVOTEK

Navigation Area

Configuration List

Click to switch to Basic Mode

Firmware Ver-

Each function on the conguration list will be explained in the following sections. Those functions that are

displayed only in Advanced Mode are marked with

Advanced Mode

� If you want to set up advanced

functions, please click [Advanced Mode] on the bottom of the conguration list to quickly switch over.

The Navigation Area provides access to the Home page (the monitoring page for live viewing), Client

settings, Conguration page, and multi-language selection�

System > General settings

This section explains how to congure the basic settings for the Network Camera, such as the host name and system time. It is composed of the following two columns: System, and System

Time� When finished with the settings on this page, click Save at the bottom of the page to enable the settings�

System

Host name: Enter a desired name for the Network Camera. The text will be displayed at the top of the main page, and also on the view cell of ST7501 and VAST management software�

Turn off the LED indicators: If you do not want others to notice the network camera is in operation, you can select this option to turn off the LED indicators�

User's Manual - 33

VIVOTEK

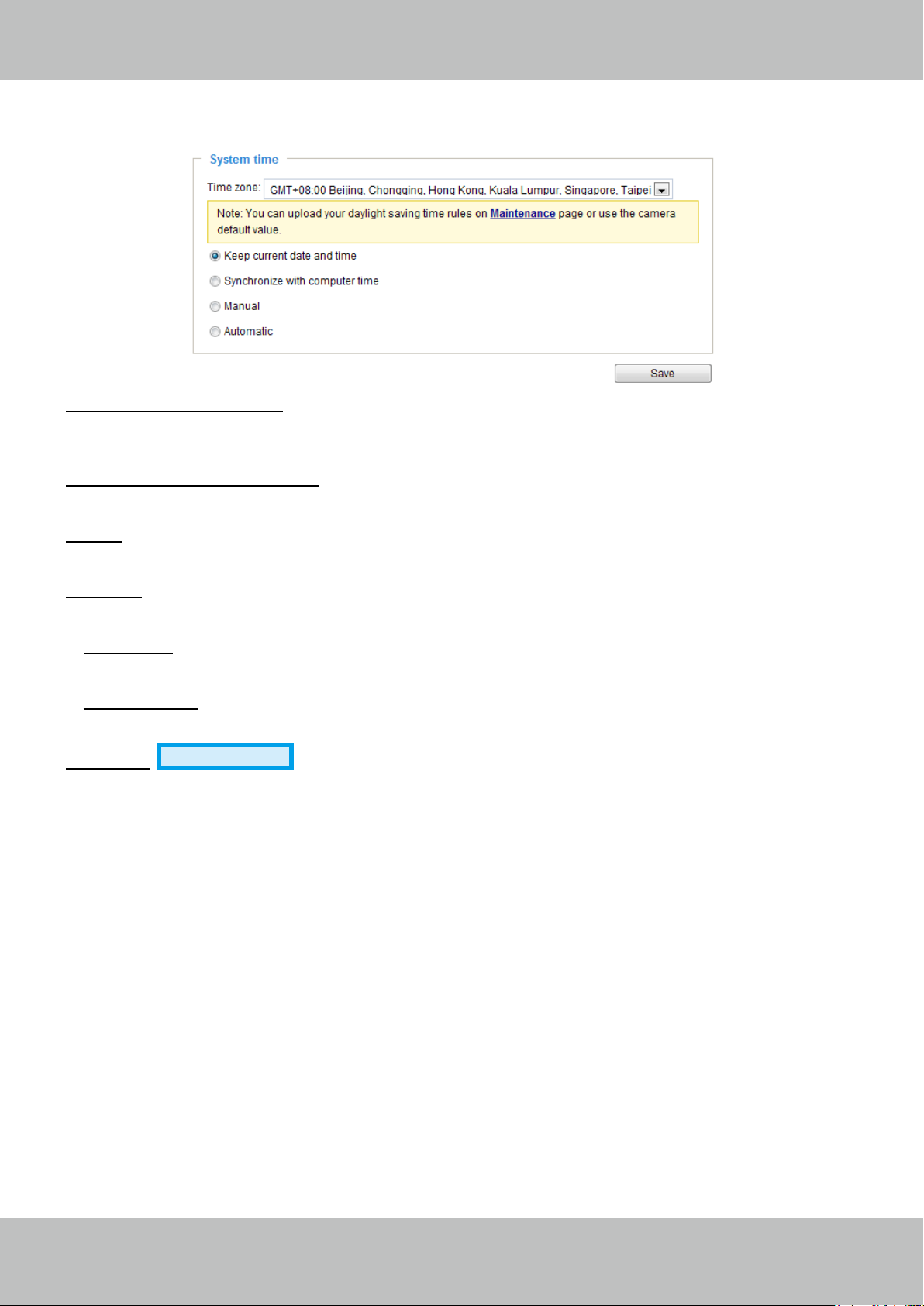

System time

Keep current date and time: Select this option to preserve the current date and time of the Network Camera� The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off�

Synchronize with computer time: Select this option to synchronize the date and time of the Network Camera with the local computer� The read-only date and time of the PC is displayed as updated�

Manual: The administrator can enter the date and time manually. Note that the date and time format are

[yyyy/mm/dd] and [hh:mm:ss].

Automatic: The Network Time Protocol is a protocol which synchronizes computer clocks by periodically querying an NTP Server�

NTP server: Assign the IP address or domain name of the time-server. Leaving the text box blank connects the Network Camera to the default time servers�

Update interval: Select to update the time using the NTP server on an hourly, daily, weekly, or monthly basis�

Time zone

Advanced Mode

: Select the appropriate time zone from the list. If you want to upload

Daylight Savings Time rules, please refer to System > Maintenance > Import/ Export les on page 42 for details�

34 - User's Manual

VIVOTEK

System > Homepage layout

Advanced Mode

This section explains how to set up your own customized homepage layout�

General settings

This column shows the settings of your hompage layout� You can manually select the background and font colors in Theme Options (the second tab on this page)� The settings will be displayed automatically

in this Preview eld. The following shows the homepage using the default settings:

■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage.

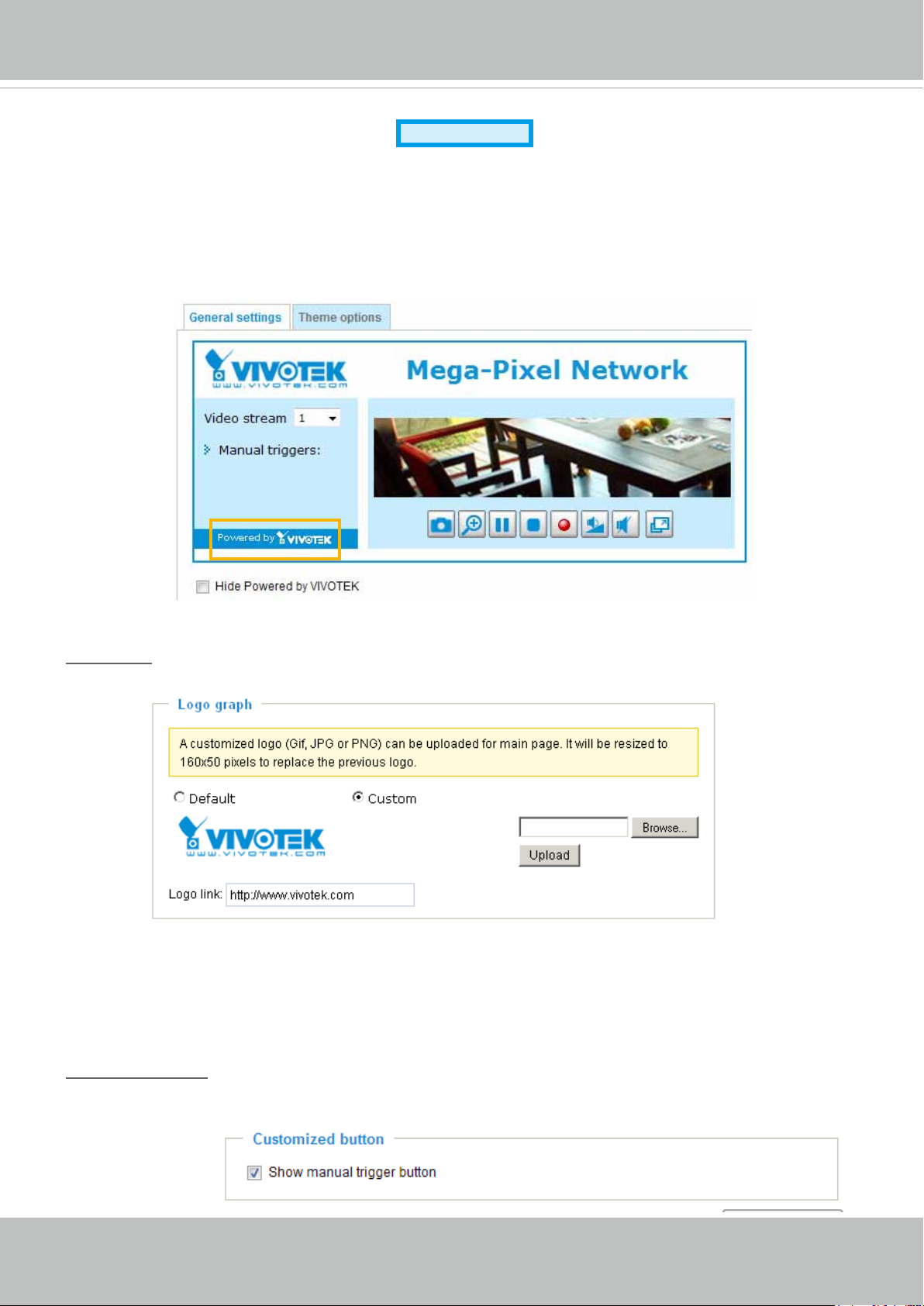

Logo graph Here you can change the logo at the top of your homepage�

Follow the steps below to upload a new logo: 1� Click Custom and the Browse eld will appear.

2. Select a logo from your les.

3� Click Upload to replace the existing logo with a new one� 4� Enter a website link if necessary� 5� Click Save to enable the settings�

Customized button If you want to hide manual trigger buttons on the homepage, please uncheck this item� This item is checked by default�

User's Manual - 35

VIVOTEK

Theme Options

Here you can change the color of your homepage layout� There are three types of preset patterns for you to choose from� The new layout will simultaneously appear in the Preview led. Click Save to enable the settings�

Font Color of the Video Title

Font Color

Background Color of the Control Area

Font Color of the Configuration Area

Background Color of the Configuration Area

Preset patterns

Background Color of the Video Area

Frame Color

36 - User's Manual

■ Follow the steps below to set up the customed homepage:

1� Click Custom on the left column�

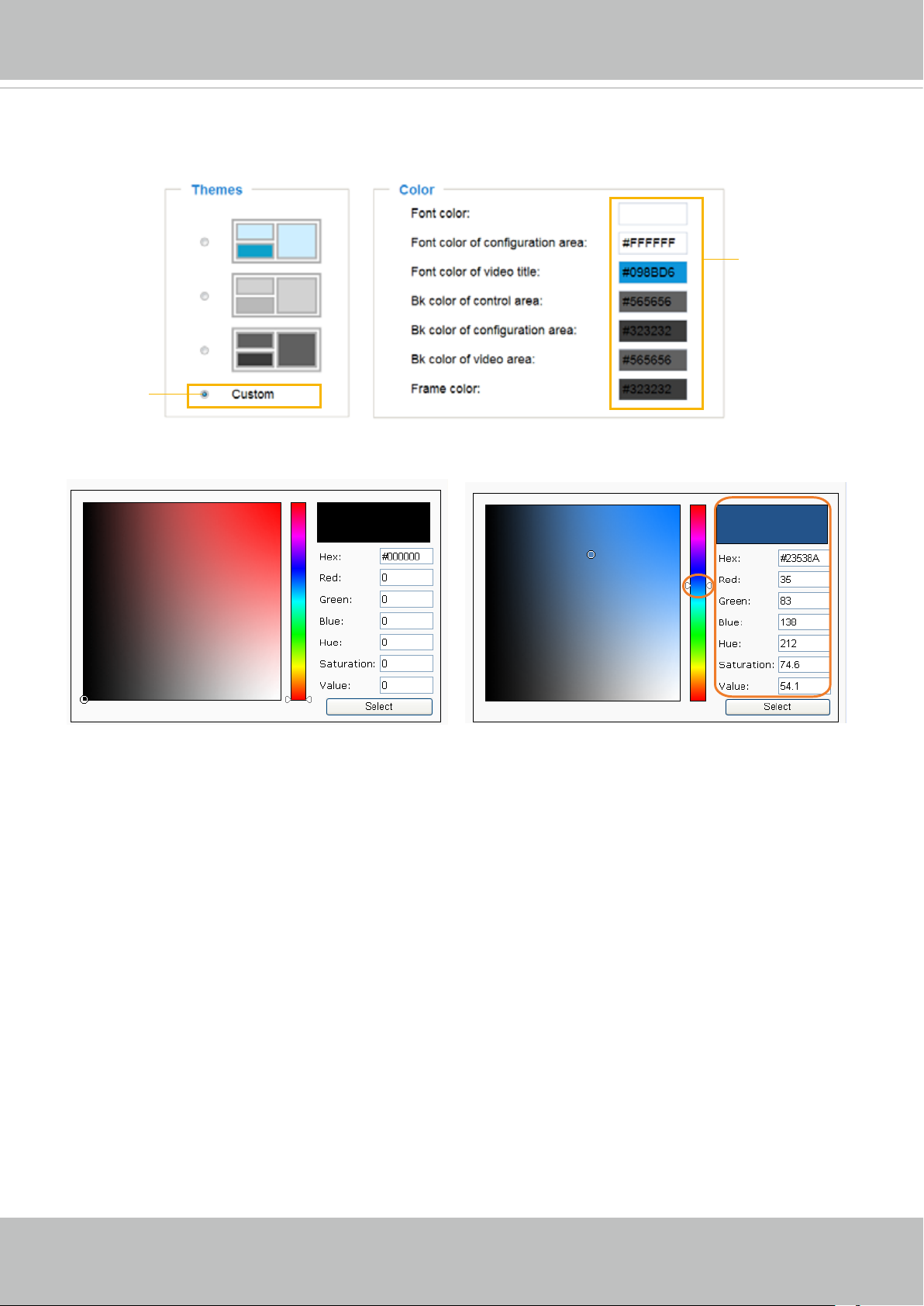

2. Click the eld where you want to change the color on the right column.

Custom Pattern

3� The palette window will pop up as shown below�

VIVOTEK

Color Selector

2

1

4

4� Drag the slider bar and click on a spot on the left square to select a desired color�

5. The selected color will be displayed in the corresponding elds and in the Preview column� 6� Click Save to enable the settings�

3

User's Manual - 37

VIVOTEK

System > Logs

Advanced Mode

This section explains how to congure the Network Camera to send the system log to a remote

server as backup�

Log server settings

Follow the steps below to set up the remote log:

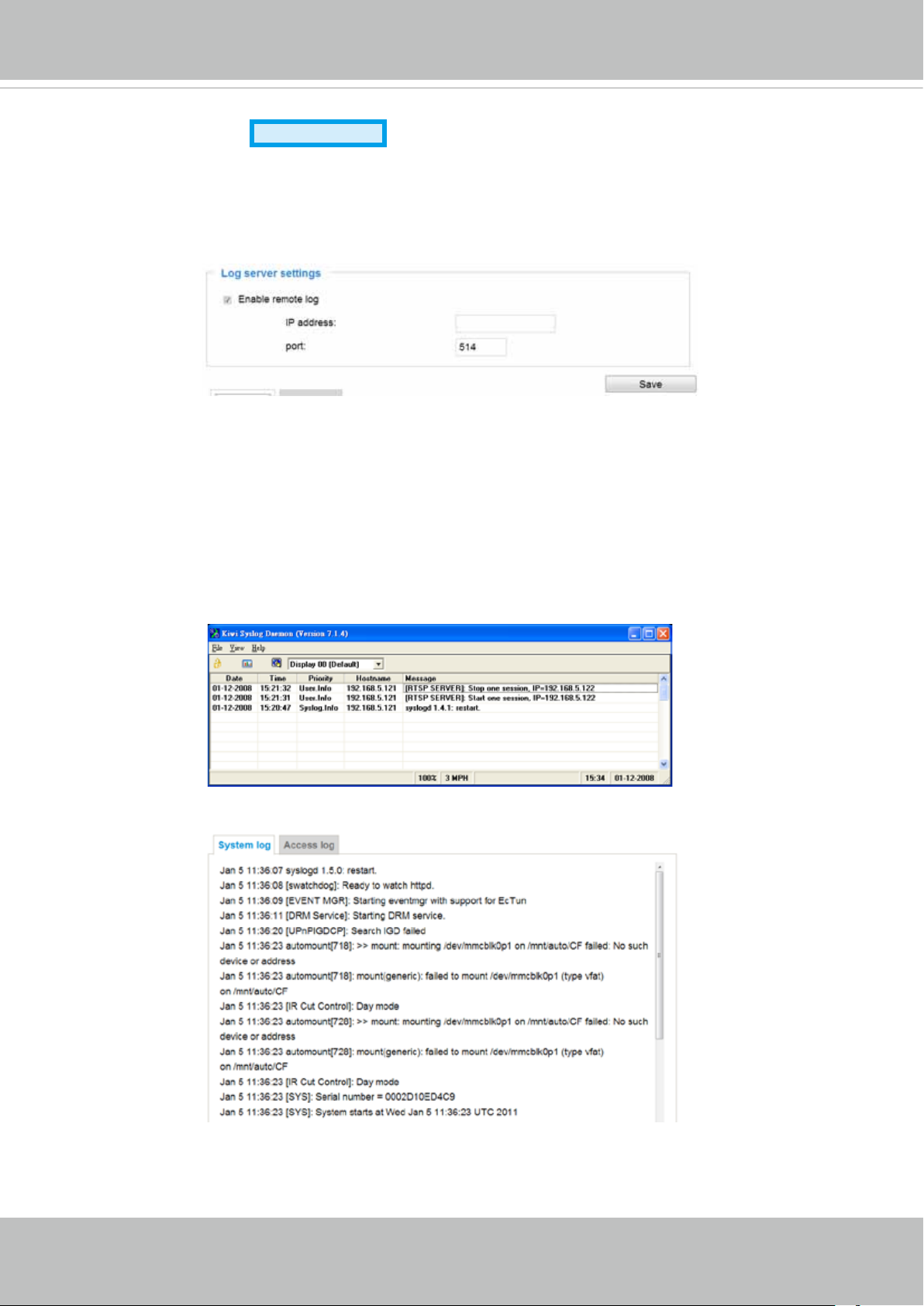

1� Select Enable remote log� 2� In the IP address text box, enter the IP address of the remote server� 2� In the port text box, enter the port number of the remote server� 3� When completed, click Save to enable the setting�

You can congure the Network Camera to send the system log le to a remote server as a log backup.

Before utilizing this feature, it is suggested that the user install a log-recording tool to receive system log messages from the Network Camera� An example is Kiwi Syslog Daemon� Visit http://www.kiwisyslog.

com/kiwi-syslog-daemon-overview/�

System log

This column displays the system log in a chronological order� The system log is stored in the Network Camera’s buffer area and will be overwritten when reaching a certain limit�

38 - User's Manual

VIVOTEK

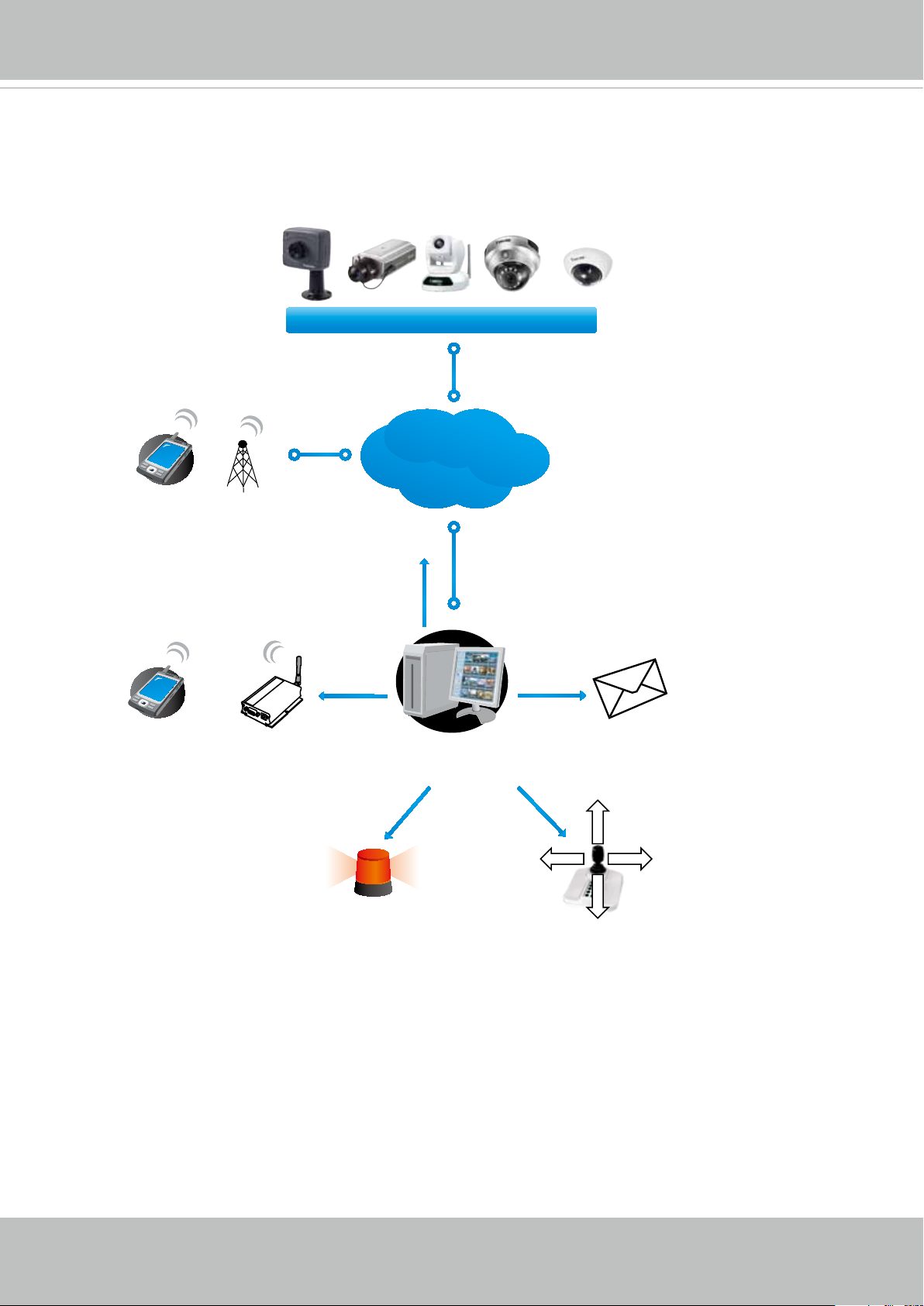

You can install the included ST7501 recording software, which provides an Event Management function group for delivering event messages via emails, GSM short messages, onscreen event panel, or to trigger an alarm, etc� For more information, refer to the ST7501 User Manual�

VIVOTEK Network Cameras

Internet

3G Cell phone

Cell phone

Short message

GSM

Modem

HTTP

PC running

ST7501 Recording Software

Digital output

Email

PTZ

User's Manual - 39

VIVOTEK

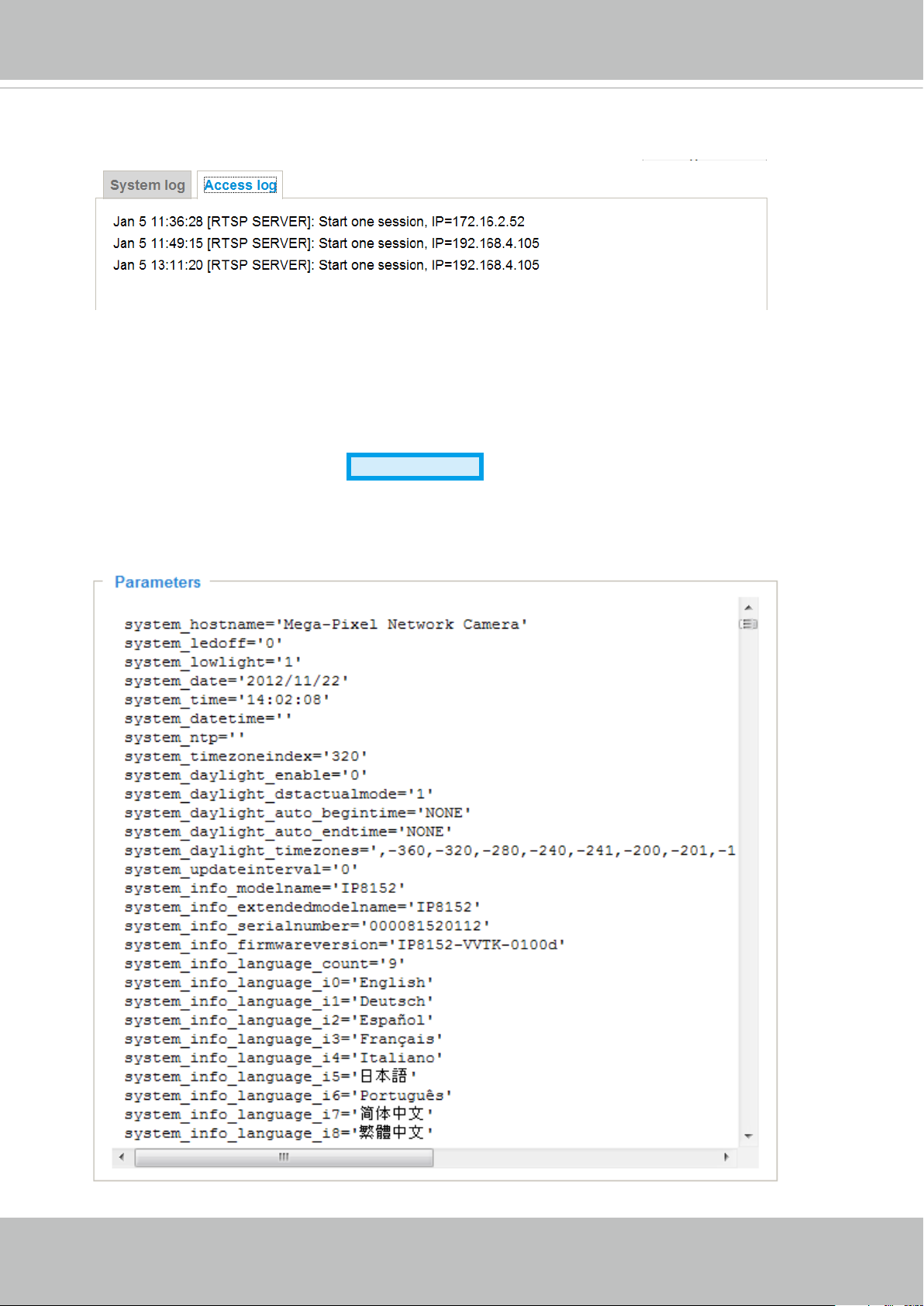

Access log

Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order� The access log is stored in the Network Camera’s buffer area and will be overwritten when reaching a certain limit�

System > Parameters

Advanced Mode

The View Parameters page lists the entire system’s parameters� If you need technical assistance, please provide the information listed on this page�

40 - User's Manual

VIVOTEK

System > Maintenance

This chapter explains how to restore the Network Camera to factory default, upgrade rmware

version, etc�

General settings > Upgrade rmware

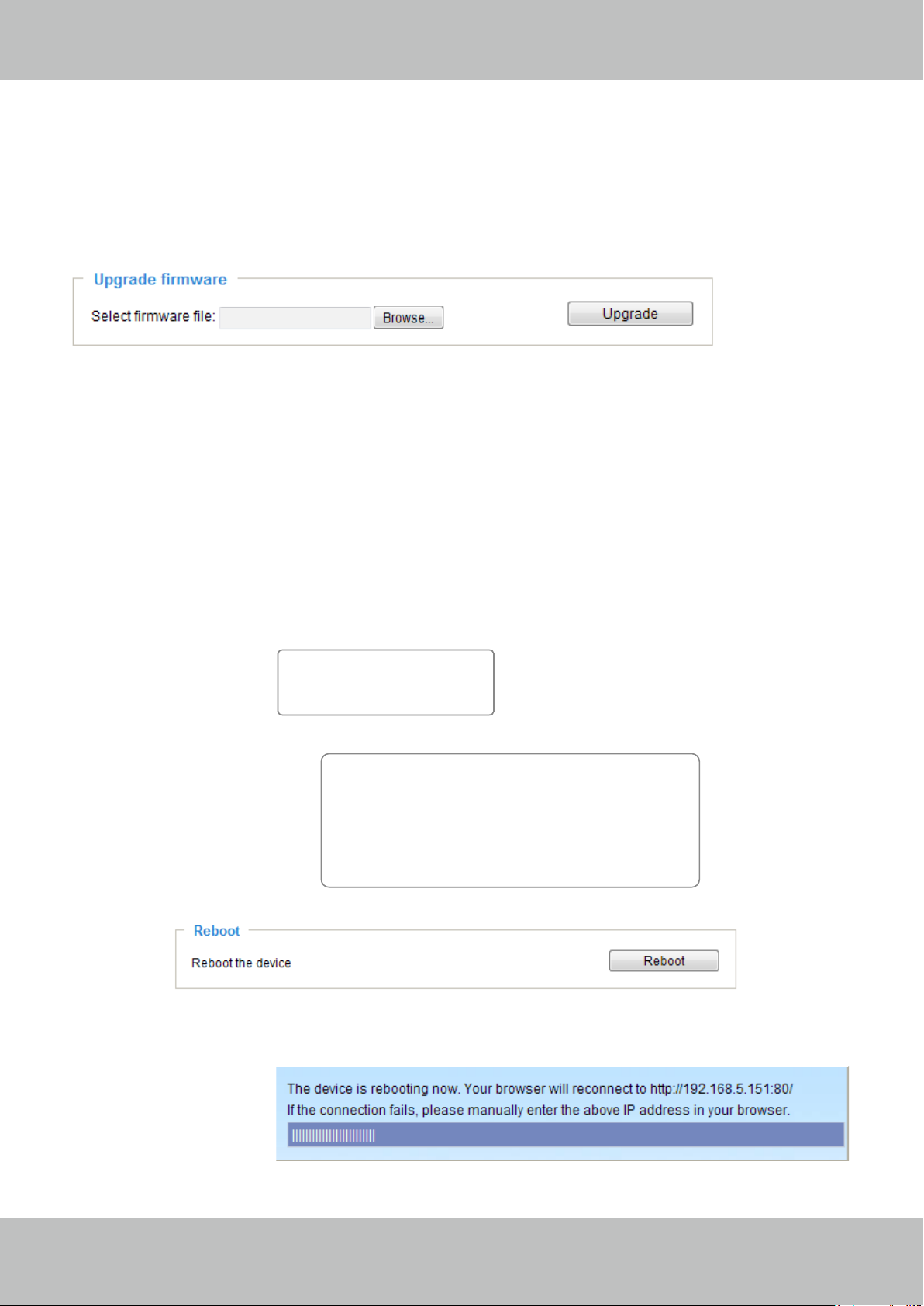

This feature allows you to upgrade the firmware of your Network Camera� It takes a few minutes to complete the process�

Note: Do not power off the Network Camera during the upgrade!

Follow the steps below to upgrade the rmware:

1. Download the latest rmware le from the VIVOTEK website. The le is in .pkg le format.

2� Click Browse… and specify the rmware le. 3� Click Upgrade� The Network Camera starts to upgrade and will reboot automatically when the upgrade completes�

If the upgrade is successful, you will see “Reboot system now!! This connection will close”� After that, reaccess the Network Camera�

The following message is displayed when the upgrade has succeeded�

Reboot system now!! This connection will close.

The following message is displayed when you have selected an incorrect rmware le.

Starting firmware upgrade... Do not power down the server during the upgrade. The server will restart automatically after the upgrade is completed. This will take about 1 - 5 minutes. Wrong PKG file format Unpack fail

General settings > Reboot

This feature allows you to reboot the Network Camera, which takes about one minute to complete� When completed, the live video page will be displayed in your browser� The following message will be displayed during the reboot process�

If the connection fails after rebooting, manually enter the IP address of the Network Camera in the

address eld to resume the connection.

User's Manual - 41

VIVOTEK

General settings > Restore

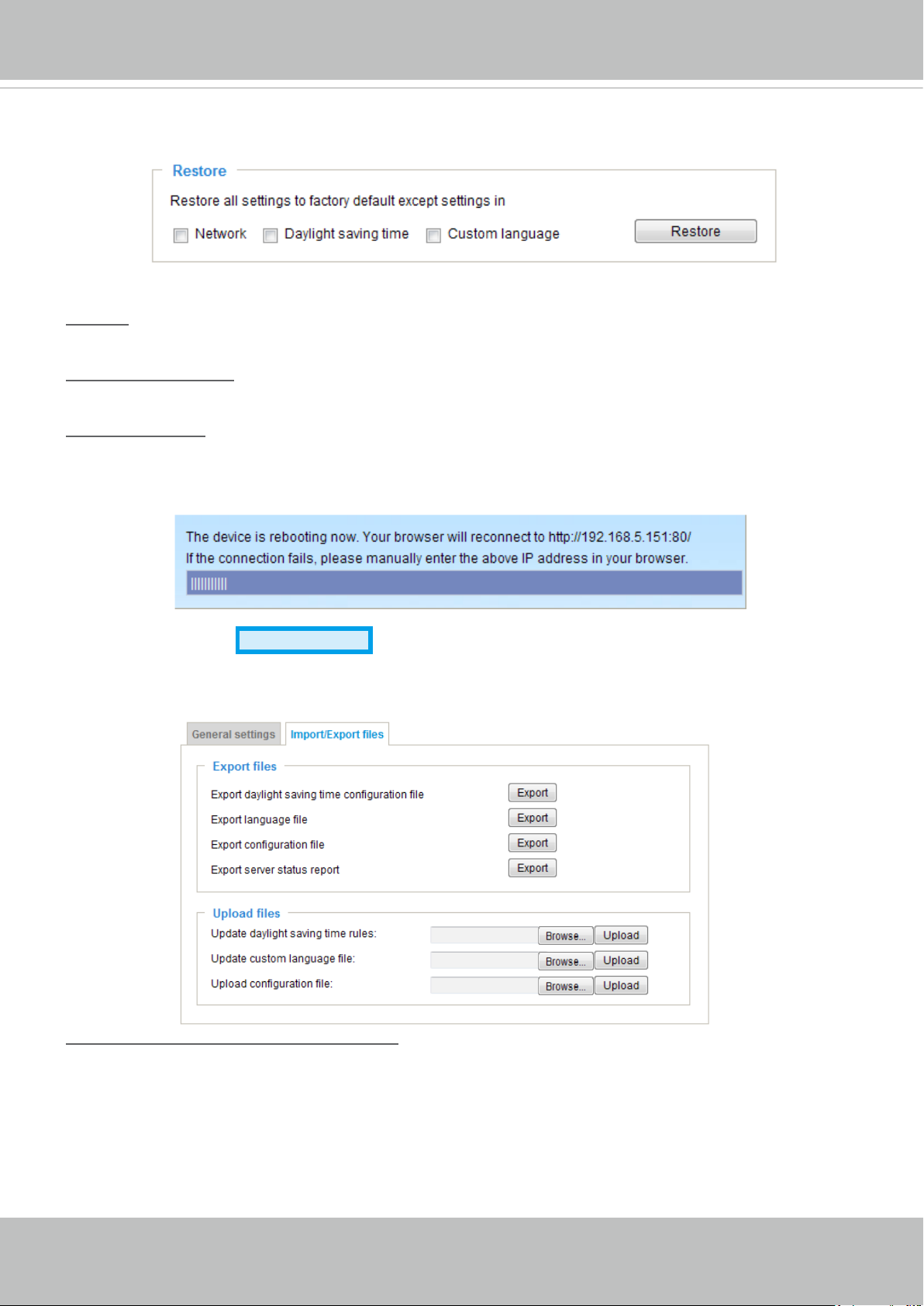

This feature allows you to restore the Network Camera to factory default settings�

Network: Select this option to retain the Network Type settings (please refer to Network Type on page

59)�

Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to

Import/Export les below on this page).

Custom Language: Select this option to retain the Custom Language settings.

If none of the options is selected, all settings will be restored to factory default� The following message is displayed during the restoring process�

Import/Export les

Advanced Mode

This feature allows you to Export / Update daylight saving time rules, custom language le, conguration le, and server status report.

Export daylight saving time conguration le: Click to set the start and end time of DST (Daylight Saving).

Follow the steps below to export:

1. In the Export les column, click Export to export the daylight saving time conguration le from the

Network Camera�

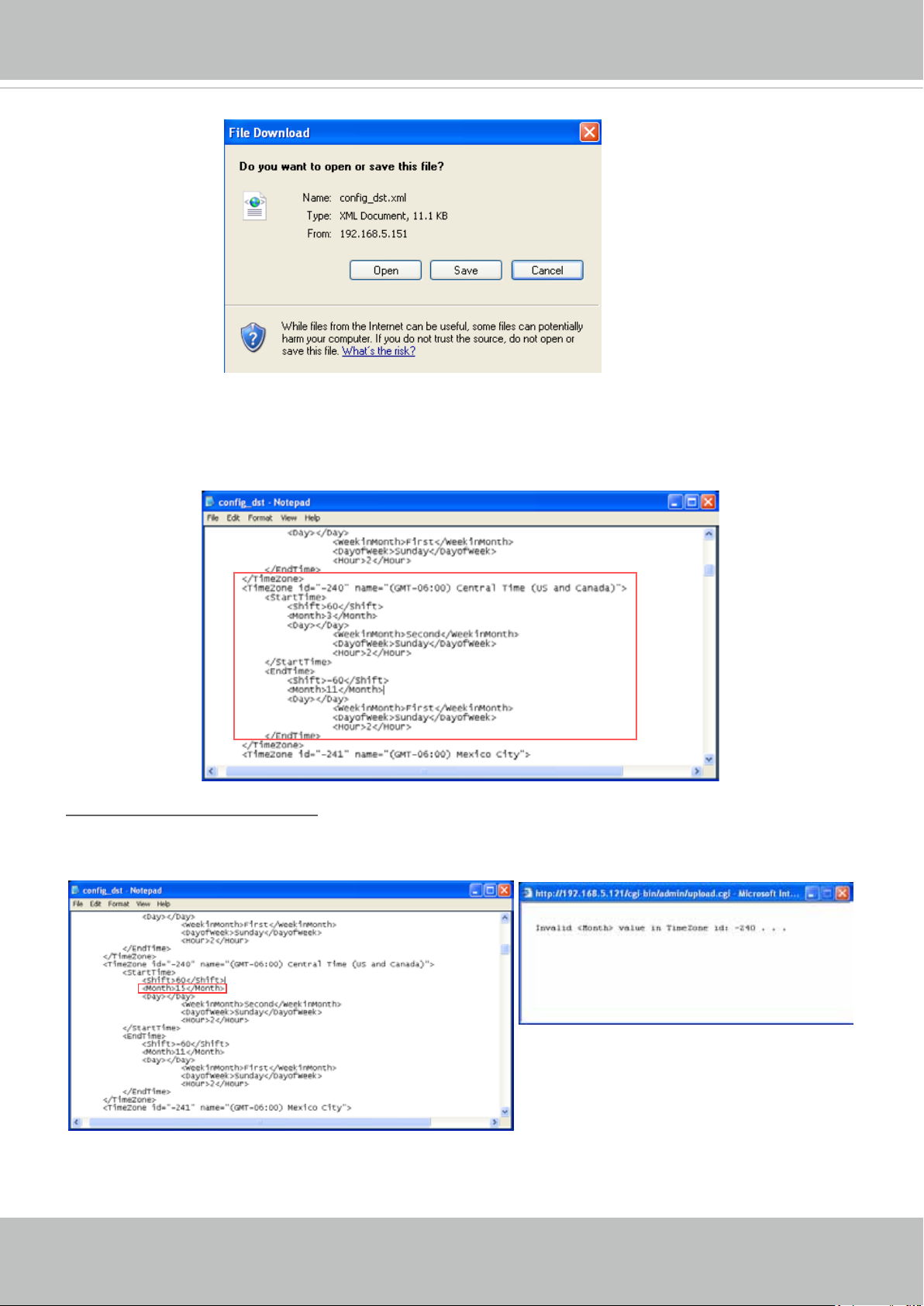

2. A le download dialog will pop up as shown below. Click Open to review the XML le or click Save to

store the le for editing.

42 - User's Manual

VIVOTEK

3. Open the le with Microsoft® Notepad and locate your time zone; set the start and end time of DST� When completed, save the le.

In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m. on the rst Sunday in November.

Update daylight saving time rules: Click Browse… and specify the XML le to update.

If the incorrect date and time are assigned, you will see the following warning message when uploading

the le to the Network Camera.

User's Manual - 43

VIVOTEK

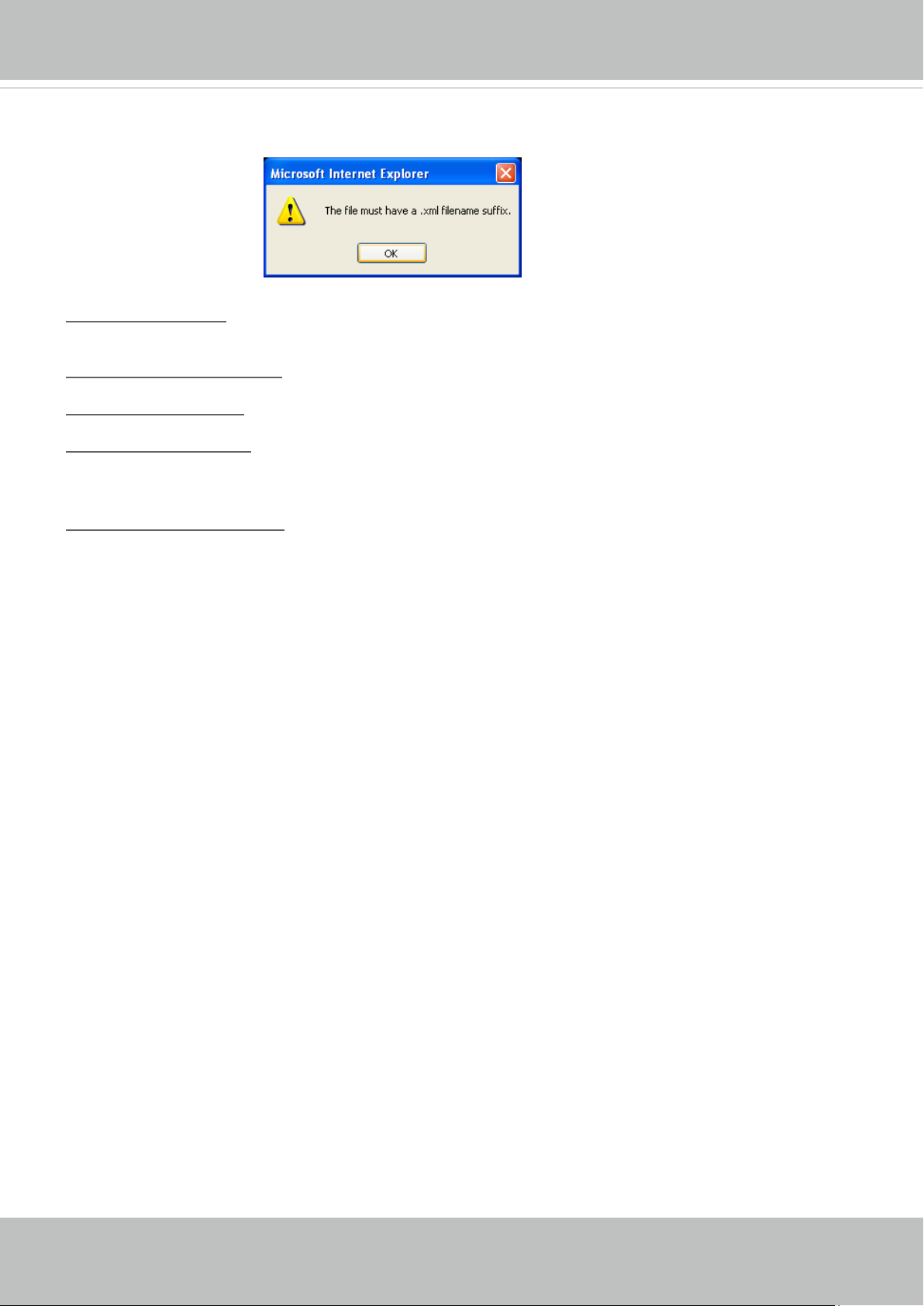

The following message is displayed when attempting to upload an incorrect le format.

Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano,

日本語,

Português,

簡体中文

, and

繁體中文

�

Update custom language le: Click Browse… and specify your own custom language le to upload.

Export conguration le: Click to export all parameters for the device and user-dened scripts.

Update conguration le: Click Browse… to update a conguration le. Please note that the model and rmware version of the device should be the same as the conguration le. If you have set up a xed IP or other special settings for your device, it is not suggested to update a conguration le.

Export server staus report: Click to export the current server status report, such as time, logs, parameters, process status, memory status, le system status, network status, kernel message ... and so

on�

44 - User's Manual

VIVOTEK

Media > Image

Advanced Mode



This section explains how to configure the image settings of the Network Camera� It is

composed of the following four columns: General settings, Image settings, Exposure, and

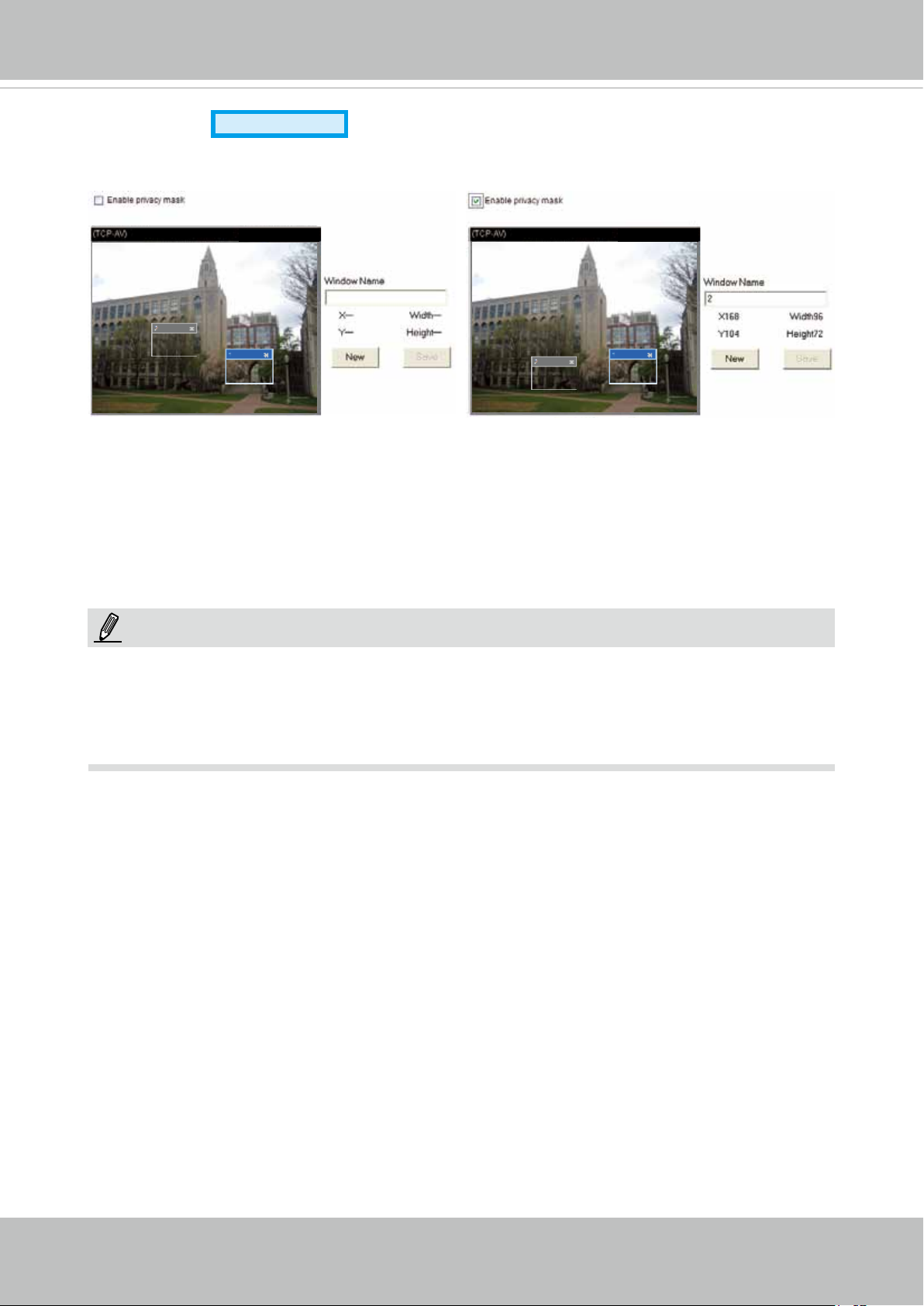

Privacy mask�

General settings

Video title: Enter a name that will be displayed on the title bar of the live video as the picture shown below�

Show timestamp and video title in videos and snapshots: Select this checkbox if you prefer video title and time stamp to display in videos and snapshots�

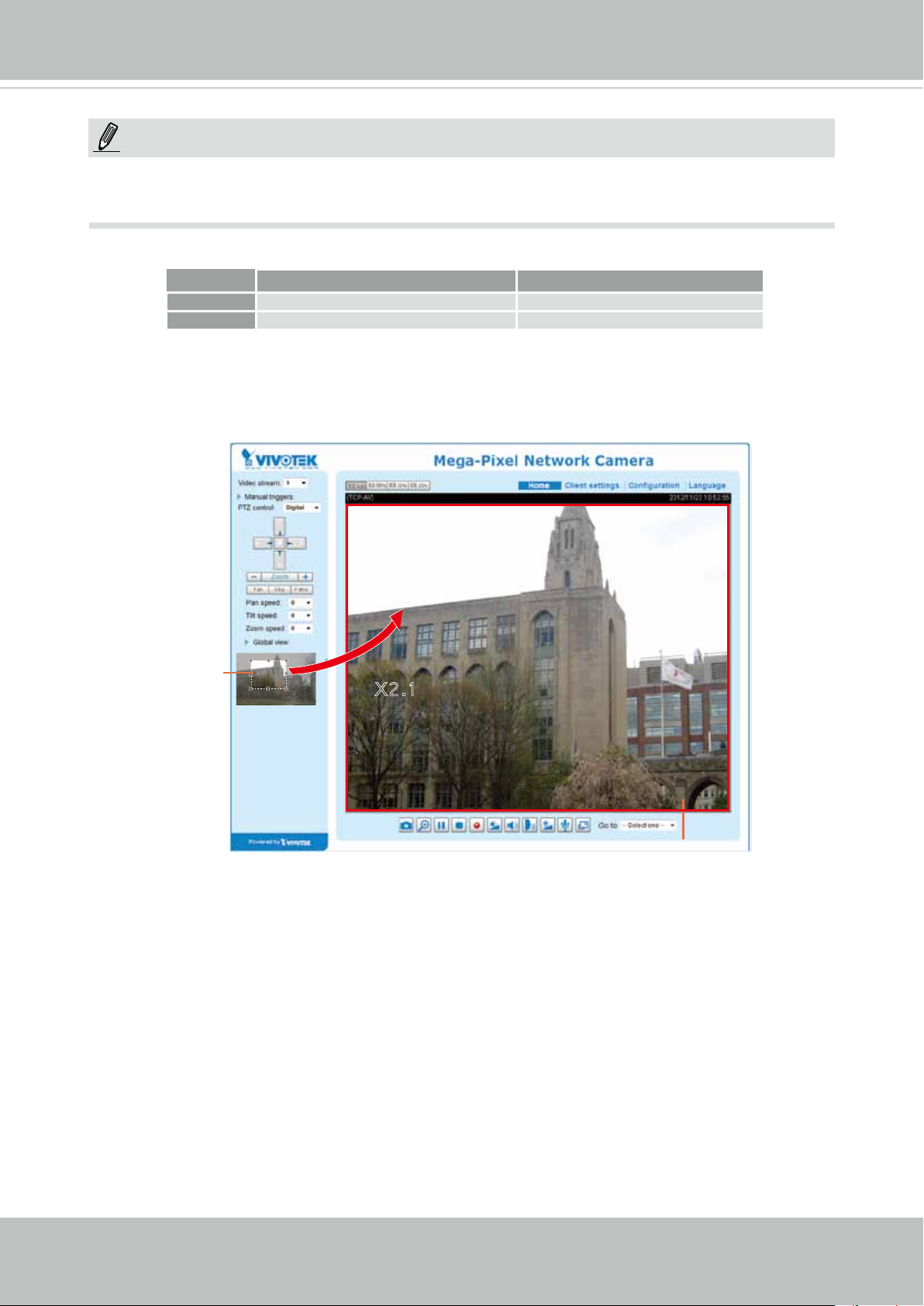

A zoom indicator will be displayed on the Home page when you zoom in/out on the live viewing window as shown below� You may zoom in/out on the image by scrolling the mouse wheel inside the live viewing window, and the maximum zoom in will be up to 12 times�

Video Title

Title and Time

Zoom Factor

Video 17:08:56 2012/06/09

Zoom In

X2.1

2012/06/09 17:08:56

Zoom Out

Color: Select to display color or black/white video streams.

Power line frequency: Set the power line frequency consistent with local utility settings to eliminate image flickering associated with fluorescent lights� Note that after the power line frequency is changed, you must disconnect and reconnect the power cord of the Network Camera in order for the new setting to take effect�

Video orientation: Flip--vertically reflect the display of the live video; Mirror--horizontally reflect the display of the live video� Select both options if the Network Camera is installed upside-down

(e.g., on the ceiling) to correct the image orientation. Please note that if you have congured preset locations, those locations will be cleared after ip/mirror setting.

User's Manual - 45

VIVOTEK

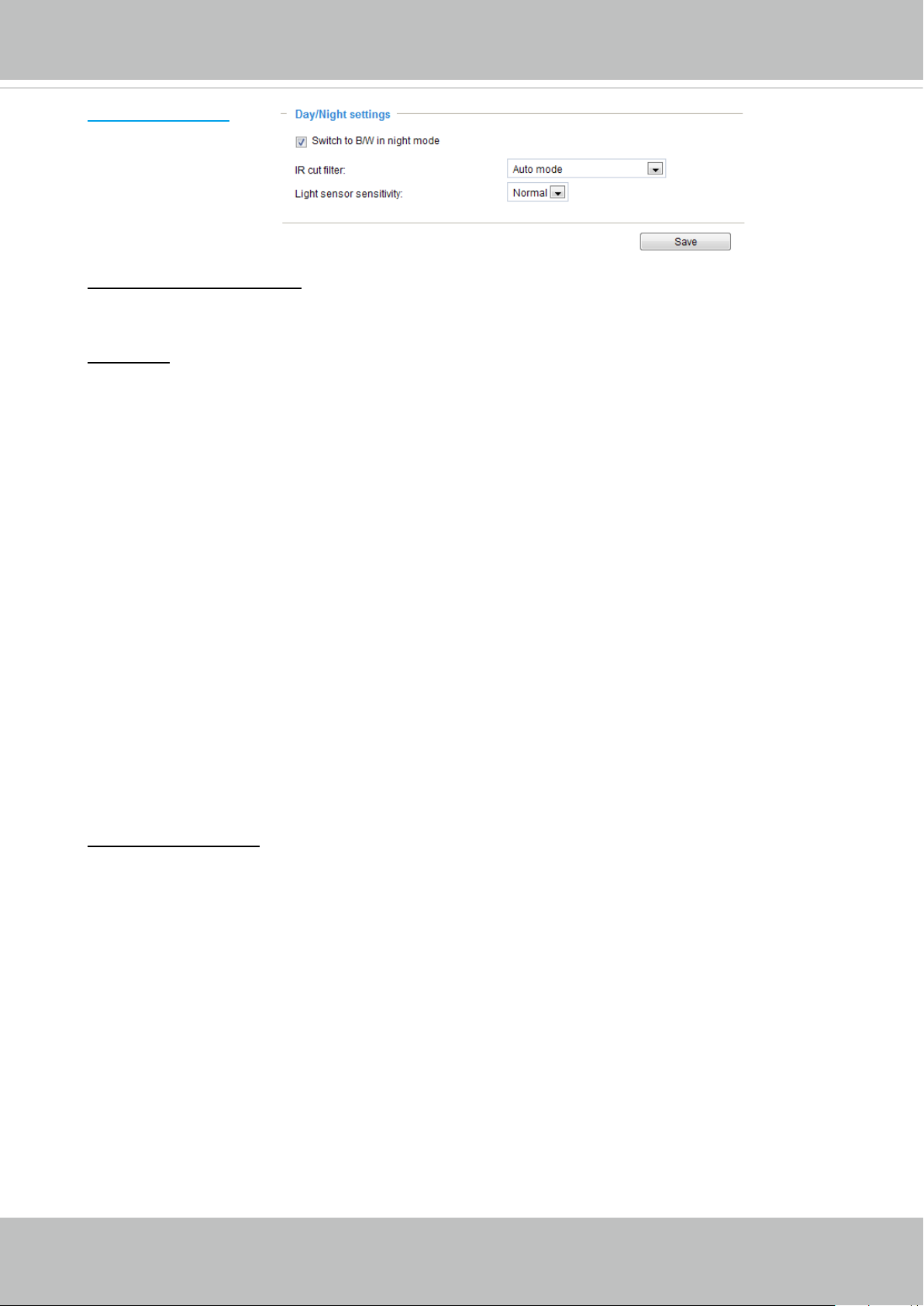

Day/Night Settings

Switch to B/W in night mode Select this to enable the Network Camera to automatically switch to Black/White display during night mode�

IR cut lter With a removable IR-cut lter, this Network Camera can automatically remove the lter to let IR

light into the sensor during low light conditions�

■ Auto mode

The Network Camera automatically removes the lter by judging the level of ambient light.

■ Day mode

In day mode, the Network Camera switches on the IR cut lter at all times to block infrared light

from reaching the sensor so that the colors will not be distorted�

■ Night mode

In night mode, the Network Camera switches off the IR cut lter at all times for the sensor to

accept infrared light, thus helping to improve low light sensitivity�

■ Synchronize with digital input

The Network Camera automatically removes the IR cut lter when DI is triggered. Some external

housing may come with its light sensor and IR lights, and has a pin signal to tell the camera to

switch off its IR cut lter.

■ Schedule mode

The Network Camera switches between day mode and night mode based on a specified

schedule. Enter the start and end time for day mode. Note that the time format is [hh:mm] and is expressed in 24-hour clock time. By default, the start and end time of day mode are set to 07:00 and 18:00.

Light sensor sensitivity Select Low, Normal, or High sensitivity for the light sensor�

46 - User's Manual

Image settings

On this page, you can tune the White balance, Image adjustment and low light compensation�

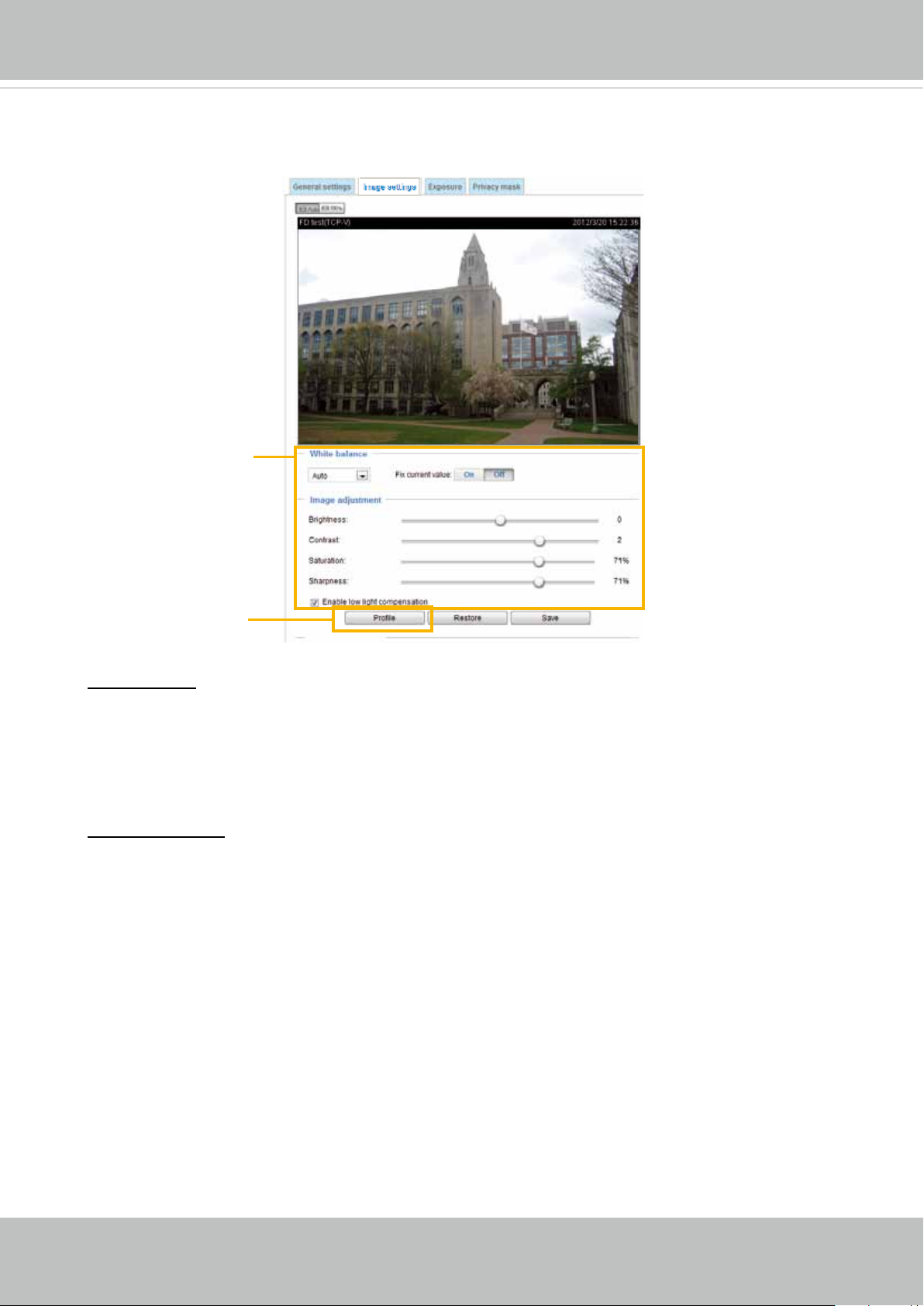

Image Setting 1:

For normal situations

VIVOTEK

Image Setting 2:

For special situations

White balance: Adjust the value for the best color temperature.

■ You may follow the steps below to adjust the white balance to the best color temperature.

1� Place a sheet of paper of white or cooler-color temperature paper, such as blue, in front of the

lens, then allow the Network Camera to automatically adjust the color temperature�

2� Click the On button to Fix current value and conrm the setting while the white balance is being

measured�

Image Adjustment

■ Brightness: Adjust the image brightness level, which ranges from -5 to +5.

■ Contrast: Adjust the image contrast level, which ranges from -5 to +5.

■ Saturation: Adjust the image saturation level, which ranges from 0 to 100%.

■ Sharpness:

Adjust the image sharpness level, which ranges from 0 to 100%�

■ Enable low light compensation: Select this option in low light mode, and the values of sharpness

and brightness will change automatically as the rmware exerts an automated noise reduction.

In low light mode, system will increase input gains, and as a side effect, noises will also increase� This function reduces the noises in images taken in low light scenarios�

■ Enable low light compensation: Select this option in low light mode, and the values of sharpness

and brightness will change automatically. This function also benets from an automated noise

reduction feature�

You can click Restore to recall the original settings without incorporating the changes� When

completed with the settings on this page, click Save to enable the setting� You can also click on Prole to adjust all settings above in a pop-up window for special lighting conditions�

User's Manual - 47

VIVOTEK

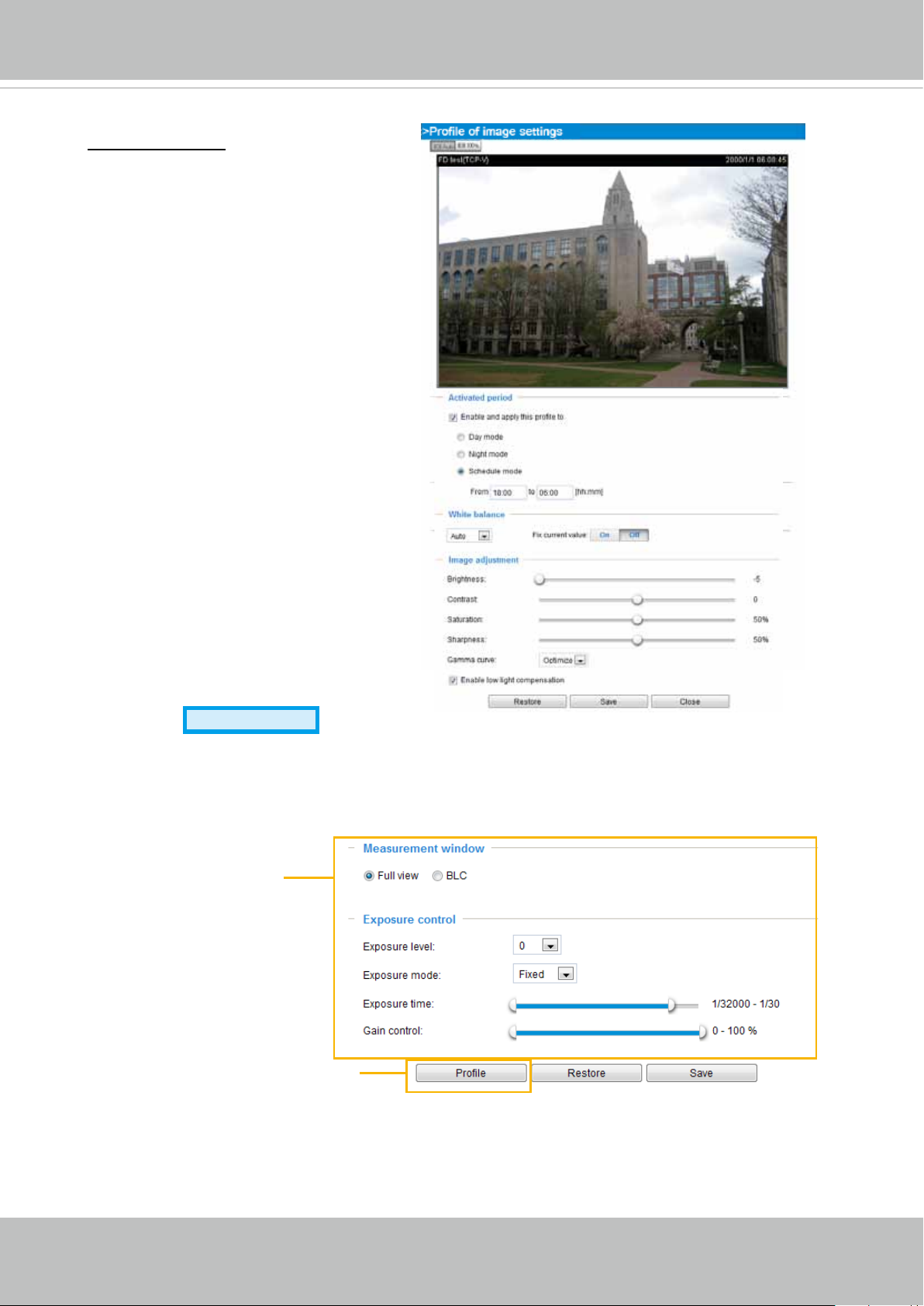

Activated period:

Select the period of time this profile setting will apply to� Please manually enter a range of time in a day, tune the White Balance and Image adjustment settings as previously described, and then check Save for the

conguration to take effect.

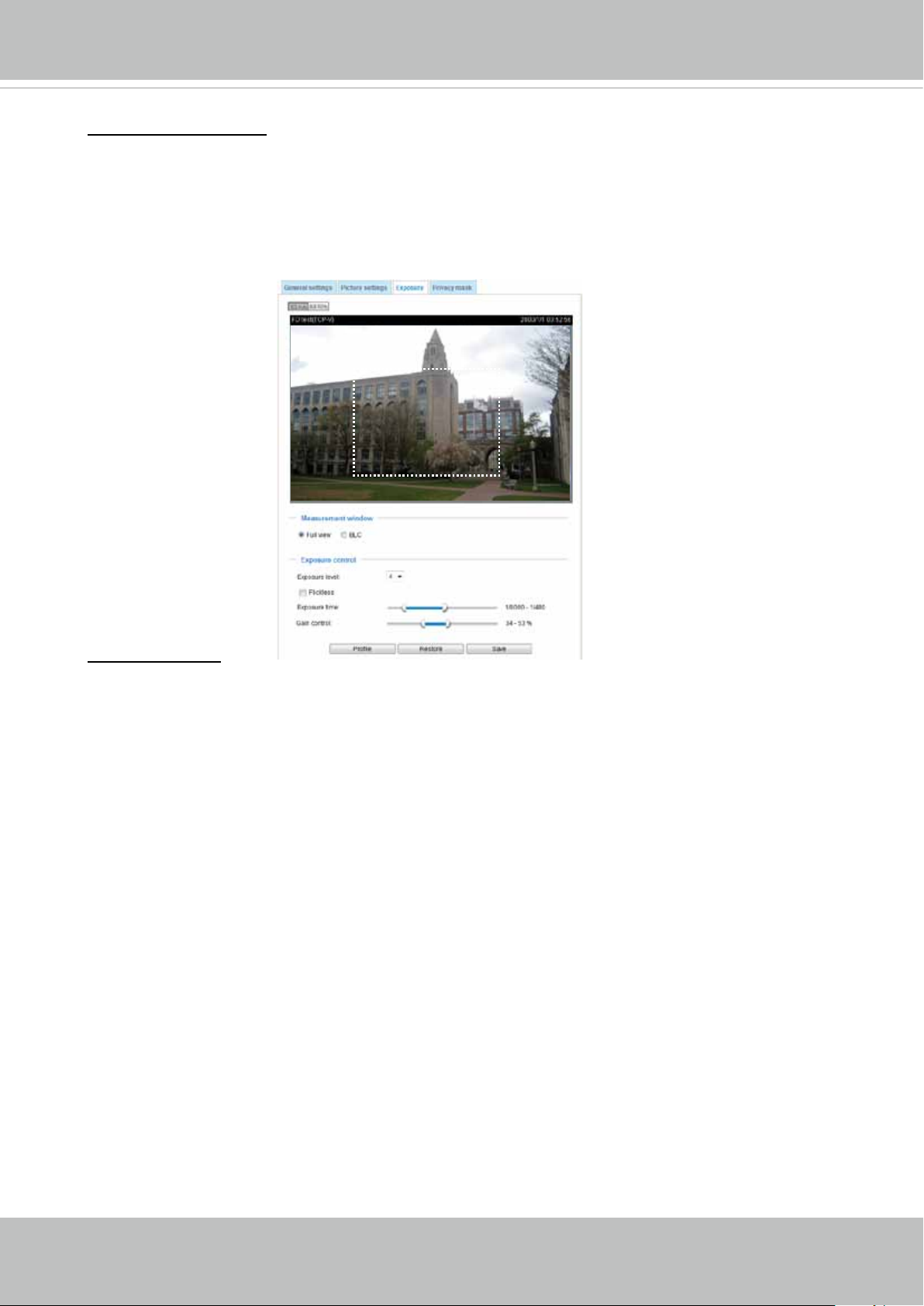

Exposure

Advanced Mode

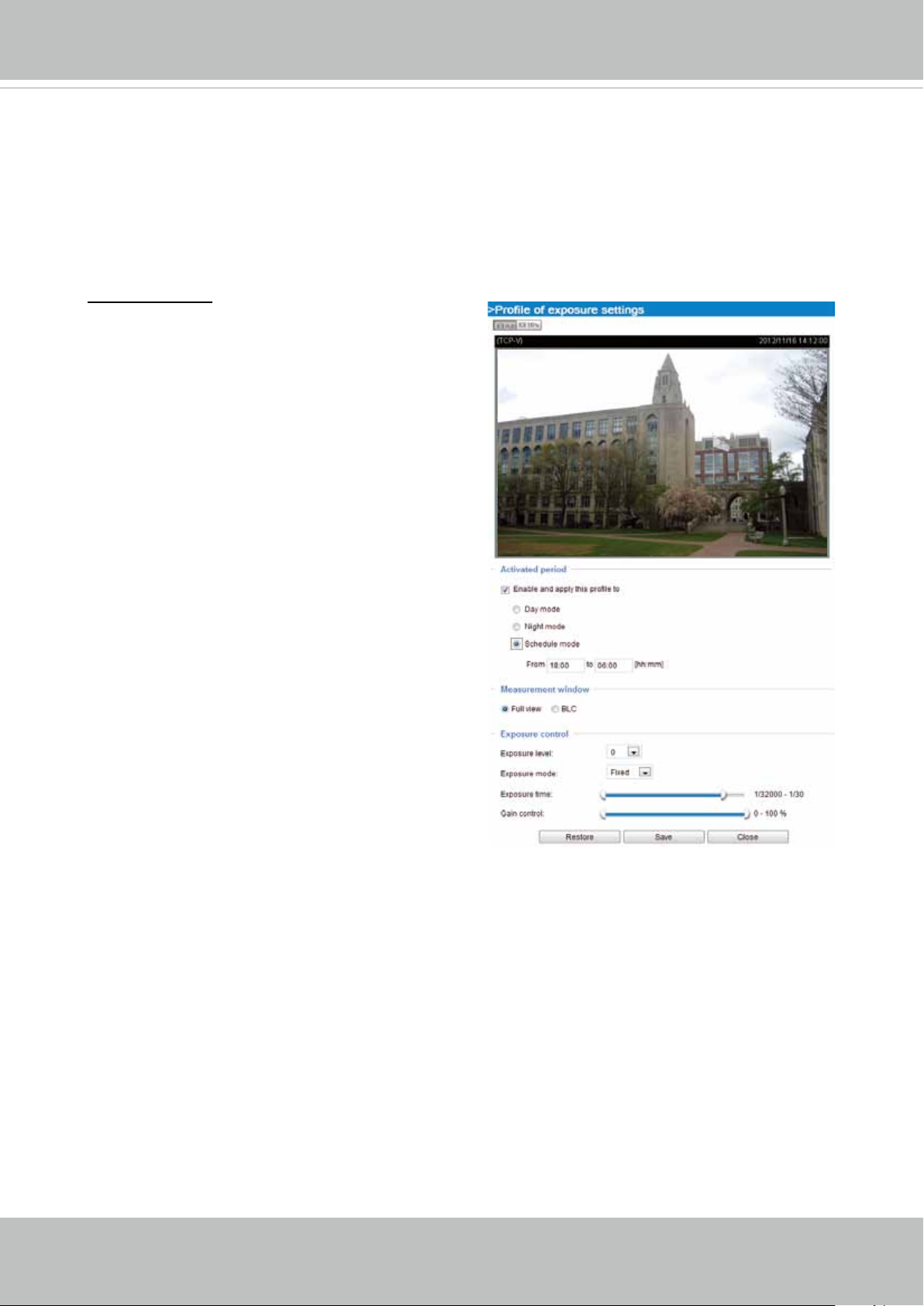

On this page, you can set the Measurement window, Exposure level, Exposure time, and Gain

control settings. Detailed congurations will be automatically adjusted since the sensor library will

automatically adjust the value according to the ambient light�

Sensor Setting 1:

For normal situations

Sensor Setting 2:

For special situations

48 - User's Manual

VIVOTEK

Measurement Window: This function allows user to set measurement window(s) for low light compesation�

■ Full view: Calculate the full range of view and offer appropriate

light compesation�

■ BLC (Back Light Compensation): This option allows you to use the center of the current view

as the measuring area� The measuring window refers to “weighted window“ where the lighting condition within the particular area is taken into account� Camera firmware then adopts the weighted averages method to calculate the value and provides necessary light compensation�

BLC

Exposure control:

■

Exposure level: You can manually set the Exposure level, which ranges from -2.0 to +2.0 (dark to

bright)�

■

Exposure mode: (Available for IP8152 using a DC-iris lens) - Select Auto or Fixed mode

according to your needs�

Auto: If you set Exposure mode as Auto, the Exposure time and Gain control will not be

congurable since the sensor library will automatically adjust the value according to the ambient light. Then you can congure iris mode as “indoor” or “outdoor” to reach the best image quality.

Fixed: Select Fixed mode to set a fixed exposure time and gain� Then, tune the slide bar pointers to set the Exposure time and Gain Control to the best image quality� A shorter exposure time allows less amount of light to enter the sensor; while a higher gain control value generates certain amount of noises�

■ Flickerless

: (for IP8152 using a xed lens) This function helps avoid the ickering on images

because of the fast shutter movement� When selected, the exposure time will be forced to stay longer than 1/120 second�

■

Exposure time: you can split the round pointers on the Exposure time and Gain control slide

bars into two halves and drag them on the bars to designate a range of values in which rmware

can automatically adapt to� Note that Firmware will then automatically tune the Gain, Exposure

time, and Iris opening within the ranges you specied. For example, in low-light condition, you

may prefer a longer exposure time and more electronic gains� However, the noises in the image will also increase�

■

Gain control: Tune the slider bar to set the Gain Control to the best image quality. Higher gain

control value will generate a certain amount of noises, and that the gain control, lighting levels, and picture performance are closely related�

Click the Save button to preserve your conguration.

User's Manual - 49

VIVOTEK

■ Iris mode (available for IP8152 using a DC-iris lens):

Select Indoor or Outdoor iris mode to

adapt to the installation� The preset iris aperture setting will apply�

You can click Restore to recall the original settings without incorporating the changes� When completed with the settings on this page, click Save to enable the settings�

If you want to congure another sensor setting for the schedule mode, please click Prole to open the Prole of exposure settings page as shown below.

Activated period:

Select the period of time this prole setting will apply to. Please manually enter

a range of time in a day, fune the Measurement window and Exposure control settings, and then cliack Save for the conguration to take effect.

Please follow the steps below to setup a prole:

1� Select Enable and apply this prole to� 2� Select Day mode, night mode, or Schedule time

by entering a range of time for this profile to

apply to� 3� Select the Measurement window setting� 4� Configure Exposure control settings in the

folowing columns� Please refer to previous

dicussions for detailed information� 5� Click Save to enable the setting and click Close

to exit the page�

50 - User's Manual

VIVOTEK

Privacy mask

Advanced Mode

Click Privacy Mask to open the settings page� On this page, you can block out sensitive zones to address privacy concerns�

2010/12/09 17:08:562010/12/09 17:08:56

■ To set the privacy mask windows, follow the steps below:

1� Click New to add a new window� 2� You can use the mouse cursor to size and drag-drop the window, which is recommended to be

at least twice the size of the object (height and width) you want to cover� 3� Enter a Window Name and click Save to enable the setting� 4� Click on the Enable privacy mask checkbox to enable this function�

NOTE:

►

Up to 5 privacy mask windows can be set up on the same screen�

► If you want to delete the

privacy mask

window, please click the ‘x’ mark on the upper right corner

of the window�

User's Manual - 51

VIVOTEK

Media > Video

Stream settings

This Network Camera supports multiple streams with a frame size ranging from 176 x 144 to 1280 x 1024�

The denition of multiple streams:

■ Stream 1: Users can define the "Region of Interest" (viewing region) and the "Output Frame

Size" (size of the live view window). It is like selecting a portion of the image captured by sensor

to display only the selection portion� For example, a camera may capture a scene where half of the screen is the sky, and the other half a parking lot� You may then select the parking lot as the region of interest, and thus save video size and networking bandwidth�

■ Stream 2: Stream 2 does not support the "Region of Interest" conguration.

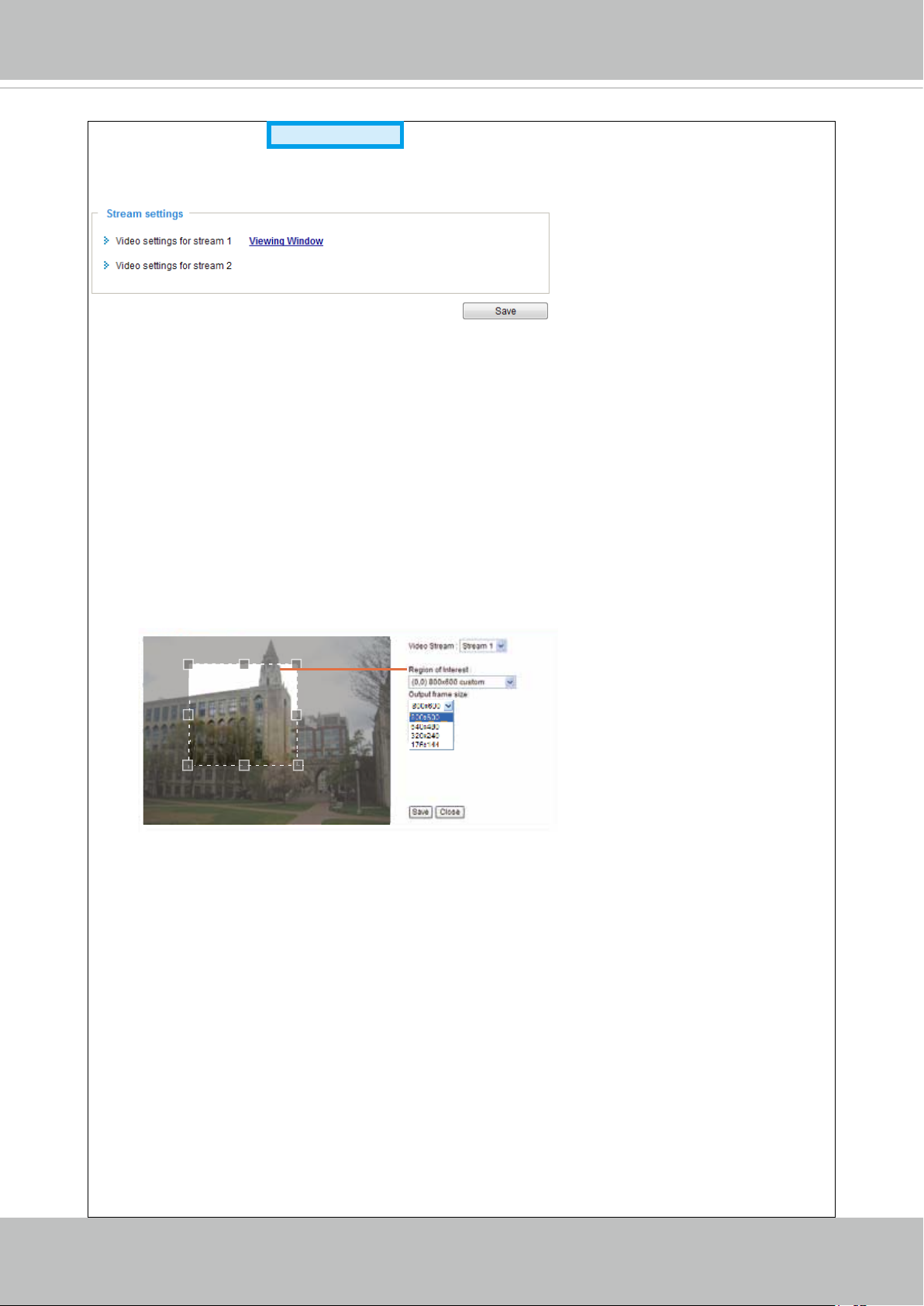

Click Viewing Window to open the viewing region settings page� On this page, you can set the Region of Interest and the Output Frame Size for stream 1� If you prefer not to stream the full

image the sensor can capture, you can designate a smaller region of interest�

Advanced Mode

Please follow the steps below to set up those settings for a stream:

1� Select a stream for which you want to set up the viewing region� 2� Select a Region of Interest from the drop-down list. The oating frame, the same as the one

in the Gloabl View window on the home page, will resize accordingly� If you want to set up a

customized viewing region, you can also resize and drag the oating frame to a desired position

with your mouse� 3� Choose a proper Output Frame Size from the drop-down list according to the size of your

monitoring device�

52 - User's Manual

VIVOTEK

Media > Video

NOTE:

► All the items in the “Region of Interest” should not be larger than the “Output Frame Size“

(current maximum resolution)�

■ The parameters of the multiple streams:

Region of Interest Output frame size

Stream 1 1280 X 1024 ~ 176 x 144 (Selectable) 1280 X 1024 ~ 176 x 144 (Selectable) Stream 2 xed xed

When completed with the settings in the Viewing Window, click Save to enable the settings and click Close to exit the window� The selected Output Frame Size will immediately be applied to the Frame size of each video stream� Then you can go back to the home page to test the e-PTZ function� For more information about the e-PTZ function, please refer to page 91�

Region of Interest (Viewing Region)

X2.1

Output Frame Size (Size of the Live View Window)

User's Manual - 53

VIVOTEK

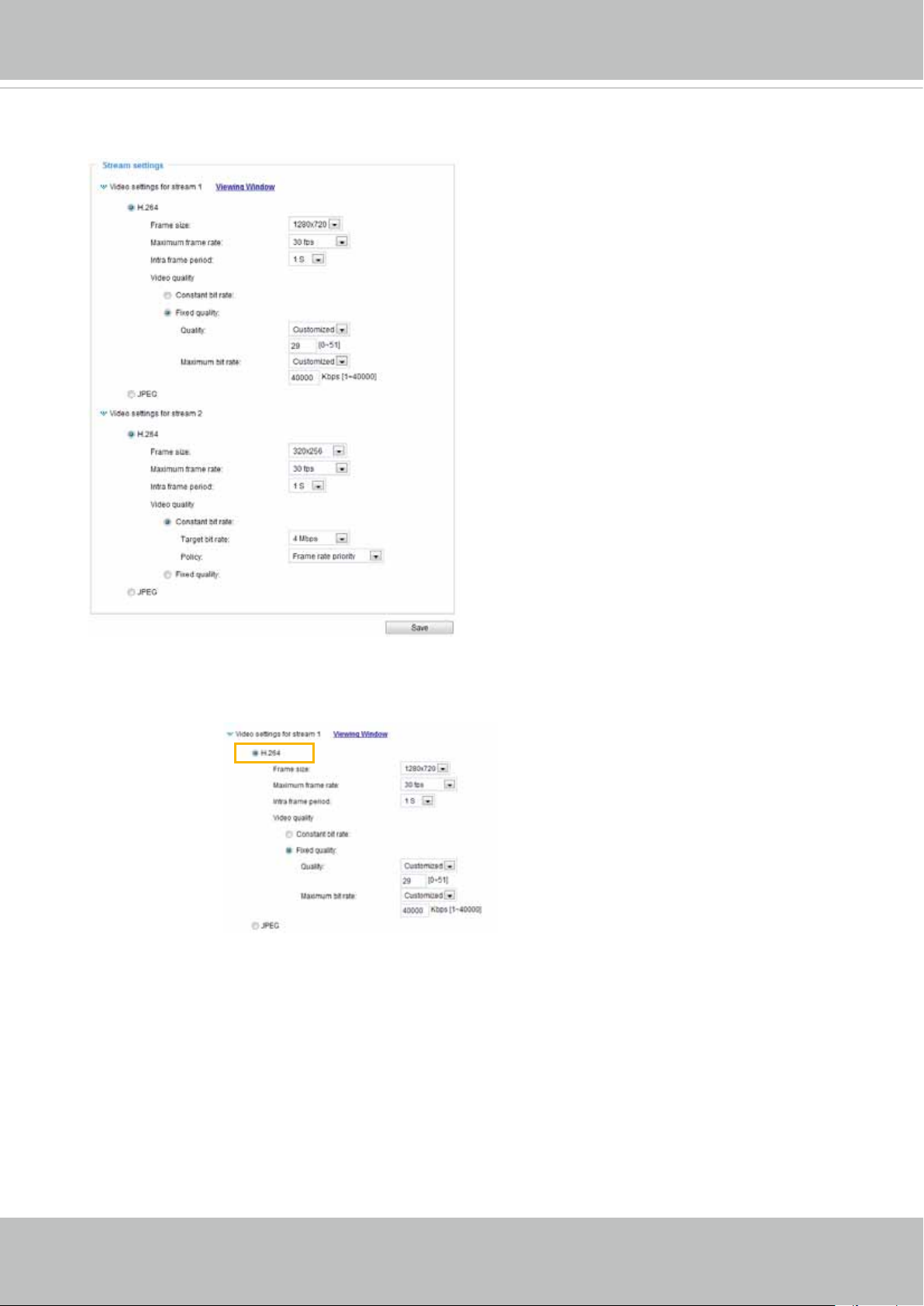

Click the stream item to display the detailed information� The maximum frame size will follow your settings in the Viewing Window sections�

This Network Camera offers real-time H�264 and MJPEG compression standards (Dual Codec) for real-time viewing� If H.264 mode is selected, the video is streamed via RTSP protocol� There are

several parameters for you to adjust the video performance:

■ Frame size

You can set up different video resolution for different viewing devices� For example, set a smaller

frame size and lower bit rate for remote viewing on mobile phones and a larger video size and

a higher bit rate for live viewing on web browsers� Note that a larger frame size takes up more

bandwidth�

■ Maximum frame rate

This limits the maximum refresh frame rate per second� Set the frame rate higher for smoother

video quality and for recognizing moving objects in the eld of view.

If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps,

8fps, 10fps, 15fps, 20fps, and 25fps� If the power line frequency is set to 60Hz, the frame rates

are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and 30fps� You can also

select Customize and manually enter a value�

54 - User's Manual

VIVOTEK

The frame rate will decrease if you select a higher resolution�

■ Intra frame period

Determine how often to plant an I frame� The shorter the duration, the more likely you will get

better video quality, but at the cost of higher network bandwidth consumption� Select the intra

frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3

seconds, and 4 seconds�

■

Video quality

• Constant bit rate:

Target bit rate: A complex scene generally produces a larger le size, meaning that higher bandwidth

will be needed for data transmission� To regulate the bandwidth consumption and storage space for recording videos, you can select the Constant bit rate methodology�

The rmware will try its best to contain the size of video packets within the limitation

of a constant bit rate� This methodoloy enables easier calculation of the network bandwidth and storage space required for live viewing or video recording�

Policy:

- Frame rate priority - Firmware will try to maintain the target frame rate per second, while the image quality will more or less be compromised�

- Image quality priority - Firmware will try to maintain the quality of the video while the frame rate (no� of frames per second) may decrease�

The bandwidth utilization is configurable to match a selected level, resulting in

mutable video quality performance. The bit rates are selectable at the following rates:

20Kbps, 30Kbps, 40Kbps, 50Kbps, 64Kbps, 128Kbps, 256Kbps, 512Kbps, 768Kbps, 1Mbps, 2Mbps, 3Mbps, 4Mbps, 6Mbps, and 8Mbps� You can also select Customize and manually enter a value�

• Fixed quality: On the other hand, if Fixed quality is selected, all frames are transmitted with the same quality; bandwidth utilization is therefore unpredictable�

When so congured, the frame-rate-per-second performance can be compromised

in the event of insufficient bandwidth or network clogs� The video quality can be

adjusted to the following settings: Medium, Standard, Good, Detailed, and Excellent.

You can also select Customize and enter a number to designate image quality� The larger the number, the higher the compression rate, and hence image quality is lower� A small customized quality number means a low compression rate, and a high quality image�

- Maximum bit rate - While you want to ensure a reasonable image quality, you can still impose an upper threshold on the bandwidth taken for the video transmission�

The congurable bit rate ranges from 1mbps to 40mbps.

User's Manual - 55

VIVOTEK

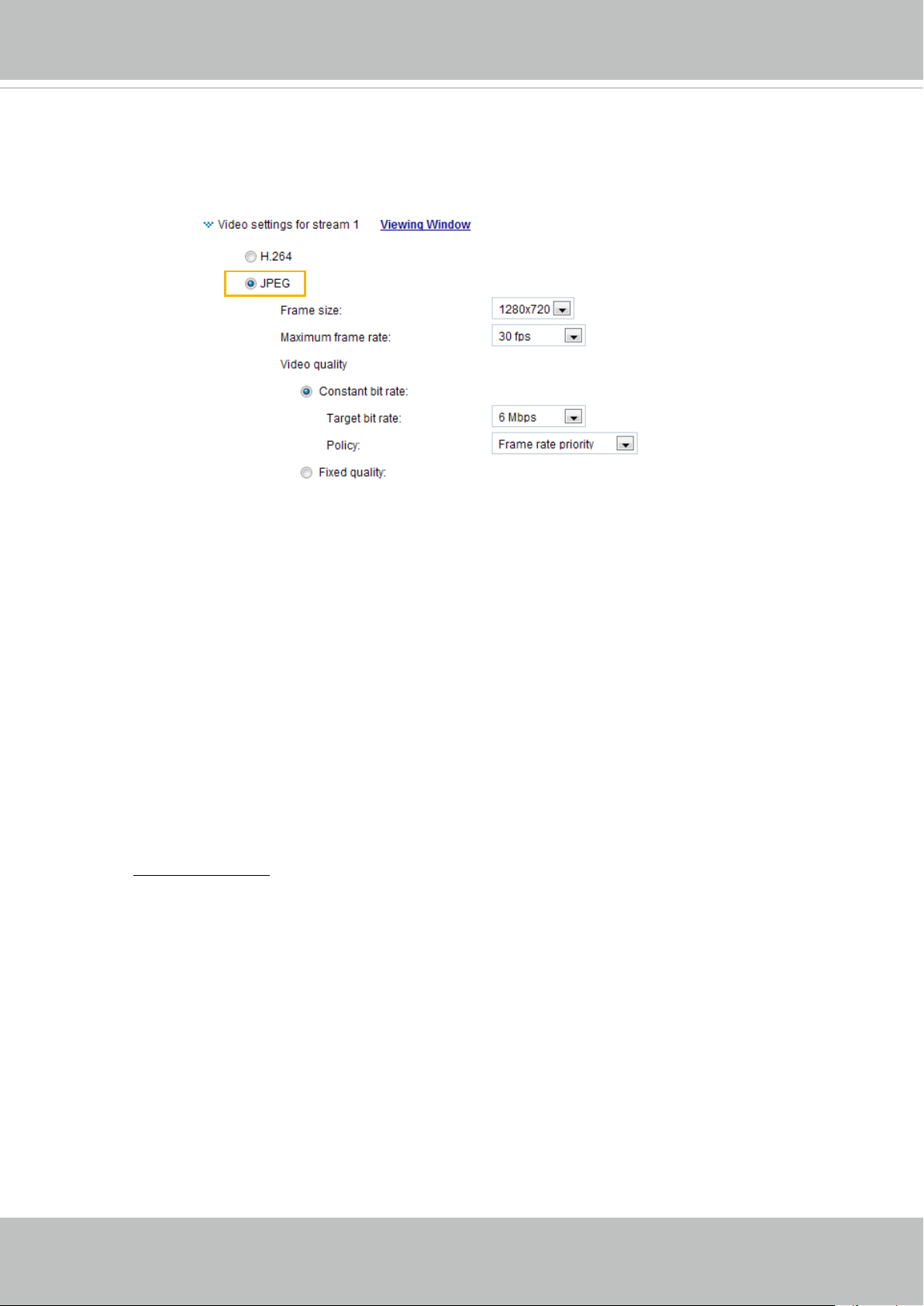

If JPEG mode is selected, the Network Camera sends consecutive JPEG images to the client,

producing a moving effect similar to a lmstrip. Every single JPEG image transmitted guarantees

the same image quality, which in turn comes at the expense of variable bandwidth usage� Because the media contents are a combination of JPEG images, no audio data is transmitted to the client�

There are three parameters provided in MJPEG mode to control the video performance:

■ Frame size

You can set up different video resolution for different viewing devices� For example, set a smaller frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web browsers� Note that a larger frame size takes up more bandwidth�

■ Maximum frame rate

This limits the maximum refresh frame rate per second� Set the frame rate higher for smoother video quality�

If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, and 25fps� If the power line frequency is set to 60Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and 30fps� You can also select Customize and manually enter a value� The frame rate will decrease if you select a higher resolution�

■ Video quality The video quality can be adjusted to the following settings: Medium, Standard, Good, Detailed,

and Excellent� You can also select Customize and manually enter a value�

• Constant bit rate: A complex scene generally produces a larger le size, meaning that

higher bandwidth will be needed for data transmission� To regulate the bandwidth consumption and storage space for recording videos, you can select the Constant bit

rate methodology. The rmware will try its best to contain the size of video packets

within the limitation of a constant bit rate� This methodoloy enables easier calculation of the network bandwidth and storage space required for live viewing or video recording�

Policy:

- Frame rate priority - Firmware will try to maintain the target frame rate per second, while the image quality will more or less be compromised�

- Image quality priority - Firmware will try to maintain the quality of the video while the frame rate (no� of frames per second) may decrease�

56 - User's Manual
