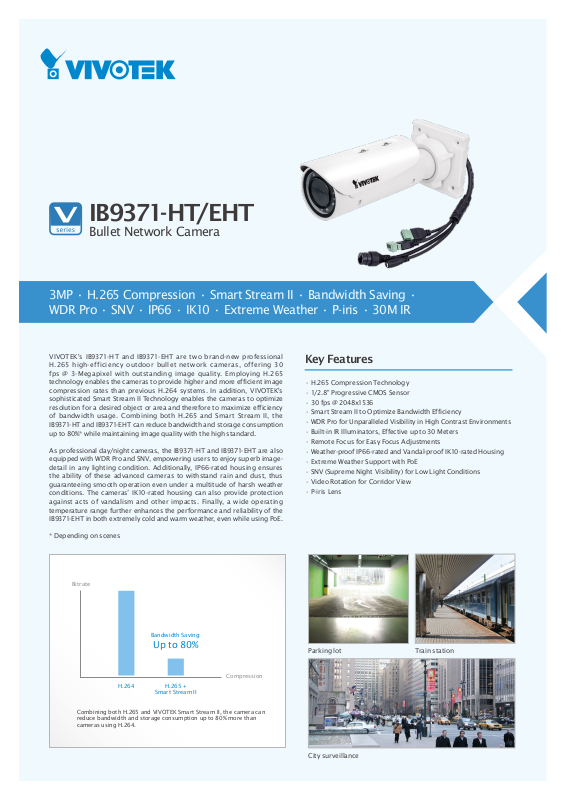

Vivotek IB9371-EHT, IB9371-HT Specsheet

IB9371-HT/EHT

Bullet Network Camera

3MP • H.265 Compression • Smart Stream II • Bandwidth Saving •
WDR Pro • SNV • IP66 • IK10 • Extreme Weather • P-iris • 30M IR

VIVOTEK's IB9371-HT and IB9371-EHT are two brand-new professional
H.265 high-efficiency outdoor bullet network cameras, offering 30
fps @ 3-Megapixel with outstanding image quality. Employing H.265
technology enables the cameras to provide higher and more efficient image
compression rates than previous H.264 systems. In addition, VIVOTEK's
sophisticated Smart Stream II Technology enables the cameras to optimize
resolution for a desired object or area and therefore to maximize efficiency
of bandwidth usage. Combining both H.265 and Smart Stream II, the
IB9371-HT and IB9371-EHT can reduce bandwidth and storage consumption
up to 80%* while maintaining image quality with the high standard.

As professional day/night cameras, the IB9371-HT and IB9371-EHT are also
equipped with WDR Pro and SNV, empowering users to enjoy superb image­detail in any lighting condition. Additionally, IP66-rated housing ensures
the abilit y of these advanced cameras to withstand rain and dust, thus
guaranteeing smooth operation even under a multitude of harsh weather
conditions. The cameras’ IK10-rated housing can also provide protection
against acts of vandalism and other impac ts. Finally, a wide operating
temperature range further enhances the performance and reliability of the
IB9371-EHT in both extremely cold and warm weather, even while using PoE.

* Depending on scenes

Bitrate

Key Features

• H.265 Compression Technology

• 1/2.8" Progressive CMOS Sensor

• 30 fps @ 2048x1536

• Smart Stream II to Optimize Bandwidth Efficiency

• WDR Pro for Unparalleled Visibilit y in High Contrast Environments

• Built-in IR Illuminators, Effective up to 30 Meters

• Remote Focus for Easy Focus Adjustments

• Weather-proof IP66-rated and Vandal-proof IK10-rated Housing

• Extreme Weather Support with PoE

• SNV (Supreme Night Visibility) for Low Light Conditions

• Video Rotation for Corridor View

• P-iris Lens

Bandwidth Saving:

Up to 80%

Compression

H.264 H.265 +

Combining both H.265 and VIVOTE K Smar t Stream I I, the ca mera ca n
reduce bandwidth and storage consumpti on up to 80% more tha n
cameras using H.264.

Smart Stream II

Parking lot

City surveillance

Train station

Technical Specifications

Model

System Inform ation

CPU Multimed ia SoC (System- on-Ch ip)

Flash 128 M B

RAM 512M B

Camera Features

Image Senso r 1/2.8" Progressive CMO S

Maximum Resolution 2048x1536 (3MP)

Lens Type Vari-Focal

Focal Leng th f = 3 ~ 9 mm

Aperture F1.2 ~ F2.3

Auto-iris P-iris

Field of View

Shutter Ti me 1/5 sec. to 1/16,000 sec.

WDR Technolog y WDR Pro

Day/Night Removab le IR-cut filt er for day & night funct ion

Minimum Illumination

Pan/Tilt/Zoom Functionalities

IR Illuminators 30 meters

On-board Storage

Video

Compression H265 & H264 & MJPEG

Maximum Fra me Rate

Maximum Streams 3 simultane ous streams

S/N Ratio 60 dB

Dynami c Range 100 dB

Video Stre aming

Image Set tings

Audio

Audio Capability Two-Way Audio (full dup lex)

Compression G711, G726

Interface

Network

Users Live view ing for up to 10 clients

Protocols

Interface

ONVIF Suppor ted, specif icati ons availab le at ww w.onvif.org

Intelligent Video

Video Motion Detection Five- window vi deo motion det ection

VC A* Line crossing detection, field detection, loitering detection

Alarm and Event

IB9371-HT: Remo te Focus
IB9371-EHT: Rem ote Focus, Ex treme Weath er

39° ~ 82° (Horizontal)
29° ~ 60° (Vertica l)
49° ~ 108 (D iagonal )

0.01 Lux @ F1.2 (Colo r)

0.001 Lux @ F1.2 (B/ W)

ePTZ:
48x digital zoo m (4x on IE plug-in, 12x built in)

Slot typ e: SD/SDHC/SDXC card slo t
Seamles s Recording

H.264 & H.265
30fps @ 2048x1536
MJPEG
15fps @ 2048x1536

Adjustab le resoluti on, qualit y and bitrate
Smart Stre am II

Time stamp, tex t overlay, flip & mirr or
Config urable bri ghtness, con trast, satu ration, sha rpness, whi te
balance , exposure cont rol, gain, back light compe nsation,
privac y masks
Schedul ed profile se ttings, 3DNR , video rot ation, defo g

External microphone input
Audio output

IPv4, IPv 6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP,
SMTP, FTP, DHCP, NTP, DNS, DD NS, PPPoE, CoS , QoS, SNMP,

802.1X, UDP, ICMP, ARP, SSL, TLS

10 Base-T/100 Ba seTX Etherne t (RJ-45)
*It is highly reco mmended to use sta ndard CAT5e & CAT6
cables whi ch are complia nt with the 3P/ETL stan dard.

Alarm Triggers

Alarm Events

Video moti on detecti on, manual tri gger, digital inp ut, perio dical
trigger, syste m boot, recor ding notif icatio n, camera ta mpering
detection, audio detection

Event notif icatio n using digital ou tput, HT TP, SMTP, FTP and
NAS ser ver, SD Card
File upload vi a HTTP, SMTP, FTP, NAS server and SD car d

General

Smart Foc us System Remote Focus

RJ-45 cable co nnector fo r Networ k/PoE conn ection
Audio input

Connectors

LED Indica tor Sy stem power an d status indic ator

Power Input

Power Consumption

Dimensions Ø 88 x 293 mm

Weight

Casing

Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL

Operating Temperature

Humidity 90%

Warranty 36 months

Audio output
DC 12V power input
Digita l input*1
Digita l output*1

12V DC
IB9371-HT: IEE E 802.3af/at PoE Class 0
IB9371-EHT: IE EE 802.3at PoE Class 4

IB 9371- HT:
Max. 11 W
IB 9371- EH T:
Max. 23.6W (Heate r on)

IB9371-HT: 1182 g
IB9371-EHT: 1193 g

Weather-p roof IP66- rated housi ng
Vandal- proof IK10-rate d metal housin g (Metal Casi ng)

IB 9371- HT:
Start ing Temperature: -10°C ~ 50°C (14° F~ 122°F)
Working Tempera ture: -20°C ~ 50°C (-4°F ~ 122°F )
IB 9371- EH T:
Start ing Temperature: -4 0°C ~ 50°C (-40°F ~ 122°F)
Working Tempera ture: -50°C ~ 50°C (-58°F ~ 122°F )

System Requirements

Operat ing System Microsof t Window s 8/7/Vista/X P/2000

Web Browser

Other Players

Mozilla Firef ox 7~10 (stream ing only)
Interne t Explorer 7/8/9/10/11

VLC: 1.1.11 or ab ove
Quicktim e: 7 or above

Included Accessories

CD

Others

User's manua l, quick install ation guide , Installat ion Wizard 2,
VAST

Quick instal lation guid e, sun shield, wall mou nt bracket,
alignmen t sticker, desiccant ba g, waterpr oof connec tor, screw
pack

Dimensions

293 mm

88 mm

80 mm

* Available pe r project re quest.

Compatible Accessories

Mounting Kits

AM -714

Junction Box
