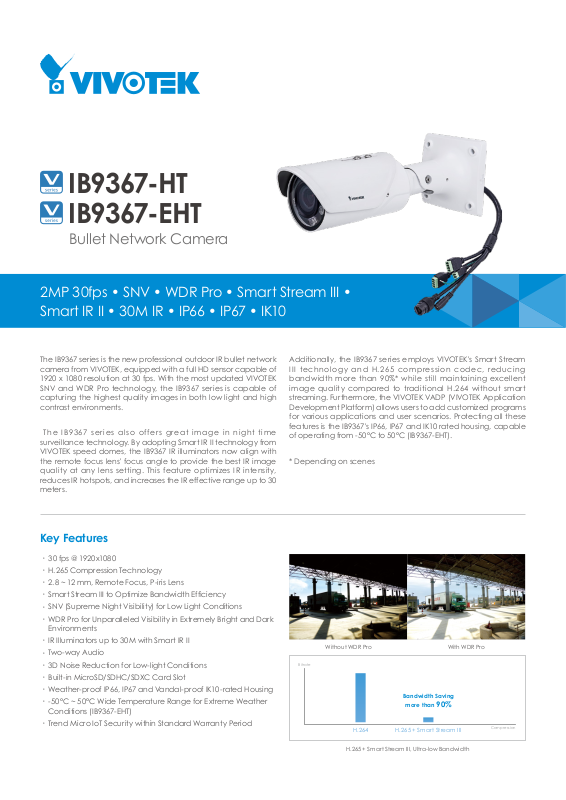

Vivotek IB9367-HT Specsheet

IB9367-HT
IB9367-EHT

Bullet Network Camera

2MP 30fps • SNV • WDR Pro • Smart Stream III •
Smart IR II • 30M IR • IP66 • IP67 • IK10

The IB9367 series is the new professional outdoor IR bullet network
camera from VIVOTEK, equipped with a full HD sensor capable of
1920 x 1080 resolution at 30 fps. With the most updated VIVOTEK
SNV and WDR Pro technology, the IB9367 series is capable of
capturing the highest qualit y images in both low light and high
contrast environments.

The IB9367 series also offers great image in night time
surveillance technology. By adopting Smar t IR II technology from
VIVOTEK speed domes, the IB9367 IR illuminators now align with
the remote focus lens' focus angle to provide the best IR image
quality at any lens setting. This feature optimizes IR intensity,
reduces IR hotspots, and increases the IR effective range up to 30
meters.

Key Features

30 fps @ 1920x1080

•

H.265 Compression Technology

•

2.8 ~ 12 mm, Remote Focus, P-iris Lens

•

Smar t Stream III to Optimize Bandwidth Efciency

•

SNV (Supreme Night Visibility) for Low Light Conditions

•

WDR Pro for Unparalleled Visibility in Extremely Bright and Dark

•

Environments

IR Illuminators up to 30M with Smart IR II

•

Two-way Audio

•

3D Noise Reduction for Low-light Conditions

•

Built-in MicroSD/SDHC/SDXC Card Slot

•

Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing

•

-50 °C ~ 50 °C Wide Temperature Range for E xtreme Weather

•

Conditions (IB9367-EHT)

Trend Micro IoT Security within Standard Warranty Period

•

Additionally, the IB9367 series employs VIVOTEK's Smart Stream
III technology and H.265 compression codec, reducing
bandwidth more than 90%* while still maintaining excellent
image quality compared to traditional H.264 without smart
streaming. Furthermore, the VIVOTEK VADP (VIVOTEK Application
Development Platform) allows users to add customized programs
for various applications and user scenarios. Protecting all these
features is the IB9367's IP66, IP67 and IK10 rated housing, capable
of operating from - 50°C to 50°C (IB9367-EHT).

* Depending on scenes

With out WDR Pro With WD R Pro

Bitrate

Bandwidth Saving

more than

H.264 H.26 5 + Smar t Stream II I

90%

Compression

H.26 5 + Smar t Stream II I, Ultra- low Bandwidth

Technical Specications

IB9367-H T:

Model

Vari-focal, Remote Focus
IB9367-EHT:
Vari-focal, Remote Focus, - 50°C ~ 50°C

System Information

CPU Multimedia SoC (System-on-Chip)

Flash 128MB

RAM 512 MB

Camera Features

Image Sensor 1/2.8" Progressive CMOS

Maximum Resolution 192 0x108 0

Lens Type Vari-focal, Remote Focus

Focal Length f = 2.8 ~ 12 mm

Aperture F1.4 ~ 2.8

Auto- iris P-iris

Fiel d of View

Shutter Time 1/5 sec. to 1/32,00 0 sec.

WDR Technology WDR Pro

Day/Ni ght

Minimum Illumination

Tilt Range 90°

Rotation Range 180 °

Pan/Tilt/Zoom
Functionalities

IR Illuminators

On- board Storage

33° ~ 97 ° (Horizontal)
19° ~ 53° (Vertica l)
38° ~ 114° (Diagonal)

Removable IR-cut lter for day & nig ht

function

0.07 Lux @ F1.4 (Co lor)

0.001 Lux @ F1.4 (B/W)
0 Lux with IR ill umination on

ePTZ:48x digital zoom (4x on IE plug-in, 12x
built in)

Built-in IR illuminators, effective up to 30
meters with Sma rt IR II, IR LED*5

Slot type: Micro SD/SDHC/SDXC card slot
Seamless Recording

Video

Compression H.265, H.264, MJPEG

Maximum Frame Rate 30 fps @ 1920x1080

Maximum Streams 3 simu ltaneous streams

S/N Ratio 58 dB

Dynamic Range 120 dB

Video Streaming

Image Settings

Adjus table resolution, quality and constant
bit rate control; Sma rt Stream III

Time stamp, text overlay, ip & mir ror;
Cong urable brightness, contrast,

saturation, sharpness, white balance,
exposure contro l, gain, backlight
compensation, privacy masks; Scheduled

prole settings, video rotat ion, 3DNR, DIS,

HLC

Audio Capability Two-way audio

Compression G.711, G.726

Inter face

External M ic input
External line output

Network

Users Live viewing for up to 10 clients

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/

Protocol s

Inter face

ONVIF

RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP,
NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,

802.1X, UDP, ICMP, ARP, SSL/TL S

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is h ighly recommended to use standard

CAT5e & CAT6 cables whi ch are compl iant

with the 3P/ETL sta ndard.

Suppo rted, specication available at
www.onvif.org

Intelligent Video

Video Motion Detection Five-window video motion detection

Alarm and Event

Motion detection, manual trigger, digital

Alarm Triggers

Alarm Events

input, periodical tr igger, system boot,

recording notication, camera tampering

detection, audio detection, Micro SD card
life expectancy

Event notication using digital output, HTTP,

SMTP, FTP, NAS server and MicroSD card
File upload v ia HTTP, SMTP, FTP, NAS serve r
and MicroSD card

General

RJ- 45 cable connecto r for Network 10/100
Mbps PoE connection

Connectors

LED Indicator System power and status indicator

Power Input

Power Consumption

Dimensions 294 x 118 x 118 mm

Weig ht 1,2 54 g

Casing IP66, IP67, IK10 (Metal Housing)

Safety Certications CE, LVD, FCC Class A, VCCI, C-Tick, UL

Operating Temperature

Audio M ic in
Audio l ine out
DC 12V
Digital input *1
Digital output *1

IB9367-H T:
DC 12V, IEEE 802.3af PoE Class 0
IB9367-EHT:
DC 12V, IEEE 802.3at PoE Class 4

IB9367-HT: Max. 12 W
IB9367-EHT: Max. 24 W

IB9367-H T:
Starting Tempe rature:

-10°C ~ 50°C (14°F ~ 122 °F)
Workin g Temperat ure:

-30°C ~ 50 °C (-22°F ~ 122 °F)
IB9367-EHT:
Starting Tempe rature:

-40°C ~ 50 °C (-40°F ~ 122°F)
Workin g Temperat ure:

-50 °C ~ 50 °C (-5 8°F ~ 122 °F)

Audio

Humidity 90%
