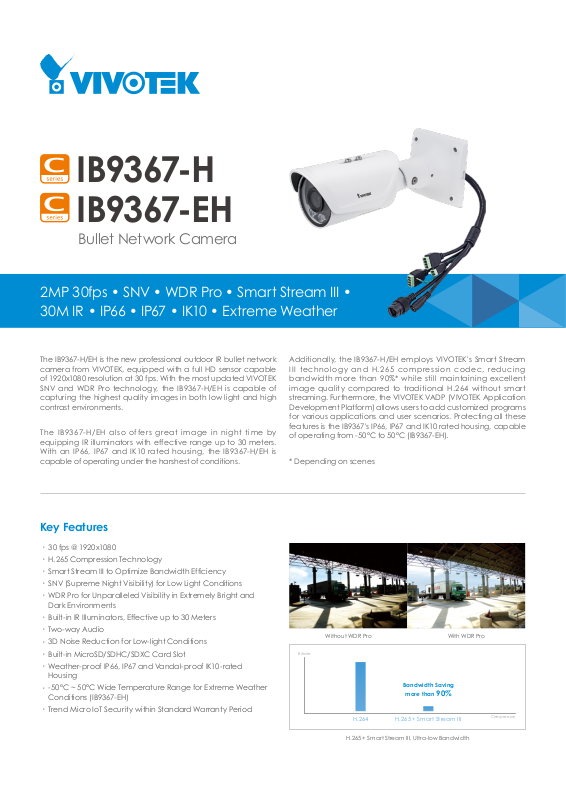

Vivotek IB9367-EH Specsheet

IB9367-H
IB9367-EH

Bullet Network Camera

2MP 30fps • SNV • WDR Pro • Smart Stream III •
30M IR • IP66 • IP67 • IK10 • Extreme Weather

The IB9367-H/EH is the new professional outdoor IR bullet network
camera from VIVOTEK, equipped with a full HD sensor capable
of 1920x1080 resolution at 30 fps. With the most updated VIVOTEK
SNV and WDR Pro technology, the IB9367-H/EH is capable of
capturing the highest quality images in both low light and high
contrast environments.

The IB9367-H/EH also offers great image in night time by
equipping IR illuminators with effective range up to 30 meters.
With an IP66, IP67 and IK10 rated housing, the IB9367-H/EH is
capable of operating under the harshest of conditions.

Key Features

30 fps @ 1920x1080

•

H.265 Compression Technology

•

Smar t Stream III to Optimize Bandwidth Efciency

•

SNV (Supreme Night Visibility) for Low Light Conditions

•

WDR Pro for Unparalleled Visibility in Extremely Bright and

•

Dark Environments

Built-in IR Illuminators, Effective up to 30 Meters

•

Two-way Audio

•

3D Noise Reduction for Low-light Conditions

•

Built-in MicroSD/SDHC/SDXC Card Slot

•

Weather-proof IP66, IP67 and Vandal-proof IK10-rated

•

Housing

-50 °C ~ 50°C Wide Temperature Range for Extreme Weather

•

Conditions (IB9367-EH)

Trend Micro IoT Security within Standard Warranty Period

•

Additionally, the IB9367-H/EH employs VIVOTEK's Smart Stream
III technology and H.265 compression codec, reducing
bandwidth more than 90%* while still maintaining excellent
image quality compared to traditional H.264 without smar t
streaming. Fur thermore, the VIVOTEK VADP (VIVOTEK Application
Development Platform) allows users to add customized programs
for various applications and user scenarios. Protecting all these
features is the IB9367's IP66, IP67 and IK10 rated housing, capable
of operating from -50°C to 50°C (IB9367-EH).

* Depending on scenes

With out WDR Pro With WD R Pro

Bitrate

Bandwidth Saving

more than

H.264 H.26 5 + Smart Stream III

90%

Compression

H.26 5 + Smart Stream III, U ltra-l ow Bandwi dth

Technical Specications

Model

IB9367-H: Fixed len s
IB9367-EH: Fixed lens, -50 °C ~ 50° C

System Information

CPU Multimedia SoC (System-on-Chip)

Flash 128MB

RAM 512 MB

Camera Features

Image Sensor 1/2.8" Progressive CMOS

Maximum Resolution 192 0x10 80

Lens Type Fixed-focus

Focal Length f = 3.6 mm

Aperture F1.6

Auto- iris Fixed-iris

Fiel d of View

Shutter Time 1/5 sec. to 1/32,00 0 sec.

WDR Technology WDR Pro

Day/Night

Minimum Illumination

Tilt Range 90°

Rotation Range 180 °

Pan/Tilt/Zoom
Functionalities

IR Illuminators

On- board Storag e

88° (Horizontal)
47° (Vertical)
104° (Diagonal)

Removable IR-cut lter for day & night

function

0.07 Lux @ F1.6 (Color)

0.001 Lux @ F1.6 (B/W)
0 Lux with IR illumination on

ePTZ:48x digital zoom
(4x on IE plug-in, 12x b uilt in)

Built-in IR illuminators, effective up to 30
meters with Smar t IR, IR LED*2

Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording

Audio

Audio Capability Two-way audio

Compression G.711, G.726

Inter face

External Mic input
External line output

Network

Users Live viewing for up to 10 cli ents

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/

Protocol s

Inter face

ONVIF

RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP,
NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,

802.1X, UDP, ICMP, ARP, SSL/ TLS

10 Base-T/100 Ba se-TX Ethernet (RJ-45)
*It is h ighly recommended to use standard

CAT5e & CAT6 cables whi ch are compliant

with the 3P/ETL standard.

Suppo rted, specication available at
www.onvif.org

Intelligent Video

Video Motion Detection Five-window video motion detection

Alarm and Event

Motion detection, manual trigger, digital

Alarm Trigge rs

Alarm Events

input, periodical trigger, system boot,

recording notication, camera tampering

detection, audio detection, Mi croSD card
life expectancy

Event notication usi ng digital output, HTTP,

SMTP, FTP, NAS server and MicroSD card
File upload via HTTP, SMTP, FTP, NAS ser ver
and MicroSD card

General

RJ- 45 cable connector for Network 10/100
Mbps PoE connection

Connectors

LED Indicator System power and status indicator

Audio M ic in
Audio l ine out
DC 12V
Digital input *1
Digital output *1

Video

Compression H.265, H.264, MJPEG

Maximum Frame Rate 30 fps @ 1920x1080

Maximum Streams 3 simu ltaneous streams

S/N Ratio 58 dB

Dynamic Range 120 dB

Video Streaming

Image Settings

Adjus table resolution, quality and constant
bit rate control; Smar t Stream II I

Time stam p, text overlay, ip & mirror;
Cong urable br ightness, contrast,

saturation, sha rpness, white balance,
exposure control, gain, back light
compensation, privacy masks; Scheduled

prole settings, video rotation, 3DNR, DIS,

HLC

IB9367-H:
DC 12V

Power Input

Power Consumption

Dimensions 266 x 118 x 118 mm

Weig ht 1,142 g

Casing IP66, IP67, IK10 (Metal Housing)

Safety Certications CE, LVD, FCC Class A, VCCI, C-Tick, UL

IEEE 802.3af PoE Class 0
IB9367-EH:
DC 12V
IEEE 802.3at PoE Class 4
(Power Redundancy)

IB9367-H: Max. 7 W
IB9367-EH: Max. 19W
