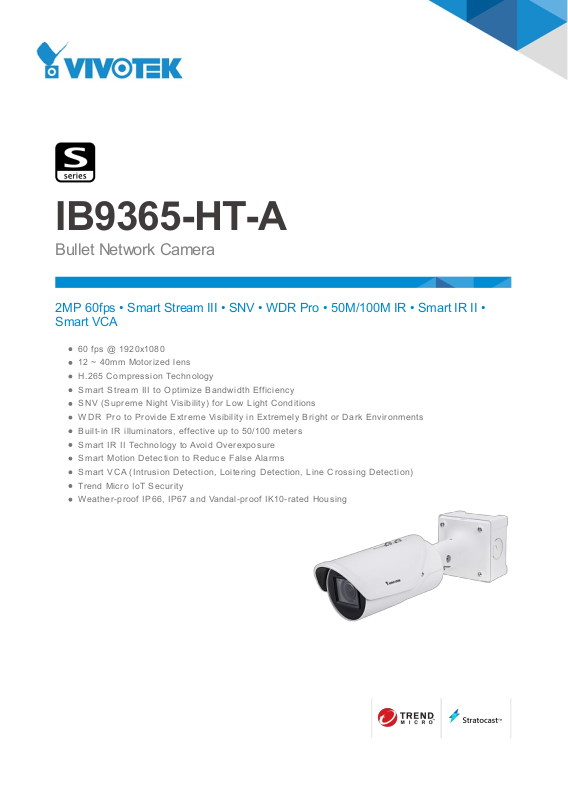

Vivotek IB9365-HT-A-40mm, IB9365-HT-A Specsheet

IB9365-HT-A

Bullet Network Camera

2MP 60fps • Smart Stream III • SNV • WDR Pro • 50M/100M IR • Smart IR II •
Smart VCA

60 fps @ 1920x1080

12 ~ 40mm Motoriz ed lens

H.265 C om pres s ion Tec hnology

Sm art S tream III to O ptimiz e B andwidth E ffic ienc y

S N V ( S uprem e Night Visibility) for Low L ight Conditions

W D R P r o to P rovide E xtr eme Vis ibility in E xtr emely B right or D ar k E nvironm ents

Built-in IR illum inators, effective up to 50/100 met ers

Sm art IR II Tec hnology t o Avoid O verexpos ure

Sm art Motion D etec tion to R educ e Fals e Alar m s

Sm art VC A (Intrusion D et ection, Loitering D etec tion, L ine C r ossing D et ection)

Trend Mic ro IoT S ecur ity

Weather - proof IP66, IP 67 and Vandal-proof IK 10-r ated Hous ing

Technical Specifications

System Information

Model

IB9365- HT-A (4- 9 mm)
IB9365- HT-A (12- 40 mm)

CPU Multi media SoC ( Sy stem-on-Chi p)

Flas h 256MB

RAM 1G

Camera Features

Image Sensor 1/2" Progres siv e CMOS

Max. Resolut ion 1920x1080 ( 2MP)

Lens Ty pe Motorized, Var i- f ocal, Remot e Foc us

Focal Lengt h

IB9365- HT-A (4- 9 mm): f = 4 ~ 9 mm (f = 3. 5 ~ 11.4 mm, equiv alent f ocal lengt h @
1/2.8" )
IB9365- HT-A (12- 40 mm): f = 12 ~ 40 mm

Apert ure

IB9365- HT-A (4- 9 mm): F1. 3 ~ 2. 2
IB9365- HT-A (12- 40 mm): F1. 8

Auto- iris P-ir is

Fiel d of View

IB9365- HT-A (4- 9 mm):
46° ~ 100° ( Hori zont al)
26°~52° (Vert ical)
53°~120° (Di agonal )
IB9365- HT-A (12- 40 mm):
12° ~ 35° ( Hori zontal)
7°~19° (Vert ical)
14°~40° (Di agonal )

Shutt er Time 1/5 s ec. to 1/32,000 sec .

WDR Tec hnology WDR Pro

Day /Night Yes

Remov able IR-cut Filt er Yes

IR Il luminat ors

IB9365- HT-A (4- 9 mm):
Built -in I R il lumi nat ors , ef fect i v e up t o 50 met ers with Smart IR II, IR LED*6
IB9365- HT-A (12- 40 mm):
Built -in I R il lumi nat ors , ef fect i v e up t o 100 met ers with Smar t IR II, I R LED* 4

Minimum I ll umination

IB9365- HT-A (4- 9 mm):

0.015 Lux @ F 1.3 (Col or)
<0.005 Lux @ F1. 3 (B/ W)
0 Lux wit h I R il lumi nat ion on
IB9365- HT-A (12- 40 mm):

0.075 Lux @ F 1.8 (Col or)
<0.005 Lux @ F1. 8 (B/ W)
0 Lux wit h I R il lumi nat ion on

Tilt Range 90°

Rotation Range 180°

Pan/Til t / Zoom Funct ional it ies ePTZ: 48x di git al zoom (4x on IE pl ug-i n, 12x bui lt -in)

On-board St orage

Slot ty pe: Micro SD/ SDHC/ SDXC car d sl ot
Seamles s Recording

Video

Video Compr ess ion H.265, H.264, MJPEG

Maximum Fr ame Rat e 60 f ps @ 1920x1080

Maximum St reams 3 s imult aneous s t reams

S/N Ratio 68 dB

Dy nami c Range 120 dB

Video St reami ng Adjust abl e resolut ion, qual it y and bit rate control, Smart St ream III

Image Sett ings

Time st amp, t ext ov erlay , f li p and mir ror, conf igurable bright ness , cont rast , s at urat ion,
sharpness , white balanc e, expos ure contr ol, gain, backl ight compensat ion, pr iv acy
mask s, sc heduled prof ile sett ings, HLC, def og, 3DNR, v ideo rot at ion, EIS

Audio

Audio Capabi li t y Two- way Audio (f ull duplex )

Audio Compr ess ion G.711, G. 726

Audio I nt erf ace

Ext ernal mic rophone input
Ext ernal li ne out put

Networ k

User s Liv e v iewing f or up t o 10 cl ient s

Prot ocol s

802.1X, ARP, CI FS/ SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, I CMP, IGMP,
IPv 4, I Pv 6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/I P, TLS, UDP,
UPnP

Int erf ace

10 Base- T/100 Bas e-TX Ethernet (R J-45)
*I t i s highly rec ommended to use standar d CAT5e & CAT6 cables whic h are compliant
with the 3P/ ETL st andard.

ONVIF Support ed, spec if ic at ion avai labl e at www.onv if .org

Solution Integration

Smart Motion Detec tion Fiv e-window v ideo mot ion detect ion, peopl e det ect ion, time f ilt er

Smart VCA

Int rusion detect ion, loit eri ng detect ion, l ine crossing detect ion, unat t ended obj ect
detect ion, missi ng objec t detect ion, f ace detect ion
*Pl ease acces s ht t p: / /licens e. v iv ot ek.c om/ t o get t he f ree t rial licens e.

VADP Pac kage

Deep Learni ng VCA (Smar t Mot ion Detect ion, Smart VCA), Strat ocast , Trend Micro IoT
Securi t y

Alarm and Event

Alarm Trigger s

Motion detect ion, digit al input , manual tr igger, periodic al trigger, sy st em boot , recording
notif icat ion, camera t amperi ng det ect ion, audio detec t ion, SD car d li f e expect anc y,
shoc k detect ion, cybers ecur it y ev ents (brute f orce attac k ev ent , cy berattac k ev ent,
quarant ine ev ent)

Alarm Event s

Ev ent notif icat ion v ia audio c li p, digi t al output , email , HTTP, FTP, NAS serv er, SD card
Fil e upload v ia email, HTTP, FTP, NAS serv er, SD car d

General

Connector s

RJ- 45 cabl e connect or for 10/ 100Mbps Net work/ PoE connect ion
Audio input
Audio out put
AC 24V power input
DC 12V power input
Digi t al input * 2
Digi t al output * 2
BNC out

LED Indicator Sys t em power and st at us indi cat or

Power I nput

AC 24V, DC 12V, I EEE 802.3af PoE Clas s 0
(Power Redundanc y )

Power Consumpt ion

PoE: Max. 12.95/7.86 W ( IR on/of f)
DC 12V: Max. 10.8/5.8 W ( I R on/of f)
AC 24V: Max. 12. 5/7.5 W ( IR on/of f)

Dimens ions

IB9365- HT-A (4- 9 mm):
Ø 121 x 121 x 352. 1 mm (w/ junc tion box )
Ø 121 x 121 x 288. 1 mm (w/ o junc t ion box)
IB9365- HT-A (12- 40mm):
Ø 121 x 121 x 368. 9 mm (w/ junc tion box )
Ø 121 x 121 x 305. 9 mm (w/ o junc t ion box)

Weight 1,254 g

Casi ng IP66, IP67, IK10 (Metal Housi ng)

Saf et y Certi f icat ions CE, LVD, FCC Clas s A, VC CI , C-Tic k, UL, EN50121-4, BIS

Operating Temperat ure

Star ting Temperat ure: -10° C ~ 50° C (14° F ~ 122°F)
Worki ng Temperat ure(I R on): -30° C ~ 50°C ( -22° F ~ 122°F)
Worki ng Temperat ure ( I R of f ): -30° C ~ 60°C (-22° F ~ 140°F )

Humidi t y 98%

Warrant y 36 months

System Requirements

Operating Sy st em

Micros of t Windows 8/7
Mac 10. 12 (Chr ome only )

Web Browser

Chrome 58.0 or abov e
Int ernet Ex plor er 11

Other Play ers VLC: 1. 1.11 or above

Included Accessories

Others

Quick ins t all at ion guide, warrant y car d, s crew pac k, alignment st ic ker, desi ccant bag,
waterpr oof acces sor y bag, j unc tion box , s uns hiel d

Mounting Kits

AM- 719

Outdoor Junc t ion Box (St andar d Pack age)

Mounting Kits

AM- 312

Pole Mount Adapt er

Mounting Kits

AM- 412

Corner Mount Adapter

Dimensions

Compatible Accessories
