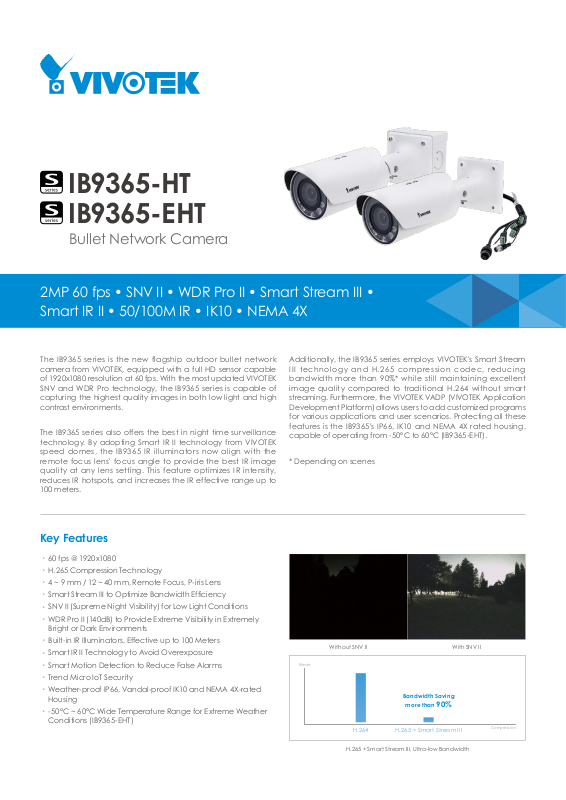

Vivotek IB9365-HT Specsheet

IB9365-HT
IB9365-EHT

Bullet Network Camera

2MP 60 fps • SNV II • WDR Pro II • Smart Stream III •
Smart IR II • 50/100M IR • IK10 • NEMA 4X

The IB9365 series is the new flagship outdoor bullet network
camera from VIVOTEK, equipped with a full HD sensor capable
of 1920x1080 resolution at 60 fps. With the most updated VIVOTEK
SNV and WDR Pro technology, the IB9365 series is capable of
capturing the highest quality images in both low light and high
contrast environments.

The IB9365 series also offers the best in night time surveillance
technology. By adopting Smart IR II technology from VIVOTEK
speed domes, the IB9365 IR illuminators now align with the
remote focus lens' focus angle to provide the best IR image
quality at any lens setting. This feature optimizes IR intensity,
reduces IR hotspots, and increases the IR effective range up to
100 meters.

Key Features

60 fps @ 1920x1080

•

H.265 Compression Technology

•

4 ~ 9 mm / 12 ~ 40 mm, Remote Focus, P-iris Lens

•

Smar t Stream III to Optimize Bandwidth Efciency

•

SNV II (Supreme Night Visibility) for Low Light Conditions

•

WDR Pro II (140dB) to Provide Extreme Visibility in E xtremely

•

Bright or Dark Environments

Built-in IR Illuminators, Effective up to 100 Meters

•

Smar t IR II Technology to Avoid Overexposure

•

Smar t Motion Detection to Reduce False Alarms

•

Trend Micro IoT Security

•

Weather-proof IP66, Vandal-proof IK10 and NEMA 4X-rated

•

Housing

-50 °C ~ 60 °C Wide Temperature Range for E xtreme Weather

•

Conditions (IB9365-EHT)

Additionally, the IB9365 series employs VIVOTEK's Smart Stream
III technology and H.265 compression codec, reducing
bandwidth more than 90%* while still maintaining excellent
image quality compared to traditional H.264 without smart
streaming. Furthermore, the VIVOTEK VADP (VIVOTEK Application
Development Platform) allows users to add customized programs
for various applications and user scenarios. Protecting all these
features is the IB9365's IP66, IK10 and NEMA 4X rated housing,
capable of operating from -50°C to 60°C (IB9365 -EHT).

* Depending on scenes

With out SNV II With SNV II

Bitrate

Bandwidth Saving

more than

H.264 H.26 5 + Smar t Stream II I

90%

Compression

H.26 5 + Smar t Stream II I, Ultra- low Bandwidth

Technical Specications

IB936 5-H T:

Model

Motorized, Vari -focal, Remote Focus
IB9365-EHT:
Motorized, Vari -focal, Remote Focus,

-50 ° C ~ 60 °C

System Information

CPU Multimedia SoC (System-on-Chip)

Flash 128MB

RAM 512 MB

Camera Features

Image Sensor 1/2 Progressive CMOS

Max. Resolution 1920 x1080 (2MP)

Lens Type Motorized, Vari -focal, Remote focus

Focal Length

Aperture

Iris type P-iris

Fiel d of View

Shutter Time 1/5 sec. to 1/32,00 0 sec.

WDR Technology WDR Pro I I

IB936 5-HT/EHT(4-9mm): f = 4 ~ 9 mm (f = 3.5 ~

11.4 mm, equivalent focal length @ 1/2.8")
IB936 5-HT/EHT(12-40mm): f = 12 ~ 40 mm

IB936 5-HT/EHT(4-9mm): F1.3 ~ F2.2
IB9365-HT/EHT(12-40mm): F1.8

IB9365-HT/EHT(4-9mm):
46° ~ 100 ° (Hor izontal)
26° ~ 52° (Vertical)
53° ~ 120 ° (Diagonal)
IB9365-HT/EHT(12-40mm):
12° ~ 35° (Horizontal)
7° ~ 19° (Ver tical)
14° ~ 40° (Diagonal)

Compression H.265, H.264, MJPEG

Maximum Frame Rate 60 fps @ 1920x1080

Maximum Streams 4 simu ltaneous streams

S/N Ratio 66 dB

Dynamic Range 140 dB

Video Streaming

Image Settings

Adjus table resolution, quality and co nstant
bit rate control, Smart Stream III

Time stamp, text overlay, ip & mirror;
Cong urable brightness, contrast,

saturation, sharpness, white balance,
exposure contro l, gain, backlight

compensation, privacy masks; Scheduled
prole settings, video rotat ion, 3DNR, DIS,

HLC, defog, deblur, metering

Audio

Audio Capability Two-way Audio (full- duplex)

Compression G.711, G.726

Inter face

External microphone input
External l ine output

Network

Users Live vi ewing for up to 10 clients

802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP,

Protocol s

Inter face

DNS, F TP, HTTP, HTTPS, ICMP, IGMP, IPv4,
IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP,
SNMP, SSL, TCP/IP, TLS, UD P, UPnP

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is h ighly recommended to use standard

CAT5e & CAT6 cables whi ch are compl iant

with the 3P/ETL sta ndard.

Day/Ni ght Yes

Removable IR-cut lter Yes

IB9365-HT/EHT(4-9mm):
Built-in IR illuminators, effective up to 50

IR Illuminators

Minimum Illumination

Tilt Range 90°

Rotation Range 180 °

Pan/Tilt/Zoom
Functionalities

On- board Storage

meters with Sma rt IR II, IR LED*5
IB9365-HT/EHT(12-40mm):
Built-in IR illuminators, effective up to 100
meters with Sma rt IR II, IR LED*4

IB9365-HT/IB9365-EHT (4-9mm):

0.01 Lux @ F1.3 (Color), 50 IRE

0.002 Lux @ F1.3 (Color), 30IRE
<0.0 05 Lux @ F1.3 (B/ W)
0 Lux with IR ill umination on
IB9365-HT/EHT(12-40mm):

0.06 Lux @ F1.8 (Color), 5 0IRE

0.03 Lux @ F1.8 (Color), 30IRE
<0.0 05 Lux @ F1.8 (B/ W)
0 Lux with IR ill umination on

ePTZ: 48x digital zoom (4x on IE plug-in, 12x
built-in)

Slot type: Micro SD/SDHC/SDXC card slot
Seamless Recording

Video

ONVIF

System Integration

Smar t Motion Detection

Sma rt VCA

VAD P Pac kag e

Alarm and Event

Alarm Triggers

Alarm Events

Suppo rted, specication available at
www.onvif.org

Five-window video motion detection,

people detection, time lte r

Intr usion detection, l oitering detection, line
crossing detection, unattended object
detection, missing object detection, face
detection
*Please access http://license.vivotek.com/
to get the free trial license.

Trend Micro IoT Security, Deep Learning
VCA (Smart Motion Detection, Smar t VCA)

Motion detection, manual trigger,
digital input, periodical tr igger, system

boot, recording notication, camera

tampering detection, audio detection,
shock detection, SD card life expectancy,
cybersecur ity events (brute force attack
event, cyberattack event, quarantine
event)

Event notication via digital output, email,

HTTP, FTP, NAS server, SD card
File upload v ia emai l, HTTP, FTP, NAS server,
SD card
