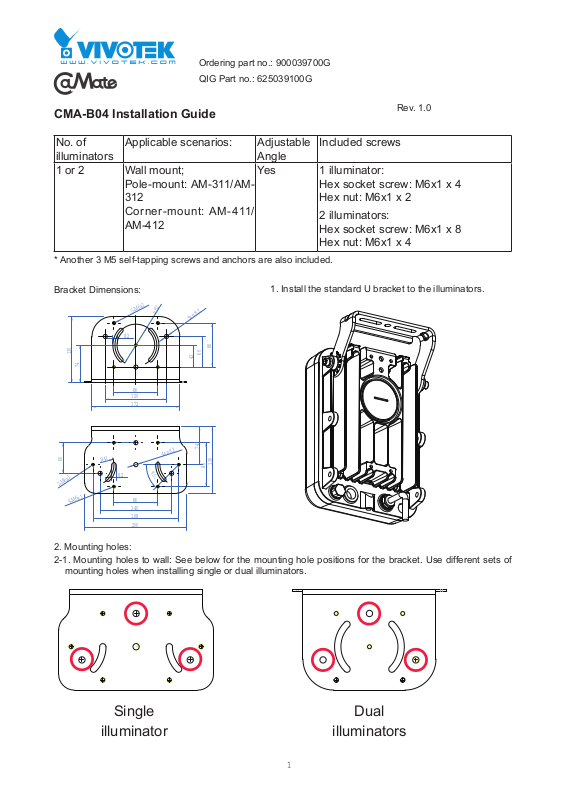

Vivotek CMA-B04 Installation Guide

Ordering part no.: 900039700G

QIG Part no.: 625039100G

CMA-B04 Installation Guide

No. of
illuminators
1 or 2 Wall mount;

* Another 3 M5 self-tapping screws and anchors are also included.

Bracket Dimensions:

130

74

Applicable scenarios: Adjustable

Angle

Yes 1 illuminator:
Pole-mount: AM-311/AM­312
Corner-mount: AM-411/
AM-412

1. Install the standard U bracket to the illuminators.

5-M6x1

n 82

8.2

3x n 8.2

43

86

60

Included screws

Hex socket screw: M6x1 x 4
Hex nut: M6x1 x 2

2 illuminators:
Hex socket screw: M6x1 x 8
Hex nut: M6x1 x 4

Rev. 1.0

86

120
172

74

130

86

60

2-M6x1

4-M6x1

R41

4x n 8.2

8.2

45 ~

86
140
168

200

2. Mounting holes:
2-1. Mounting holes to wall: See below for the mounting hole positions for the bracket. Use different sets of

mounting holes when installing single or dual illuminators.

Single

illuminator

Dual

illuminators

1

Shown below is a bracked secured to wall, in the dual-illuminator conguration.

2-2. Mounting holes to the pole- or corner-mount bracket:
When pole- or corner-mounted, use the below mounting hole positions. Use the mounting holes on

different sides of the bracket when installing a single or dual illuminators. Refer to the documentation that
came with the pole-mount or corner-mount brackets for more information.

Single illuminator ­broader side (M6)

Dual illuminators ­smaller side (M6)

2
