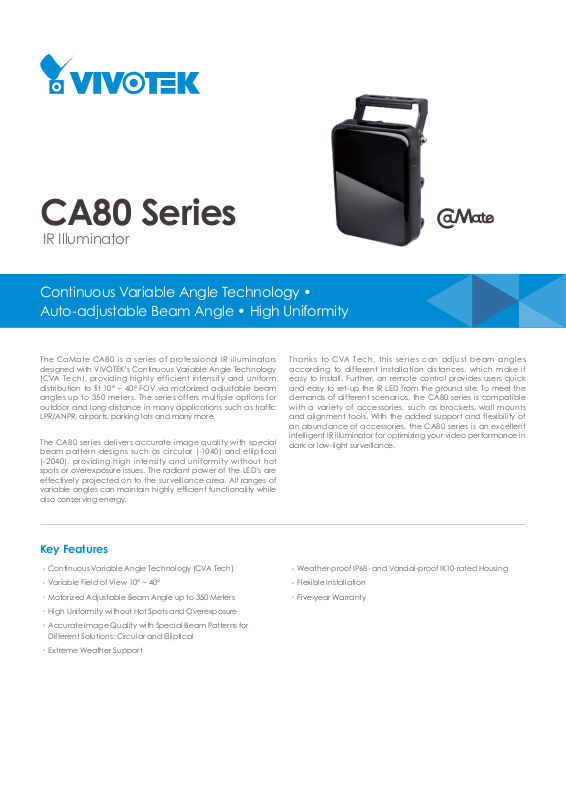

Vivotek CA80I8-1040, CA80I8-2040 Specsheet

CA80 Series

IR Illuminator

Continuous Variable Angle Technology •
Auto-adjustable Beam Angle • High Uniformity

The CaMate CA80 is a series of professional IR illuminators
designed with VIVOTEK’s Continuous Variable Angle Technology
(CVA Tech), providing highly efficient intensity and uniform
distribution to fit 10° ~ 40° FOV via motorized adjustable beam
angles up to 350 meters. The series offers multiple options for

outdoor and long-distance in many applications such as trafc

LPR/ANPR, airports, parking lots and many more.

The CA8 0 series delivers accurate image quality with special
beam pattern designs such as circular (-1040) and elliptical
(-2040), providing high intensity and uniformity without hot
spots or overexposure issues. The radiant power of the LED’s are
effectively projected on to the sur veillance area. All ranges of

variable angles can maintain highly efcient functionality while

also conserving energy.

Key Features

Continuous Variable Angle Technology (CVA Tech)

•

Variable Field of View 10° ~ 40°

•

Motorized Adjustable Beam Angle up to 350 Meters

•

High Uniformity without Hot Spots and Overexposure

•

Accurate Image Quality with Special Beam Patterns for

•

Different Solutions: Circular and Elliptical

Extreme Weather Support

•

Thanks to CVA Tech, this series can adjust beam angles
according to different installation distances, which make it
easy to install. Further, an remote control provides users quick
and easy to set-up the IR LED from the ground site. To meet the
demands of different scenarios, the CA80 series is compatible
with a variety of accessories, such as brackets, wall mounts
and alignment tools. With the added support and flexibility of
an abundance of accessories, the CA80 series is an excellent
intelligent IR illuminator for optimizing your video performance in
dark or low-light sur veillance.

Weather-proof IP68 - and Vandal-proof IK10 -rated Housing

•

Flexible Installation

•

Five-year Warranty

•

Illumination Map

Illumination
Range (m)

350

300

250

255

200

175

150

125

100

75

50

25

0

Beam
Pattern

CA80 I8 -104 0

10°

20°

30°

40°

CA80I8 -2040

20°

30°

40°

Technical Specications

Model CA8 0I 8-10 40 CA80 I8-2040

Product Information

Beam Angle(Horizontal) 10° ~ 40 ° 20° ~ 40°

Distance

Beam Pattern Circular Elliptical

LED Array 24 pcs LED

Wavelength 850nm

External Input IR ON/OFF control

External Output Day/Night switch ing

Automat ic IR On/Off Controlled by Light Sensor

Light Sensor Sensitivity

Adjus table IR Powe r

140 - 350 m
459 - 1148 ft

1/5/10/30(default)/50/10 0% (Ma x. 1000 Lux)

(accessed via CaMate remote/RS-485 control)

20%-100%

(accessed via CaMate remote/RS-485 control)

General

170 - 280 m

557 - 918 ft

Power Input 24VDC ±10%, 24V AC(50/60Hz) ±10%

Power Consumption Max. 90 W

Operating Temperature -40 °C ~ +50°C (-40 °F ~ +122 °F)

Working Tempe ratu re -50 ° C ~ +50 °C (-58 °F ~ +122 °F)

Dimensions 220 x 160 x 73 mm (8.6 × 6.3 × 2.9 inch)

Weig ht 2.1 kg

Cable Length 0.75 m (2.46 ft) UL AWM
