AW-IHT-1271

Industrial VivoCam L2+
Managed PoE Switch

L2+ Managed Gigabit Ethernet • Managing IP Surveillance •
Surge Protection 6KV • -40°C ~ 75°C

The AW-IHT-1271 is an Industrial 8-port Gigabit PoE port (Supports

802.3 at/af, and total up to 240W) + 4-port Gigabit SFP L2 plus
managed PoE switch with a wide operating temperature range
from -40°C to 75°C and supports surge protection per port up to
6KV. The AW-IHT-1271 combines high hardware performance and

environmental exibility for use in outdoor surveillance, outdoor
telecom, heavy industry, factory automation and transportation

applications.

The AW-IHT-1271 supports surveillance features such as Topology/
Floor/Map views for controlling, understanding network topology
and device status. It not only features surveillance net work
environment set up functions, but also troubleshooting and trafc
monitoring functions which help users to clarify and troubleshoot
any connection and device issue. In addition, the AW-IHT-1271
also supports Rapid ring, a redundancy proprietary protocol with

convergence time within 20ms and up to 250 switches.

Key Features

Managing IP Surveillance Layer 2 Feature

The Root VivoCam Will Auto-Sync With All VivoCam Sub

•

Switches

Auto Discover y and Classication of Network Devices

•

Batch Camera Conguration - File Import & Export

•

Batch Camera Network/Login Conguration

•

Auto Generated Surveillance Topology View

•

Easy Tag VLAN Conguration in Topology View

•

Smar t Device-Management in Topology View

•

PoE On/Off Control in Topology View

•

Display IP Camera Live Stream in Topology View, Floor View

•

and Google Map View

Supports Discovery of ONVIF IP Cameras

•

Supports DHCP Server

•

Supports IPv4/IPv6 L3 Static Route

•

Supports IEEE802.1Q VLAN (up to 4096), Double Tag (Q-in-Q)

•

Supports IEEE802.1v Protocol VLAN and MAC-based VL AN

•

Supports Rapid Ring with Convergence Time within 20ms

•

and up to 250 Switches

Supports 802.1d (STP), 802.1w (RSTP) and 802.1s (MSTP)

•

Supports IEEE802.3ad Link Aggregation Control Protocol

•

(LACP)

Supports SNMP v1/v2c/v3 for Management

•

Supports Access Control List (ACL)

•

Feature Highlight - Managing IP Surveillance

Auto Discovery

AW-IHT-1271 can automatically discover any IP devices such as network
cameras, video servers, CMS and NVR with a simple click of the mouse.

Graphical View - Floor View

Upload custom floor images. Floor View allows for quick location of
deployed survei llance devices and for export of this vi ew in SVG/PNG/PDF

formats for easier inspection and planning.

Graphical View - Topology View

Auto- generated Topology View allows administrators to quickl y view and
export a complete netwo rk topology in SVG/PNG/PDF format for easie r

inspection and planning.

Graphical View - Google Map

Locate surveillance devices on Google map to simplify multi-site
management of any large scale depl oyments.

Device Management

Easy Netwo rk Co nguration, Open Camera Web UI, Diag nose Camera
Connection and Cable Status, Display Camera Live Stream, Change
Camera Network Setting, Restore Default, PoE consumption, PoE on/off

control.

Device Status

Device Status page to show the real-time verification result of each
connection between switch port and device.

Feature Highlight - Managing IP Surveillance

Rapid Ring

Outdoor Surveillance Solution

Easy-Tag VLAN Live Stream

Hierarchical topology view allows adm inistrators to easi ly build a VLAN. Display live streaming camera window in Topology View, Floor View and

Google Map View.

Application

Convergence time within 20ms and up to 250 switches

Control Center

AW-GTS-287A

10G Fi ber Switch

0.5 KM ~ 40 KM

AW- IHT -1271

+

VIVOTEK Cabinet

0.5 KM ~ 40 KM

AW- IHT -1271

+

VIVOTEK Cabinet

Fiber

PoE

Technical Specications

Model AW- IH T-1271

Managing IP Surveillance Functions

Management

Auto Search VIVOTEK Device Up to 100 0 pcs

Surveillance Device Management List V

DHCP Server Function V

Easy Tag VL AN in Topolog y View V

VIVOTEK Device Name Edit V

VIVOTEK D evice Account/Password Setting V

VIVOTEK D evice Static IP Setting V

VIVOTEK Camera/Video Ser ver Reboot/Restore
Default

VIVOTEK Device Re-direct Link V

VIVOTEK D evice On/Off Line Status V

Discover ONVIF IP camera V

Graphic View

Topology View V

Floor View V

Google Map View V

Maintenance

VIVOTEK Camera/Video Server Conguration
File Export/Import

VIVOTEK Cameras/V ideo Ser ver Congu ration

File Management

Floor Image Management V

Export Sur veillance Management Device List V

Security V

Trouble Shooting V

V

V

V

Trafc Monitoring V

Hardware Specication

Port Con guration

10M/100 M/1G RJ45 PoE Por t 8

100M/1G SFP Por t 4

Console Port 1xRJ45

Hardware Performance

Switching Capacity 24 Gbps

For warding Capacity 17. 85 6 M pp s

MAC Address 8K

Jumbo Frames 9600 Bytes

PoE Function

Number of PoE Out Ports 8

Technical Specications

Max. PoE Output Power /Per Port 30W

802.3at/af Standard Compatible V

Over Current Protection V

Circuit Shorting Protection V

Total PoE Power Budget 240W

Power Pin Assignment 1/2(+), 3/6(-)

PoE PD Auto Detection V

Managed Layer 2+ PoE Switch Functions

Layer 2+ Features

IEEE802.1D (STP) V

Spanning Tree

VLAN

Trunking IEEE 802.3 ad LACP Up to 4 ports in a group, Max. up to 6 groups

IGMP Snooping (v1/v2/v3) V

Loop Detection V

IEEE802.1w (RSTP) V

IEEE802.1s (MSTP) V

802.1Q Tag-based VLAN 4096 VLAN IDs

Port-based VL AN V

MAC-based VLAN V

Management VLAN V

Q-in-Q (D ouble Tag) V

Private VLAN Edge (PVE) V

Voice VLAN V

GARP VLAN Registration Protocol (GVRP) V

L3 Features

IP Hos t Table V

IPv4/v6 Static Routing V

Static ARP V

DHCP Server V

Ring Management

ITU-T G.8031

ITU-T G.8032

Rapid Ring

Suppo rts ITU-T G.80 31 Ethernet Linear Protection
Switching

Suppo rts ITU-T G.80 32 Ether net Ring Protection
Switching

Convergence Time within 20ms V

Total Number of Switch Up to 250 units

QoS Features

Hardware Queues 8

V

V

Technical Specications

Port Based V

802.1p VLAN Priority Based V

Classication

Rate Limiting

Priority Queue Scheduling

Private VLAN Edge (PVE) V

Differentiated Services (DiffServ) V

Classication and Re-ma rking ACLs V

Ingress Policer V

Egress Shapin g and Rate Control V

Per Por t V

Strict Priority and Weighted Round-robin (WRR) V

Queue Assignment Based on DSCP and Class of
Service

Security

Port Security (MAC-based) V

IEEE802.1x V

Suppo rts up to 256 Entries V

Source and Destination MAC, VLAN ID or IP

Addres s, Protocol, Port

Differentiated Services Code Point (DSCP) / IP
Precedence

ACLs

TCP/ UDP Source and Destination Ports V

802.1p Priority V

V

V

V

Ethernet Type V

Inter net Control Message Protocol (ICMP)

Packets

TCP Flag V

IP Sou rce Guard (IP-MAC-Port Binding) V

Storm Control V

RADIUS Authentication (RFC2138) V

DDoS Prevention V

Layer 3 Iso lation (Al low/Disallow Routing

between IP Subnets)

HTTPs and SSL (Secured Web) V

SSH v1.5/v2.0 (Secured Telnet Session) V

BPDU Guard V

STP Root Guard V

DHCP Snooping V

Management

SNMP (v1, v2c, v3) V

RMON (1, 2, 3 & 9 groups) V

V

V

CLI (Command Line Interface) V

Web GUI Interface V

Firmware Upgrade V

Technical Specications

Dual I mage V

Cong uration E xport/Impor t V

DHCP

Event/Error Log Syslog V

Management Access Filtering

Port Mirroring V

Remote Mon itoring (RMON) V

LLDP (IEEE802.1ab) V

LLDP-MED V

NTP V

UPnP V

S-Flow V

NTP V

IEEE 1588v2 PTP V

Hardware Monito ring Temperature Detection and Alarm V

Hardware Watchdog

Suppo rt DHCP Server to Assign IP to DHCP
Clients

SNMP V

Web V

Teln et V

Suppo rted to Resume Operation from CPU
Hang up

V

V

IPv6 Support

Dual IPv6/IPv4 Stack V

IPv6 Web/SSL V

IPv6 SNTP (Simple Network Time Protocol) V

IPv6 Telnet Server/SSH V

IPv6 Ping Trace Route V

IPv6 TFTP V

IPv6 RADIUS V

IPv6 Syslog V

IPv6 DNS Client V

IPv6 Protocol-based VLANs V

IPv6 SNMP V

PoE Management

ON/OFF Control V

Alive Check ing for PD V

Power Delay V

7/24 On/Off Scheduling V

Environmental Specications

Operating Temperature -40°C ~ 75°C (-40°F ~ 167°F)

Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)

Technical Specications

Operating Humidity 5% ~ 90% Non-Condensing

Mechanical Specications

Dimensions 62(W) x 135(H) x 130(D) mm

Weig ht 0.68 kg

Power Speci cations

Power Input Voltage

Output Voltag e Range /Per PoE Port

Surge Protection /Pe r PoE Port 6KV

PoE IEEE 802.3af (Max. 15.4W) output

PoE+ IEEE802.3at (Max. 30W) output

PW1: 48 ~ 57VDC
PW2: 48 ~ 57VDC

Redundant Power Backup

54VDC

General

War ranty 60 months

Certications

EMS

EMI FCC Part 15 Class A

Safety CE, LVD, VCCI

Vibration IEC 60068-2-6

Shock IEC 60068 -2-27

Freefall IEC 60068-2-32

EN6100 0-4 -2 ESD, EN61000-4-3 RS,

EN6100 0-4 -4 EFT, EN6100 0-4-5 Surg e,

EN6100 0-4 -6 CS, EN6100 0-4-8 PFMF

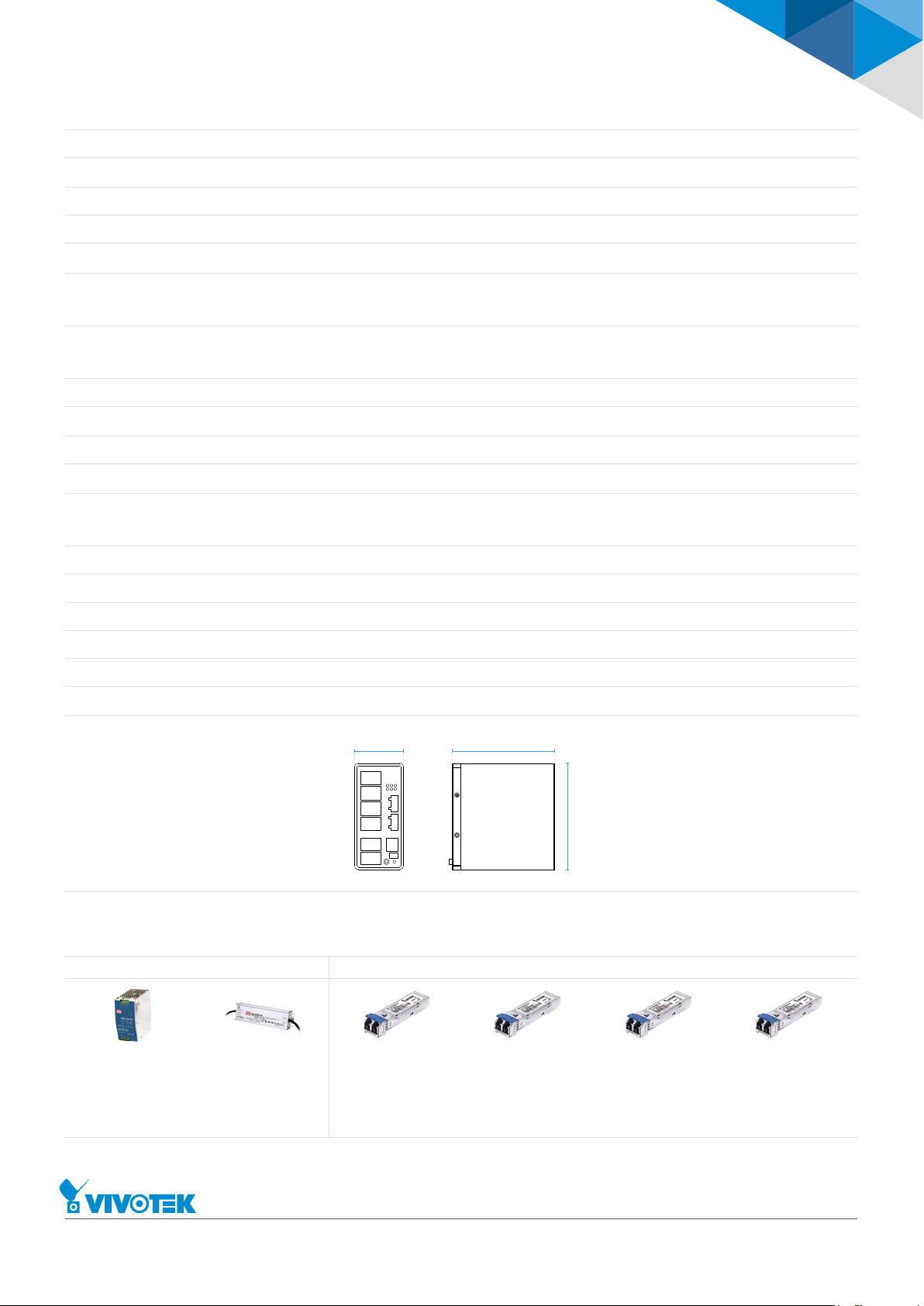

Dimensions

62 mm 130 mm

135 mm

Compatible Accessories

Power Supply SFP Transceiver

NDR-240-48 HLG -240 H-54 SFP-1000-MM85-X5I SFP-1000-MM13-02I SFP-1000-SM13-10I SFP-1000-SM13-40I

Indoor Industrial D in

Rail Power Supply,

48VDC/240W,

-20°C ~ 70°C

Outdoor Industrial
Wall Mount Power

Supply,

54VDC/240W,

-40°C ~ 70°C, IP67

MMF, 0.5 KM ,

-40°C ~ 85°C

MMF, 2 KM,

-40°C ~ 85°C

SMF, 10 KM,

-40°C ~ 85°C

SMF, 40 KM,

-40°C ~ 85°C
