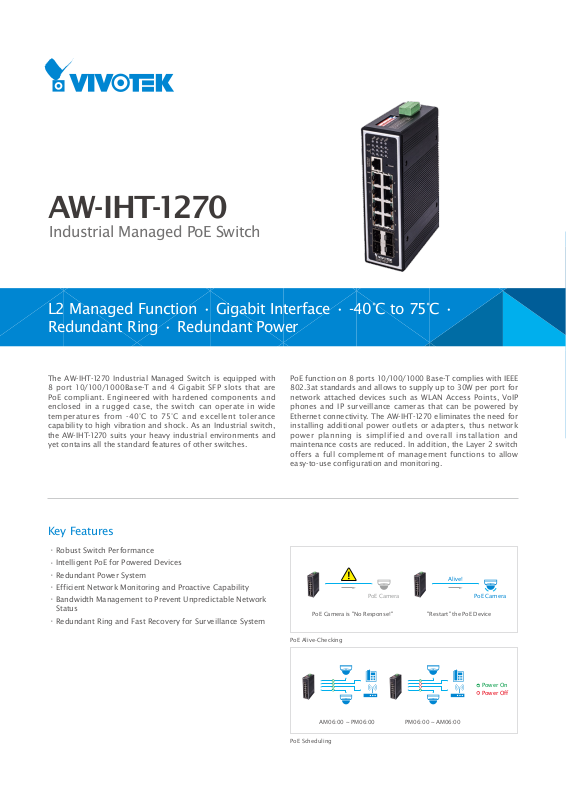

Vivotek AW-IHT-1270 Specsheet

AW-IHT-1270

Industrial Managed PoE Switch

L2 Managed Function • Gigabit Interface • -40°C to 75°C •
Redundant Ring • Redundant Power

The AW-IHT-1270 Industrial Managed Switch is equipped with
8 port 10/100/1000Base-T and 4 Gigabit SFP slots that are
PoE compliant. Engineered with hardened components and
enclosed in a rugged case, the switch can operate in wide
temperatures from -40°C to 75°C and excellent tolerance
capability to high vibration and shock. As an Industrial switch,
the AW-IHT-1270 suits your heavy industrial environments and
yet contains all the standard features of other switches.

Key Features

Robust Switch Performance

•

Intelligent PoE for Powered Devices

•

Redundant Power System

•

Efficient Network Monitoring and Proactive Capability

•

Bandwidth Management to Prevent Unpredictable Network

•

Status

Redundant Ring and Fast Recovery for Surveillance System

•

PoE function on 8 ports 10/100/1000 Base-T complies with IEEE

802.3at standards and allows to supply up to 30W per port for
network attached devices such as WLAN Access Points, VoIP
phones and IP surveillance cameras that can be powered by
Ethernet connectivit y. The AW-IHT-1270 eliminates the need for
installing additional power outlets or adapters, thus network
power planning is simplified and overall installation and
maintenance costs are reduced. In addition, the Layer 2 switch
offers a full complement of management functions to allow
easy-to-use configuration and monitoring.

Alive!

PoE Camera is "No Respo nse!"

PoE Alive-Checking

PoE Camera

"Restart" the PoE Dev ice

PoE Camera

AM06:00 ~ PM06:00 PM06:00 ~ AM06:00

PoE Scheduling

Power On

Power Off

Applications

Redundant Ring: It incorporates, advanced Redundant Ring
technologies, into customer’s industrial automation and

Control Center

Factory A Factory C

Factory B

surveillance network to enhance system reliability and uptime
in harsh factory environments.

LAN

Fiber

PoE

Ring

Technical Specifications

Standards

IEEE 802.3 10B A SE-T

IEEE 802.3u 100 B ASE -T X

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-SX/LX

IEEE 802.3x Flow Control

IEEE 802.3ad Link Aggregation

IEEE 802.1d STP

IEEE 802.1w RSTP

IEEE 802.1p CoS Prioritization

IEEE 802.1q V L A N Tag gin g

IEEE 802.1x Port Authentication

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

Network Management

Command Line Interface, Telnet, Web

Configuration

VLAN

Redundancy

Security

Traffic control

GUI, SNMP v1/v2c/v3, Management
VLAN, System log, Firmware Upgradable,
Configuration Upload/Download

IEEE 802.1Q, GARP/GVRP support, Port­based VLAN, 4K active VLAN suppor t,
Q-in-Q

Xpress Ring, Dual Homing, ERPS, STP/
R STP, L ACP

Access Control List, SSH, Port Security,

802.1x Port Authentication, DHCP
snooping, MAC limitation

IGMP snooping/Querier, QoS, Flow
Control, Abnormal Traffic Detec tion, Rate
Limitation, Storm Control, Port Isolation,
Loop Detection

Diagnostics

L3 Function Static Routing

LED status, SNMP trap, E-mail alarm, SFP
DDMI, Por t Mirroring, Port Statistic, SNTP,
RMON, Syslog

Power

Input Voltage

Power Consumption 260W (with 8 PoE fully loaded)

Alarm Relay

PoE Function Per port up to 30W

Primar y Inputs: 48V (48~57VDC)
Redundant Inputs: 48V (48~57VDC)

One relay output with current carrying
capacity of 1 A @ 24V DC

Interface

Ports

8 x 10/10 0/ 100 0 Bas e-T
4 x Gigabit SFP Slots
1 x Console Port (RJ-45 to RS-232)

Mechanical and Environment

Housing IP30 Protection

Mounting DIN-Rail

Operating Temperature -40°C ~ 75°C (-40°F ~ 167°F)

Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)

Operating Humidit y 10 to 95% RH (non-condensing)

Storage Humidity 5 to 95% RH (non-condensing)

Weight 860g

Dimension (WxHxD) 50 x161.5x122.2mm (1.97x 6.36x4 .81in ch)

DIP Switch Ports/PWR/RPS Alarm setting

LED Panel

PWR, RPS, ALM, POST, PoE ports, 1000,
10/10 0
