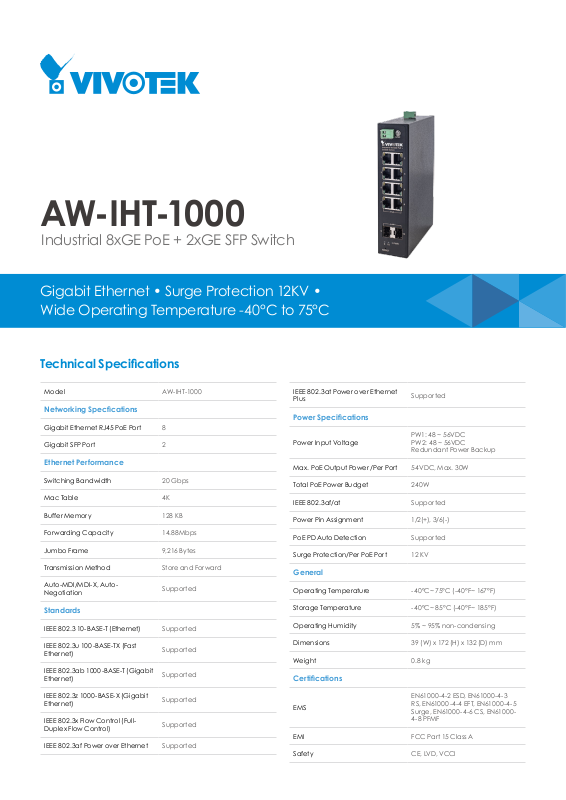

Vivotek AW-IHT-1000 Specsheet

AW-IHT-1000

Industrial 8xGE PoE + 2xGE SFP Switch

Gigabit Ethernet • Surge Protection 12KV •
Wide Operating Temperature -40°C to 75°C

Technical Specications

Model AW-IHT-1000

Networking Speccations

Gigabit Ethernet RJ45 PoE Port 8

Gigabit SFP Po rt 2

Ethernet Performance

Switching Bandwidth 20 Gbps

Mac Tabl e 4K

Buffer Memory 128 KB

Forwarding Capacity 14.88Mbps

Jumbo Frame 9,216 Bytes

Transmission Method Store and F orward

Auto- MDI/MDI-X, Auto­Negotiation

Standards

IEEE 802.3 10-BASE-T (Ethernet) Suppo rted

IEEE 802.3u 100 -BASE-TX (Fast
Ethernet)

IEEE 802.3ab 100 0-BASE-T (Gigabit
Ethernet)

Supported

Supported

Supported

IEEE 802.3at Power over Ethernet

Plus

Power Speci cations

Power Input Voltage

Max. PoE Output Power /Per Port 54VDC, Max. 30W

Total PoE Power Budget 240W

IEEE 802.3af/at Suppor ted

Power Pin Assignment 1/2(+), 3/6(-)

PoE PD Auto Detection Supported

Surge Protection/Per PoE Port 12 KV

General

Operating Temperature -40°C~ 75°C (-40° F~ 167°F)

Storage Temperature -40°C~ 85°C (-4 0° F~ 185° F)

Operating Humidity 5% ~ 95% non- condensin g

Dimensions 39 (W) x 172 (H) x 132 (D) mm

Weig ht 0.8 kg

Certications

Supported

PW1: 48 ~ 56VDC
PW2: 48 ~ 56VDC

Redundant Power Backup

IEEE 802.3z 1000-BASE-X (Gigabit
Ethernet)

IEEE 802.3x Flow Cont rol (Ful l­Dupl ex Flow Control)

IEEE 802.3af Power over Ethernet Supported

Supported

Supported

EN6100 0- 4-2 ESD, EN61000 -4 -3

EMS

EMI FCC Part 15 Class A

Safety CE, LVD, VCCI

RS, EN6100 0- 4- 4 EFT, EN6100 0-4- 5
Surge, EN61000 -4 -6 CS, EN61000 -

4- 8 PFMF

Technical Specications

One power source to power up 8 x 802.3at PoE cameras

Vibration IEC 60 068-2-6

Shock IEC 60 068-2-27

Freefall IEC 60 068-2-32

Dimensions

Application

Control Center

AW-GTS-287A

10G Fi ber Switch

132 mm

172 mm

39 mm

Up to 40 K M

AW-IHT-1000

+

VIVOTEK Cabinet

Up to 100 M

Fiber

PoE

Compatible Accessories

Power Supply SFP Transceiver

NDR-240-48 HLG-240 H-54 SFP-1000-MM85-X5I SFP-1000-MM13-02I SFP-1000-SM13-10I SFP-1000-SM13-40I

Indoor Industr ial Din

Rail Powe r Suppl y,

48VDC/240W,

-20°C ~ 70°C

6F, No.192, Lien- Cheng Rd., Chu ng- Ho, New Taipei City, 23 5, Taiwan, R.O.C. | T: [phone] | F: [phone] | E: s ales@ vivotek .com | W: www.vivotek .com

Outdoor Industrial
Wall Mount Power

Supply,

54VDC/240W,

-40°C ~ 70°C, IP67

MMF, 0.5 KM,

-40°C ~ 85°C

All sp ecica tions are subject to chang e without notice. Copyrig ht © VIVOTEK INC. All r ights res erve d. Ver. 1
