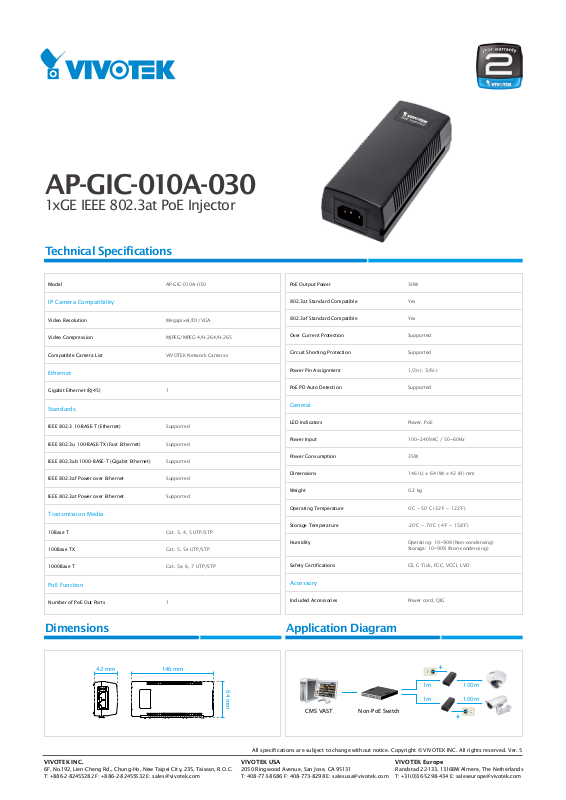

Vivotek AP-GIC-010A-030 Specsheet
AP-GIC-010A-030
1xGE IEEE 802.3at PoE Injector
Technical Specifications
Model AP-GIC-010A-030
IP Camera Compatibility
Video Resolution Megapixel/D1/VGA
Video Compression MJPEG/MPEG-4/H.264/H.265
Compatible Camera List VIVOTEK Network Cameras
Ethernet
Gigabit Ethernet (RJ45) 1
Standards
IEEE 802.3 10-BASE-T (Ethernet) Supported
IEEE 802.3u 100-BASE-TX (Fast Ethernet) Supported
IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) Supported
IEEE 802.3af Power over Ethernet Supported
IEEE 802.3at Power over Ethernet Supported
Transmission Media
10Base T Cat. 3, 4, 5 UTP/STP
100Base TX Cat. 5, 5e UTP/STP
1000Base T Cat. 5e, 6, 7 UTP/STP
PoE Output Power 30W
802.3at Standard Compatible Yes
802.3af Standard Compatible Yes
Over Current Protection Supported
Circuit Shorting Protection Supported
Power Pin Assignment 1/2(+), 3/6(-)
PoE PD Auto Detection Supported
General
LED Indicators Power, PoE
Power Input 100~240VAC / 50~60Hz
Power Consumption 35W
Dimensions 146 (L) x 64 (W) x 42 (H) mm
Weight 0.2 kg
Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Humidity Operating: 10~90% (Non-condensing)
Safety Certifications CE, C-Tick, FCC, VCCI, LVD
Storage: 10~90% (Non-condensing)
PoE Function
Number of PoE Out Ports 1
Dimensions
42 mm 146 mm
64 mm
VIVOTEK INC.
6F, No.192, Lien- Cheng Rd., Chung- Ho, New Taipei City, 235, Taiwan, R.O.C.
T: +886-2-82455282 F: +886-2-82455532 E: sales@v ivotek.com
Accessory
Included Accessories Power cord, QIG
Application Diagram
1m
1m
CMS VA ST
All speci fications are subject to chan ge without noti ce. Copyrigh t © VIVOTEK INC. A ll rights reser ved. Ver. 5
VIVOTEK USA
2050 Ringwoo d Avenue, San Jos e, CA 95131
T: 408-773-8686 F: 408-773-8298 E: salesusa@ vivotek.co m
Non-PoE Switch
VIVOTEK Europe
Randst ad 22-133, 1316BW Almere, Th e Netherlands
T: +31(0)36-5298-434 E: saleseuro pe@vivot ek.com
100 m
100 m
