Vivitar DVR 378 User Manual

DVR 378
Digital Camcorder
with Camera
User Manual
© 2009-2011 Sakar International, Inc. All rights reserved.
Windows and the Windows logo are registered trademarks of Microsoft Corporation.
All other trademarks are the property of their respective companies.
1
Contents
Introduction .................................................................................................................................. 2
What‟s Included ............................................................................................................................ 2
Parts of the Camcorder ................................................................................................................ 3
Initial Camcorder Setup ................................................................................................................ 4
Main Camcorder Modes ............................................................................................................... 6
Camcorder Technical Specifications ............................................................................................. 7
Computer System Requirements – Windows ............................................................................... 8
Computer System Requirements – Macintosh ............................................................................. 8
Powering ON/OFF Your Digital Video Recorder ........................................................................... 9
Changing Camcorder Mode ....................................................................................................... 10
Navigating the Menus .................................................................................................................. 11
Video Capture Mode ................................................................................................................... 11
Video Playback Mode ................................................................................................................. 13
Photo Capture Mode .................................................................................................................. 16
Photo Playback Mode ................................................................................................................ 17
Camcorder Settings .................................................................................................................... 21
Installing the Software ................................................................................................................ 27
Connecting the Camcorder to the Computer .............................................................................. 28
Getting Photos and Videos from your Camcorder to Your Computer ................................ ......... 29
Get started!................................................................................................................................. 30
Transferring Images from my Camcorder to my Computer Manually ......................................... 31
Camcorder Maintenance ............................................................................................................ 32
Sakar Warranty Card .................................................................................................................. 33
Technical Support ....................................................................................................................... 34
Troubleshooting .......................................................................................................................... 34
2
Introduction
Thank you for purchasing this camcorder. Everything you need to take quality digital photos and videos is included with your digital video recorder. Vivitar makes capturing those special moments as easy as possible.
Note: Your camcorder needs an SD Memory card (up to 16GB) for normal use. SD Memory cards are not included and need to be purchased separately.
Please read this manual carefully first in order to get the most out of your digital video recorder.
What’s Included
1. Digital Camcorder
2. Wrist Strap

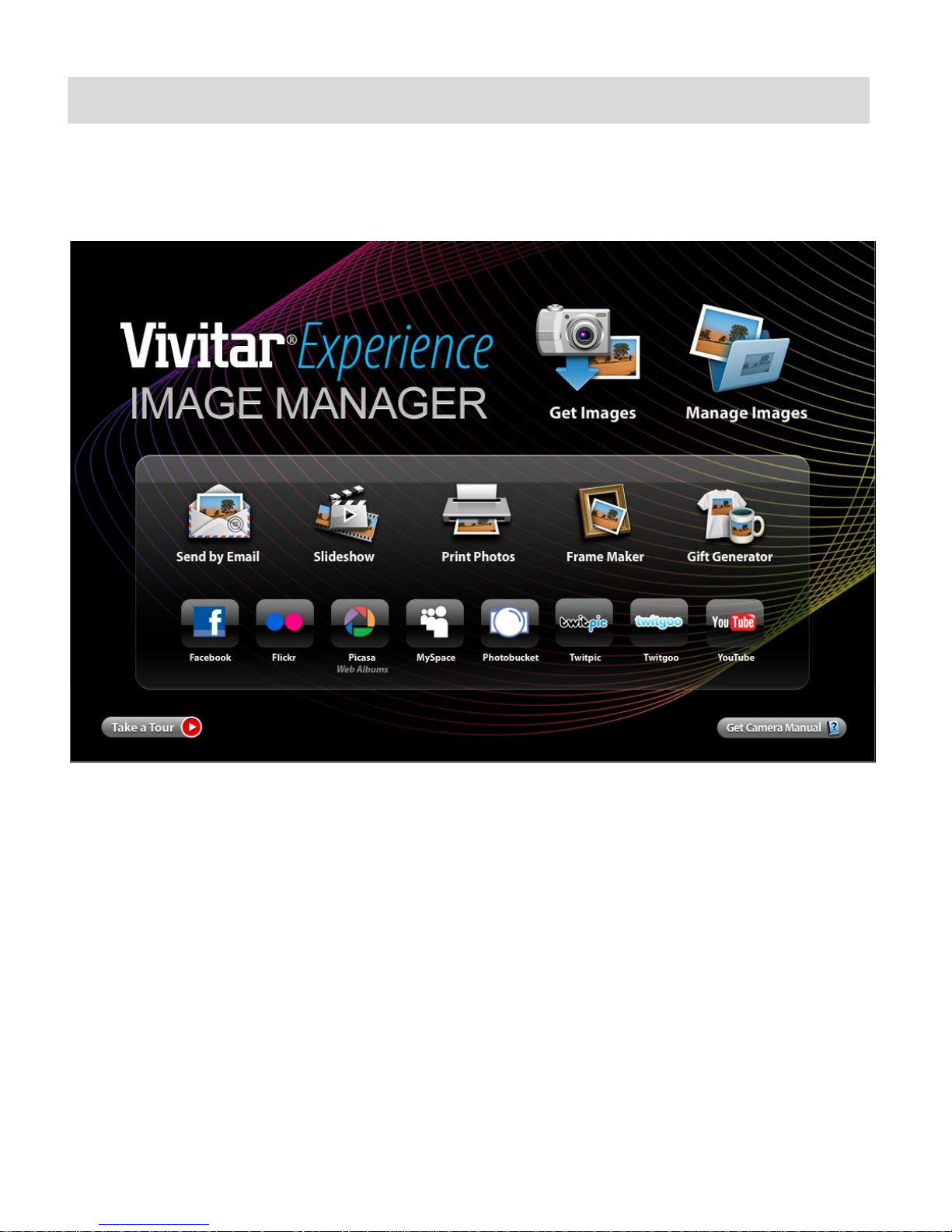

3. Vivitar Experience Image Manager software Installation CD
4. Built-in USB Connector (not shown)
Note: SD memory card and batteries not included.
3
Parts of the Camcorder
1. Power Button
10. LCD Screen
2. Shutter Button
11. Lens
3. MODE Button
12. SD Memory Card Slot
4. SET (Menu/Delete) Button
13. USB Lever
5. Up / Zoom In Button
14. USB Connector
6. Down / Zoom Out Button
15. Microphone
7. Right Button
16. Speaker
8. Left Button
17. Wrist Strap Connector
9. LED Indicator
18. Battery Compartment
4
Initial Camcorder Setup
Installing the Batteries
Installing the Memory Card
Turning On the Camcorder
Using the Camcorder
Make sure the camcorder is
powered OFF.
Insert SD Memory card
(up to 16GB) before use.
Slide the battery cover off. Insert 3 X AAA (1.5V) batteries.
5
Powering the Digital Video Recorder ON
1) Batteries Make sure the batteries have been inserted properly into your digital video recorder. Slide the battery cover on the back of the camera in a downward direction to open the cover. Insert 3 x AAA (1.5V) batteries (not included) with the correct polarity, according to the polarity illustrated inside the battery compartment.
Note:
Alkaline batteries are recommended.  Remove the batteries from the camera when not in use for an extended period.  Do not mix alkaline and non-alkaline batteries.  Some camera features (Flash) will not work if the battery power level is low.  When the battery power is low the battery icon turns red and the camcorder will
automatically turn off a few seconds later.
The energy status of the power is displayed on LCD as shown below:
Full battery power Medium battery power Low battery power
2) SD Memory Card Make sure the camcorder is powered OFF before inserting your SD/MMC/SDHC Memory Card. Make sure an SD card (up to16GB) has been inserted into your digital video recorder. (SD Memory card not included.) To properly insert the SD Card: Push the SD card into the slot in the direction shown on the camcorder (see SD icon by the SD card slot). Push the SD card until you hear a slight clicking sound. This indicates the SD card has been inserted correctly. Note: After the camcorder is powered on, an SD icon will appear on the LCD display. If you do
not see the SD icon on the display, please check if the card was inserted properly.
Make sure the SD card is not locked (check the lock switch on the side of the SD card). If the
SD card is locked this will prevent the camcorder from saving captured photos to the SD card.
3) Power On Press the POWER button to turn on the camcorder.
6
Main Camcorder Modes

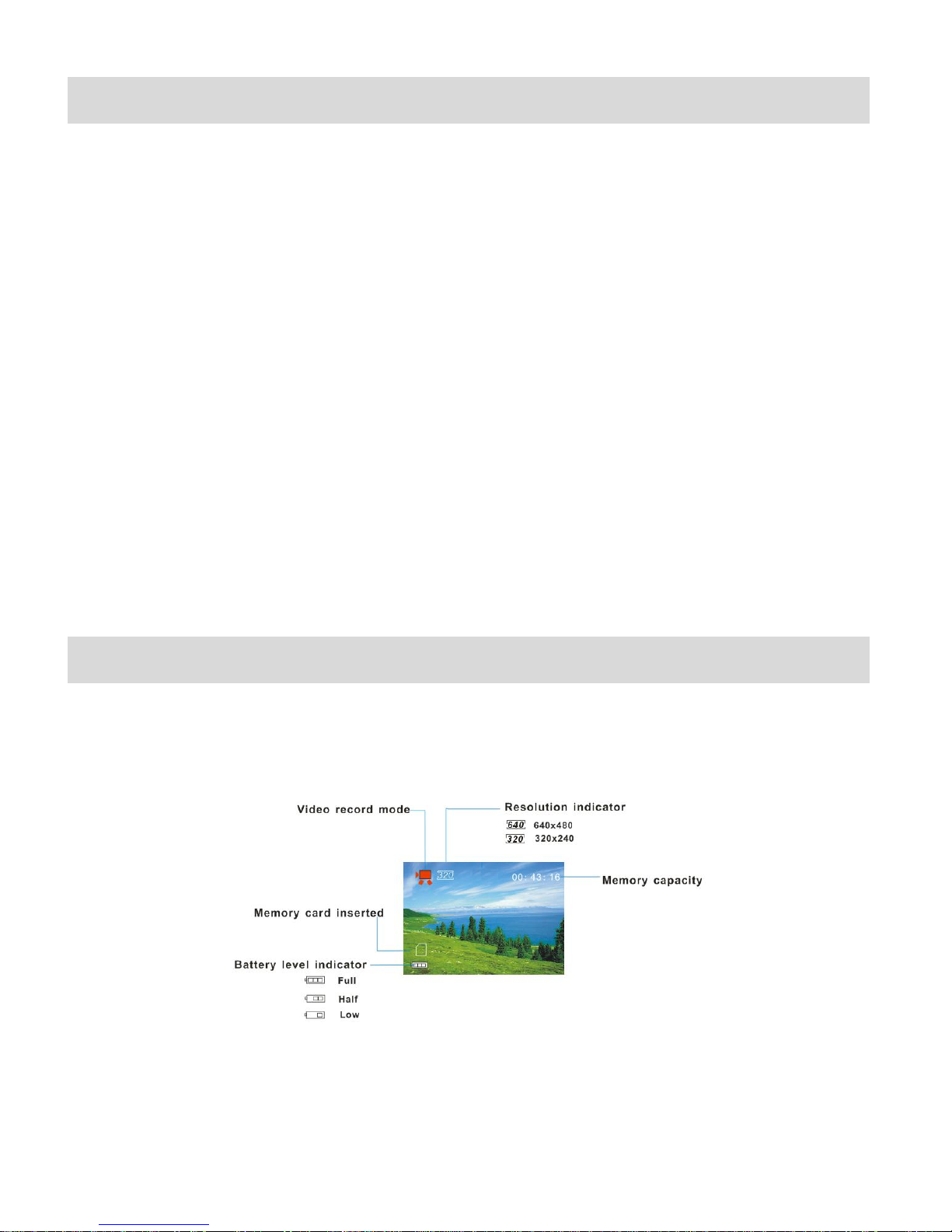

Video Capture Mode
Use this mode to capture videos with your digital video recorder. This is the default mode when the camcorder is powered ON. To take a video, aim your camcorder as desired and press the Shutter button to start the record. A red record indicator will appear on the LCD screen while record is in progress. To stop the record, press the Shutter button again. The video will be automatically saved to your camcorder‟s memory card. To access the various menus for the Video Capture mode, press the SET button while in the Video Capture mode.

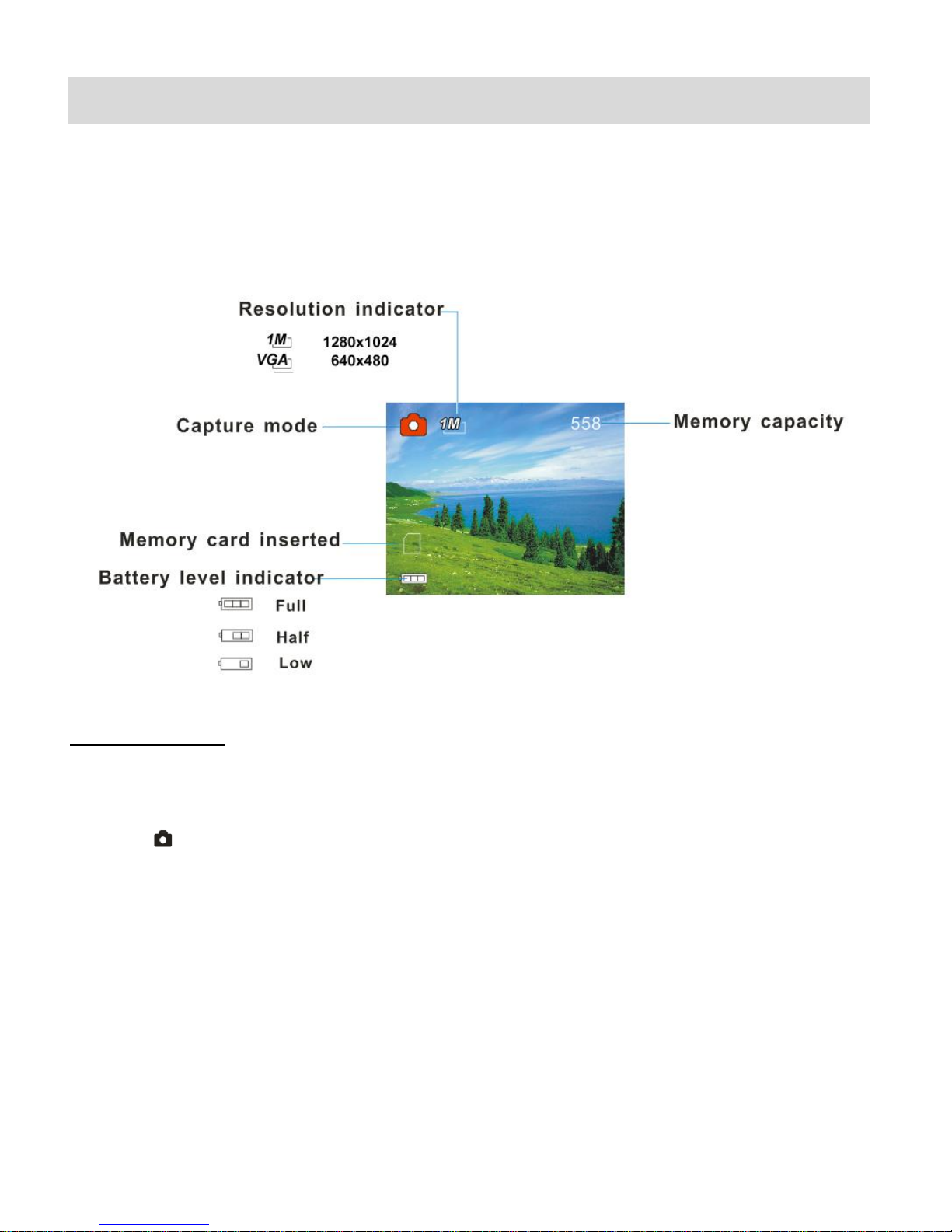

Photo Capture Mode
Use this mode to capture pictures with your camcorder. After turning on your camcorder, press the MODE button once to open the Photo Capture mode. To take a picture, aim your camcorder as desired and press the Shutter button. The picture will be automatically saved to your camcorder‟s memory card. To access the various menus for the Photo Capture mode, press the SET button while in the Photo Capture mode.
Playback Mode (Photos & Videos)
Use this mode to view and manage the photos and videos on your camcorder. After turning on your camcorder, press the MODE button twice to open the Playback mode for photos and videos. You can scroll through the photos and videos that you‟ve previously taken to view and delete them as desired. To access the various menus for the Playback mode for photos and videos, press the SET button while in the Playback mode.
Your digital video recorder has different modes for the various camcorder functions. You can switch modes by pressing the MODE button on your digital video recorder after the camcorder has been powered ON.
7
Camcorder Technical Specifications
Image Sensor
CMOS Sensor
Image Resolution
1280x1024 pixels (1.3MP), 640x480 pixels (VGA)
Video Resolution
640X480pixels (VGA 30fps), 320X240pixels (QVGA 30 fps)
File Format
JPEG/AVI
External Memory
SD/MMC/SDHC (up to 16GB) – SD Card Memory Card not included
LCD Display
1.77 Inch TFT
Lens
f=3.8mm F2.8
Zoom
4X Digital Zoom
Image Quality
Normal
White Balance
Auto
Color Effect
Standard
Light Exposure
Auto
ISO
Auto
Frequency
50 Hz, 60 Hz
Auto Power Off
1 minute, 3 minutes, 5 minutes
Metering
Center
Language
English, French
Microphone
Yes
Speaker
Yes
Interface
USB 2.0 (HS)
System Requirements
Window XP SP3 / Vista SP1/ Windows 7 Mac OS X v10.5.x or higher
Battery
3 x AAA (1.5V) Alkaline batteries
Working Temperature
0~40 C
8
Computer System Requirements – Windows
To be able to download photos and videos to your PC, you will need the following minimum configuration:
Microsoft® Windows XP with Service Pack 3, Windows Vista with Service Pack 1 or Windows 7 Pentium® 4 processor (or above)
512 MB of RAM, with 250 MB of free hard disk space
16-bit Color monitor, 1024 X 768 recommended screen resolution CD-ROM Drive QuickTime® 6 or higher Microsoft® Internet Explorer 7 or higher Windows Media Player 10 or higher DirectX 9 or higher
Internet connection required
Computer System Requirements – Macintosh
To be able to download photos and videos to your Macintosh, you will need the following minimum configuration:
Intel processor running Mac OS X v10.5.x or later 256 MB RAM, 250 MB free hard disk space Display: 1024 x 768 or higher-resolution monitor CD-ROM Drive QuickTime® 6 or higher Internet connection required
9
Powering ON/OFF Your Digital Video Recorder
Make sure the batteries have been inserted properly into your digital video recorder. If your camcorder comes with a rechargeable lithium battery, make sure it is fully charged
before the first use.
Make sure an SD card has been inserted into your camcorder.
(SD card up to 16GB - SD Card not included)
Powering the camcorder ON
Press the Power button to turn your camcorder ON. The camcorder will be in Video Capture mode to start.
Powering the camcorder OFF
While the camcorder is on, you can press the Power button again at any point to turn your camcorder OFF. You will see a “Goodbye” splash screen and then the camcorder will power off
completely. Note: When there is insufficient battery power, a Low Battery message will appear on the LCD screen. The digital video recorder will automatically power off a few moments later.
Auto Power Saving
Your digital video recorder also has an Auto Power Off feature that will automatically turn off your camera after a specific period of time that your camera is left idle. The Auto Power Off settings can be set from the „Power Save‟ settings menu (in either Photo Capture Mode or Video Capture Mode).
10
Changing Camcorder Mode
Your digital video recorder has three main modes:
1) Video Capture Mode - Use this mode to capture videos with your camcorder.
2) Photo Capture Mode - Use this mode to capture photos with your camcorder.
3) Playback Mode (for photos and videos) - Use this mode to view the photos and videos you have already taken with your camcorder.

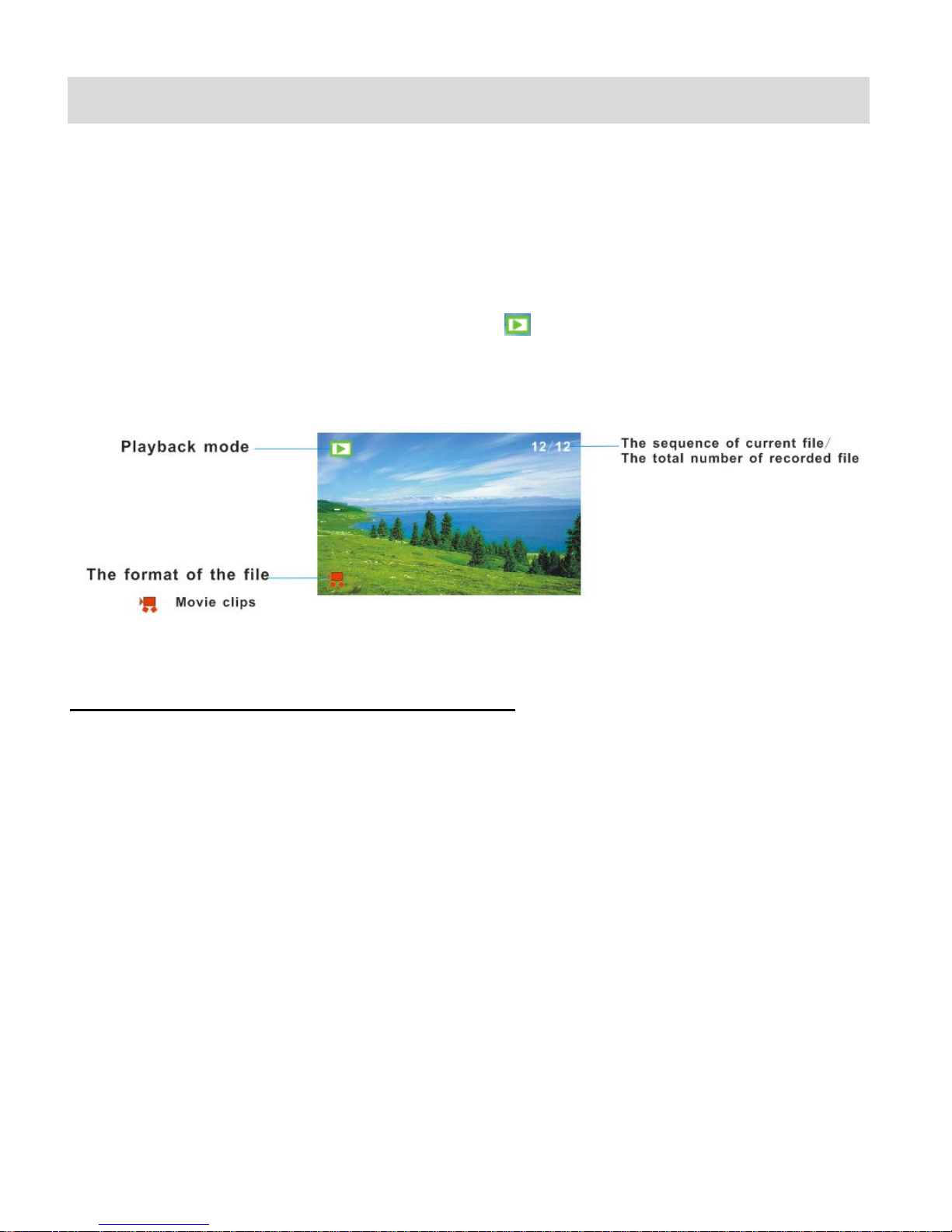

When the camcorder is first powered ON, the Video Capture Mode will be active. The icons that appear on the LCD screen are the best default settings so that you can begin to capture and enjoy clear quality videos and photos.
To change the active camcorder mode, make sure the camcorder is powered ON and press the MODE button.
When in Video Capture Mode, this icon will display on the top-left corner of the LCD display
When in Photo Capture Mode, this icon will display on the top-left corner of the LCD display
When in Playback Mode, this icon will display on the top-left corner of the LCD display
