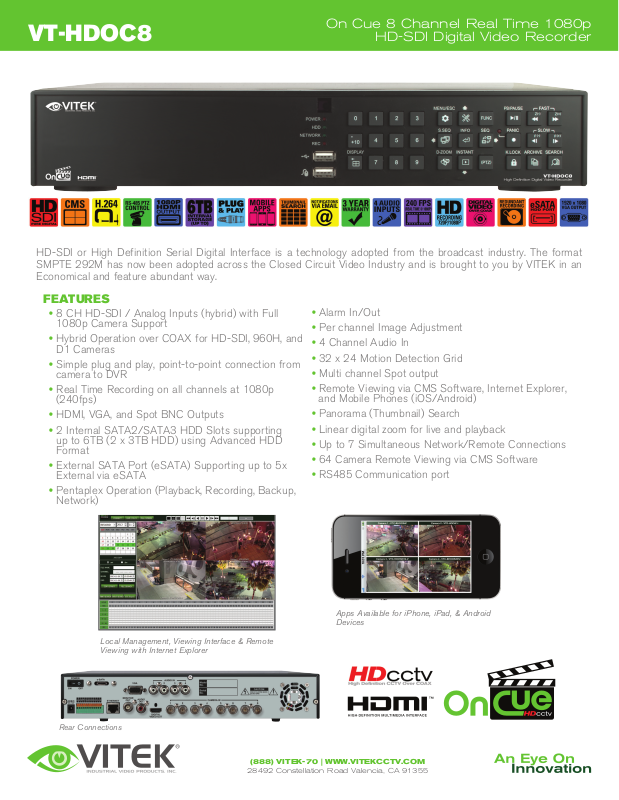

Vitek VT-HDOC8-1T Specsheet
On Cue 8 Channel Real Time 1080p
HD-SDI Digital Video RecorderVT-HDOC8
HD-SDI or High Definition Serial Digital Interface is a technology adopted from the broadcast industry. The format
SMPTE 292M has now been adopted across the Closed Circuit Video Industry and is brought to you by VITEK in an
Economical and feature abundant way.
FEATURES
• 8 CH HD-SDI / Analog Inputs (hybrid) with Full
1080p Camera Support
• Hybrid Operation over COAX for HD-SDI, 960H, and
D1 Cameras
• Simple plug and play, point-to-point connection from
camera to DVR
• Real Time Recording on all channels at 1080p
(240fps)
• HDMI, VGA, and Spot BNC Outputs
• 2 Internal SATA2/SATA3 HDD Slots supporting
up to 6TB (2 x 3TB HDD) using Advanced HDD
Format
• External SATA Port (eSATA) Supporting up to 5x
External via eSATA
• Pentaplex Operation (Playback, Recording, Backup,
Network)
• Alarm In/Out
• Per channel Image Adjustment
• 4 Channel Audio In
• 32 x 24 Motion Detection Grid
• Multi channel Spot output
• Remote Viewing via CMS Software, Internet Explorer,
and Mobile Phones (iOS/Android)
• Panorama (Thumbnail) Search
• Linear digital zoom for live and playback
• Up to 7 Simultaneous Network/Remote Connections
• 64 Camera Remote Viewing via CMS Software
• RS485 Communication port
Local Management, Viewing Interface & Remote
Viewing with Internet Explorer
Rear Connections
Apps Available for iPhone, iPad, & Android
Devices
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
On Cue 8 Channel Real Time 1080p
Detailed Specifications
HD-SDI Digital Video RecorderVT-HDOC8
Video Input / Resolution
Main Monitor Output
Spot Output
Audio In/Out
Alarm In/Out
Recording Compression
Recording Multi Operation
Recording (720p)
Recording (1080p)
Playback
Live Display Speed (Max)
Network Streaming
Simultaneous Network Connections
Recording Mode
Motion Detection / Privacy Masking
Storage Interface
SATA HDD Inputs
eSATA
Max Supported HDD Size
Data Redundancy (Mirroring / Event)
External Backup
System Control
Network
Ethernet Port
Hybrid Camera Operation
Remote Viewing Software
Adjustable Access Levels Per User
Digital Zoom
Image adjustment
Panorama (Thumbnail) Search
PTZ Tour Event Preset
Sensor Triggered PTZ activation
Motion Sensor Display
DDNS
Email Notification
Power
Operating Temperature
Dimensions (W x H x D)
Weight
8 CH HD-SDI / Analog Inputs (hybrid)
1 HDMI / 1 VGA (up to 1920x1080)
1 BNC
4 line in (RCA) / 1 line out (RCA) & HDMI Audio Output
8 In / 1 Out (Relay)
H.264
Pentaplex (Live, Playback, Recording, Backup, Network)
240fps: 30fps per channel @ 1280x720 / 1280x360 / 640x360
240fps: 30fps per channel @ 1920x1080 / 1920x540 / 960x540
Up to 120fps
720p /1080p @ 240fps
40fps@1080p / 80fps@1920x540 / 80fps@960x540 / 120fps@480x270 / 240fps@480x270
Up to 7
Continuous, Event (Motion, Alarm), Schedule
32 x 24 Grid
SATA2 / SATA3 (Supports Advanced HDD Formatting)
2 SATA HDD Max. & Up to 5x External via eSATA
Built in
Up to 3TB each using Advanced Format (Up to 6TB Internal Storage)
Dual Recording Mode (Individually Selectable per Camera)
AVI / DVR Format to USB Device (HDD, Thumb Drive, etc.) & Network
Front Key Buttons / USB Mouse, IR Remote Controller
LAN (TCP/IP Ethernet, RJ45), DHCP, Dynamic IP, DDNS, uPNP, HTTP, NTP
10MB / 100MB / 1GB
Built in
CMS / Web Browser / Mobile (iOS/Android)
Search & Play / Archiving / DVR Setup / PTZ Control / Power Off
Linear scale for Live & Playback
Brightness, Contrast, Hue, Saturation
YES
YES
YES
YES
YES
YES
12VDC / 5A
41~104 °F (5~40 °C) / 20~80% RH
14.57” x 2.36” x 11.89” (370 x 60 x 302mm)
7.28 lbs. (3.3 Kg)
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
