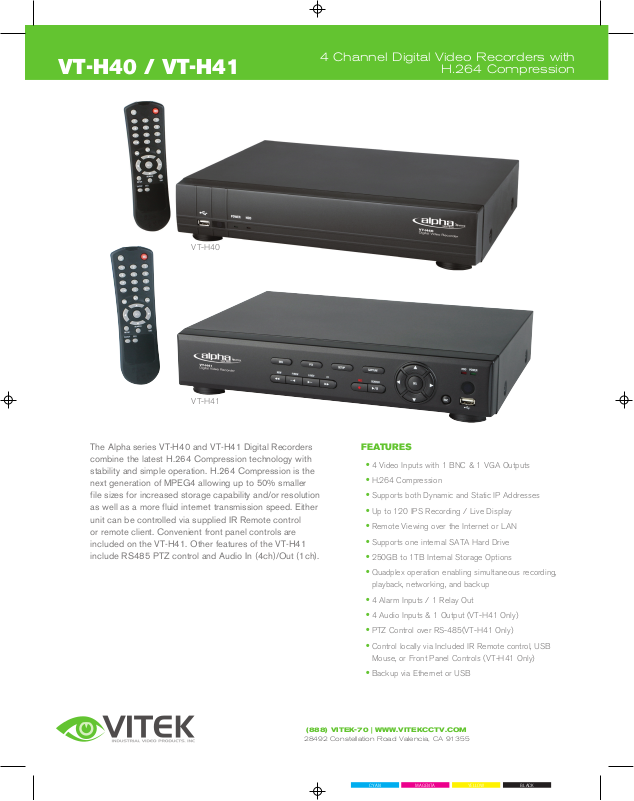

VT-H40 / VT-H41
VT-H40
4 Channel Digital Video Recorders with
H.264 Compression
VT-H41
The Alpha series VT-H40 and VT-H41 Digital Recorders
combine the latest H.264 Compression technology with
stability and simple operation. H.264 Compression is the
next generation of MPEG4 allowing up to 50% smaller
file sizes for increased storage capability and/or resolution
as well as a more fluid internet transmission speed. Either
unit can be controlled via supplied IR Remote control
or remote client. Convenient front panel controls are
included on the VT-H41. Other features of the VT-H41
include RS485 PTZ control and Audio In (4ch)/Out (1ch).
FEATURES
• 4 Video Inputs with 1 BNC & 1 VGA Outputs
• H.264 Compression
• Supports both Dynamic and Static IP Addresses
• Up to 120 IPS Recording / Live Display
• Remote Viewing over the Internet or LAN
• Supports one internal SATA Hard Drive
• 250GB to 1TB Internal Storage Options
• Quadplex operation enabling simultaneous recording,
playback, networking, and backup
• 4 Alarm Inputs / 1 Relay Out
• 4 Audio Inputs & 1 Output (VT-H41 Only)
• PTZ Control over RS-485(VT-H41 Only)
• Control locally via Included IR Remote control, USB
Mouse, or Front Panel Controls (VT-H41 Only)
• Backup via Ethernet or USB
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
4 Channel Digital Video Recorders with
VT-H40 / VT-H41
H.264 Compression
Detailed Specifications VT-H40 VT-H41
Video Inputs 4CH (Composite)
Input Signal Format NTSC/PAL
Video Loss Check Yes
Main Monitor Output 1 CH BNC / 1CH VGA (Selectable)
Output Signal Format NTSC/PAL & VGA
Audio Input & Output - 4 CH Input / 1 CH Output
Audio Codec - G.711(ADPCM)
Sensor Input (NC/NO Selectable) 4
Alarm Output 1 Alarm out by Alarm, Motion, Video Loss
Compression H.264
Multi-operation QUADPLEX (Playback/Record/Network/Backup)
Resolution NTSC: 352x240 & 704x480 / PAL: 352x288 & 704x576
Recording quality grade NETWORK, ECONOMY, NORMAL, HIGH, FINE.
Recording Mode Continuous / Schedule / Motion/ Sensor/ Manual
Motion Detection Motion detection setup by Grid
Pre Recording 1 fps for 5 seconds before an event
Post Recording 10 seconds to 3 minutes after an event
Frame Rate ( /Sec) NTSC: 30fps/ch, 60 fields / PAL: 25fps/ch, 50 fields
Multi-Decoding 1, 4
Playback Speed Single channel: × 2, 4, 8 / Multi-channels: × 2, 4
Search Mode Timeline, Event, Archive, Log
HDD Interface Serial ATA I
Maximum HDD Size 1TB
Internal HDD’s Supported 1
File system NaFS
Backup USB Flash drive / Network: Video & Still Image
Menu Display Text UI
Input Method Remote control Front buttons, Remote control
PTZ control & Keyboard DVR control - 1 RS-485
Termination - Yes
Dynamic DNS Yes (Free DDNS)
Network Interface 10/100 base-TX Ethernet (RJ-45)
Client Software Live, Search, Backup, PTZ Camera Control
Web viewer Live, Search, Backup, PTZ Camera Control
Multi-site Monitoring System Live, Search, Backup, PTZ Camera Control
DLS (Day Light Saving) Yes
Internal Beep By Alarm, Motion, Video Loss, HDD error
Multi-Language Yes
S/W Upgrade USB Flash drive
Water - mark Yes (Exclusive viewer)
Power DC 12V 3A
Unit Weight (Gross weight) 1.6 Kgs (3.1 Kgs) / 3.5 Lbs (6.8 Lbs)
Unit Dimension (W x H x D) 340 mm x 262 mm x 63 mm / 13.4” x 10.3” x 2.5”
VT-H40 Rear Connections VT-H41 Rear Connections
