Vitek VT-E User Manual

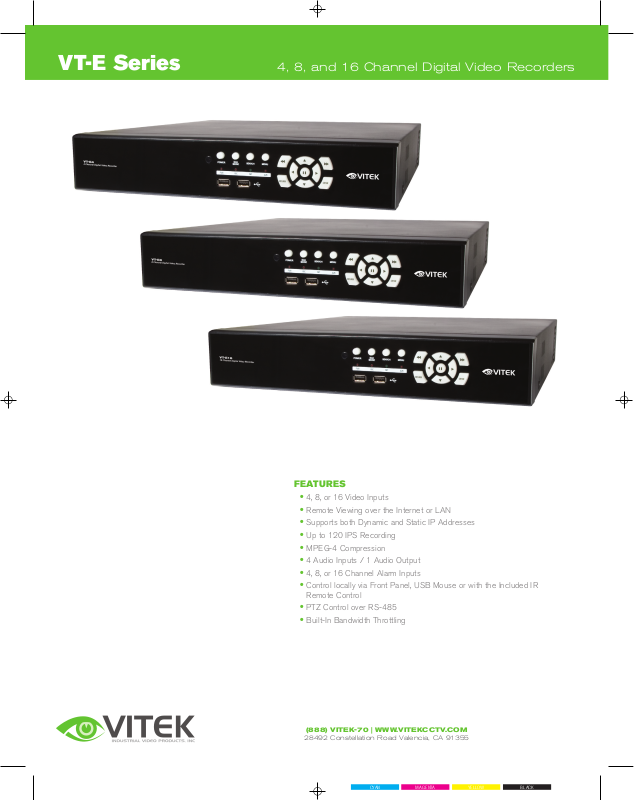

VT-E Series
4, 8, and 16 Channel Digital Video Recorders
FEATUR ES
• 4, 8, or 16 Video Inputs
• Remote Viewing over the Internet or LAN
• Supports both Dynamic and Static IP Addresses
• Up to 120 IPS Recording
• MPEG-4 Compression
• 4 Audio Inputs / 1 Audio Output
• 4, 8, or 16 Channel Alarm Inputs
• Control locally via Front Panel, USB Mouse or with the Included IR
Remote Control
• PTZ Control over RS-485
• Built-In Bandwidth Throttling
(888) VITEK-70 | WW W.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
VT-E Series
4, 8, and 16 Channel Digital Video Recorders
Detailed Specifications VT-E4 VT-E8 VT-E16
Video Standard
Video Inputs
Looping Outputs
Monitor Output
Main Monitor Output
Spot Output (Analog)
Split Screen
Audio
Alarm
Recording Speed
Compression
Average File Size
Internal Storage
Backup Options
Backup File Format
Ethernet
Badwidth Throttling
Dynamic IP support
PTZ Control
USB
Pre / Post Event Buffer
Motion Area Setup
Operation Device
IR Remote Control
Power
Operation Temp.
Humidity
Dimensions (W x H x D)
Weight
NTSC & PAL
4816
4 N/A N/A
Composite / S-VHS 704 x 480 / 704 x 576
VGA
124
1 / 4 1 / 4 / 5 / 6 / 9 1 / 4 / 5 / 6 / 8 / 9 / 16
4 In / 1 Out
4 In / 1 Out (1 Relay) 8 In / 8 Out (TTL) 16 In / 16 Out (TTL)
CIF (360 X 240), Half-D1 (720 X 240), D1 (720 X 480)
MPEG-4 (Modified)
CIF: 2~4k / Half D1: 4~6k / D1: 8~12k
2 x HDD (Max)
External USB Devices (Flash Memory, HDD, CD/DVD+/-R, Etc.)
AVI
RJ45 @ 10/100Mbps
8 Levels
Yes
RS-485
USB 2.0
Up to: 5 Seconds Pre-Event / 5 Minutes Post-Event
Adjustable 12 x 12 Grid Adjustable 16 x 16 Grid Adjustable 16 x 16 Grid
Front Panel / IR Remote Control / USB Mouse (Mouse Not Included)
Included
100~240VAC, 1.0/1.5A, 60/50Hz
32° ~ 113° Fahrenheit
0% ~ 80%
14.2” x 15.5” x 2.5”
7.2lbs. (w/o HDD)
