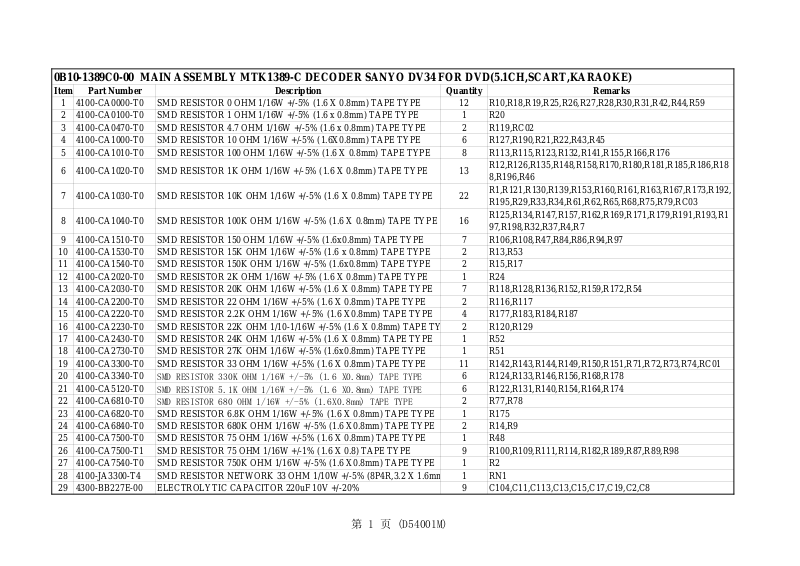

0B10-1389C0-00 MAIN ASSEMBLY MTK1389-C DECODER SANYO DV34 FOR DVD(5.1CH,SCART,KARAOKE)
Y
m
Item Part Number Description Quantity Remarks
1 4100-CA0000-T0 SMD RESISTOR 0 OHM 1/16W +/-5% (1.6 X 0.8mm) TAPE TYPE 12 R10,R18,R19,R25,R26,R27,R28,R30,R31,R42,R44,R59
2 4100-CA0100-T0 SMD RESISTOR 1 OHM 1/16W +/-5% (1.6 x 0.8mm) TAPE TYPE 1 R20
3 4100-CA0470-T0 SMD RESISTOR 4.7 OHM 1/16W +/-5% (1.6 x 0.8mm) TAPE TYPE 2 R119,RC02
4 4100-CA1000-T0 SMD RESISTOR 10 OHM 1/16W +/-5% (1.6X0.8mm) TAPE TYPE 6 R127,R190,R21,R22,R43,R45
5 4100-CA1010-T0 SMD RESISTOR 100 OHM 1/16W +/-5% (1.6 X 0.8mm) TAPE TYPE 8 R113,R115,R123,R132,R141,R155,R166,R176
6 4100-CA1020-T0 SMD RESISTOR 1K OHM 1/16W +/-5% (1.6 X 0.8mm) TAPE TYPE 13
7 4100-CA1030-T0 SMD RESISTOR 10K OHM 1/16W +/-5% (1.6 X 0.8mm) TAPE TYPE 22
8 4100-CA1040-T0 SMD RESISTOR 100K OHM 1/16W +/-5% (1.6 X 0.8mm) TAPE TYPE 16
9 4100-CA1510-T0 SMD RESISTOR 150 OHM 1/16W +/-5% (1.6x0.8mm) TAPE TYPE 7 R106,R108,R47,R84,R86,R94,R97
10 4100-CA1530-T0 SMD RESISTOR 15K OHM 1/16W +/-5% (1.6 x 0.8mm) TAPE TYPE 2 R13,R53
11 4100-CA1540-T0 SMD RESISTOR 150K OHM 1/16W +/-5% (1.6x0.8mm) TAPE TYPE 2 R15,R17
12 4100-CA2020-T0 SMD RESISTOR 2K OHM 1/16W +/-5% (1.6 X 0.8mm) TAPE TYPE 1 R24
13 4100-CA2030-T0 SMD RESISTOR 20K OHM 1/16W +/-5% (1.6 X 0.8mm) TAPE TYPE 7 R118,R128,R136,R152,R159,R172,R54
14 4100-CA2200-T0 SMD RESISTOR 22 OHM 1/16W +/-5% (1.6 X 0.8mm) TAPE TYPE 2 R116,R117
15 4100-CA2220-T0 SMD RESISTOR 2.2K OHM 1/16W +/-5% (1.6 X0.8mm) TAPE TYPE 4 R177,R183,R184,R187
16 4100-CA2230-T0 SMD RESISTOR 22K OHM 1/10-1/16W +/-5% (1.6 X 0.8mm) TAPE T
17 4100-CA2430-T0 SMD RESISTOR 24K OHM 1/16W +/-5% (1.6 X 0.8mm) TAPE TYPE 1 R52
18 4100-CA2730-T0 SMD RESISTOR 27K OHM 1/16W +/-5% (1.6x0.8mm) TAPE TYPE 1 R51
19 4100-CA3300-T0 SMD RESISTOR 33 OHM 1/16W +/-5% (1.6 X 0.8mm) TAPE TYPE 11 R142,R143,R144,R149,R150,R151,R71,R72,R73,R74,RC01
20 4100-CA3340-T0
21 4100-CA5120-T0
22 4100-CA6810-T0
23 4100-CA6820-T0 SMD RESISTOR 6.8K OHM 1/16W +/-5% (1.6 X 0.8mm) TAPE TYPE 1 R175
24 4100-CA6840-T0 SMD RESISTOR 680K OHM 1/16W +/-5% (1.6 X0.8mm) TAPE TYPE 2 R14,R9
25 4100-CA7500-T0 SMD RESISTOR 75 OHM 1/16W +/-5% (1.6 X 0.8mm) TAPE TYPE 1 R48
26 4100-CA7500-T1 SMD RESISTOR 75 OHM 1/16W +/-1% (1.6 X 0.8) TAPE TYPE 9 R100,R109,R111,R114,R182,R189,R87,R89,R98
27 4100-CA7540-T0 SMD RESISTOR 750K OHM 1/16W +/-5% (1.6 X0.8mm) TAPE TYPE 1 R2
28 4100-JA3300-T4 SMD RESISTOR NETWORK 33 OHM 1/10W +/-5% (8P4R,3.2 X 1.6m
29 4300-BB227E-00 ELECTROLYTIC CAPACITOR 220uF 10V +/-20% 9 C104,C11,C113,C13,C15,C17,C19,C2,C8
SMD RESISTOR 330K OHM 1/16W +/-5% (1.6 X0.8mm) TAPE TYPE
SMD RESISTOR 5.1K OHM 1/16W +/-5% (1.6 X0.8mm) TAPE TYPE
SMD RESISTOR 680 OHM 1/16W +/-5% (1.6X0.8mm) TAPE TYPE
R12,R126,R135,R148,R158,R170,R180,R181,R185,R186,R18
8,R196,R46
R1,R121,R130,R139,R153,R160,R161,R163,R167,R173,R192,
R195,R29,R33,R34,R61,R62,R65,R68,R75,R79,RC03
R125,R134,R147,R157,R162,R169,R171,R179,R191,R193,R1
97,R198,R32,R37,R4,R7
2 R120,R129
6 R124,R133,R146,R156,R168,R178
6 R122,R131,R140,R154,R164,R174
2 R77,R78
1 RN1
第 1 页 (D54001M)
30 4300-BC106E-00 ELECTROLYTIC CAPACITOR 10uF 16V +/-20% OR 4300-BD106E-0
0
R
T
T
m
m
)
m
m
m
m
P
A
T
A
A
31 4300-BC107E-00 ELECTROLYTIC CAPACITOR 100uF 16V +/-20% 5 C10,C159,C165,C57,CC03
32 4300-BC226E-00 ELECTROLYTIC CAPACITOR 22UF 16V +/-20% OR BD226E-00 O
33 4300-BC227E-00 ELECTROLYTIC CAPACITOR 220UF 16V +/-20% 4 C206,C3,C4,CC05
34 4300-BC476E-00 ELECTROLYTIC CAPACITOR 47uF 16V +/-20% 9 C100,C120,C122,C143,C49,C50,C51,C75,C77
35 4300-BC477E-00 ELECTROLYTIC CAPACITOR 470uF 16V +/-20% 2 C185,C205
36 4300-CC104D-T2 SMD CERAMIC CHIP CAPACITOR 0.1uF 16V +/-10% (1.6 x 0.8mm)
37 4300-CC105H-T2 SMD CERAMIC CHIP CAPACITOR 1uF 16V +80-20% (1.6 X 0.8mm)
38 4300-CC474H-T2 SMD CERAMIC CHIP CAPACITOR 0.47uF 16V +80 -20% (1.6 X 0.8m
39 4300-CF102D-T2 SMD CERAMIC CHIP CAPACITOR 0.001uF 50V +/-10% (1.6 X 0.8m
40 4300-CF152D-T2 SMD CERAMIC CHIP CAPACITOR 0.0015uF 50V +/-10% (1.6x0.8mm
41 4300-CF153D-T2 SMD CERAMIC CHIP CAPACITOR 0.015uF 50V +/-10% (1.6 X 0.8m
42 4300-CF221D-T2 SMD CERAMIC CHIP CAPACITOR 220PF 50V +/-10% (1.6 X 0.8mm) 6 ,C157,C166,C172,C180,C189,C197
43 4300-CF222D-T2 SMD CERAMIC CHIP CAPACITOR 0.0022uF 50V +/-10% (1.6 X 0.8m
44 4300-CF333D-T2 SMD CERAMIC CHIP CAPACITOR 0.033uF 50V +/-10% (1.6 X 0.8m
45 4300-CF473D-T2 SMD CERAMIC CHIP CAPACITOR 0.047uF 50V +/-10% (1.6 X 0.8m
46
4300-NF101C-T2 SMD NPO CERAMIC CHIP CAPACITOR 100PF 50V +/-5% (1.6 X 0.8mm) 3 C209,C230,C61
47
4300-NF121C-T2 SMD NPO CERAMIC CHIP CAPACITOR 120PF 50V+/-5% (1.6 X 0.8mm) 1 C291
48
4300-NF200C-T2 SMD NPO CERAMIC CHIP CAPACITOR 20PF 50V +/-5% (1.6x0.8mm)TA
49
4300-NF270C-T2 SMD NPO CERAMIC CHIP CAPACITOR 27PF 50V +/-5% (1.6 X 0.8mm) 2 C156,C232
50
4300-NF330C-T2 SMD NPO CERAMIC CHIP CAPACITOR 33PF 50V +/-5% (1.6x0.8mm) T
51
4300-NF331C-T2 SMD NPO CERAMIC CHIP CAPACITOR 330PF 50V +/-5% (1.6x0.8mm)
52
4300-NF391C-T2 SMD NPO CERAMIC CHIP CAPACITOR 390PF 50V +/-5% (1.6x0.8mm)T
53
4300-NF470C-T2 SMD NPO CERAMIC CHIP CAPACITOR 47PF 50V +/-5% (1.6x0.8mm) T
18
94
12
C154,C160,C161,C167,C168,C173,C174,C177,C181,C182,C1
90,C191,C198,C199,C203,C231,C31,C32
1 CC01
C1,C103,C105,C106,C107,C108,C109,C110,C111,C112,C114,
C115,C116,C117,C118,C119,C12,C121,C123,C124,C125,C12
6,C127,C128,C135,C136,C14,C144,C145,C146,C153,C155,C1
58,C16,C164,C171,C178,C179,C18,C186,C187,C188,C192,C1
93,C194,C20,C202,C204,C23,C25,C29,C34,C35,C38,C40,C5,
C52,C53,C54,C55,C56,C58,C6,C66,C67,C7,C71,C72,C73,C76
,C78,C79,C80,C81,C82,C83,C84,C85,C86,C87,C88,C9,C91,C
94,C95,C96,C97,C99,CC02,CC04,CC06,CC07,CC09,CC10
4 C59,C60,C62,C63
1 C47
3 C207,C208,C33
1 C74
1 C92
9 C162,C169,C175,C183,C195,C200,C24,C30,CC08
1 C42
2 C45,C46
7 C163,C170,C176,C184,C196,C201,C26
2 C27,C28
2 C89,C90
1 C21
C131,C132,C133,C134,C139,C140,C141,C142,C149,C150,
C151,C152
第 2 页 (D54001M)
54
T
P
Y
Y
A
T
L
E
2
4500-14148S-T0 SMD NORMAL RECTIFIER DIODE LS4148 150mA/100V (3.5 X 1.4mm)
55
4600-K30180-T0 TRANSISTOR 2SK3018 (30V, 0.1A SMD PACKAGE) TAPE TYPE 2 Q2,Q3
56
4600-P29070-T0 TRANSISTOR PMBT2907A PNP SWITCHING TRANSISTOR SOT23 PACKAGE 2 Q4,Q5
57
4600-S80500-T0 TRANSISTOR S8050LT1 (SMD NPN 2W OUTPUT) A6 PACKAGE SOT-23TA
58
4600-T39040-T0 TRANSISTOR SST3904/MMBT3904/PMBT3904 NPNSMD PACKAGE (TAPE T
59
4600-T39060-T0 TRANSISTOR SST3906/MMBT3906/PMBT3906 PNPSMD PACKAGE (TAPE T
60
4607-S80500-00 TRANSISTOR SS8050 SAMSUNG 3 Q28,Q29,Q30
61
4607-S85500-00 TRANSISTOR SS8550 SAMSUNG 1 Q31
62
4707-T45580-08 I.C. TJM4558CD SGS (WIDE BANDWIDTH AMPLIFIERS) 3 U11,U13,U14
63
471B-A58680-28 I.C.AM5868 AMTEK(5-CHANNEL BTL DRIVE FOR DVD PLAYER)HSOP28 1 U3
64
4727-A24160-08 I.C. AT24C16N-10SA-2.7C ATMEL (16K 2-WIRE AUTOMOTIVE SERIAL 1 U9
65
472H-M13892-Q6 I.C.MT1389DE/C MTK(Divx,PROGRESSIVE-SCANDVD/SVCD PLAYER SOC) 1 U2
66
4737-W98641-54 I.C.W986416EH WINBOND(1M * 4BANKS * 16 BITS SDRAM)TSOP54 1 U6
67
473W-C43600-28 I.C CS4360-KZ CIRRUS LOGIC (192KHz 6 CHANNEL D/A CONVERTER) 1 U16
68
475M-C11172-03 I.C. CX117-ADJ SILICON CORD...(1A LOW DROPOUT VOLTAGE REGUL
69
4794-M29160-48 I.C. MBM29LV160TE-70 FUJITSU(16 MBIT 3V SUPPLY FLASH MEMORY) 1 U7
70
4800-011000-T0 PEAKING COIL 10uH +/-10% (TAPE TYPE) 2 L23,L24
71
4800-320180-T1 SMD CHIP COIL 1.8uH +/_10%(2 X 1.25mm)TAPE TYPE 6 L30,L31,L34,L35,L36,L37
72
4900-127052-04 CRYSTAL 27.000000MHz HC-49U/S CL:20PF +/-20PPM FOR DVD 1 Y1
73
533D-051179-00 FIBER-OPTIC FOR DIGITAL AUDIO INTERFACE TX179AM 1 CP4
74
5400-925000-04 WAFER 2.5mm H X 4 PIN 1 CN8
75
5400-925000-05 WAFER 2.5mm H X 5 PIN 1 CN10
76
5400-925000-07 WAFER 2.5mm H X 7 PIN 1 CN9
77
5400-925000-08 WAFER 2.5mm H X 8 PIN 1 CN1
78
5400-985000-05 WAFER 2mm H X 5 PIN 1 CN5
79
5400-985000-06 WAFER 2MM H X 6 PIN 2 CN2,CN3
80
5400-990105-24 FFC/FPC CONNECTOR 24 PIN PITCH=0.5mm SMDPACKAGE (TAPE TYPE) 1 CN4
81
5800-1389C0-00 DECODER P.C. BOARD 160 * 101 * 1.6mm FOR DVD(MTK1389-C) 1
82
6100-161201-00 RCA JACK H=20.1mm W/MOUNTING BOSS BLACK H-TYPE W/SHIELD PLA
83
6100-168192-60 RCA JACK X 8 H-TYPE (PCB-MTG PITCH=14mm)WHITE X 3 RED X 3 B
84
6100-171600-01 Y/C SOCKET + RCA JACK YELLOW H=34.5mm W/MOUNTING BOSS & SHI
85
6400-011600-T0 SMD FERRITE BEAD (1.6 X 0.8mm) TAPE TYPEZ=100MHz/60 OHM +/-
17
10 Q10,Q11,Q12,Q14,Q16,Q17,Q22,Q23,Q32,Q33
D10,D11,D12,D13,D14,D15,D16,D17,D18,D19,D3,D4,D5,D
6,D7,D8,D9
7 Q18,Q19,Q20,Q21,Q25,Q27,Q35
3 Q1,Q24,Q34
1U1
1 CP3
1 CP2
1 CP1
1 R69
第 3 页 (D54001M)
86
2
0
8
)
0
R
N
A
4
4
L
G
6
6400-012600-T0 SMD FERRITE BEAD (2 X 1.25mm) TAPE TYPE Z=100MHz/60 OHM +/-
26
L1,L11,L15,L2,L20,L21,L22,L26,L27,L29,L3,L32,L38,L
39,L4,L40,L41,L42,L43,L5,L6,L7,L8,L9,LC01
0DD0-HH0023-00 DVD LOADER MODULE FOR DVD SANYO DV34
Item
Part Number Description
1 5335-103406-00 OPTICAL PICK-UP SANYO DV34 HD 62 FOR DVD 1
2 5400-320182-06 HOUSING 06 + HOUSING 06(PHx2) + 180mm FLAT CABLE UL2008
3 5400-320122-05 HOUSING 05 + HOUSING 05 (PHX2) + 120mm FLAT CABLE UL246
4 5900-F20203-24 FILM FLAT CABLE 24 PIN PITCH=0.5mm L=190mm + 5mm + 5mm 1 FROM LOADER TO MPEG BOARD
Quantity
1 FROM LOADER TO MPEG BOARD
1 FROM LOADER TO MPEG BOARD
0ED0-DV988M-00 CONTROL ASSEMBLY FOR DVD-988M
Item Part Number Description Quantity
1 4100-AB1030-T0 CARBON FILM RESISTOR 10K OHM 1/16-1/6W +/-5% (TAPE TYPE) 2 R006,R007
2 4100-AB2720-T0 CARBON FILM RESISTOR 2.7K OHM 1/16-1/6W +/-5% (TAPE TYPE
3 4100-AB3330-T0 CARBON FILM RESISTOR 33K OHM 1/16-1/6W +/-5% (TAPE TYPE) 5 R001,R002,R003,R004,R005
4 4200-310320-03 ROTARY VOLUME RESISTOR 10KB +/-20%(V) 20mm FOR VCD-30
5 4300-BC107E-T0 ELECTROLYTIC CAPACITOR 100uF 16V +/-20% (TAPE TYPE) 1 FOR IC002
6 4500-141481-T0 NORMAL RECTIFIER DIODE 1N4148 150mA/100V(TAPE TYPE) 3 D001,D002,D003
7 4742-PT6312-44 I.C. PT6312LQ (VACUUM FLUORESCENT DISPLAY CONTROLLE
8 5300-142711-00 INFRARED RECEIVER MODULE 38KHz GP1U271R 90 DEGREE PI
9 5400-421122-05 90 DEGREE PIN 05 + HOUSING 05 + 120mm FLAT CABLE UL2468
10 5400-480122-06 90 DEGREE PIN 06 + HOUSING 06(PH) + 120mm FLAT CABLE UL2
11 5400-B21501-06 90 DEGREE PIN 06 + 90 DEGREE PIN 06 + 50mm FLAT CABLE UL2
12 5401-420312-04 90 DEGREE PIN 04 + HOUSING 04(TJC3) + 310mm FLAT CABLE U
13 5500-110150-00 TACT SWITCH VERTICAL TYPE H = 5mm KPT-1105A 4 PINS 6 SW001,SW002,SW003,SW004,SW005,SW006
14 5700-150120-00 LED LIGHT EMISSION 3.1mm RED LONG LEAD 1 LED001
15 5714-06SS91-00 VACUUM FLUORESCENT DISPLAY HNV-06SS91 1
16 5800-TCD083-00 CONTROL P.C. BOARD 185 X 195 X 1.6mm(X 4) FOR DVD-988 1
17 5900-B90118-01 MULTI TWIST WIRE AWG18 UL1007 BLACK 90mm W/SOLDERIN
18 5900-G40106-00 COPPER JUMPER 0.6MM DIA. L=40mm 8 J001,J002,J003,J004,J005,J006,J007,R009
1 R008
2 VR001,VR002
1 IC001
1 IC002
1 FROM CP003 TO KARAOKE
1 FROM MPEG TO CP001
1 FROM CN001 TO CN002
1 CP002
1 P001
0H10-000006-01 21 PIN SCART JACK ASSEMBLY FOR SUNPLUS DVD-2650(RGB)
Item Part Number Description Quantity
1 5400-925000-04 WAFER 2.5mm H X 4 PIN 1 CN203
2 5401-020192-07 PIN 07 + HOUSING 07(TJC3)+ 190mm FLAT CABLE UL2468 AWG26 1 CN202
3 5401-021192-05 PIN 05 + HOUSING 05(TJC3) + 190mm FLAT CABLE UL2468 AWG2
1 CN201
Remarks
Remarks
Remarks
第 4 页 (D54001M)
4 5800-TDG007-02 SCART P.C.BOARD 63 X 23 X1.6mm FOR CVBS/RGB OUT 1
m
E
)
)
E
5
5900-B90118-01 MULTI TWIST WIRE AWG18 UL1007 BLACK 90mm W/SOLDERING PLATE
6 6100-210001-00 SCART SOCKET 21 PINS RIGHT ANGLE 1 CP201
7 6400-020501-00 FERRITE BEAD 3.5 X 1 X 5mm W/JUMPER 8 FB201,FB202,FB203,FB204,FB205,FB206,FB207,FB208
1
FOR GND
0H10-DVD004-07 RCA JACK ASSEMBLY FOR DVD (YUV)
Item Part Number Description Quantity
1 5401-021142-04 PI0 04 + HOUSING 04(TJC3) + 140mm FLAT CABLE UL2468 AWG26 1
2 5800-TCG016-02 YUV P.C.BOARD 88 X 30 X 1.6mm FOR DVD 1
3 5900-G40106-00 COPPER JUMPER 0.6MM DIA. L=40mm 3 J201,J202,J203
4 6100-163105-62 RCA JACK X 3 H-TYPE W/MOUNTING BOSS (PCB-MTG PITCH=14
1
Remarks
1E10-NV0928-01 KARAOKE ASSEMBLY FOR DVD-928
Item Part Number Description Quantity
1 4100-AB1010-T0 CARBON FILM RESISTOR 100 OHM 1/16-1/6W +/-5% (TAPE TYPE) 1 R921
2 4100-AB1020-T0 CARBON FILM RESISTOR 1K OHM 1/16-1/6W +/-5% (TAPE TYPE) 1 R919
3 4100-AB1030-T0 TYPE) 4 R910,R911,R912,R913
4 4100-AB1040-T0 CARBON FILM RESISTOR 100K OHM 1/16-1/6W +/-5% (TAPE TYP
5 4100-AB1520-T0 CARBON FILM RESISTOR 1.5K OHM 1/16-1/6W +/-5% (TAPE TYPE
6 4100-AB1530-T0 CARBON FILM RESISTOR 15K OHM 1/16-1/6W +/-5% (TAPE TYPE) 8 R903,R904,R905,R907,R908,R909,R914,R916
7 4100-AB5610-T0 CARBON FILM RESISTOR 560 OHM 1/16-1/6W +/-5% (TAPE TYPE
8 4100-AB5620-T0 CARBON FILM RESISTOR 5.6K OHM 1/16-1/6W +/-5% (TAPE TYP
9 4300-AF104H-T0 CERAMIC CAPACITOR 0.1uF 50V +80-20% (TAPE TYPE) 5 C904,C907,C910,C911,C926
10 4300-AF151C-T0 CERAMIC CAPACITOR 150PF 50V +/-5% (TAPE TYPE) 1 C924
11 4300-AF332D-T0 CERAMIC CAPACITOR 0.0033uF 50V +/-10% (TAPE TYPE) 1 C915
12 4300-AF471C-T0 CERAMIC CAPACITOR 470PF 50V +/-5% (TAPE TYPE) 1 C903
13 4300-AF561C-T0 CERAMIC CAPACITOR 560PF 50V +/-5% (TAPE TYPE) 2 C914,C921
14 4300-AF562H-T0 CERAMIC CAPACITOR 0.0056uF 50V +80-20% (TAPE TYPE) 1 C920
15 4300-BC106E-T0 ELECTROLYTIC CAPACITOR 10UF 16V +/-20% (TAPE TYPE) 7 C901,C902,C906,C917,C918,C923,C925
16 4300-BC107E-T0 ELECTROLYTIC CAPACITOR 100uF 16V +/-20% (TAPE TYPE) 2 C908,C927
17 4300-BC476E-T0 ELECTROLYTIC CAPACITOR 47uF 16V +/-20% (TAPE TYPE) 2 C905,C909
18 4300-BD475E-T0 ELECTROLYTIC CAPACITOR 4.7uF 25V +/-20% (TAPE TYPE) 2 C919,C922
19 4300-MG822D-T0 MYLAR CAPACITOR 0.0082uF 100V +/-10% (TAPE TYPE) 3 C912,C913,C916
20 4740-A15218-08 I.C. BA15218 ROHM (OPERATIONAL AMPLITIER) 1 IC901
21 4742-PT2399-16 I.C. PT2399 (ECHO AUDIO PROCESSOR) 1 IC902
2 R906,R917
1 R915
2 R901,R902
1 R918
Remarks
第 5 页 (D54001M)
22 5400-985000-05 WAFER 2mm H X 5 PIN 1 CN902
G
E
23 5401-020502-04 PIN 04 + HOUSING 04 (TJC3) + 500mm FLAT CABLE UL2468 AWG2 1 CN901
24 5800-TCM037-01 KARAOKE P.C.BOARD 90 X 60 X 1.6mm FOR DVD-928/DVD-938 1
25 5900-G40106-00 COPPER JUMPER 0.6MM DIA. L=40mm 5 J002 ,J003,J004,J005,J901
26 6100-032601-00 MIC JACK 6.35mm W/SWITCH FOR VCD 2 M901,M902
27 6400-020501-00 FERRITE BEAD 3.5 X 1 X 5mm W/JUMPER 1 L901
1GD0-P0267P-00 POWER ASSEMBLY FOR DVD-2250(INSIGHT I.C. TNY267P)
Item
10 4300-BD227E-01 ELECTROLYTIC CAPACITOR 220uF 25V +/-20% (105 DEGREE) 8 X 2 C10,C12
11 4300-BF106E-T0 ELECTROLYTIC CAPACITOR 10uF 50V-63V +/-20% (TAPE TYPE) 1 C6
12 4300-BL106E-01 ELECTROLYTIC CAPACITOR 10UF 400V +/_20%(105 DEGREEC)10 1 C4
13 4300-BL226E-02 ELECTROLYTIC CAPACITOR 22UF 400V +/_20%(105 DEGREEC)13 1 C5
14 4304-SX222E-00 SAFETY CERAMIC CAPACITOR 0.0022UF AC250V-400V +/-20% 1 C8
15 4500-100210-T0 NORMAL RECTIFIER DIODE BAV21 625mA/250V (TAPE TYPE) 1 D6
16 4500-140070-T0 NORMAL RECTIFIER DIODE 1N4007 (TAPE TYPE) 7 D1,D16,D17,D2,D3,D4,D5
17 4500-215700-T0 HIGH SPEED RECTIFIER DIODE BA157 400V/1A (TAPE TYPE) 3 D11,D12,D9
18 4500-250205-T0 HIGH SPEED RECTIFIER DIODE ER502 200V/5A(DO-201AD) (TAP
19 4500-400043-T5 ZENER DIODE 4V3 1/2W +/-5% (TAPE TYPE) 1 ZD1
20 4500-400091-T5 ZENER DIODE 9V1 1/2W +/-5% (TAPE TYPE) 2 ZD2,ZD3
21 471S-H81700-04 I.C. H11A817 QT (PHOTO TRANSISTOR) DIP PACKAGE 1 IC2
22 4785-T26700-08 I.C. TNY267P POWER(LOW POWER OFF-LINE SWITCHER)DIP-8 1 IC1
23 4800-010470-T0 PEAKING COIL 4.7uH +/-10% (TAPE TYPE) 1 L5
24 4800-011500-T0 PEAKING COIL 15uH +/-10% (TAPE TYPE) 1 L3
25 4800-020100-00 CHOKE COIL 1mH +/_ 20% 2UEW 0.15mm 1 L1
Part Number Description
1 4100-AD1010-T0 CARBON FILM RESISTOR 100 OHM 1/4W +/-5% (TAPE TYPE) 2 D13,R2
2 4100-AD1020-T0 CARBON FILM RESISTOR 1K OHM 1/4W +/-5% (TAPE TYPE) 2 R10,R5
3 4100-AD1030-T0 CARBON FILM RESISTOR 10K OHM 1/4W +/-5% (TAPE TYPE) 1 R3
4 4100-DG1040-01 METAL OXIDE FILM RESISTOR 100K OHM 1W +/-5% 1 R1
5 4100-DH8210-01 METAL OXIDE FILM RESISTOR 820 OHM 2W +/-5% 1 R9
6 4300-AF104H-T0 CERAMIC CAPACITOR 0.1uF 50V +80-20% (TAPE TYPE) 1 C7
7 4300-AR222D-00 CERAMIC CAPACITOR 0.0022UF 1KV +/-10% 1 C3
8 4300-BB108E-T1 ELECTROLYTIC CAPACITOR 1000uF 10V +/-20%(8X16mm) 105 DE
9 4300-BD107E-T0 ELECTROLYTIC CAPACITOR 100uF 25V +/-20% (TAPE TYPE) 5 C13,C16,C17,C18,C9
Quantity
1 C11
1 D10
Remarks
第 6 页 (D54001M)
26 4800-020472-01 CHOKE COIL 4.7uH +/_ 20% 2UEW 0.6mm 1 L4
E
27 5100-061908-00 SWITCHING TRANSFORMER MKB28-1908 1 T1
28 5400-220552-03 HOUSING 03 (VH) + 550mm AC LINE CORD 2C 1 FROM SWITCH TO CON1
29 5400-925000-04 WAFER 2.5mm H X 4 PIN 1 CON3
30 5400-970001-02 WAFER 7.92mm PITCH PIN DIA. 1.14mm 2 PIN 1 CON1
31 5401-020352-08 PIN 08 + HOUSING 08 (TJC3) + 350mm FLAT CABLE UL2468 AWG26 1 CON2
32 5500-020208-00 MAIN POWER SWITCH KDC-A10-03 W/SCREW HOLE DIA. 3.2mm 1 MAIN SWITCH SW601
33 5800-TDP019-00 POWER P.C. BOARD 153 * 50.5 * 16mm FOR DVD 1
34 5900-A21335-01 AC LINE CORD 2100mm VDE NEW SQUARE MT-11PLUG W/HOLD
35 5900-G40106-00 COPPER JUMPER 0.6MM DIA. L=40mm 3 J1,J2,J3
36 6002-200001-00 FUSE T2A 250V W/APPROVAL MARKING 1 F1
37 6400-020501-00 FERRITE BEAD 3.5 X 1 X 5mm W/JUMPER 1 L2
1
2ID0-000001-00 ACCESSORY ASSEMBLY FOR DVD
Item
Part Number Description
1 5900-V15001-01 RCA TO RCA JACK VIDEO CABLE 1500mm YELLOW 1
2 5900-V15001-02 RCA TO RCA JACK AUDIO CABLE 1500mm X 2 RED, WHITE 1
Quantity
Remarks
第 7 页 (D54001M)
Loading...
