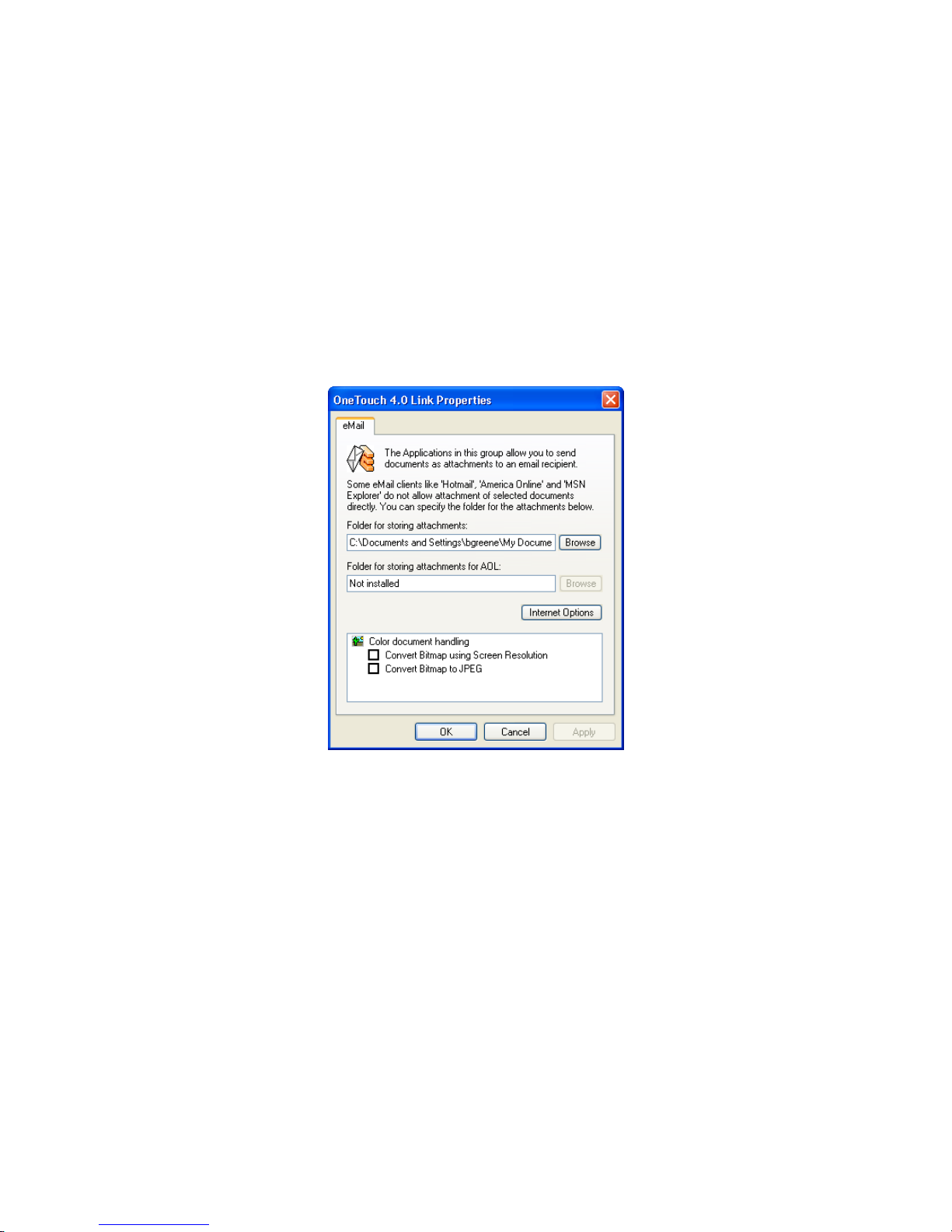

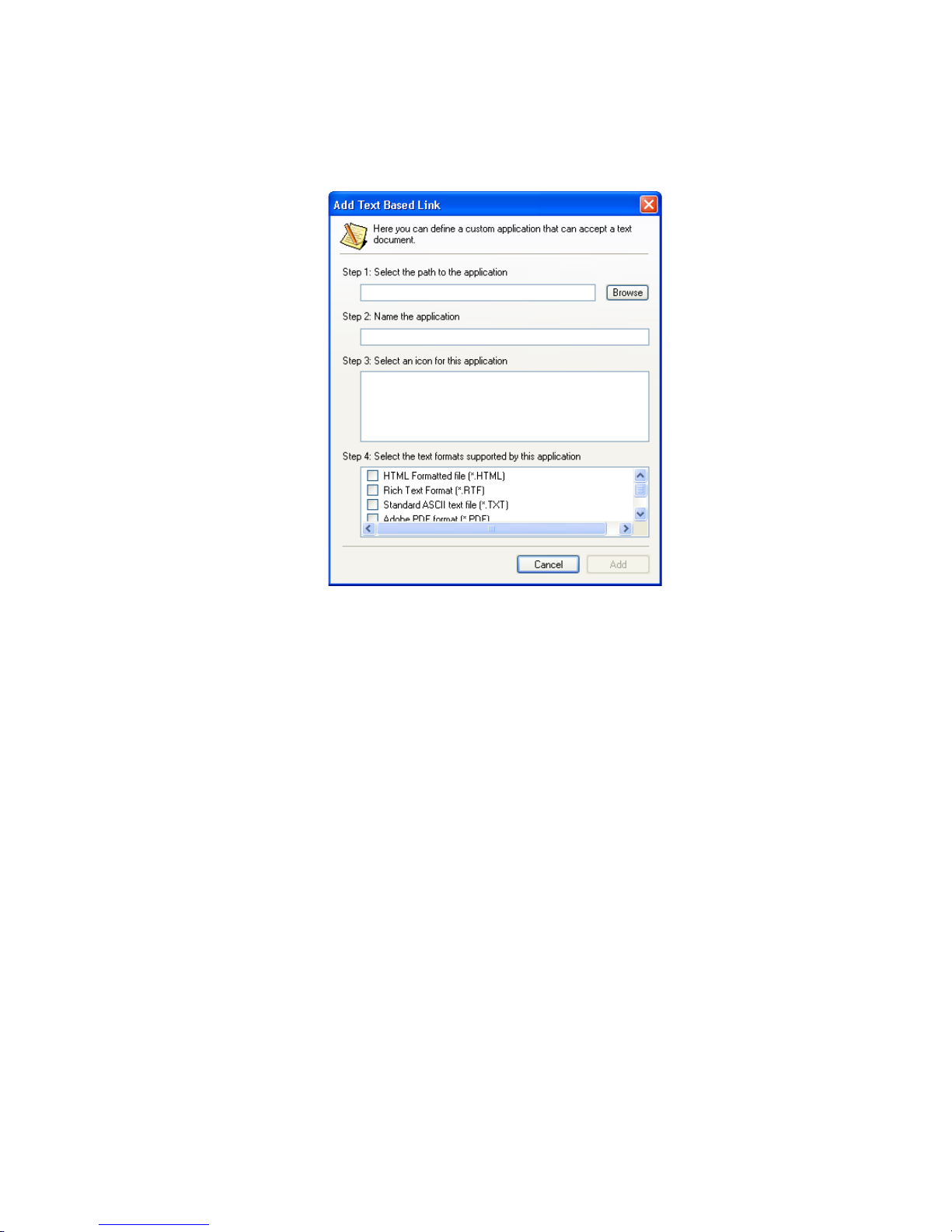

Setting Destination Application Properties . . . . . . . . . . . . . . . . 43
Selecting Format Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
ii TABLE OF CONTENTS
Scanning with Optical Character Recognition (OCR) . . . . . . . . 56

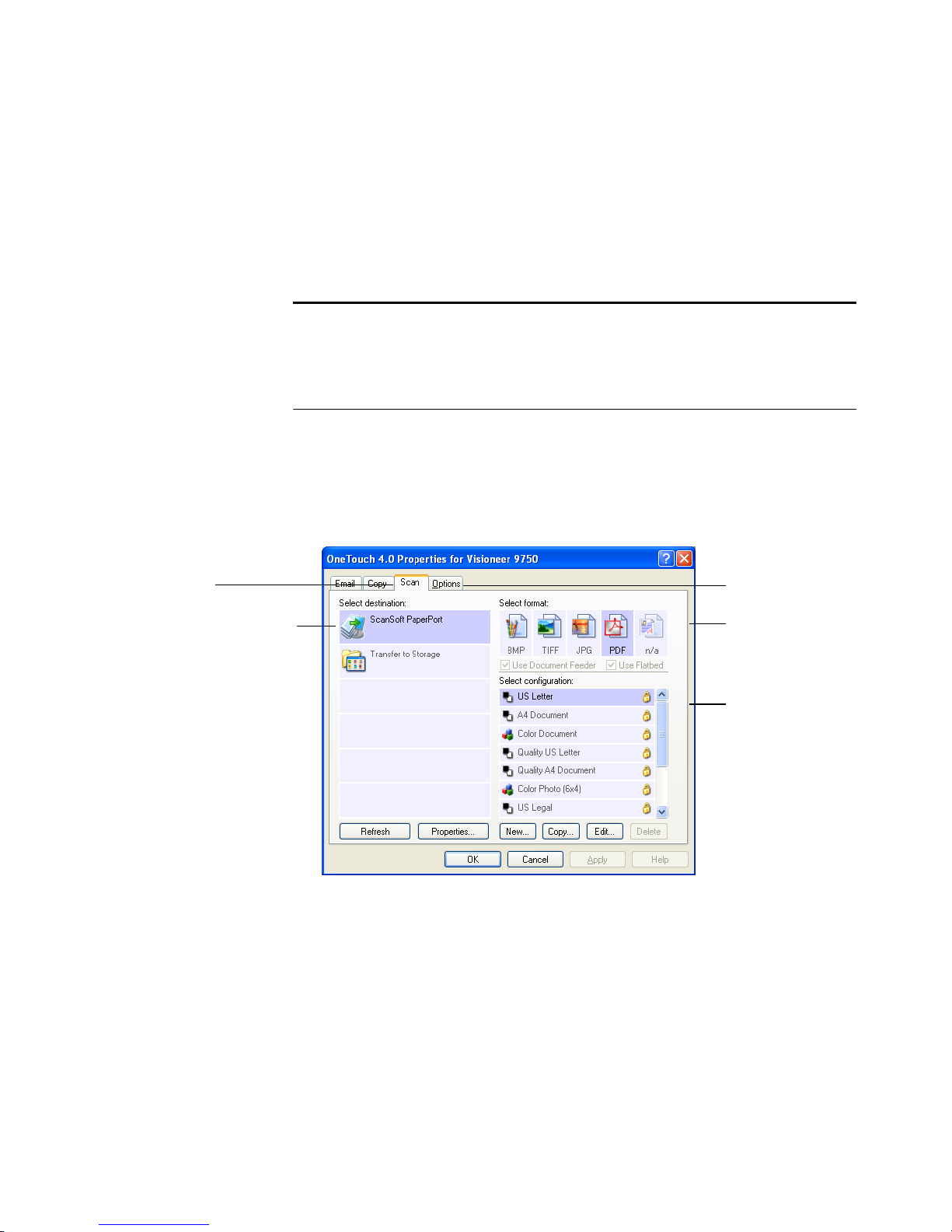

Selecting Options for a Button . . . . . . . . . . . . . . . . . . . . . . . . . 58

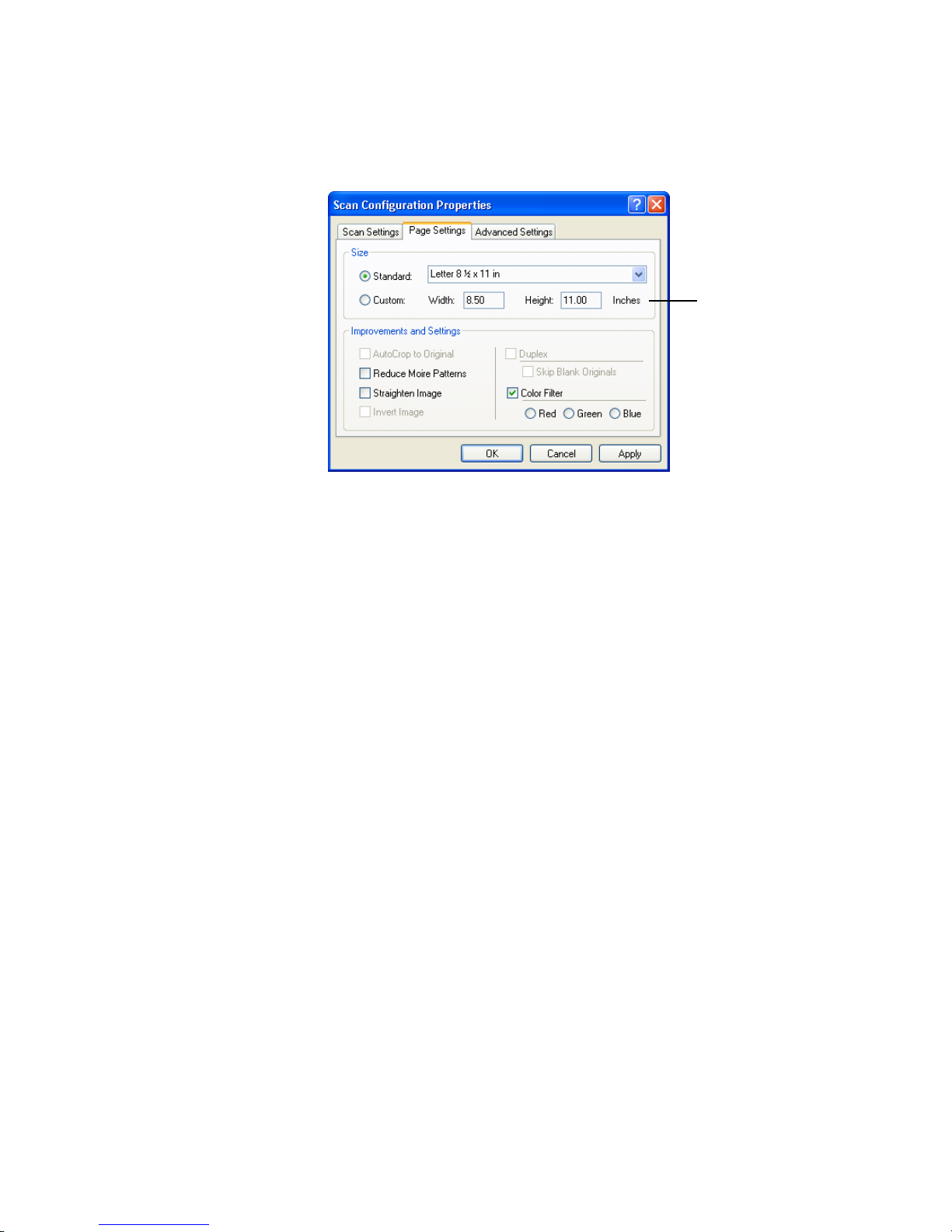

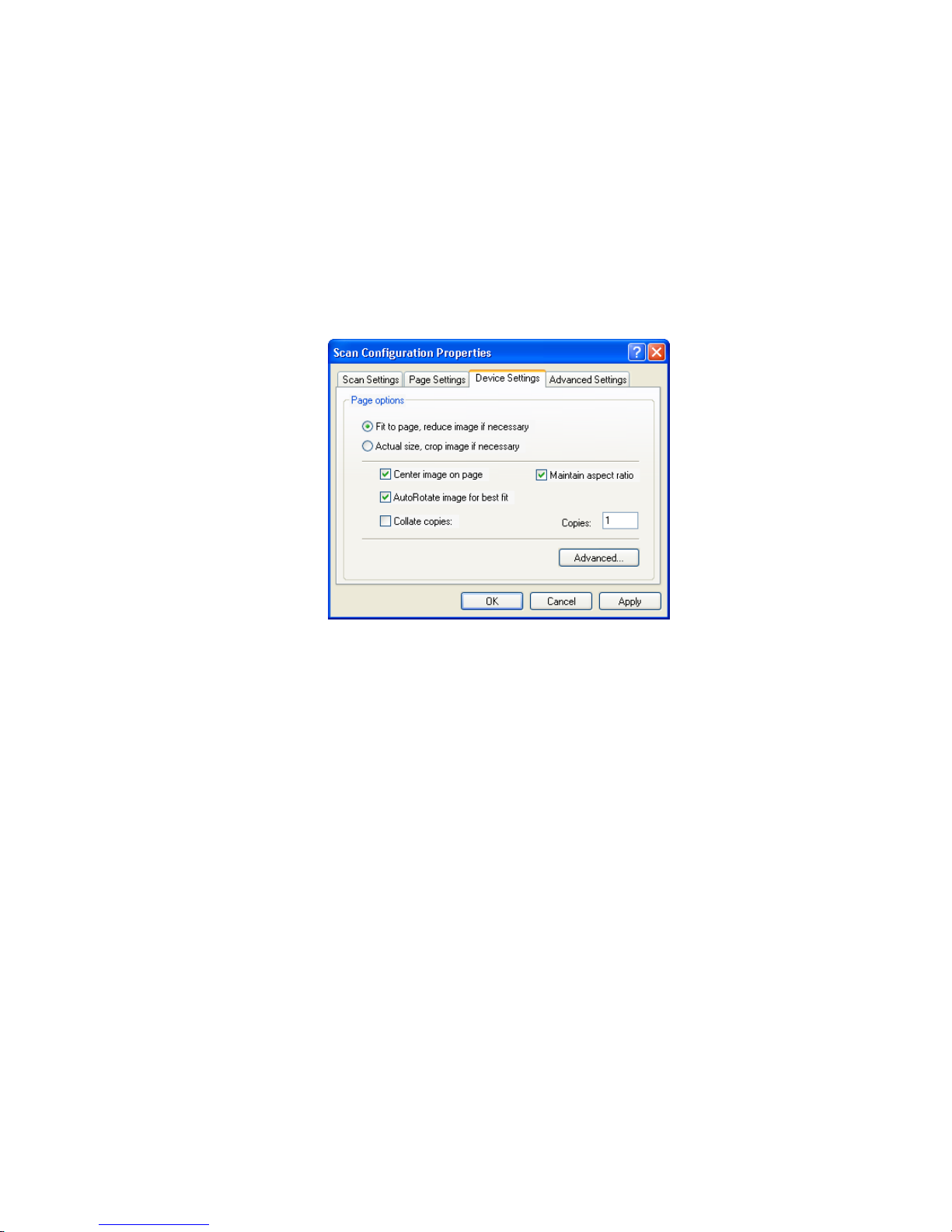

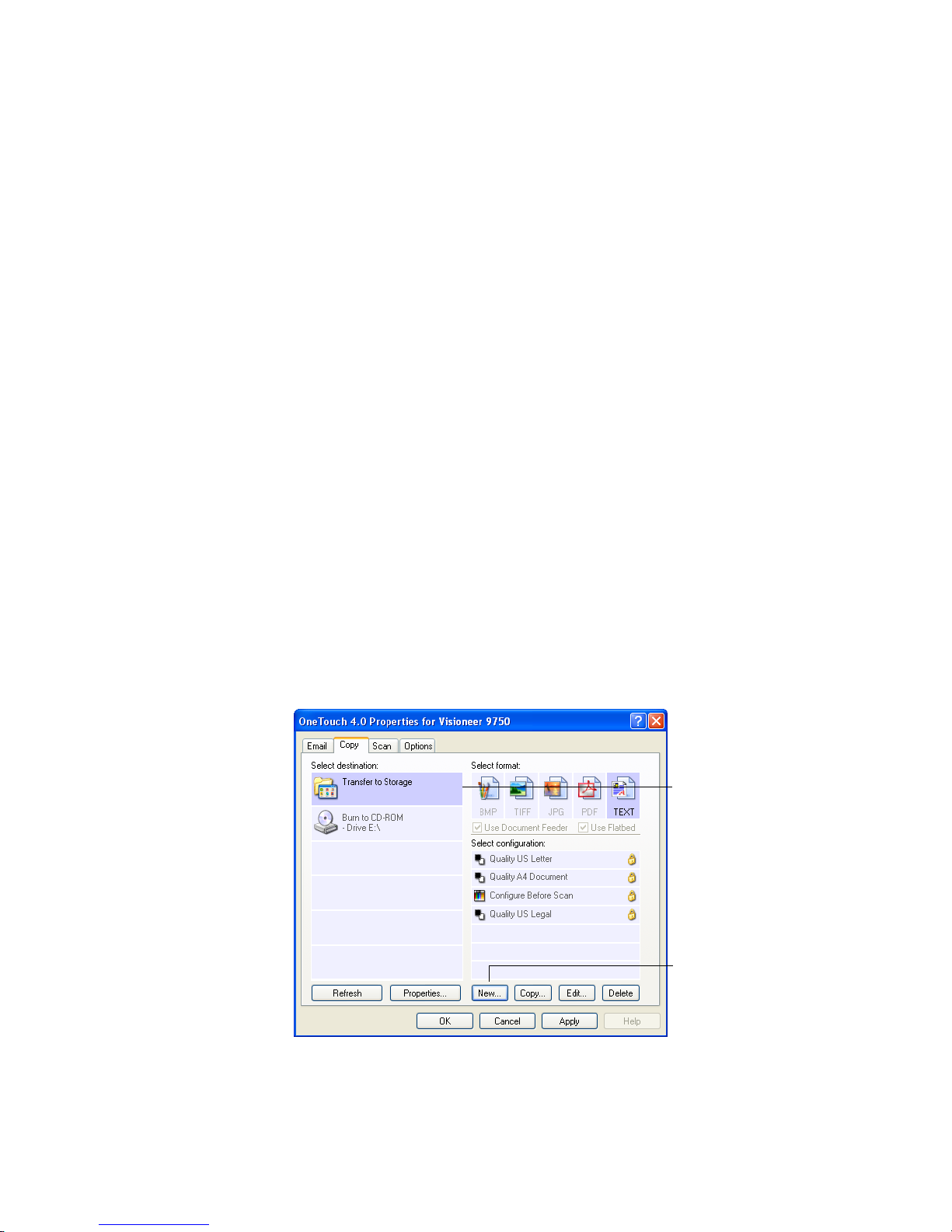

Creating a New Scan Configuration . . . . . . . . . . . . . . . . . . . . . 62
Editing or Deleting Scan Configurations . . . . . . . . . . . . . . . . . . 71
Configuring Before Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Scan and Burn to a CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

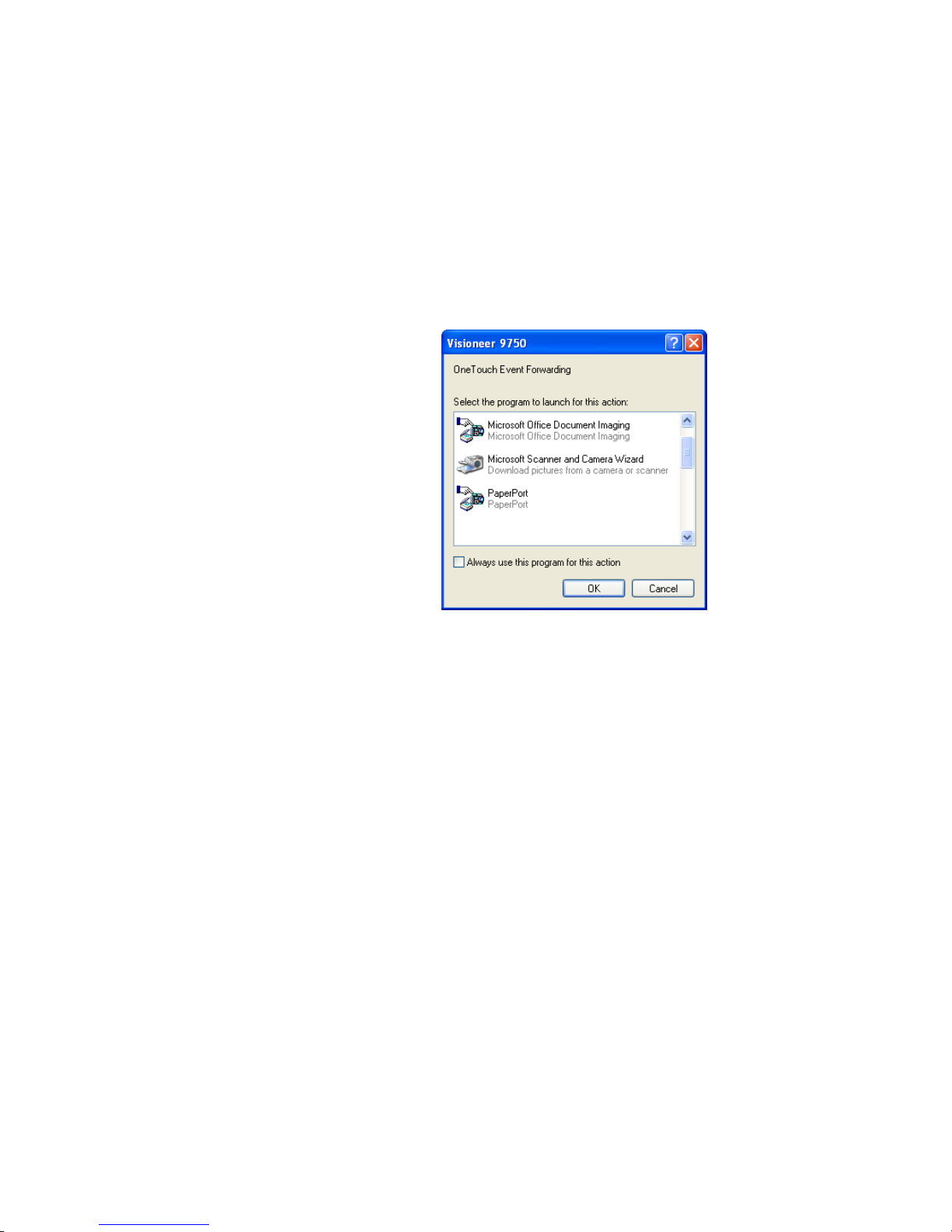

Scanning with Event Forwarding . . . . . . . . . . . . . . . . . . . . . . . . 78

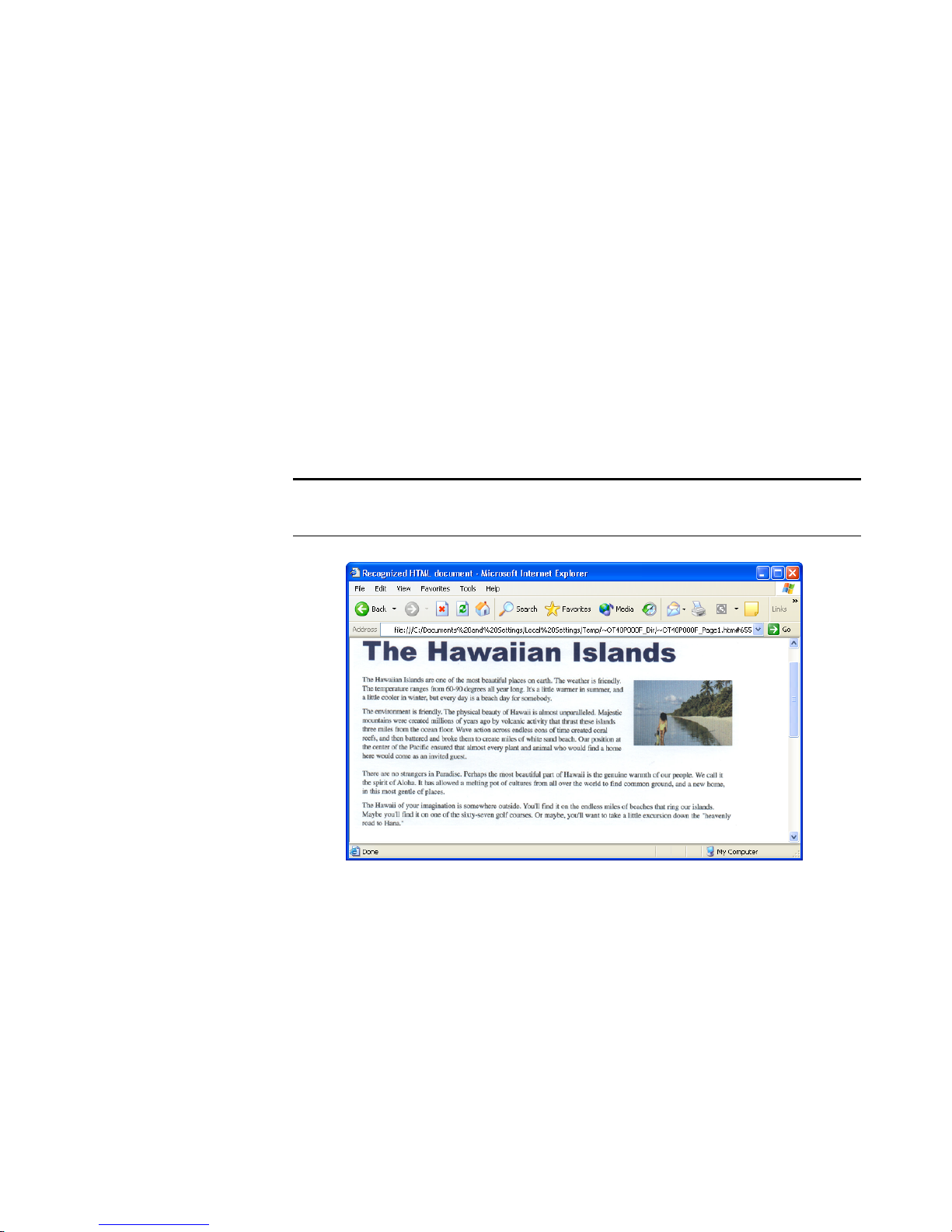

Creating an HTML Web Page from Your Scanned Documents 80

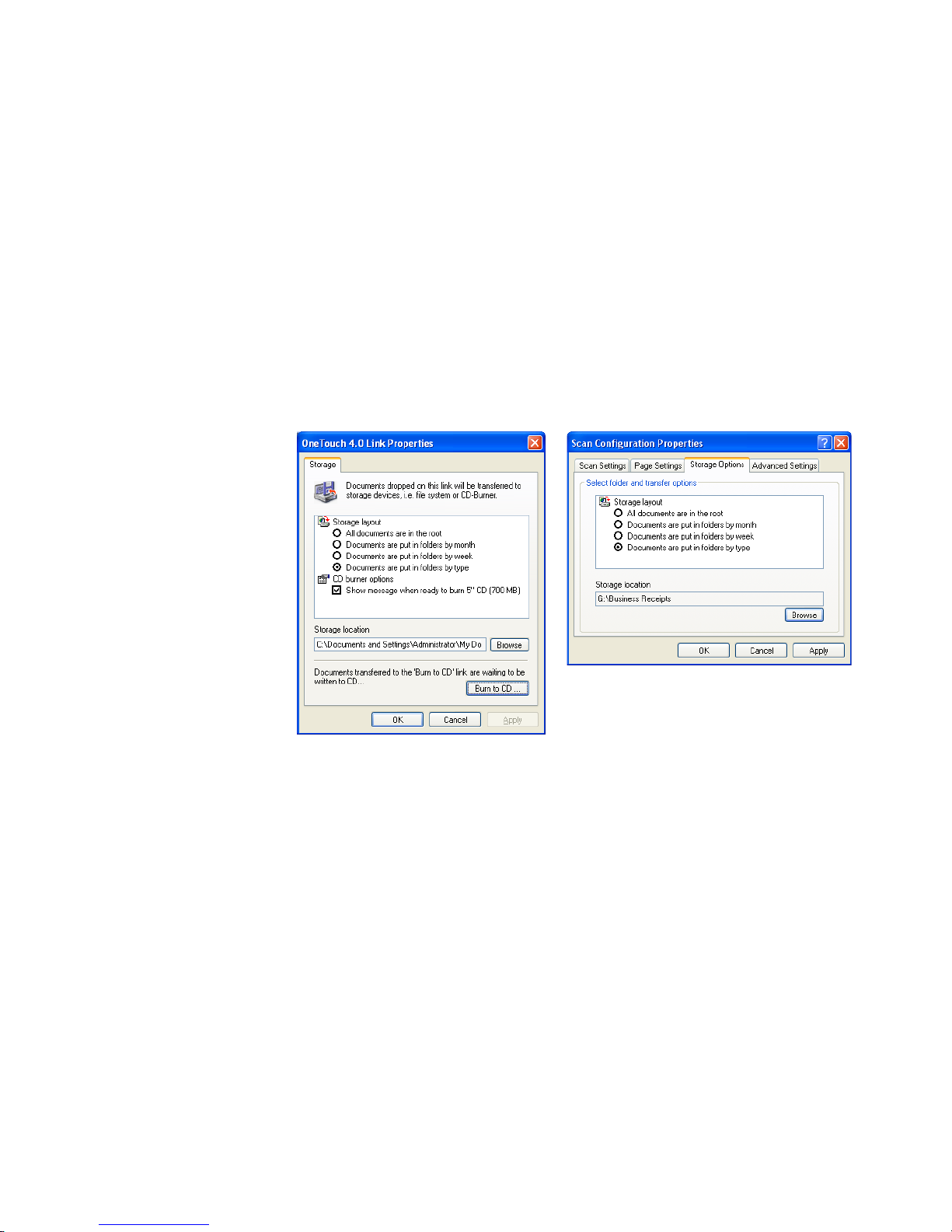

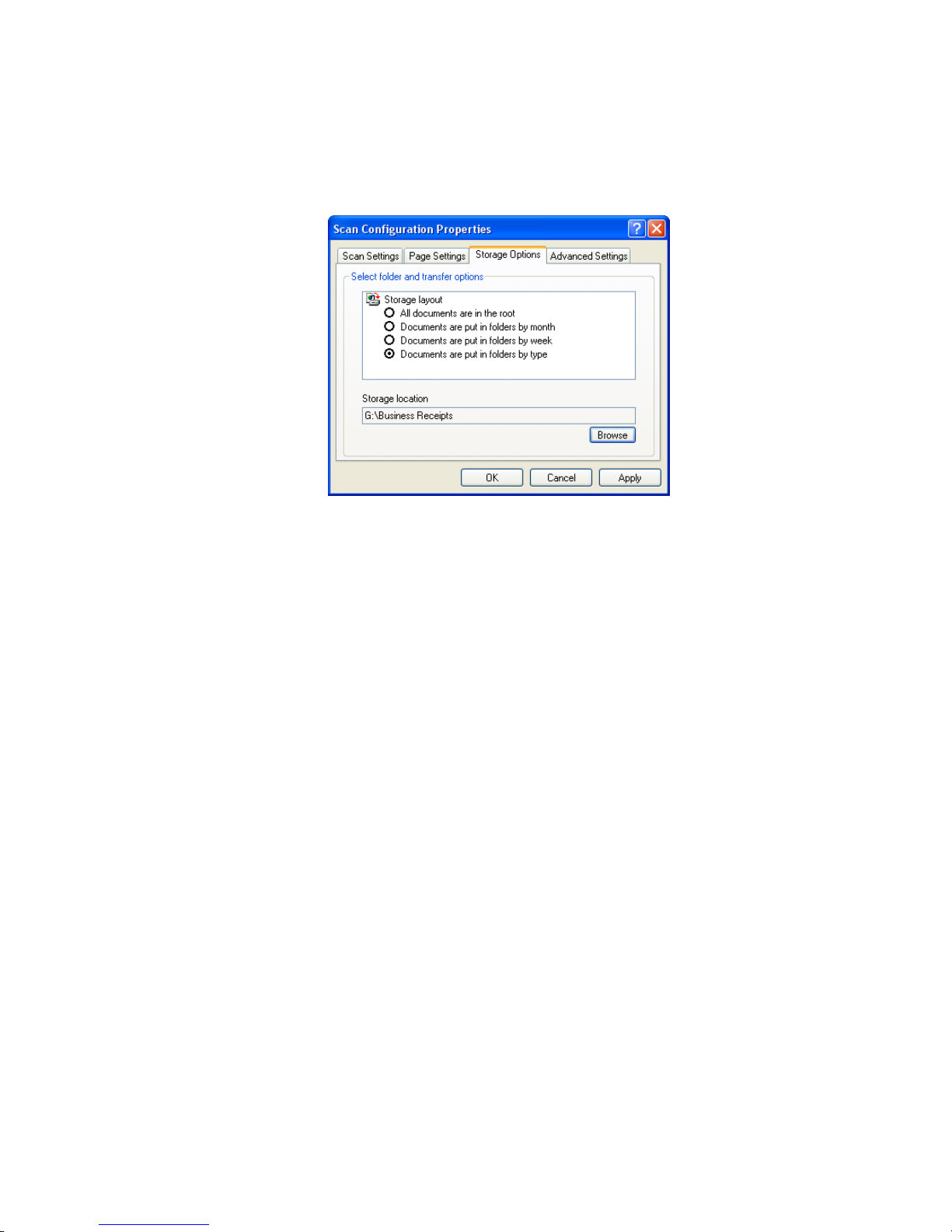

Transferring Scanned Documents to Storage . . . . . . . . . . . . . . . 82
Checking the Hardware and Setting the Lamp Power Saving . . 90
Scanning with the TWAIN Interface . . . . . . . . . . . . . . . . . . . . . . . 93
Accessing the TWAIN Interface from PaperPort . . . . . . . . . . . . . . . 94
The Two TWAIN Interface Options . . . . . . . . . . . . . . . . . . . . . . . . 98
Scanning from the TWAIN Basic Interface . . . . . . . . . . . . . . . . . . . 99
Scanning Part of an Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Scanning from the TWAIN Advanced Interface . . . . . . . . . . . . . . 102
Adjusting the Image on the Advanced Interface . . . . . . . . . . . . 105
Adjusting the Brightness and Contrast . . . . . . . . . . . . . . . . . . . 109

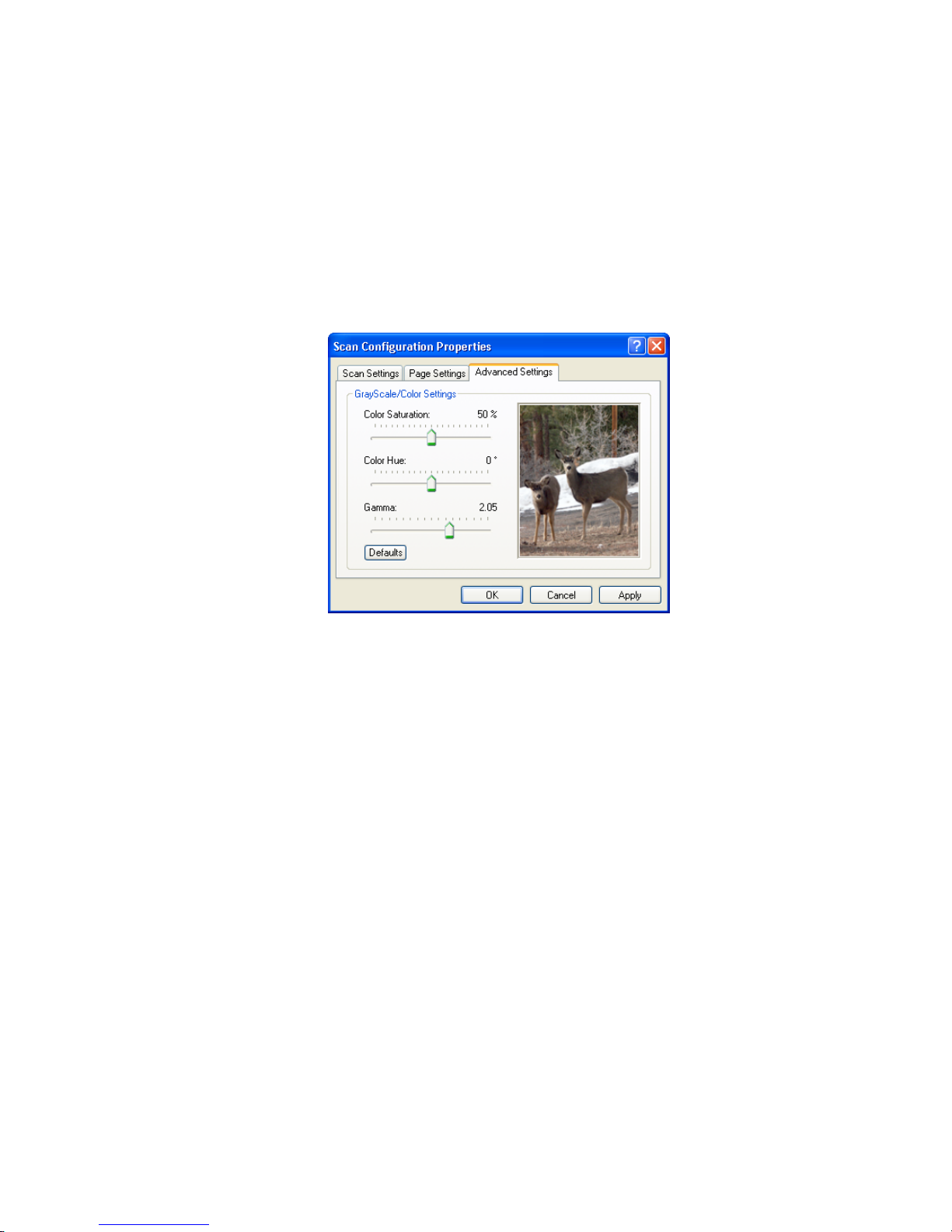

Adjusting Gamma, Saturation, and Color Hue . . . . . . . . . . . . 110
Adjusting Input Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Creating a New Advanced Interface Profile . . . . . . . . . . . . . . . 114
Display the Device Configuration . . . . . . . . . . . . . . . . . . . . . . 115
Setting Up Your Scanner to Work with PaperPort . . . . . . . . . . . . . 116
Scanning with the WIA Interface. . . . . . . . . . . . . . . . . . . . . . . . . 121
Fine Tuning Your Scans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Scanning with the ISIS Interface . . . . . . . . . . . . . . . . . . . . . . . . . 127
Adjusting the ISIS Scan Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Scanning with ISIS in Other Applications . . . . . . . . . . . . . . . . . . . 134
TABLE OF CONTENTS iii
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Cleaning the Scanner Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Cleaning the Automatic Document Feeder . . . . . . . . . . . . . . . 136
Replacing the ADF Pad Assembly . . . . . . . . . . . . . . . . . . . . . . 137
Replacing the Roller Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 138
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Status Light Troubleshooting Codes . . . . . . . . . . . . . . . . . . . . 144
How to Uninstall Your Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Step 1: Uninstall the OneTouch 4.0 Scanner Software . . . . . . 145
Step 2: Uninstall the PaperPort Software . . . . . . . . . . . . . . . . . 145
To Install Another Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Visioneer 9750 Scanner Specifications . . . . . . . . . . . . . . . . . . . . . . 147
Visioneer 9750 Scanner Parts List . . . . . . . . . . . . . . . . . . . . . . . . . 148
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
iv TABLE OF CONTENTS
WELCOME
Your new Visioneer 9750 scanner can quickly scan stacks of documents
with the Automatic Document Feeder (ADF), or single pages on the
Flatbed Glass.
WHAT’S IN THE BOX
Before starting the assembly and installation, check the contents of the
box to make sure that all parts are included. If any items are missing or
damaged, contact the dealer where you purchased the scanner.
Visioneer 9750 Scanner Power cableUSB cable
Paper Guide Paper Guide Extension Paper Stop
Replacement
ADF Pad
Installation CD
Quick Install Guide
Power supply
Technical Support Card
VISIONEER 9750 SCANNER USER’S GUIDE 1
2 VISIONEER 9750 SCANNER USER’S GUIDE
THE VISIONEER 9750 SCANNER
Scanner Cover
Document Pad
Glass
Reference Frame
Paper Stop
Paper Guide Extension
Paper Guide
Automatic Document Feeder
Lock (on underside of scanner)
Scan Buttons and Status Light
USB Port
ADF port
Power jack
Power On/Off Switch
ADF Cable
THE VISIONEER 9750 SCANNER 3
Scanner Cover—Protects the document from light and contamination during scanning. Close
the cover to put a stack of documents in the Automatic Document Feeder (ADF).
Document Pad—Holds documents in place on the scanner glass.
Glass—Place items face down aligned at the upper left corner of the glass.
Reference Frame—Place documents face down on the glass, aligned at the arrow symbol in the
upper-left corner.
Paper Stop—Holds items in place as they are ejected from the Automatic Document Feeder.
Adjust the stop for either letter-sized or legal-sized pages.
Paper Guide Extension—Unfolds to support multiple document lengths.
Paper Guide—Holds pages in place. Adjust to fit the paper size.
Automatic Document Feeder (ADF)—Feeds a stack of pages onto the glass for scanning. The
ADF can hold up to 50 pages at a time.
Lock—Locks or unlocks the scanning head. The lock must be unlocked for the scanner to
scan. The lock should always be locked when transporting the scanner.
Scan Buttons—Press to start scanning.
Status Lights—Shows the scanner’s status. A steady green light indicates the scanner is
available to scan. A rapidly flashing green light indicates the scanner is preparing to scan. See
“Status Light Troubleshooting Codes” on page 144 for additional details.
USB Port—Connects the scanner to the computer.
ADF Port—Connects the ADF cable from the Automatic Document Feeder to the scanner
body.
Power Jack—Connects the power cord to the scanner.
Power On/Off Switch—Turns the scanner’s power on and off.
ADF Cable—Supplies power from the scanner body to the Automatic Document Feeder. The
cable must be securely plugged into the ADF port for the Automatic Document Feeder to
work.
4 VISIONEER 9750 SCANNER USER’S GUIDE
WHAT YOU NEED
An IBM-compatible Pentium PC, or AMD equivalent with:
■ A CD-ROM drive
■ An available Universal Serial Bus (USB) port; 1.1 or 2.0
■ Microsoft Windows XP (Service Pack 1 or 2) or
Windows 2000 (Service Pack 4)
■ A minimum of 256 megabytes (MB) of internal memory (RAM);
512 MB is recommended
■ 200 MB minimum of free hard disk space
A VGA or SVGA Monitor
The recommended settings for your monitor are:
■ High Color (16-bit) or True Color (24-bit or 32-bit)
■ Resolution set to at least 800 x 600 pixels
To set your monitor’s colors and resolution:
■ Open the Windows Control Panel
■ Double-click on Display then select the Settings tab.
DOCUMENTATION
The following documentation is provided with your scanner:
■ Quick Install Card—Abbreviated installation instructions.
■ Visioneer 9750 Scanner User’s Guide—On the Installation CD;
contains detailed installation, scanning, configuration, and
maintenance information.
■ PaperPort User’s Guide—On the Installation CD; contains detailed
feature and configuration information for the PaperPort software.
■ Online Help—For the scanner configuration, TWAIN and WIA
interfaces, and PaperPort software application.
BEFORE YOU BEGIN 5
Installing
Installation is a quick, four-step process:
1. Assemble the scanner
2. Install the software
3. Connect the power supply
4. Connect the USB cable and turn on the power
BEFORE YOU BEGIN
Please make sure of the following before you begin installation:
■ If your computer has AntiVirus or AntiSpyware software running,
you may see messages during installation asking you to allow the
installation to proceed. Although the messages will differ based on
the software your computer is running, in each case you should
allow the installation to proceed. Alternatively, you can turn off the
AntiVirus or AntiSpyware software before installing your scanner,
but if you do, make sure to turn it back on again when installation
is finished.
■ If you already have a scanner connected to your computer, it is
recommended that you remove that scanner’s driver program prior
to installing your Visioneer 9750 scanner. While in some cases you
can configure your computer to have another manufacturer’s
scanner operational on your computer in conjunction with the
Visioneer 9750 scanner, we do not recommend this configuration
as you may lose some of the driver functionality on one, or both of
the units. You can remove these programs from the Windows Add/
Remove programs list. Please refer to the user manual provided
with your other scanner hardware for instructions about removing
the driver and software for that unit.
6 VISIONEER 9750 SCANNER USER’S GUIDE
STEP 1: ASSEMBLE THE SCANNER
All the components to assemble the scanner are included in the box.
To assemble the scanner:
1. Remove all shipping tape from the top and bottom of the scanner.
2. Open the ADF cover and carefully remove any foam particles that
may have gotten inside the Automatic Document Feeder. Close the
cover so it snaps shut.
STEP 1: ASSEMBLE THE SCANNER 7
3. Slide the locking tab on the bottom of the scanner to its unlocked
position.
Unlocked position
Note: The locking tab protects the scanner’s scan head by holding it
securely in position. Lock the scanner when transporting it from one
location to another, but always remember to unlock it before
scanning. The scanner will not scan when locked.
4. Insert the slots (A) on the Paper Guide onto their tabs (B) on the
scanner and slide the Guide down into place. The catch tabs (C)
snap into place. Refer to the picture on page 2 to see the location of
the assembled parts.
A
B
C
8 VISIONEER 9750 SCANNER USER’S GUIDE
5. Insert the Paper Guide Extension into the Paper Guide and snap its
tabs into place.
6. Insert the Paper Stop onto the back of the scanner and slide it
downward to snap its tabs into place.
STEP 1: ASSEMBLE THE SCANNER 9
7. Plug the ADF cable into the ADF port. Tighten the two locking
screws on either side of the plug to make sure the ADF cable is
securely plugged into the port. The ADF will not function properly
if the ADF cable is loose or unplugged.
8. Proceed to “Step 2: Install the Software.”
10 VISIONEER 9750 SCANNER USER’S GUIDE
STEP 2: INSTALL THE SOFTWARE
The Installation CD contains all the driver software and scanning
software to run your scanner.
To install the software:
1. Start Microsoft Windows and make sure that no other applications
are running.
2. Insert the Installation CD into your computer’s CD-ROM drive.
Note: If the CD does not automatically start, check the following:
■ Make sure the CD drive’s door is completely shut.
■ Make sure the CD was inserted in the drive in the proper direction
(label side up).
To launch the CD manually.
■ Open the Windows option for My Computer. You can do this by
double-clicking on the My Computer icon on your desktop.
■ Double-click the icon for your CD-ROM drive.
■ The Installation menu for the CD should now open.
If the menu does not open:
■ From the list of files on the CD, double-click the file named
START32.EXE.
STEP 2: INSTALL THE SOFTWARE 11
When the CD starts, the Visioneer Installation window opens
automatically.
3. On the Installation Main Menu, click Install Products.
The next window lists the software that is available to install on
your computer.
®
4. Select Nuance
PaperPort® and Scanner Driver.
5. Click Install Now. The PaperPort software will load first.
12 VISIONEER 9750 SCANNER USER’S GUIDE
6. The Select Language window opens for the PaperPort software.
Click the drop-down menu arrow and select the language you want
to use. Click OK.
The first PaperPort Installation window opens.
7. On the PaperPort Welcome window, click Next.
Installing PaperPort will uninstall any existing version of PaperPort
and will install the newer version while retaining all of your
previous PaperPort files.
8. Read the PaperPort license agreement and select I accept the terms
in this agreement, then click on Next. If you choose not to accept
the license agreement, the installation will terminate and the
PaperPort software will not be installed.
9. On the Customer Information window, accept the current values or
enter new information, then click Next.
10. On the Setup Type window, keep the default Setup Type and click
Next.
11. Click Install to begin the installation.
Reminder: If your computer is running an AntiVirus or
AntiSpyware application, you may see messages asking you to allow
installation. Select the option to allow installation to proceed with
the install.
12. On the Product Registration window, do one of the following:
■ Select Register online, click OK, then follow the registration
instructions.
■ Select Print registration form, click OK, then follow the
instructions to complete and print the registration form.
■ Select Remind me in 7 days and click OK.
13. At the InstallShield Wizard Completed window, click Finish.
If a message window opens instructing you to restart your
computer, click Restart.
STEP 2: INSTALL THE SOFTWARE 13
14. The Welcome to the OneTouch 4.0 Setup Wizard opens.
15. Click Next.
16. On the Visioneer License Agreement window, read the license
agreement. If you accept the terms, select I Agree, and click Next.
If you choose not to accept the license agreement, the installation
will terminate and the scanner driver will not be installed.
17. Click Next.
The next window lists the choices of the drivers that you can install
for your scanner.
14 VISIONEER 9750 SCANNER USER’S GUIDE
18. Select the option you want.
Note: If your computer is running Windows XP, Microsoft’s
Windows Image Acquisition (WIA) interface for scanning is always
available, regardless of your selection on this window.
■ Full Install (OneTouch, TWAIN and ISIS)—This is the
recommended installation. It installs the OneTouch 4.0 software
which provides the necessary driver software for the scanner. It also
installs scanning interfaces for the TWAIN and ISIS drivers.
Installing this option means that you can use several different
methods to scan, as explained in this User Guide.
■ TWAIN and ISIS—The TWAIN and ISIS drivers are installed.
The OneTouch 4.0 Monitor will not run and you cannot use the
OneTouch features. You can use the TWAIN driver to scan from
applications with a TWAIN interface. You can also scan from
applications that use the ISIS driver. You will not be able to scan
with the buttons on the scanner.
STEP 2: INSTALL THE SOFTWARE 15
■ TWAIN only—The TWAIN driver is installed without the
OneTouch 4.0 software or the ISIS driver. You can use the
TWAIN driver to scan from TWAIN applications. You will not be
able to scan with the buttons on the scanner.
■ ISIS only—The ISIS driver is installed. You can use applications
that use the ISIS driver to scan, such as the QuickScan application
you received with the scanner. The OneTouch 4.0 Monitor will
not run and you cannot use the OneTouch features. You will not
be able to use the TWAIN driver. You also will not be able to scan
with the buttons on the scanner.
Note: If you decide to change your scanner’s installed drivers later
on, you must first uninstall the drivers the scanner is currently using.
See the section “To Install Another Driver” on page 146.
19. Click Next.
During installation you will see this window asking you to select
one of the images for your Color Space setting.
16 VISIONEER 9750 SCANNER USER’S GUIDE
The Color Space setting sets the gamma value for the scanner so
scanned items look good on your monitor. Gamma controls the
brightness of the midtones of colors. That setting can be changed
later on as you’re scanning.
20. Select the option that looks best to you and click Next.
The driver installation will now begin.
21. STOP when you see this Installation Complete window. Do NOT
click Finish yet. Leave the window open and proceed to the next
section,“Step 3: Connect the Power Supply.”
Reminder: If your computer is running AntiVirus or AntiSpyware
software, you may see messages asking you to allow installation. Select
the option to allow installation to proceed.
Note: If you want to see more information about your scanner and a
quick explanation of how to use the OneTouch features, click the
More button on the window. When you’re finished, return to the
window above to continue with the installation process.
STEP 3: CONNECT THE POWER SUPPLY 17
STEP 3: CONNECT THE POWER SUPPLY
Connect the power supply and power cord, and plug the power supply
into an electrical outlet.
To connect the power supply:
1. Plug the power supply into its power port on the scanner.
Note: Only use the power supply (HEG42-240200-7L made by
HiTRON) included with your scanner. Connecting any other type of
power supply may damage your scanner and will void its warranty.
2. Plug the power cord into the power supply and into a wall outlet.
Now proceed to the next section, “Step 4: Connect the USB Cable
and Turn on the Power.”
18 VISIONEER 9750 SCANNER USER’S GUIDE
STEP 4: CONNECT THE USB CABLE AND TURN ON THE
OWER
P
Your Visioneer 9750 scanner connects to any available USB port. Check
your computer’s manual for the USB port locations.
Note: You can connect the scanner to your computer while the
computer is running. You do not have to shut down your computer.
1. Remove any protective tape from the USB cable.
2. Plug the USB cable into the USB port on the scanner then into a
USB port on the computer. Connection to a USB 2.0 High Speed
port provides optimum performance, however your scanner will
also connect to a USB 1.1 port.
The USB symbol, as seen in the above diagram, identifies the
location of the USB port on your computer. If the plug does not
attach easily, make sure that you are plugging it in correctly. Do not
force the plug into the connection.
You can also connect the scanner to a USB port on the computer’s
keyboard if it has one, or to a USB hub. If you use a USB hub, it
must have its own power supply already plugged into an electrical
outlet.
STEP 4: CONNECT THE USB CABLE AND TURN ON THE POWER 19
3. Turn on the power switch, located to the right of the power port.
The status light comes on and flashes indicating that the scanner is
receiving power.
If you are using Windows XP Service Pack 2, and have plugged the
USB cable into a USB 1.1 port, an information bubble may open
explaining that “A HI-SPEED USB device is plugged into a nonHI-SPEED USB hub”. Plug the USB cable into a USB 2.0 port (if
available) or just disregard the message. If you leave it plugged into
the USB 1.1 port, your scanner may scan a bit slower.
4. Your computer recognizes that a scanner has been plugged into the
USB port and automatically loads the appropriate software to run
the scanner.
20 VISIONEER 9750 SCANNER USER’S GUIDE
Do not proceed until you receive a message that your computer has
found the new hardware, or updated the driver database. If your
computer is running Windows XP, you will see the following message.
5. When you’re certain that the software has completely loaded, return
to the “Complete the installation by connecting your hardware”
window.
Note: To see more information about your scanner, click the More
button on the window. When you’re finished, return to the window
above to continue with the installation process.
6. Click OK.
The scanner’s status light is green when the scanner and computer
are communicating properly.
STEP 4: CONNECT THE USB CABLE AND TURN ON THE POWER 21
7. Click Close on the Installation Complete window to close and exit
the software installer.
You can now install free, additional software you received with your
scanner.
22 VISIONEER 9750 SCANNER USER’S GUIDE
ADDITIONAL APPLICATIONS FOR YOUR SCANNER
Your scanner includes free, additional applications on the installation
CD.
To install the additional applications:
1. Return to the Installation window and select the additional
application(s) you want to install on your computer.
2. Click Install Now.
3. When installation is finished, return to the Installation window and
click Main Menu.
VIEW THE USER GUIDES 23
VIEW THE USER GUIDES
The Installation CD also contains User Guides for your Visioneer 9750
scanner and for all the software you received with it.
To view the user guides:
1. On the Main Menu, click User Guides.
The Visioneer User Guides window opens. Use this window to view
and save the User Guides you want.
Loading...
