Visioneer 58XX User Manual

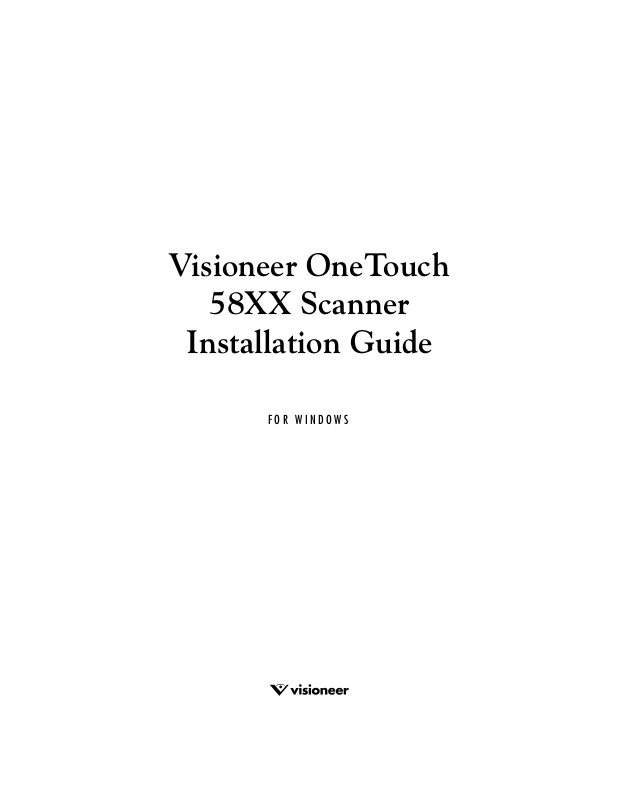

Visioneer OneTouch
58XX Scanner
Installation Guide
FOR WINDOWS
COPYRIGHT INFORMATION
Copyright © 2001 Visioneer, Inc.
Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.
The Visioneer brand name and logo are registered trademarks of Visioneer, Inc. The PaperPort brand name and logo are registered trademarks of ScanSoft, Inc.
Information is subject to change without notice and does not represent a commitment on the part of Visioneer. The software described is furnished under a licensing agreement. The software may be used or copied only in accordance with the terms of such an agreement. It is against the law to copy the software on any medium except as specifically allowed in the licensing agreement. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, or translated to another language, for any purpose other than the licensee's personal use and as specifically allowed in the licensing agreement, without the express written permission of Visioneer.
Part Number: 05-0464-002
Restricted Rights Legend
Use, duplication, or disclosure is subject to restrictions as set forth in contract subdivision (c)(1)(ii) of the Rights in Technical Data and Computer Software Clause 52.227-FAR14. Material scanned by this product may be protected by governmental laws and other regulations, such as copyright laws. The customer is solely responsible for complying with all such laws and regulations.
Visioneer's Limited Product Warranty
If you find physical defects in the materials or the workmanship used in making the product described in this document, Visioneer will repair, or at its option, replace, the product at no charge to you, provided you return it (postage prepaid, with proof of your purchase from the original reseller) during the 12-month period after the date of your original purchase of the product.
THIS IS VISIONEER'S ONLY WARRANTY AND YOUR EXCLUSIVE REMEDY CONCERNING THE PRODUCT, ALL OTHER REPRESENTATIONS, WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, WRITTEN OR ORAL, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT, ARE EXPRESSLY EXCLUDED. AS A RESULT, EXCEPT AS SET OUT ABOVE, THE PRODUCT IS SOLD “AS IS” AND YOU ARE ASSUMING THE ENTIRE RISK AS TO THE PRODUCT'S SUITABILITY TO YOUR NEEDS, ITS QUALITY AND ITS PERFORMANCE.
IN NO EVENT WILL VISIONEER BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY DEFECT IN THE PRODUCT OR FROM ITS USE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
All exclusions and limitations in this warranty are made only to the extent permitted by applicable law and shall be of no effect to the extent in conflict with the express requirements of applicable law.
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for the class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed, and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Visioneer 58xx OneTouch Scanner

Table of Contents

Welcome..................................................................................................... 1
What’s in the Box ....................................................................................... 1
What You Need.......................................................................................... 3
Getting the PaperPort Online Documentation ........................................... 3
Step 1: Installing the Scanner Software........................................................................ 4
Step 2: Connecting the Scanner .................................................................................. 5
Step 3: Checking Out Your Scanner ........................................................................... 7
Three Ways to Scan .................................................................................... 10
Scanning by Pressing the OneTouch Buttons.............................................................. 11
Scanning from the Button Panel on the Screen ........................................................... 12
Selecting New Options for the Buttons....................................................................... 16
Adjusting Scan Settings and Page Settings................................................... 18
Setting Preferences...................................................................................... 22
Scanning from the PaperPort Software........................................................ 25
Setting Up the Scanner ............................................................................................... 25
Scanning an Item Using the Twain Button................................................. 26
Adjusting Scanner Settings.......................................................................................... 29
Selecting a Predefined Scanner Setting ........................................................................ 30
Selecting Scan Configuration Options ........................................................................ 31
Customizing a Scanner Setting.................................................................................... 32
Adjusting the Brightness and Contrast ........................................................................ 33
Selecting the Area of the Item You Want to Scan........................................................ 34
Installation Troubleshooting....................................................................... 35
Cleaning the Scanner Glass......................................................................... 36
Contacting Visioneer for Technical Support ............................................... 36
Visioneer OneTouch 58XX Scanner Specifications..................................... 37
How to Uninstall your Scanner................................................................... 38

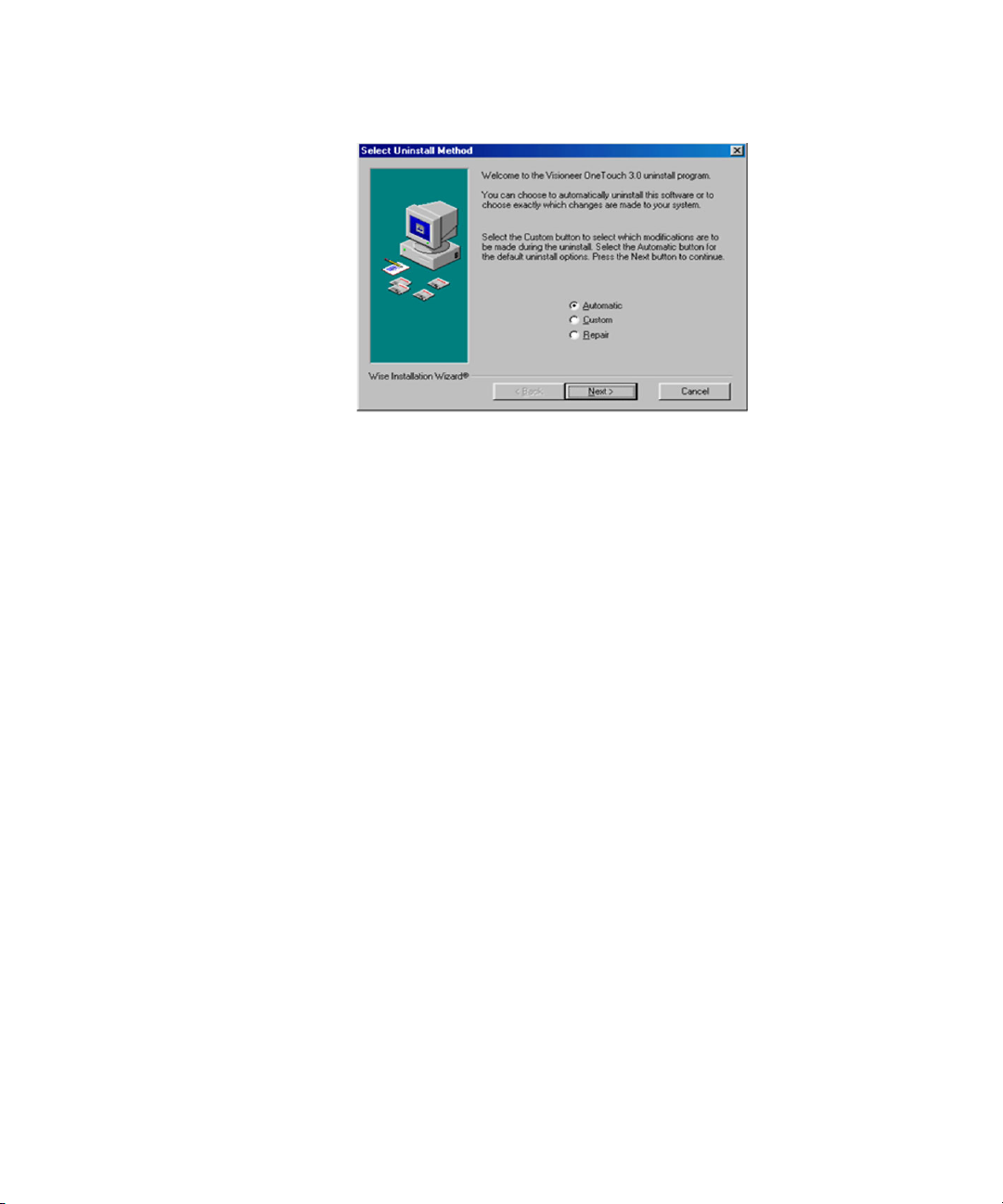

Uninstalling your Visioneer OneTouch Scanner ......................................................... 38
For Windows 98, 98 SE, &ME............................................................................... 38
For Windows 2000 & XP ....................................................................................... 38
Uninstalling your PaperPort Software ......................................................................... 40
For Windows 98, 98 SE, & ME.............................................................................. 40
For Windows 2000 & XP ....................................................................................... 41

WELCOME

Congratulations on purchasing your Visioneer OneTouch 58XX USB scanner. With your scanner, you can quickly scan paper documents and color photos to place their electronic images on your computer.

WHAT’S IN THE BOX

Before starting the installation, check the contents of the box to make sure that all parts are included. If any items are missing or damaged, contact the dealer where you purchased the scanner.
Visioneer OneTouch 58XX Scanner
Installation CD
Power supply
Note: In addition to this Installation Guide you’re reading, the Installation CD also includes the ScanSoft PaperPort Online Documentation, the guide for the ScanSoft PaperPort software. You can print a copy of either of these guides from the CD to your printer.
ISIONEER ONETOUCH
V
58XX S
CANNER INSTALLATION GUIDE
1
2
VISIONEER ONETOUCH 58XX SCANNER INSTALLATION GUIDE

THE VISIONEER ONETOUCH 58XX SCANNER

Document cover
1
Document pad
2
Glass
3
OneTouch
4
button panel
Reference frame
5
Power jack
6
USB cable
7
Document cover. Close the document cover after placing items on the scanner glass.
1
Document pad. Helps to secure the document in place on the scanner glass.
2
Glass. Place items face down on the glass, aligned at the lower left corner.
3
OneTouch buttons panel. Press a OneTouch button to scan, email, or copy an item.
4
Reference frame. Place items face down within this frame. Markings for standard (8.5”x
5
11”), A4 (8.25”x11.69”) and B5 (7.17”x10.12”) sheet sizes appear along the border of the frame.
Power jack. Plug the scanner’s power supply into this jack.
6
Universal Serial Bus (USB) cable. Plug this cable into your computer’s USB port.
7
Note: The scanner does not have an on/off switch. Simply press a button on the
front of the scanner to start scanning an item.

WHAT YOU NEED

WHAT YOU NEED
To use the scanner and software, you need the following:
■
IBM PC (or 100-percent compatible) Pentium or equivalent
■
MS Windows 98, Windows 2000, Windows Me or Windows XP
■
One available Universal Serial Bus (USB) port on your computer
■
64 megabytes (MB) or more of available internal memory (RAM)
■
70 MB of free hard disk space
■
A VGA or SVGA monitor. Recommended settings for your monitor are as many colors as possible—High Color (16-bit), True Color (24-bit or 32-bit). Set the resolution to at least 800 by 600 pixels. To set your monitor’s colors and resolution, open the Windows Control Panel, double-click Display, and then click the Settings tab.
■
A CD-ROM drive
3

GETTING THE PAPERPORT ONLINE DOCUMENTATION

The Installation CD also includes your PaperPort User’s Guide. This guide provides more detailed information about PaperPort’s features. Please see the CD to view the manual. You can also print the manual from the CD.
4
VISIONEER ONETOUCH 58XX SCANNER INSTALLATION GUIDE

STEP 1: INSTALLING THE SCANNER SOFTWARE

Note: You must install the scanner software before connecting the scanner to your computer. Otherwise, the correct driver software for your scanner will not be installed and it may not work properly.
To install the scanner software:
1. Start Microsoft Windows and make sure that no other applications are running.
2. Insert the CD into your computer’s CD-ROM drive. The CD automatically starts.
Note: If the CD does not automatically start, make sure the CD drive’s door is completely shut. If the CD still doesn’t start, click the Windows icon that shows the drives on your computer. (Usually, the icon is named My Computer.) The window shows the drives available on your computer. Double-click the icon for your CD-ROM drive to see the list of files on the CD. Double-click the file named START32.EXE. The CD starts.

STEP 2: CONNECTI NG THE SCANNER

3. When the CD window appears, click the “ScanSoft PaperPort” button. Next , click “Install ScanSoft PaperPort software”. After the ScanSoft Paperport software has been installed, restart your computer and follow the instructions on the screen to install the other scanner software on your computer.
When you are finished installing the software, a message instructs you to connect the scanner to the computer. Be sure to connect the power supply cable to your scanner.
5
4. When you’re finished, click Finish in the dialog box above.
STEP 2: CONNECTING THE SCANNER
The Visioneer OneTouch 58XX scanner connects to any available USB port. Check your computer’s manual for the USB port location.
Note: You do not have to shut off the power to your computer when connecting the scanner to a USB port.
6
VISIONEER ONETOUCH 58XX SCANNER INSTALLATION GUIDE
To connect your Visioneer OneTouch 58XX scanner:
Note: If you have not installed the software yet, unplug the cable form the computer and install the software now. When the software installation is complete a message tells you to connect the scanner.
1. Plug the USB cable on the back of your scanner into any USB port on your computer.
If the plug does not attach easily, make sure that you are plugging it in correctly. Do not force the plug into the connection.
2. Plug the power supply cable into the jack on the back of the scanner, then plug the power supply into a wall outlet.
Power supply USB Cable
A progress message appears saying that the scanner has been found. The scanner is now correctly installed.
3. To install the other software applications on the CD, reinsert the CD and wait for the opening menu to appear on the monitor. Select “MGI PhotoSuite IIISE” or “Other Great Software”. Follow the on-screen instruction to continue each installation.
4. When you are finished installing the other software, remove the CD from your computer and store it in a safe place.

STEP 3: CHECKING OUT YOUR SCANNER

STEP 3: CHECKING OUT YOUR SCANNER
The Visioneer OneTouch 58XX scanner software comes with special software, called the OneTouch software, that you to use scan with the OneTouch buttons. The OneTouch software adds the scanner icon to the Windows taskbar (at the bottom right corner of the computer screen). If the scanner is properly connected, the scanner icon looks like the one in this figure.
Scanner Icon
If the icon has a red X through it, the scanner is not properly connected. See the next section, “If the Scanner Is Not Properly Connected,” for the steps to fix the problem.
To check the status of the scanner:
1. Right-click the scanner icon in the Windows taskbar.
7
The shortcut menu appears.
2. Choose About from the shortcut menu.
A dialog box confirms that the scanner is properly connected.
8
VISIONEER ONETOUCH 58XX SCANNER INSTALLATION GUIDE
3. Click OK to close the dialog box.
That’s it. Your scanner is ready to scan.
See “Three Ways to Scan” on page 10.
Note: The scanning lamp under the scanner’s glass needs to warm up before you can scan. A status message lets you know when the lamp is ready. The lamp then remains ready so you don’t have to wait for it to warm up each time you want to scan. To conserve electricity and prolong the life of the scanner, you can set the length of time for the lamp to remain lit before powering down. See “Setting Preferences” on page 22.
IF
THE SCANNER IS NOT PROPERLY CONNECTED
If the scanner icon on the Windows taskbar has a red “X” through it, the scanner is not properly connected.
Check for one of these possible problems:
Is a cable loose or not plugged in securely? Inspect all cable
•
connections. Make sure all the cables are plugged in securely.
Is the scanner’s power light on? Turn on the scanner’s power. If the
•
light still doesn’t come on, plug the power adapter into another electrical outlet.
Did you restart the computer after installing the software? If you
•
didn’t restart the computer, it may not have loaded all of the software files. Try restarting your computer.
Please see the Readme file in the PaperPort directory on your computer’s hard drive. The Readme file contains additional information that may help you diagnose problems connecting the scanner. Also see “Installation Troubleshooting” on page 35 of this Guide for more information.
STEP 3: CHECKING OUT YOUR SCANNER
To connect the scanner:
1. After checking for all the above problems, right-click the scanner icon with the red X over it.
The shortcut menu appears.
2. Choose Connect from the shortcut menu.
The software finds the scanner and makes the connection. The scanner icon will no longer have a red X through it, and you’re ready to begin scanning.
9
If you try all the troubleshooting procedures described above and in the Readme file, and the scanner icon still has a red X through it, you may have a malfunctioning scanner. Please see “Contacting Visioneer for Technical Support” on page 36 for technical assistance telephone numbers. Also visit our web site at www.visioneer.com for additional technical information.
10
VISIONEER ONETOUCH 58XX SCANNER INSTALLATION GUIDE

THREE WAYS TO SCAN

You can scan items by pressing a OneTouch button, by clicking a button on the screen, or from the PaperPort software (or other Twain software).

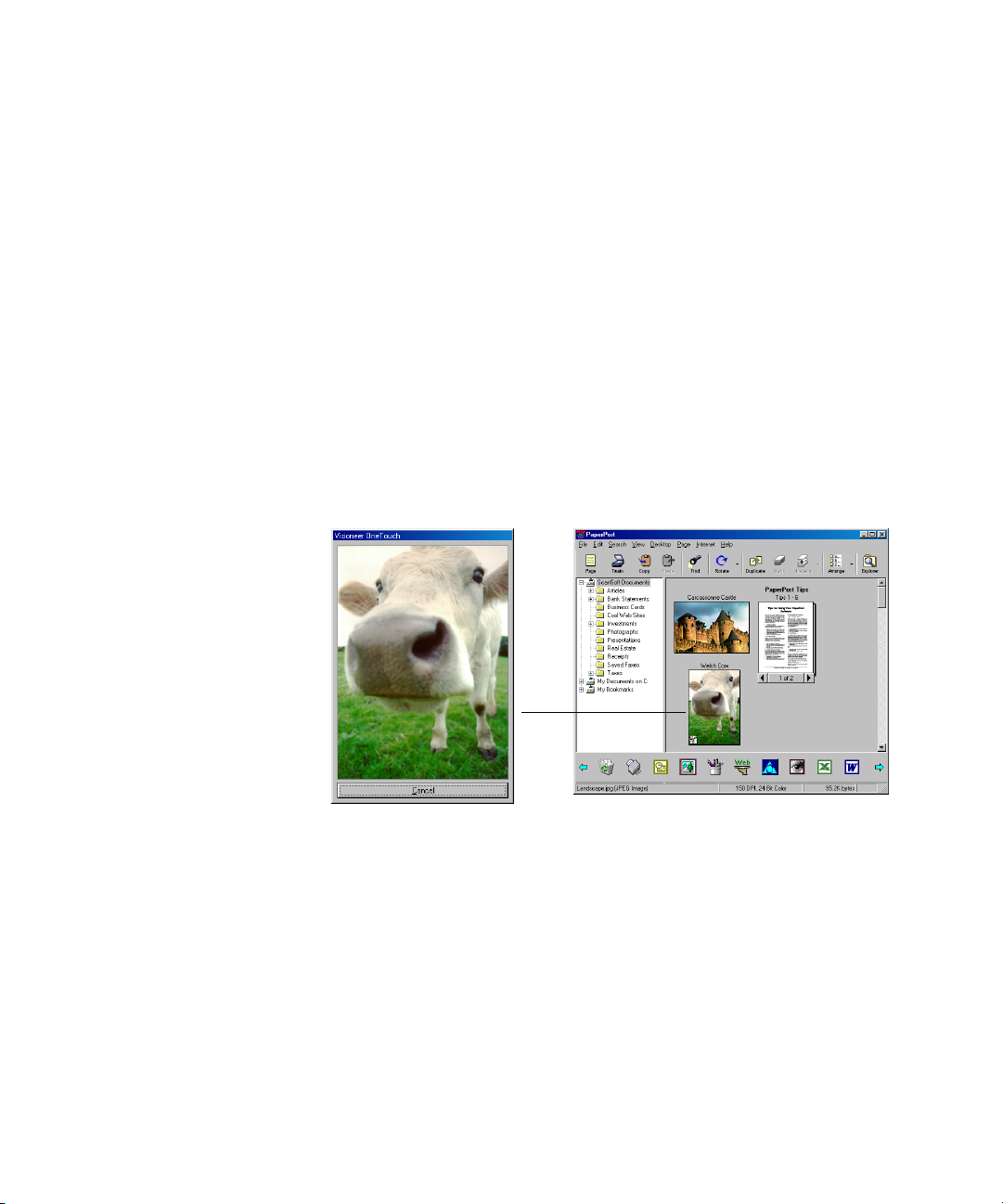

Scan with the scanner buttons.
•
Press a button on the scanner’s front panel. See “Scanning by Pressing the OneTouch Buttons” on page 11

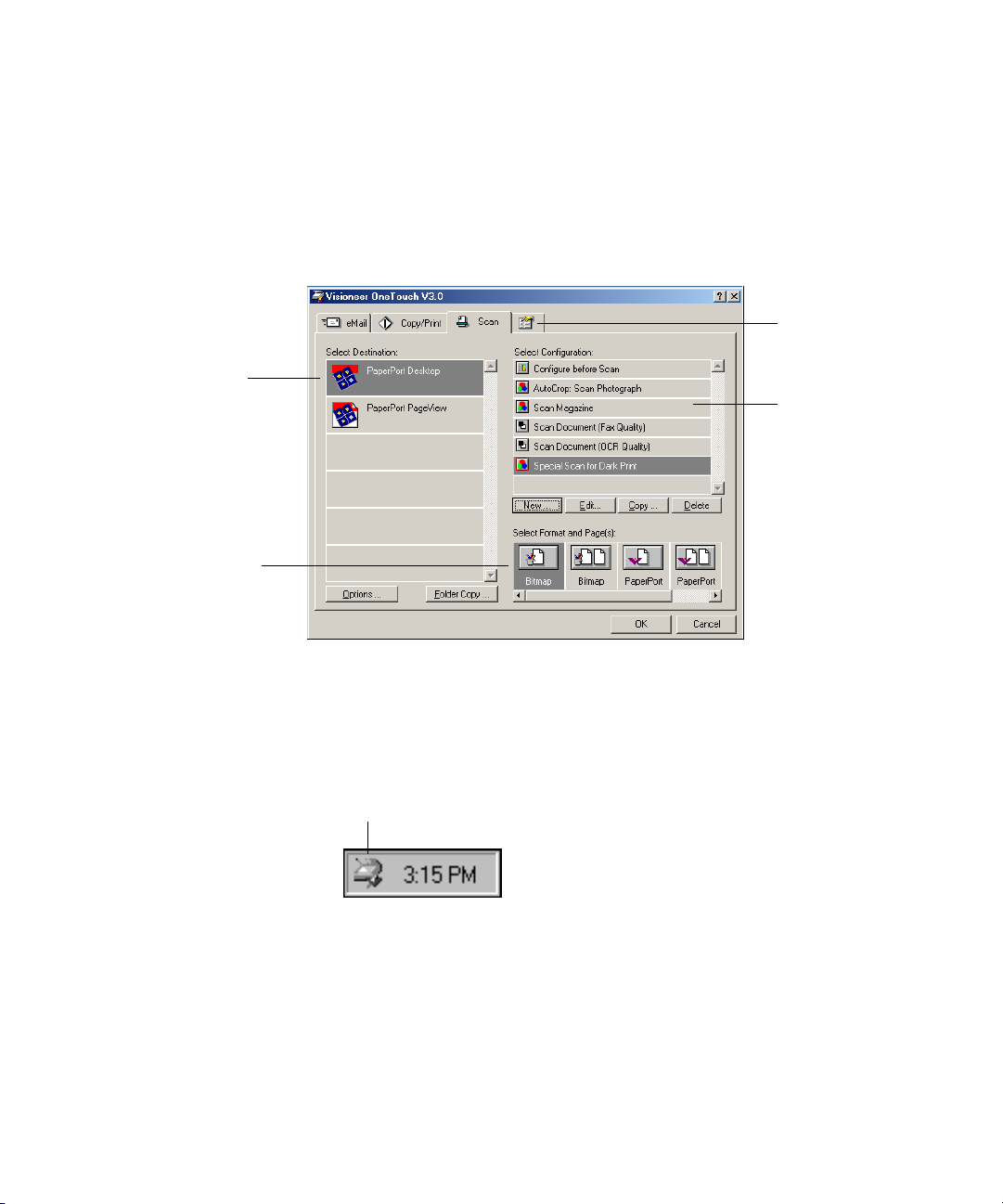

Scan from the screen
•
Click the scanner icon on the Windows taskbar. A panel representing the scanner buttons appears. Click a button on the panel on the screen. See “Scanning from the Button Panel on the Screen” on page 12 for details.
Scan from the PaperPort software (or other Twain software)
•

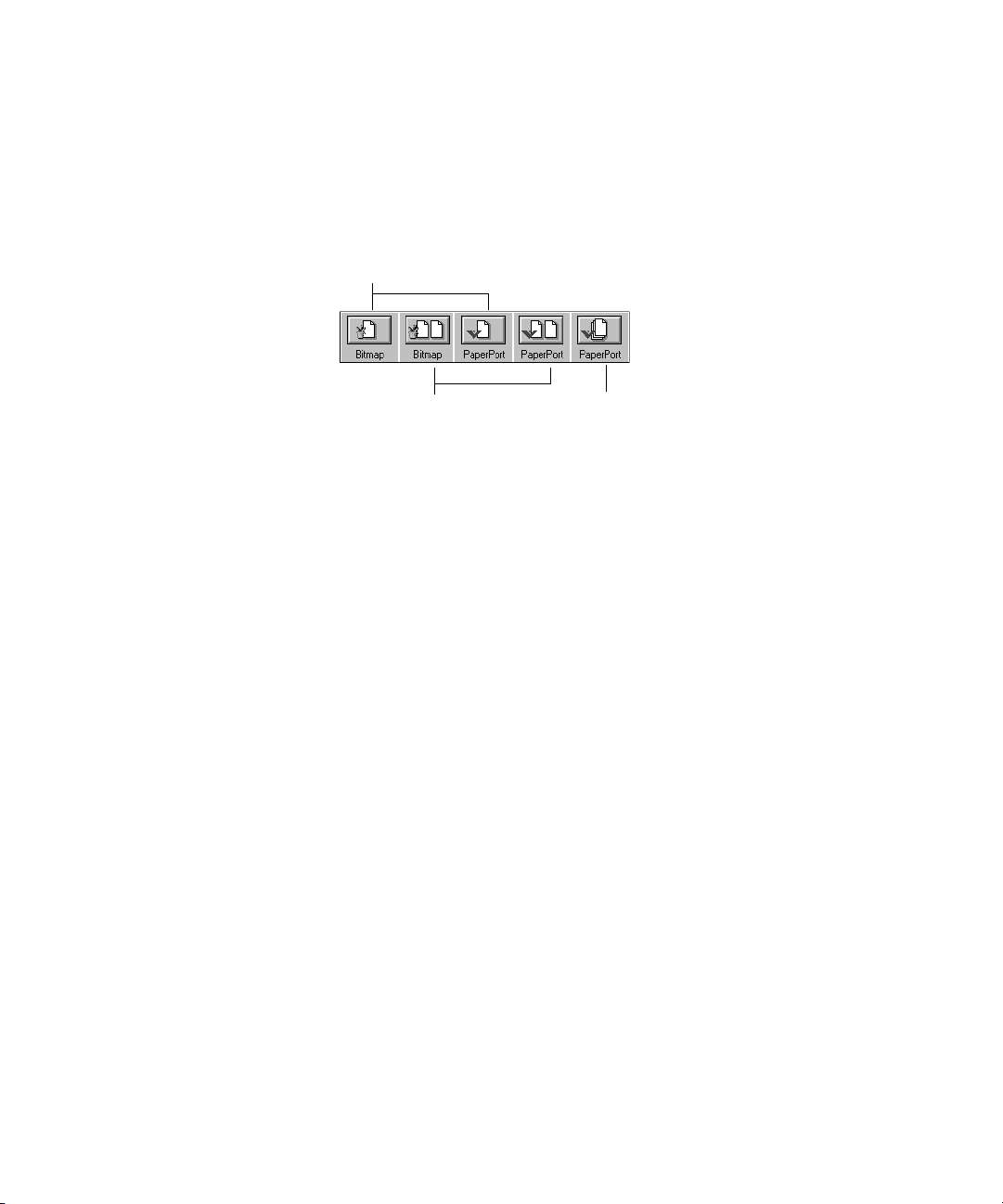

To scan from the PaperPort software, start the software, and then click the Twain icon on the PaperPort Command Bar. You can also scan from other Twain software.
See “Scanning from the PaperPort Software” on page 25 for details.
