Visioneer MX 230 User Manual

Download
Visioneer
MX 230 Digital Camera
User’s Guide
FOR WINDOWS
COPYRIGHT INFORMATION
Copyright © 2002 Visioneer, Inc.
Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.
Information is subject to change without notice and does not represent a commitment on the part of Visioneer. The software described is furnished under a licensing agreement. The software may be used or copied only in accordance with the terms of such an agreement. It is against the law to copy the software on any medium except as specifically allowed in the licensing agreement.
No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, or translated to another language, for any purpose other than the licensee's personal use and as specifically allowed in the licensing agreement, without the express written permission of Visioneer.
Part Number: 05-0549-000
Restricted Rights Legend
Use, duplication, or disclosure is subject to restrictions as set forth in contract subdivision (c)(1)(ii) of the Rights in Technical Data and Computer Software Clause 52.227-FAR14. Governmental laws and other regulations, such as copyright laws, may protect images captured by photography or video using this product. The customer is solely responsible for complying with all such laws and regulations.
Technical Support
Visit Visioneer’s web site at www.visioneer.com for technical support, including help during installation, driver updates, spare parts, and documentation.
Visioneer’s 90-Day Limited Product Warranty (upgradable to one year)
If you find physical defects in the materials or the workmanship used in making the product described in this document, Visioneer will repair, or at its option, replace, the product at no charge to you, provided you return it (postage prepaid, with proof of your purchase from the original reseller) during the 3-month period after the date of your original purchase of the
product. Upon registration of the product with Visioneer at www.visioneer.com, the warranty is automatically extended for an additional 9 months for a total of 12 months.
THIS IS VISIONEER'S ONLY WARRANTY AND YOUR EXCLUSIVE REMEDY CONCERNING THE PRODUCT, ALL OTHER REPRESENTATIONS, WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, WRITTEN OR ORAL, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT, ARE EXPRESSLY EXCLUDED. AS A RESULT, EXCEPT AS SET OUT ABOVE, THE PRODUCT IS SOLD “AS IS” AND YOU ARE ASSUMING THE ENTIRE RISK AS TO THE PRODUCT'S SUITABILITY TO YOUR NEEDS, ITS QUALITY AND ITS PERFORMANCE.
IN NO EVENT WILL VISIONEER BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY DEFECT IN THE PRODUCT OR FROM ITS USE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
All exclusions and limitations in this warranty are made only to the extent permitted by applicable law and shall be of no effect to the extent in conflict with the express requirements of applicable law.
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for the class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed, and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
TABLE OF CONTENTS
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Camera Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
What’s in the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Camera Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Bottom and End View . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Getting Ready to Take Pictures . . . . . . . . . . . . . . . . . . . . . . . .9
Install the Batteries and Memory Card . . . . . . . . . . . . . . . .9
Set the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Set the Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Taking Pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Reviewing and Deleting Pictures . . . . . . . . . . . . . . . . . . . . . .17
Exploring Your Camera’s Features . . . . . . . . . . . . . . . . . . . . .19
Snapshot Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Video Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Preset Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Playback Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Set Up Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
PC Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
The LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Connecting to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . .37
i
ii VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
Install Software on Your Computer . . . . . . . . . . . . . . . . 38
Connect to Your Computer the First Time . . . . . . . . . . 40
Copying Images to Your Computer . . . . . . . . . . . . . . . . . . . 42
Using Your Camera as a PC Camera . . . . . . . . . . . . . . . . . . . 46
Connecting to a Television . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Printing Directly to a Printer . . . . . . . . . . . . . . . . . . . . . . . . 51
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Uninstalling the Visioneer Digital Camera Utility . . . . . . . . 54
US and Canada Technical Support . . . . . . . . . . . . . . . . . . . . 55
International Technical Support . . . . . . . . . . . . . . . . . . . . . . 55
MX 230 Digital Camera Specifications . . . . . . . . . . . . . . . . . 57

WELCOME

Congratulations on the purchase of your Visioneer MX 230 digital camera. This user’s guide will step you through the set up, configuration, and use of your camera.

CAMERA FEATURES

■ Digital Zoom (up to 3x)
■ Optical Zoom (up to 3x)
■ Up to 2048 x 1536 resolution
■ Color LCD viewfinder screen
■ Video clip recording (up to 1 minute)
■ Microphone and speaker for recording and playback of the
audio component of video clips
■ USB 1.1 interface
■ Auto exposure, user-defined exposure, auto focus
■ Flash: Auto / Always on / Red-eye reduction / Off
■ White balance modes: Auto / Daylight /Shade / Tungsten /
Fluorescent
■ 10-second timer mode
■ Full-screen or thumbnail photo review
2 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE

SAFETY INFORMATION

■ Do not look at the sun through the viewfinder. Viewing the
sun or other strong light source through the viewfinder could cause permanent visual impairment.
■ Do not disassemble the camera. Tou ch in g t he ca me ra’s
internal parts could result in injury. In the event of malfunction, only a qualified technician should repair your camera. Should the camera break as a result of a fall or other accident, take it to an authorized service center.
■ Avoid contact with the liquid crystal. Should the liquid crystal
display (LCD) break, care should be taken to avoid injury due to broken glass and to prevent the liquid crystal from touching the skin or entering the eyes or mouth.
■ Do not use the camera in the presence of flammable gas.
Using electronic equipment near flammable gas could result in explosion or fire.
■ Observe proper precautions when handling batteries. Use
only size AA alkaline or NiMH batteries. Batteries my leak or explode if handled improperly. Remove the batteries (and the memory card) from the camera if you are going to store the camera for an extended period of time. Ensure the camera is turned off before inserting or removing batteries. Do not insert batteries backwards or upside down. Do not disassemble batteries or expose them to flame or excessive heat. Do not
SAFETY INFORMATION 3
immerse batteries in or expose them to water. Discontinue use immediately if you notice any changes in the batteries such as discoloration, deformation, or leakage.
■ Use caution when operating the flash. Do not use the flash in
close proximity to human or animal eyes. Exposure to the intense light produced by the flash may damage eyesight. Particular care should be used when photographing infants
—
keep the flash at least three feet from infant’s eyes.
4 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE

WHAT’S IN THE BOX

Before using your digital camera, check the contents of the box to make sure that all parts are included. If any items are missing or damaged, contact the dealer where you purchased the camera.
MX 230 Digital Camera
Software CD
User’s Guide
USB Cable
2 AA Alkaline or NiMH Batteries
Quick Start Card
Quick Start Guide
Video Cable
Carrying Case
Hand Strap
CAMERA COMPONENTS 5

CAMERA COMPONENTS

The following pages show the components of your camera.

FRONT VIEW

1
2
1. Shutter Button—Used to take a picture.
2. Built-in Flash—Allows picture taking in low light.
3
4
7
5
6
6
3. Viewfinder—Frames the picture you are taking.
4. Light Sensor—Determines whether or not the flash is needed.
5. Optical zoom lens—Zooms up to x3.0.
6. Microphone and Speaker—Used to record and play back the
audio portion of movie clips.
7. Self-timer LED—Blinks for ten seconds before takes a picture.
6 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE

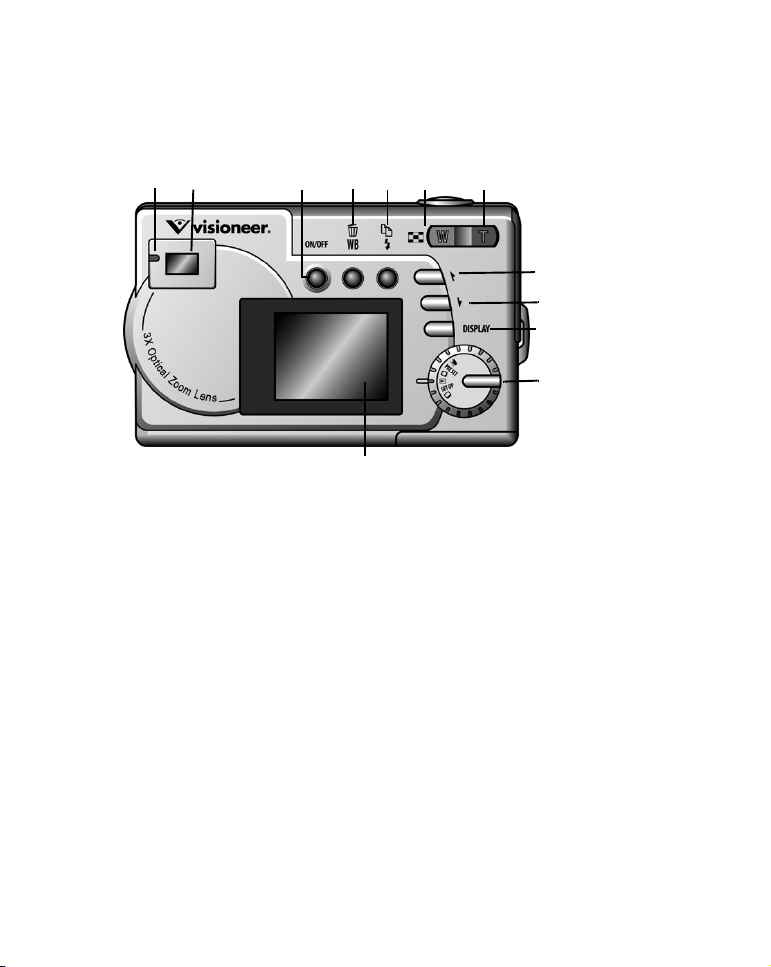

BACK VIEW

2
1
4
12
5
7
6
8
9 10
11
3
1. Status LED—Shows the picture-taking status of the camera.
When the camera is available to take a picture or accept user commands, the LED is a solid green light. When the camera is unavailable, the LED flashes.
2. Viewfinder—Used to frame the picture you are taking.
3. On/Off button—Used to turn the camera on and off.
4. Delete/WB—In Snapshot mode, cycles through white balance
setting options. In Playback mode, deletes selected photos.
5. Flash/Copy—In Snapshot mode, cycles through flash setting
options. In Playback mode, copies pictures from the internal to the external menu, and vice versa.
CAMERA COMPONENTS 7
6. Wide Angle/Thumbnail—In Snapshot mode, the camera
zooms out from the subject. In Playback mode, the LCD switches between full-screen and thumbnail views.
7. Tel e p ho t o—In Snapshot mode, the camera zooms in on the
subject. In Playback mode, the LCD zooms in on an image.
8. Up Button—Cycles through menu items in Set Up mode and
photos in Playback mode.
9. Down Button—Cycles through menu items in Set Up mode
and photos in Playback mode.
10. Display—Cycles through display options for the LCD. Also
used to select items when in Set Up mode.
11. Mode Dial—Selects the cameras mode: Video, Preset,
Snapshot, Playback, Set Up, and PC.
12. LCD—Based on the selected mode, the LCD is used to
preview photos, playback existing photos, view messages, and configure camera settings.
8 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE

BOTTOM AND END VIEW

5
3
4
1
2
1. Tri p od C on n ec to r —Attaches the camera to a tripod.
2. Battery/Memory Card Cover—Covers the battery chamber
and memory card slot.
3. USB, Video Out, and DC In Ports
■ The USB (Universal Serial Bus) port connects the camera
to a computer.
■ The Video Out port connects the camera to a television.
■ The DC In port connects an AC adapter to an external
source of electricity (purchased separately).
6
4. Hand Strap Loop—Connects the camera to the hand strap.
5. Memory Card Slot—Holds a Secure Digital memory card
(purchased separately).
6. Battery Chamber—Holds two AA alkaline or NiMH
batteries.
GETTING READY TO TAKE PICTURES 9

GETTING READY TO TAKE PICTURES

Complete the following installation and setup steps to prepare your camera for taking pictures.

INSTALL THE BATTERIES AND MEMORY CARD

Note: If you prefer to store your photos on the camera’s internal
memory, you do not need to install a memory card.
To install the batteries:
1. Open the battery/memory card cover.
■ Press on the cover and slide it in the direction of the arrow,
toward the outside edge of the camera.
■ Lift the cover to its fully open position.
2. Insert the batteries into the battery chamber making sure they are oriented as indicated above the battery chamber.
■ The battery nearest the outside edge of the camera has its
positive end on top and the battery furthest from the outside edge has its negative end on top.
10 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
To install the memory card:
1. Insert the Secure Digital memory card with the notched corner facing the inside edge of the camera.
2. Close the battery/memory card cover.
■ If you have difficulty closing the cover, ensure that the
memory card is installed correctly.
Note: After initial setup of your camera, turn the camera off
prior to opening the battery/memory card cover.
GETTING READY TO TAKE PICTURES 11

SET THE DATE AND TIME

When you transfer a photo to a computer or print a photo, the time and date the photo was taken are shown.
To set the displa y style:

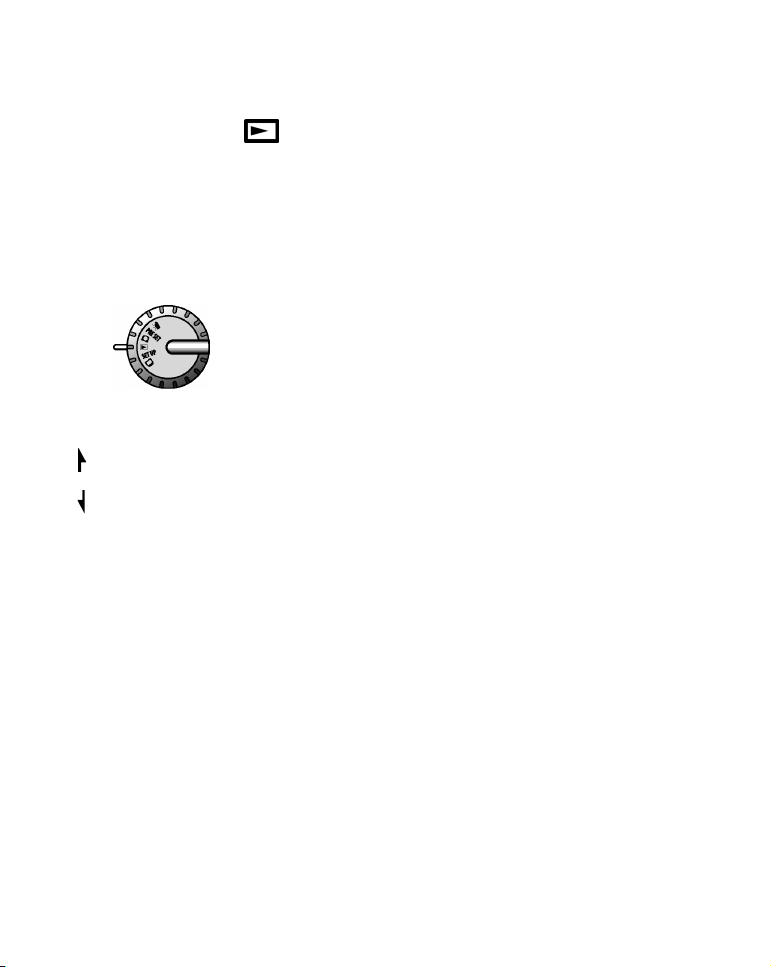

1. Rotate the Mode dial to Set Up.
SET UP
2. Press the On/Off button, located on the back of the camera, to turn the camera on.
3. Use the Down button , located on the back of the camera, to select Date/Time, and then press the Display button.
12 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
4. Select the Style option and then press the Display button.
5. Use the Up or Down buttons to select the Month/Day or Day/Month display style.
6. Press the Display button to save your selection.
To set the date and time:
1. On the Set Up menu, select Date/Time, and then press the Display button.
2. Use the Down button to select Clock, and then press the Display button.
GETTING READY TO TAKE PICTURES 13
3. Use the Up or Down buttons to set the correct hour (using a 24-hour clock). When finished, press the Copy button
to move to the minutes area.
4. Repeat the procedure in Step 3 to set the minutes, year, month, and day.
5. When finished, press the Display button.
Note: To exit at any time without saving changes, press the
Delete button.

SET THE LANGUAGE

Your camera can display text and messages in English, Spanish, German, French, Italian, and Japanese.
To change the language setting:
1. Rotate the Mode dial to Set Up.
SET UP
14 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
2. If the camera is not already on, press the On/Off button located on the back.
3. Use the Down button to select Language, and then press the Display button.
4. Use the Up and Down buttons to select a language, and then press the Display button to save the change.
TAKING PICTURES 15
W

TAKING PICTURES

You are now ready to take a picture. For basic point-and-click picture taking, use the Snapshot mode described below. To customize settings or use different modes, see “Exploring Your Camera’s Features” on page 19.
To take a picture:
1. Press the On/Off button located on the back of the camera to turn the camera on.
■ After a short pause, the LED stops flashing. The camera is
ready to take a picture.
2. Rotate the Mode dial to Snapshot.
3. Look through the viewfinder to aim the camera at the subject.
■ Or press the Display button to turn on and view the subject
through the LCD.
4. If desired, use the Telephoto and Wide Angle buttons to
T
zoom in and out on the subject.
■ When zooming in, the optical zoom is first activated. After
zooming to a maximum of x3.0, if you continue to press the Telephoto button, the digital zoom is activated.
16 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
5. Press the Shutter button half-way down to initiate the camera’s automatic image processing functions.
6. Press the Shutter button all the way down to take the picture.
7. Turn the camera off when you are finished taking pictures to conserve the batteries.
REVIEWING AND DELETING PICTURES 17

REVIEWING AND DELETING PICTURES

After you take a picture, you can immediately review the results. You can then keep or discard the picture.
To review pictures:
1. Rotate the Mode dial to Playback and turn the camera on.
2. Press the Up and Down buttons to scroll through the pictures you’ve taken.
3. Press the Telephoto button to see more details of a picture.
■ The default zoom setting is x1.0. Each time you press the
Telephoto button, the zoom ration increases as follows: x1.5, x2.5, x3.0, x3.5, x4.0.
4. Press the Wide Angle button to decrease the zoom ratio.
5. To view up to nine pictures at once, press the Thumbnail button when the zoom ratio is at the default, x1.
■ Press the Up and Down buttons to scroll through screens
of thumbnails. Press the Shutter button or the Wide Angle button to return to the full-screen view.
W
T
W
18 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
To delete a picture:
1. While in Playback mode, press the Up and Down buttons to scroll and find the photo to delete.
2. Press the Delete button to select the photo for deletion.
3. Press the Display button to delete the photo from memory.
EXPLORING YOUR CAMERA’S FEATURES 19

EXPLORING YOUR CAMERA’S FEATURES

You now know how to take pictures using the snapshot and review features of your camera. There are many other features available to customize and enhance your picture-taking experience. These features are accessed using the Mode dial. This section describes the features of the six modes, and the function of the buttons in each mode.

SNAPSHOT MODE

As you have seen, Snapshot mode is used for taking pictures.
Button functions in Snapshot mode:
Up Button: Increases the camera lens’ exposure value, which
allows more light into the lens.
Down Button: Decreases the camera lens’ exposure value, which
allows less light in the lens.
DISPLAY
Display Button: Cycles through LCD display options:
■ LCD on: Status information is displayed.
■ LCD on: No status information is displayed.
■ LCD off: The LCD is turned off. This is the default display
option when the camera is first turned on.
20 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
Flash: Cycles through settings for the flash.
■ Auto: The camera determines when the flash is needed.
■ On: The flash is always on, whether needed or not.
■ Red-eye reduction: Reduces the appearance of red-eye
in photos caused by flash reflection off of the subject’s eyes. The camera flashes quickly before the picture is taken to reduce the occurrence of red-eye.
■ Off: The flash is off, whether needed or not.
White Balance: Cycles through settings for white balance.
WB
■ Auto: Camera determines the white balance setting.
■ Daylight: Used in bright daylight, to reduce the effect of
whitewashed pictures.
■ Shade: Used in the shade, or if the picture is dark.
■ Incandescent light: Used under incandescent light.
■ Fluorescent light: Used under fluorescent light.
Telephoto: Narrows the field framed by the camera’s lens.
T
■ When you press the Telephoto button, the optical zoom is
activated. The field is narrowed from x1.0 to x3.0 in increments of .25. If you continue to press the Telephoto button the digital zoom is activated. The digital zoom narrows the field from x1.0 to x3.0 in increments of .2.
Wide Angle: Widens the field framed by the camera’s lens.
W
EXPLORING YOUR CAMERA’S FEATURES 21

VIDEO MODE

Video mode allows you to record up to 60-second, audio movies.
Note: The length of time available for recording a video clip is
dependent on the available memory on the Secure Digital card (or the internal memory).
To record a vide o clip:
1. Turn the Mode dial to Video.
2. Press the Shutter button to begin recording. The microphone turns on automatically.
■ By default the camera records for 60 seconds (or the time
available) and then stops recording. The time remaining is displayed on the upper-right corner of the LCD. However, if you press the Shutter button a second time, recording stops before the time limit is reached.
3. Switch to the Playback mode to view and listen to the video clip. See “Playback Mode” on page 24.
22 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
Button functions in Video mode:
Use the buttons during recording of the video clip.
Up Button: Increases the camera lens’ exposure value, which
allows more light into the lens.
Down Button: Decreases the camera lens’ exposure value, which
allows less light in the lens.
Tel ep ho to : Narrows the field framed by the camera’s lens.
T
■ When you press the Telephoto button during recording of a
video clip, the optical zoom is activated. The field is narrowed from x1.0 to x3.0 in increments of .25. If you continue to press the Telephoto button the digital zoom is activated. The digital zoom narrows the field from x1.0 to x2.0 in increments of .2.
Wide Angle: Widens the field framed by the camera’s lens.
W
EXPLORING YOUR CAMERA’S FEATURES 23

PRESET MODE

Preset mode provides five preset settings that are optimized for taking specific types of pictures as described below. Use the Up and Down buttons to select the option for the type of picture you want to take.
Preset options:
Landscape: Optimized for taking landscape pictures, with the lens focus evenly distributed to encompass everything within the frame. The flash is set to Off and white balance to Daylight.
Portrait: Optimized for taking a head shot, with the lens
focused on the center of the frame.
Night Scene: Optimized for taking photos at night, with the lens aperture open wider and longer to gather as much ambient light as possible. The flash is set to Off. When using this preset, hold the camera as still as possible (or place on a steady surface) to minimize blurring that may result from the longer exposure.
Self-Timer: Takes a picture after a 10-second delay.
Macro: Optimized for taking close-up shots of objects or people within one foot or less of the camera. The red-eye reduction feature is turned on.
PRE SET
24 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE

PLAYBACK MODE

Playback mode is used to view the photos or video clips stored in the internal memory or on the Secure Digital card.
To review photos and video clips:
1. Turn the Mode dial to Playback.
Button functions in Playback mode:
Up Button: Moves to the next image.
Down Button: Moves to the previous image.
DISPLAY
T
Display Button: Cycles through LCD display options:
■ LCD on, status information displayed
■ LCD on, no status information displayed
Telephoto: Narrows the field framed by LCD, from x1.0 to x4.0. The default zoom setting is x1.0. Each time you press the Telephoto button, the zoom ration increases as follows: x1.5, x2.5, x3.0, x3.5, x4.0.
Wide Angle: Widens the field framed by the LCD, from x4.0
W
to x1.0.
EXPLORING YOUR CAMERA’S FEATURES 25
■ If you press the Thumbnail button when the zoom ratio is
at x1, the LCD displays up to nine thumbnail images at once.
Press the Up and Down buttons to scroll through screens of nine thumbnails at a time. Press the Wide Angle or the Shutter button to return to the full-screen view.
Copy: Copies the selected image from the internal memory to
the memory card or vice versa.
Delete: Deletes the selected image.
Note: If an image is a video clip, a video camera icon appears in
the upper-left corner of the image. To view and listen to the video clip, press the Shutter button. To stop the video clip, press the shutter button again.
26 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
SET UP

SET UP MODE

Set Up mode is used to configure your camera. When you turn the Mode dial to Set Up, the following menu displays on the LCD. Each menu option is described below.
Note: To exit a Set Up mode selection without saving changes,
press the Delete button.
Delete All: This option is used to delete all images from the internal memory or the Secure Digital card. To determine, or change, the current memory type, refer to “Memory Type” on page 31.
1. From the Set Up menu, press the Up or Down buttons to
select Delete All, and then press the Display button.
2. On the Delete All screen, press the Up or Down buttons to
select No or Yes , and then press the Display button.
Format: This option is used to erase and reformat the Secure Digital card. You should occasionally format the Secure Digital card to ensure it functions optimally.
EXPLORING YOUR CAMERA’S FEATURES 27
1. From the Set Up menu, press the Up or Down buttons to select Format, and then press the Display button.
2. On the Format screen, press the Up or Down buttons to select No or Yes , and then press the Display button.
Quality: This option is used to adjust the quality and resolution of your pictures. The higher the quality, the clearer your pictures. However, higher quality images are larger, meaning that you cannot store as many in memory. Generally, Normal quality (800 x
600) is satisfactory for most uses.
You can choose from five resolutions. The approximate number of pictures you can store in the internal memory for each resolution is shown below.
■ 2048 x 1536 (Super) 7
■ 1600 x 1200 (Fine) 7
■ 1600 x 1200 (Normal) 16
■ 800 x 600 (Fine) 27
■ 800 x 600 (Normal) 60
28 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
1. From the Set Up menu, press the Up or Down buttons to select Quality, and then press the Display button.
2. On the Quality screen, press the Up or Down buttons to select the desired picture quality, and then press the Display button.
Buzzer: This option is used to set the camera to beep when you push its buttons or rotate the Mode dial.
1. From the Set Up menu, press the Up or Down buttons to select Buzzer, and then press the Display button.
2. On the Buzzer screen, press the Up or Down buttons to select On or Off, and then press the Display button.
EXPLORING YOUR CAMERA’S FEATURES 29
DPOF: This option (Digital Printer Order Format) allows you to print photos directly to a printer that supports this protocol. For more details, see“Printing Directly to a Printer” on page 51.
1. From the Set Up menu, press the Up or Down buttons to select DPOF, and then press the Display button.
2. On the DPOF screen, press the Up or Down buttons to choose to set print options for selected images or all images on the storage device. After selecting, press the Display button.
If you choose the Select Images option:
■ Press the Up and Down buttons to select an image to
print. The order in which you select the images is the order in which they will print.
■ Press the Copy button to highlight Copies.
■ Press the Up and Down buttons to select the number of
copies of the image to print.
■ Press the Copy button to highlight Date.
■ Press the Up and Down buttons to select Ye s or No to
indicate whether or not to print the date on the photos.
■ Press the Display button to save the settings.
30 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
If you choose the All Images option:
■ Press the Copy button to highlight Copies.
■ Press the Up and Down buttons to select the number of
copies of the image to print.
■ Press the Copy button to highlight Date.
■ Press the Up and Down buttons to select Ye s or No to
indicate whether or not to print the date on the photos.
■ Press the Display button to save the settings. The settings
apply to all of the images.
To reset or edit settings:
■ On the DPOF screen, press the Up and Down buttons
to choose the Select Images or All Images option. After making your selection, press the Display button.
■ Press the Up and Down buttons to select the Reset or
Edit option.
The Reset option erases all of the DPOF settings, and the Edit option allows you to change current Copies and Date settings for selected images or all images.
■ Press the Display button to reset or save the edits.
Date/Time: This option is used to set the time and date associated with each photo that you take. See “Set the Date and Time” on page 11 for details.
EXPLORING YOUR CAMERA’S FEATURES 31
Memory Type: This option is used to set where photos are stored; in the internal memory or on the Secure Digital card.
1. From the Set Up menu, press the Up or Down buttons to select Memory Type, and then press the Display button.
2. On the Memory Type screen, press the Up or Down buttons to select Internal or External (Secure Digital card), and then press the Display button.
Language: This option is used to set the display language for menus and the LCD. The following languages are available; English, Spanish, German, French, Italian, and Japanese. See “Set the Language” on page 13 for details.
Video Out: This option is used when you are connecting your camera to a television set using the video cable. You must choose a transmission format that is compatible with your television if you want to record the transmitted video images with a VCR.
32 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
1. From the Set Up menu, press the Up or Down buttons to select Video Out, and then press the Display button.
2. On the Video Out screen, press the Up or Down to select NTSC or PAL , and then press the Display button.
Note: The NTSC format is typically used in North America
and the PAL format is typically used outside of North America.

PC MODE

PC mode is used to allow your camera to be used as a PC camera. After connecting your camera to your PC via the USB port, you can use your camera to create videos and snapshots directly on your computer.
For details, see “Connecting to a Computer” on page 37 and “Using Your Camera as a PC Camera” on page 46.
To use your camera as a PC camera:
1. Turn the Mode dial to PC.
2. Use the supplied USB cable to connect the camera to your PC.
THE LCD 33

THE LCD

When your camera is in any mode, other than Set Up and PC, current camera settings are displayed as icons on the LCD. This section describes each display area and the associated icons.
Zoom
Memory
Preset
Flash Setting
Zoom Indicator
WB Setting
Ratio
in Use
Pictures Remaining
Quality
Battery Status
Date/Time
EV
34 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
ZOOM INDICATOR
Indicates the zoom level when in Snapshot mode. The lower (white) portion of the bar indicates the optical zoom and the upper (red) portion of the bar shows the digital zoom.
LASH SETTING
F
Indicates the current flash setting. No flash icon means the camera is set to automatically determine whether or not the flash is needed.
Flash Off: The flash is turned off, whether needed or not.
Red-Eye Reduction: Reduces the appearance of red-eye in
photos caused by flash reflection off of the subject’s eyes.
Flash On: The flash is always on, whether needed or not.
RESET
P
Indicates the current Preset mode setting, if any. See “Preset Mode” on page 23 for additional details.
Landscape: Optimized for taking landscape pictures.
Portrait: Optimized for taking a head shot.
Night Scene: Optimized for taking photos at night.
Self-Timer: Takes a picture after a ten-second delay.
Macro: Optimized for taking shots within one foot or less.
THE LCD 35
WHITE BALANCE SETTING
Indicates the current White Balance (WB) setting. If there is no setting indicated, the camera is set to automatically determine the appropriate white balance.
Daylight: For taking pictures in bright daylight, to reduce
the effect of whitewashed pictures.
Shade: For taking pictures in the shade, or if picture is dark.
Incandescent: For taking pictures under incandescent light.
Fluorescent: For taking pictures under fluorescent light.
EMORY IN USE
M
Indicates the current memory type in use. See “Memory Type” on page 31 for setup details.
IN: Indicates the camera’s internal memory is currently in use.
EX: Indicates the external memory (Secure Digital) is in use.
OOM RATIO
Z
Indicates the current digital zoom setting as follows:
■ In Snapshot mode, from x1.0 to x3.0.
■ In Playback mode, (on upper-left of LCD) from x1.0 to x4.0.
■ In Video mode, from x1.0 to x2.0.
36 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
PICTURES REMAINING
Indicates the number of pictures remaining on the selected memory (internal or external). The number is based on the available space in memory and the quality/resolution setting. If the camera is in Video mode, the available recording time is indicated.
UALITY
Q
Indicates the current selection for picture quality and resolution. See “Quality” on page 27 for setup details.
ATE / TIME
D
Indicates the date and time, as defined in the Set Up area of your camera. See “Set the Date and Time” on page 11 for setup details. In Playback mode, the date and time indicates when the picture was taken.
XPOSURE VALUE (EV)
E
When in Snapshot or Video modes, indicates the current exposure value. Increasing the exposure value allows more light into the lens. You can increase or decrease the exposure value by pressing the Up and Down buttons.
ATTERY STATUS
B
Indicates the level of battery power remaining.
CONNECTING TO A COMPUTER 37

CONNECTING TO A COMPUTER

This section describes the procedures to install software and connect your camera to your computer. You can then copy photos to your computer or use it as a PC camera.
OPYING PHOTOS AND VIDEO CLIPS TO A COMPUTER
C
Your digital camera stores images as digital data, rather than on film. This means you can copy your photos and video clips to a computer for storage, viewing, printing, and distribution.
After copying to your computer, you can delete the copies stored on the camera’s internal memory or the Secure Digital card. Deleting images from your camera frees up space for new photos and video clips.
SING YOUR CAMERA AS A PC CAMERA
U
With your camera in PC mode, you can use it with the supplied Visioneer Digital Camera Utility software to create your own video clips. You can also use other commercially available video capture software and real-time video conferencing software such as Microsoft NetMeeting
TM
.
38 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE

INSTALL SOFTWARE ON YOUR COMPUTER

Before connecting your camera, you must install software on your computer. This is a one-time procedure that installs the TWAIN drivers and utility program that allow your camera to communicate with your computer via the USB cable.
To install the so ftware:

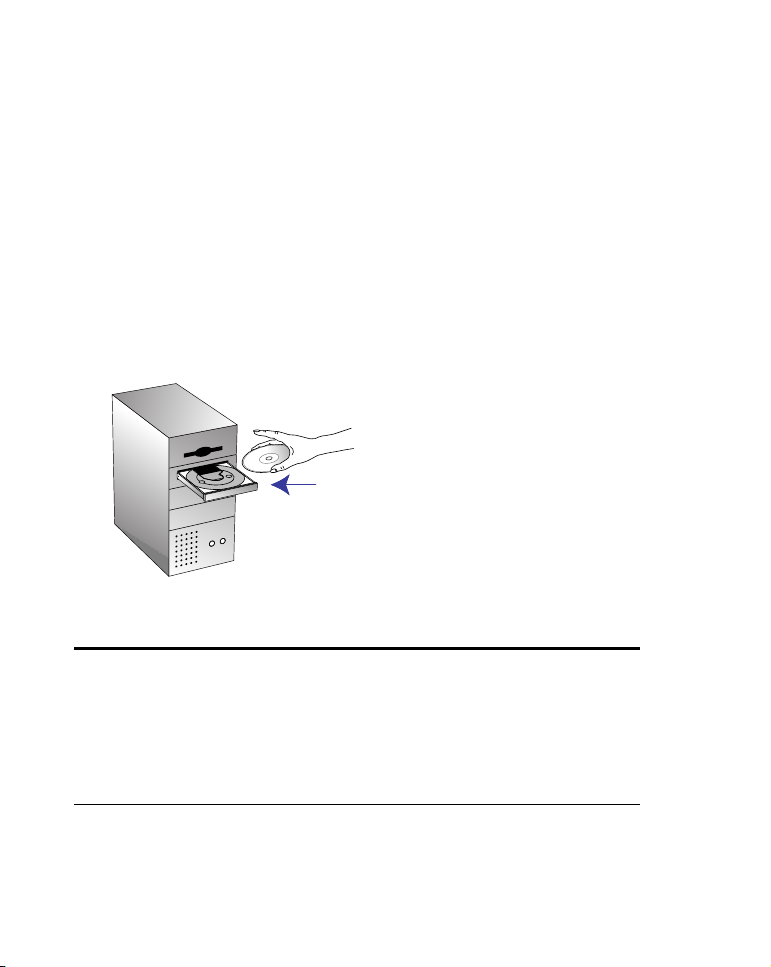

1. Insert the installation CD that came with your camera into your computer’s CD-ROM drive.
The CD automatically starts.
Note: If the CD does not start, check the following:
■ Make sure the CD drive’s door is completely shut.
■ Click the My Computer icon on your desktop. Double-
click the icon for your CD-ROM drive. From the list of files on the CD, double-click the file named SETUP.EXE.
CONNECTING TO A COMPUTER 39
2. From the main menu screen, click Install Visioneer Camera.
3. On the Choose Setup Language screen, select the desired
language from the drop-down list, and then click OK.
4. Follow the installation instructions as described below:
■ On the Welcome screen, click Next.
■ On the Select Components screen, click Next.
■ On the Microsoft DirectX 8.1 Setup screen, read the license
agreement. If you accept the terms, click Ye s.
■ On the DirectX(R) Setup screen, click Install.
■ On the DirectX Setup completion message, click OK.
5. On the Setup Complete window, select Yes, I want to restart my computer now, remove the CD, and then click Finish.
40 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE

CONNECT TO YOUR COMPUTER THE FIRST TIME

The first time you connect your camera to your computer, the computer recognizes the camera as a new piece of hardware and leads you through the installation. This is a one-time procedure.
To install your c amera to co py photos and video clips:
1. Connect the small connector of the USB cable to the USB port on the camera. See “Back View” on page 6 for the position of the USB port on the camera.
2. Connect the large end of the USB cable to an empty USB slot on your computer. To locate a USB slot, look for the USB icon
next to the connection slot.
3. Set the camera’s Mode dial to any mode except PC.
4. Turn on the camera.
5. Your computer detects the connection to the camera and initiates installation of the new hardware.
■ Depending on the Windows operating system installed on
your computer, the installation may proceed automatically, or you may be asked to follow the instructions in a new hardware installation wizard.
CONNECTING TO A COMPUTER 41
Note: If your computer is running the Windows XP operating
system, you may see a screen indicating that the camera has not passed Windows Logo testing. If this screen appears, click Continue Anyway. The function of your camera is not affected.
6. When installation is finished, turn off the camera.
To install your camera for use as a PC camera:
1. Set the camera’s Mode dial to PC.
2. Turn on the camera.
3. Your computer detects the connection to the camera and initiates installation of the new hardware.
■ Depending on the Windows operating system installed on
your computer, the installation may proceed automatically, or you may be asked to follow the instructions in a new hardware installation wizard.
Note: If your computer is running the Windows XP operating
system, you may see a screen indicating that the camera has not passed Windows Logo testing. If this screen appears, click Continue Anyway. The function of your camera is not affected.
4. When installation is finished, turn off the camera.
42 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE

COPYING IMAGES TO YOUR COMPUTER

When connected to your computer, your digital camera behaves like any other drive attached to your computer.
There are two ways to copy photos and videos from your camera to your computer: using Windows Explorer or using the Visioneer Digital Camera Utility software. The Visioneer Digital Camera Utility contains more copy and delete options.
Note: Before copying images to your computer, you must
install the software from the CD and setup your camera as new hardware on your computer. See page 38 and page 40 for details.
To connect your camera:
1. Connect the small connector of the USB cable to the USB port on the camera. See “Back View” on page 6 for the position of the USB port on the camera.
2. Connect the large end of the USB cable to an empty USB slot on your computer. To locate a USB slot, look for the USB icon next to the connection slot.
3. Turn on the camera with the Mode dial set to any mode except PC.
COPYING IMAGES TO YOUR COMPUTER 43
To copy using Windows Explorer:
1. On your computer, open Windows Explorer.
The contents of your computer is displayed, including all drives. The drive called Removable Disk represents your camera.
2. In Windows Explorer, select the Removable Disk drive.
3. Double-click to open the DCIM folder.
The images in the camera’s memory are grouped in folders whose names are based on the date the photos were taken.
4. Double-click to open a folder and view its list of photos.
The list of photos and videos is dependent upon the current memory selection (internal or external) on your camera. For more details see “Memory in Use” on page 35.
5. Select the desired photos and videos, and then drag and drop into a folder on your computer’s hard drive.
6. You can now delete the copied photos and videos from your camera’s memory. See page 17 for details.
7. When finished, turn your camera off.
44 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
To copy using the Vision eer Digital Camera Utility:
1. On your computer desktop, click Start, point to Programs,
point to Visioneer Digital Camera Utility, and then click Visioneer Digital Camera Utility.
Help
Upload
Select All/ Deselect All
Enlargement Setting
Delete
Exit
Camera imagesComputer folders
The Visioneer Digital Camera Utility opens in Digital Camera mode. The right side of the window displays thumbnail images of the photos on your camera and the left side shows the directories and folders on your computer.
2. To copy an image to your computer, select an image from the right side of the window and drag it into a folder on the left side of the window (or click the Upload button to select the desired folder).
■ To select multiple images, press the Shift or Ctrl key on
your keyboard before clicking an image.
COPYING IMAGES TO YOUR COMPUTER 45
■ To select all of the images, click the Select All/Deselect All
button.
3. To delete images from you camera’s memory, select the images you want to delete, click the Delete button, and then click Ye s in the message box to confirm the deletion.
4. To set the size of the image during export, click the Enlargement Setting button.
■ Select Original to keep the original size or Enlargement to
create a larger image.
5. When finished, click Exit to close the Visioneer Digital Camera Utility and then turn off your camera.
46 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE

USING YOUR CAMERA AS A PC CAMERA

With your camera in PC mode, you can use it with the supplied Visioneer Digital Camera Utility software to create videos and snapshots directly on your computer.
Note: To use your camera as a PC camera, you must install the
software from the CD and setup your camera as new hardware on your computer. See page 38 and page 40 for details.
To connect your camera:
1. Connect the small connector of the USB cable to the USB port on the camera. See “Back View” on page 6 for the position of the USB port on the camera.
2. Connect the large end of the USB cable to an empty USB slot on your computer. To locate a USB slot, look for the USB icon next to the connection slot.
3. Turn on the camera with the Mode dial set to PC.
Note: Before switching to and from PC mode, disconnect the
USB cable from your camera.
USING YOUR CAMERA AS A PC CAMERA 47
Note: To use the Visioneer Digital Camera Utility with your
camera in PC mode, your computer monitor’s display must be set to 24 bit or higher color depth.
-Right-click on your desktop and select Properties.
-On the Display Properties window, click the Settings tab.
-Set the Colors value to True Color (24 bit) or higher.
To record a vide o clip:
1. On your computer desktop, click Start, point to Programs,
point to Visioneer Digital Camera Utility, and then click Visioneer Digital Camera Utility.
Help
Snapshot
Record
Video Viewfinder
Setting
Exit
48 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
The Visioneer Digital Camera Utility opens in Video mode. The Video Viewfinder displays the view through the camera’s viewfinder.
2. To start recording a video, click the Record button.
3. On the Capture Setting dialog box, set a time limit and destination for the saved video.
4. Click OK on the dialog box to start recording.
5. When the time limit is reached, or you press the Record button again, recording is stopped. Click OK to acknowledge the message box.
6. When finished, click Exit to close the Visioneer Digital Camera Utility and then turn off your camera.
7. To view the video, locate the .avi file in the destination folder in which it was saved.
8. Double-click the file to open and play the video.
Note: To play a video on your pc, you must have an application
capable of playing .avi files (such as Windows Media Player) installed on your computer.
USING YOUR CAMERA AS A PC CAMERA 49
To take a snapshot:
1. Open the Visioneer Digital Camera Utility.
2. Click the Snapshot button to take a picture of the view in the Video Viewfinder.
3. On the Save Picture to File dialog box, enter a file name, select a destination, and select a file format (JPEG, BMP, or TIF) for the picture.
4. Click Save on the dialog box to save the snapshot.
5. When finished, click Exit to close the Visioneer Digital Camera Utility and then turn off your camera.
6. To view the snapshot, locate the file in the destination folder in which it was saved.
7. Double-click the file to open and view the snapshot.
To change video parameter settings:
1. Open the Visioneer Digital Camera Utility.
2. Click the Setting button and choose either Video Format or Video Source to open dialog boxes to adjust video settings.
On the dialog boxes, you can adjust video options such brightness, frame rate, and output size.
3. When finished, click OK on the dialog box, click Exit to close the Visioneer Digital Camera Utility, and then turn off your camera.
50 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE

CONNECTING TO A TELEVISION

You can connect your camera to a television and view the camera’s LCD display on the television screen. You can change modes using the Mode dial and perform camera functions including Snapshot, Playback, Set Up, and Video.
To connect your camera to a television:
1. Using the supplied video cable, connect the small, black end of the cable to the Video Out jack on your camera.
2. Connect the larger, yellow end of the video cable to the Video Input jack on the television set. This jack is usually yellow.
3. Turn on your television and set it to the Video In mode.
If needed, refer to your television’s user guide for specific directions to do this.
4. Turn on your camera.
The camera’s LCD display appears on the television.
5. Use the Mode dial, to change modes and use the camera buttons to perform functions associated with each mode.
PRINTING DIRECTLY TO A PRINTER 51

PRINTING DIRECTLY TO A PRINTER

Two methods are available to print pictures from your camera to a printer that supports the DPOF (Digital Print Order Format).
IRECT CONNECTION FROM YOUR CAMERA TO THE PRINTER
D
The user guide supplied with the printer will include instructions for connecting and printing directly from a camera.
Note: The printer must support DPOF, as well as connections
to cameras from different manufacturers.
NSERTING THE SECURE DIGITAL CARD INTO THE CARD READER ON THE PRINTER
I
If your printer has a card reader that is compatible with your Secure Digital card, you can remove the card from your camera and insert it in the printer’s card reader. You can then print images directly from the Secure Digital card.
Note: For the printer’s card reader to recognize the images on
the Secure Digital card, the printer must support DPOF. You must also use the DPOF setting on your camera to set the DPOF printing options for the images you want to print. For details, see the “DPOF” section under “Set Up Mode” on page 26.
52 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE

TROUBLESHOOTING

If you are having problems using your camera, refer to the troubleshooting procedures in this section. If you are still having difficulties, refer to the technical support section in this guide on page 52. Also, visit our web site at www.visioneer.com for additional support information.
Problem: The camera has no power.
Possible Cause Solution
The camera is turned off. Press the On/Off button to turn
the camera on.
The batteries are discharged. Replace the batteries.
The batteries are inserted incorrectly.
Problem: The camera won’t take a picture.
Possible Cause Solution
Check the battery orientation. See page 9 for details.
The green camera-ready LED is not on.
The camera is connected to a computer, causing the buttons not to function.
Wait until the light stops flashing and is steady green.
Disconnect the camera from the computer.
TROUBLESHOOTING 53
Problem: The flash doesn’t work.
Possible Cause Solution
The flash is not turned on. Ensure that the flash is set to the
Automatic or Always On options. Refer to page 34.
The batteries are weak and the flash is unable to recharge.
Turn the camera off and wait a few seconds before turning it back on. If this doesn’t work, replace the batteries.
Problem: When turned on, the LED flashes green, red, orange, and green. Then the camera does not function.
Possible Cause Solution
The Secure Digital card is not inserted correctly.
Turn the camera off. Remove and reinstall the Secure Digital card, see page 9 for details.
Problem: The Visioneer Digital Camera Utility will not run when the camera is set to PC mode.
Possible Cause Solution
Your computer monitor’s display is set to less than 24 bit color depth.
Right-click your desktop and select Properties. On the Display Properties window, click the Settings tab. Set the Colors value to True Color (24 bit) or higher.
54 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
UNINSTALLING THE VISIONEER DIGITAL CAMERA
TILITY
U
Complete the following steps to uninstall the Visioneer Digital Camera Utility. This will not impact photos and videos that are on your computer.
To uninstall the Visioneer Digita l Camera Utility:
1. On the Windows taskbar, click Start, point to Programs, point to Visioneer Digital Camera Utility, and then click Uninstall Visioneer Digital Camera Utility.
2. On the Visioneer Digital Camera Utility Uninstall window, click Yes to start the uninstall process.
3. When the uninstall process completes, click OK in response to the completion message.
US AND CANADA TECHNICAL SUPPORT 55

US AND CANADA TECHNICAL SUPPORT

Support on the Web www.visioneer.com
Support by Fax (541) 884-8474
Support by Telephone (8:00 am - 5:00 pm Pacific Time, Monday-Friday) Long distance charges may apply
Express Telephone Support (8:00 am - 5:00 pm Pacific Time, Monday-Friday)
(541) 884-5548
(900) 776-5724 (Nominal per-minute fee)

INTERNATIONAL TECHNICAL SUPPORT

Visioneer provides technical support to all registered users in English and German. Please see the chart below for contact telephone numbers.
For Latin America, call U.S. Technical Support (1-541-884-5548).
Visioneer bietet allen registrierten Benutzern technische Unterstützung auf Deutsch und Englisch. Die Kontakttelefonnummern können Sie der folgenden Tabelle entnehmen.
Usuarios en Latinoamérica, sírvanse llamar al teléfono de apoyo técnico en los (1-541-884-5548).
56 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
Country Te l e ph o n e
Monday - Friday
UK 0870 161 3003
Germany 0180 5 103 003
Rest of Europe 49 1805 440466
Visit www.visioneer-europe.com for more information
Important: Contact information is subject to change. Please visit our Web site at www.visioneer.com for the latest details.
MX 230 DIGITAL CAMERA SPECIFICATIONS 57

MX 230 DIGITAL CAMERA SPECIFICATIONS

Sensor 2 megapixel CCD
Resolution output 3 megapixel
Optical zoom 3x
Advanced Stepless Digital Zoom (Superior ADZ)
2x ADZ 3x ADZ 3x ADZ
TM
for video clip capture
TM
for still image capture
TM
for picture displayed on LCD
TFT color LCD 1.5 inch 280x220, 61K pixel
Memory Internal: 8MB Flash
External: Secure Digital memory card
USB interface USB 1.1
MAC compatibility MSD support
TV output NTSC and PAL
Lens Auto focus
Focus range Normal: 0.5m ~ infinity
Macro: 0.2m ~ 0.5m
Focal length 40 ~ 120 mm (35mm camera equivalent)
6.2 ~ 18.6 (actual) F/no F2.8/F8 View angle 53 degrees
58 VISIONEER MX 230 DIGITAL CAMERA USER’S GUIDE
Viewfinder Optical type: reverse Galileo image
Still image capture 3M, 2048 x 1536, Normal
2M, 1600 x 1200, Fine 2M, 1600 x 1200, Normal XGA, 800 x 600, Fine XGA, 800 x 600, Normal
Video clip mode 320 x 240, 15fps, AVI format, 60 sec. max./file
Audio Built-in microphone and speaker
PC camera mode 160 x 120, 30 fps
320 x 240, 15 fps
A/D conversion 10 bits
ISO speed 100
Auto-exposure Compensation +/- 2EV in 1/3 increments
White balance Auto/Daylight/Shade/Tungsten/Fluorescent
Flash mode Auto/Always on/Red-eye reduction/Off
Shutter speed Mechanical: 1 ~ 1/500 seconds
Electronic: 1/30 ~ 1/4000 seconds
Self-timer 10 seconds
Power source Two AA type alkaline or NiMH batteries
Regulation and certification
FCC Class B, CE
INDEX 59

INDEX

B
batteries
installing safety 2 status 36
button
Copy Delete 25 Display 19, 24 Down 19, 22, 24 Flash 20 Telephoto 17, 20, 22, 24 Thumbnail 17, 25 Up 19, 22, 24 White Balance 20 Wide Angle 17, 20, 22, 24
buzzer 28
C
camera
back view bottom view 8 components 5 connecting to a computer 40, 42 connecting to a television 50 copying photos and videos
from
end view 8 features 1 front view 5 parts 4
9
25
6
37
safety information 2 troubleshooting 52 using as a PC camera 37, 46
components
back
6
bottom 8 end 8 front 5
computer
connecting camera to copying photos and videos to 37,
40, 42
42
Copy button 25 copying photos and videos
from external to internal
memory
from internal to external
memory
to a computer 37, 42 using the Visioneer Digital Camera
Utility
using Windows Explorer 43
25
25
44
D
date and time 30
on LCD 36
setting 11 delete all 26 Delete button 25 deleting pictures 18 Digital Camera mode 44 Digital Printer Order Format 29 Display button 19, 24
INDEX 60
Down button 19, 22, 24 DPOF 29, 51
E
exposure value
in Snapshot mode in Video mode 22 on LCD 36
19
F
features 1, 19 flash
3
safety settings 20
Flash button 20 flash setting
on LCD
format 26
34
L
landscape 23 language 31
setting 13
LCD
battery status date and time 36 display description 33 exposure value 36 flash setting 34 memory in use setting 35 pictures remaining 36 preset mode setting 34 quality setting 36 white balance setting 35
36
zoom indicator 34 zoom ratio setting 35
M
macro 23 memory
copying photos from external to
internal
copying photos from internal to
external
memory card
installing
memory type 31 mode
PC Playback 24 Preset 23 Set Up 26 Snapshot 19 Video 21
Mode dial 19
25
25
9
32
N
night scene 23
P
parts 4 PC mode 32 pictures
reviewing taking 15
Playback mode 24
buttons 24 video clips 25
17
INDEX 61
portrait 23 Preset mode 23
landscape option 23 macro option 23 night scene option 23 on LCD 34 options 23 portrait option 23 self-timer option 23
Printing
to a printer
51
Q
quality 27
on LCD 36
R
reviewing pictures 17
S
safety information 2 self-timer 23 Set Up mode 26
buzzer 28 date and time 30 delete all 26 DPOF 29 format 26 language 31 memory type 31 quality 27 video out 31
Snapshot mode
buttons
19
software
installation specifications 57 support
technical
38
55
T
taking pictures
basic steps
getting ready 9 technical support 55 Telephoto button 17, 20, 22, 24 television
connecting camera to
Set Up mode 31 thumbnail images 25 troubleshooting 52
15
50
U
uninstall
Visioneer Digital Camera
54
Utility
Up button 19, 22, 24
V
video clip
recording
viewing 25, 48 Video mode 47
buttons 21 video out 31 Visioneer Digital Camera Utility 42
copying photos and videos
using
21, 47
44
INDEX 62
Digital Camera mode 44 uninstall 54 using to take a snapshot 49 Video mode 47
W
White Balance button 20 White balance setting
on LCD
35
Wide Angle button 17, 20, 22, 24 Windows Explorer
copying photos and videos
43
using
Z
zoom ratio
on LCD
35
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
