Page 1
Visioneer® 6200/6400 Scanner
FOR
USB OR P
ARALLEL PORT CONNECTION
Installation Guide
Page 2
COPYRIGHT INFORMATION
Copyright © 1999 Visioneer, Inc., a wholly owned subsidiary of Primax Electronics LTD.
Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.
The Visioneer brand name and logo are registered trademarks of Primax Electronics LTD. OneTouch is a trademark of Primax Electronics LTD. The
PaperPort brand name and logo are registered trademarks of ScanSoft, Inc.
Microsoft is a U.S. registered trademark of Microsoft Corporation. Windows is a trademark of Microsoft Corporation. TextBridge is a registered trademark of
ScanSoft, Inc. ZyINDEX is a registered trademark of ZyLAB International, Inc. ZyINDEX toolkit portions, Copyright © 1990-1998, ZyLAB International,
Inc. All Rights Reserved. All other products mentioned herein may be trademarks of their respective companies.
Information is subject to change without notice and does not represent a commitment on the part of Visioneer. The software described is furnished under a
licensing agreement. The software may be used or copied only in accordance with the terms of such an agreement. It is against the law to copy the software on
any medium except as specifically allowed in the licensing agreement. No part of this document may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, or translated to another language, for any
purpose other than the licensee's personal use and as specifically allowed in the licensing agreement, without the express written permission of Visioneer.
Part Number: 05-0401-000
Restricted Rights Legend
Use, duplication, or disclosure is subject to restrictions as set forth in contract subdivision (c)(1)(ii) of the Rights in Technical Data and Computer Software
Clause 52.227-FAR14. Material scanned by this product may be protected by governmental laws and other regulations, such as copyright laws. The customer
is solely responsible for complying with all such laws and regulations.
Visioneer's Limited Product Warranty
If you find physical defects in the materials or the workmanship used in making the product described in this document, Visioneer will repair, or at its option,
replace, the product at no charge to you, provided you return it (postage prepaid, with proof of your purchase from the original reseller) during the 12-month
period after the date of your original purchase of the product.
THIS IS VISIONEER'S ONLY WARRANTY AND YOUR EXCLUSIVE REMEDY CONCERNING THE PRODUCT, ALL OTHER
REPRESENTATIONS, WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, WRITTEN OR ORAL, INCLUDING ANY WARRANTY OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT, ARE EXPRESSLY EXCLUDED. AS A RESULT,
EXCEPT AS SET OUT ABOVE, THE PRODUCT IS SOLD “AS IS” AND YOU ARE ASSUMING THE ENTIRE RISK AS TO THE PRODUCT'S
SUITABILITY TO YOUR NEEDS, ITS QUALITY AND ITS PERFORMANCE.
IN NO EVENT WILL VISIONEER BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM ANY DEFECT IN THE PRODUCT OR FROM ITS USE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
All exclusions and limitations in this warranty are made only to the extent permitted by applicable law and shall be of no effect to the extent in conflict with the
express requirements of applicable law.
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for the class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and if not installed, and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with
FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in
interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer
could void the user's authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation
Page 3
T
ABLE OF CONTENTS
TABLE OF CONTENTS
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
What’s in the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
The Visioneer 6200/6400 Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
What You Need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Getting the PaperPort Software User’s Guide . . . . . . . . . . . . . . . . . . 4
Part 1: Installing Your Scanner
Installing to a USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
STEP 1: Installing the PaperPort Software . . . . . . . . . . . . . . . . . 5
STEP 2: Connecting to a USB Port . . . . . . . . . . . . . . . . . . . . . . . 7
Installing to a Parallel Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
STEP 1: Connecting to a Parallel Port . . . . . . . . . . . . . . . . . . . . 11
STEP 2: Installing the PaperPort Software . . . . . . . . . . . . . . . . 14
i
Checking Your Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Checking a Scanner Connected to a Parallel Port . . . . . . . . . . . 16
Checking a Scanner Connected to a USB Port . . . . . . . . . . . . . 17
If the Scanner Is Not Properly Connected . . . . . . . . . . . . . . . . . 19
Scanning for the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Part 2: Configuring the OneTouch Software and Scanning Items
Scanning from the OneTouch Software . . . . . . . . . . . . . . . . . . . . . . 23
Configuring the OneTouch Software . . . . . . . . . . . . . . . . . . . . 24
About the OneTouch Configuration Dialog Box . . . . . . . . . . . 26
Getting Help in the OneTouch Software . . . . . . . . . . . . . . . . . 28
Selecting a Different Configuration . . . . . . . . . . . . . . . . . . . . . . 29
Creating New Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Adjusting Scan Settings and Page Settings . . . . . . . . . . . . . . . . . 30
About JPEG Compression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Page 4
T
ii
ABLE OF CONTENTS
Setting Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Changing the Linked Application . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Scanning from the PaperPort Software . . . . . . . . . . . . . . . . . . . . . . 39
Scanning an Item with the Twain Button . . . . . . . . . . . . . . . . . 40
Adjusting the Brightness and Contrast . . . . . . . . . . . . . . . . . . . 44
Getting Help with the PaperPort Software . . . . . . . . . . . . . . . . 45
About the Predefined Scan Settings in PaperPort . . . . . . . . . . . . 46
Cleaning the Scanner Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Visioneer Scanner Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Page 5
ELCOME
W
Congratulations on purchasing your Visioneer flatbed scanner. With
your scanner, you can quickly scan paper documents and color photos
to place their electronic images on your computer. This guide tells you
how to connect your scanner, scan items, and configure the OneTouch
software.
You can connect the Visioneer 6400 scanner to either your computer’s
USB or parallel port; however, the Visioneer 6200 scanner must be
connected to a USB port. This guide contains instructions for
connecting to either port:
For USB port instructions, see page 5.
■
■
For parallel port instructions, see page 11.
W
HAT’S IN THE BOX
Before starting the installation, check the contents of the box to make
sure that all parts are included. If any items are missing or damaged,
contact the dealer where you purchased the scanner.
Visioneer 6200/6400 Scanner
Software CD Installation guide Power supply
V
ISIONEER
USB cable
6200/6400 S
Parallel cable—
6400 only
CANNER INSTALLATION GUIDE
1
Page 6
2
V
ISIONEER
6200/6400 S
CANNER INSTALLATION GUIDE
THE V
Document cover
Document pad
Glass
Reference frame
OneTouch button
Rear of 6400 Scanner
Power jack
ISIONEER
6200/6400 S
CANNER
ADF/TPA port
Host Parallel port
USB port (behind sliding latch)
Printer Parallel port
Rear of 6200 Scanner
Power jack
ADF/TPA port
USB port
Page 7
THE V
A
A
ISIONEER
6200/6400 S
CANNER
Document cover. Close the document cover after placing items on the scanner glass.
Document pad. Helps to secure the document in place on the scanner glass.
Glass. Place items face down on top of the glass in the upper left corner.
Reference frame. Place items face down within this frame. Markings on the border of the frame
show where to align various paper sizes.
OneTouch button panel. Press the OneTouch button to scan with custom settings.
Power jack. Plug the scanner power cord into this jack.
DF/TPA port. A port for an optional Auto Document Feeder (ADF) and a Transparency
dapter (TPA) for scanning transparencies. Please visit our web site at www.visioneer.com for
more information about acquiring these optional devices.
Host Parallel port (6400 scanner only). If you’re connecting the scanner to the computer’s
parallel port, plug one end of the parallel cable into this port. Do not use this port when
connecting with the USB cable. Plug the other end of the parallel cable into the computer’s
parallel port.
3
USB port. On the 6400 scanner, a sliding latch covers and protects the USB port. Slide the latch
to the side to see the USB port. On the 6200 scanner, the USB port is clearly visible. Plug one
end of the USB cable into this port; plug the other end into a USB port on the computer or
keyboard. Do not use this port when connecting with a parallel cable.
Printer Parallel port. Use this port only if you connect a printer directly to your computer.
Unplug the printer from the computer and plug it into this parallel port on the scanner.
Page 8
4
V
ISIONEER
6200/6400 S
HAT YOU NEED
W
CANNER INSTALLATION GUIDE
To use the Visioneer scanner and software, you need the following:
IBM PC (or 100-percent compatible) Pentium or equivalent
■
■
Microsoft Windows 95, Windows 98, or Microsoft NT 4.0
One available Universal Serial Bus (USB) port or one available parallel
■
port on your computer; Microsoft Windows 98 is required when using
the USB port
■
32 megabytes (MB) or more of available internal memory (RAM)
70 MB of free hard disk space
■
■
A VGA or SVGA monitor. Recommended settings for your monitor
are as many colors as possible—High Color (16-bit), True Color
(24-bit or 32-bit). Set the resolution to at least 800 by 600 pixels.
To set your monitor’s colors and resolution, open the Windows
Control Panel, double-click Display, and then click the Settings tab.
A CD-ROM drive
■
ETTING THE PAPERPORT SOFTWARE USER’S GUIDE
G
The CD also includes your
PaperPort User’s Guide
. This guide provides
more detailed information about the PaperPort software’s features.
Please see the CD to view or print the guide.
Page 9
I
NSTALLING TO A
USB P
ORT
Part 1: Installing Your
Scanner
5
NSTALLING TO A
I
This section of the guide contains instructions for connecting your
Visioneer scanner to a USB port. If you are connecting the 6400
scanner to a parallel port, see “Installing to a Parallel Port” on page 11
for more information.
USB P
ORT
STEP 1: INSTALLING THE PAPERPORT SOFTWARE
Note: You must install the PaperPort software before connecting the
scanner to the computer. Otherwise the correct software to run your
scanner will not be installed and it may not scan properly.
The PaperPort CD includes all the necessary installation files, as well as
PaperPort software files and other software files.
The CD also includes the PaperPort User’s Guide. You can read the guide
from the CD, or print a copy directly from the CD.
To install the PaperPort software:
1. Start Microsoft Windows 98 and make sure that no other
applications are running.
Microsoft Windows 98 is required to connect the scanner to a USB
port.
2. Insert the PaperPort CD into your computer’s CD-ROM drive.
The CD automatically starts.
Page 10
6 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
Note: If the PaperPort CD does not automatically start, make sure
the CD drive’s door is completely shut. If the CD still doesn’t start,
the Autorun option on your computer is turned off. Click the
Windows icon named My Computer. The window shows the drives
available on your computer. Double-click the icon for your
CD-ROM drive to see the list of files on the CD. Double-click the
file named START32.EXE. The CD starts.
3. Follow the instructions on the screen to install the PaperPort
software on your computer.
During installation, a message tells you to connect the scanner to
the computer.
4. Follow the steps in the next section to connect the scanner.
When you’re finished, click Finish in the dialog box above.
Page 11
INSTALLING TO A USB PORT 7
STEP 2: CONNECTING TO A USB PORT
The Visioneer scanner connects to any available USB port. Check your
computer’s user’s guide for its USB port locations.
Note: You do not have to shut off the power to your computer when
connecting the scanner to a USB port.
To connect the Visioneer scanner to a USB port:
1. Plug one end of the USB cable into an available USB port.
Some newer computers also have keyboards with USB ports.
You can plug the scanner into the keyboard instead of the USB port
on the computer.
2. If you are connecting the 6400 scanner, slide the latch on the back
of the scanner to uncover its USB port.
USB port
If you are connecting a 6200 scanner, the USB port is shown in the
following figure.
USB port
Page 12
8 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
3. Plug the other end of the USB cable into the scanner’s USB port.
6400 scanner
6200 scanner
If the plug does not attach easily, make sure that you are plugging it
in correctly. Do not force the plug into the connection.
4. Plug the power adapter cable into the power jack on the back of the
scanner.
Page 13
INSTALLING TO A USB PORT 9
5. Turn the scanner over to see the locking tab on the bottom.
Slide the locking tab to the unlocked position.
Unlocked position
6. Plug the power adapter into an AC (wall) outlet.
The following diagram shows the 6400 scanner connected to a
computer.
Power cord USB cable
Page 14
10 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
The following diagram shows the 6200 scanner connected to a
computer.
Power cord USB cable
Your computer recognizes that a scanner has been plugged into the
USB port and automatically loads the appropriate software from
the CD to run the scanner.
When the software has finished loading, the Finish button on the
dialog box becomes active.
7. Click the Finish button.
That completes the steps to connect your scanner to the computer.
8. Remove the CD from the computer and store it in a safe place.
9. Turn to “Checking Your Scanner” on page 15 to continue setting
up your Visioneer scanner.
Note: The locking tab protects the scanner’s scan head by holding it
securely in position. Lock the scanner when transporting it from one
location to another, but always remember to unlock it before
scanning. The scanner will not scan when locked.
Page 15
INSTALLING TO A PARALLEL PORT 11
INSTALLING TO A PARALLEL PORT
This section explains how to connect the Visioneer scanner to a parallel
port. If you are connecting a 6200 scanner, you must connect it to a
USB port. For more information, see “Installing to a USB Port” on
page 5.
STEP 1: CONNECTING TO A PARALLEL PORT
The Visioneer 6400 scanner connects to any available parallel (LPT)
port on the back of your computer.
To connect the 6400 scanner to a parallel port:
1. Save any open files, and then shut down Windows.
2. Turn off the power to your computer.
3. If a printer is already attached to your computer’s parallel port,
unplug the printer cable from the computer. If you don’t have a
printer attached to your computer, skip this step.
Page 16
12 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
4. Plug one end of the scanner cable into the port on the back of the
scanner marked “Host.”
5. Plug the other end of the scanner cable into the parallel port on the
back of your computer.
On some older computers the serial port and parallel port both
have 25-pin connectors that fit the scanner cable. Make sure you
plug the scanner cable into a parallel port.
Page 17
INSTALLING TO A PARALLEL PORT 13
6. If you unplugged a printer from the parallel port earlier, plug it into
the “Printer” port on the scanner.
7. Plug the power adapter cable into the jack on the scanner.
8. Turn the scanner over to see the locking tab on the bottom.
Slide the locking tab to the unlocked position.
Unlocked position
Page 18
14 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
p
9. Plug the power adapter into an AC (wall) outlet.
The following diagram shows the 6400 scanner connected to a
computer.
Power cord
Parallel cable to
the computer
Parallel cable to
the
rinter
10. Turn on your computer. You’re now ready to install the software.
Note: The locking tab protects the scanner’s scan head by holding it
securely in position. Lock the scanner when transporting it from one
location to another, but always remember to unlock it before
scanning. The scanner will not scan when locked.
STEP 2: INSTALLING THE PAPERPORT SOFTWARE
The PaperPort CD contains the PaperPort software files, all the
necessary installation files, and files for other applications as well.
The CD also includes the PaperPort User’s Guide. You can read the guide
from the CD, or print a copy from the CD.
Page 19
CHECKING YOUR SCANNER 15
To install the PaperPort software:
1. Start Microsoft Windows and make sure that no other applications
are running.
2. Insert the PaperPort CD into your computer’s CD-ROM drive.
The CD automatically starts.
Note: If the PaperPort CD does not automatically start, make sure
the CD drive’s door is completely shut. If the CD still doesn’t start,
the Autorun option on your computer is turned off. Click the
Windows icon named My Computer. The window shows the drives
available on your computer. Double-click the icon for your
CD-ROM drive to see the list of files on the CD. Double-click the
file named START32.EXE. The CD starts.
3. Click the PaperPort Software button and follow the instructions
on the screen.
After the PaperPort software is installed on your computer, you can
click the appropriate buttons on the CD to install the other
applications on the CD or print the PaperPort User’s Guide.
4. When you’re finished installing the software, remove the CD from
the CD drive and store the CD in a safe place.
5. Restart the computer.
That completes the installation. Please see “Checking Your Scanner” on
page 15 to continue setting up your Visioneer scanner.
CHECKING YOUR SCANNER
Depending on whether your scanner is connected to a parallel port or
USB port, you use different ways to check if the scanner is properly
connected. If the scanner is connected to:
■ A parallel port, see “Checking a Scanner Connected to a Parallel
Port” on this page.
■ A USB port, see “Checking a Scanner Connected to a USB Port” on
page 17.
Page 20
16 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
CHECKING A SCANNER CONNECTED TO A PARALLEL PORT
When you connect the 6400 scanner to a parallel port, the scanner icon
appears in the Windows taskbar (at the bottom right corner of the
computer screen). If the scanner is properly connected, the scanner icon
looks like the one in this figure.
Scanner Icon
If the icon has a red X through it, the scanner is not properly connected.
See the section, “If the Scanner Is Not Properly Connected” on page 19
for the steps to fix the problem.
To check the status of the scanner:
1. Place the mouse pointer on the scanner icon in the Windows
taskbar.
2. Right-click the icon. The shortcut menu appears.
Page 21
CHECKING YOUR SCANNER 17
3. Choose About from the shortcut menu.
A dialog box confirms that the scanner is properly connected. The
About dialog box shown below is for a 6400 scanner connected to a
parallel port.
4. Click OK to close the dialog box.
That’s it. Your scanner is ready to scan. See “Scanning for the First
Time” on page 20.
Note: The scanning lamp under the scanner’s glass needs to warm up
before you can scan. A status message lets you know when the lamp is
ready. The lamp then remains ready so you don’t have to wait for it to
warm up each time you want to scan. To conserve electricity and
prolong the life of the scanner, you can set the length of time for the

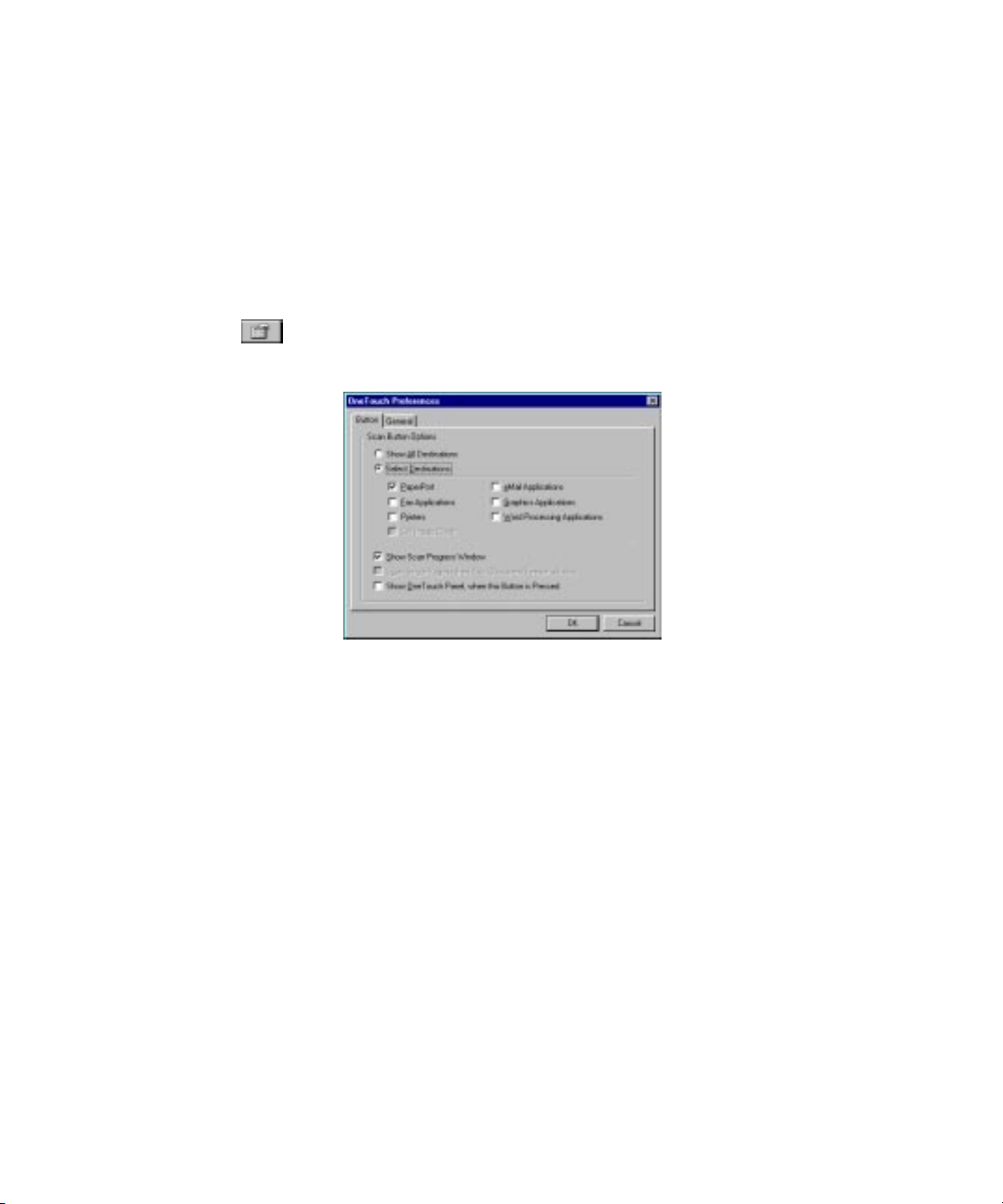

lamp to remain lit before powering down. See “Setting Preferences”
on page 36.
CHECKING A SCANNER CONNECTED TO A USB PORT
After you have installed the scanner to a USB port, you can check if it is
properly connected using the Scanners and Cameras setting in the
Windows Control Panel.
To check the status of the scanner:
1. From the Start menu, choose Control Panel, and then Settings.
The Control Panel window opens.
Page 22
18 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
2. Double-click the Scanners and Cameras icon.
The Scanners and Cameras Properties dialog box appears. The
following example shows the Visioneer 6400 scanner connected to
your computer. If you have a video camera or other scanner
connected, those devices may appear in this dialog box.
3. Select the Visioneer scanner and click Properties.
The Properties dialog box appears.
Page 23
CHECKING YOUR SCANNER 19
4. Click the Test Scanner or Camera button.
A message tells you if the scanner is working correctly.
5. Click OK to close the dialog box.
That’s it. Your scanner is ready to scan. See “Scanning for the First
Time” on page 20.
If the scanner is not properly connected, you’ll need to find the
problem. See the next section for help.
IF THE SCANNER IS NOT PROPERLY CONNECTED
If the scanner is not properly connected, check for one of these possible
problems:
• Is a cable loose or not plugged in securely? Inspect all cable
connections. Make sure all the cables are plugged in securely.
• Is the scanner’s locking tab in the locked position? Slide the
locking tab to the unlocked position. If you tried to scan with the
scanner locked, you must restart your computer after unlocking the
scanner.
• If you connected the scanner to a parallel port, are you using an
older computer that has 25-pin connectors for both serial and
parallel ports? You may have plugged the scanner cable into a serial
port instead of the parallel port. Remove the scanner cable from the
serial port and plug the cable into the parallel port.
• If you connected the scanner to a parallel port, are other devices
“daisy-chained” to the parallel port? If so, the scanner must be the
first one connected to the computer. Plug the scanner into the
computer’s parallel port first, then plug the next device into the
scanner.
• Did you restart the computer after installing the software? If you
didn’t restart the computer, it may not have loaded all of the software
files. Try restarting your computer.
Page 24
20 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
Please see the Readme file in the PaperPort directory on your computer’s
hard drive. The Readme file contains additional information that may
help you diagnose problems connecting the scanner.
To reconnect the scanner if it is connected to a parallel port:
1. Right-click the scanner icon with the red X over it.
The shortcut menu appears.
2. Choose Connect from the shortcut menu.
The software finds the scanner and makes the connection.
The scanner icon will no longer have a red X through it, and you’re
ready to begin scanning.
If your scanner is connected to a USB port:
■ See “Checking a Scanner Connected to a USB Port” on page 17 to
test the scanner using Scanners and Cameras setting in the Control
Panel.
If you try all the troubleshooting procedures described above and in the
Readme file and the scanner is not working, see the technical support
card that came with your scanner for technical assistance telephone
numbers. Also visit our web site at www.visioneer.com for additional
technical information.
SCANNING FOR THE FIRST TIME
To scan an item, you simply press the button on the scanner. The
OneTouch software automatically scans an item, uses the color setting,
and selects the PaperPort software as the default destination application.
Page 25
SCANNING FOR THE FIRST TIME 21
The destination application is the application in which the scanned item
appears after the scan has finished. You can change the destination
application and will learn how later in this guide.
To test your scanner:
1. Before starting, find an item to scan, such as a letter, magazine
article, or report.
2. Place the item to scan on the glass, face down, and press the button
on the scanner.
During scanning, the scan progress window shows a small copy of
the image, as illustrated by this example:
When the scan is complete, the scanned image appears in the
PaperPort software.
Page 26
22 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
Thumbnail
For more information about using PaperPort or scanning with
PaperPort, see “Scanning from the PaperPort Software” on page 39.
Page 27
SCANNING FROM THE ONETOUCH SOFTWARE 23
Part 2: Configuring the
OneTouch Software and
Scanning Items
When you scan with your Visioneer scanner, there are different ways to
scan items. You can scan items by:
■ Pressing the button on the scanner and using the OneTouch
software.
■ Using the PaperPort software (or other Twain software).
The advantage of the OneTouch software is that you can scan items
directly to preconfigured applications. For example, if you want to scan
an item and edit it in Adobe Photoshop, you can configure the
OneTouch software to display the scanned item in Photoshop
immediately after the item is scanned.
SCANNING FROM THE ONETOUCH SOFTWARE
You press the scanner button to scan an item, and then send the image
either to the printer, or to a software application on your computer.
To scan by pressing the button on the scanner:
• Place an item to scan on the glass, face down, and press one of the
scanner button.
The scanner starts scanning the item.
Parallel only—If your computer is connected to a parallel port, a
message above the Windows taskbar shows the status of the scanning.
Page 28
24 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
When scanning is complete, the status message also shows the
destination application. In the sample below, the scanned image is
being sent to PaperPort.
During scanning, the scan progress window shows a small copy of the
image.
The item appears in the destination application.
CONFIGURING THE ONETOUCH SOFTWARE
You can configure the OneTouch software to scan items at various
settings, and then send the scanned image to a preselected software
application—called the destination application.
To configure the OneTouch software:
1. If the scanner is connected to a parallel port, right-click the
OneTouch icon in the Windows task bar.
Scanner Icon
If the scanner is connected to a USB Port, in Windows click Start,
and then choose Programs. Click the PaperPort folder, and
choose OneTouch Configure.
The Visioneer OneTouch Configuration dialog box appears.
▼ Note: If the scanner is connected to a parallel port, press and hold
the button on the scanner to display the Visioneer OneTouch
Configuration dialog box.
Page 29
Target application
SCANNING FROM THE ONETOUCH SOFTWARE 25
Preferences tab
Current
configuration
2. Select the target application you want. In the previous figure,
Microsoft Paint is the selected destination application.
3. (Optional) Select a different predefined configuration for this
application. In the previous figure, Photograph for Editing is
selected.
You can view the settings for a configuration by clicking the icon to
the left, as shown in the following example.
▼ Note: If you want to select a configuration prior to scanning, click
Configure before Scan. When you press the scanner button, the
Visioneer Scan Manager dialog box appears first and you can select a
configuration before scanning. See “Scanning an Item with the
Twain Button” on page 40 for details.
4. Click OK to close the dialog box. You can now scan items to the
selected destination application.
Page 30
26 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
ABOUT THE ONETOUCH CONFIGURATION DIALOG BOX
The OneTouch Configuration dialog box shows the current settings for
the scanner button. The dialog box has two tabs: Scan and Preferences.
The following figure shows the current settings for scanning: Autocrop
Scan Photograph to the PaperPort Desktop.
Select a software
application to
send the scanned
image to that
application.
Click this
tab to set
preferences.
Select a
setting for
scanning
the item.
The JPEG
option is
only
available
with the
6400.
The Format and Page(s) setting is set to scan as a JPEG image for a
single page item. The JPEG option is only available with a 6400
scanner. See “Setting Preferences” on page 36 to set Preferences for
details.
To display the Configuration dialog box if the scanner is connected
to a parallel port:
1. Right-click the scanner icon.
Scanner icon
The shortcut menu appears.
Page 31
SCANNING FROM THE ONETOUCH SOFTWARE 27
2. Choose Configure from the shortcut menu.
The Configuration dialog box appears.
To display the Configuration dialog box if the scanner is connected
to a USB port:
1. In Windows, choose Programs from the Start menu.
2. From the PaperPort folder, choose OneTouch Configure.
The Configuration dialog box appears.
The options on the Configuration dialog box are:
Select Destination—the list of applications that can open to display the
scanned image. Select the application that you want to automatically
open to display or process the scanned image.
Select Configuration—the list of the button’s scan configurations.
The configuration settings include: color, black and white, or grayscale,
resolution in dots per inch (dpi), page size, brightness, and contrast.
To see the details about a configuration, click its icon in the list.
Click the icon again to close the detailed information:
Clicking an icon expands
the configuration to show
its settings
Page 32
28 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
Select Format and Page(s)—a set of options for selecting a format for
the scanned image and whether to scan a single page or multiple pages.
The formats are bitmap, JPEG, and PaperPort. Use PaperPort for
scanning any item. Bitmap and JPEG formats are usually for photos or
artwork. See “About JPEG Compression” on page 34 for more
information about JPEG. The page icons represent single or multiple
page scanning.
Scan single page
Scan multiple pages
▼ Note: JPEG compression is not available with the 6200 scanner.
Scan multiple pages and
stack them on the
PaperPort Desktop
Properties—displays a dialog box for selecting options about the
destination application for the scanned image. Each destination
application has its own properties dialog box.
Folder Copy—displays a dialog box for selecting the folder to use for
storing a copies of the scanned images.
GETTING HELP IN THE ONETOUCH SOFTWARE
You can get help with the scanner’s features or any of the options on the
Configuration dialog box using either of the following methods:
■ When the Configuration dialog box is displayed, press the F1 key on
your keyboard
Page 33
SCANNING FROM THE ONETOUCH SOFTWARE 29
■ Click the Help button at the top right corner of the Configuration
dialog box
Help button
SELECTING A DIFFERENT CONFIGURATION
You can select a new destination application, configuration, and image
format for a scanner button to optimize it for the type of scanning you
want to do. You use the Configuration dialog box to select new options.
To create a new configuration:
1. Display the Configuration dialog box.
■ If your scanner is connected to a parallel port, right-click the
scanner icon in the Windows taskbar, and then choose
Configure from the shortcut menu.
■ If your scanner is connected to a USB port, choose Programs
from the Windows Start menu. Then choose OneTouch
Configure from the PaperPort folder.
2. Scroll the list of applications in the Select Destination list and click
the new application you want to use with the scanned image.
Note: If you select a word processing program such as Microsoft
WordPad or Microsoft Word and a configuration for OCR, the text
in scanned images is automatically converted to word processing text
by the optical character recognition (OCR) software that you receive
with the scanner. The converted text then appears in the selected
destination application.
Page 34
30 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
3. Click a selection in the Select Configuration list to choose a new
scan configuration.
The configurations in the list are preset for the application you
select in the application list. If you select another application, the
configurations are for that application.
If you want to select a configuration prior to scanning, click the
option, Configure before Scan. When you press a scanner button,
the Visioneer Scan Manager dialog box appears first and you can
select a configuration before scanning. See “Scanning an Item with
the Twain Button” on page 40 for details.
4. Select one of the Format and Page(s) options.
5. Click OK.
Now when you press the scanner button, it scans the image using
the new configuration settings and displays the scanned image in
the new destination application.
CREATING NEW CONFIGURATIONS
You cannot change settings such as brightness or contrast of the preset
configurations. To scan with settings other than those offered by the
preset configurations, you must first create a new configuration and
then use it to scan.
To create a new configuration, click the New button. You can also click
Copy to copy a preset configuration, change its settings, and then save it
under a new configuration name. To see Help for creating a new
configuration, display the Configuration dialog box and then click the
Help button at the top right corner of the Configuration dialog box or
press the F1 key on your keyboard.
ADJUSTING SCAN SETTINGS AND PAGE SETTINGS
When scanning using a configuration that you created yourself, you can
adjust that configuration’s scan settings and page settings. For example,
if the scanned image is too dark, you can adjust the brightness of the
scan setting.
Page 35
SCANNING FROM THE ONETOUCH SOFTWARE 31
Note: You cannot change the scan settings or page settings for any of
the predefined scan configurations. You can only adjust settings for
scan configurations that you create yourself. See the section above,
“Creating New Configurations”.
To adjust the scan settings and page settings:
1. Display the Configuration dialog box.
2. In the Select Configuration list, click the configuration that you
want to adjust.
3. Click the Edit button.

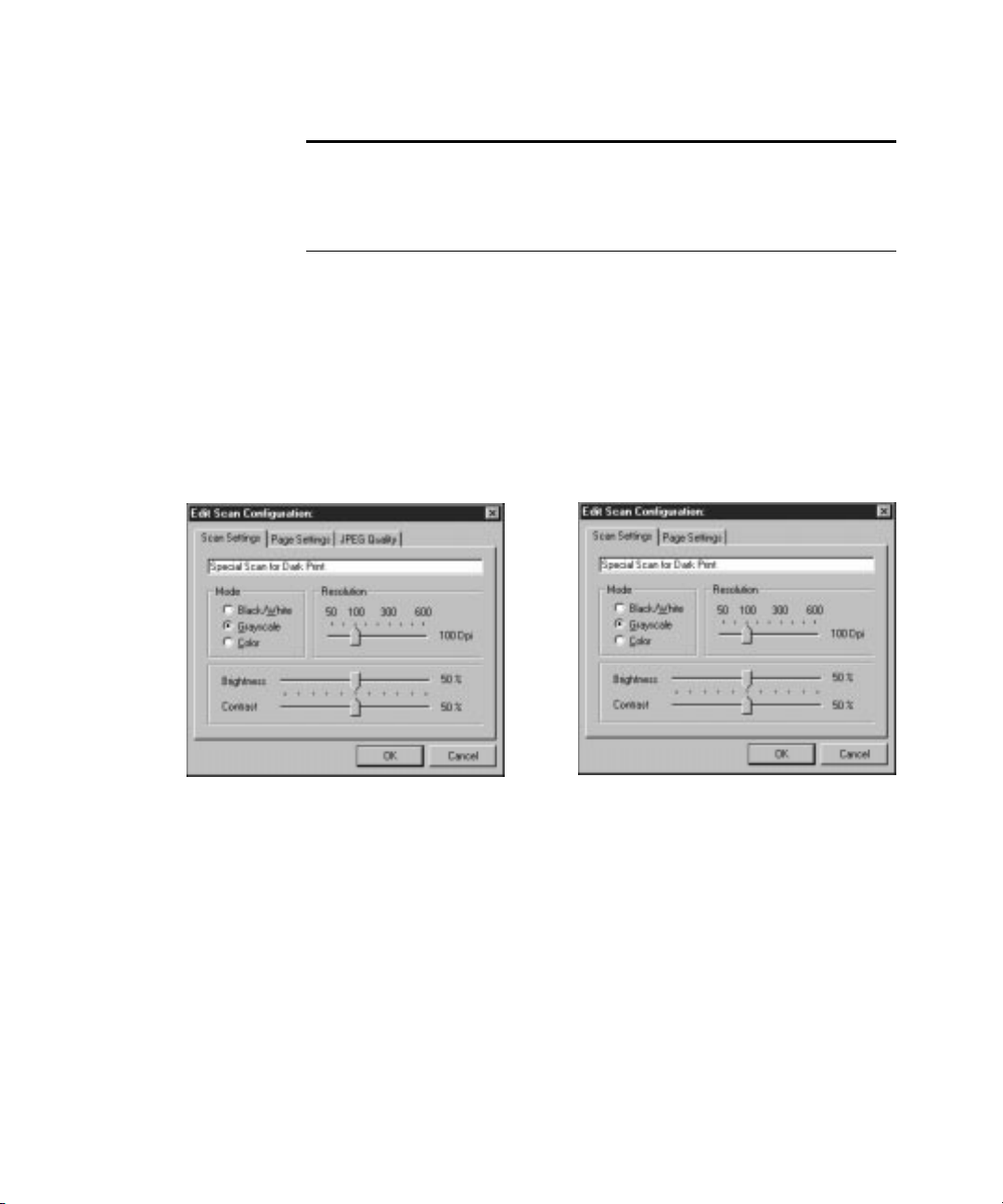

The dialog box appears for adjusting the scanning settings of the
selected configuration.
Dialog box for 6400 scanner
4. Adjust the scan settings that you want.
Mode—Select Black/White to scan in black and white.
For example, letters and memos are usually scanned in black and
white. Select Grayscale to scan items such as documents containing
drawings or black and white photographs. The scanning produces
an image in varying shades of gray. Select Color to scan color
photographs and other color items.
Dialog box for 6200 scanner
Page 36
32 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
Resolution—Drag the slider to the right or left to adjust the dots
per inch (dpi) of the resolution. The maximum resolution is
600 dpi; the minimum is 50 dpi. The higher the dpi setting, the
sharper and clearer the scanned image. However, higher dpi settings
take longer to scan and produce larger files for the scanned images.
Brightness and Contrast—Drag the sliders to the right or left to
adjust the brightness and contrast of the scanned image.
The Contrast setting does not apply to the Black/White mode.
5. Click the Page Settings tab to adjust the scan page settings.
The JPEG Quality
options are only
available with the
6400 scanner.
Page Size—Choose a page size from the drop-down list.
The outlines on the picture represent the various page sizes.
Clicking one of those outlines also selects it as the page size for the
scan. If you select the Custom option from the drop-down list,
boxes appear in place of the picture. Enter the horizontal and
vertical page dimensions in the boxes.
AutoCrop—Select this option to let the scanner automatically
determine the size of the item being scanned. For example, if you
put a photo in the middle of the glass, the scanner will
automatically determine the size of the photo. When AutoCrop is
Page 37
SCANNING FROM THE ONETOUCH SOFTWARE 33
selected, the scanner makes two passes—the first pass senses the
item’s size, and the second pass scans the image. This option
overrides the Page Size menu selection.
DeScreen—Select this option when scanning a picture from a
newspaper or magazine article, or other item that contains images
with patterns or dots. Scans of patterns or dots sometimes have a
distorted or wavy appearance. The scanner scans the item to
compensate for the patterns and dots, and produces a clearer image.
The scanning may slow down a bit when this option is selected.
You don’t need to select this option when scanning photographs.
The DeScreen setting does not apply to the Black/White mode.
Gamma—Drag the slider to improve how the colors in a scanned
image look on your monitor. Gamma correction allows you to
achieve precise color matching. Because the computer cannot
always transmit the exact color information to the hardware, you
may have to make some color adjustments using the Gamma
feature.
The default Gamma setting works fine in most cases and normally
does not need to be adjusted.
6. If the JPEG settings are available, click the JPEG tab to select image
compression settings. Please see “About JPEG Compression” on
page 34 for information about the JPEG settings.
▼ Note: The JPEG compression settings are not available if you are
using a 6200 scanner.
Page 38
34 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
Enable hardware compression (JPEG)—Click to make the JPEG
compression options active.
Minimize Image Size (Maximum compression)—Select this
option to produce the smallest file size for the image; image quality
is lowest.
Best Image Quality—Select this option to produce the best quality
image; file size is larger.
Custom Quality Factor—Set your own choice for file size and
image quality. Enter a number in the Quality Factor box or drag the
slider to set the Quality Factor. High means higher image quality
and larger file size. Low means lower image quality but smaller file
size.
Restore Defaults—Click to return the slider and Custom Quality
Factor to their original settings
7. Click OK.
The Configuration dialog box reappears. Make sure the
configuration you just defined is selected.
8. Click OK on the Configuration dialog box.
The new configuration and its adjusted settings now apply to the
button whose tab is selected at the top of the Configuration dialog
box.
ABOUT JPEG COMPRESSION
Scanned graphics, photos, and other images can sometimes produce
large files. The JPEG options for scanning reduce the file size by
compressing the image electronically. But compression also reduces
image quality. Therefore, compressing an image involves a trade-off
between image quality and file size. In many cases, loss of quality due to
compression is not readily apparent, but the amount of compression
you select—if any—depends on the quality you want.
Page 39
SCANNING FROM THE ONETOUCH SOFTWARE 35
The JPEG compression options only apply to:
■ Destination applications used for graphics, photos, and artwork
images. Word processing applications, fax applications, and other
text-based destination applications do not use JPEG compression.
■ Scan modes for color or grayscale scanning. JPEG compression does
not apply to the Black & White scan mode.
Note: You can add JPEG compression to the existing preset
configurations if the destination application is for graphics, photos, or
other artwork images.
Page 40
36 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
SETTING PREFERENCES
The preferences apply to the scanner button and the scanner.
To set preferences:
1. On the Configuration dialog box, select the tab for a button to set
its preferences.
2. Click the Preferences tab on the Configuration dialog box.
The Preferences dialog box appears.
Show All Destinations—Clicking this option automatically selects
all the destination applications categories. When you display the
Scan tab in the Configuration dialog box, the list of destination
applications include all of the applications on your computer that
fall into these categories.
Select Destinations—Select this option to individually choose the
types of applications to include in the button’s list of destination
applications. Click in the boxes for the types of applications to
include in the Scan tab’s application list.
Show Scan Progress Window—Select this option to see the
window that shows a rendition of the image during the scanning.
3. Click the General tab to set the scanner preferences.
Page 41
These options are
not available with
USB.
SCANNING FROM THE ONETOUCH SOFTWARE 37
Show Status Window—Select this option to see the small window
at the bottom right corner of the screen that shows the status of the
scanning and other information as shown in this sample:
This option is only available if your scanner is connected to a
parallel port.
Show Scanner Icon in Windows Taskbar—Select this option to
see the small icon representing the Visioneer scanner in the
Windows taskbar. This option is only available if your scanner is
connected to a parallel port.
Scanner Lamp turns off—These options control when the scanner
lamp powers goes off.
■ After idling for xx minutes—Select this option to
automatically turn off the lamp if the scanner hasn’t been used
for the specified time. This option saves energy and extends the
Page 42
38 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
lamp’s life. Click in the box and enter the number of minutes
for the lamp to remain idle before turning off. If you scan when
the lamp is off, it warms up before scanning resumes.
■ On System Standby/Shutdown—Select this option to turn off
the lamp when you turn off your computer, or when the
computer’s energy saver option automatically puts the computer
into standby mode.
Folder for Temporary Images—Click the Folder button and then
select a folder for the scanner’s temporary images. During scanning,
a temporary file contains scan information about the image.
Because temporary image files can sometimes be large, select a
folder that has sufficient disk space available.
4. Click OK.
CHANGING THE LINKED APPLICATION
In most cases, you select the destination application within the
OneTouch software; however, if your scanner is connected to a USB
port, Scanners and Cameras in the Control Panel shows to which
application the scanner is linked. If you want to select a different
application, use the Events tab in the Scanners and Cameras dialog box.
The following procedure shows how to link the OneTouch software to
another application using the Scanners and Cameras Properties dialog
box.
To select a different application:
1. In Windows, click Start, and then Settings. Click Control Panel.
2. Double-click Scanners and Cameras.
The Scanners and Cameras Properties dialog box appears.
3. Click the Properties button.
4. Click the Events tab.
Page 43
SCANNING FROM THE PAPERPORT SOFTWARE 39

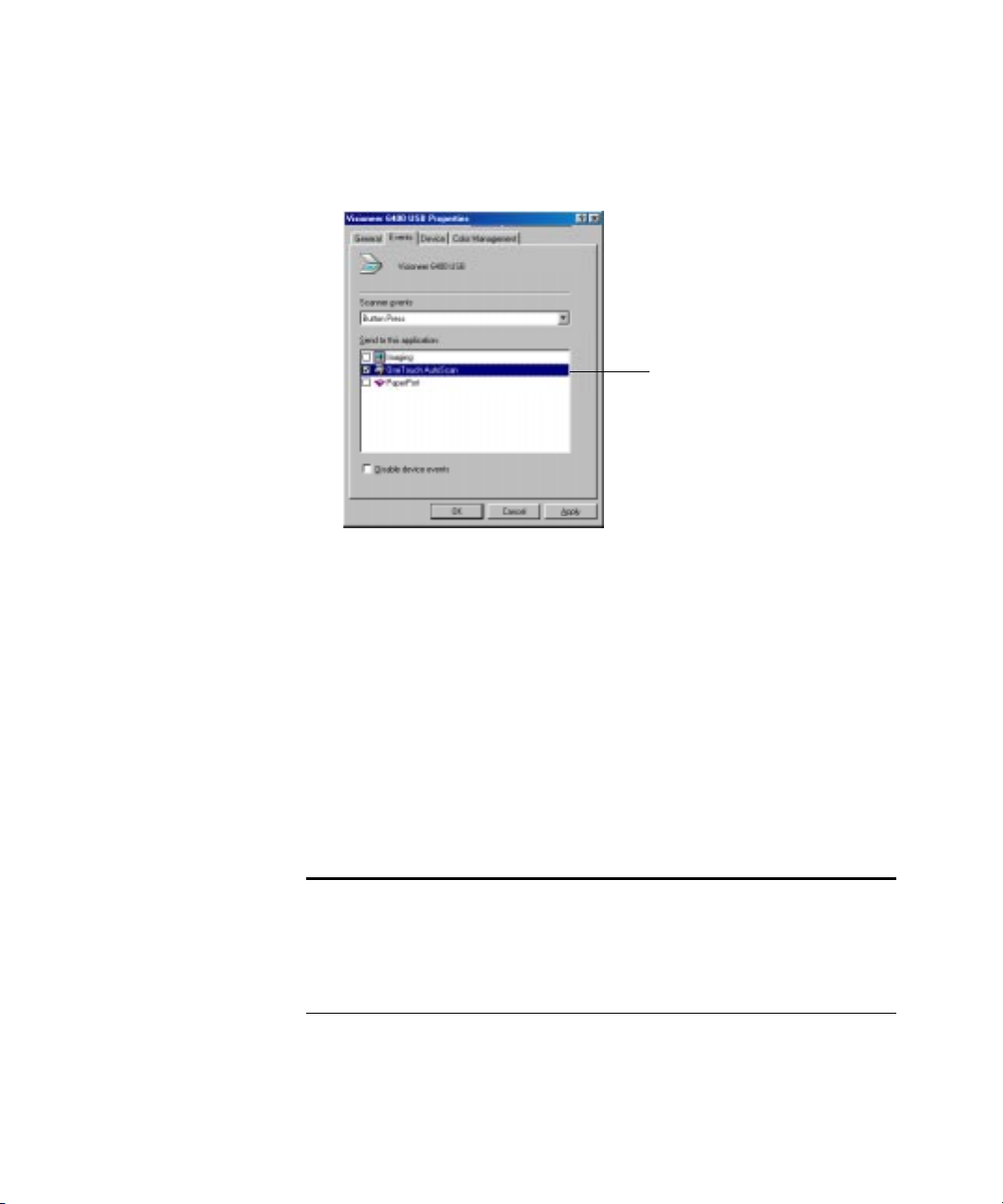

5. In the Events tab, select the check box of the application to which
you want to scan. The sample below shows the Visioneer
OneTouch software as the selected target application.
Visioneer OneTouch
AutoScan is the selected
target application.
If you select more than one application, a dialog box appears each
time you scan asking you to select the application.
6. Click OK to close the properties dialog box and save the new target
application.
SCANNING FROM THE PAPERPORT SOFTWARE
Instead of using a scanner button, you can scan directly from the
PaperPort software. This is particularly helpful when you’re using
PaperPort to file and save your scanned items.
Note: You can also scan directly with other software that meets the
Twain standards for scanning, which includes many graphics and
imaging applications available for your computer. The following steps
explain how to set up and scan from the PaperPort software but you
use the same basic processes with other Twain software.
To scan from PaperPort, you must first do a one-time-only set up of the
software.
Page 44
40 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
To set up the PaperPort software with the scanner:
1. If the PaperPort software isn’t currently running, double-click the
PaperPort icon on the Windows desktop to start it. The PaperPort
Desktop appears.
2. From the PaperPort File menu, choose Select Source. The Select
Source dialog box appears, and shows your Visioneer scanner (as
well as all other Twain devices installed on your computer).
3. Choose the Visioneer scanner option, and then click Select.
Note: You don’t need to set up the scanner again unless you change
the source to some other Twain device, such as a digital camera.
SCANNING AN ITEM WITH THE TWAIN BUTTON
The following steps explain how to scan an item using the Twain button
in the PaperPort software. You can scan many types of items, from small
business cards to A4-sized pages.
Note: Your Visioneer scanner is initially set to scan from the
PaperPort software with the setting Color Document—Faster. To scan
a black-and-white image, select one of the other settings. To scan at a
higher resolution for a color image, select Color Document—Better
Quality. However, scanning at a higher resolution creates a larger file
size and takes longer to scan. To minimize the file size and the time
required to get a better quality scan, select just the area of the item
that you want to scan.
To scan an item:
1. Open the scanner cover, place the item face down onto the lower
left edge of the scanner glass, and close the cover.
2. If PaperPort isn’t running, double-click the PaperPort icon on the
Windows Desktop to start it. The PaperPort Desktop appears.
3. Click the Twain icon on the Command Bar, or choose Acquire
from the File menu.
Page 45
Select one of these preset
options if it’s appropriate for
how you want to use the
scanned item.
If you don’t want to use a
preset option, select new
settings here to manually
configure the scan.
Click Preview to see what
the image will look like.
The Preview image appears in
the window.
SCANNING FROM THE PAPERPORT SOFTWARE 41
Note: You can also scan from other applications that have the Twain
capability. See the user’s guides that you received with those
applications for their specific steps to scan.
The Visioneer Scan Manager dialog box appears.
If the image is what you
want, click Scan.
If not, adjust the settings or
select a new preset option
and click Preview again.
4. Select the options that you want for the scan.
Scan Page For—Select one of these preset options if you want to
use it for scanning. These options are optimized for the various uses
of scanned images, such as scanning for editing text or scanning in
color. The symbols next to the options indicate black and white,
grayscale, or color. For more information about these settings,
see “About the Predefined Scan Settings in PaperPort” on page 46.
If you don’t want to use one of these preset options, you can
manually select the scan configuration options. Note that when you
Page 46
42 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
select a preset option scan configuration settings are for that preset
option. You can also create your own custom configurations.
See the Help for details.
Scan Configuration—Use this section of the dialog box to
manually select scan options for the image.
Mode—Choose a scan mode from the drop-down menu to select
the mode for scanning. The symbols next to the menu options
identify the different modes: TrueColor, Grayscale, Black & White,
JPEG Color Compressed, and JPEG Gray Compressed. The JPEG
modes are not available with the 6200 scanner.
Res—This is the resolution setting for the scan in dots-per-inch
(dpi). The higher the dpi, the sharper the image. Higher dpi
settings also produce larger files sizes. Usually the higher resolution
settings are used for precision work, such as photographs or fine
artwork. Choose one of the resolution settings from the list.
Size—Choose the page size for the image. If you want to use one of
the preset sizes, choose the size from the list. If you want to create a
custom size, click the picture window and drag the mouse. A dotted
box on the window indicates the page size, and the two number
boxes—with the vertical and horizontal symbols next to them—
show the actual page size in inches. You can also enter the vertical
and horizontal sizes in those two number boxes.
AutoCrop—Select this option to let the scanner automatically
determine the size of the item being scanned. For example, if you
put a photo in the middle of the glass, the scanner will
automatically determine the size of the photo. When AutoCrop is
selected, the scanner makes two passes—the first pass senses the
item’s size, and the second pass scans the image. This option
overrides the selections for Size.
Adv. Settings—Click this button to see advanced settings for
scanning. See the Help for details.
5. Click the Preview button.
The scanner scans the item and displays a preview using the options
you selected.
Page 47
SCANNING FROM THE PAPERPORT SOFTWARE 43
6. Review the image to make sure it’s what you want. Readjust the
settings if necessary.
7. (optional) To preview the image again, click the Preview button.
8. When you’re satisfied with the image settings, click the Scan
button.
The scanner now re-scans the item and displays the final image as a
thumbnail on the PaperPort Desktop. The small icon in the lower
left corner of the thumbnail indicates the sample photo was
scanned as a bitmap image.
Thumbnail
Bitmap icon
Please see the PaperPort Getting Started Guide and PaperPort User’s Guide
on the CD for more information about using the PaperPort software.
Page 48
44 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
ADJUSTING THE BRIGHTNESS AND CONTRAST
Sometimes an item is scanned with the brightness and contrast set to be
too light or too dark. For example, a note written with a light pencil
may need to be scanned darker to improve legibility.
You can adjust the brightness and contrast at which grayscale and color
items are scanned. You can only adjust the brightness for black-andwhite items. If an item is currently displayed in the preview area, the
changes you make using the Brightness and Contrast sliders are reflected
in the preview item.
To adjust the brightness and contrast:
1. Click the Twain icon on the Command Bar, or choose Acquire
from the File menu.
The Visioneer Scan Manager appears.
2. Click the Adv. Settings button.
The Advanced Settings dialog box appears.
Drag to adjust brightness
Drag to adjust contrast
Advanced Settings for the
6200 scanner
3. Drag the Brightness slider to the left to make the item darker or to
the right to make the item lighter. When you release the mouse
button, the preview item shows the change.
Page 49
SCANNING FROM THE PAPERPORT SOFTWARE 45
GETTING HELP WITH THE PAPERPORT SOFTWARE
The PaperPort software includes a complete set of help topics that
answer questions each feature of the software.
■ To see help information, press the F1 key, or from the Help menu,
choose PaperPort Help Topics to display the Help Topics window.
Tip: Also see the technical support card included with your scanner.
Page 50
46 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
ABOUT THE PREDEFINED SCAN SETTINGS IN PAPERPORT
Selecting the proper scan setting before final scanning provides the best
results for a scanned item. The scan setting determines the sharpness of
the item and the number of possible shades of gray or color.
These selections also affect the speed of the scan and the file size.
The following table describes PaperPort’s predefined scan settings.
Scan Page For Default Setting To Scan Description
Faxing, Filing,
or Copying
Editing Text
(OCR)
Black & White
Color Photo—
Faster
Color Photo—
Better Quality
Black-and-white
200 dpi
Black-and-white
300 dpi
Grayscale
100 dpi
Color
100 dpi
Color
200 dpi
Newspaper and
magazine articles,
receipts, forms, and
other text items
Business letters,
contracts, memos, and
other documents that
you want to edit
Black-and-white
photos
Color pages with
many graphics, or
mixed graphics and
text, line art, or photos
that require a quick
scan
Photographs and color
items
Provides the fastest scan time
and smallest file size.
Enhances the use of OCR
software for converting
scanned text to editable text.
Provides higher quality and a
larger file size than the Faxing,
Filing or Copying scan setting.
Provides the best setting for
black-and-white photos.
Creates a reasonable scanned
color item in a file that is not
too large. PaperPort’s default
setting.
Provides the ideal setting for
color items, item editing,
desktop publishing, and high
quality output. Results in a
color scan with slower scan
time and a larger file size.
Page 51
CLEANING THE SCANNER GLASS 47
4. Drag the Contrast slider to the left to decrease the contrast or to
the right to increase the contrast.
See the Help for more details about the Advanced Settings dialog box.
CLEANING THE SCANNER GLASS
Scanning items that have excessive amounts of dirt or dust may dirty the
scanner’s glass. To ensure the best quality scanned item, wipe the
scanner glass with a soft clean cloth to rid the glass of dust or other
debris.
Page 52
48 VISIONEER 6200/6400 SCANNER INSTALLATION GUIDE
VISIONEER SCANNER SPECIFICATIONS
Bit Depth 36-Bit color (internal), 10-Bit gray
Scanning resolution Optical resolution: 600 x 1200 dpi
Maximum Item sizes 8.5
Scanner dimensions
Height 3.4
Width 11.4 inches (29.0 cm)
Length 17.3 inches
Weight 5.7 pounds (2.6 kg)
Operating temperature 50°–104° F (5°–35° C without
Relative humidity 20%–80% (@35° C without
Power supply
Input voltage/frequency 100 Vac, 50/60 Hz (Japan)
Output voltage/watt 12 V DC, 15 watt maximum
Safety and agency certifications UL, ULc, GS, FCC Class B,
Hardware warranty One-year limited warranty
(internal), 1-Bit line art/text
Maximum resolution (interpolated):
9600 x 9600 dpi
x 11.69 inches (21.6 x 29.7 cm)
inches (8.5 cm)
(44.0 cm)
condensation)
condensation)
120 Vac, 60 Hz (North America)
230 Vac, 50 Hz (Europe)
VCCI Class 2, CE
Loading...
