M-488A Cleaning Robot
Owner’s Manual
2
Dear Owner,
Thank you for purchasing your new Vileda Cleaning Robot.
After many years of studying consumer needs, we have designed
this cleaning robot to make your life easier and more enjoyable. At
one press of a button, the Vileda Cleaning Robot moves by itself
around your home, picking up particles, dust and hair from your
floors, even under furniture and other hard to reach places such as
corners and edges. The Vileda Cleaning Robot works efficiently on
all kinds of hard floors, and even on short-piled carpets.
We believe we have produced the most stylish and easy to use tool
to help you with your everyday cleaning tasks.
Enjoy it!
3
Contents
CONTENTS
General Warnings Pg 4
Part Location Pg 7
Anatomy Pg 8
Battery Charging & Recharging Pg 9
Using the Product Pg 10
Cleaning Modes Pg 10
Cleaning System Pg 11
Removing and Emptying the Dust Bin Pg 12
Cleaning Dust Bin & Filter Pg 12
Cleaning Main Brushes Pg 13
Cleaning Vacuum Inlet Cover Pg 14
Replacing Side Brush Pg 14
Troubleshooting Pg 15
Environmental and Product Recycling Pg 16
Battery Removal Pg 17
Technical Specification Pg 17
Guarantee Information Pg 18
4
General WarninGs
GENERAL WARNINGS
IMPORTANT:
READ ALL INSTRUCTIONS BEFORE USE.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING:
USE THE UNIT ONLY AS DESCRIBED IN THIS MANUAL. FAILURE TO FOL
LOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC
SHOCK, FIRE AND/OR SERIOUS INJURY.
WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY PRECAU
TIONS SHOULD ALWAYS BE OBSERVED, INCLUDING THE FOLLOWING,
IN ORDER TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, LEAK
ING BATTERIES OR PERSONAL INJURY.
USE RESTRICTIONS
•Only for indoor use. Do not use outdoors or on balconies.
•Intended for domestic use only.
•Device is not a toy. Do not sit or stand on it. Small children and pets
should be supervised when the robot is cleaning.
•Do not pick up anything that is flammable, burning or smoking.
•Do not use this device to pick up anything wet.
•Do not use with long-piled carpets.
PERSONAL SAFETY
•The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance
other than those recommended in this instruction manual may present a
risk of personal injury.
•Children and animals must be supervised to ensure they do not play with
the appliance.
•This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
5
General WarninGs
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
•Store in a dry place.
•Store out of reach of children.
•Use only with the attachments recommended by the manufacturer.
•Do not use without the filter in place.
•Keep the product and all accessories away from hot surfaces.
•Do not immerse the appliance in water or other liquid.
ELECTRICAL SAFETY INSTRUCTIONS
•Never modify the charger in any way.
•The charger has been designed for a specific voltage. Always check that
the mains voltage is the same as that stated on the rating plate.
•Only use the charger supplied with the product. Do not attempt to use the
charger with any other product nor attempt to charge this product with
another charger.
•Before use, check the charger cord for signs of damage or ageing.
•Do not abuse the charger cord; never carry the charger or charger stand
by the cord.
•Never pull the charger cord to disconnect from a socket; grasp the charger and pull to disconnect.
•Keep the charger cord away from hot surfaces and sharp edges.
•Do not handle the charger or the unit with wet hands.
•Do not store or charge the unit outdoors.
•Unplug the charger before cleaning.
Product contains electronic parts. DO NOT submerge it or spray it with
water. Clean with a dry cloth only.
6
General WarninGs
BATTERY USE AND CARE
•Using a charger from a different product may cause a risk of fire.
•Leaks from battery cells can occur under extreme conditions. If the liq-
uid gets on the skin, wash it immediately with soap and water. If the liquid
gets into the eyes, flush them immediately with clean water for a minimum
of 10 minutes and seek medical attention.
•This product contains NiMH batteries. Do not incinerate batteries or ex-
pose to high temperatures, as they may explode.
•When the battery pack is not in use, keep away from other metal objects
such as: paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another.
•Shorting the battery terminals may cause fire.
•The battery must be removed from the appliance before it is discarded.
•The battery is to be disposed of safely.
•The appliance must be disconnected from the mains supply when remov-
ing the battery.
•In an emergency situation contact professional help immediately!
SERVICE
•Before using the machine and after any impact, check for signs of wear or
damage and repair as necessary.
•Do not use the appliance if any part is damaged or defective.
•Repairs should be carried out by a service agent or a suitably qualified
person in accordance with relevant safety regulations. Repairs by unqualified persons could be dangerous.
•Never modify the appliance in any way as this may increase the risk of
personal injury.
•Only use replacement parts or accessories provided or recommended
by the manufacturer.
7
Part loCation

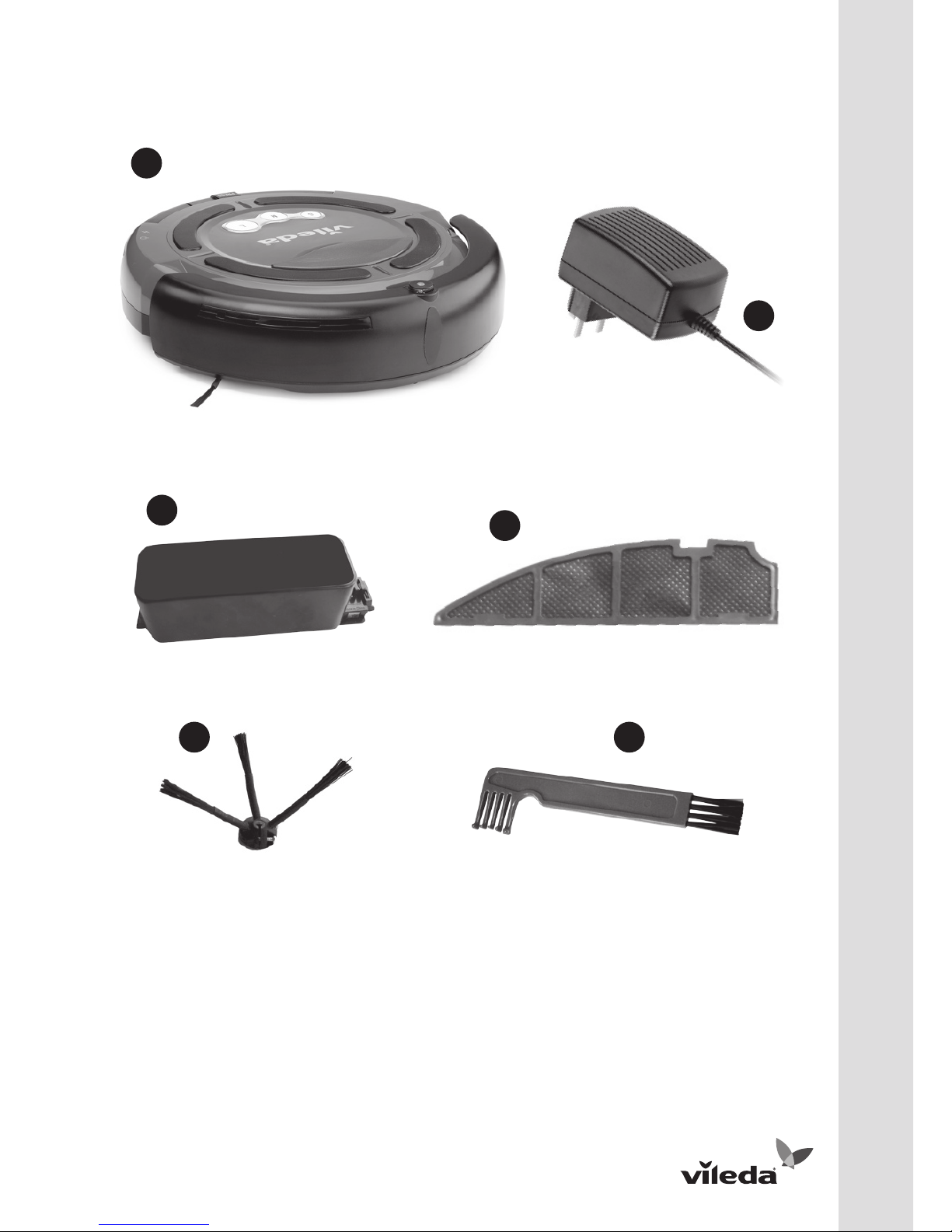

PART LOCATION
A. 1 Main Unit
B. 1 Battery Charger (* Picture may differ from provided box content)
C. 1 Rechargeable Battery Pack (installed)
D. 1 Filter Mesh (extra)
E. 1 Side Brush (extra)
F. 1 Maintenance Brush
A
D
F
B
C
E
*
8
anatomy
12
ANATOMY
2
1
6
8
9
10
11
7
13
1. Infrared Sensor
2. Handle
3. Battery Charging Indicator
4. Command Buttons
5. Removable Dust Bin
6. Rechargeable Battery
7. Cliff Sensors
8. Side Brush
9. Power Switch
10. Main Rotating Brush
11. Filter
12. Vacuum Inlet Cover
13. Battery Charger Socket
3
5
4
9
Battery CharGinG & reCharGinG
8
hours
Charge the battery
for 8 hours before
first use.
BATTERY CHARGING & RECHARGING
WARNING: if the battery is damaged in any way do not attempt to recharge it. Contact Vileda in the UK on 08457697356.
1 Connect the supplied battery charger into the battery charging socket
located beside the power switch.
2 Once the battery is fully charged unplug the charger from the battery
charging socket (13). Do not pull the charger cord, grasp the charger and
pull to disconnect from the socket.
Note: charging time is about 4-5 hours.
Battery autonomy is up to 80 minutes. Battery charging indicator will turn
red when battery level is down. Then recharging is needed.
To maintain peak performance of the battery it is recommended to charge
8 hours before first use or when used again after a long time.
WARNING: Only use a replacement battery as supplied by the manufacturer.
10
UsinG the ProdUCt CleaninG modes
USING THE PRODUCT
Before using, pick up objects like clothing, loose papers, pull cords for
blinds or curtains, power cords, and any fragile objects as they may
entangle with the cleaning brushes. If the device passes over a power
cord and drags it, there is a chance an object could tumble off a table
or shelf.
1 Ensure the battery is charged.
2 Place Vileda Cleaning Robot in the middle of the room.
3 To turn Vileda Cleaning Robot ON press the main Power Switch.
4 To START Vileda Cleaning Robot, press one of the Command Buttons
to choose the desired cleaning mode (see section “Cleaning Modes”).
5 To PAUSE Vileda Cleaning Robot, press one of the Command Buttons.
6 To RESUME Vileda Cleaning Robot, press one of the Command Buttons
again.
7 To turn Vileda Cleaning Robot OFF, press the main power Switch.
IMPORTANT: For most efficient cleaning, keep your floors as clear as possible (e.g. temporarily remove wires, rugs, chairs, small objects, …). With
less obstacles, the Vileda Cleaning Robot will move faster and clean more
effectively.
CLEANING MODES
WARNING: Certain types of floors and stairs could reduce the reliability of
drop sensors - Test with your specific floor and stairs before use.
START
TABLE
SOFA
11
CleaninG system
1
2
3
Vileda Cleaning Robot can avoid obstacles and is equipped with cliff sensors
to avoid falling down the stairs.
Vileda Cleaning Robot has 3 cleaning modes: SHORT (S), MEDIUM (M)
and LARGE (L), which represent the size of the room.
•SHORT (S): robot cleans for 5 minutes.
Ideal for spot cleaning in one area.
•MEDIUM (M): robot cleans for 30 minutes.
Ideal for mid-sized rooms (up to 25 m
2
).
•LARGE (L): robot cleans for 60 minutes.
Ideal for big rooms (more than 25 m
2
).

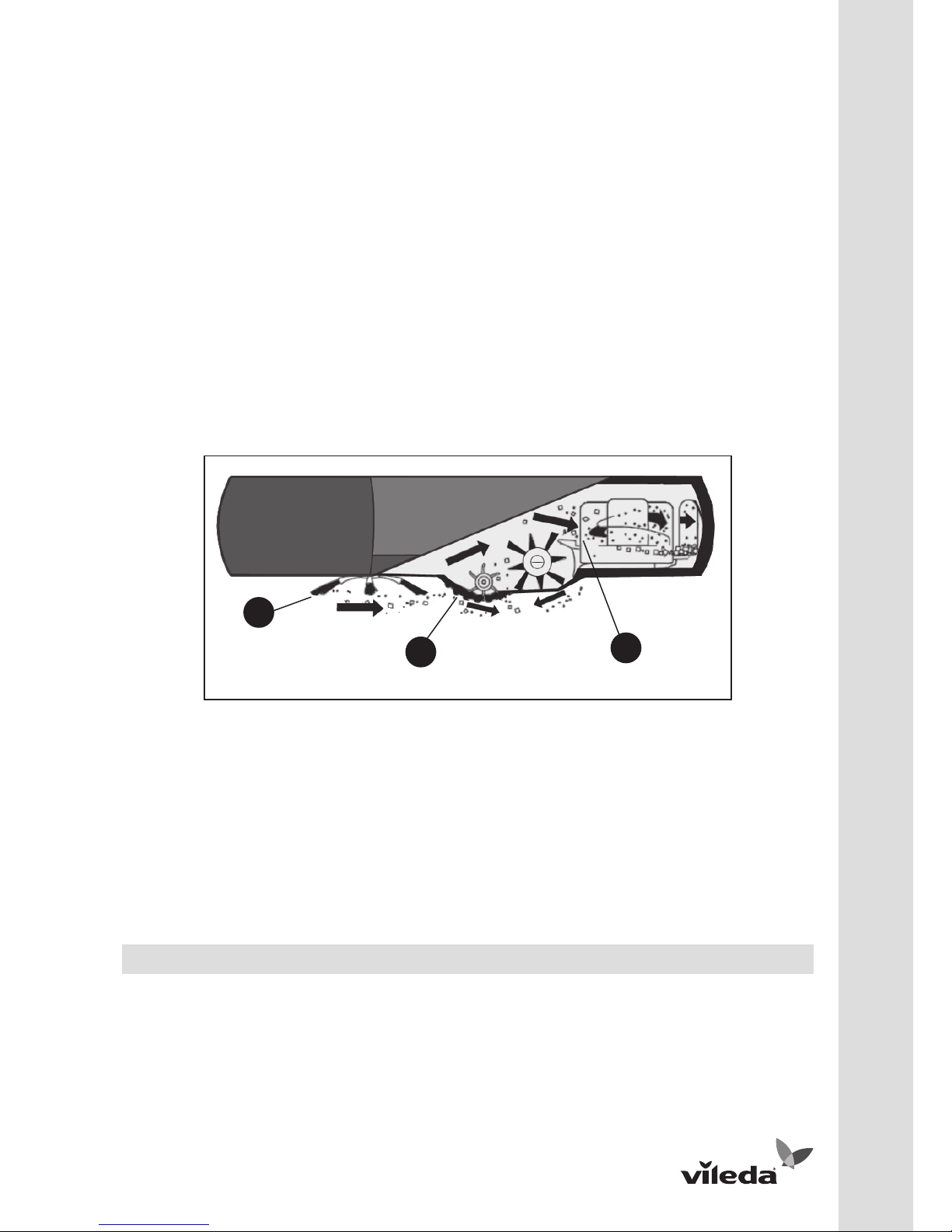

CLEANING SYSTEM
1 Side brush sweeps into corners and along edges.
2 Two rotating brushes pick up dirt, hair and particles into the dustbin.
3 Vacuum power picks up the remaining fine dirt.
Vileda Cleaning Robot works on all hard floors such as wood, parquet, tiles,
linoleum and short-pile carpets.
Do not use Vileda Cleaning Robot with long-piled carpets.
12
removinG and emPtyinG the dUst Bin
2 4 5
REMOVING AND EMPTYING THE DUST BIN
1 Turn off the power switch.
2 Press down the dust bin release button and pull out the dust bin as indi-
cated in illustrations.
3 Empty the dust bin in the rubbish bin.
4 Reinsert dust bin and push until you hear a clicking sound.
CLEANING DUST BIN AND FILTER
1 Turn dust bin upside down.
2 Press bottom slightly and take filter mesh out as indicated in illustrations.
3 Clear the dirt on the filter mesh.
4 Reinsert filter mesh back to the dust bin.
5 Press slightly until it clips.
6 Reinsert dust bin in the robot.
2 4
PRESS
13
CleaninG main BrUshes
21
3 5
Product contains electronic parts. Do not submerge it or spray it with water. Clean with a dry cloth only.
WARNING: to buy new filters, please contact Vileda in the UK on
08457697356.
CLEANING MAIN BRUSHES
1 Turn off the power switch and turn the robot upside down on a flat sur-
face.
2 Use a cross-head screwdriver to remove the fixing screw on the right.
3 Take out the main brush, rubber brush and brush coupler together as
shown in the illustration.
4 Remove all hair and dirt from both brushes. Clean brushes chamber.
5 Wipe out dirt on the metal shaft and bearing of the brush coupler as indi-
cated in the illustration.
6 Put brush coupler and brushes back.
7 Tighten the screw.
Main brushes do not need to be cleaned after each use. However, regular cleaning is recommended to avoid excessive build up of hair that
could damage the robot.
14
CleaninG vaCUUm inlet Cover
2
2
1
CLEANING VACUUM INLET COVER
1 Turn off the power switch and turn the robot
upside down.
2 Remove vacuum inlet cover as shown in the
illustration.
3 Clean vacuum inlet cover and the fan mechanism
to ensure good ventilation.
4 Reinsert the vacuum inlet cover by guiding the
hinge tabs back into the holes carefully.
REPLACING SIDE BRUSH
1 Use a cross-head screwdriver to remove side brush cover.
2 Insert new side brush and put back the cover.
3 Tighten the screws.
For further help, technical advice, or to order spare or replacement parts
please contact Vileda in the UK on 08457697356.
15
troUBleshootinG
TROUBLESHOOTING
Problem Possible reason Possible solution
Robot does not
detect cliffs /
drops.
• Sensorsaredirty. • Wipeawaydustfrom
sensors with a dry
cloth.
Robot stops while
cleaning and all
light indicators
turn on.
• Mainbrushesare
blocked.
• Mainbrushesare
jammed.
• Cleanmainbrushes
and restart.
• Removejamand
restart.
Robot stops and
battery charge
indicator is on.
• Lowbattery. • Rechargebattery.
Robot only moves
in circles in the
same position.
• Onewheelisblocked. • Removehairsanddirt
from wheels.
Battery does not
recharge.
• Batteryisnotinstalled
correctly.
• Chargerisnot
plugged correctly.
• Reinstallbattery.
Two beeps should be
heard when installed
properly.
• Checkchargeris
plugged correctly to
the outlet and to the
robot.
For further help, technical advice, or to order spare or replacement parts
contact Vileda in the UK on 08457697356.
16
environmental and ProdUCt reCyClinG
ENVIRONMENTAL AND PRODUCT RECYCLING
The Vileda Cleaning Robot fulfils the EU directive 2002/96/CE, covering
electrical and electronic appliances and the management of its disposal.
The packaging material is entirely recyclable, and marked with the recycling symbol. Follow local regulations for scrapping. Keep the packaging
materials (plastic bags, polystyrene parts, etc.) out of the reach of children,
as they are potentially dangerous.
When the product has reached the end of its life please do not dispose of
it with general household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
The symbol
identifies the Vileda Cleaning Robot as a product submit-
ted to the regime of selective electrical appliance recycling collection.
The product contains a NiMH battery which should not be disposed of with
general household waste. Call, or deposit the battery in an official collection point for its recycling.
Batteries can be detrimental for the environment and can explode if they
are exposed to high temperatures.
The violation of these precautions could cause fire and / or serious injuries.
For more detailed information about treatment, recovery and recycling of
this product, please contact your local city office, your household waste
disposal service or the shop where you purchased the product.
17
Battery removal teChniCal sPeCifiCation
2
BATTERY REMOVAL
At the end of the product’s or battery’s life the battery should be removed
for disposal and recycling.
Follow these instructions to remove and reinstall the battery:

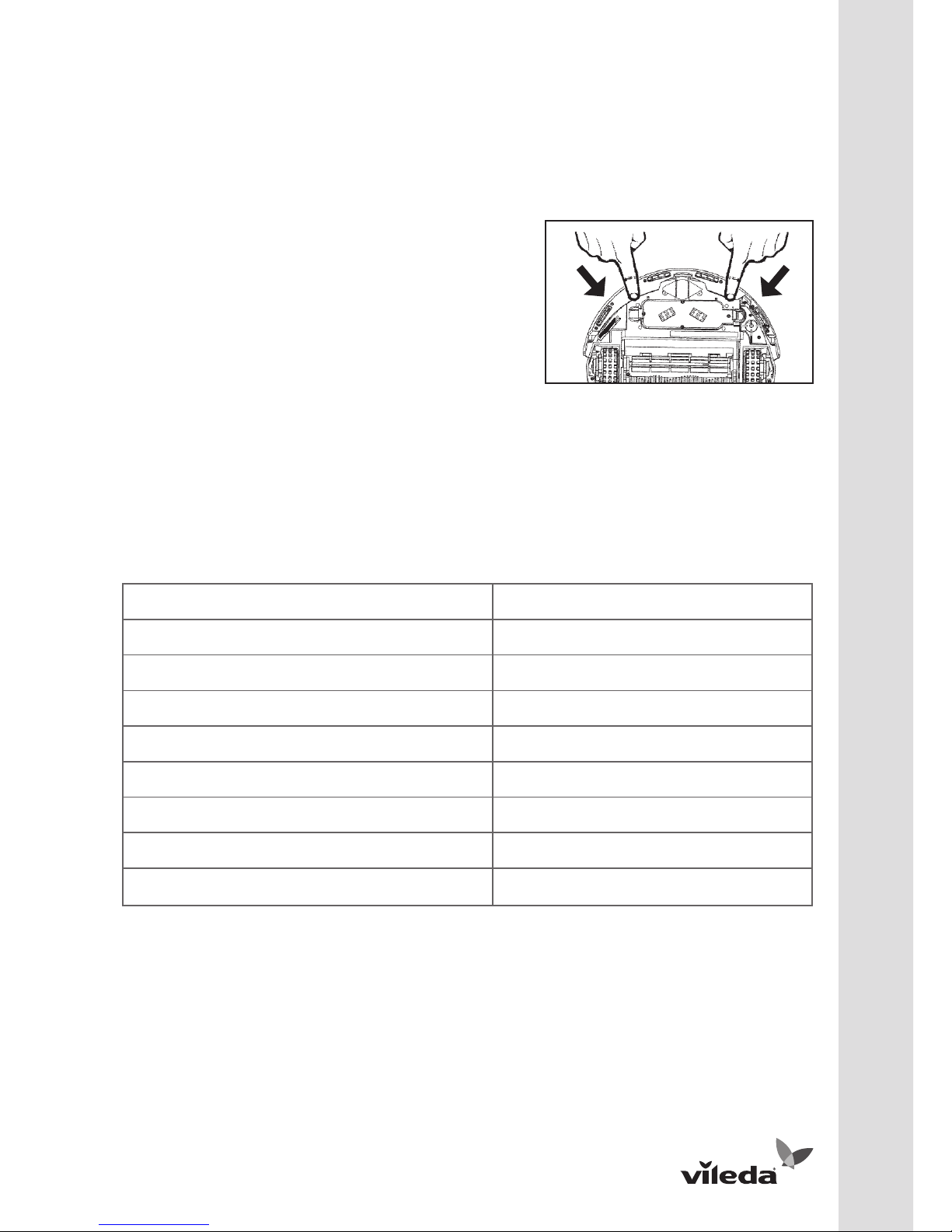

1 Turn off the power switch and turn the ro-
bot upside down.
2 Push both flaps inwards and pull up until
battery pack comes out.
3 Reinstall battery by pushing until you hear
a clicking sound.
WARNING: NEVER touch both the metal battery terminals at the same
time with any metal objects as this will short circuit the battery and may
create sparks that can cause small burns.
TECHNICAL SPECIFICATION
Battery type 14.4V DC, 1700 mAh NiMH
Charging time 4-5 hours
Charger output 24V DC
Charger input 100-240V AC
Unit Average Power 19W ~ 25W
Suction Power 3.00W
Airflow 63.6dm
3
/min
Dust Capacity 0,25L
Unit Size 34cmx9cm
18
GUarantee information
GUARANTEE INFORMATION
2 Year Limited Guarantee:
GB
Vileda Customer Support
Freudenberg Household Products
Vileda House
2 Chichester Street
Rochdale, Lancashire
OL16 2AX
UK
www.vileda.co.uk
Customer Care Line: 08457697356
D
FHP Export GmbH
69448 Weinheim
The present guarantee is only valid for the Vileda Cleaning Robot.
The Vileda Cleaning Robot guarantee complies with the directive 1999/44/
CE.
Vileda guarantees that the Cleaning Robot will be free of defects due to
defective materials or manufacture. If defects arise during the period of
guarantee, Vileda will guarantee the replacement of the defective part or
provide a new unit.
IMPORTANT: Please keep your purchase receipt! Vileda will repair the robot or will replace some of its pieces or the entire product only if proof of
purchase is provided and the claim is within the period of guarantee.
The Vileda limited guarantee of 2 years does not cover non authorized repairs.
The limited guarantee does not include batteries.
The limited guarantee will automatically come to an end 2 years after the
purchase date.
The guarantee will be annulled if the product is not used as indicated in the
instructions manual, including, as an example:
1 If it has been damaged due to incorrect use or maintenance.
2 If any part is modified or replaced or if it is used in any way that is not
recommended by Vileda.
19
GUarantee information
3 If it is used with any parts not produced or not recommended by Vileda.
4 If it is used for purposes other than those specified by Vileda. If used
outdoors or for commercial purposes.
If after following the manual, you are sure that the product is defective, call
Vileda on 08457697356. Be ready with the product, a complete description of the problem, proof of purchase, your name, address and telephone
number.
Vileda does not take responsibility for consequential or indirect damages
caused by the use of the product. The total liability of Vileda for all losses
and damages howsoever caused shall not exceed the purchase price of
the product. If you have any doubts referring to the correct use of the product or referring to the guarantee, call Vileda Customer Service.
GB
Vileda Customer Support
Freudenberg Household Products
Vileda House
2 Chichester Street
Rochdale, Lancashire
OL16 2AX
UK
www.vileda.co.uk
D
FHP Export GmbH
69448 Weinheim
04048-72-26-204
Loading...
