Viking VRCI5240GLSS Installation
Installation Guide
15”W./24”W.
Undercounter Refrigeration
Table of Contents
2
Warnings & Important Information_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Proper Disposal _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4
D i m e n s i o n s ( 1 5 ” W . P r o f e s s i o n a l ) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
D i m e n s i o n s ( 2 4 ” W . P r o f e s s i o n a l ) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6
D i m e n s i o n s ( 2 4 ” W . P r o f e s s i o n a l ) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
S p e c i f i c a t i o n s _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8

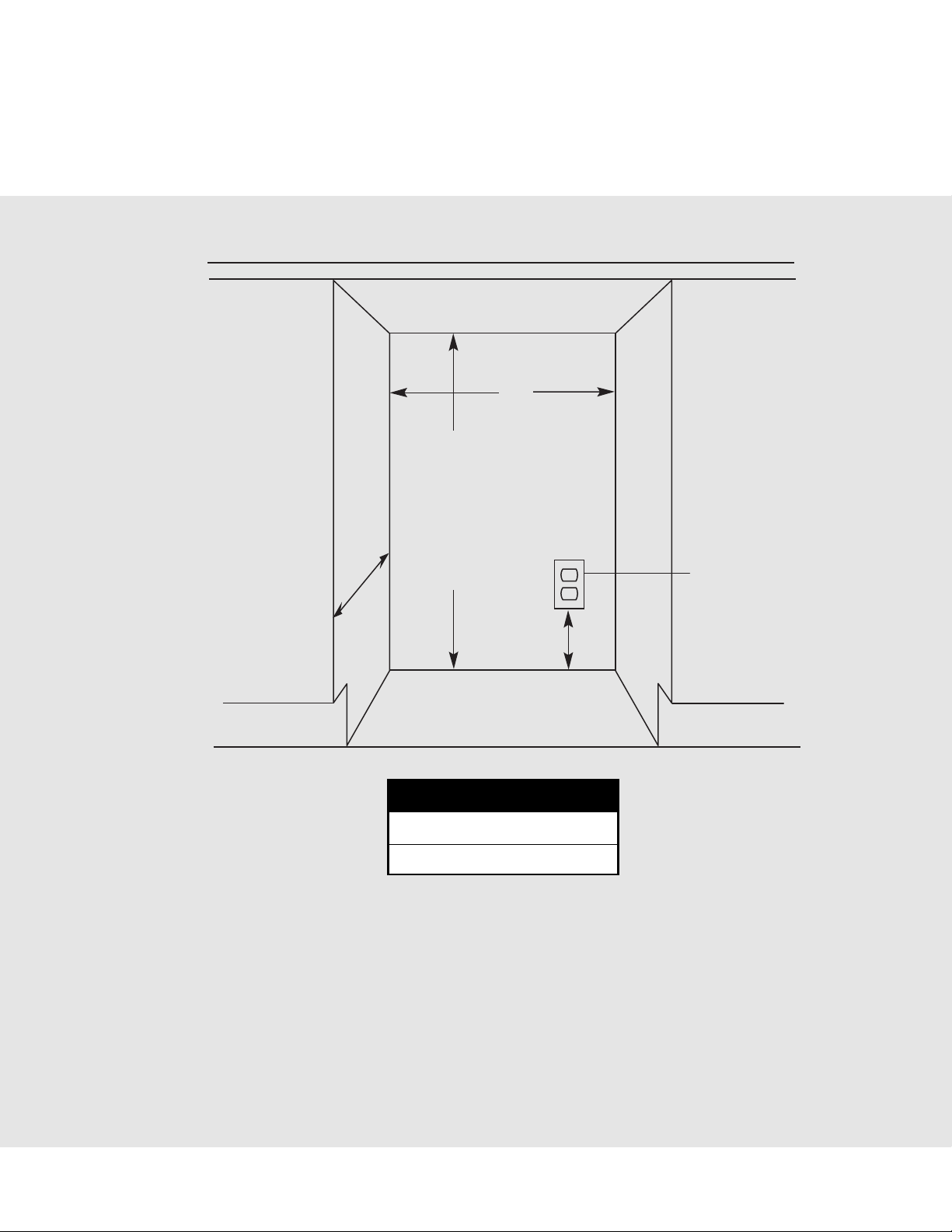

C u t o u t D i m e n s i o n s _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 9
General Information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 0

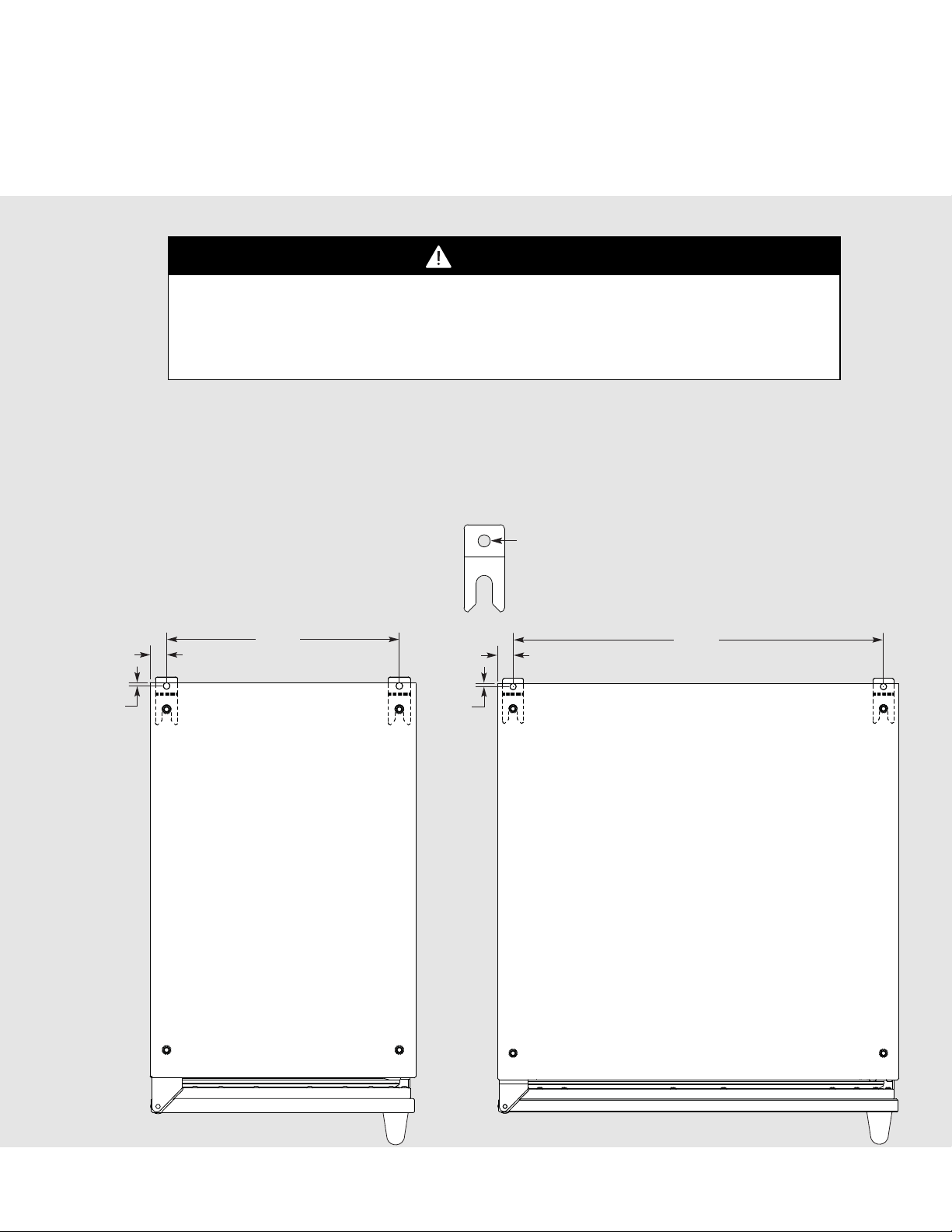

Anti-Tip Brackets _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 2
I n s t a l l a t i o n _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 3

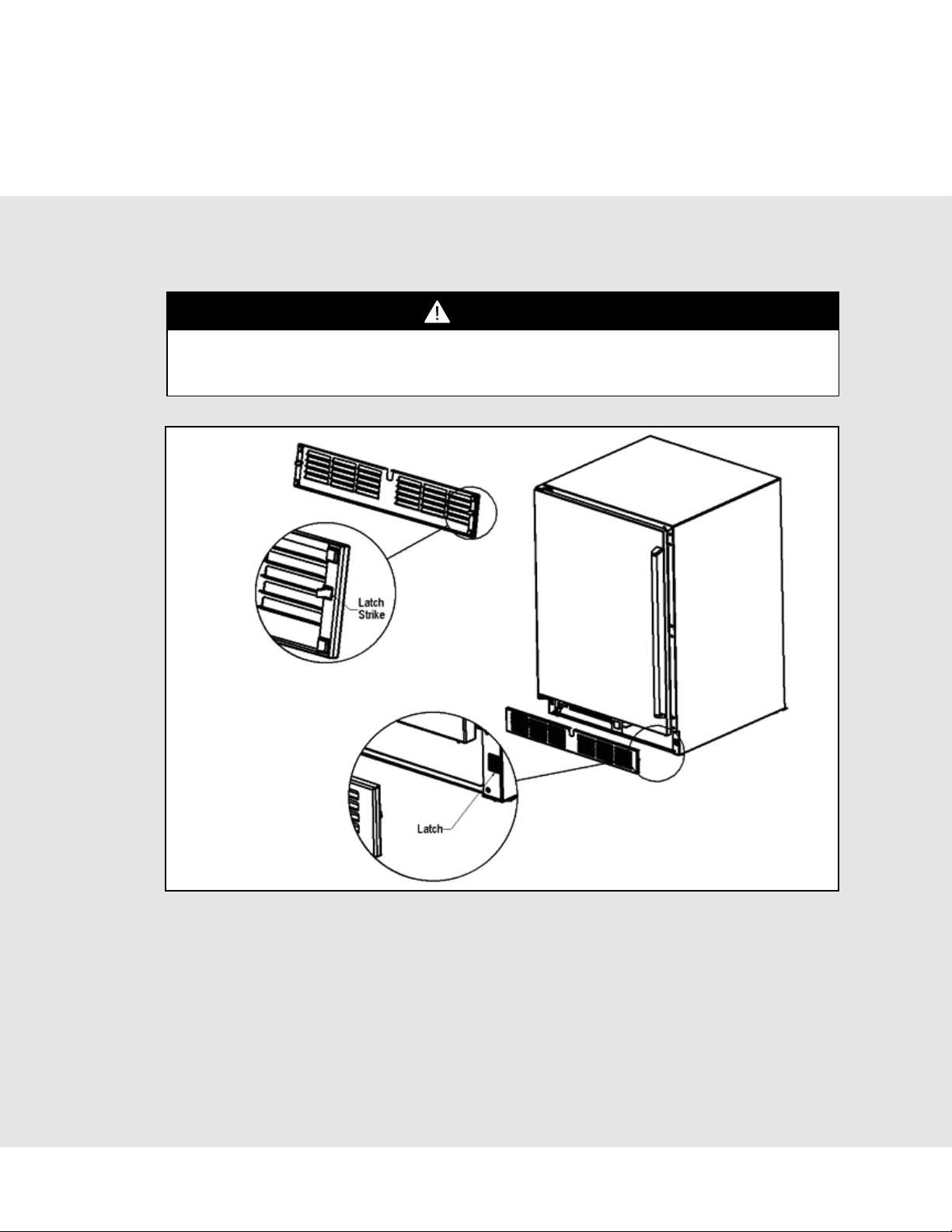

K i c k p l a t e I n s t a l l a t i o n _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 5
Installation Checklist _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 6
Service Information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 7
IMPORTANT – PLEASE READ AND FOLLOW
• Before beginning, please read these instructions completely and carefully.
• DO NOT remove permanently affixed labels, warnings, or plates from the product. This may
void the warranty.
• Please observe all local and national codes and ordinances.
• Please ensure that this product is properly grounded.
• The installer should leave these instructions with the consumer who should retain for local
inspector’s use and for future reference.
It is your responsibility to be sure your undercounter refrigeration is:
• located so the front is not blocked to restrict incoming or discharge air flow.
• properly leveled.
• located in a well ventilated area.
• connected to the proper kind of outlet, with the correct electric supply and grounding. A
115V, 60 Hz, 15 amp fused electrical supply is required.
Note: Time delay fuse or circuit
breaker is recommended.
• not used by anyone unable to operate it properly.
• used only for its intended purpose.
• properly maintained.
•SAVE THESE INSTRUCTIONS•
WARNING
To reduce the risk of fire, electric shock, or injury when using your unit, follow these basic precautions:
• Read all instructions before using the unit.
• Never allow children to operate, play with, or crawl inside the unit.
• Never clean unit parts with flammable fluids. The fumes can create a fire hazard or explosion.
• Always turn the power on/off switch (located behind the air grille on top right side) to the OFF position
before attempting to change light bulbs, clean, or service the unit.
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE. THE FUMES CAN CREATE A FIRE HAZARD OR EXPLOSION.
3
IMPORTANT–Please Read and Follow!
A GFI
shall be used if required by NFPA-70 (National Electric Code), federal/state/local laws, or
local ordinances.
• The required use of a GFI is normally related to the location of a receptacle with respect to
any significant sources of water or moisture.
• Viking Range, LLC will NOT warranty any problems resulting from GFI outlets which are not
installed properly or do not meet the requirements below.
If the use of a GFI is required
, it should be:
• Of the receptacle type (breaker type or portable type NOT recommended)
• Used with permanent wiring only (temporary or portable wiring NOT recommended)
• On a dedicated circuit (no other receptacles, switches or loads in the circuit)
• Connected to a standard breaker of appropriate size (GFI breaker of the same size NOT
recommended)
• Rated for Class A (5 mA +/- 1 mA trip current) as per UL 943 standard)
• In good condition and free from any loose-fitting gaskets (if applicable in outdoor situations)
• Protected from moisture (water, steam, high humidity) as much as reasonably possible.
DANGER
RISK OF CHILD ENTRAPMENT
Before You Throw Away Your Old Refrigeration Unit:
• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.
IMPORTANT: Child entrapment and suffocation are
not problems of the past. Junked or abandoned
refrigeration units are still dangerous—even if they
will sit for “just a few days”. If you are getting rid of
your old refrigeration unit, please follow these
instructions to help prevent accidents.
IMPORTANT: Now that you have a new refrigeration
unit, it is extremely important that you dispose of
your old appliance in a way that minimizes the
possibility that children will find it. There have been
many cases in years past of children crawling inside
junked and abandoned refrigeration units and
becoming trapped or suffocated.
Contact your municipal waste disposal authority to
find out the best and safest way to dispose of your old
refrigeration unit.
Proper Disposal (of old refrigeration unit)
4
DANGER
Altering, cutting of the power cord, or removal of the power cord, removal of power plug, or
direct wiring can cause serious injury, fire and/or loss of property and/or life and will void the
warranty.
WARNING
• Never attempt to repair or perform maintenance on the unit until the electricity has been
disconnected.
• The anti-tip kit must be installed on this unit before it is used. Never use the drawers,
shelves or doors as steps or to support more than they were designed to support.
CAUTION
• Do not lift unit by drawer or door handles.
• Failure to clean the condenser every three months can cause the unit to malfunction. This
could void the warranty.
• Never install the unit behind closed doors. Be sure front louvered kickplate is free of
obstruction. Obstructing free airflow can cause unit to malfunction, and may void warranty.
Door Swing
14-7/8”
(37.8 cm)
5
Dimensions (15”W. Professional)
14-7/8”
14-7/8”
(37.8 cm)
(37.8 cm)
30-1/8”
(76.5 cm)
22-1/16”
(56.0 cm)
24-1/16”
(61.1 cm)
26-9/16”
(67.5 cm)
50” (127.0 cm) area in which
electrical outlet must be located
Power cord 6-5/8”
5-1/16”
(12.9 cm)
(16.8 cm) off floor.*
34-1/4”
(87.0 cm)
min.
to
35”
(89.0 cm)
max.
15-25/32”
(40.1 cm)
min. clearance
for door swing
94.0° Swing
required for
pull-out shelf
clearance
2-3/16”
(5.6 cm) min.
clearance
from a corner
to achieve 94°
door swing
6
23-7/8”
(60.6 cm)
Door Swing

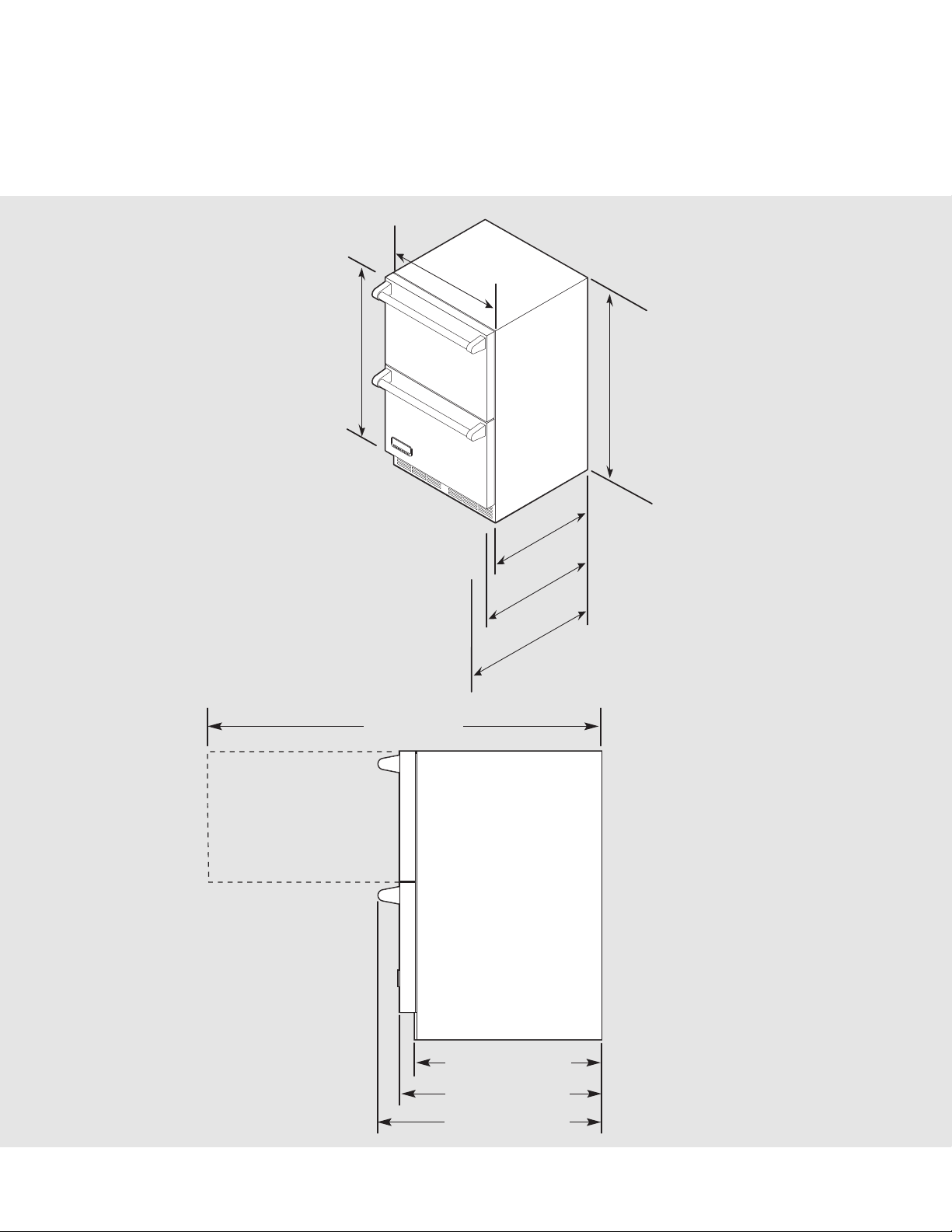

Dimensions (24”W. Professional)
23-7/8”
23-7/8”
(60.6 cm)
(60.6 cm)
30-1/8”
(76.5 cm)
22-1/16”
(56.0 cm)
24-1/16”
(61.1 cm)
26-9/16”
(67.5 cm)
34-1/4”
(87.0 cm)
min.
to
35”
(89.0 cm)
max.
50” (127.0 cm) area in which
electrical outlet must be located
Power cord 6-7/16”
7-9/16”
(12.9 cm)
24-25/32”
(40.1 cm)
min. clearance
for door swing
(16.8 cm) off floor.*
94.0° Swing
required for
pull-out shelf
clearance
2-27/32”
(5.6 cm) min.
clearance
from a corner
to achieve 94°
door swing
