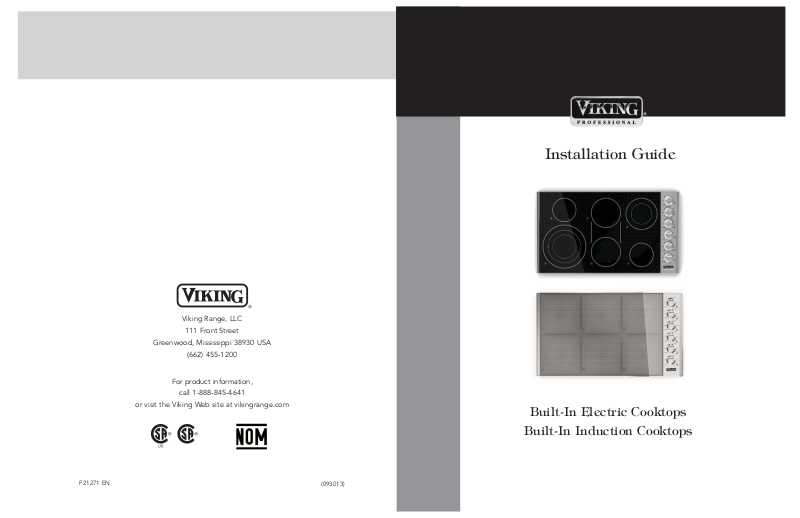

Page 1
Installation Guide
Built-In Electric Cooktops
Built-In Induction Cooktops
Viking Range, LLC
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For product information,
call 1-888-845-4641
or visit the Viking Web site at vikingrange.com
F21271 EN
(093013)
®
Page 2
• Before beginning, please read these
instructions completely and carefully.
3
Warnings & Important Safety Instructions _______________________________________________3
Specivications (Electric Cooktops) _____________________________________________________5
Specifications (Induction Cooktops) ____________________________________________________6
Dimensions _________________________________________________________________________6
Cutout Dimensions __________________________________________________________________8
Clearance Dimensions ______________________________________________________________10
Electrical Requirements _____________________________________________________________12
General Information ________________________________________________________________13
Installatoin_________________________________________________________________________13
Final Preparation ___________________________________________________________________14
Performance Checklist ______________________________________________________________14
Service & Registration_______________________________________________________________15
• DO NOT remove permanently affixed
labels, warnings, or plates from the
product. This may void the warranty.
• Please observe all local and national
codes and ordinances. Installation must
conform with local codes and National Fuel
Gas Code ANSIZ233.1/NFPA-54 –latest
edition.
• Please ensure that this product is properly
grounded.
• The installer must leave these instructions
with the consumer who should retain for
local inspector’s use and for future
reference.
• Installation must conform with local codes
or, in the absence of codes, the National
Electrical Code, ANSI/NFPA 70-latest
edition.
In Canada: Electrical installation must be in
accordance with the current CSA C22.1
Canadian Electrical Codes Part 1 and/or
local codes.
For Brazil/Mexico Only: It is recommended that a
removable shelf be installed under the appliance
after it has been fully installed to prevent
unintended access to the appliance during use.
Your safety and the safety of others is
very important.
We have provided many important safety
messages in this manual and on your
appliance. Always read and obey all
safety messages.
This is the safety alert symbol. This
symbol alerts you to hazards that
can kill or hurt you and others.
All safety messages will be preceded by
the safety alert symbol and the word
“DANGER,” “WARNING” or “CAUTION.”
These words mean:
Hazards or unsafe practices
which WILL result in severe personal
injury or death
DANGER
Hazards or unsafe practices
which COULD result in severe personal
injury or death
Hazards or unsafe practices which
COULD result in minor personal injury
or property damage.
All safety messages will identify the
hazard, tell you how to reduce the chance
of injury, and tell you what can happen if
the instructions are not followed.
WARNING
CAUTION
2
IMPORTANT — Please Read and FollowTable of Contents
Page 3
54
CAUTION
Be sure the electric power is
off from the breaker box to the
junction box until the cooktop
is installed and ready to
operate. The junction box should be
connected to a suitable ground.
WARNING
The electrical power to the
unit must be shut off while line
connections are being made.
Failure to do so could result
in serious injury or death.
WARNING
FIRE AND ELECTRICAL
SHOCK HAZARD
DO NOT use an extension
cord with this appliance. Such
use may result in fire, electrical
shock, or other personal injury.
WARNING
BURN HAZARD
The use of cabinets for
storage above the appliance
may result in potential burn
hazard. Combustible items
may ignite, metallic items may become
hot and cause burns. If a cabinet storage
is to provided the risk can be reduced by
installing a range hood that projects
horizontally a minimum of 5” beyond the
bottom of the cabinets.
WARNING
ELECTRICAL
GROUNDING
INSTRUCTIONS
This cooktop must be electrically
grounded in accordance with local codes
or, in the absence of codes, with the
National Electrical Code, ANSI/NFPA 70latest edition. FOR PERSONAL
SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
Electric Cooktop
Description
30” W. 36” W.
Overall width
30-3/4” (78.1 cm) 36-3/4” (93.3 cm)
Overall height from bottom
To top of knobs
To top of cooking surface
To bottom edge of frame
4-3/4” (12.1 cm)
3-1/2” (8.9 cm)
2-5/8” (6.7 cm)
Overall depth from rear
21” (53.3 cm)
Cutout width
28-3/4” (73.0 cm) minimum to
29-3/4” (75.6 cm) maximum
34-3/4” (88.3 cm) minimum to
35-3/4” (90.8 cm) maximum
Cutout depth
19-3/16” (48.7 cm) minimum to 20” (50.8 cm) maximum
Electrical requirements
240-208/120 VAC; 50/60Hz; factory-installed 4 ft. (121.9 cm) flexible steel
conduit 3-wire conduit with a No. 10 ground wire; located on
the right rear corner of unit
Maximum amp usage 240V—30.8 amps (7.4 kw)
208V—30.8 amps (6.4 kw)
240V—46.3 amps (11.1 kw)
208V—46.3 amps (9.6 kw)
Surface element rating
Right front
Right rear
Center front
Center rear
Left front
Left rear
Bridge
Approximate
shipping weight
52 lb. (23.6 kg) 63 lb. (28.6 kg)
IMPORTANT — Please Read and Follow
Specifications (Electric Cooktops)
12” (30.5 cm) triple - 1100 W/1000 W/
8-1/2” (21.6 cm) -1,800 W
-1/2” (21.6 cm) -1,800 W
8
6
-1/2” (16.5 cm) -1,200 W
N/A
N/A
1100 W
800 W
6-1/2” (15.2 cm) -1,200 W
8-1/2” (21.6 cm) dual-1,000 W/1000 W
8-1/2” (21.6 cm) -1,800 W
8-1/2” (21.6 cm) -1,800 W
12” (30.5 cm) triple - 1100 W/1000 W/
1100 W
6-1/2” (16.5 cm) -1,200 W
800 W
Page 4
6
Dimensions (Electric and Induction Cooktops.)
7
30” W. (76 cm) Cooktop
36” W. (91 cm) Cooktop
Induction Cooktop
Description
30” W. 36” W.
Overall width
30-3/4” (78.1 cm) 36-3/4” (93.3 cm)
Overall height from bottom
To top of knobs
To top of cooking surface
To bottom edge of frame
4” (10.2 cm)
3” (7.6 cm)
3-1/8” (7.9 cm)
Overall depth from rear
21” (53.3 cm)
Cutout width
28-3/4” (73.0 cm) minimum to
29-3/4” (75.6 cm) maximum
34-3/4” (88.3 cm) minimum to
35-3/4” (90.8 cm) maximum
Cutout depth
19-3/16” (48.7 cm) minimum to 20” (50.8 cm) maximum
Electrical requirements
240-208/120 VAC; 50/60Hz; factory-installed 4 ft. (121.9 cm) flexible steel
conduit 3-wire conduit with a No. 10 ground wire; located on
the right rear corner of unit
Maximum amp usage 240V—30.8 amps (7.4 kw)
208V—30.8 amps (6.4 kw)
240V—46.3 amps (11.1 kw)
208V—46.3 amps (9.6 kw)
Surface element rating
(4) 9” (22.9 cm)
2300 W / 3,700 W boost
(6) 9” (22.9 cm)
2300 W / 3,700 W boost
Approximate
shipping weight
52 lb. (23.6 kg) 63 lb. (28.6 kg)
Electric Cooktop
2-1/8”
(5.4 cm)
3”
(7.6 cm)
1”
(2.5 cm)
Induction Cooktop
Dimensions (Overall Height.)
Specifications (Induction Cooktops.)
2-5/8”
(6.7 cm)
1-1/4”
(3.2 cm)
3-1/2”
(8.9 cm)
30-3/4”
(78.1 cm)
21”
(53.4 cm)
36-3/4”
(93.3 cm)
21”
(53.4 cm)
Page 5
98
*Note: Based on 24” deep cabinet with 3/4” backsplash.
36”min.
(91.4 cm)
28-1/8”
(71.4 cm)
5”
(12.7 cm) max.
28-1/2”
(72.4 cm)
29-1/8”
(74.0 cm)
2-1/2” min.
(6.4 cm)
14-3/8”
(36.5 cm)
14-3/8”
(36.5 cm)
14-1/4”
(36.2 cm)
14-1/4”
(36.2 cm)
19-3/4”
(50.2 cm)
30” W. (76 cm) Cooktop over
30” W. (76 cm) Electric Oven
Note: Refer to the oven installation
instructions for undercounter oven
dimensions.
Cutout Dimensions
Cutout Dimensions
19-3/16”
(48.7 cm)
30” W. CUTOUT w/
A
(2.54 cm)*
2-1/2”
to
(6.35 cm)*
1”
7/8”
(2.2 cm)
DOWNDRAFT
27”
(68.6 cm)
7/8”
(2.2 cm)
(5.7 cm)
20-1/4”
(51.4 cm)
2-1/4”
30”W. Models 36”W. Models
28-5/8” (72.7 cm) min. to
A
29-3/4” (75.6 cm) max.
34-5/8” (87.9 cm) min. to
35-3/4” (90.8 cm) max.
28-3/4”
(73.0 cm)
7/8”
(2.2 cm)
36” W. CUTOUT w/
DOWNDRAFT
33”
(83.8 cm)
34-3/4”
(88.3 cm)
7/8”
(2.2 cm)
20-1/4”
(51.4 cm)
2-1/4”
(5.7 cm)
Page 6
10
Dimensions shown are for use with
combustible surfaces unless otherwise
stated.
PROXIMITY TO SIDE CABINET
INSTALLATION
• The cooktop may be installed directly to
existing base cabinets.
• The cooktop CANNOT be installed directly
adjacent to sidewalls, tall cabinets, tall
appliances, or other side vertical surfaces
above 36” (91.4 cm) high. There must be a
minimum of 6” (15.2 cm) side clearance from
the cooktop to such combustible surfaces
above the 36” (91.4 cm) counter height.
• Within the 6” (15.2 cm) side clearance to
combustible vertical surfaces above
36” (91.4 cm), the maximum wall cabinet depth
must be 13” (33.0 cm) and wall cabinets within
this 6” (15.2 cm) side clearance must be 18”
(45.7 cm) above the 36” (91.4 cm) high
countertop.
• Wall cabinet above the cooktop must be a
minimum of 36” (91.4 cm) above the
countertop for a full width of the cooktop.
• If a ventilation hood is installed over the
cooktop, the minimum 36” (91.4 cm) height
clearance above the unit does not apply. Refer
to the hood installation instructions for further
information.
For Brazil/Mexico Only: It is recommended that a
removable shelf be installed under the appliance
after it has been fully installed to prevent
unintended access to the appliance during use.
Minimum Clearances from Adjacent
Combustible Construction
• Above countertop 36” (91.4 cm) minimum
• Side 6” (15.2 cm)
• Rear 1” (2.5 cm)
• Within 6” side clearance. Wall cabinets no
deeper than 13” (33.0 cm)
• Must be minimum 18” (45.7 cm) above
countertop
• Wall cabinets directly above the product must
be minimum 36” (91.4 cm) above the
countertop
11
Hot Air
Hot Air
Hot Air
Good Design
Optimum Design
Bad Design
Cool Air
Cool Air
Cool Air
INTERIOR CABINET
CLEARANCES
INDUCTION COOKTOPS
IMPORTANT: The electronic components
for the induction elements in the cooktop
need air circulation. To ensure long life of
electronic components, it is required that
1-1/2 (3.8 cm) or more open space
remains between the bottom of the
cooktop and any shelf underneath. The
maximum length of the shelf underneath
is 18” (45.7 cm). It is required that the
exit air ports at the front are not blocked.
The bottom of a standard hood should be
30” (76.2 cm) min. to 36” (91.4 cm) max.
above the countertop. This would typically
result in the bottom of the hood being
66” (167.6 cm) to 72” (182.9 cm) above the
floor. Refer to the rangehood installation
instructions for additional information. These
dimensions provide for safe and efficient
operation of the hood.
WOOD/COMPOSITE OVERLAY
Clearance Dimensions
Clearance Dimensions
13” max.
33.0 cm)
18” min.
(45.7 cm)
6” min.
(15.2 cm)**
(
36” min.
(91.4 cm)*
1-1/2”
(3.8 cm) min.
18”
(45.7 cm) max.
66”min.
(167.6 cm)
to
72”max.
(182.9 cm)
Wood/Composite
Overlay
24”
(61.0 cm)
30”min.
(76.2 cm)
to
36”max.
(91.4 cm)
36” min.
91.4 cm)
(
3-1/8”
(7.9 cm)
Wood/Composite
Overlay
1” min.
(2.5 cm)
66”min.
(167.6 cm)
to
72”max.
(182.9 cm)
30”
(76.2 cm)
6”
(15.2 cm)
30”min.
(76.2 cm)
to
36”max.
(91.4 cm)
Page 7
12
Electrical Requirements
Check your local codes regarding this unit.
This cooktop is supplied with a 3-wire, A.C.
208V/120 volt or 120V/240 volt, 60 HZ
electrical system. A white (neutral) is not
needed for this unit. See next section for
grounding instructions. It should be fused
separately.
Refer to the specifications chart for kilowatt
rating and recommended amperage. House
wiring and fusing must comply with local
codes. If no local codes are applicable, wire
in accordance with the National Electrical
Code, ANSI/NFPA 70-latest edition.
Electrical Connection
When making the wire connections, use
the entire length of the conduit provided
(3 feet). The conduit must not be cut.
Connect the red and black leads from the
unit conduit to the corresponding leads in
the junction box. The bare ground wire in the
conduit is connected to the unit frame. When
connecting to a 3-conductor branch circuit,
connect the bare ground connector lead of
the unit to the branch circuit ground (bare
wire or green in color).
WARNING
ELECTRICAL
GROUNDING
INSTRUCTIONS
This cooktop must be electrically
grounded in accordance with local codes
or, in the absence of codes, with the
National Electrical Code, ANSI/NFPA 70latest edition. FOR PERSONAL
SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
CAUTION
Be sure the electric power is
off from the breaker box to the
junction box until the cooktop
is installed and ready to
operate. The junction box should be
connected to a suitable ground.
WARNING
The electrical power to the
unit must be shut off while line
connections are being made.
Failure to do so could result
in serious injury or death.
WARNING
FIRE AND ELECTRICAL
SHOCK HAZARD
DO NOT use an extension
cord with this appliance. Such
use may result in fire, electrical
shock, or other personal injury.
13
READ AND FOLLOW ALL WARNING
AND CAUTION INFORMATION
WHEN INSTALLING THIS APPLIANCE.
• Keep appliance area clear and free from
combustible materials, gasoline and other
flammable vapors.
• Disconnect the electrical supply prior to
servicing or cleaning.
• When removing the cooktop for service
and/or cleaning, disconnect AC power
supply.
• Electrical requirements are listed in the
product specifications under the “Electrical
Requirements” section.
Installation
1
Lower cooktop into cutout.
Connect the red and black leads from the unit conduit
to the corresponding leads in the junction box.
3
4
Screw brackets to burner box with sheet metal screw.
(Two bracket assemblies included)
Screw sheet metal screws into brackets
and tighten firmly against bottom of countertop.
Note: Be careful not to crack or damage
counter by overtightening.
Electrical Requirements General Information
2
Ground
Green
Red
Black
Cooktop
Countertop
Bracket
Page 8
14
• Some stainless steel parts may have a
plastic protective wrap which must be
peeled off.
• All stainless steel body parts should be
wiped with hot, soapy water and with a
liquid cleaner designed for this material.
If buildup occurs, DO NOT use steel wool,
abrasive cloths, cleaners, or powders!
Performance Checklist
A qualified installer should carry out the
following checks:
II
Check top surface elements
1. Starting with the left front element, turn
the corresponding knob to the Hi
position–Left front indicator should flash.
• If it is necessary to scrape stainless steel
to remove encrusted materials, soak with
hot, wet cloths to loosen the material,
then use a wood or nylon scraper.
DO NOT use a metal knife, spatula, or
any other metal tool to scrape stainless
steel! Scratches are almost impossible
to remove.
2. Place an induction compatible piece of
cookware onto the left front burner–Left
front indicator should be solid.
3. Remove cookware and repeat steps for
other elements.
15
Only authorized replacement parts may be used in performing service on the cooktop. DO
NOT repair or replace any part of the appliance unless specifically recommended in the
manual. All other servicing should be referred to a qualified technician.
Contact Viking Range, LLC, 1-888-(845-4641), for the nearest service parts distributor in your
area or write to:
VIKING RANGE, LLC
PREFERRED SERVICE
111 Front Street
Greenwood, Mississippi 38930 USA
Cooktop – The serial number and model number for your appliance can be found by looking
under the unit.
Record the following information indicated below. You will need it if service is ever required.
Model number
____________________________________________________________________________________
Serial number _____________________________________________________________________________________
Date of purchase __________________________________________________________________________________
Date installed ______________________________________________________________________________________
Dealer's name _____________________________________________________________________________________
Address ___________________________________________________________________________________________
These installation instructions should remain with the unit
for future reference.
Final Preparation
Service & Registration
Loading...
