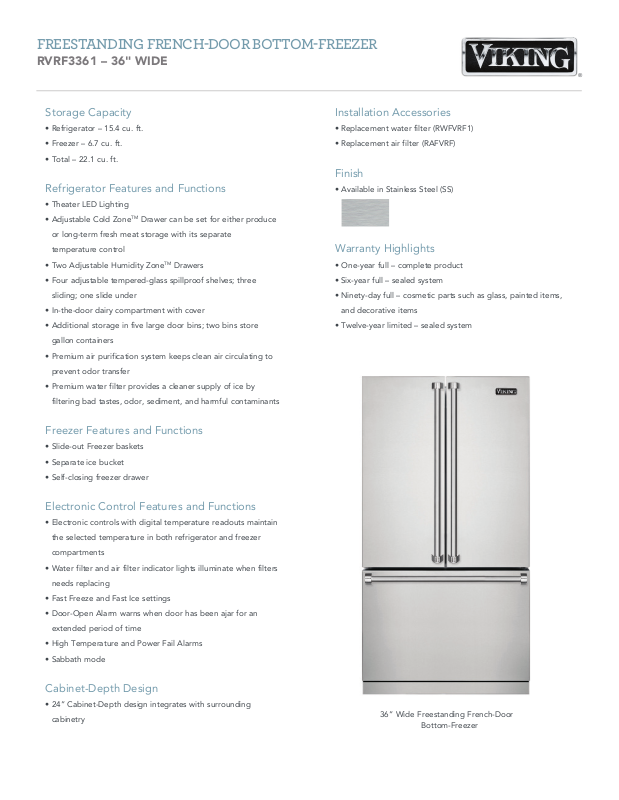

Viking RVRF3361SS Specifications
FREESTANDING FRENCH-DOOR BOTTOM-FREEZER
RVRF3361 – 36" WIDE
®
Storage Capacity
• Refrigerator – 15.4 cu. ft.
• Freezer – 6.7 cu. ft.
• Total – 22.1 cu. ft.
Refrigerator Features and Functions
• Theater LED Lighting
• Adjustable Cold ZoneTM Drawer can be set for either produce
or long-term fresh meat storage with its separate
temperature control
• Two Adjustable Humidity ZoneTM Drawers
• Four adjustable tempered-glass spillproof shelves; three
sliding; one slide under
• In-the-door dairy compartment with cover
• Additional storage in five large door bins; two bins store
gallon containers
• Premium air purification system keeps clean air circulating to
prevent odor transfer
• Premium water filter provides a cleaner supply of ice by
filtering bad tastes, odor, sediment, and harmful contaminants
Installation Accessories
• Replacement water filter (RWFVRF1)
• Replacement air filter (RAFVRF)
Finish
• Available in Stainless Steel (SS)
Warranty Highlights
• One-year full – complete product
• Six-year full – sealed system
• Ninety-day full – cosmetic parts such as glass, painted items,
and decorative items
• Twelve-year limited – sealed system
Freezer Features and Functions
• Slide-out Freezer baskets
• Separate ice bucket
• Self-closing freezer drawer
Electronic Control Features and Functions
• Electronic controls with digital temperature readouts maintain
the selected temperature in both refrigerator and freezer
compartments
• Water filter and air filter indicator lights illuminate when filters
needs replacing
• Fast Freeze and Fast Ice settings
• Door-Open Alarm warns when door has been ajar for an
extended period of time
• High Temperature and Power Fail Alarms
• Sabbath mode
Cabinet-Depth Design
• 24” Cabinet-Depth design integrates with surrounding
cabinetry
36” Wide Freestanding French-Door
Bottom-Freezer
Professional Counterdepth Refrigerator
(23 cu. ft. French Dr./Bottom Mount)
E23BC68JPS (no dispenser)
FREESTANDING FRENCH-DOOR BOTTOM-FREEZER
RVRF3361 – 36" WIDE
®
DESCRIPTION
Overall Width
Overall Height
Overall Depth from Rear
Cutout Width
Cutout Height
Cutout Depth
Electrical Requirements
Inlet Water Requirement
Overall Interior Capacity
Approximate Shipping Weight
Please do not prepare installation from brochure data only. See installation instructions for important clearance/installation information.
Cabinet – 35-5/8” (90.5 cm); front of unit – 36” (91.4 cm)
To top of door – 70” (177.8 cm)
To top of cabinet – 68-3/16” (173.2 cm)
To end of side panels – 23-5/8” (60 cm)
To front of handle – 30-3/4” (78.1 cm)
36” (91.4 cm)
70-1/4” (178.4 cm)
25” (63.5 cm)
120V/60Hz, 15 or 20 amp dedicated circuit; 3-wire cord with grounded 3-prong plug attached to product
1/4” copper tubing inlet waterline; minimum 30 psi; maximum 100 psi
Refrigerator – 15.4 cu. ft. (436.1 L)
Freezer – 6.7 cu. ft. (189.7 L)
Total capacity – 22.1 cu. ft. (625.8 L)
347 lb. (157.4 kg)
36” WIDE FREESTANDING FRENCH-DOOR BOTTOM-FREEZER
RV RF 3361
VIKING RANGE, LLC 111 FRONT STREET GREENWOOD, MISSISSIPPI 38930 USA
For detailed product information, model numbers, or to request a quote call 1-888-845-4641 or visit vikingrange.com
© 2017 Viking Range, LLC | Specifications subject to change without notice.
®
0917F60378B
