Viking LC--6 Technical Practice
PPrraaccttiicce
e
T
T
EELLEECCOOM
M
S
S
OOLLUUTTIIOONNSSFFOORRTTHHE
E
221
1
SST
T
C
C
EENNTTUURRY
Y
TECHNICAL
TECHNICAL
The LC-6 Line Concentrator eliminates the monthly
charges for a dedicated line to each elevator. The LC-6 is
designed to be used with the Viking 1600A Series Elevator
Phones. Up to six of these emergency phones can communicate with authorized personnel on 3 other phones within a
building, or add a telephone line to allow communication
outside the building. A call initiated by an emergency phone
can dial internally, externally, or both. Any other phones that
are activated will be bridged with authorized personnel, thus
fulfilling ASME A17.1 requirements.
All telephone line inbound calls are answered by the LC-6.
A touch tone command will route the call to any of the
phone ports. If no command is detected within 4 seconds, the call will be routed to the last emergency
phone that was used. This allows emergency personnel to easily call back to the same phone.
Connections include a Fire Floor phone, a Machine Room phone and a Lobby phone. An output is also

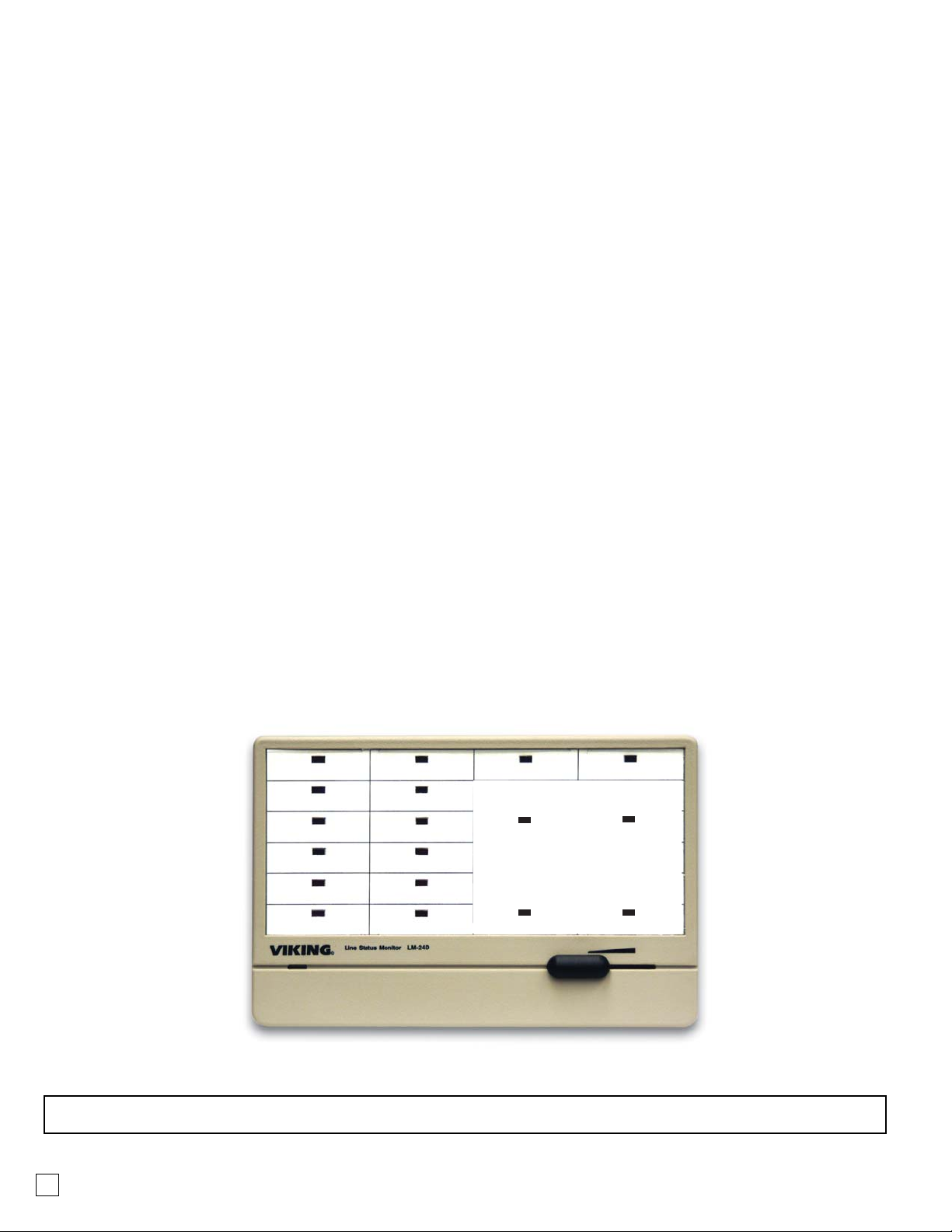

provided for driving up to three Viking LM-24D displays to show status of all ports.
Per ASME A17.1 requirements, the LC-6 can verify the operability of the telephone line on a daily basis
and with the optional Viking model LV-1K line verification alarm panel, can display an “Elevator
Communications Failure”. Note: Per ASME A17.1 requirements, the LC-6 must be used with a battery
backup (UPS) capable of keeping the LC-6 running for up to 4 hours.
Concentrate up to Six Emergency Phones and
Comply with ASME A17.1 Elevator Code
hhttttpp::////wwwwww..vviikkiinnggeelleeccttrroonniiccss..ccoom
m
• Connects up to (6) emergency phones
• Communicate with local and remote authorized
personnel
• Automatic answering of inbound calls
• Touch Tone transferring
• Separate Fire Floor phone port
• Machine Room phone and Lobby phone ports
• Accommodates the re-dialing feature of the
Viking 1600A Series phones
• Programmable daily line verification check
Power: 120V AC/13.8V AC UL listed adapter provided
Dimensions: 210 mm x 159 mm x 45 mm (8.25” x 6.25” x 1.75”)
Shipping Weight: 1.5 kg (3.2 lbs.)
Environmental: 0 C to 32 C (32 F to 90 F) with 5% to 95% non-
condensing humidity
Maximum LM-24D Wire Length: 152m (500 ft) with #24 gauge
wire
Maximum LV-1K Wire Length: 610m (2000 ft) with #24 gauge
wire
Battery Backup: Greater than 4 hours when using TRIPP-LITE
model INTERNET550U (not included)
Connections: 25 screw terminal block positions
FFeeaattuurrees
s
SSppeecciiffiiccaattiioonns
s
• Elevator phones
• Emergency phones
• Area-of-Refuge phones
• E-30 courtesy phones
AApppplliiccaattiioonns
s
LC-6
LC-6
6 Port Line
Concentrator for
Emergency Phones
September 28, 2012
PPhhoonnee......771155..338866..8888661
1
mmaaiill@@vviikkiinnggeelleeccttrroonniiccss..ccoom
m
IF YOU HAVE A PROBLEM WITH A VIKING PRODUCT, PLEASE CONTACT: VIKING TECHNICAL SUPPORT AT (715) 386-8666
Our Technical Support Department is available for assistance Monday 8am - 4pm and Tuesday through Friday 8am - 5pm central time. So that we can give you better service, before you call please:
1. Know the model number, the serial number and what software version you have (see serial label).
2. Have your Technical Practice in front of you.
3. It is best if you are on site.
RETURNING PRODUCT FOR EXCHANGE
The following procedure is for equipment that has failed out-of-box (within 10 days of purchase):
1. Customer must contact Viking’s Technical Support at 715-386-8666 to determine possible causes for the problem. The
customer MUST be able to step through recommended tests for diagnosis.
2. If the Technical Support Product Specialist determines that the equipment is defective based on the customer's input
and troubleshooting, a Return Authorization (R.A.) number will be issued. This number is valid for fourteen (14)
calendar days from the date of issue.
3. After obtaining the R.A. number, return the approved equipment to your distributor, referencing the R.A. number. Your
distributor will then replace the product over the counter at no charge. The distributor will then return the product to
Viking using the same R.A. number.
4. The distributor will NOT exchange this product without first obtaining the R.A. number from you. If you haven't
followed the steps listed in 1, 2 and 3, be aware that you will have to pay a restocking charge.
RETURNING PRODUCT FOR REPAIR
The following procedure is for equipment that needs repair:
1. Customer must contact Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (RA)
number. The customer MUST have a complete description of the problem, with all pertinent information regarding the
defect, such as options set, conditions, symptoms, methods to duplicate problem, frequency of failure, etc.
2. Packing: Return equipment in original box or in proper packing so that damage will not occur while in transit. Static
sensitive equipment such as a circuit board should be in an anti-static bag, sandwiched between foam and individually boxed. All equipment should be wrapped to avoid packing material lodging in or sticking to the equipment. Include
ALL parts of the equipment. C.O.D. or freight collect shipments cannot be accepted. Ship cartons prepaid to:
Viking Electronics, 1531 Industrial Street, Hudson, WI 54016
3. Return shipping address: Be sure to include your return shipping address inside the box. We cannot ship to a PO Box.
4. RA number on carton: In large printing, write the R.A. number on the outside of each carton being returned.
FFeeaattuurreessOOvveerrvviieew
w
the necessary modifications to maintain uninterrupted service.
If trouble is experienced with the LC-6, for repair or warranty information, please contact:
Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI 54016 (715) 386-8666
If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the
equipment until the problem is resolved.
Connection to Party Line Service is subject to State Tariffs. Contact the state public utility commission, public service commission or corporation commission for information.
WHEN PROGRAMMING EMERGENCY NUMBERS AND (OR) MAKING TEST CALLS TO EMERGENCY NUMBERS:
Remain on the line and briefly explain to the dispatcher the reason for the call. Perform such activities in the off-peak
hours, such as early morning or late evenings.
It is recommended that the customer install an AC surge arrester in the AC outlet to which this device is connected. This
is to avoid damaging the equipment caused by local lightning strikes and other electrical surges.
PART 15 LIMITATIONS
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
FCC REQUIREMENTS
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the side of this
equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If
requested, this number must be provided to the telephone company.
The REN is used to determine the number of devices that may be connected to a telephone line. Excessive REN's on a
telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of
the REN's should not exceed five (5.0) To be certain of the number of devices that may be connected to a line, as determined by the total REN's, contact the local telephone company. For products approved after July 23, 2001, the REN for
this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the
REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.
The plug used to connect this equipment to the premises wiring and telephone network must comply with the applicable
FCC Part 68 rules and requirements adopted by the ACTA. If your home has specially wired alarm equipment connected
to the telephone line, ensure the installation of this LC-6 does not disable your alarm equipment. If you have questions
about what will disable alarm equipment, consult your telephone company or a qualified installer.
If the LC-6 causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the
operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make
IMPORTANT: Electronic
devices are susceptible to
lightning and power station
electrical surges from both the AC outlet
and the telephone line. It is recommended that a surge protector be
installed to protect against such surges.
!
2
LIMITED WARRANTY
Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of one year from the date of purchase from any authorized Viking distributor or 18 months from the date manufactured, which ever is greater. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016. Customer must contact Viking's
Technical Support Department at 715-386-8666 to obtain a Return Authorization (R.A.) number.
This warranty does not cover any damage to the product due to lightning, over voltage, under voltage, accident, misuse, abuse, negligence or any damage caused by use of the product by the purchaser or others. This warranty does not cover
non-EWP products that have been exposed to wet or corrosive environments.
NO OTHER WARRANTIES
. VIKING MAKES NO WARRANTIES RELATING TO ITS PRODUCTS OTHER THAN AS DESCRIBED ABOVE AND DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTIES OR MERCHANTABILITY OR FIT-
NESS FOR ANY PARTICULAR PURPOSE.
EXCLUSION OF CONSEQUENTIAL DAMAGES
. VIKING SHALL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE TO PURCHASER, OR ANY OTHER PARTY, FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL OR EXEMPLARY DAM-
AGES ARISING OUT OF OR RELATED TO THE SALE OR USE OF THE PRODUCT SOLD HEREUNDER.
EXCLUSIVE REMEDY AND LIMITATION OF LIABILITY. WHETHER IN AN ACTION BASED ON CONTRACT, TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR ANY OTHER LEGAL THEORY, ANY LIABILITY OF VIKING SHALL
BE LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, OR AT VIKING'S OPTION, REFUND OF THE PURCHASE PRICE AS THE EXCLUSIVE REMEDY AND ANY LIABILITY OF VIKING SHALL BE SO LIMITED.
IT IS EXPRESSLY UNDERSTOOD AND AGREED THAT EACH AND EVERY PROVISION OF THIS AGREEMENT WHICH PROVIDES FOR DISCLAIMER OF WARRANTIES, EXCLUSION OF CONSEQUENTIAL DAMAGES, AND EXCLUSIVE REMEDY AND LIMITATION OF LIABILITY, ARE SEVERABLE FROM ANY OTHER PROVISION AND EACH PROVISION IS A SEPARABLE AND INDEPENDENT ELEMENT OF RISK ALLOCATION AND IS INTENDED TO BE ENFORCED
AS SUCH.
S2
1
23
ON
1
2
ON
S1
VIKING
©
MODEL LC-6
VIKING
ELECTRONICS
HUDSON, WI 54016
POWER
13.8 VAC
1 2 3
4 5 6 7
10 11 8 9 12 13
STATUS
EARTH GROUND
DIAL 9 MODE
FAULT CHECK
LEARN MODE
LINE IN
FIRE FLOOR PHONE
MACHINE ROOM PHONE
LOBBY PHONE
DISPLAY
LV-1K
14 15
EMERGENCY PHONE 1
EMERGENCY PHONE 2
EMERGENCY PHONE 3
EMERGENCY PHONE 4
EMERGENCY PHONE 5
EMERGENCY PHONE 6
16 17 18 19 20 21 22 23 24 25
AUDIO SENSITIVITY
6 PORT LINE CONCENTRATOR
FOR EMERGENCY PHONES
13.8V AC
Adapter
(included)
120V AC
Battery Backed-Up
Uninterruptible Power
Supply (UPS)
In Use LED
Power LED
Earth Ground
Telephone Line Connection
Fire Floor Phone
Machine Room and Lobby Phones
Output to Drive One or Two LM-24 Displays
Output to Signal a LV-1K Line Verification Alarm Panel
Up to 6 Emergency Phones

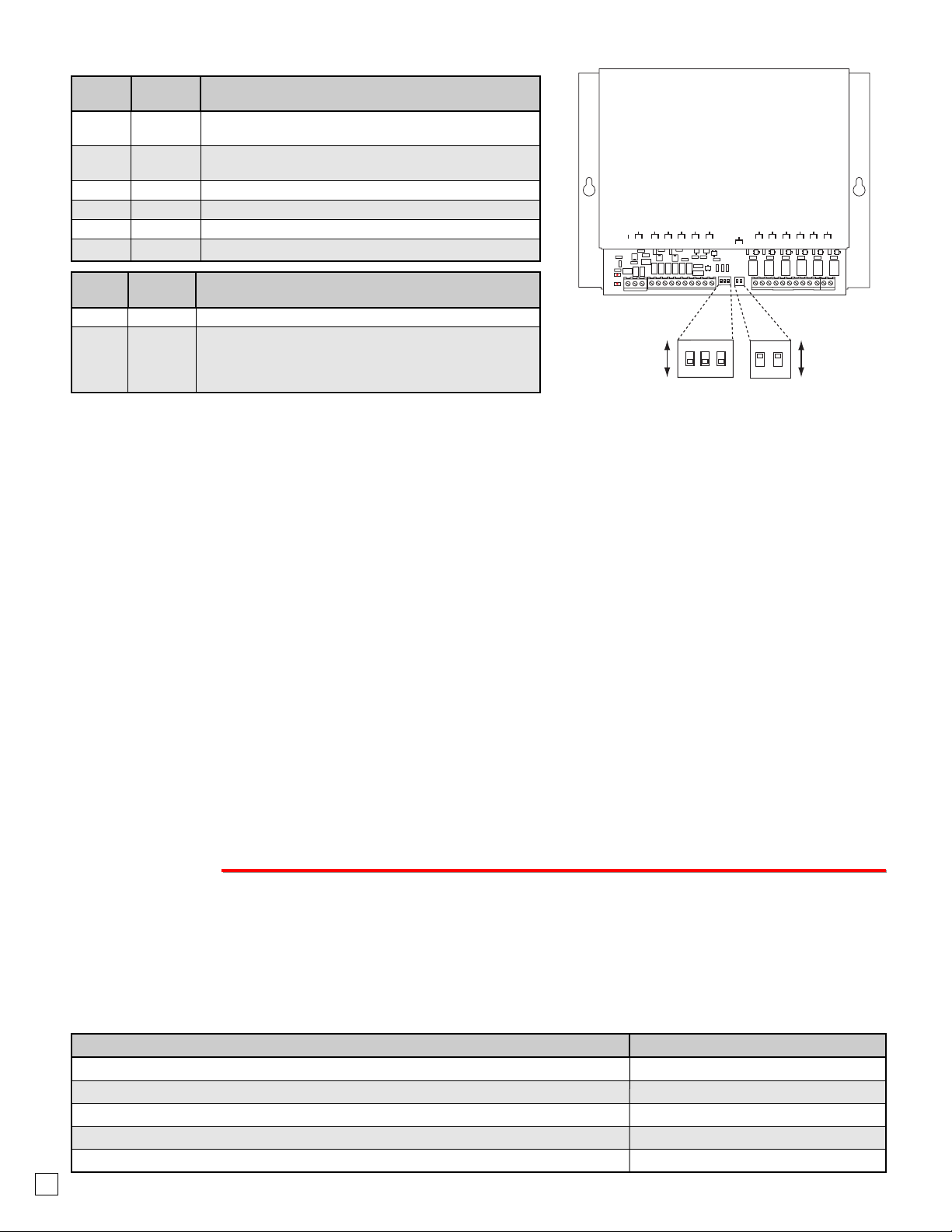

Dip Switches (see page 6)
IInnssttaallllaattiioon
n
Up to six 1600A Series emergency phones can be installed to internally communicate with a Fire Floor phone, a Machine
Room phone and a Lobby phone through the LC-6. The Lobby phone connection is not a separate port, but is simply internally tied to the Machine Room port. A telephone line can also be added so that any of the above listed phones can place
an outbound call. Power the LC-6 from a battery back-up Uninterruptible Power Supply (UPS) to provide 4 hours of power
failure operation. Add an optional Viking model LV-1K line verification alarm panel to comply with the latest ASME A17.1
requirements to provide an audible and illuminated visual signal when an “ELEVATOR COMMUNICATIONS FAILURE” has
occurred. Add one or two optional Viking model LM-24D displays to show authorized personnel status of each phone, the
telephone line, and modes.
* TRIPP-LITE model INTERNET550U
This specific battery backup is chosen because it runs at a rated 99% efficiency. Battery backups that are not as efficient will waste battery power and not run as long. This TRIPP-LITE model INTERNET550U has been bench tested
to run the LC-6 for more than 4 hours under the worst case condition (all 9 phones, the telephone line and display continuously in use). Other high efficiency battery backups with equal or longer runtime ratings are TRIPP-LITE models:
INTERNET550SCR, INTERNET750U, ECO550UPS, ECO650UPS, ECO750UPS, ECO850UPS and AVR750U.
3
120V AC
13.8V AC
Adapter
(included)
* High Efficiency
Battery Backup
(not included)
Earth Ground: To increase surge
protection, fasten a wire from the
screw terminal to earth ground
(grounding rod, water pipe, etc.)
Phone Line
Fire Floor Phone
Machine Room Phone
VIKING
6 PORT LINE CONCENTRATOR
POWER
13.8 VAC
LINE IN
FIRE FLOOR PHONE
EARTH GROUND
4 5 6 7
1 2 3
STATUS
MODEL LC-6
©
VIKING
ELECTRONICS
HUDSON, WI 54016
FOR EMERGENCY PHONES
MACHINE ROOM PHONE
LOBBY PHONE
DISPLAY
10 11 8 9 12 13
LV-1K
S1
ON
1
DIAL 9 MODE
FAULT CHECK
23
AUDIO SENSITIVITY
LEARN MODE
S2
ON
1
2
EMERGENCY PHONE 1
14 15
EMERGENCY PHONE 2
EMERGENCY PHONE 3
EMERGENCY PHONE 4
EMERGENCY PHONE 5
16 17 18 19 20 21 22 23 24 25
EMERGENCY PHONE 6
Emergency
Phone 6
(E-1600A shown,
not included)
Emergency
Phone 5
(E-1600A shown,
not included)
Emergency
Phone 4
(E-1600A shown,
not included)
Emergency
Lobby Phone
Optional LM-24D Display
(not included)
Optional LV-1K
Line Verification Panel
(not included)
See LV-1K
Product Manual
Phone 3
(E-1600A shown,
not included)
Emergency
Phone 2
(E-1600A shown,
not included)
Emergency
Phone 1
(E-1600A shown,
not included)
for full wiring instructions
