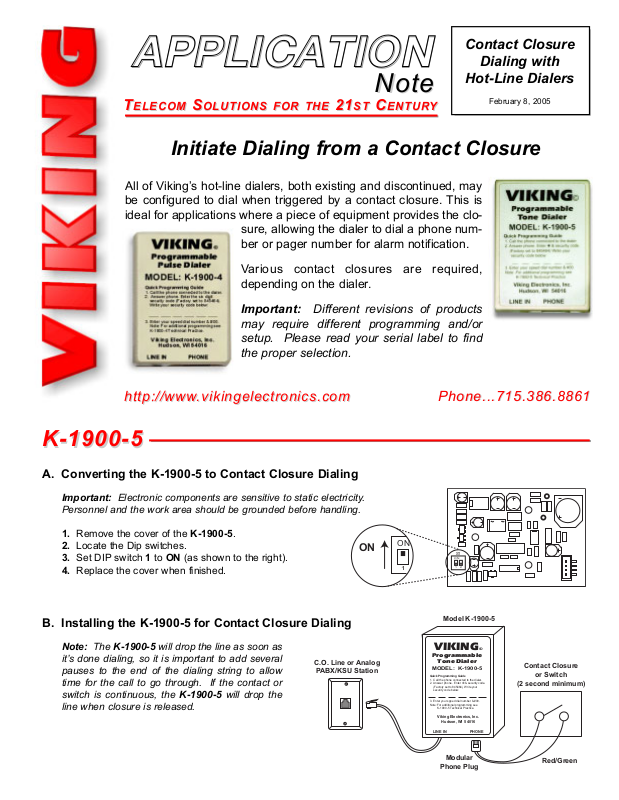

Viking K-1900-4, K-1900-5, K-1900-5KB, K-2000-DVA Application Note
Contact Closure
Dialing with
Hot-Line Dialers
February 8, 2005
Initiate Dialing from a Contact Closure
T
T
EELLEECCOOM
M
S
S
OOLLUUTTIIOONNSSFFOORRTTHHE
E
221
1
SST
T
C
C
EENNTTUURRY
Y
APPLICATION
APPLICATION
NNootte
e
All of Viking’s hot-line dialers, both existing and discontinued, may
be configured to dial when triggered by a contact closure. This is
ideal for applications where a piece of equipment provides the clo-
sure, allowing the dialer to dial a phone number or pager number for alarm notification.
Various contact closures are required,
depending on the dialer.
Important: Different revisions of products
may require different programming and/or
setup. Please read your serial label to find
the proper selection.
PPhhoonnee......771155..338866..8888661
1
hhttttpp::////wwwwww..vviikkiinnggeelleeccttrroonniiccss..ccoom
m
KK--11990000--5
5
Important: Electronic components are sensitive to static electricity.
Personnel and the work area should be grounded before handling.
1. Remove the cover of the K-1900-5.
2. Locate the Dip switches.
3. Set DIP switch 1 to ON (as shown to the right).
4. Replace the cover when finished.
A. Converting the K-1900-5 to Contact Closure Dialing
Note: The K-1900-5 will drop the line as soon as
it’s done dialing, so it is important to add several
pauses to the end of the dialing string to allow
time for the call to go through. If the contact or
switch is continuous, the K-1900-5 will drop the
line when closure is released.
B. Installing the K-1900-5 for Contact Closure Dialing
C.O. Line or Analog
PABX/KSU Station
ON
ON
1
S1
ON
1
2
Model K-1900-5
VIKING
Programmable
Tone Dialer
MODEL: K-1900-5
Quick Programming Guide
1. Call the phone connected to the dialer.
2. Answer phone. Enter , & security code.
(Factory set to 845464) Write your
security code below:
3. Enter your spped dial number & #00.
Note: For additional programming see
K-1900-5 Technical Practice.
Viking Electronics, Inc.
Hudson, WI 54016
LINE IN PHONE
©
Contact Closure
or Switch
(2 second minimum)
Modular
Phone Plug
Red/Green
Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or
subsidiaries assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued to incorporate
such changes.
Fax Back Doc 866 ZF301090 Rev 21Printed in the U.S.A.
PPrroodduuccttSSuuppppoorrttLLiinnee......771155..338866..8866666
6
FFaaxxBBaacckkLLiinnee......771155..338866..4433445
5
KK--11990000--4
4
Note: The contact closure must be maintained
for the duration of the call.
A. Single Number Dialing
B. Dialing Up to 5 Numbers from Multiple Contact Closures
The K-1900-4 may be used in OEM applications
to create a multi-number dialer with push button
selections.
Note: Contact Viking
Technical Support for
configurations of up to
31 speed dial numbers.
KK--11990000--55KKB
B
((ddiissccoonnttiinnuueedd)
)
Note: The contact closure must be maintained for the duration of the call.
KK--22000000--DDVVA
A
The K-2000-DVA combines multi-number dialing from multiple contact closures combined with a built-in digital voice
announcer for emergency and non-emergency applications. The K-2000-DVA can store multiple phone numbers and can
record and play a user recorded alarm message.
For more information regarding the K-2000-DVA, retrieve Fax Back Document 303.
C.O. Line or Analog
PABX/KSU Station
Red Wires
Green Wires
JP1
JP2
J1
JP3
JP4
JP5
Push Buttons
Quick Programming Guide
1. Call the phone connected to the dialer.
2. Answer phone. Enter the six digit
security code. (Factory set to 845464)
Write your security code below:
3. Enter your speed dial number & #00.
Note: For additional programming see
K-1900-4 Technical Practice.
Momentary
JP1 ..................
JP2 ..................
JP3 ..................
JP4 ..................
JP5 ..................
C.O. line or analog
PABX/KSU station
VIKING
Programmable
Pulse Dialer
MODEL: K-1900-4
Viking Electronics, Inc.
Hudson, WI 54016
LINE IN PHONE
Modular
Phone Plug
Speed Dial
Memory Positions
©
Model K-1900-4
150 Ohm 1/2 Watt
Resistor
Red/Green
Registered phone assembly
00 .....................
01 .....................
02 .....................
03 .....................
04 .....................
K-1900-4
used in FCC
Courtesy Phone
Take handset off hook then press button
Hotel
Car Rental
Airline
Information
Security
OEM front panel with
telephone balance
network, hook switch
and momentary push
buttons.
Contact
Closure
Contact
Closure
150 Ohm 1/2 Watt
Red/Green
Resistor
Modular
Phone
Plug
C.O. Line or analog
PABX/KSU extension
