Viewsonic VX710-1 Service Manual 1b

Service Manual

ViewSonic VX710-1

Model No. VS10049

17” Color TFT LCD Display

ViewSonic

(VX710_SM_820 Rev. 1d Apr. 2005)



381 Brea Canyon Road, Walnut, California 91789 USA - [phone]

Copyright

Copyright

2005 by ViewSonic Corporation. All rights reserved. No part of this publication may be

¤

reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,
manual or otherwise, without the prior written permission of ViewSonic Corporation.

Disclaimer

ViewSonic makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranty of merchantability or fitness for any particular
purpose. Further, ViewSonic reserves the right to revise this publication and to make changes from time
to time in the contents hereof without obligation of ViewSonic to notify any person of such revision or
changes.

Trademarks

Optiquest is a registered trademark of ViewSonic Corporation.
ViewSonic is a registered trademark of ViewSonic Corporation.
All other trademarks used within this document are the property of their respective owners.

1a

1b

1c

1d

ECR Number

08/04/04

11/09/04

22

05/03/05

/12/04

Revision History

4745

4986

5288

Initial Release

Scalar change: From Mstar MST 8131A(P/N: AJ08131CC06
To RealTek 2523 (P/N: AJ02523CF02)

Panel change:

To AU M170EG01 V.1 (P/N: AAM170EG015) 25ms

Panel change:

To QDI QD170EL0709 8ms

Description of Changes

From LG LM170E01-A5-KA (P/N: AA170E01010) 30ms

From AU M170EG01 V.1 (P/N: AAM170EG015) 25ms

EditorRevision SM Editing Date

A. Lu

A. Lu

A. Lu

A. Lu

ViewSonic Corporation Confidential

i

-

Do Not Copy VX710

TABLE OF CONTENTS

1. Precautions and Safety Notices

2. Specification

3. Front Panel Function Control Description

4. Circuit Description

5. Adjustment Procedure

6. Troubleshooting Flow Chart

7. Recommended Spare Parts List

8. Exploded Diagram and Exploded Parts List

9. Block Diagram

10. Schematic Diagrams

11. PCB Layout Diagrams

1

5
9

14
25

47

53
56
66
67

74

ViewSonic Corporation Confidential

ii

-

Do Not Copy VX710

1. Precautions and Safety Notices

1. Appropriate Operation

(1) Turn off the product before cleaning.
(2) Use only a dry soft cloth when cleaning the LCD panel surface.
(3) Use a soft cloth soaked with mild detergent to clean the display housing.
(4) Use only a high quality, safety approved AC/DC power cord.
(5) Disconnect the power plug from the AC outlet if the product will not be used for a long period of time.
(6) If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display off.
(7) Do not touch the LCD panel surface with sharp or hard objects.
(8) Do not place heavy objects on the LCD display, video cable, or power cord.
(9) Do not use abrasive cleaners, waxes or solvents for your cleaning.
(10) Do not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas containing excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- In direct sunlight.

2. Caution

No modification of any circuit should be attempted. Service work should only be performed after you are thoroughly familiar

with all of the following safety checks and servicing guidelines.

3. Safety Check

Care should be taken while servicing this LCD display. Because of the high voltage used in the inverter circuit, the voltage is

exposed in such areas as the associated transformer circuits.

4. LCD Module Handling Precautions

4.1 Handling Precautions

(1) Since front polarizer is easily damaged, pay attention not to scratch it.
(2) Be sure to turn off power supply when connecting or disconnecting input connector.
(3) Wipe off water drops immediately. Long contact with water may cause discoloration or spots.
(4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
(5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
(6) Since CMOS LSI is used in this module, take care of static electricity and ensure human earth when handling.
(7) Do not open or modify the Module Assembly.
(8) Do not press the reflector sheet at the back of the module in any direction.
(9) In the event that a Module must be put back into the packing container slot after it was taken out of the

container, do not press the center of the CCFL Reflector edge. Instead, press at the far ends of the
CFL Reflector edge softly. Otherwise the TFT Module may be damaged.

(10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate or tilt the Interface

Connector of the TFT Module.

ViewSonic Corporation Confidential

1

-

Do Not Copy VX710

(11) After installation of the TFT Module into an enclosure (LCD monitor housing, for example), do not twist or

bend the TFT Module even momentarily. When designing the enclosure, it should be taken into consideration
that no bending/twisting forces may be applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.

(12) The cold cathode fluorescent lamp in the LCD contains a small amount of mercury. Please follow local

ordinances or regulations for disposal.

(13) The LCD module contains a small amount of materials having no flammability grade. The LCD module

should be supplied with power that complies with the requirements of Limited Power Source
(IEC60950 or UL1950), or an exemption should be applied for.

(14) The LCD module is designed so that the CCFL in it is supplied by a Limited Current Circuit (IEC60950

or UL1950). Do not connect the CCFL to a Hazardous Voltage Circuit.

ViewSonic Corporation Confidential

2

-

Do Not Copy VX710

5. Handling Methods

Correct methods : Incorrect Methods :

Only touch the metal frame of the panel or the front
cover of the monitor.
Do not touch the surface of the polarizer .

If the surface of the panel is pressed by fingers, this
may cause "MURA."

Take out the monitor by grasping the cushion. If the monitor is removed by grasping the LCD

panel, that may cause "MURA."

ViewSonic Corporation Confidential

3

-

Do Not Copy VX710

Correct Methods : Incorrect Methods :

Place the monitor on a clean & soft foam pad . If the monitor is placed on foreign objects,

that could scratch the surface of the panel.

ViewSonic Corporation Confidential

4

-

Do Not Copy VX710

2. Specification

2.1. GENERAL REQUIREMENTS

General Specifications

Test Resolution & Frequency 1280 x 1024 @ 60Hz
Test Image Size Full Size
Contrast and Brightness Controls Factory Default: Contrast = 70%, Brightness =

100%

2.2 SIGNAL INTERFACE

Video Interface

Analog Input Connector DB-15 (Analog)
Video Cable Strain Relief Equal to twice the weight of the monitor for five

Video Cable Connector DB-15 Pinout Compliant DDC 2B.
Video Signals Video RGB (Analog)
Video Impedance 75 Ohms (Analog)
Maximum PC Video Signal 950 mV with no damage to monitor
Maximum Mac Video Signal 1250 mV with no damage to monitor
Sync Signals TTL
DDC 1/2B Compliant with Revision 1.3
Video Compatibility Shall be compatible with all PC type computers,

Resolution Compatibility 640 x 350, 640 x 480, 720 x 400 (640 x 400), 800 x

Exclusions Not compatible with interlaced video.

2.3. POWER

Power Supply

minutes.

Macintosh computers, and after market video
cards.

600, 832 x 624, 1024 x 768, 1280 x 720, 1280 x
1024

Internal Power Supply Part Number: / FSP035-1PI01
Input Voltage Range 90 TO 264 VAC
Input Frequency Range 47.5 TO 63 HERTZ
Short Circuit Protection Output can be shorted without damage.
Over Current Protection 4.5 A typical at 12 VDC
Leakage Current 3.5mA (Max) at 254VAC / 60Hz
EFFICIENCY 70 % typical at 115VAC Full Load
Fuse Internal and not user replaceable
Power Dissipation 35 Watts (typ)
Max Input AC Current 1.2 Arms @ 90VAC, 0.8 Arms @180VAC

ViewSonic Corporation Confidential

5

-

Do Not Copy VX710

2.4. ELECTRICAL REQUIREMENTS

Horizontal / Vertical Frequency

Horizontal Frequency 30 – 82 KHZ

Vertical Refresh Rate 50 –85 HZ.
Maximum Pixel Clock 135 MHz
Sync Polarity Independent of sync polarity.

Primary Presets

Primary Preset 1280 x 1024 @ 60Hz

Look up table timing

<<Analog>>

1. 640 x 350 @ 70Hz, 31.5kHz

2. 640 x 480 @ 60Hz, 31.5kHz

3. 640 x 480 @ 67Hz, 35.0kHz

4. 640 x 480 @ 75Hz, 37.5kHz

5. 640 x 480 @ 72Hz, 37.9kHz

6. 640 x 480 @ 85Hz, 43.27kHz

7. 720 x 400 @ 70Hz, 31.5kHz

8. 800 x 600 @ 56Hz, 35.1kHz

9. 800 x 600 @ 60Hz, 37.9kHz

10. 800 x 600 @ 75Hz, 46.9kHz

11. 800 x 600 @ 72Hz, 48.1kHz

12. 800 x 600 @ 85Hz, 53.7kHz

13. 832 x 624 @ 75Hz, 49.7kHz

14. 1024 x 768 @ 60Hz, 48.4kHz

15. 1024 x 768 @ 70Hz, 56.5kHz

16. 1024 x 768 @ 72Hz, 58.1kHz

17. 1024 x 768 @ 75Hz, 60.0kHz

18. 1024 x 768 @ 85Hz, 68.67kHz

19. 1280 x 1024 @ 60Hz, 63.4kHz

20. 1280 x 1024 @ 75Hz, 79.97kHz

21. 1280x720 @ 60Hz, 45kHz (HDTV)
Changing Modes
Maximum Mode Change Blank Time, for
image stability. Note:

1) Excluding “Auto Adjust” time

2) Under DOS mode (640 x 350, 720 x 400 & 640 x

3 seconds (Max)
1 seconds (Typ) for recognized timings
1-2 seconds (Typ) for unrecognized timing
.

400), there is no “Auto Adjust” feature.

3) The monitor needs to do “Auto Adjust” the first
time a new mode is detected.
Mode Change Image The image shall blank while the monitor changes

modes.

ViewSonic Corporation Confidential

6

-

Do Not Copy VX710

2.5. LCD PANEL

st

1

Source Panel

Model number QDI QD170EL0709
Type TN type with LVDS interface
Active Size 337.9 (H) x 270.3 (V)
Pixel Arrangement RGB Vertical Stripe
Pixel Pitch 0.264 mm
GLASS TREATMENT Anti Glare (Hard coating 3H)
# OF BACKLIGHTS 4 CCFL edge-light (2 top / 2 bottom)
BACKLIGHT LIFE 50,000 Hours (Typ) / 40,000 Hours (Min)
Luminance (Center) –
Condition:

260 cd/m2 (Typ after 30 minute warm up)

200 cd/m2 (Min after 30 minute warm up)
CT = 6500K, Contrast = Max, Brightness = Max
Brightness Uniformity Dw = 1.25 (typ), 1.33 (max)

dw = Max luminance (of 9 points)/ Min luminance (of 9

points)
Contrast Ratio 500:1 (typ), 300:1 (min)

Color Depth 16.2 million colors (6+2 bit panel)

Viewing Angle (Horizontal) @ CR>10

Typical: 140º (±70º)

Minimum: 120º (±60º)

@ CR>5

Typical: 160º (±80º)

Minimum: 140º (±70º)
VIEWING ANGLE (VERTICAL) @ CR>10

Typical: 125º

Minimum: 105º

@ CR>5

Typical: 145º

Minimum: 125º

Response Time
10%-90% @ Ta=25°C

8 ms (Tr= 2 ms, Tf = 6 ms) (typ)

16 ms (max)
Panel Defects Please see Panel Quality Specifications.

ViewSonic Corporation Confidential

7

-

Do Not Copy VX710

2.6. MECHANICAL

Dimensions (Base attached unless otherwise specified)

Width 377.6 mm
Height 374.0 mm
Depth 195.6 mm
Depth (Head Only) 55.0 mm
Monitor Weight 4.1 kg / 9.0 lbs
Packaging Specification
Width 450 mm
Height 522 mm
Depth 135 mm
Gross Weight 5.2 kg (11.45 lb)
# units per Pallet 36/72 (air/sea)
20’/40’ Container Loading, Palletized 720/1728 pieces

Ergonomics

Tilt Up 20 degrees minimum
Tilt Down -5 degrees
Swivel Right 0 degrees
Swivel Left 0 degrees
Height Adjust 0 mm
Pivot 0 degrees (Clockwise)

2.7. ENVIRONMENTAL

Environmental Conditions

Operating Temperature 0°C to +40°C
Storage Temperature -20°C to +60°C
Operating Relative Humidity 20% to 90% RH Non-Condensing
Storage Relative Humidity 5% to 90% RH Non-Condensing
Operating Altitude 0 to +3,000 meters
Storage Altitude 0 to +12,000 meters

ViewSonic Corporation Confidential

8

-

Do Not Copy VX710

3. Front Panel Function Control Description

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OnView® controls which

display on the screen. The OnView controls are explained at the top of the next page.

Main Menu

with OnView controls

Front Control Panel

shown below in detail

Displays the Main

Menu or exits the

control screen

and saves

adjustments.

Scrolls through menu options and adjusts the
displayed control.

Also a shortcut to display the Contrast adjustment
control screen.

Displays the control screen for the
highlighted control.

Also toggles between two controls on
some screens.

Also a shortcut to toggle analog and
digital connection.

Power light
Green = ON
Orange = Power Saving

Standby Power On/Off

ViewSonic Corporation Confidential

9

-

Do Not Copy VX710

Do the following to adjust the screen image:

1. To display the Main Menu, press button [1].

NOTE: All OnView menus and adjustment screens disappear automatically after about 30

seconds. This is adjustable through the OSD timeout setting in the setup menu.

2. To select a control you want to adjust, pressSorTto scroll up or down the Main Menu.

3. After the control is selected, press button [2]. A control screen like the one shown below

appears.

The line at the bottom of the screen shows the
current functions of buttons 1 and 2: Exit or select
the Brightness control.

4. To adjust the control, press the upSor downTbuttons.

5. To save the adjustments and exit the menu, press button [1] twice.

The following tips may help you optimize your display:

• Adjust your computer's graphic card so that it outputs a video signal 1280 x 1024 @ 60Hz
to the LCD display. (Look for instructions on “changing the refresh rate” in your graphic
card's user guide.)

• If necessary, make small adjustments using H. POSITION and V. POSITION until the
screen image is completely visible. (The black border around the edge of the screen should
barely touch the illuminated “active area” of the LCD display.)

ViewSonic Corporation Confidential

10

-

Do Not Copy VX710

Main Menu Controls

Adjust the menu items shown below by using the upSand downTbuttons.

Control Explanation

Auto Image Adjust automatically sizes, centers, and fine tunes the video signal

to eliminate waviness and distortion. Press the [2] button to execute the Auto Image

Adjust function.

NOTE:

1. Auto Image Adjust works with most common video cards. If this function

does not work on your LCD display, then lower the video refresh rate to 60
Hz and set the resolution to its pre-set value.

2. The Auto Image Adjust and most Manual Image Adjust functions are not
available for DVI input.

Contrast adjusts the difference between the image background (black level)
and the foreground (white level).

Brightness adjusts background black level of the screen image.

Input Select toggles between analog and digital input signals.

Color Adjust provides several color options, including preset color

temperatures and RGB mode which allows the red (R), green
(G), and blue (B) levels to be adjusted independently. The factory

setting for this

sRGB-RGB is quickly becoming the industry standard for color management,
with support being included in many of the latest applications. Enabling this
setting allows the LCD display to more accurately display colors the way they
were originally intended. Enabling the sRGB setting will cause the Contrast and
Brightness adjustments to be disabled.

product is 6500K (6500 Kelvin).

9300K-Adds blue to the screen image for cooler white (used in most office
settings with fluorescent lighting).

6500K-Adds red to the screen image for warmer white and richer red.

5400K-Adds green to the screen image for a darker color.

ViewSonic Corporation Confidential

11

-

Do Not Copy VX710

Control Explanation

User Color Individual adjustments for red (R), green (G), and blue (B).

1. To select color (R, G or B) press button [2].

2. To adjust selected color, pressSorT.

Important: If you select RECALL from the Main Menu when the product is set

to a Preset Timing Mode, colors return to the 6500K factory preset.

Information

displays the timing mode (video signal input)
coming from the graphics card in your computer. See your
graphic card’s user guide for instructions on changing the
resolution and refresh rate (vertical frequency).

NOTE:

that the resolution is 1280 x 1024 a

VESA 1280 x 1024 @ 60 Hz (recommended) means

nd t

he refresh rate is 60

Hertz.

Manual Image Adjust displays the Manual Image Adjust menu.

Manual Image Adjust

The

Horizontal Position
Vertical Position

adjusts the width of the screen image.

Horizontal Size
Fine Tune

sharpens the focus by aligning text and graphics with

moves the screen image left or right.

moves the screen image up or down.

controls are explained below:

display pixels.

adjusts the clarity and focus of the screen image.

Sharpness

ViewSonic Corporation Confidential

12

-

Do Not Copy VX710

Control Explanation

Setup menu displays the menu shown below:

The Setup Menu controls are explained below:

Language allows the user to choose the language used in the
menus and control screens.

Resolution Notice displays the Resolution Notice menu shown below.

Resolution Notice advises the optimal resolution to use.

OSD Position allows the user to move the on-screen display

menus and control screens.

se

ts the length of time an on-screen display

OSD Timeout

screen is displayed. For example, with a “15 second” setting, if
a control is not pushed within 15 seconds, the display screen
disappears.

OSD Background

allows the user to turn the On-Screen-Display

background on or off.

Memory Recall

returns adjustments to the original factory
settings if the display is operating in a factory Preset Timing
Mode listed in this user guide.

Exception:

This control does not affect changes made with the

User Color control, Language and Power Lock setting.

ViewSonic Corporation Confidential

13

-

Do Not Copy VX710

L

N

N

)

)

N

N

A

L

k

4. Circuit Description

1. Outline

1.1 Buttons on the front panel: Power On/Off button, button 2 (ENTER / INPUT SELECT), up arrow

button, down arrow button, button 1 (MENU).

1.2 Video signal connector and AC-IN are located on the back side of the cabinet.

1.3 OSD menu includes the following function;

Auto Image Adjust (only active under analog input)
Contrast/Brightness
Audio Adjust
Color Adjust
Information
Manual Image Adjust
Setup Menu
Memory Recall

Contrast and Brightness can be directly controlled with the UP / DOWN buttons.

1.4

2. Connectors

AC Socket: CEE22 type connector

2.1

2.2 Video signal connector for analog input: 15P Mini D-Sub

1

6

16

11

3. Electrical Specifications

3.1 Standard conditions

Display Area

PIN MNEMONIC SIGNA
1 RV

2 GV

3 BV

4

5 GND

6 RG

7 GG

8 BG

9 +5V

10 SG

11

12 SD

13 HS

14 VS

15 SC

C

C

2

7

3

8

4

12

13

14

CN6

9

5

10

DB15HD

17

15

Red Video

Green Video

Blue Video

one

Ground(DDC return

Red GND

Green GND

Blue GND

+ 5V (for DDC

Sync G ND

one

DDC Data

Horizontal Sync

Vertical Sync
DDC Cloc

338 x 270 mm

Video Signal
Contrast
Brightness
Ambient
Input
Warming up
Display

0.7 Vpp

70%

Max.

20 +/- 5 °C
AC

> 30 min

1280 x 1024

ViewSonic Corporation Confidential

14

-

Do Not Copy VX710

3.2 Power

3.2.1 Power supply

Input Voltage 90 -240 ~Volts
Power Frequency
Input current

Inrush current 90A(max.) at 230Vac
Power consumption 50Watt
Output Voltage @0-3.0A load 12Vdc

50/ 60 Hz +/-3Hz
<1.5Arms @ 90Vac
<0.75Arms@240Vac

+/-5%

3.2.2 Power Management

State Power Indicator

On 40Watt Green

Standby <1Watt Amber

Off <1Watt

3.3 Acceptable timing

This LCD display can automatically detect and display input signals whose timing falls within the

following limits.

Horizontal: Sync frequency : 30~81 kHz

Vertical: Sync frequency : 56~85Hz(1280x1024,75Hz)

3.4 Signal level and input impedance

3.4.1 Video Signal level This LCD display is adjusted at the factory using 0,7 Vp-p Video signal.

3.4.2 Sync Signal level

H/V Separate : TTL level

3.4.3 Input impedance

Video input : 75 ohms

Sync input : > 1 k ohms

4. SIGNAL CABLE :
Signal cable with Mini D-Sub 15P connectors at both ends. Length : 1.8 meter.

ViewSonic Corporation Confidential

15

-

Do Not Copy VX710

5. EDID data

Analog EDID

QDI Panel

Time: 16:20:59

Date: Wed Feb 02, 2005

______________________________________________________________________

VIEWSONIC CORPORATION

EDID Version # 1, Revision # 3

DDCTest For: ViewSonic VX710

______________________________________________________________________

EDID Block 0, Bytes 0-127

128 BYTES OF EDID CODE:

0 1 2 3 4 5 6 7 8 9

________________________________________

0 | 00 FF FF FF FF FF FF 00 5A 63

10 | 19 3B 01 01 01 01 01 0F 01 03

20 | 0E 22 1B 78 2E 8A 15 A3 58 49

30 | 9D 24 16 50 54 BF EF 80 81 80

40 | 71 4F 61 59 45 59 31 59 01 01

50 | 01 01 01 01 30 2A 00 98 51 00

60 | 2A 40 30 70 13 00 52 0E 11 00

70 | 00 1E 00 00 00 FF 00 50 31 53

80 | 30 35 30 31 30 30 30 30 31 0A

90 | 00 00 00 FD 00 32 55 1E 52 0E

100 | 00 0A 20 20 20 20 20 20 00 00

110 | 00 FC 00 56 58 37 31 30 0A 20

120 | 20 20 20 20 20 20 00 3C

______________________________________________________________________

(08-09) ID Manufacturer Name = VSC
(11-10) Product ID Code = 3B19
(12-15) Last 5 Digits of Serial Number = Not Used
(16) Week of Manufacture = 01
(17) Year of Manufacture = 2005
(10-17) Complete Serial Number = See Descriptor Block
(18) EDID Version Number = 1
(19) EDID Revision Number = 3

(20) VIDEO INPUT DEFINITION:

Analog Signal

0.700, 0.300 (1.000 Vp-p)

Separate Syncs, Composite Sync, Sync on Green

(21) Maximum Horizontal Image Size = 340 mm
(22) Maximum Vertical Image Size = 270 mm
(23) Display Gamma = 2.20
(24) Power Management and Supported Feature(s):

Active Off/Very Low Power, Standard Default Color Space,

Preferred Timing Mode

Display Type = R/G/B Color

ViewSonic Corporation Confidential

16

-

Do Not Copy VX710

(25-34) CHROMA INFO:

Red X - 0.639 Green X - 0.287 Blue X - 0.141 White X - 0.313

Red Y - 0.344 Green Y - 0.615 Blue Y - 0.087 White Y - 0.329

(35) ESTABLISHED TIMING I:

720 X 400 @ 70Hz (IBM,VGA)

640 X 480 @ 60Hz (IBM,VGA)

640 X 480 @ 67Hz (Apple,Mac II)

640 X 480 @ 72Hz (VESA)

640 X 480 @ 75Hz (VESA)

800 X 600 @ 56Hz (VESA)

800 X 600 @ 60Hz (VESA)

(36) ESTABLISHED TIMING II:

800 X 600 @ 72Hz (VESA)

800 X 600 @ 75Hz (VESA)

832 X 624 @ 75Hz (Apple,Mac II)

1024 X 768 @ 60Hz (VESA)

1024 X 768 @ 70Hz (VESA)

1024 X 768 @ 75Hz (VESA)

1280 X 1024 @ 75Hz (VESA)

(37) Manufacturer's Reserved Timing:

1152 X 870 @ 75Hz (Apple,Mac II)

(38-53) Standard Timing Identification:

1280 X 1024 @60Hz

1152 X 864 @75Hz

1024 X 768 @85Hz

800 X 600 @85Hz

640 X 480 @85Hz

Not Used

Not Used

Not Used
______________________________________________________________________

(54-71) Detailed Timing / Descriptor Block 1:

1280x1024 Pixel Clock: 108.00 MHz
______________________________________________________________________

Horizontal Image Size: 338 mm Vertical Image Size: 270 mm

Refreshed Mode: Non-Interlaced Normal Display - No Stereo
Horizontal:

Active Time: 1280 pixels Blanking Time: 408 pixels

Sync Offset: 48 pixels Sync Pulse Width: 112 pixels

Border: 0 pixels Frequency: 63.98 KHz
Vertical:

Active Time: 1024 lines Blanking Time: 42 lines

Sync Offset: 1 lines Sync Pulse Width: 3 lines

Border: 0 lines Frequency: 60.02 Hz

Digital Separate, Horizontal Polarity (+) Vertical Polarity (+)
______________________________________________________________________

ViewSonic Corporation Confidential

17

-

Do Not Copy VX710

(72-89) Detailed Timing / Descriptor Block 2:

Monitor Serial Number:

P1S050100001

______________________________________________________________________

(90-107) Detailed Timing / Descriptor Block 3:

Monitor Range Limits:

Min Vertical Freq - 50 Hz

Max Vertical Freq - 85 Hz

Min Horiz. Freq - 30 KHz

Max Horiz. Freq - 82 KHz

Pixel Clock - 140 MHz

Secondary GTF - Not Supported

______________________________________________________________________

(108-125) Detailed Timing / Descriptor Block 4:

Monitor Name:

VX710

(126) No Extension EDID Block(s)

(127) CheckSum OK

ViewSonic Corporation Confidential

18

-

Do Not Copy VX710

Digital EDID

TIME: 16:21:22

______________________________________________________________________

DATE: WED FEB 02, 2005

VIEWSONIC CORPORATION

EDID VERSION # 1, REVISION # 3

DDCTEST FOR: VIEWSONIC VX710
______________________________________________________________________

EDID BLOCK 0, BYTES 0-127

128 BYTES OF EDID CODE:

________________________________________

0 1 2 3 4 5 6 7 8 9

0 | 00 FF FF FF FF FF FF 00 5A 63

10 | 19 3B 01 01 01 01 01 0F 01 03

20 | 80 22 1B 78 2E 8A 15 A3 58 49

30 | 9D 24 16 50 54 BF EF 80 81 80

40 | 71 4F 61 59 45 59 31 59 31 0A

50 | 01 01 01 01 30 2A 00 98 51 00

60 | 2A 40 30 70 13 00 52 0E 11 00

70 | 00 1E 00 00 00 FF 00 50 31 53

80 | 30 35 30 31 30 30 30 30 31 0A

90 | 00 00 00 FD 00 32 55 1E 52 0E

100 | 00 0A 20 20 20 20 20 20 00 00

110 | 00 FC 00 56 58 37 31 30 0A 20

120 | 20 20 20 20 20 20 00 91

______________________________________________________________________

(08-09) ID MANUFACTURER NAME = VSC
(11-10) PRODUCT ID CODE = 3B19
(12-15) LAST 5 DIGITS OF SERIAL NUMBER = NOT USED
(16) WEEK OF MANUFACTURE = 01
(17) YEAR OF MANUFACTURE = 2005
(10-17) COMPLETE SERIAL NUMBER = SEE DESCRIPTOR BLOCK
(18) EDID VERSION NUMBER = 1
(19) EDID REVISION NUMBER = 3
(20) VIDEO INPUT DEFINITION:

DIGITAL SIGNAL

NON - VESA DFP 1.X COMPATIBLE

(21) MAXIMUM HORIZONTAL IMAGE SIZE = 340 MM
(22) MAXIMUM VERTICAL IMAGE SIZE = 270 MM
(23) DISPLAY GAMMA = 2.20
(24) POWER MANAGEMENT AND SUPPORTED FEATURE(S):

ACTIVE OFF/VERY LOW POWER, STANDARD DEFAULT COLOR SPACE,

PREFERRED TIMING MODE

DISPLAY TYPE = R/G/B COLOR

(25-34) CHROMA INFO:

RED X - 0.639 GREEN X - 0.287 BLUE X - 0.141 WHITE X - 0.313

RED Y - 0.344 GREEN Y - 0.615 BLUE Y - 0.087 WHITE Y - 0.329

ViewSonic Corporation Confidential

19

-

Do Not Copy VX710

(35) ESTABLISHED TIMING I:

640 X 480 @ 60HZ (IBM,VGA)

640 X 480 @ 67HZ (APPLE,MAC II)

640 X 480 @ 72HZ (VESA)

640 X 480 @ 75HZ (VESA)

800 X 600 @ 56HZ (VESA)

800 X 600 @ 60HZ (VESA)

(36) ESTABLISHED TIMING II:

800 X 600 @ 72HZ (VESA)

800 X 600 @ 75HZ (VESA)

832 X 624 @ 75HZ (APPLE,MAC II)

1024 X 768 @ 60HZ (VESA)

1024 X 768 @ 70HZ (VESA)

1024 X 768 @ 75HZ (VESA)

1280 X 1024 @ 75HZ (VESA)

(37) MANUFACTURER'S RESERVED TIMING:

1152 X 870 @ 75HZ (APPLE,MAC II)

(38-53) STANDARD TIMING IDENTIFICATION:

1280 X 1024 @60HZ

1152 X 864 @75HZ

1024 X 768 @85HZ

800 X 600 @85HZ

640 X 480 @85HZ

640 X 400 @70HZ

NOT USED

NOT USED
______________________________________________________________________

(54-71) DETAILED TIMING / DESCRIPTOR BLOCK 1:

1280X1024 PIXEL CLOCK: 108.00 MHZ
______________________________________________________________________

HORIZONTAL IMAGE SIZE: 338 MM VERTICAL IMAGE SIZE: 270 MM

REFRESHED MODE: NON-INTERLACED NORMAL DISPLAY - NO STEREO

HORIZONTAL:

ACTIVE TIME: 1280 PIXELS BLANKING TIME: 408 PIXELS

SYNC OFFSET: 48 PIXELS SYNC PULSE WIDTH: 112 PIXELS

BORDER: 0 PIXELS FREQUENCY: 63.98 KHZ

VERTICAL:

ACTIVE TIME: 1024 LINES BLANKING TIME: 42 LINES

SYNC OFFSET: 1 LINES SYNC PULSE WIDTH: 3 LINES

BORDER: 0 LINES FREQUENCY: 60.02 HZ

DIGITAL SEPARATE, HORIZONTAL POLARITY (+) VERTICAL POLARITY (+)
______________________________________________________________________

ViewSonic Corporation Confidential

20

-

Do Not Copy VX710

(72-89) DETAILED TIMING / DESCRIPTOR BLOCK 2:

MONITOR SERIAL NUMBER:

P1S050100001

______________________________________________________________________

(90-107) DETAILED TIMING / DESCRIPTOR BLOCK 3:

MONITOR RANGE LIMITS:

MIN VERTICAL FREQ - 50 HZ

MAX VERTICAL FREQ - 85 HZ

MIN HORIZ. FREQ - 30 KHZ

MAX HORIZ. FREQ - 82 KHZ

PIXEL CLOCK - 140 MHZ

SECONDARY GTF - NOT SUPPORTED

______________________________________________________________________

(108-125) DETAILED TIMING / DESCRIPTOR BLOCK 4:

MONITOR NAME:

VX710

(126) NO EXTENSION EDID BLOCK(S)
(127) CHECKSUM OK

ViewSonic Corporation Confidential

21

-

Do Not Copy VX710

6. THEORY OF OPERATION

This section describes the function of the LCD monitor per functional block.
This monitor includes MB board, power board and button board.

6.1 MB BOARD
The MB board is a two-layer, single-grounded design with ground and internal planes provided. DC power from

the power board enters the board through a 6P connector. The other connector on the board is for the button board.

The VGA cable is a signal cable that carries the video, sync and DDC signals from the PC VGA adapter. This

system board consists of 4 functional areas: flat panel controller, MCU with flash ROM, and power regulators.

6.1.1 Flat panel controller: RTD2523(U7)

The heart of the system board is the Realtek RTD2523. The RTD2523 is a graphics processing IC
designed for LCD monitors. It provides all key IC functions required for LCD displays. On-chip
functions include a high-speed triple-ADC, PLL, high scaling engine and OSD controller.

a) Clock Generation:

Crystal Input Clock (TCLK and XTAL). This is the input pair to an internal crystal oscillator and

corresponding logic. A 24.576 MHz crystal is recommended.

b) Analog to Digital Converter:

The RTD2523 chip has three ADCs (analog-to-digital converters), one for each color (red, green and blue).
The analog RGB signals are connected to RTD2523 as described below.

Pin Name Pin Number
Red + 37
Red - 38
Green + 34
Green - 35
Blue + 30

Blue - 31

c) OSD: The RTD2523 has a fully programmable, high-quality OSD controller. The on-chip static

RAM (4096 words by 24 bits) stores the cell map and the cell definitions.

ViewSonic Corporation Confidential

22

-

Do Not Copy VX710

d) MTV312 Micro Controller: The MTV312 micro controller (MCU) serves as the system micro controller.

It programs the RTD2523 and manages other devices in the system such as the keypad, the backlight, the
LED, the audio system and the non-volatile RAM using general purpose input/output (GPIO) pins.

Pin number Pin Name Pin Usage

1 P5.2 Key / Power on, off
13 P3.4 NV_RAM (U4) SDA
14 P3.5 NV_RAM (U4) SCL
41 P5.4 Key_down
40 P5.5 Key_right
42 P5.3 Key_up
34 P5.6 Key_left
9 P6.3 Key_mute
2 P5.1 Key_select
27 P6.0 LED_red
26 P6.1 LED_green
16 P6.2 LCD panel power1 on / off control
17 P1.0 Backlight on / off control

e) Panel Power Sequencing (PANEL_PW12,3) (Pin 16, 18): The MTV312 has two dedicated outputs

VDDCTRL1 and 2 ( Pin32 and Pin3) to control LCD power sequencing once data and control signals

are stable.

f) Panel interface (Pin73~94): The RTD2523 driver interface is highly programmable. It supports dual bus /

dual port for SXGA d rive rs.

6.1.2 Power Regulator AIC1563 (U2), AIC1117CY (U1,U3): The AIC1563 is a monolithic control IC
containing the primary functions required for DC to DC converters. The device consists of an internal temperature

compensated reference, a comparator, and a controlled duty cycle oscillator with an active current
sense circuit. The desired output voltage is determined by the equation, Volt = 1.25 (1 + R11 / R12).
In this case, the output voltage is 5 Volts. The AIC1563 is a low dropout positive adjustable
regulator with minimum of 1A output current capability, so it is well suited to serve as a 3.3 V or

2.5 V regulator.

6.1.3 Power Regulator AIC1117CY (U1,U3): The AIC1117CY is a monolithic control IC containing the
primary functions required for DC to DC converters. The device consists of an internal temperature
compensated reference, a comparator, and a controlled duty cycle oscillator with an active current
sense circuit. The desired output voltage is determined by the equation, Volt = 1.25 (1 + R17 / R15).
In this case, the output voltage is 2.5 Volts for panel power.

ViewSonic Corporation Confidential

23

-

Do Not Copy VX710

6.2 Power (Inverter) Board

This is a specific power (inverter) board for VX912 monitor with output of 40W / 12V / 3.5A. It provides

12 VDC to drive the four cold cathode fluorescence tubes in the backlight.

6.2.1 The inverter's electrical specification is described below.

Input

Rated Input Voltage 12Vdc
Input Voltage Range 11.4 ~ 12.6 Vdc
Input Current <2A

On / Off control Voltage 2~3.3 for on, 0~1 for off

Output

Rated Output Strike-on Voltage 1500Vrms
Rated Output Voltage 710Vrms at 7mA
Rate Output Frequency 40~50KHz
Rated Output Current 7~8 mA

6.2.2 Power
This is a general purpose AC / DC adapter which converts 90~240 Vac to a stabilized DC voltage: 12

Volts, with a rated output current of 4.16A. The electrical specification is described below.

Rated Input Voltage 90~240 Vac, 50 / 60Hz
Operation Input Voltage 90~260 Vac, 47 ~ 63Hz
Input Current <1.5A
Inrush Current <100A@120Vac
Standby Input Voltage 12Vdc
Output Voltage Regulation +/-5%
Output Ripple & Noise 120mVp-p
Rate Output Current <3.5A
Turn-on delay <3secs

ViewSonic Corporation Confidential

24

-

Do Not Copy VX710

5. Adjustment Procedure

OSD Function Menu

A. When in Analog Input Mode

1. Main Menu

Press the [1] (Menu) button to enter the Main Menu:
Press the [▲] button to highlight the previous item or the [▼] button to highlight
the next item.
Press the [1] (Menu) button to exit the Main Menu.

(1) Auto Image Adjust Page:

Press the [2] button to execute the auto image adjust function.

Press the [1] button to exit the page.

(2) Contrast/Brightness Page:

Press the [2] button to enter the contrast adjustment page.

Press the [1] button to exit the page.

1) Contrast Item

Press the [▲] button to increase the contrast.
Press the [▼] button to decrease the contrast.
Press the [2] button to enter the brightness adjustment page.
Press the [1] button to exit the page.

2) Brightness Item

Press the [▲] button to increase the brightness.
Press the [▼] button to decrease the brightness.
Press the [2] button to enter the contrast adjustment page.

Press the [1] button to exit the page.

(3) Input Select Page:

Press the [2] button to switch to digital input mode.

(4) Color Adjust Page:

Press the [2] button to enter the color adjustment page.
Press the [1] button to exit the page.
Press the [▲] button to highlight the previous item or the [▼] button to

highlight the next item.

1) sRGB Item

2) 9300K Item

3) 6500K Item

4) 5400K Item

Press the [2] button to select the currently highlighted item.

Press the [1] button to exit the currently highlighted item.

5) User Color Item
Press the [2] button to enter the user color page.
Press the [1] button to exit the page.

Red, Green, Blue Options:

Press the [2] button to cycle among the colors.
Press the [1] button to exit the page.
Press the [▲] button to increase the selected color level.

Press the [▼] button to decrease the selected color level.

ViewSonic Corporation Confidential

25

-

Do Not Copy VX710

(5) Information Page:

Press the [2] button to enter the information page.
Press the [1] button to exit the information page.

(6) Manual Image Adjust Page:

Press the [2] button to enter the manual image adjustment page.
Press the [1] button to exit the page.
Press the [▲] button to highlight the previous item or the [▼] button to

highlight the next item.

1) H./V. Position Item

Press the [2] button to enter the horizontal/vertical postion adjustment page.
Press the [1] button to exit the page.

a) Horizontal Position:

Press the [2] button to enter the vertical position adjustment page.

Press the [1] button to exit the page.

Press the [▲] button to shift the image to the right.

Press the [▼] button to shift the image to the left.

b) Vertical Position:

Press the [2] button to return to the horizontal position adjustment page.

Press the [1] button to exit the page.

Press the [▲] button to shift the image upward.

Press the [▼] button to shift the image downward.

2) Horizontal Size Item

Press the [2] button to enter the horizontal size adjustment page.
Press the [1] button to exit the page.
Press the [▲] button to make the image wider.
Press the [▼] button to make the image narrower.

3) Fine tune Item

Press the [2] button to enter the fine tuning page.
Press the [1] button to exit the page.
Press “[▲]” Button to adjust character position in one direction.
Press “[▼]“Button to adjust character position in the other direction.

4) Sharpness Item

Press the [2] button to enter the sharpness adjustment page.
Press the [1] button to exit the page.
Press “[▲]” Button to increase image sharpness.
Press “[▼]“ Button to decrease image sharpness.

(7) Setup Menu Page:

Press the [2] button to enter the setup menu page.
Press the [1] button to exit the page.
Press the [▲] button to highlight the previous item or the [▼] button to

highlight the next item.

1) Language Select Item

Press the [2] button to enter the language selection page.

ViewSonic Corporation Confidential

26

-

Do Not Copy VX710

Press the [1] button to exit the page.
Press the [▲] button to highlight the previous item or the [▼] button to
highlight the next item.

English, French… Option

Press the [2] button to select the language.
Press the [1] button to exit the page.

2) Resolution Notice Item

Press the [2] button to enter the resolution notice page.

Press the [1] button to exit the page.

Enable, Disable Option

Press the [2] button to select the highlighted option.
Press the [1] button to exit the page.

Press the [▲] button to highlight the previous option or the [▼] button
to highlight the next option.

3) OSD Position Item

Press the [2] button to enter the OSD position adjustment page.

Press the [1] button to exit the page.

a) Horizontal Position Option

Press the [2] button to enter the vertical position adjustment page.

Press the [1] button to exit the page.

Press the [▲] button to shift the menu to the right.

Press the [▼] button to shift the menu to the left.

b) Vertical Position Option:

Press the [2] button to enter the horizontal position adjustment page.

Press the [1] button to exit the page.

Press the [▲] button to shift the menu upward.

Press the [▼] button to shift the menu downward.

4) OSD Time Out Item

Press the [2] button to enter the OSD time out adjustment page.

Press the [1] button to exit the page.

Press the [▲] button to increase the OSD time out.

Press the [▼] button to decrease the OSD time out.

5) OSD Background Item

Press the [2] button to enter the OSD background selection page.

Press the [1] button to exit the page.

Enable, Disable Option

Press the [▲] button to highlight the previous option or the [▼] button
to highlight the next option.

Press the [2] button to select the highlighted option.

Press the [1] button to exit the page.

(8) Memory Recall Page

Press the [2] button to execute the memory recall function.
Press the [1] button to exit the page.

ViewSonic Corporation Confidential

27

-

Do Not Copy VX710

2. Other Menu:

This “shortcut” menu is directly accessible without bringing up the OSD.

(1) Contrast Dialog

Press the [▲] or [▼] button to enter the Contrast Dialog.

Press the [1] button to exit the Contrast Dialog.

Press the [2] button to enter the Brightness Dialog.
Press the [▲] button to increase the contrast.

Press the [▼] button to decrease the contrast.

(2) Brightness Dialog

Press the [▲] or [▼] button to enter the Brightness Dialog.

Press the [1] button to exit the Brightness Dialog.

Press the [2] button to enter the Contrast Dialog.
Press the [▲] button to increase the brightness.

Press the [▼] button to decrease the brightness.

(3) Analog/Digital Dialog

Press the [2] button to toggle between analog and digital modes.

B. When in Digital Input Mode

1. Main Menu

Press the [1] (Menu) button to enter the Main Menu:
Press the [▲] button to highlight the previous item or the [▼] button to highlight
the next item.
Press the [1] (Menu) button to exit the Main Menu.

(1) Auto Image Adjust Page:

Press the [2] button to execute the auto image adjust function.
Press the [1] button to exit the page.

(2) Contrast/Brightness Page:

Press the [2] button to enter the contrast adjustment page.
Press the [1] button to exit the page.

1) Contrast Item

Press the [▲] button to increase the contrast.
Press the [▼] button to decrease the contrast.
Press the [2] button to enter the brightness adjustment page.
Press the [1] button to exit the page.

2) Brightness Item

Press the [▲] button to increase the brightness.
Press the [▼] button to decrease the brightness.
Press the [2] button to enter the contrast adjustment page.

Press the [1] button to exit the page.

(3) Input Select Page:

Press the [2] button to switch to analog input mode.

(4) Color Adjust Page:

Press the [2] button to enter the color adjustment page.

ViewSonic Corporation Confidential

28

-

Do Not Copy VX710

Press the [1] button to exit the page.

Press the [▲] button to highlight the previous item or the [▼] button to

highlight the next item.

1) sRGB Item

2) 9300K Item

3) 6500K Item

4) 5400K Item

Press the [2] button to select the currently highlighted item.

Press the [1] button to exit the currently highlighted item.

5) User Color Item
Press the [2] button to enter the user color page.
Press the [1] button to exit the page.

Red, Green, Blue Options:

Press the [2] button to cycle among the colors.
Press the [1] button to exit the page.
Press the [▲] button to increase the selected color level.

Press the [▼] button to decrease the selected color level.

(5) Information Page:

Press the [2] button to enter the information page.
Press the [1] button to exit the information page.

(6) Manual Image Adjust Page:

Press the [2] button to enter the manual image adjustment page.
Press the [1] button to exit the page.
Press the [▲] button to highlight the previous item or the [▼] button to

highlight the next item.

1) Sharpness Item

Press the [2] button to enter the sharpness adjustment page.
Press the [1] button to exit the page.
Press “[▲]” Button to increase image sharpness.
Press “[▼]“ Button to decrease image sharpness.

(7) Setup Menu Page:

Press the [2] button to enter the setup menu page.
Press the [1] button to exit the page.
Press the [▲] button to highlight the previous item or the [▼] button to

highlight the next item.

1) Language Select Item

Press the [2] button to enter the language selection page.

Press the [1] button to exit the page.
Press the [▲] button to highlight the previous item or the [▼] button to
highlight the next item.

English, French… Option

Press the [2] button to select the language.
Press the [1] button to exit the page.

2) Resolution Notice Item

Press the [2] button to enter the resolution notice page.

ViewSonic Corporation Confidential

29

-

Do Not Copy VX710

Press the [1] button to exit the page.

Enable, Disable Option

Press the [2] button to select the highlighted option.
Press the [1] button to exit the page.

Press the [▲] button to highlight the previous option or the [▼] button
to highlight the next option.

3) OSD Position Item

Press the [2] button to enter the OSD position adjustment page.

Press the [1] button to exit the page.

a) Horizontal Position Option

Press the [2] button to enter the vertical position adjustment page.

Press the [1] button to exit the page.

Press the [▲] button to shift the menu to the right.

Press the [▼] button to shift the menu to the left.

b) Vertical Position Option:

Press the [2] button to enter the horizontal position adjustment page.

Press the [1] button to exit the page.

Press the [▲] button to shift the menu upward.

Press the [▼] button to shift the menu downward.

4) OSD Time Out Item

Press the [2] button to enter the OSD time out adjustment page.

Press the [1] button to exit the page.

Press the [▲] button to increase the OSD time out.

Press the [▼] button to decrease the OSD time out.

5) OSD Background Item

Press the [2] button to enter the OSD background selection page.

Press the [1] button to exit the page.

Enable, Disable Option

Press the [▲] button to highlight the previous option or the [▼] button
to highlight the next option.

Press the [2] button to select the highlighted option.

Press the [1] button to exit the page.

(8) Memory Recall Page

Press the [2] button to execute the memory recall function.
Press the [1] button to exit the page.

2. Other Menu:

This “shortcut” menu is directly accessible without bringing up the OSD.

(1) Contrast Dialog

Press the [▲] or [▼] button to enter the Contrast Dialog.

Press the [1] button to exit the Contrast Dialog.

Press the [2] button to enter the Brightness Dialog.
Press the [▲] button to increase the contrast.

Press the [▼] button to decrease the contrast.

ViewSonic Corporation Confidential

30

-

Do Not Copy VX710

(2) Brightness Dialog

Press the [▲] or [▼] button to enter the Brightness Dialog.

Press the [1] button to exit the Brightness Dialog.

Press the [2] button to enter the Contrast Dialog.
Press the [▲] button to increase the brightness.

Press the [▼] button to decrease the brightness.

(3) Analog/Digital Dialog

Press the [2] button to toggle between analog and digital modes.

C. Other Information

When the “No Signal” or “Out of Range” messages appear:

If no input signal is detected, the “No Signal” message will appear in the center of
the screen.
If the V-Sync signal rate is greater than than 85Hz or its resolution is greater than
SXGA, the “Out of Range” message will appear in the center of the screen.

Activating Factory Mode and Burn Mode:

While the device is in standby, press the [2] button, then press the power button to
enter Factory Mode. While Factory Mode is active, an additional menu page titled
“Factory Menu” will be accessible. Press the [2] button to enter the Factory Menu
page, then press the [2] button to enter Burn Mode.

When Installing a New Main Board

1. Enter Factory Mode.

2. Use a PC or chrom to send a 32-tone gray scale signal to the monitor.

3. Select “Auto Color”

ViewSonic Corporation Confidential

31

-

Do Not Copy VX710

Function test

(1) Test equipment

Color video Signal & pattern generator (or PC with SXGV resolution )

(2) Test condition

Warm-up at least 30mins is necessary under following condition before function test & alignment :

1. room temperature

2. With full-white screen , RGB , black pattern

3. with cycled display modes.

E. Test display modes

Item Timing Analog

1 640 x 350 @ 70Hz, 31.5kHz Yes
2 640 x 400 @ 60Hz, 31.5kHz Yes
3 640 x 400 @ 70Hz, 31.5kHz Yes
4 640 x 480 @ 50Hz, 24.7kHz Yes
5 640 x 480 @ 60Hz, 31.5kHz Yes
6 640 x 480 @ 67Hz, 35.0kHz Yes
7 640 x 480 @ 72Hz, 37.9kHz Yes
8 640 x 480 @ 75Hz, 37.5kHz Yes

9 640 x 480 @ 85Hz, 43.27kHz Yes
10 720 x 400 @ 70Hz, 31.5kHz Yes
11 800 x 600 @ 56Hz, 35.1kHz Yes
12 800 x 600 @ 60Hz, 37.9kHz Yes
13 800 x 600 @ 75Hz, 46.9kHz Yes
14 800 x 600 @ 72Hz, 48.1kHz Yes
15 800 x 600 @ 85Hz, 53.7kHz Yes
16 832 x 624 @ 75Hz, 49.7kHz Yes
17 1024 x 768 @ 60Hz, 48.4kHz Yes
18 1024 x 768 @ 70Hz, 56.5kHz Yes
19 1024 x 768 @ 72Hz, 58.1kHz Yes
20 1024 x 768 @ 75Hz, 60.0kHz Yes
21 1024 x 768 @ 85Hz, 68.67kHz Yes
22 1152 x 864 @ 75Hz, 67.5kHz Yes
23 1152 x 870 @ 75Hz, 68.7kHz Yes
24 1280 x 1024 @ 60Hz, 63.4kHz Yes
25 1280 x 1024 @ 75Hz, 79.97kHz Yes
26 1280x 720 @ 60Hz, 45kHz (HDTV) Yes

ViewSonic Corporation Confidential

32

-

Do Not Copy VX710

Test pattern

Item

1 Frequency & performance Cross-hatch pattern No noise is allow & all color is clear Pattern 1
2 Monitor saturation 16-gray scale pattern 3~4 level need to saturated when

3 RGB color performance RGB color Check the color temperature of

4 Sub-pixel defect RGB color Check the sub-pixel defect Pattern 3,

5 Full white Full white Check the brightness ,CR & bright

6 Full black Full black Pattern 7

7. 5-cycle pattern 5-cycle pattern Check the BU Pattern 8

8. 1-dot pattern 1-dot pattern Check the flicker Pattern 9

Test condition Pattern Specification Remark

Pattern 2

brightness & contrast is 100%

Pattern 3,

RGB signal color

4 , 5
Pattern 6

pixel defect

Pattern 1 Pattern 2

Pattern 3 Pattern 4

ViewSonic Corporation Confidential

33

-

Do Not Copy VX710

Pattern 5 Pattern 6

Pattern 7 Pattern 8

Pattern 9

ViewSonic Corporation Confidential

34

-

Do Not Copy VX710

Firmware update procedure :

When you received a received monitor , please check whether the firmware version. If not , please

following procedure to upgrade to the latest version .

1. Equipment needed :

- VX710

- PC ( Personal computer )

- LPT cable

- Fixture (LM5ISP)

- Firmware upgrade program

ViewSonic Corporation Confidential

35

-

Do Not Copy VX710

2. Connection :

To PC

Appendix A : How to install the software for ISP:

1. To set up ISP environment:
Hardware:

PC or notebook, parallel

(printer) cable, ISP tooling.

Software:

If OS is Win2000 or WinXP, please install "PORT95NT.exe".

In order to ensure that the system can execute the ISP program, please adjust the BIOS settings

in the PC or notebook as shown in Fig 0.0.

To Monitor

Fig 0.0

ViewSonic Corporation Confidential

36

-

Do Not Copy VX710

2. Double-click the "PORT95NT.exe" icon in Windows and install the program; see Fig 0.1.

Fig 0.1

3. Continue through the installation process by pressing "Next" four times; see Fig. 0.2.

Fig. 0.2

ViewSonic Corporation Confidential

37

-

Do Not Copy VX710

4. Choose "Typical" then press "Next;" see Fig. 0.3.

Fig. 0.3

5. Continue through the installation process by pressing "Next" four times; see Fig. 0.4.

Fig. 0.4

ViewSonic Corporation Confidential

38

-

Do Not Copy VX710

6. When the installation is complete, restart the PC or notebook; see Fig 0.5.

Fig. 0.5

Install ISP

1. The user may download the ISP driver and PORT95NT installation package from the Myson Century website

(www.myson.com.)

2. The files extracted from the ZIP file are listed in Fig 1.0. Double-click setup.exe to install.

Fig 1.0

ViewSonic Corporation Confidential

39

-

Do Not Copy VX710

3. Press the "Next" button to continue; see Fig 1.1.

Fig 1.1

4. Press the "Change" button to change the install path if desired, and then press the "Next" button to
continue; see Fig 1.2.

Fig 1.2

ViewSonic Corporation Confidential

40

-

Do Not Copy VX710

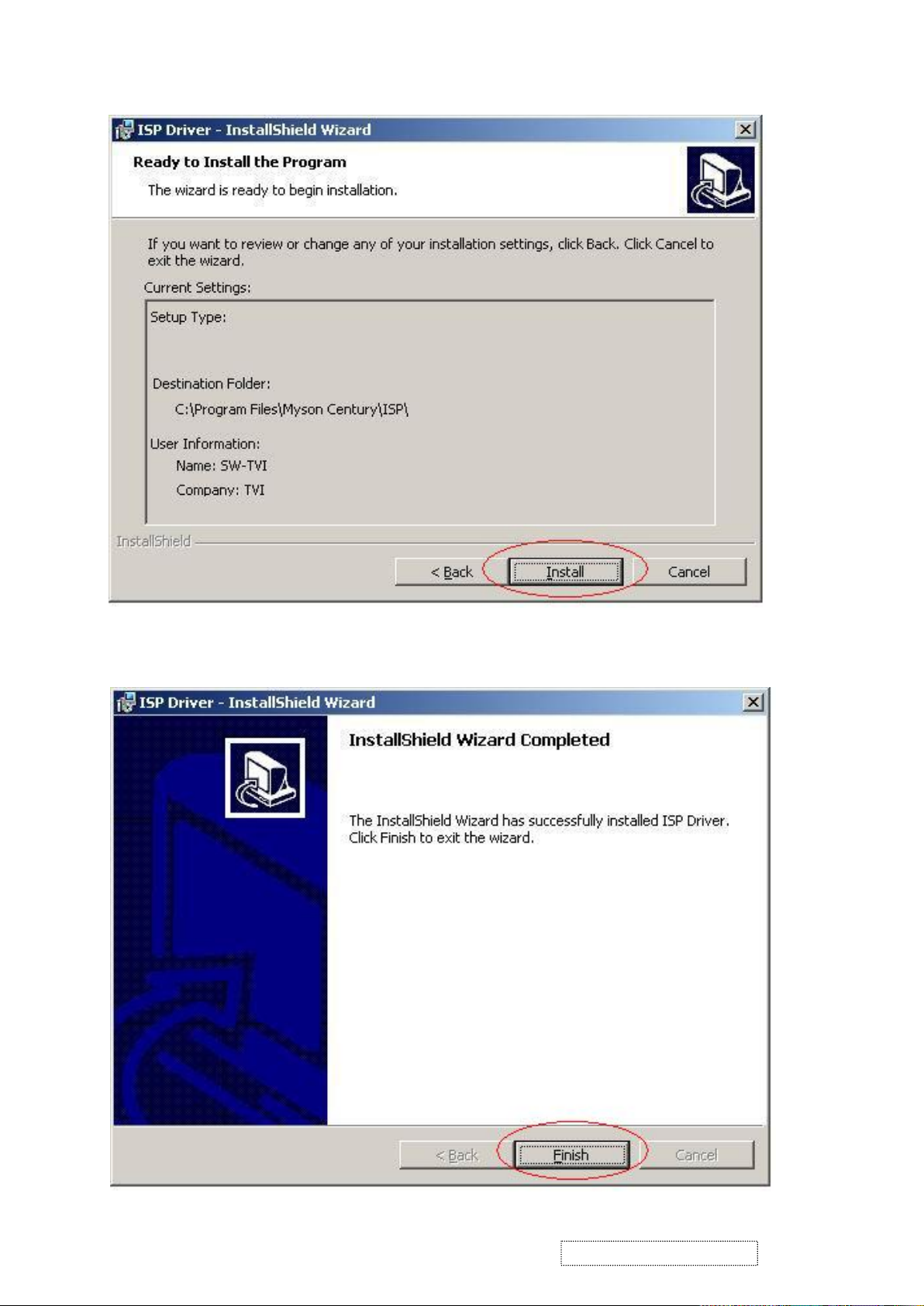

5. Press the "Install" button to continue; see Fig 1.3.

Fig. 1.3

6. When installation has finished, press the "Finish" button; see Fig 1.4.

Fig. 1.4

ViewSonic Corporation Confidential

41

-

Do Not Copy VX710

Appendix B: How to use software to upgrade the BIOS:

1. After installation, shortcuts may be found in the settings path or the program menu (default setting); see Fig 2.1.

Fig. 2.1

2. The security file is a key to use ISP functions; press the "OK" button. See Fig 2.2.

3. The warning shown in Fig. 2.3 is used to remind the user that a CPU rate that differs from IIC protocol

may cause the ISP functions to fail; press the "OK" button.

Fig. 2.2

Fig. 2.3

ViewSonic Corporation Confidential

42

-

Do Not Copy VX710

4. As shown in Fig. 2.4, press the "Create Security File" button to key in a security code, and use the slider bar to
adjust the speed of the IIC bus.

Speed of IIC bus

Security code

Fig. 2.4

ViewSonic Corporation Confidential

43

-

Do Not Copy VX710

5. Fig 2.5 shows the settings for the ISP software's security code. It requires two command numbers,
and the commands must be keyed in sequentially: 7C, 4C, 77. The command numbers and commands

must be set by the user while coding. For more details, please refer to section 6 boot code of ISP.

Fig. 2.5

ViewSonic Corporation Confidential

44

-

Do Not Copy VX710

Appendix C: Using ISP to program MCU

1. As shown in Fig. 3.1, select the MTV type first, load the binary or intel hex file to be programmed into the
MCU, click "OK," then press the "RUN" button.

Step 2

Step 1

Step 4

Step 3

Fig. 3.1

ViewSonic Corporation Confidential

45

-

Do Not Copy VX710

2. If the user changes the MTV type, the file must be loaded again, as the previously loaded file will be cleared.

3. CRC (cyclic redundancy check): the host can check the result in the CRC register instead of reading every byte in flash.

The Check MCU CRC OK message indicates that the host has verified the program's CRC; see Fig.3.2.

ViewSonic Corporation Confidential

Fig. 3.2

46

-

Do Not Copy VX710

6. Troubleshooting Flow Chart

1. Display color abnormal:

ViewSonic Corporation Confidential

47

-

Do Not Copy VX710

2.. Monitor can not power on

ViewSonic Corporation Confidential

48

-

Do Not Copy VX710

3. Monitor white screen

ViewSonic Corporation Confidential

49

-

Do Not Copy VX710

4. Monitor black screen

ViewSonic Corporation Confidential

50

-

Do Not Copy VX710

5. Analog input: always shows NO SIGNAL:

ViewSonic Corporation Confidential

51

-

Do Not Copy VX710

6. Digital input: always shows NO SIGNAL

ViewSonic Corporation Confidential

52

-

Do Not Copy VX710

7. Recommended Spare Parts List

RECOMMENDED SPARE PARTS LIST (VX710-1)

ViewSonic Model Number: VS10049
Rev: 1d

Item ECR/ECN ViewSonic P/N Ref. P/N Location Q'ty

1

Accessories:

2

Board Assembly:

3

4 Back cover assy

Cabinets:

5 Front bezel assy C-FP-0301-9935 33L7VFBVS53 front bezel ass'y 1
6 Cable for MB-BB (8P, Rev1A) M-MS-0808-9398 DDL7VDTH009 MB-BB cable 1

Cables:

7 Cable for MB-LCD (30P. Rev.1A) M-FC-0809-0845 DDL70LLC308 MB-LCD cable 1

8

Documentation:

Electronic

9

Components:

10 Screw M3.0*5.0-I(NI) M-SCW-0824-0728 MM30050IBJ3 screw 23

Hardware:

11 Screw HW-00000432 MM30070BBJ1 screw 9

Miscellaneous:

13

14

Packing Material:

15 End cap (L) P-FM-0602-0875 HBL7V007011 cushion 1
16 End cap (R) P-FM-0602-0876 HBL7V008018 cushion 1
17 EPE bags P-00000434 HAL7V005018 EPE bags 1

Description

VGA cable M-MS-0808-9399 DDL7VDPC005 VGA cable 1
Main board

Main Board
Main board Added 04/25/05 ECO 5288 B-00002461 29L9IMB00D7 M/B ASSY(RTD2523)QDI 1

Power board
Power board Added 04/25/05 B-00002481 AS02B012DA6 ADD/INV,FSP035-1PI01 1

User's manual + CD wizard
User's manual + CD wizard
User's manual + CD wizard Added 04/25/05 ECO 5288 DC-00002462 HGL7V014012 User's manual 1

17" LGL TFT LCD panel
17" LGL TFT LCD panel (2nd source) Removed 12/17/04 E-00000431 AA170E01010 LCD panel 1

17" AUO TFT LCD panel
17" QDI TFT LCD panel Added 04/25/05 ECO 5218 E-00002216 AA17EL07055 LCD panel 1

LCD film L7VD
LCD film L7VD Added 12/17/04 M-MS-0808-7399 JXL7V003017 LCD panel film 1
Carton
Carton Added 12/17/04 P-00000979 HFL7V012019 carton 1

V005(4745)
Removed 12/17/04
Added 12/17/04
Removed 04/25/05

Removed 12/17/04 B-PS-0204-0076 AS02B012D24 power board 1

Correct vendor p/n
12/17/04

Removed 12/17/04 A-CD-VX710 HGL7V008012 User's manual 1
Added 12/17/04
Removed 04/25/05

Removed 12/17/04 M-LCD-0824-0181 AA170E01001 LCD panel 1

Added 12/17/04
Removed 04/25/05

Removed 12/17/04 M-00000433 JXL7V004013 LCD panel film 1

Removed 12/17/04 P-BX-0601-0971 HFL7V010016 carton 1

B-00000429

B-00000976

C-00000430

DC-00000977

E-00000978

10MBZZZVSH0 main board 1

10MBZZZVSM9 M/B ASSY(RTD2523)AU 1

37L7VBBCVS54
37L7VBCVS54

HGL7V009019 1

AAM170EG015 LCD Panel 1

back cover 1

ViewSonic Corporation Confidential

53

-

Do Not Copy VX710

ViewSonic Model Number: VS10049

Rev: 1d

Item

ViewSonic P/N

Ref. P/N

Description

Location

Universal No.

Qty

1

#N/A

1L7VDZQVS02

L7VD-Q LCD MONITOR(QDI)US

2

B-00002461

29L9IMB00D7

L9I M/B ASSY(FOR L7VD-Q,REALTEK 2523)QDI

13#N/A

L9I204-01

39L9IDP0005 MB Schematic(B3A)TSU16AK

04#N/A

39L9IDP0005

L9I M/B DIP ASSY(FOR L7VD REALTEK)

15#N/A

41L9ISS0002

L9I M/B S/S ASSY(FOR L7VD REALTEK)

1

8

#N/A

CC71004MD68

CAP ELEC 100U 25V +-20%,105C,6*11,LESR

C7019

#N/A

CC710L4MD08

CAP ELEC 100U 25V(+-20%,105C,6*11)LXN

C70110

#N/A

CC73303MD51

CAP ELEC 330U 16V(+-20%,105C,8*11,2000HR

C6,EC4

211E-L-0407-1563

DC04725K002

CHOKE COIL 47UH(2.5A,+-10%,T07473)

L2112

#N/A

BG624576031

CRYSTAL DIP 24.576MHZ(30PPM,20PF,49/US)

Y1113

#N/A

BG611059319

CRYSTAL DIP 11.0592MHZ(+-30PPM,49/US)

Y2114

#N/A

DFHD06MR247

CONN DIP HEADER 6P 2R MR(P2.5,H6.0)

CN1115

#N/A

DFDS15FR050

CONN D-SUB 15P 3R FR,P1.15,H12.55,NO SRW

CN2116

#N/A

DFDI30FR049

CONN DVI-I DIP30P 3R FR(P1.905,H10.04)

CN4117

M-MS-0808-9809

DFHD30MR259

CONN DIP HEADER 30P 2R MR(P2.0,H4.0)

CN5118

M-MS-0808-9810

DFHD10MR316

CONN DIP HEADER 10P 1R MR(P2.0,H4.1)

CN6119

#N/A

AZL7VD0Q008

L7VD SW BIOS IMAGE REALTEK CHIP(QDI)

120B-00002481

AS02B012DA6

ADD/INV,FSP035-1PI01H ,90~264V REV1A

121B-CB-0206-0188

23L7VBB0034

L7VD BUTTON/B ASSY

122#N/A

DFHD08MR301

CONN DIP HEADER 8P 1R MR(P2.0,H4.1)

CN1123

#N/A

BEYG0013DA3

LED(DIP) YELLOW/GREEN(L-3WYGW)

LED1124

#N/A

DAL7VDTB1A3

PCB(BUTTON) L7VD TL(1L,180*15,REVA)

1

26

#N/A

22L7VLAVSF7

L7VD-Q LCD MODULE ASSY(QDI)

127C-FP-0301-9935

33L7VFBVS53

L7VD FRONT BEZEL ASSY

128#N/A

33L7VFB5

L7VD FRONT BEZEL ASSY

029C-FP-0301-0992

EAL7V019019

BEZEL L7VD(EAL7V019,REV3A)

130C-FP-0301-0994

EAL7V020017

MIDDLE BEZEL L7VD(EAL7V020,REV3A)

131M-MS-0808-9401

EBL7V028019

LENS L7VD(EBL7V028,REV3A)

132PL-BT-0706-0165

EBL7V027012

CONTROL BUTTON L7VD(EBL7V027,REV3A)

133M-MS-0808-9243

FEL7V003019

LOGO FRONT-VSC-38MM L7VC(FEL7V003,REV3A)

134M-MS-0808-9402

FEL7V007014

BIRD LOGO L7VD(FEL7V007,REV3A)

135C-BC-0302-0598

37L7VBCVS54

L7VD BACK COVER ASSY

136#N/A

37L7VBC5

L7VD BACK COVER ASSY

037M-CV-0830-2543

EAL7V021013

LCD COVER L7VD(EAL7V021,REV3A)

138M-MS-0808-9253

FEL7V005011

LOGO PLATE ELLIPSE L7VC(FEL7V005,REV3A)

139M-MS-0808-9411

FBL70008014

LOCK METAL L70B(FBL70008,REV3A)

140M-CV-0830-2542

FBL7V042011

HINGE -L L7VD(FBL7V042,REV3B)

141M-CV-0830-2544

FBL7V043018

HNGE-BKT L7VD(FBL7V043,REV3A)

142M-CV-0830-2545

FBL7V044014

HINGE-R L7VD(FBL7V044,REV3B)

143M-SCW-0824-6822

MF30070BBJ1

SCREW F3.0*7.0-B (NI)

444M-SCW-0824-6760

MS30060IM18

SCREW F3*6-I(NI)

445M-MS-0808-9406

MM40080FL69

SCREW M4.0*8.0-F (BNI,NYLOK)

446E-00002216

AA17EL07055

LCD(TFT) 17" QD17EL07 REV:09

147M-BK-0805-0079

FAL7V014017

PCB BKT L7VD(FAL7V014,REV3A)

148M-MS-0808-9405

FAL7V015013

PCB SHIELDING L7VD(FAL7V015,REV3A)

149M-BK-0805-0077

FBL7V038014

LCD BKT-L L7VD(FBL7V038,REV3A)

150M-BK-0805-0078

FBL7V039011

LCD BKT-R L7VD(FBL7V039,REV3A)

151M-SCW-0824-0728

MM30050IBJ3

SCREW M3.0*5.0-I(NI)

2352M-SCW-0824-0870

MS40070B808

SCREW M4*7B (BMC)NYLOK

453M-SCW-0824-6825

MM30040IJ21

SCREW M3.0*4.0-I(BNI)

454M-SCW-0824-6761

MM30030IBJ4

SCREW M3*3-I-NI

455M-MS-0808-9247

EBL70023013

WIRE MOUNTS L70L-E(EBL70023,REV3A)

156#N/A

GAL7V013011

RUBBER PLUG VESA L7VD (GAL7V013,REV3A)

457M-MS-0808-8986

MBLI1004018

IO NUT LI1(MBLI1004,REV3A)

458M-SCW-0824-6799

MM35080BBW2

SCREW M3.5*8-B (NI,WASHER)

159C-BS-0303-0536

26L7VSAVS33

L7VD STAND ASSY

160#N/A

26L7VSA3

L7VD STAND ASSY

061#N/A

34L7VSSVS13

L7VD STAND SUB ASSY

162M-BK-0805-0081

FBL7V040019

STAND BKT L7VD(FBL7V040,REV3B)

163M-MS-0808-9403

FBL7V041015

STAND PLATE L7VD(FBL7V041,REV3A)

164#N/A

GAL7V011018

RUBBER FOOT L7VD(GAL7V011,REV3A)

565M-SCW-0824-6824

MM40060FL60

SCREW M4.0*6.0-F (BNI,NYLOK)

466M-CV-0830-2547

EAL7V023016

STAND BASE L7VD(EAL7V023,REV3A)

167M-SCW-0824-0728

MM30050IBJ3

SCREW M3.0*5.0-I(NI)

268M-CV-0830-2546

EBL7V024013

STAND COVER F L7VD(EBL7V024,REV3A)

169M-SCW-0824-6760

MS30060IM18

SCREW F3*6-I(NI)

270M-SCW-0824-6822

MF30070BBJ1

SCREW F3.0*7.0-B (NI)

9

BOM LIST (VX710-1)

6 #N/A CC62204MD23 CAP ELEC 22U 25V(+-20%,105C,5*11,2000HR)

7 #N/A CC622L4MD06 CAP ELEC DIP 22U 25V(+-20%,105C,5*11)LXN

25 #N/A DHP0002B205 SWITCH PUCH BUTTON(PT-002-B2,50MA,12V) SW1,SW2,SW3,SW4,SW5 5

C34,C46,C50,C53,C59,C84,
EC1,EC2,EC3,EC5,EC6

C34,C46,C50,C53,C59,C84,
EC1,EC2,EC3,EC5,EC6

11

11

ViewSonic Corporation Confidential

54

-

Do Not Copy VX710

Item

ViewSonic P/N

Ref. P/N

Description

Location

Universal No.

Qty

71

M-MS-0808-9404

EBL7V029015

WIRE CLAMP L7VD(EBL7V029,REV3A)

272#N/A

23L7VCSVS79

L7VD CHASSIS ASSY(LG)

173M-MS-0808-9398

DDL7VDTH009

CABLE ASSY L7VD BUTTON-MB(8P/10P,REV1A)

174M-FC-0809-0845

DDL70LLC308

CABLE ASSY L70L_EB MB-LCD(30P80MM,REV2A)

175M-SCW-0824-0813

MF30060BBJ6

SCREW F3.0*6-B(NI)

276#N/A

EBL7V030013

PCB SPACER L7VD(EBL7V030,REV3A)

177#N/A

24L7VPKVSV1

L7VD-Q PACKING ASSY(US)

178M-MS-0808-9399

DDL7VDPC005

CABLE ASSY L7VD MB-VGA (15/15P,REV1A)

179A-PC-0106-0224

DM333181G97

POWER CORD 3P 1.8M(USA)V04VS35001218000

180M-CV-0830-2540

EBL7V026016

I/O COVER L7VD(EBL7V026,REV3A)

181M-CV-0830-2541

EBL7V025010

STAND COVER R L7VD(EBL7V025,REV3A)

182P-00000434

HAL7V005018

EPE BAG L7VD(HAL7V005,REV3A)

183P-FM-0602-0875

HBL7V007011

END CAP(L) L7VD(HBL7V007,REV3A)

184P-FM-0602-0876

HBL7V008018

END CAP(R) L7VD(HBL7V008,REV3A)

185M-LB-0813-0747

HCL7V004013

CORE LABEL(HCL7V004,REV3A)

186#N/A

HCL7V021015

ID LABEL L7VD(HCL7V021,REV3B)

187M-LB-0813-0745

HCL7V002011

SERIAL LEBAL L7V(HCL7V002,REV3A)

188M-LB-0813-1042

HCL7V019011

CARTON LABEL L7VC(HCL7V019,REV3B)

189P-00000979

HFL7V012019

CARTON VX710 L7VD(HFL7V012,REV3A)

190DC-00002462

HGL7V014012

CD+QSG L7VD-Q USA(HGL7V014,REV3A)

191#N/A

JXLM5003011

HANDLE LM5S(JXLM5003,REV 3B)

192M-MS-0808-7399

JXL7V003017

LCD FILM L7VC(JXL7V003,REV3B)

193M-LB-0813-1043

HCL70021011

HI-POT LABEL L70L(HCL70021,REV3A)

194#N/A

HFL7V011012

SPACE PLATE L7VD(HFL7V011,REV3A)

0.0595M-00002264

HCL7V028010

8MS STICKER L7VC(HCL7V028,REV3A)

1

ViewSonic Corporation Confidential

55

-

Do Not Copy VX710

8. Exploded Diagram And Spare Parts List

ViewSonic Corporation Confidential

56

-

Do Not Copy VX710

EXPLODED PARTS LIST (VX710-1)

ViewSonic Model Number: VS10049
Rev: 1d

Item ViewSonic P/N Ref. P/N Description Qty

1 C-FP-0301-0992 EAL7V019019 Bezel 1
2 C-FP-0301-0994 EAL7V020017 Middle bezel 1
3 PL-BT-0706-0165 EBL7V027012 CONTROL BUTTON L7VD(EBL7V027,REV3A) 1
4 M-MS-0808-9401 EBL7V028019 LENS 1
5 M-MS-0808-9243 FEL7V003019 Logo front -VSC 1
6 M-MS-0808-9402 FEL7V007014 BIRD LOGO L7VD(FEL7V007,REV3A) 1
7 M-BK-0805-0077 FBL7V038014 LCD-BKT-L 1
8 E-00002216 AA17EL07055 LCD(TFT)17" QD17EL07 V.9 SVGA 1

9 M-BK-0805-0078 FBL7V039011 LCD-BKT-R 1
10 M-SCW-0824-0728 MM30050IBJ3 SCREW M3.0*5.0-I(NI) 10
11 M-BK-0805-0079 FAL7V014017 PCB-BKT 1
12 B-00002481 AS02B012DA6 ADD/INV,FSP035-1PI01,90~264V REV1A 1
13 B-00002461 29L9IMB00D7 M/B ASSY(FOR L7VD REALTEK,RTD2523)QDI 1
14 M-MS-0808-9405 FAL7V015013 PCB SHIELDING L7VD(FAL7V015,REV3A) 1
15 M-SCW-0824-6822 MF30070BBJ1 SCREW F3.0*7.0-B (NI) 4
16 M-CV-0830-2542 FBL7V042011 Hinge-L 1
17 M-SCW-0824-6825 MM30040IJ21 Screw M3*4-I 4
18 B-CB-0206-0188 23L7VBB0034 PCB-Button 1
19 M-MS-0808-9411 FBL70008014 Lock Metal 1
20 M-CV-0830-2543 EAL7V021013 LCD cover 1
21 M-CV-0830-2540 EBL7V026016 I/O cover 1
22 M-CV-0830-2544 FBL7V043018 Hinge BKT 1
23 M-CV-0830-2545 FBL7V044014 Hinge-R 1
24 M-SCW-0824-6760 MS30060IM18 SCREW F3.0*6-B(BNI) 4
25 M-MS-0808-9406 MM40080FL69 Screw M4*8-I 4
26 M-CV-0830-2546 EBL7V024013 Stand cover front 1
27 M-CV-0830-2541 EBL7V025010 Stand cover rear 1
28 M-SCW-0824-6760 MS30060IM18 SCREW F3.0*6-B(BNI) 2
29 M-CV-0830-2547 EAL7V023016 Stand base 1
30 M-SCW-0824-6824 MM40060FL60 Screw M4*6-F 4
31 M-MS-0808-9403 FBL7V041015 Stand plate 1
32 M-SCW-0824-6822 MF30070BBJ1 Screw F 3*7-B 9
33 M-BK-0805-0081 FBL7V040019 Satnd BKT 1
34 M-FC-0809-0845 DDL70LLC308 Cable ass'y L70L MB/LCD 1
35 M-MS-0808-9398 DDL7VDTH009 Cable Ass'y button / MB 1
36 M-MS-0808-9404 EBL7V029015 WIRE CLAMP 2

ViewSonic Corporation Confidential

57

-

Do Not Copy VX710

Packing for shipment

PACKING PARTS LIST (VX710-1)

ViewSonic Model Number: VS10049
Rev: 1c

Item ViewSonic P/N Ref. P/N Description Qty

1 VX710 1L7VDZQVS02 VX710 unit 1
2 P-FM-0602-0875 HBL7V007011 END CAP(L) 1
3 P-FM-0602-0876 HBL7V008018 END CAP(R) 1
4 DC-00002462 HGL7V014012 User manual & CD 1
5 A-PC-0106-0224 DM333181G97 Power cord 3P 1.8M 1
6 P-00000979 HFL7V012019 Carton 1
7 M-LB-0813-1042 HCL7V019011 Carton label 1
8 P-00000434 HAL7V005018 EPE bag 1

ViewSonic Corporation Confidential

58

-

Do Not Copy VX710

Packing procedure

1. Apply protective film to the display surface.

2. Put the monitor in EPE bag and seal the bag with tape.

3. Fit the cushions onto the monitor.

ViewSonic Corporation Confidential

59

-

Do Not Copy VX710

Q

4. Put the monitor into the carton and put all the accessories into the carton.

Then close the carton.

SG

Power cord

Disassembling the monitor

1. Turn the monitor to face the back and remove the I/O cover.

2. Remove the stand back cover.

ViewSonic Corporation Confidential

60

-

Do Not Copy VX710

3. Remove the four black hinge screws and separate the stand and head pieces.

4. Place the monitor face-down on a soft, flat, stable surface.

5. Separate the back cover and the front bezel.

ViewSonic Corporation Confidential

61

-

Do Not Copy VX710

6. Remove the screws that fix the button board (B/B) and pull the cable out from the

connector on the main board (M/B).

7. Remove the B/B.

8. Remove the screws on the PCB shield; remove the PCB shield.

Screws

ViewSonic Corporation Confidential

62

-

Do Not Copy VX710

9. Remove the MB-LCD connector and loosen the four screws on the PCB holder.

Screws

10. Separate the PCB holder from the panel.

ViewSonic Corporation Confidential

63

-

Do Not Copy VX710

11. Loosen the four screws on the sides of the panel.

12. Remove the front bezel and panel.

ViewSonic Corporation Confidential

64

-

Do Not Copy VX710

13. Remove the four hexagon screws beside the DVI & D-SUB connectors.

14. Remove the screws that fix the power board and main board.

ViewSonic Corporation Confidential

65

-

Do Not Copy VX710

DDC-SCL;DDC-SDA

ANALOG

RGB

AR AG AB

HSYNC ,VSYNC

Triple

ADC

Interface

POWER

12V

12V

5V

AIC1563

DDC

24C02

Crystal

24.576MHz

EEPROM

24C16

ISP

Crystal

11.059MHz

DVI

CPU

MTV312V64

SCL

SCL

SDA

SDA

RST

IRQ

CSZ

Keypad

Clock
GEN.

Host

Interface

RTD2523

Panel

Interface

Panel

Inverter

control

5V

Si2301DS

BRIGHTNESS

Switch

LVDS+
LVDS-

CLK+
CLK-

12V

AIC117ADJ

AIC1117ADJ

17” Panel

ADAPTOR

Backight

Control

Inverter

3.3V

2.5V

Backlight

Do Not Copy VX710

-

66

REALTEK RTD2523BLOCK DIAGRAM

9. Block Diagram

ON/OFF

ViewSonic Corporation Confidential

10. Schematic Diagrams

+3.3V

+2.5V

DVI

PC
VGA

ANALOG RGB

+3.3V

EEPROM
24LC16

DDC

AC 90-264V

SCALAR RTD2523

MICRO-CONTROLLER
MTV312

INVCTRL

BRIGHTNESS

AUDIO_VOLUME

POWER INVERTER
AND AUDIO BOARD

+3.3V

+3.3V

AUDIO_MUTE

+12V

RSDS AND LVDS

+3.3V

+12V

POWER

LCDPWR_ON12V

LCDPWR_ON3.3V

AIC
1563

LCDVCC

+5.0V

AIC1739

LCD
PANEL(17
19 RSDS
AND
LVDS)

+2.5V

ViewSonic Corporation

67

Confidential - Do Not Copy VX710

AIC1739

+3.3V

Title

<Title>

BLOCK DIAGRAM

Size Document Number

<Doc>

C

Friday, October 15, 2004

Date:

Rev

DAN217K/NC

RED+IN

IN-H

D7

ADC_VCC

3

GND

IN-H
DDC_SCL

21

D10

1 3

DDC_SDA
IN-H
IN-V
DDC_SCL

RED-IN
GREEN-IN
BLUE-IN

GREEN+IN

IN-V

Z5.6/NC

CN2

11
12
13
14
15

VGA/NC

11
13

D8

DAN217K/NC

1
3
5
7
9

3

1 3

1617

CN3

+

+

+

+

+

+

+

+

+

+

+

+

+

+

VGA INPUT

21

DDC_SDA

D11

Z5.6/NC

1
6
2
7
3
8
4
9
5
10

2
4
6
8
10
12
14

BLUE+IN

PAGE1 VGA
INPUT

RED+IN
GREEN+IN
BLUE+IN
GND
IN-V
DDC_SDA
DSUB_5V

D9

DAN217K/NC

D12

1 3

21

3

DDC_SCL

Z5.6/NC

RED+IN
RED-IN
GREEN+IN
GREEN-IN
BLUE+IN
BLUE-IN

DSUB_5V

PIN 10 VGA_CON

DEL D29 2004/6/17

D13

Z5.6/NC

1 3

DDC_SDA

DSUB_5V

DDC_SCL

RED+IN

RED-IN

GREEN+IN

GREEN-IN

BLUE+IN

BLUE-IN

L8 0/6

L9 0/6

L10 0/6

R24

75/6/F

R27

75/6/F

R32

75/6/F

IN-H

C17
NC

C20
NC

C24

NC

L31 0/6

IN-V

R34 100/6
R35
2K/6

R36 100/6
R37
2K/6

R23 100/6

R25 100/6

R26 100/6

R28 100/6

R29 100/6

R31 100/6

R33 100/6

C26
22P/6

VGAVS

C28
22P/6

C16 0.047u/6

C18 0.047u/6

C19 0.047u/6

C21 0.047u/6

C22 0.047u/6

C23 0.047u/6

C25 0.047u/6

VGAHS

RED+

RED-

GREEN+

GREEN-

SOGIN

R30
1M/6

BLUE+

BLUE-

D34

Z3.3V

1 3

D35

Z3.3V

1 3

AHS

Add D34,D35,L31
2004/6/17

AVS

Bus_Power

C29 0.1U/6/NC

DEL L11,C32,U6,R51,R52 2004/6/17

3DVCC

D17
BAT54C-GS08/NC

CN4

25

1

RX2-

2

RX2+

3

GND

4

RX4-

5

RX4+

6

SCL

7

SDA

8

VS

9

RX1-

10

RX1+

11

GND

12

RX3-

13

RX3+

14

5V

15

GND

16

HP

17

RX0-

18

RX0+

19

GND

20

RX5-

21

RX5+

22

GND

23

RXC+

24

RXC-

26

DDC2_SCL
DDC2_SDA

R48 10K/6NC
R49 100/6NC

D24
C31
1U/6NC

Z5.6/NC

1 3

Bus_Power

Hot_plug

C30

0.1U/6/NC

DVI-D/NC

ViewSonic Corporation

68

D18

1 3

D20

1 3

D25

1 3

Z5.6/NC

Z5.6/NC

Z5.6/NC

D19

Z5.6/NC

1 3

D21

Z5.6/NC

1 3

D26

Z5.6/NC

1 3

D27

Z5.6/NC

1 3

1 3

Confidential - Do Not Copy VX710

Add R156~R162 damping RES 2004/4/16

R155 0
R156 0

R157 0
R158 0

R159 0
R160 0

R161 0
R162 0

D28

Z5.6/NC

R50

10K/6NC

TX2­TX2+

TX1­TX1+

TX0­TX0+

TXC+
TXC-

U5

1

NC

VCC

2

NC

VCLK

3

NC

SCK

4 5

VSS SDA

M24C02/NC

R44

8
7
6

2K/6/NC

D22

Z5.6/NC

1 3

Title

VGA AND DVI INPUT

Size Document Number

Friday, October 15, 2004

Date:

R45
2K/6/NC

R46 100/6/NC
R47 100/6/NC

D23

Z5.6/NC

1 3

DISPLAY

DDC2_SCL
DDC2_SDA

Rev

B

TMDS_AVCC

R57
NC

R58

4.7K/6

3AVCC1

3PVCC

3AVCC2 TMDS_AVCC

3AVCC2

C54

0.1u/6

L19 FEB_0805

C60

0.1u/6

3PVCC

R54

R55

L15 FEB_0805

22uF/16V

L14 FEB_0805

C49

4.7K/6

4.7K/6/NC

0.1u/6

C53

ADC_VCC3AVCC1

ADC_GND

3DVCC

C33 22pF/6

R53
NC

C48 22pF/6

C50

PLL_GND

+

C55

+

0.1u/6

C59

C61

22uF/16V

C43.C44.C45 IC

L12

FEB_0805

XO

Y1

24.576MHz

XI

10uF/16V

0.1u/6

C52

C51

R56 1K/6

TX2+
TX2­TX1+
TX1­TX0+
TX0­TXC+
TXC-

Near to Chip

0.1u/6

0.1u/6
C57

C56

BLUE+
BLUE-

SOGIN
GREEN+
GREEN-

RED+

RED-

0.1u/6

0.1u/6

C63

C62

盡量靠近

AHS
AVS

0.1u/6

RX2P
RX2N
RX1P
RX1N
RX0P
RX0N
RXCP
RXCN

0.1u/6

0.1u/6

C58

C64 0.1u/6

RTD_SDO/SDI

C34

XO
XI

B+
B­SOG

G­R+
R-

AHS
AVS

RTD_SCLK

SDIO1
SDIO2
SDIO3

RTD_SCSB

RESET

DDC_SDA

DDC_SCL

10uF/16V

1
2

4
5
3
8

6
7

9
12
14
15
17
18
20
21
23
24

11
13
19
26
10
16
22
25

30
31
33
34
35
37
38

29
36
41

28
27

32
39
40

42
43

0.1u/6

0.1u/6

C35

C36

U7

XO
XI

DPLL_VDD
APLL_VDD
DPLL_GND
APLL_GND

PLL_TEST1
PLL_TEST2

TMDS_TST/PWM1
EXT_RES
RX2P
RX2N
RX1P
RX1N
RX0P
RX0N
RXCP
RXCN

TMDS_VDD
TMDS_VDD
TMDS_VDD
TMDS_VDD
TMDS_GND
TMDS_GND
TMDS_GND
TMDS_GND

B+
B­SOG/ADC_TEST
G+
G­R+
R-

ADC_VDD
ADC_VDD
ADC_VDD

ADC_REFIO
ADC_GND

ADC_GND
ADC_GND
ADC_GND

AHS
AVS

R66 100/6

0.1u/6

C37

109

120

3.3V Ground

0.1u/6

C38

72

96

84

3.3V Ground

3.3V Ground

3.3V Ground

3.3V Ground

TCON[3]/SDIO2]

TCON[4]/SDIO[1]

SDIO[0]

SCLK

5450111

C39

57

48

3.3V Ground

3.3V Ground

TCON[2]/SDIO[3]/PWM2

SCSB

515253

NCR71

NCR72

0.1u/6

121

3.3V Power

RESET#

56

0.1u/6

0.1u/6

C40

C41

71

58

83

95

110

3.3V Power

3.3V Power

3.3V Power

3.3V Power

RTD2523

DDCSDA

DDCSCL

47

125

46

49

3.3V Power

3.3V Power

DDCSCL2

DDCSDA2

126

69

98

127

2.5V Power

2.5V Power

TCON[11]/V[0]

114

115

TCON11

TCON10

128

2.5V Power

2.5V Power

TCON[10]/V[1]

TCON[9]/V[2]

TCON[8]/V[3]

118

116

117

TCON8

TCON7

TCON9

C42

97

2.5V Ground

2.5V Ground

TCON[7]/V[4]

TCON[6]/V[5]

119

TCON6

0.1u/6

122

TCON5

444570

2.5V Ground

TCON[5]/V[6]

123

C43

2.5V Ground

TCON[1]/V[7]

124

R2.5DVCCR3DVCC

0.1u/6

0.1u/6

0.1u/6
C45

C44

TCON[12]/COUT/PWM2

PWM0/REFCLK

TCON[13]/COUT/PWM2

AR1N
AR1P/TCON[0]
AR2N/TCON[1]
AR2P/TCON[5]
AR3N/TCON[6]
AR3P/TCON[7]

AG1N/TCON[8]

AG1P/TCON[9]

AG2N/TCON[10]
AG2P/TCON[11]

BG3N

BG3P

BCLKN
BCLKP

BB1N

BB1P

BB2N

BB2P

BB3N

BB3P

AG3N/TEAN

AG3P/TEAP
ACLKN/TEBN
ACLKP/TEBP

AB1N/TECN

AB1P/TECP

AB2N/TECLKN
AB2P/TECLKP

AB3N/TEDN

AB3P/TEDP

BR1N/TOAN

BR1P/TOAP

BR2N/TOBN

BR2P/TOBP

BR3N/TOCN

BR3P/TOCP

BG1N/TOCLKN
BG1P/TOCLKP

BG2N/TODN
BG2P/TODP

TCON[0]/VCLK

TP2

1

TEST POINT

C46

10uF/16V

113
55

108
107
106
105
104
103
102
101
100
99

68
67
66
65
64
63
62
61
60
59

94
93
92
91
90
89
88
87
86
85

82
81
80
79
78
77
76
75
74
73

L13 FEB_0805

AR1N
AR1P
AR2N
AR2P
AR3N
AR3P
AG1N
AG1P
AG2N
AG2P

BG3N
BG3P
BCLKN
BCLKP
BB1N
BB1P
BB2N
BB2P
BB3N
BB3P

RXEIN0­RXEIN0+
RXEIN1­RXEIN1+
RXEIN2-

RXEIN2+
RXECKIN­RXECKIN+

RXEIN3-

RXEIN3+

RXOIN0-

RXOIN0+

RXOIN1-

RXOIN1+

RXOIN2-

RXOIN2+
RXOCKIN­RXOCKIN+

RXOIN3-

RXOIN3+

2.5DVCC

VBRI
VOLUME

C47

0.1u/6

2.5DVCC

TCON5
TCON6
TCON7
TCON8

TCON9
TCON10
TCON11

FXDIO

22/6R59

XSTB

22/6R60

POL

22/6R61

BXDIO

22/6R62

YCLK

22/6R63

YDIO

22/6R64

YOE

22/6R65

ViewSonic Corporation

69

Confidential - Do Not Copy VX710

Title

RTD_2523

Size Document Number

Friday, October 15, 2004

Date:

Rev

A

VCPU

Reset circuit

3DVCC

C

3AVCC1

RESET

VCPU

12

3AVCC1

C75

0.1U/6

1
2
3
4 5

D32

NC/ 1N4148

R147

4.7K/6

U8

A0

VCC
A1
A2

SCK
VSS SI

24LC16

PARAMETER
EEPROM

R165

NC/100K/6

13

Q20

2

NC/2N3906

C103

NC/1U/16V

2

1

R166
0/6

R80

8
7

WP

6

2K/6

D33

NC/DAN202U

3

Add Q20,R165,R166,C103,D32,D33
2004/6/16

R81

2K/6

R83 100/6
R92 100/6

PANEL_PW12

VCPU

C86

NC/1U/16V

R106
NC/82K/6

C87 10pF/6 R164 22

Y2

11.0592MHz

PWR_SEL

R41

6.8K/6

VCC12

MUTE
Hot_Plug

STBY

C88 10pF/6

VCPU

IICSCL

IICSDA

LED_R

LED_G

R142 NC

R78

10K/6

LED_G

LED_R

+

C84
22uF/16V

12

11

19

14
13
27
26
16

30
31
32
33

I1

X1

X2

7

RESET

INT0/P3.2

ISCL/P3.5/T1
ISDA/P3.4/T0
P6.0/AD0
P6.1/AD1
P6.2

9

P6.3
P6.4
P6.5
P6.6
P6.7

MTV312M64

C85

0.1u/6

5

6

NC

R79

R93 4.7K/6

VCPU

810

4

NC

VCC

VDD3

DA8/HLFHO
DA9/HALFV

VSS

10K/6

R82 4.7K/6

43

44

P5.0
P5.1
P5.2

VSYNC

HSYNC

P5.3
P5.4
P5.5
P5.6

P1.0
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7
DA7
P4.0
P4.1
P4.2

P3.1/TXD

P3.0/RXD

2

2N3906

3
2
1
42
41
40
34
39
38
17
18
20
21
22
23
24
25
35
36
37
15

28
29

Q13

B

13

Q12

2N3906

2

13

MENU
SEL
PWR
DOWN
UP
RIGHT
LEFT

Junction from
A change to B

VCPU

E

3DVCC

R163

4.7K/6

R39 4.7K/6
R40 4.7K/6

33K/6

33K/6

R87

R88

0.1U/6

0.1U/6
C77

C76

VCPU

MENU
SEL
PWR
UP
DOWN
RIGHT
LEFT

R124 100/6
R125 100/6

R89

C78

33K/6

0.1U/6

33K/6

33K/6

R90

R91

0.1U/6

0.1U/6

C79

C80

AVS

VRMT

R109 4.7K/6

R108 4.7K/6

R84

C81

33K/6

0.1U/6

VCPU

R85

C82

R110

4.7K/6

33K/6

0.1U/6

less R94 to CN6 pin 11

R101,R103 net swap

R95 1K/6
R96 1K/6
R97 1K/6
R98 1K/6
R99 1K/6
R100 1K/6
R101 1K/6
R102 220/6
R103 220/6

CN6

10
9
8
7
6
5
4
3
2
1

4501-10-10P-R

TO BUTTON BOARD

VCPU

R111

4.7K/6

TxD
RxD

R112
NC

R113
NC

R114

4.7K/6

DDC_SDA
DDC_SCL

R115

4.7K/6

2.0mm pitch
90° E&T
4607-11Pin

R116

4.7K/6

R120 NC

5DVCC

PANEL_PW3
SDIO1
SDIO2
SDIO3
RTD_SDO/SDI
RTD_SCLK
RTD_SCSB

JP1

1
2
3
4

HEADER 4

R38

2K/6

ViewSonic Corporation Confidential - Do Not Copy VX710

70

Title

MCU & BUTTON

Size Document Number

Friday, October 15, 2004

Date:

DISPLAY

Rev

A

5DVCC

5DVCC

L22

FEB_1206

VCC12

31

GND

R67

82K/6

R70

82K/6

L21

NC

Q9

DTC144EUA

2

PANEL_3VCC

PANEL_5_12VCC

2

C67

2200P/6

Q8 SI2301DS

1

PANEL_PW12

L16
FEB_0805/NV

L20

3

FEB_0805/NC

C68

2200P/6

BB3P
BB3N

BB2P
BB2N

BB1P
BB1N

BCLKP
BCLKN

BG3P
BG3N

RXOIN0­RXOIN0+

RXOCKIN­RXOCKIN+

RXOIN1­RXOIN1+

RXOIN2­RXOIN2+

RXOIN3­RXOIN3+

DG3

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

RSDS_CON30

L18

FEB_0805/NC

R68
10K/6

J1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

L17

FEB_0805/NC

PANEL_5_12VCC

C69

0.1U/6

1S2

C65

0.1U/6/NC

PANEL_5_12VCC

C70
100U/16V

RXEIN0­RXEIN0+

RXECKIN­RXECKIN+

RXEIN1­RXEIN1+

RXEIN2­RXEIN2+

RXEIN3­RXEIN3+

AG2P
AG2N

AG1P
AG1N

AR3P
AR3N

AR2P
AR2N

AR1P
AR1N

FXDIO
XSTB
POL
BXDIO

YCLK
YDIO
YOE

0.1U/6/NC

C66

J2

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

20

20

21

21

22

22

23

23

24

24

25

25

26

26

27

27

28

28

29

29

30

30

31

31

32

32

33

33

34

34

35

35

36

36

37

37

38

38

39

39

40

40

41

41

42

42

43

43

44

44

45

45

46

46

47

47

48

48

49

49

50

50

RSDS_CON50/NC

3DVCC

R75

NC/82K/6

R77

NC/10K/6

31

Q11 NC/DTC144EUA

2

C

B

2

C71

NC/2200P/6

3

2

1

C73
NC/0.1U/6

PANEL_3VCC

PANEL_3VCC

C74

NC/100U/16V

Q10 NC/SI2301DS

1

PANEL_PW3

3

R76

C72

NC/10K/6

NC/2200P/6

E

RXOIN0­RXOCKIN­RXOIN1­DGND
RXOIN2­RXOIN3­RXEIN0­DGND
RXECKIN­RXEIN1­RXEIN2­RXEIN3-

DGND

PANEL_5_12VCC

L30

PANEL_3VCC

NC/FEB_1206

If panel is 3.3V LVDS IF, L30 must add the part 2004

CN5

1

1

3

3

5

5

7

7

9

9

11

11

13

13

15

15

17

17

19

19

21

21

23

23

25

25

27

27

29

29

1841 30P

PANEL_5_12VCC

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30

RXOIN0+

2

RXOCKIN+

4

RXOIN1+

6

DGND

8

RXOIN2+

10

RXOIN3+

12

RXEIN0+

14

DGND

16

RXECKIN+

18

RXEIN1+

20

RXEIN2+

22

RXEIN3+

24

DGND

26

PANEL_5_12VCC

28

PANEL_5_12VCC

30

/4/14

ViewSonic Corporation

71

Confidential - Do Not Copy VX710

Title

<Title>

Size Document Number

Date:

PANEL INTERFACE

<Doc>

C

Friday, October 15, 2004

Rev

VCC12

R128
1K/6/NC

PC AUDIO-IN

J3

ZD005D100/NC

1
5
4
3
2

Z0412

AGND

L_LINE

R_LINE

VOLUME

L25 600/CX601T02001/NC

1 2

1 2

L26 600/CX601T02001/NC

220P/6/NC

C95

C96

220P/6/NC

STBY

Z0415

R133 100/6/NC

Z0416

VCC12

STBY

2

C

123B

E

R132 100/6/NC

MUTE

MUTE

R140 10K/6/NC

2

3

1

R135
20K/6/NC

AGND

R141 10K/6/NC

31

Q17

DTC143EUA/NC

R129 10K/6/NC

Q15

SN7002E/NC

LIN_PC

RIN_PC

VCC12

R138
10K/6/NC

R136

20K/6/NC

R139 10K/6/NC

31

2

DTC144EUA/NC

AGND AGND

AGND

C92 0.47U/8/NC

C94 0.47U/8/NC

Q16

R130 10K/6/NC

C89

1U/8/NC

C98

0.1U/8/NC

C99

VOL

R1313.9K/6/NC

VCC12

L24

4

INL

9 5

INR VAROUT_L

11

STBY

10

SVR

TDA7496L/NC

330U/16V

U9

AGND

BEAD/1206/NC

15

16

VS

VS

VOLUME

VAROUR_R

GND

GND

GND

GND

GND

13

1231920

18

GND

OUTL

OUTRMUTE

GND

C90

0.1U/6/NC

AGND

C93

17

6

7

C97

1412

L23 BEAD/1206/NC

VOL

C91
330U/16V

330U/16V/NC

330U/16V/NC

SPKOUTL

SPKOUTR

R134 CX201209805/8/NC
R137 CX201209805/8/NC

SPEAKER OUT

AGND

JP2

1
2
3
4

4606-04-04P-R/NC

ViewSonic Corporation

72

AGND

Confidential - Do Not Copy VX710

Title

AUDIO

Size Document Number

Friday, October 15, 2004

Date:

DISPLAY

Rev

A

GND

5DVCC

3

E12

RTD 3DVCC

ADC_ 3AVCC
RTD 3PVCC

LVDS_3AVCC

3DVCC

0.1u/6

C3

2.5DVCC

10uF/16V

5DVCC

3DVCC

3AVCC1

3PVCC

3AVCC2

2.5DVCC

0.1u/6

C12

RTD 2.5DVCC

D1

1SS355

C2
1u/6

VCC12

GND

GND

R2
0/1206

C8

0.1u/6

U2

8

BOOST

7

IS

6

VCC

AIC1563

R11 3K/6 1%
C10 2200p/6

1K/6 1%

R12

R11:3K 1% ohm, R12:1K 1%

GND

ohm -->output:5V;
R11:3.6K 1% ohm, R12:2.2K
1% ohm-->output 3.3V

1

DC
DE

CF

GNDFB

R4 47/6

2

R5 330K/6

3
45

GND

GND

120p/6

C9

R7

240K/6 1%

1

R9
1K/6

3 2

1SS355

D2

Q2

MMST3906

7681

Q1

NDS9410A/SO

GND

1 3

0.1u/6

C7

L2

D3

RB081L-20

47UH

12

EC4

330u/16V

234 5

U1 AIC1117CY

3

VIN

+

EC2

10uF/16V

U3 AIC1117CY

3

+

10uF/16V

EC5

VOUT

GND

1

VOUT

VIN

GND

1

+

0.1u/6

C1

EC1

10uF/16V

2

200/6 1%

R3

+

10uF/16V

EC3

R6

330/6 1%

2

R15

+

200/6 1%

EC6

R17

200/6 1%

CN1 CONN 4x2-R

1 2

4

3
5 6

8

GND

DGND

C102

1U/6

3DVCC

R10

10K/6

R14

R1,L1

C5

0.1u/6

R13 1K/6

3DVCC

R16
1K/6

3

SN7002E

2

1

VCC12

C6

330u/16V

VRMT

RTD 3DVCC

ADC_ 3AVCC

RTD 3PVCC

LVDS_3AVCC

3DVCC

3AVCC1

3PVCC

3AVCC2

L29

FEB/1206/NC

U10

3 1

VIN VOUT

2

GND

AIC1739/NC

3.3V-->2.5V regulator for 3.3V system power, no 5V 2004/4/14

2.5DVCC

2.5DVCC

RTD 2.5DVCC

Modify

3DVCC

NC/CX201209805/8
L27

Q18

DSUB_5V

Q4

VBRI

D30

1N4148

3DVCC

1N4148

4.7K/6

R143

MMBT3906

D31

MMBT3906

R144

4.7K/6

CX201209805/8

L28

Q19

C100

0.1u/6

VCPU

C101
NC/6

Title

<Title>

Size Document Number

Date:

POWER

Friday, October 15, 2004

Rev

12V

FUSE1
0

1 2

C4

0.1u/6

3DVCC

R8

0/6

Q3

MMST3906

L3

12

10K/6

0.1U/6

10K/6/NC

C11

R18 4.7K/6
C13
1U/8

ViewSonic Corporation

73

Confidential - Do Not Copy VX710

11. PCB Layout Diagrams

Control Board

Main Board

ViewSonic Corporation Confidential

74

-

Do Not Copy VX710

*Readers Response*

Dear Readers:

Thank you in advance for your feedback on our Service Manual, which allows continuous improvement

of our products. We would appreciate your completion of the Assessment Matrix below, for return to

ViewSonic Corporation.

A. What do you think about the content of this Service Manual?

Assessment

1.

Precautions and Safety Notices

2. Specification

Front Panel Function Control Description

3.

4. Circuit Description

5.

Adjustment Procedure

6. Troubleshooting Flow Chart

7. Recommended Spare Parts List

8. Exploded Diagram and Exploded Parts List

9. Block Diagram

10. Schematic Diagrams

11. PCB Layout Diagrams

tinU riaF daB

dooGtnellecxE

B. Are you satisfied with this Service Manual?

metI tnellecxE dooG riaF daB

.1

Service Manual Content

.2

Service Manual Layout

.3

The form and listing

C. Do you have any other opinions or suggestions regarding this service manual?

Readers basic data:

Name: Title:
Company:

Add.:
Tel:
E-mail:

After completing this form, please return it to ViewSonic Quality Assurance

1-909-839-7943.
([e-mail])

You may also e-mail any suggestions to the Director, Quality Systems & Processes

Fax:

in the USA at facsimile

ViewSonic Corporation Confidential

7575

-

Do Not Copy VX710
