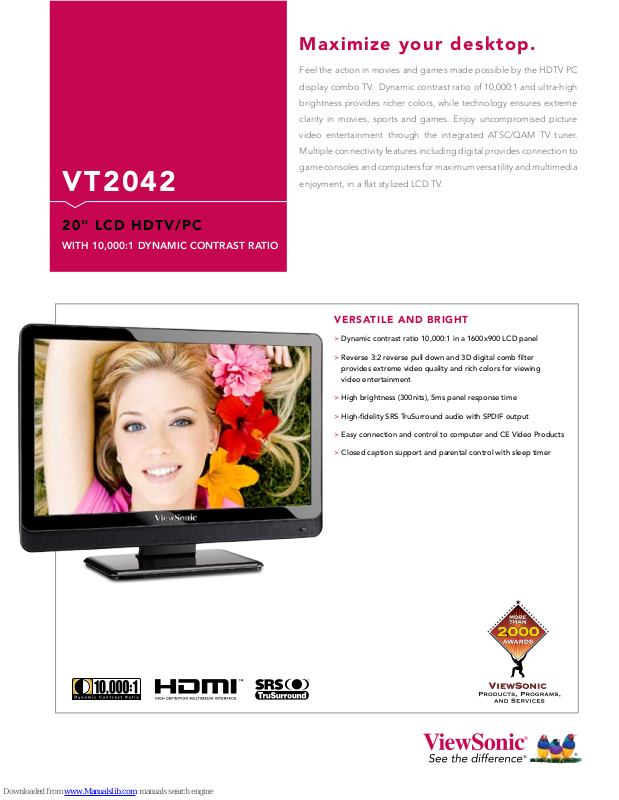

VT2042

20" LCD HDTV/PC

WITH 10,000:1 DYNAMIC CONTRAST RATIO

Maximize your desktop.

Feel the action in movies and games made possible by the HDTV PC

display combo TV. Dynamic contrast ratio of 10,000:1 and ultra-high

brightness provides richer colors, while technology ensures extreme

clarity in movies, sports and games. Enjoy uncompromised picture

video entertainment through the integrated ATSC/QAM TV tuner.

Multiple connectivity features including digital provides connection to

game consoles and computers for maximum versatility and multimedia

enjoyment, in a flat stylized LCD TV.

VERSATILE AND BRIGHT

Dynamic contrast ratio 10,000:1 in a 1600x900 LCD panel >

Reverse 3:2 reverse pull down and 3D digital comb filter >
provides extreme video quality and rich colors for viewing
video entertainment

High brightness (300nits), 5ms panel response time >

High-fidelity SRS TruSurround audio with SPDIF output >

Easy connection and control to computer and CE Video Products >

Closed caption support and parental control with sleep timer >

VT2042

20" LCD HDTV/PC WITH 10,000:1 DYNAMIC CONTRAST RATIO

LCD Type 20" Wide Color TFT Active Matrix LCD

Display Area 17.4" horizontal x 9.8" vertical; 20" diagonal
Optimum Resolution 1600x900
Contrast Ratio 1000:1 static (typ), 10,000:1 dynamic
Viewing Angles 160º horizontal, 160º vertical
Response Time 5ms

ViewSonic Corporation’s QMS & EMS have been registered

to ISO 9001 & ISO 14001, respectively, by TUV NORD.

Light Source Long life, 40,000 hrs. (typ)
Brightness 300 cd/m
Aspect Ratio 16:9
Glass Surface Anti-glare

INPUT PC RGB analog (75 ohms, 0.7 Vp-p)

TV TV/cable, composite (RCA), component YPbPr/YCbCr, S-Video
Audio
Frequency Fh: 30~64kHz, Fv: 60~75Hz
Sync H/V separated (TTL)
Digital HDMI (with HDCP and audio support)
Tuner ATSC/NTSC/QAM

AUDIO OUTPUT Speakers 2x5-watt
COMPATIBILITY PC 1600X900 @ 60Hz (preferred), 1600X900 @ 60Hz

Mac®* G3/G4/G5 up to 1600X900

INPUT SIGNAL TV/Video Comp. 480i, 480p, 720p
CONNECTOR Analog 15-pin mini D-sub (VGA)

Digital HDMI
Power 3-pin AC plug

POWER Voltage AC 100–240V (universal), +/-10% Wide Range

Consumption 40W (typ) / 65W (max.)

CONTROLS Basic Vol -/+, menu, channel down/up, source, power

Picture Picture mode, contrast, brightness, sharpness, tint, color,
color mode, zoom mode, NR

Picture (Video mode) Picture mode, contrast, brightness, sharpness, color mode
Picture (PC mode) Picture mode, contrast, brightness, sharpness, color mode,

advanced
Channel TV source, auto scan, favorite, show/hide, channel number,

channel label, DTV signal
Lock Change password, system lock, unrated lock, input block,

US, Canada, RRT setting, reset RRT
Option Menu language, transparency, OSD time out, closed caption,

dynamic contrast ratio (DCR), restore default
Time Sleep timer, time zone, DST, time format, auto sync, clock
Audio Sound mode, treble/bass, prefer language, surround sound,

audio only

OPERATING Temperature 32–104ºF (0–40ºC)
CONDITIONS Humidity 10–65% (non-condensing)
DIMENSIONS Physical with stand 19.3" x 14.9" x 7.4" (492mm x 380mm x 188mm)
(W x H x D) Physical without stand 19.3" x 14.8" x 3.9" (492mm x 378mm x 100mm)
WEIGHT Net with stand 11.7 lb. (5.3 kg)

Net without stand 10.6 lb. (4.8 kg)
Gross with stand 14.1 lb. (6.4 kg)

VESA® MOUNT 100mm x 100mm
REGULATIONS FCC, cUL (UL), RoHS, NOM, BETS-7, CB
RECYCLE/DISPOSAL The lamp in this product contains mercury. Please

dispose of in accordance with local, state or federal laws.

PACKAGE CONTENTS LCD TV display, power cable(s), remote control with batteries,

Quick Start Guide, User Guide

WARRANTY One-year limited warranty on parts and backlight

3.5mm mini stereo audio in, earphone out and RCA (left/right) audio in

2

(typ)

Sales: [phone] • [e-mail] • ViewSonic.com

*Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and
programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the
property of their respective companies. Copyright © 2009 ViewSonic Corporation. All rights reserved. [14518-01B-08/09] VT2042-1
