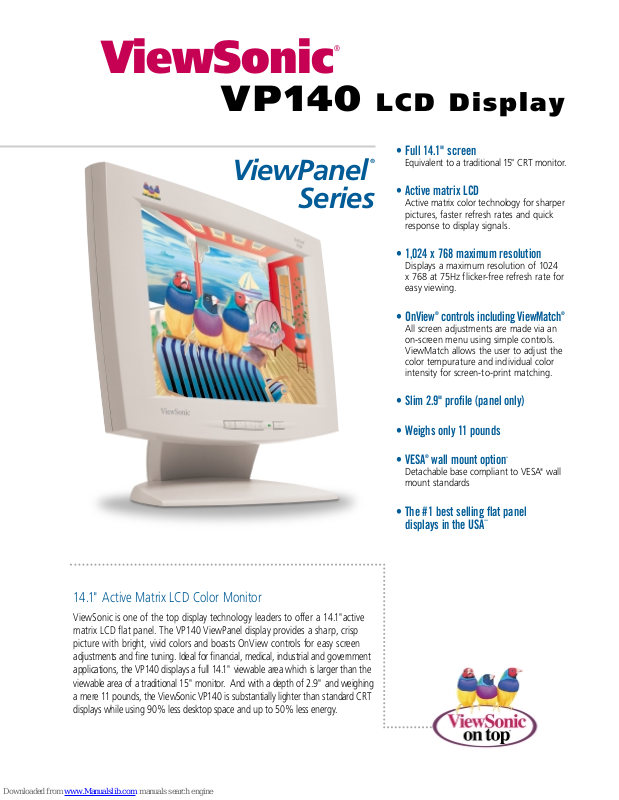

ViewSonic ViewPanel VP140 Specifications

ViewPanel

®

Series

VP140 LCD Display

ViewSonic

®

• Full 14.1" screen

Equivalent to a traditional 15"CRT monitor.

• Active matrix LCD

Active matrix color technology for sharper
pictures, faster refresh rates and quick
response to display signals.

• 1,024 x 768 maximum resolution

Displays a maximum resolution of 1024
x 768 at 75Hz flicker-free refresh rate for
easy viewing.

• OnView®controls including ViewMatch

®

All screen adjustments are made via an
on-screen menu using simple controls.
ViewMatch allows the user to adjust the
color tempurature and individual color
intensity for screen-to-print matching.

• Slim 2.9" profile (panel only)

• Weighs only 11 pounds

• VESA

®

wall mount option

*

Detachable base compliant to VESA®wall
mount standards

• The #1 best selling flat panel
displays in the USA

**

14.1" Active Matrix LCD Color Monitor

ViewSonic is one of the top display technology leaders to offer a 14.1"active
matrix LCD flat panel. The VP140 ViewPanel display provides a sharp, crisp
picture with bright, vivid colors and boasts OnView controls for easy screen
adjustments and fine tuning. Ideal for financial, medical, industrial and government
applications, the VP140 displays a full 14.1" viewable area which is larger than the
viewable area of a traditional 15" monitor. And with a depth of 2.9" and weighing
a mere 11 pounds, the ViewSonic VP140 is substantially lighter than standard CRT
displays while using 90% less desktop space and up to 50% less energy.

*Wall mount accessories are optional. Designed for easy wall mount configuration with any optional third-party wall mount kit to meet VESA wall mount specifications.**Leading non-captive monitor brand: Stanford Resources, Inc. (Monitrak 2000). †Free universal
Mac® adapter avaiable. Specifications subject to change without notice. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2001 ViewSonic Corporation. All rights reserved. [10332-01B 09/01_0M] VS-224

381 Brea Canyon Road, Walnut, CA 91789

Phone [phone] • [phone]

Fax [phone] • ViewSonic.com

ViewSonic

®

ViewPanel®Series

VP140

LCD Display

14.1" VIEWABLE COLOR TFT LCD DISPLAY WITH TCO ’99

LCD Type 14.1" viewable TFT active matrix ViewPanel

Viewing Angle 100˚ Horizontal, 60˚ Vertical (typ)
Pixel Pitch 0.279mm (H) x 0.279mm (V)
Contrast Ratio 250:1 (typ)
Color Depth 6-bits/color (16.7 million colors)
Backlight N= 2CCFT (Cold Cathode Fluorescent Tube)
Backlight Life 50,000 hrs (typ)
Glass Surface Anti-glare hard coat

INPUT SIGNAL Video RGB Analog (0.7/1Vp-p, 75 ohms)

Sync H/V separate (TTL) composite, sync on green
Frequency fh: 30-62kHz, fv: 50-75Hz

COMPATIBILITY PC VGA up to 1024 x 768 non-interlaced

Mac

®

†

640 x 480 up to 1,024 x 768

CONNECTOR Signal 15-pin mini D-sub (detachable cable)

Power External AC/DC adapter with 3-pin AC Plug (CEE22)

POWER Voltage AC 100-240 VAC 50-60Hz (auto switch) adapted

to 12VDC

Consumption 38W (max)

USER CONTROLS Basic 1, down, up, 2, power

OnView

®

Contrast, brightness, auto sync, H/V OSD position,
ViewMatch

®

color, LCD adjust, H-size, H-position,

FineTune, background, smoothing, ViewMeter

®

,

language, recall

VIDEO INPUT Bandwidth 100MHz (typ)
OPERATING Temperature 32˚F to 104˚F (0˚C to 40˚C)

CONDITION Humidity 10-90% (no-condensation)
DIMENSIONS Physical 390mm (W) x 372mm (H) x 138mm (D)

15.3" (W) x 14.6" (H) x 5.4" (D)
WEIGHT Net 5.5KG (12.1lbs)
OTHER DDC1, DDC2B, detachable base,

Kensington lock recepticle

REGULATIONS UL, CSA, CB, CE, FCC-B, DOC-B,TUV/GS, Energy Star

®

,
TCO ’99, Energy 2000, VCCI, BSMI, ISO13406-2,
NEMKO, SEMKO, DEMKO, FIMKO, B-MARK, SASO,
CCIB, KMI

POWER MANAGEMENT Meets Energy Star

®

, VESA®DPMS, and TCO and

Energy 2000 standards

WARRANTY Three year limited warranty on parts and labor.

Three year on backlight.

• Anti-static, anti-glare screen

This screen treatment refracts unwanted
light away from the user while
maintaining the highest image quality.

•

Fully supports the Microsoft®Windows

®

auto-installation standard for easy,
trouble-free configuration and setup.

• TCO ’99 and E

NERGY STAR

®

certified

This monitor complies with the world’s
strictest standards of low radiation,
safety, ergonomics, recycling and power
management while saving costs through
automatic power saving modes.

• Kensington®security port

Kensington security port protects your
assets.

• Three year limited warranty

ViewSonic Corporation's QMS& EMS has been registered

to ISO 9001 & ISO 14001 by the British Standards Institution.
