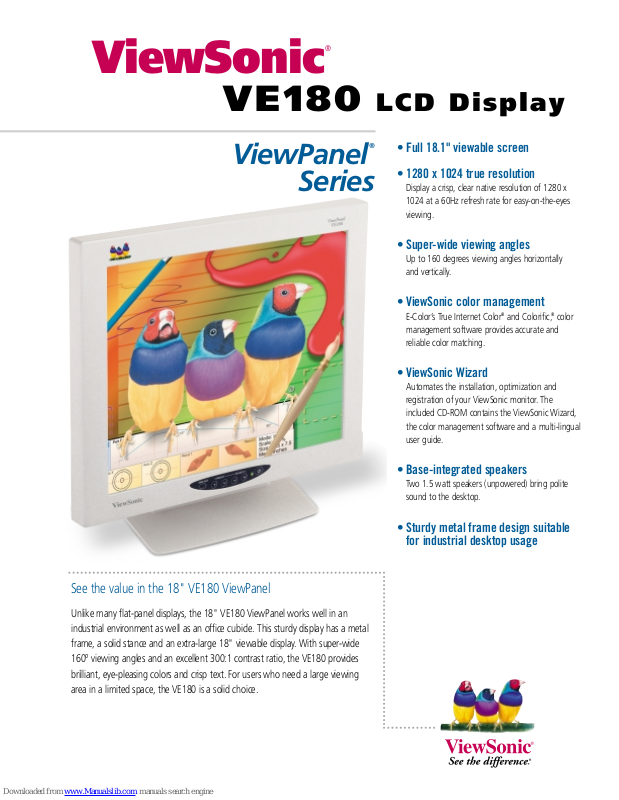

ViewSonic ViewPanel VE180 Specifications

VE180 LCD Display

ViewSonic

®

ViewPanel

®

Series

• Full 18.1" viewable screen

• 1280 x 1024 true resolution

Display a crisp, clear native resolution of 1280 x
1024 at a 60Hz refresh rate for easy-on-the-eyes
viewing.

• Super-wide viewing angles

Up to 160 degrees viewing angles horizontally
and vertically.

• ViewSonic color management

E-Color’s True Internet Color®and Colorific‚®color
management software provides accurate and
reliable color matching.

• ViewSonic Wizard

Automates the installation, optimization and
registration of your ViewSonic monitor. The
included CD-ROM contains the ViewSonic Wizard,
the color management software and a multi-lingual
user guide.

• Base-integrated speakers

Two 1.5 watt speakers (unpowered) bring polite
sound to the desktop.

• Sturdy metal frame design suitable
for industrial desktop usage

See the value in the 18" VE180 ViewPanel

Unlike many flat-panel displays, the 18" VE180 ViewPanel works well in an
industrial environment as well as an office cubicle. This sturdy display has a metal
frame, a solid stance and an extra-large 18" viewable display. With super-wide
160º viewing angles and an excellent 300:1 contrast ratio, the VE180 provides
brilliant, eye-pleasing colors and crisp text. For users who need a large viewing
area in a limited space, the VE180 is a solid choice.

ViewPanel®Series

• Ergonomic tilt adjustments

• TCO ’99 and Energy 2000 compliant

This monitor complies with the world’s strictest
standards of low radiation, safety, ergonomics,
recycling and power management
while saving costs through
automatic power-saving modes.

•

• PC and Mac®compatible

• Three-year limited warranty

ViewSonic

®

VE180 LCD Display

*May require the use of the VS cable for older systems. Corporate names and trademarks stated herein are the property of their respective companies. Specifications subject to change without notice. As an ENERGY STA R®partner,
ViewSonic has determined that this product meets the E

NERGY STA R

®

guidelines for energy efficiency. Microsoft, Window NT, Windows 2000 and the Windows logos are the registered trademarks of Microsoft Corporation in the
United States and other countries. Copyright © 2001, ViewSonic Corporation. All rights reserved.
VSVE180_06/01_20k_ [10209-00B 06/01]
VS-2237

ViewSonic Corporation's QMS\ EMS has been registered

to ISO 9001 & ISO 14001 by the British Standards Institution.

381 Brea Canyon Road, Walnut, CA 91789 • Phone [phone] or [phone] • Fax [phone] • ViewSonic.com

VE180

LCD PANEL Type LM 181E1-J3MN

Display Area 18.1" Diagonal
Contrast Ratio 300:1 (typ)
Viewing Angle 160º horizontal, 160º vertical (typ)
Light Source Long life, 20,000 hrs. (min) /30,000 hrs. (typ)
Response Time 50ms (typ)
Brightness 200 cd/m2 (typ @ center)
Glass Surface Hard-coating (3H)

ANALOG INPUT Video RGB Analog (75 ohms, 0.7/1.0 Vp-p)

Frequency Fh:30-82kHz; Fv:50-75Hz
Sync H/V Separated (TTL)

COMPATIBILITY PC PC compatibles from VGA up to 1280 x 1024

non-interlaced

Mac

®

*

Power Mac (up to 1280 x 1024)

CONNECTOR

Analog RGB 15-pin mini D-sub
Power DC In, DC to Head
Audio Mini-phone plug

AUDIO Speakers Two 1.5W speakers (unpowered)
POWER Voltage AC 100-240V(universal) via external DC converter brick

Consumption 48W (max)

CONTROLS Physical Power button, OSD Out, Select (arrow down and arrow

up, enter menu), adjust (+, -)

OSD Brightness, contrast, color temperature (9300K, 7500K,

6500K, 5000K), frequency, and phase (fine tune), signal
status, H/V position, scaling mode, zoom, auto balance,
sharpness, language, OSD position/timeout, gamma,
test pattern

OPER. COND. Temperature 32º F to 104º F (0º C to 40º C)

Humidity 10% to 90% (non-condensation)

DIMENSIONS Physical 450mm (W) x 214mm (D) x 428mm (H)

(17.72" x 8.43" x 16.85")
WEIGHT Net 17.7 lbs.
REGULATIONS UL, c-UL, FCC-B, CE, IC-B, EPA, TUV/GS,VCCI, TCO99,

ISO13406-2
POWER MANAGEMENT Meets Energy 2000 standard
WARRANTY Three-year limited warranty on parts, labor and backlight.
