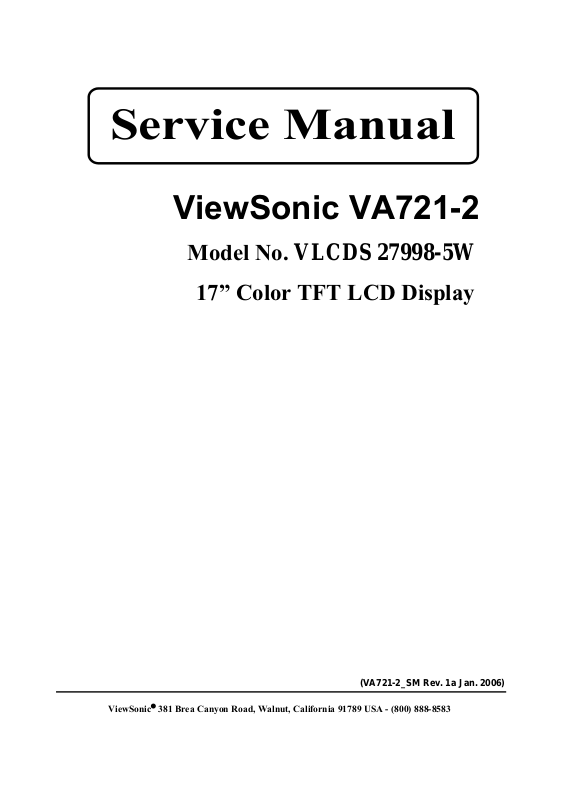

Service Manual
ViewSonic VA721-2
Model No. VLCDS 27998-5W
17” Color TFT LCD Display
ViewSonic
(VA721-2_SM Rev. 1a Jan. 2006)
381 Brea Canyon Road, Walnut, California 91789 USA - (800) 888-8583
Page 2
Page 3
Page 4
1. Precautions and Safety Notices
1. Appropriate Operation
(1) Turn off the product before cleaning. (2) Use only a dry soft cloth when cleaning the LCD panel surface. (3) Use a soft cloth soaked with mild detergent to clean the display housing. (4) Use only a high quality, safety approved AC/DC power cord. (5) Disconnect the power plug from the AC outlet if the product will not be used for a long period of time. (6) If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display off. (7) Do not touch the LCD panel surface with sharp or hard objects. (8) Do not place heavy objects on the LCD display, video cable, or power cord. (9) Do not use abrasive cleaners, waxes or solvents for your cleaning. (10) Do not operate the product under the following conditions:
- Extremely hot, cold or humid environment.
- Areas containing excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- In direct sunlight.
2. Caution
No modification of any circuit should be attempted. Service work should only be performed after you are thoroughly familiar
with all of the following safety checks and servicing guidelines.
3. Safety Check
Care should be taken while servicing this LCD display. Because of the high voltage used in the inverter circuit, the voltage is
exposed in such areas as the associated transformer circuits.
4. LCD Module Handling Precautions
4.1 Handling Precautions
(1) Since front polarizer is easily damaged, pay attention not to scratch it. (2) Be sure to turn off power supply when connecting or disconnecting input connector. (3) Wipe off water drops immediately. Long contact with water may cause discoloration or spots. (4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth. (5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface. (6) Since CMOS LSI is used in this module, take care of static electricity and ensure human earth when handling. (7) Do not open or modify the Module Assembly. (8) Do not press the reflector sheet at the back of the module in any direction. (9) In the event that a Module must be put back into the packing container slot after it was taken out of the
container, do not press the center of the CCFL Reflector edge. Instead, press at the far ends of the CFL Reflector edge softly. Otherwise the TFT Module may be damaged.
(10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate or tilt the Interface
Connector of the TFT Module.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
1
Page 5
(11) After installation of the TFT Module into an enclosure (LCD monitor housing, for example), do not twist or
bend the TFT Module even momentarily. When designing the enclosure, it should be taken into consideration that no bending/twisting forces may be applied to the TFT Module from outside. Otherwise the TFT Module may be damaged.
(12) The cold cathode fluorescent lamp in the LCD contains a small amount of mercury. Please follow local
ordinances or regulations for disposal.
(13) The LCD module contains a small amount of materials having no flammability grade. The LCD module
should be supplied with power that complies with the requirements of Limited Power Source (IEC60950 or UL1950), or an exemption should be applied for.
(14) The LCD module is designed so that the CCFL in it is supplied by a Limited Current Circuit (IEC60950
or UL1950). Do not connect the CCFL to a Hazardous Voltage Circuit.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
2
Page 6
5. Handling Methods
Correct methods : Incorrect Methods :
Only touch the metal frame of the panel or the front cover of the monitor. Do not touch the surface of the polarizer .
If the surface of the panel is pressed by fingers, this may cause "MURA."
Take out the monitor by grasping the cushion.
If the monitor is removed by grasping the LCD
panel, that may cause "MURA."
ViewSonic Corporation Confidential - Do Not Copy VA721-2
3
Page 7
Correct methods : Incorrect Methods :
Place the monitor on a clean & soft foam pad .
If the monitor is placed on foreign objects,
that could scratch the surface of the panel.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
4
Page 8
2. Specification
• General Specifications
Test Resolution & Frequency 1280 x 1024 @ 60Hz Test Image Size Full Size Contrast and Brightness Controls Factory Default: Contrast = 70%, Brightness =
• Video Interface
Analog Input Connector DB-15 (Analog) Video Cable Strain Relief Equal to twice the weight of the monitor for five
Video Cable Connector DB-15 Pinout Compliant DDC 2B. Video Signals Video RGB (Analog) Video Impedance 75 Ohms (Analog) Maximum PC Video Signal 950 mV with no damage to monitor Maximum Mac Video Signal 1250 mV with no damage to monitor Sync Signals TTL DDC 1/2B Compliant with Revision 1.3 Video Compatibility Shall be compatible with all PC type computers,
Resolution Compatibility 640 x 350, 640 x 480, 720 x 400 (640 x 400), 800 x
Exclusions Not compatible with interlaced video.
• Power Supply
Internal Power Supply Part Number: ADP-40AFB Input Voltage Range 90 TO 264 VAC Input Frequency Range 47.5 TO 63 HERTZ Short Circuit Protection Output can be shorted without damage. Over Current Protection 4.5 A typical at 12 VDC Leakage Current 3.5mA (Max) at 254VAC / 60Hz EFFICIENCY 70 % typical at 115VAC Full Load Fuse Internal and not user replaceable Power Dissipation 35 Watts (typ) Max Input AC Current 1.2 Arms @ 90VAC, 0.8 Arms @180VAC
100%
minutes.
Macintosh computers, and after market video cards.
600, 832 x 624, 1024 x 768, 1280 x 720, 1280 x 1024
ViewSonic Corporation Confidential - Do Not Copy VA721-2
5
Page 9
• Horizontal / Vertical Frequency
Horizontal Frequency 30 – 80 KHZ Vertical Refresh Rate 50 –85 HZ. Maximum Pixel Clock 135 MHz Sync Polarity Independent of sync polarity.
Primary Presets
Primary Preset 1280 x 1024 @ 60Hz
Look up table timing
<<Analog>>
1. 640 x 350 @ 70Hz, 31.5kHz
2. 640 x 480 @ 60Hz, 31.5kHz
3. 640 x 480 @ 67Hz, 35.0kHz
4. 640 x 480 @ 75Hz, 37.5kHz
5. 640 x 480 @ 72Hz, 37.9kHz
6. 640 x 480 @ 85Hz, 43.27kHz
7. 720 x 400 @ 70Hz, 31.5kHz
8. 800 x 600 @ 56Hz, 35.1kHz
9. 800 x 600 @ 60Hz, 37.9kHz
10. 800 x 600 @ 75Hz, 46.9kHz
11. 800 x 600 @ 72Hz, 48.1kHz
12. 800 x 600 @ 85Hz, 53.7kHz
13. 832 x 624 @ 75Hz, 49.7kHz
14. 1024 x 768 @ 60Hz, 48.4kHz
15. 1024 x 768 @ 70Hz, 56.5kHz
16. 1024 x 768 @ 72Hz, 58.1kHz
17. 1024 x 768 @ 75Hz, 60.0kHz
18. 1024 x 768 @ 85Hz, 68.67kHz
19. 1280 x 1024 @ 60Hz, 63.4kHz
20. 1280 x 1024 @ 75Hz, 79.97kHz
21. 1280x720 @ 60Hz, 45kHz (HDTV) Changing Modes Maximum Mode Change Blank Time, for image stability. Note:
1) Excluding “Auto Adjust” time
2) Under DOS mode (640 x 350, 720 x 400 & 640 x
400), there is no “Auto Adjust” feature.
3) The monitor needs to do “Auto Adjust” the first time a new mode is detected. Mode Change Image The image shall blank while the monitor changes
3 seconds (Max) 1 seconds (Typ) for recognized timings 1-2 seconds (Typ) for unrecognized timing .
modes.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
6
Page 10
• LCD Panel
1. ID Label - The panel code “Q” for QDI / “C” for CPT, it should be shown on the lower right side.
2. UPC Label - The panel code “Q” for QDI / “C” for CPT, it should be shown on the lower right side
3. Main Board - The panel code “Q” for QDI / “C” for CPT, it should be shown on the main board by F/W version sticker
Panel Characteristics:
Panel Source CPT CLAA170EA 07Q Type TN, LVDS Active Size 337.9 mm (H) x 270.3mm (V) Pixel Arrangement RGB Vertical Stripe Pixel Pitch 0.264 mm Glass Treatment Anti Glare (Hard coating 3H) # of Backlights 4 CCFL edge-light Backlight Life (Hours) 30,000 (Min) Luminance –Center Point (CT=6500K) Contrast/Brightness=Max Brightness Uniformity (5 points ,the location follows up CPT spec) Contrast Ratio 500 :1 (Typ), 450 :1 (Min) Color Depth Vertical) 16.2 million colors Viewing Angle (Horizontal, typ) 140 deg @ CR>10 / 170 deg @ CR>5 Viewing Angle (Vertical, typ) 130 deg @ CR>10 / 160 deg @ CR>5 Response Time 10%-90% @ Ta=25°C Panel Defects Please see Panel Quality Specifications.
Panel Source QDI QDI17EL0709 Type TN, dual LVDS Active Size 337.9 mm (H) x 270.3mm (V) Pixel Arrangement RGB Vertical Stripe Pixel Pitch 0.264 mm Glass Treatment Anti Glare (Hard coating 3H) # of Backlights 4 CCFL edge-light Backlight Life (Hours) 40,000 (Min) Luminance –Center Point (CT=6500K) Contrast/Brightness=Max Brightness Uniformity (5 points ,the location follows up CPT spec) Contrast Ratio 500 :1 (Typ), 300 :1 (Min) Color Depth Vertical) 16.2 million colors Viewing Angle (Horizontal, typ) 140 deg @ CR>10 Viewing Angle (Vertical, typ) 125 deg @ CR>10 Response Time 10%-90% @ Ta=25°C Panel Defects Please see Panel Quality Specifications.
300 cd/m2 (Typ after 30 minute warm up) 250 cd/m2 (Min after 30 minute warm up)
75% min
8 ms (Typ) 12 ms (Max)
260 cd/m2 (Typ after 30 minute warm up) 200 cd/m2 (Min after 30 minute warm up)
80%(typ) / 75% (min)
8 ms (Typ)
ViewSonic Corporation Confidential - Do Not Copy VA721-2
7
Page 11
Panel Source QDI QDI17EL0711
Type TN, dual LVDS
Active Size 337.9 mm (H) x 270.3mm (V)
Pixel Arrangement RGB Vertical Stripe
Pixel Pitch 0.264 mm
Glass Treatment Anti Glare (Hard coating 3H)
# of Backlights 4 CCFL edge-light
Backlight Life (Hours) 40,000 (Min)
Luminance –Center Point (CT=6500K) Contrast/Brightness=Max
Brightness Uniformity (5 points ,the location follows up CPT spec)
270 cd/m2 (Typ after 30 minute warm up)
220 cd/m2 (Min after 30 minute warm up)
80%(typ) / 76% (min)
Contrast Ratio 600 :1 (Typ), 400 :1 (Min)
Color Depth Vertical) 16.2 million colors
Viewing Angle (Horizontal, typ) 140 deg @ CR>10; 160 deg @ CR>5
Viewing Angle (Vertical, typ) 125 deg @ CR>10; 145 deg @ CR>5
Response Time 10%-90% @ Ta=25°C
8 ms (Typ) Tr(2ms )+ Tf(6ms)
16ms (Max)
Panel Defects Please see Panel Quality Specifications.
• Mechanical
Dimensions (Base attached unless otherwise specified)
Width 377.6 mm
Height 374.0 mm
Depth 195.6 mm
Depth (Head Only) 55.0 mm
Monitor Weight 4.1 kg / 9.0 lbs
Packaging Specification
Width 450 mm
Height 522 mm
Depth 135 mm
Gross Weight 5.2 kg (11.45 lb)
# units per Pallet 36/72 (air/sea)
20’/40’ Container Loading, Palletized 720/1728 pieces
Ergonomics
Tilt Up 20 degrees minimum
Tilt Down -5 degrees
Swivel Right 0 degrees
Swivel Left 0 degrees
Height Adjust 0 mm
Pivot 0 degrees (Clockwise)
• Environmental Conditions
Operating Temperature 0°C to +40°C
Storage Temperature -20°C to +60°C
Operating Relative Humidity 20% to 90% RH Non-Condensing
Storage Relative Humidity 5% to 90% RH Non-Condensing
Operating Altitude 0 to +3,000 meters
Storage Altitude 0 to +12,000 meters
ViewSonic Corporation Confidential - Do Not Copy VA721-2
8
Page 12
3. Front Panel Function Control Description
Adjusting the Screen Image
Use the buttons on the front control panel to display and adjust the OnView controls which display on the screen. The OnView controls are explained at the top of the next page.
Main Menu With OnView controls
Front Control Panel shown below in detail
®
Displays the control screen for the highlighted control.
Also toggles between two controls on some screens.
Also a shortcut to Auto Image Adjust.
Displays the Main Menu or exits the control screen and saves adjustments.
Power light Green = ON Orange = Power Saving
Power On/Off
Scrolls through menu options and adjusts the displayed control.
Also a shortcut to display the Contrast adjustment control screen.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
9
Page 13
Do the following to adjust the screen image:
1
To display the Main Menu, press button [1].
Main Menu
AUTO
SET
?
1:EXIT 2:SELECT
Auto Adjust
Contrast/Brightness
Color Adjust
Information
i
Image Adjust
Setup Menu
Memory Recall
NOTE: All OnView menus and adjustment screens disappear automatically after about 15
seconds. This is adjustable through the OSD timeout setting in the setup menu.
2. To select a control to be adjusted, press SorTto scroll up or down in the Main Menu.
3. After the desired control is selected, press button [2]. A control screen like the one shown below
appears.
Contrast
The line at the bottom of the screen shows the
1:EXIT 2: Brightness
4
To adjust the control, press the upIor downJbuttons.
5
To save the adjustments and exit the menu, press button [1] twice.
current functions of buttons 1 and 2: Exit or select the Brightness control.
Thefollowing tips may help you optimizeyour display:
• Adjust your computer's graphic card so that it outputs a video signal 1280 x 1024 @ 60 Hz to the LCD dislay. (Look for instructions on “changing the refresh rate” in your graphic card's user guide.)
• If necessary, make small adjustments using H. POSITION and V. POSITION until the screen image is completely visible
. (The black border around the edge of the screen should barely touch the illuminated “active area” of the LCD dislay.)
ViewSonic Corporation Confidential - Do Not Copy VA721-2
10
Page 14
Main Menu Controls
Adjust the menu items shown below by using the up Iand down Jbuttons.
Control Explanation
Auto Image Adjust automatically sizes, centers, and fine tunes the video signal to eliminate waviness and distortion. Press the [2] button to obtain a sharper image.
NOTE:
Auto Image Adjust works with most common video cards. If this function does not work on your LCD display, then lower the video refresh rate to 60 Hz and set the resolution to its pre-set value.
Contrast
adjusts the difference between the image background
(black level) and the foreground (white level).
Brightness
Color Adjust provides several color adjustment modes: preset color
temperatures and RGB which allows adjustment of red (R), green (G), and blue
B) separately. The factory setting for this product is 6500K (6500 Kelvin).
sRGB-RGB is quickly becoming the industry standard for color management,
with support being included in many of the latest applications. Enabling this setting allows the LCD display to more accurately display colors the way they were originally intended. Enabling the sRGB setting will cause the Contrast and Brightness adjustments to be disabled.
adjusts background black level of the screen image.
9300K-Adds blue to the screen image for cooler white (used in most office
settings with fluorescent lighting).
6500K-Adds red to the screen image for warmer white and richer red.
5400K-Adds green to the screen image for a darker color.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
11
Page 15
Control Explanation
User Color Individual adjustments for red (R), green (G), and blue (B).
1. To select color (R, G or B) press button [2].
2. To adjust selected color, pressSorT.
3. When you are finished making all color adjustments, press
button [1] twice.
i
Information displays the timing mode (video signal input) coming from the graphics card in your computer, the LCD model number, the serial number, and
the ViewSonic website URL. See your graphic card's user guide for instructions
on changing the resolution and refresh rate (vertical frequency).
NOTE: VESA 1280 x 1024 @ 60Hz (recommended) means that the resolution is 1280 x 1024 and the refresh rate is 60 Hertz.
Image Adjust
Image Adjust
H./V. Position
H. Size
Fine Tune
Sharpness
1:EXIT 2:SELECT
The Image Adjust controls are explained below:
H./V. Position
adjusts horizontal and vertical position of the screen image. You can toggle between Horizontal and Vertical by pressing button [2]. Horizontal moves the screen image to the left or to the right. Vertical moves the screen image up and down.
H. Size
NOTE:
(Horizontal Size) adjusts the width of the screen image.
Vertical size is automatic with your LCD dislay.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
12
Page 16
Control
Explanation
Fine Tune sharpens focus by aligning the illuminated text and/
or graphic characters.
NOTE: Try the Auto Adjust (see page 9) before using the Fine
Tune control.
?
Sharpness
Setup Menu displays the menu shown below.
adjusts the clarity and focus of the screen image.
The Setup Menu controls are explained below.
L
anguage
Select allows you to choose the language used in
the menus and control screens.
OSD
Resolution Notice
OSD Position
advises the optimal resolution to use.
allows you to move the on-screen display menus
and control screens.
OSD Timeout
sets the length of time an on-screen display screen is displayed. For example, with a “15 second” setting, if a control is not pushed within 15 seconds, the display screen disappears.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
13
Page 17
Control Explanation
OSD
OSD Background
allows you to turn the On-Screen display background on or off. This means that while making adjustments from the OSD control screens you can also view open software applications, or the Windows desktop.
Memory Recall
settings if the display is operating in a factory Preset Timing Mode listed in this user guide.
returns adjustments to the original factory
ViewSonic Corporation Confidential - Do Not Copy VA721-2
14
Page 18
4. Circuit Description
1. Outline
1.1 Buttons on the front panel: Power On/Off button, button 2 (ENTER / INPUT SELECT), up arrow
button, down arrow button, button 1 (MENU).
1.2 D-sub 15-pin connector, DVI-I connector and AC-IN jack are located on the back side of the cabinet.
1.3 OSD menu includes the following function;
Auto Image Adjust (only active under analog input) Contrast/Brightness Audio Adjust Color Adjust Information Manual Image Adjust Setup Menu Memory Recall
1.4 Contrast and Brightness can be directly controlled with UP / DOWN buttons.
2. Connectors
2.1 AC inlet: CEE22 type connector
2.2 Video signal connector for analog input: 15P Mini D-Sub
162738495
16 17
11
12
13
14
15
10
CN6
PIN MNEMONIC SIGNAL
DB15HD
1 RV Red Video 2 GV Green Video
3 BV Blue Video 4 NC None
5 GND Ground (DDC
6 RG Red GND 7 GG Green GND 8 BG Blue GND 9 +5V +5V (for DDC) 10 SG Sync GND 11 NC None 12 SDA DDC Data 13 HS Horizontal Sync 14 VS Vertical Sync 15 SCL DDC Clock
return)
ViewSonic Corporation Confidential - Do Not Copy VA721-2
15
Page 19
3. ELECTRICAL SPECIFICATIONS
3.1 Standard conditions
Display Area 338x 270 mm
Video Signal 0.7Vpp
Contrast 70%
Brightness Max.
Ambient 20 +/ - 5 °C Input AC
Warming up > 30 min
Display 1280 x 1024
3.2 POWER
3.2.1 Power supply
3.2.2 Power Management
3.3 Acceptable timing
If the timing is within following specification, this LCD display can automatically function with a certain
position.
Horizontal: Sync frequency: 30~81 kHz
Vertical: Sync frequency: 56~85Hz (1280x1024,75Hz)
3.4 Signal level and input impedance
Input voltage 100~240Vac Power frequency 50~60Hz
Input current Inrush current
90 Power consumption 50W(typical);40Watts(Max) Output
State Power Indicator
On 45Watts Green Standby < 1Watts Amber Off <1Watts Off
<1.5Arms@90Vac
<0.75Arms@240Vac
A(Max) at 230Vac(cold start)
@0-3.0A load 12Vdc +/-5%
3.4.1 Video Signal level: 0.7Vp-p Video signal.
3.4.2 Sync Signal level
H/V Separate: TTL level
3.4.3 Input impedance
Analog video input: 75 ohm Sync input: > 1 k ohm
4. SIGNAL CABLE: Signal cable with Mini D-Sub 15P connectors at both ends. Length: 1.8 meter.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
16
Page 20
5. EDID data
VE710s EDID(QDI panel)
______________________________________________________________________
______________________________________________________________________
EDID Block 0, Bytes 0-127
128 BYTES OF EDID CODE:
0 1 2 3 4 5 6 7 8 9
________________________________________
0 | 00 FF FF FF FF FF FF 00 5A 63
10 | 18 F5 01 01 01 01 01 0F 01 03
20 | 18 22 1B 78 2E 8A 15 A3 58 49
30 | 9D 24 16 50 54 BF EF 80 81 80
40 | 81 40 71 4F 01 01 01 01 01 01
50 | 01 01 01 01 30 2A 00 98 51 00
60 | 2A 40 30 70 13 00 52 0E 11 00
70 | 00 1E 00 00 00 FF 00 41 33 33
80 | 30 35 30 31 30 30 30 30 31 0A
90 | 00 00 00 FD 00 32 4B 1E 50 0E
100 | 00 0A 20 20 20 20 20 20 00 00
110 | 00 FC 00 56 45 37 31 30 73 0A
120 | 20 20 20 20 20 20 00 8F
______________________________________________________________________
(08-09) ID Manufacturer Name = VSC (11-10) Product ID Code = F518 (12-15) Last 5 Digits of Serial Number = Not Used (16) Week of Manufacture = 01 (17) Year of Manufacture = 2005 (10-17) Complete Serial Number = See Descriptor Block (18) EDID Version Number = 1 (19) EDID Revision Number = 3 (20) VIDEO INPUT DEFINITION:
Analog Signal
0.700, 0.300 (1.000 Vp-p)
Blank-to-Black Setup, Separate Syncs
(21) Maximum Horizontal Image Size = 340 mm (22) Maximum Vertical Image Size = 270 mm (23) Display Gamma = 2.20 (24) Power Management and Supported Feature(s):
Active Off/Very Low Power, Standard Default Color Space,
Preferred Timing Mode
Display Type = R/G/B Color
(25-34) CHROMA INFO:
Red X - 0.639 Green X - 0.287 Blue X - 0.141 White X - 0.313
Red Y - 0.344 Green Y - 0.615 Blue Y - 0.087 White Y - 0.329
Time: 09:10:39
Date: Wed Jan 19, 2005
VIEWSONIC CORPORATION
EDID Version # 1, Revision # 3
DDCTest For: ViewSonic VE710s
ViewSonic Corporation Confidential - Do Not Copy VA721-2
17
Page 21
(35) ESTABLISHED TIMING I:
720 X 400 @ 70Hz (IBM,VGA)
640 X 480 @ 60Hz (IBM,VGA)
640 X 480 @ 67Hz (Apple,Mac II)
640 X 480 @ 72Hz (VESA)
640 X 480 @ 75Hz (VESA)
800 X 600 @ 56Hz (VESA)
800 X 600 @ 60Hz (VESA)
(36) ESTABLISHED TIMING II:
800 X 600 @ 72Hz (VESA)
800 X 600 @ 75Hz (VESA)
832 X 624 @ 75Hz (Apple,Mac II)
1024 X 768 @ 60Hz (VESA)
1024 X 768 @ 70Hz (VESA)
1024 X 768 @ 75Hz (VESA)
1280 X 1024 @ 75Hz (VESA)
(37) Manufacturer's Reserved Timing:
1152 X 870 @ 75Hz (Apple,Mac II)
(38-53) Standard Timing Identification:
1280 X 1024 @60Hz
1280 X 960 @60Hz
1152 X 864 @75Hz
Not Used
Not Used
Not Used
Not Used
Not Used ______________________________________________________________________
(54-71) Detailed Timing / Descriptor Block 1:
1280x1024 Pixel Clock: 108.00 MHz ______________________________________________________________________
Horizontal Image Size: 338 mm Vertical Image Size: 270 mm
Refreshed Mode: Non-Interlaced Normal Display - No Stereo
Horizontal:
Active Time: 1280 pixels Blanking Time: 408 pixels
Sync Offset: 48 pixels Sync Pulse Width: 112 pixels
Border: 0 pixels Frequency: 63.98 KHz
Vertical:
Border: 0 lines Frequency: 60.02 Hz
Digital Separate, Horizontal Polarity (+) Vertical Polarity (+)
______________________________________________________________________
(72-89) Detailed Timing / Descriptor Block 2:
Active Time: 1024 lines Blanking Time: 42 lines
Sync Offset: 1 lines Sync Pulse Width: 3 lines
Monitor Serial Number:
A33050100001 _________________________________________________________
ViewSonic Corporation Confidential - Do Not Copy VA721-2
18
Page 22
(90-107) Detailed Timing / Descriptor Block 3:
Monitor Range Limits:
Min Vertical Freq - 50 Hz
Max Vertical Freq - 75 Hz
Min Horiz. Freq - 30 KHz
Max Horiz. Freq - 80 KHz
Pixel Clock - 140 MHz
Secondary GTF - Not Supported ______________________________________________________________________
(108-125) Detailed Timing / Descriptor Block 4:
Monitor Name:
VE710s
(126) No Extension EDID Block(s) (127) CheckSum OK
VE710b EDID(QDI panel)
Time: 09:10:09
Date: Wed Jan 19, 2005 ______________________________________________________________________
VIEWSONIC CORPORATION
EDID Version # 1, Revision # 3
DDCTest For: ViewSonic VE710b ______________________________________________________________________
EDID Block 0, Bytes 0-127
128 BYTES OF EDID CODE:
0 1 2 3 4 5 6 7 8 9
________________________________________
0 | 00 FF FF FF FF FF FF 00 5A 63
10 | 18 F6 01 01 01 01 01 0F 01 03
20 | 18 22 1B 78 2E 8A 15 A3 58 49
30 | 9D 24 16 50 54 BF EF 80 81 80
40 | 81 40 71 4F 01 01 01 01 01 01
50 | 01 01 01 01 30 2A 00 98 51 00
60 | 2A 40 30 70 13 00 52 0E 11 00
70 | 00 1E 00 00 00 FF 00 41 33 34
80 | 30 35 30 31 30 30 30 30 31 0A
90 | 00 00 00 FD 00 32 4B 1E 50 0E
100 | 00 0A 20 20 20 20 20 20 00 00
110 | 00 FC 00 56 45 37 31 30 62 0A
120 | 20 20 20 20 20 20 00 9E
ViewSonic Corporation Confidential - Do Not Copy VA721-2
19
Page 23
(08-09) ID Manufacturer Name = VSC (11-10) Product ID Code = F618 (12-15) Last 5 Digits of Serial Number = Not Used (16) Week of Manufacture = 01 (17) Year of Manufacture = 2005 (10-17) Complete Serial Number= See Descriptor Block (18) EDID Version Number = 1 (19) EDID Revision Number = 3 (20) VIDEO INPUT DEFINITION:
Analog Signal
0.700, 0.300 (1.000 Vp-p)
Blank-to-Black Setup, Separate Syncs
(21) Maximum Horizontal Image Size = 340 mm (22) Maximum Vertical Image Size = 270 mm (23) Display Gamma = 2.20 (24) Power Management and Supported Feature(s):
Active Off/Very Low Power, Standard Default Color Space,
Preferred Timing Mode
Display Type = R/G/B Color
(25-34) CHROMA INFO:
Red X - 0.639 Green X - 0.287 Blue X - 0.141 White X - 0.313
Red Y - 0.344 Green Y - 0.615 Blue Y - 0.087 White Y - 0.329
(35) ESTABLISHED TIMING I:
720 X 400 @ 70Hz (IBM,VGA)
640 X 480 @ 60Hz (IBM,VGA)
640 X 480 @ 67Hz (Apple,Mac II)
640 X 480 @ 72Hz (VESA)
640 X 480 @ 75Hz (VESA)
800 X 600 @ 56Hz (VESA)
800 X 600 @ 60Hz (VESA)
(36) ESTABLISHED TIMING II:
800 X 600 @ 72Hz (VESA)
800 X 600 @ 75Hz (VESA)
832 X 624 @ 75Hz (Apple,Mac II)
1024 X 768 @ 60Hz (VESA)
1024 X 768 @ 70Hz (VESA)
1024 X 768 @ 75Hz (VESA)
1280 X 1024 @ 75Hz (VESA)
(37) Manufacturer's Reserved Timing:
1152 X 870 @ 75Hz (Apple,Mac II)
ViewSonic Corporation Confidential - Do Not Copy VA721-2
20
Page 24
(38-53) Standard Timing Identification:
1280 X 1024 @60Hz
1280 X 960 @60Hz
1152 X 864 @75Hz
Not Used
Not Used
Not Used
Not Used
Not Used ______________________________________________________________________
(54-71) Detailed Timing / Descriptor Block 1:
______________________________________________________________________
1280x1024 Pixel Clock: 108.00 MHz
Horizontal Image Size: 338 mm Vertical Image Size: 270 mm
Refreshed Mode: Non-Interlaced Normal Display - No Stereo Horizontal:
Active Time: 1280 pixels Blanking Time: 408 pixels
Sync Offset: 48 pixels Sync Pulse Width: 112 pixels
Border: 0 pixels Frequency: 63.98 KHz
Vertical:
Active Time: 1024 lines Blanking Time: 42 lines
Sync Offset: 1 lines Sync Pulse Width: 3 lines
Border: 0 lines Frequency: 60.02 Hz
Digital Separate, Horizontal Polarity (+) Vertical Polarity (+) ______________________________________________________________________
(72-89) Detailed Timing / Descriptor Block 2:
Monitor Serial Number:
A34050100001
______________________________________________________________________
(90-107) Detailed Timing / Descriptor Block 3:
Monitor Range Limits:
Min Vertical Freq - 50 Hz
Max Vertical Freq - 75 Hz
Min Horiz. Freq - 30 KHz
Max Horiz. Freq - 80 KHz
Pixel Clock - 140 MHz
Secondary GTF - Not Supported ______________________________________________________________________
(108-125) Detailed Timing / Descriptor Block 4:
Monitor Name:
VE710b
(126) No Extension EDID Block(s)
(127) CheckSum OK
ViewSonic Corporation Confidential - Do Not Copy VA721-2
21
Page 25
6. THEORY OF OPERATION
This section describes the function of the LCD monitor per functional block. This monitor includes MB board, power board and button board.
6.1 MB BOARD The MB board is a two-layer, single-landed design with ground and internal planes provided. DC power from
the power board enters the board through a 6P connector. The other connector on the board is for the button board.
The VGA cable is a signal cable that carries the video, sync and DDC signals from the PC VGA adapter. This
system board consists of 4 functional areas: flat panel controller, MCU with flash ROM, and power regulators.
6.1.1 Flat panel controller: MST8111A(U3)
The heart of the system board is the Realtek MST8111A. The MST8111A is a graphics processing IC designed for LCD monitors. It provides all key IC functions required for LCD displays. On-chip functions include a high-speed triple-ADC, PLL, high scaling engine and OSD controller.
a) Clock Generation:
Crystal Input Clock (TCLK and XTAL). This is the input pair to an internal crystal oscillator and
corresponding logic. A 14.318 MHz crystal is recommended.
b) Analog to Digital Converter:
The MST8111A chip has three ADCs (analog-to-digital converters), one for each color (red, green and blue). The analog RGB signals are connected to MST8111A as described below.
Pin Name Pin Number Red + 63 Red - 62 Green + 60 Green - 59 Blue + 58
Blue - 57
c) OSD: The MST8111A has a fully programmable, high-quality OSD controller. The on-chip static
RAM (4096 words by 24 bits) stores the cell map and the cell definitions.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
22
Page 26
d) MTV312 Micro Controller: The MTV312 micro controller (MCU) serves as the system micro controller.
It programs the MST8111A and manages other devices in the system such as the keypad, the backlight, the LED, the audio system and the non-volatile RAM using general purpose input/output (GPIO) pins.
Pin number Pin Name Pin Number Usage
21 P1.3 Key / Power on ,off 13 P3.4 NV_RAM (U4) SDA 14 P3.5 NV_RAM (U4) SCL 25 P1.7 Key_down 9 P6.3 Key_right 24 P1.6 Key_up 16 P6.2 Key_left 37 P4.1 Key_mute 34 P5.6 VGA connector 23 P1.5 Key_select 42 P5.3 LED_red 41 P5.4 LED_green 32 P6.6 LCD panel power1 on / off control 3 P5.0 LCD panel power2 on / off control 36 P4.0 Backlight on / off control
e) Panel Power Sequencing (VDDCTRL1, 2) (Pin 32, 3): The MTV312 has two dedicated outputs
VDDCTRL1 and 2 ( Pin32 and Pin3) to control LCD power sequencing once data and control signals
are stable.
f) Panel interface (Pin 1~25, Pin75~128) : The MTV312 driver interface is highly programmable. It supports dual bus /
dual port for SXGA d rive rs.
6.1.2 Power Regulator MC34063A (U6),AIC1739 (Q4): The MC34063A is a monolithic control IC containing the primary functions required for DC to DC converters. The device consists of an internal temperature
compensated reference, a comparator, and a controlled duty cycle oscillator with an active current sense circuit. The desired output voltage is determined by the equation, Volt = 1.25 ( 1 + R67 / R66). In this case, the output voltage is 3.3 Volts. The AIC1563 is a low dropout positive adjustable regulator with minimum of 1A output current capability, so it is well suited to serve as a 3.3 V or
2.5 V regulator.
6.1.3 Power Regulator MC34063A (U7): The MC34063A is a monolithic control IC containing the primary functions required for DC to DC converters. The device consists of an internal temperature compensated reference, a comparator, and a controlled duty cycle oscillator with an active current sense circuit. The desired output voltage is determined by the equation, Volt = 1.25 ( 1 + R85 / R86). In this case, the output voltage is 5.0 Volts for panel power.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
23
Page 27
6.2 Power (Inverter) Board This is a specific power (inverter) board for VE710 monitor with output of 40W / 12V / 3.5A. It provides
12 VDC to drive the four cold cathode fluorescence tubes in the backlight.
6.2.1 The inverter's electrical specification is described below.
Input
Output
6.2.2 Power This is a general purpose AC / DC adapter which converts 90~240 Vac to a stabilized DC voltage: 12
Volts, with a rated output current of 4.16A. The electrical specification is described below.
Rated Input Voltage 12Vdc Input Voltage Range 11.4 ~ 12.6 Vdc Input Current <2A
On / Off control Voltage 2~3.3 for on, 0~1 for off Rated Output Strike-on Voltage 1500Vrms Rated Output Voltage 710Vrms at 7mA Rate Output Frequency 40~50KHz Rated Output Current 7~8 mA
Rated Input Voltage 90~240 Vac, 50 / 60Hz Operation Input Voltage 90~260 Vac, 47 ~ 63Hz Input Current <1.5A Inrush Current <100A@120Vac Standby Input Voltage 12Vdc Output Voltage Regulation +/-5% Output Ripple & Noise 120mVp-p Rate Output Current <3.5A Turn-on delay <3secs
ViewSonic Corporation Confidential - Do Not Copy VA721-2
24
Page 28
5. Adjustment Procedure
OSD Function Menu
A. When in Analog Input Mode
1. Main Menu
Press the [1] (Menu) button to enter the Main Menu: Press the [▲] button to highlight the previous item or the [▼] button to highlight the next item. Press the [1] (Menu) button to exit the Main Menu.
(1) Auto Image Adjust Page:
Press the [2] button to execute the auto image adjust function.
Press the [1] button to exit the page.
(2) Contrast/Brightness Page:
Press the [2] button to enter the contrast adjustment page.
Press the [1] button to exit the page.
1) Contrast Item
Press the [▲] button to increase the contrast. Press the [▼] button to decrease the contrast. Press the [2] button to enter the brightness adjustment page. Press the [1] button to exit the page.
2) Brightness Item
Press the [▲] button to increase the brightness. Press the [▼] button to decrease the brightness. Press the [2] button to enter the contrast adjustment page.
Press the [1] button to exit the page.
(3) Input Select Page:
Press the [2] button to switch to digital input mode.
(4) Color Adjust Page:
Press the [2] button to enter the color adjustment page. Press the [1] button to exit the page. Press the [▲] button to highlight the previous item or the [▼] button to
highlight the next item.
1) sRGB Item
2) 9300K Item
3) 6500K Item
4) 5400K Item
Press the [2] button to select the currently highlighted item.
Press the [1] button to exit the currently highlighted item.
5) User Color Item Press the [2] button to enter the user color page. Press the [1] button to exit the page.
Red, Green, Blue Options:
Press the [2] button to cycle among the colors. Press the [1] button to exit the page. Press the [▲] button to increase the selected color level.
Press the [▼] button to decrease the selected color level.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
25
Page 29
(5) Information Page:
Press the [2] button to enter the information page. Press the [1] button to exit the information page.
(6) Manual Image Adjust Page:
Press the [2] button to enter the manual image adjustment page. Press the [1] button to exit the page. Press the [▲] button to highlight the previous item or the [▼] button to
highlight the next item.
1) H./V. Position Item
Press the [2] button to enter the horizontal/vertical postion adjustment page. Press the [1] button to exit the page.
a) Horizontal Position:
Press the [2] button to enter the vertical position adjustment page.
Press the [1] button to exit the page.
Press the [▲] button to shift the image to the right.
Press the [▼] button to shift the image to the left.
b) Vertical Position:
Press the [2] button to return to the horizontal position adjustment page.
Press the [1] button to exit the page.
Press the [▲] button to shift the image upward.
Press the [▼] button to shift the image downward.
2) Horizontal Size Item
Press the [2] button to enter the horizontal size adjustment page. Press the [1] button to exit the page. Press the [▲] button to make the image wider. Press the [▼] button to make the image narrower.
3) Fine tune Item
Press the [2] button to enter the fine tuning page. Press the [1] button to exit the page. Press “[▲]” Button to adjust character position in one direction. Press “[▼]“Button to adjust character position in the other direction.
4) Sharpness Item
Press the [2] button to enter the sharpness adjustment page. Press the [1] button to exit the page. Press “[▲]” Button to increase image sharpness. Press “[▼]“ Button to decrease image sharpness.
(7) Setup Menu Page:
Press the [2] button to enter the setup menu page. Press the [1] button to exit the page. Press the [▲] button to highlight the previous item or the [▼] button to
highlight the next item.
1) Language Select Item
Press the [2] button to enter the language selection page.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
26
Page 30
Press the [1] button to exit the page. Press the [▲] button to highlight the previous item or the [▼] button to highlight the next item.
English, French… Option
Press the [2] button to select the language. Press the [1] button to exit the page.
2) Resolution Notice Item
Press the [2] button to enter the resolution notice page.
Press the [1] button to exit the page.
Enable, Disable Option
Press the [2] button to select the highlighted option. Press the [1] button to exit the page.
Press the [▲] button to highlight the previous option or the [▼] button to highlight the next option.
3) OSD Position Item
Press the [2] button to enter the OSD position adjustment page.
Press the [1] button to exit the page.
a) Horizontal Position Option
Press the [2] button to enter the vertical position adjustment page.
Press the [1] button to exit the page.
Press the [▲] button to shift the menu to the right.
Press the [▼] button to shift the menu to the left.
b) Vertical Position Option:
Press the [2] button to enter the horizontal position adjustment page.
Press the [1] button to exit the page.
Press the [▲] button to shift the menu upward.
Press the [▼] button to shift the menu downward.
4) OSD Time Out Item
Press the [2] button to enter the OSD time out adjustment page.
Press the [1] button to exit the page.
Press the [▲] button to increase the OSD time out.
Press the [▼] button to decrease the OSD time out.
5) OSD Background Item
Press the [2] button to enter the OSD background selection page.
Press the [1] button to exit the page.
Enable, Disable Option
Press the [▲] button to highlight the previous option or the [▼] button to highlight the next option.
Press the [2] button to select the highlighted option.
Press the [1] button to exit the page.
(8) Memory Recall Page
Press the [2] button to execute the memory recall function. Press the [1] button to exit the page.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
27
Page 31
2. Other Menu:
This “shortcut” menu is directly accessible without bringing up the OSD.
(1) Contrast Dialog
Press the [▲] or [▼] button to enter the Contrast Dialog. Press the [1] button to exit the Contrast Dialog. Press the [2] button to enter the Brightness Dialog.
Press the [▲] button to increase the contrast.
Press the [▼] button to decrease the contrast.
(2) Brightness Dialog
Press the [▲] or [▼] button to enter the Brightness Dialog. Press the [1] button to exit the Brightness Dialog. Press the [2] button to enter the Contrast Dialog.
Press the [▲] button to increase the brightness.
Press the [▼] button to decrease the brightness.
(3) Analog/Digital Dialog
Press the [2] button to toggle between analog and digital modes.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
28
Page 32
3. Function test
(1) Test equipment
Color video signal and pattern generator (or PC with SXGV resolution)
(2) Test condition
Before function testing and alignment, the unit must warm up for at least 30 minutes under the
following conditions:
1. Room temperature
2. With full-white screen, RGB, black pattern
3. With cycled display modes
4. Test display modes
Item Timing Analog
1 640 x 350 @ 70Hz, 31.5kHz Yes 2 640 x 400 @ 60Hz, 31.5kHz Yes 3 640 x 400 @ 70Hz, 31.5kHz Yes 4 640 x 480 @ 50Hz, 24.7kHz Yes 5 640 x 480 @ 60Hz, 31.5kHz Yes 6 640 x 480 @ 67Hz, 35.0kHz Yes 7 640 x 480 @ 72Hz, 37.9kHz Yes 8 640 x 480 @ 75Hz, 37.5kHz Yes
9 640 x 480 @ 85Hz, 43.27kHz Yes 10 720 x 400 @ 70Hz, 31.5kHz Yes 11 800 x 600 @ 56Hz, 35.1kHz Yes 12 800 x 600 @ 60Hz, 37.9kHz Yes 13 800 x 600 @ 75Hz, 46.9kHz Yes 14 800 x 600 @ 72Hz, 48.1kHz Yes 15 800 x 600 @ 85Hz, 53.7kHz Yes 16 832 x 624 @ 75Hz, 49.7kHz Yes 17 1024 x 768 @ 60Hz, 48.4kHz Yes 18 1024 x 768 @ 70Hz, 56.5kHz Yes 19 1024 x 768 @ 72Hz, 58.1kHz Yes 20 1024 x 768 @ 75Hz, 60.0kHz Yes 21 1024 x 768 @ 85Hz, 68.67kHz Yes 22 1152 x 864 @ 75Hz, 67.5kHz Yes 23 1152 x 870 @ 75Hz, 68.7kHz Yes 24 1280 x 1024 @ 60Hz, 63.4kHz Yes 25 1280 x 1024 @ 75Hz, 79.97kHz Yes 26 1280x 720 @ 60Hz, 45kHz (HDTV) Yes
ViewSonic Corporation Confidential - Do Not Copy VA721-2
29
Page 33

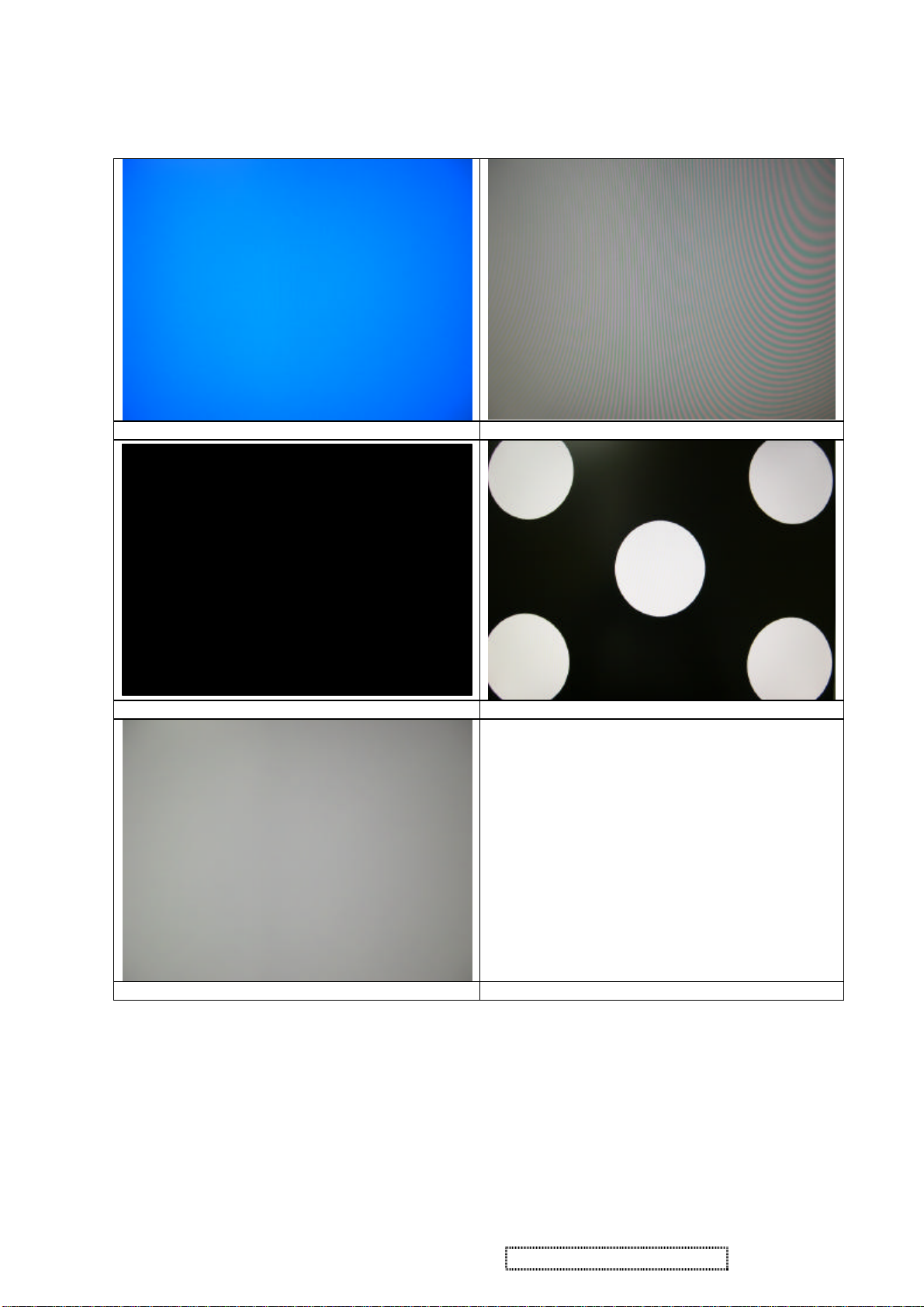

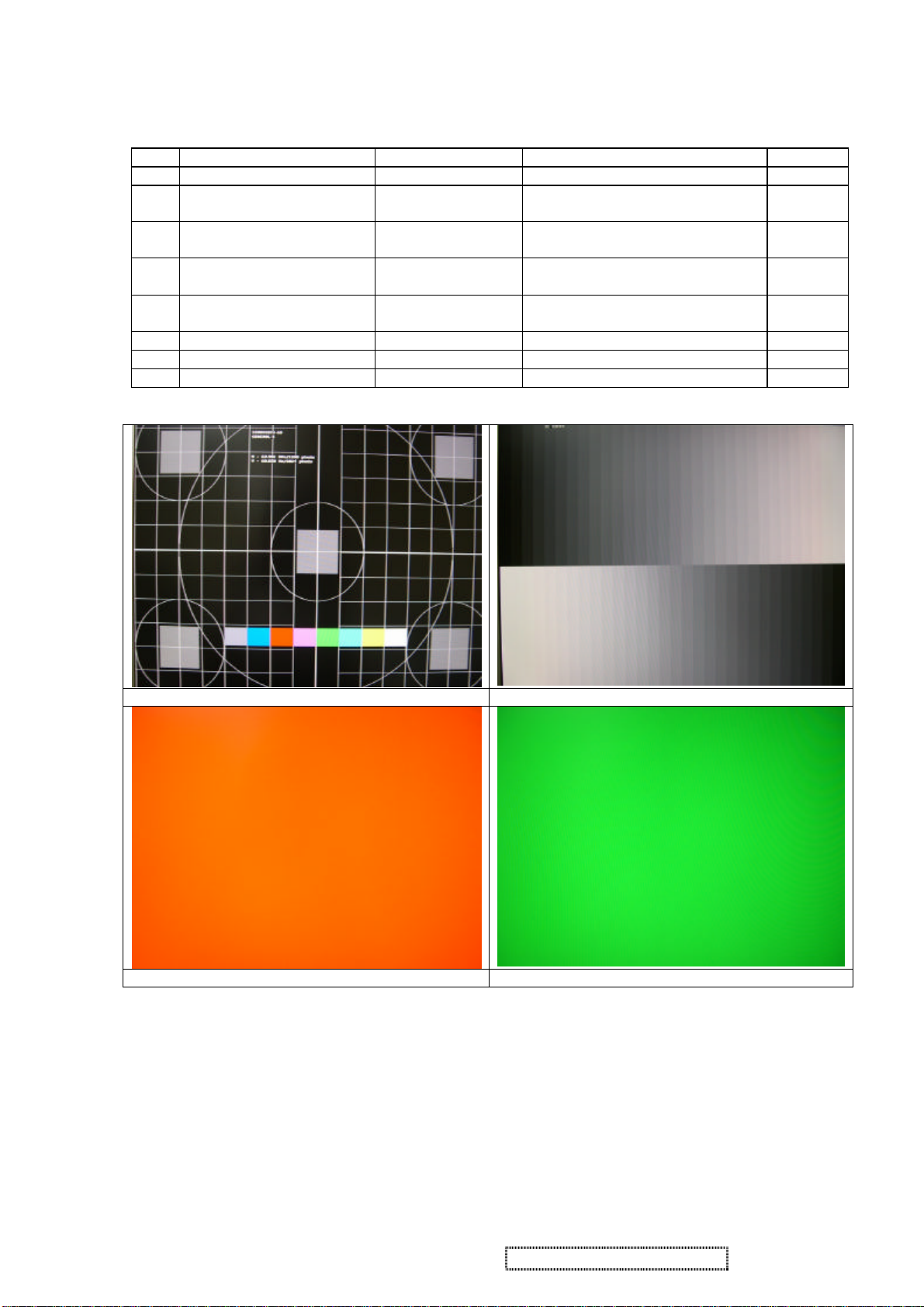

5. Test pattern
Item
1 Frequency & performance Cross-hatch pattern 2 Monitor saturation 16-gray scale pattern
3 RGB color performance RGB color Check the color temperature of
4 Sub-pixel defect RGB color Check for sub-pixel defects Pattern 3,
5 Full white Full white Check the brightness and contrast ratio,
6 Full black Full black Pattern 7
7. 5-cycle pattern 5-cycle pattern Check the BU Pattern 8
8. 1-dot pattern 1-dot pattern Check the flicker Pattern 9
Test condition Pattern Specification Remark
No noise is allowed, all colors must be clear
3 to 4 levels must be saturated when brightness and contrast are set to 100%
RGB signal color
and check for bright pixel defects
Pattern 1 Pattern 2
Pattern 3, 4, 5
4 , 5 Pattern 6
Pattern 1 Pattern2
Pattern 3 Pattern4
ViewSonic Corporation Confidential - Do Not Copy VA721-2
30
Page 34
Pattern 5 Pattern6
Pattern 7 Pattern 8
Pattern 9
ViewSonic Corporation Confidential - Do Not Copy VA721-2
31
Page 35
6. Firmware update procedure :
T
o PC
To
monitor
When examining a monitor, please check whether the firmware version is the latest. If not,
please follow the procedure below to upgrade to the latest version.

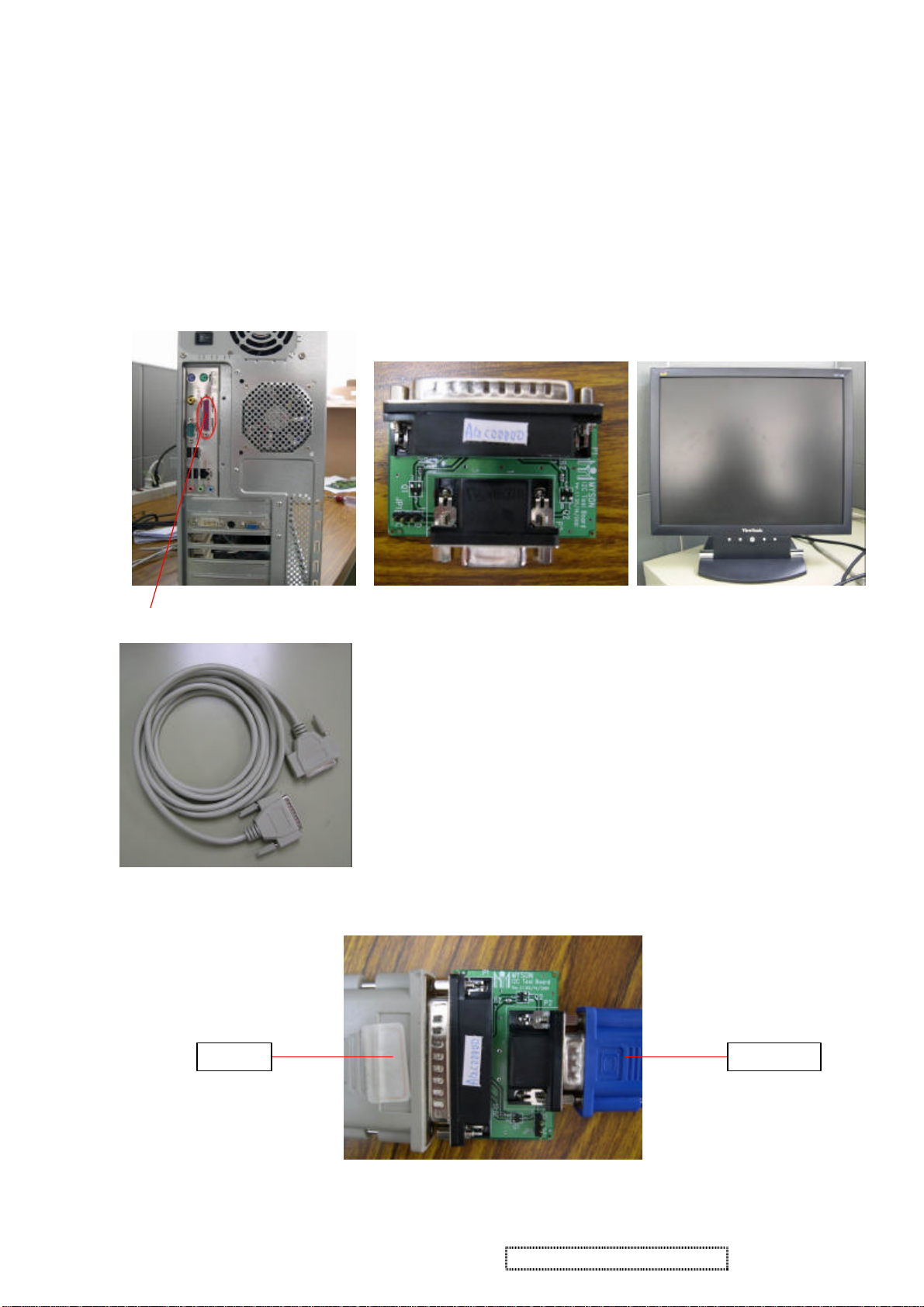

1. Equipment needed :
- VE710s/b
- PC ( Personal computer )
- LPT cable
- Fixture (LM5ISP)
- Firmware upgrade program
Print port Fixture VE710s/b
LPT cable
2. Connection :
ViewSonic Corporation Confidential - Do Not Copy VA721-2
32
Page 36

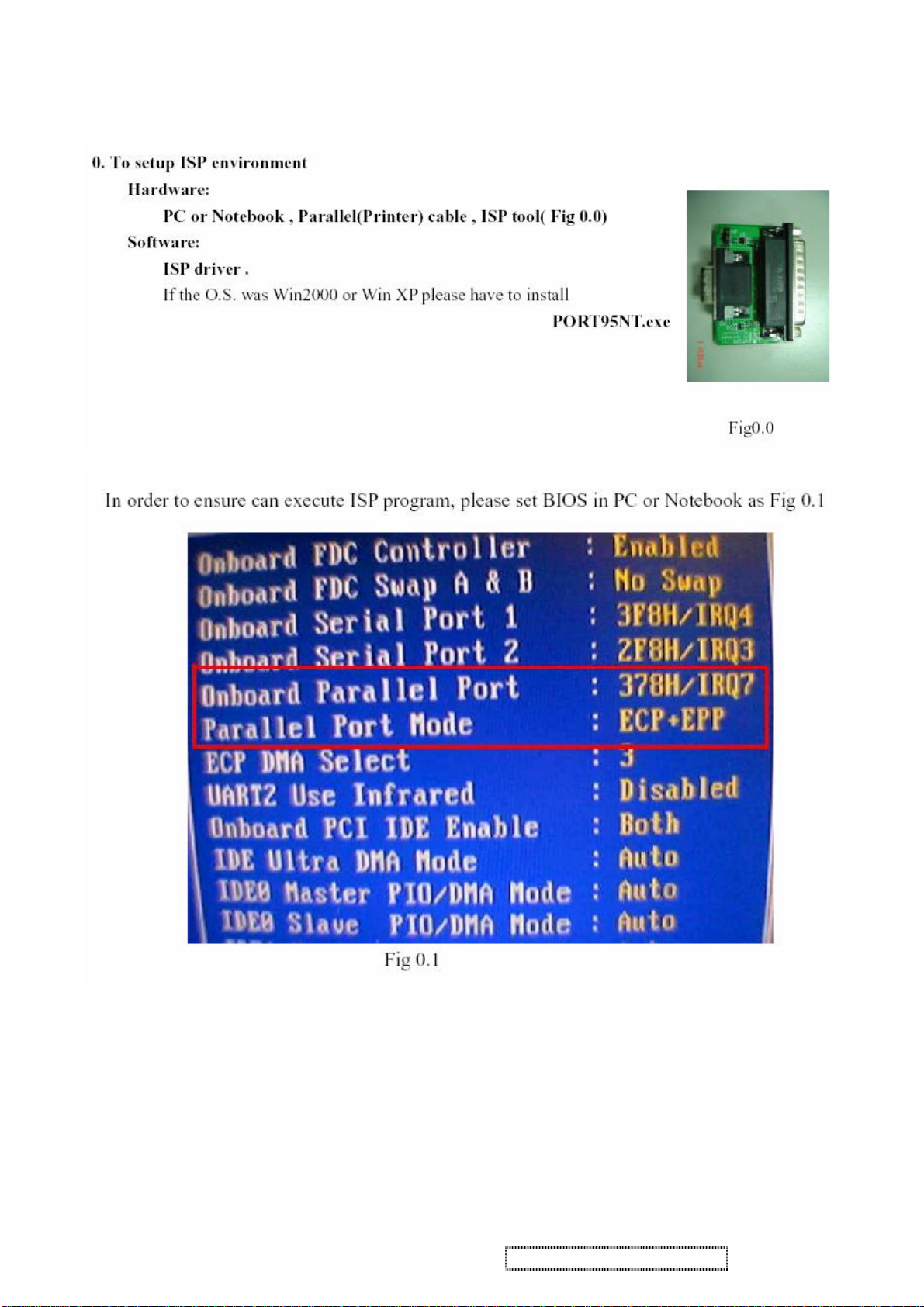

7. Appendix A : How to install the software for ISP :
ViewSonic Corporation Confidential - Do Not Copy VA721-2
33
Page 37
1. Install ISP
1.1 User could download ISP river and PORT95NT install from Myson Century website
(www.myson.com.tw

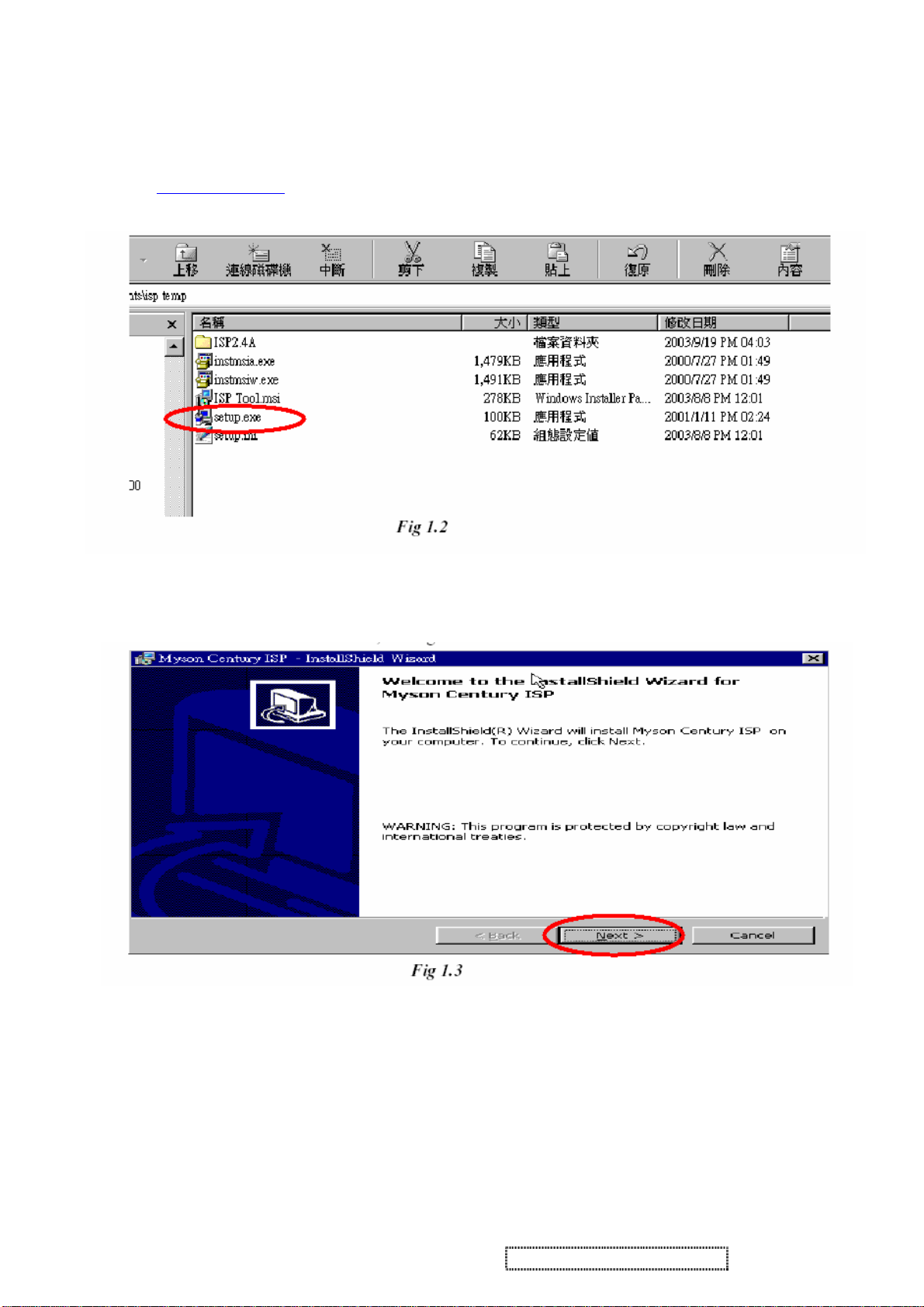

1.2 After extracting the ZIP file , the total files list as Fig 1.2 , and double click the file of setup.exe to install.
)
1.3 Press “ Next “ button to continue., see Fig 1.3
ViewSonic Corporation Confidential - Do Not Copy VA721-2
34
Page 38

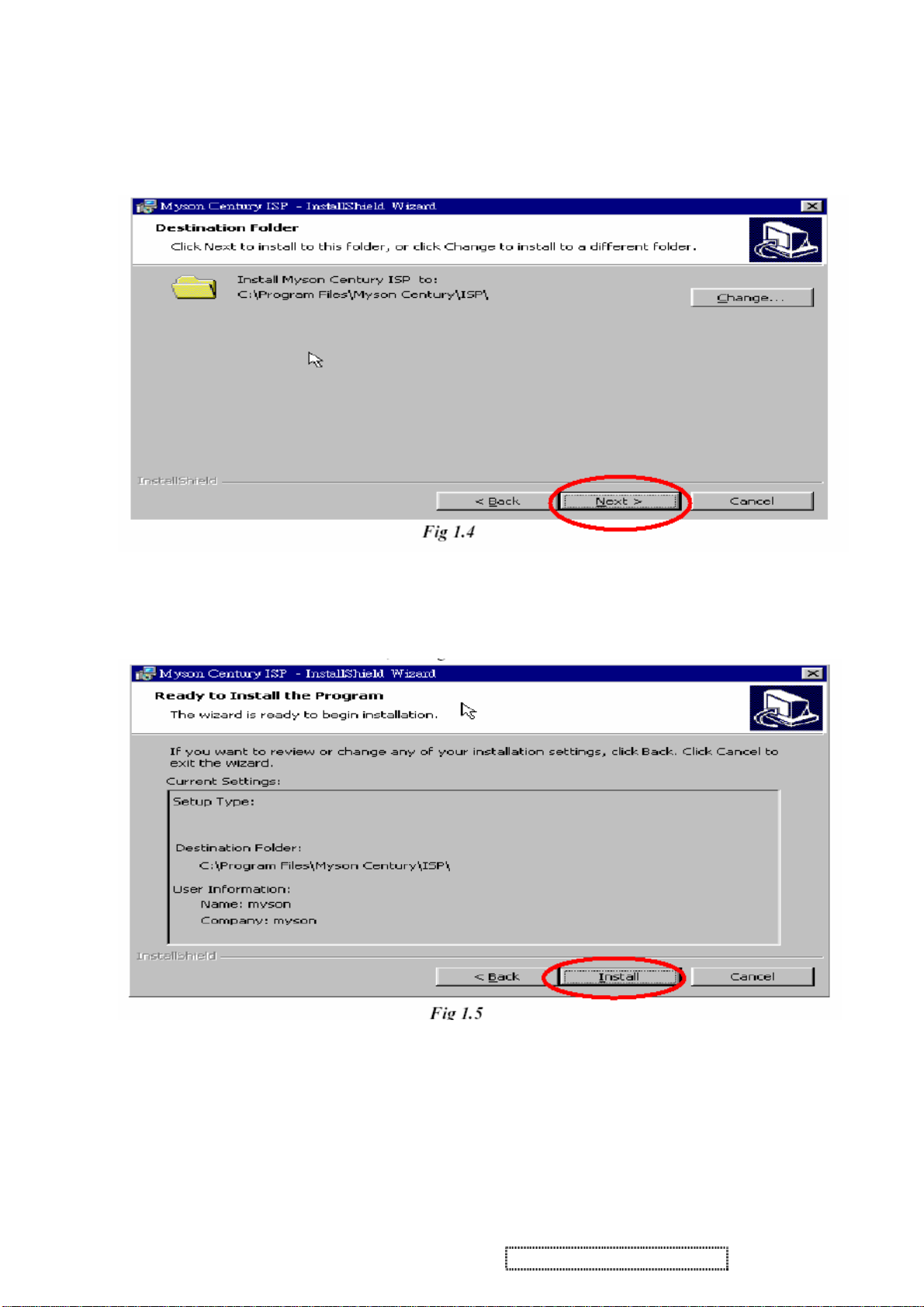

1.4 Keep default setting or press “ Change “ button for selecting the path that you want , and then press “ Next “ button to continue , see Fig 1.4 .
1.5 Press “ Install “ button to continue , see Fig 1.5
ViewSonic Corporation Confidential - Do Not Copy VA721-2
35
Page 39

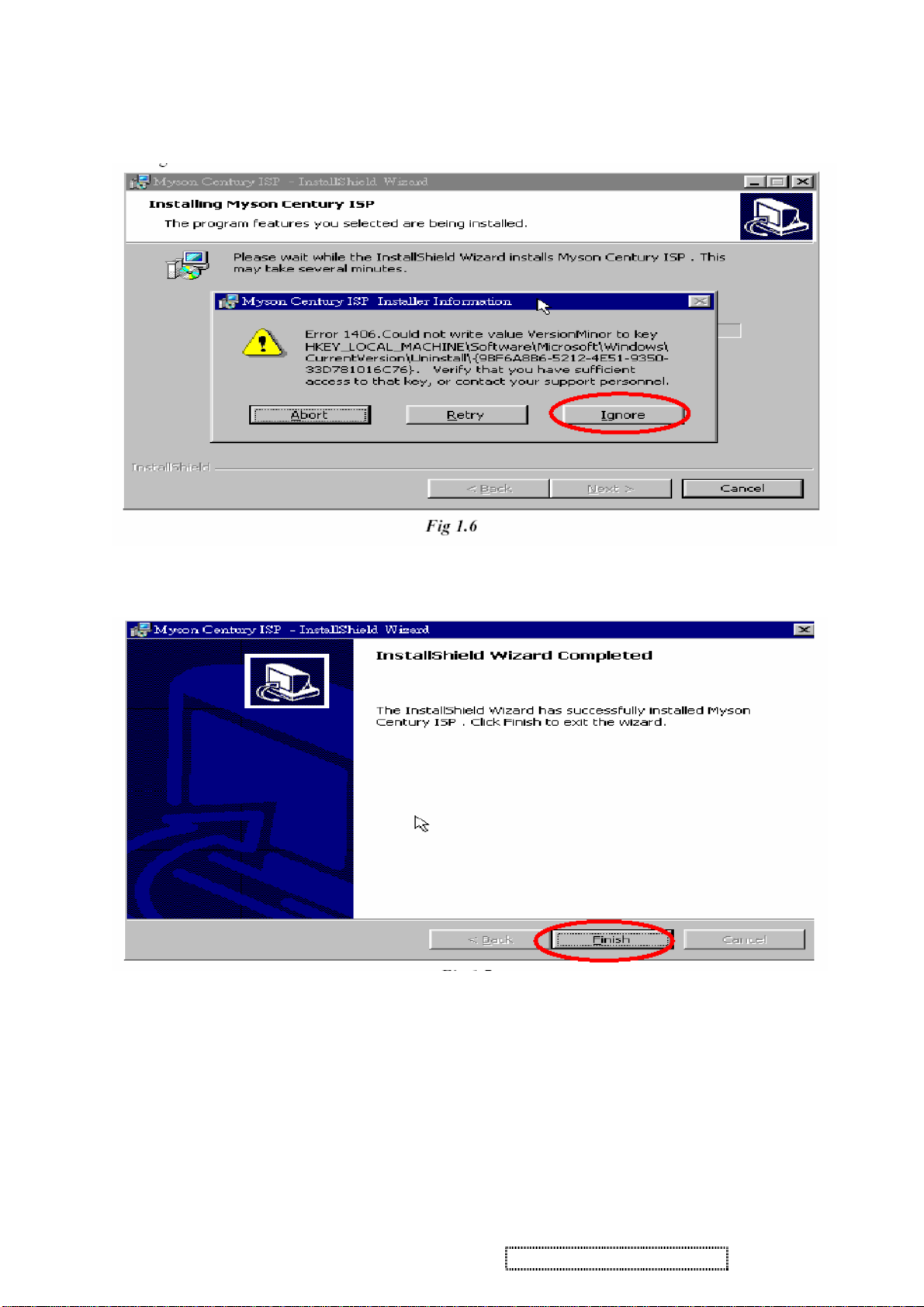

1.6 The installer Information shows package warning , Press “ Ignore “ button to continue .see Fig 1.6 .
1.7 Installation has finished , press “ Finish “ button , see Fig 1.7 .
Fig. 1.7
ViewSonic Corporation Confidential - Do Not Copy VA721-2
36
Page 40
8. Appendix B : How to use software to upgrade the BIOS :

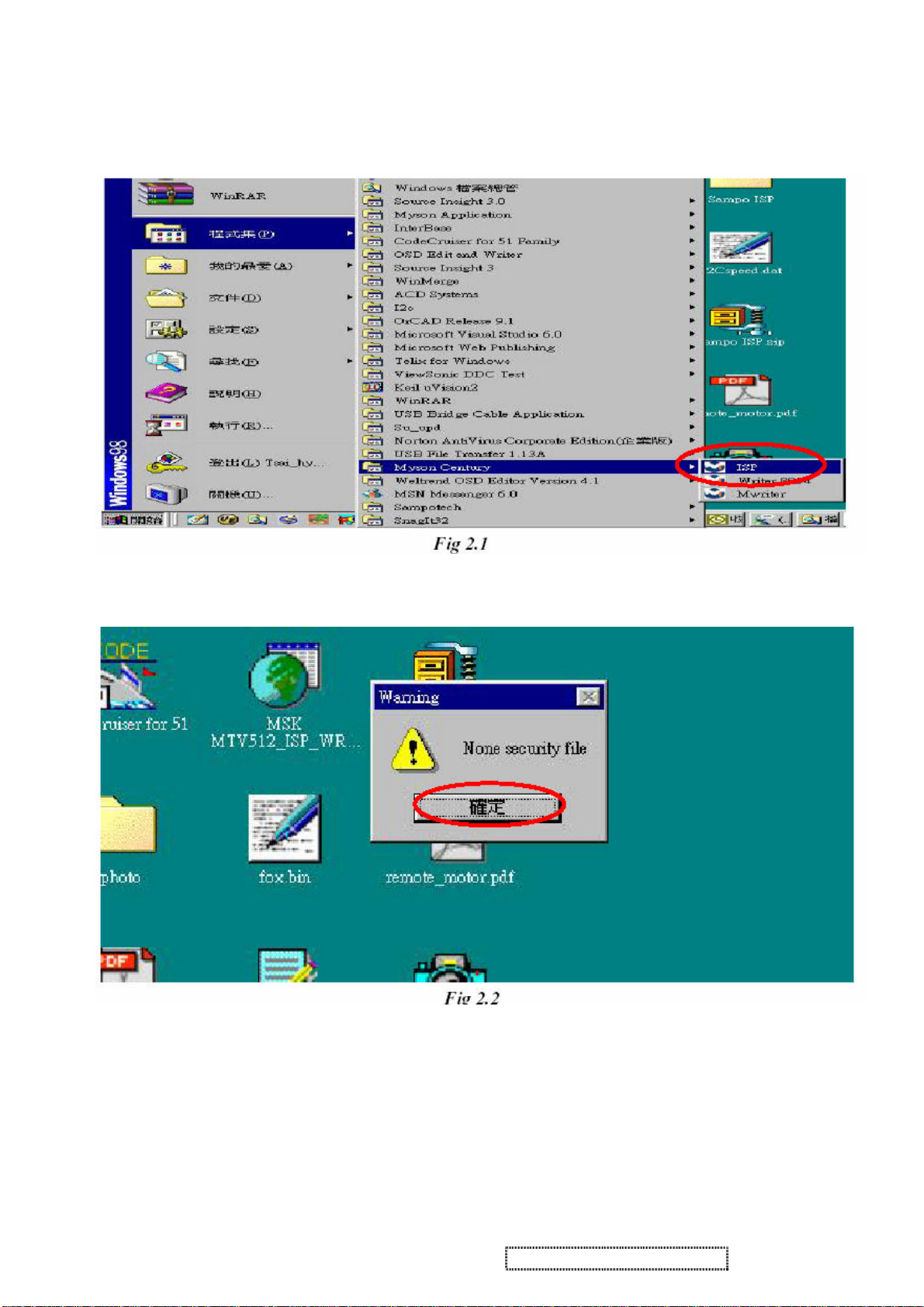

8.1. After installation, shortcuts may be found in the settings path or the program menu (default setting); see Fig 2.1.
8.2 The security file is a key to use ISP functions; press the "OK" button. See Fig 2.2.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
37
Page 41

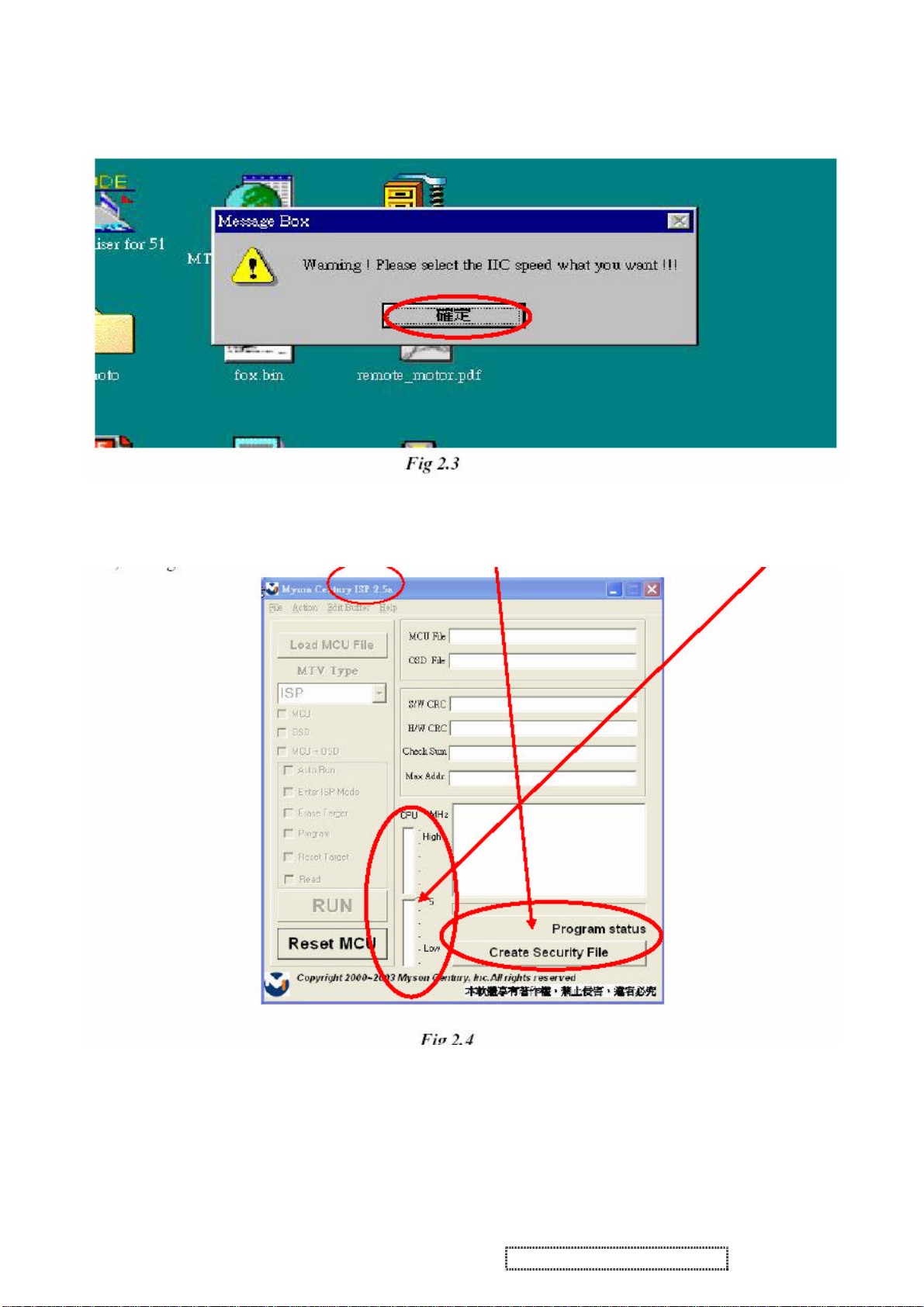

8.3 The warning shown in Fig. 2.3 is used to remind the user that a CPU rate that differs from IIC protocol may cause the ISP functions to fail; press the "OK" button.
8.4 Press “ Create Security File “ button to key in Security code . Adjusting bar to decrease speed of IIC bus , See
Fig. 2.4 .
ViewSonic Corporation Confidential - Do Not Copy VA721-2
38
Page 42

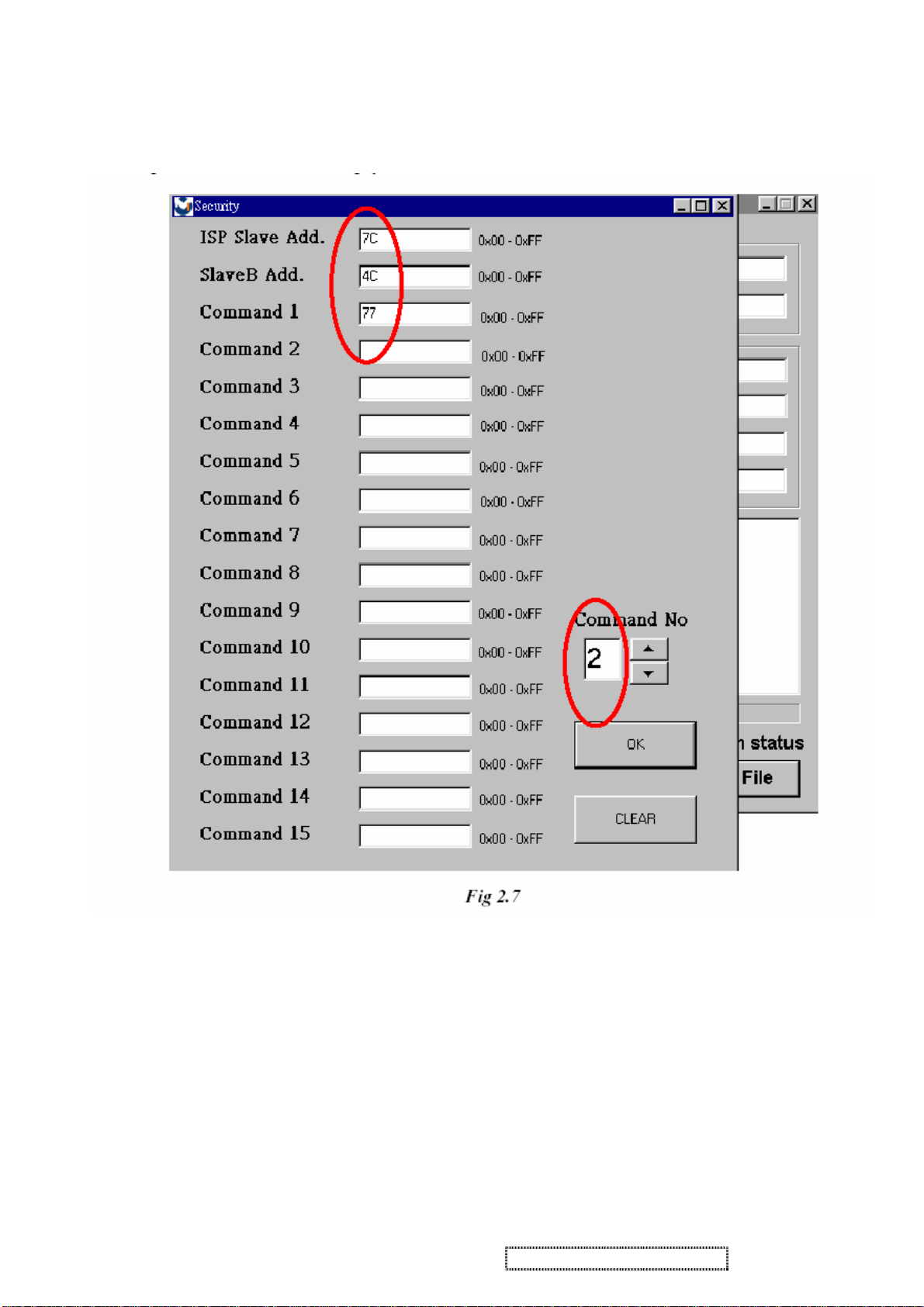

8.5 Fig 2.7 shows the settings for the ISP software's security code. It requires two command numbers, and the commands must be keyed in sequentially: 7C, 4C, 77. The command numbers and commands
must be set by the user while coding. For more details, please refer to section 6 boot code of ISP.
ViewSonic Corporation Confidential - Do Not Copy VA721-2
39
Page 43

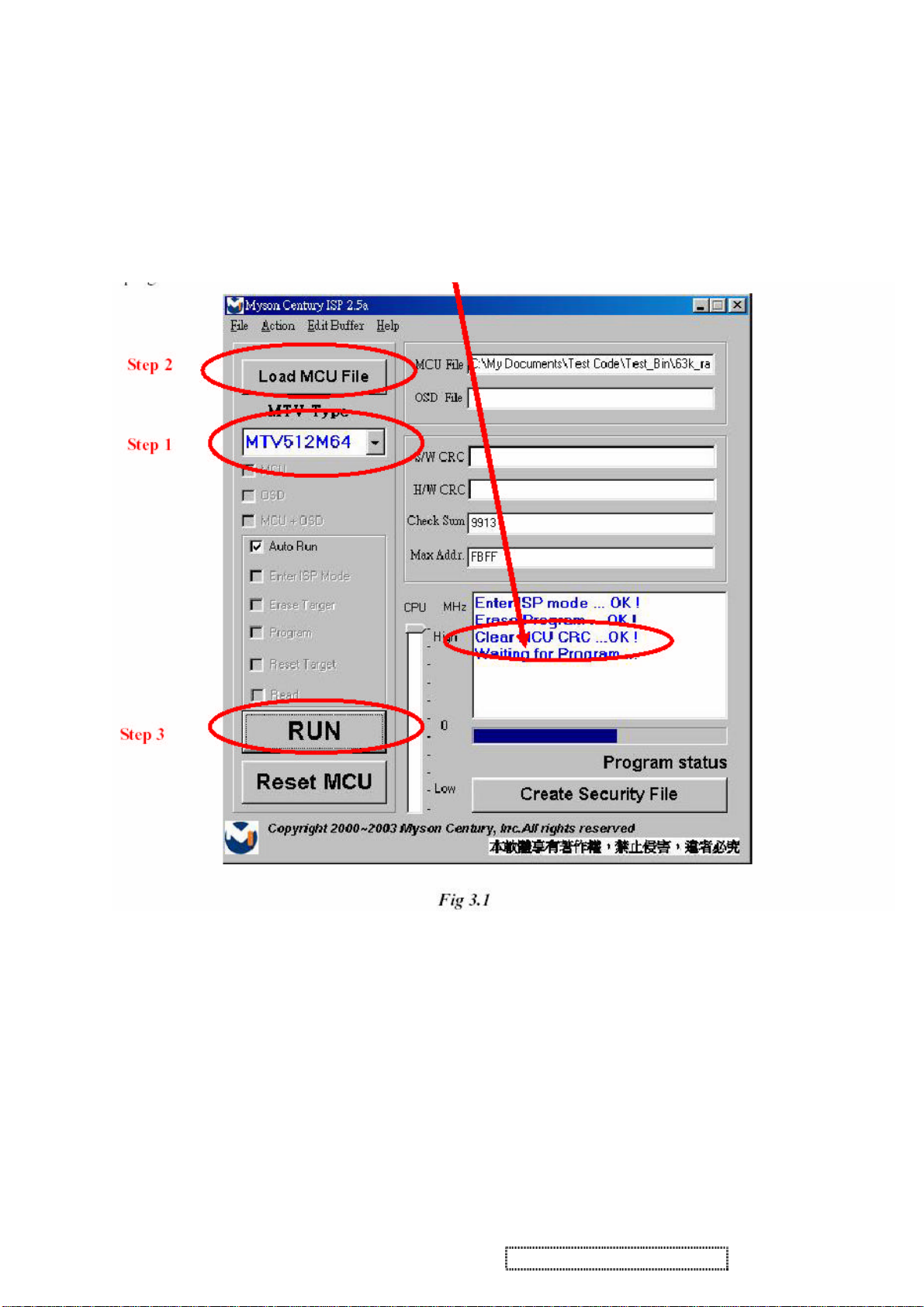

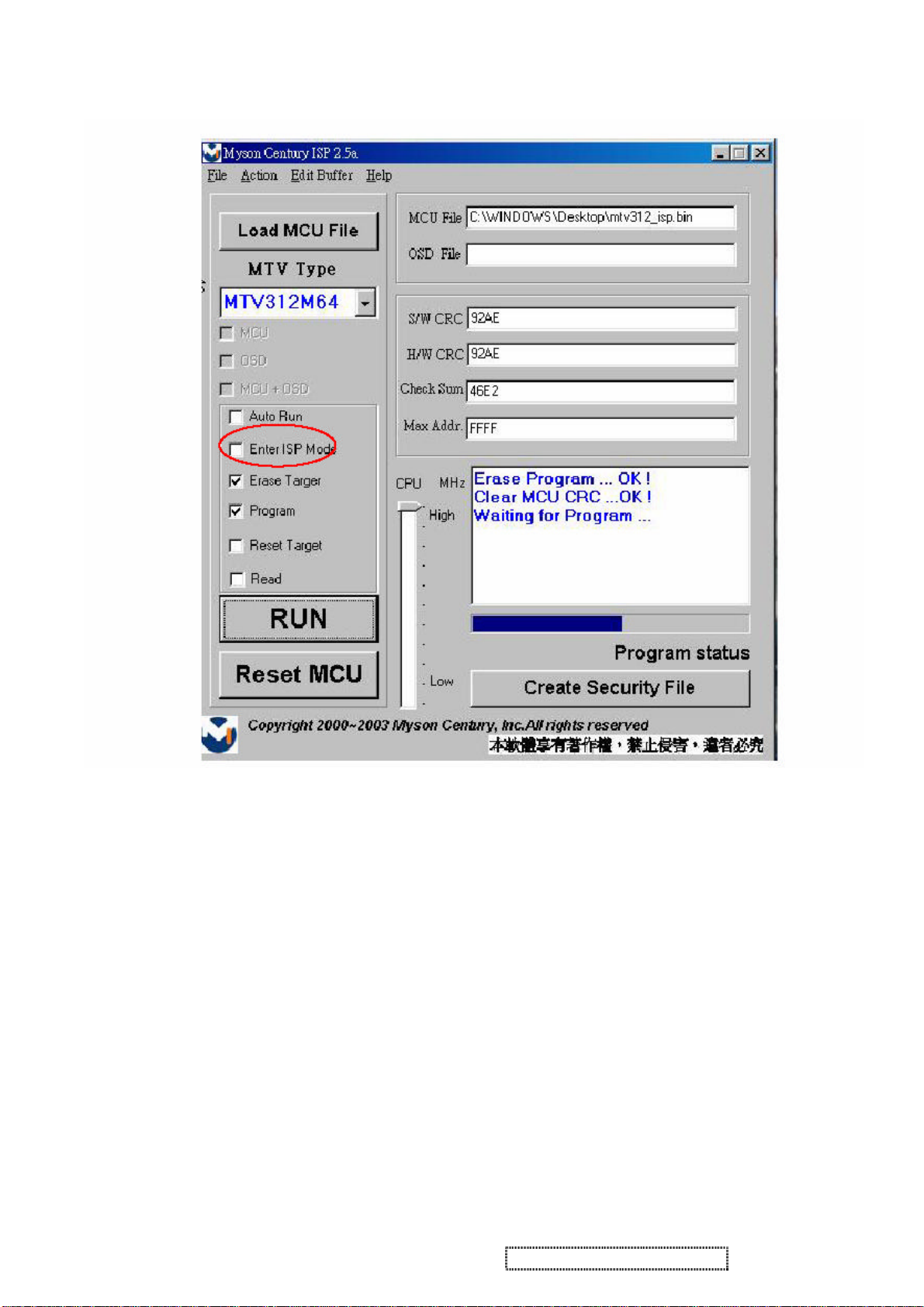

9. Use ISP to program MCU
9.1 Select MTV type first , load the binary or intel hex file that you want to program into the MCU , and select “ AUTO” item , then press “ RUN “ button , see fig3.1
9.2 If user change the MTV type , it must load file again , or the buffer of load file will be cleared .
9.3 CRC ( cyclic redundancy check ) : the host can check CRC register’s result instead of reading every byte in
flash . The message of Check MCU CRC OK means that the host verify OK for the progress of program .
ViewSonic Corporation Confidential - Do Not Copy VA721-2
40
Page 44

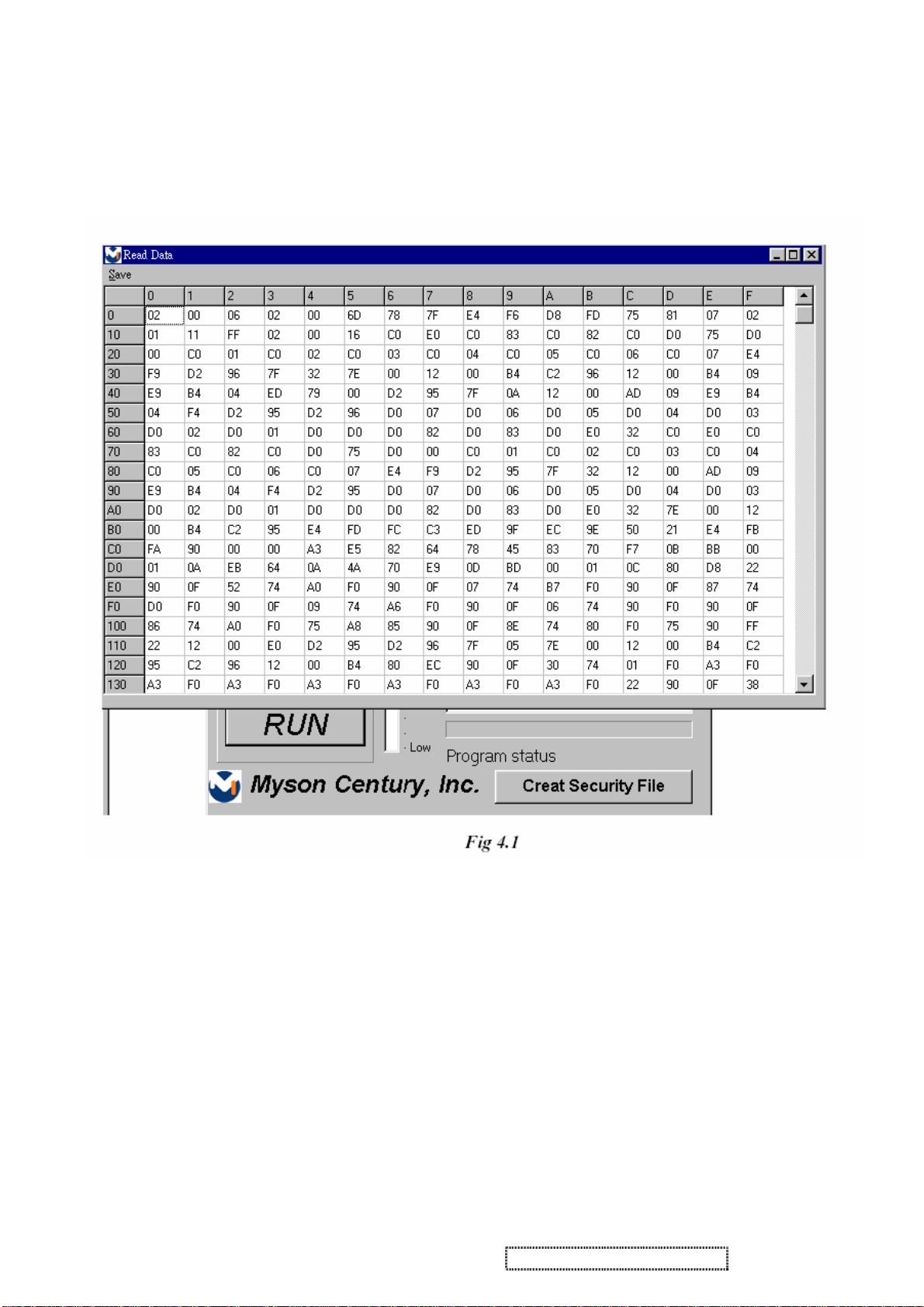

10. Use ISP to rea d MCU content
10.1 Only software ISP could read the MCU content , it is according to program the boot code while coding . The limitation is used for the security of customer’s code. Select “ Read Target “ item , and press
"button" , the MCU content will show as Fig4.1
ViewSonic Corporation Confidential - Do Not Copy VA721-2
41
Page 45
11. Re-entry the ISP Mode
When you couldn’t select or click “ Reset MCU “ button and enter ISP mode again , you’ll see the message as below :
ViewSonic Corporation Confidential - Do Not Copy VA721-2
42
Page 46

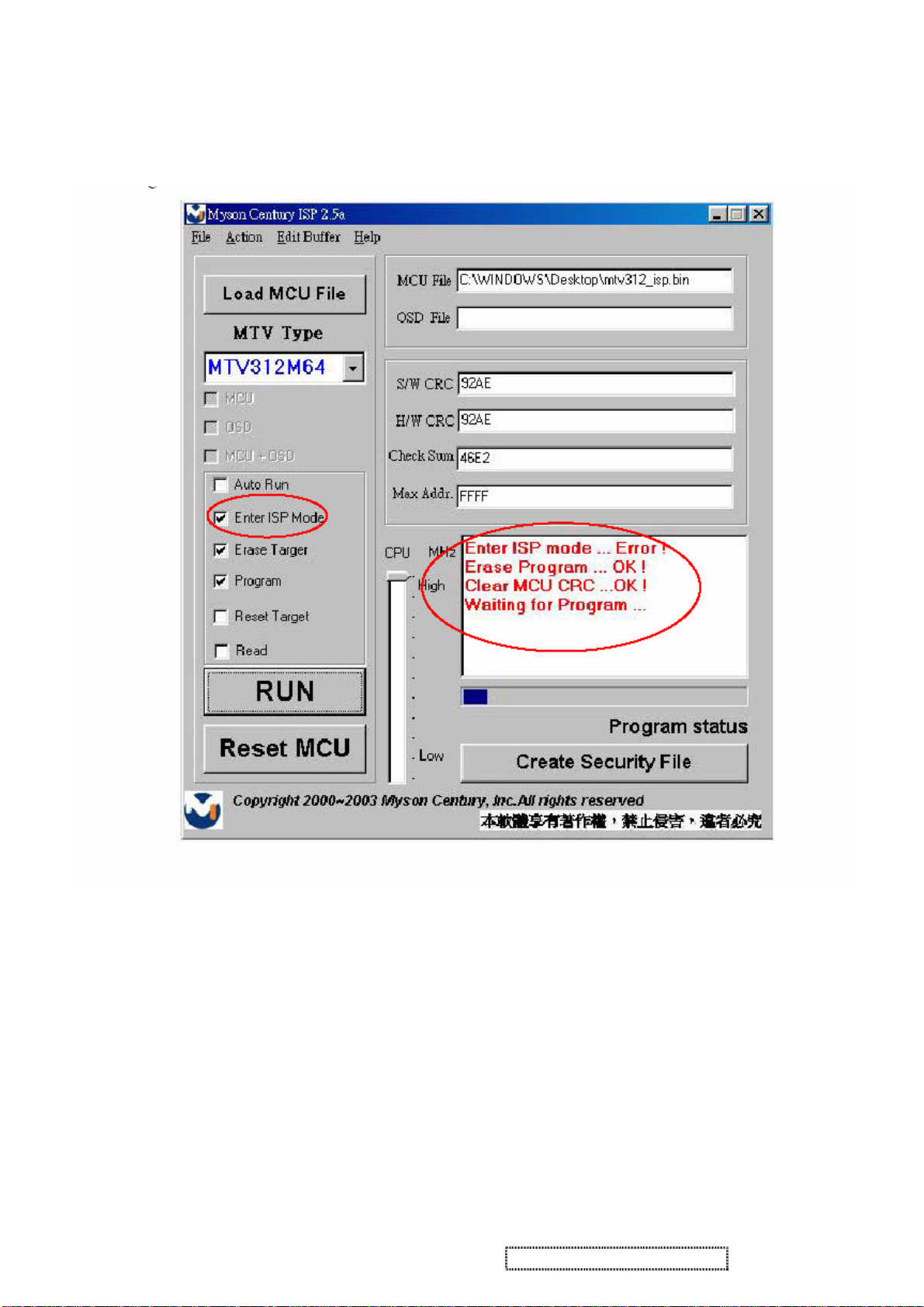

Note :
(1) Disable the “ Enter ISP Mode ” option to avoid the error message display
(2) If you using the MTV312M64 or before MCU serials , the MCU will always in “ ISP Mode “ even
Programming fail or erase MCU that instead of select or press “ Reset MCU “
ViewSonic Corporation Confidential - Do Not Copy VA721-2
43
Page 47

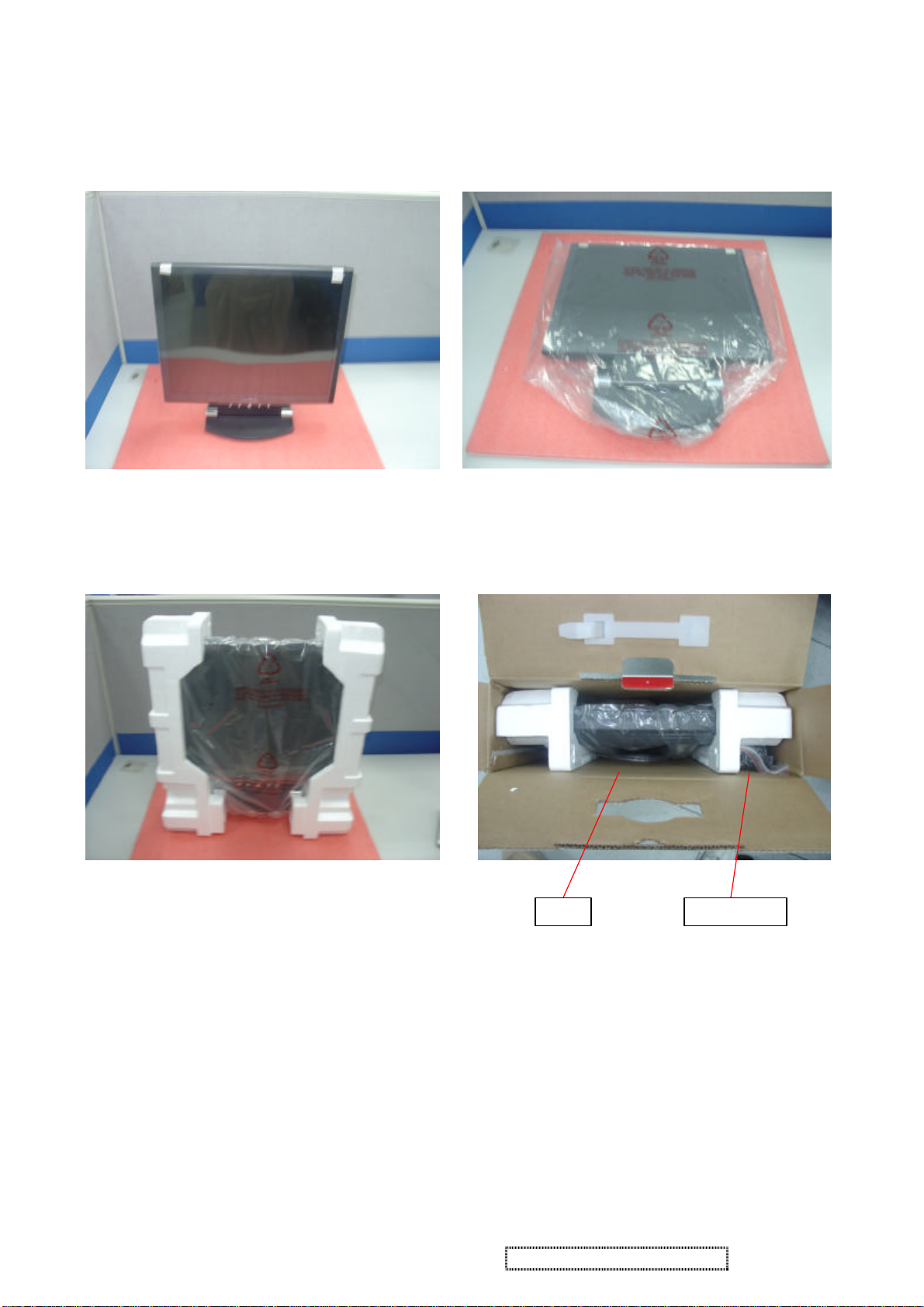

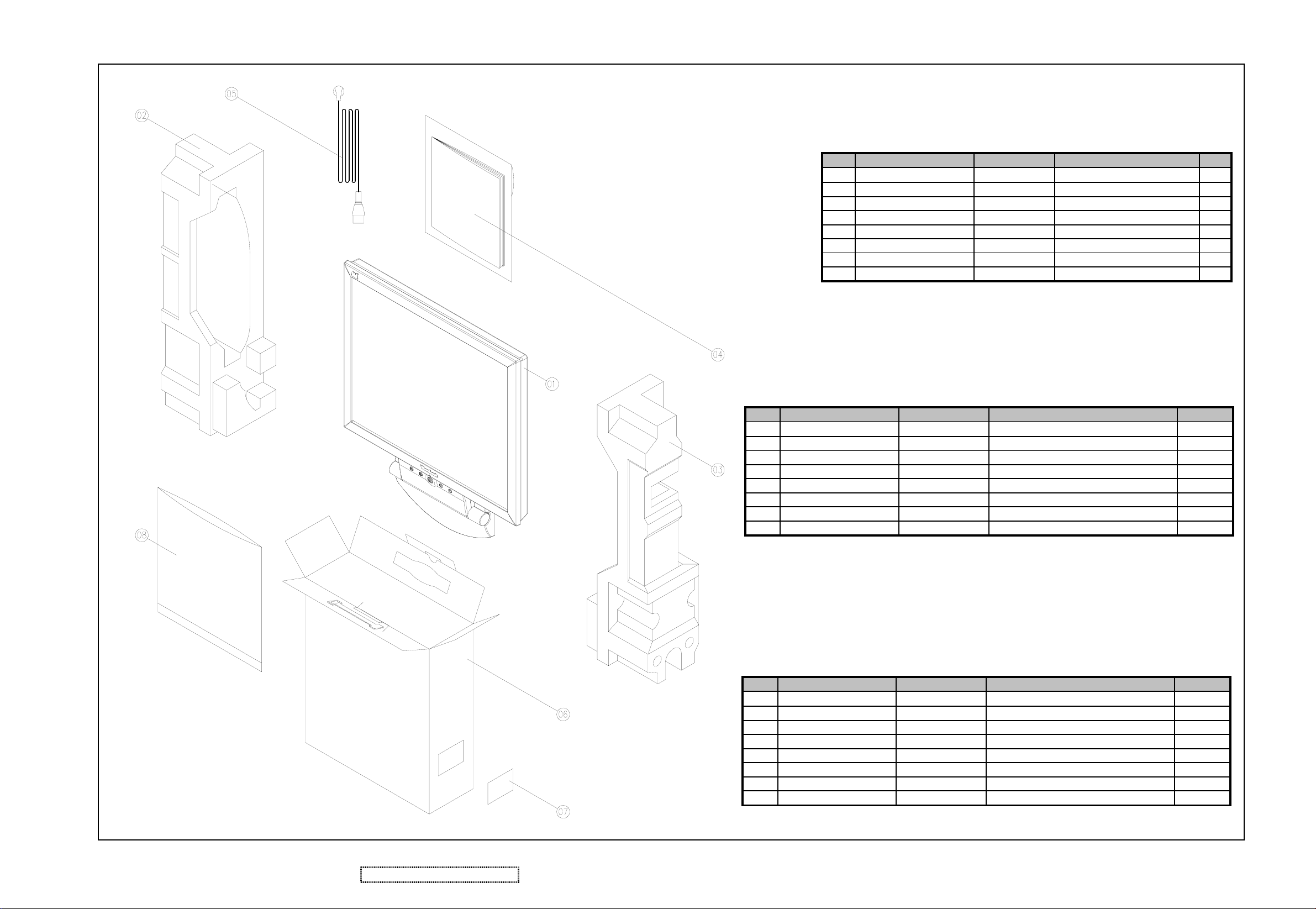

11. Packing procedure
Power cord
QSG
11.1 Paste protection film to protect the monitor (Figure.1)
11.2 Put the monitor in PE bag & seal the with tape . (Figure.2)
Figure.1 Figure.2
11.3 Put the cushion on the monitor (Figure.3)
11.4 Put the monitor into carton & put all the accessories into the carton .Then close the carton . (Figure.4)
(Figure 3) (Figure 4)
ViewSonic Corporation Confidential - Do Not Copy VA721-2
44
Page 48

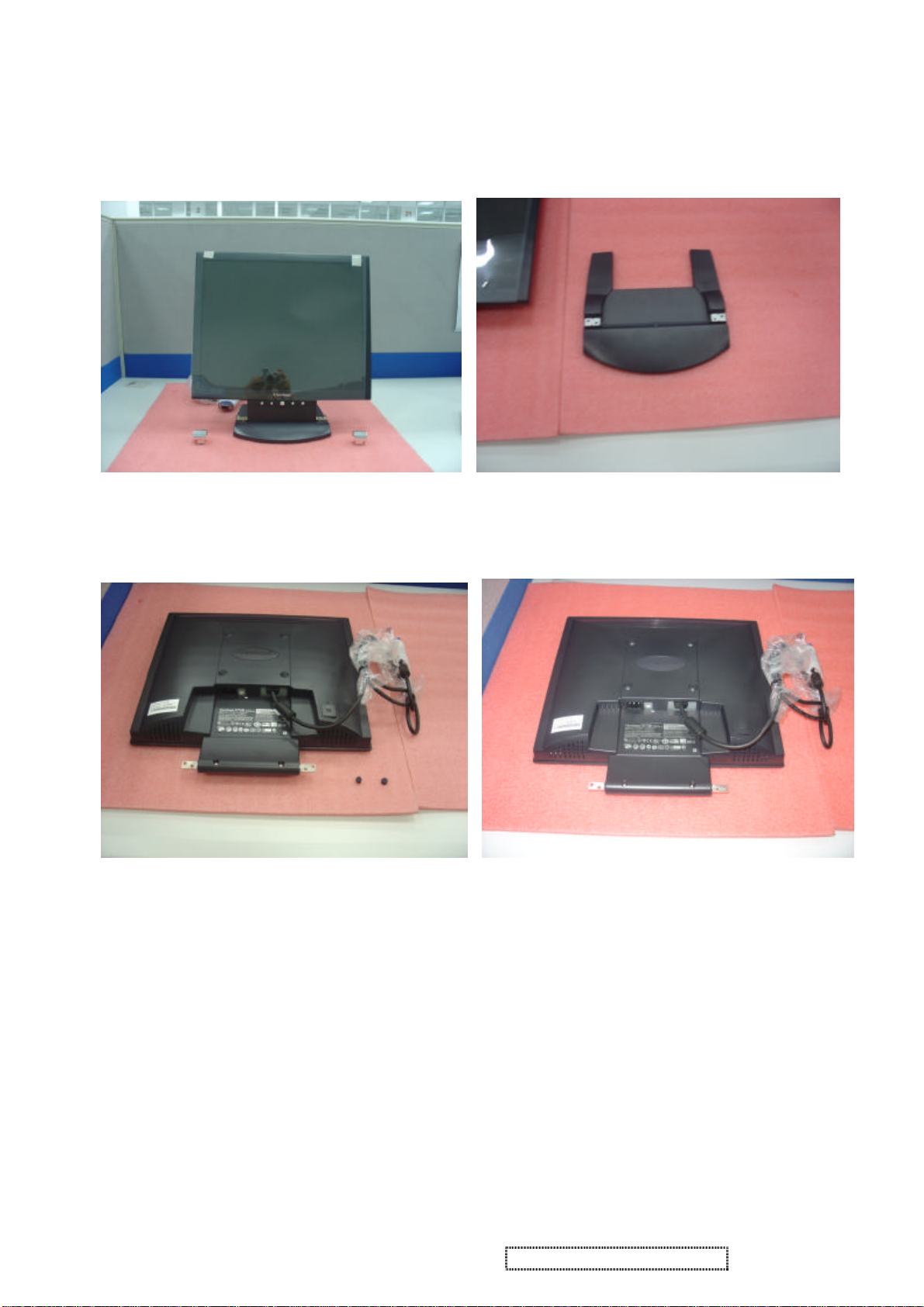

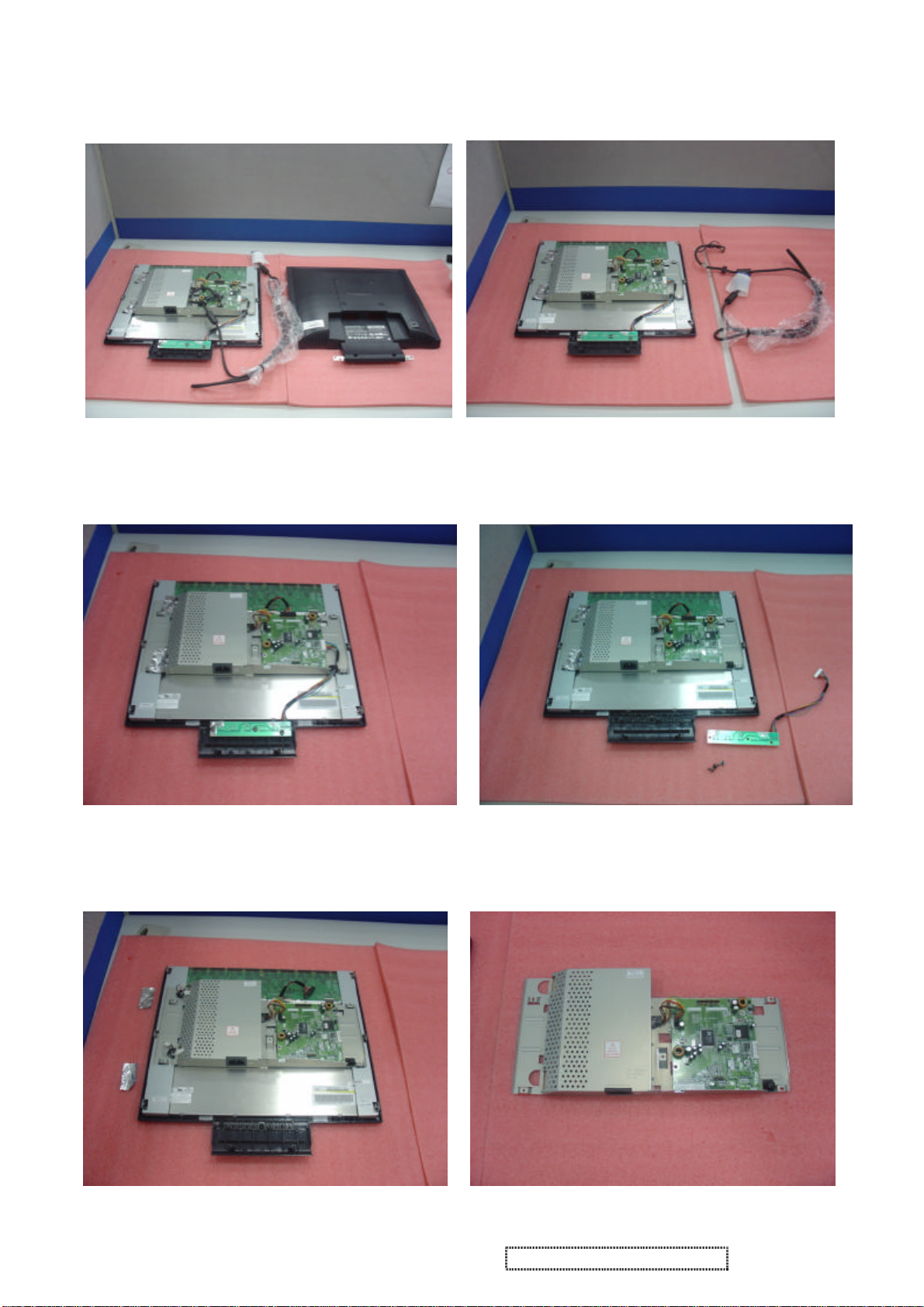

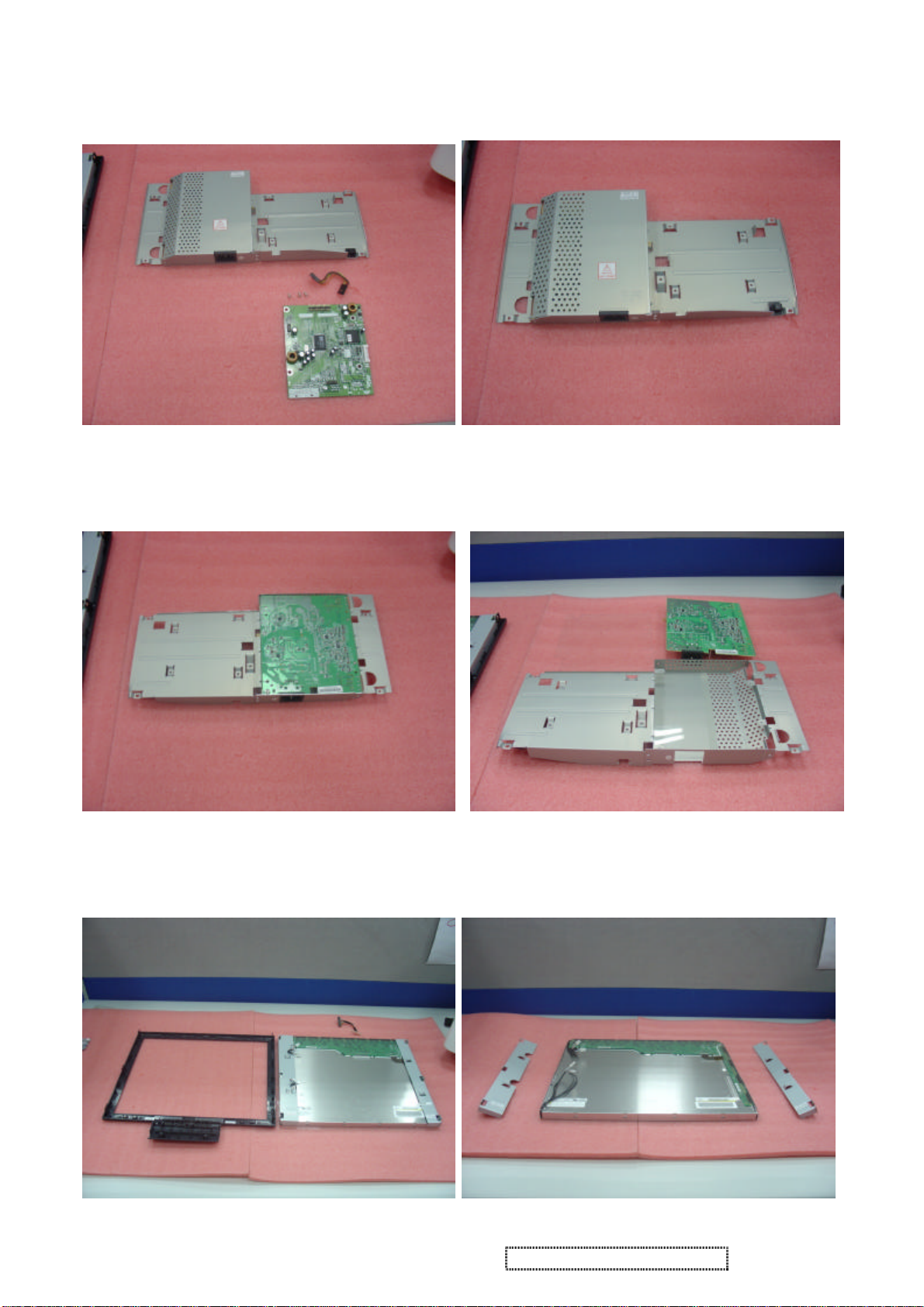

12. Disassemble monitor
2.1 Take off the hinge caps (Figure 5)
1
12.2 Lay VE710s/b down & take off the screws to remove the base (Figure 6)
(Figure 5) (Figure 6)
12.3 Remove the screw cover (Figure 7)
12.4 Take of the screws (Figure 8)
Figure 7 Figure 8
ViewSonic Corporation Confidential - Do Not Copy VA721-2
45
Page 49
12.5 Remove the back cover (Figure 9)
12.6 Take off the screw on the VGA cable (Figure 10)
Figure 9 Figure 10
12.7 Take off the screws on the B/B (Figure 11)
12.8 Remove the B/B from the front-bezel (Figure 12)
Figure 11 Figure 12
12.9 Tear off the AL-foil , all cables on M/B & lamp wires . (Figure 13)
12.10 Take off the screws on the PCB holder & remove the PCB holder with the boards . (Figure 14)
Figure 13 Figure 14
ViewSonic Corporation Confidential - Do Not Copy VA721-2
46
Page 50
12.11 Take out the screws on M/B & remove the cable between M/B & power board (Figure 15)
12.12 Remove the M/B out (Figure 16)
Figure 15 Figure 16
12.13 Put the PCB holder up-side-down & remove the screws on the power board (Figure 17)
12.14 Remove the power board (Figure 18)
Figure 17 Figure 18
12.15 Separate the bezel & panel (with BKT) & remove the cable on panel (Figure 19)
12.16 Take off the L/R BKT & remove the L/R BKT . (Figure 20)
Figure 19 Figure 20
ViewSonic Corporation Confidential - Do Not Copy VA721-2
47
Page 51
6. Troubleshooting Flow Chart

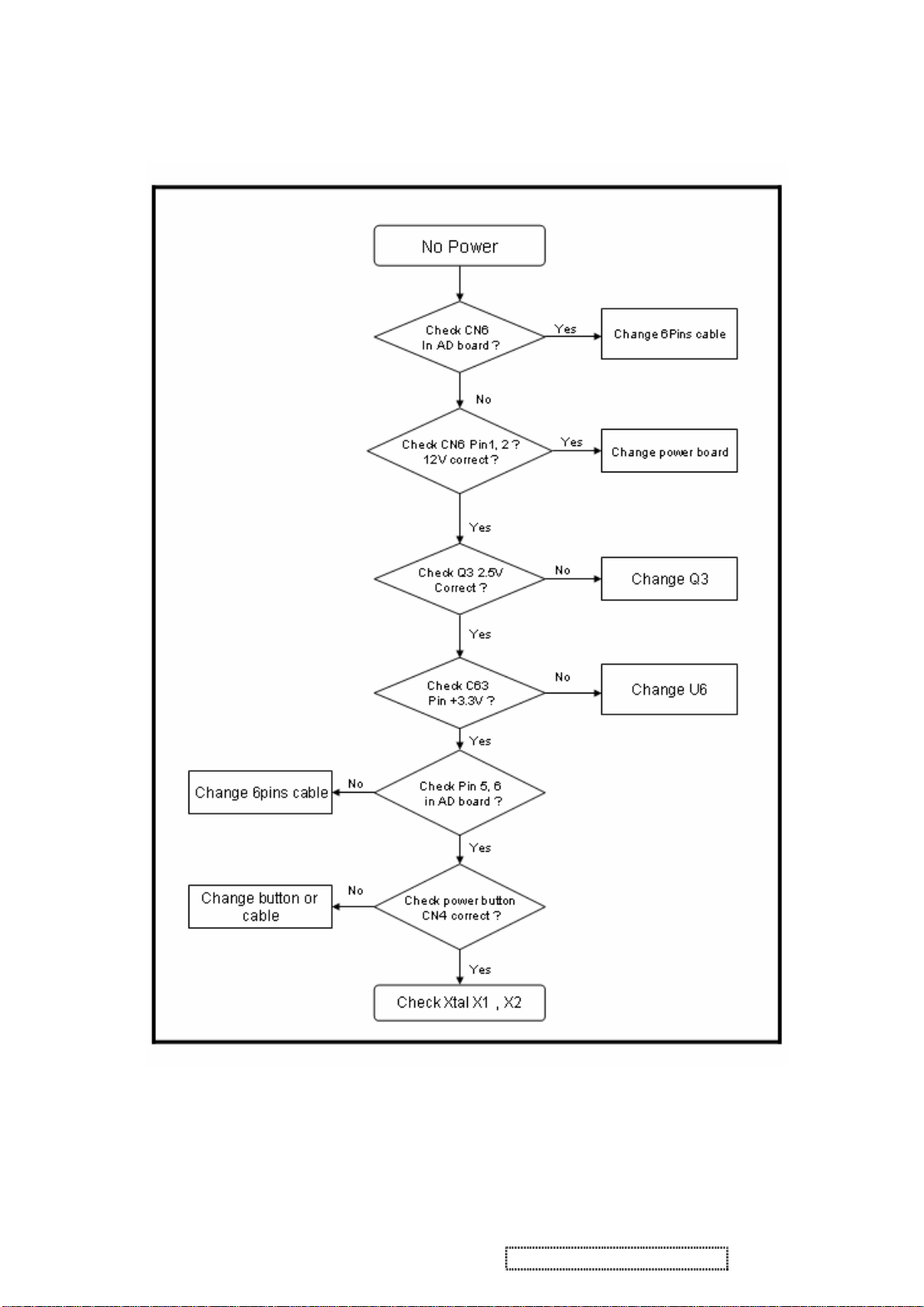

1. No Power
ViewSonic Corporation Confidential - Do Not Copy VA721-2
48
Page 52

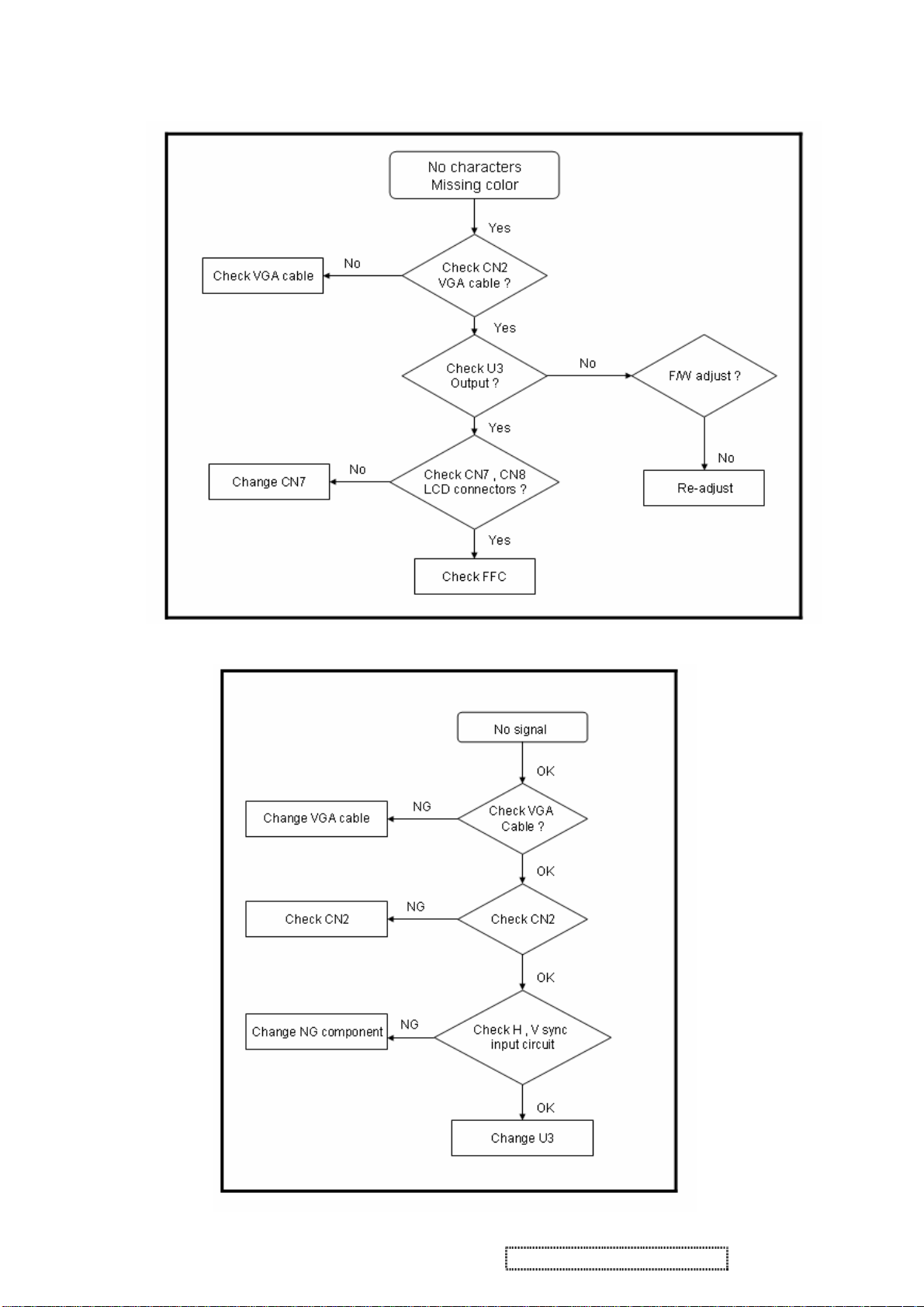

2. No Characters , Missing Color
3 Always show NO SIGNEL
ViewSonic Corporation Confidential - Do Not Copy VA721-2
49
Page 53
7. Recommended Spare Parts List
Above listed items are examples, supplier can expand the rows to add more necessary items.
ViewSonic Model Number: VLCDS27998-5W
RECOMMENDED SPARE PARTS LIST (VA721-2)
Rev: 1b
Serial No. Prefix: PX2
Item
1
Accessories:
2 Power board B-SB-0221-0686 AS020126104 Power board 1 1 1
Board Assembly:
3 main board B-00003428 1SL7VCMB007 Main board 1 1 4 Button board B-CB-0206-0170 1HYJZZZVS32 Button board 1 1 1 5 Front bezel assy C-00004817 33L7VCFB009 front bezel ass'y 1 1 1
Cabinets:
6 back cover assy C-BC-0302-0576 37L7VBCVS46 back cover ass'y 1 1 1 7 Stand assy C-BS-0303-0509 26L7VSAVS25 Stand ASSY 1 1 1 8 Cable ASSY L7VC Power-MB CB-00002263 DDL7VCPB101 Cable Power-MB 1 1 1
Cables:
9 Cable ASSY L7VC BUTTON-MB CB-00002262 DDL7VCTH004 Cable BUTTON-MB 1 1 1 10 VGA cable CB-00000182 DDL7VCPC001 VGA cable 1 1 1 11 CABLE MB-LCD M-FC-0809-0795 DDL70LLC201 CABLE MB-LCD 1 1 1 12 User manual + CD wizard for CPT Panel DC-00004815 HGL7VC06013 User manual 1
Documentation:
13 User manual + CD wizard for QDI Panel DC-00005179 HGL7VC04011 User manual 1 1 14 17" CPT TFT LCD panel (8ms) E-00003433 AA0170EA224 LCD panel 1
Electronic
15 17" QDI TFT LCD panel (V.9) E-00002216 AA17EL07055 LCD panel 1
Components:
16 17" QDI TFT LCD panel (V.11) E-00005178 AA17EL07080 LCD panel 1 17 Screw M-SCW-0824-6800 MM30060IBJ8 SCREW M3.0*6.0-I (NI) GP 7 7 7
Miscellaneous:
18 Screw M-SCW-0824-6802 MM30040IBJ9 SCREW M3.0*4.0-I(NI) GP 10 10 10 19 LCD film L7VC M-MS-0808-7399 JXL7V003017 LCD FILM 1 1 1 20 8ms sticker M-00003434 HCL7V028020 8ms sticker 1 1 1 21 Screw M-SCW-0824-6797 MF40080BJ29 SCREW F4.0*8.0-B(BNI) GP 10 10 10 22 rubber plug vesa M-MS-0808-9236 GAL7V008017 rubber plug vesa 5 5 5 23 QC-PASS LABEL DC-00003444 HCL7V026017 QC-PASS LABEL 1 1 1 24 CARTON STICKER DC-00004814 HCL7V022011 CARTON STICKER 1 1 1 25 WARRANTY STICKER M-00003446 HCL7V023018 WARRANTY STICKER 1 1 1 26 ADDRESS LABEL DC-00003443 HCL7V024014 ADDRESS LABEL 1 1 1 27 EPE bags M-MS-0808-8981 HAL7V001012 EPE bags 1 1 1
Packing Material:
28 Carton P-00004816 HFL7VC03013 carton 1 1 1 29 End cap (L) P-FM-0602-0840 HBL7V005019 cushion 1 1 1 30 End cap (R) P-FM-0602-0841 HBL7V006015 cushion 1 1 1
Remark 1: Remark 2:
Description ECR/ECN ViewSonic P/N Ref. P/N Location
POWER CORD A-PC-0106-0306 DM333181S01 Power cord 1 1 1
All revised RSPLs with newly added items or any change made should be highlighted and correlated with the ECN/ECR approved by
Universal Number#
Panel Sources
CPT QDI V.9 QDI V.11
ViewSonic Corporation Confidential - Do Not Copy VA721-2
50
Page 54
Serial No. Prefix: PX2
BOM LIST (VA721-2 for "CPT")
ViewSonic Model Number: VLCDS27998-5W Rev: 1a
Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty
1 #N/A 1L7VCZCVSE3 L7VC-A LCD MONITOR (CPT,CHINA)SILVER 2 #N/A 29L7VCMB083 L7VC M/B ASSY(FOR L7VC-CL)CPT,MST8111A S 1 3 #N/A 3BL7VSS0068 L7VC M/B S/S ASSY(QDI)LVDS 1
4 #N/A CC62204MD23 CAP ELEC 22U 25V(+-20%,105C,5*11,2000HR)
5 #N/A CC622L4MD06 CAP ELEC DIP 22U 25V(+-20%,105C,5*11)LXN 6 #N/A CC73303MD51 CAP ELEC 330U 16V(+-20%,105C,8*11,2000HR C58,C62,C79,C90 4 7 #N/A CC733L3MD09 CAP ELEC DIP330U 16V(+-20%,105C,8*11)LXN C58,C62,C79,C90 4 8 E-L-0407-1563 DC04725K002 CHOKE COIL 47UH(2.5A,+-10%,T07473) L21,L32 2
9 M-MS-0808-9809 DFHD30MR259 CONN DIP HEADER 30P 2R MR(P2.0,H4.0) CN9 1 10 #N/A DFHD14MS264 CONN DIP HEADER 14P 2R MS(P2.0,H6.0) CN2 1 11 M-MS-0808-9810 DFHD10MR316 CONN DIP HEADER 10P 1R MR(P2.0,H4.1) CN4 1 12 #N/A DFHD08MS439 CONN DIP HEADER 8P 2R MS(P2.54,H6.0) CN6 1 13 #N/A BG611059319 CRYSTAL DIP 11.0592MHZ(+-30PPM,49/US) X2 1 14 E-X-0415-0128 BG614318D55 XTAL DIP 14.318MHZ(+-30PPM,07010-X-136-2 X1 1 15 #N/A AZL7VC0C101 L7VC-CL SW BIOS IMAGE(CPT)MST8111A N/A S 1 16 B-SB-0221-0686 AS020126104 ADP/INV ADP-40AFA, 90~264V REV1A 1 17 B-00000936 AS05B310202 ADP/INV,SLV0315A0450-1057,90~264V REV1A 1 18 B-CB-0206-0170 23L7VBB0026 L7VC BUTTON/B ASSY 1 19 #N/A 22L7VCLA026 L7VC-A LCD MODULE ASSY(CPT)SILVER 1 20 C-00004817 33L7VCFB009 L7VC-A FRONT BEZEL ASSY(SILVER) 1 21 C-BC-0302-0576 37L7VBCVS46 L7VC BACK COVER ASSY(BLACK) 1 22 M-BK-0805-0059 34L7VBAVS00 L7VC PCB BKT ASSY 1 23 E-00003433 AA0170EA224 LCD(TFT) CLAA170EA07Q(8MS) 17"SXGA 1 24 M-BK-0805-0127 FAL7V016010 LCD BKT-L-QDI L7VC(FAL7V016,REV3B) 1 25 M-BK-0805-0128 FAL7V017016 LCD BKT-R-QDI L7VC(FAL7V017,REV3B) 1 26 M-MS-0808-8984 FCL70004010 LCD MYLAR L70L-E(FCL70004,REV3A) 1 27 M-MS-0808-9248 FCL7A001014 AL FOIL L7A(FCL7A001,REV3A) GP 2 28 M-MS-0808-7302 FCL7V012016 P/B MYLAR-DOWN L7VC(FCL7V012,REV3A) 1 29 M-MS-0808-9249 JXLM7002011 FOIL LM7S(JXLM7002,REV3B) 1 30 M-SCW-0824-6797 MF40080BJ29 SCREW F4.0*8-B(BNI) GP 3 31 M-SCW-0824-6798 MM30080BBJ2 SCREW M3.0*8,B(NI) 1 32 M-SCW-0824-6799 MM35080BBW2 SCREW M3.5*8-B (NI,WASHER) 1 33 M-SCW-0824-6800 MM30060IBJ8 SCREW M3.0*6.0-I(NI) GP 7 34 M-SCW-0824-6801 MF40080PBJ6 SCREW F4.0*8-P(NI) 2 35 M-SCW-0824-6802 MM30040IBJ9 SCREW M3.0*4.0-I(NI) GP 10 36 M-CV-0830-0283 GAL7V010011 RUBBER PLUG COVER /BK L7VC(GAL7V010,R3A) 2 37 M-SCW-0824-0728 MM30050IBJ3 SCREW M3.0*5.0-I(NI) GP 2 38 M-SCW-0824-6948 MM30050FCI5 SCREW M3.0*5-F(NI,NYLOK) 2 39 M-MS-0808-9236 GAL7V008017 RUBBER PLUG VESA/BK L7VC(GAL7V008,R3B) 4 40 C-BS-0303-0509 26L7VSAVS25 L7VC STAND ASSY(BLACK) 1 41 #N/A 23L7VCCS001 L7VC-CL CHASSIS ASSY(CPT) 1 42 CB-00002263 DDL7VCPB101 CABLE ASSY L7VC POWER-MB(8P/8P,REV1A) GP 1 43 CB-00000182 DDL7VCPC001 CABLE ASSY L7VC MB-VGA(14/15P,REV1A) 1 44 CB-00002262 DDL7VCTH004 CABLE ASSY L7VC BUTTON-MB(8P/10P,REV1A) 1 45 M-FC-0809-0795 DDL70LLC201 CABLE MB-LCD(30P,120MM,LG)L70L GP 1 46 M-MS-0808-7306 EBL7V023017 HINGE CAP L7VC(EBL7V023,REV3A) 2 47 M-SCW-0824-0816 MM40100BCI2 SCREW M4*10.0-B(NI,NYLOK) 4 48 #N/A 24L7VCPK0S3 L7VC-A PACKING ASSY(CHINA)S 1 49 A-PC-0106-0306 DM333181S01 POWER CORD 3P 1.8M(CHN)Y546B300012180QD 1 50 M-MS-0808-7710 HAL7E002013 PE BAG L7E(HAL7E002,REV3C) 1 51 P-FM-0602-0840 HBL7V005019 END CAP(L) L7VC(HBL7V005,REV3B) 1 52 P-FM-0602-0841 HBL7V006015 END CAP(R) L7VC(HBL7V006,REV3B) 1 53 M-LB-0813-0747 HCL7V004013 CORE LABEL(HCL7V004,REV3A) 1 54 #N/A HCL7VC04017 ID LABEL(VA721-2) L7VC-A(HCL7VC04,REV3A) 1 55 M-LB-0813-0745 HCL7V002011 SERIAL LEBAL L7V(HCL7V002,REV3A) 1 56 M-LB-0813-0746 HCL7V003017 CARTON LEBAL(HCL7V003,REV3A) 1 57 P-00004816 HFL7VC03013 CARTON VA721-2 L7VC-A(HFL7VC03,REV3A) 1 58 DC-00004815 HGL7VC06013 QSG+CD VA721 L7VC-A(HGL7VC06,REV3A) 1 59 #N/A JXLM5003011 HANDLE LM5S(JXLM5003,REV 3B) 1 60 #N/A HFL7V009018 SPACE PLATE L7VC(HFL7V009,REV3B) 0.028 61 M-MS-0808-7399 JXL7V003017 LCD FILM L7VC(JXL7V003,REV3B) 1 62 M-LB-0813-1043 HCL70021011 HI-POT LABEL L70L(HCL70021,REV3A) 1 63 DC-00004814 HCL7V022011 CARTON STICKER L7VC(HCL7V022,REV3A) 1 64 M-00003446 HCL7V023018 WARRANTY STICKER L7VC(HCL7V023,R3A) 1 65 DC-00003443 HCL7V024014 ADDRESS LABEL L7VC(HCL7V024,REV3B) 1 66 #N/A HAL7V003015 PE BAG L7VC(HAL7V003,REV3A) 1 67 DC-00003444 HCL7V026017 QC-PASS LABEL L7VC(HCL7V026,REV3A) 1 68 M-00002264 HCL7V028010 8MS STICKER L7VC(HCL7V028,REV3A) 1 69 DC-00003445 HDL7V005011 WARRANTY CARD L7VC(HDL7V005,R3A) 1
C17,C25,C28,C30,C33,C 36,C49,C70 8 C17,C25,C28,C30,C33,C 36,C49,C70 8
ViewSonic Corporation Confidential - Do Not Copy VA721-2
51
Page 55
M-SCW-0824-6797
M-SCW-0824-6798
M-SCW-0824-6799
M-SCW-0824-6800
M-SCW-0824-6801
M-SCW-0824-6802
M-SCW-0824-0728
M-SCW-0824-6948
M-SCW-0824-6797
M-SCW-0824-0816
BOM LIST (VA721-2 for "QDI Panel V.9")
ViewSonic Model Number: VLCDS27998-5W Rev: 1b
Serial No. Prefix: PX2
Item ViewSonic P/N Ref. P/N Description Location Universal number#
1 #N/A 1L7VCZXVS02 L7VC-A1 LCD MONITOR(QDI-V09/SILVER)CHN 2 #N/A 29L7VCMB0J8 L7VC M/B ASSY(QDI ,V09)MST8111A/L7VC-A1 1 3 #N/A 3BL7VSS0068 L7VC M/B S/S ASSY(QDI)LVDS 1
4 #N/A CC62204MD23 CAP EC 22U 25V(+-20%,105C,5*11,2KHR)GP
5 #N/A CC622L4MD06 CAP ELEC 22U 25V(+-20%,105C,5*11)LXNGP 6 #N/A CC73303MD51 CAP EC 330U 16V(+-20%,105C,8*11,2KH)GP C58,C62,C79,C90 4
7 #N/A CC733L3MD09 CAP ELEC DIP330U 16V(+-20%,105C,8*11)LXN C58,C62,C79,C90 4 8 E-L-0407-1563 DC04725K002 CHOKE COIL 47UH(2.5A,+-10%,T07473) L21,L32 2
9 M-MS-0808-9809 DFHD30MR259 CONN DIP HEADER 30P 2R MR(P2.0,H4.0) CN9 1 10 #N/A DFHD14MS264 CONN DIP HEADER 14P 2R MS(P2.0,H6.0) CN2 1 11 M-MS-0808-9810 DFHD10MR316 CONN DIP HEADER 10P 1R MR(P2.0,H4.1) CN4 1 12 #N/A DFHD08MS439 CONN DIP HEADER 8P 2R MS(P2.54,H6.0) CN6 1 13 #N/A BG611059319 CRYSTAL DIP 11.0592MHZ(+-30PPM,49/US) X2 1 14 E-X-0415-0128 BG614318D55 XTAL DIP 14.318MHZ(+-30PPM,07010-X-136-2 X1 1 15 #N/A AZL7VCBQ004 L7VC-A1 SW BIOS IMAGE(QDI,R09)8111A N/A 1 16 B-SB-0221-0686 AS020126104 ADP/INV ADP-40AFA, 90~264V REV1A 1 17 B-00000936 AS05B310202 ADP/INV,SLV0315A0450-1057,90~264V REV1A 1 18 B-CB-0206-0170 23L7VBB0026 L7VC BUTTON/B ASSY 1 19 #N/A DFHD08MR301 CONN DIP HEADER 8P 1R MR(P2.0,H4.1) CN1 1 20 #N/A BEYG0013DA3 LED(DIP) YELLOW/GREEN(L-3WYGW) LED1 1 21 #N/A DAL7VCTB1C5 PCB(BUTTON) L7VC TL(1L,125*23,REVC) 1
22 #N/A DHP0002B205 SWITCH PUCH BUTTON(PT-002-B2,50MA,12V)GP 23 #N/A 22L7VCLA051 L7VC-A1 LCD MODULE ASSY(QDI)SILVER 1
24 C-00004817 33L7VCFB009 L7VC-A FRONT BEZEL ASSY(SILVER) 1 25 C-BC-0302-0576 37L7VBCVS46 L7VC BACK COVER ASSY(BLACK) 1 26 M-BK-0805-0059 34L7VBAVS00 L7VC PCB BKT ASSY 1 27 E-00002216 AA17EL07055 LCD(TFT) 17" QD17EL07 REV:09 1 28 M-BK-0805-0127 FAL7V016010 LCD BKT-L-QDI L7VC(FAL7V016,REV3B)GP 1 29 M-BK-0805-0128 FAL7V017016 LCD BKT-R-QDI L7VC(FAL7V017,REV3B)GP 1 30 M-MS-0808-8984 FCL70004010 LCD MYLAR L70L-E(FCL70004,REV3A)GP 1 31 M-MS-0808-9248 FCL7A001014 AL FOIL L7A(FCL7A001,REV3A) GP 2 32 M-MS-0808-7302 FCL7V012016 P/B MYLAR-DOWN L7VC(FCL7V012,REV3A)GP 1 33 M-MS-0808-9249 JXLM7002011 FOIL LM7S(JXLM7002,REV3B)GP 1 34 35 36 37 38 39 40 M-CV-0830-0283 GAL7V010011 RUBBER PLUG COVER /BK L7VC(R3A)GP 2 41 42
43 M-MS-0808-9236 GAL7V008017 44 #N/A FCL7C003014 PANEL MYLAR UP L7C(FCL7C003,REV3A)GP 1
45 C-BS-0303-0509 26L7VSAVS25 L7VC STAND ASSY(BLACK) 1 46 C-BS-0303-0563 EAL7V014025 BASE(BLACK) L7VC(EAL7V014,REV3A) 1 47 M-MS-0808-7304 FBL7V035015 BASE PLATE L7VC(FBL7V035,REV3A)GP 1 48 M-MS-0808-9251 GAL5V002013 RUBBER FOOT L5VC(GAL5V002,REV3A) GP 4 49 M-MS-0808-7305 GAL7V007011 RUBBER FOOT-FRONT L7VC(GAL7V007,R3A) 1 50 51 M-LB-0813-1055 HCL7V020019 STAND LABEL L7VC(HCL7V020,REV3A)GP 1 52 #N/A 23L7VCSVS87 L7VC-Q CHASSIS ASSY(QDI) 1
53 CB-00002263 DDL7VCPB101 CABLE ASSY L7VC POWER-MB(8P/8P,REV1A) GP 1 54 CB-00000182 DDL7VCPC001 CABLE ASSY L7VC MB-VGA(14/15P,REV1A) GP 1
55 CB-00002262 DDL7VCTH004 CABLE L7VC BUTTON-MB(8P/10P,REV1A) GP 1 56 CB-00002261 DDL7VXLC004 CABLE MB-LCD(100MM,30P)L7VX GP 1
57 #N/A DDL9ZALC005 CABLE MB-LCD(30P,100MM,LINKTEC)L9ZA GP 1 58 M-MS-0808-7306 EBL7V023017 HINGE CAP L7VC(EBL7V023,REV3A)GP 2
59 60 #N/A 24L7VCPK0T1 L7VC-A1 PACKING ASSY(CHINA) 1 61 A-PC-0106-0306 DM333181S01 POWER 3P 1.8M(CHN)Y546B300012180QD GP 1 62 M-MS-0808-8981 HAL7V001012 EPE BAG L7V(HAL7V001,REV3A)GP 1 63 P-FM-0602-0840 HBL7V005019 END CAP(L) L7VC(HBL7V005,REV3B)GP 1 64 P-FM-0602-0841 HBL7V006015 END CAP(R) L7VC(HBL7V006,REV3B)GP 1
MF40080BJ29 SCREW F4.0*8-B(BNI) GP 3
MM30080BBJ2 SCREW M3.0*8,B(NI)GP 1
MM35080BBW2 SCREW M3.5*8-B (NI,WASHER)GP 1
MM30060IBJ8 SCREW M3.0*6.0-I(NI) GP 7
MF40080PBJ6 SCREW F4.0*8-P(NI)GP 2
MM30040IBJ9 SCREW M3.0*4.0-I(NI) GP 10
MM30050IBJ3 SCREW M3.0*5.0-I(NI) GP 2 MM30050FCI5 SCREW M3.0*5-F(NI,NYLOK)GP 2
RUBBER PLUG VESA/BK L7VC(GAL7V008,R3B)GP
MF40080BJ29 SCREW F4.0*8-B(BNI) GP 5
MM40100BCI2 SCREW M4*10.0-B(NI,NYLOK)GP 4
C17,C25,C28,C30,C33,C3 6,C49,C70 C17,C25,C28,C30,C33,C3 6,C49,C70
SW1,SW2,SW3,SW4,SW5
Q'ty
8
8
5
4
ViewSonic Corporation Confidential - Do Not Copy VA721-2
52
Page 56
Item ViewSonic P/N Ref. P/N Description Location Universal number#
65 M-LB-0813-0747 HCL7V004013 CORE LABEL(HCL7V004,REV3A)GP 1 66 #N/A HCL7VC04017 IDLABEL(VA721-2)L7VC-A(HCL7VC04,REV3A)GP 1 67 M-LB-0813-0745 HCL7V002011 SERIAL LEBAL L7V(HCL7V002,REV3A) GP 1
68 M-LB-0813-0746 HCL7V003017 CARTON LEBAL(HCL7V003,REV3A)GP 1 69 P-00004816 HFL7VC03013 CARTON VA721-2 L7VC-A(HFL7VC03,REV3A)GP 1 70 DC-00005179 HGL7VC04011 QSG+CD VA721(Q) L7VC-A1(REV3A)GP 1
71 #N/A JXLM5003011 HANDLE LM5S(JXLM5003,REV 3B) GP 1 72 #N/A HFL7V009018 SPACE PLATE L7VC(HFL7V009,REV3B)GP 0.028 73 M-MS-0808-7399 JXL7V003017 LCD FILM L7VC(JXL7V003,REV3B)GP 1 74 M-LB-0813-1043 HCL70021011 HI-POT LABEL L70L(HCL70021,REV3A)GP 1 75 DC-00004814 HCL7V022011 CARTON STICKER L7VC(HCL7V022,REV3A)GP 1 76 M-00003446 HCL7V023018 WARRANTY STICKER L7VC(HCL7V023,R3A)GP 1 77 DC-00003443 HCL7V024014 ADDRESS LABEL L7VC(HCL7V024,REV3B) 1 78 #N/A HAL7V003015 PE BAG L7VC(HAL7V003,REV3A)GP 1 79 DC-00003444 HCL7V026017 QC-PASS LABEL L7VC(HCL7V026,REV3A)GP 1 80 M-00002264 HCL7V028010 8MS STICKER L7VC(HCL7V028,REV3A)GP 1
81 #N/A HDW0VA01011
VSCN WARRANTY CARD W0VA(HDW0VA01,R3A) GP
Q'ty
1
ViewSonic Corporation Confidential - Do Not Copy VA721-2
53
Page 57
M-SCW-0824-6797
M-SCW-0824-6798
M-SCW-0824-6799
M-SCW-0824-6800
M-SCW-0824-6801
M-SCW-0824-6802
M-SCW-0824-0728
M-SCW-0824-6948
M-SCW-0824-6797
M-SCW-0824-0816
BOM LIST (VA721-2 for "QDI Panel V.11")
ViewSonic Model Number: VLCDS27998-5W Rev: 1b
Serial No. Prefix: PX2
Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty
1 #N/A 1L7VCZXVS11 L7VC-A1 LCD MTR(SILVER)CHN GP 2 #N/A 21L7VCMB001 L7VC M/B ASSY(MST8111A) GP 1 3 #N/A 31L7VCSS014 L7VC M/B S/S ASSY(MST8111A) GP 1
4 #N/A CC62204MD23 CAP EC 22U 25V(+-20%,105C,5*11,2KHR)GP
5 #N/A CC622L4MD06 CAP ELEC 22U 25V(+-20%,105C,5*11)LXNGP 6 #N/A CC73303MD51 CAP EC 330U 16V(+-20%,105C,8*11,2KH)GP C58,C62,C79,C90 4 7 #N/A CC733L3MD17 CAP EC DIP 330U16V(+-20%,105C,8*11)LXNGP C58,C62,C79,C90 4 8 #N/A DC04725K011 CHOKE COIL 47UH(2.5A,+-10%,T07473 GP) GP L21,L32 2
9 #N/A DFHD30MR267 CONN DIP HEADER 30P 2R MR(P2.0,H4.0) GP CN9 1 10 #N/A DFHD14MS272 CONN DIP HEADER 14P 2R MS(P2.0,H6.0) GP CN2 1 11 #N/A DFHD10MR324 CONN DIP HEADER 10P 1R MR(P2.0,H4.1) GP CN4 1 12 #N/A DFHD08MS013 CONN DIP HEADER 8P 2R MS(P2.54,H6.0) GP CN6 1 13 #N/A BG611059327 XTAL DIP 11.0592MHZ(+-30PPM,49/S) GP X2 1 14 #N/A BG614318072 XTAL DIP 14.318MHZ(+-30PPM,49/S) GP X1 1 15 B-SB-0221-0686 AS020126104 ADP/INV ADP-40AFA, 90~264V REV1A 1 16 B-00000936 AS05B310202 ADP/INV,SLV0315A0450-1057,90~264V REV1A 1 17 #N/A 23L7VCBB007 L7VC BUTTON/B ASSY GP 1 18 #N/A DFHD08MR319 CONN DIP HEADER 8P 1R MR(P2.0,H4.1) GP CN1 1 19 #N/A BEYG0001DA5 LED(DIP) YELLOW/GREEN(L-688WYGW) GP LED1 1 20 #N/A DAL7VCTB135 PCB(BUTTON) L7VC TL(1L,125*23,REVC) GP 1
21 #N/A DHP0002B205 SWITCH PUCH BUTTON(PT-002-B2,50MA,12V)GP SW1,SW2,SW3,SW4,SW5 5 22 #N/A 24L7VCLB008 L7VC-A1 LCD BEZEL ASSY GP 1 23 C-00004817 33L7VCFB009 L7VC-A FRONT BEZEL ASSY(SILVER) 1 24 C-BC-0302-0576 37L7VBCVS46 L7VC BACK COVER ASSY(BLACK) 1 25 M-BK-0805-0059 34L7VBAVS00 L7VC PCB BKT ASSY 1 26 M-BK-0805-0127 FAL7V016010 LCD BKT-L-QDI L7VC(FAL7V016,REV3B)GP 1 27 M-BK-0805-0128 FAL7V017016 LCD BKT-R-QDI L7VC(FAL7V017,REV3B)GP 1 28 M-MS-0808-8984 FCL70004010 LCD MYLAR L70L-E(FCL70004,REV3A)GP 1 29 M-MS-0808-9248 FCL7A001014 AL FOIL L7A(FCL7A001,REV3A) GP 2 30 M-MS-0808-7302 FCL7V012016 P/B MYLAR-DOWN L7VC(FCL7V012,REV3A)GP 1 31 M-MS-0808-9249 JXLM7002011 FOIL LM7S(JXLM7002,REV3B)GP 1 32 33 34 35 36 37 38 M-CV-0830-0283 GAL7V010011 RUBBER PLUG COVER /BK L7VC(R3A)GP 2 39 40
41 M-MS-0808-9236 GAL7V008017 42 #N/A FCL7C003014 PANEL MYLAR UP L7C(FCL7C003,REV3A)GP 1 43 C-BS-0303-0509 26L7VSAVS25 L7VC STAND ASSY(BLACK) 1 44 C-BS-0303-0563 EAL7V014025 BASE(BLACK) L7VC(EAL7V014,REV3A) 1 45 M-MS-0808-7304 FBL7V035015 BASE PLATE L7VC(FBL7V035,REV3A)GP 1 46 M-MS-0808-9251 GAL5V002013 RUBBER FOOT L5VC(GAL5V002,REV3A) GP 4 47 M-MS-0808-7305 GAL7V007011 RUBBER FOOT-FRONT L7VC(GAL7V007,R3A) 1 48 49 M-LB-0813-1055 HCL7V020019 STAND LABEL L7VC(HCL7V020,REV3A)GP 1 50 #N/A 23L7VCSVS87 L7VC-Q CHASSIS ASSY(QDI) 1
51 CB-00002263 DDL7VCPB101 52 CB-00000182 DDL7VCPC001 CABLE ASSY L7VC MB-VGA(14/15P,REV1A) GP 1 53 CB-00002262 DDL7VCTH004 CABLE L7VC BUTTON-MB(8P/10P,REV1A) GP 1 54 CB-00002261 DDL7VXLC004 CABLE MB-LCD(100MM,30P)L7VX GP 1
MF40080BJ29 SCREW F4.0*8-B(BNI) GP 3
MM30080BBJ2 SCREW M3.0*8,B(NI)GP 1
MM35080BBW2 SCREW M3.5*8-B (NI,WASHER)GP 1
MM30060IBJ8 SCREW M3.0*6.0-I(NI) GP 7 MF40080PBJ6 SCREW F4.0*8-P(NI)GP 2 MM30040IBJ9 SCREW M3.0*4.0-I(NI) GP 10
MM30050IBJ3 SCREW M3.0*5.0-I(NI) GP 2
MM30050FCI5 SCREW M3.0*5-F(NI,NYLOK)GP 2
RUBBER PLUG VESA/BK L7VC(GAL7V008,R3B)GP 4
MF40080BJ29 SCREW F4.0*8-B(BNI) GP 5
CABLE ASSY L7VC POWER-MB(8P/8P,REV1A) GP 1
C17,C25,C28,C30,C33,C36,C 49,C70 8 C17,C25,C28,C30,C33,C36,C 49,C70 8
55 #N/A DDL9ZALC005 CABLE MB-LCD(30P,100MM,LINKTEC)L9ZA GP 1 56 M-MS-0808-7306 EBL7V023017 HINGE CAP L7VC(EBL7V023,REV3A)GP 2 57 58 #N/A 24L7VCPK0T1 L7VC-A1 PACKING ASSY(CHINA) 1 59 A-PC-0106-0306 DM333181S01 POWER 3P 1.8M(CHN)Y546B300012180QD GP 1 60 M-MS-0808-8981 HAL7V001012 EPE BAG L7V(HAL7V001,REV3A)GP 1 61 P-FM-0602-0840 HBL7V005019 END CAP(L) L7VC(HBL7V005,REV3B)GP 1 62 P-FM-0602-0841 HBL7V006015 END CAP(R) L7VC(HBL7V006,REV3B)GP 1 63 M-LB-0813-0747 HCL7V004013 CORE LABEL(HCL7V004,REV3A)GP 1
MM40100BCI2 SCREW M4*10.0-B(NI,NYLOK)GP 4
ViewSonic Corporation Confidential - Do Not Copy VA721-2
54
Page 58
Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty
64 #N/A HCL7VC04017 IDLABEL(VA721-2)L7VC-A(HCL7VC04,REV3A)GP 1 65 M-LB-0813-0745 HCL7V002011 SERIAL LEBAL L7V(HCL7V002,REV3A) GP 1 66 M-LB-0813-0746 HCL7V003017 CARTON LEBAL(HCL7V003,REV3A)GP 1
67 P-00004816 HFL7VC03013 68 DC-00005179 HGL7VC04011 QSG+CD VA721(Q) L7VC-A1(REV3A)GP 1 69 #N/A JXLM5003011 HANDLE LM5S(JXLM5003,REV 3B) GP 1 70 #N/A HFL7V009018 SPACE PLATE L7VC(HFL7V009,REV3B)GP 0.028 71 M-MS-0808-7399 JXL7V003017 LCD FILM L7VC(JXL7V003,REV3B)GP 1 72 M-LB-0813-1043 HCL70021011 HI-POT LABEL L70L(HCL70021,REV3A)GP 1 73 DC-00004814 HCL7V022011 CARTON STICKER L7VC(HCL7V022,REV3A)GP 1 74 M-00003446 HCL7V023018 WARRANTY STICKER L7VC(HCL7V023,R3A)GP 1 75 DC-00003443 HCL7V024014 ADDRESS LABEL L7VC(HCL7V024,REV3B) 1 76 #N/A HAL7V003015 PE BAG L7VC(HAL7V003,REV3A)GP 1 77 DC-00003444 HCL7V026017 QC-PASS LABEL L7VC(HCL7V026,REV3A)GP 1 78 M-00002264 HCL7V028010 8MS STICKER L7VC(HCL7V028,REV3A)GP 1
79 #N/A HDW0VA01011 80 #N/A 2AL7VCPTQ00 L7VC-A1 PANEL DEPENDENT KIT(QDI)8MS GP 1 81 #N/A AA17EL07080 LCD(TFT)17" QD17EL07 REV:11(8MS)SXGA GP 1 82 #N/A AZL7VCBQ012 L7VC-A1 SW BIOS IMAGE(MST8111A)QDI 1
CARTON VA721-2 L7VC-A(HFL7VC03,REV3A)GP
1
VSCN WARRANTY CARD W0VA(HDW0VA01,R3A) GP 1
ViewSonic Corporation Confidential - Do Not Copy VA721-2
55
Page 59

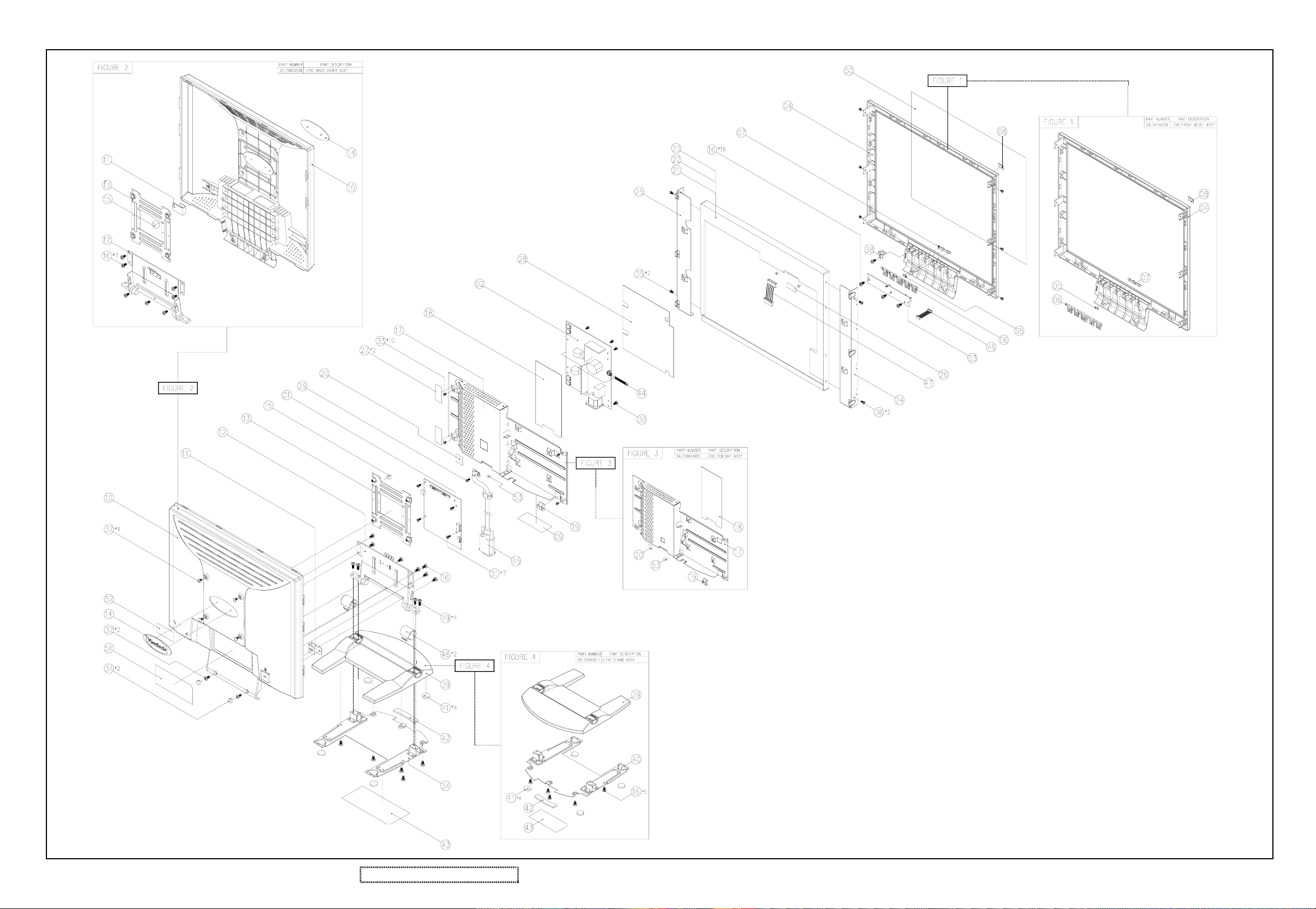

8. Exploded Diagram And Spare Parts List
ViewSonic Corporation Confidential - Do Not Copy VA721-2
56
Page 60
Serial No. Prefix: PX2
EXPLODED PARTS LIST (VA721-2 for "CPT")
ViewSonic Model Number: VLCDS27998-5W Rev: 1a
Item ViewSonic P/N Ref. P/N Description Q'ty
1 #N/A 29L7VCMB083 L7VC M/B ASSY 1 2 B-SB-0221-0686 AS020126104 ADP/INV ADP-40AFB, 90-264VAC 1 3 B-CB-0206-0170 23L7VBB0026 L&VC BUTTON/B ASSY 1 4 #N/A EAL7V012031 LCD BEZEL SILVER L7VC 1 5 M-MS-0808-9242 EBL7V021014 LENS L7VC 1 6 PL-BT-0706-0179 EBL7V022011 CONTROL BUTTON L7VC 1 7 M-MS-0808-9243 FEL7V003019 LOGO FRONT-VSC-38MM L7VC 1 8 M-MS-0808-9244 FEL7V004015 BIRD LOGO-10MM L7VC 1
9 M-CV-0830-2618 EAL7V013029 LCD COVER(BLACK) L7VC 1 10 M-CV-0830-2484 FBL7V007011 KENSINGTON CAP 1 11 M-CV-0830-2617 FBL7V034019 HINGE ASSY L7VC 1 12 M-BK-0805-0125 FBL7V036011 VESA BKT-LONG L7VC 1 13 #N/A EBL5VC01011 VSC elipse logo plate polish 1 14 M-MS-0808-9237 GAL7V006014 RUBBER PLUG VESA/BK L7VC 4 15 M-MS-0808-9246 GBLM7003017 GASKET-3 LM7S 1 16 M-SCW-0824-6797 MF40080BJ29 SCREW F4.0*8-B (BNI) 15 17 M-BK-0805-0126 FAL7V011018 PCB BRACKET L7VC 1 18 M-MS-0808-7301 FCL7V011010 P/B MYLAR-UP L7VC 1 19 M-MS-0808-9247 EBL70023013 WIRE MOUNT L70L-E 1
20 M-LB-0813-0894 HCL7V005010 WARNING LABEL INVETER 1 21 E-00003433 AA0170EA224 LCD(TFT) CPT CLAA170EA07Q 1 22 M-BK-0805-0127 FAL7V016010 LCD BKT-L L7VC 1 23 M-BK-0805-0128 FAL7V017016 LCD BKT-R L7VC 1 24 M-MS-0808-9248 FCL7A001014 AL FOIL L7A 2 25 M-MS-0808-7302 FCL7V012016 P/B MYLAR-DOWN L7VC 1 26 M-MS-0808-9249 JXLM7002011 FOIL LM7S 1 27 M-SCW-0824-6798 MM30080BBJ2 SCREW M3.0*8-B (NI) 1 28 M-SCW-0824-6799 MM35080BBW2 SCREW M3.5*8-B (NI , WASHER) 1 29 M-SCW-0824-6800 MM30060IBJ8 SCREW M3.0*6.0-I(NI) 11 30 HW-00002361 MM40080PBJ6 SCREW F4.0*8-P(NI) 2 31 M-SCW-0824-6802 MM30040IBJ9 SCREW M3.0*4.0-I(NI) 10 32 M-CV-0830-0284 GAL7V009013 RUBBER PLUG COVER/BK L7VC 2 33 C-BS-0303-0562 EAL7V014017 BASE(BLACK) L7VC 1 34 M-MS-0808-7304 FBL7V035015 BASE PLATE L7VC 1 35 M-MS-0808-9251 GAL5V002013 RUBBER FOOT L5VC 4 36 M-MS-0808-7305 GAL7V007011 RUBBER FOOT FRONT L7VC 1 37 M-LB-0813-1055 HCL7V020019 STAND LABEL L7VC 1 38 CB-00002263 DDL7VCPB101 CABLE ASSY L7VC POWER-MB 1 39 CB-00000182 DDL7VCPC001 CABLE ASSY L7VC MB-VGA 1 40 CB-00002262 DDL7VCTH004 CABLE ASSY L7VC BUTTON-MB 1 41 M-FC-0809-0795 DDL70LLC201 CABLE MB-LCD(30P, 120MM, LG) 1 42 M-MS-0808-7306 EBL7V023017 HINGE CAP L7VC 2 43 M-SCW-0824-0816 MM40100BCI2 SCREW M4*10.0-B(NI,NYLOCK) 4 44 #N/A HCL7VC03011 ID LABEL L7VC 1 45 M-LB-0813-0745 HCL7V002011 SERIAL LABEL 1 46 M-MS-0808-7399 JXL7V003017 LCD FILM L7VC 1
ViewSonic Corporation Confidential - Do Not Copy VA721-2
57
Page 61
ViewSonic Model Number: VLCDS27998-5W
EXPLODED PARTS LIST (VA721-2 for "QDI Panel V.9")
Rev: 1b
Serial No. Prefix: PX2
Item ViewSonic P/N Ref. P/N Description Q'ty
1 #N/A 29L7VCMB083 L7VC M/B ASSY 1 2 B-SB-0221-0686 AS020126104 ADP/INV ADP-40AFB, 90-264VAC 1 3 B-CB-0206-0170 23L7VBB0026 L&VC BUTTON/B ASSY 1 4 #N/A EAL7V012031 LCD BEZEL SILVER L7VC 1 5 M-MS-0808-9242 EBL7V021014 LENS L7VC 1 6 PL-BT-0706-0179 EBL7V022011 CONTROL BUTTON L7VC 1 7 M-MS-0808-9243 FEL7V003019 LOGO FRONT-VSC-38MM L7VC 1 8 M-MS-0808-9244 FEL7V004015 BIRD LOGO-10MM L7VC 1
9 M-CV-0830-2618 EAL7V013029 LCD COVER(BLACK) L7VC 1 10 M-CV-0830-2484 FBL7V007011 KENSINGTON CAP 1 11 M-CV-0830-2617 FBL7V034019 HINGE ASSY L7VC 1 12 M-BK-0805-0125 FBL7V036011 VESA BKT-LONG L7VC 1 13 #N/A EBL5VC01011 VSC elipse logo plate polish 1 14 M-MS-0808-9237 GAL7V006014 RUBBER PLUG VESA/BK L7VC 4 15 M-MS-0808-9246 GBLM7003017 GASKET-3 LM7S 1 16 M-SCW-0824-6797 MF40080BJ29 SCREW F4.0*8-B (BNI) 15 17 M-BK-0805-0126 FAL7V011018 PCB BRACKET L7VC 1 18 M-MS-0808-7301 FCL7V011010 P/B MYLAR-UP L7VC 1 19 M-MS-0808-9247 EBL70023013 WIRE MOUNT L70L-E 1
20 M-LB-0813-0894 HCL7V005010 WARNING LABEL INVETER 1 21 E-00002216 AA17EL07055 LCD(TFT) QDI QD17EL07 V.9 1 22 M-BK-0805-0127 FAL7V016010 LCD BKT-L L7VC 1 23 M-BK-0805-0128 FAL7V017016 LCD BKT-R L7VC 1 24 M-MS-0808-9248 FCL7A001014 AL FOIL L7A 2 25 M-MS-0808-7302 FCL7V012016 P/B MYLAR-DOWN L7VC 1 26 M-MS-0808-9249 JXLM7002011 FOIL LM7S 1 27 M-SCW-0824-6798 MM30080BBJ2 SCREW M3.0*8-B (NI) 1 28 M-SCW-0824-6799 MM35080BBW2 SCREW M3.5*8-B (NI , WASHER) 1 29 M-SCW-0824-6800 MM30060IBJ8 SCREW M3.0*6.0-I(NI) 11 30 HW-00002361 MM40080PBJ6 SCREW F4.0*8-P(NI) 2 31 M-SCW-0824-6802 MM30040IBJ9 SCREW M3.0*4.0-I(NI) 10 32 M-CV-0830-0284 GAL7V009013 RUBBER PLUG COVER/BK L7VC 2 33 C-BS-0303-0562 EAL7V014017 BASE(BLACK) L7VC 1 34 M-MS-0808-7304 FBL7V035015 BASE PLATE L7VC 1 35 M-MS-0808-9251 GAL5V002013 RUBBER FOOT L5VC 4 36 M-MS-0808-7305 GAL7V007011 RUBBER FOOT FRONT L7VC 1 37 M-LB-0813-1055 HCL7V020019 STAND LABEL L7VC 1 38 CB-00002263 DDL7VCPB101 CABLE ASSY L7VC POWER-MB 1 39 CB-00000182 DDL7VCPC001 CABLE ASSY L7VC MB-VGA 1 40 CB-00002262 DDL7VCTH004 CABLE ASSY L7VC BUTTON-MB 1 41 M-FC-0809-0795 DDL70LLC201 CABLE MB-LCD(30P, 120MM, LG) 1 42 M-MS-0808-7306 EBL7V023017 HINGE CAP L7VC 2 43 M-SCW-0824-0816 MM40100BCI2 SCREW M4*10.0-B(NI,NYLOCK) 4 44 DC-00005132 HCL7VC03011 ID LABEL L7VC 1 45 M-LB-0813-0745 HCL7V002011 SERIAL LABEL 1 46 M-MS-0808-7399 JXL7V003017 LCD FILM L7VC 1
ViewSonic Corporation Confidential - Do Not Copy VA721-2
58
Page 62
ViewSonic Model Number: VLCDS27998-5W
EXPLODED PARTS LIST (VA721-2 for "QDI Panel V.11")
Rev: 1b
Serial No. Prefix: PX2
Item ViewSonic P/N Ref. P/N Description Q'ty
1 #N/A 21L7VCMB001 L7VC M/B ASSY 1 2 B-SB-0221-0686 AS020126104 ADP/INV ADP-40AFB, 90-264VAC 1 3 B-CB-0206-0170 23L7VBB0026 L&VC BUTTON/B ASSY 1 4 #N/A EAL7V012031 LCD BEZEL SILVER L7VC 1 5 M-MS-0808-9242 EBL7V021014 LENS L7VC 1 6 PL-BT-0706-0179 EBL7V022011 CONTROL BUTTON L7VC 1 7 M-MS-0808-9243 FEL7V003019 LOGO FRONT-VSC-38MM L7VC 1 8 M-MS-0808-9244 FEL7V004015 BIRD LOGO-10MM L7VC 1
9 M-CV-0830-2618 EAL7V013029 LCD COVER(BLACK) L7VC 1 10 M-CV-0830-2484 FBL7V007011 KENSINGTON CAP 1 11 M-CV-0830-2617 FBL7V034019 HINGE ASSY L7VC 1 12 M-BK-0805-0125 FBL7V036011 VESA BKT-LONG L7VC 1 13 #N/A EBL5VC01011 VSC elipse logo plate polish 1 14 M-MS-0808-9237 GAL7V006014 RUBBER PLUG VESA/BK L7VC 4 15 M-MS-0808-9246 GBLM7003017 GASKET-3 LM7S 1 16 M-SCW-0824-6797 MF40080BJ29 SCREW F4.0*8-B (BNI) 15 17 M-BK-0805-0126 FAL7V011018 PCB BRACKET L7VC 1 18 M-MS-0808-7301 FCL7V011010 P/B MYLAR-UP L7VC 1 19 M-MS-0808-9247 EBL70023013 WIRE MOUNT L70L-E 1
20 M-LB-0813-0894 HCL7V005010 WARNING LABEL INVETER 1 21 #N/A AA17EL07080 LCD(TFT)17" QD17EL07 REV:11 1 22 M-BK-0805-0127 FAL7V016010 LCD BKT-L L7VC 1 23 M-BK-0805-0128 FAL7V017016 LCD BKT-R L7VC 1 24 M-MS-0808-9248 FCL7A001014 AL FOIL L7A 2 25 M-MS-0808-7302 FCL7V012016 P/B MYLAR-DOWN L7VC 1 26 M-MS-0808-9249 JXLM7002011 FOIL LM7S 1 27 M-SCW-0824-6798 MM30080BBJ2 SCREW M3.0*8-B (NI) 1 28 M-SCW-0824-6799 MM35080BBW2 SCREW M3.5*8-B (NI , WASHER) 1 29 M-SCW-0824-6800 MM30060IBJ8 SCREW M3.0*6.0-I(NI) 11 30 HW-00002361 MM40080PBJ6 SCREW F4.0*8-P(NI) 2 31 M-SCW-0824-6802 MM30040IBJ9 SCREW M3.0*4.0-I(NI) 10 32 M-CV-0830-0284 GAL7V009013 RUBBER PLUG COVER/BK L7VC 2 33 C-BS-0303-0562 EAL7V014017 BASE(BLACK) L7VC 1 34 M-MS-0808-7304 FBL7V035015 BASE PLATE L7VC 1 35 M-MS-0808-9251 GAL5V002013 RUBBER FOOT L5VC 4 36 M-MS-0808-7305 GAL7V007011 RUBBER FOOT FRONT L7VC 1 37 M-LB-0813-1055 HCL7V020019 STAND LABEL L7VC 1 38 CB-00002263 DDL7VCPB101 CABLE ASSY L7VC POWER-MB 1 39 CB-00000182 DDL7VCPC001 CABLE ASSY L7VC MB-VGA 1 40 CB-00002262 DDL7VCTH004 CABLE ASSY L7VC BUTTON-MB 1 41 M-FC-0809-0795 DDL70LLC201 CABLE MB-LCD(30P, 120MM, LG) 1 42 M-MS-0808-7306 EBL7V023017 HINGE CAP L7VC 2 43 M-SCW-0824-0816 MM40100BCI2 SCREW M4*10.0-B(NI,NYLOCK) 4 44 DC-00005132 HCL7VC03011 ID LABEL L7VC 1 45 M-LB-0813-0745 HCL7V002011 SERIAL LABEL 1 46 M-MS-0808-7399 JXL7V003017 LCD FILM L7VC 1
ViewSonic Corporation Confidential - Do Not Copy VA721-2
59
Page 63
Packing for shipping
Serial No. Prefix: PX2
PACKING PARTS LIST (VA721-2)
Serial No. Prefix: PX2
PACKING PARTS LIST (VA721-2 for "QDI Panel V.9")
Serial No. Prefix: PX2
PACKING PARTS LIST (VA721-2 for "QDI Panel V.11")
ViewSonic Model Number: VLCDS27998-5W Rev: 1a
Item ViewSonic P/N Ref. P/N Description Q'ty
1 #N/A 1L7VCZCVSE3 VA721-2 LCD MONITOR 1 2 P-FM-0602-0840 HBL7V005019 USER'S MANUAL & CD 1 3 P-FM-0602-0841 HBL7V006015 END CAP (R) 1 4 DC-00004815 HGL7VC06013 QSG VA721 1 5 A-PC-0106-0224 DM333181G97 POWER CORD 3P 1.8M 1 6 P-00004816 HFL7VC03013 CARTON VA721-2 1 7 M-LB-0813-0746 HCL7V003017 CARTON LABEL 1 8 #N/A HAL7V003015 PE BAG 1
ViewSonic Model Number: VLCDS27998-5W Rev: 1b
Item ViewSonic P/N Ref. P/N Description Q'ty
1 #N/A 1L7VCZXVS02 VA721-2 LCD MONITOR 1 2 P-FM-0602-0840 HBL7V005019 END CAP (L) 1 3 P-FM-0602-0841 HBL7V006015 END CAP (R) 1 4 DC-00005179 HGL7VC04011 QSG VA721 1 5 A-PC-0106-0224 DM333181G97 POWER CORD 3P 1.8M 1 6 P-00004816 HFL7VC03013 CARTON VA721-2 1 7 M-LB-0813-0746 HCL7V003017 CARTON LABEL 1 8 #N/A HAL7V003015 PE BAG 1
ViewSonic Model Number: VLCDS27998-5W Rev: 1b
Item ViewSonic P/N Ref. P/N Description Q'ty
1 #N/A 1L7VCZXVS11 VA721-2 LCD MONITOR 1 2 P-FM-0602-0840 HBL7V005019 END CAP (L) 1 3 P-FM-0602-0841 HBL7V006015 END CAP (R) 1 4 DC-00005179 HGL7VC04011 QSG VA721 1 5 A-PC-0106-0224 DM333181G97 POWER CORD 3P 1.8M 1 6 P-00004816 HFL7VC03013 CARTON VA721-2 1 7 M-LB-0813-0746 HCL7V003017 CARTON LABEL 1 8 #N/A HAL7V003015 PE BAG 1
ViewSonic Corporation Confidential - Do Not Copy VA721-2
60
Page 64

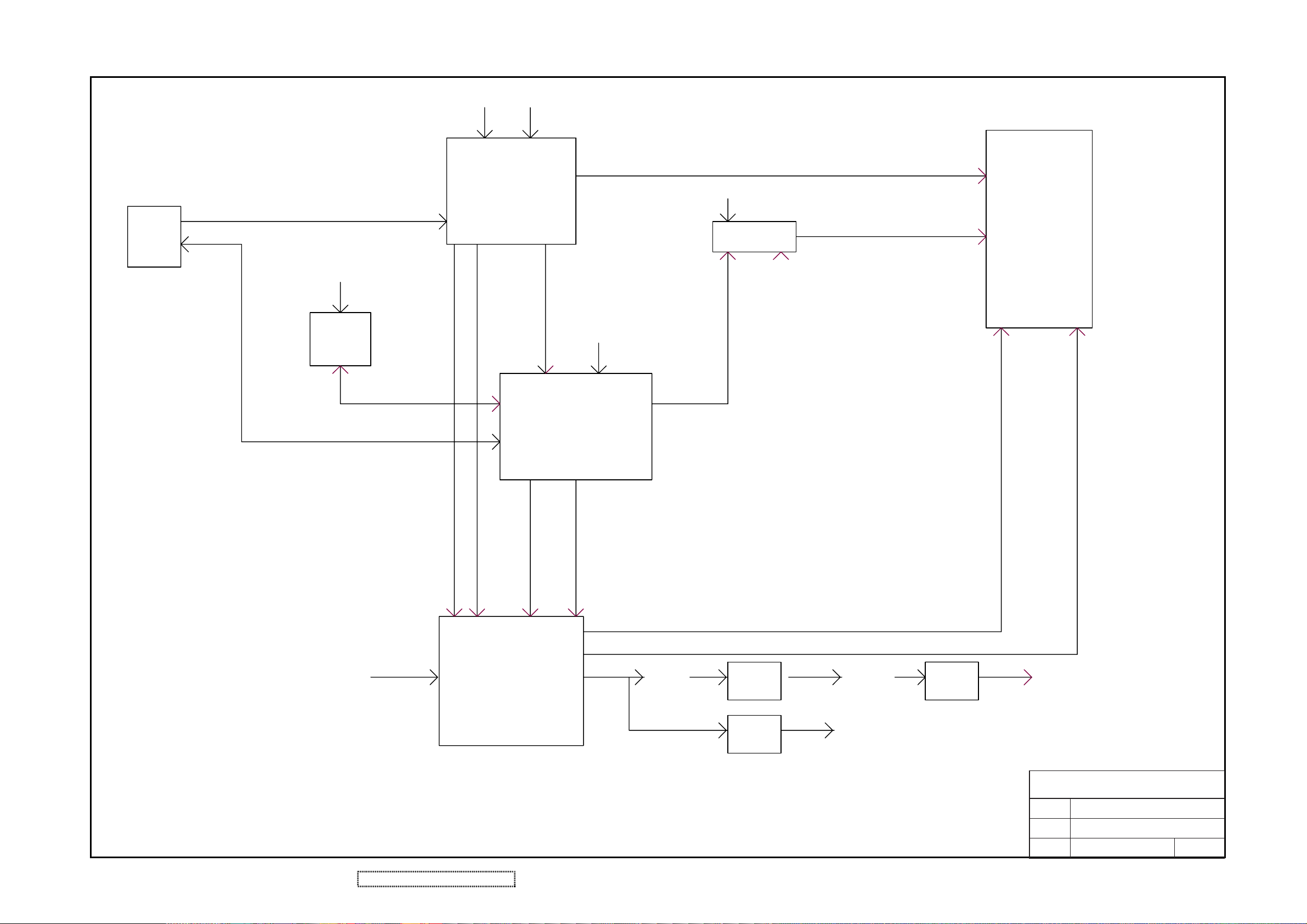

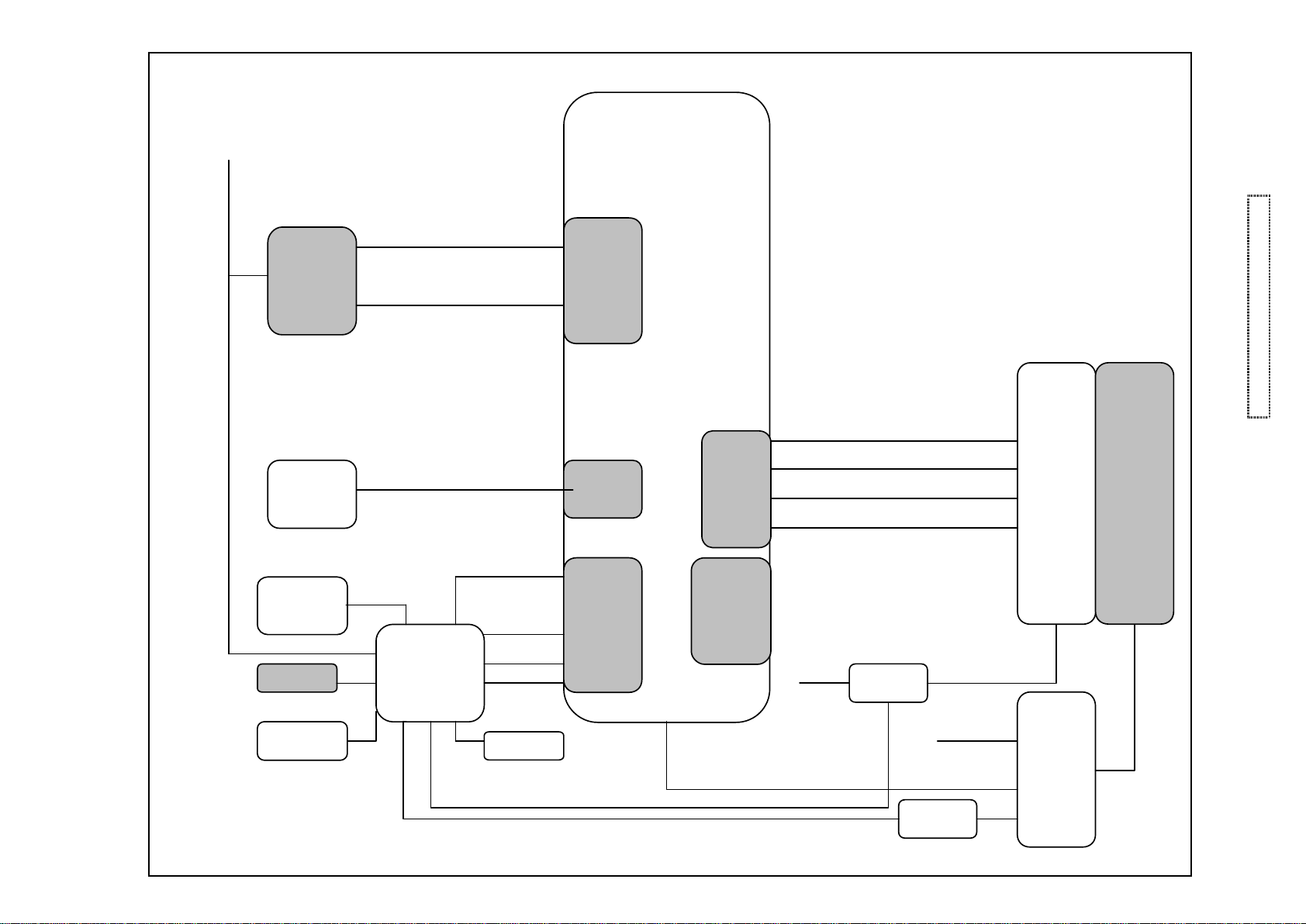

1. System block
DDC -SCL DDC -SDA
HSYNC / VSYNC
Analog
RGB
Crystal
14.318MHz
EEPROM
24C08
ISP
AR , AG, AB
SCL/SDA
CPU
MTV312V64
RST IRQ
CSZ
Triple ADC
Interface
MST8111A
Clock
Gen.
Host
Interface
Panel
Interface
Panel
Interface
Control
LVDS1+ / LVDS1-
LVDS2+ / LVDS2-
CLK+ / CLK-
5V
Switch
Si2301DS
17” Panel
61
Backlight
9. Block Diagram
Crystal
11.0592MHz
Keypad
Brightness
ON/OFF
12V
Power
Board
Backlight
Control
Inverter
ViewSonic Corporation Confidential - Do Not Copy VA721-2
Page 65
2. Power
12V
12V
5V
MC34063
62
2.5V
AIC1739
3.3V
MC34063
ViewSonic Corporation Confidential - Do Not Copy VA721-2
Page 66

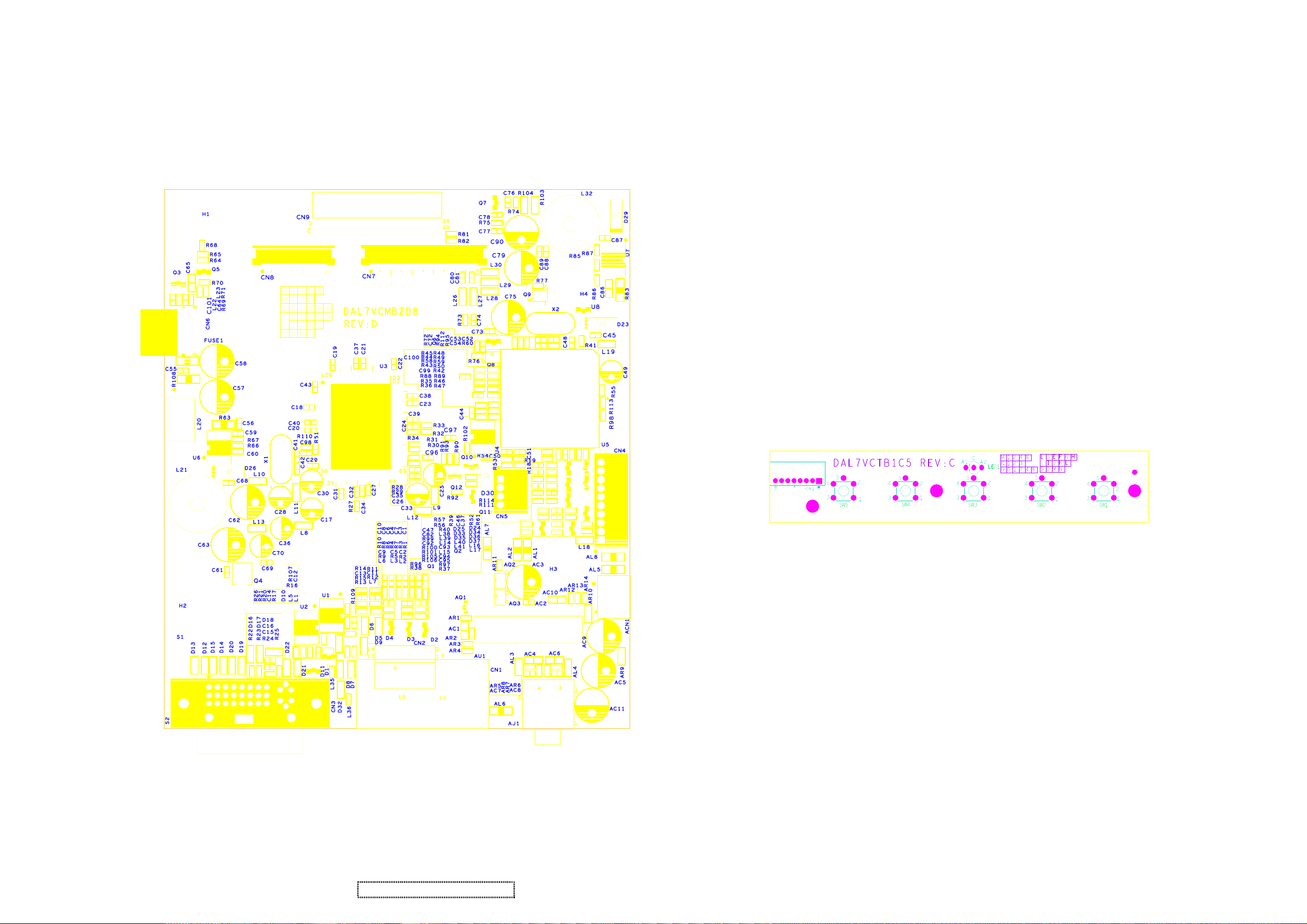

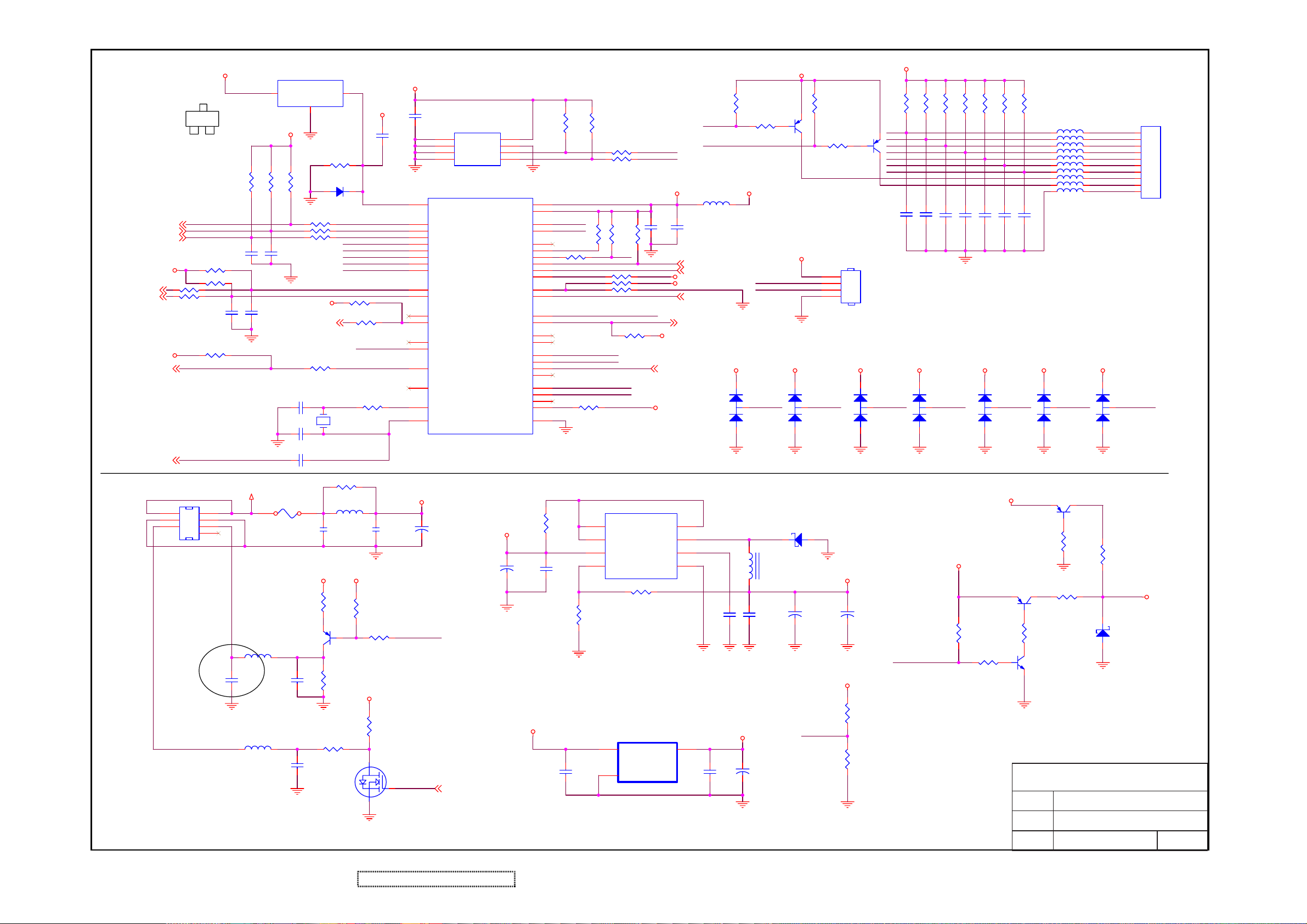

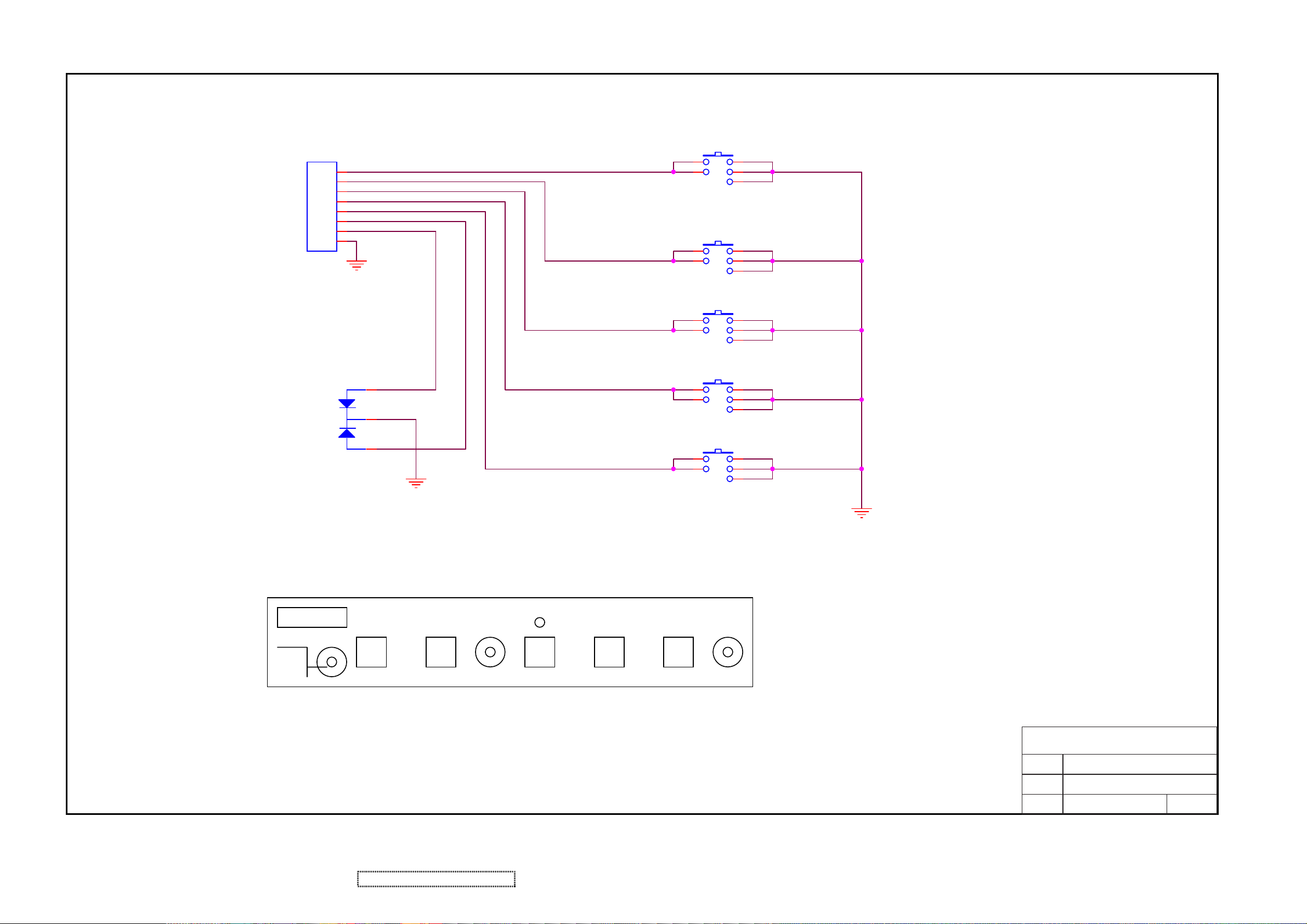

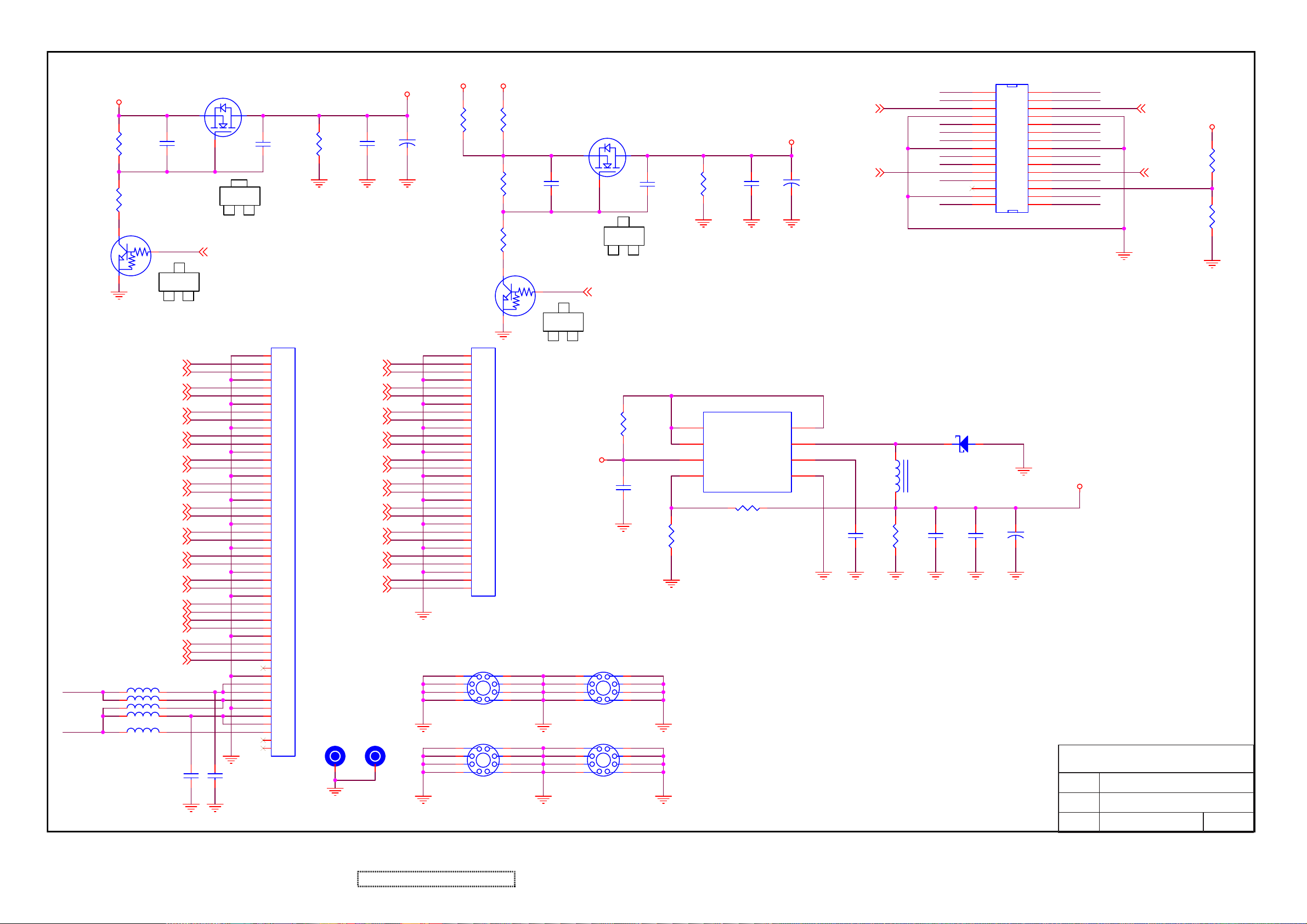

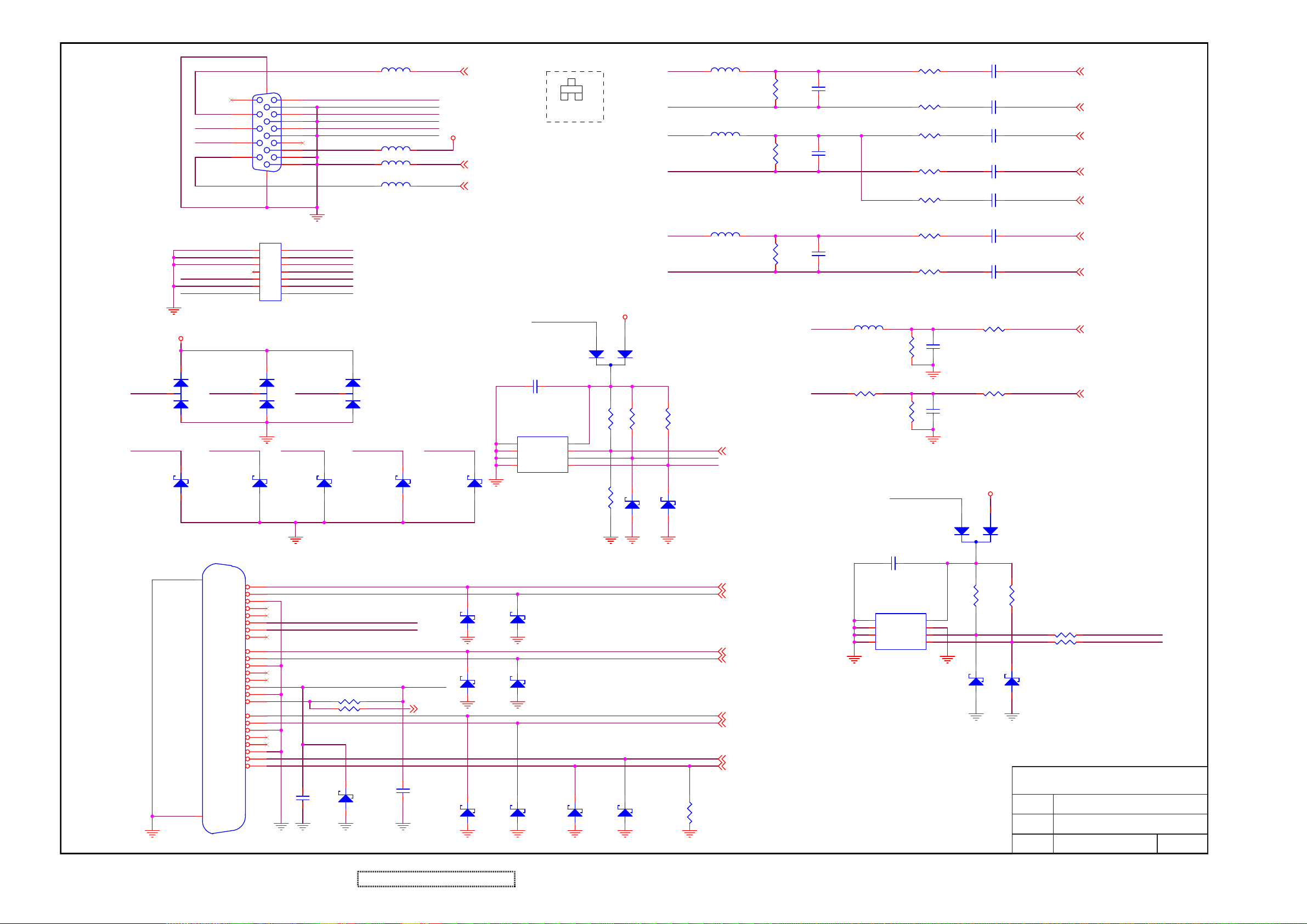

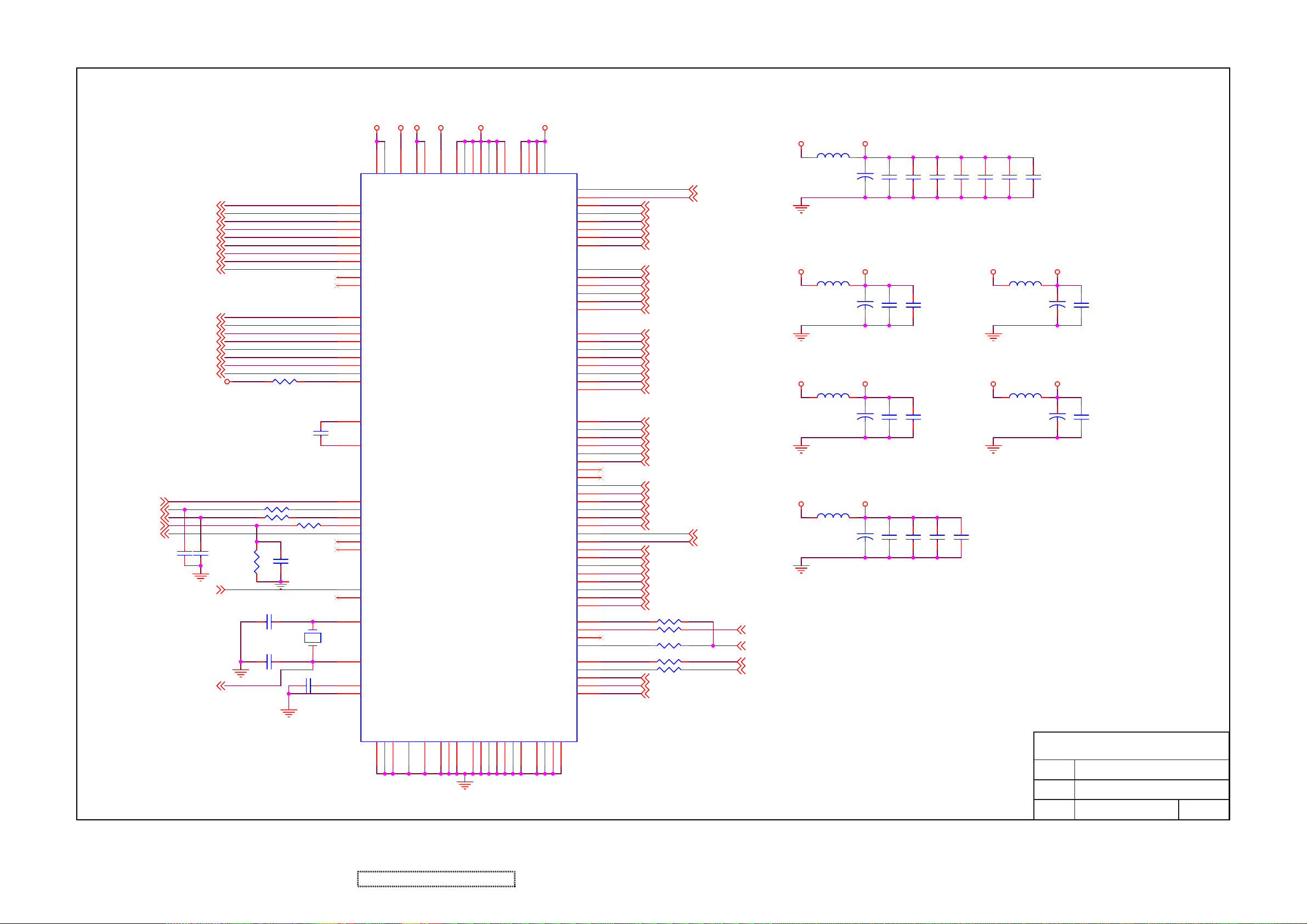

10. Schematic Diagrams
+3.3V+2.5V
LVDS
PC VGA
ANALOG RGB
+3.3V
EEPROM 24LC16
DDC
SCALAR MST8111A
+3.3V+3.3V
MICRO-CONTROLLER MTV312
+5.0V
POWER
LCDPWR_ON5.0V
QDI LCD PANEL(17 LVDS)
LCDVCC
BRIGHTNESS
AUDIO_VOLUME
AC 100-240Vac
ViewSonic Corporation Confidential -Do Not Copy VA721-2
63
POWER INVERTER AND AUDIO BOARD
INVCTRL
AUDIO_MUTE
+12V
34063
34063
+3.3V
+5.0V
AIC1739
+2.5V
ViewSonic Corporation
Model
Title
Date Rev:
Page 67
QBHF2!WHB JOQVU
DDC-SDA IN-H IN-V DDC-SCL
VGA/NC
CN1
VGA_SDA_O
1617
11 12 13 14 15
1 6 2 7 3 8 4 9 5 10
DSUB_5V_O VGA_CON_O
VGA_SCL_O
L1 100/6
RED+IN RED-IN GREEN+IN GREEN-IN BLUE+IN BLUE-IN
L35 0/6
L36 100/6/NC
L5 100/6
DSUB_5V
SDA-VGA 5
VGA_CON 5
SCL-VGA 5
SOT23
RED+IN
132
RED-IN
GREEN+IN
GREEN-IN
L2 FCM 1608C-300T06 (BULL WILL)
R2
75/6/F
L3 FCM 1608C-300T06 (BULL WILL) C4 0.047u/6
R5
75/6/F
C2
NC
C5
NC
R1 33/6
R3 68/6
R4 33/6
R6 68/6
R7 100/6
C1 0.047u/6
RED+ 4
C3 0.047u/6
RED- 4
GREEN+ 4
C6 0.047u/6
GREEN- 4
C7 0.01U/6
SOGIN 4
1 3 5 7
9 11 13
D3
3
CN2
2
+
+
4
+
+
6
+
+
8
+
+
10
+
+
12
+
+
14
+
+
VGA INPUT
12
RED+IN BLUE+IN
GND IN-V VGA_SDA_O DSUB_5V_O
D4
DAN217K/NC
3
12
DAN217K/NC
RED+IN
D2
3
GND
IN-H
VGA_CON_O
VGA_SCL_O
VDD3V3
12
RED-IN GREEN-IN GREEN+IN BLUE-IN
DAN217K/NC
GREEN+IN BLUE+IN
IN-H IN-V VGA_SDA_O VGA_SCL_O
D5
Z5.6/NC
2 1
2 1
D6
Z5.6/NC
D7
Z5.6/NC
2 1
D8
2 1
VGA_CON_O
Z5.6/NC
Z5.6/NC
D32
BLUE+IN
BLUE-IN
DSUB_5V
C12
0.1U/6/NC
U1
1
NC
2
NC
3
NC
4 5
VSS SDA
24LC21/NC
2 1
VCC
VCLK
SCK
8 7 6
VDD3V3
D1
BAT54C-GS08/NC
R107
R16
2K/6/NC
2K/6/NC
R109 0/6/NC
Z5.6/NC
2 1
D9
2 1
L6 FCM 1608C-300T06 (BULL WILL)
R9
75/6/F
R17 2K/6/NC
DDC_VS
SCL-VGA SDA-VGA
D10
Z5.6/NC
DDC_VS 5
C9
NC
L7 100/6
IN-H
R13 100/6
IN-V
R8 33/6
R10 68/6
R12 2K/6
DDC_VS
R15 2K/6
VCC-DDC
C11 33P/6
C13 33P/6
C8 0.047u/6
C10 0.047u/6
R11 100/6
R14 100/6
VDD3V3
D11 BAT54C-GS08/NC
HSYNC
VSYNC
BLUE+ 4
BLUE- 4
HSYNC 4
VSYNC 4
CN3
25
RX2-
RX2+
GND
RX4-
RX4+
SCL
SDA
VS
RX1-
RX1+
GND
RX3-
RX3+
5V
GND
HP
RX0-
RX0+
GND
RX5-
RX5+
GND
RXC+
RXC-
26
DVI-D/NC
C14
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
SCL-DDDC SDA-DDDC
R24 10K/6NC R25 10K/6NC
C16 1U/6NC
D18
Z5.6/NC
2 1
VCC-DDC
HP-MCU 5
C15
0.1U/6NC
2 1
2 1
2 1
D12
Z5.6/NC
D14
Z5.6/NC
D19
Z5.6/NC
2 1
2 1
2 1
D13
Z5.6/NC
D15
Z5.6/NC
D20
Z5.6/NC
2 1
D21
Z5.6/NC
D22
Z5.6/NC
2 1
TX2­TX2+
TX1­TX1+
TX0-
TX0+
TXC+ TXC-
R26
10K/6NC
TX2- 4 TX2+ 4
TX1- 4 TX1+ 4
TX0- 4 TX0+ 4
TXC+ 4 TXC- 4
0.1U/6/NC
U2
1
NC
2 3 4 5
VCC
NC
VCLK
NC
SCK
VSS SDA
M24C02/NC
R20
8 7 6
2K/6/NC
Z5.6/NS
2 1
D16
R21 2K/6/NC
R22 100/6/NC R23 100/6/NC
D17
Z5.6/NS
2 1
SCL-DDDC SDA-DDDC
ViewSonic Corporation
Model
Title
VGA AND DVI INPUT
Date Rev:
ViewSonic Corporation Confidential - Do Not Copy VA721-2
64
Page 68
VPLL VDPLL
VAD VDVI VDD
55
35
45351
U3
X1
63 62 60 59 61 58 57 37 38 29 28
40 41 43 44 46 47 49 50 52
66
67
69 71 70 32 72 30 31
73 74
33
34
RED+3 RED-3
GREEN+3 GREEN-3 SOGIN3
BLUE+3 BLUE-3
HSYNC3 VSYNC3
TX2+3 TX2-3 TX1+3 TX1-3 TX0+3 TX0-3 TXC+3 TXC-3
VDVI
CSZ5
SCL5 SDA5
RESET5
INT5
0.1u/6/NC
12
12
C96
C97
0.1u/6/NC
BRIGHTNESS5
XTAL5
R27 390/1%
R28 100/6 R29 100/6
R51 22/6
R110
10K/NC
C41
22P/6
C42
22P/6
C35
0.1U/6
12
C98
0.1u/6/NC
12
14.318MHz
12
C43 0.1U/6
65
AVDD
AVDD
RIN0 RIN0M GIN0 GIN0M SOGIN0 BIN0 BIN0M HSYNC0 VSYNC0 DDC1_CLK/GPO8 DDC1_DAT/GPO7
R+ R­G+ G­B+ B­CK+ CK­REXT
REFP
REFM
CSZ SCL SDA HWRESETZ INT DDCROM_CLK/GPO6 DDCROM_DAT/GPO5
PWM0 PWM1
XIN
XOUT
BYPASS AVSS_LPLL
AVDD_DVI
AVDD_DVI
AVDD_MPLL
VPO
11218494104
53
VDDP
VDDP
VDDP
VDDP
VDDP
AVDD_PLL
MST8111A
Dual Input
114
126188797117
VDDP
VDDP
VDDC
VDDC
VDDC
RA0P
VDDC
RA0N RA1P RA1N RA2P RA2N RA3P RA3N
GA1P GA1N GA2P GA2N GA3P GA3N
BA1P BA1N BA2P BA2N BA3P
BA3N CLKAP CLKAN
RB1P
RB1N
RB2P
RB2N
RB3P
RB3N
GB0P GB0N GB1P GB1N GB2P GB2N GB3P GB3N
BB0P
BB0N
BB1P
BB1N
BB2P
BB2N
BB3P
BB3N CLKBP CLKBN
ESP
OSP
EINV
OINV
GPO0 GPO1 GPO2 GPO3 GPO4
106 107 108 109 110 111 112 113
98 99 100 101 102 103
88 89 90 91 92 93 118 119
16 17 22 23 24 25 6 7 8 9 12 13 14 15 122 123 124 125 128 1 4 5 120 121
75 76 77 78
83 82 81 80 79
PA2 PA3 PA4 PA5 PA6 PA7
PA10 PA11 PA12 PA13 PA14 PA15
PA18 PA19 PA20 PA21 PA22 PA23 PA24 PA25
PB2 PB3 PB4 PB5 PB6 PB7
PB10 PB11 PB12 PB13 PB14 PB15
PB18 PB19 PB20 PB21 PB22 PB23 PB24 PB25
ESP OSP
OINV GPO0
GPO1 GPO2 GPO3 GPO4
FB2P 6 FB2N 6 FB1P 6 FB1N 6 FB0P 6 FB0N 6
FG2P 6 FG2N 6 FG1P 6 FG1N 6 FG0P 6 FG0N 6
FR2P 6 FR2N 6 FR1P 6 FR1N 6 FR0P 6 FR0N 6 FCLKP 6 FCLKN 6
BB0N 6 BB0P 6 BB1N 6 BB1P 6 BB2N 6 BB2P 6
BG0N 6 BG0P 6 BG1N 6 BG1P 6 BG2N 6 BG2P 6
BR0N 6 BR0P 6 BR1N 6 BR1P 6 BR2N 6 BR2P 6 BCLKN 6 BCLKP 6
R30 22/6/NC R31 22/6/NC
R32 NC R33 22/6/NC
R34 22/6/NC
YDIO 6 YCLK 6 YOE 6
LVACKP 6
LVACKM 6
LVB2P 6
LVB2M 6
FXDIO 6 BXDIO 6 POL 6
XSTB 6
VDD3V3 VPO
L8
CX601T02001/8
VDD3V3
CX601T02001/8
VDD3V3
CX601T02001/8
VDD2V5
L9
L11
L13 0/8
VAD
VDVI
VDD
C17 22U
C25 22U
C30 22U
C36 22U
C18
0.1U/6
C26
0.1U/6
C31
0.1U/6
C37
0.1U/6
C19
0.1U/6
C27
0.1U/6
C32
0.1U/6
C38
0.1U/6
C20
0.1U/6
C39
0.1U/6
C21
0.1U/6
C40
0.1U/6
C22
C23
0.1U/6
0.1U/6
VDD3V3
CX601T02001/8
VDD3V3
CX601T02001/8
L10
L12
C24
0.1U/6
VPLL
VDPLL
C28 22U
C33 22U
C29
0.1U/6
C34
0.1U/6
AVSS_PLL
AVSS_DVI
GNDP
GNDP
GNDP
GNDP
GNDP
GNDP
GNDC
GNDC
96
GNDC
116
GNDC
AVSS
68
AVSS
56
AVSS
64
AVSS_MPLL
36254
AVSS_DVI
39
42
AVSS_DVI
10208595115
48
GNDP
105
1271986
ViewSonic Corporation Confidential - Do Not Copy VA721-2
65
ViewSonic Corporation
Model
Title
Date Rev:
VGA AND DVI INPUT
Page 69
VDD3V3
12
12
R39
R40
R99
33K/6
33K/6
33K/6
PWR
Q2
MENU SEL UP DOWN RIGHT LEFT
C460.1U/6
C470.1U/6
12
12
D24
PWR_O MENU_O
3
DAN217K
12
DAN217K
D25
3
12
R100
33K/6
C820.1U/6
12
R101
33K/6
C920.1U/6
12
33K/6/NC
C930.1U/6
R105
C940.1U/6/NC
12
12
R106
33K/1K/6/NC
L37 1K/6 L38 1K/6 L39 1K/6 L14 1K/6 L15 1K/6 L40 1K6/NC L41 1K/6/NC L16 330/6 L17 330/6 L18 0/8
C950.1U/6/NC
1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2
TO BUTTON BOARD
VDD3V3 VDD3V3 VDD3V3
D33
12
SEL_O UP_O DOWN_O
3
DAN217K
12
DAN217K
D34
3
12
DAN217K
PWR_O MENU_O SEL_O UP_O DOWN_O RIGHT_O LEFT_O
D35
3
CN4
10 9 8 7 6 5 4 3 2 1
4501-10-10P-R
D
Q1
MMST3906
SCL-VGA SDA-VGA
VDD3V3
R38 10K/6
MMST3906
1 2
R97 4.7K/6
modify debug port
VDD3V3
CN5
4
4
3
3
2
2
1
1
JWT-A2001WV2-06/NC
2.0mm pitch 90° E&T
D37
12
3
DAN217K/NC
VDD3V3 VDD3V3
12
VDD3V3
MCP810M3X-2.93
G
3
12
VR
CSZ4 SDA4 SCL4
0.1u/6/NC
VCPU
SCL-VGA3
SDA-VGA3
VCPU
INT4
XTAL4
R53 2K/6 R54 2K/6
R18 100/6
R19 100/6
22P/6
R58 NC
C50
NC
R43
NC
12
C99
12
12
C51
U8
1 2
VCC RESET
GND
3
VCPU
R41 82K/6
R45
R44
NC
10K/6
12
22P/6
C100
0.1u/6/NC
22P/6
22P/6
C54 0.1U/6/NC
1N4148/NC
R48 22/6 R49 22/6 R50 22/6
VCPU
DDC_VS3
R59 22/6
C52
12
C53
12
12
D23
R113 2K/6
R98 100/6
X2
11.0592MHz
VDD3V3
MH0001 MH0002 MH0003 PWR MENU SEL SCL_1 SDA_1
INVCTRL
SS0003
R60
100/6
12
VCPU
12
C44
U4
0.1U/6
C45
0.1U/6
1
A0
2
A1
3
A2
4 5
VSS SI
24LC08B
PARAMETER EEPROM
U5
7
RST
17
P1.0
18
P1.1
20
P1.2
21
P1.3
22
P1.4
23
P1.5
14
P3.5/T1/ISCL
13
P3.4/T0/ISDA
29
P3.0/RXD/HSCL
28
P3.1/TXD/HSDA
43
HSYNC
44
VSYNC
37
P4.1/HBLANK
36
P4.0/VBLANKK
19
P3.2/INT0
15
P4.2/STOUT
11
X2
12 10
X1 VSS
MTV312
8
VCC
7
WP
6
SCK
HCLAMP/DA7
HLFHO/DA9
P5.2/DA2 P5.6/DA6 P5.0/DA0 P5.1/DA1
P6.7/DA13 P6.6/DA12
P6.0/AD0 P6.1/AD1
P6.3/AD3
P6.2/AD2 P6.4/DA10 P6.5/DA11
P5.3/DA3
P5.4/DA4
P5.5/DA5
HALFV/DA8
VDD
VDD3
P1.6 P1.7
NC NC
SCL_O SDA_O
8 4
24 25
35 38
R89 100/6
1 34 3 2
33 32
27 26
5 6
9 16 30 31
42 41 40 39
R36
R35
2K/6
2K/6
UP
DOWN
R52
10K/6
1 2
R57 0/6/NC
RIGHT LEFT
LED_R LED_G
R61 10K/6
R46 100/6
R47 100/6
R88
PC5V_OFF
R55 10K/6/NC R56 10K/6/NC
PWR_SEL
R42 NC
10K/6
R95
NC
12
SCL_1 SDA_1
C48
0.1U/6
VCPU
12
C49
22U
VGA_CON 3
VDD3V3 VDD3V3
RESET 4
VCPU
HP-MCU 3
VCPU
LED_G
LED_R
L19
1 2
0/8/NC
VDDCTRL_2 6
VDDCTRL_1 6
R37 10K/6
1 2
R96 4.7K/6
VDD3V3
DEBUG PORT
VDD3V3 VDD3V3
D36
12
RIGHT_O LEFT_O
3
DAN217K/NC
CN6 CONN 4x2-R
1 2
4
3 5 6
8
C101
1U/6
10K/6
0/6
12V
FUSE1 0/1206
1 2
MMST3906
L22
12
C64
0.1U/6
L23
12
R108 0/1206
BC0610R6H-B246-2_5/NC
C55
0.1u/6
VDD3V3
R64
0/6
Q3
10K/6/NC
R71 10K/6 C65 1U/8
L20
VDD3V3
R65
10K/6
R69
GND
VDD3V3
3
1
R70 1K/6
C56
0.1u/6
R681K/6
2
INVCTRL
Q5
SN7002E
VCC12
C57 330u/16V/NC
BRIGHTNESS 4
330U/16V
C58
VCC12
GND
PW0003
VDD3V3
R63
0.3/1206
12
C68
0.1U/6
C59
0.1U/6
GND
U6
8
DRIVE
7
SENSE
6
VCC
MC34063 R66 3.6K/F/6
PW0005
R67
2.2K/F/6
Q4
3 1
VIN VOUT
2
GND
AIC1739
PW0004
SWITCH
EMITTER
TIMING
GNDCII
1 2 3 45
GND
C69
0.1U/6
PW0006
PW0007
C60 470P/6
12
GND GND
VDD2V5
C70
22U
D26 EC10QS04
L21 47UH
CPU
1 2
12
C61
0.1U/6
GND
21
C62 330U/16V
PWR_SEL
GND
R94
6.8K/6
R112
2K/6
VDD3V3
C63 330U/16V/NC
GND
VCC12
12
12
PC5V_OFF
R91
4.7K/6
DSUB_5V
12
R93
1 2
1K/6
10K/6
Q12 2N3904
Q10 MMST3906
12
R90
R111 47/6
1 2
3.3/6
12
R114
D30
3.3V
2 1
VDD3V3
Q11 MMST3906
12
R92
2K/6
31
2
ViewSonic Corporation
Model
Title
MCU & BUTTOM
VCPU
ViewSonic Corporation Confidential - Do Not Copy VA721-2
66
Date Rev:
Page 70
LCDVDD
LCDVCC
VDD3V3
12
R72
82K/6/NC
R76
31
FB0N4 FB0P4
FB1N4 FB1P4
FB2N4 FB2P4
FG0N4 FG0P4
FG1N4 FG1P4
FG2N4 FG2P4
FCLKN4 FCLKP4
FR0N4 FR0P4
FR1N4 FR1P4
FR2N4 FR2P4
FXDIO4 XSTB4 POL4 BXDIO4
YCLK4 YDIO4 YOE4
L26 0/8/NC L27 0/8/NC L28 0/8/NC L29 0/8/NC
L30 0/8/NC
Q8
10K/6/NC
DTC144EUA/NC
2
C
2
B
C80
0.1U/6/NC
C72
3
1
2200P/6/NC
1
E
12
Q6 SI2301DS
2
D
3
2
1
G
VDDCTRL_1 5
12
C81
0.1U/6/NC
3
1 2
C73
2200P/6/NC
S
CN7
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
AF750B-A2G1T/NC
R73 10K/6/NC
1
1
LCDVDD
VCC12
LCDVDD
12
C74
0.1U/6/NC
BB2P4 BB2N4
BB1P4 BB1N4
BB0P4 BB0N4
BG2P4 BG2N4
BG1P4 BG1N4
BG0P4 BG0N4
BCLKP4 BCLKN4
BR2P4 BR2N4
BR1P4 BR1N4
BR0P4 BR0N4
1
1
C75
330U/16V/NC
AF730B-A2G1T/NC
2 3 4 5 6
2 3 4 5 6
LCDVCC5
R103
0/8/NC
31
CN8
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
H3
1
MTH276D126
H1
1
MTH276D126
R104
R74
82K/6
R77
82K/6
9 8 7
9 8 7
0/8
12
C76 2200P/6
Q9
DTC144EUA
2
C
3
2
B
VCC12
Q7 SI2301DS
1
2
D
2
G
VDDCTRL_2 5
1
E
GND
H4
2 3
1
4 5 6
MTH276D126
H2
2 3
1
4 5 6
MTH276D126
3
12
3
1
S
R83 0/1206
C86
1U/8
9 8 7
9 8 7
1 2
C77
2200P/6
GND
R75 10K/6
U7
8
DRIVE
7
SENSE
6
VCC
MC34063/NC R85 3.6K/F/6
R86
1.2K/F/6
LCDVCC
12
C78
0.1U/6
SWITCH
EMITTER
TIMING
GNDCII
LCDVCC
C79 330U/16V
1 2 3 45
LVB2M4
LVACKM4
12
C87
470P/6
BR1P BR0P LVB2M GND BCLKP FCLKN FB0N GND FB1N FB2N LVACKM FG0N
GND LCDVCC
D29 EC10QS04
L32 47UH
1 2
12
R87
33K/6
C88
0.01U/6
CN9
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
21
21
23
23
25
25
27
27
29
29
1841 30P
21
LCD
12
C89
0.1U/6
GNDGND GNDGND GND GND
2 4 6
8 10 12 14 16 18 20 22 24 26 28 30
C90 330U/16V
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
BR1N BR0N LVB2P GND BCLKN FCLKP FB0P GND FB1P FB2P LVACKP FG0P
POL LCDVCC LCDVCC
LCDVCC5GND
GND
LVB2P 4
3.6K/F/6/NC
LVACKP 4
1.2K/F/6/NC
LCDVCC
R81
R82
GND
ViewSonic Corporation
Model
PANEL INTERFACE
ViewSonic Corporation Confidential - Do Not Copy VA721-2
67
Title
Date Rev:
Page 71
CN1
4500-10-8P-R
SW5
1
8 7 6 5 4 3 2 1
3
HDK632A
1 3
HDK632A
1 3
HDK632A
2 4 5
SW4
2 4 5
SW3
2 4 5
LED1
EL-209-2EGW
CN1
A2
C
A1
green
orange
LED1
SW1SW2SW3SW4SW5
1 3
HDK632A
1 3
HDK632A
SW2
2 4 5
SW1
2 4 5
ViewSonic Corporation Confidential - Do Not Copy VA721-2
68
ViewSonic Corporation
Model
Title
Date Rev:
BUTTOM
Page 72
11. PCB Layout Diagrams
Main board
Control board
ViewSonic Corporation Confidential - Do Not Copy VA721-2
69
Page 73
* Reader’s Response*
Dear Readers:
Thank you in advance for your feedback on our Service Manual, which allows continuous improvement of our products. We would appreciate your completion of the Assessment Matrix below, for return to ViewSonic Corporation.
Assessment
A. What do you think about the content of this Service Manual?
Unit Excellent
1. Precautions and Safety Notices
2. Specification
3. Front Panel Function Control Description
4. Circuit Description
5. Adjustment Procedure
6. Troubleshooting Flow Chart
7. Recommended Spare Parts List
8. Exploded Diagram and Exploded Parts List
9. Block Diagrams
10. Schematic Diagrams
11.PCB Layout Diagrams
B. Are you satisfied with this Service Manual?
Good Fair Bad
Item Excellent Good Fair Bad
1. Service Manual Content
2. Service Manual Layout
3. The form and listing
C. Do you have any other opinions or suggestions regarding this service manual?
Reader’s basic dada:
Name:
Title:
Company: Add: Tel:
Fax:
E-mail:
After completing this form, please return it to ViewSonic Quality Assurance in the USA at facsimile 1-909-839-7943. You may also e-mail any suggestions to the Director, Quality Systems & Processes (marc.maupin@viewsonic.com)
ViewSonic Corporation Confidential - Do Not Copy VA721-2
70
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
