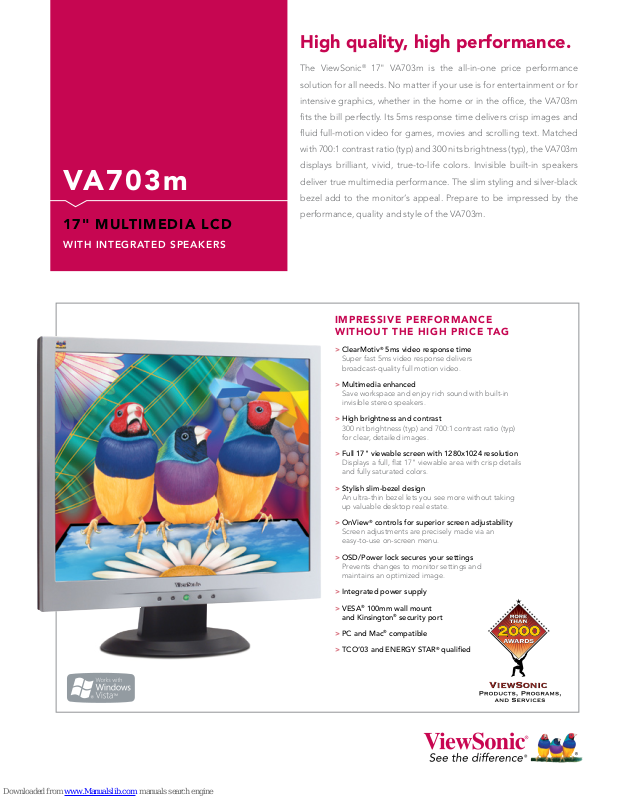

VA703m

17" MULTIMEDIA LCD

WIT H INT EGRATED SP EAKE R S

High quality, high performance.

The ViewSonic® 17" VA703m is the all-in-one price performance

solution for all needs. No matter if your use is for entertainment or for

intensive graphics, whether in the home or in the office, the VA703m

fits the bill perfectly. Its 5ms response time delivers crisp images and

fluid full-motion video for games, movies and scrolling text. Matched

with 700:1 contrast ratio (typ) and 300 nits brightness (typ), the VA703m

displays brilliant, vivid, true-to-life colors. Invisible built-in speakers

deliver true multimedia performance. The slim styling and silver-black

bezel add to the monitor’s appeal. Prepare to be impressed by the

performance, quality and style of the VA703m.

IMP RESSI VE PERFOR MANCE
WIT HOUT THE HIGH PRICE TAG

ClearMotiv® 5ms video response time

>

Super fast 5ms video response delivers
broadcast-quality full motion video.

Multimedia enhanced

>

Save workspace and enjoy rich sound with built-in
invisible stereo speakers.

High brightness and contrast

>

300 nit brightness (typ) and 700:1 contrast ratio (typ)
for clear, detailed images.

Full 17" viewable screen with 1280x1024 resolution

>

Displays a full, flat 17" viewable area with crisp details
and fully saturated colors.

Stylish slim-bezel design

>

An ultra-thin bezel lets you see more without taking
up valuable desktop real estate.

OnView® controls for superior screen adjustability

>

Screen adjustments are precisely made via an
easy-to-use on-screen menu.

OSD/Power lock secures your settings

>

Prevents changes to monitor settings and
maintains an optimized image.

Integrated power supply

>

VESA® 100mm wall mount

>

and Kinsington® security port

PC and Mac® compatible

>

TCO’03 and ENERGY STAR® qualified

>

VA703m

17 " M U LTI M EDI A L CD W ITH IN TEG R ATE D SP EAK ERS

LCD Type 17" Color TFT Active Matrix XGA LCD

Display Area 13.3" horizontal x 10.6" vertical; 17.0" diagonal
Pixel Pitch 0.264mm
Optimum Resolution 1280x1024
Contrast Ratio 700:1 (typ)
Viewing Angles 170º horizontal, 160º vertical
Response Time 5ms (typ)
Color Support 16.7M colors supported
Light Source Long life, 50,000 hrs. (typ)
Brightness 300 cd/m
Panel Surface Anti-glare (3H)

VIDEO INPUT Analog RGB analog (75 ohms, 0.7 Vp-p)

Frequency Fh: 30~82kHz, Fv: 50~75Hz
Sync H/V separated (TTL)

COMPATIBILITY PC VGA up to 1280x1024 non-interlaced

Mac®* Power Mac™ up to 1280x1024 non-interlaced

CONNECTOR Analog 15-pin mini D-sub (VGA)

Audio 3.5mm stereo audio line-in
Power 3-pin AC plug (CEE22)

POWER Voltage AC 100–240V, 50/60Hz (auto switch), internal power supply

Consumption 36W (max), <1-watt in power save mode

AUDIO Speakers 2x1-watt
CONTROLS Basic Power, menu [1], up, down, select [2]

OSD Auto image, adjust, contrast, brightness, audio adjust
(volume, mute), ViewMatch® color adjust (sRGB, 9300K,
6500K, 5400K, user RGB), information (resolution, H/V
frequency, pixel clock, model number, serial number, website),
manual image adjust (H/V position, H size, fine tune,
sharpness), setup menu (language, resolution notice, OSD
position, OSD timeout, OSD background), OSD/power lock,
memory recall

ERGONOMICS Tilt Down 5º, Up 20º
OPERATING Temperature 32–104ºF (0–40ºC)
CONDITIONS Humidity 10–90% (non-condensing)
DIMENSIONS Physical (W x H x D) 14.9" x 15.7" x 8.3" (379mm x 400mm x 210mm)
WEIGHT Net 7.9 lb. (3.6 kg)

Gross 10.6 lb. (4.8 kg)

VESA® MOUNT 100mm x 100mm
REGULATIONS TCO’03, CE, CB, GS ERGO, ISO13406-2 (pixel failure class II),

UL/cUL, FCC-B, NOM, GOST-R, ENERGY STAR®, BSMI, CC,
PSB, C-TICK, Green Mark, WEEE, RoHS

RECYCLE/DISPOSAL The lamp in this product contains mercury. Please

dispose of in accordance with local, state or federal laws.

POWER MANAGEMENT Meets TCO’03 and ENERGY STAR® standards
PACKAGE CONTENTS LCD display, power cable, audio cable, Quick Start Guide,

ViewSonic Wizard CD (User Guide and drivers)

WARRANTY Three-year limited warranty on parts, labor and backlight.

2

(typ)

ViewSonic Corporation’s QMS & EMS have been
registered to ISO 9001 & ISO 14001, respectively,

by the British Standards Institution.

Sales: [phone] • [e-mail] • ViewSonic.com

*Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and
programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the
property of their respective companies. Copyright © 2009 ViewSonic Corporation. All rights reserved. [14379-00B-04/09] VA703m-3
