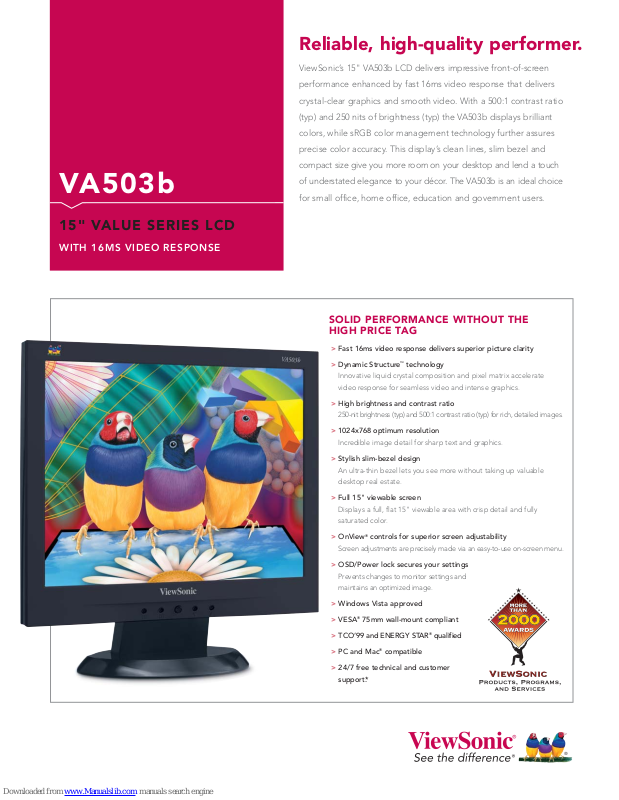

VA503b

15" VALUE SERIES LCD

WITH 16MS VIDEO RESPONSE

Reliable, high-quality performer.

ViewSonic’s 15" VA503b LCD delivers impressive front-of-screen

performance enhanced by fast 16ms video response that delivers

crystal-clear graphics and smooth video. With a 500:1 contrast ratio

(typ) and 250 nits of brightness (typ) the VA503b displays brilliant

colors, while sRGB color management technology further assures

precise color accuracy. This display’s clean lines, slim bezel and

compact size give you more room on your desktop and lend a touch

of understated elegance to your décor. The VA503b is an ideal choice

for small office, home office, education and government users.

SOLID PERFORMANCE WITHOUT THE
HIGH PRICE TAG

> Fast 16ms video response delivers superior picture clarity

> Dynamic Structure

Innovative liquid crystal composition and pixel matrix accelerate

video response for seamless video and intense graphics.

> High brightness and contrast ratio

250-nit brightness (typ) and 500:1 contrast ratio (typ) for rich, detailed images.

> 1024x768 optimum resolution

Incredible image detail for sharp text and graphics.

> Stylish slim-bezel design

An ultra-thin bezel lets you see more without taking up valuable

desktop real estate.

> Full 15" viewable screen

Displays a full, flat 15" viewable area with crisp detail and fully

saturated color.

> OnView®controls for superior screen adjustability

Screen adjustments are precisely made via an easy-to-use on-screen menu

> OSD/Power lock secures your settings

Prevents changes to monitor settings and

maintains an optimized image.

> Windows Vista approved

®

> VESA

> TCO’99 and ENERGY STAR

> PC and Mac

> 24/7 free technical and customer

75mm wall-mount compliant

support.*

™

®

compatible

technology

®

qualified

.

VA503b

15" VALUE SERIES LCD WITH 16MS VIDEO RESPONSE

LCD Type 15" color TFT active matrix XGA LCD

Display Area 11.9" horizontal x 8.9" vertical; 15.0" diagonal

Optimum Resolution 1024x768

Contrast Ratio 500:1 (typ)

Viewing Angles 160° horizontal, 115° vertical @ contrast ratio > 5:1

Response Time 16ms (typ)

Light Source Long life, 50,000 hrs. (typ)

Brightness 250 cd/m2 (typ)

Panel Surface Anti-glare

VIDEO INPUT Analog RGB analog (75 ohms, 0.7 Vp-p)

Frequency Fh: 30~82kHz, Fv: 50~85Hz

Sync H/V separated (TTL)

COMPATIBILITY PC VGA up to 1024x768 non-interlaced

Mac®** Power Mac™ G3/G4/G5 up to 1024x768

CONNECTOR Analog 15-pin mini D-sub

Power 3-pin AC plug

POWER Voltage AC 100–240V (universal), 50/60Hz (auto switch)

Consumption 23W (typ)

CONTROLS Basic Power, 1, down, up, 2

OPERATING Temperature 32–104°F (0–40°C)

CONDITIONS Humidity 20–90% (non-condensing)

DIMENSIONS Physical (mm) 344mm x 347.5mm x 147mm

(W x H x D) Physical (in.) 13.2" x 13.7" x 5.8"

WEIGHT Net 6.0 lb. (2.7 kg)

REGULATIONS UL, cUL, FCC-B, CB, CE, ENERGY STAR®, NOM, GS, ERGO,

RECYCLE/DISPOSAL The lamp in this product contains mercury. Please dispose of

POWER MANAGEMENT Meets TCO’99 and ENERGY STAR®standards

PACKAGE CONTENTS LCD display, video cable, power cable, Quick Start Guide,

WARRANTY Three-year limited warranty on parts, labor and backlight.

®

OnView

Gross 8.2 lb. (3.7 kg)

Auto image adjust, brightness, contrast, input selection,

ViewMatch®color adjust (sRGB, 9300K, 6800K, 6500K),

information (mode, model number, serial number), manual

image adjust (H. position, V. position, fine tune, sharpness),

setup menu (language, resolution notice, OSD position,

OSD timeout, OSD background), memory recall

TUV-S, TCO’99, GOST-R, SASO, BSMI, CCC, PSB, C-TICK,

RoHS

in accordance with local, state or federal laws.

ViewSonic Wizard

ViewSonic Corporation’s QMS & EMS have been registered to

ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
