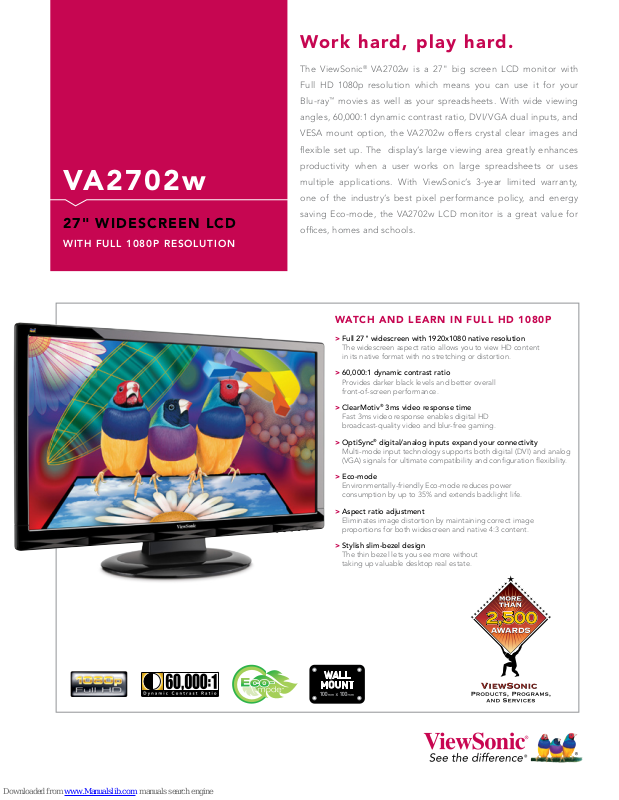

ViewSonic VA2702W, VA2702WWM Specifications

VA2702w

27" WIDESCREEN LCD

WITH FULL 1080P R E S O L U T ION

Work hard, play hard.

The ViewSonic® VA2702w is a 27" big screen LCD monitor with

Full HD 1080p resolution which means you can use it for your

Blu-ray™ movies as well as your spreadsheets. With wide viewing

angles, 60,000:1 dynamic contrast ratio, DVI/VGA dual inputs, and

VESA mount option, the VA2702w offers crystal clear images and

flexible set up. The display’s large viewing area greatly enhances

productivity when a user works on large spreadsheets or uses

multiple applications. With ViewSonic’s 3-year limited warranty,

one of the industry’s best pixel performance policy, and energy

saving Eco-mode, the VA2702w LCD monitor is a great value for

offices, homes and schools.

WATCH AND L E A R N IN FULL HD 1080P

Full 27" widescreen with 1920x1080 native resolution

>

The widescreen aspect ratio allows you to view HD content
in its native format with no stretching or distortion.

60,000:1 dynamic contrast ratio

>

Provides darker black levels and better overall
front-of-screen performance.

ClearMotiv® 3ms video response time

>

Fast 3ms video response enables digital HD
broadcast-quality video and blur-free gaming.

OptiSync® digital/analog inputs expand your connectivity

>

Multi-mode input technology supports both digital (DVI) and analog
(VGA) signals for ultimate compatibility and configuration flexibility.

Eco-mode

>

Environmentally-friendly Eco-mode reduces power
consumption by up to 35% and extends backlight life.

Aspect ratio adjustment

>

Eliminates image distortion by maintaining correct image
proportions for both widescreen and native 4:3 content.

Stylish slim-bezel design

>

The thin bezel lets you see more without
taking up valuable desktop real estate.

VA2702w

2 7 " W I D E S C R E E N L C D W I T H F U L L 1 0 8 0 P R E S O L U T I O N

LCD Type 27" Wide Color a-Si TFT Active Matrix LCD

Display Area 23.5" horizontal x 13.2" vertical; 27" diagonal
Pixel Pitch 0.3114mm horizontal x 0.3114mm vertical
Optimum Resolution 1920x1080
Contrast Ratio 1200:1 static (typ); 60,000:1 dynamic
Viewing Angles 170º horizontal, 160º vertical (CR
Response Time 3ms (typ)
Color Support 16.7 million colors (6-bits + Hi FRC panel)
Light Source Long life, 50,000 hrs. (typ)
Brightness 300 cd/m2 (typ)
Panel Surface Anti-glare, hard coating (3H)

VIDEO INPUT Analog RGB analog (75 ohms, 0.7/1.0 Vp-p)

Digital DVI-D (TMDS, 100 ohms)
Frequency Fh: 15~82kHz, Fv: 50~75Hz

COMPATIBILITY PC VGA up to 1920x1080 non-interlaced

Mac®* Power Mac™ up to 1920x1080 non-interlaced

CONNECTOR Analog 15-pin mini D-sub (VGA)

Digital DVI-D
Power 3-pin plug (CEE22)

POWER Voltage AC 100–240V (universal), 50/60Hz (auto switch)

Consumption 53W (typ), 60W (max)
Eco-mode 39W optimize, 31W conserve

CONTROLS Basic Power, select [2], up [▲], down [▼], menu [1]

OSD Auto Image Adjust, Contrast/Brightness, Input Select (D-SUB,
DVI), Color Adjust (sRGB, 9300K, 6500K, 5400K, User Color
[R,G,B]), Information, Manual Image Adjust (H/V Position,
Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast,
Aspect ratio, Eco-mode), Setup Menu (Language, Resolution
Notice, OSD Position, OSD Timeout, OSD Background, Auto
power off), Memory Recall

ERGONOMICS Tilt 0–20º
OPERATING Temperature 32–104º F (0–40º C)
CONDITIONS Humidity 10–90% (non-condensing)
DIMENSIONS Physical with stand 25.5" x 17.9" x 9.4" (646.9mm x 455mm x 238.5mm)
(W x H x D) Physical without stand 25.5" x 15.7" x 2.6" (646.9mm x 399.3mm x 66.1mm)

Packaging 28.0" x 20.3" x 5.4" (710mm x 515mm x 138mm)

WEIGHT Net with stand 13.9 lb. (6.3 kg)

Net without stand 12.8 lb. (5.9 kg)
Gross 16.9 lb. (7.7 kg)

WALL MOUNT VESA 100mm x 100mm
REGULATIONS FCC, ICES003, UL
RECYCLE/DISPOSAL The lamp in this product contains mercury. Please

dispose of in accordance with local, state or federal laws.

PACKAGE CONTENTS LCD display, VGA cable, DVI-D cable, power cable, Quick

Start Guide, ViewSonic Wizard CD (User Guide & drivers)

WARRANTY Three-year limited warranty on parts, labor and backlight.

Frequency Fh: 30~82kHz, Fv: 56~75Hz

≧10)

ViewSonic Corporation’s QMS & EMS have been registered

to ISO 9001 & ISO 14001, respectively, by TUV NORD.

Sales: [phone] • SalesInfo@V iewSonic.com • ViewSonic.com

*Adapter may be required. Analog adapter available from ViewSonic. Specifications and availability are subject to change without notice.
Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks
stated herein are the property of their respective companies. Copyright © 2010 ViewSonic Corporation. All rights reserved. [15152-00B-08/10]
VA2702w-1

For more product information, visit us on the web at ViewSonic.com
