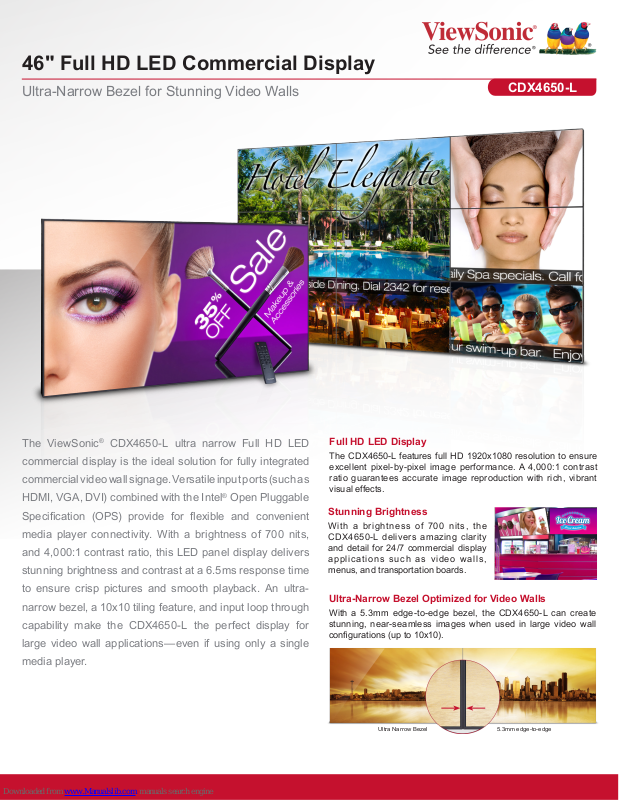

ViewSonic CDX4650-L Specification
46" Full HD LED Commercial Display
Ultra-Narrow Bezel for Stunning Video Walls
CDX4650-L
The ViewSonic® CDX4650-L ultra narrow Full HD LED
commercial display is the ideal solution for fully integrated
commercial video wall signage. Versatile input ports (such as
HDMI, VGA, DVI) combined with the Intel® Open Pluggable
Specication (OPS) provide for exible and convenient
media player connectivity. With a brightness of 700 nits,
and 4,000:1 contrast ratio, this LED panel display delivers
stunning brightness and contrast at a 6.5ms response time
to ensure crisp pictures and smooth playback. An ultra-
narrow bezel, a 10x10 tiling feature, and input loop through
capability make the CDX4650-L the perfect display for
large video wall applications—even if using only a single
media player.
Full HD LED Display
The CDX4650-L features full HD 1920x1080 resolution to ensure
excellent pixel-by-pixel image performance. A 4,000:1 contrast
ratio guarantees accurate image reproduction with rich, vibrant
visual effects.
Stunning Brightness
With a brightness of 700 nits, the
CDX4650-L delivers amazing clarity
and detail for 24/7 commercial display
applications such as video walls,
menus, and transportation boards.
Ultra-Narrow Bezel Optimized for Video Walls
With a 5.3mm edge-to-edge bezel, the CDX4650-L can create
stunning, near-seamless images when used in large video wall
congurations (up to 10x10).
Ultra Narrow Bezel 5.3mm edge-to-edge
46" Full HD LED Commercial Display
CDX4650-L
OPS Slot Compatibility
OPS Slot
Wall Mount-Ready
Ultra-Narrow Bezel
Remote Control
IR Sensor
AC In
Kensington®
Lock Slot
Main Power
Switch
RS-232
In/Out
Menu Controls
RJ45
DVI-D
VGA In/Out
HDMI
Audio In
Component Video
In/Out
Audio
Out (R/L)
Audio In
Speakers
Out (R/L)
Specications
LCD PANEL Type 46" color TFT Active Matrix with WLED Backlight
Display Area 40.1" horizontal x 22.5" vertical; 46.0" diagonal
Optimum Resolution 1920x1080
Brightness 700 cd/m2 (typ.)
Contrast Ratio 4000:1 (typ.)
Viewing Angles 178º horizontal, 178º vertical
Response Time 6.5ms (typ)
Backlight White-light LED
Backlight Life 50,000 hours (typ.)
Panel Surface Anti-glare, hard-coating (3H)
VIDEO INPUT Analog component, VGA, S-Video, CVBS (BNC)
Digital HDMI, DVI-D
Frequency Fh: 30~75Hz, Fv: 13.5~148.5MHz
INPUT SIGNAL TV/Video Comp. 480i, 480p, 720p, 1080i, 1080p
CONNECTOR RGB Input 15-pin mini D-sub (VGA)
RGB Output 15-pin mini D-sub (VGA)
Digital Input HDMI, DVI-D (with HDCP)
Component Input YPbPr
Composite Input CVBS
Video Output CVBS
S-Video Input 4-pin mini-DIN
Audio In 3.5mm mini jack, RCA R/L (x2)
Audio Out RCA R/L, Speaker Out R/L (x2)
Control RS-232 In/Out
LAN RJ45 (control)
Power Internal Power Board, 3-pin plub (CEE22)
Media Player Intel OPS compatible
AUDIO OUTPUT Speakers Internal 10-watt (x2)
POWER Voltage AC 100–240V (universal), 50–60Hz
Consumption 220W (typ)
*Energy savings may vary based on cost, actual usage and other factors. Program, specications and availability are subject to change without notice. Selection, offers and programs may vary by country; see your
ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2013 ViewSonic Corporation. All rights reserved. [16531-00B-02/13]
CONTROLS Panel Power, Mute, Input, Vol – / +, Up, Down, Menu
OSD Picture, Screen, Sound, PIP, Conguration 1, Conguration 2,
Conguration 3, Advanced Option
(See user guide for full OSD functionality)
OPERATING Temperature 32–122ºF (0–50ºC)
CONDITIONS Humidity 10–90% (non-condensing)
Altitude 0–6561 ft. (0–2000 m)
BEZEL Left / Right 3.5mm / 1.8mm
DIMENSIONS Top / Bottom 3.5mm / 1.8mm
PHYSICAL Without Stand 40.3 x 22.8 x 5.0 in. / 1023.7 x 578.3 x 126.1 mm
DIMENSIONS With Stand 40.3 x 24.2 x 13.0 in. / 1023.7 x 615.6 x 329.6 mm
(W x H x D) Packaging 48.8 x 32.3 x 11.1 in. / 1240 x 821 x 282 mm
WEIGHT Net Without Stand 53.6 lb. / 24.3 kg
Net With Stand 57.3 lb. / 26.0 kg
Gross 46.4 lb. / 31.5 kg
WALL MOUNT VESA® 200mm x 200mm, 200mm x 400mm
REGULATIONS FCC, ICES003, UL, cUL, CE, CB, BSMI, ENERGY STAR
RECYCLE/DISPOSAL Please dispose of in accordance with local, state or federal laws.
WARRANTY Three-year limited warranty on parts, labor and backlight
What's in the box?
CDX4650-L LED Display, power cable, VGA cable, power switch cover, remote control with batteries,
ViewSonic Wizard CD (with User Guide), Quick Start Guide
Equipped with Intel’s Open Pluggable
Specication (OPS), the CDX4650-L
provides for cable-free integration and
easy installation in any environment.
In addition, the CDX4650-L can easily
connect to an external media player
to bring a multi-media experience to
your customers.
Resolutions Supported
640 x 480 at 60 Hz to 75 Hz
800 x 600 at 60 Hz, 60 Hz to 75 Hz
1024 x 768 at 60 Hz, 60 Hz to 75 Hz
1280 x 768 at 60 Hz
1366 x 768 at 60 Hz
1280 x 1024 at 60 Hz
1600 x 1200 at 60 Hz
1920 x 1080 at 60 Hz (recommended)
NTSC, PAL, SECAM, 4.43 NTSC, PAL 60
Component: 480i, 480p, 720p, 1080i, 1080p
Optional Accessories
Stand ............................................STND-021
Wall Mount .....................................WMK-013
Wall Mount with Locking
Media Player Cradle ......................WMK-028
ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO
14001, respectively, by TUV NORD.
®
