ViewEra
14” TFT-LCD MONITOR
USER’S MANUAL
V140
www.viewera.com
INDEX：
1. Introduction
Product Description ...................................... Page. 1
Package Contents ........................................ Page. 1
Product Features …...................................... Page. 2
Screen Cleaning Techniques ........................ Page. 2
Additional ....................................................... Page. 3~4
2. Control Function
Front Panel Controls ..................................... Page. 5
OSD Controls ................................................ Page. 6~10
3. Input Diagrams ........................................
4. Setup ........................................................
5. Viewing Angles ........................................
6.Troubleshooting……………………………..
7. Service Information ................................
8. Product Specifications ...........................
9. Windows Setup .......................................
Page. 11
Page. 12
Page. 13
Page. 14
Page. 14
Page. 15~16
Page. 17
1. Introduction
Product Description
Congratulations on your purchasing of the ViewEra V140 LCD
monitor. It incorporates high quality display into a small light weighted
module. It has power-saving capabilities and emits no radiation. You will
certainly benefit from this monitor in lots of ways; to name some of them,
comfort, safety, space-saving and environmental protection.
This LCD monitor incorporates 14〞color active matrix
thin-film-transistor (TFT) liquid crystal display to provide superior display
performance. It’s maximum resolution of XGA 1024×768 is ideal for
displaying complex graphics and high definition images. Its other outstanding
capabilities include audio system and OSD (On Screen Display) controls.
Package Contents
Included with your LCD monitor as following items：
14〞TFT LCD monitor
15 pin D-sub signal cable
Sound Card Cable
AC power cable
Adaptor
User’s manual
Page 1
Product Features
High contrast color TFT LCD display support resolution up to XGA
1024×768. @75Hz.
Compatible VESA standards.
Imbedded audio system provides sound performance.
Power management system conforms to VESA DPMS standard.
Support DDC 1/2B for Plug & Play compatibility.
Advanced OSD control for picture quality adjustment.
Detachable stand for wall-mounting application.
Screen cleaning techniques
Gently clean the screen with a clean camel hair lens brush, or a soft,
clean, lint-free cloth, to remove dust and other particles that can scratch
the screen.
Do not apply pressure to the screen surface when wiping it clean.
Do not pour or spray any liquid directly onto the screen or casing.
Chemical cleaners have been reported to damage the screen or case of
the LCD monitor.
Page 2
Additional
Read all of these instructions and save them for later use.
Follow all warnings and instructions on the product.
Product
♦ Do not cover block the vent holes in the case.
♦ Do not insert sharp objects or spill liquid into the LCD monitor through
cabinet slots. They may cause accident fire, electric shock or failure.
♦ Disconnect the power plug from the AC outlet if you will not use it for
an extended period of time.
♦ Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage points or other risks.
♦ Do not touch the screen directly with your fingers. You may damage the
screen, and oil from your skin is difficult to remove.
♦ Do not apply pressure to screen. The LCD is very delicate.
Power
♦Use the type of power indicated on label.
Plugs
♦Do not remove any of the prongs of the monitor’s three-pronged power
plug.
♦Disconnect the power plug from the AC outlet under following
conditions：
If you will not use it for an extended period time.
When the power cord or plug is damaged or frayed.
If the product does not operate normally when the operating
instructions are followed. Adjust only those controls that are
covered by the operating instructions. Improper adjustment of other
controls may result in damage and will often require extensive work
by a qualified technician.
If the product exhibits a distinct change in performance, service may
be required.
Page 3
Power and extension cords
♦ Do not allow anything to rest on the power cord.
♦ Do not locate this product where persons will walk on the cord.
♦ Use the proper power cord with correct attachment plug type. If the
power source is 120V AC, use a power cord that has UL and C-UL
approvals, If the power source is a 240V AC supply, use the tandem (T
blade) type attachment plug with ground conductor power cord that
meets the respective European country’s safety regulations, such as VDE
for Germany.
♦ Do not over load wall outlets or power cords. Ensure that the total of all
units plugged into the wall outlet does not exceed 10 amperes.
♦ Ensure that the total ampere ratings on all units plugged into the extension
cord is not above the cord’s rating.
♦ If the power supply cord, which came with your monitor, is to be
connected to the PC instead of the wall outlet, Use an UL/TUV approved
computers with receptacle rated 100~240V AC, 50/60Hz, 1.0A(minimum)
only.
Environment
♦ Place the monitor on a flat and leveled surface.
♦ Place the monitor in a well-Ventilated place.
♦ Keep the monitor away from：
♦ Overly hot, cold or humid places, places directly under sunlight, dusty
surroundings, equipment that generate strong magnetic fields.
♦ Please adjust the frequency to 75 Hz after setting up the LCD monitor.
♦ Then push the OSD menu button and use the Auto Adjust function to find
the best mode of your computer.
Page 4
2. Control Function
Control Button Front View
﹝2﹞ ﹝3﹞ ﹝1﹞ ﹝4﹞ ﹝5﹞
1.Power Switch ： Power switch & LED.
2. Auto adjust ： Select this function to obtain the best display
efficiency
3.OSD menu / select ： Pressing this button pops up the OSD menu
on the screen Add used to select the OSD
control options on the screen.
4.Adjust (decrease－)
5.Adjust (increase＋)：
： This button is used to adjust the decreasing
value of selected.
OSD off is volume adjust －
： This button is used to adjust the increasing
value of selected.
OSD off is volume adjust ＋
Page 5

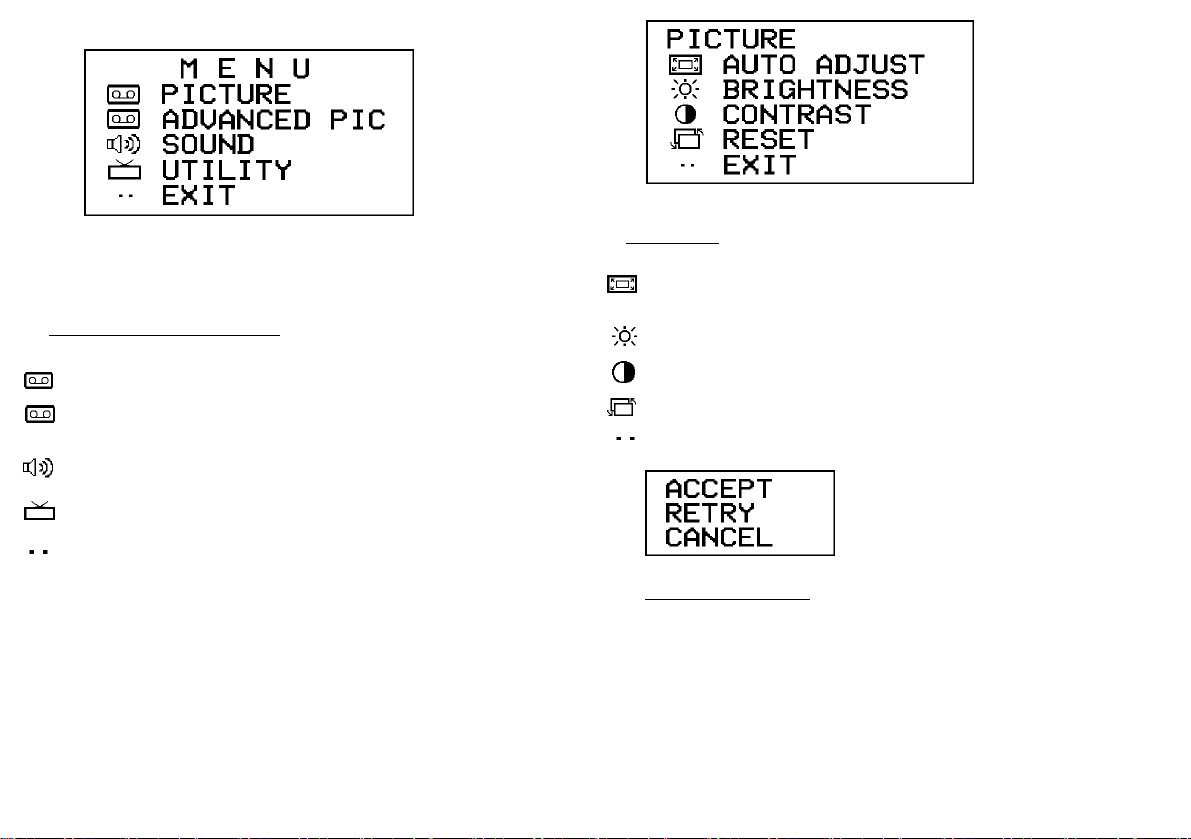

OSD Controls
Monitor Function Selection Menu：
PICTURE ：Select this function to Picture sub menu.
ADVANCED PIC ：Select this function to Advanced Picture sub
menu.
SOUND ：Select this function to Sound sub menu.
UTILITY ：Select this function to Utility sub menu.
EXIT ：Select this function to exit OSD menu.
Page 6
Picture Menu：
Auto adjust ：Select this function to efficiently obtain the best
display solution.
Brightness ：Adjust the brightness using＋and－buttons.
Contrast ：Adjust the contrast using＋and－buttons.
Reset ：Recall Factory setup function.
Exit ：Return to Selection menu.
Sub Menu (Auto adjust)：
Accept
Retry
Cancel ：Select this function to cancel auto adjust.
：Select this function to accept auto adjust.
：Select this function to retry auto adjust.
Page 7
Advanced Picture Menu ：
H Position
V Position
Phase ：Adjust the phase using＋ and－buttons.
Clock ：Adjust the clock using＋and－buttons.
Auto Color ：Select this function to obtain the best display color.
Exit ：Return to Selection menu.
：Pressing＋moves the display image to right ; Pressing
－moves the display image to left.
：Pressing＋moves the display image upward ; Pressing
－moves the display image downward.
Page 8
Sound Menu：
Volume
Mute
Exit ：Return to Selection menu.
Utility Menu：
OSD Language
OSD Control
Exit ：Return to Selection menu.
：Adjust the volume using＋and－buttons.
：Mute function.
：Select the Language Letter Font.
：Select this function to OSD control sub menu.
Page 9
OS Language Menu：
English I
ENGLISH II
Exit ：Return to Utility Menu.
OSD Control Menu ：
V Position
H Position
Halftone ：Adjust the shade of the OSD menu.
Duration ：Adjust the OSD show time.
Reset ：Recall Factory setup function.
Exit ：Return to Utility menu.
：Select Small Letter Font.
：Select Capitalize Letter Font.
：Pressing＋moves the OSD menu to downward ;
Pressing－moves the OSD menu to upward.
：Pressing＋moves the display image right ; Pressing
－moves the display image left.
Page 10
3.Input Diagrams
Inputs
【AUDIO】
【AVI】
【1】 【2】 【3】 【4】 【5】 【6】
【1】DC IN ：This is for connecting the adapter DC 12V cable.
【2】AV IN ：RCA jack AV signal input.
【3】S-VIDEO IN ：S-Video signal input.
【4】LINE OUT ： Sound signal output(Stereo Phone Jacket).
【5】RCA JACK
AUDIO IN
【6】VGA IN ：This can be connected with the D-sub 15 pin
：Audio signal R/L input.
signal connector.
Page 11
4. Setup
Electrical Connection
Please follow the instruction below to properly connect the LCD monitor
to external electrical source.
1. Connect the female-end of the power cable to the transformer. Connect
the male-end of the power cable to the wall outlet or extension cable.
2. Connect the cable from the other end of the transformer to the LCD
monitor located at the back near the VGA signal cable.
Signal Connection
1. Power off both the LCD monitor and PC system before connecting them.
2. Take out the VGA cable from the box, then connect it to the signal
connector at the back of the LCD monitor.
3. Connect the other end to the VGA connector on the back of the PC
system.
4. Please make sure the connections between the PC system unit and the
LCD monitor is strong and secure. Please don’t forget to tighten the
screws on each connector end.
5. Now turn on both the PC system unit and the LCD monitor.
6. After you finish setting up the LCD monitor, please set the refresh rate to
75Hz.
7. After setting up the LCD monitor, please perform Auto Adjust in OSD so
that the LCD monitor will automatically set to optimum color display
each time.
* Please note: When you disconnect any power cable or signal cable, please
do not pull the cable by grabbing the cable body. Please grab the cable
connector itself whenever you try to pull the cable during disconnect.
Page 12
5. Viewing Angles
Tilting
For better viewing angle, you may tile the LCD monitor forwards (up to 10
degrees) or backwards (up to 25 degrees, 90 degrees for packing).
Down：10 o
Up：25 o
Page 13
6. Troubleshooting
No power
Make sure the A/C power cord is securely connected to the monitor and to the
power outlet.
No screen image with power on
(1)Make sure the video cable supplied with the monitor is tightly secured to
both the video output port of the computer and the monitor.
(2)Adjust the brightness and contrast from the front panel controls.
“No Signal Input” message shown
(1)Make sure the video cable is tightly connected to the computer and
monitor.
(2)Check the 15-pin video cable connectors on both ends have exactly 15
pins.
If the problem is still there, please contact your ViewEra dealer or ViewEra.
7.Service Information
Warranty
The ViewEra V140 TFT-LCD monitors are warranted for three(3) years
for all parts and one(1) year for LCD panels from the date of purchase.
ViewEra warrants its products to be free from defects in material and
workmanship during the warranty period.
Service
(1) Please contact your ViewEra dealer for warranty service.
(2) For out-of-warranty service, you may contact either ViewEra dealers or
ViewEra.
Page 14
8. Product Specifications
Type
Spec
LCD Display 14.1” Active matrix TFT LCD panel
Pixel Pitch 0.279(H) x 0.279(V) mm
Max. Resolution 1024(H) x 768(V) XGA
Set Size 375(W) × 360(H) × 185(D) mm
Pack Size
Contrast Ratio
Brightness 150 cd/m
Response Time 25 ms (typ)
Display Color 262,144
View Angle L+/R- ±50° U+/D- +20° -35°
PC Interface RGB analog or digital 0.7V peak to peak
Video Sync. TTL positive or negative.
Display Mode VGA, SVGA, XGA
Power consumption ON<36W (maximum)
Frequency (Horizontal) 31.5-60KHz (Vertical) 56-75Hz
Signal Connector D-sub 15 pin and CVBS / S-Video (O\option)
Front Control Auto adjust, Power SW with LED, OSD Menu,
OSD Menu Brightness, Contrast, Auto Adjust, Clock, Phase,
Power Adapter AC Input : 100-240V~1.8A, 50-60Hz
422(W) × 426(H) × 214(D) mm
200:1 (option 300:1)
＋/－ Adjustment
H-Position, V-Position,
DC Output : 12V/ 3.0A
AUDIO DVI
2
(option 200)
Page 15
Operating
Conditions
Storage
Conditions
Certification BSMI,FCC (DOC), CE-B, TUV/GS, UL,CUL
Weight Net：3.25Kgs, Gross： 5.05Kgs
Display Modes
Mode Resolution H Freq (KHz) V Freq (Hz)
1 640 × 350 31.469 70.070
2 640 × 480 31.469 59.940
3 640 × 480 37.861 72.809
4 640 × 480 37.500 75.000
5 720 × 400 31.469 70.087
6 800 × 600 35.156 56.250
7 800 × 600 37.879 60.317
8 800 × 600 48.077 72.188
9 800 × 600 46.875 75.000
10 1024 × 768 48.363 60.004
11 1024 × 768 56.476 70.069
12 1024 × 768 60.023 75.029
Temperature: 0℃~40℃
Humidity : 20% ~ 85%
Temperature: -20℃~60℃
Humidity : 10%~95%
Page 16
9. Windows setup
For the best view, please set up with the monitor type in Windows.
Please select as follows:
Control Panel > Monitor > Setting > Advance > Monitor > Change >
Show all List …> Stand >
For 1024 ×768, please set to “XGA 1024 × 768@75Hz”
CWM8UMB50011
ViewEra V140 Rev. 1.1
CWS4UMB50031
Page 17
Loading...
