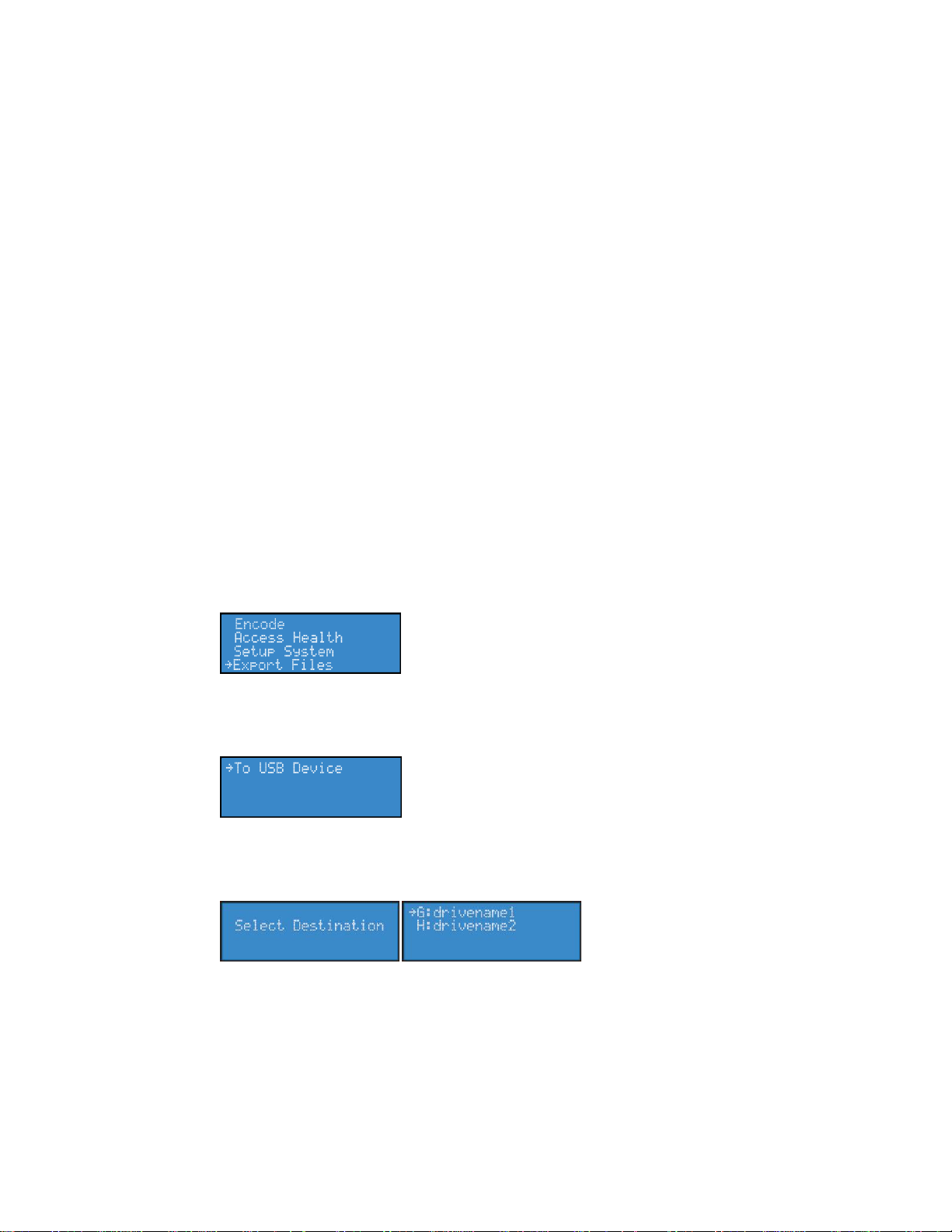

Export files menu ......................................................................................................................... 248
Export to USB drive ............................................................................................................... 248
Shutdown GoStream system ................................................................................................. 248
Index ................................................................................................................................ 249
viii ViewCast
GoStream Series User Guide
Before You Begin
Thank you for purchasing the GoStream streaming media system. The GoStream is a powerful, compact
streaming system for houses of worship, broadcasters, boardroom, government, network service
providers and education institutions. The GoStream has enhanced audio features for adaptive and nonadaptive encoders.
For the latest ViewCast product information and news, visit www.viewcast.com.
Product description
Depending on your model, encoding formats include:
Adobe® Flash® H.264
Adobe Flash dynamic streaming
Apple® HTTP live streaming (HLS)
Microsoft® Live IIS Smooth Streaming
Microsoft Windows Media® (Silverlight®) SD and HD*
MPEG-4, H.264, H.263
MPEG 2 Transport stream, H.264 and MPEG 2 codecs
3GPP/3GPP2, MP4 container support
* Output streams tested up to 1080p at 30 fps using Flash H.264 and Windows Media
You can configure your system by attaching a monitor, keyboard, and mouse to the system (see Easy Setup).To control your system from another networked computer, use the client interface for remote
management software. The web interface allows you to set many other system parameters for your
Niagara system.
Figure 1. ViewCast GoStream series
ViewCast 1
Before You Begin
Convention
Description
Example
Bold text
Characters to enter when
referenced in a procedure. The
name of fields or keys to press.
In the example, enter DTMF as
the group type.
Press Enter to save your
changes.
Note:
Provides supplemental
information.
Note: The prompt may not
display if …
IMPORTANT!
Provides important data that
affects how the system or software
responds.
IMPORTANT! You must install
Niagara SCX prior to
configuring SCX options…
CAUTION!
Provides information to help avoid
possible damage to hardware or a
system crash (without data loss).
CAUTION! Use case sensitive
commands to keep from
destroying…
WARNING!
Provides information to ensure
you avoid potential injury, death,
or permanent system damage.
WARNING! Do not touch
exposed wires.
Audience
The audience for this publication includes anyone who uses or administers the GoStream system. They
should have a basic technical understanding of streaming media. This user guide provides information
on the GoStream system only.
Conventions for this guide
This guide uses the following document conventions to help you identify different types of information.
2 ViewCast
GoStream Series User Guide
Operating Temperature
The operating ambient temperature of a rack environment may
be greater than room ambient if installed in a closed or multiunit rack assembly. Therefore, you should install the equipment
in an environment compatible with the maximum ambient
temperature of 40° C.
Reduced Air Flow
You must not compromise the airflow required for safe
equipment operation when you install the equipment in a rack.
Mechanical Loading
Mounting of the equipment in the rack should be such that you
do not cause a hazard due to uneven mechanical loading.
Circuit Overloading
Consider the connection of the equipment to the supply circuit
and the effect that the overloading of the circuits might have on
current protection and supply wiring. You must also consider and
use the equipment nameplate ratings when you address this
concern.
Reliable Grounding
You must maintain reliable earth grounding of rack-mounted
equipment. Pay particular attention to supply connections other
than direct connections to the branch circuit (such as using
power strips).
Rack mount safety instructions
ViewCast 3
Before You Begin
FCC notice
WARNING! You must connect this device and peripherals using shielded cables to comply with
FCC radio emission limits.
WARNING! Modifications to this device not approved by ViewCast Corporation could void the
FCC-granted authority for you to operate the device.
WARNING! The GoStream series complies with the limits for a Class A digital device pursuant
to Part 15 of the FCC Rules. These limits provide reasonable protection against harmful
interference when you operate the equipment in a commercial environment. This equipment
generates, uses, and may radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area will likely cause harmful
interference. In this case you must correct the interference at your own expense.
Note to CATV Installer: Pay special attention to Section 820-40 of the NEC that provides guidelines
for proper grounding. It particularly specifies that you must connect the cable ground to the
grounding system of the building as close to the point of cable entry as practical.
WARNING! Equipment installation must comply with local and national electrical codes.
4 ViewCast
GoStream Series User Guide
Installing additional software
Niagara systems run an embedded version of the Microsoft Windows 7 operating system (OS), which is a
sub-set of the normal retail version. The Microsoft License agreement limits the use of the system to
what the machine is designed to do.
The Microsoft Update process is turned off by default to prevent interruptions during live streaming
events. It is also not advised to use a Windows 7 installation CD to add features to the system or the
system may fail.
You may load additional software on the system; however, ViewCast does not support this additional
software. You also need to ensure the primary drive is not full or the system will fail. In the event of a
problem, you may need to perform a Factory Restore, which returns the system to the original software
load. You may save the current encoder profiles and reload them when the Factory Restore is complete.
You can perform a Factory Restore at any time. This process returns the system to the software load
that came with the system. Perform a Factory Restore if the system becomes unstable due to installed
applications, viruses, etc. Please refer to the user guide for instructions.
ViewCast Support can provide assistance should the system fail to start. In most cases, you can restore a
system to operation without returning it to ViewCast. There is a fee in the event a user returns a system
due to applications the user installed or if the system failed because the primary partition (drive C) is
full.
Connecting to the Internet
Never connect a Niagara system directly to the Internet. ViewCast recommends taking precautions
against unwanted access such as installing Niagara systems behind a router or firewall. The speed of the
router or switch should match or exceed the speed of the system’s network card. See your network
administrator for recommendations.
ViewCast 5
Before You Begin
Product Disposal
Information:
Dispose of this product in accordance with local and
national disposal regulations (if any) including those
regulations governing the recovery and recycling of Waste
Electrical and Electronic Equipment (WEEE).
RoHS Compliant:
ViewCast Corporation commits to compliance with the
European directive on the Restriction of the Use of Certain
Hazardous Substances in Electrical and Electronic
Equipment, Directive 2002/95/EC, the RoHS directive.
This product supplied to the European Union does comply
with the RoHS directive. ViewCast certifies that this
equipment shipped to the European Union conforms to
the 2002/95/EC directive.
For current RoHS statement, see www.viewcast.com.
Environmental notices
6 ViewCast
GoStream Series User Guide
Warnings
Only trained and qualified personnel should install, replace, or service this system.
Do not attempt to open the case of the system. If you do so, you incur a high risk of electrical shock that
may cause damage to the system or personal physical injury or death to you and/or others. No userserviceable parts exist inside the system. If you open the system case or make unauthorized changes to
the case, ViewCast voids your warranty.
Install the system away from any heat sources. This remains vital to the safety of the product users. Do
not install the system near any heat sources such as:
WARNING! Installing the system near heat sources could result in personal injury or death.
WARNING! Never insert objects of any kind into the system through any system openings, as the
objects may touch dangerous voltage points, short out parts, and result in a risk of fire or
electrical shock.
Do not stack the system atop or below other electronic devices as this can cause heat build-up and
vibration of the system. These conditions can damage the system thereby voiding the limited warranty.
Do not install the system in any area where the temperature is less than 5°C or more than 40°C. Transfer
from temperature extremes may cause condensation. Let the system remain unplugged at room
temperature for at least 45 minutes before connecting it.
Use an outlet with surge suppression or ground fault protection when using the system. Unplug the
power cord from the wall outlet, disconnect the network connection, and disconnect the lines between
the system and the video source for added protection:
During a lightning storm
During dangerous weather conditions
When the encoder remains unattended or unused for long periods
Reduce the risk of fire or electric shock. Do not expose the system to any rain or moisture. Exposing the
system to rain or other types of moisture could result in system damages. Do not place any liquids on or
near the system. If you place liquids in any form on or near the system, do so at your own risk, for you
incur a high risk of electrical shock that could occur and cause damage to the system.
WARNING! Exposing the system to rain or other types of moisture could result in physical injury or
death. Any liquids on or near the system may result in electrical shock and personal injury or
death.
ViewCast 7
Before You Begin
Refer all servicing to authorized service personnel. You must have authorized personnel only service any
damaged system. Relevant damage may occur with but is not limited to the following:
An unplugged or damaged power supply cord
Spilled liquid on the system
Fallen objects in or on the system
System exposure to rain or other moisture or liquid
Failure to perform as described in the User Guide
A dropped system
ViewCast assumes no liability or responsibility for any damaged system that clients continue using.
Use only attachments, accessories, or equipment specified by the manufacturer with the system. Using
accessories or attachments not recommended by the encoder manufacturer voids the Limited
Warranty.
Do not attempt to service the system yourself. If you open or remove covers, you may be exposed to
dangerous voltage. Such action voids the Limited Warranty. Refer all servicing issues to authorized
service personnel only.
The plug-socket combination that serves as the main disconnecting device must be accessible at all
times.
Protect the power cord from anyone walking on it and being strained or pinched particularly at plugs,
electrical receptacles, and the point where the power cord exits the system.
Do not use adapter plugs or remove the grounding prong from the power cable.
Use only the type of power source indicated on the marking label on the back panel of the unit to
operate the system. Unplug the system power cord by gripping the plug and removing it from the power
source. Do not pull the cord to remove the power source from the system.
Do not plug the system into a wall outlet that contains an overload of electrical cords or power
strips/extension cords. This type of overload may result in fire or electrical shock risks.
Always handle the system carefully. Always avoid excessive shock and vibration to the system. Excessive
shock or vibration can damage the system.
WARNING! Excessive shock or vibration to the system may result in electrical shock and personal
injury or death.
8 ViewCast
GoStream Series User Guide
Overview
Before you can use your GoStream series streaming media system, you first need to set up and
configure it. This chapter is dedicated to providing you with the details and step-by-step instructions you
need to make your installation as quick-and-easy as possible.
All you need to get started are the four following requirements:
AC power source (100 - 240 V)
Your audio and video source (such as a camera, video player, or other audiovisual output device)
A streaming media server or hosting provider
IP connection and/or Internet connection
The GoStream series are easy-to-use streaming systems that allow you to:
Connect to a compatible browser on a dynamic host configuration protocol/domain name server (DHCP/DNS)
network.
Configure and connect your audio and video source to the Niagara system.
Select your output formats and streaming settings.
Enter your streaming server information.
Start streaming your media.
Use the web interface for setting options and controlling your Niagara system from another networked
computer, as well as options that are more advanced.
Note: Read the information in this section before connecting the system to the power source.
Media system functions
Although it has many features and capabilities, the GoStream series streaming media systems perform
the following functions:
Supports both Multi-Program Transport Stream (MPTS) and Single Program Transport Stream (SPTS).
Accepts digital standard definition (SD) or high definition (HD) SDI video and a variety of digital and analog audio
inputs depending on the configuration of your system
Encodes the signals into digital IP video formats
Delivers the IP audio and video content over an IP network and can save an archival copy
ViewCast 9
Overview
Install overview
You must complete the following primary tasks to install the Niagara system:
1. Address and comply with all prerequisites.
2. Connect the Niagara system using its power source.
3. Connect the video source (camera or video recorder) to the system.
4. Connect the system to an IP network.
5. Configure the Niagara system.
Prerequisites
Before installing and connecting the Niagara system, ensure you comply with the following
prerequisites:
All packaged items are undamaged and in working order.
Your environment meets all system requirements.
Safety instructions, notices, and warnings detailed in Before You Begin including:
o Rack Mount Safety Instructions
o FCC Notice
o Environmental Notices
o Warnings
If any components are missing or damaged, do not continue with the installation. Contact the ViewCast
reseller from which you purchased your GoStream system for assistance in obtaining any missing parts
or for parts replacement.
10 ViewCastMicrosoft
GoStream Series User Guide
System requirements
Ensure your computer meets the following system requirements.
Browser interface Any Firefox or Internet Explorer (IE)-based computer, workstation, or laptop
that interfaces to a dynamic host configuration protocol/domain name server (DHCP/DNS)compatible network
User Interface High-speed Internet and dial-up users
Specifications
Multi-core processor
120 GB SATA SSD or optional 500 GB/1 TB SSHD
GoStream H – Osprey 820e
GoStream Ha – Osprey 820e and 800a
GoStream S – Osprey 825e
GoStream Sa – Osprey 825e and 800a
12.25” H x 8.5” W x 5.25” D
13 lbs (5.89 Kgs)
150 W power supply
ViewCast 11
Overview
A.
USB port to allow the export of files to USB storage devices, installing updates or firmware,
or connecting USB devices.
B.
The LCD display shows the system menu and menus and allows you to perform basic
functions.
C.
This light indicates when the system detects that a video source is connected to one of its
video inputs.
Note: This light only illuminates when you start an encoder.
D.
Press this button to activate the system menu on the LCD display.
E.
Press this button to navigate the system menu on the LCD display.
F.
Press this button to enter or accept the menu choice highlighted on the LCD display. This
button is used for system menu operations.
G.
Press this button to navigate the system menu on the LCD display.
H.
Press this button to start the encoder highlighted on the LCD display.
I.
Press this button to stop an encoder when it is highlighted on the LCD display.
J.
Press this button once to power up the system. When the system is powered up, press this
button once to power it down.
K.
When an encoder profile is assigned to one of these buttons, press the assigned button and
then Stream to start the encoder.
Press the assigned button and Stop to stop the encoder.
L.
When the Alarm Light indicator is lit, press this button to view a log of the most recent
GoStream series front panel
You should familiarize yourself with the front panel controls for the GoStream series. Remove the front
panel to access additional functionality such as USB ports and the power button. Figure 2 and the table
below illustrate the buttons and lights that constitute the front panel functions.
Figure 2. GoStream series front panel
12 ViewCastMicrosoft
GoStream Series User Guide
alarms recorded.
Press Enter to clear these alarms from the log.
M.
Allows headphones to be connected to the system for audio monitoring.
N.
Indicates audio input presence.
O.
Controls the audio level on the headphones.
ViewCast 13
Overview
A.
Ethernet port for connecting to your network.
B.
USB5 and USB4 let you connect USB control devices, such as a USB memory device,
keyboard, and mouse.
C.
Ethernet port for connecting to your network.
D.
Ethernet port for connecting to your network.
E.
USB1 and USB0 let you connect USB control devices.
F.
Display port 0 for a monitor.
G.
USB3 and USB2 let you connect USB control devices.
H.
Display port 1 for a monitor.
I.
DVI-I port for a monitor.
J.
Audio line in port
K.
Audio speaker out port
L.
Audio microphone input port
M.
9-pin digital audio input – This input is only available on certain GoStream models.
N.
15-pin analog audio input – This input is only available on certain GoStream models.
GoStream series back panel
Figure 3 illustrates all connectors and other components of the GoStream series back panel. The
connectors vary depending on the Osprey capture card installed. Figure 3 depicts the GoStream Sa
model.
Figure 3. GoStream Sa model back panel
14 ViewCastMicrosoft
GoStream Series User Guide
O.
Power input
P.
Video and audio inputs – These inputs will vary depending on the GoStream model.
1.
Connect the appropriate video and audio connectors (items M, N and P on Figure 3).
2.
Connect the power adaptor (item O on Figure 3.
3.
Attach the system to the network input (items A, C, or D on Figure 3).
4.
Press Power (item J on Figure 2).
Connecting the system
The following steps refer to a direct connection to the GoStream series systems only.
To connect the system:
ViewCast 15
Overview
Encode
Start an encoding session.
Stop an encoding session.
View the status of an encoding session.
Access Health
Check the CPU status.
View available memory.
Check the temperature of the unit.
Check the versions.
Setup System
Set the Preset A,B,C buttons.
View network settings.
Configure primary or secondary settings.
Set the network MAC address.
View link status.
Set date and time.
Set the video standard.
View the temperature alarm.
View the audio source.
Perform a factory restore.
Export Files
Export files to a USB memory device.
Shutdown System
Restart system.
Power off system.
GoStream system menu
The GoStream system menu (Figure 4) is located on the LCD panel on the front of the unit. The menu
allows you to quickly and easily configure the system. You use the Up and Down arrow buttons to
navigate through the different functions on the system menu.
Figure 4. System menu
16 ViewCastMicrosoft
GoStream Series User Guide
Menu
Command
Function
Home
View general administrative information about
the Niagara system.
Use the menu bar commands.
Encoders
All Encoders – View the encoder profiles.
Preset A – Assign a loaded encoder profile to
the A button the front panel of the GoStream.
Preset B – Assign a loaded encoder profile to
the B button on the front panel of the
GoStream.
Preset C – Assign a loaded encoder profile to
the C button on the front panel of the
GoStream.
Groups – Manage specific encoder groups that
have one or more encoders assigned.
GoStream series home page
The home page (Figure 5) is the first page presented after you log into the Niagara SCX remote
management software. From this page, you can access the different windows for configuring,
controlling, and monitoring the activities and alerts of the Niagara system.
Figure 5. Series home page
Menu bar commands
The home page menu bar allows you to use the commands described in the table below.
ViewCast 17
Overview
Menu
Command
Function
Configuration
Machine Properties – View details on the
machine properties including the network
name, serial number, and all software versions
installed.
Alerts – Modify the settings to control how the
system manages application alerts that occur
during normal operations or streaming.
Network Properties – View information on the
network properties and addresses for both NIC
ports and modify these properties.
IP Route Table – Add or delete IP destinations.
System Configuration – Modify the system
configuration including setup for email alerts
from the Niagara system whenever it
encounters an operation error.
Status
View Activity Log – View all system activities
including the time and date of each event.
View Alerts – View all alerts including the time
and date of each alert.
Maintenance
Product Registration – Register your Niagara
system to protect your investment.
Feature Activation – Activate additional
features available for purchase.
Log Out
Log out of the system and return to the login
screen.
18 ViewCastMicrosoft
GoStream Series User Guide
GoStream series browser windows flow
Figure 6 shows the interrelationship and flow of the available configuration windows you may use to
configure the GoStream system.
Figure 6. GoStream series browser windows
ViewCast 19
GoStream Series User Guide
Easy Setup
You use two interfaces to operate your GoStream system:
Front panel LCD display and buttons
Web interface through Niagara SCX® management software
Most of the basic operations can be performed from the front panel of the system.
You should perform most setup and operations by accessing the web interface from a computer that
resides on the same network as your GoStream.
With the web interface, you can customize your encoding settings and assign specific encoding profiles to
the Preset ABC buttons on the front panel. The web interface provides the ability to control your system
remotely from a computer that can be rooms or continents away from the system if both your system and
the computer have Internet access to communicate with each other.
The easy setup option explores the optimal configurations for the novice user to set up the Niagara system
easily and quickly. Easy set up includes actions you can perform on your Niagara system using the web
interface to include configuring the following:
Encoder settings
Groups
Network properties
Machine properties
System properties
System alerts
ViewCast 20
GoStream Series User Guide
Web interface
The web interface presents a logical flow of configuration information for the encoding system. Refer to
Figure 6 for a diagram and menu bar commands, which include:
Home
Encoders
o All Encoders including encoder properties
o Preset A, B, and C
o Groups
Configuration
o Machine Properties
o Alerts
o Network Properties
o IP Route
o System Configuration
Status
o Activity Log
o Alerts
Maintenance
o Product Registration
o Feature Activation
Log Out
ViewCast 21
Easy Setup
1.
Attach the block end to the power input located on the AC/DC adapter.
2.
Plug the other end of the cable into a wall outlet or surge protection enabled power
strip connected to a wall outlet or other common power source.
Easy first time set up
You should read all instructions, notices, and warnings in the Before You Begin section before getting
started with your new GoStream system for the first time. Also, ensure you have all required parts and
meet all system requirements before installing this product.
Do not continue with the installation if you find any components missing or damaged. Contact the
ViewCast reseller where you purchased your system for assistance in obtaining any missing or
replacement parts.
Connecting to an electrical power source
The system ships with one of the following power cables:
North America power cable
International power cable
UK power cable
To connect the power source:
WARNING! The plug-socket combination must remain accessible at all times as it serves as the main
disconnecting device.
WARNING! Do not work on the system, connect, or disconnect cables during periods of lightning
activity.
22 ViewCastMicrosoft
GoStream Series User Guide
1.
Ensure that you connect all devices (power cords, cables, audio/video sources, etc.) to the
system.
2.
Press Power on the front panel to start the GoStream system. The LCD readout displays the
initializing messages (Figure 7).
Figure 7. Initializing messages
After the system powers up for the first time, the Welcome message appears:
Note: The serial number can be in the format GN00000000.
3.
Press Enter. The system prompts you to set the date (Figure 8).
Figure 8. Date screen
4.
Press Enter to accept the date displayed.
5.
To enter a different date, use the Up and Down arrow buttons to change the numerical value
of the month.
6.
Press Stream to enter the value and move to the Day field.
7.
Use the Up and Down arrow buttons to increment the numerical value of the day.
8.
Press Stream to enter the value and move to the Year field.
9.
Use the Up and Down arrow buttons to increment the numerical value of the year.
10.
Note: If you want to change a previous setting, continue pressing Stream until the cursor
cycles around to the desired field.
11.
Press Enter to accept the settings and move to the next screen to set the system clock (Figure
9). The system uses a 24-hour clock format for its system clock entries.
Figure 9. Time screen
12.
Use the Up and Down arrow buttons to increment the numerical value of the hour.
Performing the initial startup
The steps in the following table refer to a direct connection to the GoStream series systems only.
To perform the initial startup:
ViewCast 23
Easy Setup
13.
Press Stream to move to the Minute field.
14.
Use the Up and Down arrow buttons to increment the numerical value of the minute.
15.
Press Enter to set the format. The confirmation screen displays confirming you have
successfully set up your system.
Figure 10. Confirmation screen
16.
Press Enter to exit the setup menu and reboot the system. The following screen displays
(Figure 11).
Figure 11. Booting screen
Connecting to an IP network
The GoStream has three 1 Gbit network interface ports. The network settings for these ports default to
dynamically obtain an IP address from a DHCP server on the network. If a DHCP server is not available or is
not found on the network, the system assigns its own IP address.
Note: If you are not familiar with network protocols, contact your network administrator for
assistance. If you are not able to browse to the unit with a DHCP network, you may connect to
monitor, keyboard, and mouse to the system to determine and set the network connections.
24 ViewCastMicrosoft
GoStream Series User Guide
1.
Press Menu. The system menu displays.
2.
Press the Up and Down arrow buttons to select the Setup System option.
3.
Press Enter. The setup menu displays (Figure 12).
Figure 12. Setup menu
4.
Press the Up and Down arrow buttons to select Network.
5.
Press Enter. The network interface screen displays (Figure 13).
Figure 13. Network interface screen
6.
Press the Up and Down arrow buttons to select the active network setting you want to
modify.
7.
Press Enter. The MAC address screen displays (Figure 14).
Figure 14. MAC address
8.
Press Enter. The MAC address change screen displays (Figure 15).
Figure 15. MAC address change
9.
Press the Up and Down arrow buttons to select Change Settings. The network settings
screen displays. (Figure 16).
Figure 16. Network settings
Changing the network settings
For most networks, it is not necessary to modify the default settings. However, if you wish to assign a
static IP address to the system’s Network Interface Cards (NICs), you may change the network setting
using the front panel menu.
To change the network settings:
ViewCast 25
Easy Setup
Note: Once you modify the setting, the system saves the changes until you modify the
settings again or until you restore the system back to its original factory settings.
10.
Press the Up and Down arrow buttons to select DHCP On/Off.
11.
Press Enter. The enable DHCP screen displays (Figure 17).
Figure 17. Enable DHCP screen
12.
Press the Up and Down arrow buttons to select Yes.
13.
Press Enter. The confirmation screen displays (Figure 18).
Figure 18. Confirmation screen
14.
Press the Up and Down arrow button to select Yes.
15.
Press Enter. The network settings screen displays.
16.
Press the Up and Down arrow buttons to select the IP address.
17.
Press Enter. The IP address screen appears (Figure 19).
Figure 19. IP address screen
18.
Press the Up and Down arrow buttons to change the numeric value.
19.
Press Stream to move to the next field.
20.
Press Enter. The subnet address screen displays (Figure 20).
Figure 20. Subnet address screen
21.
Press the Up and Down arrow buttons to change the numeric value.
22.
Press Enter. The network settings screen displays.
Note: To remove a static IP and/or Gateway address, follow steps 11 through 14 to
enable DHCP. The system removes any previously entered static address.
23.
Press the Up and Down arrow buttons to select Gateway.
26 ViewCastMicrosoft
GoStream Series User Guide
24.
Press Enter. The gateway address screen displays (Figure 21).
Figure 21. Gateway address screen
25.
Press the Up and Down arrow buttons to change the numeric value.
26.
Press Stream to move to the next field.
27.
Press Enter. The screen with the network settings displays.
28.
Press Menu to return to the system menu.
ViewCast 27
GoStream Series User Guide
1.
Press Power. The LCD readout displays the initializing messages.
After the system powers up for the first time, the Welcome displays:
2.
Press Power. The system menu displays.
Basic Operations
You may customize your encoder settings and assign specific encoder profiles using the touch panel.
Starting up
If this is the first time you are using the system, refer to the Easy Setup section before continuing.
To start up:
ViewCast 29
Easy Setup
1.
Press Menu. Tab down to Shutdown System (Figure 22).
Figure 22. System menu
2.
Press Enter. The shutdown screen appears (Figure 23).
Figure 23. Shutdown screen
3.
Touch or drag the Up and Down slider to Power Off System. Press Enter. The Power Off
System? screen appears.
Figure 24. Power off screen
4.
Touch or drag the Up and Down slider to Yes and press Enter. The shutdown screens appear.
Figure 25. Shutdown screens
The system shuts down.
1.
Briefly press Power. The system stopping messages appear (Figure 26).
Figure 26. System stopping messages
After a few seconds, the system powers off.
Shutting down
Allow the GoStream system to power down normally. If you force the system to shut down improperly,
your data can become corrupted. If so, the next time you start the system it can take several minutes to
complete startup.
To shut down:
You can also shut down the system using the following steps:
30 ViewCastMicrosoft
GoStream Series User Guide
1.
Press Menu. The system menu appears.
Note: Encoder is already selected.
2.
Press Enter. The encoder screen appears.
3.
Press the Up or Down arrow buttons to select the encoder profile you want to use for this
encoding session.
4.
Press Stream. The starting screen appears (Figure 45).
Figure 27. Starting Screen
5.
The system menu appears with encoder selected. Press Enter.
The encoder screen appears indicating that the encoder you selected has begun streaming
(Figure 28).
Figure 28. Encoder screen
Note: If the encoder you started is assigned to one of the Preset ABC buttons, the
corresponding button flashes and steady illuminates during and after the starting
process.
6.
You can repeat this method to start streaming multiple encoders at the same time.
WARNING! There is a limit to how many encoders the system can stream at one time. If you
exceed this limit, the streams will drop frames and the video will apppear to stutter
resulting in a poor viewer experience. If you do not reduce the number of streams to
lessen the CPU load, all encoders could self-terminate without warning. Refer to the
Checking CPU usage section to understand the limitations.
Starting an encoder
The GoStream system is a dual-channel encoder. You can stream the same audio and video at multiple
data rates and multiple formats to provide the best user experience for different viewing audiences.
For example, you can stream Microsoft® Windows Media at full resolution at 1500 kbps and at the same
time stream Adobe® Flash® at CIF resolution at 500 kbps.
The LCD screen displays a list of available encoder profiles you can use and the status of each.
To start an encoder:
ViewCast 31
Easy Setup
7.
If you press a Preset button and no encoder groups are assigned to this button, the no
encoders screen appears (Figure 29).
Figure 29. No encoders screen
Press Enter. The assign an encoder screen appears (Figure 30).
Figure 30. Assign an encoders screen
Note: You must define encoder groups before you can assign them to a Preset button.
8.
Press the Up or Down arrow buttons and select Yes.
9.
Press Enter. The select group screen appears (Figure 31).
Figure 31. Select group screen
10.
Press Enter. A screen with the list of available groups appears (Figure 32).
Figure 32. Group screen
11.
Press the Up or Down arrow buttons to select the appropriate group.
12.
Press Enter. A confirmation screen appears (Figure 33).
Figure 33. Confirmation screen
13.
Press Enter. A group is now assigned to the Preset button.
32 ViewCastMicrosoft
GoStream Series User Guide
1.
Press Menu. The system menu appears.
2.
Press the Up or Down arrow on the slider to select Access Health.
3.
Press Enter. The Access menu appears (Figure 34).
Figure 34. Access menu
4.
Press the Up or Down arrow on the slider to select CPU.
5.
Press Enter. A screen appears (Figure 35) with the amount of CPU cycles currently in use.
Figure 35. CPU cycles screen
6.
Press Enter. The Access menu appears.
Checking CPU usage
When the system is idle (no encoders are streaming), the CPU percentage is normally 4 % or less. If one or
more encoders are streaming, the percentage is much higher and fluctuates in a range of +/- 10 %. If the
system is using less than 80 %, you may start another encoder depending on the complexity of the profile
without adversely affecting system performance.
To check CPU usage:
ViewCast 33
Easy Setup
1.
Press the Up or Down arrow buttons to highlight the encoder you wish to stop.
2.
Press Stop. The encoder screen appears (Figure 36) showing the status of each encoder.
Figure 36. Encoder screen
3.
Press the Up or Down arrow buttons to select the encoder you want to terminate.
4.
Press Stop. The stopping screen appears (Figure 37).
Figure 37. Stopping screen
5.
Press Menu. The system menu appears.
Stopping an encoder
To stop an encoder:
34 ViewCastMicrosoft
GoStream Series User Guide
1.
Insert a USB storage device into a USB port.
2.
Press Menu on the front panel. The system menu appears.
3.
Press the Up or Down arrow buttons to select Export Files.
Figure 38. System menu
4.
Press Enter. The USB device screen appears (Figure 39).
Figure 39. USB device screen
5.
Press Enter. The destination screens appear with a list of active USB drives (Figure 40).
Figure 40. Destination screens
6.
Press the Up or Down arrow buttons to select the drive destination.
Connecting an external storage device
The GoStream has one USB port on the front panel and six on the back panel. You can connect almost any
standard USB device to any of these ports. You can then export any audiovisual files you may have created
on the system’s local storage drive. The local storage drive is drive D when you use the Save to File setting
from the web interface.
When you insert a USB storage device in one of the USB ports, the system automatically detects the
removable storage device, and assigns a drive letter to the device. This device can capture files directly or
you can use the Export File function on the touch panel menu.
Exporting captured video files
You can export captured video files to an external USB storage device, but first you must set a default
location through the web interface. Refer to Configuring default directory setting before completing the
steps below.
To export captured video files:
ViewCast 35
Easy Setup
7.
Press Enter. The select folder screen appears (Figure 41).
Figure 41. Select folder screen
Then the source file screen appears (Figure 42).
Figure 42. Source file screen
Note: The file name on this screen is for instructional purposes only.
8.
Press the Up or Down arrow buttons to select the desired file for export.
Note: You can only select the USB root as a destination.
9.
Press Enter. The exporting screens appear (Figure 43).
Figure 43. Exporting screens
Note: When the system is finished exporting the file, remove the USB storage device.
36 ViewCastMicrosoft
GoStream Series User Guide
1.
Locate the serial number:
On the side or bottom of the system (in the format gp11430001)
Or
From the LCD display when the system is idle (Figure 44).
Figure 44. System ready screen
Note: If the system ready screen with the serial number does not immediately display,
press the Up and Down slider to toggle through the system information until the
right screen appears.
2.
Open the web browser on your computer.
3.
You can either:
Enter the GoStream serial number in the address bar (Figure 45).
Figure 45. Serial number
Or
Enter the IP address in the address bar (Figure 46).
Figure 46. IP address
Web Interface
The GoStream includes a web interface, which allows you to access the advanced system settings. The
web interface also provides detailed settings and control over the encoder profiles installed on the
system. The web interface does not require software and works with any computer that has a current web
browser, including Microsoft Windows®, Macintosh®, and Linux® machines. For the best user experience,
ViewCast recommends Internet Explorer. The system either must reside on a shared IP network with the
computer or directly connected to a Microsoft Windows computer using an Ethernet cable (RJ45).
Logging in
When the unit is idle, it cycles through several System Ready screens that display the IP address, the serial
number, CPU usage, the available space on the hard drive, and amount of free RAM.
To log in:
ViewCast 37
Basic Operations
4.
Press Enter. The Admin Log In window displays (Figure 47).
Figure 47. Admin Log In window
Note: The version and SKU fields display the current numbers for your system.
5.
Type the User Name and Password.
IMPORTANT! The setting to log in for the first time, defaults to the user name admin and
password admin.
6.
Press Log In. The GoStream Welcome window and menu bar appear (Figure 48).
Figure 48. Welcome window
38 ViewCastMicrosoft
GoStream Series User Guide
1.
Access the Product Registration page:
Click MaintenanceProduct Registration. The Product Registration page displays (Figure
49).
Figure 49. Product Registration
Note: The default is Register the product online.
2.
Enter your name and contact information in the spaces provided.
3.
Click Submit. After a few seconds, a confirmation message displays.
Registering your product
You have 30 days to register your product when you first activate the system. A reminder displays at the
bottom of the Home and Encoders pages. You can register your system using three different methods:
Product Registration page
ViewCast website
ViewCast Support help desk (Call 972-488-7157 and provide the serial number and SKU.)
To register online:
ViewCast 39
Basic Operations
1.
Access the Product Registration page:
Click MaintenanceProduct Registration. The Product Registration page displays (Figure
49).
Note: The default is Register the product online.
2.
Click Register the product on another computer or over the phone.
Figure 50. Product registration
3.
Copy the registration URL.
4.
From another computer, open a browser and paste the URL into the address bar.
To register at viewcast.com:
40 ViewCastMicrosoft
GoStream Series User Guide
5.
Enter your name and contact information in the spaces provided.
Figure 51. Contact information
6.
Select the type of product. The serial number and SKU are automatically populated.
Figure 52. Product information
7.
Click Submit. After a few seconds, a confirmation message displays.
ViewCast 41
Basic Operations
1.
Click the Create New Encoder link. The Create New Encoder window displays (Figure 54).
Figure 54. Create New Encoder window
2.
Select the Encoder Type from the drop-down list.
3.
Enter the name of the encoder.
Note: Valid characters are alphanumeric, space, dash, and dot.
4.
If you create an Adaptive Live Streaming encoder, you need to select a Publisher from the
drop-down list.
5.
To use the same properties from another encoder, enable Clone Properties From.
6.
Select the Encoder Name from the drop-down list.
Connecting to an IP network
The GoStream systems have three 1 Gbit network interface ports. The network settings for these ports
default to dynamically obtain an IP address from a DHCP server on the network. If a DHCP server is not
available or is not found on the network, the system assigns its own IP address.
Note: If you are not familiar with network protocols, contact your network administrator for
assistance. If you are not able to browse to the unit with a DHCP network, you may connect a
monitor, keyboard, and mouse to the system to determine and set the network connections.
Creating an encoder
The GoStream system does not have any default encoders. You must create an encoder before you start
streaming. To create an encoder, click EncodersAll Encoders. The Encoders window displays (Figure
53).
Figure 53. Encoders window
To create an encoder:
42 ViewCastMicrosoft
GoStream Series User Guide
7.
Click Create New Encoder.
8.
The steps for configuring the encoder vary according to the inputs. Follow the steps for the
desired inputs referring to the information for that encoder.
ViewCast 43
Basic Operations
A.
Click this link to edit the encoder properties, streaming settings, and advanced
streaming settings.
B.
Click this link to delete an encoder from the list.
C.
Displays the encoder type (for example the Flash icon ).
D.
Displays the name you assigned to the encoder.
E.
Displays the status of the last action.
F.
Displays the result of the last operation.
G.
Click this link to create a new encoder.
H.
Displays the amount of CPU usage.
I.
Displays as either a blue circle icon (started) or a red circle icon (stopped) as the options
for streaming this encoder. You can start or stop the encoder by clicking the icons.
J.
Click this link to view and edit encoder groups.
K.
Click this link to stop all encoders
L.
Displays the total number of encoders.
Viewing all encoders
The Encoders window provides a list of the encoders loaded on the GoStream series system. On the home
page, click Encoders All Encoders.
Figure 55. Encoders window
44 ViewCastMicrosoft
GoStream Series User Guide
1.
Click the red circle (stopped) icon (Figure 56) in the Streaming column for the encoder you
want to start streaming.
Figure 56. Stopped icon
Messages appear detailing the encoder start progress (Figure 57).
Figure 57. Encoder status
Starting an encoder
To start an encoder, on the home page click Encoders All Encoders.
To start an encoder:
ViewCast 45
Basic Operations
2.
The Encoders window appears with the encoder status updated and the streaming indicator
changes to a blue circle Started icon (Figure 58).
Figure 58. Encoders window
1.
Click the blue circle (started) icon of the encoder you wish to stop streaming (Figure 59).
Figure 59. Started icon
Messages appear detailing the encoder stop progress (Figure 60).
Figure 60. Encoder status
Stopping an encoder
To stop an encoder, on the home page click Encoders All Encoders.
To stop an encoder:
46 ViewCastMicrosoft
GoStream Series User Guide
The Encoders window appears with the encoder status updated to reflect the Stopped mode
and the streaming indicator changes to a red circle Stopped icon (Figure 61).
Figure 61. Encoders window
Connecting an external storage device
The GoStream series systems have one USB port on the front panel and six on the back panel. You can
connect almost any standard USB device to any of these ports. You can then export any audiovisual files
you may have created on the system’s local storage drive. The local storage drive is drive D when you use
the Save to Filesetting from the web interface.
When you insert a USB storage device in one of the USB ports, the system automatically detects the
removable storage device, and assigns a drive letter to the device.
ViewCast 47
GoStream Series User Guide
Analog Inputs
The GoStream system includes a web interface, which allows you to access the advanced system
settings. The web interface also provides detailed settings and controls over the encoder profiles
installed on the system.
The web interface works with any computer that has a current web browser (Internet Explorer and
Mozilla Firefox), including Windows®, Macintosh®, and Linux® machines. For the best user experience,
ViewCast recommends Internet Explorer. The system must reside either on a shared IP network with the
computer or directly connected to a Microsoft® Windows computer using an Ethernet cable (RJ45).
ViewCast 49
Analog Inputs
Adaptive Apple HTTP Live streaming encoder
with analog inputs
To create an adaptive encoder, EncodersAll Encoders Create New Encoder link Encoder Type =
Adaptive Live Streaming Encoder Encoder Name field Publisher = Apple HTTP Live Streaming.
When you create a new encoder, the Encoder Properties window appears. The steps for editing a new
encoder or an existing encoder are identical. You must configure the video and audio settings for each
encoder type.

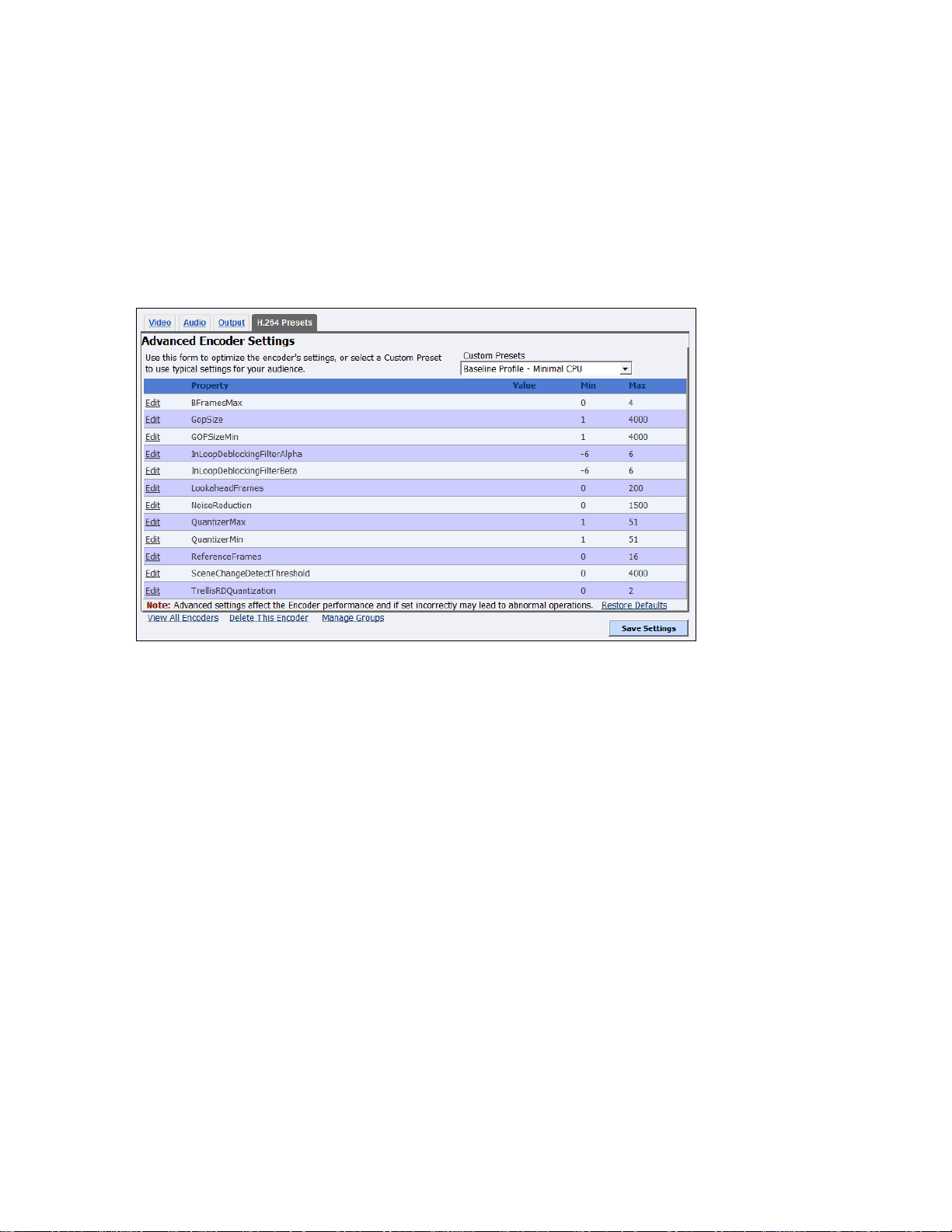

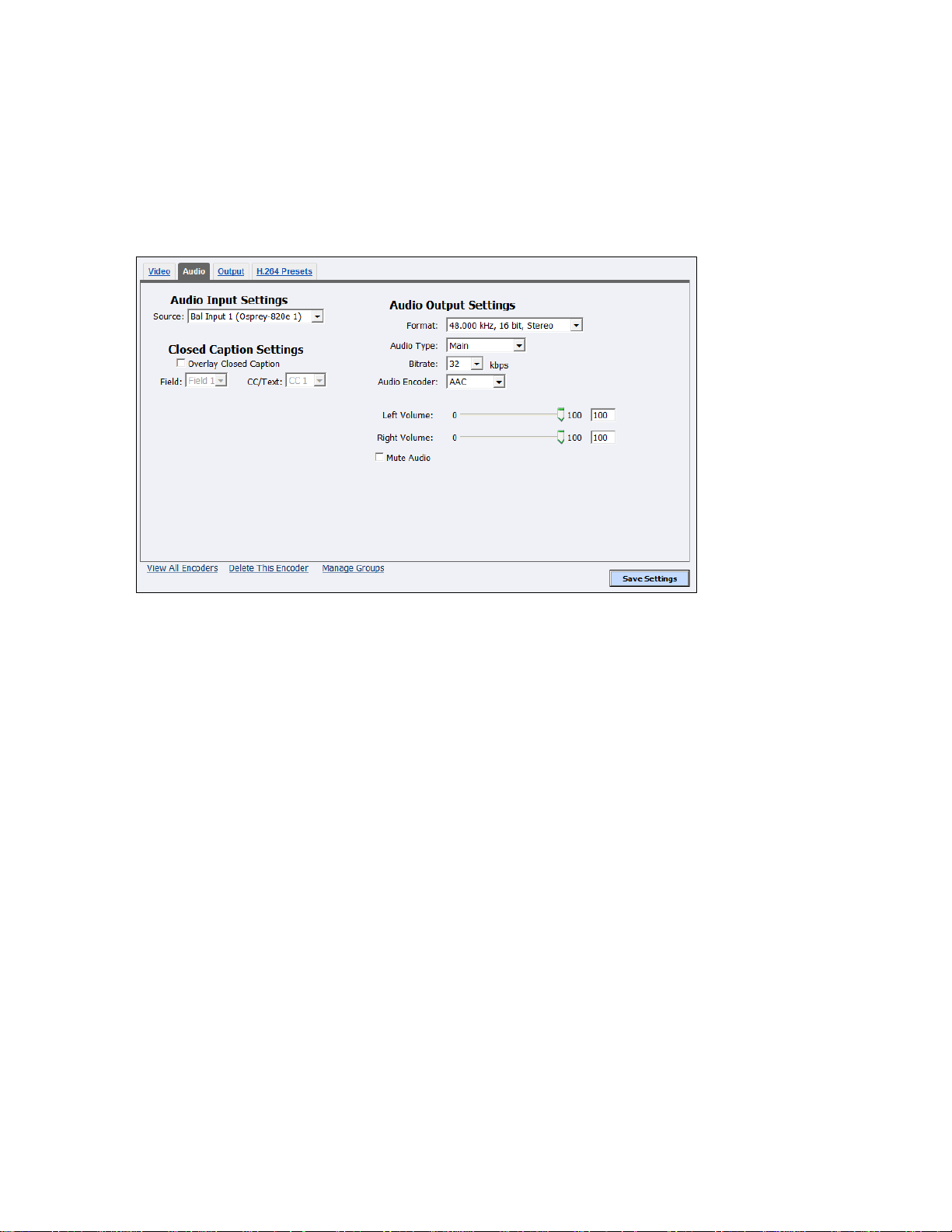

Use the Video, Audio, Output, and H.264 Presets tabs to edit the settings. Begin with configuring the
video and audio settings, then the server and destination settings. The server and destination settings
are different for each type of encoder.
From the Encoder Properties window (Figure 62), you can set the encoder to start streaming
automatically by selecting the Auto Start check box. You can also start an encoder from this window by
clicking the Start Apple HTTP Live Streaming Encoder link in the top right corner of the window.
IMPORTANT! If you make any changes to the Encoder Properties window, you must click Save
Settings. Otherwise, all your changes will be lost.
Figure 62. Adaptive Apple HTTP Live streaming encoder
50 ViewCast
GoStream Series User Guide
1.
Select the video input Source from the drop-down list.
Note: When SimulStream is enabled, you may use the same input source in another encoding
profile. This lets you encode the same audio and video at multiple data rates and multiple
formats to provide the best user experience for different viewing audiences.
2.
In the Input field, select the video input.
IMPORTANT! The video input must match the connectors on the back of the system and your
video source.
3.
In the InputSize field, select the pre-determined size of the encoded video from the dropdown list.
You can also specify a custom size for your video. This customization is useful when you are
capturing video to be played on a mobile video-device that requires a non-standard size for
compatibility.
When you click Custom, two additional fields appear so you can enter the exact size you
want the resulting video to be (Figure 64).
Note: The size in the Width and Height fields must be divisible by 2.
Figure 64. Custom fields
Video tab
Use the following table to configure the video analog input settings for an Adaptive Apple HTTP live
streaming encoder.
Note: The choices in the drop-down lists may vary.
Figure 63. Video tab
To configure video settings:
ViewCast 51
Analog Inputs
4.
Enter the seconds for the GOP/Segment Length.
5.
In the adaptive encoder video stream table, indicate which stream the player will use first
(see Adaptive encoder video stream table).
6.
Drag the sliders to adjust the Brightness, Contrast, Hue, and Saturation (Figure 65).
Figure 65. Video Filter Settings
Note: Click Restore to the right of the filter to reset the settings to the default.
7.
Click the De-Interlace setting you want to apply (Figure 66). Options include:
None
– Performs no de-interlacing of any kind.
Bob0
– Applies inverse telecine de-interlacing to all telecine video.
– Applies motion adaptive de-interlacing to all video that is not telecine.
– Switches dynamically between the two modes as the content changes.
– Available for NTSC video only.
Bob1
– Drops the redundant fields and reassembles the video in a 24 fps progressive format.
– Applies inverse telecine de-interlacing to all telecine video.
– Performs no de-interlacing of video that is not telecine.
–Available for NTSC video only.
Advanced
– Is an algorithm for de-interlacing pure video (non-telecine) content.
– Applies motion adaptive interlacing to all video. It detects which portions of the image
are still and which portions are in motion then applies different processing to each
scenario.
Figure 66. De-Interlace settings
Note: Telecine and inverse telecine only apply to NTSC video. They are not used for PAL and
SECAM video. The system disables Bob0 and Bob1 choices when you connect a PAL or SECAM video standard.
52 ViewCast
GoStream Series User Guide
8.
Select Add Statistics to overlay video statistics within the video stream for diagnostic
purposes.
9.
Click Save Settings.
A.
The table displays five streams at a time. Additional streams display on additional pages.
Click the page number to display the streams on that page. You can also click First to go to
the first page or click Last to go to the last page.
B.
Click this link to add a stream.
Note: If you click Custom as the Input Size, the system will automatically adjust the width
and height of subsequent streams according to the custom settings.
C.
The bit rate displays in kilobits per second. This field can only contain whole numbers.
Note: Two streams at the same bit rate cannot run simultaneously.
D.
Displays the frames per second. You can enter up to two decimal places.
E.
Displays the width of the picture frame in the stream.
F.
Displays the height of the picture frame in the stream.
G.
The profile field has two settings:
Base – This profile is typically for video conferencing and mobile applications and has the
lowest demands on CPU load and memory usage, but lowest resulting quality.
Main – This profile is targeted at standard-definition TV. This profile is not acceptable for
streaming to iPhone mobile devices.
Adaptive encoder video stream table
The adaptive encoder video stream table (Figure 67) contains five default streams. You can add a new
stream, edit, delete, disable, and set which stream the player will use first. You can sort each column by
clicking on the column heading.
The system validates the stream settings according to the capabilities of your Niagara system.
Figure 67. Adaptive encoder video stream table
When you hover your cursor over a stream setting, additional functions display (Figure 68).
ViewCast 53
Analog Inputs
Edit
Click this link to change the settings for a particular stream. Click Update to accept the
changes.
Note: Click Cancel to stop this action.
Del
Click this link to delete the stream.
Disable
Click this link to disable this stream. The settings are still visible but appear to be
“crossed out.”
Initial
Click this link to have the player use this stream first. The settings for the initial stream
appear in bold.
Figure 68. Additional functions
54 ViewCast
GoStream Series User Guide
1.
In the Source field, select an audio source from the drop-down list.
IMPORTANT! The audio input must match the connectors on the back of the system and your
audio source.
2.
Select the Overlay Closed Caption check box to enable overlay closed captions. Field 1 CC 1 is
the default setting.
3.
Select the Format from the drop-down list.
4.
Select the Audio Type from the drop-down list.
5.
Select the Bitrate from the drop-down list.
6.
Select the Audio Encoder from the drop-down list.
7.
Drag the slider to adjust the Left Volume and RightVolume.
8.
(Optional) Select Mute Audio to silence the audio.
9.
Click Save Settings.
Audio tab
Use the following table to configure the audio analog input settings for an Adaptive Apple encoder.
Note: The choices in the drop-down lists may vary.
Figure 69. Audio tab
To configure audio settings:
ViewCast 55
Analog Inputs
1.
Enable Stream to Network Host.
CAUTION! Simultaneously publishing to server and file system increases CPU usage.
2.
Select the Host Address.
Note: When you select ftp://, the Passive FTP Mode displays. Select this field to use passive
FTP mode or clear this field to use active FTP mode.
3.
Enter the address in the next field.
4.
Indicate the maximum HTTP Cache by dragging the slider for the number of files to maintain.
Note: The Stream Path that displays is a combination of the Host Address, Subfolder, and
Filename.
5.
Select Create unique folder to create a file that the system does not overwrite.
Note: The format is Subfolder_YYMMDD_HHMMSS.
6.
Enter the name of the Subfolder used in the network destination and/or the local file system
full filename.
7.
Enter the name of the variant playlist file in the Filename field.
8.
Enter the Number of Segments Per Folder.
9.
Select Stream to File System to enable archiving content to the file system.
Output tab
Use the following table to configure the output analog input settings for an Adaptive Apple encoder.
Note: The choices in the drop-down lists may vary.
Figure 70. Output tab
To configure output settings:
56 ViewCast
GoStream Series User Guide
10.
Accept the default location that displays in the Folder field or choose your own location for
the file. To choose your own personal location, select the link (horizontal ellipses or … ) to
the right of the Folder field to display the options.
Note: By default, the system sets this folder to D:\AVFiles.
Figure 71. Select a folder
WARNING! You can only save media files to drive D. check drive properties for available
free space to determine your storage capacity.
A better practice would be to use the streaming server to save a file or to save it to a
remote drive. If you fill all available space, you risk losing your stream during a
streaming event.
Note: The File System that displays is a combination of the Folder, Subfolder, and Filename.
11.
Select Allow client to cache content.
12.
Select Encrypt Media Segment Files to protect the content.
13.
Select the Key File.
Note: http:// is currently the only choice.
14.
Enter the URL.
15.
Enter the user authentication Type. If the host address is:
http:// the selections are None and Akamai
Note: If you select Akamai, you must set the time zone according to where the GoStream is
located. To change the time zone:
1. Right click on the time in the system tray.
2. Click on Adjust Date/Time.
3. In the Date and Time window, click Change time zone
4. Click on the appropriate time zone from the drop-down list and click OK.
5. Click Change date and time.
6. In the Date and Time Settings window, enter the current time and click OK. The time
must be as exact as possible.
ftp:// the selections are None or ftp.
16.
Enter the Username.
17.
Enter the Password.
18.
Click Save Settings.
ViewCast 57
Analog Inputs
1.
Click Edit next to the property you want to modify.
IMPORTANT! These advanced presets affect the way the encoder performs and if set
incorrectly may lead to abnormal encoder operations. Refer to the H.264 Presets section
for suggested values for the type of video you are streaming.
2.
Change the value.
3.
Click Update.
4.
Click the Restore Defaults link at the bottom of the window to return the settings to the
defaults.
Note: The database has multiple properties for each preset. Clicking Restore Defaults for one
property will change all properties to the default settings.
5.
Click Save Settings.
H.264 Presets tab
These advanced presets affect the way the encoder performs and if set incorrectly may lead to
abnormal encoder operations (Figure 72). Each preset contains properties that you can modify. Refer to
Appendix B for suggested values for the type of video you are streaming.
Use the following table to configure the H.264 analog presets for an Adaptive Apple encoder.
Note: The choices in the drop-down list may vary.
Figure 72. H.264 Presets tab
To configure H.264 presets:
58 ViewCast
GoStream Series User Guide
Adaptive Adobe Flash Dynamic streaming
encoder with analog inputs
To create an adaptive encoder, EncodersAll Encoders Create New Encoder link Encoder Type =
Adaptive Adobe Flash Encoder Name field Publisher = Adaptive Adobe Flash Dynamic Streaming.
When you create a new encoder, the Encoder Properties window appears. The steps for editing a new
encoder or an existing encoder are identical. You must configure the video and audio settings for each
encoder type.
Use the Video, Audio, Output, and H.264 Presets tabs to edit the settings. Begin with configuring the
video and audio settings, then the server and destination settings. The server and destination settings
are different for each type of encoder.
From the Encoder Properties window (Figure 73), you can set the encoder to start streaming
automatically by selecting the Auto Start check box. You can also start an encoder from this window by
clicking the Start Adobe Flash Dynamic Streaming Encoder link in the top right corner of the window.
IMPORTANT! If you make any changes to the Encoder Properties window, you must click Save
Settings. Otherwise, all your changes will be lost.
Select the video input Source from the drop-down list.
Note: When SimulStream is enabled, you may use the same input source in another encoding
profile. This lets you encode the same audio and video at multiple data rates and
multiple formats to provide the best user experience for different viewing audiences.
2.
In the Input field, select the video input.
IMPORTANT! The video input must match the connectors on the back of the system and
your video source.
4.
In the InputSize field, select the pre-determined size of the encoded video from the dropdown list.
You can also specify a custom size for your video. This customization is useful when you are
capturing video to be played on a mobile video-device that requires a non-standard size for
compatibility.
When you click Custom, two additional fields appear so you can enter the exact size you
want the resulting video to be (Figure 75).
Note: The size in the Width and Height fields must be divisible by 2.
Figure 75. Custom fields
5.
Enter the seconds for the GOP/Segment Length.
Video tab
Use the following table to configure the video analog input settings for an Adaptive Adobe Flash
dynamic streaming encoder.
Note: The choices in the drop-down lists may vary.
Figure 74. Video tab
To configure video settings:
60 ViewCast
GoStream Series User Guide
6.
Drag the sliders to adjust the Brightness, Contrast, Hue, and Saturation (Figure 76).
Figure 76. Video Filter Settings
Note: Click Restore to the right of the filter to reset the settings to the default.
7.
Click the De-Interlace setting you want to apply (Figure 77). Options include:
None
– Performs no de-interlacing of any kind.
Bob0
– Applies inverse telecine de-interlacing to all telecine video.
– Applies motion adaptive de-interlacing to all video that is not telecine.
– Switches dynamically between the two modes as the content changes.
– Available for NTSC video only.
Bob1
– Drops the redundant fields and reassembles the video in a 24 fps progressive format.
– Applies inverse telecine de-interlacing to all telecine video.
– Performs no de-interlacing of video that is not telecine.
– Available for NTSC video only.
Advanced
– Is an algorithm for de-interlacing pure video (non-telecine) content.
– Applies motion adaptive interlacing to all video. It detects which portions of the image
are still and which portions are in motion then applies different processing to each
scenario.
Figure 77. De-Interlace settings
Note: Telecine and inverse telecine only apply to NTSC video. They are not used for PAL
and SECAM video. The system disables Bob0 and Bob1 choices when you connect the PAL or SECAM video standard.
8.
Select Add Statistics to overlay video statistics within the video stream for diagnostic
purposes.
9.
Select Embed Timecode to enable embed system time as timecode. This action tags
individual video frames with timecode data. This feature should be used if embedded
timecode is required but your capture device cannot generate it.
10.
Specify the Frame Interval at which timecode should be embedded into the video stream in
ViewCast 61
Analog Inputs
the Frame Interval field.
0=disabled
The range is 1 to 30 frames.
11.
Click Save Settings.
A.
The table displays five streams at a time. Additional streams display on additional pages.
Click the page number to display the streams on that page. You can also click First to go to
the first page or click Last to go to the last page.
B.
Click this link to add a stream.
Note: If you click Custom as the Input Size, the system will automatically adjust the width
and height of subsequent streams according to the custom settings.
C.
The bit rate displays in kilobits per second. This field can only contain whole numbers.
Note: Two streams at the same bit rate cannot run simultaneously.
D.
Displays the frames per second. You can enter up to two decimal places.
E.
Displays the width of the picture frame in the stream.
F.
Displays the height of the picture frame in the stream.
G.
The profile field has two settings:
Base – This profile is typically for video conferencing and mobile applications and has the
lowest demands on CPU load and memory usage, but lowest resulting quality.
Main – This profile is targeted at standard-definition TV. This profile is not acceptable for
streaming to iPhone mobile devices.
Encoder video stream table
The adaptive encoder video stream table (Figure 78) contains five default streams. You can add a new
stream, edit, delete, disable, and set which stream the player will use first. You can sort each column by
clicking on the column heading.
The system validates the stream settings according to the capabilities of your Niagara system.
Figure 78. Encoder video stream table
When you hover your cursor over a stream setting, additional functions display (Figure 79).
62 ViewCast
GoStream Series User Guide
Edit
Click this link to change the settings for a particular stream. Click Update to accept the
changes.
Note: Click Cancel to stop this action.
Del
Click this link to delete the stream.
Disable
Click this link to disable this stream. The settings are still visible but appear to be
“crossed out.”
Figure 79. Additional functions
ViewCast 63
Analog Inputs
1.
In the Source field, select an audio source from the drop-down list.
IMPORTANT! The audio input must match the connectors on the back of the system and your
audio source.
2.
Select the Overlay Closed Caption check box to enable overlay closed captions. Field 1 CC 1 is
the default setting.
3.
Select the Format from the drop-down list.
4.
Select the Audio Type from the drop-down list.
5.
Select the Bitrate from the drop-down list.
6.
Select the Audio Encoder from the drop-down list.
7.
Drag the slider to adjust the Left Volume and RightVolume.
8.
(Optional) Select Mute Audio to silence the audio.
9.
Click Save Settings.
Audio tab
Use the following table to configure the audio analog input settings for an Adaptive Adobe Flash
dynamic streaming encoder.
Note: The choices in the drop-down lists may vary.
Figure 80. Audio tab
To configure audio settings:
64 ViewCast
GoStream Series User Guide
1.
Select Stream to Flash Media Server.
CAUTION! Simultaneously publishing to server and file system increases CPU usage.
2.
Enter the destination FMS Address.
Note: The Stream Path that displays is a combination of the FMS (Flash media Server)
address and the stream name.
3.
Enter the Stream Name.
Note: The system accepts the %v parameter for video bitrate, %i for indexing, and %b for
overall bitrate, which is compatible with Adobe Flash media encoder.
4.
Select Stream to File System to enable archiving content to the file system.
Output tab
Use the following table to configure the output analog input settings for an Adaptive Adobe Flash
dynamic streaming encoder.
Note: The choices in the drop-down lists may vary.
Figure 81. Output tab
To configure output settings:
ViewCast 65
Analog Inputs
5.
Accept the default location that displays in the Folder field or choose your own location for
the file. To choose your own personal location, select the link (horizontal ellipses or … ) to
the right of the Folder field and display the options (Figure 82).
Note: By default, the system sets this folder to D:\AVFiles. See Export to USB drive for
instructions on saving video files to a USB storage device.
Figure 82. Select a folder
WARNING! You can only save media files to drive D. Check drive properties for available
free space to determine your storage capacity.
A better practice would be to use a Flash Media server to save a file or to save it to a
remote drive. If you fill all available space, you risk losing your stream during a
streaming event.
6.
Select Create unique folder to create a file that the system does not overwrite.
7.
Enter the user authentication Type. If the host address is:
None
Adobe
Akamai
Limelight
8.
Enter the Username.
9.
Enter the Password.
10.
Click Save Settings.
66 ViewCast
GoStream Series User Guide
1.
Click Edit next to the property you want to modify.
IMPORTANT! These advanced presets affect the way the encoder performs and if set
incorrectly may lead to abnormal encoder operations. Refer to the H.264 Presets section
for suggested values for the type of video you are streaming.
2.
Change the value.
3.
Click Update.
4.
Click the Restore Defaults link at the bottom of the window to return the settings to the
defaults.
Note: The database has multiple properties for each preset. Clicking Restore Defaults for one
property will change all properties to the default settings.
5.
Click Save Settings.
H.264 Presets
These advanced presets affect the way the encoder performs and if set incorrectly may lead to
abnormal encoder operations (Figure 83). Each preset contains properties that you can modify. Refer to
Appendix B for suggested values for the type of video you are streaming.
Use the following table to configure the H.264 analog presets for an Adaptive Flash encoder.
Note: The choices in the drop-down list may vary.
Figure 83. H.264 Presets tab
To configure H.264 presets:
ViewCast 67
Analog Inputs
Adaptive Microsoft Smooth Streaming encoder
with analog inputs
To create an adaptive encoder, EncodersAll Encoders Create New Encoder link Encoder Type =
Adaptive Live Streaming Encoder Encoder Name field Publisher = Microsoft IIS7 Smooth Streaming.
When you create a new encoder, the Encoder Properties window appears. The steps for editing a new
encoder or an existing encoder are identical. You must configure the video and audio settings for each
encoder type.
Use the Video, Audio, Output, and H.264 Presets tabs to edit the settings. Begin with configuring the
video and audio settings, then the server and destination settings. The server and destination settings
are different for each type of encoder.
From the Encoder Properties window (Figure 84), you can set the encoder to start streaming
automatically by selecting the Auto Start check box. You can also start an encoder from this window by
clicking the Start Microsoft Smooth Streaming Encoder link in the top right corner of the window.
IMPORTANT! If you make any changes to the Encoder Properties window, you must click Save
Settings. Otherwise, all your changes will be lost.
Figure 84. Microsoft Smooth Streaming encoder
68 ViewCast
GoStream Series User Guide
1.
Select the video input Source from the drop-down list.
Note: When SimulStream is enabled, you may use the same input source in another encoding
profile. This lets you encode the same audio and video at multiple data rates and
multiple formats to provide the best user experience for different viewing audiences.
2.
In the Input field, select the video input.
IMPORTANT! The video input must match the connectors on the back of the system and
your video source.
3.
In the InputSize field, select the pre-determined size of the encoded video from the dropdown list.
You can also specify a custom size for your video. This customization is useful when you are
capturing video to be played on a mobile video-device that requires a non-standard size for
compatibility.
When you click Custom, two additional fields appear so you can enter the exact size you
want the resulting video to be (Figure 86).
Note: The size in the Width and Height fields must be divisible by 2.
Figure 86. Custom fields
4.
Enter the seconds for the GOP/Segment Length.
Video tab
Use the following table to configure the video analog input settings for an Adaptive Microsoft Smooth
Streaming encoder.
Note: The choices in the drop-down lists may vary.
Figure 85. Video tab
To configure video settings:
ViewCast 69
Analog Inputs
5.
Drag the sliders to adjust the Brightness, Contrast, Hue, and Saturation (Figure 87).
Figure 87. Video Filter Settings
Note: Click Restore to the right of the filter to reset the settings to the default.
6.
Click the De-Interlace setting you want to apply (Figure 88). Options include:
None
– Performs no de-interlacing of any kind.
Bob0
– Applies inverse telecine de-interlacing to all telecine video.
– Applies motion adaptive de-interlacing to all video that is not telecine.
– Switches dynamically between the two modes as the content changes.
– Available for NTSC video only.
Bob1
– Drops the redundant fields and reassembles the video in a 24 fps progressive format.
– Applies inverse telecine de-interlacing to all telecine video.
– Performs no de-interlacing of video that is not telecine.
– Available for NTSC video only.
Advanced
– Is an algorithm for de-interlacing pure video (non-telecine) content.
– Applies motion adaptive interlacing to all video. It detects which portions of the image
are still and which portions are in motion then applies different processing to each
scenario.
Figure 88. De-Interlace settings
Note: Telecine and inverse telecine only apply to NTSC video. They are not used for PAL
and SECAM video. The system disables Bob0 and Bob1 choices when you connect the PAL or SECAM video standard.
7.
Select Add Statistics to overlay video statistics within the video stream for diagnostic
purposes.
8.
Click Save Settings.
70 ViewCast
GoStream Series User Guide
A.
The table displays five streams at a time. Additional streams display on additional pages.
Click the page number to display the streams on that page. You can also click First to go to
the first page or click Last to go to the last page.
B.
Click this link to add a stream.
Note: If you click Custom as the Input Size, the system will automatically adjust the width
and height of subsequent streams according to the custom settings.
C.
The bit rate displays in kilobits per second. This field can only contain whole numbers.
Note: Two streams at the same bit rate cannot run simultaneously.
D.
Displays the frames per second. You can enter up to two decimal places.
E.
Displays the width of the picture frame in the stream.
F.
Displays the height of the picture frame in the stream.
G.
The profile field has two settings:
Base – This profile is typically for video conferencing and mobile applications and has the
lowest demands on CPU load and memory usage, but lowest resulting quality.
Main – This profile is targeted at standard-definition TV. This profile is not acceptable for
streaming to iPhone mobile devices.
Adaptive encoder video stream table
The adaptive encoder video stream table (Figure 89) contains five default streams. You can add a new
stream, edit, delete, disable, and set which stream the player will use first. You can sort each column by
clicking on the column heading.
The system validates the stream settings according to the capabilities of your Niagara system.
Figure 89. Adaptive encoder video stream table
When you hover your cursor over a stream setting, additional functions display (Figure 90).
ViewCast 71
Analog Inputs
Edit
Click this link to change the settings for a particular stream. Click Update to accept the
changes.
Note: Click Cancel to stop this action.
Del
Click this link to delete the stream.
Disable
Click this link to disable this stream. The settings are still visible but appear to be
“crossed out.”
Figure 90. Additional functions
72 ViewCast
GoStream Series User Guide
1.
In the Source field, select an audio source from the drop-down list.
IMPORTANT! The audio input must match the connectors on the back of the system and
your audio source.
2.
Select the Overlay Closed Caption check box to enable overlay closed captions. Field 1 CC 1
is the default setting.
3.
Select the Format from the drop-down list.
4.
Select the Audio Type from the drop-down list.
5.
Select the Bitrate from the drop-down list.
6.
Select the Audio Encoder from the drop-down list.
7.
Drag the sliders to adjust the Left Volume and Right Volume.
8.
(Optional) Select Mute Audio to silence the audio.
9.
Click Save Settings.
Audio tab
Use the following table to configure the audio analog input settings for an Adaptive Microsoft Smooth
Streaming encoder.
Note: The choices in the drop-down lists may vary.
Figure 91. Audio tab
To configure audio settings:
ViewCast 73
Analog Inputs
1.
Select Publish to IIS Host.
2.
Enter the destination Host Address.
Note: The Stream Path that displays is a combination of the host address and the publish
point.
3.
Enter the Publish Point.
4.
Select PlayReady DRM to enable Digital Rights Management support. PlayReady requires
external License Server provider support. The URL and the seed must be acquired from the
license hosting provider.
5.
Select the Key URL:
http://
https://
6.
Enter the PlayReady key URL.
7.
Click Create to generate a unique Key ID.
8.
Enter the Key Seed.
9.
Click Stream to File System.
10.
Accept the default location that displays in the Folder field or choose your own location for
the file. To choose your own personal location select the link (horizontal ellipses or … ) to the
right of the Folder field and display the options (Figure 93).
Note: By default, the system sets this folder to D:\AVFiles. See Export to USB drive for
Output tab
Use the following table to configure the output analog input settings for an Adaptive Microsoft Smooth
Streaming encoder.
Note: The choices in the drop-down list may vary.
Figure 92. Output tab
To configure output settings:
74 ViewCast
GoStream Series User Guide
instructions on saving video files to a USB storage device.
Figure 93. Select a folder
WARNING! You can only save media files to drive D. Check drive properties for available
free space to determine your storage capacity.
A better practice would be to use a remote file server to save a file or to save it to a
remote drive. If you fill all available space, you risk losing your stream during a
streaming event.
Smooth Streaming files created when you enable Output to File are not designed to be
played locally by a media player but should be hosted on an IIS server for Video On
Demand services.
11.
Enter the Username.
Note: You can enter a maximum of 80 characters.
IIS authentication types supported are Basic and Digest.
12.
Enter the Password.
Note: You can enter a maximum of 20 characters.
13.
Click Save Settings.
ViewCast 75
Analog Inputs
1.
Click Edit next to the property you want to modify.
IMPORTANT! These advanced presets affect the way the encoder performs and if set
incorrectly may lead to abnormal encoder operations. Refer to the H.264 Presets section
for suggested values for the type of video you are streaming.
2.
Change the value.
3.
Click Update.
4.
Click the Restore Defaults link at the bottom of the window to return the settings to the
defaults.
Note: The database has multiple properties for each preset. Clicking Restore Defaults for one
property will change all properties to the default settings.
5.
Click Save Settings.
H.264 Presets
These advanced presets affect the way the encoder performs and if set incorrectly may lead to
abnormal encoder operations (Figure 94). Each preset contains properties that you can modify. Refer to
Appendix B for suggested values for the type of video you are streaming.
Use the following table to configure the H.264 analog presets for a Microsoft Smooth Streaming
encoder.
Note: The choices in the drop-down list may vary.
Figure 94. H.264 Presets tab
To configure H.264 presets:
76 ViewCast
GoStream Series User Guide
Adobe Flash H.264 encoder with analog inputs
To create an encoder, EncodersAll Encoders Create New Encoder link Encoder Type = Flash
Encoder Driver Encoder Name field.
When you create a new encoder, the Encoder Properties window appears. The steps for editing a new
encoder or an existing encoder are identical. You must configure the video and audio settings for each
encoder type.
Use the Video, Audio, Output, and H.264 Presets tabs to edit the settings. Begin with configuring the
video and audio settings, then the server and destination settings. The server and destination settings
are different for each type of encoder.
From the Encoder Properties window (Figure 95), you can set the encoder to start streaming
automatically by selecting the Auto Start check box. You can also start an encoder from this window by
clicking the Start Flash Encoder link in the top right corner of the window.
IMPORTANT! If you make any changes to the Encoder Properties window, you must click Save
Settings. Otherwise, all your changes will be lost.
Figure 95. Flash encoder
ViewCast 77
Analog Inputs
1.
Select the video input Source from the drop-down list.
Note: When SimulStream is enabled, you may use the same input source in another encoding
profile. This lets you encode the same audio and video at multiple data rates and multiple
formats to provide the best user experience for different viewing audiences.
2.
In the Input field, select the video input.
IMPORTANT! The video input must match the connectors on the back of the system and your
video source.
3.
In the Size field, select the pre-determined size of the encoded video from the drop-down list.
You can also specify a custom size for your video. This customization is useful when you are
capturing video to be played on a mobile video-device that requires a non-standard size for
compatibility.
When you click Custom, two additional fields appear so you can enter the exact size you want
the resulting video to be (Figure 97).
Note: The size in the Width and Height fields must be divisible by 2.
Figure 97. Custom fields
4.
Select the Video Encoder from the drop-down list.
5.
Enter the frames per second in the Frame Rate field.
Video tab
Use the following table to configure the video analog input settings for a Flash encoder.
Note: The choices in the drop-down list may vary.
Figure 96. Video tab
To configure video settings:
78 ViewCast
GoStream Series User Guide
6.
Enter the Bitrate.
7.
Drag the sliders to adjust the Brightness, Contrast, Hue, and Saturation (Figure 98).
Figure 98. Video Filter Settings
Note: Click the Restore button to the right of the filter to reset the settings to the default.
8.
Click the De-Interlace setting you want to apply (Figure 99). Options include:
None
– Performs no de-interlacing of any kind.
Bob0
– Applies inverse telecine de-interlacing to all telecine video.
– Applies motion adaptive de-interlacing to all video that is not telecine.
– Switches dynamically between the two modes as the content changes.
– Available for NTSC video only.
Bob1
– Drops the redundant fields and reassembles the video in a 24 fps progressive format.
– Applies inverse telecine de-interlacing to all telecine video.
– Performs no de-interlacing of video that is not telecine.
– Available for NTSC video only.
Advanced
– Is an algorithm for de-interlacing pure video (non-telecine) content.
– Applies motion adaptive interlacing to all video. It detects which portions of the image
are still and which portions are in motion then applies different processing to each
scenario.
Figure 99. De-Interlace Settings
Note: Telecine and inverse telecine only apply to NTSC video. They are not used for PAL and
SECAM video. The system disables Bob0 and Bob1 choices when you connect the PAL or SECAM video standard.
9.
Click Save Settings.
ViewCast 79
Analog Inputs
1.
In the Source field, select an audio source from the drop-down list.
IMPORTANT! The audio input must match the source connected on the back of the system and
your audio source.
2.
Select the Overlay Closed Caption check box to enable overlay closed captions. Field 1 CC 1 is
the default setting.
3.
Click the audio Format from the drop-down list.
4.
Click the Audio Type from the drop-down list.
5.
Click the Bitrate from the drop-down list.
6.
The Audio Encoder setting is AAC.
7.
Drag the sliders to adjust the Left Volume and Right Volume.
8.
(Optional) Select Mute Audio to silence audio.
9.
Click Save Settings.
Audio tab
Use the following table to configure the audio analog input settings for a Flash encoder.
Note: The choices in the drop-down list may vary.
Figure 100. Audio tab
To configure audio settings:
80 ViewCast
GoStream Series User Guide
1.
Select Enable Streaming to enable live Flash streaming.
2.
Enter the proper IP address in the Server Address field.
3.
Enter the Stream Name.
4.
Select the Authentication Type from the drop-down list. Options are available for streaming
directly to Adobe, Akamai, and Limelight CDNs.
5.
Enter the User Name and Password.
6.
Select the Embed System Time as Timecode.
7.
Click the Frame Interval from the drop-down list.
8.
Enable Save to File to save the encoded content to a file. Each time you start this encoder,
the system overwrites the previous file.
Note: You must enable either Enable Streaming or Save to File. If both Enable Streaming
and Save to File are disabled, the encoder will not start and an error is generated.
9.
Select Create unique file to create a file that the system does not overwrite.
10.
Accept the default location that displays in the File Name field or choose your own location
for the file. To choose your own personal location select the link (horizontal ellipses or … ) to
the right of the File Name field and display the options (Figure 102).
Note: By default, the system sets this folder to D:\AVFiles with a default file name of
capture.f4v.
Output tab
Use the following table to configure the output analog input settings for a Flash encoder.
Note: The choices in the drop-down list may vary.
Figure 101. Output tab
To configure output settings:
ViewCast 81
Analog Inputs
Figure 102. Select a folder
WARNING! You can only save media files to drive D. Check drive properties for available
free space to determine your storage capacity.
A better practice would be to use the streaming server to save a file or to save it to a
remote drive. If you fill all available space, you risk losing your stream during a
streaming event.
11.
Click Save Settings.
82 ViewCast
GoStream Series User Guide
1.
Click Edit next to the property you want to modify.
IMPORTANT! These advanced presets affect the way the encoder performs and if set
incorrectly may lead to abnormal encoder operations. Refer to the H.264 Presets section
for suggested values for the type of video you are streaming.
2.
Change the value.
3.
Click Update.
4.
Click the Restore Defaults link at the bottom of the window to return the settings to the
defaults.
Note: The database has multiple properties for each preset. Clicking Restore Defaults for one
property will change all properties to the default settings.
5.
Click Save Settings.
H.264 Presets
These advanced presets affect the way the encoder performs and if set incorrectly may lead to
abnormal encoder operations (Figure 103). Each preset contains properties that you can modify. Refer
to Appendix B for suggested values for the type of video you are streaming.
Use the following table to configure the H.264 analog presets for a Flash encoder.
Note: The choices in the drop-down list may vary.
Figure 103. H.264 Presets tab
To configure H.264 presets:
ViewCast 83
Analog Inputs
AVI encoder with analog inputs
To create an encoder, EncodersAll Encoders Create New Encoder link Encoder Type = AVI
Encoder Driver Encoder Name field.
When you create a new encoder, the Encoder Properties window appears. The steps for editing a new
encoder or an existing encoder are identical. You must configure the video and audio settings for each
encoder type. Use the Video, Audio, and Output tabs to edit the settings.
From the Encoder Properties window (Figure 104), you can set the encoder to start streaming
automatically by selecting the Auto Start check box. You can also start an encoder from this window by
clicking the Start AVI Encoder link in the top right corner of the window.
IMPORTANT! If you make any changes to the Encoder Properties window, you must click Save
Settings. Otherwise, all your changes will be lost.
Figure 104. AVI encoder
84 ViewCast
GoStream Series User Guide
1.
Select the video input Source from the drop-down list.
Note: When SimulStream is enabled, you may use the same input source in another encoding
profile. This lets you encode the same audio and video at multiple data rates and multiple
formats to provide the best user experience for different viewing audiences.
2.
In the Input field, select the video input.
IMPORTANT! The video input must match the connectors on the back of the system and your
video source.
3.
In the Size field, select the pixel size of the encoded video from the pre-determined sizes in
the drop-down list.
You can also specify a custom size for your video. This customization is useful when you are
capturing video to be played on a mobile video-device that requires a non-standard size for
compatibility.
When you click Custom, two additional fields appear so you can enter the exact size you
want the resulting video to be (Figure 106).
Note: The size in the Width and Height fields must be divisible by 2.
Figure 106. Custom fields
4.
Select the Format from the drop-down list.
5.
Enter the Frame Rate.
Video tab
Use the following table to configure the video analog input settings for an AVI encoder.
Note: The choices in the drop-down list may vary.
Figure 105. Video tab
To configure video settings:
ViewCast 85
Analog Inputs
6.
Drag the sliders to adjust the Brightness, Contrast, Hue, and Saturation (Figure 107).
Figure 107. Video Filter Settings
Note: Click Restore to the right of the filter to reset the settings to the default.
7.
Click the De-Interlace setting you want to apply (Figure 108). Options include:
None
– Performs no de-interlacing of any kind.
Bob0
– Applies inverse telecine de-interlacing to all telecine video.
– Applies motion adaptive de-interlacing to all video that is not telecine.
– Switches dynamically between the two modes as the content changes.
– Available for NTSC video only.
Bob1
– Drops the redundant fields and reassembles the video in a 24 fps progressive format.
– Applies inverse telecine de-interlacing to all telecine video.
– Performs no de-interlacing of video that is not telecine.
– Available for NTSC video only.
Advanced
– Is an algorithm for de-interlacing pure video (non-telecine) content.
– Applies motion adaptive interlacing to all video. It detects which portions of the image
are still and which portions are in motion then applies different processing to each
scenario.
Figure 108. De-Interlace settings
Note: Telecine and inverse telecine only apply to NTSC video. They are not used for PAL and
SECAM video. The system disables Bob0 and Bob1 choices when you connect the PAL
or SECAM standard.
8.
Click Save Settings.
86 ViewCast
GoStream Series User Guide
1.
In the Source field, select an audio source from the drop-down list.
IMPORTANT! The audio input must match the connectors on the back of the system and your
video source.
2.
Select the Overlay Closed Caption check box to enable overlay closed captions. Field 1 CC 1 is
the default setting.
3.
Click the Audio Format from the drop-down list.
4.
Drag the sliders to adjust the Left Volume and Right Volume.
5.
(Optional) Select Mute Audio to silence audio.
6.
Click Save Settings.
Audio tab
Use the following table to configure the audio analog input settings for an AVI encoder.
Note: The choices in the drop-down list may vary.
Figure 109. Audio tab
To configure audio settings:
ViewCast 87
Analog Inputs
1.
You can:
Use the default setting, Save to File, to save the encoded content to a file. Each time
you start this encoder, the system overwrites the previous file.
Click Create unique file to create a file that the system does not overwrite.
2.
Accept the default location that displays in the File Name field or choose your own
location for the file. To choose your own personal location select the link (horizontal
ellipses or … ) to the right of the File Name field and display the options (Figure 111).
Note: By default, the system sets this folder to D:\AVFiles with a default file name of
capture.avi. See Export to USB drive section for instructions on saving video files to
a USB device.
Output tab
Use the following table to configure the output analog input settings for an AVI encoder.
Note: The choices in the drop-down list may vary.
Figure 110. Output tab
To configure output settings:
88 ViewCast
GoStream Series User Guide
Figure 111. Select a folder
WARNING! You can only save media files to drive D. Check drive properties for available
free space to determine your storage capacity.
A better practice would be to use the streaming server to save a file or to save it to a
remote drive. If you fill all available space, you risk losing your stream during a
streaming event.
3.
Click Save Settings.
ViewCast 89
Analog Inputs
MPEG4 encoder with analog inputs
To create an encoder, EncodersAll Encoders Create New Encoder link Encoder Type = MPEG4
Encoder Driver Encoder Name field.
When you create a new encoder, the Encoder Properties window appears. The steps for editing a new
encoder or an existing encoder are identical. You must configure the video and audio settings for each
encoder type.
Use the Video, Audio, and Output tabs to edit the settings. Begin with configuring the video and audio
settings, then the server and destination settings. The server and destination settings are different for
each type of encoder.
From the Encoder Properties window (Figure 112), you can set the encoder to start streaming
automatically by selecting the Auto Start check box. You can also start an encoder from this window by
clicking the Start MPEG4 Encoder link in the top right corner of the window.
IMPORTANT! If you make any changes to the Encoder Properties window, you must click Save
Settings. Otherwise, all your changes will be lost.
Figure 112. MPEG4 encoder
90 ViewCast
GoStream Series User Guide
1.
Select the video input Source from the drop-down list.
Note: When SimulStream is enabled, you may use the same input source in another encoding
profile. This lets you encode the same audio and video at multiple data rates and multiple
formats to provide the best user experience for different viewing audiences.
2.
In the Input field, select the video input.
IMPORTANT! The video input must match the connectors on the back of the system and your
video source.
3.
In the Size field, select the pre-determined size of the encoded video from the drop-down list.
You can also specify a custom size for your video. This customization is useful when you are
capturing video to be played on a mobile video-device that requires a non-standard size for
compatibility.
When you click Custom, two additional fields (Figure 114) appear so you can enter the exact
size you want the resulting video to be.
Note: The size in the Width and Height fields must be divisible by 2.
Figure 114. Custom fields
IMPORTANT! Ensure all of the encoders using the same video Proportion and Size settings
also use the same Video and Audio Source settings. For example, all encoders capturing at
Video tab
Use the following table to configure the video analog input settings for an MPEG4 encoder.
Note: The choices in the drop-down list may vary.
Figure 113. Video tab
To configure video settings:
ViewCast 91
Analog Inputs
Standard proportion and CIF size are set to Video Device 1.1 while encoders capturing at
Standard proportion but QCIF resolution are set to Video Device 1.2.
4.
Click the type of Video Encoder for Internet video, mobile phones, set top boxes, and create
media files for other MPEG-4 compatible devices such as iPods according to the Motion
Picture Expert Group (MPEG) types (refer to Table 1 and Table 2).
IMPORTANT! Choose the container type (MP4, TS, 3GP, and 3G2) on the Output tab.
If you select MPEG4 from the drop-down list, the MPEG-4 Presets tab displays (see MPEG-4
Presets tab). The fields on the Video, Audio, and Output tabs will change depending on the
type of video encoder you select.
See TS Container for steps on streaming to a TS container.
5.
Enter the frames per second in the Frame Rate field.
6.
Enter the kilobits per second in the Bitrate field.
7.
In the Format field, indicate the color space format.
IMPORTANT! If you specify a video size incompatible with the color space of your source
video, the system will automatically correct the size to the closest compatible setting when
you click Save Settings.
8.
Drag the sliders to adjust the Brightness, Contrast, Hue, and Saturation (Figure 115).
Figure 115. Video filter settings
Note: Click Restore to the right of the filter to reset the settings to the default.
9.
Click the De-Interlace setting you want to apply (Figure 116). Options include:
None
– Performs no de-interlacing of any kind.
Bob0
– Applies inverse telecine de-interlacing to all telecine video.
– Applies motion adaptive de-interlacing to all video that is not telecine.
– Switches dynamically between the two modes as the content changes.
– Available for NTSC video only.
Bob1
– Drops the redundant fields and reassembles the video in a 24 fps progressive format.
– Applies inverse telecine de-interlacing to all telecine video.
– Performs no de-interlacing of video that is not telecine.
– Available for NTSC video only.
Advanced
– Is an algorithm for de-interlacing pure video (non-telecine) content.
– Applies motion adaptive interlacing to all video. It detects which portions of the image
92 ViewCast
