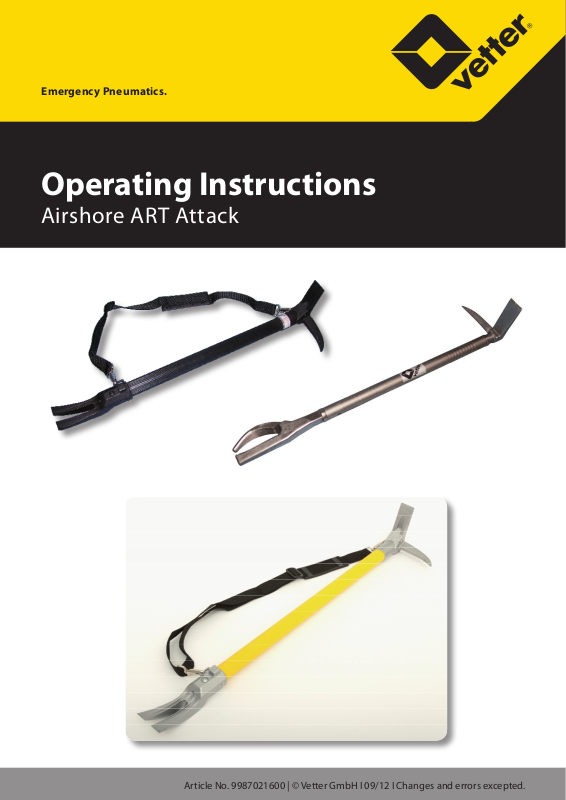

Page 1
Emergency Pneumatics.
Operating Instructions
Airshore ART Attack
Article No. 9987021600 | © Vetter GmbH I 09/12 I Changes and errors excepted.
Page 2
Page 2/7
Airshore ART Attack
Contents
1. Important preliminary remarks ....................................3
2. Description of the product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.1 Correct handling and usage .................................3
2.2 Safety instructions ..........................................3
3. Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.1 Breakage levering applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.2 Levering up loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.3 Opening and breaking up materials . . . . . . . . . . . . . . . . . . . . . . . . .5
3.4 Application of the metal cutting claw ........................6
3.5 Maintenance and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4. Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Page 3
Page 3/7
Important preliminary remarks1.
Holder
Knurled anti-slip
surface
Only knowledge and exact adherence to this operation manual
guarantees correct operation, produces the best possible use and
ensures any claims made within the scope of the Vetter Guarantee.
The Airshore ART Attack must only be used by reliable and instructed sta. Each application of the Airshore ART Attack is to be
made under the condition that exact knowledge has been obtained and the operating manual is observed.
The operating instructions given here are to be regarded as part
of the product and are to be kept for the complete life duration of
the product. In case the product should be passed on to a successive user then the operating instructions must also be included.
Description of the product2.
Correct handling and usage2.1
The ART Attack oers various possibilities to open doors, overcome obstacles and for technical assistance.
The ART Attack consists of two dierent head pieces made of
high-alloyed and tempered steel. The grip rod is made of corrosion resistive chrome and has a knurled anti-slip surface.
As a standard tting the tool has two holders for a belt. The tool can
be attached to the belt thus leaving both hands free for work.
Safety instructions2.2
When working with the ART Attack, all pertinent regulations regarding work protection and safety are to be observed as well as
accident regulations in addition to the generally regulations valid
within the the eld of technology.
During operation, necessary personal protective items such as
protection clothing, gloves, helmet, eye and/or face protectors
must be worn.
It must be ensured that no persons are to be in the working area
who do not have the necessary protection equipment. People
being freed or rescued must also be protected.
Page 4
Page 4/7
Airshore ART Attack
When the ART Attack is put away, it must be ensured that
the tips of the tool point downwards. During breakage
levering be careful of parts which may catapult or y
out, such as locks, hinges etc.
Do not touch any electrically conductive parts and wiring because the tool itself is electrically conductive!
The ART Attack must not be used in any explosion endangered areas and atmospheres!
Important! When opening a re room, darting ames can
occur with and without pressure eect. Only work from
a protected position and have other measures readily
available corresponding to requirements.
The head pieces and the grip bar transfer heat to your
protective gloves.
Brace wedge
Flat wedge
Operating Instructions3.
Breakage levering applications 3.1
The brace wedge can be used for breaking in and the at wedge
for doors which are dicult to open.
The standard method for breakage levering is to apply the brace
wedge into the door gap at the height of the door mounting. The
arch of the brace wedge is placed on the door mounting. The grip
rod is pushed towards the leaf of the door until this springs out.
When positioning yourself, make sure that the
at wedge is not placed directly in front of you
stomach area. Danger of injury !
Weaken solid looking doors by applying initial tension. The at
wedge is either placed at the top or the bottom in the door gap
and turned towards the leaf of the door. In doing this an air gap
is created between the door frame and the leaf of the door which
is then held open by using a wooden wedge. The brace wedge of
the ART Attack is then used in this gap and the door can be opened as already described.
Levering up loads 3.2
The ground must be suciently solid enough when levering up
small loads, e.g. asphalt or concrete. If elevation work is carried
out on soft ground such as sand, pebble stones or grass then a
wooden board, or something similar, must be positioned in front
of the load.
The brace wedge is then pushed under the load, the arch of the
brace wedge is on the ground, or on the wooden board. The load
can now be slowly lifted by applying weight onto the grip rod, e.g.
Page 5
Page 5/7
by foot or body weight of the user. Possible lifting power and lift
height depends on the length of the levering arm. The load must
be immediately propped in order to avoid sinking.
Opening and breaking up materials3.3
The spike, hammer and at wedge can be used as striking tools.
Thin plates
An opening in a plate is created by striking with the spike. If larger
openings are required then a number of holes can be made in a
row. An axe or split hammer is then used to join the holes made
by the spike.
Chip boards
Chip boards can also be opened with a row of holes which
are then joined by cutting.
Sandwich plaster boards
Produce a row of holes with the spike and hit out large pieces with
the hammer area. Note : Plaster board can contain electrical wiring!
Single glass, at glass
Spike
Hammer area
Flat wedge
Break the glass sheets going from the top to the bottom using the
hammer area. Doing this , stand to one side of the window being
broken.
Single sheet safety glass, automotive windscreens
Using the spike, the sheet is broken around the edge area, the
glass then breaks into pieces.
Wire reinforced glass, compound glass
An opening rstly made with the spike, after doing this the at
wedge can be used hitting from a side position or knocking in the
cut line from the front with the brace wedge.
Single row walls made of hollow blocks, bricks, glass bricks or aerated concrete blocks can also be broken up. The rst block should
be removed using the spike like a pickle. The other blocks can
then be broken up with the brace wedge or knocked out with the
hammer.
Openings made in brick walls must always have
the shape of a square standing on the tip so
the remaining bricks can support each other.
Page 6
Airshore ART Attack
Producing an opening for extinguishing work
The spike is struck into the material to be opened (usually thin
plating). The opening can be expanded by turning the spike. This
enables extinguishing work to be carried out through the opening.
This operating manual was carefully made
according to the best of our knowledge.
However it must be pointed out that all
dangers resulting from the application of
the tool cannot be foreseen.
Therefore the user is obliged to use the
tool in a responsible manner.
Application of the metal cutting claw3.4

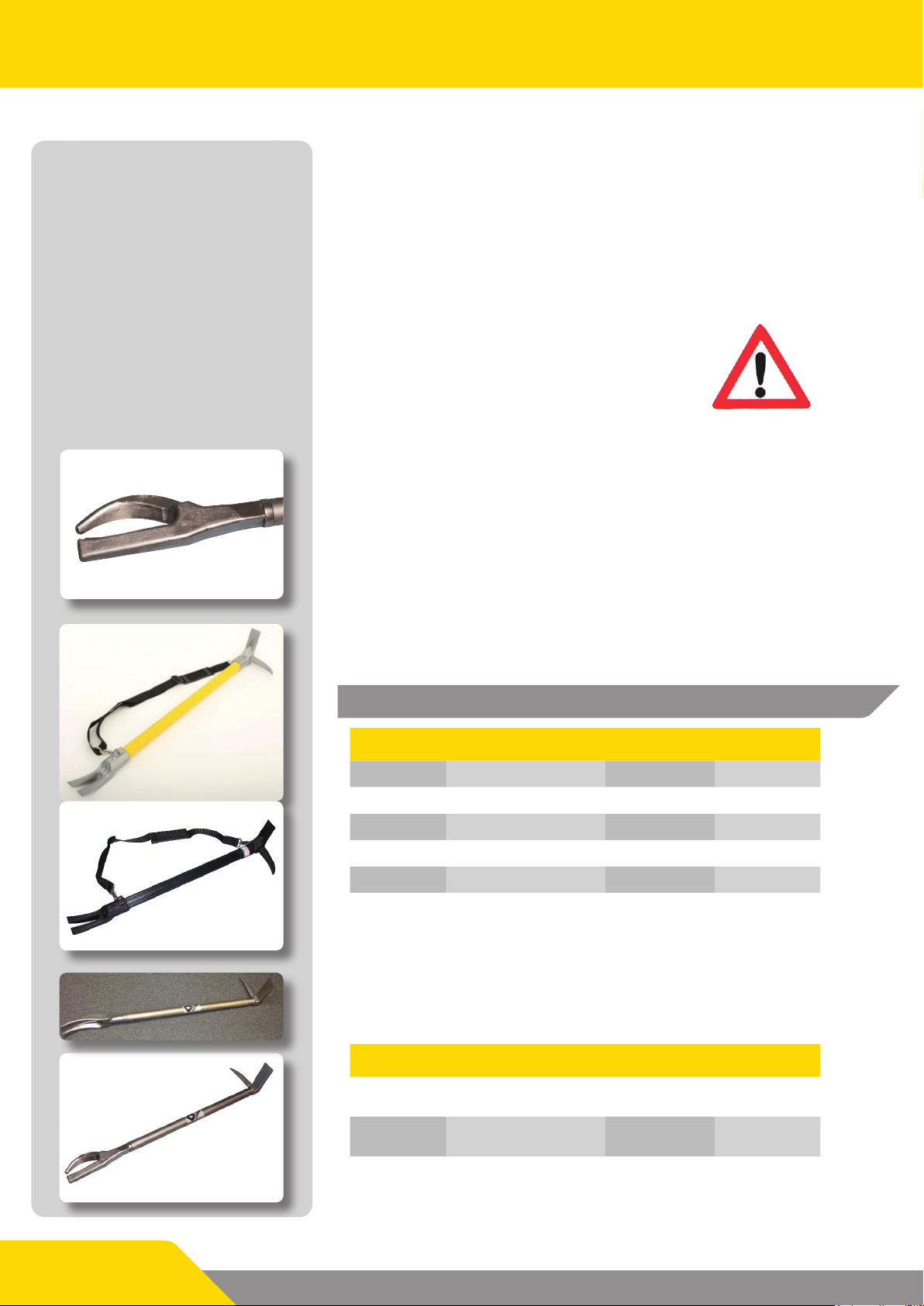

The ART Attack, with its metal cutting claw, is the ideal tool for
breaking-through and cutting thin plate (e.g. car roofs and bonnets, aircraft and thin-walled structures).
Maintenance and care3.5
After use, the tool must be cleaned with water, a neutral cleaning
agent and a scrubbing brush. Drying can be made with a cloth.
Technical data4.
Art.-No. Type Length in cm Weight in kg
7200 0003 00 ART-ATK 24 yellow 61 3.6
7200 0366 00 ART-ATK 24 Black edition 61 3.6
7200 0077 00 ART-ATK 30 yellow 76 4.1
7200 0367 00 ART-ATK 30 Black edition 76 4.1
7200 0054 00 ART-ATK 36 yellow 91.5 4.5
7200 0082 00 ART-ATK 42 yellow 106.5 5.0
All rights reserved for technical changes within the scope of product improvement.
Page 6/7
ART Attack with leverage claw or metal cutting claw
Art.-No. Type Length in cm Weight in kg
7200 0390 00
7200 0391 00
All rights reserved for technical changes within the scope of product improvement.
ART-ATK 30
with leverage claw
ART-ATK 30
with metal cutting claw
77,6 4,4
78.4 4.4
