VHF FM Transceiver

VX-2100 VX-2200

Series Series

Service Manual

2008 VERTEX STANDARD CO., LTD. EC061N90D

VERTEX STANDARD CO., LTD.

4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan

VERTEX STANDARD

US Headquarters

10900 Walker Street, Cypress, CA 90630, U.S.A.

YAESU EUROPE B.V.

P.O. Box 75525, 1118 ZN Schiphol, The Netherlands

YAESU UK LTD.

Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K.

VERTEX STANDARD HK LTD.

Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong

VERTEX STANDARD (AUSTRALIA) PTY., LTD.

Normanby Business Park, Unit 14/45 Normanby Road Notting Hill 3168, Victoria, Australia

VX-2100

Series

VX-2200

Series

Introduction

This manual provides the technical information necessary for servicing the VX-2100/-2200 Series Mobile Transceiver.

Servicing this equipment requires expertise in handing surface-mount chip components. Attempts by non-qualified persons to service this equipment may result in permanent damage not covered by the warranty, and may be illegal in some countries.

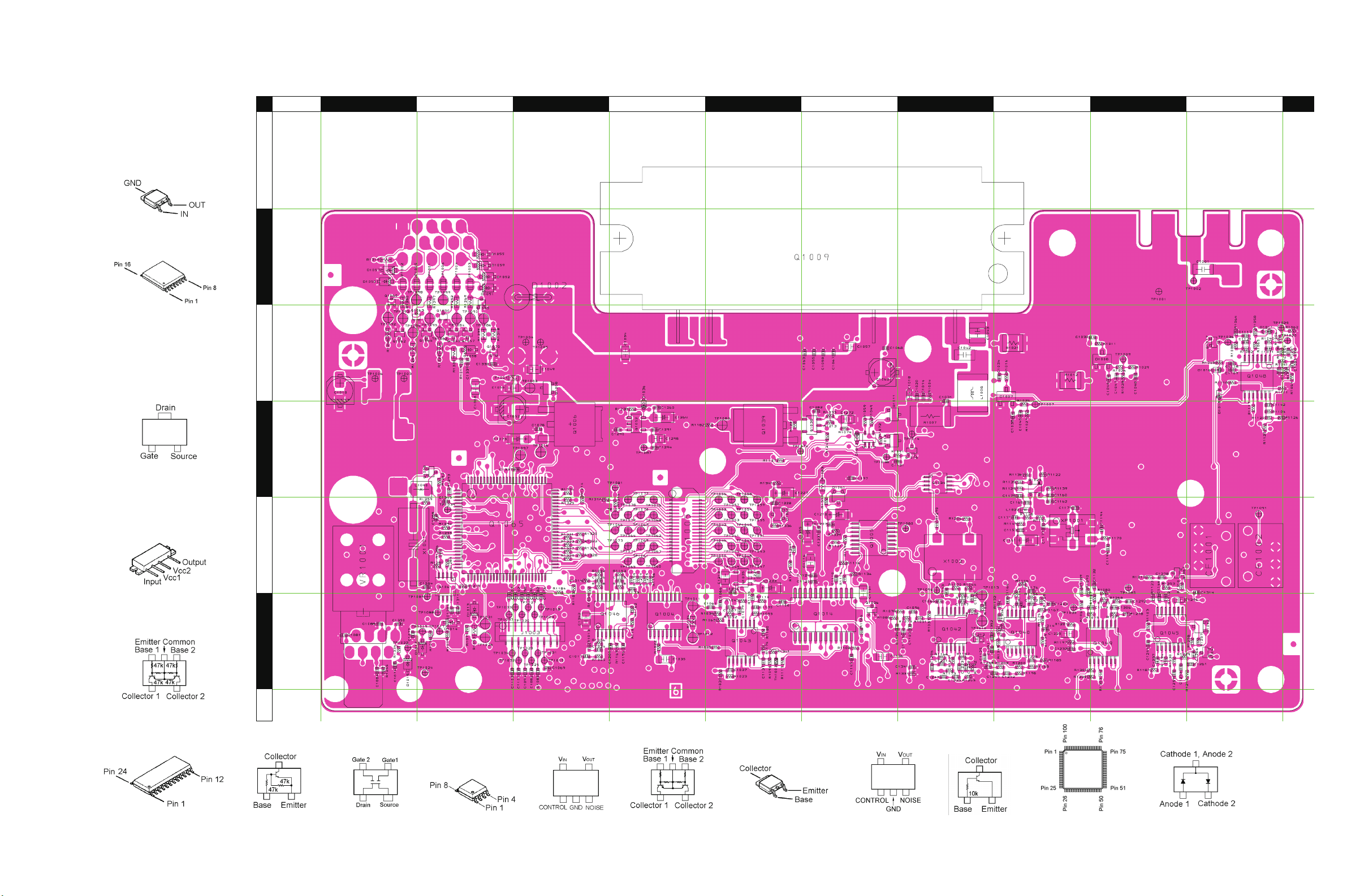

Two PCB layout diagrams are provided for each double-sided board in this transceiver. Each side of the board is referred to by the type of the majority of components installed on that side (“Side A” or “Side B”). In most cases one side has only chip components (surface-mount devices), and the other has either a mixture of both chip and leaded components (trimmers, coils, electrolytic capacitors, ICs, etc.), or leaded components only.

As described in the pages to follow, the advanced microprocessor design of the VX-2100/-2200 allows a complete alignment of this transceiver to be performed without opening the case of the radio; all adjustments can be performed from the personal computer, using with the Vertex Standard VPL-1 Programming Cable and CE82 Software.

While we believe the information in this manual to be correct, Vertex Standard assumes no liability for damage that may occur as a result of typographical or other errors that may be present. Your cooperation in pointing out any inconsistencies in the technical information would be appreciated.

Important Note

This transceiver was assembled using Pb (lead) free solder, based on the RoHS specification.

Only lead-free solder (Alloy Composition: Sn-3.0Ag-0.5Cu) should be used for repairs performed on this apparatus. The solder stated above utilizes the alloy composition required for compliance with the lead-free specification, and any solder with the above alloy composition may be used.

Contents

Specifications ........................................................... A-1

DSUB 15-pin Accessory Connector ...................... B-1

Exploded View & Miscellaneous Parts ...............C-1

Block Diagram......................................................... D-1

Circuit Description .................................................. E-1

Alignment ................................................................. F-1

Installation of Option ............................................ G-1

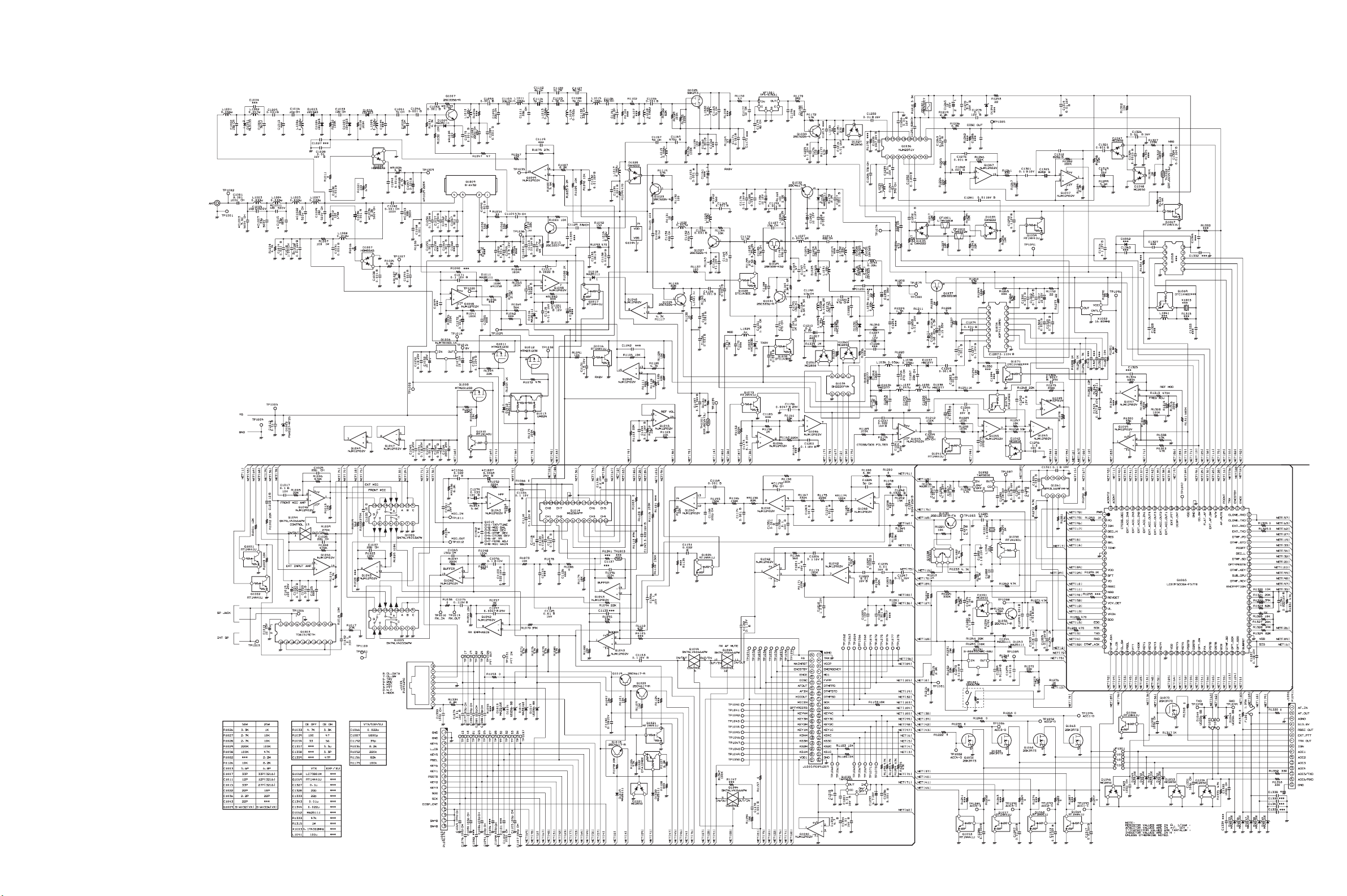

Board Units (Schematics, Layouts & Parts)

MAIN Unit .......................................................... H-1

FRONT-A Unit (VX-2100)................................... I-1

FRONT-B Unit (VX-2200)................................... J-1

Optional Units (Schematics, Layouts & Parts)

FVP-25 Encryption/DTMF Pager Unit ............. K-1

FVP-36

Voice Inversion Type Encryption Unit .....

L-1

Specifications (VTX/EXP Version)

General

Frequency Ranges: 134 -174 MHz Number of Groups: 1 groups (VX-2100 Series)

8 groups (VX-2200 Series)

Number of Channels: 8 channels (VX-2100 Series)

128 channels (VX-2200 Series)

Power Supply Voltage: 13.6 V ± 15% Channel Spacing: 6.25 / 12.5 / 25 kHz Current Consumption (Approx.): TX: 11 A (50 W) or 6 A (25 W)

RX: 2.5 A Standby: 250 mA

Operating Temperature Range: –22 °F to +140 °F (–30 °C to +60 °C) Frequency Stability: Better than ±2.5 ppm RF Input-Output Impedance: 50 Ohm Dimension (W x H x D): 6.5” x 1.8” x 6.1” inch (165 x 45 x 155 mm) (W/O knob) Weight (Approx.): 2.87 lbs (1.3 kg)

Receiver (Measured by TIA/EIA-603-A)

Sensitivity (12 dB SINAD): 0.25 µV Intermediate Frequency: 1st: 67.65 MHz, 2nd: 450 kHz Adjacent Channel Selectivity: 75 dB (25 kHz)

65 dB (12.5 kHz)

Intermodulation: 73 dB (25 kHz)

70 dB (12.5 kHz)

Spurious & Image Rejection: 90 dB Audio Output: Internal: 4 W @18 Ω, 5% THD

External: 12 W @4 Ω, 5% THD

Transmitter (Measured by TIA/EIA-603-A)

Output Power : 50 / 25 / 10 W (50 W)

25 / 12.5 / 5 / 1 W (25 W)

Modulation: 16K0F3E,11K0F3E Maximum Deviation: ±5 kHz (25 kHz)

±2.5 kHz (12.5 kHz)

Audio Distortion: < 3 % (@1 kHz) Conducted Spurious Emission: 70 dB below carrier

Specifications subject to change without notice or obligation.

A-1

General

Frequency Ranges: 134 -174 MHz Number of Groups: 1 groups (VX-2100 Series)

8 groups (VX-2200 Series)

Number of Channels: 8 channels (VX-2100 Series)

128 channels (VX-2200 Series)

Power Supply Voltage: 10.8 - 15.6 V DC Channel Spacing: 12.5 / 20 / 25 kHz Current Consumption (Approx.): TX: 6 A

RX: 2.5 A Standby: 200 mA

Operating Temperature Range: –30 °C to +60 °C Frequency Stability: Better than ±2.5 ppm RF Input-Output Impedance: 50 Ohm Dimension (W x H x D): 165 x 45 x 155 mm Weight (Approx.): 1.3 kg

Receiver (Measured by EN300 086)

Sensitivity (20 dB SINAD) (W/N): –4 dB µV / –2 dB µV Adjacent Channel Selectivity: 75 dB / 68 dB Intermodulation: 68 dB Spurious Response Rejection: 80 dB Audio Output: Internal: 4 W @18 Ω, 5% THD

External: 12 W @4 Ω, 5% THD

Spurious Radiations: –57 dBm

Specifications (EU Version)

Transmitter (Measured by EN300 086)

Output Power : 25 / 12.5 / 5 / 1 W Maximum Deviation: ±5.0 kHz (25 kHz)

±4.0 kHz (20 kHz) ±2.5 kHz (12.5 kHz)

FM noise (W/N): 50 / 44 dB Audio Distortion: Less than 3 % @ 1 kHz Spurious Emission: –36 dBm < 1 GHz / –30 dBm > 1 GHz

Applcable Standards : EN300 086, 113, 219 · EN301 489 · EU directive 2004/104/EC Specifications subject to change without notice or obligation.

A-2

DSUB 15-pin Accessory Connector

Pin 1: AF IN (ANALOG INPUT

External Microphone Input. Nominal input level is 6 mV at 600-ohm. When connect the External Microphone to this port, insert a 0.1 µF coupling capacitor between the microphone and this port; as shown illustlation.

Pin 2: AF OUT (ANALOG OUTPUT

Low-level receiver output. Peak signal level is 150 mV at 600-ohm.

)

Pin 3: AF GND

Ground for all logic levels and power supply return.

Pin 4: DC OUT (13.6 V DC OUTPUT

Switched 13.6V output for supplying power to an accessory.

Pin 5: RSSI (ANALOG OUTPUT

A DC voltage proportional to the strength of the signal currently being received (Receiver Signal Strength Indicator) is provided on this pin. This low impedance output is gererated by the receiver IF sub-system and bufferd by an internal op-amp. Typical output voltages are 1 V (@No Signal Input) through 2.0 V (@50 dB Signal Input).

)

Pin 6: EXT PTT

Shorting this port to ground causes the transceiver to be placed in the Transmit mode, while opening the connection to this port returns the transceiver to the Receive mode. Opening voltage is 5 V, closed current approx. 5 mA.

Pin 7: TRX

This port is intended for controlling an external TX/ RX switching circuit. When the transceiver is placed in the the Receiver mode, this port is 5 V. When the transceiver is placed in the the Transmit mode, this port reduse to 0 V.

Pin 8: IGN (IGNITION SENSE FEATURE

The VX-2100/-2200 may be automatically be switched to the STND-BY mode when the vehicle's ignition key is turned on. Maximum current is 20 mA.

)

Pin 9 - 12: ACC1 - ACC4 (ACCESSORY PORT)

These port features can be programmed via the CE82 programmer. Each port is open collector output which can sink approx. 100 mA when active. Max. output 16V. When the input is selected, it becomes active between 2V and 16V.

Pin 13: ACC5 (ACCESSORY PORT)

The port 5 is available to set only for Output function, and active logic is the opposite side against the Port 1 ~ 4. Max.output 5V, closed current approx. 1 mA. (CMOS output)

B-1

Pin 14: ACC6 (ACCESSORY PORT)

The port 6 is available to set only for Input function, and active logic is the opposite side against the Port 1 ~ 4. Max.input 5V. (CMOS input)

Pin 15: GND

Chassis ground

Exploded View & Miscellaneous Parts

VX-2100 FRONT PANEL

RA0832200 SHEET

RA0788600 JOINT

RA0746700 O RING

RA0788500 VOLUME KNOB

RA0787600 LIGHT GUIDE (x3 pcs)

RA078750A HOLDER

RA0786500 (Lot 1-4) RA0845300 (Lot 5-) RUBBER KNOB

FRONT-A-UNIT

RA0791700 FRONT PANEL ASSY (w/ WINDOW (8ch))

M4090179 SPEAKER

RA0844300 (Lot. 1~6) RA0849900 (Lot. 7~21) RA0997300 (Lot. 22~) LED FILTER

RA080360A RUBBER PACKING

RA0821900 SPONGE RUBBER

T9318283 WIRE ASSY (RED)

T9318284 WIRE ASSY (BLK)

P1090654 CONNECTOR

T9207042 WIRE ASSY



RA0841400 BLIND SHEET

RA0800600 SPONGE RUBBER

RA0790700 PAD (AMP)

T9318285 WIRE ASSY (GRN)

T9318286 WIRE ASSY (WHT)























RA0790300 SHIELD CASE



T9207044A WIRE ASSY

RA0790200 TOP CASE

MAIN-UNIT

RA0820400 (Lot 1-4) RA0848100 (Lot 5-) PAD (LPF)



VX-2200 FRONT PANEL

RA0788600 JOINT

RA0746700 O RING

RA0788500 VOLUME KNOB

RA0786300 LCD HOLDER

RA0786900 SPONGE RUBBER



G6090173 LCD



FRONT-B-UNIT

RA0790900 REFLECTOR SHEET

RA078640A LIGHT GUIDE

RA0786500 (Lot 1-4) RA0845300 (Lot 5-) RUBBER KNOB

RA0791600 (Lot. 1~29) RA079160A (Lot. 30~) FRONT PANEL ASSY (w/ LIGHT GUIDE, WINDOW)



RA0786200 INTER CONNECTOR

RA0844100 BLIND SHEET



M4090179 SPEAKER

RA0821900 SPONGE RUBBER

RA0803600 (Lot 1-4) RA080360A (Lot 5-) RUBBER PACKING

T9318284 WIRE ASSY (BLK)

T9318283 WIRE ASSY (RED)



P1091172 CONNECTOR

RA0790000 (Lot 1-4) RA079000A (Lot 5-8) RA079000B (Lot 9-) CHASSIS

Non-designated parts are available only as part of a designated assembly.

SUPPLIED ACCESSORIES

VXSTD P/N DESCRIPTION QTY.

Q0000075 BLADE FUSE ATC 15A (50 W TYPE) 2

Q0000112 BLADE FUSE ATC 10A (25 W TYPE) 2

AAE60X001 MICROPHONE MH-67A8J (W/ CLIP)

T9021015 DC CABLE (50 W TYPE) 1

T9021010 DC CABLE (25 W TYPE) 1

RA079050A MOBILE BRACKET 1

RA0796600 KNOB SCREW (for BRACKET) 2

U9900209 HEX HEAD BOLT HSM5X12B 2

No. VXSTD P/N DESCRIPTION QTY.

U10206007 TRUSS HEAD SCREW M2.6X6B 10



U24308002 TAPTITE SCREW M3X8NI 13



U03308002 SEMS SCREW ASM3X8NI 2



U24306002 TAPTITE SCREW M3X6NI 2



C-1

Exploded View & Miscellaneous Parts

Note:

C-2

Block Diagram

D-1

Block Diagram

Note:

D-2

Circuit Description

1. Circuit Configuration by Frequency

The receiver is a double-conversion superheterodyne with a first intermediate frequency (IF) of 67.65 MHz and a second IF of 450kHz. The incoming signal from the antenna is mixed with the local signal from the VCO/PLL to produce the first IF of 50.85MHz. This is then mixed with the 67.2 MHz second local oscillator output to produce the 450 kHz second IF. This is detected to give the demodulated signal.The transmit signal frequencyis generated by the PLL VCO and modulated by the signal from the microphone. It is then amplified and sent to the antenna.

2. Receiver System

2-1. Front-end RF amplifier

The incoming RF signal from the antenna is delivered to the RF Unit and passes through the Low-pass filter which removes undesired frequencies by use of varactor diodes, tuned band-pass filter consisting of diodes D1003, D1004, D1005, & D1006 (all 1SV323), coils L1006 & L1009, and capacitors C1013, C1016, C1033, C1039, C1041, & C1044. The passed signal is amplified in Q1007 (2SC3356) and moreover cuts an image frequency with the band pass filter consisting of coils L1011, L1013, L1014, & L1015, capacitors C1003, C1011, C1012, C1016, C1022, C1023, C1027, C1028, C1334, & C1141 and comes into the 1st mixer.

2-2. First Mixer

The 1st mixer consists of the Q1025 (3SK293). Buffered outputfrom the VCO is amplified by Q1023 (2SC5226) to provide a purefirst local signal between 201.65 and

241.65 MHz for injection to the first mixer. The output IF signal is entersfrom the mixer to the crystal filter. The IF signal then passesthrough monolithic crystal filters XF1001 (±5.5 kHz BW) to strip away all but the desired signal.

2-3. IF Amplifier

The first IF signal is amplified by Q1033 (2SC5226). The amplifiedfirst IF signal is applied to FM IF subsystem IC Q1036 (NJM2591) which contains the second mixer sec- ond local oscillator limiter amplifier noise amplifier and S-meter amplifier. The signal from the refernce oscillator is tripled by Q1033 (2SC5226), it is mixed with the IF signal and becomes 450 kHz. The second IF then passes through the ceramic filter CF1001 (for wide channels) CF1002 (for narrow channels) to strip away unwanted mixer products which removes amplitude variations in the 450 kHz IF before detection of the speech by the ceramicdiscriminator CD1001.

2-4. Audio amplifier Detected signal from Q1036 (NJM2591V) is inputted to Q1042 (LM2902PW) and is output through the band pass

filter inside Q1042 (LM2902PW). When the optional unit is installed Q1044 (SN74LV4066APW) is turned “OFF” and the AF signal from Q1042 (LM2902PW) goes the op- tional unit. When the optional unit is not installed, Q1042 (LM2902PW) is turned “ON” and the signal goes through Q1004 (SN74LV4053APM). The signal then goes through AF mute switch Q1044 (SN74LV4066APW) de-emphasis part Q1042 (LM2902PW). amplified with AF power amplifier Q1003 (TDA1519CTH) after passing AF volume Q1014 (M62364FP). The output of Q1003 (TDA1519CTH) drives a speaker (either the internal or external speaker).

2-5. Squelch Circuit

There are 13 levels of squelch setting from 0 to 12. The level 0 means open the squelch. The level 1 means the threshold setting level and level 11 means tight squelch. From 2 to 10 is established in the middle of threshold and tight. The bigger figure is nearer the tight setting. The level 12 becomes setting of carrier squelch.

2-5-1. Noise Squelch

The noise squelch circuit is composed of the band pass filter of Q1036 (NJM2591V) noise amplifier Q1047 (LM2902PW) and noise detector D1047 and D1048 (both MC2850). When a carrier isn't received, the noise ingre- dient which goes out of the demodulator Q1036 (NJM2591V) is amplified in Q1047 (LM2902PW) through the band pass filter Q1036 (NJM2951V) is detected to DC voltage with D1047, D1048 (both MC2850) and is inputted to 15 pin (the A/D port) of the Q1065 (CPU: LC87F5CC8A). When a carrier is received the DC voltage becomes “LOW” because the noise is compressed. When the detected voltage to CPU is “HIGH,” the CPU stops AF output with Q1044 (SN74LV4053) “OFF” by making pin 80 low. When the detection voltage is low the CPU makes Q1068 “ON” making pin 80 “H” enabling AF output.

2-5-2. Carrier Squelch

The Pin 14 (A/D port) of Q1065 (CPU: LC87F5CC8A) detects RSSI voltage output from pin 12 of Q1036 (NJM2591V), and controls AF output. The RSSI output voltage changes according to the signal strength of carrier. The stronger signal makes the RSSI voltage higher. The process of the AF signal control is the same as Noise Squelch. The shipping data is adjusted 3dB higher than squelch tight sensitivity.

E-1

Circuit Description

3. Transmitter System

3-1. Mic Amplifier

There are two micrphone inputs, J1004 (front) and J1006 (D-Sub). Each microphone inputs has it's own amplifier. Which micrphone is selected is controlled by the CPU and in addition, the amplified AF signal is selected with FlatAF selection switch Q1043 (LM2902PW). Mic Gain is adjusted with Mic gain VR Q1014 (M62364PF) through HPF-AMP Q1043 (LM2902PW), and Pre Enphasis and Mic Mute Q1044 (SN74LV4066) are passed at FLAT-AF OFF. And, the option use is selected with OPT selection switch Q1044 (SN74LV4066) by the control from CPU. The selected signal enters maximum deviation adjustment volume Q1014 (M62364FP) after it goes out of Buffer Amp

Q1043 (LM2902PW) through limiter and splatter filter of Q1040 (LM2902PW). The adjusted low frequency signal

ingredient is amplified by Q1047 (LM2902PW) added modulation terminal of TCXO (X1002) the FM modulation is made by reference oscillator. The high frequency signal ingredient is amplified Q1043 (LM2902PW), and the level is adjusted by volume control Q1014 (M62364FP) to make frequency balance between low frequency. After that, the signal is delievered to the tranmsit carrier by modulator D1023 (HVC383B).

3-2. Drive and Final amplifier

The modulated signal from the VCO Q1031 (2SC3356) is buffered by Q1027 (2SC5226) and amplified by Q1015 (2SC3357). The low-level transmit signal is then applied to the Power Module Q1009 (S-AV32) for final amplifica- tion up to 50 watts output power or Q1009 (S-AV33A) for final amplification up to 25 watts output power. The transmit signal then passes through a low-pass filter to suppress harmonic spurious radiation before delivery to the antenna.

3-3. Automatic Transmit Power Control

The output power of Power Module is detected by CM coupler, and is detected by D1008 and D1038 (both HSM88AS) and is inputted to comparator Q1048 (LM2902PW). The comparetor compares two different voltages and makes output power stable by controlling the bias voltage of the power module. There are 3 levels of output power (High, Low-Hi, and Low-Middle for 50 W model) or 4 levels of output power (High, Low-Hi, LowMiddle, and E-Low for 25 W model) which is switched by the voltage of Q1014-CH1 (M62364FP).

3-4. PLL Frequency Synthesizer

The frequency synthesizer consists of PLL IC Q1054 (ADF411BRU) VCO, TCXO (X1002) and buffer amplifier. The output frequency from TCXO is 16.8 MHz and the tolerance is ±2.5 ppm (in the temperature range –30 to +60 degrees).

3-4-1. VCO

While the radio is receiving, the RX oscillator Q1029 (2SK508) in the VCO generates a programmed frequency between 201.65 and 241.65 MHz as 1st local signal. While the radio is transmitting the TX oscillator Q1031 (2SC3356) in the VCO generates a frequency between 134 and 174 MHz. The output from oscillator is amplified by buffer amplifier Q1027 (2SC5226) and becomes the output of the VCO. The output from VCO is divided one is amplified by Q1024 (2SC5226) and feed back to pin 6 of the PLL IC Q1054 (TRF3750IP). The other is amplified in Q1023 (2SC5226) and in case of the reception it is put into the mixer as the 1st local signal through D1020 (DAN222) in transmission it is amplified in Q1027 (2SC5226) and more amplified in Q1023 (2SC5226) through D1022 (DA222) and it is put the input terminal of the Power Module Q1009 (S-AV32 for 50 W model or S-AV33A for 25 W model).

3-4-2. VCV CNTL

Tuning voltage (VCV) of the VCO expands the lock range of VCO by controlling the of varactor diode voltage and the control voltage from PLL IC Q1054 (ADF4111BRU). Control voltage is added to the varactor diode after converted to D/A converter Q1029 (M62364FP).

3-4-3. PLL

The PLL IC Q1054 (ADF4111BRU) consists of reference divider, main divider, phase detector, charge pumps and Pulse Swallow Frequency Synthesis. The reference frequency from TCXO is inputted to pin 8 of PLL IC Q1054 (ADF4111BRU) and is divided by reference divider. This IC is decimal point dividing PLL IC Q1054 (ADF4111BRU) and the dividing ratio becomes 1/8 of usual PLL frequency step. Therefore, the output of reference divider is 8 times of frequencies of the channel step. For example when the channel stepping is 5 kHz, the output of reference divider becomes 40 kHz. On the other hand, inputted feed back signal to pin 6 of PLL IC Q1054 (ADF4111BRU) from VCO is divided with the dividing ratio which becomes same frequency as the output of reference divider. These two signals are compared by phase detector, a phase pulse is generated. The phase difference pulse and the pulse from fractional accumulator pass through the charge pumps and LPF. This becomes the DC voltage (VCV) to control the VCO. The oscillation frequency of VCO is locked by the control of this DC voltage. The PLL serial data from CPU Q1065 (CPU: LC87F5CC8A) is sent with three lines of SDO (pin 12), SCK (pin 11) and PSTB (pin 13). The lock condition of PLL is output from the UL (pin 14) terminal and UL becomes “H” at the time of the lock condition and becomes “L” at the time of the unlocked condition. The CPU Q1065 (CPU: LC87F5CC8A) always watches over the UL condition, and when it becomes “L” unlocked condition, the CPU Q1065 (CPU: LC87F5CC8A) prohibits transmitting and receiving.

E-2

Alignment

Introduction

The VX-2100/-2200 series has been aligned at the factory for the specified performance across the entire frequency range specified. Realignment should therefore not be necessary except in the event of a component failure. All component replacement and service should be performed only by an authorized Vertex Standard representative, or the warranty policy may be voided.

The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts are replaced, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced.

We recommend that servicing be performed only by authorized Vertex Standard service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized Vertex Standard service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Vertex Standard must reserve the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and the need for realignment determined to be absolutely necessary. The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented.

Required Test Equipment

 Radio Tester with calibrated output level at 200 MHz  In-line Wattmeter with 5% accuracy at 200 MHz  50-ohm, 50-W RF Dummy Load  Regulated DC Power Supply (standard 13.6V DC, 15A)  Frequency Counter: ±0.2 ppm accuracy at 200 MHz  AF Signal Generator  AC Voltmeter  DC Voltmeter  VHF Sampling Coupler  Microsoft® Windows® 95 or later operating system  Vertex Standard VPL-1 Connection Cable and CE82

Alignment program

Alignment Preparation & Precautions

A 50-ohm RF Dummy load and in-line wattmeter must be connected to the main antenna jack in all procedures that call for transmission, except where specified otherwise. Correct alignment is not possible with an antenna.

Beacuse of the BTL (Bridged TransLess) Amplifier circuit used in the VX-2200/-2100, do not connect eather side of the speaker leads to chassis “ground.”

After completing one step, read the following step to determine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, if connected) before proceeding.

Correct alignment requires that the ambient temperature be the same as that of the transceiver and test equipment, and that this temperature be held constant between 20 °C and 30 °C (68 °F ~ 86 °F). When the transceiver is brought into the shop from hot or cold air, it should be allowed time to come to room temperature before alignment.

Whenever possible, alignments should be made with oscillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning.

Note: Signal levels in dB referred to in this procedure are

based on 0 dBµ EMF = 1.0 µV.

F-1

Alignment

Test Setup

Setup the test equipment as shown for transceiver alignment, apply 13.6V DC power to the transceiver. Refer to the drawings above for Alignment Points.

50-ohm

Dummy Load

Inline

Wattmeter

Deviation Meter

Frequency

Counter

RF Sampling

Coupler

ANT

VPL-1 Connection Cable

COM Port

Signal Generator

Transceiver

MIC

DC INPUT

Power Supply

13.6 VDC

The Alignment Tool Outline

Installation the tool

Install the CE82 (Clone Editor) to your PC. The re-alignment for VX-2200/-2100 series may use the “Alignment” menu of CE82.

Basic Alignment Mode

The Basic Alignment mode allows you to align the entire radio. The value of each parameter can be changed to the desired position by use of the “” / “” and up/down arrow keys, along with direct number input and dragging of the PC mouse.

To enter the Basic Alignment Mode, select “Basic Alignment” in the main “Radio” menu. It will start to “Upload” the written personalized data from the radio. Pressing the “OK” button will then start the Basic Alignment Mode.

Note: when all items are to be aligned, it is strongly rec-

Action of the switches

When the transceiver is in alignment mode, the action of PTT and KEY is ignored. All of the action is remote controlled by PC.

ommended to align them according to following sequence. When the item is selected with TAB key, and the F1 key is pushed, the “Help” file is displayed. Detailed information for each step may be found in the “Help” file within CE82 (Clone Editor).

1. RX VCO Tune Voltage (RX VCO)

2. TX VCO Tune Voltage (TX VCO)

3. PLL Reference Frequency (Frequency)

4. RX Sensitivity (RX Tune)

5. Squelch (SQL)

6. TX Power

7. Maximum Deviation <Wide> / <Narrow>

8. Sub Audio Deviation <CTCSS> / <DCS>

9. Sequential Tone Deviation

F-2

Alignment

Unit

During alignment, the values of dBµV or µV (EMF or PD) can be selected or dBm.

1. RX VCO Tune Voltage (RX VCO)

This parameter is to align the “Tune Voltage” of RX VCO. This alignment will be done automatically between the radio and PC.

1. Press the “Start” button on the “Basic Alignment” window to open the RX VCO Adjustment window.

2. Press the “Start” button to start the alignment then the “OK” and “Cancel” buttons are inhibited during the alignment.

3. The aligned value will appear and the “OK”, “Cancel” buttons come alive when auto-alignment is finished.

4. Press the “OK” button on the window, the value of the alignment for RX VCO will be saved in the radio.

2. TX VCO Tune Voltage (TX VCO)

This parameter is to align the “Tune Voltage” of TX VCO. This alignment will be done automatically between the radio and PC.

1. Press the “Start” button on the “Basic Alignment” window to open the TX VCO Adjustment window.

2. Press the “Start” button to start the alignment then the “OK” and “Cancel" buttons are inhibited during the alignment.

3. The aligned value will appear and the “OK”, “Cancel” buttons come alive when auto-alignment is finished.

4. Press the “OK” button on the window, the value of the alignment for TX VCO will be saved in the radio.

F-3

Alignment

3. PLL Reference Frequency (Frequency)

This parameter is to align the reference frequency for PLL. The “TX VCO Tune Voltage” alignment must be done before this alignment is going to start.

1. Press the “Start” button to start the alignment then the radio will transmit on the center frequency. It will appear the Frequency Alignment window.

2. Set the value to get desired frequency by left/right arrow key, drag the slide bar by mouse or direct number input.

3. Press the “OK” button on the alignment window to save the re-aligned value, the alignment of the PLL Reference Frequency is accomplished.

4. RX Sensitivity (RX Tune)

This parameter is to align the RX BPF (Band Pass Filter) for Rx sensitivity. It must be done both alignments of the “RX VCO Tune Voltage” and “PLL Reference Frequency” before this alignment is going to start.

1. Press the “Start” button to start the alignment.

2. Set the Signal Generator according to the indication, then press “OK”.

3. Repeat the procedure no.2 until the 3point alignment is finished.

4. It will show the result of 3 points alignment and press “OK” then the confirmation window will open.

5. Press “OK” to finish the RX Sensitivity alignment and save the data.

5. Squelch (SQL)

This parameter is to align the SQL (Squelch) Sensitivity. The “RX VCO Tune Voltage”, “PLL Reference Frequency” and “RX Sensitivity (RX Tune)” must be done before this alignment is started.

There are several alignments as follows in the Squelch Sensitivity.

Noise SQL Tight <Wide> (TH NSQ W)

The Alignment for the Noise SQL Tight level at Wide (5k/ 4k).

Noise SQL Threshold <Wide> (TH NSQ W)

The Alignment for the Noise SQL Threshold level at Wide (5k/4k).

RSSI SQL Level 11 <Wide> (RSSI SQL W)

The Alignment for the “level 11“ of the RSSI SQL level at Wide (5k/4k).

F-4

RSSI SQL Full Scale <Wide> (S Full Scale W)

The Alignment for the RSSI Full Scale level at Wide (5k/ 4k).

Noise SQL Tight <Narrow> (TI NSQ N)

The Alignment for the Noise SQL Tight level at Narrow (2.5k).

Noise SQL Threshold < Narrow > (TH NSQ N) The Alignment for the Noise SQL Threshold level at Narrow (2.5k).

RSSI SQL Level 11 < Narrow > (RSSI SQL N)

The Alignment for the “level 11“ of the RSSI SQL level at Narrow (2.5k).

RSSI SQL Full Scale < Narrow > (S Full Scale N)

The Alignment for the RSSI Full Scale levle at Narrow (2.5k). The procedure for all the alignment is as follows.

1. Press the “Start” button to start the alignment.

2. Set the signal generator according to the level indicated, then press “OK”.

3. Press the “OK” button after finish the alignment, then the data will be saved and the alignment is accomplished.

Alignment

6. TX Power

Open the “Basic2” window, this parameter is to align the Transmit Output (Hi/Low) Power. The factory default is as followings.

50 W nodel 25 W model High 50 W 25 W Low-High 25 W 12.5 W Low-Middle 10 W 5 W E-Low –– 1 W

The procedure for the alignments of the TX Power is followings.

1. Press the “Start” button to start the alignment then the

radio will transmit on the center frequency. The TX Power Alignment window will open on the PC.

2. Set the value to get desired output power by left/right

arrow key, drag the slide bar by mouse or direct number input.

3. Press the “OK” button on the alignment window to

save the re-aligned value, the alignment of the TX POWER is accomplished.

F-5

Alignment

7. Maximum Deviation <Wide> / <Narrow>

This parameter is to align the Maximum Deviation (Wide/Narrow). The “TX VCO Tune Voltage” must be done before this alignment is started.

1. Press the “Start” button to start the alignment.

2. Set the value to get desired deviation (Wide: 4.2kHz, Narrow: 2.1kHz) on the deviation meter by changing the slide bar on your PC.

3. Press the “OK” button after getting the desired Deviation to save the re-aligned value, the alignment of the MAX DEVIATION is accomplished.

8. Sub Audio Deviation <CTCSS> / <DCS>

This parameter is to align the Deviation of Sub-Audio (CTCSS/DCS). The “TX VCO Tune Voltage” and “Max Deviation” must be done before this alignment is started.

1. Press the “Start” button to start the alignment.

2. Set the value to get desired deviation (Wide: 0.6kHz) on the deviation meter by changing the slide bar on your PC.

3. Press the “OK” button after getting the desired value to save the re-aligned value, the alignment of the MAX DEVIATION is accomplished.

9. Sequential Tone Deviation

This parameter is to align the “Sequential Tone Deviation” (for 2-Tone, 5-Tone and DTMF sequential tones).

1. Press the “Start” button to start the alignment.

2. Set the value to get desired deviation by changing the slide bar on your PC.

3. Press the “OK” button after getting the desired value to save the re-aligned value, the alignment of the SEQUENTIAL TONE DEVIATION is accomplished.

F-6

CH (Channel-by-Channel) Fine Alignment Mode

The CH Fine Alignment Mode allows you to align the radio separately for every operating channel. The value of each parameter can be changed to the desired position using the “” / “” and up/down arrow keys, direct number input, and by dragging the PC mouse.

To enter the CH Fine Alignment Mode, select “CH Fine Alignment” in the main “Radio” menu. It will start to “Upload” the written personalized data from the radio. Pressing the “OK” button will then start the CH Fine Alignment Mode.

Note: Detailed information for each step may be found in the “Help” file within CE82 (Clone Editor).

Alignment

F-7

Installation of Option

FVP-25/FVP-35/FVP-36

The FVP-25 is an Encryption/DTMF Pageing Unit which permits secure voice communications with station within your network, while preventing others from listening using normal communications equipment. It allows paging, and enables selective calling using DTMF tone sequences.

The FVP-35 is an Rolling Code Encryption Unit which permits secure voice communications with station within your network, while preventing others from listening using normal communications equipment.

The FVP-36 is an Voice Inversion Type Encryption Unit which permits secure voice communications with station within your network, while preventing others from listening using normal communications equipment.

Each optional Unit is easily programmed the configulations using a Vertex CE82 programmer with an IBM PCcompatible computer.

1. Disconnect the DC power cable.

2. Referring to Figure 1, remove the 8 screws affixing the Top Cover, then remove the top cover.

3. Referring to Figure 2 & Figure 3, locate the empty connector for the Optional Unit, connect the Optional Unit here.

4. Replace the Top Cover and 8 screws . Installation is now complete.

Do not install all Optional Unit at onece

Figure 1

Figure 2

Figure 3

G-1

EXT SP Jack

-120.5dBm

13.6V

RX:0V TX:0.9V

-121.5dBm

-123.8dBm (C1046 removed) RX:2.0V TX:0V

POWER OFF:0V POWER ON:13.6V

RX:7.5V TX:0V

RX:2.2V TX:1.9V

RX:0V TX:8.0V

RX:13.6V TX:13.6V

8.1V

RX:1.3V TX:0V

+27.5dBm

8.1V

RX:7.5V TX:0V

-103.0dBm

-108.5dBm (C1093 removed)

RX:5.4V TX:3.7V

RX:8.1V TX:0.4V

4.3V

RX:0V TX:5.0V

50W:4.3V 10W:3.1V

RX:0V TX:5.0V

RX:1.9V TX:0.4V

RX:2.5V TX:5.9V

RX:0V TX:0.2V

RX:8.1V TX:0V

RX:0V TX:8.0V

-103.0dBm

-111.0dBm (C1146 removed)

RX:1.4V TX:0V

RX:3.2V TX:3.3V

RX:0.6V TX:0.7V

RX:5.0V TX:0V

3.3V

RX:3.3V TX:4.3V

2.1V

RX:0.4V TX:0.7V

2.5V

RX:2.2V TX:2.3V

4.5V @25°C

RX:7.4V TX:0V

0.7V RX:1.0V

TX:1.7V

RX:8.0V TX:0V

RX:4.0V TX:3.9V

RX:0V TX:8.0V

2.1V

RX:1.2V TX:0V

7.3V

RX:0V TX:1.7V

67.65MHz

-108.5dBm

-110.0dBm (C1198 removed) RX:2.0V TX:0V

RX:7.0V TX:7.3V

RX:7.3V TX:7.0V

4.5V

5.2V

2.0V

RX:4.3V TX:0V

67.65MHz

-81.5dBm

-102.5dBm (C1230 removed)

8.1V

12.9V

5.0V

RX:8.0V TX:0V

RX:1.2V TX:0.4V

5.0V

2.1V

RX:1.3V TX:0.4V

RX:2.2V TX:0V

5.2V

8.1V

WIDE:5.3V NARROW:0V

WIDE:0V NARROW:4.9V

5.1V

LOCK:5.1V UNLOCK:0V

5.2V

2.5V

RX:1.3V TX:0V

RX:0.7V TX:0V

MAIN Unit (Lot. 1~4)

Circuit Diagram

2.3V

5.2V

7.9V

5.2V

SHIFT ON:0.1V SHIFT OFF:3.4V

5.0V

POW OFF:0V POW ON:5.5V

RX:5.1V TX:0V

RX:0V TX:5.0V

5.0V

2.1V

5.0V

2.1V

AF OFF:5.0V AF ON:0V

HOOK ON:5.1V HOOK OFF:0.3V

RX:5.1V TX:0V

5.2V

RX:5.1V TX:0V

5.2V

5.1V

5.0V

2.1V

MUTE:0V UNMUTE:5.0V

5.2V

2.1V

3.5V

2.1V

13.6V

8.1V

H-1

MAIN Unit (Lot. 1~4)

Note

H-2

MAIN Unit (Lot. 1~4)

Parts Layout (Side A)

UA78M08CKTPR (Lot.1-4)

(Q1006)

SN74LV4053APWR

(Q1004, 1005)

LM2902PWR

(Q1040, 1042, 1043,

1045, 1046, 1048,1049)

BA DCEFHGIJ

MTM231230L (BL)

(Q 1008, 1011, 1012)

2SK397300L

(Q1050, 1055, 1060,

1063, 1070)

S-AV32

(Q1009)

UMG2N

(Q1013)

M62364FP

(Q1014)

RT1N441U (N3)

(Q 1016, 1017, 1026,

1041, 1053, 1057,

1062, 1064, 1067)

3SK293 (UF)

(Q1025)

BH2220FVM

(Q1034)

BR93L66RFVM

(Q1061)

TAR5S35(3V5)

(Q1035)

XN1501 (R5)

(Q1038)

2SB1201S-TL

(Q1039)

TAR5S50

(Q1052)

RT1N140U

(Q1058)

LC87F5CC8A

(Q1065)

HSM88AS (C1)

(D1007, 1008)

MC2850 (A7)

(D1042, 1060, 1061)

H-3

MAIN Unit (Lot. 1~4)

Parts Layout (Side B)

ba dcefh

DAN222 (N)

(D1020, 1035, 1039)

MC2850 (A7)

(D1021, 1027, 1041

1046, 1047, 1048

1053, 1054)

2SK508 (K52)

(Q1029)

2SK880GR (XG)

(Q1037)

H-4

TDA1519CTH

(Q1003)

SN74LV4066APWR

(Q1044)

ADF4111BRUZ-RL7

(Q1054)

NJM2591V

(Q1036)

LM2902PWR

(Q1047)

DTA124EE (15)

(Q1022)

RT1N140U

(Q1010, 1030)

RT1N441U (N3)

(Q 1001, 1002, 1021,

1028, 1059, 1066)

S-80835CNMC

(Q1051)

2SC3357-T2

(Q1015)

2SC4617 (BR)

(Q1018, 1019, 1020,

1032, 1056)

2SC5226-4 (R22)

(Q1023, 1024,

1027, 1033)

2SC3356 (R24)

(Q1007, 1031)

MAIN Unit (Lot. 5~8)

Circuit Diagram

H-5

MAIN Unit (Lot. 5~8)

Note

H-6

MAIN Unit (Lot. 5~8)

Parts Layout (Side A)

NJM7808DL1A

(Q1006)

SN74LV4053APWR

(Q1004, 1005)

NJM12902V

(Q1040, 1042, 1043,

1045, 1046, 1048,1049)

LM2902PWR (Lot. 7~)

(Q1045)

BA DCEFHGIJ

MTM231230L (BL)

(Q 1008, 1011, 1012)

2SK397300L

(Q1050, 1055, 1060,

1063, 1070)

S-AV32

(Q1009)

UMG2N

(Q1013)

M62364FP

(Q1014)

RT1N441U (N3)

(Q 1016, 1017, 1026,

1041, 1053, 1057,

1062, 1064, 1067)

3SK293 (UF)

(Q1025)

BH2220FVM

(Q1034)

BR93L66RFVM

(Q1061)

TAR5S35(3V5)

(Q1035)

XN1501 (R5)

(Q1038)

2SB1201S-TL

(Q1039)

TAR5S50

(Q1052)

RT1N140U

(Q1058)

LC87F5CC8A

(Q1065)

HSM88AS (C1)

(D1007, 1008)

MC2850 (A7)

(D1042, 1060, 1061)

H-7

MAIN Unit (Lot. 5~8)

Parts Layout (Side B)

ba dcefh

DAN222 (N)

(D1020, 1035, 1039)

MC2850 (A7)

(D1021, 1027, 1041

1046, 1047, 1048

1053, 1054)

2SK508 (K52)

(Q1029)

2SK880GR (XG)

(Q1037)

H-8

TDA1519CTH

(Q1003)

SN74LV4066APWR

(Q1044)

ADF4111BRUZ-RL7

(Q1054)

NJM2591V

(Q1036)

NJM12902V

(Q1047)

DTA124EE (15)

(Q1022)

RT1N140U

(Q1010, 1030)

RT1N441U (N3)

(Q 1001, 1002, 1021,

1028, 1059, 1066)

DTC143EE (23) (Lot. 7~)

(Q 1028, 1030)

S-80835CNMC

(Q1051)

2SC3357-T2

(Q1015)

2SC4617 (BR)

(Q1018, 1019, 1020,

1032, 1056)

2SC5226-4 (R22)

(Q1023, 1024,

1027, 1033)

2SC3356 (R24)

(Q1007, 1031)

MAIN Unit (Lot. 9~17)

Circuit Diagram

H-9

MAIN Unit (Lot. 9~17)

Note

H-10

MAIN Unit (Lot. 9~17)

Parts Layout (Side A)

NJM7808DL1A

(Q1006)

SN74LV4053APWR

(Q1004, 1005)

NJM12902V

(Q1040, 1042, 1043,

1045, 1046, 1048,1049)

BA DCEFHGIJ

MTM231230L (BL)

(Q 1008, 1011, 1012)

2SK397300L

(Q1050, 1055, 1060,

1063, 1070)

S-AV32 (50 W) S-AV33 (25 W)

(Q1009)

UMG2N

(Q1013)

M62364FP

(Q1014)

RT1N441U (N3)

(Q 1016, 1017, 1026,

1041, 1053, 1057,

1062, 1064, 1067)

3SK293 (UF)

(Q1025)

BH2220FVM

(Q1034)

BR93L66RFVM

(Q1061)

TAR5S35(3V5)

(Q1035)

XN1501 (R5)

(Q1038)

2SB1201S-TL

(Q1039)

TAR5S50

(Q1052)

RT1N140U

(Q1058)

LC87F5CC8A

(Q1065)

HSM88AS (C1)

(D1007, 1008)

MC2850 (A7)

(D1042, 1060, 1061)

H-11

MAIN Unit (Lot. 9~17)

Parts Layout (Side B)

ba dcefh

DAN222 (N)

(D1020, 1035, 1039)

MC2850 (A7)

(D1021, 1027, 1041

1046, 1047, 1048

1053, 1054)

2SK508 (K52)

(Q1029)

2SK880GR (XG)

(Q1037)

H-12

TDA1519CTH

(Q1003)

SN74LV4066APWR

(Q1044)

ADF4111BRUZ-RL7

(Q1054)

NJM2591V

(Q1036)

NJM12902V

(Q1047)

LC73881M

(Q1068)

DTA124EE (15)

(Q1022, 1072)

RT1N140U

(Q1010)

RT1N441U (N3)

(Q 1001, 1002, 1021,

1059, 1066, 1069, 1073)

DTC143EE (23)

(Q 1028, 1030)

S-80835CNMC

(Q1051)

2SC3357-T2

(Q1015)

2SC4617 (BR)

(Q1018, 1019, 1020,

1032, 1056)

2SC5226-4 (R22)

(Q1023, 1024,

1027, 1033)

2SC3356 (R24)

(Q1007, 1031)

MAIN Unit (Lot. 18~20)

Circuit Diagram

H-13

MAIN Unit (Lot. 18~20)

Note

H-14

MAIN Unit (Lot. 18~20)

Parts Layout (Side A)

NJM7808DL1A

(Q1006)

SN74LV4053APWR

(Q1004, 1005)

NJM12902V

(Q1040, 1042, 1043,

1045, 1046, 1048,1049)

BA DCEFHGIJ

MTM231230L (BL)

(Q 1008, 1011, 1012)

2SK397300L

(Q1050, 1055, 1060,

1063, 1070)

S-AV32 (50 W) S-AV33 (25 W)

(Q1009)

UMG2N

(Q1013)

M62364FP

(Q1014)

RT1N441U (N3)

(Q 1016, 1017, 1026,

1041, 1053, 1057,

1062, 1064, 1067)

3SK293 (UF)

(Q1025)

BH2220FVM

(Q1034)

BR93L66RFVM

(Q1061)

TAR5S35(3V5)

(Q1035)

XN1501 (R5)

(Q1038)

2SB1201S-TL

(Q1039)

TAR5S50

(Q1052)

RT1N140U

(Q1058)

LC87F5CC8A

(Q1065)

HSM88AS (C1)

(D1007, 1008)

MC2850 (A7)

(D1042, 1060, 1061)

H-15

MAIN Unit (Lot. 18~20)

Parts Layout (Side B)

ba dcefh

DAN222 (N)

(D1020, 1035, 1039)

MC2850 (A7)

(D1021, 1027, 1041

1046, 1047, 1048

1053, 1054)

2SK508 (K52)

(Q1029)

2SK880GR (XG)

(Q1037)

H-16

TDA1519CTH

(Q1003)

SN74LV4066APWR

(Q1044)

ADF4111BRUZ-RL7

(Q1054)

NJM2591V

(Q1036)

NJM12902V

(Q1047)

LC73881M

(Q1068)

DTA124EE (15)

(Q1022, 1072)

RT1N140U

(Q1010)

RT1N441U (N3)

(Q 1001, 1002, 1021,

1059, 1066, 1069, 1073)

DTC143EE (23)

(Q 1028, 1030)

S-80835CNMC

(Q1051)

2SC3357-T2

(Q1015)

2SC4617 (BR)

(Q1018, 1019, 1020,

1032, 1056)

2SC5226-4 (R22)

(Q1023, 1024,

1027, 1033)

2SC3356 (R24)

(Q1007, 1031)

MAIN Unit (Lot. 21~)

Circuit Diagram

H-17

MAIN Unit (Lot. 21~)

Note

H-18

MAIN Unit (Lot. 21~)

Parts Layout (Side A)

NJM7808DL1A

(Q1006)

SN74LV4053APWR

(Q1004, 1005)

NJM12902V

(Q1040, 1042, 1043,

1045, 1046, 1048,1049)

BA DCEFHGIJ

MTM231230L (BL)

(Q 1008, 1011, 1012)

2SK397300L

(Q1050, 1055, 1060,

1063, 1070)

S-AV32 (50 W) S-AV33 (25 W)

(Q1009)

UMG2N

(Q1013)

M62364FP

(Q1014)

RT1N441U (N3) (Lot. 1~22)

DTC144EE (26) (Lot. 23~)

(Q 1016, 1017, 1026,

1041, 1053, 1057,

1062, 1064, 1067)

3SK293 (UF)

(Q1025)

BH2220FVM

(Q1034)

BR93L66RFVM

(Q1061)

TAR5S35(3V5)

(Q1035)

XN1501 (R5)

(Q1038)

2SB1201S-TL

(Q1039)

TAR5S50

(Q1052)

RT1N140U (Lot. 1~25)

DTC114TE (04) (Lot. 26~)

(Q1058)

LC87F5CC8A

(Q1065)

HSM88AS (C1)

(D1007, 1008)

MC2850 (A7) (Lot. 1~22)

DAN217U (A7) (Lot. 23~)

(D1042, 1060, 1061)

H-19

MAIN Unit (Lot. 21~)

Parts Layout (Side B)

ba dcefh

DAN222 (N)

(D1020, 1035, 1039)

MC2850 (A7) (Lot. 1~22)

DAN217U (A7) (Lot. 23~)

(D1021, 1027, 1041

1046, 1047, 1048

1053, 1054)

2SK508 (K52)

(Q1029)

2SK880GR (XG)

(Q1037)

2SC4617 (BR)

TDA1519CTH

(Q1003)

SN74LV4066APWR

(Q1044)

ADF4111BRUZ-RL7

(Q1054)

NJM2591V

(Q1036)

NJM12902V

(Q1047)

LC73881M

(Q1068)

DTA124EE (15)

(Q1022, 1072)

RT1N140U (Lot. 1~24)

(Q1010)

RT1N441U (N3) (Lot. 1~22)

DTC144EE (26) (Lot. 23~)

(Q 1001, 1002, 1010, 1021,

1059, 1066, 1069, 1073)

DTC143EE (23)

(Q 1028, 1030)

S-80835CNMC

(Q1051)

2SC3357-T2

(Q1015)

(Q1018, 1019, 1020,

1032, 1056)

2SC5226-4 (R22)

(Q1023, 1024,

1027, 1033)

2SC3356 (R24)

(Q1007, 1031)

H-20

MAIN Unit

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

PCB with Components CS1873001 VTX 50 W

CS1873002 VTX 25 W CS1873003 EU 25 W CS1873004 EXP 50 W CS1873005 EXP 25 W

Printed Circuit Board FR012250E 1-

FR012250G 5FR012250I 9FR012250J 18-

FR012250K 21C 1001 CHIP CAP. 0.001uF 100V CH RM31M2C2A102JZ01L K22201202 1- A I2 C 1002 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 1- B b2 C 1003 CHIP CAP. 5.6pF 500V CH 1206N5R6C501LT K22278206 1-8 B b2 C 1003 CHIP CAP. 6.8pF 500V CH 1206N6R8D501LT K22278207 25W 9- B b2 C 1003 CHIP CAP. 5.6pF 500V CH 1206N5R6C501LT K22278206 50W 9- B b2 C 1005 CHIP CAP. 10pF 500V CH CF316CH100D500AT K22271255 1- B b2 C 1006 CHIP CAP. 3pF 50V CJ GRM1553C1H3R0BZ01D K22178290 1- B b2 C 1007 FILM CAP. 33pF 500V UC232H0330G-T K33279053 1-8 B b2 C 1007 CHIP CAP. 33pF 500V CH GRM31M2C2H330JV01L K22271225 25W 9- B b2 C 1007 FILM CAP. 33pF 500V UC232H0330G-T K33279053 50W 9- B b2 C 1007 FILM CAP. 27pF 500V UC232H0270J-T K33279023 50W 18- B b2 C 1008 CHIP CAP. 10uF 6.3V B JMK212BJ106KG-T K22080802 1- A B2 C 1009 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a3 C 1010 AL.ELECTRO.CAP. 10uF 25V EMVA250ADA100MD55G K48140014 1- A A2 C 1010 AL.ELECTRO.CAP. 10uF 25V UWR1E100MCL1GB K48140019 23- A A2 C 1011 FILM CAP. 12pF 500V UC232H0120J-T K33279020 1-8 B b2 C 1011 CHIP CAP. 12pF 500V CH 1206N120J501LT K22278210 25W 9- B b2 C 1011 CHIP CAP. 12pF 200V CH GRM2192C2D120JV01D K22230217 25W 16- B b2 C 1011 CHIP CAP. 12pF 500V CH 1206N120J501LT K22278210 25W 25- B b2 C 1011 FILM CAP. 12pF 500V UC232H0120J-T K33279020 50W 9- B b2 C 1012 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B i1 C 1014 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A G2 C 1015 FILM CAP. 33pF 500V UC232H0330G-T K33279053 1-8 B b2 C 1015 CHIP CAP. 27pF 500V CH GRM31M2C2H270JV01L K22271223 25W 17- B b2 C 1015 CHIP CAP. 27pF 500V CH GRM31M2C2H270JV01L K22271223 25W/CE:OFF 9-16 B b2 C 1015 CHIP CAP. 22pF 500V CH CF316CH220J500AT K22271259 25W/CE:ON 9-16 B b2 C 1015 FILM CAP. 33pF 500V UC232H0330G-T K33279053 50W 9- B b2 C 1015 FILM CAP. 27pF 500V UC232H0270J-T K33279023 50W 18- B b2 C 1016 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 1- B a3 C 1017 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A C5 C 1018 CHIP CAP. 1uF 10V B ECJ1VB1A105K K22104806 1- A G2 C 1019 AL.ELECTRO.CAP. 100uF 25V EEE1EA101UP K48140018 1- B j4 C 1019 AL.ELECTRO.CAP. 100uF 25V UUR1E101MCL1GS K48140020 31- B j4 C 1020 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A G2 C 1020 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A G2 C 1021 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- B j3 C 1022 CHIP CAP. 22pF 500V CH 1206N220J501LT K22278213 1-8 B b1 C 1022 CHIP CAP. 18pF 500V CH 1206N180J501LT K22278212 25W 9- B b1 C 1022 CHIP CAP. 22pF 500V CH 1206N220J501LT K22278213 50W 9- B b1 C 1023 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B j3 C 1024 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 1- A C5 C 1026 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 1- A C4 C 1028 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a3 C 1028 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B a3 C 1029 CHIP CAP. 18pF 500V CH 1206N180J501LT K22278212 1- B b1 C 1030 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A I2 C 1031 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A G2 C 1032 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B i3 C 1033 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 1- B a3 C 1034 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A H2 C 1035 CHIP CAP. 10uF 6.3V B JMK212BJ106KG-T K22080802 1- A D5 C 1036 CHIP CAP. 2.2pF 500V CH 1206N2R2C501LT K22278201 1-8 B d2 C 1036 CHIP CAP. 22pF 500V CH 1206N220J501LT K22278213 25W 9- B d2 C 1036 CHIP CAP. 2.2pF 500V CH 1206N2R2C501LT K22278201 50W 9- B d2 C 1037 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 1- A E5 C 1038 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A H3 C 1040 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A I2 C 1041 CHIP CAP. 7pF 50V CH GRM1552C1H7R0BZ01D K22178294 1- B b3 C 1042 CHIP CAP. 0.001uF 100V CH RM31M2C2A102JZ01L K22201202 1- A G2 C 1043 FILM CAP. 22pF 500V UC232H0220J-T K33279021 1-8 A G2 C 1043 FILM CAP. 22pF 500V UC232H0220J-T K33279021 50W 9- A G2 C 1044 CHIP CAP. 5pF 50V CH GRM1552C1H5R0CZ01D K22178207 1- B b3 C 1045 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A H3

LOT

SIDE

LAY ADR

H-21

MAIN Unit

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

C 1046 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b3 C 1047 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A I2 C 1048 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A I2 C 1049 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A C2 C 1050 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A C2 C 1051 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- B i2 C 1052 AL.ELECTRO.CAP. 10uF 25V EMVA250ADA100MD55G K48140014 1- A B3 C 1052 AL.ELECTRO.CAP. 10uF 25V UWR1E100MCL1GB K48140019 23- A B3 C 1053 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b3 C 1054 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A D2 C 1055 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A F2 C 1056 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B i1 C 1057 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A F2 C 1060 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B i2 C 1061 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A E5 C 1061 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A E5 C 1062 AL.ELECTRO.CAP. 10uF 25V EMVA250ADA100MD55G K48140014 1- A F2 C 1062 AL.ELECTRO.CAP. 10uF 25V UWR1E100MCL1GB K48140019 23- A F2 C 1063 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A F2 C 1064 AL.ELECTRO.CAP. 2200uF 25V RE3-25V222MI6# K40149055 1- B i2 C 1064 AL.ELECTRO.CAP. 2200uF 25V UVR1E222MHD K40149078 23- B i2 C 1065 CHIP CAP. 150pF 50V CH GRM1552C1H151JA01D K22178240 1- A G5 C 1066 CHIP CAP. 0.015uF 16V B GRM155B11C153KA01D K22128807 1- A E5 C 1066 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 5- A E5 C 1067 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A F2 C 1069 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A C5 C 1070 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b3 C 1071 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A J2 C 1072 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A J2 C 1073 CHIP TA.CAP. 10uF 10V TEESVA1A106M8R K78100028 1- A C3 C 1074 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A A5 C 1074 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A A5 C 1075 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A G5 C 1076 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A C5 C 1077 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A A5 C 1078 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A C3 C 1079 CHIP CAP. 0.033uF 10V B GRM155B11A333KA01D K22108803 1- A E5 C 1080 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A C5 C 1081 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A A5 C 1083 CHIP CAP. 220pF 25V CH GRM36CH221J25PT K22148203 1- B b3 C 1083 CHIP CAP. 220pF 50V CH GRM1552C1H221JA01D K22179713 22- B b3 C 1084 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A A5 C 1086 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A C5 C 1087 CHIP CAP. 0.0015uF 50V B GRM155B11H152KA01D K22178811 1- A E5 C 1087 CHIP CAP. 0.0056uF 25V B GRM155B11E562KA01D K22148802 3- A E5 C 1087 CHIP CAP. 0.0068uF 25V B GRM155B11E682KA01D K22148803 5- A E5 C 1088 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A A5 C 1089 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b3 C 1090 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B f2 C 1091 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A C5 C 1092 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B f2 C 1093 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b3 C 1095 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 1- B b3 C 1096 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A G5 C 1097 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- A G5 C 1097 CHIP CAP. 0.0047uF 50V B GRM155B11H472KA01D K22178838 22- A G5 C 1098 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A C5 C 1099 CHIP CAP. 1uF 10V B ECJ1VB1A105K K22104806 1- B f2 C 1100 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- A G5 C 1102 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A C5 C 1103 CHIP CAP. 33pF 50V CH GRM1552C1H330JZ01D K22178224 1- B b3 C 1104 CHIP CAP. 47pF 50V CH GRM1552C1H470JZ01D K22178228 1- B f2 C 1105 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A B5 C 1106 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A E5 C 1107 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A B5 C 1108 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B f2 C 1109 CHIP CAP. 0.0022uF 50V B GRM155B11H222KA01D K22178813 1- A J2 C 1110 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A F4 C 1111 CHIP CAP. 33pF 50V CH GRM1552C1H330JZ01D K22178224 1- B b3 C 1112 CHIP CAP. 8pF 50V CH GRM1552C1H8R0BZ01D K22178295 1- B b3 C 1113 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B f2 C 1113 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B f2 C 1114 CHIP CAP. 10uF 6.3V B JMK212BJ106KG-T K22080802 1- A F4

LOT

SIDE

LAY ADR

H-22

MAIN Unit

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

C 1116 CHIP CAP. 7pF 50V CH GRM1552C1H7R0BZ01D K22178294 1- B b3 C 1117 CHIP CAP. 0.0022uF 50V B GRM155B11H222KA01D K22178813 1- A J2 C 1118 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A J2 C 1118 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A J2 C 1120 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A F4 C 1120 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A F4 C 1121 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- A J2 C 1122 CHIP CAP. 1pF 50V CK GRM1554C1H1R0CZ01D K22178202 1- B c3 C 1123 CHIP CAP. 1.5pF 50V CK GRM1554C1H1R5CZ01D K22178203 1- B c3 C 1124 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A F4 C 1125 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A G5 C 1125 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A G5 C 1127 CHIP CAP. 8pF 50V CH GRM1552C1H8R0BZ01D K22178295 1- B c3 C 1128 CHIP CAP. 7pF 50V CH GRM1552C1H7R0BZ01D K22178294 1- B c3 C 1129 CHIP CAP. 33pF 50V CH GRM1552C1H330JZ01D K22178224 1- B e2 C 1130 CHIP CAP. 33pF 50V CH GRM1552C1H330JZ01D K22178224 1- B c3 C 1131 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A F3 C 1132 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A I4 C 1132 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A I4 C 1133 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B f2 C 1134 CHIP CAP. 33pF 50V CH GRM1552C1H330JZ01D K22178224 1- B c3 C 1136 CHIP CAP. 2.2uF 10V B GRM21BB11A225KA01L K22100804 1- A F5 C 1138 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e2 C 1138 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B e2 C 1139 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B e2 C 1140 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B j5 C 1141 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 1- B c3 C 1143 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A G4 C 1144 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A I5 C 1144 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A I5 C 1145 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- A F5 C 1146 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c3 C 1147 CHIP CAP. 7pF 50V CH GRM1552C1H7R0DZ01D K22178209 1- B d3 C 1147 CHIP CAP. 4pF 50V CH GRM1552C1H4R0CZ01D K22178206 11- B d3 C 1148 CHIP CAP. 3pF 50V CJ GRP1553C1H3R0CZ01E K22178205 1- B e2 C 1149 CHIP CAP. 470pF 50V B GRM155B11H471KA01D K22178805 1- B d3 C 1150 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 1- B e3 C 1151 CHIP CAP. 0.022uF 50V B GRM216B11H223KA01D K22170821 1- A F4 C 1152 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 1- B e3 C 1153 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A H4 C 1154 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B e3 C 1155 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B d3 C 1156 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B d3 C 1157 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e2 C 1157 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B e2 C 1158 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A H5 C 1159 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B e3 C 1160 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A H3 C 1163 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B e3 C 1164 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A H5 C 1165 CHIP CAP. 7pF 50V CH GRM1552C1H7R0DZ01D K22178209 1- A H4 C 1166 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e3 C 1166 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B e3 C 1167 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B f3 C 1169 CHIP CAP. 1pF 50V CK GRM1554C1H1R0BZ01D K22178287 1- B e3 C 1171 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A H4 C 1172 CHIP CAP. 1pF 50V CK GRM1554C1H1R0BZ01D K22178287 1- B f3 C 1173 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A D4 C 1174 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A H4 C 1176 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B f3 C 1176 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B f3 C 1177 CHIP CAP. 1pF 50V CK GRM1554C1H1R0CZ01D K22178202 1- A H4 C 1178 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B f5 C 1179 CHIP CAP. 8pF 50V CH GRM1552C1H8R0DZ01D K22178210 1- A H4 C 1180 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B f3 C 1181 CHIP CAP. 1.5pF 50V CK GRM1554C1H1R5BZ01D K22178288 1- B e3 C 1182 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B d5 C 1184 CHIP CAP. 15pF 50V CH GRM1552C1H150JZ01D K22178216 1- B f3 C 1186 CHIP TA.CAP. 10uF 10V TEESVA1A106M8R K78100028 1- B f3 C 1187 CHIP CAP. 15pF 50V CH GRM1552C1H150JZ01D K22178216 1- B f3 C 1189 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B f3 C 1190 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B f3 C 1191 CHIP CAP. 27pF 50V CH GRM1552C1H270JZ01D K22178222 1- B e3

LOT

SIDE

LAY ADR

H-23

MAIN Unit

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

C 1192 CHIP CAP. 39pF 50V CH GRM1552C1H390JZ01D K22178226 1- A H5 C 1193 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 1- B f3 C 1195 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 1- B e3 C 1196 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- A D5 C 1196 CHIP CAP. 0.0047uF 50V B GRM155B11H472KA01D K22178838 22- A D5 C 1197 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A F3 C 1198 CHIP CAP. 39pF 50V CH GRM1552C1H390JZ01D K22178226 1- A I4 C 1199 CHIP CAP. 47pF 50V CH GRM1552C1H470JZ01D K22178228 1- B e3 C 1200 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A D5 C 1201 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A G5 C 1202 CHIP TA.CAP. 10uF 10V TEESVA1A106M8R K78100028 1- B f3 C 1203 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A H5 C 1204 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c4 C 1206 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A G5 C 1208 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B f3 C 1209 CHIP CAP. 15pF 50V CH GRM1552C1H150JZ01D K22178216 1- B f4 C 1209 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 3- B f4 C 1210 CHIP TA.CAP. 2.2uF 6.3V TEESVA0J225M8R K78080009 1- A F4 C 1211 CHIP CAP. 82pF 50V CH GRM1552C1H820JD01D K22178234 1- B f4 C 1212 CHIP CAP. 1uF 10V B ECJ1VB1A105K K22104806 1- A G5 C 1214 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A H5 C 1215 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 1- B e4 C 1216 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b4 C 1216 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B b4 C 1217 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B f3 C 1218 CHIP CAP. 4.7uF 6.3V B JMK212BJ475KG-T K22080804 1- A E4 C 1220 CHIP CAP. 47pF 50V CH GRM1552C1H470JZ01D K22178228 1- B e4 C 1221 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A E4 C 1221 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A E4 C 1223 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A G5 C 1223 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A G5 C 1224 CHIP CAP. 5pF 50V CH GRM1552C1H5R0CZ01D K22178207 1- A H5 C 1225 CHIP CAP. 1uF 10V B GRM219B11A105KC01D K22100803 1- A H5 C 1226 CHIP CAP. 33pF 50V CH GRM1552C1H330JZ01D K22178224 1- B b4 C 1227 CHIP TA.CAP. 4.7uF 6.3V TEESVA0J475M8R K78080017 1- A E3 C 1227 CHIP TA.CAP. 10uF 10V TEESVA1A106M8R K78100028 7- A E3 C 1229 CHIP CAP. 0.0022uF 50V B GRM155B11H222KA01D K22178813 1- A G5 C 1230 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b4 C 1230 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B b4 C 1231 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1-4 A F4 C 1232 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A H5 C 1233 CHIP TA.CAP. 4.7uF 16V TEESVA1C475M8R K78120031 1- A E4 C 1234 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B b4 C 1235 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A G5 C 1235 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A G5 C 1236 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A E4 C 1237 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- A I5 C 1239 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b4 C 1239 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B b4 C 1240 CHIP CAP. 39pF 50V CH GRM1552C1H390JZ01D K22178226 1- B b4 C 1241 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- A I5 C 1241 CHIP CAP. 0.0047uF 50V B GRM155B11H472KA01D K22178838 22- A I5 C 1242 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- A H5 C 1242 CHIP CAP. 0.0022uF 50V B GRM155B11H222KA01D K22178813 5- A H5 C 1243 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1-4 B e4 C 1244 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 1- B e3 C 1245 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 1- B d3 C 1246 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b4 C 1246 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B b4 C 1247 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A G5 C 1247 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A G5 C 1248 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 1- B b4 C 1249 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- A G5 C 1249 CHIP CAP. 0.0047uF 50V B GRM155B11H472KA01D K22178838 22- A G5 C 1250 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b4 C 1251 CHIP CAP. 82pF 50V CH GRM1552C1H820JD01D K22178234 1- B b4 C 1252 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b4 C 1253 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e4 C 1253 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B e4 C 1254 CHIP CAP. 27pF 50V CH GRM1552C1H270JZ01D K22178222 1- B e3 C 1255 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 1- B d3 C 1256 CHIP TA.CAP. 0.68uF 20V TEESVA1D684M8R K78130009 1- B d4 C 1257 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 1- B e3

LOT

SIDE

LAY ADR

H-24

MAIN Unit

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

C 1258 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 1- B d3 C 1259 CHIP CAP. 180pF 25V CH GRM36CH181J25PT K22148201 1- A I5 C 1259 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 22- A I5 C 1260 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A D3 C 1261 CHIP CAP. 0.0033uF 50V B GRM155B11H332KA01D K22178815 1- A J5 C 1262 CHIP TA.CAP. 0.15uF 35V TEESVA1V154M8R K78160026 1- B d4 C 1263 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B b4 C 1263 CHIP CAP. 0.0047uF 50V B GRM155B11H472KA01D K22178838 22- B b4 C 1264 CHIP TA.CAP. 4.7uF 16V TEESVA1C475M8R K78120031 1- A D3 C 1264 CHIP TA.CAP. 4.7uF 20V TEESVA1D475M8R K78130048 7- A D3 C 1265 CHIP TA.CAP. 10uF 10V TEESVA1A106M8R K78100028 1- B b5 C 1266 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A J5 C 1267 AL.ELECTRO.CAP. 100uF 25V EEE1EA101UP K48140018 1- B h2 C 1267 AL.ELECTRO.CAP. 100uF 25V UUR1E101MCL1GS K48140020 31- B h2 C 1268 CHIP CAP. 470pF 50V B GRM155B11H471KA01D K22178805 1- B c4 C 1268 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 5- B c4 C 1269 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B e4 C 1270 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b4 C 1270 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B b4 C 1271 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B d4 C 1272 CHIP CAP. 4.7uF 6.3V B JMK212BJ475KG-T K22080804 1- A F3 C 1273 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B j4 C 1273 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B j4 C 1274 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B i4 C 1275 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A I5 C 1276 CHIP CAP. 470pF 50V B GRM155B11H471KA01D K22178805 1- B b4 C 1276 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 5- B b4 C 1277 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B d4 C 1278 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A I4 C 1279 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B d4 C 1280 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B j4 C 1281 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b4 C 1281 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B b4 C 1282 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A F3 C 1283 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B e4 C 1284 CHIP CAP. 8pF 50V CH GRM1552C1H8R0DZ01D K22178210 1- A B4 C 1286 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B i2 C 1286 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B i2 C 1287 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B d3 C 1288 CHIP CAP. 8pF 50V CH GRM1552C1H8R0DZ01D K22178210 1- A B4 C 1289 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B j4 C 1289 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B j4 C 1290 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A D3 C 1290 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A D3 C 1291 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A D3 C 1291 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A D3 C 1292 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A I5 C 1293 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a4 C 1294 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A D3 C 1295 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B j4 C 1296 CHIP CAP. 1uF 10V B ECJ1VB1A105K K22104806 1- A I5 C 1297 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B i2 C 1297 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B i2 C 1298 CHIP CAP. 4.7uF 6.3V B JMK212BJ475KG-T K22080804 1- A D3 C 1299 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B i4 C 1300 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B d4 C 1301 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b5 C 1302 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B d4 C 1303 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B j5 C 1303 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B j5 C 1304 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B5 C 1305 CHIP CAP. 470pF 50V B GRM155B11H471KA01D K22178805 1- B b5 C 1305 CHIP CAP. 820pF 50V B GRM155B11H821KA01D K22178808 5- B b5 C 1306 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- A I5 C 1306 CHIP CAP. 0.0047uF 50V B GRM155B11H472KA01D K22178838 22- A I5 C 1307 CHIP TA.CAP. 10uF 10V TEESVA1A106M8R K78100028 1- B d4 C 1308 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B d4 C 1309 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B j5 C 1309 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B j5 C 1310 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B d4 C 1311 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A B5 C 1312 CHIP CAP. 470pF 50V B GRM155B11H471KA01D K22178805 1- B b5 C 1312 CHIP CAP. 820pF 50V B GRM155B11H821KA01D K22178808 5- B b5

LOT

SIDE

LAY ADR

H-25

MAIN Unit

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

C 1313 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B j2 C 1313 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B j2 C 1314 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A J4 C 1314 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A J4 C 1315 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B d4 C 1316 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a4 C 1317 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B j2 C 1317 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B j2 C 1319 CHIP TA.CAP. 4.7uF 16V TEESVA1C475M8R K78120031 1- B c5 C 1321 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b5 C 1323 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- B i2 C 1324 CHIP CAP. 0.0015uF 50V B GRM155B11H152KA01D K22178811 1- B b5 C 1326 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b5 C 1326 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B b5 C 1327 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 VTX(USA) 9- B f5 C 1328 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 VTX(USA) 9- B f5 C 1329 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b5 C 1329 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B b5 C 1330 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A B2 C 1331 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- B i1 C 1333 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 VTX(USA) 9- B g5 C 1335 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- B j1 C 1337 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A C3 C 1341 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- A G5 C 1342 CHIP CAP. 4.7uF 6.3V B JMK212BJ475KG-T K22080804 1- A C5 C 1343 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 VTX(USA) 9- B f4 C 1343 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 VTX(USA) 22- B f4 C 1344 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 VTX(USA) 9- B f5 C 1345 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B4 C 1345 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- A B4 C 1350 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A5 C 1350 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 5- A A5 C 1351 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 5- A G5 C 1352 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 5- A G5 C 1353 CHIP CAP. 4.7uF 6.3V B JMK212BJ475KG-T K22080804 5- B d5 C 1354 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 5- B d5 C 1354 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 22- B d5 C 1355 CHIP TA.CAP. 0.1uF 35V TEESVA1V104M8R K78160025 5- A F4 C 1356 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 5- A H5 C 1357 CHIP TA.CAP. 3.3uF 6.3V TEESVA0J335M8R K78080021 C 1358 CHIP CAP. 3.3pF 500V CH 1206N3R3C501LT K22278203 C 1359 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 CD1001 CERAMIC DISC JTBC450C7 H7901500 1- B b5 CF1001 CERAMIC FILTER LTM450EW H3900574 1- A J4 CF1002 CERAMIC FILTER LTM450GW H3900573 1- A J4 D 1001 DIODE RLS135 TE-11 G2070128 1- B b2 D 1002 SURGE ABSORBER P6KE27-MT25 Q9000854 1- A C1 D 1003 DIODE 1SV323(TPH3.F) G2071006 1- B a3 D 1004 DIODE 1SV323(TPH3.F) G2071006 1- B a3 D 1005 DIODE 1SV323(TPH3.F) G2071006 1- B a3 D 1006 DIODE 1SV323(TPH3.F) G2071006 1- B a3 D 1007 DIODE HSM88AS TR-E G2070170 1- A H2 D 1008 DIODE HSM88AS TR-E G2070170 1- A I2 D 1009 DIODE MA2S111-(TX) G2070614 1- B b3 D 1011 DIODE MA2S111-(TX) G2070614 1- A J2 D 1012 DIODE MA2S111-(TX) G2070614 1- A F3 D 1013 DIODE MAZ816000L G2071120 1- A B5 D 1014 DIODE UDZS TE-17 6.8B G2070888 1- A B5 D 1015 DIODE MAZ816000L G2071120 1- A A5 D 1016 DIODE MA2S111-(TX) G2070614 1- A J2 D 1017 DIODE UDZS TE-17 6.8B G2070888 1- A B5 D 1018 DIODE MA2S111-(TX) G2070614 1- A J2 D 1019 DIODE MA2S111-(TX) G2070614 1- B i5 D 1020 DIODE DAN222 TL G2070174 1- B e2 D 1021 DIODE MC2850-T111-1 G2070704 1- B i4 D 1021 DIODE DAN217U T106 G2071236 23- B i4 D 1022 DIODE MA2S111-(TX) G2070614 1- B i5 D 1023 DIODE HVC383B TRF-E G2070922 1- B e3 D 1024 DIODE MA2S111-(TX) G2070614 1- B f3 D 1025 DIODE 1SV325(TPH3.F) G2070848 1- B f4 D 1026 DIODE HVC376B TRF-E G2071122 1- B e4 D 1027 DIODE MC2850-T111-1 G2070704 1- B c4 D 1027 DIODE DAN217U T106 G2071236 23- B c4

W/ CE LABEL W/ CE LABEL W/ CE LABEL

LOT

SIDE

9- A J2

9-16

9- B e2

LAY ADR

H-26

MAIN Unit

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

D 1028 DIODE 1SV325(TPH3.F) G2070848 1- B f4 D 1029 DIODE 1SV325(TPH3.F) G2070848 1- B f4 D 1030 DIODE 1SV325(TPH3.F) G2070848 1- B e4 D 1031 DIODE 1SV325(TPH3.F) G2070848 1- B f4 D 1032 DIODE 1SV325(TPH3.F) G2070848 1- B f4 D 1033 DIODE HSC277TRF-E G2070584 1- B e3 D 1034 DIODE HSC277TRF-E G2070584 1- B e3 D 1035 DIODE DAN222 TL G2070174 1- B a4 D 1036 DIODE MA2S111-(TX) G2070614 1- A D3 D 1037 DIODE HSC277TRF-E G2070584 1- B e3 D 1038 DIODE HSC277TRF-E G2070584 1- B e3 D 1039 DIODE DAN222 TL G2070174 1- B a4 D 1041 DIODE MC2850-T111-1 G2070704 1- B j4 D 1041 DIODE DAN217U T106 G2071236 23- B j4 D 1042 DIODE MC2850-T111-1 G2070704 1- A J5 D 1042 DIODE DAN217U T106 G2071236 23- A J5 D 1043 DIODE MA2S111-(TX) G2070614 1- B i4 D 1044 DIODE MA2S111-(TX) G2070614 1- B j5 D 1045 DIODE MA2S111-(TX) G2070614 1- B d4 D 1046 DIODE MC2850-T111-1 G2070704 1- B i1 D 1046 DIODE DAN217U T106 G2071236 23- B i1 D 1047 DIODE MC2850-T111-1 G2070704 1- B b5 D 1047 DIODE DAN217U T106 G2071236 23- B b5 D 1048 DIODE MC2850-T111-1 G2070704 1- B b5 D 1048 DIODE DAN217U T106 G2071236 23- B b5 D 1049 DIODE MAZ816000L G2071120 1- B j1 D 1050 DIODE MAZ816000L G2071120 1- A A1 D 1051 DIODE MAZ816000L G2071120 1- A B1 D 1052 DIODE MAZ816000L G2071120 1- A B1 D 1053 DIODE MC2850-T111-1 G2070704 1- B i1 D 1053 DIODE DAN217U T106 G2071236 23- B i1 D 1054 DIODE MC2850-T111-1 G2070704 1- B j1 D 1054 DIODE DAN217U T106 G2071236 23- B j1 D 1055 DIODE MAZ816000L G2071120 1- A B1 D 1056 DIODE MAZ816000L G2071120 1- B j1 D 1057 DIODE MAZ816000L G2071120 1- A A1 D 1058 DIODE MAZ816000L G2071120 1- A B2 D 1059 DIODE MAZ816000L G2071120 1- A B1 D 1060 DIODE MC2850-T111-1 G2070704 1- A E4 D 1060 DIODE DAN217U T106 G2071236 23- A E4 D 1061 DIODE MC2850-T111-1 G2070704 1- A F3 D 1061 DIODE DAN217U T106 G2071236 23- A F3 D 1062 DIODE MA2S111-(TX) G2070614 VTX(USA) 9- B f4 D 1063 DIODE UDZS TE-17 6.8B G2070888 9- B h3 D 1064 DIODE UDZS TE-17 6.8B G2070888 9- B j2 F 1001 CHIP FUSE 0.25A 0434.250 0.25A Q0000106 1- A B2 F 1001 CHIP FUSE 1.25A FCC16 132ABTP Q0000109 16- A B2 J 1003 CONNECTOR 18FLT-SM2-TB(LF)(SN)(M) P1091176 1- A C5 J 1004 CONNECTOR 657PCB-HIL P1091290 1- B j6 J 1004 CONNECTOR 657PCB-HIL(N) P1091290A 19- B j6 J 1005 CONNECTOR AXK6S40535P P0091209 1- A D4 J 1006 CONNECTOR AE0195-00E P1091177 1- B j1 JP1001 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B1 JP1002 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A1 JP1003 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B1 JP1004 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B1 JP1005 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A1 JP1006 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B1 L 1001 COIL 0.056uH AS050635-56N L0022813 1- B b2 L 1002 COIL 0.047uH AS030821-47NJ L0022824 1- B b2 L 1003 COIL 0.033uH AS1005-33NK L0022546 1- B a2 L 1004 COIL 0.033uH AS1005-33NK L0022546 1- B b2 L 1005 COIL 0.033uH AS1005-33NK L0022546 1- B b2 L 1006 CHIP COIL 0.068uH LQW2BHN68NJ03L L1690605 1- B a3 L 1007 COIL 0.033uH AS1005-33NK L0022546 1- B b2 L 1008 COIL 0.212uH AS051047-212N L0022834 1- A G2 L 1009 CHIP COIL 0.068uH LQW2BHN68NJ03L L1690605 1- B a3 L 1010 M.RFC 0.22uH HK1608 R22J-T L1690940 1- B b3 L 1011 CHIP COIL 0.082uH LQW2BHN82NJ03L L1690619 1- B b3 L 1012 M.RFC 0.22uH HK1608 R22J-T L1690940 1- B f2 L 1013 CHIP COIL 0.082uH LQW2BHN82NJ03L L1690619 1- B c3 L 1014 CHIP COIL 0.082uH LQW2BHN82NJ03L L1690619 1- B c3 L 1015 CHIP COIL 0.082uH LQW2BHN82NJ03L L1690619 1- B c3

LOT

SIDE

LAY ADR

H-27

MAIN Unit

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

L 1016 M.RFC 0.22uH HK1608 R22J-T L1690940 1- B e2 L 1017 M.RFC 0.082uH HK1608 82NJ-T L1690527 1- B e2 L 1017 M.RFC 0.22uH HK1608 R22J-T L1690940 19- B e2 L 1018 M.RFC 0.082uH HK1608 82NJ-T L1690527 1- B c3 L 1018 M.RFC 0.12uH HK1608 R12J-T L1690937 19- B c3 L 1019 M.RFC 0.082uH HK1608 82NJ-T L1690527 1- B d3 L 1020 M.RFC 0.047uH HK1608 47NJ-T L1690524 1- B e3 L 1021 M.RFC 1uH LK1608 1R0K-T L1690687 1- B e2 L 1022 M.RFC 0.82uH LK1608 R82K-T L1690417 1- A H4 L 1023 M.RFC 0.22uH HK1608 R22J-T L1690940 1- B e3 L 1024 M.RFC 1uH LK1608 1R0K-T L1690687 1- B e3 L 1025 M.RFC 0.39uH 2% C1608CB-R39G-RF L1691107 1- B f3 L 1026 M.RFC 0.39uH 2% C1608CB-R39G-RF L1691107 1- B f3 L 1027 CHIP COIL 0.047uH 2% C2520C-47NG L1691290 1- B f4 L 1028 CHIP COIL 0.033uH 2% C2520C-33NG L1691288 1- B e4 L 1029 M.RFC 0.39uH LK1608 R39K-T L1690413 1- B e4 L 1030 M.RFC 1uH LK1608 1R0K-T L1690687 1- B c4 L 1031 M.RFC 0.22uH HK1608 R22J-T L1690940 1- B f3 L 1032 M.RFC 0.22uH HK1608 R22J-T L1690940 1- B f4 L 1033 M.RFC 0.22uH HK1608 R22J-T L1690940 1- B f4 L 1034 M.RFC 0.22uH HK1608 R22J-T L1690940 1- B f4 L 1035 M.RFC 0.15uH HK1608 R15J-T L1690938 1- B b4 L 1036 M.RFC 0.056uH HK1608 56NJ-T L1690525 1- B e3 L 1037 M.RFC 0.047uH HK1608 47NJ-T L1690524 1- B e3 L 1038 M.RFC 0.056uH HK1608 56NJ-T L1690525 1- B e3 L 1039 M.RFC 0.047uH HK1608 47NJ-T L1690524 1- B e3 L 1040 CHIP COIL 10uH LQH32MN100K23L L1690087 1- A B3 L 1041 CHIP COIL 100uH LQH32MN101K23L L1690099 VTX(USA) 9- B f5 Q 1001 TRANSISTOR RT1N441U-T11-1 G3070247 1- B i3 Q 1001 TRANSISTOR DTC144EE TL G3070075 23- B i3 Q 1002 TRANSISTOR RT1N441U-T11-1 G3070247 1- B i3 Q 1002 TRANSISTOR DTC144EE TL G3070075 23- B i3 Q 1003 IC TDA1519CTH G1093778 1- B j3 Q 1004 IC SN74LV4053APWR G1093870 1- A D5 Q 1005 IC SN74LV4053APWR G1093870 1- A F4 Q 1006 IC UA78M08CKTPR G1094157 1- A C3 Q 1006 IC NJM7808DL1A-TE1 G1093802 5- A C3 Q 1007 TRANSISTOR 2SC3356-T2B R24 G3333567D 1- B b3 Q 1007 TRANSISTOR 2SC3356-T1B R24 G3333568D 15- B b3 Q 1008 FET MTM231230L G3070357 1- A C2 Q 1009 IC S-AV32(VX) G1093916 1-8 A D1 Q 1009 IC S-AV33A(VX.Q) G1094415 25W 9- A D1 Q 1009 IC S-AV32(VX) G1093916 50W 9- A D1 Q 1010 TRANSISTOR RT1N140U(TAPE) G3070359 1- B h2 Q 1010 TRANSISTOR DTC144EE TL G3070075 25- B h2 Q 1011 FET MTM231230L G3070357 1- A F3 Q 1012 FET MTM231230L G3070357 1- A F3 Q 1013 TRANSISTOR UMG2N TR G3070088 1- A F3 Q 1014 IC M62364FP 600D G1093033 1- A F5 Q 1015 TRANSISTOR 2SC3357-T2 RF G3333577F 1- B f2 Q 1015 TRANSISTOR 2SC3357-T1 RF G3333578F 15- B f2 Q 1016 TRANSISTOR RT1N441U-T11-1 G3070247 1- A G3 Q 1016 TRANSISTOR DTC144EE TL G3070075 23- A G3 Q 1017 TRANSISTOR RT1N441U-T11-1 G3070247 1- A J2 Q 1017 TRANSISTOR DTC144EE TL G3070075 23- A J2 Q 1018 TRANSISTOR 2SC4617 TL R G3346178R 1- B j5 Q 1019 TRANSISTOR 2SC4617 TL R G3346178R 1- B i5 Q 1020 TRANSISTOR 2SC4617 TL R G3346178R 1- B i5 Q 1021 TRANSISTOR RT1N441U-T11-1 G3070247 1- B i5 Q 1021 TRANSISTOR DTC144EE TL G3070075 23- B i5 Q 1022 TRANSISTOR DTA124EE TL G3070116 1- B i5 Q 1023 TRANSISTOR 2SC5226-4-TL G3352268D 1- B e2 Q 1024 TRANSISTOR 2SC5226-4-TL G3352268D 1- B e2 Q 1025 FET 3SK293(TE85L,F) G4802938 1- A H3 Q 1026 TRANSISTOR RT1N441U-T11-1 G3070247 1- A F5 Q 1026 TRANSISTOR DTC144EE TL G3070075 23- A F5 Q 1027 TRANSISTOR 2SC5226-4-TL G3352268D 1- B e3 Q 1028 TRANSISTOR RT1N441U-T11-1 G3070247 1- B f3 Q 1028 TRANSISTOR DTC143EE TL G3070114 7- B f3 Q 1029 FET 2SK508-T2B K52 A G3805087B 1- B f3 Q 1029 FET 2SK508-T1B-A K52 G3805088B 15- B f3 Q 1030 TRANSISTOR RT1N140U(TAPE) G3070359 1- B f3 Q 1030 TRANSISTOR DTC143EE TL G3070114 7- B f3

LOT

SIDE

LAY ADR

H-28

MAIN Unit

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

Q 1031 TRANSISTOR 2SC3356-T2B R24 G3333567D 1- B e3 Q 1031 TRANSISTOR 2SC3356-T1B R24 G3333568D 15- B e3 Q 1032 TRANSISTOR 2SC4617 TL R G3346178R 1- B f3 Q 1033 TRANSISTOR 2SC5226-4-TL G3352268D 1- B c4 Q 1034 IC BH2220FVM-TR G1094269 1- A G3 Q 1035 IC TAR5S35(TE85L.F) G1093939 1- A E4 Q 1036 IC NJM2591V-TE1 G1094024 1- B b4 Q 1037 FET 2SK880GR(TE85R.F) G3808807G 1- B d4 Q 1038 TRANSISTOR XN1501-(TX) G3070149 1- A F3 Q 1039 TRANSISTOR 2SB1201S-TL G3070195 1- A E3 Q 1040 IC LM2902PWR G1094009 1- A H5 Q 1040 IC NJM12902V-TE1 G1093592 5- A H5 Q 1041 TRANSISTOR RT1N441U-T11-1 G3070247 1- A J5 Q 1041 TRANSISTOR DTC144EE TL G3070075 23- A J5 Q 1042 IC LM2902PWR G1094009 1- A G5 Q 1042 IC NJM12902V-TE1 G1093592 5- A G5 Q 1043 IC LM2902PWR G1094009 1- A E5 Q 1043 IC NJM12902V-TE1 G1093592 5- A E5 Q 1044 IC SN74LV4066APWR G1093871 1- B e5 Q 1045 IC LM2902PWR G1094009 1- A I5 Q 1045 IC NJM12902V-TE1 G1093592 5- A I5 Q 1045 IC LM2902PWR G1094009 7- A I5 Q 1045 IC NJM12902V-TE1 G1093592 9- A I5 Q 1046 IC LM2902PWR G1094009 1- A D5 Q 1046 IC NJM12902V-TE1 G1093592 5- A D5 Q 1047 IC LM2902PWR G1094009 1- B c5 Q 1047 IC NJM12902V-TE1 G1093592 5- B c5 Q 1048 IC LM2902PWR G1094009 1- A J2 Q 1048 IC NJM12902V-TE1 G1093592 5- A J2 Q 1049 IC LM2902PWR G1094009 1- A I5 Q 1049 IC NJM12902V-TE1 G1093592 5- A I5 Q 1050 FET 2SK397300L G3839738 1- A B2 Q 1051 IC S-80835CNMC-B8U-T2-G G1093606 1- B j4 Q 1052 IC TAR5S50(TE85L.F) G1093914 1- A D3 Q 1053 TRANSISTOR RT1N441U-T11-1 G3070247 1- A B2 Q 1053 TRANSISTOR DTC144EE TL G3070075 23- A B2 Q 1054 IC ADF4111BRUZ-RL7 G1094342 1- B d4 Q 1055 FET 2SK397300L G3839738 1- A B1 Q 1056 TRANSISTOR 2SC4617 TL R G3346178R 1- B j4 Q 1057 TRANSISTOR RT1N441U-T11-1 G3070247 1- A B2 Q 1057 TRANSISTOR DTC144EE TL G3070075 23- A B2 Q 1058 TRANSISTOR RT1N140U(TAPE) G3070359 1- A B3 Q 1058 TRANSISTOR DTC114TE TL G3070225 26- A B3 Q 1059 TRANSISTOR RT1N441U-T11-1 G3070247 1- B a4 Q 1059 TRANSISTOR DTC144EE TL G3070075 23- B a4 Q 1060 FET 2SK397300L G3839738 1- A A1 Q 1061 IC BR93L66RFVM-WTR G1093874 1- A B4 Q 1062 TRANSISTOR RT1N441U-T11-1 G3070247 1- A A2 Q 1062 TRANSISTOR DTC144EE TL G3070075 23- A A2 Q 1063 FET 2SK397300L G3839738 1- A A2 Q 1064 TRANSISTOR RT1N441U-T11-1 G3070247 1- A B2 Q 1064 TRANSISTOR DTC144EE TL G3070075 23- A B2 Q 1065 IC LC87F5CC8A-F57T0-E Ú 1- A B4 Q 1066 TRANSISTOR RT1N441U-T11-1 G3070247 1- B i1 Q 1066 TRANSISTOR DTC144EE TL G3070075 23- B i1 Q 1067 TRANSISTOR RT1N441U-T11-1 G3070247 1- A I4 Q 1067 TRANSISTOR DTC144EE TL G3070075 23- A I4 Q 1068 IC LC73881M-TLM-E G1092755 VTX(USA) 9- B g5 Q 1069 TRANSISTOR RT1N441U-T11-1 G3070247 VTX(USA) 9- B g5 Q 1069 TRANSISTOR DTC144EE TL G3070075 VTX(USA) 23- B g5 Q 1070 FET 2SK397300L G3839738 1- A B2 Q 1072 TRANSISTOR DTA124EE TL G3070116 9- A J5 Q 1073 TRANSISTOR RT1N441U-T11-1 G3070247 9- B g5 Q 1073 TRANSISTOR DTC144EE TL G3070075 23- B g5 R 1001 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- B i3 R 1002 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A C4 R 1002 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 3- A C4 R 1003 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B i3 R 1004 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A G2 R 1005 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A C5 R 1005 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 3- A C5 R 1006 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- A C5 R 1007 CHIP RES. 100 1W 5% RMC1 101JTE J24305101 1- A G3

Please contact Vertex Standard

LOT

SIDE

LAY ADR

H-29

MAIN Unit

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

R 1008 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- A C4 R 1009 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- A C4 R 1009 CHIP RES. 270k 1/16W 5% RMC1/16S 274JTH J24189054 3- A C4 R 1010 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a3 R 1011 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A I2 R 1012 CHIP RES. 100 1/4W 5% RMC1/4 101JATP J24245101 1- A H2 R 1013 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C5 R 1014 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A C4 R 1015 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B i3 R 1016 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A H2 R 1017 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 1- B i3 R 1018 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a3 R 1019 CHIP RES. 560 1/16W 5% RMC1/16S 561JTH J24189022 1- A B2 R 1021 CHIP RES. 100 1/4W 5% RMC1/4 101JATP J24245101 1- A H2 R 1022 CHIP RES. 270k 1/16W 5% RMC1/16S 274JTH J24189054 1- A D5 R 1023 CHIP RES. 120k 1/16W 5% RMC1/16S 124JTH J24189050 1- A E5 R 1024 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- A H3 R 1025 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A E5 R 1026 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1-8 A I2 R 1026 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 25W 9- A I2 R 1026 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 50W 9- A I2 R 1027 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- A H3 R 1027 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 3-8 A H3 R 1027 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 25W 9- A H3 R 1027 CHIP RES. 8.2k 1/16W 5% RMC1/16S 822JTH J24189036 25W 17- A H3 R 1027 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 50W 9- A H3 R 1028 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- A I2 R 1028 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 5-8 A I2 R 1028 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 25W 9- A I2 R 1028 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 50W 9- A I2 R 1029 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1-8 A I2 R 1029 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 25W 9- A I2 R 1029 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 50W 9- A I2 R 1030 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A J2 R 1031 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B b3 R 1032 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b3 R 1033 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1-8 B b3 R 1033 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 R 1033 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 R 1034 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D5 R 1035 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A K2 R 1036 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- A E5 R 1036 CHIP RES. 8.2k 1/16W 5% RMC1/16S 822JTH J24189036 3- A E5 R 1037 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A G5 R 1038 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A G5 R 1039 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1-8 B b3 R 1039 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 R 1039 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 R 1041 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- A J2 R 1041 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 7- A J2 R 1042 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B h2 R 1043 CHIP RES. 5.6k 1/16W 5% RMC1/16S 562JTH J24189034 1- A E5 R 1044 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A G4 R 1045 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B h2 R 1047 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B b3 R 1048 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A G5 R 1049 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A F3 R 1050 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B f2 R 1051 CHIP RES. 39k 1/16W 5% RMC1/16S 393JTH J24189044 1- A G5 R 1052 CHIP RES. 560k 1/16W 5% RMC1/16S 564JTH J24189058 1- A E5 R 1052 CHIP RES. 180k 1/16W 5% RMC1/16S 184JTH J24189052 3- A E5 R 1052 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 5- A E5 R 1053 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B5 R 1054 CHIP RES. 18 1/16W 5% RMC1/16S 180JTH J24189004 1- B f2 R 1054 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 5- B f2 R 1054 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 7-8 B f2 R 1054 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 25W/CE:OFF 14- B f2 R 1054 CHIP RES. 15 1/16W 5% RMC1/16S 150JTH J24189003 25W/CE:OFF 22- B f2 R 1054 CHIP RES. 56 1/16W 5% RMC1/16S 560JTH J24189010 25W/CE:ON 14- B f2 R 1054 CHIP RES. 15 1/16W 5% RMC1/16S 150JTH J24189003 25W/CE:ON 22- B f2 R 1054 CHIP RES. 12 1/16W 5% RMC1/16S 120JTH J24189002 50W 14- B f2 R 1054 CHIP RES. 56 1/16W 5% RMC1/16S 560JTH J24189010 R 1054 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007

W/ CE LABEL W/O CE LABEL

LOT

SIDE

LAY ADR

9- B b3 9- B b3

9-13 B f2 9-13 B f2

H-30

MAIN Unit

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

R 1057 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A G4 R 1058 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1-8 A J2 R 1058 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 25W 9- A J2 R 1058 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 50W 9- A J2 R 1059 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A F3 R 1060 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B f2 R 1061 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A K2 R 1063 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A E5 R 1065 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A J2 R 1066 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A F5 R 1067 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A H5 R 1068 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A J2 R 1069 CHIP RES. 56k 1/16W 5% RMC1/16S 563JTH J24189046 1- A K2 R 1070 CHIP RES. 39k 1/16W 5% RMC1/16S 393JTH J24189044 1- A G4 R 1071 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B5 R 1072 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A F3 R 1073 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A G5 R 1074 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A F3 R 1075 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 1- A I5 R 1076 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B5 R 1077 CHIP RES. 68 1/4W 5% RMC1/4 680JATP J24245680 1- B f2 R 1078 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A G5 R 1079 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B5 R 1080 CHIP RES. 5.6k 1/16W 5% RMC1/16S 562JTH J24189034 1- A I4 R 1081 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B f2 R 1082 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 25W 9- A J2 R 1083 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F3 R 1084 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B i5 R 1085 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A I5 R 1086 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A F5 R 1087 CHIP RES. 8.2k 1/16W 5% RMC1/16S 822JTH J24189036 1- A I5 R 1088 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A J2 R 1089 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A H4 R 1090 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A H4 R 1091 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A F3 R 1092 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- B e2 R 1093 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B f2 R 1094 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A F4 R 1094 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 3- A F4 R 1095 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- A E5 R 1096 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A E5 R 1097 CHIP RES. 18k 1/16W 5% RMC1/16S 183JTH J24189040 1- B j5 R 1098 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B i5 R 1099 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B e2 R 1101 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B i5 R 1102 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B c3 R 1103 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A I5 R 1104 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A J3 R 1106 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B i5 R 1108 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A F5 R 1109 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B i5 R 1110 CHIP RES. 39k 1/16W 5% RMC1/16S 393JTH J24189044 1- A E5 R 1110 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 5- A E5 R 1112 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- A I5 R 1113 CHIP RES. 39k 1/16W 5% RMC1/16S 393JTH J24189044 1- A E5 R 1114 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B e2 R 1115 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A F4 R 1116 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- A F4 R 1117 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A J3 R 1118 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 1- A J2 R 1119 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B e2 R 1120 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A J3 R 1122 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 1- A H3 R 1123 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A I5 R 1125 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A J3 R 1126 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1-8 A J3 R 1126 CHIP RES. 8.2k 1/16W 5% RMC1/16S 822JTH J24189036 25W 9- A J3 R 1126 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 50W 9- A J3 R 1127 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B i5 R 1129 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A H3 R 1130 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B e2 R 1131 CHIP RES. 18 1/16W 5% RMC1/16S 180JTH J24189004 1- B e2 R 1132 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A H5

LOT

SIDE

LAY ADR

H-31

MAIN Unit

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

R 1133 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 1- B e2 R 1135 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A H3 R 1136 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A H3 R 1137 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A E3 R 1138 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d3 R 1139 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A H3 R 1140 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e3 R 1141 CHIP RES. 3.9k 1/16W 5% RMC1/16S 392JTH J24189032 1- B e2 R 1142 CHIP RES. 560 1/16W 5% RMC1/16S 561JTH J24189022 1- B e3 R 1143 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B e3 R 1144 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B e3 R 1145 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- A H4 R 1146 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- A H4 R 1149 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A H4 R 1150 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A H4 R 1151 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B e3 R 1152 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B d4 R 1153 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A D4 R 1154 CHIP RES. 18k 1/16W 5% RMC1/16S 183JTH J24189040 1- B f5 R 1155 CHIP RES. 270 1/16W 5% RMC1/16S 271JTH J24189018 1- B f3 R 1155 CHIP RES. 270 1/16W 0.5% MHR01MZPD2700 J24189427 7- B f3 R 1155 CHIP RES. 270 1/16W 0.5% MHR01MZPD2700 J24189427 17 B f3 R 1155 CHIP RES. 270 1/16W 0.5% RN731ETTP2700D25 J24189461 18- B f3 R 1155 CHIP RES. 270 1/16W 0.5% RR0510P-271-D J24189105 29- B f3 R 1156 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- A H5 R 1156 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 5- A H5 R 1157 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A E4 R 1158 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A D4 R 1159 CHIP RES. 180k 1/16W 5% RMC1/16S 184JTH J24189052 1- A H5 R 1160 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B f3 R 1160 CHIP RES. 100 1/16W 0.5% MHR01MZPD1000 J24189422 8- B f3 R 1160 CHIP RES. 100 1/16W 0.5% RN731ETTP1000D25 J24189456 19- B f3 R 1160 CHIP RES. 100 1/16W 0.5% RR0510P-101-D J24189095 29- B f3 R 1161 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- A D5 R 1162 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A D5 R 1163 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B e3 R 1164 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B e3 R 1164 CHIP RES. 3.3k 1/16W 0.5% MHR01MZPD3301 J24189440 7- B e3 R 1164 CHIP RES. 3.3k 1/16W 0.5% RN731ETTP3301D25 J24189474 17- B e3 R 1164 CHIP RES. 3.3k 1/16W 0.5% RR0510P-332-D J24189131 29- B e3 R 1165 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f3 R 1165 CHIP RES. 1k 1/16W 0.5% MHR01MZPD1001 J24189434 8- B f3 R 1165 CHIP RES. 1k 1/16W 0.5% RN731ETTP1001D25 J24189468 19- B f3 R 1165 CHIP RES. 1k 1/16W 0.5% RR0510P-102-D J24189119 29- B f3 R 1166 CHIP RES. 560 1/16W 5% RMC1/16S 561JTH J24189022 1- A G5 R 1167 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A H5 R 1168 CHIP RES. 5.6k 1/16W 5% RMC1/16S 562JTH J24189034 1- B e4 R 1168 CHIP RES. 5.6k 1/16W 0.5% MHR01MZPD5601 J24189443 7- B e4 R 1168 CHIP RES. 5.6k 1/16W 0.5% RN731ETTP5601D25 J24189477 17- B e4 R 1168 CHIP RES. 5.6k 1/16W 0.5% RR0510P-562-D J24189137 29- B e4 R 1170 CHIP RES. 390 1/16W 5% RMC1/16S 391JTH J24189020 1- A I4 R 1171 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A G5 R 1172 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B c4 R 1173 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A G5 R 1174 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A E5 R 1175 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A H5 R 1176 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- B c4 R 1177 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B b4 R 1178 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B f3 R 1179 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A H5 R 1180 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A E5 R 1181 CHIP RES. 270 1/16W 5% RMC1/16S 271JTH J24189018 1- B c4 R 1182 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A E3 R 1183 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C4 R 1184 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C4 R 1185 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A H5 R 1186 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 1- B c5 R 1186 CHIP RES. 820k 1/16W 5% RMC1/16S 824JTH J24189060 18- B c5 R 1187 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- A G5 R 1188 CHIP RES. 4.7M 1/16W 5% RMC1/16S 475JTH J24189337 1- A H5 R 1188 CHIP RES. 3.3M 1/16W 5% RMC1/16S 335JTH J24189324 5- A H5 R 1189 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A I5 R 1191 CHIP RES. 1.2k 1/16W 5% RMC1/16S 122JTH J24189026 1- B e3

LOT

SIDE

LAY ADR

H-32

MAIN Unit

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

R 1192 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A G5 R 1193 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B h4 R 1194 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 1- A I5 R 1195 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B f4 R 1196 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A D4 R 1198 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- A H5 R 1198 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 5- A H5 R 1199 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A D4 R 1200 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A H5 R 1201 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A H5 R 1202 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- A H5 R 1203 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A G5 R 1204 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A D4 R 1205 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A D4 R 1206 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A G4 R 1207 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- B a4 R 1208 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B e4 R 1209 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1- B e4 R 1210 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B b4 R 1211 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B e4 R 1212 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- A J5 R 1213 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A F3 R 1215 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A D4 R 1216 CHIP RES. 1.8k 1/16W 5% RMC1/16S 182JTH J24189028 1- A C4 R 1217 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- B a4 R 1218 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1- B d4 R 1219 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A I4 R 1220 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e3 R 1221 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A E3 R 1222 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2 R 1223 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B d4 R 1224 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B i4 R 1225 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B b4 R 1226 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 5- B b4 R 1227 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- B a4 R 1228 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B d4 R 1229 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A I5 R 1230 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A I5 R 1231 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B j4 R 1232 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B j4 R 1233 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A F3 R 1234 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 1- B i4 R 1235 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2 R 1236 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 1- B b4 R 1237 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B d3 R 1238 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A D3 R 1239 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- B a4 R 1240 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B e4 R 1243 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- B a4 R 1244 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B j4 R 1245 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B j4 R 1246 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B b4 R 1247 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- A F3 R 1248 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A2 R 1249 CHIP RES. 180k 1/16W 5% RMC1/16S 184JTH J24189052 1- B e4 R 1250 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B d4 R 1251 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d3 R 1252 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B1 R 1253 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- A I4 R 1254 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B j4 R 1255 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B j4 R 1256 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- B a4 R 1257 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A J5 R 1257 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 5- A J5 R 1258 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- A J5 R 1259 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A B4 R 1260 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B j4 R 1261 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B b4 R 1261 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 5- B b4 R 1262 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B3 R 1264 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A2 R 1266 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B d3 R 1267 CHIP RES. 180 1/16W 5% RMC1/16S 181JTH J24189016 1- B b5

LOT

SIDE

LAY ADR

H-33

MAIN Unit

Parts ListParts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

R 1267 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 5- B b5 R 1268 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A I5 R 1269 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B1 R 1270 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B j4 R 1271 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B i4 R 1272 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B i4 R 1273 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B j4 R 1275 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- A I5 R 1276 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B j4 R 1277 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B d4 R 1279 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B4 R 1280 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A1 R 1281 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B4 R 1282 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B b5 R 1282 CHIP RES. 180k 1/16W 5% RMC1/16S 184JTH J24189052 5- B b5 R 1283 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- B d4 R 1284 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A B4 R 1285 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1-24 B d4 R 1286 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A B4 R 1288 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d3 R 1289 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B b5 R 1290 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- A G4 R 1291 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d3 R 1292 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B i4 R 1293 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B3 R 1294 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B4 R 1296 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B d3 R 1297 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B1 R 1298 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B c5 R 1299 CHIP RES. 5.6k 1/16W 5% RMC1/16S 562JTH J24189034 1- B c5 R 1300 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- A I5 R 1301 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 1- B c5 R 1302 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b5 R 1303 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A I5 R 1304 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 1- B c5 R 1304 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 18- B c5 R 1306 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B c5 R 1306 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 3- B c5 R 1306 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 18- B c5 R 1307 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b5 R 1308 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c5 R 1308 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 18- B c5 R 1309 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B b5 R 1310 CHIP RES. 5.6k 1/16W 5% RMC1/16S 562JTH J24189034 1- A I4 R 1311 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 1- B c5 R 1312 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 1- B b5 R 1313 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c5 R 1313 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 3- B c5 R 1314 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 1- B c5 R 1314 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 3- B c5 R 1315 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 VTX(USA) 9- B g5 R 1316 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 1- B c4 R 1316 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 3- B c4 R 1317 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B i1 R 1317 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 8 B i1 R 1317 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 9- B i1 R 1318 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2 R 1319 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A1 R 1320 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C4 R 1321 CHIP RES. 20k 1/16W 0.5% RR0510R-203-D J24189150 1- A C4 R 1322 CHIP RES. 39k 1/16W 5% RMC1/16S 393JTH J24189044 1- A C4 R 1323 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 1- A C4 R 1324 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A C3 R 1325 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A C4 R 1326 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C4 R 1327 CHIP RES. 20k 1/16W 0.5% RR0510R-203-D J24189150 1- A C4 R 1328 CHIP RES. 39k 1/16W 5% RMC1/16S 393JTH J24189044 1- A C4 R 1329 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 1- A C4 R 1330 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2 R 1331 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A G5 R 1333 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 VTX(USA) 9- B f5 R 1334 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A A5 R 1335 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B j1

LOT

SIDE

LAY ADR

H-34

MAIN Unit

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

R 1338 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A I5 R 1339 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A F4 R 1340 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A E3 R 1343 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1-4 R 1347 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 5- A E4 R 1348 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 5- A H5 R 1349 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 5- A H5 R 1352 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 9- B i1 R 1353 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 9- B j1 SC1001 SHIELD CASE (VCO) RA0790400 1SC1001 SHIELD CASE (VCO) RA079040A 19TH1001 THERMISTOR ERTJ0EV473J G9090120 1- B e2 TH1002 THERMISTOR ERTJ0EV473J G9090120 1- B c5 VR1001 POT. RK0971111 20KA/SW J60800256 1- A A5 X 1001 XTAL HC-49SMD X 1002 XTAL OSC 16.8MHz TTS05VS-P2 16.8MHZ H9500760 1- A G4 X 1002 TCXO 16.8MHz TTS14VSB-A3 16.80MHZ H9501100 18- A G4 X 1003 XTAL U3B XF1001 XTAL FILTER TF4-67EA1 67.65MHZ H1102399 1- A H4

LEAF SPRING RA0824400 1GROUND PLATE RA0337900 25W 9GASKET (L=10) RA0896300 25W 9INSULATOR SHEET RA083830A

11.0592MHz

4.194304MHz

FYSMD110592 H0103318 1- A A4

4.194304MHZ H0103284 VTX(USA) 9- B g5

W/ CE LABEL

LOT

17-

SIDE

LAY ADR

H-35

MAIN Unit

Note

H-36

FRONT-A Unit (VX-2100)

Circuit Diagram

RX: 0V TX: 4.9V

RX: 4.9V TX: 0V

13.6V

5.0V

I-1

FRONT-A Unit (VX-2100)

Parts Layout (Side A)

BA DCEF

Parts Layout (Side B)

ba dcef

RT1N441U (N3) (Lot. 1~22)

DTC144EE (26) (Lot. 23~)

(Q2011, 2013, 2014, 2015)

BRPG1211C

(D2001)

I-2

RT1N441U (N3) (Lot. 1~22)

DTC144EE (26) (Lot. 23~)

(Q2001, 2002, 2003, 2004,

2006, 2008, 2009, 2010)

CD4094BPWR

(Q2005, 2012)

UA78L05ACPK (F5)

(Q2007)

FRONT-A Unit (VX-2100)

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

PCB with Components CB3472001

Printed Circuit Board FR014510B 1C 2001 CHIP TA.CAP. 4.7uF 25V TEESVB21E475M8R K78140019 1- B e2 C 2002 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- B e2 C 2003 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B e2 C 2004 CHIP TA.CAP. 10uF 16V TEESVB21C106M8R K78120025 1- B e2 C 2005 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B e2 D 2001 LED BRPG1211C-TR G2070654 1- A B1 D 2002 LED TLGU1008A(T04) G2070956 1- A B1 D 2003 LED TLGU1008A(T04) G2070956 1- A C1 DS2001 LED ELS-512SURWA/S530-A3 G2090796 1- A D1 J 2001 CONNECTOR 18FLT-SM2-TB(LF)(SN)(M) P1091176 1- B e1 Q 2001 TRANSISTOR RT1N441U-T11-1 G3070247 1- B b1 Q 2001 TRANSISTOR DTC144EE TL G3070075 23- B b1 Q 2002 TRANSISTOR RT1N441U-T11-1 G3070247 1- B c1 Q 2002 TRANSISTOR DTC144EE TL G3070075 23- B c1 Q 2003 TRANSISTOR RT1N441U-T11-1 G3070247 1- B c2 Q 2003 TRANSISTOR DTC144EE TL G3070075 23- B c2 Q 2004 TRANSISTOR RT1N441U-T11-1 G3070247 1- B b2 Q 2004 TRANSISTOR DTC144EE TL G3070075 23- B b2 Q 2005 IC CD4094BPWR G1093866 1- B b1 Q 2006 TRANSISTOR RT1N441U-T11-1 G3070247 1- B b2 Q 2006 TRANSISTOR DTC144EE TL G3070075 23- B b2 Q 2007 IC UA78L05ACPK G1094156 1- B e2 Q 2008 TRANSISTOR RT1N441U-T11-1 G3070247 1- B b2 Q 2008 TRANSISTOR DTC144EE TL G3070075 23- B b2 Q 2009 TRANSISTOR RT1N441U-T11-1 G3070247 1- B b1 Q 2009 TRANSISTOR DTC144EE TL G3070075 23- B b1 Q 2010 TRANSISTOR RT1N441U-T11-1 G3070247 1- B b1 Q 2010 TRANSISTOR DTC144EE TL G3070075 23- B b1 Q 2011 TRANSISTOR RT1N441U-T11-1 G3070247 1- A B2 Q 2011 TRANSISTOR DTC144EE TL G3070075 23- A B2 Q 2012 IC CD4094BPWR G1093866 1- B d2 Q 2013 TRANSISTOR RT1N441U-T11-1 G3070247 1- A B2 Q 2013 TRANSISTOR DTC144EE TL G3070075 23- A B2 Q 2014 TRANSISTOR RT1N441U-T11-1 G3070247 1- A C1 Q 2014 TRANSISTOR DTC144EE TL G3070075 23- A C1 Q 2015 TRANSISTOR RT1N441U-T11-1 G3070247 1- A C2 Q 2015 TRANSISTOR DTC144EE TL G3070075 23- A C2 R 2001 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B c1 R 2001 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 22- B c1 R 2002 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B c1 R 2002 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 22- B c1 R 2003 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B c2 R 2003 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 22- B c2 R 2004 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B c2 R 2004 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 22- B c2 R 2006 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B f1 R 2007 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B c2 R 2007 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 22- B c2 R 2008 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B b2 R 2008 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 22- B b2 R 2009 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B b1 R 2009 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 22- B b1 R 2010 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B c1 R 2010 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 22- B c1 R 2011 CHIP RES. 820 1/16W 5% RMC1/16S 821JTH J24189024 1- A B2 R 2012 CHIP RES. 180 1/16W 5% RMC1/16S 181JTH J24189016 1- A B2 R 2013 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- A C1 R 2014 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- A C2

HOLDER (LG) RA0787500 1-

HOLDER (LG) RA078750A 5-

LIGHT GUIDE (8ch) RA0787600 1-

LOT

SIDE

LAY ADR

I-3

FRONT-A Unit (VX-2100)

Note

I-4

RX: 0V TX: 4.9V

RX: 4.9V TX: 0V

FRONT-B Unit (VX-2200)

Circuit Diagram

DIMMER LEVEL 3: 4.8V

5.0V

J-1

FRONT-B Unit (VX-2200)

Parts Layout (Side A)

BA DCEF

BRPG1211C

(D3005)

Parts Layout (Side B)

LCD

(DS3001)

dcef

2SB1132 (BA)

(Q3001)

XP1501 (R5)

(Q3002, 3007)

RT1N441U (N3) (Lot. 1~22)

DTC144EE (26) (Lot. 23~)

(Q3003, 3004)

CD4094BPWR

(Q3005)

J-2

UA78L05ACPK (F5)

(Q3006)

2SA1602A (MF) (Lot. 1~15)

ISA1602AM1 (MF) (Lot. 16~22)

2SA1576A T106 R (Lot. 23~)

(Q3008)

NJU6533KQ1

(Q3009)

FRONT-B Unit (VX-2200)

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

PCB with Components CB3473001

Printed Circuit Board FR014520C 1C 3001 CHIP TA.CAP. 4.7uF 25V TEESVB21E475M8R K78140019 1- B e1 C 3002 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- B d1 C 3003 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B d1 C 3004 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c2 C 3005 CHIP TA.CAP. 10uF 6.3V TEESVA0J106M8R K78080027 1- B d1 C 3006 CHIP TA.CAP. 4.7uF 6.3V TEESVA0J475M8R K78080017 1- B c2 C 3008 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B d1 C 3009 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b2 C 3010 CHIP TA.CAP. 4.7uF 6.3V TEESVA0J475M8R K78080017 1- B b2 C 3011 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b3 C 3012 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b3 D 3001 LED TLOU1020(T14.F) G2070990 1- A B1 D 3002 LED TLOU1020(T14.F) G2070990 1- A B1 D 3003 LED TLOU1020(T14.F) G2070990 1- A C1 D 3004 LED TLOU1020(T14.F) G2070990 1- A D1 D 3005 LED BRPG1211C-TR G2070654 1- A A1 D 3006 DIODE UDZS TE-17 3.9B G2070906 1- B e2 DS3001 LCD TP5434 (AC061) G6090173 1- A C2 J 3001 CONNECTOR 18FLT-SM2-TB(LF)(SN)(M) P1091176 1- B e1 Q 3001 TRANSISTOR 2SB1132 T100 R G3211327R 1- B e2 Q 3002 TRANSISTOR XP1501-(TX) G3070143 1- B f1 Q 3003 TRANSISTOR RT1N441U-T11-1 G3070247 1- B c1 Q 3003 TRANSISTOR DTC144EE TL G3070075 23- B c1 Q 3004 TRANSISTOR RT1N441U-T11-1 G3070247 1- B c1 Q 3004 TRANSISTOR DTC144EE TL G3070075 23- B c1 Q 3005 IC CD4094BPWR G1093866 1- B c1 Q 3006 IC UA78L05ACPK G1094156 1- B d1 Q 3007 TRANSISTOR XP1501-(TX) G3070143 1- B c2 Q 3008 TRANSISTOR 2SA1602A-T111-1F G3116028F 1- B c2 Q 3008 TRANSISTOR ISA1602AM1-T111-1F G3070380 16- B c2 Q 3008 TRANSISTOR 2SA1576A T106 R G3115768R 23- B c2 Q 3009 IC NJU6533KQ1 G1094259 1- B d3 R 3001 CHIP RES. 560 1/8W 5% RMC1/8T 561J J24215561 1- B f1 R 3002 CHIP RES. 560 1/8W 5% RMC1/8T 561J J24215561 1- B c1 R 3003 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B f1 R 3004 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B f1 R 3005 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B f1 R 3006 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- B d1 R 3007 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- B d1 R 3008 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- B d1 R 3009 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- B e2 R 3011 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B e3 R 3012 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B f1 R 3014 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- B c1 R 3015 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- B c1 R 3017 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- B c2 R 3018 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- B c1 R 3019 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- B c1 R 3020 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B c1 R 3021 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B d2 R 3022 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B f1 R 3023 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e2 R 3024 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e2 R 3025 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B c2 R 3026 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- B b1 R 3028 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b1 R 3029 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- B d2 R 3030 CHIP RES. 5.6k 1/16W 5% RMC1/16 562JATP J24185562 1- B c1 R 3031 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B b2 R 3032 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B b2 R 3033 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B b1 R 3034 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B b3 R 3035 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B b1 R 3039 CHIP RES. 560k 1/16W 5% RMC1/16S 564JTH J24189058 1- B d3

LCD HOLDER RA0786300 1-

SPONGE RUBBER (LCD) RA0786900 1-

LIGHT GUIDE (LCD) RA078640A 1-

REFLECTOR SHEET RA0790900 1-

INTER CONNECTOR RA0786200 1-

LOT

SIDE

LAY ADR

J-3

FRONT-B Unit (VX-2200)

Note:

J-4

FVP-25 Encryption/DTMF Pager Unit (Option)

Circuit Diagram

M64026FP

(Q1001)

LC73881

(Q1002)

Parts Layout

Side BSide A

DTC144EU (26)

(Q1003)

K-1

FVP-25 Encryption/DTMF Pager Unit (Option)

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

C 1001 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1C 1002 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1C 1003 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1C 1004 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1C 1005 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1C 1007 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1C 1007 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 32C 1008 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1C 1009 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1C 1010 CHIP CAP. 390pF 50V CH GRM1882C1H391JA01D K22174255 1C 1011 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1C 1012 CHIP TA.CAP. 4.7uF 6.3V TEMSVA0J475M-8R K78080017 1C 1013 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1C 1014 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1D 1001 DIODE 1SS355 TE-17 G2070470 1D 1002 DIODE 1SS355 TE-17 G2070470 1J 1001 CONNECTOR AXK5S40035P P1091012 1Q 1001 IC M64026FP-650C G1092754 1Q 1002 IC LC73881M-TLM G1092755 1Q 1003 TRANSISTOR DTC144EUA T106 G3070041 R 1001 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1R 1002 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1R 1003 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1R 1004 CHIP RES. 680k 1/16W 5% RMC1/16 684JATP J24185684 1R 1006 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1R 1007 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1R 1008 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1R 1008 CARBON FILM RES. 22k 1/8W 5% RD18TJ223 22K J01215223 14R 1008 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 17R 1009 CHIP RES. 3.3M 1/16W 5% RMC1/16 335JATP J24185335 68X 1001 XTAL SX-1315 3.6263MHz 3.6263MHZ H0103183 1X 1002 XTAL SX-1315

Printed Circuit Board FR005010F

4.194304MHz

4.194304MHZ H0103184 1-

LOT

1-13

SIDE

LAY ADR

K-2

FVP-36 Voice Inversion Type Encryption Unit (Option)

Circuit Diagram

M64026FP

(Q1001)

Parts Layout

Side BSide A

L-1

FVP-36 Voice Inversion Type Encryption Unit (Option)

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

Printed Circuit Board FR005010F C 1003 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1C 1004 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1C 1005 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1C 1007 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1C 1008 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1C 1009 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1C 1010 CHIP CAP. 390pF 50V CH GRM1882C1H391JA01D K22174255 1C 1011 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1C 1012 CHIP TA.CAP. 4.7uF 6.3V TEMSVA0J475M-8R K78080017 1C 1014 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1D 1001 DIODE 1SS355 TE-17 G2070470 1D 1002 DIODE 1SS355 TE-17 G2070470 1J 1001 CONNECTOR AXK5S40035P P1091012 1Q 1001 IC M64026FP-650C G1092754 1R 1001 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1R 1002 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1R 1003 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1R 1004 CHIP RES. 680k 1/16W 5% RMC1/16 684JATP J24185684 1R 1006 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1R 1008 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1R 1008 CARBON FILM RES. 22k 1/8W 5% RD18TJ223 22K J01215223 1R 1008 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1R 1009 CHIP RES. 3.3M 1/16W 5% RMC1/16 335JATP J24185335 1X 1001 XTAL SX-1315 3.6263MHz 3.6263MHZ H0103183 1-

LOT

SIDE

LAY ADR

L-2

No portion of this manual may be reproduced without the permission of VERTEX STANDARD CO., LTD.

Vertex Standard VX-2100, VX-2200 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
