VERTEX STANDARD CO., LTD.

4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan

VERTEX STANDARD

US Headquarters

VX-1700 Series

HF Multi Mode Mobile Radio

Service Manual

For EXP Version

10900 Walker Street, Cypress, CA 90630, U.S.A.

YAESU EUROPE B.V.

P.O. Box 75525, 1118 ZN Schiphol, The Netherlands

YAESU UK LTD.

Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K.

VERTEX STANDARD HK LTD.

Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong

Introduction

This manual provides the technical information necessary for servicing the VX-1700 HF Transceiver.

Servicing this equipment requires expertise in handing surface-mount chip components. Attempts by nonqualified persons to service this equipment may result in permanent damage not covered by the warranty, and may be illegal in some countries.

Two PCB layout diagrams are provided for each double-sided board in this transceiver. Each side of the board is referred to by the type of the majority of components installed on that side (“Side A” or “Side B”). In most cases one side has only chip components (surface-mount devices), and the other has either a mixture of both chip and leaded components (trimmers, coils, electrolytic capacitors, ICs, etc.), or leaded components only.

As described in the pages to follow, the advanced microprocessor design of the VX-1700 Transceiver allows a complete alignment of this transceiver to be performed without opening the case of the radio; all adjustments can be performed from the front panel, using the “Alignment Mode” menu.

While we believe the information in this manual to be correct, VERTEX STANDARD assumes no liability for damage that may occur as a result of typographical or other errors that may be present. Your cooperation in pointing out any inconsistencies in the technical information would be appreciated.

Contents

Specifications ......................................................................................................................................................2

Exploded View & Miscellaneous Parts .......................................................................................................... 3

Block Diagram .................................................................................................................................................... 5

Circuit Description............................................................................................................................................. 7

Connector Pinout Diagrams / Slide Switch Setting .................................................................................. 10

Alignment ..........................................................................................................................................................11

ALE-1 Automatic Link Establishment Unit Installation .......................................................................... 19

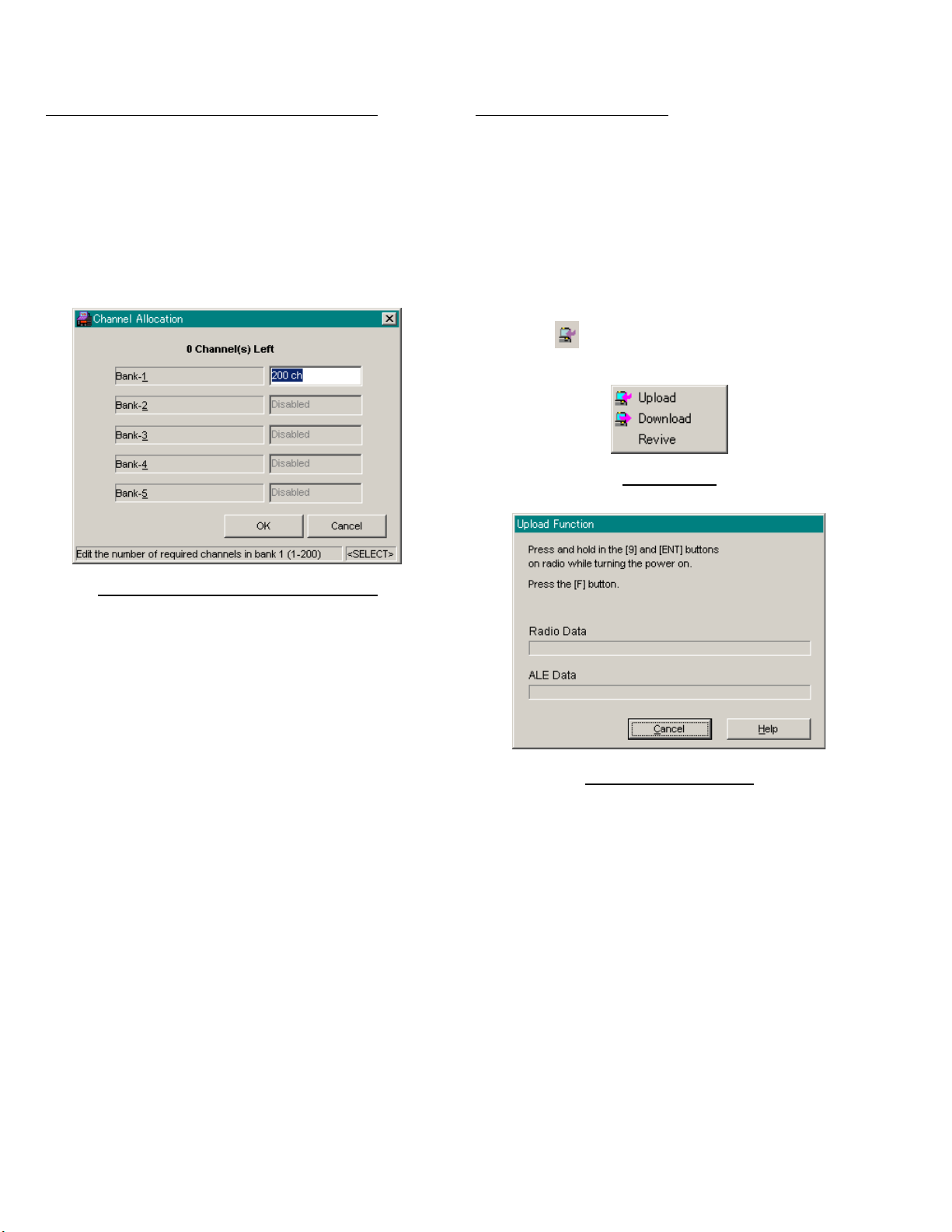

CE77 PC Programming Software...................................................................................................................21

Board Units (Schematics, Layouts & Parts)

MAIN Unit .................................................................................................................................................. 49

PA Unit ........................................................................................................................................................ 73

PANEL Unit ................................................................................................................................................ 83

GPS-INTERFACE Unit .............................................................................................................................. 89

MIC Unit ...................................................................................................................................................... 93

ENC Unit .....................................................................................................................................................94

ALE Unit (Option) ..................................................................................................................................... 95

Specifications

General

Receiver Frequency Range: 30 kHz ~ 30.0000 MHz Transmitter Frequency: 1.600 ~ 30.0000 MHz Emission Modes: A1A (CW), J3E (LSB/USB), A3E (AM), J2B (USB/LSB),

H3E (2.182 MHz Emergency Channel only)

Frequency Synthesizer Step: 10 Hz, 100 Hz, 1 kHz Frequency Stability: ±1 ppm (Typical) Operating Temperature Range: 14° F ~ 122° F (–10° ~ +50° C) Antenna Impedance: 50 Ohms Supply Voltage: 13.8 Volts DC ±15%, negative ground Power Consumption: 25 mA (Standby)

1.0 A (Receive, no signal)

1.5 A (Receive) 20 A (Transmit, 125 Watts output)

Dimensions (WxHxD): 9.5” x 3.9” x 11.2” (241 x 99 x 285 mm) Weight (approx.): 9.5 lbs (4.3 kg)

Transmitter

Power Output: 125 Watts (A1A, J2B, J3E @1.6000 ~ 3.9999 MHz)

100 Watts (A1A, J2B, J3E @4.0000 ~ 30.0000 MHz) 31 Watts AM Carrier (A3E @1.6000 ~ 3.9999 MHz) 25 Watts AM Carrier (A3E @4.0000 ~ 30.0000 MHz) 31 Watts AM Carrier (H3E @2.182 MHz)

Modulation Types: J3E, H3E: PSN type modulator,

A3E: Low-level (early stage)

Spurious Radiation: Better than –50 dB (Harmonics)

Better than –40 dB (Harmonics @1.6 ~ 1.8 MHz)

J3E Carrier Suppression: Better than 50 dB below peak output Undesired Sideband Suppression: Better than 60 dB below peak output J3E Audio Response: Not more than –6 dB from 400 Hz ~ 2600 Hz Occupied Bandwidth: A1A: less than 0.5 kHz

J3E, H3E: less than 3.0 kHz A3E: less than 6.0 kHz

Microphone Impedance: 200 ~ 10 k Ohms (600 Ohms Nominal)

Receiver

Circuit Type: Double-conversion Superheterodyne Intermediate Frequencies: 1st: 45.274 MHz, 2nd: 24 kHz Sensitivity: A1A/J2B/J3E A3E/H3E

0.1 ~ 0.5 MHz — —

0.5 ~ 1.6 MHz: 1.41 µV 8 µV

1.6 ~ 30 MHz: 0.16 µV 1 µV (A1A/J2B/J3E/A3E: S/N 10 dB)

Squelch Sensitivity (A1A/J2B/J3E): 0.1 ~ 0.5 MHz —

0.5 ~ 1.6 MHz: 2.5 µV

1.6 ~ 30 MHz: 2 µV

IF Rejection: Better than 80 dB Image Rejection: Better than 80 dB Selectivity: –6 dB –60 dB

A1A(W), J2B(W), J3E > 2.2 kHz < 4.5 kHz A1A(N), J2B(N) > 500 Hz < 2.0 kHz A3E, H3E > 6 kHz < 20 kHz

Audio Output: At least 2.2 Watts into 8 Ohms @ 10% THD Audio Output Impedance: 4 ~ 16 Ohms (8 Ohms Nominal) Conducted Radiation: Less than 4000 µµW

Specifications are subject to change without notice or obligation.

Exploded View & Miscellaneous Parts

RA0695500 PACKING PAD (CHASSIS)

RA0725400 FRONT PANEL ASSY

RA069450A RUBBER KNOB (PW)

RA0694800 KNOB (L)

RA0694600 PACKING PAD (SP)

MIC UNIT

RA0694900 KNOB (S)

RA0695000 FRONT PLATE (A)

M4090146 SPEAKER

RA069420A RUBBER KNOB (12KEY)

RA069430A RUBBER KNOB (4KEY)

RA069440A RUBBER KNOB (UP/DOWN)

RA0695800 INTER CONNECTOR (2pcs)

RA0695000 FRONT PLATE (B)

RA0727200 DIFFUSER SHEET (BLIND) (2pcs)

G6090162 LCD

ENC UNIT

RA0696100 REFLECTOR SHEET

RA0727100 DIFFUSER SHEET (LCD)

RA0696000 LCD HOLDER

RA0696200 SPONGE RUBBER (LCD)

RA0635400 CHASSIS

PANEL UNIT

RA0695900 LIGHT GUIDE (LCD)

R3100700A FOOT

RA0695300 COVER (BOTTOM)

PA UNIT

MAIN UNIT

M2090040 FAN

R3100700A FOOT

S4000043 CASE LEG (FF-003)

R0145630 STAND

Non-designated parts are available only as part of a designated assembly.

RA0695200 COVER (TOP)

P1090352 CONNECTOR (FM-MDR-MI)

T9207202A WIRE ASSY

RA0695700 HOLDER PLATE (D-SUB)

GPS INTERFACE UNIT

S4000043 CASE LEG (FF-003)

REF.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

RA0695600 HOLDER PLATE (CW)

VXSTD P/N

A06870001 T9023725 Q0000074 RA0696400

VXSTD P/N

REF.

T9315504

P0001

T9315905

P0002

T9207203

P0004

T9207210

P0005

T9207211

P0006

T9207209

P0007

T9207117A

P0008

VXSTD P/N

U02308002 U03308002 U04410002 U10306001 U20205002 U20306002 U20406007 U20430002 U24106002 U24108002 U24206001 U24208002 U24308002 U31306007 U70004012

SEMS SCREW SEMS SCREW SEMS SCREW TRUSS HEAD SCREW BINDING HEAD SCREW BINDING HEAD SCREW BINDING HEAD SCREW BINDING HEAD SCREW TAPTITE SCREW TAPTITE SCREW TAPTITE SCREW TAPTITE SCREW TAPTITE SCREW OVAL HEAD SCREW PLAIN WASHER

SUPPLIED ACCESSORIES

DESCRIPTION

MH-31A8J Hand Microphone DC Power Cord Spare Fuse (25 A Blade Type) Switch Label Sheet

CONNECTION CABLES

DESCRIPTION

Coaxial Cable (J1001J2006 Coaxial Cable (J1002J2001 30-pin Flat Cable (J1003J2002 13-pin Molex (J1008J4001 8-pin Molex (J1005J6002 8-pin Molex (J3004J6101 30-pin Flat Cable (J1004J3001

DESCRIPTION

SM3X8NI ASM3X8NI HSM4X10NI M3X6 M2.6X5NI M3X6NI M4X6B M4X30(Ni) M2X6NI M2X8NI M2.6X6 M2.6X8NI M3X8NI M3X6B FW4BSNI

QTY.

1 1 1 1

) )

)

) ) )

)

QTY.

4 7 1 4 2 4 2 4 6 3 2

4 14 12

Exploded View & Miscellaneous Parts

Note

Block Diagram

Connection Diagram

Circuit Description

Receive Signal Path

Incoming RF signal from the ANT jack is delivered to the PA Unit, and passes through the TX/RX relay RL2009 to J2006.

The RF signal is then applied to J1001 on the MAIN Unit, and passed through the limiter circuit consisting of D1006, D1007, D1008, and D1009 (all RLS245) to prevent distortion from high RF signal input, and is fed to one of eight band-pass filters which strip away unwanted signals prior to delivery of the incoming signal to the RF amplifiers, Q1022 and Q1024 (both 2SK520-K41).

The amplified RF signal passes through a low-pass filter to the doubly-balanced mixer D1032 (HSB88WS), where the RF signal is mixed with the 1st local signal delivered from buffer amplifier Q1029 (2SC2954), resulting in a 45.274 MHz 1st IF signal.

The DSP IC Q1035 (UPD77115) outputs AGC data which is proportionate to the received signal strength to the main CPU Q1018 (HD64F2134). The main CPU Q1018 (HD64F2134), in turn, outputs a DC voltage in accordance with the received signal strength. This DC voltage is fed through buffer amplifier Q1039 (LM2904PW) to RF amplifiers Q1022 & Q1024 (both 2SK520) and gate 2 of IF amplifier Q1050 (3SK151GR), to reduce their gains when strong signals are present in the receiver passband.

Transmit Signal Path

The speech audio from the microphone is delivered to J6001 on the MIC Unit, then applied to J1005 on the MAIN Unit.

The speech audio is amplified by Q1032-1 (UPC4572G2), then passed though the clipper, D1044 (MC2850), and further amplified by Q1032-2 (UPC4572G2).

The 45.274 MHz 1st IF signal is fed through monolithic crystal filter XF1001, which strips away unwanted mixer products, and is amplified by 1st IF amplifier Q1050 (3SK151GR); the 1st IF signal is then applied to the 2nd mixer Q1052 (RF2713), where it is mixed with the 45.25 MHz 2nd local signal which is divided from 90.5 MHz reference signal delivered from buffer amplifier Q1075 (2SC2714Y), resulting in a 24 kHz 2nd IF signal.

The 24 kHz 2nd IF signal is fed through buffer amplifiers Q1030 and Q1041 (both UPC4572G2) to the A/D converter Q1071 (AK4528A), then delivered to the DSP IC Q1035 (UPD77115), where the 24 kHz 2nd IF signal is demodulated in accordance with the mode selection data from the main CPU Q1018 (HD64F2134). The demodulated signal is delivered to the D/A converter Q1081 (AK4550VT) which converts the demodulated signal to audio.

The audio signal from the D/A converter Q1081 (AK4550VT) is fed through a low-pass filter at Q1036 (UPC4572G), which eliminates high-pitched noise on the audio signal, and is fed to the AF mute gate Q1092 (2SJ125D), then applied to the audio ampli- fier Q1055 (TDA2003H). The amplified audio signal is delivered to J3001 on the PANEL Unit, then passes through the speaker switch RL3001/Q3006 (DTC143ZE) to the internal or external speaker.

The amplified speech audio is fed through the A/D converter Q1081 (AK4550VT), then delivered to the DSP IC Q1035 (UPD77115), where the speech audio is modulated in the 24 kHz TX 1st IF signal in accordance with the mode selection data from the main CPU, Q1018 (HD64F2134).

The modulated signal is fed through the D/A converter Q1071 (AK4528A) and buffer amplifier Q1034 (UPC4572G2) to the mixer Q1054 (RF2713) where the 24 kHz TX 1st IF signal is mixed with 1st local signal delivered from buffer amplifier Q1075 (2SC2714Y), resulting in a 45.274 MHz IF signal.

The resulting 45.274 MHz IF signal is buffered by Q1049 (3SK151GR), then delivered to the monolith- ic crystal filter XF1001, which strips away unwanted mixer products, and then is amplified by Q1043 (3SK151GR). The amplified IF signal is delivered to doubly-balanced mixer D1032 (HSB88WS), where it is mixed with the PLL local signal from the buffer amplifier, Q1029 (2SC2954).

The resulting the RF signal at the transmit frequency is fed through a low-pass filter circuit, and then is amplified by Q1026 (2SC2714Y) and buffer am- plifier Q1025 (2SC3357), and then filtered by one of eight band-pass filters to suppress out-of-band responses. The RF signal is then amplified by Q1001 (2SC2954) and delivered to the PA Unit.

Circuit Description

On the PA Unit, the low-level RF signal from the MAIN Unit is amplified by pre-driver Q2001 (RD06HHF1), push-pull driver Q2008/Q2009 (both

RD16HHF1), and push-pull final amplifier Q2012/ Q2013 (both SD1405), which provides up to 120

watts of RF output power.

The RF output from the final amplifier is fed through the one of seven low-pass filters, sampling directional coupler T2005, and TX/RX relay RL2009 before delivery to the antenna jack.

The sampling directional coupler senses forward and reverse power output, which is rectified by D2017 and D2018 (both MA729), respectively, and the DC voltage is then amplified by Q2015 (LM2904PW) on the PA Unit.

The DC voltages derived from forward and reverse power are applied to J1003 on the MAIN Unit, and then amplified by Q1040 (LM2904PW) and Q1044 (2SC2812). The amplified DC voltage is fed back to the 2nd gate of the 45.275 MHz IF amplifier Q1043 (3SK151GR), so that the transmitter’s IF gain can be regulated by this sensing of the power output, preventing overdrive or damage caused by transmission into an excessive impedance mismatch at the antenna.

PLL Circuit

The PLL local signal for the receiver 1st local and the transmitter final local is generated by one of two VCOs: Q1072 or Q1073 (both 2SK210GR) in conjunction with varactor diodes D1047, D1048, D1049, D1050, D1051, D1052, D1053, and D1054 (all HVU359) on the MAIN Unit. The oscillating frequency is determined primarily by the level of DC voltage applied to the varactor diodes. The VCO output is buffered by Q1066 (2SK302Y), amplified by Q1074 (2SC2714Y), and band-pass filtered by capacitors C1389, C1391, C1397, C1400, C1409, and C1420 and coils L1070, L1071, L1074, and L1076. The filtered PLL local signal is fed through buffer amplifiers Q1027 (2SC2714Y), Q1028 (2SC3356), and Q1029 (2SC2954) to the TX final mixer or RX 1st mixer D1032 (HSB88WS).

A portion of the output of buffer amplifier Q1066 (2SK302Y) is further amplified by Q1064 (2SC2714Y), then delivered to the PLL subsystem

IC Q1056 (ADF4001BRU), which contains a reference divider, serial-to-parallel data latch, programmable divider, phase comparator and a swallow counter. The sample VCO signal is divided by the programmable divider section of the Q1056 (ADF4001BRU). Meanwhile, the output from the

22.625 MHz TCXO reference oscillator, X1003, is amplified by Q1062 (TC7S04FU) and divided by the DDS IC Q1060 (AD9833BRM) in accordance with the PLL dividing data from the main CPU, Q1018 (HD64F2134), then fed through the buffer amplifiers Q1063 (2SC2714Y) to ceramic filter CF1001. The divided and filtered reference signal is applied to the reference divider section of the PLL subsystem IC Q1056 (ADF4001BRU), where it is divided by 25/ 26 to produce the loop reference.

The divided signal from the programmable divider (derived from the VCO), and that derived from the reference oscillator, are applied to the phase detector section of the PLL subsystem IC Q1056 (ADF4001BRU), which produces a pulsed output with pulse duration depending on the phase difference between the input signals. This pulse train is fed through the loop filter, consisting of resistors R1222, R1233, & R1247 and capacitors C1278, C1284, C1298, C1308, & C1418, then fed back to the VCO varactor diodes D1047, D1048, D1049, D1050, D1051, D1052, D1053, and D1054 (all HVU359).

Changes in the DC voltage applied to these varactor diodes affect the reactance in the tank circuit of VCOs Q1072 and Q1073 (both 2SK210GR), changing the oscillating frequency according to the phase difference between the signals derived from the VCO and the TCXO reference oscillator. The VCO is thus phase-locked to the reference frequency standard.

A portion of the output of reference signal from TCXO X1003 is multiplied by four at Q1070 (2SC2714Y). The resulting 90.5 MHz signal is buffered by Q1075 (2SC2714Y), then applied to a low- pass filter, consisting of capacitors C1401, C1405, C1410, C1411, and C1421 and coils L1075 and L1077. The filtered reference signal is applied to the TX 1st mixer Q1054 and RX 2nd mixer Q1052 (both RF2713).

Circuit Description

Control Circuit

Major frequency control functions such as channel selection, display, and PLL divider control are performed by main CPU Q1018 (HD64F2134) on the MAIN Unit, at the command of the user via the tuning knob and function switches on the front panel.

The programmable divider data for the PLL from the main CPU is applied directly to DDS IC Q1016 (AD9833BRM ) and PLL subsystem IC Q1056 (ADF4001BRU).

The Mode selection data from the main CPU is also delivered to DSP IC Q1035 (UPD77115) to control the various circuits required for the selected mode.

The Band selection binary data from the main CPU is decoded (BCD to Decimal) by Q1011 (TC4028BF). The resulting decimal outputs are level-shifted by Q1003 (TD62783AF) to select the active band-pass filter on the MAIN Unit required for the operating frequency. Also, the decimal outputs from Q1003 (TD62783AF) are delivered to PA Unit, where they are used to select the active low-pass filter required for the operating frequency.

TX/RX Control

When the PTT switch is pressed, pin 21 of the main CPU Q1018 (HD64F2134) goes low, which causes pin 60 of the main CPU Q1018 (HD64F2134) to go low. This signal disables the receiver 12 V bus at Q1046 (2SA1602A). At the same time, pin 59 of the main CPU Q1018 (HD64F2134) goes low to activate the transmit 12 V bus at Q1048 (2SA1365).

Power Supply & Regulation

The +5 V bus for the main CPU Q1018 (HD64F2134) is derived from the 13.5 V bus via regulator Q1012 (BA05FP) on the MAIN Unit. The +8 V bus is derived from the 13.5 V bus via regulator Q1007 (KIA7808API) on the MAIN Unit.

A portion of the +8 V bus is regulated by Q1008 (L78M05T) for the +5 V bus, and is regulated by Q1006 (UPC2926) for the +2.6 V bus required by the DSP IC Q1035 (UPD77115GK).

Connector Pinout Diagrams / Slide Switch Setting

MIC Jack GPS Jack

As Viewed From Front Panel

)

(

As Viewed From Rear Panel

)(

Open Circuit Voltage: 5 V, Closed Circuit Current: 1 mAPTTPin 3

ACC Jack TUNE Jack DATA Jack

(

As Viewed From Rear Panel

Pin 1

Pin 2

+13.8 V

TX GND

Max. 1 A This terminal is connected in parallel with the pin 1 of TUNE Jack. Open Collector (Max. 60 V, 1A) This terminal is connected in parallel with the pin 2 of TUNE Jack.

P ENB CNTL GND PTT MIC MIC GND + 5V UP DOWN

)(

+13.8 V OUT TX GND GND BAND DATA A BAND DATA B BAND DATA C BAND DATA D TX-INH EXT ALC Input TX REQ

As Viewed From Rear Panel

+13.8 V

Pin 1

TX GND

Pin 2

)

+13.8 V OUT TX GND GND RX D TX D TUNER SENSE RESET TX-INH

Max. 1 A This terminal is connected in parallel with the pin 1 of ACC Jack. Open Collector (Max. 60 V, 1A) This terminal is connected in parallel with the pin 2 of ACC Jack.

Connected with , , , and . GPS Data Input (+) N/C Connected with , , , and . GPS Data Input (-Connected with , , , and . Connected with , , , and . Connected with , , , and . NC

(

As Viewed From Rear Panel

Pin 1 Pin 5 Pin 6

DATA IN DATA OUT SQL OUT

60 mVp-p @1 kΩ. 500 mVp-p @1 kΩ SQL OPEN: 5 V SQL CLOSE: 0 V

)

DATA IN GND DATA PTT DCD DATA OUT SQL OUT

Accessory Port (Located on the MAIN Unit

Slide Switch (Located on the MAIN Unit

Switch 1

Switch 2

Switch 3 Switch 4

Memory Channel Storage

ITU Memory Channel

---

ON: Disables the Memory Channel Storage from the transceiver. OFF: Enables the Memory Channel Storage from the transceiver. ON: Enables the ITU Memory Channel Operation. OFF: Disables the ITU Memory Channel Operation. This switch should always be set to "OFF." This switch should always be set to "OFF."

)

ENCR_TXIN ENCR_RXIN INDICATOR CODE (8 CODE (4 CODE (2 CODE (1 ENCR_RXOUT CLEAR/SCRAMBLE PTT VCC GND ENCR_TXOUT

) ) ) )

)

Alignment

The VX-1700 is carefully aligned at the factory for the specified performance across the entire operating frequency range. Realignment should therefore not be necessary except in the event of a component failure. All component replacement and service should be performed only by an authorized Vertex Standard representative, or the warranty policy may be void.

The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the product has left the factory. However, if damage occurs and some parts subsequently are replaced, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced.

We recommend that servicing be performed only by authorized Vertex Standard service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the product was purchased for instructions regarding repair. Authorized Vertex Standard service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components.

ment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented.

Required Test Equipment

 RF Signal Generator with calibrated output lev-

el at 30 MHz

 In-line Wattmeter with 5% accuracy at 30 MHz  50 Ohm RF Dummy Load with power rating of

200 W at 30 MHz

 150 Ohm RF Dummy Load with power rating of

200 W at 30 MHz

 Frequency Counter with 0.02 ppm accuracy at

100 MHz

 AF Signal Generator  AC Voltmeter  DC Voltmeter: High input impedance  DC Ammeter  HF Sampling Coupler  IBM

 Vertex Standard CT-62 Programming Cable &

PC / compatible Computer with Win-

dows or higher

CE77 Programming/Alignment Software

95/98/ME/XP/2000. Internet Explorer 4.0

Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Vertex Standard reserves the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners.

Under no circumstances should any alignment be attempted unless the normal function and operation of the product are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and realignment determined to be absolutely necessary.

The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equip-

Alignment Preparation & Precautions

A 50-Ohm RF Dummy Load and in-line wattmeter must be connected to the ANT jack in all procedures that call for transmission, except where specified otherwise. Correct alignment is not possible with an antenna.

After completing one step, read the following step to determine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, if connected) before proceeding.

Correct alignment requires that the ambient temperature be the same as that of the radio and test equipment, and that this temperature be held constant between 20° C and 30° C (68° F ~ 86° F). When the radio is brought into the shop from hot or cold air, it should be allowed time to come to room temperature before alignment.

Alignment

Whenever possible, alignments should be made with oscillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning.

Note: Signal levels in dB referred to in the alignment

procedure are based on 0dBµ = 0.5µV.

Set up the test equipment as shown below, and apply 13.8V DC power to the transceiver.

The VX-1700 must be programmed for use in the intended system before alignment is attempted. The frequency and other parameters are loaded from the file during the alignment process.

In order to facilitate alignment over the complete operating range of the equipment, it is recommended that the channel data first be uploaded and then stored to disk. Alignment Channel data should then be downloaded. The original data can be replaced at the end of the alignment process.

Reference & Local Alignment

PLL REFERENCE FREQUENCY ALIGNMENT

 Connect the Frequency Counter to pin 4 of Q1062

on the MAIN Unit.

 Adjust X1003 on the MAIN Unit for 22.625 MHz

±10 Hz on the frequency Counter.

2ND LOCAL OUTPUT LEVEL

 Connect the RF millivoltmeter to TP1043 on the

MAIN Unit.

 Adjust T1013 on the MAIN Unit for 160 mVrms

(±50 mVrms) on the RF millivoltmeter.

PLL Alignment

VCO VCV ALIGNMENT

Connect the DC voltmeter to TP1048 on the MAIN Unit, and referring to the Table below, switch the transceiver to each channel listed. Then adjust the listed component for the required voltage or confirm that the correct voltage is present.

50-ohm

Dummy Load

Inline

Wattmeter

Frequency

Counter

RF Sampling

Coupler

Signal Generator

ANT

Transceiver

TUNER

CT-62 Programming Cable

COM Port

CE77 Pr ogramming Soft ware

INPUT

Power Supply

13.8 VDC

Tune to

13.499 MHz

0.100 MHz

29.999 MHz

13.5000 MHz

Adjust or Confirm

Adjust T1066

Confirm

Adjust T1067

Confirm

For

5.2 V ± 0.1 V

More than 0.6 V

5.3 V ± 0.1 V

More than 0.5 V

PLL OUTPUT LEVEL

 Connect the RF millivoltmeter to TP1039 on the

MAIN Unit, then tune the radio to 7.500 MHz.

 Confirm that the output level is more than 10

dBm.

Alignment

Transmitter Alignment

TX IF COILS ALIGNMENT

 Connect the 50 Ohm Dummy Load to the ANT

jack.

 Remove the coaxial plug from J1002 on the MAIN

Unit, then connect the RF millivoltmeter and 50 Ohm resistor to J1002.

 Connect the AF Generator to pin 4 of the MIC

jack.

 Tune the radio to 7.500 MHz, USB mode.  Inject a 0.5 mVrms @1000 Hz audio signal from

the AF Generator.

 Key the transmitter (connect pin 3 of the MIC

jack to GND), then adjust T1008, T1009, T1010, and T1011 on the MAIN Unit in succession several times for maximum indication on the RF millivoltmeter while transmitting.

Receiver Alignment

RX IF COILS ALIGNMENT

 Connect the RF Signal Generator to the ANT jack,

and connect the AF millivoltmeter to the EXT SP jack.

 Tune the radio to 19.900 MHz, CW mode.  Inject a 19.900 MHz signal from the RF Signal

Generator, then adjust the RF Signal Generator output level to 0 dB.

 Adjust T1012 on the MAIN Unit for maximum

indication on the AF millivoltmeter.

MIC JACK PINOUT

X1003

T1012

PIN 4 OF Q1062

J1002

T1067

T1066

TP1048

TP1039

T1010

T1008 T1009

T1010

MAIN UNIT ALIGNMENT POINTS

Alignment

PA Unit Alignment

PRE-DRIVER SECTION IDLING CURRENT ALIGNMENT

 Connect the 50 Ohm Dummy Load to the ANT

jack.

 Remove the shorting-plug from J2003 on the PA

Unit, then connect the DC Ammeter to J2003 (pin 1: “–” lead, pin 2: “+” lead).

 Set VR2001 on the PA Unit fully counter-clock-

wise.

 Tune the radio to 7.500 MHz, USB mode.  Key the transmitter (connect pin 3 of the MIC

jack to GND) with no microphone input, and adjust VR2001 for 300 mA (± 30 mA) on the DC Ammeter.

 Disconnect the DC Ammeter, and replace the

shorting-plug into J2003.

DRIVER SECTION IDLING CURRENT ALIGNMENT

 Connect the 50 Ohm Dummy Load to the ANT

jack.

 Remove the shorting-plug from J2004 on the PA

Unit, then connect the DC Ammeter to J2004 (pin 1: “–” lead, pin 2: “+” lead).

 Set VR2002 on the PA Unit fully counter-clock-

wise.

 Tune the radio to 7.500 MHz, USB mode.  Key the transmitter (connect pin 3 of the MIC

jack to GND) with no microphone input, and adjust VR2002 for 300 mA (± 30 mA) on the DC Ammeter.

 Disconnect the DC Ammeter, and replace the

shorting-plug into J2004.

TC2001

MIC JACK PINOUT

TP2020

TP2021

J2004

VR2003 VR2002

TP2018

J2003

VR2001

PA UNIT ALIGNMENT POINTS

Alignment

INAL SECTION IDLING CURRENT ALIGNMENT

 Connect the 50 Ohm Dummy Load to the ANT

jack.

 Remove the solder jumper which is connected

between TP2020 and TP2021 on the PA Unit, then connect the “+” lead of the DC Ammeter to TP2020 and the “–” lead to TP2021.

 Set VR2003 on the PA Unit fully counter-clock-

wise.

 Tune the radio to 7.500 MHz, USB mode.  Key the transmitter (connect pin 3 of the MIC

jack to GND) with no microphone input, and adjust VR2003 for 300 mA (± 30 mA) on the DC Ammeter.

 Disconnect the DC Ammeter, and re-connect the

solder jumper between TP2020 and TP2021.

CM COUPLER BALANCE

 Connect the 50 Ohm Dummy Load and Inline

Wattmeter to the ANT jack, and connect the CW keyer to the KEY jack.

 Connect the DC voltmeter to TP2018 (“+” lead,

“–” lead: GND) on the PA Unit.

 Tune the radio to 29.000 MHz, A1A mode.  Key the transmitter (close the CW key).  Now adjust TC2001 on the PA Unit for minimum

indication on the DC voltmeter.

Alignment

Software Menu Alignment

The ANT jack should be connected to a Dummy Load (in the case of transmission) or RF Signal Generator (in the case of reception). General alignment conditions are as follows, unless otherwise noted.

VOL Knob: Center (12 o’clock position). SQL Knob: Fully counter-clockwise.

TX Output Power: HIGH VOX:Off

The channel data in the radio is preset per the chart below.

Channel

1-001

1-002

1-003

1-004

1-005

1-006

1-007

Press and hold in the keypad’s [1(MODE)], [4(

STEP)], [7(V/M)], and [F] keys simultaneously,

and turn on the radio while holding them in; the alignment menu will then be activated.

In the alignment procedures, each alignment parameter is selected by pressing the [ALARM]/[2128] key. Each alignment item is selected by rotating the CH Knob. To store the alignment parameters when you are satisfied with the adjustment, press the [F] key for longer than a half second.

Frequency

1.7000 MHz

3.5000 MHz

5.5000 MHz

7.5000 MHz

12.0000 MHz

19.8000 MHz

29.0000 MHz

TX OUTPUT POWER ALIGNMENT

 Connect the 50 Ohm Dummy Load and Inline

Wattmeter to the ANT jack.

 Referring to the Table below, press the [ALARM]/

[

2128] key to recall each parameter listed, then

key the transmitter (connect pin 3 of the MIC jack to GND) and rotate the CH knob for the required output.

Parameter

1PO-VH

1PO-H

1PO-MH

1PO-ML

1PO-L

2PO-VH

2PO-H

2PO-MH

2PO-ML

2PO-L

3PO-H

3PO-MH

3PO-ML

3PO-L

4PO-H

4PO-MH

4PO-ML

4PO-L

Output Power

125 W (± 5 W)

100 W (± 5 W)

50 W (± 5 W)

25 W (± 1 W)

10 W (± 1 W)

125 W (± 5 W)

100 W (± 5 W)

50 W (± 5 W)

25 W (± 1 W)

10 W (± 1 W)

100 W (± 5 W)

50 W (± 5 W)

25 W (± 1 W)

10 W (± 1 W)

100 W (± 5 W)

50 W (± 5 W)

25 W (± 1 W)

10 W (± 1 W)

Parameter

5PO-H

5PO-MH

5PO-ML

5PO-L

6PO-H

6PO-MH

6PO-ML

6PO-L

7PO-H

7PO-MH

7PO-ML

7PO-L

Output Power

100 W (± 5 W)

50 W (± 5 W)

25 W (± 1 W)

10 W (± 1 W)

100 W (± 5 W)

50 W (± 5 W)

25 W (± 1 W)

10 W (± 1 W)

100 W (± 5 W)

50 W (± 5 W)

25 W (± 1 W)

10 W (± 1 W)

Note that a few alignment parameters are not adjustable, and are to be left as set at the factory.

Alignment

AIN ALIGNMENT

TX G

 Connect the 50 Ohm Dummy Load and Inline

Wattmeter to the ANT jack.

 Connect the AF Generator to pin 4 of the MIC

jack, and adjust the AF Generator output level to 0.5 mV @1 kHz.

 Referring to the Table below, press the [ALARM]/

[

2128] key to recall each parameter listed, then

key the transmitter (connect pin 3 of the MIC jack to GND) and rotate the CH knob for the required output.

Parameter

1TX-G-H

2TX-G-H

3TX-G-H

4TX-G-H

5TX-G-H

6TX-G-H

7TX-G-H

Output Power

50 W (± 10 W)

63 W (± 10 W)

50 W (± 10 W)

Parameter

1TX-G-L

2TX-G-L

3TX-G-L

4TX-G-L

5TX-G-L

6TX-G-L

7TX-G-L

Output Power

5 W (± 1 W)

MIC JACK PINOUT

REV ALC ALIGNMENT

 Connect the 150 Ohm Dummy Load (or three 50

Ohm Dummy Loads in parallel) to the ANT jack.

 Referring to the Table below, press the [ALARM]/

[

2128] key to recall each parameter listed, then

key the transmitter (connect pin 3 of the MIC jack to GND) and rotate the CH knob just to the point when the S-meter reading is changed from S-7 to S-8.

Parameter

1R-ALC

2R-ALC

3R-ALC

S-meter reading

S-7 to S-8 threshold.

SWR ALIGNMENT

 Connect the 150 Ohm Dummy Load (or three 50

Ohm Dummy Loads in parallel) to the ANT jack.

 Press the [ALARM]/[2128] key to recall the pa-

rameter “1_SWR3.”

 Key the transmitter (connect pin 3 of the MIC

jack to GND), then press the [ENT] key.

 Press the [2128] key momentarily to recall the

parameter “2_SWR3.”

 Key the transmitter (connect pin 3 of the MIC

jack to GND), then press the [ENT] key.

 Press the [2128] key momentarily to recall the

parameter “3_SWR3.”

 Key the transmitter (connect pin 3 of the MIC

jack to GND), then press the [ENT] key.

This completes the internal alignment routine.

To save all settings and exit, press and hold in the [

ENT] key for at least one second.

To exit without saving, press the POWER key.

Alignment

Note19Installation

ALE-1 Automatic Link Establishment Unit Installation

 Make sure that the transceiver off. Remove the

DC Power Cable, Microphone, and Antenna from the transceiver.

 Referring to Figure 1, remove the four screws

from the side of the transceiver (two screws for each side), along with four screws affixing the bottom case; remove the bottom case.

 Referring to Figure 2, disconnect the 13-pin con-

nector from J4001 on the GPS-INTERFACE Unit, remove the two HEX bolts which and four screws affixing the GPS-INTERFACE Unit.

 Remove the GPS-INTERFACE Unit from the

transceiver.

 Install the ALE-1 Unit to the place where it has

the GPS-INTERFACE Unit.

 Fix the ALE-1 Unit with two HEX bolts and four

screws.

 Connect the 13-pin connector to J4001 on the

ALE-1 Unit.

 Replace the bottom case with its eight screws.  Connect the DC Power Cable, Microphone, and

Antenna to the transceiver.

FIGURE 1

Programming

 Connect the CT-62 Programming Cable between

computer’s 9-pin COM port and the transceiver’s TUNER jack.

 Press and hold in the [F] and [9(M/W)] keys while

turning the power on to enter the clone mode.

 Execute the CE77 Programming Soft, then up-

load the current programming data from the transceiver via the “Upload” menu in the “Radio” parameter.

 Click the left mouse button on the “Common”

parameter, then click the left mouse button on the “Option” parameter to involve a pop-up window, select the “Option Board” item, and change its setting to “ALE Unit.”

 Click the left mouse button on the [OK] button

to close the pop-up window.

 Program the ALE features.  Download the revised programming data to the

transceiver from the computer via the “Download” menu in the “Radio” parameter.

 Installation and programming are now complete.  Disconnect the CT-62 Programming Cable from

the transceiver’s TUNER jack.

GPS-INTERFACE

Unit

Cooling Fan

4001

FIGURE 2

MAIN Unit

ALE-1 Automatic Link Establishment Unit Installation

Note

CE77 PC Programming Software

The CE77 PC Programming Software is used to program the VX-1700 HF Communications Transceiver. With the CE77 PC Programming Software, you can quickly and easily program the Vertex Standard VX-1700 operating channels and configuration from your personal computer. In the event of an accidental memory failure, channel memory and configuration data may be re-loaded in a matter of minutes.

Main Programming Screen (VFO Screen)

VFO/MEMORY

This parameter switches the Main Programming Screen between the “VFO Screen” and the “Memory Channel Screen.”

STEP

This column selects the VFO step size. To select the step size, double click the left mouse button on this column to select the desired step size from among “10 Hz,” “100 Hz,” and “1 kHz.”

RECEIVE FREQUENCY

This field sets the Default Receive Frequency of the VFO. To enter the Receive Frequency, double click the left mouse button on this column, then enter the desired Receive Frequency from the keyboard, then press the [ENTER] key to lock in the new frequency. The available values are “0.0300 (MHz)” to “30.0000 (MHz).”

TRANSMIT FREQUENCY

This field sets the Default Transmit frequency of the VFO. When you enter a Receive frequency, the Transmit frequency will automatically be set to the same frequency. To change the transmit frequency (only), double click the left mouse button on this column, enter the desired Transmit Frequency from the keyboard, then press the [ENTER] key to lock in the new frequency. The available data entry values are “0.0300 (MHz)” to “30.0000 (MHz).” However, the range over which transmission may actually occur is from “1.6000 (MHz)” to “30.0000 (MHz).”

MAIN PROGRAMMING SCREEN (VFO SCREEN

)

CE77 PC Programming Software

MODE

This column selects the Operating Mode. To select the Operating Mode, double click the left mouse button on this column to invoke a pop-up window, select the desired Operating Mode, then click the [OK] button to accept the new Operating Mode. The available selections are “J3E (USB),” “J3E (LSB),” “J2B,” “A1A,” and “A3E.”

FILTER

This column selects the bandwidth of the IF filter. To select the bandwidth, double click the left mouse button on this column to toggle the desired bandwidth between “Wide (W): 2.2 kHz.” and “Narrow (N): 600 Hz.” This column does not function when the “VFO MODE” parameter has been set to “J3E” or “A3E.”

CLAR VALUE

This column allows entry of the Clarifier Offset Frequency. To enter the Offset Frequency, double click the left mouse button on this column, enter the desired Offset Frequency from the keyboard, then press the [ENTER] key to accept the new frequency. If an incorrect entry is made, the software will round off the entry to the nearest valid frequency automatically. Available values are “-1.00” to “+1.00” (kHz).

PWR

This column selects the Transmit Output Power. To select the TX power, double click the left mouse button on this column, then select the desired TX power from among “Low,” “Mid,” and “High.”

SHIFT

This column may used to move a spurious response “Birdie” from the CPU clock away from the operating frequency, should it cause interference. To program this column, double click the left mouse button on this column, then select the desired shift value from among “1,” “2,” “3,” and “Off (-).”

ENCRYPTION ENCR

This column turns the Voice Encryption feature “on (v)” or “off (-).” To select this feature, double click the left mouse button on this column, then set the Voice Encryption feature “on (v)” or “off (-).” This column will not function in the software when the Encryption Unit has been activated (determined from the “Encryption Unit” parameter on the “Option” tab in the “Common” Menu), or if the optional Encryption Unit is not installed.

ENCRYPTION CODE

This column selects the desired Encryption code. To program this column, double click the left mouse button on this column to invoke a pop-up window, select the desired Encryption code, then click the [OK] button to lock in the new Encryption code.

SELCALL SELF ID

This column programs the 4-digit ID for your transceiver, utilized when using the SELCALL feature. To enter the 4-digit ID, double click the left mouse button on this column, enter the desired 4-digit ID code (numeric only) from the keyboard, then press the [ENTER] key to accept the new ID code.

CE77 PC Programming Software

Main Programming Screen (Memory Screen)

CHN (CHANNEL)

This number is used to identify the memory channel. They do not have to occur in order, and you can duplicate numbers from other groups (do not duplicate within a group). For example, each group may have a channel 1, but a particular group may not have two channel 4s. Double click the left mouse button to toggle lock the channel lock between “Enable” and “Disable.” The Channel lines displayed in Thin Black are unlocked and enabled, channel lines displayed in Gray are locked and disabled.

PRI

This column set the Priority Channel. Double click the left mouse button on this column to toggle this selection “On (P)” or “Off (-).” When this column is set to “On (P),” the current channel will be designated as the Priority Channel.

TAG

This column is used for entry of the six character Alpha/Numeric “Tag” used to identify the channel. To enter the Alpha/Numeric “Tag,” double click the left mouse button on this column, type the characters of the desired Alpha/Numeric Tag (up to 6 characters), then press the [ENTER] key to save the programmed “Tag.”

TAG TYPE

This column selects the display indication of the channel. To select the display indication, double click the left mouse button on this column to select the desired display indication from among “Freq,” “TAG,” and “ALT.”

Freq: Indicates the memory channel by show-

ing the actual channel frequency

TAG: Indicates the memory channel by show-

ing the channel’s Alpha/numeric Tag

ALT: Indicates the memory channel by show-

ing the channel frequency and the channel’s Alpha/numeric Tag alternately.

MAIN PROGRAMMING SCREEN (MEMORY SCREEN

)

CE77 PC Programming Software

RECEIVE FREQUENCY

This column is used for entry of the Receive Frequency. To enter the Receive Frequency, double click the left mouse button on this column, enter the desired Receive Frequency from the keyboard, then press the [ENTER] key to lock in the new frequency. The available values are “0.0300 (MHz)” to “30.0000 (MHz).”

TRANSMIT FREQUENCY

This column is used for entry of the Transmit frequency. When you enter a Receive frequency, the Transmit frequency will automatically be set to the same frequency. To change the transmit frequency (only), double click the left mouse button on this column, enter desired Transmit Frequency from the keyboard, then press the [ENTER] key to accept the new frequency. The available data entry values are “0.0300 (MHz)” to “30.0000 (MHz).” However, the range over which transmission may actually occur is from “1.6000 (MHz)” to “30.0000 (MHz).”

MODE

FILTER

This column selects the bandwidth of the IF filter. To select the bandwidth, double click the left mouse button on this column to toggle the desired bandwidth between “Wide (W): 2.2 kHz” and “Narrow (N): 600 Hz.” This column does not function when the “OPERATING MODE” parameter has been set to “J3E” or “A3E.”

CLAR VALUE

This column allows entry of a Clarifier Offset Frequency, if desired. To enter the Offset Frequency, double click the left mouse button on this column, enter the desired Off-

set Frequency from the keyboard, then press the [ENTER] key to accept the new frequency. If an incorrect entry is made, the entry will be rounded off to the nearest valid frequency automatically. Available values are “-1.00” to “+1.00” (kHz).

WRITE PROTECT

This column defines whether the Filed Programming feature will be “Enabled (OVERWRITE)” or “Disabled (PROTECT).”

PWR

This column selects the Transmit Output Power. To select the TX power, double click the left mouse button on this column to select the desired TX power from among “Low,” “Mid,” and “High.”

SHIFT

ENCRYPTION ENCR

This column turns the Voice Encryption feature “on (v)” or “off (-).” To select this feature, double click the left mouse button on this column, then set the Voice Encryption feature “on (v)” or “off (-).” This column will not function in the software when the Encryption Unit has been activated using the “Encryption Unit” parameter on the “Option” tab in the “Common” Menu, or if the optional Encryption Unit is not installed.

ENCRYPTION CODE

SELCALL SELF ID

CE77 PC Programming Software

File Menu

NEW

Opens a new file. Click the left mouse button on the “New” parameter in the File menu; this will open the default configuration of the CE77 software. Shortcuts

Toolbar: Keys: CTRL+N

OPEN

Opens a previously-saved configuration from the disk. Click the left mouse button on the “Open” parameter in the File menu; a pop-up window will appear which shows you all the current files saved in the specified path. The current folder that is saved the current file is in the top box, and the name of the current file is in the bottom box. Double click the left mouse button on the desired file to open its file. Shortcuts

Toolbar: Keys: CTRL+O

SAVE

Saves the programming session to the disk with the same name and directory. Click the left mouse button on the “Save” parameter in the File menu to save the current file. Shortcuts

Toolbar: Keys: CTRL+S

SAVE AS

Save the programming session to the disk

new name.

Click the left mouse button on the “Save As” parameter in the File menu, a pop-up window appears which shows you all the current files saved to the specified path. To save the programming session with the new name, type a file name in the bottom box, then click the left mouse button on the [SAVE] box.

Prints a configuration to hard copy. Click the left mouse button on the “Print” parameter in the File menu; the “Printer” window will open to enable printing. Shortcuts

Toolbar: Keys: CTRL+P

PRINT PREVIEW

Previews a print configuration for subsequent printing of a hard copy. Click the left mouse button on the “Print Preview” parameter in the File menu; the “Printer” window will appear.

PRINT SETUP

Sets the configuration of the printer. Click the left mouse button on the “Print Setup” parameter in the File menu; the “Printer” window will open to enable setting of the configuration of the printer.

PRINTOUT LIST

Selects the printout list for printing of a hard copy. Click the left mouse button on the “Printout” parameter in the File menu, the “Printout List” window open to enable selecting the printout list to be printed.

with the

FILE MENU

CONFIGURE

Selects the communication port which is connected to the CT-62 PC Programming Cable (which is connected to the radio).

EXIT

Quits the program and closes the window. If the present configuration has not been saved to disk, you will be asked to confirm whether you wish to save it.

CE77 PC Programming Software

Edit Menu

COPY

Use this command to copy selected data onto the clipboard. This command is unavailable if there is no data currently selected. Copying data to the clipboard replaces the contents previously stored there. Shortcuts

Toolbar: Keys: CTRL+C

PASTE

Use this command to insert a copy of the clipboard contents at the insertion point. This command is unavailable if the clipboard is empty. Shortcuts

Toolbar: Keys: CTRL+V

EDIT MENU

View Menu

TOOL BAR

The toolbar is displayed across the top of the application window, below the menu bar. The toolbar provides quick mouse access to many tools used in CE77. To hide or display the Toolbar, click the left mouse button on the “Toolbar” parameter in the “View” menu.

STATUS BAR

The Status Bar is displayed at the bottom of the CE77 window. The left area of the Status Bar describes actions of menu items as you use the arrow keys to navigate through menus. This area similarly shows messages that describe the actions of Toolbar buttons as you depress them, before releasing them. If after viewing the description of the Toolbar button command you wish not to execute the command, then release the mouse button while the pointer is off the Toolbar button. To display or hide the Status Bar, click the left mouse button on the “Status Bar” parameter in the “View” menu. The right areas of the Status Bar indicate which of the following keys are latched down:

Indicator Description

CAP The “Caps Lock” key is latched down. NUM The “Num Lock” key is latched down. SCRL The “Scroll Lock” key is latched down.

ITEM

This parameter commands the channel data item to appear or disappear on the main screen. Put a check mark on the item to display it on the main screen.

VIEW MENU

CE77 PC Programming Software

Common Menu

A1A (CW) FUNCTION PARAMETERS

This parameter programs the various configuration items of the A1A (CW) mode. Put a check mark into the check box to enable adjustment of its parameter from the transceiver’s set (“menu”) mode. The available parameters are: CW Delay, CW QSK, Side Tone SET, and Side Tone Level.

CW DELAY

This parameter sets the CW delay time. To program the delay time, double click the left mouse button on this column, then enter the desired delay time from the keyboard, then press the [ENTER] key to accept the new delay time. The available values are “30mSec” to “3000mSec,” (10 mSec multiples) and “FULL.” To enter the “FULL” option, double click the left mouse button on this column, enter “0” from the keyboard, then press the [ENTER] key to accept the new delay time.

CW QSK

This parameter sets the delay time between the instant when the telegraph key is closed (key down) and the moment the actual carrier envelope is transmitted. The available values are “10mSec” to “30mSec” (5 mSec multiples).

SIDE TONE SET

This parameter defines whether the CW side tone level is linked to the front panel’s VOL knob (“LINK”), or not linked (“FIX”).

SIDE TONE LEVEL

This parameter sets the CW side-tone (monitor) level. To program the CW side-tone level, double click the left mouse button on this column, enter desired side-tone volume level from the keyboard, then press the [ENTER] key to accept the CW side tone level. When the “SIDE TONE SET” parameter is set to “FIX,” the available selections are “0” to “100.” When the “SIDE TONE SET” parameter is set to “LINK,” the available selections are “-100” to “100.”

COMMON MENU

"A1A (CW) FUNCTION" PARAMETERS

CE77 PC Programming Software

HARDWARE PARAMETERS

Put a check mark into the check box to enable adjustment of its parameter from the transceiver’s set (“menu”) mode. The available parameters are: 1.6 - 4 MHz RF Power, 4 - 30 MHz RF Power, Dimmer Level-1, and Dimmer Level-2.

1.6 - 4 MHz RF POWER

This parameter programs the TX output power on the 1.6 - 4 MHz band for each power setting level. To program the TX output power, double click the left mouse button on this column; enter desired TX output power from the keyboard, then press the [ENTER] key to accept the new TX output power. The available values are “10 (W)” to “125 (W)” for “High” power setting on the 1.6 - 4 MHz band, and “10 (W)” to “125 (W)” for “High” power setting on the 4 - 30 MHz band, “Medium” power setting, and “Low” power setting.

4 - 30 MHz RF POWER

This parameter programs the TX output power on the 4 - 30 MHz band for each power setting level. To program the TX output power, double click the left mouse button on this column, enter desired TX output power from the keyboard, then press the [ENTER] key to accept the new TX output power. The vailable values are “10 (W)” to “100 (W).”

DIMMER LEVEL - 1

This parameter programs the Display Back-light Level and Back-light Options when “DIM” is not selected. The available Back-light Levels are “1” to “10,” and “OFF.” The available Back-light Options are “ON” (always on) and “Key On 10S” (Back-light on for ten seconds after any key stroke).

DIMMER LEVEL - 2

This parameter programs the Display Back-light Level and Back-light Options when “DIM” is selected. The available Back-light Levels are “1” to “10,” and “OFF.” The available Back-light Options are “ON” (always on) and “Key On 10S” (Back-light on for ten seconds after any key stroke).

"HARDWARE" PARAMETERS

CE77 PC Programming Software

KEY FUNCTION PARAMETERS

This parameter sets the configurations for the keypad and button functions of the radio. Put a check mark into the check box to enable adjustment of its parameter from the transceiver’s set (“menu”) mode. The available parameters are: P1 SET, P2 SET, P3 SET, P4 SET, and PU/D SET.

P1 SET - P4 SET

This parameter programs the Programmable Function Button feature. The available selections are: 1CH, 2CH, 3CH, 4CH, 1 MHz UP, 1 MHz Down, CLAR (+), CLAR (-), DW, ENCRYPTION, LOCK, PRI, SCAN, SPK OFF, RF PWR SEL, VOX, ALE, CALL, MONI, RCV MSG, SELCALL,TELCALL, AUX TOGGLE, AUX PRS TO H, AUX PRS TO L, and N/A.

PU/D SET

This parameter programs the Programmable Function Button feature which is located between the CH and VOL knobs. The available selections are:

2182-ALARM: Pressing the left button acti-

vates the alarm generator. Pressing the right button places the radio in the “Emergency Channel” mode. Press both buttons to transmit the alarm tone.

UP-DWN: Press the buttons to select the

frequency control method among the “VFO mode,” “ITU mode,” and “Memory mode.”

"KEY FUNCTION" PARAMETERS

Selection Key Function

1CH Recalls the Dealer pre-programmed channel “1” directly while operating in the Memory Channel mode. 2CH Recalls the Dealer pre-programmed channel “2” directly while operating in the Memory Channel mode. 3CH Recalls the Dealer pre-programmed channel “3” directly while operating in the Memory Channel mode. 4CH Recalls the Dealer pre-programmed channel “4” directly while operating in the Memory Channel mode. 1 MHz UP Tunes the VFO frequency upward in 1 MHz steps while operating in the VFO mode. 1 MHz Down Tunes the VFO frequency downward in 1 MHz steps while operating in the VFO mode. CLAR (+) Tunes the receiver frequency upward without changing the transmit frequency (Clarifier function). CLAR (–) Tunes the receiver frequency downward without changing the transmit frequency (Clarifier function). DW Activates the Dual Watch feature. ENCRYPTION Toggles the Encryption feature “on” and “off.” LOCK Toggles the Key Lockout feature “on” and “off.” PRI Activates the Priority Scan. SCAN Activates Scanning. SPK OFF Toggles the internal speaker (or external speaker, if used) “on” and “off.” RF PWR SEL Selects the transmit power output level (“Low,” “Medium,” and “High”). VOX Toggles the VOX feature “on” and “off.” ALE Toggles the ALE (Automatic Link Establishment) feature “on” and “off.” CALL Transmits a Selcall (or ALE) while operating in the Selcall (or ALE) mode. MONI Disables the noise squelch action (to hear background noise).

Press again this key to activate the noise squelch (quiet the noise).

RCV MSG Recalls the last-received Selcall or ALE Message. SELCALL Toggles the SELCALL feature “on” and “off.” TELCALL Transmits a Telcall while operating in the Selcall mode. AUX TOGGLE Toggles the optional accessory port “3” “on” and “off.” AUX PRS TO H Turns the optional accessory port “2” to “High.” AUX PRS TO L Turns the optional accessory port “1” to “Low.”

Accessory Port “3”

Accessory Port “2”

Accessory Port “1”

MAIN Unit

CE77 PC Programming Software

MARKETING PARAMETERS

This parameter indicates the Market Application Number and Serial Number of the radio. The available parameters are Market Applications and Serial Number.

MARKET APPLICATIONS

This parameter indicates the Alpha/numeric “Tag” (up to 16 digits) used for identifying the owner or application of the radio.

SERIAL NUMBER

This parameter presently is not supported. It will be used in the future.

"MARKETING" PARAMETERS

MISCELLANEOUS PARAMETERS

This parameter programs the miscellaneous configuration options of the radio. Put a check mark into the check box to enable adjustment of its parameter from the transceiver’s set (“menu”) mode. The available parameters are: Alarm AF SET, Alarm Vol SET, Beep Tone, Beep AF SET, Beep VOL, Dual Watch Mode, Lock Mode, Scan Resume, Standby Beep, VOX Gain, and VOX Delay.

ALARM AF SET

This parameter defines whether the Alarm tone level is linked to the front panel’s VOL knob (“LINK”) or not linked (“FIX”).

ALARM VOL SET

This parameter sets the Alarm level of the Emergency, Selcall, and ALE features. To program the Alarm level, double click the left mouse button on this column, enter the desired Alarm level from the keyboard, then press the [ENTER] key to accept the programmed alarm level. When the “ALARM AF SET” parameter is set to “FIX,” the available selections are “0” to “100.” When the “ALARM AF SET” parameter is set to “LINK,” the available selections are “-100” to “100.”

"MISCELLANEOUS" PARAMETERS

CE77 PC Programming Software

BEEP TONE

This parameter sets the Beep Tone (frequency). The available selections are “LOW,” “NORMAL,” and “HIGH.”

BEEP AF SET

This parameter defines whether the Beep volume is linked to the front panel’s VOL knob (“LINK”) or not linked (“FIX”).

BEEP VOL

This parameter sets the Beep volume level. To program the Beep volume level, double click the left mouse button on this column, enter desired Beep volume level from the keyboard, then press the [ENTER] key to accept the Beep volume level. When the “BEEP AF SET” parameter is set to “FIX,” the available selections are “0” to “100.” When the “BEEP AF SET” parameter is set to “LINK,” the available selections are “-100” to “100.”

DUAL WATCH MODE

This parameter defines the priority channel for the dual watch feature. The channels currently programmed into the radio will appear in the drop-down list.

SCAN RESUME

This parameter selects the Scan Resume Mode. The available selections are “Carrier” and “Timer.”

STANDBY BEEP

This parameter toggles the Standby Beep feature “ON” or “OFF.” When this parameter is set to “ON,” an “Alarm” beep will be heard and transmitted when the PTT switch is released.

VOX GAIN

This parameter sets the gain of the VOX circuit. To program the VOX gain, double click the left mouse button on this column, enter desired VOX gain from the keyboard, then press the [ENTER] key to accept the VOX gain. The available values are “0” to “100.”

VOX DELAY

This parameter sets the VOX delay time. To program the VOX delay time, double click the left mouse button on this column, enter desired VOX delay time from the keyboard, then press the [ENTER] key to accept the VOX delay time. The available values are “100 mSec” to “3000 mSec” (100 mSec multiples).

LOCK MODE

This parameter selects from among the available function locking schemes. The available selections are “CH,” “KEYPAD,” and “ALL.”

CE77 PC Programming Software

SYSTEM PARAMETERS

This parameter programs the various system configurations of the radio. Put a check mark into the check box to enable adjustment of its parameter from the transceiver’s set (“menu”) mode. The available parameters are: APO, Clarifier Backup Type, Carrier Offset, Display Offset, J2B MODE, MIC Gain, Password Set, SP Mute Act, SP Mute Level, TOT, Tuning, VFO, VOL Limit, DEALER MODE, RETURN, CLOCK SHIFT, DW CH SEL, ENCRPT CODE, and MEMORY WRITE.

APO

This parameter determines the power-off time for the Automatic Power Off feature. The available values are “1/2/4/6/8/10/12” hours or “off.”

CLARIFIER BACKUP TYPE

This parameter determines the Clarifier offset frequency when the memory channel is recalled. The available selections are “PRESET,” “MOMENTARILY,” and “LAST MEMORY.”

PRESET: Sets the Clarifier offset

frequency to the memorized offset frequency of the memory channel, and disables the Clarifier for offset frequency tuning.

MOMENTARILY: Sets the Clarifier offset

frequency to the memorized offset frequency of the memory channel, and enables the Clarifier for offset frequency tuning.

LAST MEMORY: Sets the Clarifier offset

frequency to the last tuned offset frequency, and enables the Clarifier for offset frequency tuning.

CARRIER OFFSET

This parameter sets the carrier point during the J2B mode. To program the carrier point, double click the left mouse button on this column, enter desired frequency from the keyboard, then press the [ENTER] key to accept the carrier point. The available selections are “0Hz” to “3000Hz.” (10 Hz multiples)

DISPLAY OFFSET

This parameter sets the frequency display offset for the J2B mode. To program the frequency display offset, double click the left mouse button on this column, enter desired offset from the keyboard, then press the [ENTER] key to accept the frequency display offset. The available selections are “-3000 Hz” to “3000 Hz.” (10 Hz multiples)

"SYSTEM" PARAMETERS

J2B MODE

This column selects the Operating Mode (injection sideband) for the J2B mode. The available selections are “USB” and “LSB.”

CE77 PC Programming Software

MIC GAIN

This parameter programs the Microphone Input Sensitivity. The available values for the Microphone Gain are “LOW,” “NORMAL,” or “HIGH.”

PASSWORD SET

This parameter programs the password for the entering to the Dealer mode of the transceiver. To enter the password, double click the left mouse button on this column, enter the desired password (four digits; numeric only) from the keyboard, then press the [ENTER] key to accept the new password.

SP MUTE ACT

This parameter selects the Speaker Mute function. The available selections are “DCD-L MUTE” and “DCD-H MUTE.”

DCD-L MUTE: Reduces the speaker audio

output while the DCD terminal (pin 4 of the DATA Jack) is set to “LOW.”

DCD-H MUTE: Reduces the speaker audio

output while the DCD terminal (pin 4 of the DATA Jack) is set to “High.”

SP MUTE LEVEL

This parameter sets the Audio mute level. To program the Audio mute level, double click the left mouse button on this column, enter desired mute level from the keyboard, then press the [ENTER] key to accept the new mute level. The available selections are “-100” to “0.”

TOT

This parameter determines the Time-Out Timer countdown Time. The available values are “1/2/3/5/10/15/20” minutes or “off.”

TUNING

This parameter programs the Automatic Antenna Tuner function. The available selections are:

OFF: Disables the automatic tuning

function of the Automatic Antenna Tuner. To initiate antenna tuning on a particular, with this selection set to “Off,” you must press the keypad’s [3(TUNER)] key on the front panel.

CH CHANGE: Activates the Automatic An-

tenna Tuning function when the memory channel is changed.

POWER ON: Activates the Automatic An-

tenna Tuning function on all channels of the current Memory Bank when the radio is turned on.

VFO

This parameter defines whether the “VFO” mode shall be “Enabled” or “Disabled” from the front panel’s [V/M] key.

VOL LIMIT

This parameter determines the audio volume level when the VOL knob is fully counter-clockwise (but not into the click) position. To program this parameter, double click the left mouse button on this column, enter the desired audio volume level (0 - 100), then press the [ENTER] key to save and exit.

DEALER MODE

This parameter defines whether the “DEALER MODE” selection shall be “Enabled” or “Disabled” from the transceiver’s set (“menu”) mode.

RETURN

This parameter defines whether the “RETURN” selection shall be “Enabled” or “Disabled” from the transceiver’s set (“menu”) mode.

CLOCK SHIFT

This parameter defines whether the “CLOCK SHIFT” selection shall be “Enabled” or “Disabled” from the transceiver’s set (“menu”) mode.

CE77 PC Programming Software

DW CH SEL

This parameter defines whether the “DW CH SEL” selection shall be “Enabled” or “Disabled” from the transceiver’s set (“menu”) mode.

ENCRPT CODE

This parameter defines whether the “ENCRPT CODE” selection shall be “Enabled” or “Disabled” from the User Set Mode.

MEMORY WRITE

This parameter defines whether the “MEMORY WRITE” selection shall be “Enabled” or “Disabled” from the User Set Mode.

OPTION PARAMETERS

This parameter programs the configurations of optional modules for the radio. These include the Encryption Unit and the Option Board.

ENCRYPTION UNIT

This parameter selects whether the Encryption Unit shall be “Enabled” (ON) or “Disabled” (OFF).

OPTION BOARD

This parameter selects the Optional Unit to be used. The available selections are “GPS Interface” and “ALE Unit.”

"OPTION" PARAMETERS

CE77 PC Programming Software

Selcall Menu

SELCALL PARAMETERS

This parameter programs the various Selcall configurations of the radio. Put a check mark into the check box to enable adjustment of its parameter from the transceiver’s set (“menu”) mode.

Note: The Selcall is only activated on the J3E mode.

The available parameters are Selcall, Kill System, Stun System, Beacon Request, GPS Position Request. GPS Position Send, Preamble, Offset Time, Radio ID, Message, All Call, Answer Back, Group Call, Sub Group Call, Tel Call, TX ID, and Selcall Self ID.

SELCALL

This parameter determines whether the radio is able to receive or transmit a Selcall. The available selections are “RX,” “TX,” “TX+RX,” and “OFF.”

RX: Enables the receiving of a Selcall and

disables the sending of a Selcall.

TX: Enables the sending of a Selcall and

disables the receiving of a Selcall.

TX+RX: Enables both the receiving and send-

ing of a Selcall.

OFF: Disables both the receiving and

sending of a Selcall.

KILL SYSTEM

This parameter determines whether the radio is able to receive a Kill System command or transmit a Kill System acknowledge command. The available selections are “RX,” “TX+RX,” “POS TX+RX,” and “OFF.”

RX: Enables the receiving of a Kill

System command and disables the sending of a Kill System acknowledge command.

TX+RX: Enables the receiving of a Kill

System command and sending of a Kill System acknowledge command.

POS TX+RX: Enables the receiving of a Kill

System command, and the sending of a Kill System acknowledge command along with the radio’s



current position

OFF: Disables both the receiving of a

Kill System command and sending of a Kill System acknowledge command.

: Requires the after-market GPS receiver.

Note: The KILL System is ignored while activating the ALE feature.

STUN SYSTEM

This parameter determines whether the radio is able to receive a Stun System command or transmit a Stun System acknowledge command. The available selections are “RX,” “TX+RX,” “POS TX+RX,” and “OFF.”

RX: Enables the receiving of a Stun

System and disables the sending of a Stun System acknowledge command.

TX+RX: Enables the receiving a Stun Sys-

tem command and sending of a Stun System acknowledge command.

POS TX+RX: Enables the receiving of a Stun

System command, and the sending of a Stun System acknowledge command along with the



radio's current position

OFF: Disables both the receiving a

Stun System command and sending of a Stun System acknowledge command.

: Requires the after-market GPS receiver.

Note: The STUN System is ignored while activating the ALE feature.

BEACON REQUEST

This parameter determines whether the radio is able to receive or transmit a Beacon request feature. The available selections are “RX,” “TX,” “TX+RX,” and “OFF.”

RX: Enables the receiving of a Beacon re-

quest and disables the sending of that request.

TX: Enables the sending of a Beacon re-

quest and disables the receiving of a Beacon request.

TX+RX: Enables both the receiving and send-

ing of a Beacon request.

OFF: Disables both the receiving and

sending of a Beacon request.

SELCALL MENU

CE77 PC Programming Software

GPS POSITION REQUEST

This parameter determines whether the radio is able to receive or transmit a GPS position request. The available selections are “RX,” “TX,” “TX+RX,” and “OFF.”

RX: Enables the receiving of a GPS posi-

tion request and disable the sending of a GPS position request.

TX: Enables the sending of a GPS posi-

tion request and disables the receiving of a GPS position request.

TX+RX: Enables both the receiving and send-

ing of a GPS position request.

OFF: Disables both the receiving and

sending of a GPS position request.

: Requires the after-market GPS receiver for

transmitting your GPS position.

GPS POSITION SEND

This parameter determines whether the radio is able to receive or transmit your GPS position. The available selections are “RX,” “TX,” “TX+RX,” and “OFF.”

RX: Enables the receiving a GPS position

send command and disables the sending of your GPS position.

TX: Enables the sending of your GPS

position and disables the receiving of a GPS position send command.

TX+RX: Enables the receiving and sending of

a GPS position.

OFF: Disables both the receiving and

sending of a GPS position.

: Requires the after-market GPS receiver for

transmitting your GPS position.

PREAMBLE

This parameter sets the preamble time for a Selcall. The radio will transmit just a carrier signal (without the data) for this “Preamble” period. The available selections are “1 sec” to “16 sec.”

OFFSET TIME

This parameter sets the offset time between the Local time and UTC time.

RADIO ID

This parameter programs the transceiver’s Alpha/ Numeric self-identification for the KILL and STUN systems. To enter the Alpha/Numeric self-identification, double click the left mouse button on the desired column, type the characters of the desired Alpha/ Numeric self-identification (up to 58 characters), then press the [ENTER] key to save the programmed self identification.

MESSAGE

This parameter programs the Alpha/Numeric messages for the Selcall feature. To enter the Alpha/Numeric message, double click the left mouse button on the desired column, type in the characters of the desired Alpha/Numeric message (up to 64 characters), then press the [ENTER] key to save the programmed messages. This parameter is also used to remote control the VX-1700 using the “KILL,” “STUN,” and “REVIVE” feature. If the “CILLIK” command with the “Radio ID (example: TEST6111)” is entered in this parameter (total message is “CILLIKTEST6111”), the VX1700 which has the “TEST6111” radio ID will be “killed” when this message is received. Similarly, if the “ECNUTS” command with the “Radio ID (example: TEST6111)” is entered in this parameter (total message is “ECNUTSTEST6111”), the VX-1700 which has the “TEST6111" radio ID will be “stunned” (disabled, but capable of field revival) when this message is received. To revive the stunned VX-1700, send the “SVIVER” command with the “Radio ID” (in this example, TEST6111) (total message is “SVIVERTEST6111”). Note: A “killed” VX-1700 cannot be revived by a remote control command. To revive a killed VX1700, the channel setup cloning process must be performed again.

Kill Command: CILLIK Stun Command: ECNUTS Revive Command: SVIVER

CE77 PC Programming Software

ALL CALL

This parameter determines whether the “All Call” function of the Selcall feature shall be “Enabled” or “Disabled”.

ANSWER BACK

This parameter determines whether the “Answer Back” function shall be “Enabled” or “Disabled” when receiving a Selcall.

GROUP CALL

This parameter determines whether the “Group Call” function of the Selcall feature shall be “Enabled” or “Disabled.”

SUB GROUP CALL

This parameter determines whether the “Sub Group Call” function of the Selcall feature shall be “Enabled” or “Disabled.”

TEL CALL

This parameter determines whether the radio is able to receive or transmit a Tel Call. The available selections are “RX,” “TX,” “TX+RX,” and “OFF.”

RX: Enables the receiving of a Tel Call

and disables the sending of a Tel Call.

TX: Enables the sending of a Tel Call and

disables the receiving of a Tel Call.

TX+RX: Enables both the receiving and send-

ing of a Tel Call.

OFF: Disables both the receiving and

sending of a Tel Call.

TX ID

Put a check mark into the check box to enable programming of the TX ID from the transceiver’s set (“menu”) mode.

SELCALL SELF ID

Put a check mark into the check box to enable programming of the Selcall Self ID from the transceiver’s set (“menu”) mode.

SELCALL SECTION

CE77 PC Programming Software

TX ID PARAMETER

This parameter programs the Selcall TX ID to be called. To program this parameter, enter the TX ID (4 digits) into the “TX ID” column, then set the desired effective channel range (i.e. 1-001, 1-050, 2-051, etc.) for the TX ID into the “FROM” and “TO” columns. Enter the Alpha/Numeric Tag (8 digits) of the TX ID into the “TAG” column, if desired.

"TX ID" PARAMETERS

TELEPHONE NUMBER PARAMETERS

This parameter programs the telephone number for the Telcall feature. To enter the telephone number, double click the left mouse button on the desired column, type in the telephone number (up to 16 digits), then press the [ENTER] key to save the programmed number. Select the Telcall type from the “Tel Call Type” Drop Down list. The available selections are B16 (BARRETT (CODAN Put a check mark into the check box to enable programming of the Selcall Self ID from the transceiver’s set (“menu”) mode.

12), and C16 (CODAN®16).

16), C12

"TELEPHONE NUMBER" PARAMETERS

CE77 PC Programming Software

ALE Menu

ALE COMMON PARAMETERS

This parameter programs the various configurations for the ALE (Automatic Link Establishment) system of the radio. The ALE system allows the radio to select the channel with the best LQA (Link Quality Analysis) score from the programmed channels. Put a check mark into the check box to enable adjustment of its parameters from the transceiver’s set (“menu”) mode. The available parameters are ALE, Alert Tone, Auto Address, External Alert, Link TOT, Minimum LQA Score, PTT Time Out, and Net Number.

ALE

This parameter selects whether the ALE System shall be “Enabled (ON)” or “Disabled (OFF)”.

ALERT TONE

This parameter selects the Alert Tone ringing period once the ALE link is established. The available selections are “2 Sec,” “5 Sec,” “20 Sec,” “CONTINUOUS,” and “OFF.”

AUTO ADDRESS

This parameter toggles the Auto Address feature “ON” and “OFF.” When this parameter is set “ON,” the radio will add an unknown incoming call address to the “Other Station Address” directory automatically.

LINK TOT

This parameter define whether the Link TOT feature shall be “Enabled (ON)” or “Disabled (OFF).” When this parameter is set to “ON,” the link to the other radio will be automatically disconnected unless you press the PTT within 30 seconds after receiving an ALE call.

MINIMUM LQA SCORE

This parameter determine the minimum LQA (Link Quality Analysis) score required to establish a link. To program this parameter, double click the left mouse button on this column, enter the desired minimum LQA value, then press the [ENTER] key to save and exit. Available selections are “0” to “100.”

PTT TIME OUT

This parameter selects the delay time between the releasing of the PTT switch and the disconnecting of the ALE link. The available selections are “1 minute” to “10 minutes” and “OFF.”

EXTERNAL ALERT

This parameter defines whether the External Alert port (Open Collector: Max. 60 V, 1A) shall be “Enabled (ON)” or “Disabled (OFF).” When this parameter is set to “Enabled (ON),” the External Alert port turns to “ON,” when a call is received.

External Alert port

D-Sub Connector

GPS-INTERFACE Unit

ALE MENU

"ALE COMMON" PARAMETERS

CE77 PC Programming Software

NET NUMBER

Put a check mark into the check box to enable adjustment of its parameter from the transceiver’s set (“menu”) mode.

AMD MESSAGE PARAMETERS

This parameter programs the Alpha/Numeric messages in accordance with the AMD definition. To enter the Alpha/Numeric message, double click the left mouse button on the desired column, type the characters of the desired Alpha/Numeric message (up to 90 characters), then press the [ENTER] key to save the programmed “message.” Put a check mark into the check box to enable adjustment of its parameter from the transceiver’s set (“menu”) mode.

"AMD MESSAGE" PARAMETERS

OTHER STATION ADDRESS PARAMETERS

This parameter programs the Net Member’s Alpha/ Numeric identification for the ALE feature. To enter the Net Member’s Alpha/Numeric identification, double click the left mouse button on the desired column, type in the characters of the Alpha/ Numeric identification (up to 15 characters), then press the [ENTER] key to save the programmed identification. Put a check mark into the check box to enable adjustment of its parameter from the transceiver’s set (“menu”) mode.

"OTHER STATION ADDRESS" PARAMETERS

CE77 PC Programming Software

ALE MISCELLANEOUS PARAMETERS

This parameter programs the various configurations for the ALE (Automatic Link Establishment) system of the radio. Put a check mark into the check box to enable adjustment of these parameters from the transceiver’s set (“menu”) mode. The available parameters are Net Number, Sounding, All Call Set, LQA Request, Master/Slave, Net Name, Occupancy Detection, Self Address, Silent Mode, Scan Rate, and Tune Time.

NET NUMBER

This pull-down list selects the Network number to be programmed.

SOUNDING

This parameter defines the interval of the automatic sounding feature which is a method for testing the quality of communication channels and propagation paths under field conditions. The available selections are “30,” 60,” 90,” and “120” (minutes).

ALL CALL SET

This parameter determines whether the ALE is able to receive or transmit an All Call feature. The available selections are “RX,” “TX,” “TX+RX,” and “OFF.”

RX: Enables the receiving of All Call and

disables the sending of All Call.

TX: Enables the sending of All Call and

disables the receiving of All Call.

TX+RX: Enables both the receiving and send-

ing of All Call.

OFF: Disables both the receiving and

sending of All Call.

LQA REQUEST

This parameter defines whether the LQA (Link Quality Analysis) request shall be “Enabled (ON)” or “Disabled (OFF).” When this parameter is set to “Enabled (ON),” the ALE will ask the called station for a report on the quality of the communication path every time that a call is initiated.

MASTER/SLAVE

This parameter defines whether the radio shall be act as a “Master” or “Slave” unit.

"ALE MISCELLANEOUS" PARAMETERS

NET NAME

This parameter programs the network name for the ALE feature. To enter the network name, double click the left mouse button on the desired column, type in the characters of the desired network name (up to 15 characters), then press the [ENTER] key to save the programmed name.

OCCUPANCY DETECTION

This parameter defines whether the channel “Occupancy” check function shall be “Enabled” or “Disabled” after sending an ALE call.

SELF ADDRESS

This parameter programs the transceiver’s Alpha/ Numeric self identification for the ALE feature. To enter the Alpha/Numeric self identification, double click the left mouse button on the desired column, type the characters of the desired Alpha/ Numeric self-identification name (up to 15 characters), then press the [ENTER] key to save the programmed self-identification name.

CE77 PC Programming Software

SILENT MODE

This parameter defines whether the Silent mode shall be “Enabled (SILENT)” or “Disabled (NORMAL).” When this parameter is set to “Enabled (SILENT),” the network can initiate calls but the network is not allowed to respond to an ALE transmission.

SCAN RATE

This parameter toggles the scan speed between the “2 sec/ch” (2 seconds per channel) and “5 sec/ ch” (5 seconds per channel) when the radio is in the ALE mode. We recommend that this parameter is set to “2 sec/ch” when the ALE Unit and Antenna Tuner Unit is used simultaneously.

TUNE TIME

This parameter sets the maximum time that the current ALE will wait for the called station to respond. The available selections are “1 Sec” to “20 Sec,” and “OFF (0 Sec).” However, please set this parameter to “OFF (0 Sec)” at all times.

AUTO DIAL PARAMETER

This parameter programs the address and message for the ALE Call. To enter the address, double click the left mouse button on the desired “Address” to invoke a popup window, select the desired address, then click the [OK] button to accept the address. To enter the message, if you desired, select the Network Member to be programmed from the pulldown list, then double click the left mouse button on the desired “Message” to invoke a pop-up window, select the desired message, then click the [OK] button to accept the message. Put a check mark into the check box to enable adjustment of its parameter from the transceiver’s set (“menu”) mode.

NET NUMBER

This pull-down list selects the Network number to be programmed.

"AUTO DIAL" PARAMETERS

NET MEMBER ADDRESS PARAMETER

This parameter defines the network member address to be called. To enter the network nember address, select the network from the pull-down list, then double click the left mouse button on the desired bank to invoke a pop-up window, select the desired address, then click the [OK] button to accept the address. Note: Please make sure that the “SELF ADDRESS”

setting position is not piled up the other transceiv-

er’s setting, and does not duplicate the “SELF AD-

DRESS” setting to the other bank.

SCAN CHANNEL LIST PARAMETERS

This parameter defines the memory channel to be scanned. To program the list, select the network from the pulldown list, then double click the left mouse button on each memory channel to be included in the scanning list. If you put on the “Chn” radio button, indicate the Scan Channel by the “Frequency” display. Meanwhile, If you put on the “TAG” radio button, indicate the Scan Channel by the “Alpha/numeric Tag” display.

CE77 PC Programming Software

"NET MEMBER ADRESS" PARAMETERS

"SCAN CHANNEL LIST" PARAMETERS

CE77 PC Programming Software

Channel Menu

CHANNEL ALLOCATION PARAMETER

The VX-1700 is capable of allocating up to 200 channels into 5 banks. By default, Bank-1 is filled with all memories (200 channels); Bank-2 through Bank-5 are disabled (empty). Bank-2 will be enabled once Bank-1 is filled to capacity, and will start being filled by the extra memories carried over.

Radio Menu

UPLOAD PARAMETER

Reads the configuration data from the radio to the computer. Existing data on the screen will be overwritten with data from the radio, and will be lost unless you save it. NOTE: Make sure to select the correct communications port to ensure proper operation. The program will lock-up if there is a conflict between the mouse port and PC Programming Cable Port. Shortcuts

Toolbar:

RADIO MENU

"CHANNEL ALLOCATION" PARAMETERS

"UPLOAD" PARAMETER

CE77 PC Programming Software

DOWNLOAD PARAMETER

Writes the configuration data from the computer to the radio. Data will be verified for integrity by the program before downloading is initiated. NOTE: Make sure to select the correct communications port to ensure proper operation. The program will lock-up if there is a conflict between the mouse port and PC Programming Cable Port. Shortcuts

Toolbar:

REVIVE PARAMETER

This parameter returns the radio to the normal mode from the STUN mode. Turn the stunned radio on and wait 2 seconds, then click the [Revive] button to return the radio to the normal mode.

"REVIVE" PARAMETER

"DOWNLOAD" PARAMETER

CE77 PC Programming Software

Programming Example 1

Selcall Feature Basic Setup

1. Assign the “SELCALL” function into the “Programmable Function key 1 (P1 SET)” and the “CALL” function to the “Programmable Function key 2 (P2 SET)” from the “KEY FUNCTION” parameter in the “Common” menu.

2. Set the “SELCALL” parameter in the “Selcall” menu to the “TX+RX” option, to enable the receiving and sending of a Selcall.

3. Enter the your radio’s Selcall ID (four digits) into the “Selcall Self ID” column on the “Main Programming Screen (Memory Screen)” for each memory channel.

4. Enter the station’s Selcall ID (four digits) of the station to be called into the “TXID” parameter in the “Selcall” menu.

5. Set the effective channel range (i.e.1-001 and 1-

200) for the TX ID into the “FROM“ and “TO“columns of the “TX ID” parameter in the “Selcall” menu.

6. Download the programming data to the transceiver from the computer via the “Download” parameter in the “Radio” menu.









Programming Example 2

ALE Feature Basic Setup

1. Set the “Optional Board” parameter which is located in the “Option” folder in the “Common” menu to the “ALE Unit” to activate the optional ALE-1 Unit.

2. Set the “ALE” parameter in the “ALE Common” folder in the “ALE” menu to “ON” to enable the ALE feature.

3. Enter the Network Address to be used into the “Net Name” parameter in the “ALE Miscellaneous” folder in the “ALE” menu.

4. Enter the to-be-called Station’s Address (Net Member’s Alpha/Numeric identification) to be called into the “Other Station Address” parameter in the “ALE” menu.

5. Enter your unit’s identifying Address into the “Self Address” parameter on the “ALE Miscellaneous” folder in the “ALE” menu.

6. Define the Network Member Address to be called from the “Network Member Address” parameter in the “ALE” menu.

7. Define the Memory Channels to be scanned during ALE operation from the “Scan Channel List” parameter in the “ALE” menu.

8. Download the programming data to the transceiver from the computer via the “Download” parameter in the “Radio” menu.

CE77 PC Programming Software















CE77 PC Programming Software

Programming Example 3

Kill Command Setup

 Enter the Kill Command (CILLIK) and

(ex. TEST6111) into the “Message” parameter on the “Selcall” folder in the “Selcall” menu.

Radio ID

Programming Example 5

Revive Command Setup

 Enter the Revive Command (SVIVER) and

(ex. TEST6111) into the “Message” parameter

on the “Selcall” folder in the “Selcall” menu.

Radio

Programming Example 4

Stun Command Setup

 Enter the Stun Command (ECNUTS) and

(ex. TEST6111) into the “Message” parameter

on the “Selcall” folder in the “Selcall” menu.

Radio

MAIN Unit

Circuit Diagram

MAIN Unit

Note

MAIN Unit

Parts Layout (Side A)

HD64F2134

(Q1018)

UPD77115GK

(Q1035)

2SA1365

(Q1048)

2SA1602A (MF)

(Q1010, 1046)

2SJ125D (JD)

(Q1091, 1092)

2SK520 (K41)

(Q1022, 1024)

2SC2714 (QY)

(Q1016, 1021, 1023,

1026, 1027, 1063, 1064, 1070, 1074,

1075)

2SC2812 (LG)

(Q1002, 1044)

2SC3356 (R24)

(Q1028)

AK4528VF

(Q1071)

2SC2954 (QK)

(Q1001, 1029)

2SC3357 (RK)

2SD2211 (DQR)

(Q1025)

(Q1076)

BA DCEFHGIJ

KIA7808API

(Q1007)

TDA2003H

(Q1055)

BA05FP

(Q1012)

TC7S04FU (E5)

(Q1059, 1062)

TC7ST08FU

(Q1080)

2SK210GR (YG)

(Q1072, 1073)

2SK302Y (TY)

(Q1066)

BR24L64

(Q1015)

LM2904PWR

(Q1039, 1040, 1078)

M51945BPF

(Q1004)

TC7W04FU

(Q1089)

UPC4572G2

(Q1030, 1032, 1033,

1034, 1036, 1041)

PDTC144EE (08)

(Q1005. 1009, 1037,

1038, 1045, 1047, 1053, 1065, 1068, 1069, 1082, 1083,

1084)

ADF4001BRU

(Q1056)

CD4094BPWR

(Q1014, 1017)

AK4550VT

(Q1081)

M62354FP

(Q1020)

RF2713

(Q1052, 1054)

L78M05T

(Q1008)

UPC2926T

(Q1006)

DAN235U (M)

(D1031, 1033, 1034)

MC2848 (A6)

(D1003, 1035)

DAP236U (X)

(D1046)

HZM27WA (27A)

(D1056)

TD62783AFN

(Q1003)

BU4052BCF

(Q1079)

TC4028BF

(Q1011)

TC47HC4040AF

(Q1088)

AD9833BMR

(Q1060)

3SK151GR (UH)

(Q1043, 1049, 1050)

2SC4047 (ZY)

(Q1013)

DTC114EUA (24)

(Q1019)

HSB88WSTR

(D1032)

HZM7.5NB3

(D1036, 1064)

IMN10 (N10)

(D1001)

MC2850 (A7)

(D1044, 1045)

MAIN Unit

Parts Layout (Side B)

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

PCB with Components CB2421001

Printed Circuit Board AC051H000 FR010270E 1C 1002 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A B7 C 1003 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A2 C 1008 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A B7 C 1009 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A2 C 1014 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A B7 C 1015 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A2 C 1018 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A C7 C 1019 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A2 C 1020 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A2 C 1024 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G2 C 1025 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A2 C 1026 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A2 C 1027 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A3 C 1029 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G2 C 1030 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A2 C 1032 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A2 C 1034 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A3 C 1035 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G2 C 1036 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H1 C 1038 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A H1 C 1039 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H1 C 1041 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A H1 C 1042 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H2 C 1043 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H1 C 1044 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A H1 C 1045 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H1 C 1047 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A C6 C 1048 CHIP TA.CAP. 4.7uF 25V TEMSVB21E475M-8R K78140019 1- A B6 C 1049 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A A4 C 1050 CHIP TA.CAP. 2.2uF 16V TEMSVA1C225M-8R K78120015 1- A H2 C 1051 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A C5 C 1052 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A B5 C 1053 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A B5 C 1054 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A B1 C 1055 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A4 C 1056 AL.ELECTRO.CAP. 470uF 16V RE3-16V471M 470UF K40129066 1- A A5 C 1057 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A C5 C 1058 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A B5 C 1059 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A B5 C 1060 AL.ELECTRO.CAP. 470uF 16V RE3-16V471M 470UF K40129066 1- A A5 C 1061 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A C6 C 1062 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A B5 C 1063 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A B6 C 1064 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A A4 C 1065 CHIP TA.CAP. 1.5uF 16V TESVA1C155M1-8R K78120020 1- A A4 C 1066 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A B2 C 1067 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A4 C 1068 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A4 C 1069 CHIP CAP. 0.1uF 50V B GRM42-6B104K50PT K22171820 1- A I1 C 1070 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A E2 C 1071 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C3 C 1072 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A I1 C 1073 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A J1 C 1074 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I2 C 1075 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2 C 1076 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I2 C 1077 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A I2

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

C 1078 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A I2 C 1079 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A E2 C 1080 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A F2 C 1081 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A F2 C 1082 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G2 C 1083 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G2 C 1084 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G2 C 1085 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H2 C 1086 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H2 C 1087 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I2 C 1088 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A C3 C 1088 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 3- A C3 C 1089 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A F3 C 1090 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A F3 C 1091 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A G3 C 1092 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A G3 C 1093 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A H3 C 1094 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A H3 C 1095 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A H3 C 1096 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A I3 C 1097 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A C3 C 1097 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 3- A C3 C 1098 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A F2 C 1099 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 1- A G2 C 1100 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 1- A G2 C 1101 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A H2 C 1102 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A H2 C 1103 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A I2 C 1104 CHIP CAP. 0.5pF 50V CK GRM1884C1HR50CZ01D K22174201 1- A I2 C 1105 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A F2 C 1106 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A G2 C 1107 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A G2 C 1108 CHIP CAP. 24pF 50V CH GRM1882C1H240JZ01D K22174220 1- A H2 C 1109 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A H2 C 1110 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A I2 C 1111 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 1- A I2 C 1112 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A C3 C 1112 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 3- A C3 C 1114 CHIP CAP. 200pF 50V CH GRM1882C1H201JA01D K22174242 1- A F3 C 1115 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A F3 C 1116 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A G3 C 1117 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A G3 C 1118 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 1- A H3 C 1119 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 1- A H3 C 1120 CHIP CAP. 75pF 50V CH GRM1882C1H750JZ01D K22174232 1- A I3 C 1121 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A I3 C 1122 CHIP CAP. 360pF 50V CH GRM39CH361J50PT K22174254 1- A F3 C 1123 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A C2 C 1124 CHIP CAP. 200pF 50V CH GRM1882C1H201JA01D K22174242 1- A F3 C 1125 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A F3 C 1126 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A G3 C 1127 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A G3 C 1128 CHIP CAP. 24pF 50V CH GRM1882C1H240JZ01D K22174220 1- A H3 C 1129 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A H3 C 1130 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A I3 C 1131 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 1- A I3 C 1132 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- A C2 C 1133 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A C2 C 1134 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A F3

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

C 1135 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 1- A G3 C 1136 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 1- A G3 C 1137 CHIP CAP. 62pF 50V CH GRM1882C1H620JZ01D K22174230 1- A H3 C 1138 CHIP CAP. 18pF 50V CH K22174217 1- A H3 C 1139 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A I3 C 1140 CHIP CAP. 0.5pF 50V CK GRM1884C1HR50CZ01D K22174201 1- A I3 C 1141 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A F3 C 1142 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A F3 C 1143 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G3 C 1144 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G3 C 1145 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G3 C 1146 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H3 C 1147 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H3 C 1148 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I3 C 1149 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A B4 C 1150 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A4 C 1151 CHIP TA.CAP. 2.2uF 16V TEMSVA1C225M-8R K78120015 1- A I4 C 1152 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I4 C 1153 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I4 C 1154 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I4 C 1155 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I1 C 1156 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I4 C 1157 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I4 C 1158 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A H4 C 1159 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A H4 C 1160 CHIP TA.CAP. 2.2uF 16V TEMSVA1C225M-8R K78120015 1- A H3 C 1161 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H4 C 1162 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A I4 C 1163 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A I4 C 1164 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H4 C 1165 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A I1 C 1166 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A H4 C 1167 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A I4 C 1168 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A I4 C 1169 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H5 C 1170 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I4 C 1171 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A H4 C 1172 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A I6 C 1173 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A H4 C 1174 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A I4 C 1175 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A I4 C 1176 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A2 C 1177 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A I4 C 1178 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A H5 C 1179 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A B2 C 1180 CHIP TA.CAP. 2.2uF 16V TEMSVA1C225M-8R K78120015 1- A H5 C 1181 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J6 C 1183 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A B2 C 1184 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A J6 C 1185 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A I5 C 1186 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H5 C 1187 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A I5 C 1189 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A J6 C 1190 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A I5 C 1191 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I6 C 1192 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I5 C 1193 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A I5 C 1194 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I6 C 1195 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A C5

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

C 1196 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A I6 C 1197 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A I6 C 1198 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I6 C 1199 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H7 C 1200 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I7 C 1201 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A I7 C 1202 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H5 C 1203 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I6 C 1204 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I6 C 1205 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A C5 C 1206 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A I6 C 1207 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H7 C 1208 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A I7 C 1209 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H6 C 1210 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 1- A H7 C 1211 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H5 C 1212 CHIP TA.CAP. 22uF 10V TEMSVB21A226M-8R K78100029 1- A I6 C 1213 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A B5 C 1214 CHIP TA.CAP. 0.22uF 35V TESVA1V224M1-8R K78160027 1- A I7 C 1215 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A I7 C 1216 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A I7 C 1217 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A B4 C 1218 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A H6 C 1219 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A H6 C 1220 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A H7 C 1222 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H6 C 1223 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A H5 C 1224 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H6 C 1225 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H6 C 1226 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G7 C 1227 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A H6 C 1228 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G6 C 1229 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H6 C 1230 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G7 C 1231 CHIP CAP. 0.5pF 50V CK GRM1884C1HR50CZ01D K22174201 1- A G6 C 1232 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A H6 C 1233 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G6 C 1234 CHIP TA.CAP. 4.7uF 25V TEMSVB21E475M-8R K78140019 1- A I5 C 1235 CHIP CAP. 0.033uF 16V R GRM188R11C333KA01D K22124801 1- A G6 C 1236 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G6 C 1237 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A H6 C 1238 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A G7 C 1239 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G6 C 1240 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G6 C 1241 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A E4 C 1242 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G6 C 1243 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G7 C 1244 AL.ELECTRO.CAP. 470uF 16V RE3-16V471M 470UF K40129066 1- A B6 C 1245 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G6 C 1246 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G6 C 1247 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A F6 C 1249 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A7 C 1250 AL.ELECTRO.CAP. 470uF 16V RE3-16V471M 470UF K40129066 1- A B6 C 1251 AL.ELECTRO.CAP. 470uF 16V RE3-16V471M 470UF K40129066 1- A A7 C 1252 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A F6 C 1253 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A F7 C 1254 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A B6 C 1255 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A F6 C 1256 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F7

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

C 1257 AL.ELECTRO.CAP. 47uF 16V ECEV1CA470SP K48120005 1- A A7 C 1259 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A F7 C 1260 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F7 C 1261 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F7 C 1262 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A F7 C 1263 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F7 C 1264 CHIP TA.CAP. 3.3uF 16V TESVB21C335M8R K78120010 1- A B7 C 1265 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A F5 C 1266 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A F5 C 1269 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A F6 C 1270 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A F6 C 1271 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A F6 C 1272 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A F6 C 1273 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A E6 C 1276 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A E6 C 1277 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A D5 C 1278 FILM CAP. 0.039uF 16V ECHU1C393JX5 K57120023 1- A F5 C 1279 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A E5 C 1280 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A D5 C 1281 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A F6 C 1282 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A F6 C 1283 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A F5 C 1284 FILM CAP. 0.082uF 16V ECHU1C823JX5 K57120024 1- A F5 C 1285 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D5 C 1286 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A E5 C 1287 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A F6 C 1288 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A E5 C 1289 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A E5 C 1290 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A E5 C 1291 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A E5 C 1292 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A D5 C 1293 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A E5 C 1294 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A D5 C 1296 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A F6 C 1298 FILM CAP. 0.0056uF 16V ECHU1C562JX5 K57120022 1- A F5 C 1299 CHIP CAP. 0.0082uF 25V B GRM39B822M25PT K22144801 1- A D7 C 1300 CHIP CAP. 0.0082uF 25V B GRM39B822M25PT K22144801 1- A C7 C 1301 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A F5 C 1302 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A E5 C 1303 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A E5 C 1304 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A F5 C 1305 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A G5 C 1306 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A E5 C 1307 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A E5 C 1308 FILM CAP. 0.0056uF 16V ECHU1C562JX5 K57120022 1- A F5 C 1309 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A E5 C 1310 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A E5 C 1311 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D4 C 1312 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D6 C 1313 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A E5 C 1315 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D4 C 1316 CHIP CAP. 0.0039uF 50V B GRM188B11H392KA01D K22174830 1- A E7 C 1317 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 1- A F5 C 1318 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A E5 C 1319 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A F5 C 1320 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D6 C 1321 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 1- A G5 C 1323 CHIP CAP. 430pF 50V CH GRM1882C1H431JA01D K22174256 1- A F7 C 1324 CHIP CAP. 430pF 50V CH GRM1882C1H431JA01D K22174256 1- A F7

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

C 1325 CHIP CAP. 0.0033uF 50V B GRM188B11H332KA01D K22174831 1- A E7 C 1326 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A G5 C 1327 CHIP CAP. 390pF 50V CH GRM1882C1H391JA01D K22174255 1- A C7 C 1328 CHIP CAP. 390pF 50V CH GRM1882C1H391JA01D K22174255 1- A D7 C 1329 CHIP CAP. 430pF 50V CH GRM1882C1H431JA01D K22174256 1- A F7 C 1330 CHIP CAP. 430pF 50V CH GRM1882C1H431JA01D K22174256 1- A F7 C 1331 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 1- A G5 C 1332 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A E7 C 1335 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A E7 C 1336 AL.ELECTRO.CAP. 100uF 16V RC2-16V101MGZ-T58 K46120007 1- A G4 C 1337 CHIP CAP. 0.0033uF 50V B GRM188B11H332KA01D K22174831 1- A F7 C 1338 CHIP CAP. 0.0033uF 50V B GRM188B11H332KA01D K22174831 1- A F7 C 1339 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A G5 C 1341 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A F5 C 1342 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G4 C 1343 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A C7 C 1344 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D7 C 1346 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A D6 C 1347 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A D5 C 1348 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A C7 C 1349 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A D7 C 1350 CHIP CAP. 0.22uF 10V B GRM188B11A224KA01D K22104801 1- A C7 C 1351 CHIP CAP. 0.22uF 10V B GRM188B11A224KA01D K22104801 1- A D7 C 1352 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A D7 C 1353 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A D7 C 1354 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A G4 C 1355 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A F5 C 1356 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A E6 C 1357 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A E6 C 1358 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D2 C 1359 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A D7 C 1360 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A D7 C 1361 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A E6 C 1362 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D7 C 1363 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A G5 C 1364 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A E6 C 1365 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A D6 C 1366 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A E6 C 1367 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A D7 C 1368 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A F6 C 1369 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A E6 C 1370 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A E7 C 1371 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A E7 C 1372 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A E7 C 1373 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A F6 C 1374 CHIP CAP. 15pF 50V UJ GRM1883U1H150JZ01D K22174312 1- A G4 C 1375 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A G5 C 1376 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A G4 C 1377 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A F5 C 1378 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A E7 C 1379 CHIP CAP. 0.0012uF 50V B GRM188B11H122KA01D K22174810 1- A E6 C 1380 CHIP CAP. 0.0012uF 50V B GRM188B11H122KA01D K22174810 1- A F6 C 1381 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A D6 C 1382 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D6 C 1383 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A G4 C 1384 CHIP CAP. 33pF 50V UJ GRM1883U1H330JZ01D K22174320 1- A G4 C 1385 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A D6 C 1386 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A F4 C 1387 CHIP CAP. 0.22uF 10V B GRM188B11A224KA01D K22104801 1- A E7

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

C 1388 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A G5 C 1389 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A G5 C 1390 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A G4 C 1391 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A G5 C 1392 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A E5 C 1393 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J4 C 1394 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J4 C 1395 CHIP CAP. 1uF 10V B GRM40B105K10PT K22100802 1- A J2 C 1396 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A E6 C 1397 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A G5 C 1398 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J4 C 1399 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A J2 C 1400 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A H5 C 1401 CHIP CAP. 43pF 50V CH GRM1882C1H430JZ01D K22174226 1- A E5 C 1402 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J2 C 1403 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A J3 C 1404 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J4 C 1405 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 1- A E6 C 1406 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A J3 C 1407 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J4 C 1408 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J2 C 1409 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A H5 C 1410 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A E5 C 1411 CHIP CAP. 24pF 50V CH GRM1882C1H240JZ01D K22174220 1- A E6 C 1412 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J3 C 1413 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J4 C 1414 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J2 C 1415 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J2 C 1416 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J2 C 1417 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J3 C 1418 FILM CAP. 0.0056uF 16V ECHU1C562JX5 K57120022 1- A F5 C 1419 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J3 C 1420 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A H5 C 1421 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A E5 C 1422 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J4 C 1423 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J3 C 1424 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J3 C 1426 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D5 C 1427 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A C4 C 1428 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A2 C 1429 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A2 C 1431 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A C2 C 1432 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A H4 C 1433 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A I6 C 1434 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A3 C 1435 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A3 C 1436 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A A3 C 1437 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A J4 C 1438 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174813 1- A C7 C 1439 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174813 1- A D7 C 1440 CHIP CAP. 1uF 10V B GRM40B105K10PT K22100802 1- A E7 C 1441 CHIP CAP. 1uF 10V B GRM40B105K10PT K22100802 1- A E7 C 1442 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D6 C 1443 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D6 C 1444 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A C6 C 1445 CHIP CAP. 1uF 10V B GRM40B105K10PT K22100802 1- A C7 C 1446 CHIP CAP. 1uF 10V B GRM40B105K10PT K22100802 1- A D7 C 1447 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G6 C 1448 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A E5

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. MFR’S DESIG VERS.REF. LOT. SIDE

C 1449 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A J2 C 1450 CHIP TA.CAP. 3.3uF 16V TESVB21C335M8R K78120010 1- A B6 C 1451 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A B7 C 1452 CHIP TA.CAP. 3.3uF 16V TESVB21C335M8R K78120010 1- A B6 C 1453 CHIP CAP. 0.0039uF 50V B GRM188B11H392KA01D K22174830 1- A E7 C 1454 CHIP CAP. 0.0033uF 50V B GRM188B11H332KA01D K22174831 1- A E7 C 1455 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A E7 C 1456 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A E7 C 1456 CHIP TA.CAP. 47uF 4V SK7-0G476M-RA K78060048 3- A E7 C 1457 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D7 C 1458 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A D7 C 1459 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1CF1001 CERAMIC FILTER SFSRA6M50DF00-B0 H3900560 1- A E4 D 1001 DIODE IMN10 T108 G2070078 1- A B7 D 1002 DIODE RB521S-30 TE61 G2070642 1- A A4 D 1003 DIODE MC2848-T11-1 G2070694 1- A H2 D 1004 DIODE RB060L-40 TE25 G2070744 1- A A4 D 1005 DIODE RB521S-30 TE61 G2070642 1- A A4 D 1006 DIODE RLS245 TE-11 G2070834 1- A I1 D 1007 DIODE RLS245 TE-11 G2070834 1- A I1 D 1008 DIODE RLS245 TE-11 G2070834 1- A J1 D 1009 DIODE RLS245 TE-11 G2070834 1- A J1 D 1010 DIODE 1SS356TW11 G2070468 1- A H2 D 1011 DIODE 1SV271 TPH3 G2070476 1- A I2 D 1012 DIODE 1SV271 TPH3 G2070476 1- A F2 D 1013 DIODE 1SV271 TPH3 G2070476 1- A F2 D 1014 DIODE 1SV271 TPH3 G2070476 1- A G2 D 1015 DIODE 1SV271 TPH3 G2070476 1- A G2 D 1016 DIODE 1SV271 TPH3 G2070476 1- A H2 D 1017 DIODE 1SV271 TPH3 G2070476 1- A H2 D 1018 DIODE 1SV271 TPH3 G2070476 1- A I2 D 1019 DIODE 1SV271 TPH3 G2070476 1- A I2 D 1020 DIODE 1SS356TW11 G2070468 1- A F3 D 1021 DIODE 1SS356TW11 G2070468 1- A G3 D 1022 DIODE 1SS356TW11 G2070468 1- A G3 D 1023 DIODE 1SS356TW11 G2070468 1- A H3 D 1024 DIODE 1SS356TW11 G2070468 1- A I3 D 1025 DIODE 1SS356TW11 G2070468 1- A I3 D 1026 DIODE 1SS356TW11 G2070468 1- A H3 D 1027 DIODE 1SS356TW11 G2070468 1- A F3 D 1028 DIODE 1SS356TW11 G2070468 1- A I4 D 1029 DIODE 1SS356TW11 G2070468 1- A H4 D 1030 DIODE 1SV271 TPH3 G2070476 1- A H4 D 1031 DIODE DAN235U TL G2070176 1- A I5 D 1032 DIODE HSB88WSTR G2070290 1- A I6 D 1033 DIODE DAN235U TL G2070176 1- A I7 D 1034 DIODE DAN235U TL G2070176 1- A H7 D 1035 DIODE MC2848-T11-1 G2070694 1- A F4 D 1036 DIODE HZM7.5NB3-TL-E G2070786 1- A H6 D 1037 LED SML-210MTT86 G2070524 1- A C4 D 1038 LED SML-210MTT86 G2070524 1- A F1 D 1039 DIODE UDZS TE-17 5.6B G2070910 1- A I7 D 1040 DIODE RB521S-30 TE61 G2070642 1- A I7 D 1041 DIODE 1SS356TW11 G2070468 1- A H6 D 1042 DIODE 1SS356TW11 G2070468 1- A H6 D 1043 LED SML-210MTT86 G2070524 1- A F5 D 1044 DIODE MC2850-T11-1 G2070704 1- A C7 D 1045 DIODE MC2850-T11-1 G2070704 1- A D7 D 1046 DIODE DAP236U T106 G2070592 1- A G4

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

D 1047 DIODE HVU359TRF G2070452 1- A G4 D 1048 DIODE HVU359TRF G2070452 1- A H4 D 1049 DIODE HVU359TRF G2070452 1- A F4 D 1050 DIODE HVU359TRF G2070452 1- A F4 D 1051 DIODE HVU359TRF G2070452 1- A G4 D 1052 DIODE HVU359TRF G2070452 1- A H4 D 1053 DIODE HVU359TRF G2070452 1- A F4 D 1054 DIODE HVU359TRF G2070452 1- A F4 D 1055 DIODE D1F20-4063 G2070474 1- A J3 D 1056 DIODE HZM27WA-TR G2070530 1- A J3 D 1059 LED SML-210MTT86 G2070524 1- A E1 D 1060 LED SML-210VTT86 G2070768 1- A E1 D 1061 LED SML-210DTT86 G2070772 1- A E1 D 1062 DIODE RB521S-30 TE61 G2070642 1- A A2 D 1063 DIODE RB521S-30 TE61 G2070642 1- A C2 D 1064 DIODE HZM7.5NB3-TL-E G2070786 1- A H5 D 1065 DIODE UDZS TE-17 6.8B G2070888 1- A G6 FB1001 CHIP COIL BLM21PG300SN1D L1690840 1- A J3 J 1001 CONNECTOR TMP-J01X-A2 P1090255 1- A I1 J 1001 CONNECTOR SJ070010 P1091262 4- A I1 J 1002 CONNECTOR TMP-J01X-A2 P1090255 1- A G1 J 1002 CONNECTOR TMP-S01X-C1 P1091254 4- A G1 J 1003 CONNECTOR 30FLT-SM1-TB P1091142 1- A A2 J 1004 CONNECTOR 30FLT-SM1-TB P1091142 1- A A3 J 1005 CONNECTOR SB20-08WS P0090615 1- A C7 J 1008 CONNECTOR SB20-13WS P0090620 1- A H1 J 1014 CONNECTOR SG8035#01 P1090350 1- A K6 J 1015 CONNECTOR SG8035#01 P1090350 1- A K5 J 1016 CONNECTOR TCS7705-012010 P1091203 1- A J4 J 1016 CONNECTOR TCS7705-5120177 P1091244 4- A J4 J 1017 CONNECTOR CSK-M50-06 R41-0599D P1090925 1- A J2 J 1018 CONNECTOR M50-08-30-434S R41-0599F P1091132 1- A J3 J 1019 CONNECTOR 09FMN-BMTTN-TFT P1091089 1- A B5 JP1003 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 4- A D5 JP1006 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 4- A A4 L 1001 M.RFC 100uH FLC32T-101J L1690227 1- A B7 L 1002 M.RFC 100uH FLC32T-101J L1690227 1- A B7 L 1003 M.RFC 100uH FLC32T-101J L1690227 1- A B7 L 1004 M.RFC 100uH FLC32T-101J L1690227 1- A C7 L 1005 M.RFC 180uH FLC32T-181J L1690230 1- A H2 L 1006 M.RFC 100uH FLC32T-101J L1690227 1- A J1 L 1007 M.RFC 470uH FLC32T-471J L1690235 1- A F2 L 1008 CHIP COIL 27uH LQH32MN270K23L L1690092 1- A F2 L 1009 CHIP COIL 18uH LQH32MN180K23L L1690090 1- A G2 L 1010 CHIP COIL 10uH LQH32MN100K23L L1690087 1- A G2 L 1011 CHIP COIL 5.6uH LQH32MN5R6K23L L1690084 1- A H2 L 1012 CHIP COIL 3.9uH LQH32MN3R9M23L L1690082 1- A H2 L 1013 CHIP COIL 2.2uH LQH32MN2R2K23L L1690079 1- A H2 L 1013 CHIP COIL 2.2uH 2% C2520C-2R2G L1691313 4- A H2 L 1014 CHIP COIL 1.5uH 2% C2520C-1R5G L1691311 1- A I2 L 1015 CHIP COIL 68uH LQH32MN680K23L L1690097 1- A F3 L 1016 CHIP COIL 39uH LQH32MN390K23L L1690094 1- A G3 L 1017 CHIP COIL 27uH LQH32MN270K23L L1690092 1- A G3 L 1018 CHIP COIL 22uH LQH31MN220J03L L1691005 1- A H3 L 1019 CHIP COIL 12uH LQH31MN120J03L L1691002 1- A H3 L 1020 CHIP COIL 6.8uH C2520F-6R8K L1690594 1- A I3 L 1021 CHIP COIL 4.7uH 2% C2520C-4R7G L1691317 1- A I3 L 1022 CHIP COIL 68uH LQH32MN680K23L L1690097 1- A F3 L 1023 CHIP COIL 15uH LQH32MN150K23L L1690089 1- A F3

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

L 1024 CHIP COIL 10uH LQH32MN100K23L L1690087 1- A G3 L 1025 CHIP COIL 5.6uH LQH32MN5R6K23L L1690084 1- A G3 L 1026 CHIP COIL 3.3uH LQH32MN3R3K23L L1690081 1- A H3 L 1027 CHIP COIL 1.8uH LQH32MN1R8K23L L1690078 1- A H3 L 1028 CHIP COIL 1.2uH LQH32MN1R2M23L L1690076 1- A H3 L 1028 CHIP COIL 1.2uH 2% C2520C-1R2G L1691310 4- A H3 L 1029 CHIP COIL 1uH 2% C2520C-1R0G L1691309 1- A I3 L 1030 CHIP COIL 68uH LQH32MN680K23L L1690097 1- A F3 L 1031 CHIP COIL 68uH LQH32MN680K23L L1690097 1- A F3 L 1032 CHIP COIL 39uH LQH32MN390K23L L1690094 1- A G3 L 1033 CHIP COIL 27uH LQH32MN270K23L L1690092 1- A G3 L 1034 CHIP COIL 18uH LQH31MN180J03L L1691004 1- A H3 L 1035 CHIP COIL 12uH LQH31MN120J03L L1691002 1- A H3 L 1036 CHIP COIL 6.8uH C2520F-6R8K L1690594 1- A I3 L 1037 CHIP COIL 4.7uH 2% C2520C-4R7G L1691317 1- A I3 L 1038 M.RFC 470uH FLC32T-471J L1690235 1- A F3 L 1039 CHIP COIL 27uH LQH32MN270K23L L1690092 1- A F3 L 1040 CHIP COIL 18uH LQH32MN180K23L L1690090 1- A G3 L 1041 CHIP COIL 10uH LQH32MN100K23L L1690087 1- A G3 L 1042 CHIP COIL 5.6uH LQH32MN5R6K23L L1690084 1- A H3 L 1043 CHIP COIL 3.9uH LQH32MN3R9M23L L1690082 1- A H3 L 1044 CHIP COIL 2.2uH LQH32MN2R2K23L L1690079 1- A I3 L 1044 CHIP COIL 2.2uH 2% C2520C-2R2G L1691313 4- A I3 L 1045 CHIP COIL 1.5uH 2% C2520C-1R5G L1691311 1- A I3 L 1046 M.RFC 100uH FLC32T-101J L1690227 1- A B4 L 1047 CHIP COIL 5.6uH LQH31MN5R6J03L L1690999 1- A I4 L 1048 M.RFC 10uH FLC32T-100J L1690215 1- A J6 L 1049 CHIP COIL 0.18uH LQH32MNR18M23L L1690069 1- A I5 L 1050 CHIP COIL 10uH LQH32MN100K23L L1690087 1- A J5 L 1051 CHIP COIL 0.22uH C2520C-R22J L1690548 1- A I6 L 1052 CHIP COIL 1mH LQH43MN102K03L L1690108 1- A I7 L 1053 M.RFC 180uH FLC32T-181J L1690230 1- A H5 L 1054 M.RFC 180uH FLC32T-181J L1690230 1- A H6 L 1055 M.RFC 180uH FLC32T-181J L1690230 1- A H6 L 1056 M.RFC 180uH FLC32T-181J L1690230 1- A H6 L 1057 M.RFC 180uH FLC32T-181J L1690230 1- A F7 L 1058 M.RFC 180uH FLC32T-181J L1690230 1- A F7 L 1059 M.RFC 100uH FLC32T-101J L1690227 1- A F6 L 1060 M.RFC 100uH FLC32T-101J L1690227 1- A D5 L 1063 M.RFC 3.3uH FLC32T-3R3K L1690209 1- A G4 L 1064 M.RFC 3.3uH FLC32T-3R3K L1690209 1- A G4 L 1065 CHIP COIL 2.2uH C2520C-2R2K L1690731 1- A G5 L 1066 COIL 10RF 0.49U L0021398 1- A G4 L 1067 COIL 10RF 0.36U L0021400 1- A G4 L 1068 M.RFC 4.7uH FLC32T-4R7K L1690211 1- A G4 L 1069 M.RFC 4.7uH FLC32T-4R7K L1690211 1- A F4 L 1070 CHIP COIL 0.15uH C2520C-R15J L1690546 1- A G5 L 1071 CHIP COIL 0.15uH C2520C-R15J L1690546 1- A G5 L 1072 M.RFC 4.7uH FLC32T-4R7K L1690211 1- A H5 L 1073 M.RFC 4.7uH FLC32T-4R7K L1690211 1- A F5 L 1074 CHIP COIL 0.12uH C2520C-R12J L1690545 1- A H5 L 1075 CHIP COIL 0.068uH C2520C-68NK L1690542 1- A E6 L 1076 CHIP COIL 0.12uH C2520C-R12J L1690545 1- A H5 L 1077 CHIP COIL 0.047uH C2520C-47NK L1690540 1- A E6 L 1078 M.RFC 180uH FLC32T-181J L1690230 1- A D2 L 1079 M.RFC 100uH FLC32T-101J L1690227 1- A J2 L 1080 M.RFC 100uH FLC32T-101J L1690227 1- A C7 L 1081 M.RFC 100uH FLC32T-101J L1690227 1- A C7 L 1082 M.RFC 100uH FLC32T-101J L1690227 1- A J5

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

L 1083 M.RFC 100uH FLC32T-101J L1690227 1- A J4 L 1084 M.RFC 1.5uH LK1608 1R5K-T L1690846 1- A E5 Q 1001 TRANSISTOR 2SC2954-T2 G3329547 1- A G1 Q 1002 TRANSISTOR 2SC2812NL6-TB G3328128F 1- A H2 Q 1003 IC TD62783AFN(EL) G1092700 1- A B2 Q 1004 IC M51945BFP-600C G1091990 1- A A4 Q 1005 TRANSISTOR PDTC144EE G3070244 1- A H2 Q 1006 IC UPC2926T(TAPE) G1093833 1- A C5 Q 1007 IC KIA7808API G1093164 1- A A5 Q 1008 IC L78M05T-TL G1091731 1- A B5 Q 1009 TRANSISTOR PDTC144EE G3070244 1- A B3 Q 1010 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- A A3 Q 1011 IC TC4028BF(EL.N) G1093433 1- A B2 Q 1012 IC BA05FP-E2 G1093209 1- A A4 Q 1013 TRANSISTOR 2SC4047-TA G3340477 1- A A4 Q 1014 IC CD4094BPWR G1093866 1- A E3 Q 1015 IC BR24L64F-WE2 G1093876 1- A C3 Q 1016 TRANSISTOR 2SC2714YTE85R G3327147Y 1- A I1 Q 1017 IC CD4094BPWR G1093866 1- A E2 Q 1018 IC HD64F2134ATF20(FLASH) Q 1019 TRANSISTOR DTC114EUA T106 G3070084 1- A C3 Q 1020 IC M62354FP-75NC G1091842 1- A B3 Q 1021 TRANSISTOR 2SC2714YTE85R G3327147Y 1- A I4 Q 1022 FET 2SK520-T2B K41 G3805207A 1- A I4 Q 1023 TRANSISTOR 2SC2714YTE85R G3327147Y 1- A I1 Q 1024 FET 2SK520-T2B K41 G3805207A 1- A I4 Q 1025 TRANSISTOR 2SC3357-T2 RF G3333577F 1- A H4 Q 1026 TRANSISTOR 2SC2714YTE85R G3327147Y 1- A H4 Q 1027 TRANSISTOR 2SC2714YTE85R G3327147Y 1- A I6 Q 1028 TRANSISTOR 2SC3356-T2B R25 G3333567E 1- A I6 Q 1029 TRANSISTOR 2SC2954-T2 G3329547 1- A I6 Q 1030 IC UPC4572G2-E2 G1092042 1- A F6 Q 1032 IC UPC4572G2-E2 G1092042 1- A C7 Q 1033 IC UPC4572G2-E2 G1092042 1- A D7 Q 1034 IC UPC4572G2-E2 G1092042 1- A F7 Q 1035 IC UPD77115GK-9EU G1093832 1- A B4 Q 1036 IC UPC4572G2-E2 G1092042 1- A E7 Q 1037 TRANSISTOR PDTC144EE G3070244 1- A H6 Q 1038 TRANSISTOR PDTC144EE G3070244 1- A C4 Q 1039 IC LM2904PWR G1094010 1- A E4 Q 1040 IC LM2904PWR G1094010 1- A F4 Q 1041 IC UPC4572G2-E2 G1092042 1- A E6 Q 1043 FET 3SK151GR TE85R G4801517G 1- A H6 Q 1044 TRANSISTOR 2SC2812NL6-TB G3328128F 1- A I7 Q 1045 TRANSISTOR PDTC144EE G3070244 1- A H6 Q 1046 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- A H6 Q 1047 TRANSISTOR PDTC144EE G3070244 1- A H6 Q 1048 TRANSISTOR 2SA1365-T12-2G G3113657G 1- A H6 Q 1049 FET 3SK151GR TE85R G4801517G 1- A G7 Q 1050 FET 3SK151GR TE85R G4801517G 1- A G6 Q 1052 IC RF2713(TAPE) G1093831 1- A F6 Q 1053 TRANSISTOR PDTC144EE G3070244 1- A C2 Q 1054 IC RF2713(TAPE) G1093831 1- A F7 Q 1055 IC TDA2003H G1090815 1- A A6 Q 1056 IC ADF4001BRU G1093977 1- A F5 Q 1059 IC TC7S04FU TE85R G1091530 1- A E5 Q 1060 IC AD9833BRM(TAPE) G1093580 1- A E5 Q 1062 IC TC7S04FU TE85R G1091530 1- A D5 Q 1063 TRANSISTOR 2SC2714YTE85R G3327147Y 1- A E5

Please contact VERTEX STANDARD



1- A B3

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

Q 1064 TRANSISTOR 2SC2714YTE85R G3327147Y 1- A F5 Q 1065 TRANSISTOR PDTC144EE G3070244 1- A G5 Q 1066 FET 2SK302Y TE85R G3803027Y 1- A G5 Q 1068 TRANSISTOR PDTC144EE G3070244 1- A G5 Q 1069 TRANSISTOR PDTC144EE G3070244 1- A G5 Q 1070 TRANSISTOR 2SC2714YTE85R G3327147Y 1- A D6 Q 1071 IC AK4528VF E2 G1093829 1- A D6 Q 1072 FET 2SK210GR TE85R G3802107G 1- A G4 Q 1073 FET 2SK210GR TE85R G3802107G 1- A F4 Q 1074 TRANSISTOR 2SC2714YTE85R G3327147Y 1- A G5 Q 1075 TRANSISTOR 2SC2714YTE85R G3327147Y 1- A E6 Q 1076 TRANSISTOR 2SD2211 T100 QR G3422117Q 1- A J3 Q 1078 IC LM2904PWR G1094010 1- A B3 Q 1079 IC BU4052BCF-E2 G1093661 1- A D2 Q 1080 IC TC7ST08FU TE85R G1092221 1- A B4 Q 1081 IC AK4550VT G1094072 1- A D6 Q 1082 TRANSISTOR PDTC144EE G3070244 1- A E2 Q 1083 TRANSISTOR PDTC144EE G3070244 1- A E2 Q 1084 TRANSISTOR PDTC144EE G3070244 1- A E2 Q 1088 IC TC74HC4040AF TP2 G1091457 1- A C6 Q 1089 IC TC7W04FU TE12R G1091539 1- A C6 Q 1090 POLY SWITCH RUE250 G9090135 1- A J5 Q 1091 FET 2SJ125D-T12-1D G3701257D 1- A J2 Q 1092 FET 2SJ125D-T12-1D G3701257D 1- A B7 R 1001 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A G2 R 1002 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- A G2 R 1003 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A G2 R 1004 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2 R 1005 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2 R 1006 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G2 R 1007 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C3 R 1008 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C7 R 1009 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2 R 1010 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C4 R 1011 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A H1 R 1012 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A H1 R 1013 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H2 R 1014 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H2 R 1015 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- A G1 R 1016 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- A H2 R 1017 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H2 R 1018 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- A H1 R 1019 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A H2 R 1020 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- A A4 R 1021 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- A A4 R 1022 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A H2 R 1023 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H2 R 1024 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A B3 R 1025 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A B3 R 1026 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A A4 R 1027 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A A4 R 1028 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A I1 R 1029 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A J1 R 1030 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2 R 1031 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3 R 1032 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C3 R 1033 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- A I2 R 1034 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A I2 R 1035 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A I2

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

R 1036 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1037 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1038 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1039 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1040 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1041 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1042 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1043 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1044 CHIP RES. 68 1/4W 5% RMC1/4 680JATP J24245680 1- A F2 R 1045 CHIP RES. 68 1/4W 5% RMC1/4 680JATP J24245680 1- A F2 R 1046 CHIP RES. 68 1/4W 5% RMC1/4 680JATP J24245680 1- A G2 R 1047 CHIP RES. 68 1/4W 5% RMC1/4 680JATP J24245680 1- A G2 R 1048 CHIP RES. 68 1/4W 5% RMC1/4 680JATP J24245680 1- A H2 R 1049 CHIP RES. 68 1/4W 5% RMC1/4 680JATP J24245680 1- A H2 R 1050 CHIP RES. 68 1/4W 5% RMC1/4 680JATP J24245680 1- A I2 R 1051 CHIP RES. 68 1/4W 5% RMC1/4 680JATP J24245680 1- A I2 R 1052 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C3 R 1053 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2 R 1054 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A F2 R 1055 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- A F2 R 1056 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C3 R 1057 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C3 R 1059 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B3 R 1060 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1061 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B3 R 1062 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1063 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1064 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B3 R 1065 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1066 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B3 R 1067 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A I4 R 1068 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A I4 R 1069 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A I4 R 1070 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1071 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B3 R 1072 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C2 R 1073 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A I4 R 1074 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A I4 R 1075 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A H4 R 1076 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A H4 R 1077 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H4 R 1078 CHIP RES. 22 1/16W 5% RMC1/16 220JATP J24185220 1- A H4 R 1079 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B4 R 1080 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B3 R 1081 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1082 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A H4 R 1083 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B3 R 1084 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A I4 R 1085 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A H4 R 1086 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A I1 R 1087 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A H4 R 1088 CHIP RES. 270 1/4W 5% RMC1/4 271JATP J24245271 1- A H4 R 1089 CHIP RES. 2.2M 1/16W 5% RMC1/16 225JATP J24185225 1- A I4 R 1090 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1091 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H4 R 1092 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B3 R 1093 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A H4 R 1094 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- A I4 R 1095 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A I2

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

R 1096 CHIP RES. 56 1/16W 5% RMC1/16 560JATP J24185560 1- A I6 R 1097 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 1- A H4 R 1098 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A H4 R 1099 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A I5 R 1100 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A I6 R 1101 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- A H4 R 1102 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A H4 R 1103 CHIP RES. 56 1/16W 5% RMC1/16 560JATP J24185560 1- A H5 R 1104 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- A J6 R 1105 CHIP RES. 82 1/16W 5% RMC1/16 820JATP J24185820 1- A I6 R 1106 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 1- A J6 R 1107 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1108 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A J6 R 1109 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A A3 R 1110 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A A2 R 1111 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C4 R 1112 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B5 R 1113 CHIP RES. 56 1/16W 5% RMC1/16 560JATP J24185560 1- A H5 R 1114 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A I5 R 1115 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A I6 R 1116 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- A J6 R 1117 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A J6 R 1118 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1119 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A B2 R 1120 CHIP RES. 5.6k 1/16W 5% RMC1/16 562JATP J24185562 1- A J6 R 1121 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A J6 R 1122 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A I6 R 1123 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A I5 R 1124 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C5 R 1125 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C5 R 1126 CHIP RES. 120 1/16W 5% RMC1/16 121JATP J24185121 1- A I6 R 1127 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C4 R 1128 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A I7 R 1129 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C4 R 1130 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F4 R 1131 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F4 R 1132 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F3 R 1133 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F3 R 1134 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C4 R 1135 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A H7 R 1136 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C4 R 1137 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F4 R 1138 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F3 R 1139 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B5 R 1140 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A F3 R 1141 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A F4 R 1142 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A I7 R 1144 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A I6 R 1145 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B4 R 1146 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A I6 R 1147 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A H7 R 1148 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C4 R 1149 CHIP RES. 82 1/16W 5% RMC1/16 820JATP J24185820 1- A H6 R 1150 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- A H6 R 1151 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A H7 R 1152 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- A I6 R 1153 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C4 R 1154 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A I7 R 1155 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A H6

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

R 1156 CHIP RES. 1.2k 1/16W 5% RMC1/16 122JATP J24185122 1- A H6 R 1157 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A I7 R 1158 CHIP RES. 1.5M 1/16W 5% RMC1/16 155JATP J24185155 1- A I7 R 1158 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 3- A I7 R 1159 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A B4 R 1160 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C4 R 1161 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C4 R 1162 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C4 R 1163 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C4 R 1164 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C4 R 1165 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A C4 R 1166 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A F1 R 1167 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A I7 R 1168 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C5 R 1169 CHIP RES. 3.3M 1/16W 5% RMC1/16 335JATP J24185335 1- A C4 R 1170 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A I7 R 1171 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A H6 R 1172 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H6 R 1173 CHIP RES. 6.8 1/16W 5% RMC1/16 6R8JATP J24185689 1- A H7 R 1174 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A G7 R 1175 CHIP RES. 6.8 1/16W 5% RMC1/16 6R8JATP J24185689 1- A G7 R 1176 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A G7 R 1177 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G7 R 1178 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H6 R 1179 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G6 R 1180 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A H6 R 1181 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A H5 R 1182 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A H5 R 1183 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A G6 R 1184 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G6 R 1185 CHIP RES. 22 1/16W 5% RMC1/16 220JATP J24185220 1- A G7 R 1187 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G7 R 1188 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- A G7 R 1189 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A G6 R 1190 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A G6 R 1191 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A H5 R 1192 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A H5 R 1193 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G7 R 1194 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A G7 R 1196 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G6 R 1198 CHIP RES. 220 1/10W 5% RMC1/10T 221J J24205221 1- A A7 R 1199 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2 R 1200 CHIP RES. 4.7 1/10W 5% RMC1/10T 4R7J J24205479 1- A A7 R 1201 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G7 R 1202 CHIP RES. 56 1/16W 5% RMC1/16 560JATP J24185560 1- A F6 R 1203 CHIP RES. 220 1/4W 5% RMC1/4 221JATP J24245221 1- A A7 R 1204 CHIP RES. 4.7 1/10W 5% RMC1/10T 4R7J J24205479 1- A A7 R 1205 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A F7 R 1206 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A F7 R 1207 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A F5 R 1208 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A E6 R 1209 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A E6 R 1210 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2 R 1211 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E1 R 1213 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A F6 R 1214 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A F6 R 1215 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F5 R 1216 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A D5 R 1217 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A F5

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

R 1218 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A F5 R 1220 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A F5 R 1221 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A F5 R 1222 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A F5 R 1223 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A E5 R 1224 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A E5 R 1225 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A E5 R 1226 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A F6 R 1226 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 3- A F6 R 1227 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A F6 R 1227 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 3- A F6 R 1229 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E1 R 1230 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2 R 1231 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A E5 R 1232 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A D7 R 1233 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F5 R 1234 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A C7 R 1236 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E5 R 1237 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A E7 R 1239 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E5 R 1240 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E5 R 1243 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A E7 R 1244 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G5 R 1245 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A F5 R 1246 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G5 R 1247 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F5 R 1248 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A D5 R 1252 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- A E7 R 1253 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A C7 R 1254 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A D7 R 1255 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E7 R 1256 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F7 R 1259 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2 R 1260 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2 R 1261 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G5 R 1262 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 1- A G5 R 1263 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2 R 1264 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2 R 1265 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C7 R 1266 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D7 R 1267 CHIP RES. 180 1/16W 5% RMC1/16 181JATP J24185181 1- A F7 R 1268 CHIP RES. 180 1/16W 5% RMC1/16 181JATP J24185181 1- A F7 R 1269 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G5 R 1270 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G4 R 1272 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A G5 R 1273 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A G5 R 1274 CHIP RES. 180 1/16W 5% RMC1/16 181JATP J24185181 1- A F7 R 1275 CHIP RES. 180 1/16W 5% RMC1/16 181JATP J24185181 1- A F7 R 1279 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E7 R 1280 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F7 R 1281 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F7 R 1282 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E7 R 1283 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F7 R 1284 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F7 R 1285 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F6 R 1286 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F6 R 1287 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- A C7 R 1288 CHIP RES. 5.6k 1/16W 5% RMC1/16 562JATP J24185562 1- A D7 R 1289 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A G5

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

R 1290 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D6 R 1291 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D5 R 1292 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A D6 R 1293 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A G5 R 1294 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D7 R 1295 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D7 R 1296 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D5 R 1297 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A G4 R 1298 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A F5 R 1299 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E6 R 1300 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E6 R 1301 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D7 R 1302 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D7 R 1303 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A E6 R 1304 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A F6 R 1305 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A E7 R 1306 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A F6 R 1307 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A G5 R 1308 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A E6 R 1309 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G4 R 1310 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F4 R 1311 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A E7 R 1312 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A E7 R 1313 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A G5 R 1314 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G5 R 1315 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E7 R 1316 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D6 R 1317 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E5 R 1318 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A E6 R 1319 CHIP RES. 22 1/16W 5% RMC1/16 220JATP J24185220 1- A E6 R 1320 CHIP RES. 470 1/4W 5% RMC1/4 471JATP J24245471 1- A I3 R 1321 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A J3 R 1322 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A J3 R 1323 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A H5 R 1324 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A F5 R 1325 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A J2 R 1326 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A J2 R 1327 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A J2 R 1328 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A J2 R 1329 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A J2 R 1330 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A J3 R 1331 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A J3 R 1333 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A J4 R 1334 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A J4 R 1335 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A J4 R 1336 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A J4 R 1337 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A J4 R 1338 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A J4 R 1339 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A J4 R 1340 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A A3 R 1341 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A3 R 1342 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A A3 R 1343 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A A2 R 1344 CHIP RES. 1 1 W 5% RMC1 1R0JTE J24305010 1- A B6 R 1346 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A J4 R 1347 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2 R 1352 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2 R 1353 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A B2 R 1354 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E3

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

R 1355 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E3 R 1356 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E3 R 1357 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E3 R 1358 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E4 R 1359 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E4 R 1360 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A H4 R 1361 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C3 R 1361 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 3- A C3 R 1362 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B2 R 1364 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A C7 R 1365 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D7 R 1366 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E1 R 1367 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F7 R 1368 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F7 R 1369 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A I1 R 1370 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A I1 R 1371 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A G1 R 1372 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A H1 R 1373 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G1 R 1374 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G1 R 1375 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D7 R 1376 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A H1 R 1377 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A I3 R 1378 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A I2 R 1379 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A B7 R 1379 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 3- A B7 R 1380 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A B7 R 1381 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A B7 R 1382 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- A B6 R 1383 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- A E7 R 1384 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A E7 R 1385 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A E7 R 1386 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A D7 R 1387 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A D7 R 1388 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- A A2 R 1389 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A G7 R 1390 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A G7 R 1391 CARBON FILM RES. 100k 1/6W 5% RD16PJ104 100K J01225104 1R 1392 CARBON FILM RES. 100k 1/6W 5% RD16PJ104 100K J01225104 1R 1393 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1R 1998 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1-3 R 1999 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1-3 S 1001 DIP SWITCH SSGM140100 N7090148 1- A B2 T 1001 COIL WIDE-TRANS. 040812480 L0022904 1- A G1 T 1002 COIL WIDE-TRANS. 040812480 L0022904 1- A H1 T 1003 COIL WIDE-TRANS. 040812480 L0022904 1- A I1 T 1004 COIL WIDE-TRANS. 040812480 L0022904 1- A I5 T 1005 COIL WIDE-TRANS. EKMA07PB07 L0021123 1- A I5 T 1006 COIL WIDE-TRANS. 040812479 L0022905 1- A I6 T 1007 COIL WIDE-TRANS. 040812479 L0022905 1- A I6 T 1008 COIL 07RF 47MHz 47.0M L0021546 1- A I7 T 1009 COIL 07RF 47MHz 47.0M L0021536 1- A H7 T 1010 COIL 07RF 47MHz 47.0M L0021537 1- A H6 T 1011 COIL 07RF 47MHz 47.0M L0021546 1- A G7 T 1012 COIL 07RF 47MHz 47.0M L0021546 1- A G6 T 1013 COIL 07RF 90MHz 90.0M R12-S602A L0020803 1- A D5 TH1001 THERMISTOR 157-152-53009-TP G9090123 1- A G6 X 1002 XTAL OSC 36.864MHz TPS11XC 36.864MHZ H9500770 1- A C5 X 1003 TCXO 22.625MHz TTS01NS-P1 22.625MHZ H9500840 1- A D5

LAY ADR

MAIN Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

X 1004 XTAL TSS-6035B 19.82MHz 19.820MHZ H0103262 1- A C3 XF1001 XTAL FILTER MFT45N 45.275MHZ H1102390 1- A H6

SHIELD CASE R0128100 1-

SHIELD CASE COVER R0128110 1-

SHIELD CASE R0131630 1-

LAY ADR

MAIN Unit

Note

PA Unit

Circuit Diagram

PA Unit

Note

PA Unit

Parts Layout (Side A)

BA DCEFHGIJ

SD1405

(Q2012, 2013)

KIA7808API

(Q2003)

2SC3420GR

(Q2007)

2SB1143S

(Q2002)

LM2904PWR

(Q2015)

RD06HHF1

(Q2001)

RD16HHF1

(Q2008, 2009)

DTC114TK (04)

(Q2006)

DTC323TK (H02)

(Q2011)

DAN202K (N)

(D2004)

DTC124GUA (K25)

(Q2004, 2010)

TA75S01F (SA)

(Q2005, 2014)

PA Unit

Parts Layout (Side B)

PA Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

PCB with Components CS1842001

Printed Circuit Board AC051H000 FR011850D 1C 2001 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A I8 C 2002 CHIP CAP. 470pF 50V B GRM188B11H471KA01D K22174805 1- A I8 C 2003 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A I7 C 2004 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A H7 C 2005 AL.ELECTRO.CAP. 10uF 50V RE2-50V100MMA-T2 K46170021 1- A H7 C 2006 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A H7 C 2008 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A I1 C 2009 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A H7 C 2010 AL.ELECTRO.CAP. 1uF 50V RE2-50V010MMA-T2 K46170017 1- A G8 C 2011 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A H7 C 2012 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A G7 C 2013 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D8 C 2015 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A H6 C 2017 AL.ELECTRO.CAP. 1uF 50V RE2-50V010MMA-T2 K46170017 1- A G8 C 2018 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A G6 C 2019 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A G6 C 2021 AL.ELECTRO.CAP. 10uF 50V RE2-50V100MMA-T2 K46170021 1- A I6 C 2025 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F7 C 2027 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A G8 C 2029 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A G6 C 2030 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A H5 C 2031 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A J4 C 2034 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A I5 C 2036 CHIP CAP. 150pF 200V CH GRM21B2C2D151JV01L K22230230 1- A G6 C 2037 AL.ELECTRO.CAP. 10uF 50V RE2-50V100MMA-T2 K46170021 1- A I3 C 2040 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F6 C 2042 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A G6 C 2044 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E8 C 2047 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A I4 C 2048 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A H8 C 2049 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E8 C 2050 AL.ELECTRO.CAP. 10uF 50V RE2-50V100MMA-T2 K46170021 1- A I5 C 2051 CHIP CAP. 0.1uF 250V X7R GRM32DR72E104KW01L K22245801 1- A G5 C 2052 CHIP CAP. 0.1uF 250V X7R GRM32DR72E104KW01L K22245801 1- A H4 C 2053 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E6 C 2054 AL.ELECTRO.CAP. 1000uF 16V RE3-16V102MH3 1000UF K40129096 1- A I2 C 2055 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A H2 C 2057 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A H8 C 2058 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1 A H1 C 2060 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A H2 C 2062 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A I2 C 2064 CHIP CAP. 0.1uF 250V X7R GRM32DR72E104KW01L K22245801 1- A F3 C 2065 CHIP CAP. 0.1uF 250V X7R GRM32DR72E104KW01L K22245801 1- A H3 C 2066 FILM CAP. 330pF 500V UC342H3300J-T K33279014 1- A F3 C 2067 FILM CAP. 330pF 500V UC342H3300J-T K33279014 1- A G3 C 2068 AL.ELECTRO.CAP. 1uF 50V RE2-50V010MMA-T2 K46170017 1- A H8 C 2070 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A H1 C 2071 CHIP CAP. 0.1uF 50V B GRM42-6B104K50PT K22171820 1- A H1 C 2072 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A H8 C 2073 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A G1 C 2074 AL.ELECTRO.CAP. 10uF 50V RE2-50V100MMA-T2 K46170021 1- A F1 C 2076 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A E7 C 2077 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A D5 C 2078 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A E5 C 2079 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A D4 C 2080 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A D3 C 2081 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A D2

LAY ADR

PA Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

C 2082 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A D1 C 2084 CHIP CAP. 0.001uF 500V CH CF43CH102J500AT K22277222 1- A D7 C 2085 CHIP CAP. 820pF 500V CH CF43CH821J500AT K22277220 1- A E6 C 2086 CHIP CAP. 470pF 500V CH CF43CH471J500AT K22277214 1- A D5 C 2087 CHIP CAP. 220pF 500V CH CF43CH221J500AT K22277206 1- A E4 C 2088 CHIP CAP. 100pF 200V CH GRM21B2C2D101JV01L K22230228 1- A D3 C 2089 CHIP CAP. 68pF 200V CH GRM21B2C2D680JV01L K22230226 1- A D3 C 2090 CHIP CAP. 56pF 200V CH GRM2192C2D560JV01D K22230225 1- A D2 C 2091 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A C1 C 2092 CHIP CAP. 560pF 500V CH CF43CH561J500AT K22277216 1- A D7 C 2098 CHIP CAP. 10pF 200V CH GRM2192C2D100JV01D K22230216 1- A D2 C 2099 CHIP CAP. 220pF 500V CH CF43CH221J500AT K22277206 1- A D8 C 2101 CHIP CAP. 220pF 200V CH GRM21B2C2D221JY21L K22230232 1- A D5 C 2102 CHIP CAP. 33pF 200V CH GRM2192C2D330JV01D K22230222 1- A D5 C 2103 CHIP CAP. 39pF 200V CH GRM2192C2D390JV01D K22230223 1- A D6 C 2105 CHIP CAP. 100pF 200V CH GRM21B2C2D101JV01L K22230228 1- A D4 C 2107 CHIP CAP. 22pF 200V CH GRM2192C2D220JV01D K22230220 1- A D4 C 2109 CHIP CAP. 27pF 200V CH GRM2192C2D270JV01D K22230221 1- A D2 C 2110 CHIP CAP. 10pF 200V CH GRM2192C2D100JV01D K22230216 1- A D2 C 2111 CHIP CAP. 27pF 200V CH GRM2192C2D270JV01D K22230221 1- A D3 C 2113 CHIP CAP. 0.001uF 500V CH CF43CH102J500AT K22277222 1- A C7 C 2114 CHIP CAP. 560pF 500V CH CF43CH561J500AT K22277216 1- A D6 C 2115 CHIP CAP. 680pF 500V CH CF43CH681J500AT K22277218 1- A C5 C 2116 CHIP CAP. 470pF 500V CH CF43CH471J500AT K22277214 1- A D4 C 2117 CHIP CAP. 270pF 500V CH CF43CH271J500AT K22277208 1- A C3 C 2118 FILM CAP. 150pF 500V UC342H1500J-T K33279012 1- A D3 C 2119 FILM CAP. 100pF 500V UC342H1000J-T K33279031 1- A C2 C 2120 CHIP CAP. 820pF 500V CH CF43CH821J500AT K22277220 1- A C7 C 2124 FILM CAP. 33pF 500V UC232H0330J-T K33279024 1- A C3 C 2125 FILM CAP. 82pF 500V UC232H0820J-T K33279033 1- A C3 C 2126 FILM CAP. 39pF 500V UC232H0390J-T K33279038 1- A C2 C 2137 CHIP CAP. 82pF 200V CH GRM21B2C2D820JV01L K22230227 1- A C2 C 2138 CHIP CAP. 10pF 200V CH GRM2192C2D100JV01D K22230216 1- A C2 C 2141 CHIP CAP. 10pF 200V CH GRM2192C2D100JV01D K22230216 1- A B1 C 2142 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A B1 C 2144 FILM CAP. 100pF 500V UC342H1000J-T K33279031 1- A B7 C 2145 CHIP CAP. 470pF 500V CH CF43CH471J500AT K22277214 1- A C6 C 2151 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1 A I1 C 2158 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A B1 C 2159 CHIP CAP. 560pF 500V CH CF43CH561J500AT K22277216 1- A B8 C 2162 CHIP CAP. 68pF 200V CH GRM21B2C2D680JV01L K22230226 1- A B5 C 2164 CHIP CAP. 100pF 200V CH GRM21B2C2D101JV01L K22230228 1- A B6 C 2166 CHIP CAP. 27pF 200V CH GRM2192C2D270JV01D K22230221 1- A B4 C 2168 CHIP CAP. 39pF 200V CH GRM2192C2D390JV01D K22230223 1- A B4 C 2171 CHIP CAP. 47pF 200V CH GRM2192C2D470JV01D K22230224 1- A B3 C 2172 CHIP CAP. 10pF 200V CH GRM2192C2D100JV01D K22230216 1- A B3 C 2173 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A B2 C 2174 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A B1 C 2175 CHIP CAP. 680pF 500V CH CF43CH681J500AT K22277218 1- A A7 C 2176 CHIP CAP. 680pF 500V CH CF43CH681J500AT K22277218 1- A A6 C 2177 CHIP CAP. 330pF 500V CH CF43CH331J500AT K22277210 1- A A5 C 2178 CHIP CAP. 220pF 200V CH GRM21B2C2D221JY21L K22230232 1- A A4 C 2179 CHIP CAP. 150pF 200V CH GRM21B2C2D151JV01L K22230230 1- A A4 C 2180 CHIP CAP. 27pF 200V CH GRM2192C2D270JV01D K22230221 1- A A3 C 2181 CHIP CAP. 22pF 200V CH GRM2192C2D220JV01D K22230220 1- A A2 C 2182 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A B2 C 2183 CHIP CAP. 100pF 200V CH GRM21B2C2D101JV01L K22230228 1- A A7 C 2186 CHIP CAP. 47pF 200V CH GRM2192C2D470JV01D K22230224 1- A A4 C 2188 CHIP CAP. 22pF 200V CH GRM2192C2D220JV01D K22230220 1- A A3

LAY ADR

PA Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

C 2190 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A A7 C 2191 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A A6 C 2192 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A A5 C 2193 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A A5 C 2194 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A A4 C 2195 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A A3 C 2196 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A A2 C 2198 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1 A I1 C 2199 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A E7 C 2201 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D8 C 2203 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1C 2204 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1C 2205 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1C 2301 CHIP CAP. 680pF 500V CH CF43CH681J500AT K22277218 1C 2302 FILM CAP. 820pF 500V UC552H8200J-T K33279016 1C 2303 FILM CAP. 470pF 500V UC342H4700J-T K33279015 1C 2303 FILM CAP. 470pF 500V UC342H4700J-T K33279015 4D 2001 DIODE BAS316 G2070716 1- A G7 D 2002 DIODE UDZS TE-17 16B G2070914 1- A F6 D 2003 DIODE 10EDB10 G2090781 1- A I4 D 2004 DIODE DAN202K T146 G2070182 1- A G8 D 2005 DIODE 10EDB10 G2090781 1- A H3 D 2006 DIODE BAS316 G2070716 1- A H2 D 2007 DIODE BAS316 G2070716 1- A H2 D 2015 SURGE ABSORBER RHCA-301Q43U Q9000827 1- A C1 D 2016 DIODE BAS316 G2070716 1- A C1 D 2017 DIODE MA729-(TX) G2070320 1- A B1 D 2018 DIODE MA729-(TX) G2070320 1- A B2 D 2026 DIODE RB060L-40 TE25 G2070744 1- A F7 D 2027 DIODE UDZS TE-17 6.8B G2070888 1- A F7 J 2001 CONNECTOR TMP-J01X-A2 P1090255 1- A I8 J 2002 CONNECTOR 30FLT-SM1-TB P1091142 1- A D8 J 2003 CONNECTOR IMSA-9202B-1-02-T P0091174 1- A H7 J 2004 CONNECTOR IMSA-9202B-1-02-T P0091174 1- A J3 J 2005 CONNECTOR B2B-ZR-SM3-TFT P0091342 1- A C8 J 2006 CONNECTOR TMP-J01X-A2 P1090255 1- A C1 L 2001 CHIP COIL 1.5uH C2520C-1R5K L1690729 1- A I7 L 2002 CHIP COIL 0.56uH C2520C-R56J L1690553 1- A H8 L 2003 M.RFC 33uH LAL03TA330K L1790101 1- A I7 L 2004 M.RFC 2.2uH LAL04NA2R2M L1190319 1- A H7 L 2005 RFC WITH BEADS FB-43-5111 L1020015 1- A I4 L 2006 TOROIDAL COIL 41uH 41.00U 3A FR9.5°5 L0021432 1- A H5 L 2007 TOROIDAL COIL 3.67uH 3.67U T68-2 L0022907 1- A D7 L 2008 TOROIDAL COIL 2.24uH 2.24U T68-2 L0022860 1- A D6 L 2009 TOROIDAL COIL 1.89uH 1.89U T68-2 L0022861 1- A D5 L 2010 TOROIDAL COIL 0.96uH 0.96U T68-6 L0022913 1- A D4 L 2011 TOROIDAL COIL 0.84uH 0.84U T68-6 L0022912 1- A D4 L 2012 TOROIDAL COIL 0.43uH 0.43U T68-6 L0022910 1- A D3 L 2013 TOROIDAL COIL 0.27uH 0.27U T68-6 L0022909 1- A D2 L 2019 TOROIDAL COIL 0.27uH 0.27U T68-6 L0022909 1- A C3 L 2021 M.RFC 470uH FLC32T-471J L1690235 1- A B1 L 2022 TOROIDAL COIL 2.69uH 2.69U T68-2 L0022859 1- A B7 L 2023 TOROIDAL COIL 2.5uH 2.50U T68-2 L0022908 1- A B6 L 2024 TOROIDAL COIL 1.56uH 1.56U T68-6 L0022915 1- A B5 L 2025 TOROIDAL COIL 1.1uH 1.10U T68-6 L0022914 1- A B4 L 2026 TOROIDAL COIL 0.72uH 0.72U T68-6 L0022911 1- A B4 L 2028 COIL A1 uH 4.5T10.0D1.2UEW-R L0022916 1- A B2 L 2029 M.RFC 470uH FLC32T-471J L1690235 1- A B2 P 2001 CONNECTOR IMSA-9206H-T P1090988 1-

LAY ADR

PA Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

P 2002 WIRE ASSY AC051H T9207202A 1P 2003 CONNECTOR IMSA-9206H-T P1090988 1P 2004 TERMINAL B3 Q6000113 2Q 2001 FET RD06HHF1-01 G3090145 1- A I7 Q 2002 TRANSISTOR 2SB1143S G3211430S 1- A G7 Q 2003 IC KIA7808API G1093164 1- A F7 Q 2004 TRANSISTOR DTC124GUA T106 G3070184 1- A G7 Q 2005 IC TA75S01F TE85R G1091593 1- A G8 Q 2006 TRANSISTOR DTC114TK T146 G3070073 1- A F6 Q 2007 TRANSISTOR 2SC3420GR G3334200G 1- A I4 Q 2008 FET RD16HHF1 G3090148 1- A F5 Q 2009 FET RD16HHF1 G3090148 1- A I6 Q 2010 TRANSISTOR DTC124GUA T106 G3070184 1- A F6 Q 2011 TRANSISTOR DTC323TK T146 G3070042 1- A H8 Q 2012 TRANSISTOR SD1405 G3090139 1- A F4 Q 2013 TRANSISTOR SD1405 G3090139 1- A G4 Q 2014 IC TA75S01F TE85R G1091593 1 A I1 Q 2015 IC LM2904PWR G1094010 1- A E7 R 2001 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- A I7 R 2001 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 3- A I7 R 2002 CHIP RES. 150 1/4W 5% RMC1/4 151JATP J24245151 1- A I8 R 2003 CHIP RES. 150 1/4W 5% RMC1/4 151JATP J24245151 1- A I7 R 2004 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- A H7 R 2005 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G7 R 2006 CHIP RES. 1k 1/4W 5% RMC1/4 102JATP J24245102 1- A G8 R 2007 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- A G8 R 2009 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G8 R 2010 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F8 R 2011 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- A G8 R 2012 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- A G8 R 2013 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A H6 R 2014 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G8 R 2015 CHIP RES. 470 1/4W 5% RMC1/4 471JATP J24245471 1- A G6 R 2016 CHIP RES. 100 1/2W 5% RK73B2HTTE101J J24279017 1- A G6 R 2017 CHIP RES. 100 1/2W 5% RK73B2HTTE101J J24279017 1- A H6 R 2018 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G8 R 2019 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G6 R 2020 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G6 R 2021 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1 A I6 R 2021 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 2- A I6 R 2022 METAL FILM RES. 8.2 2W 5% ERX-2SJ8R2P 8.2 J22339020 1- A I6 R 2023 METAL FILM RES. 8.2 2W 5% ERX-2SJ8R2P 8.2 J22339020 1- A J6 R 2024 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A G8 R 2025 METAL FILM RES. 470 3W 5% ERG-3SJ471P 470 J22359019 1- A F6 R 2026 CHIP RES. 1k 1/4W 5% RMC1/4 102JATP J24245102 1- A G6 R 2027 CHIP RES. 1k 1/4W 5% RMC1/4 102JATP J24245102 1- A H6 R 2028 METAL FILM RES. 470 3W 5% ERG-3SJ471P 470 J22359019 1- A I5 R 2029 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F6 R 2030 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A G8 R 2031 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F6 R 2032 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A G8 R 2033 CHIP RES. 1 1 W 5% RMC1 1R0JTE J24305010 1- A G4 R 2034 CHIP RES. 1 1 W 5% RMC1 1R0JTE J24305010 1- A G4 R 2035 CHIP RES. 1 1 W 5% RMC1 1R0JTE J24305010 1- A H4 R 2036 CHIP RES. 1 1 W 5% RMC1 1R0JTE J24305010 1- A H4 R 2037 CHIP RES. 10 1/2W 5% RK73B2HTTE100J J24279005 1- A G4 R 2038 CHIP RES. 10 1/2W 5% RK73B2HTTE100J J24279005 1- A H4 R 2039 METAL FILM RES. 100 3W 5% ERG-3SJ101P 100 J22359023 1- A G5 R 2040 METAL FILM RES. 100 3W 5% ERG-3SJ101P 100 J22359023 1- A H3

LAY ADR

PA Unit

Parts List

DESCRIPTION VALUE V/W VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

R 2041 METAL FILM RES. 100 3W 5% ERG-3SJ101P 100 J22359023 1- A G5 R 2042 METAL FILM RES. 100 3W 5% ERG-3SJ101P 100 J22359023 1- A I5 R 2043 METAL FILM RES. 15 2W 5% ERG-2SJ150P 15 J22339023 1- A H7 R 2044 CHIP RES. 56 1W 5% RMC1 560JTE J24305560 1- A G8 R 2045 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C1 R 2046 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A B1 R 2047 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E7 R 2048 CHIP RES. 56 1/2W 5% RMC1/2 560JTE J24275560 1- A B1 R 2049 CHIP RES. 56 1/2W 5% RMC1/2 560JTE J24275560 1- A B1 R 2050 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E7 R 2051 CHIP RES. 56 1/2W 5% RMC1/2 560JTE J24275560 1- A B1 R 2052 CHIP RES. 56 1/2W 5% RMC1/2 560JTE J24275560 1- A B1 R 2053 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B1 R 2054 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A I8 R 2057 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1-3 A I1 R 2058 CHIP RES. 1m 1W TLR3ADTE1L0J J24309042 1 A H1 R 2059 CHIP RES. 180k 1/10W 0.5% RR1220R-184-D-T5 J24209225 1 A I1 R 2060 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1 A I1 R 2061 CHIP RES. 1.5k 1/10W 0.1% RR1220P-152-B J24209078 1 A H1 R 2062 CHIP RES. 1.5k 1/10W 0.1% RR1220P-152-B J24209078 1 A H1 R 2063 CHIP RES. 180k 1/10W 0.5% RR1220R-184-D-T5 J24209225 1 A H1 R 2064 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1 A H1 R 2065 CHIP RES. 10k 1/10W 0.1% RR1220P-103-B J24209098 1 A H1 R 2066 CHIP RES. 1.5k 1/10W 0.1% RR1220P-152-B J24209078 1 A I1 R 2067 CHIP RES. 10k 1/10W 0.1% RR1220P-103-B J24209098 1 A I1 R 2068 CHIP RES. 1.5k 1/10W 0.1% RR1220P-152-B J24209078 1 A I1 R 2070 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 1- A C7 R 2071 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 1- A C6 R 2072 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 1- A C5 R 2073 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 1- A C4 R 2074 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 1- A C4 R 2075 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 1- A B3 R 2076 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 1- A C2 R 2077 CHIP RES. 560 1/10W 5% RMC1/10T 561J J24205561 1- A F7 RL2001 RELAY DC12V ACP331 DC12V M1190175 1- A H1 RL2002 RELAY DC12V G5V-1 DC12V M1190120 1- A D6 RL2003 RELAY DC12V G5V-1 DC12V M1190120 1- A E5 RL2004 RELAY DC12V G5V-1 DC12V M1190120 1- A D5 RL2005 RELAY DC12V G5V-1 DC12V M1190120 1- A E4 RL2006 RELAY DC12V G5V-1 DC12V M1190120 1- A E3 RL2007 RELAY DC12V G5V-1 DC12V M1190120 1- A E2 RL2008 RELAY DC12V G5V-1 DC12V M1190120 1- A E1 RL2009 RELAY DC12V AG231344 DC12V M1190145 1- A C1 RL2010 RELAY DC12V G5V-1 DC12V M1190120 1- A A7 RL2011 RELAY DC12V G5V-1 DC12V M1190120 1- A A6 RL2012 RELAY DC12V G5V-1 DC12V M1190120 1- A A5 RL2013 RELAY DC12V G5V-1 DC12V M1190120 1- A A5 RL2014 RELAY DC12V G5V-1 DC12V M1190120 1- A A4 RL2015 RELAY DC12V G5V-1 DC12V M1190120 1- A A3 RL2016 RELAY DC12V G5V-1 DC12V M1190120 1- A A2 T 2001 COIL 10WIDE #223153 L0022857 1- A H6 T 2002 COIL PWR-WIDE D12A RIB10 L0022249A 1- A G5 T 2003 TOROIDAL COIL D12A RI16X8X8(H007) L0022745 1- A I3 T 2004 COIL PWR-WIDE #223152 L0022856 1- A G1 T 2005 COIL WIDE-TRANS. #223093 L0022792 1- A A1 TC2001 TRIMMER CAP. 20pF ECR-JA020E11X K91000228 1- A A2 TH2001 THERMISTOR 112103-2 G9090043 1- A F3 TP2020 TERMINAL TP-H MK-10160 Q5000037 1- A H1 TP2021 TERMINAL TP-H MK-10160 Q5000037 1- A H1

LAY ADR

PA Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

VR2001 POT. 1k EVN-5ESX50B13 J51811102 1- A I8 VR2001 POT. 2.2k EVN-5ESX50BE3 J51811222 3- A I8 VR2002 POT. 1k EVN-5ESX50B13 J51811102 1- A I6 VR2003 POT. 470 EVN-5ESX50BQ2 J51811471 1- A J6

LAY ADR

PANEL Unit

Circuit Diagram

PANEL Unit

Note

PANEL Unit

Parts Layout (Side A)

BACDFEG

H I

PANEL Unit

Parts Layout (Side B)

bacdfe

h i

2SC4154 (E)

(Q3005)

CPH6102 (AB)

(Q3005)

DTC143ZE (E23)

(Q3006)

LC75884W

(Q3001)

PANEL Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

PCB with Components CB2833001

Printed Circuit Board AC051H000 FR0118600 1C 3001 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- B e1 C 3002 CHIP CAP. 680pF 25V CH GRM39CH681J25PT K22144203 1- B e2 C 3003 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B d2 C 3004 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B g3 C 3008 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B c2 C 3009 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B d2 C 3015 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- B e2 C 3017 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B g2 C 3018 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B g3 C 3020 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B f1 C 3023 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B g3 C 3026 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- B e1 C 3028 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B c2 C 3029 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B c2 C 3032 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B h2 C 3036 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B c1 D 3013 LED SPMA10-1104Q7NC G2070878 1- A G1 D 3014 LED SPMA10-1104Q7NC G2070878 1- A G1 D 3016 LED SPMA10-1104Q7NC G2070878 1- A G2 D 3017 LED SPMA10-1104Q7NC G2070878 1- A A2 D 3018 LED SPMA10-1104Q7NC G2070878 1- A A1 D 3019 LED SPMA10-1104Q7NC G2070878 1- A A1 D 3025 DIODE BAS316 G2070716 1- B d1 D 3026 DIODE BAS316 G2070716 1- B d1 D 3027 DIODE BAS316 G2070716 1- B d1 D 3028 DIODE BAS316 G2070716 1- B d1 D 3030 DIODE BAS316 G2070716 1- B g1 DS3001 LCD A70680 G6090162 1- A D1 J 3001 CONNECTOR 30FLT-SM1-TB P1091142 1- B g2 J 3002 CONNECTOR B2B-PH-SM3-TBT P0091368 1- B h1 J 3004 CONNECTOR 52746-0890 P1091163 1- B d3 JP3003 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 4- B g1 JP3005 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 4- B g1 JP3008 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 4- B g2 Q 3001 IC LC75884W G1094014 1- B e1 Q 3004 TRANSISTOR CPH6102-TL G3070223 1- B c1 Q 3005 TRANSISTOR 2SC4154-T11-1E G3341548E 1- B c2 Q 3006 TRANSISTOR DTC143ZE TL G3070102 1- B f1 R 3001 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B e2 R 3005 CHIP RES. 120 1/10W 5% RMC1/10T 121J J24205121 1- B c1 R 3006 CHIP RES. 120 1/10W 5% RMC1/10T 121J J24205121 1- B c1 R 3010 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B c2 R 3011 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c1 R 3012 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c2 R 3013 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c2 R 3014 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B c2 R 3015 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B c2 R 3038 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e1 R 3041 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- B c1 R 3043 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- B c1 R 3044 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B c2 R 3046 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e2 R 3047 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e2 R 3048 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e2 R 3049 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e2 R 3997 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1-3 R 3998 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1-3

LAY ADR

PANEL Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

R 3999 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1-3 RL3001 RELAY DC12V AGQ200A12Z DC12V M1190188 1- B g1 S 3003 TACT SWITCH SKRPABE010 N5090133 1- A G1 S 3004 TACT SWITCH SKRPABE010 N5090133 1- A H1 S 3005 TACT SWITCH SKRPABE010 N5090133 1- A I1 S 3007 TACT SWITCH SKRPABE010 N5090133 1- A G1 S 3008 TACT SWITCH SKRPABE010 N5090133 1- A H1 S 3009 TACT SWITCH SKRPABE010 N5090133 1- A I1 S 3010 TACT SWITCH SKHHDU N5090080 1- A D3 S 3011 TACT SWITCH SKRPABE010 N5090133 1- A G2 S 3012 TACT SWITCH SKRPABE010 N5090133 1- A H2 S 3013 TACT SWITCH SKRPABE010 N5090133 1- A I2 S 3014 TACT SWITCH SKHHDU N5090080 1- A E3 S 3015 TACT SWITCH SKRPABE010 N5090133 1- A G3 S 3016 TACT SWITCH SKRPABE010 N5090133 1- A H3 S 3017 TACT SWITCH SKRPABE010 N5090133 1- A I3 S 3018 TACT SWITCH SKHHDU N5090080 1- A H4 S 3019 TACT SWITCH SKHHDU N5090080 1- A H3 S 3020 TACT SWITCH SKHHDU N5090080 1- A I4 S 3021 TACT SWITCH SKHHDU N5090080 1- A I3 S 3022 TACT SWITCH SKHHDU N5090080 1- A A4

DIFFUSER SHEET (LCD) RA0727100 1REFLECTOR SHEET (BLIND) RA0727200 1LIGHT GUIDE (LCD) RA0695900 1LCD HOLDER RA0696000 1REFLECTOR SHEET RA0696100 1REFLECTOR SHEET RA069610A 3INTER CONNECTOR RA0695800 1SPONGE RUBBER (LCD) RA0696200 1-

LAY ADR

GPS-INTERFACE Unit

Circuit Diagram

GPS-INTERFACE Unit

Parts Layout (Side A)

BA DCEF

TC7W04FU

(Q4019)

2SC4154 (E)

(Q4010, 4012)

GPS-INTERFACE Unit

Parts Layout (Side B)

ba dcef

GPS-INTERFACE Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

PCB with Components CB3183001

Printed Circuit Board AC051H000 FR011870B 1C 4014 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A C2 C 4016 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A C2 C 4034 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2 C 4040 CHIP TA.CAP. 10uF 6.3V TESVSP0J106M-8R K78080055 1- A B2 D 4009 LED SML-310FTT86KL G2071026 1- A A3 D 4011 DIODE 1SS355 TE-17 G2070470 1- A B2 J 4001 CONNECTOR SB20-13WS P0090620 1- A C1 J 4003 CONNECTOR XM2C-0942-232L P0091409 1- A A1 L 4001 M.RFC 22uH LK2125 220M-T L1690335 1L 4007 M.RFC 22uH LK2125 220M-T L1690335 1- A B1 L 4010 M.RFC 22uH LK2125 220M-T L1690335 1- A B1 L 4012 M.RFC 22uH LK2125 220M-T L1690335 1- A B1 L 4014 M.RFC 22uH LK2125 220M-T L1690335 1- A C1 Q 4010 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A A3 Q 4012 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A B2 Q 4013 PHOTO COUPLER TLP281(GB-TP) G0090037 1- A B2 Q 4019 IC TC7W14FU(TE12L) G1093321 1- A B2 R 4060 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C1 R 4063 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B1 R 4074 CHIP RES. 560 1/10W 5% RMC1/10T 561J J24205561 1- A A3 R 4098 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A3 R 4105 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B2 R 4108 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A B2 R 4110 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B2 R 4113 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B2 R 4115 CHIP RES. 330 1/4W 5% RMC1/4 331JATP J24245331 1- A A2 R 4122 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D2

LAY ADR

MIC Unit

Circuit Diagram

Parts Layout

Side BSide A

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

PCB with Components CB3199001

Printed Circuit Board AC051H000 FR0136100 1J 6001 CONNECTOR R41-2509R P1091243 1- A A1 J 6002 CONNECTOR B8B-ZR-SM3-TFT P0091414 1- B a1

LAY ADR

ENC Unit

Circuit Diagram

Parts Layout

Parts List

Side A

Side B

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

PCB with Components CB3200001

Printed Circuit Board AC051H000 FR0136200 1C 6101 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B J 6101 CONNECTOR 52746-0890 P1091163 1- B S 6101 ROTARY ENCODER EC11B15204AU Q9000837 1- A VR6101 POT.

RH96N74 23F B103 RY-7862

J60800285 1- A

LAY ADR

ALE Unit (Option)

Circuit Diagram

ALE Unit (Option)

Parts Layout

BA DCEF

ba dcef

Side BSide A

HD64F2134

(Q4009)

LH52256CT

(Q4001)

ADM202EARU

(Q4009)

2SC4047 (ZY)

(Q4006)

NJM2902V

(Q4007)

2SC4154 (E)

(Q4003, 4010, 4012,

4021)

BR24L64F

(Q4008)

M51945BFP

(Q4002)

2SD2211 (DQR)

(Q4004)

TC7W14FU

(Q4019)

TC7S04FU (E5)

(Q4023)

BA05FP

(Q4005)

MC2850 (A7)

(D4010)

ALE Unit (Option)

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

Printed Circuit Board AC051H000 FR011870B 1C 4001 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C4 C 4002 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A4 C 4003 AL.ELECTRO.CAP. 220uF 16V MVA16VC220MF80 K48120021 1- A C3 C 4004 AL.ELECTRO.CAP. 220uF 16V MVA16VC220MF80 K48120021 1- A B3 C 4005 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C4 C 4006 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E4 C 4007 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B3 C 4008 CAP. 0.047uF FC0H473ZTBR24 K60070002 1- A B3 C 4009 CHIP TA.CAP. 1.5uF 16V TESVA1C155M1-8R K78120020 1- A C4 C 4010 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2 C 4011 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B3 C 4012 AL.ELECTRO.CAP. 220uF 16V MVA16VC220MF80 K48120021 1- A A3 C 4013 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3 C 4014 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A C2 C 4017 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A C2 C 4018 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A C2 C 4019 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A C2 C 4020 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A C2 C 4021 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A C2 C 4026 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- A D2 C 4027 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3 C 4028 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D2 C 4029 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C2 C 4030 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A C3 C 4031 CHIP CAP. 470pF 50V B GRM188B11H471KA01D K22174805 1- A C2 C 4032 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C3 C 4033 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2 C 4034 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2 C 4035 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2 C 4036 CHIP CAP. 680pF 50V B GRM188B11H681KA01D K22174807 1- A C3 C 4037 CHIP CAP. 0.0047uF 50V B GRM188B11H472KA01D K22174833 1- A C2 C 4038 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2 C 4039 CHIP CAP. 0.0027uF 50V B GRM188B11H272KA01D K22174829 1- A C3 C 4040 CHIP TA.CAP. 10uF 6.3V TESVSP0J106M-8R K78080055 1- A B2 C 4041 CHIP CAP. 0.0012uF 50V B GRM188B11H122KA01D K22174826 1- A C3 C 4042 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2 C 4044 AL.ELECTRO.CAP. 10uF 16V RV2-16V100MB55-R K48120014 1- A C2 C 4045 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2 C 4047 CHIP CAP. 0.0015uF 50V B GRM188B11H152KA01D K22174827 1- A C3 C 4048 CHIP CAP. 0.0018uF 50V B GRM188B11H182KA01D K22174828 1- A C3 C 4051 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2 C 4052 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2 C 4053 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1 D 4001 DIODE RB521S-30 TE61 G2070642 1- A C3 D 4002 LED SML-310DTT86KL G2071024 1- A A4 D 4003 DIODE RB060L-40 TE25 G2070744 1- A C3 D 4004 DIODE D1F20-4063 G2070474 1- A A4 D 4005 DIODE RB060L-40 TE25 G2070744 1- A B3 D 4006 DIODE RB060L-40 TE25 G2070744 1- A B3 D 4008 DIODE RB521S-30 TE61 G2070642 1- A D4 D 4009 LED SML-310FTT86KL G2071026 1- A A3 D 4010 DIODE MC2850-T11-1 G2070704 1- A C2 D 4011 DIODE 1SS355 TE-17 G2070470 1- A B2 J 4001 CONNECTOR SB20-13WS P0090620 1- A C1 J 4003 CONNECTOR XM2C-0942-232L P0091409 1- A A1 L 4002 M.RFC 22uH LK2125 220M-T L1690335 1- A C1 L 4003 M.RFC 22uH LK2125 220M-T L1690335 1- A C1 L 4004 M.RFC 22uH LK2125 220M-T L1690335 1- A C1

LAY ADR

ALE Unit (Option)

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

L 4005 M.RFC 22uH LK2125 220M-T L1690335 1- A C1 L 4006 M.RFC 22uH LK2125 220M-T L1690335 1- A C1 L 4007 M.RFC 22uH LK2125 220M-T L1690335 1- A B1 L 4008 M.RFC 22uH LK2125 220M-T L1690335 1- A B1 L 4009 M.RFC 22uH LK2125 220M-T L1690335 1- A B1 L 4010 M.RFC 22uH LK2125 220M-T L1690335 1- A B1 L 4011 M.RFC 22uH LK2125 220M-T L1690335 1- A A1 L 4012 M.RFC 22uH LK2125 220M-T L1690335 1- A B1 L 4013 M.RFC 22uH LK2125 220M-T L1690335 1- A A3 L 4014 M.RFC 22uH LK2125 220M-T L1690335 1- A C1 Q 4001 IC LH52256CT-70LL G1093162 1- A E3 Q 4002 IC M51945BFP-600C G1091990 1- A C4 Q 4003 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A D4 Q 4004 TRANSISTOR 2SD2211 T100 QR G3422117Q 1- A C2 Q 4005 IC BA05FP-E2 G1093209 1- A B3 Q 4006 TRANSISTOR 2SC4047-TA G3340477 1- A D4 Q 4007 IC NJM2902V-TE1 G1091679 1- A C3 Q 4008 IC BR24L64F-WE2 G1093876 1- A E2 Q 4009 IC HD64F2134ATF20(FLASH) Q 4010 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A A3 Q 4011 IC ADM202EARU-REEL G1092958 1- A B2 Q 4012 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A B2 Q 4013 PHOTO COUPLER TLP281(GB-TP) G0090037 1- A B2 Q 4019 IC TC7W14FU(TE12L) G1093321 1- A B2 Q 4021 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A C2 Q 4023 IC TC7S04FU TE85R G1091530 1- A E1 R 4001 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D4 R 4003 CHIP RES. 8.2k 1/10W 5% RMC1/10T 822J J24205822 1- A C3 R 4004 CHIP RES. 1.8k 1/10W 5% RMC1/10T 182J J24205182 1- A C4 R 4007 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D4 R 4008 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D3 R 4009 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D3 R 4010 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C3 R 4011 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E2 R 4013 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E2 R 4014 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C3 R 4015 CHIP RES. 27k 1/16W 1% RMC1/16 273FTP J24183273 1- A D1 R 4016 CHIP RES. 27k 1/16W 1% RMC1/16 273FTP J24183273 1- A D1 R 4017 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3 R 4018 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3 R 4019 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3 R 4020 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3 R 4021 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3 R 4022 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3 R 4023 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3 R 4024 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2 R 4025 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2 R 4026 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2 R 4027 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2 R 4028 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2 R 4029 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E2 R 4030 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2 R 4031 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2 R 4032 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2 R 4033 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E2 R 4034 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E2 R 4035 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E2 R 4036 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E2 R 4037 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3



Please contact VERTEX STANDARD



1- A D2

LAY ADR

ALE Unit (Option)

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

R 4038 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E2 R 4039 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3 R 4041 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3 R 4042 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E2 R 4043 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3 R 4044 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E2 R 4046 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A B3 R 4047 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3 R 4048 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E2 R 4049 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3 R 4050 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E2 R 4051 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3 R 4053 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D3 R 4054 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2 R 4055 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D3 R 4056 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D2 R 4057 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D3 R 4058 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D2 R 4059 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D3 R 4060 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C1 R 4062 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2 R 4063 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B1 R 4064 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2 R 4068 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D2 R 4070 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D2 R 4071 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C3 R 4074 CHIP RES. 560 1/10W 5% RMC1/10T 561J J24205561 1- A A3 R 4076 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D2 R 4078 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D2 R 4079 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D3 R 4080 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D3 R 4081 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D3 R 4082 CHIP RES. 1.2k 1/16W 5% RMC1/16 122JATP J24185122 1- A D3 R 4083 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D3 R 4084 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D3 R 4085 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2 R 4086 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2 R 4087 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D2 R 4088 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2 R 4089 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2 R 4090 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2 R 4091 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2 R 4092 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2 R 4093 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D2 R 4094 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D2 R 4095 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2 R 4096 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2 R 4097 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D2 R 4098 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A3 R 4099 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B2 R 4100 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A C2 R 4101 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2 R 4102 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2 R 4103 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C3 R 4104 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C3 R 4105 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B2 R 4106 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C3 R 4107 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C2 R 4108 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A B2

LAY ADR

ALE Unit (Option)

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

R 4109 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C3 R 4110 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B2 R 4111 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C2 R 4112 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C2 R 4113 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B2 R 4114 CHIP RES. 330 1/4W 5% RMC1/4 331JATP J24245331 1- A B2 R 4117 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C3 R 4118 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B2 R 4119 CHIP RES. 270 1/16W 1% RMC1/16 271FTP J24183271 1- A B2 R 4120 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C3 R 4121 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C3 R 4123 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A E1 R 4126 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D1 R 4127 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2 R 4128 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 1- A C1 S 4001 TACT SWITCH SKQDAA N5090051 1- A D3 S 4002 SLIDE SWITCH SSSS820201 N6090107 1- A A3 S 4003 SLIDE SWITCH SSSS820201 N6090107 1- A A3 VR4001 POT. 10k PVG5A103A01R00 J51832103 1- A E1 X 4001 XTAL OSC 16.8MHz TTS05VS-P2 16.8MHZ H9500760 1- A E1

LAY ADR

100

Vertex Standard VX-1700 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Specifications

Exploded View & Miscellaneous Parts

Block Diagram

Connection Diagram

Circuit Description

Receive Signal Path

Transmit Signal Path

PLL Circuit

Control Circuit

TX/RX Control

Connector Pinout Diagrams / Slide Switch Setting

Alignment

Required Test Equipment

Alignment Preparation & Precautions

Reference & Local Alignment

PLL REFERENCE FREQUENCY ALIGNMENT

2ND LOCAL OUTPUT LEVEL

PLL Alignment

VCO VCV ALIGNMENT

PLL OUTPUT LEVEL

Transmitter Alignment

TX IF COILS ALIGNMENT

Receiver Alignment

RX IF COILS ALIGNMENT

PA Unit Alignment

PRE-DRIVER SECTION IDLING CURRENT ALIGNMENT

DRIVER SECTION IDLING CURRENT ALIGNMENT

CM COUPLER BALANCE

Software Menu Alignment

TX OUTPUT POWER ALIGNMENT

REV ALC ALIGNMENT

SWR ALIGNMENT

ALE-1 Automatic Link Establishment Unit Installation

CE77 PC Programming Software

Main Programming Screen (VFO Screen)

Main Programming Screen (Memory Screen)

File Menu

Edit Menu

View Menu

Common Menu

A1A (CW) FUNCTION PARAMETERS

HARDWARE PARAMETERS

KEY FUNCTION PARAMETERS

MARKETING PARAMETERS

MISCELLANEOUS PARAMETERS

SYSTEM PARAMETERS

OPTION PARAMETERS

Selcall Menu

SELCALL PARAMETERS

TX ID PARAMETER

TELEPHONE NUMBER PARAMETERS

ALE Menu

ALE COMMON PARAMETERS

AMD MESSAGE PARAMETERS

OTHER STATION ADDRESS PARAMETERS

ALE MISCELLANEOUS PARAMETERS

AUTO DIAL PARAMETER

NET MEMBER ADDRESS PARAMETER

SCAN CHANNEL LIST PARAMETERS

Channel Menu

CHANNEL ALLOCATION PARAMETER

Radio Menu

UPLOAD PARAMETER

DOWNLOAD PARAMETER

REVIVE PARAMETER

Programming Example 1

Programming Example 2

Programming Example 3

Programming Example 5

Programming Example 4

MAIN Unit

Circuit Diagram

Parts Layout (Side A)

Parts Layout (Side B)

Parts List
