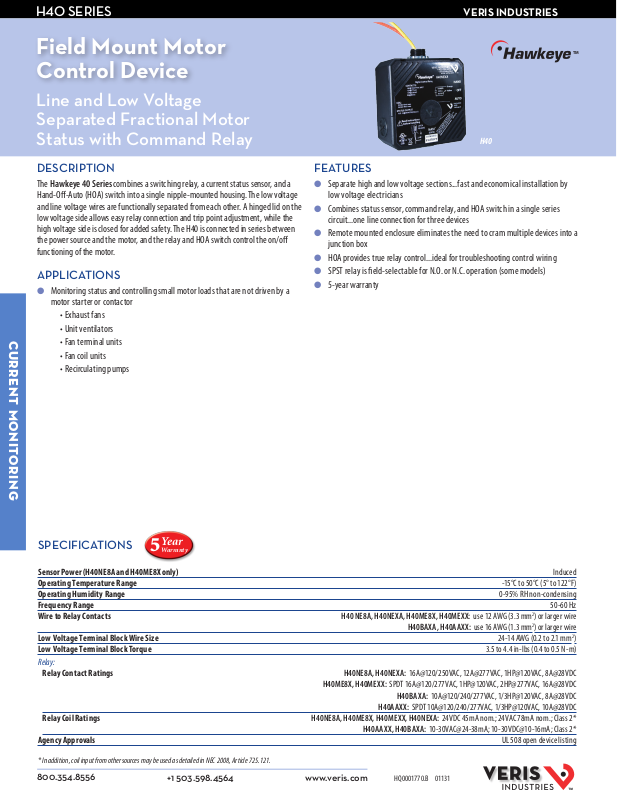

Veris H40 Datasheet
H40 SERIES
VERIS INDUSTRIES
Field Mount Motor
Control Device
Line and Low Voltage
Separated Fractional Motor
Status with Command Relay
DESCRIPTION
The Hawkeye 40 Series combines a switching relay, a current status sensor, and a
Hand-O-Auto (HOA) switch into a single nipple-mounted housing. The low voltage
and line voltage wires are functionally separated from each other. A hinged lid on the
low voltage side allows easy relay connection and trip point adjustment, while the
high voltage side is closed for added safety. The H40 is connected in series between
the power source and the motor, and the relay and HOA switch control the on/o
functioning of the motor.
APPLICATIONS
● Monitoring status and controlling small motor loads that are not driven by a
motor starter or contactor
• Exhaust fans
• Unit ventilators
current monitoring
• Fan terminal units
• Fan coil units
• Recirculating pumps
TM
H40
FEATURES
● Separate high and low voltage sections...fast and economical installation by
low voltage electricians
● Combines status sensor, command relay, and HOA switch in a single series
circuit...one line connection for three devices
● Remote mounted enclosure eliminates the need to cram multiple devices into a
junction box
● HOA provides true relay control...ideal for troubleshooting control wiring
● SPST relay is eld-selectable for N.O. or N.C. operation (some models)
● 5-year warranty
SPECIFICATIONS
Sensor Power (H40NE8A and H40ME8X only) Induced
Operating Temperature Range -15°C to 50°C (5° to 122°F)
Operating Humidity Range 0-95% RH non-condensing
Frequency Range 50-60 Hz
Wire to Relay Co ntacts H40 NE8A, H40NEX A, H40ME8X, H40MEXX: use 12 AWG (3.3 mm2) or larger wire
H40BAXA, H40AAXX: use 16 AWG (1.3 mm2) or larger wire
Low Voltage Terminal Block Wire Size 24-14 AWG (0.2 to 2.1 mm2)
Low Voltage Terminal Block Torque 3.5 to 4.4 in-lbs (0.4 to 0.5 N-m)
Relay:
Relay Contact Ratings H40NE8A, H40NEXA: 16A@120/250VAC, 12A@277VAC, 1HP@120VAC, 8A@28VDC
H40ME8X, H40MEXX: SPDT 16A@120/277VAC, 1HP@120VAC, 2HP@277VAC, 16A@28VDC
H40BAX A: 10A@120/240/27 7VAC, 1/3HP@120VAC, 8A@28VDC
H40AAXX: SPDT 10A@120/240/277VAC, 1/3HP@120VAC, 10A@28VDC
Relay Coil Ratings H40NE8A, H40ME8X, H40MEXX, H4 0NEXA: 24VDC 45mA nom.; 24VAC 78mA nom.; Class 2*
H40AAX X, H40BAXA: 10-30VAC@24-38mA; 10-30VDC@10-16mA; Class 2*
Agency Approvals UL 508 open device listing
* In addition, coil input from other sources may be used as detailed in NEC 2008, Article 725.121.
800.354.8556
Year
5
Warranty
+1 503.598.4564
www.veris.com
HQ00 01770.B 01131
800.354.8556
+1 503.598.4564
www.veris.com
DIMENSIONAL DRAWING
Line voltage
wires
1.6”
(40 mm)
(106 mm)
1/2” NPT
4.2”
MOUNTING OPTIONS
To Motor
4.2”
(106 mm)
APPLICATION/WIRING DIAGRAM
H40ME8X/H40NE8A
In Series
Current
Sensor
4.0”
(101 mm)
Power
Source
Relay
Class 1 Voltage
Class 2 Voltage
H40NEXA/H40MEXX/H40BAXA/H40AAXX
Power
Source
Status LED
Setpoint Screw
= Circuit Path
In Series
Fan/Motor
Fan/Motor
HOA
Switch
Relay
Terminal Block
Status
Terminal Block
Wire Nuts
1/2” NPT
Low voltage side unlatches
and cover swings upward
RoHS
ORDERING INFORMATION
MODEL AMPERAGE
STATUS OUTPUT TRIP POINT RELAY RELAY COIL HOA
Compliant
RANGE
H40NE8A 0.25 - 16A N.O. 1.0A@30VAC/DC Adjustable SP ST, N .O
H40ME8X 0.25 - 16A N.O. 1.0A@30VAC/DC Adjustable SPST, FS N.O. or N.C.
H40NEXA 0.25 - 16A Relay only SP ST, N. O
H40MEXX 0.25 - 16A Relay only SPST, FS N.O. or N.C.
H40BAXA 0.25 - 10A Relay only S PST, N.O
H40AAXX 0.25 - 10A Relay only SPST, FS N.O. or N.C.
Class 1 Voltage
Class 2 Voltage
Relay
24VDC 45mA nom.
24VAC 78mA nom.
24VDC 45mA nom.
24VAC 78mA nom.
24VDC 45mA nom.
24VAC 78mA nom.
24VDC 45mA nom.
24VAC 78mA nom.
10-30 VAC@24-38m A
10-30 VDC@10-16m A
10-30 VAC@24-38m A
10-30 VDC@10-16m A
Status LED
= Circuit Path
UL RoHS
SWITCH
n n n
n n
n n n
n n
n n n
n n
HOA
Switch
Relay
Terminal Block
current monitoring
HQ00 01770.B 01131
