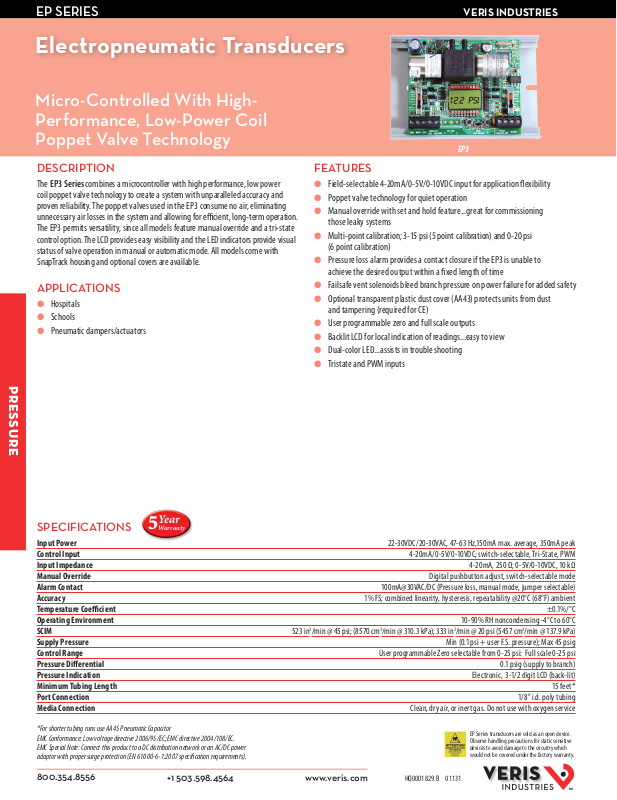

Veris EP3 Datasheet

EP SERIES

EP Series transducers are sold as an open device.

Electropneumatic Transducers

Micro-Controlled With HighPerformance, Low-Power Coil

VERIS INDUSTRIES

Poppet Valve Technology

DESCRIPTION

The EP3 Series combines a microcontroller with high performance, low power coil poppet valve technology to create a system with unparalleled accuracy and proven reliability. The poppet valves used in the EP3 consume no air, eliminating unnecessary air losses in the system and allowing for ecient, long-term operation. The EP3 permits versatility, since all models feature manual override and a tri-state control option. The LCD provides easy visibility and the LED indicators provide visual status of valve operation in manual or automatic mode. All models come with SnapTrack housing and optional covers are available.

APPLICATIONS

● Hospitals

● Schools

● Pneumatic dampers/actuators

PRESSURE

EP3

FEATURES

● Field-selectable 4-20mA/0-5V/0-10VDC input for application exibility

● Poppet valve technology for quiet operation

● Manual override with set and hold feature...great for commissioning

those leaky systems

● Multi-point calibration; 3-15 psi (5 point calibration) and 0-20 psi

(6 point calibration)

● Pressure loss alarm provides a contact closure if the EP3 is unable to

achieve the desired output within a xed length of time

● Failsafe vent solenoids bleed branch pressure on power failure for added safety

● Optional transparent plastic dust cover (AA43) protects units from dust

and tampering (required for CE)

● User programmable zero and full scale outputs

● Backlit LCD for local indication of readings...easy to view

● Dual-color LED...assists in trouble shooting

● Tristate and PWM inputs

Year

SPECIFICATIONS

Input Power 22-30VDC/20-30VAC, 47-63 Hz,150mA ma x. average, 350mA peak Control Input 4-20mA/0 -5V/0-10VDC ; switch-select able, Tri-State, PWM Input Impedance 4-20mA, 250 Ω; 0-5V/0-10VDC, 10 kΩ Manual Override Digital pushbutton adjust, switch-selectable mode Alarm Contact 100mA@30VAC/DC (Pressure loss, manual mode, jumper selectable) Accurac y 1% FS; combined linearity, hysteresis, repeat ability @20°C (68°F) ambient Temperature Coecient ±0 .1%/ °C Operating Environment 10-90% RH noncondensing -4°C to 60°C SCIM 523 in3/min @ 45 psi; (8570 cm3/min @ 310.3 kPa); 333 in3/min @ 20 psi (5457 cm3/min @ 137.9 kPa) Supply Pressure Min (0.1 psi + user F.S. pressure); Max 45 psig Control Range User programmable Zero sele ctable from 0-25 psi: Full scale 0-25 psi Pressure Dierential 0.1 psig (supply to branch) Pressure Indication Electronic, 3-1/2 digit LCD (back-lit) Minimum Tubing Length 15 fe et* Port Connection 1/8” i.d. poly tubing Media Connection Clean, dry air, or inert gas. Do not use with oxygen service

*For shorter tubing runs use AA45 Pneumatic Capacitor EMC Conformance: Low voltage directive 2006/95/EC; EMC directive 2004/108/EC. EMC Special Note: Connect this product to a DC distribution network or an AC/DC power adaptor with proper surge protection (EN 61000-6-1:2007 specication requirements).

800.354.8556

Warranty

+1 503.598.4564

www.veris.com

HQ0001829.B 01131

Observe handling precautions for static sensitive devices to avoid damage to the circuitry which would not be covered under the factory warranty.

800.354.8556

+1 503.598.4564

APPLICATION/WIRING DIAGRAMS

Current/Voltage Control Tri-state Control

www.veris.com

AIR COMPRESSOR

20-45psi

Regulator

GND

POWER SOURCE

INPUT

TRAP/ FILTER

+24V

CONFIGURATION

INPUT VOLTAGE

4-20mA

INPUT

Voltage Tristate PWM Network Control

0-10V 0-5V

TRI-PULL-UP

ON OFF

BRANCH

CH2

CH1/PWM

4-20mA

0-10V

ALARM CONTACTS

0-10V PROCESS METER

Digital Input (Contact Closure)

Analog (Out 9-20mA) Common

• Input switch set to voltage (0-5VDC or 0-10VDC)

• Input volt jumper set to either 0-5VDC or 0-10VDC

• Input switch set to 4-20mA

• Output jumper set to 0-10VDC

ALARM

SETTING

OUTPUT

OPERATION

MODE

P-LOSS MAN

4-20mA 0-10V

Tristate Timing Network FS Point Zero RUN

AIR COMPRESSOR

20-45psi

Regulator

GND

POWER SOURCE

INPUT

TRAP/ FILTER

+24V

CH2

CH1/PWM

CH2

Subtract

CH1

Pressure

DIMENSIONAL DRAWINGS

4.9"

(125 mm)

BRANCH

4-20mA

0-10V

ALARM CONTACTS

PWM CONTACT

TRI-STATE CONTACTS

• Input switch set to "TRI-STATE"

• Tri-State jumper set to "ON"

Add Pressure

3.5"

(89 mm)

GND

INPUT

24V

TRISTATE

Subtract

CH2

CH1/PW

Pressure

Auto

Add Pressure

ORDERING INFORMATION

Output

EP3

0 = None 3 = Analog out put:

0-10VDC, or 4-20mA, selectable

EP 3 3 3 1 S 2

Feedback

= Pressure Loss Alarm, or Manual Mode Alarm

Examp le:

Failsafe

0 = None 1 = Vent on

Powe r Fail

Option = C over Plate

ACCESSORIES

Steel Bracket (AA23), Dust cover (AA43), Pneumatic Capacitor (AA45),

Triac Adapter (AA49)

AA45

Manual

OUTPUT

4-20mA/0-10V

US or EU

S = Standard C = CE, includ es

cover plate

AA43

ALARM

Available

Option

Blank = None 2 = EP Cover Plate

AA23

AA49

4.9"

(125 mm)

3.9"

(94 mm)

pressure

1.8"

(46 mm)

Dust Cover

SIDE VIEW FRONT VIEW

2.1"

(53 mm)

HQ0001829.B 01131
