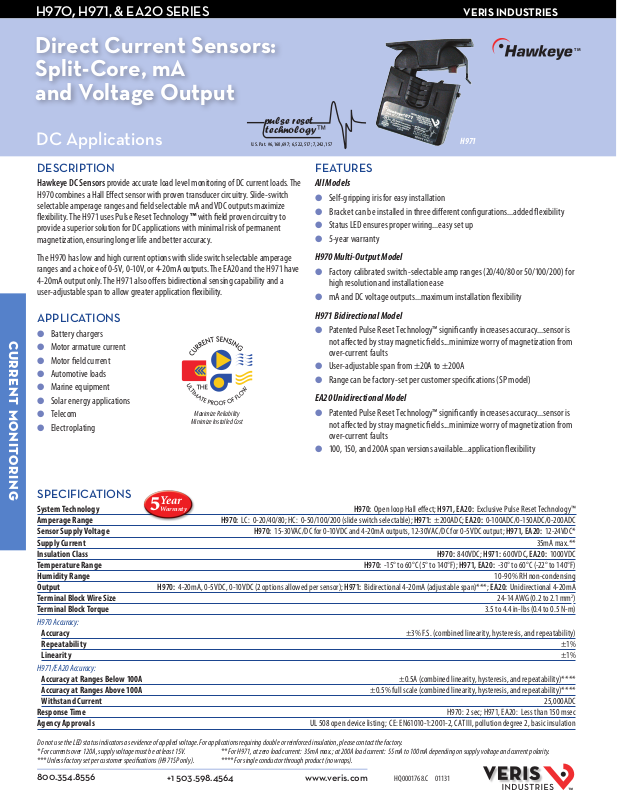

H970, H971, & EA20 SERIES

VERIS INDUSTRIES

Direct Current Sensors: Split-Core, mA and Voltage Output

DC Applications

DESCRIPTION

Hawkeye DC Sensors provide accurate load level monitoring of DC current loads. The H970 combines a Hall Eect sensor with proven transducer circuitry. Slide-switch selectable amperage ranges and eld selectable mA and VDC outputs maximize exibility. The H971 uses Pulse Reset Technology™ with eld proven circuitry to provide a superior solution for DC applications with minimal risk of permanent magnetization, ensuring longer life and better accuracy.

The H970 has low and high current options with slide switch selectable amperage ranges and a choice of 0-5V, 0-10V, or 4-20mA outputs. The EA20 and the H971 have 4-20mA output only. The H971 also oers bidirectional sensing capability and a user-adjustable span to allow greater application exibility.

APPLICATIONS

● Battery chargers

current monitoring

● Motor armature current

● Motor eld current

● Automotive loads

● Marine equipment

● Solar energy applications

● Telec om

● Electroplating

Maximize Reliability

Minimize Installed Cost

pulse reset

technology™

U.S. Pat. #6,160,697; 6,522,517; 7,242,157

FEATURES

All Models

● Self-gripping iris for easy installation

● Bracket can be installed in three dierent congurations...added exibility

● Status LED ensures proper wiring...easy set up

● 5-year warranty

H970 Multi-Output Model

● Factory calibrated switch-selec table amp ranges (20/40/80 or 50/100/200) for

● mA and DC voltage outputs...maximum installation exibility

H971 Bidirectional Model

● Patented Pulse Reset Technology™ signicantly increases accuracy...sensor is

● User-adjustable span from ±20A to ±200A

● Range can be factory-set per customer specications (SP model)

EA20 Unidirectional Model

● Patented Pulse Reset Technology™ signicantly increases accuracy...sensor is

● 100, 150, and 200A span versions available...application exibility

H971

high resolution and installation ease

not aected by stray magnetic elds...minimize worry of magnetization from over-current faults

SPECIFICATIONS

System Technology H970: Open lo op Hall eect; H971, EA20: Exclusive Pulse Reset Technology™ Amperage Range H970: LC: 0-20/40/80; HC: 0-50/100/200 (slide switch selectable); H971: ±200ADC; EA 20: 0-100AD C/0-150AD C/0-200ADC Sensor Supply Voltage H970: 15-30VAC/DC for 0-10VDC and 4-20mA output s, 12-30VAC/DC for 0-5VDC output; H971, EA20: 12-24V DC* Supply Current 35m A max .** Insulation Class H970: 84 0VDC; H971: 600VDC, EA20: 1000VDC Temperature Range H970: -15° to 60°C (5° to 140°F); H971, EA20: -30° to 60°C (-22° to 140°F) Humidity Range 10-90% RH non-condensing Output H970: 4-20mA, 0-5VDC, 0-10VDC (2 options allowed per sensor); H9 71: Bidirectional 4-20mA (adjustable span)***; EA20: Unidirectional 4-20mA Terminal Block Wire Size 24-14 AWG (0.2 to 2.1 mm2) Terminal Block Torque 3.5 to 4.4 in-lbs (0.4 to 0.5 N-m)

H970 Accuracy:

Accurac y ±3% F.S. (combined lineari ty, hys teresis, and repeatability) Repeatability ±1% Linearit y ±1%

H971/EA20 Accuracy:

Accurac y at Ranges Below 100A ±0.5A (combined linearity, hysteresis, and repeatability)**** Accurac y at Ranges Above 100A ±0.5% full scale (combined linearity, hysteresis, and repeatability)**** Withstand Current 25,000ADC Response Time H970: 2 sec; H971, EA20: Less than 150 msec Agency Approvals UL 508 open device listing; CE: EN61010-1:2001-2, CAT III, pollution degree 2, basic insulation

Do not use the LED status indicators as evidence of applied voltage. For applications requiring double or reinforced insulation, please contact the factory. * For currents over 120A, supply voltage must be at least 15V. ** For H971, at zero load current: 35mA max.; at 200A load current: 55mA to 100mA depending on supply voltage and current polarity. *** Unless factory set per customer specications (H971SP only). **** For single conductor through product (no wraps).

800.354.8556

Year

Warranty

+1 503.598.4564

www.veris.com

HQ00 01768.C 01131

800.354.8556

+1 503.598.4564

www.veris.com

DIMENSIONAL DRAWING

Removable Mounting Bracket

Bracket can be mounted on three sides for added installation exibility.

**3.1”

(79 mm)

1.1”

(26 mm)

0.8”

(21 mm)

1.0”

(25 mm)

Self-gripping Iris

2.8”

(70 mm)

Ø 0.3”

(8 mm)

3.0”

(76 mm)

2.5”

(64 mm)

1.4”*

(36 mm)

* Terminal block may extend up to 1/8” over the height dimensions shown. ** Slide switch may extend up to 1/4” over the height dimensions shown

H971 BIDIRECTIONAL OUTPUT

Scale software as shown

APPLICATION/WIRING DIAGRAMS

H970

CONTACTOR

CONTROLLER

Voltage

+ –

Load

Sensor Supply

0-5V /0-10V/4-20mA

H970/EA20 LINEAR OUTPUT

Scale software as shown

CONTROLLER

4-20mA

Power

Gnd

H971/ EA20

200A

Span

179

rosneS tnerruC DC

Current Flow

CONTACTOR

Load

SEIRT

227

DN I

9 n

655

o ge

REV

8-4

-00

n al t

roP

12-24 VDC

4-20

Gnd Power

20mA

20mA/5/10VDC**

12mA

SENSOR OUTPUT

4mA

-200A* +200A*0A

SENSED AMPS

*Field Adjustable from ±20A to ±200A

(not applicable to customer-specied factory scaled models)

ORDERING INFORMATION

MODEL PULSE RESET

TECHNOLOGY

AMPERAGE RANGE

(DC)

SENSOR OUTPUT HOUSING STATUS LED UL CE RoHS

SENSOR OUTPUT

4mA/0VDC**

*Slide-Switch Selectable ** Voltage option not available on EA20

SENSED AMPS

H970LC: 20/40/80A* H970HC: 50/100/200A* EA20: 100/150/200A

RoHS

Compliant

Hawkeye Series

H971

H971S P

H970LCA

H970LCB 4-20mA and 0-10VDC Split-core

H970HCA

H970HCB 4-20mA and 0-10VDC Split-core

0 - 200A Bidirectional 4-20mA Split-core

0 - 200A* Bidirectional 4-20mA Split-core

0 to 20/40/80A

0 to 50/100/200A

4-20mA and 0-5VDC Split-core

n n n n

EA Series

EA20 BB010

EA 20BB0 15

EA20BB020

0-100A Unidirectional 4-20mA Split-core

0-150A Unidirectional 4-20mA Split-core

0-200A Unidirectional 4-20mA Split-core

n **

* Range set in factory per customer specied value from 0 to ±20A through 0 to ±199A. ** UL Recognized

current monitoring

ACCESSORIES

DIN Rail Clip Set (AH01) DIN Rail (AV01) and DIN Stop Clip (AV02)

AV02

AH01

AV01

n n
